Derivations of 3 chapters

TickleYourMind
PhysicsWithHimanshu
IIT JEE Mains/Advanced, NEET, BITSAT, CBSE Board Himanshu Bhandari (B.Tech, IIT G) +91 9867530456

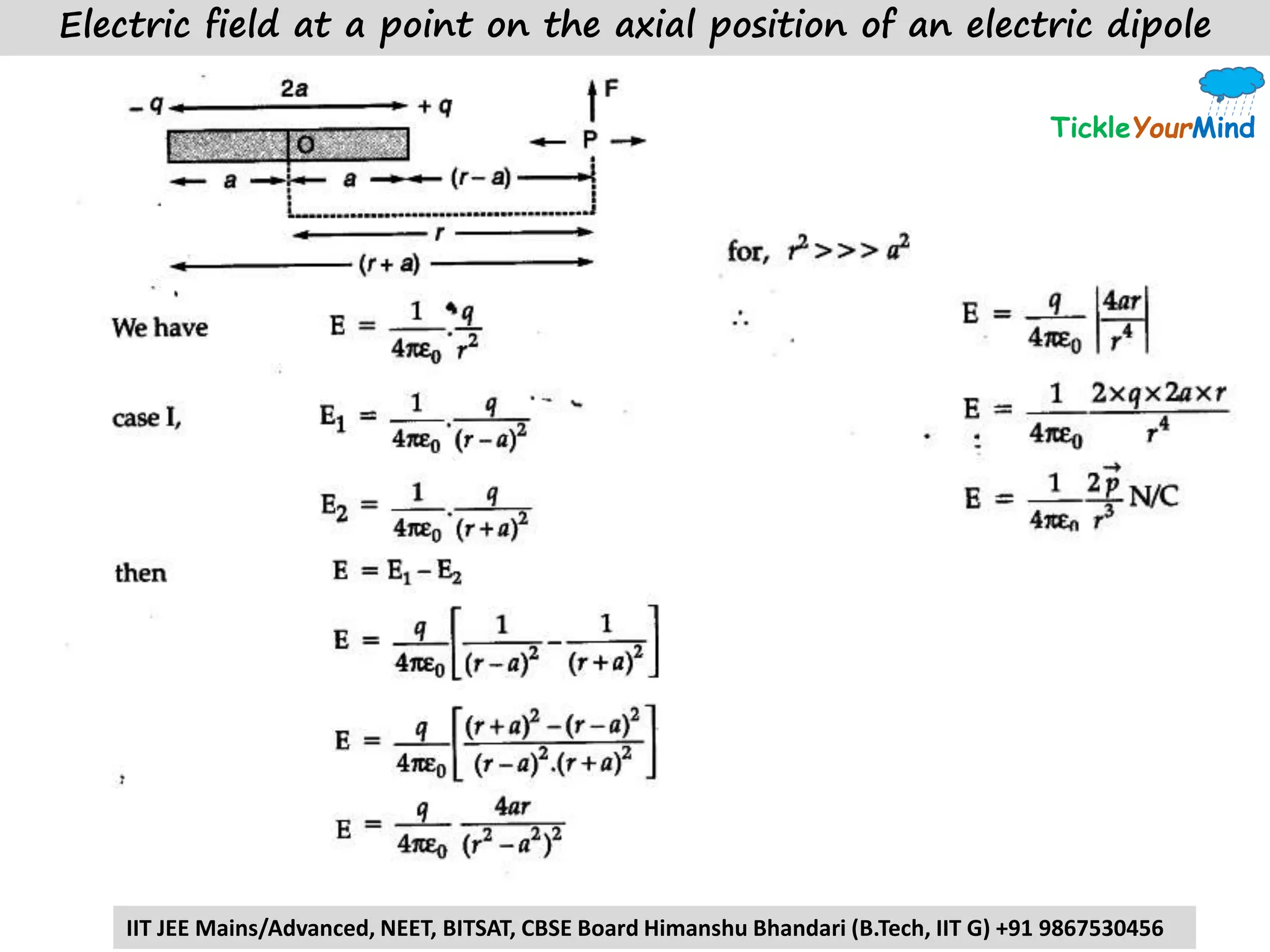

Electric field at a point on the axial position of an electric dipole

TickleYourMind
PhysicsWithHimanshu
Electric field at a point on the equatorial position of an electric dipole

TickleYourMind
PhysicsWithHimanshu

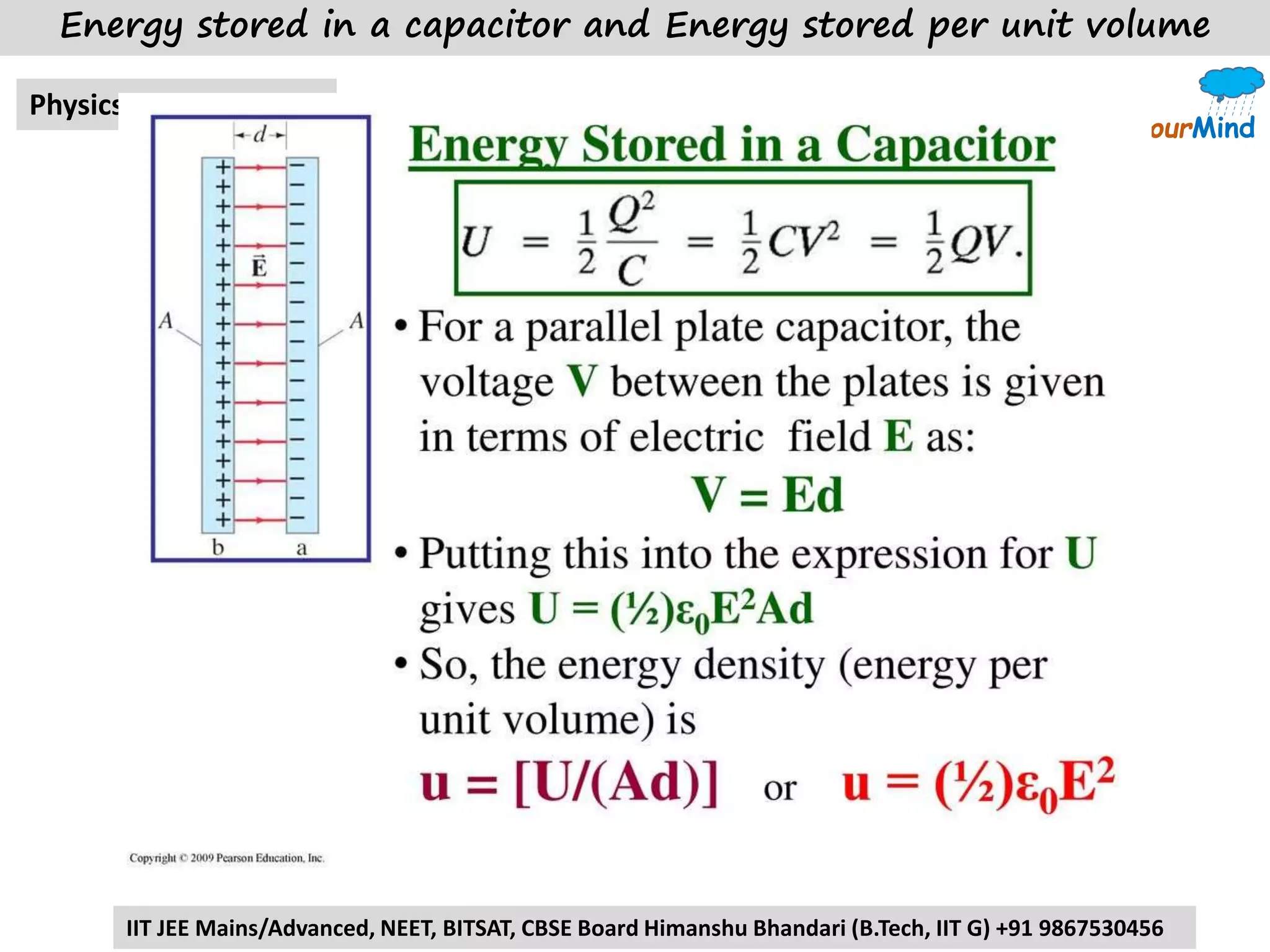

Energy stored in a capacitor and Energy stored per unit volume

TickleYourMind
PhysicsWithHimanshu

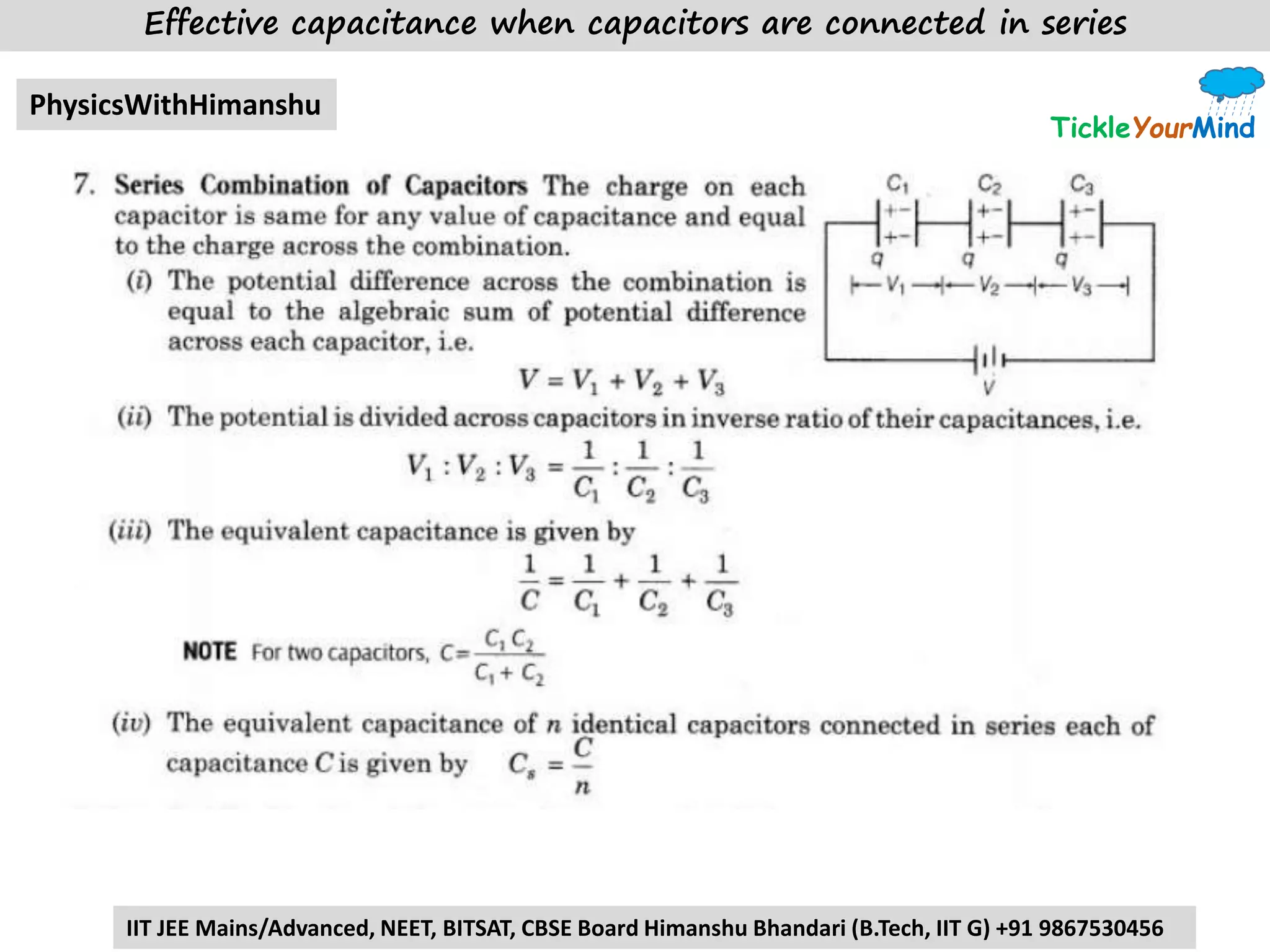

Effective capacitance when capacitors are connected in series

TickleYourMind
PhysicsWithHimanshu

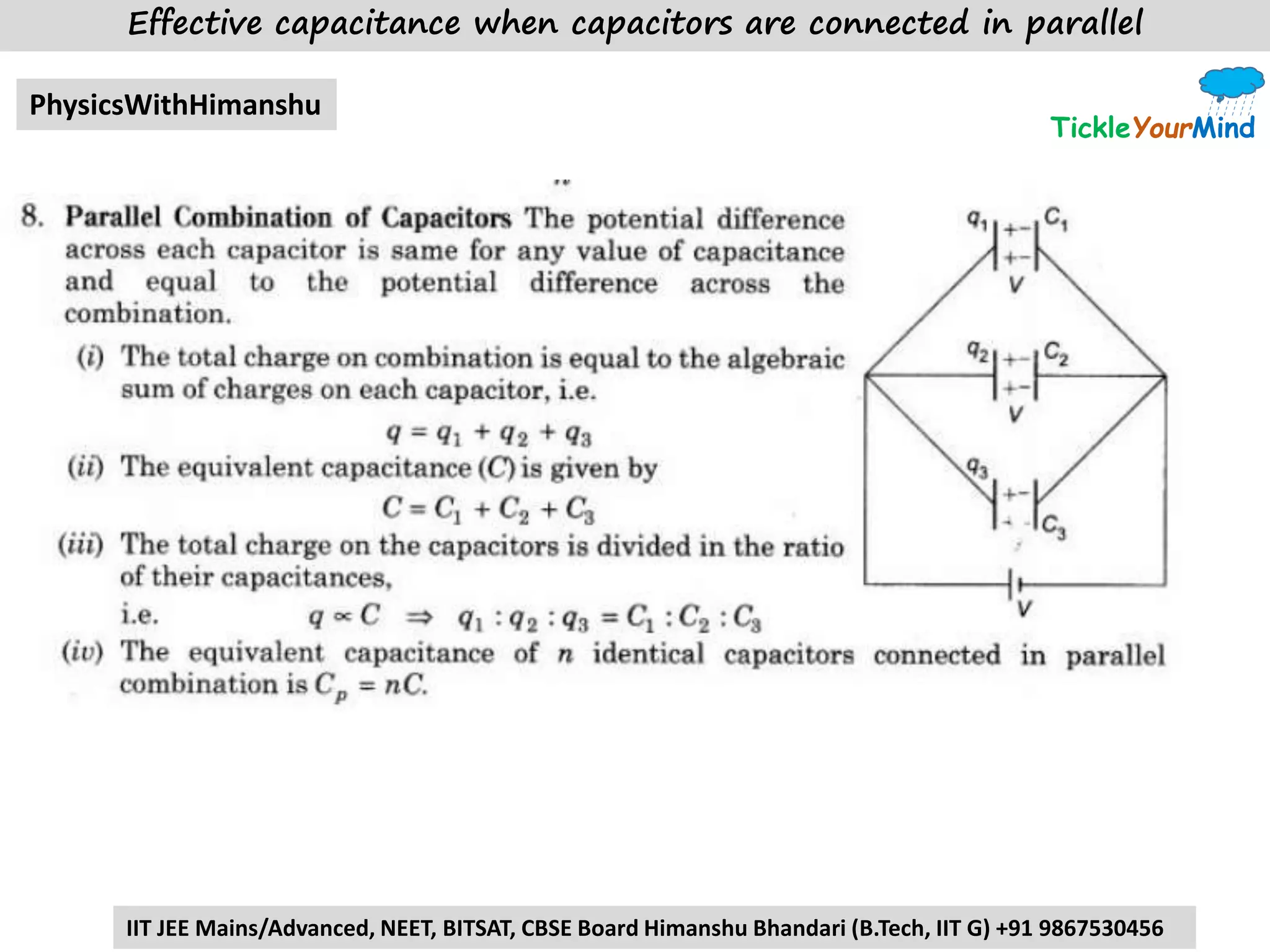

Effective capacitance when capacitors are connected in parallel

TickleYourMind
PhysicsWithHimanshu
Capacitance of Parallel Plate Capacitor

TickleYourMind
PhysicsWithHimanshu

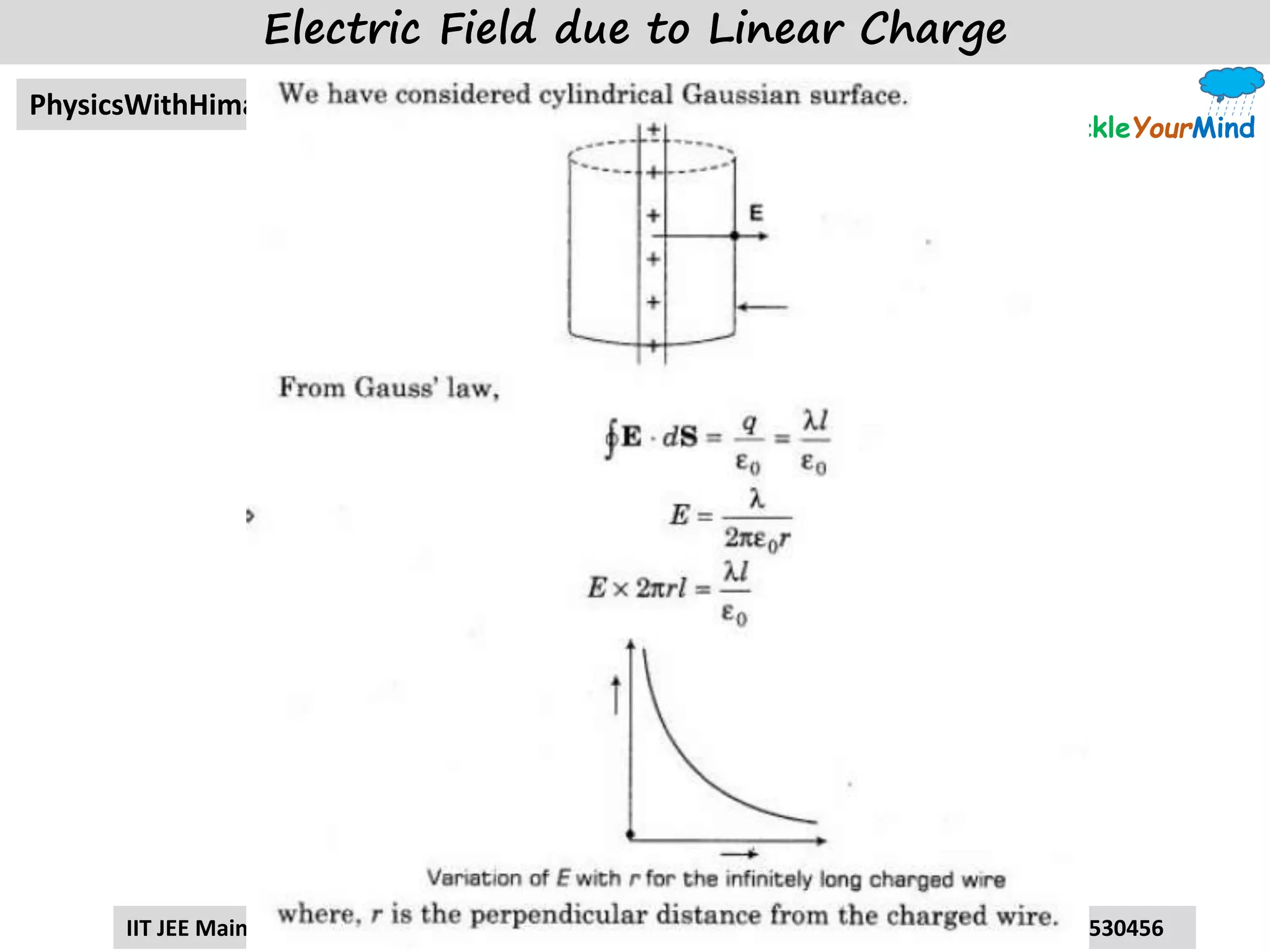

Electric Field due to Linear Charge

TickleYourMind
PhysicsWithHimanshu
Electric Field due to Plane Sheet
For an infinite sheet of charge, the electric field will be perpendicular to
the surface. Therefore only the ends of a cylindrical Gaussian surface will
contribute to the electric flux . In this case a cylindrical Gaussian surface
perpendicular to the charge sheet is used. The resulting field is half that of a
conductor at equilibrium with this surface charge density.

TickleYourMind
PhysicsWithHimanshu
Electric field between two parallel plates

TickleYourMind
PhysicsWithHimanshu
Electric field due to thin Spherical Shell

TickleYourMind
PhysicsWithHimanshu
Electric field inside a Charged Sphere

TickleYourMind
PhysicsWithHimanshu
Torque on an electric dipole in a uniform electric field

TickleYourMind
PhysicsWithHimanshu

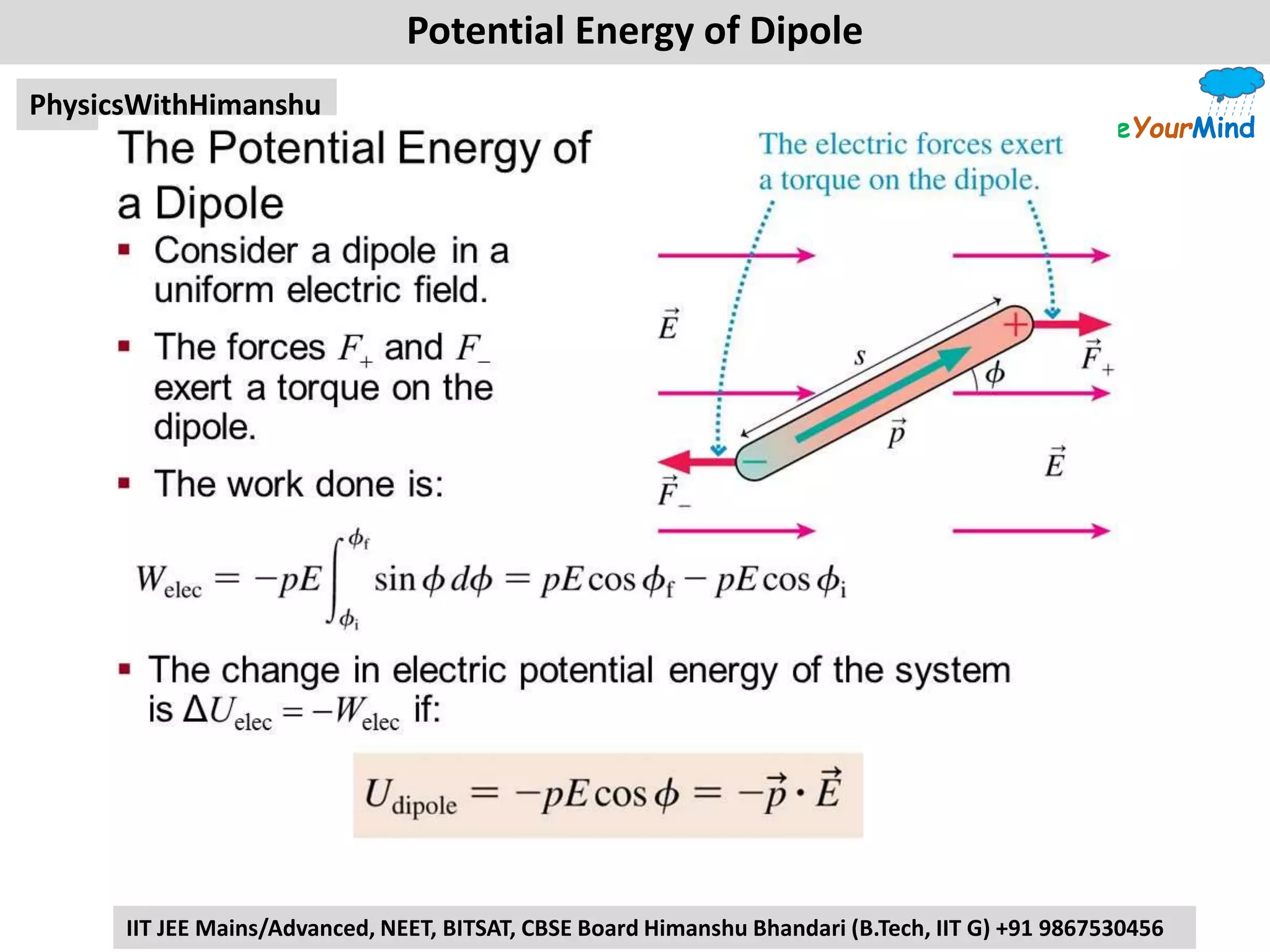

Potential Energy of Dipole

TickleYourMind
PhysicsWithHimanshu
Electric Field and Potential Relation

TickleYourMind
PhysicsWithHimanshu

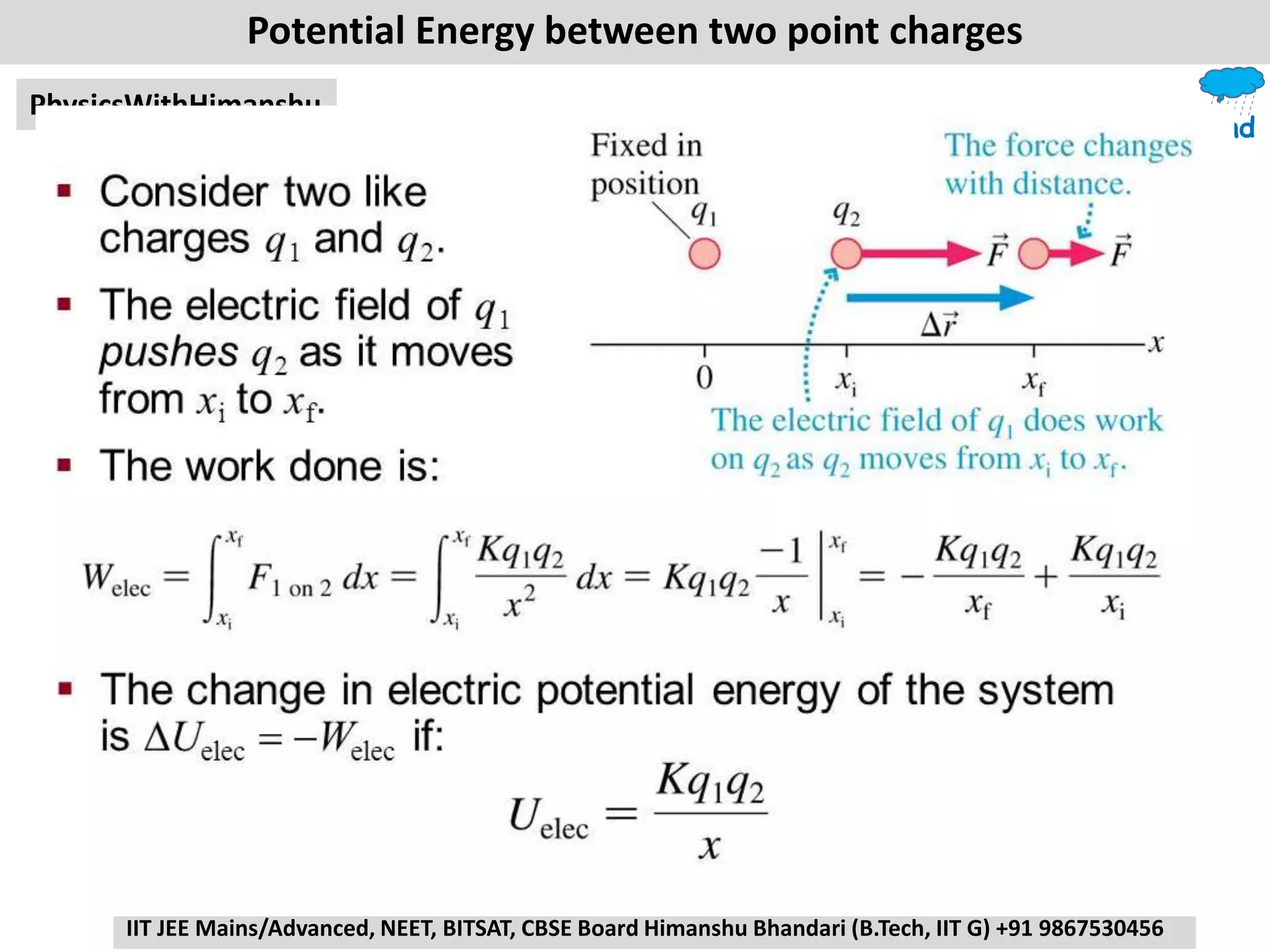

Potential Energy between two point charges

TickleYourMind
PhysicsWithHimanshu
Potential due to multiple charges

TickleYourMind
PhysicsWithHimanshu
Capacitor with a Dielectric Slab

TickleYourMind
PhysicsWithHimanshu
Capacitor with a Metallic Sheet

TickleYourMind
PhysicsWithHimanshu

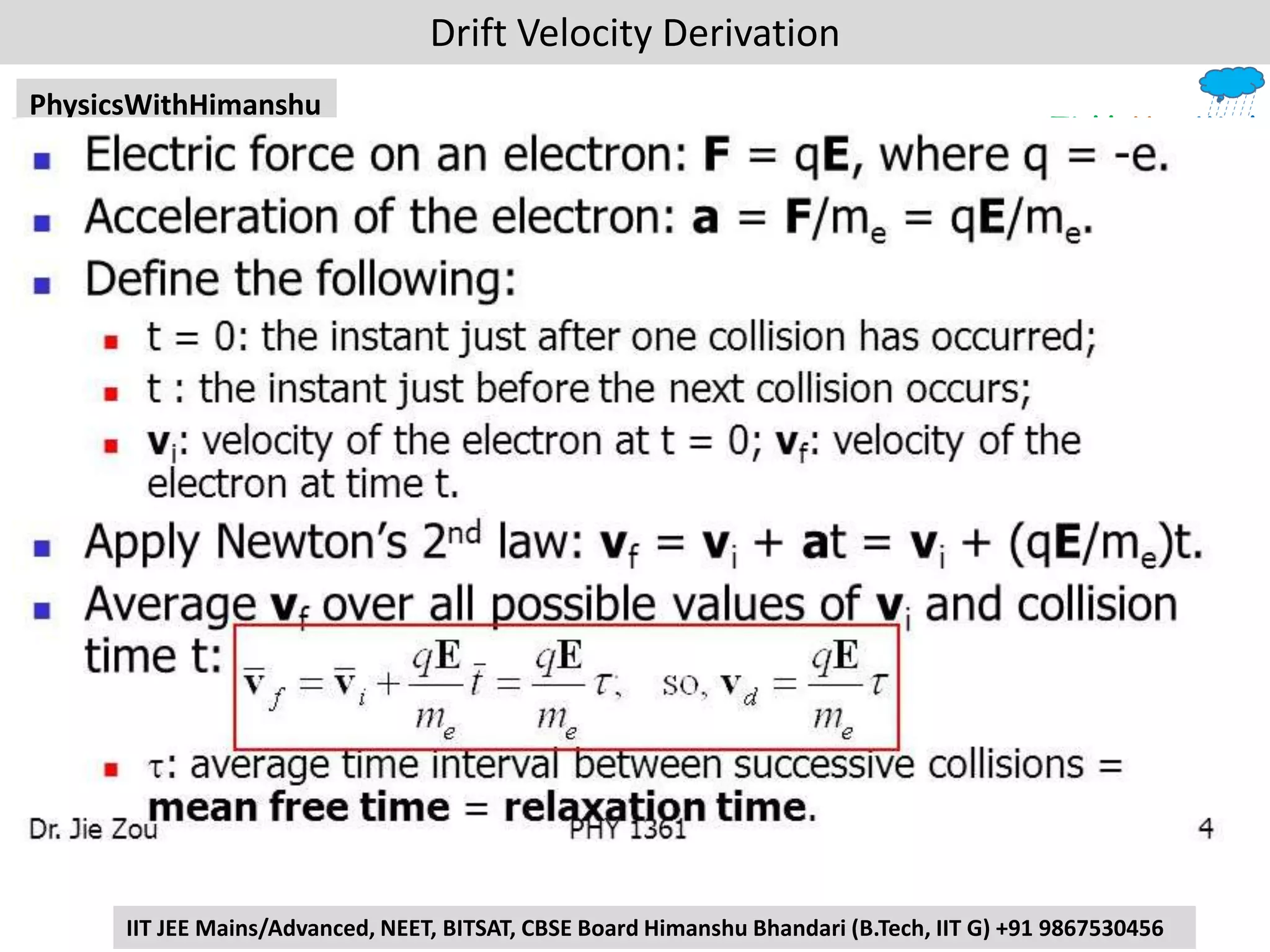

Drift Velocity Derivation

TickleYourMind
PhysicsWithHimanshu

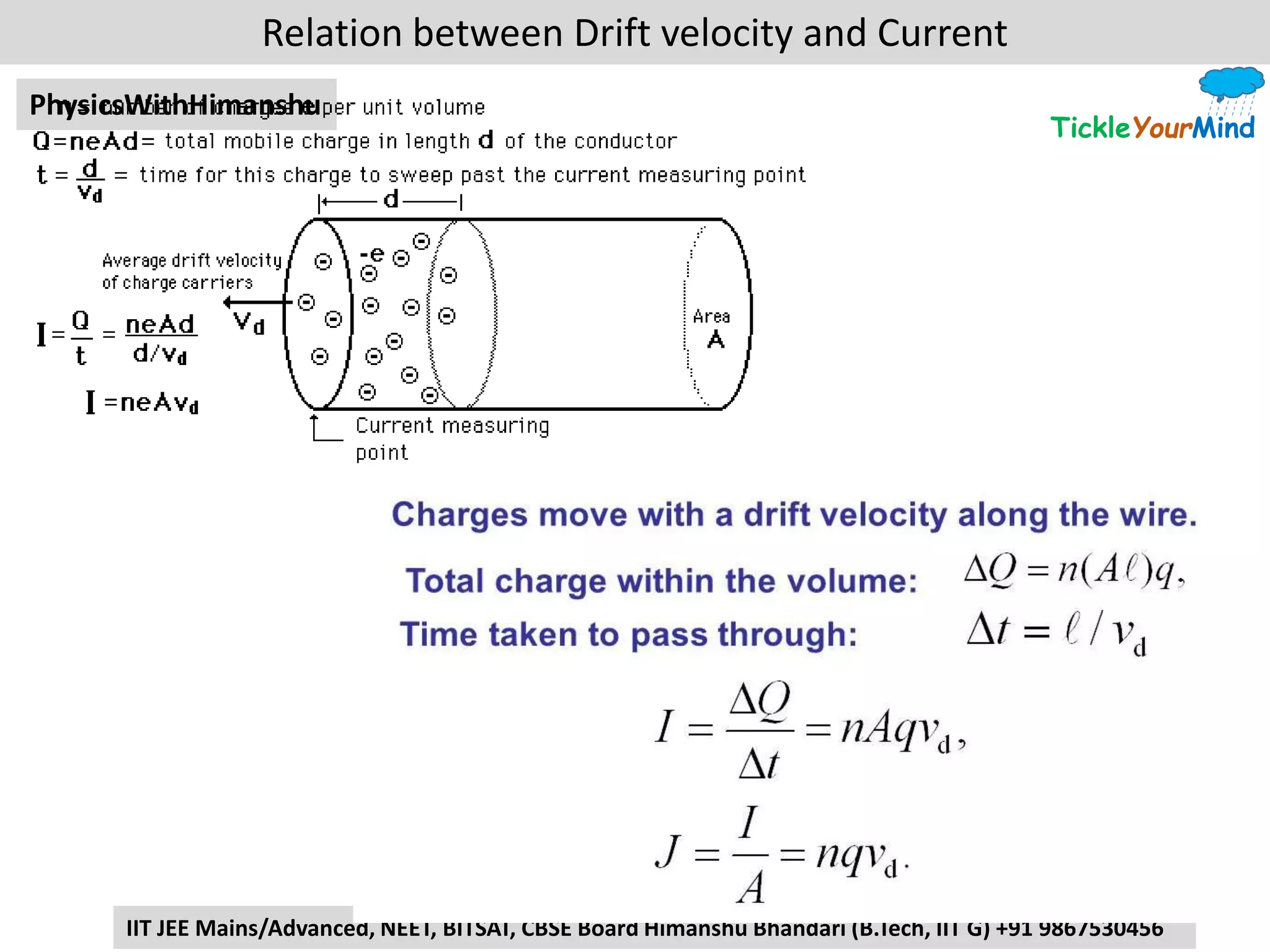

Relation between Drift velocity and Current

TickleYourMind
PhysicsWithHimanshu
Relation between Current Density and Electric Field

TickleYourMind
PhysicsWithHimanshu

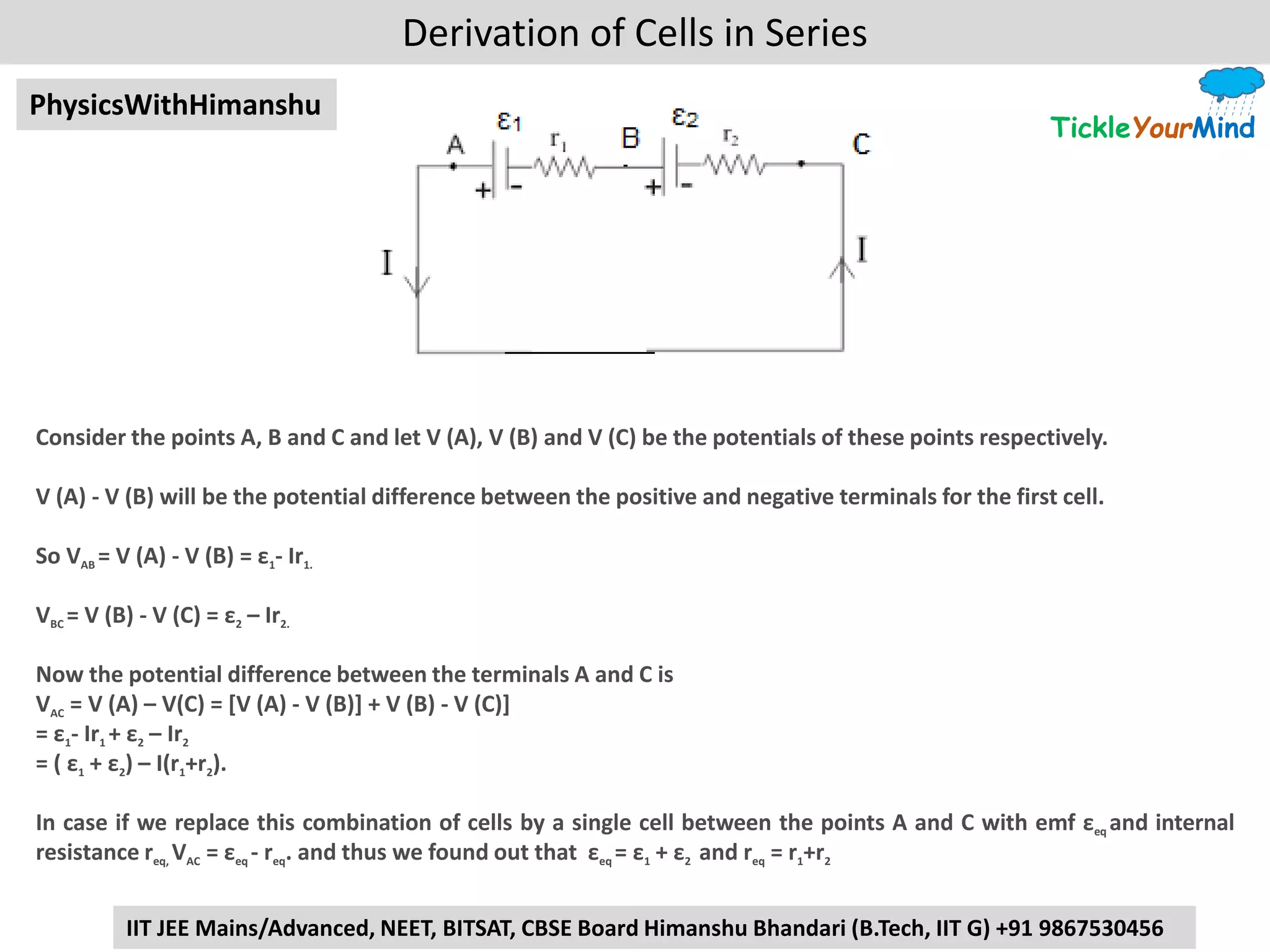

Derivation of Cells in Series
Consider the points A, B and C and let V (A), V (B) and V (C) be the potentials of these points respectively.
V (A) - V (B) will be the potential difference between the positive and negative terminals for the first cell.
So VAB = V (A) - V (B) = ε1- Ir1.
VBC = V (B) - V (C) = ε2 – Ir2.
Now the potential difference between the terminals A and C is
VAC = V (A) – V(C) = [V (A) - V (B)] + V (B) - V (C)]
= ε1- Ir1 + ε2 – Ir2
= ( ε1 + ε2) – I(r1+r2).
In case if we replace this combination of cells by a single cell between the points A and C with emf εeq and internal
resistance req, VAC = εeq - req. and thus we found out that εeq = ε1 + ε2 and req = r1+r2

TickleYourMind
PhysicsWithHimanshu
Derivation of Cells in Parallel
V = V (B1) - V (B2) = ε1- I1 r1. The point B1 and B2 are connected similar to the second cell.
V = V (B1) - V (B2) = ε2 – I2 r2. By ohm’s law we know that I = V / R. Now substitute these values in the
equation
If we replace the cells by a single cell lying
between the point B1 and B2 with emf εeq and internal resistance req, then
V = εeq - Ireq.
It is the same as when we connect the resistors in parallel connection. For n number of cells
connected in parallel with emf ε1, ε2…… εn and internal resistance r1, r2…. rn

TickleYourMind
PhysicsWithHimanshu
Heat Produced in a Resistor

TickleYourMind
PhysicsWithHimanshu
Wheatstone Bridge and Meter Bridge
TickleYourMind
PhysicsWithHimanshu
