1. Continuous Delivery Patterns for
Modern Architectures
Daniel Bryant
@danielbryantuk

2. Architecture: Expectations versus reality
02/05/2018 @danielbryantuk
“DevOps”

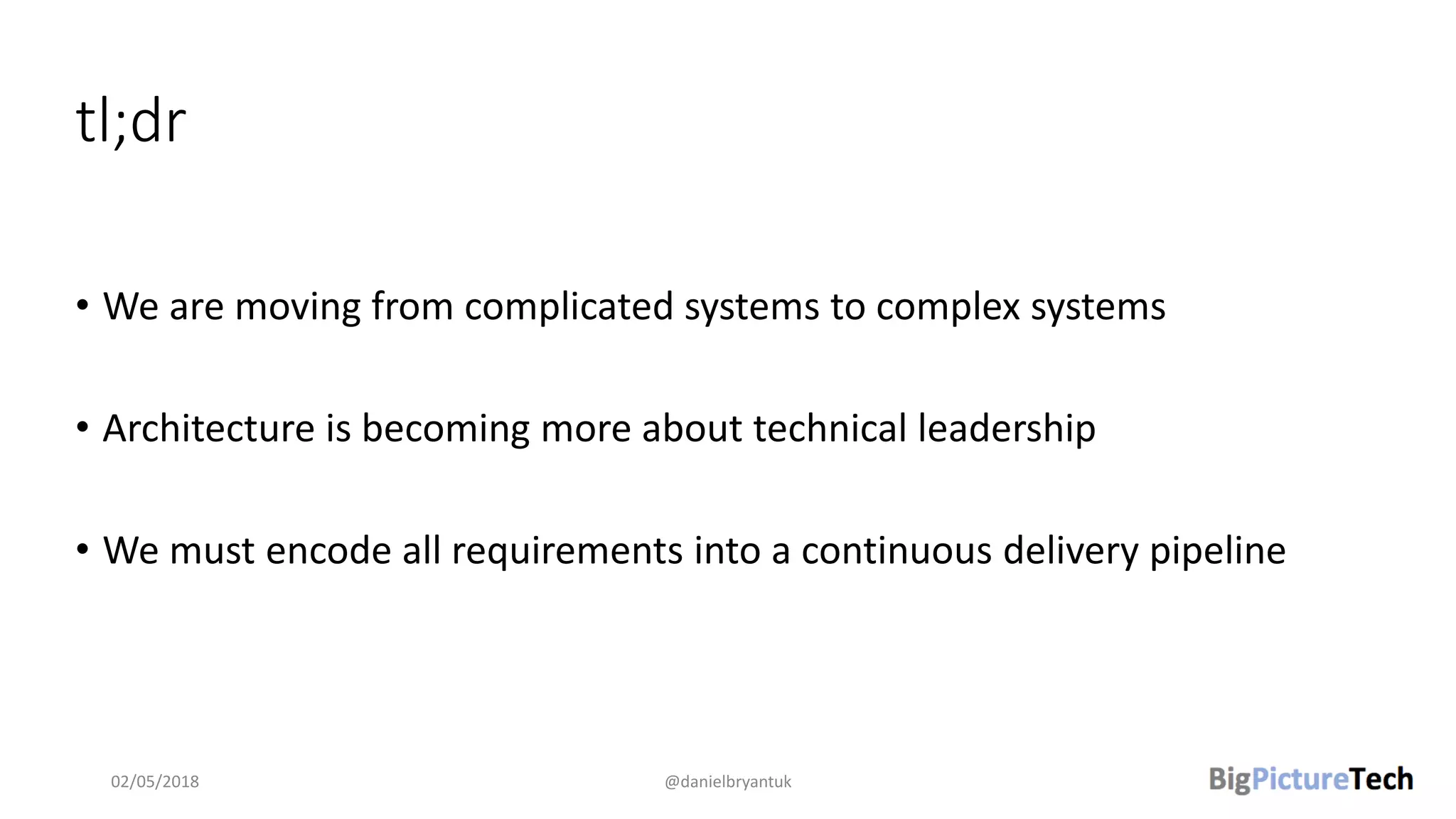

3. tl;dr
• We are moving from complicated systems to complex systems
• Architecture is becoming more about technical leadership
• We must encode all requirements into a continuous delivery pipeline
02/05/2018 @danielbryantuk

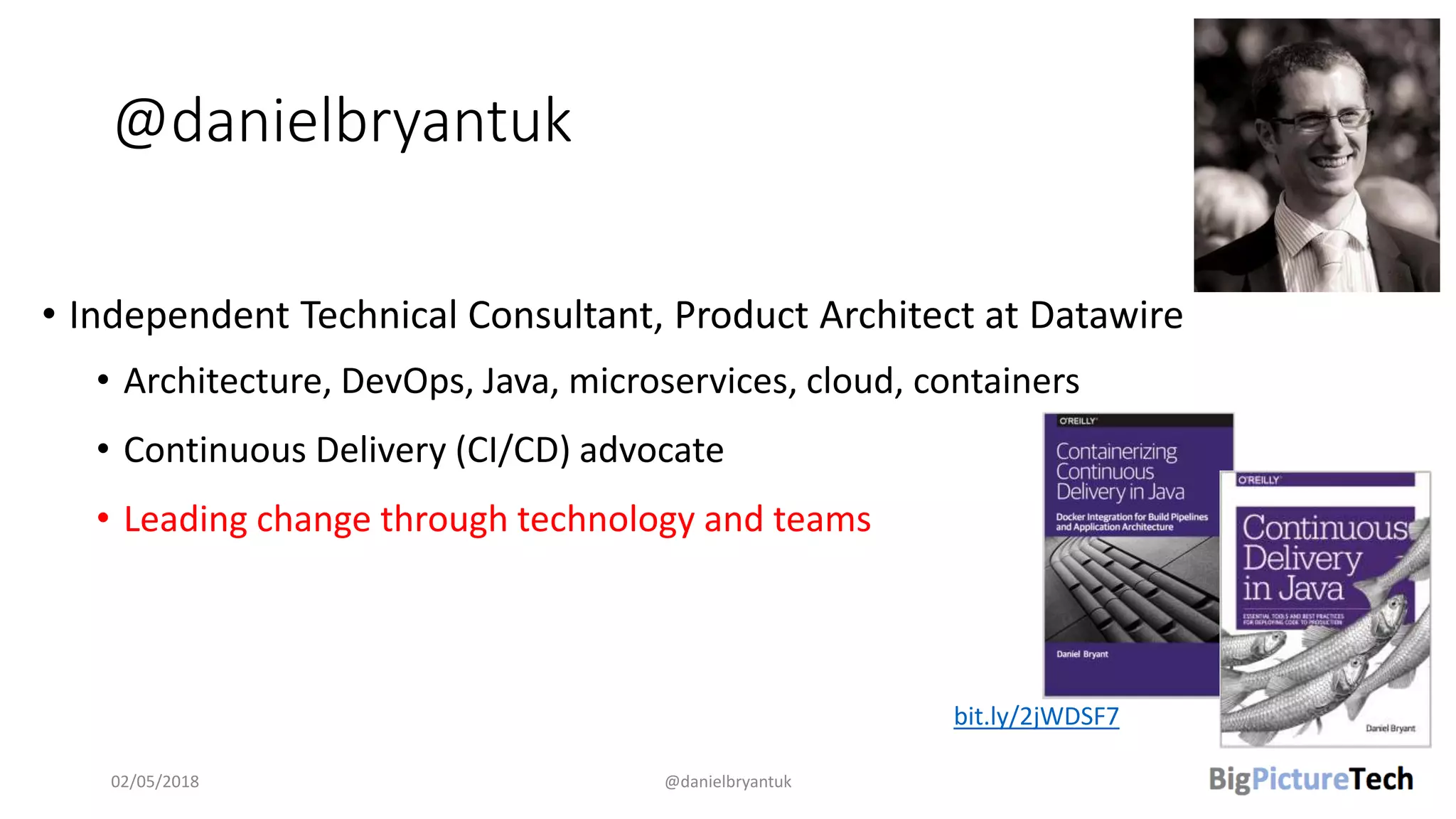

4. @danielbryantuk
• Independent Technical Consultant, Product Architect at Datawire
• Architecture, DevOps, Java, microservices, cloud, containers
• Continuous Delivery (CI/CD) advocate
• Leading change through technology and teams
02/05/2018 @danielbryantuk
bit.ly/2jWDSF7

5. Setting the Scene
02/05/2018 @danielbryantuk

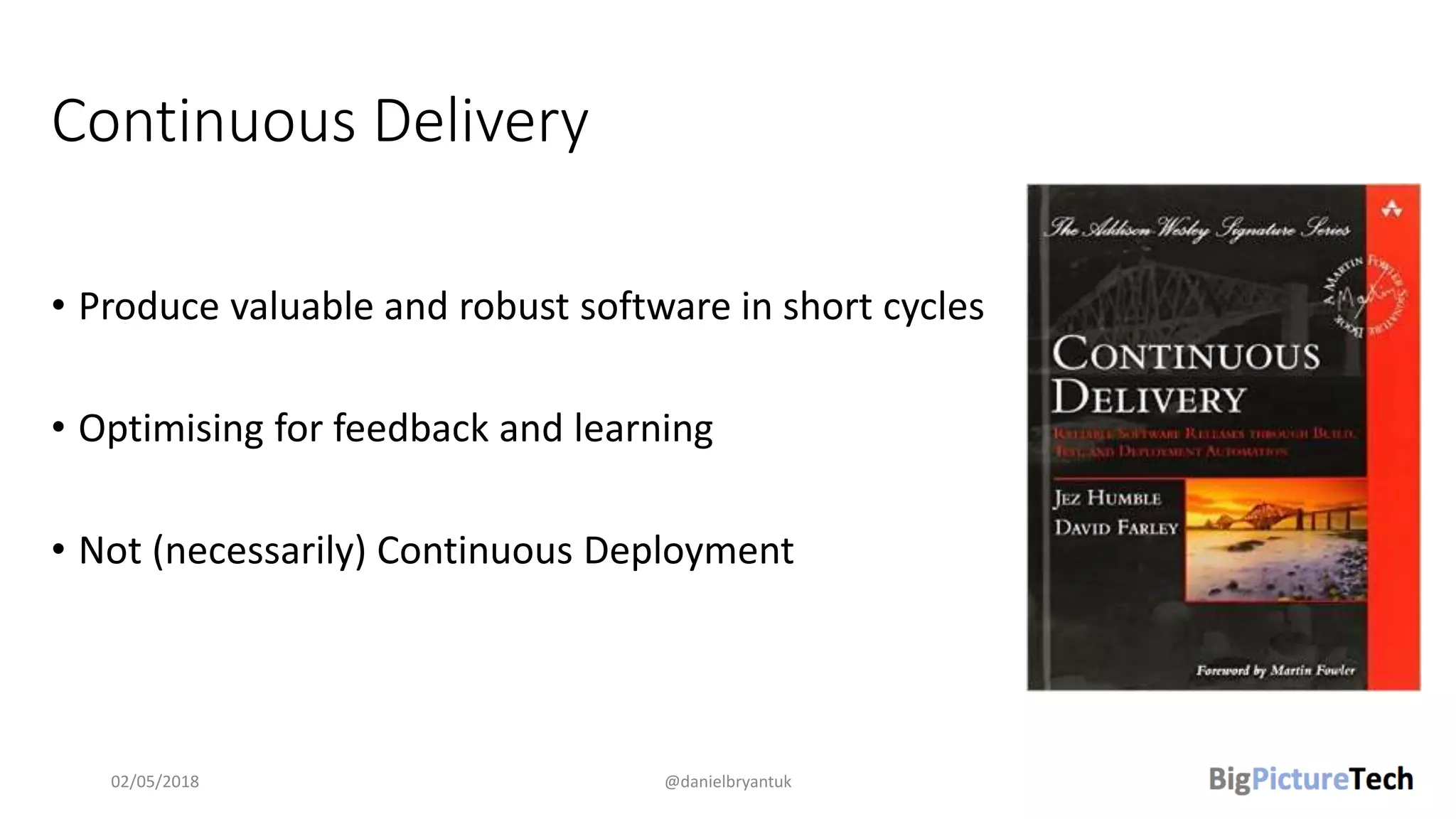

6. Continuous Delivery
• Produce valuable and robust software in short cycles
• Optimising for feedback and learning
• Not (necessarily) Continuous Deployment
02/05/2018 @danielbryantuk

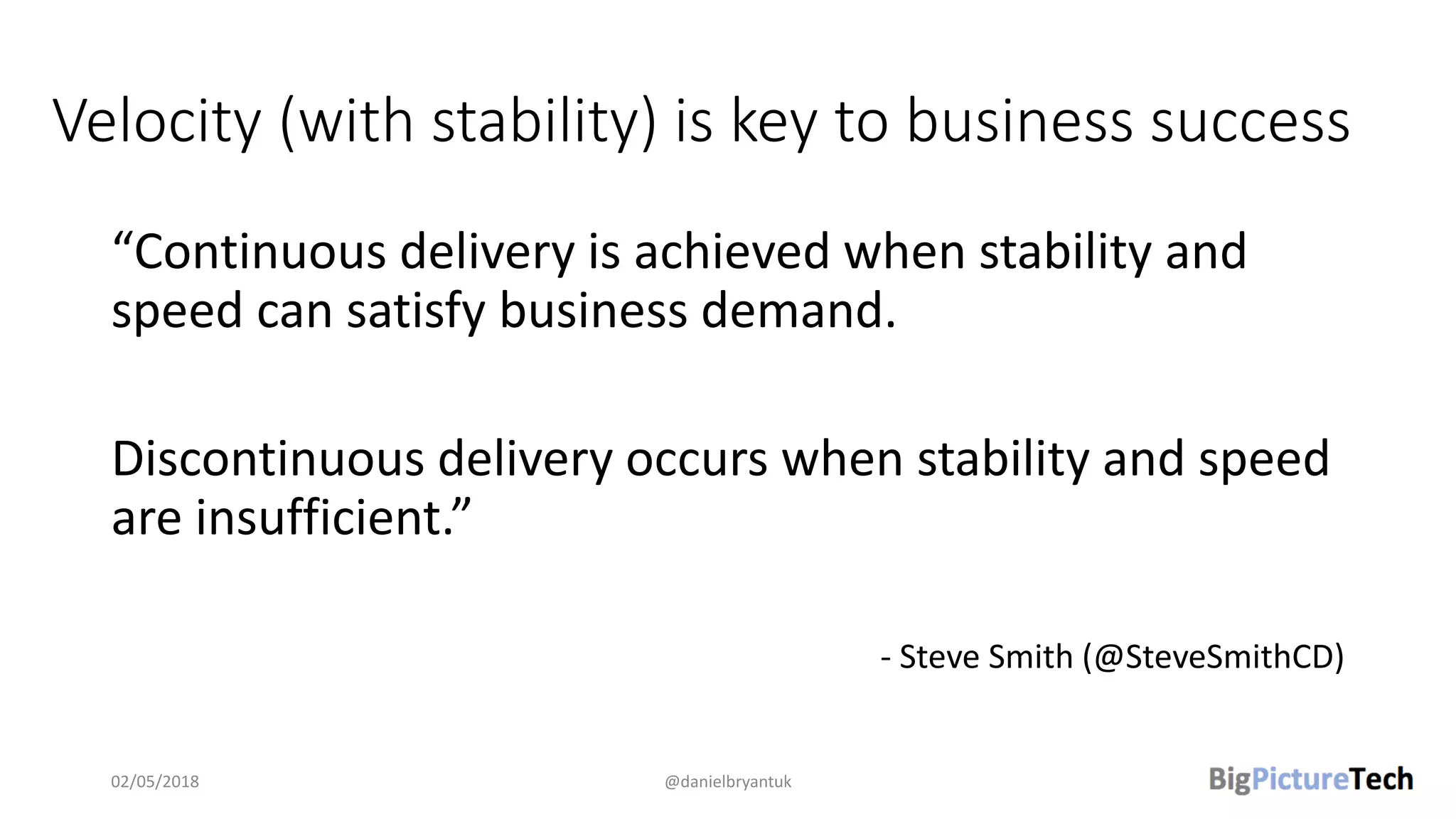

7. Velocity (with stability) is key to business success
“Continuous delivery is achieved when stability and
speed can satisfy business demand.
Discontinuous delivery occurs when stability and speed
are insufficient.”
- Steve Smith (@SteveSmithCD)
02/05/2018 @danielbryantuk

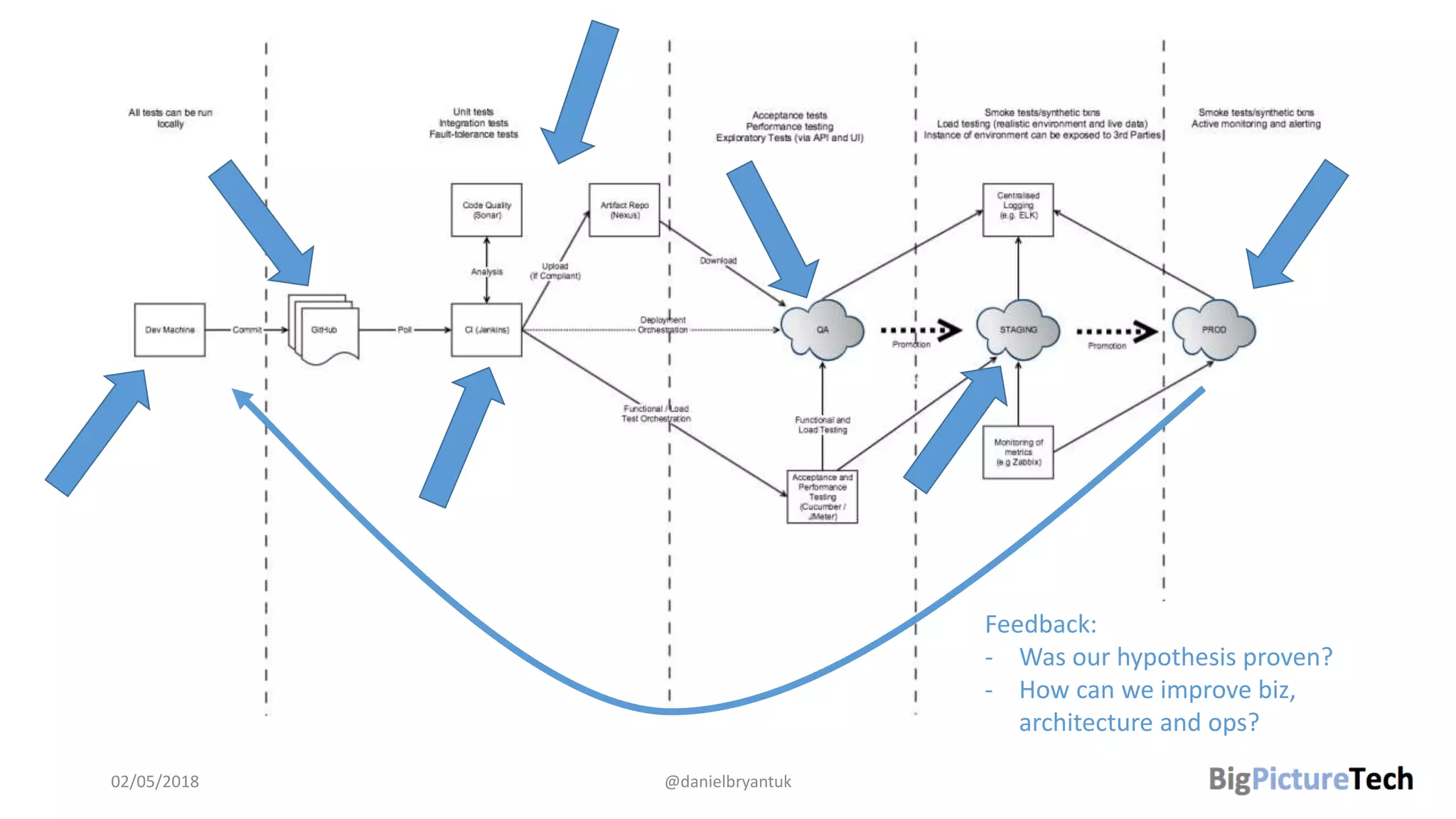

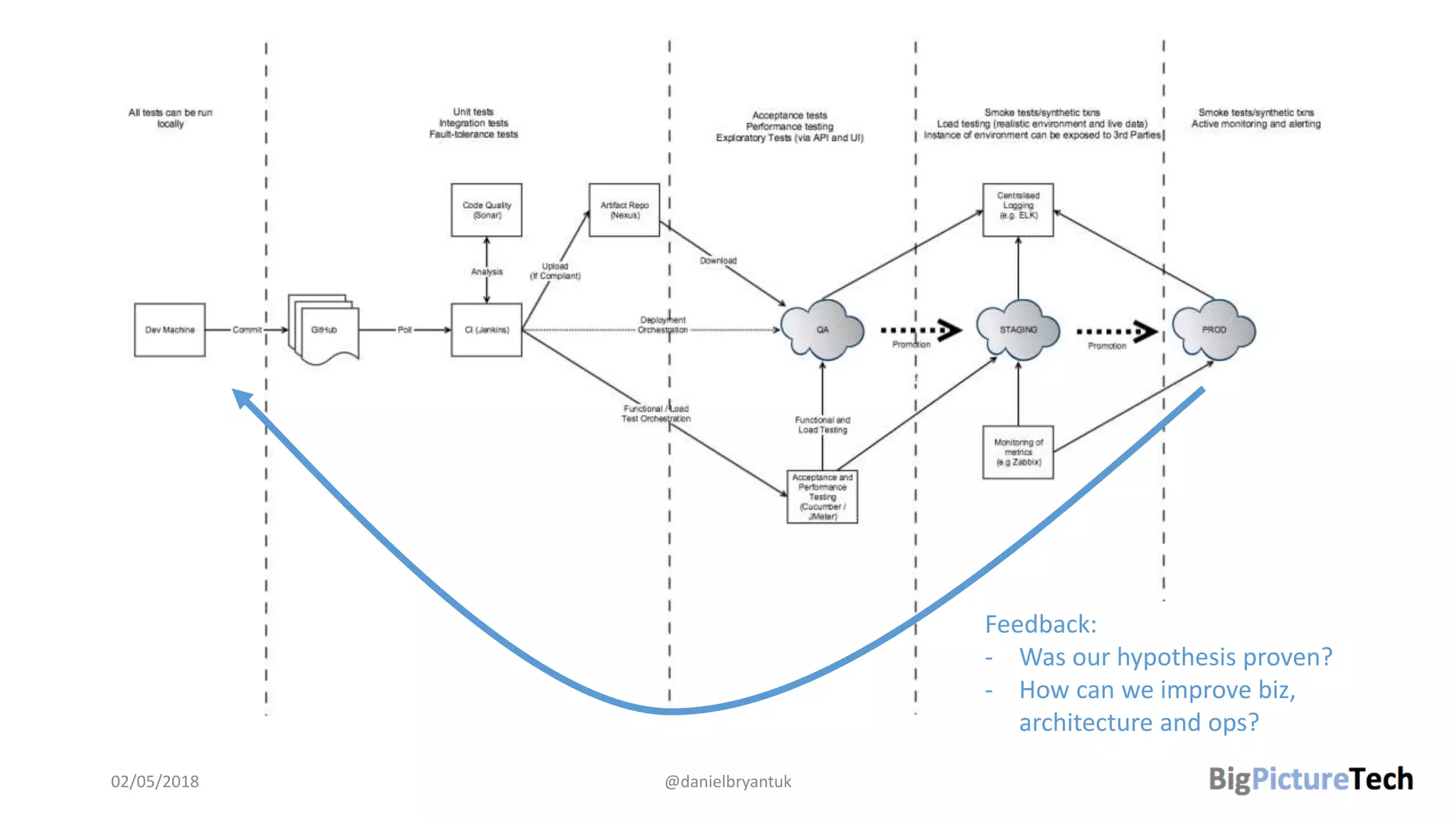

8. 02/05/2018 @danielbryantuk

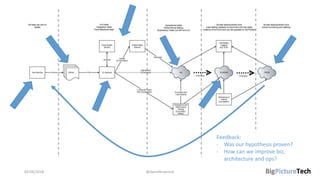

Feedback:
- Was our hypothesis proven?
- How can we improve biz,
architecture and ops?

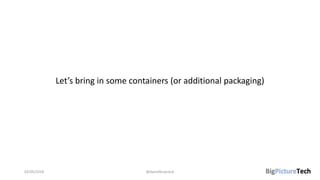

9. Let’s bring in some containers (or additional packaging)
02/05/2018 @danielbryantuk

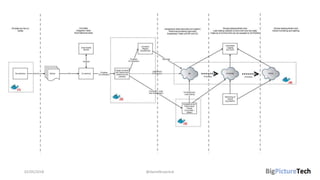

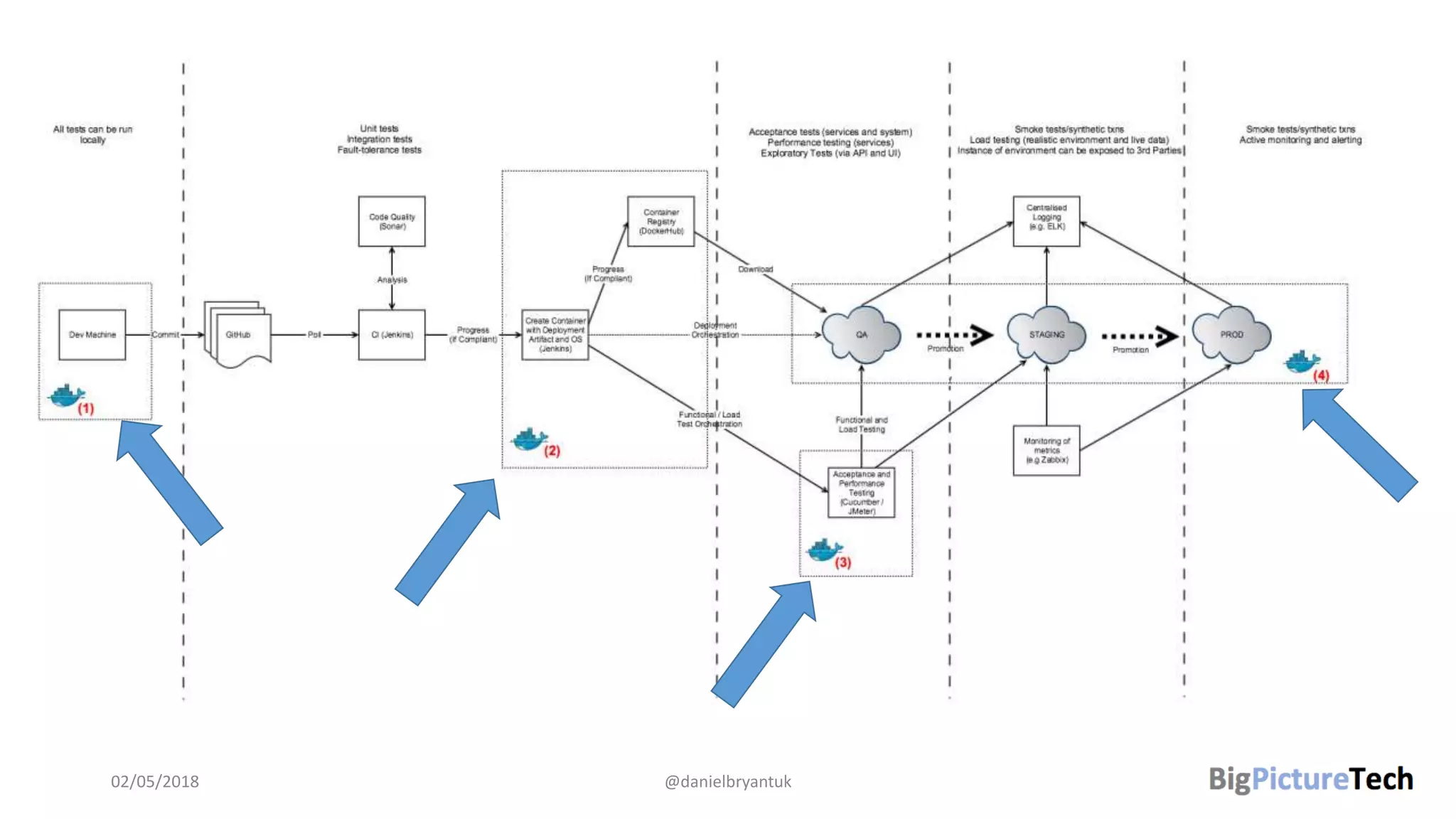

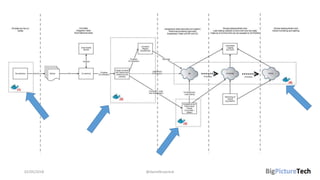

10. 02/05/2018 @danielbryantuk

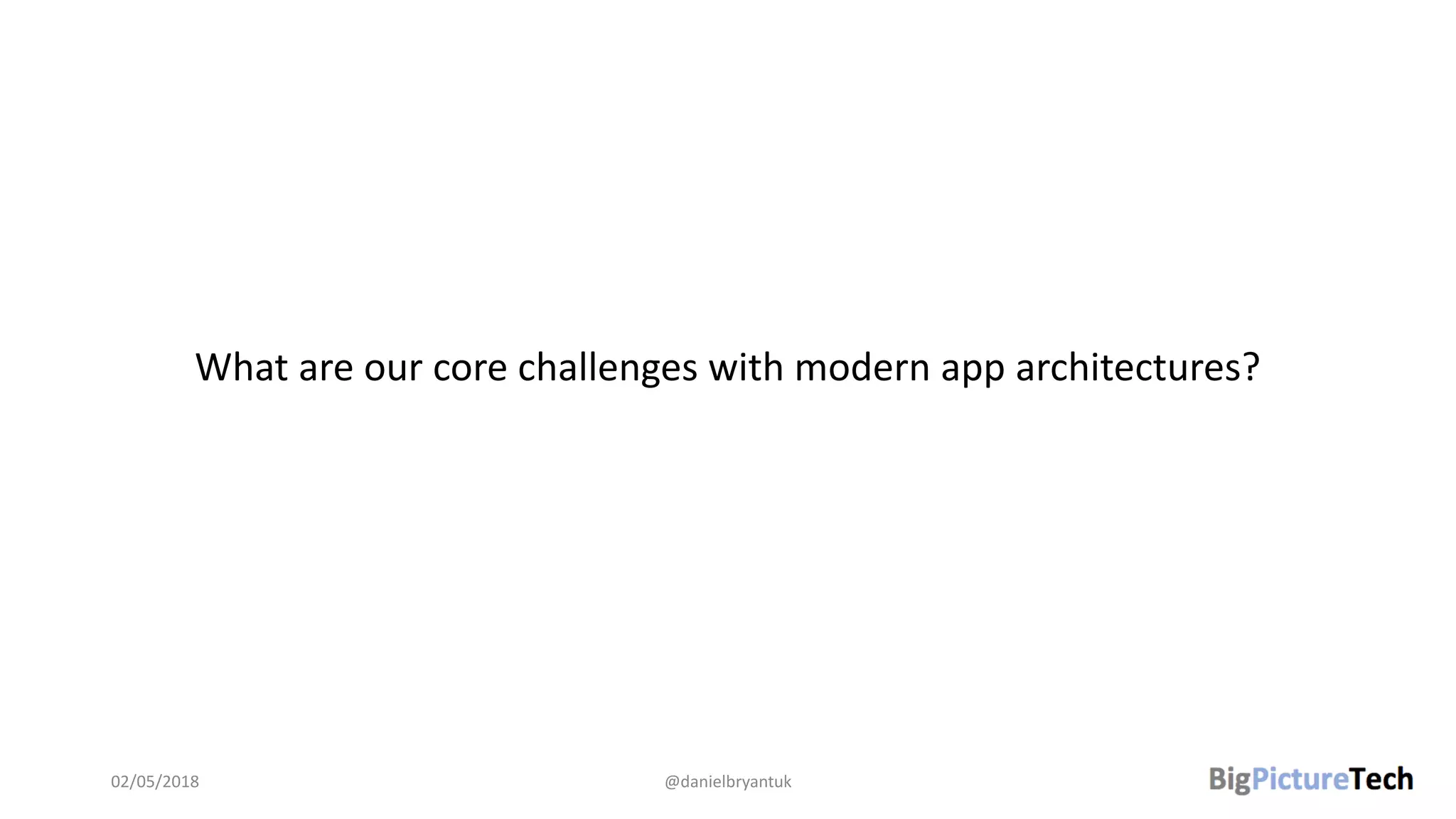

11. What are our core challenges with modern app architectures?
02/05/2018 @danielbryantuk

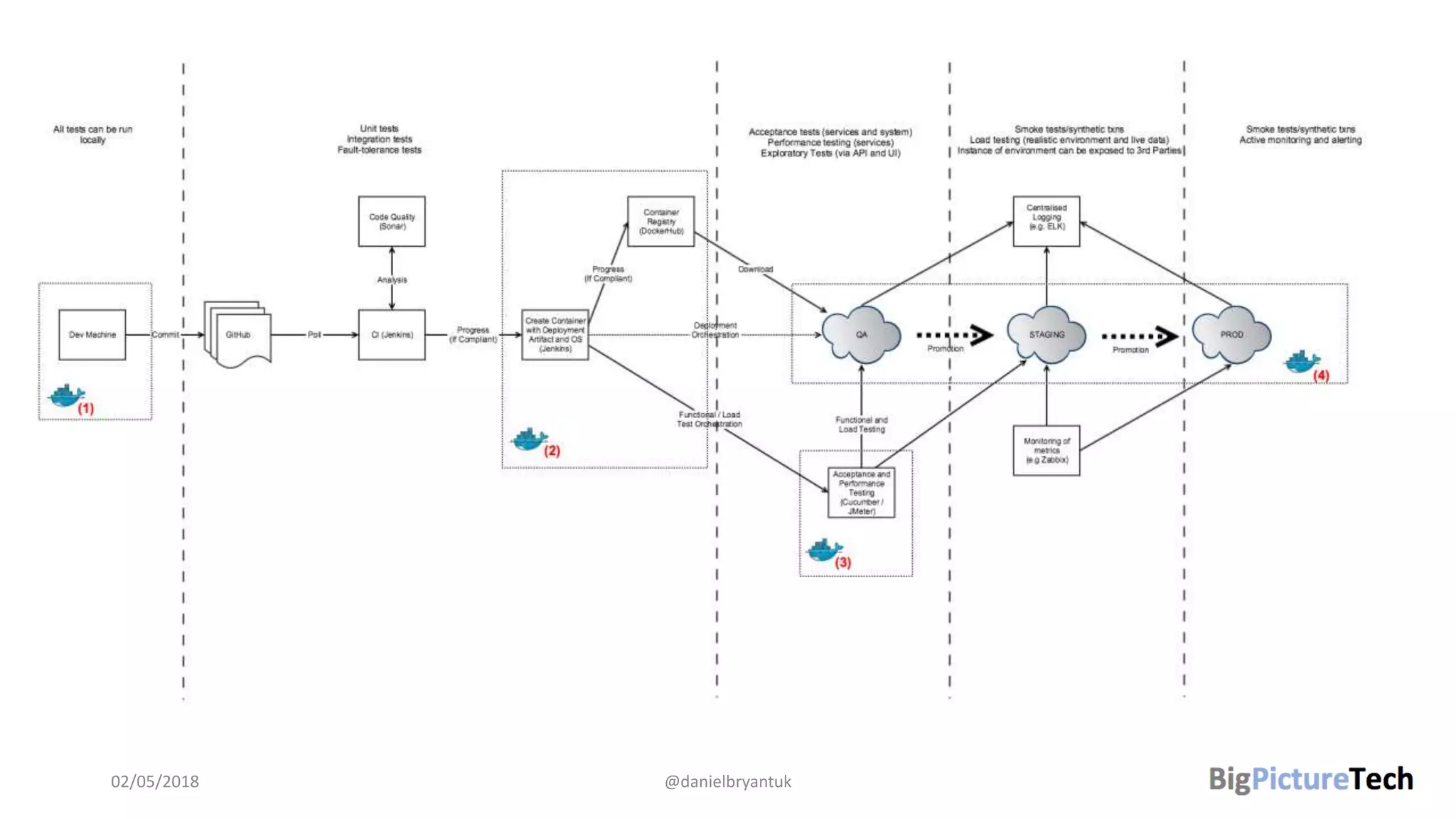

12. 02/05/2018 @danielbryantuk

13. 02/05/2018 @danielbryantuk

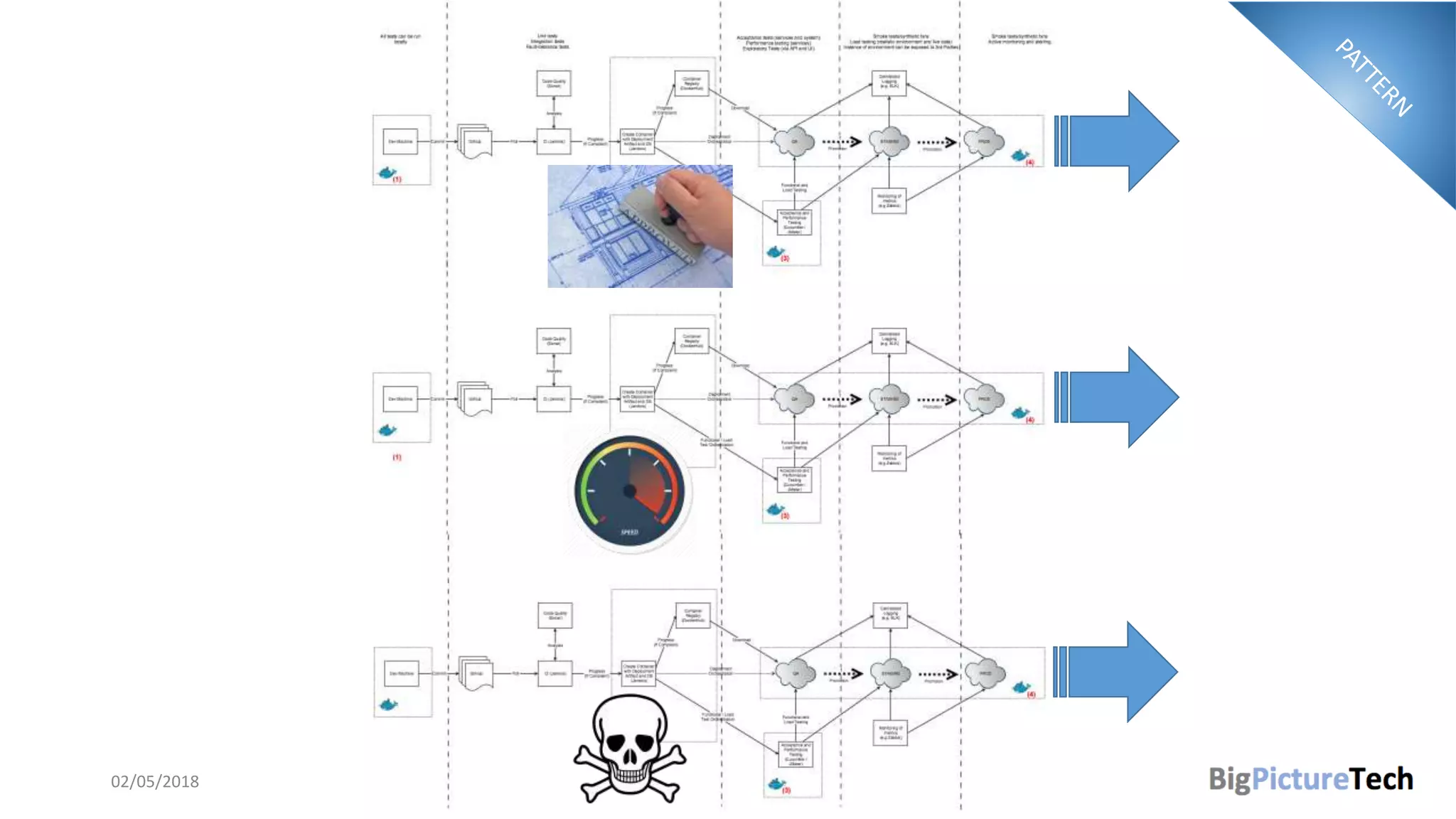

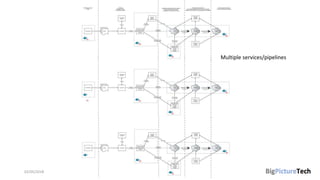

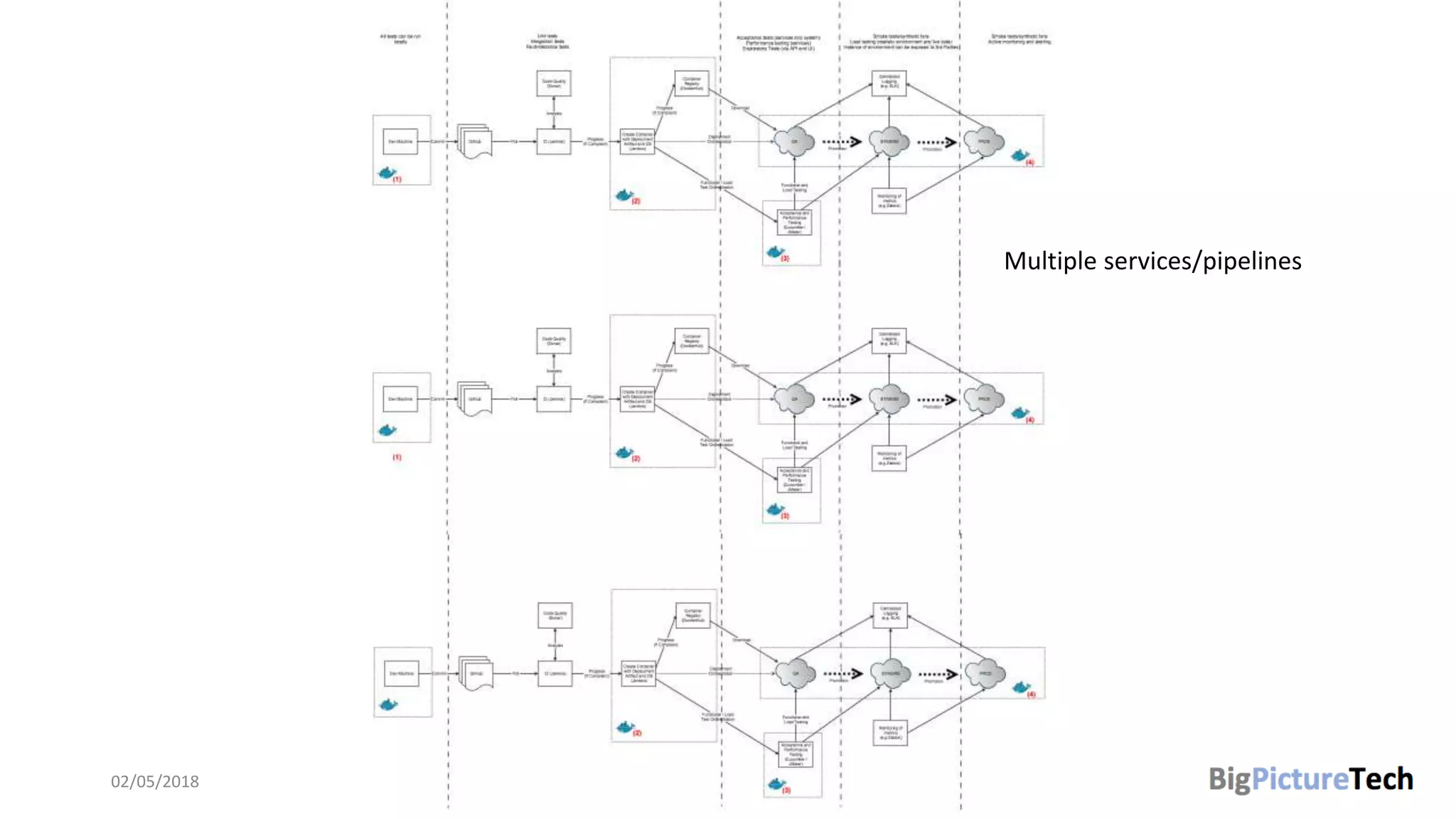

Multiple services/pipelines

14. Velocity
02/05/2018 @danielbryantuk

15. 02/05/2018 @danielbryantuk

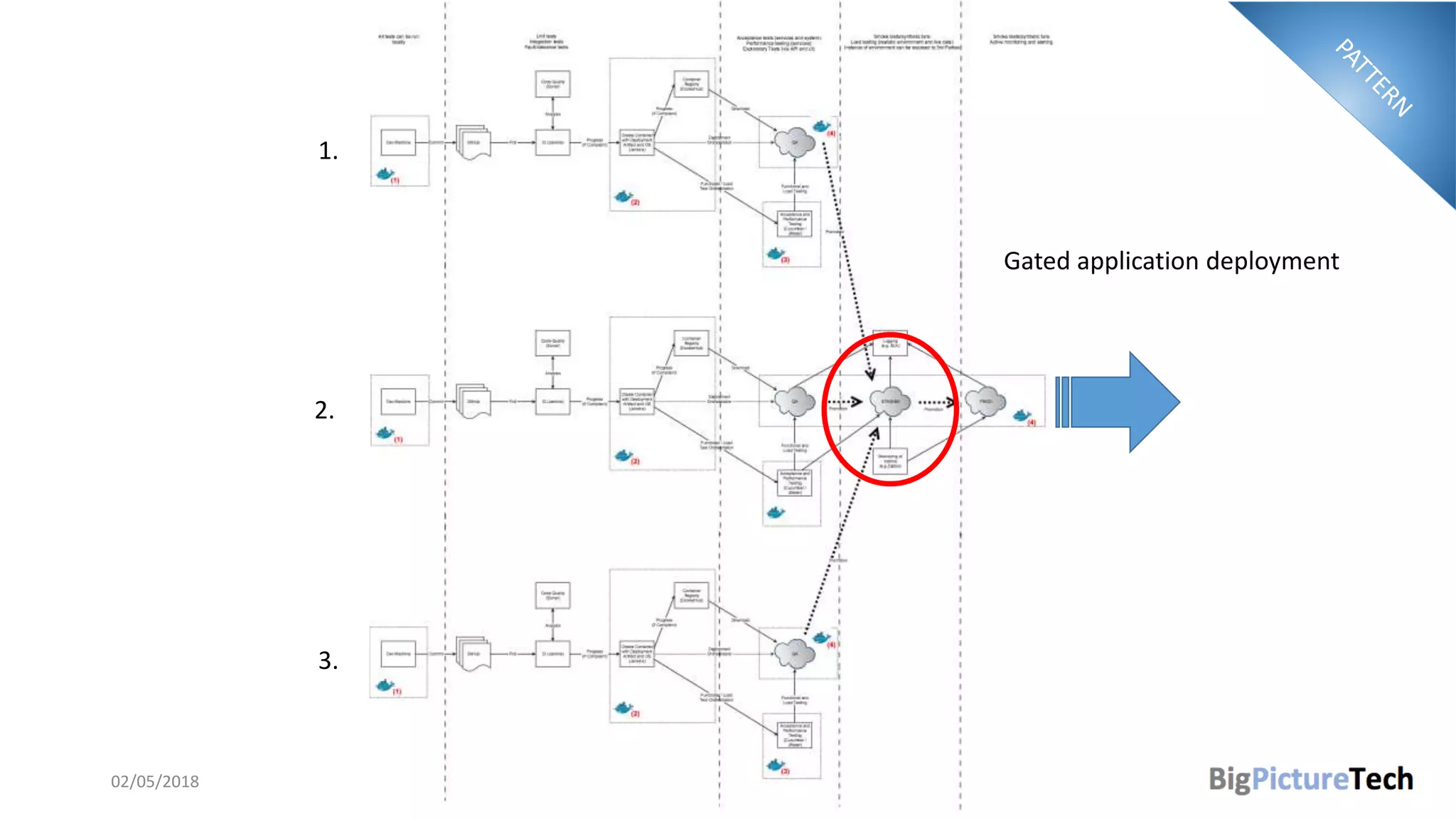

Gated application deployment
1.
2.
3.

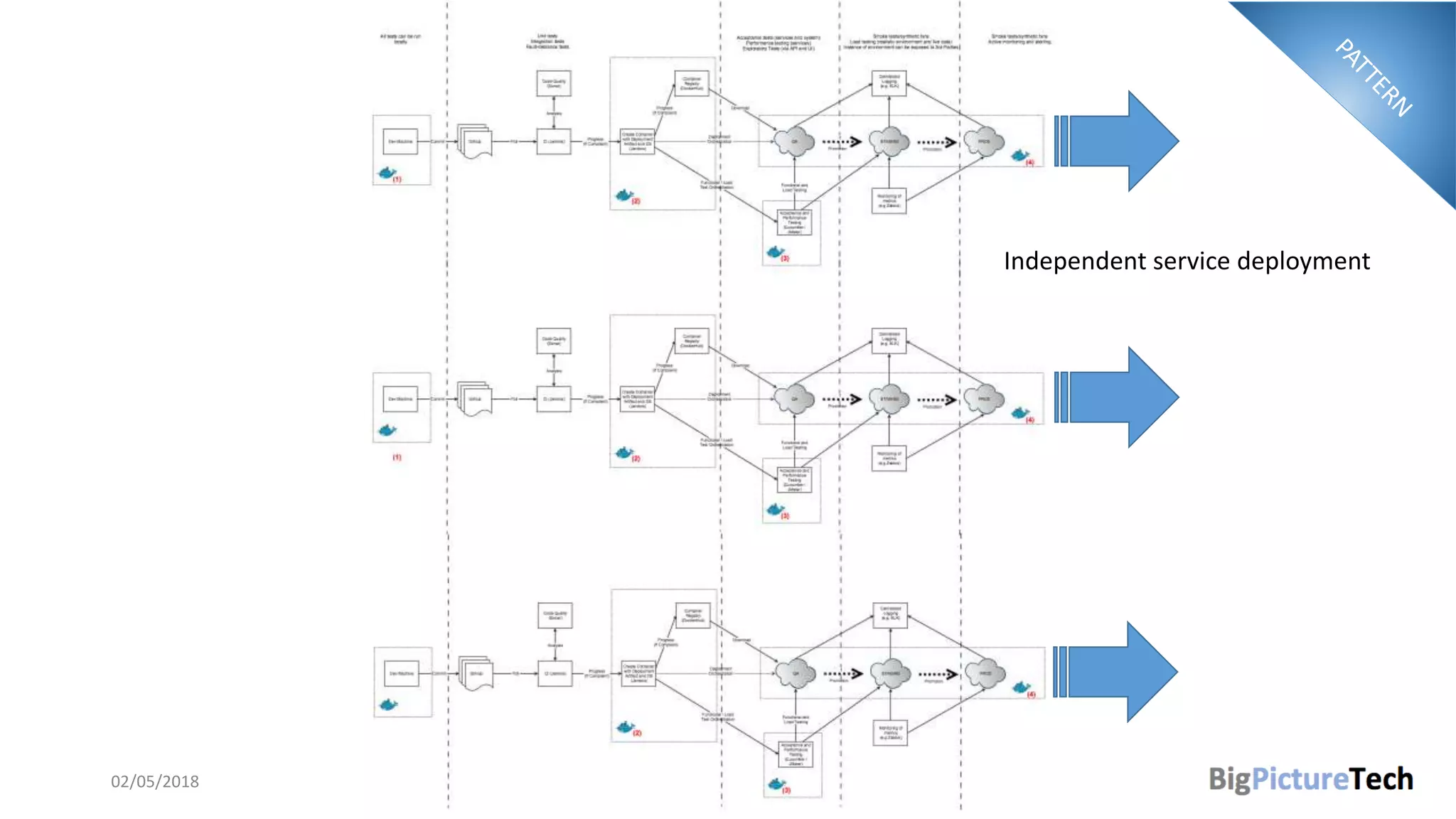

16. 02/05/2018 @danielbryantuk
Independent service deployment

17. Stability
02/05/2018 @danielbryantuk

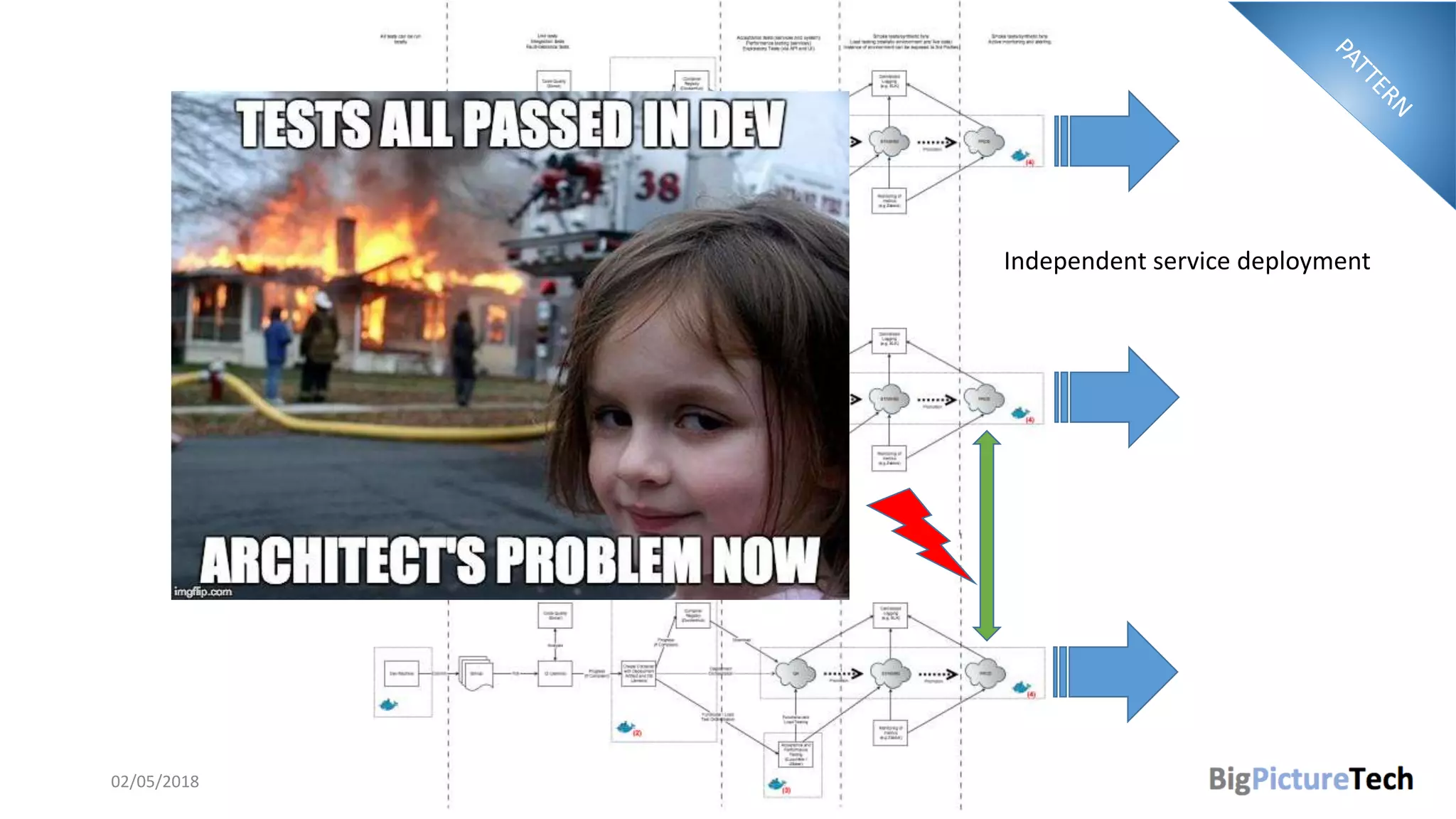

18. 02/05/2018 @danielbryantuk
Independent service deployment

19. 02/05/2018 @danielbryantuk

20. (Evolving) Architecture
02/05/2018 @danielbryantuk

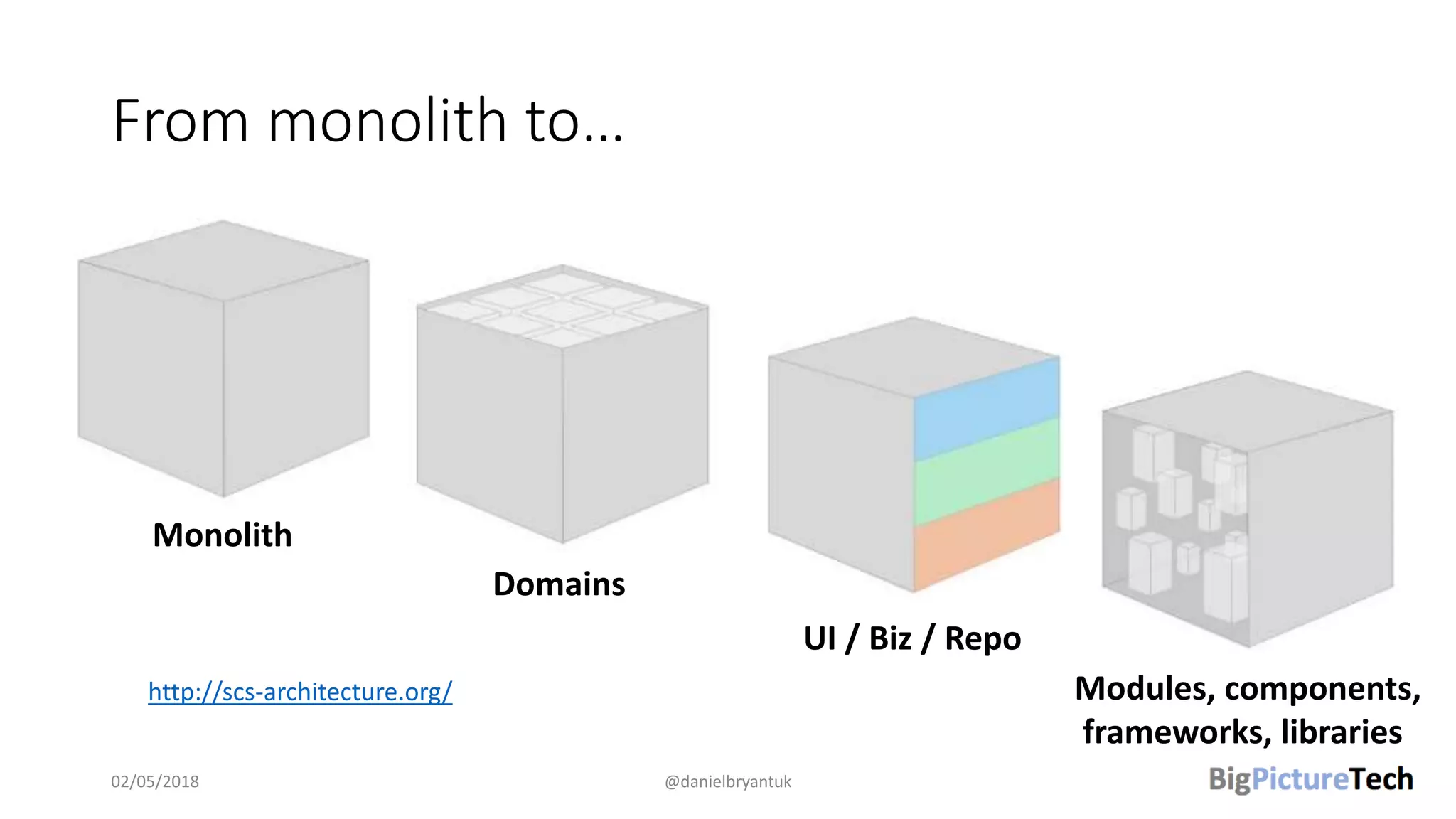

21. From monolith to…
02/05/2018 @danielbryantuk
UI / Biz / Repo
Monolith
Domains
Modules, components,
frameworks, libraries
http://scs-architecture.org/

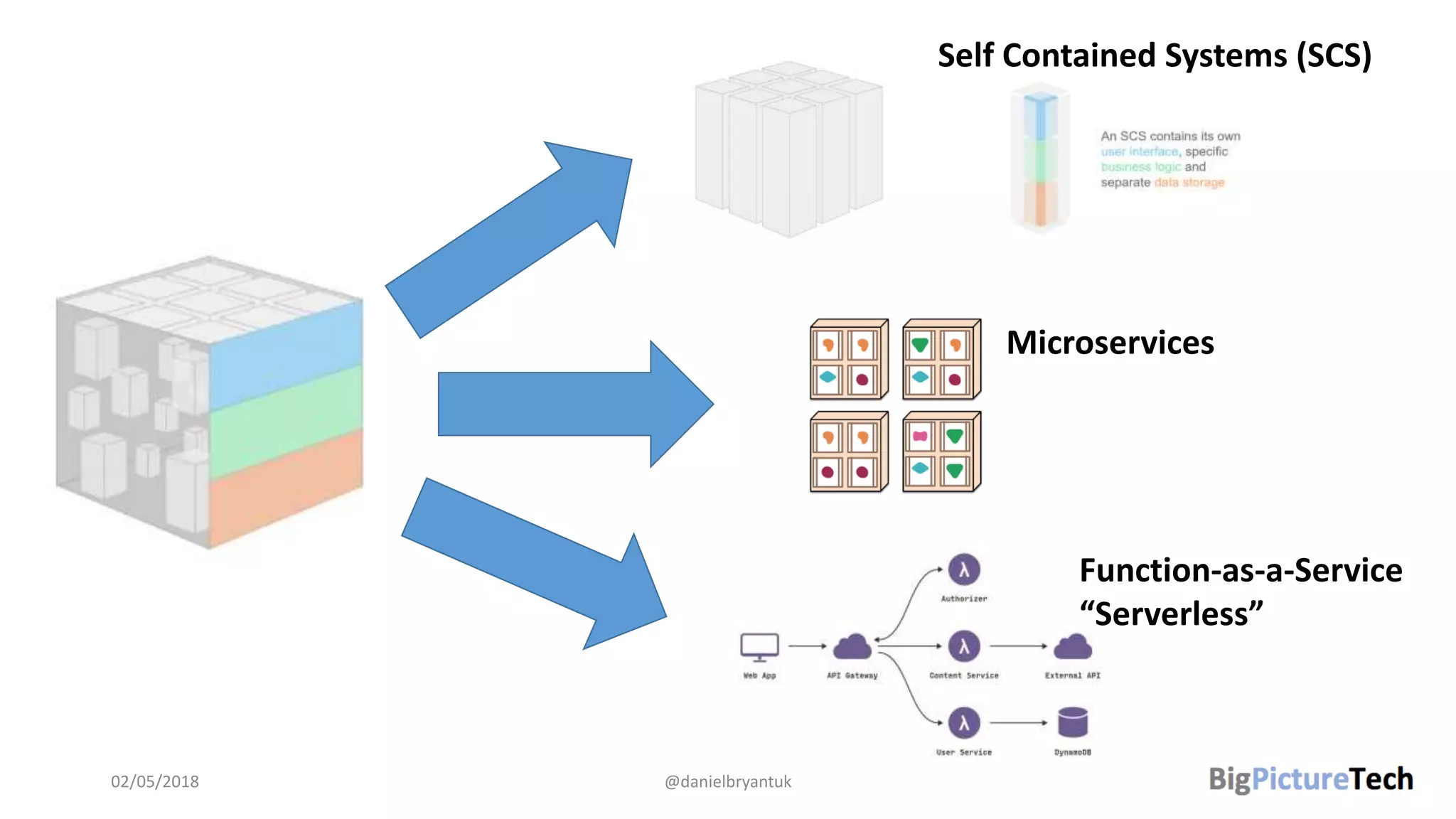

22. 02/05/2018 @danielbryantuk
Self Contained Systems (SCS)
Microservices
Function-as-a-Service
“Serverless”

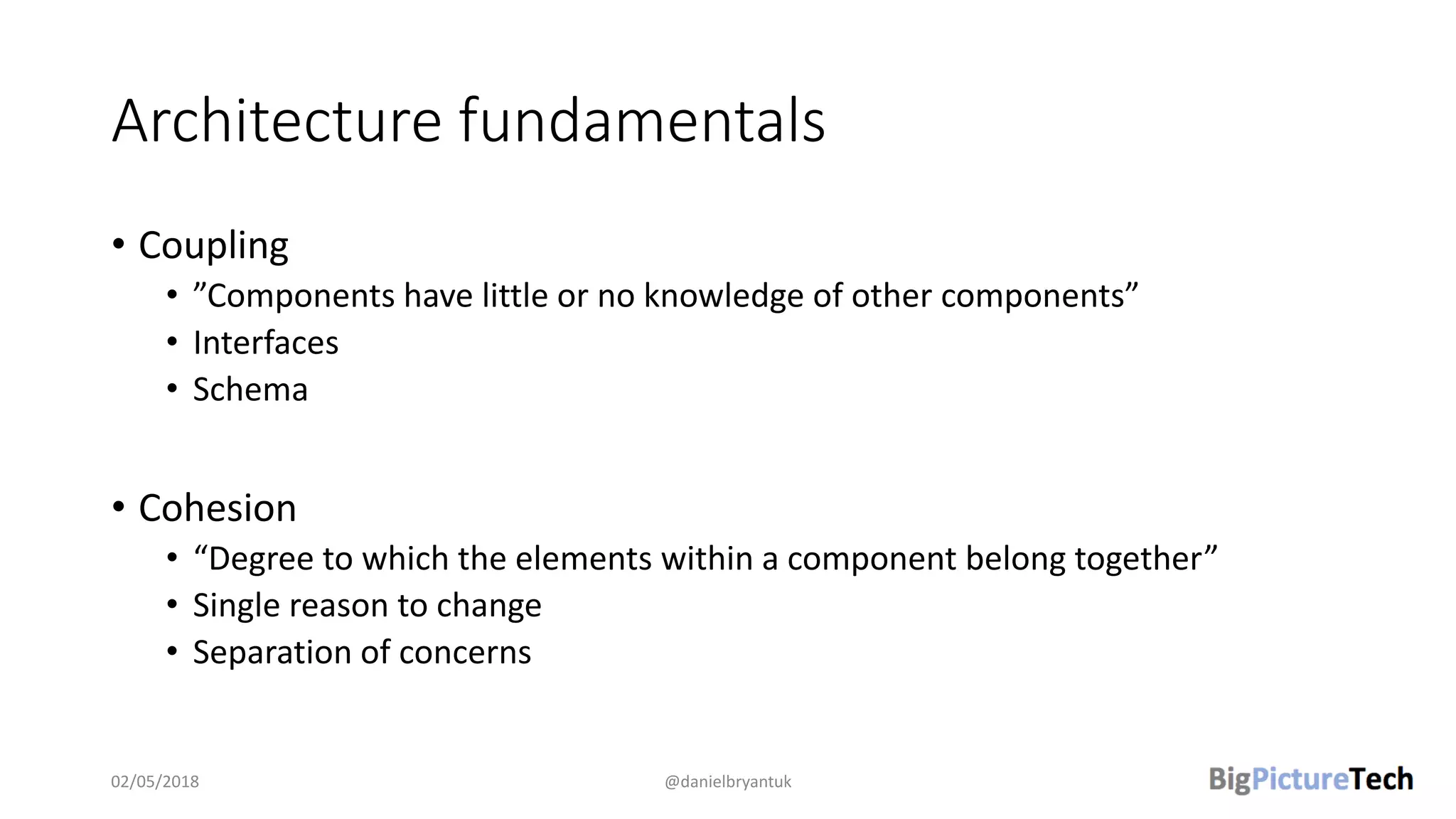

23. Architecture fundamentals
• Coupling
• ”Components have little or no knowledge of other components”
• Interfaces
• Schema
• Cohesion
• “Degree to which the elements within a component belong together”
• Single reason to change
• Separation of concerns
02/05/2018 @danielbryantuk

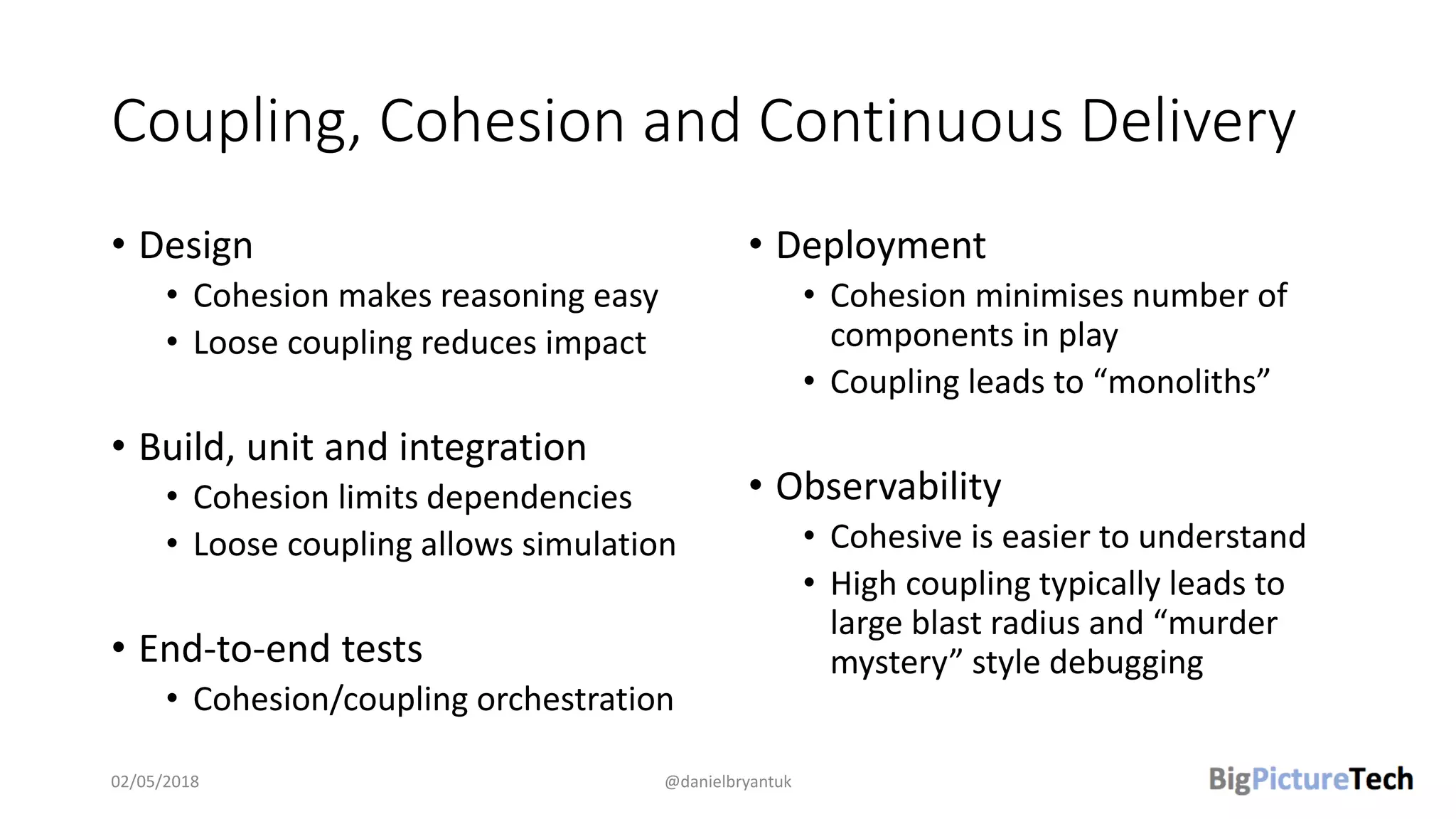

24. Coupling, Cohesion and Continuous Delivery
• Design
• Cohesion makes reasoning easy
• Loose coupling reduces impact
• Build, unit and integration
• Cohesion limits dependencies
• Loose coupling allows simulation
• End-to-end tests
• Cohesion/coupling orchestration
• Deployment
• Cohesion minimises number of
components in play
• Coupling leads to “monoliths”
• Observability
• Cohesive is easier to understand
• High coupling typically leads to
large blast radius and “murder
mystery” style debugging
02/05/2018 @danielbryantuk

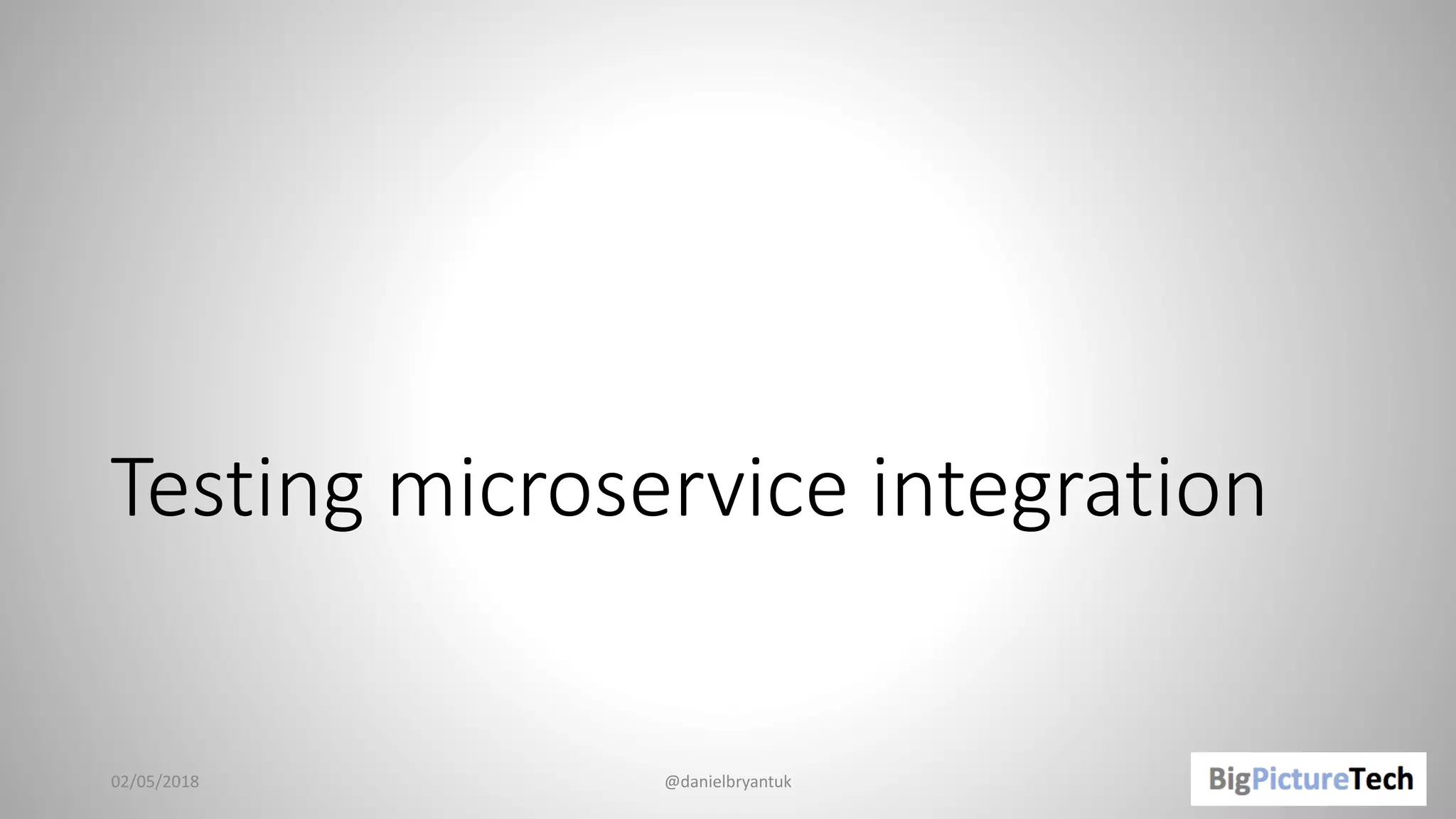

25. Testing microservice integration
02/05/2018 @danielbryantuk

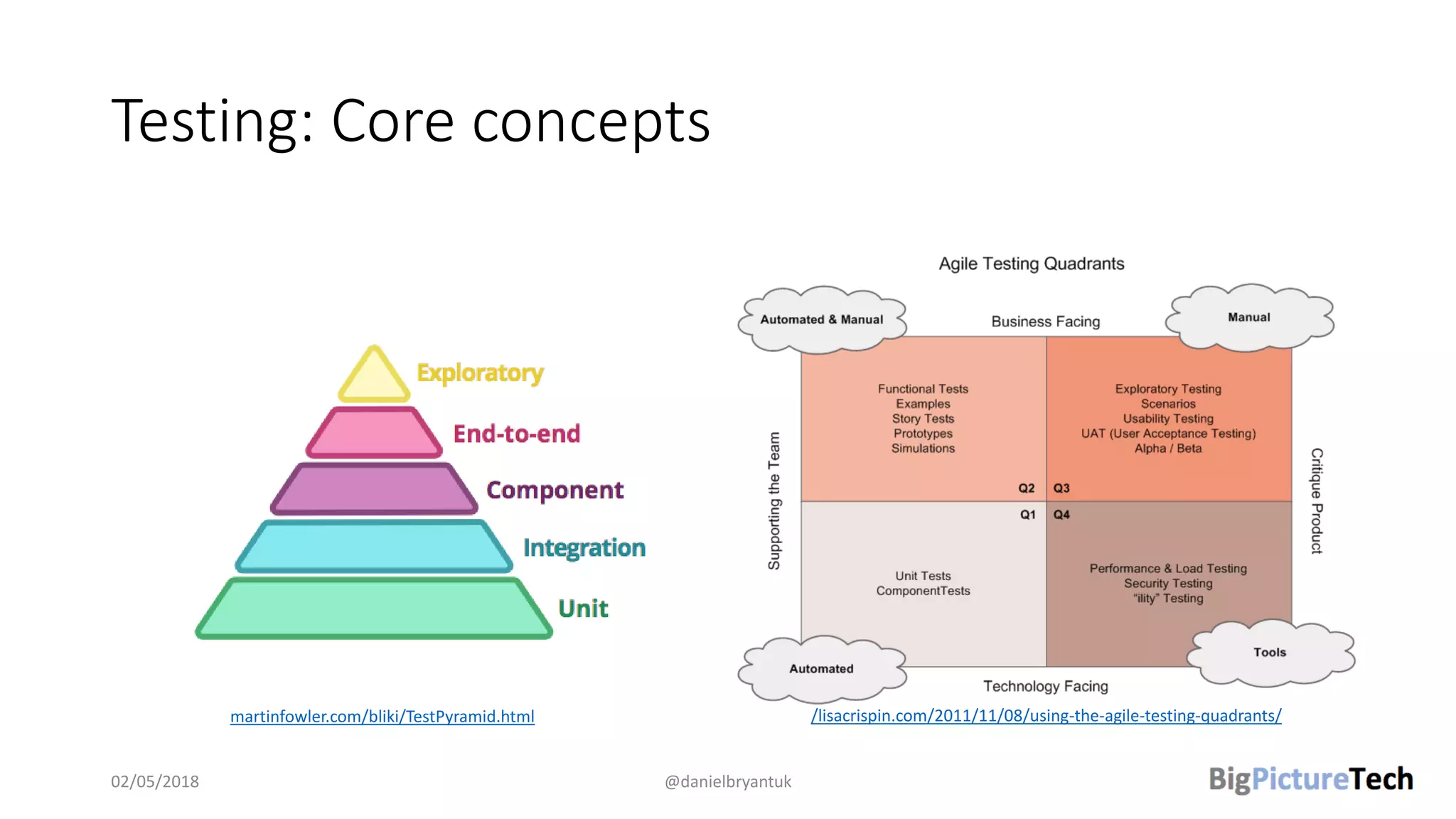

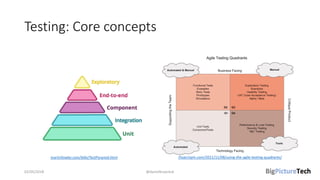

26. Testing: Core concepts
02/05/2018 @danielbryantuk
/lisacrispin.com/2011/11/08/using-the-agile-testing-quadrants/martinfowler.com/bliki/TestPyramid.html

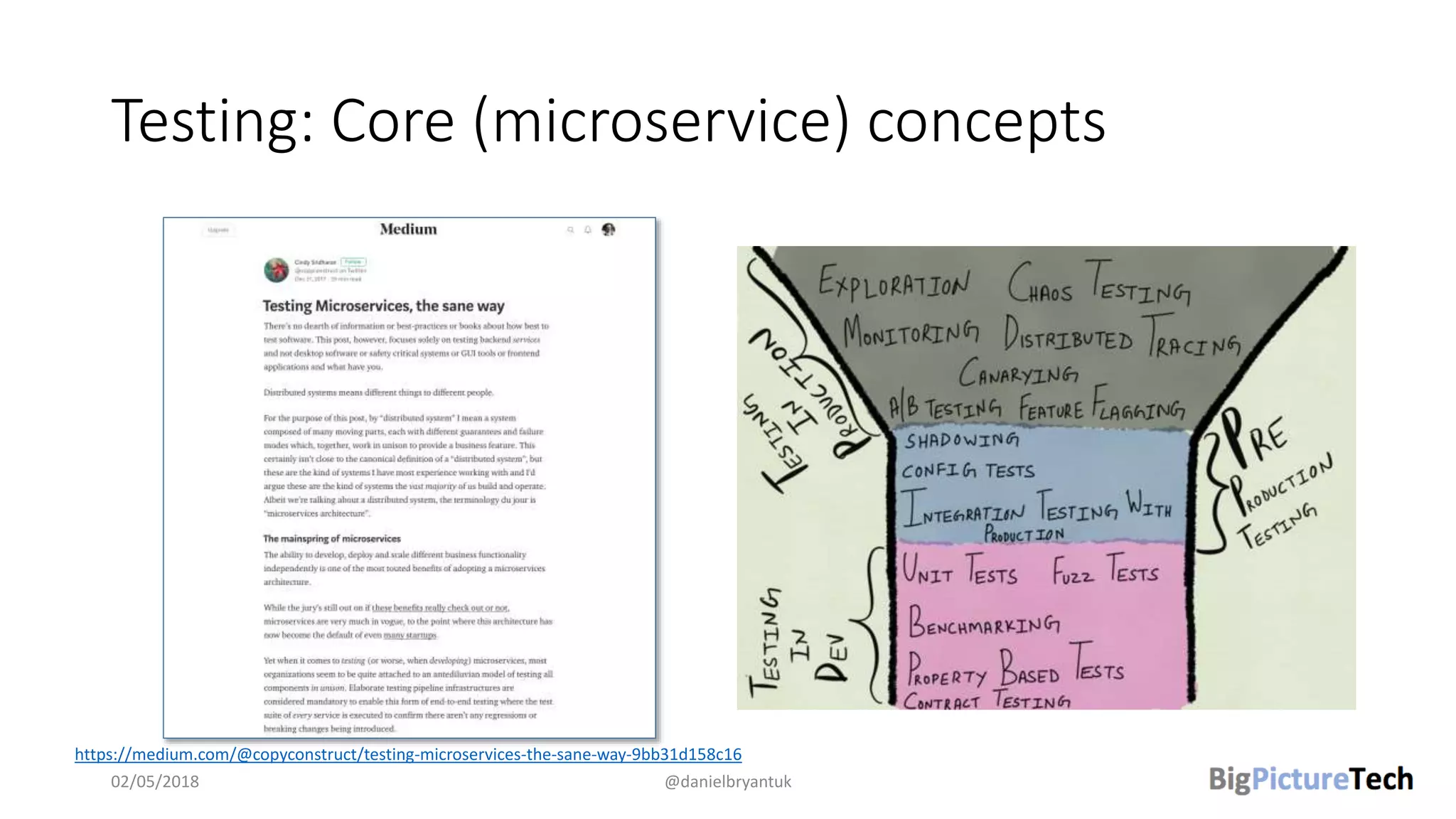

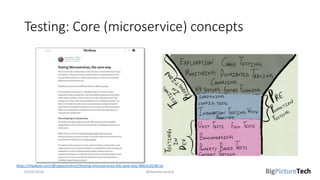

27. Testing: Core (microservice) concepts
02/05/2018 @danielbryantuk
https://medium.com/@copyconstruct/testing-microservices-the-sane-way-9bb31d158c16

28. Functional testing: End-to-end
02/05/2018 @danielbryantuk

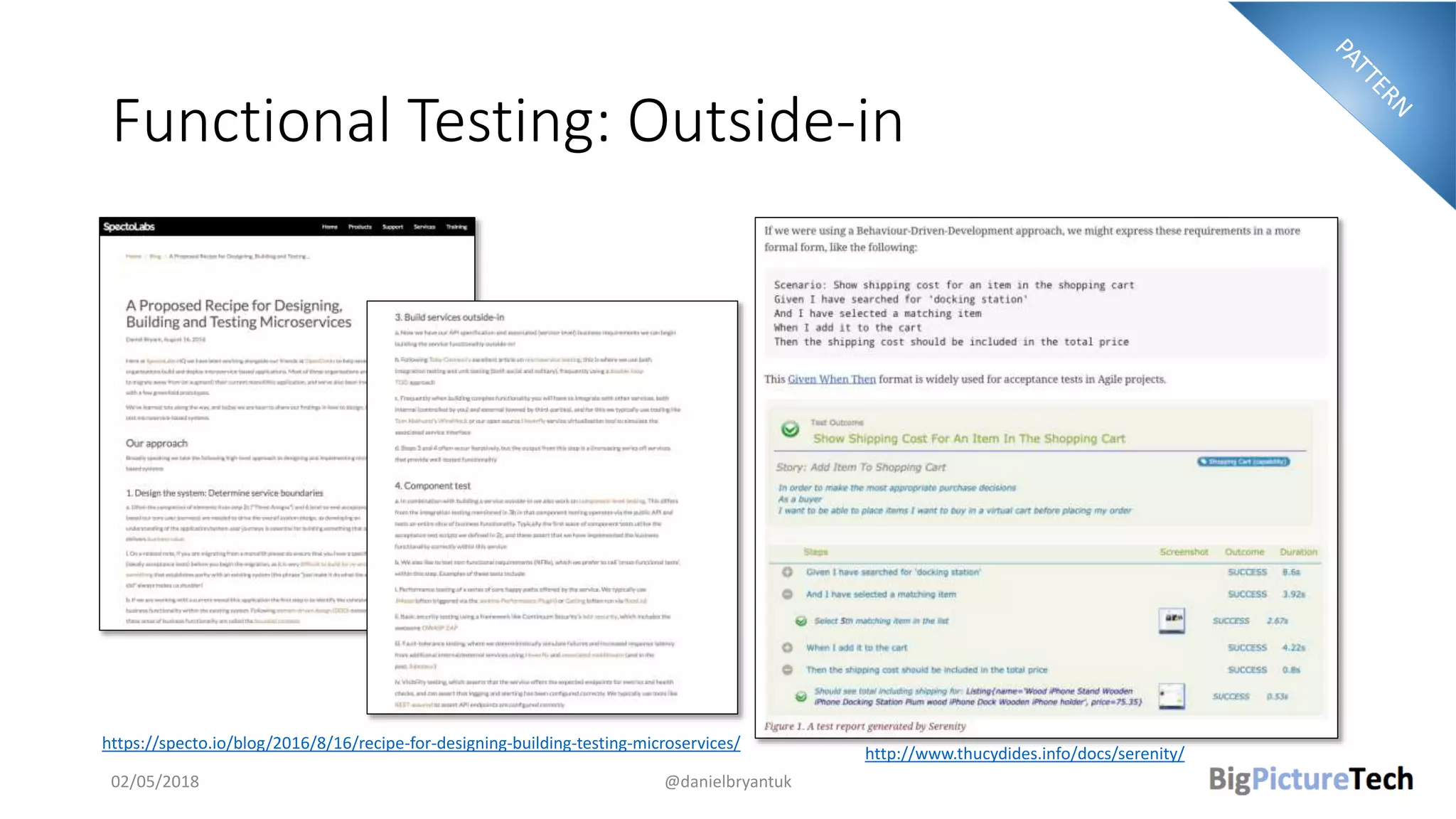

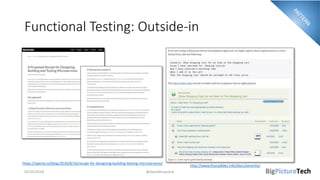

29. Functional Testing: Outside-in
02/05/2018 @danielbryantuk
https://specto.io/blog/2016/8/16/recipe-for-designing-building-testing-microservices/
http://www.thucydides.info/docs/serenity/

30. Functional
02/05/2018 @danielbryantuk

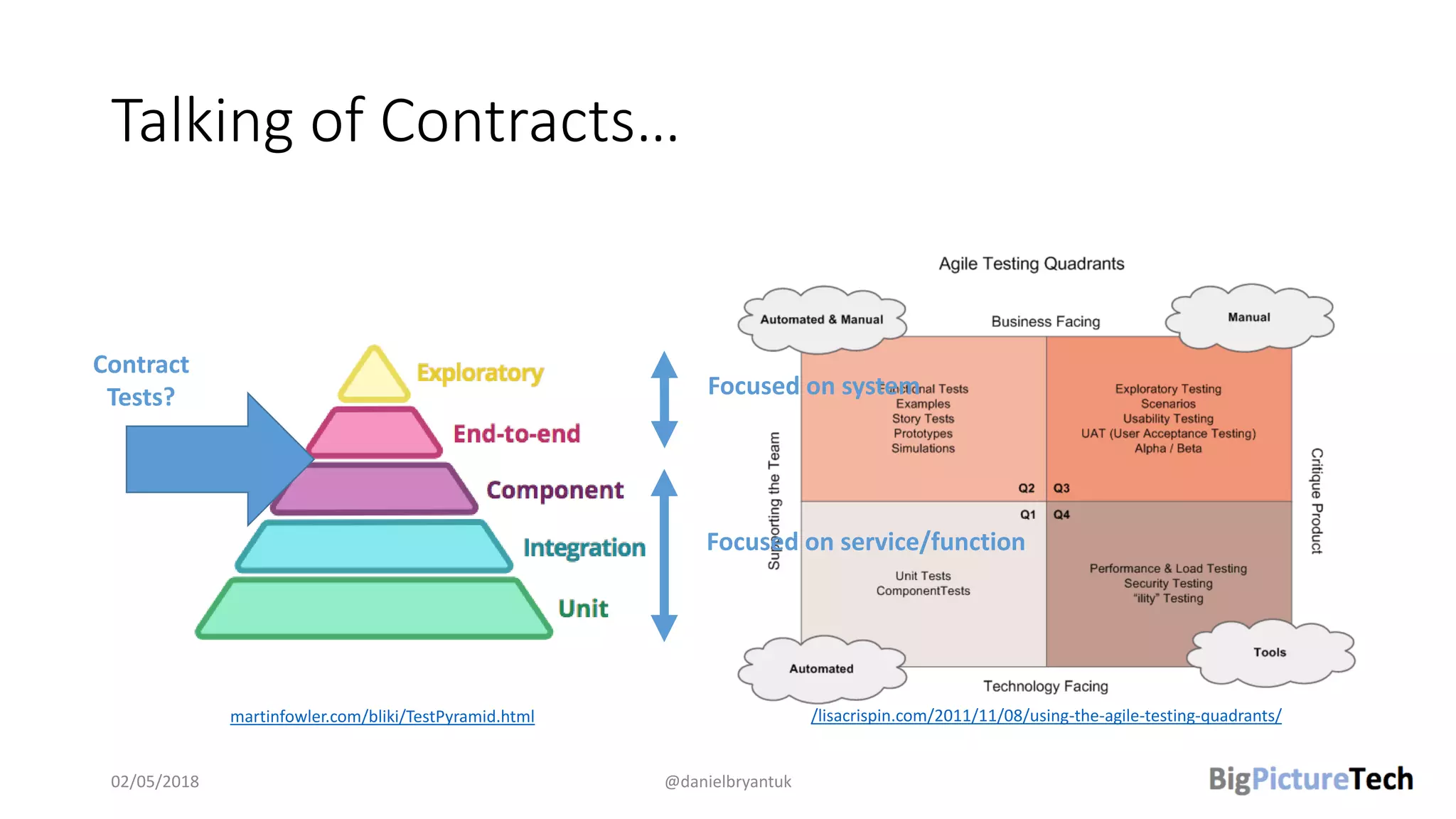

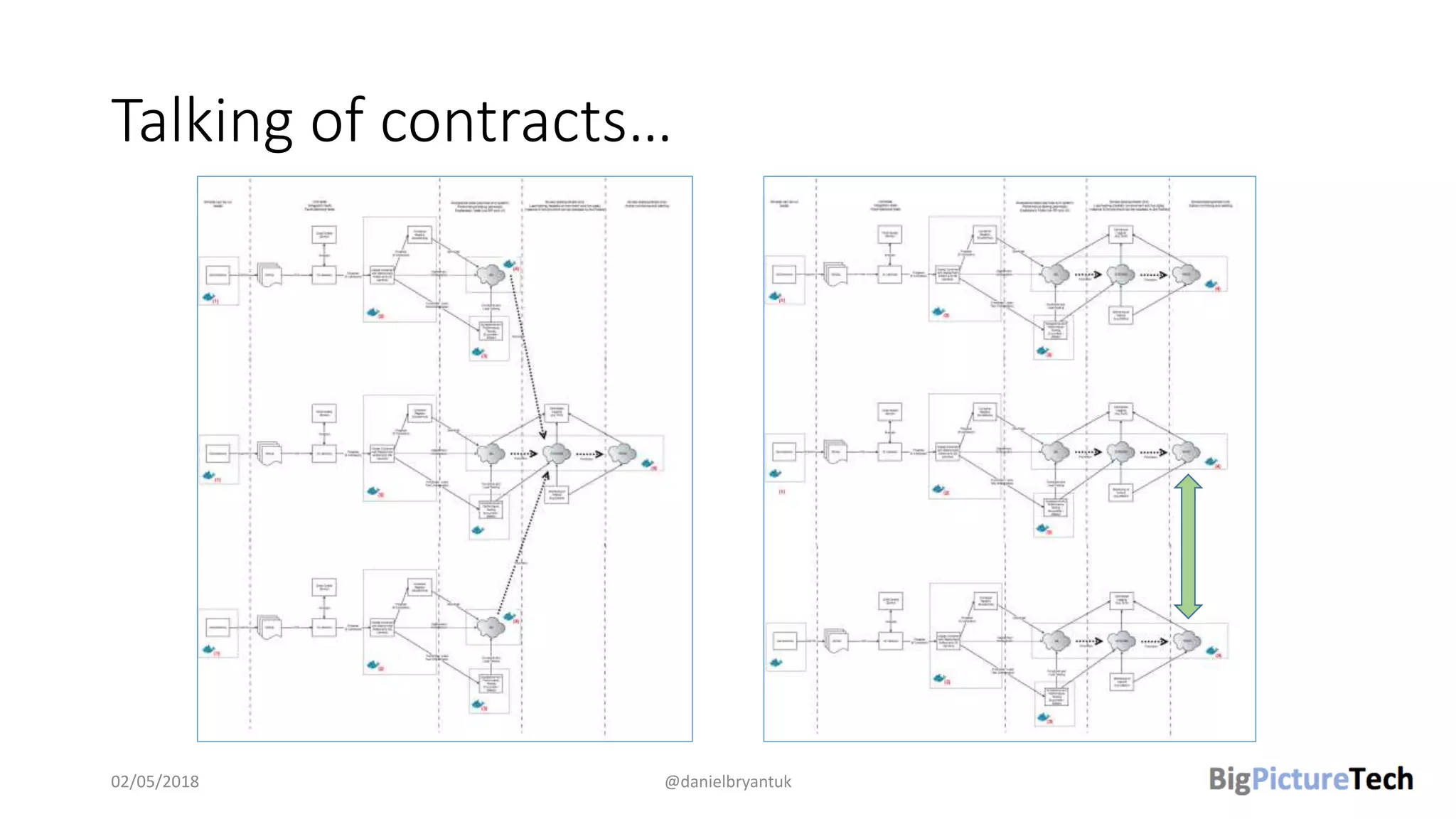

31. Talking of Contracts…
02/05/2018 @danielbryantuk
/lisacrispin.com/2011/11/08/using-the-agile-testing-quadrants/martinfowler.com/bliki/TestPyramid.html
Contract
Tests? Focused on system
Focused on service/function

32. Talking of contracts…
02/05/2018 @danielbryantuk

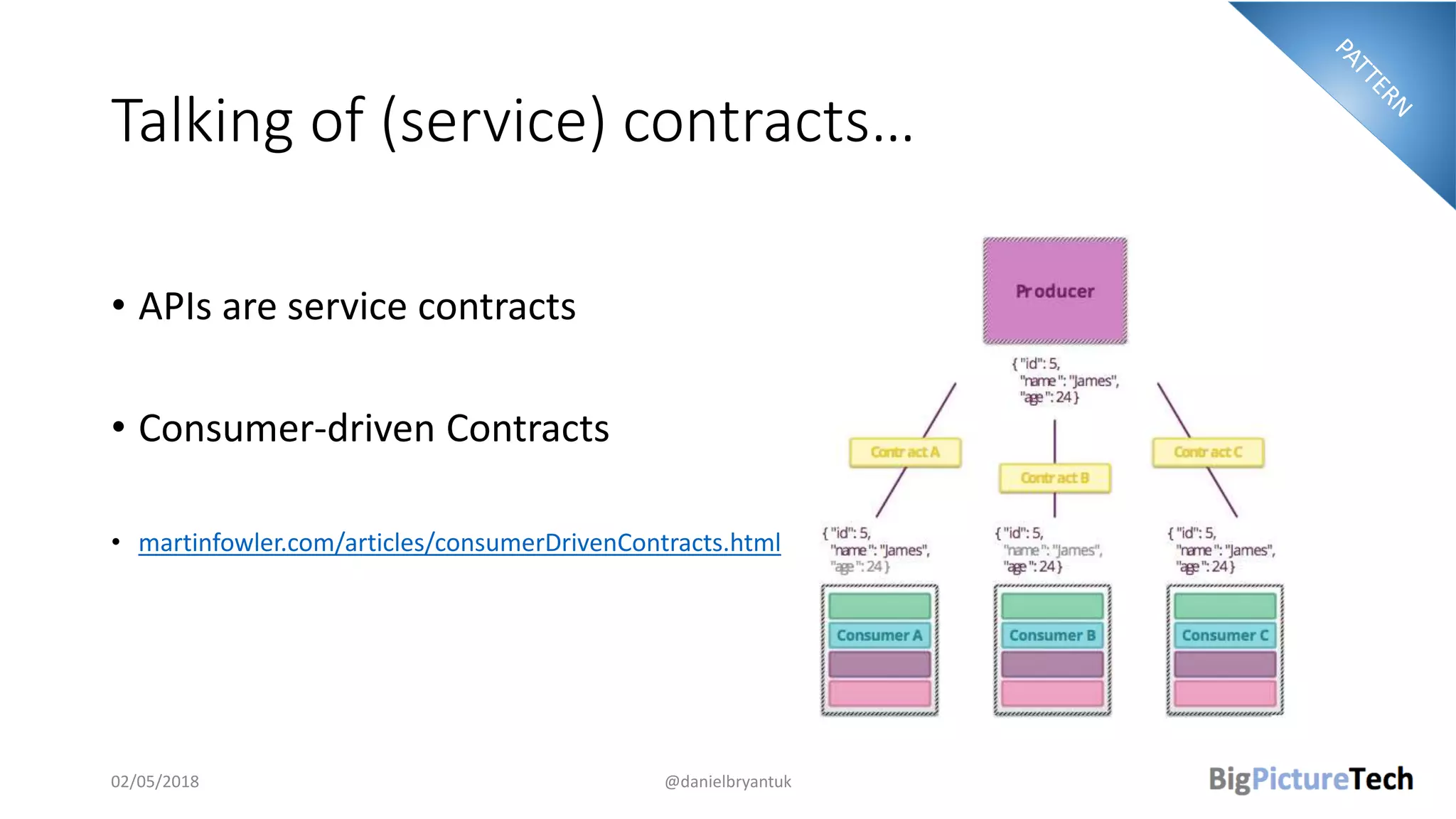

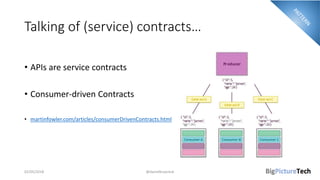

33. Talking of (service) contracts…
• APIs are service contracts
• Consumer-driven Contracts
• martinfowler.com/articles/consumerDrivenContracts.html
02/05/2018 @danielbryantuk

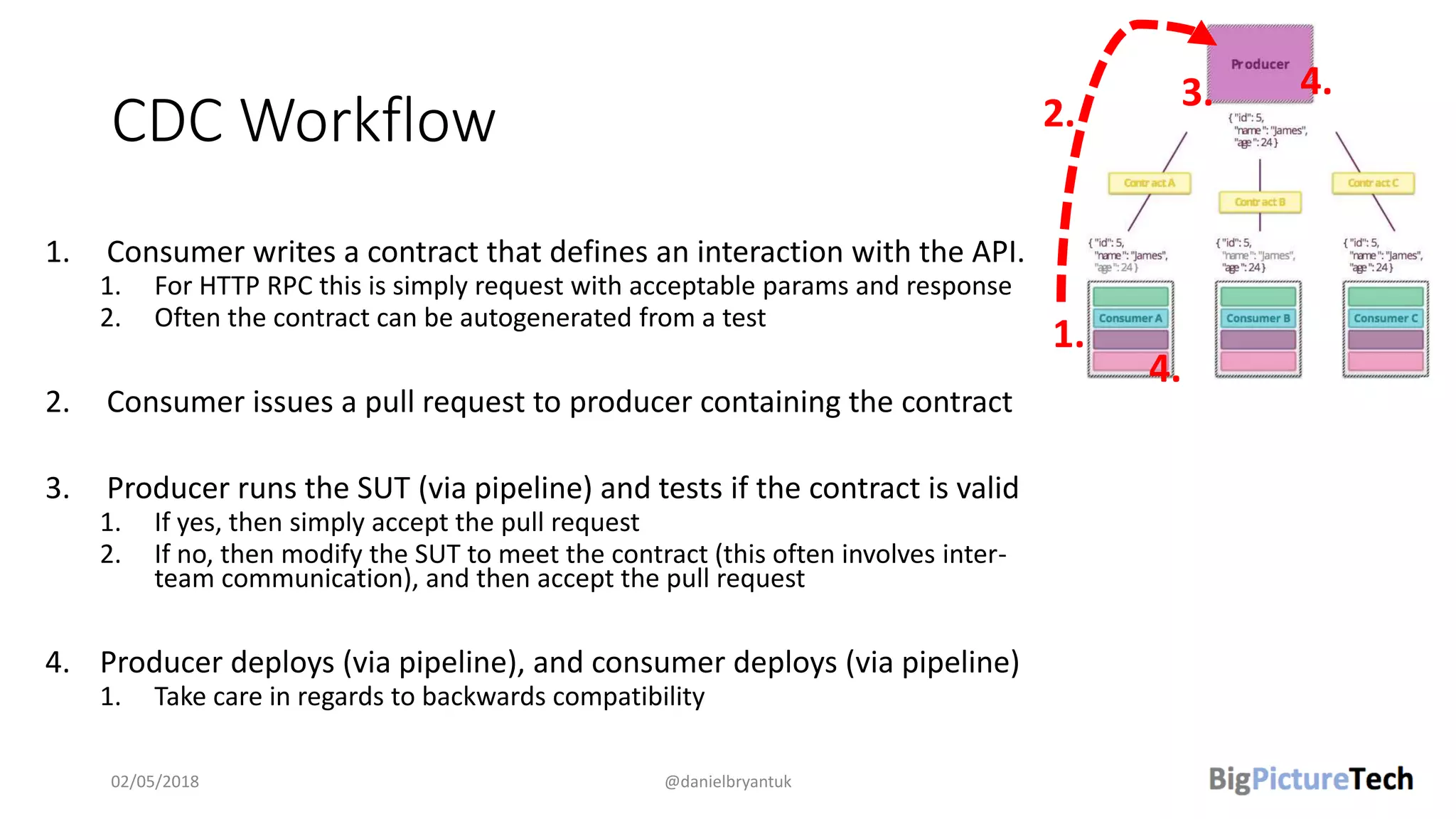

34. CDC Workflow
1. Consumer writes a contract that defines an interaction with the API.
1. For HTTP RPC this is simply request with acceptable params and response
2. Often the contract can be autogenerated from a test
2. Consumer issues a pull request to producer containing the contract
3. Producer runs the SUT (via pipeline) and tests if the contract is valid
1. If yes, then simply accept the pull request
2. If no, then modify the SUT to meet the contract (this often involves inter-
team communication), and then accept the pull request
4. Producer deploys (via pipeline), and consumer deploys (via pipeline)
1. Take care in regards to backwards compatibility
02/05/2018 @danielbryantuk
1.
2. 3. 4.
4.

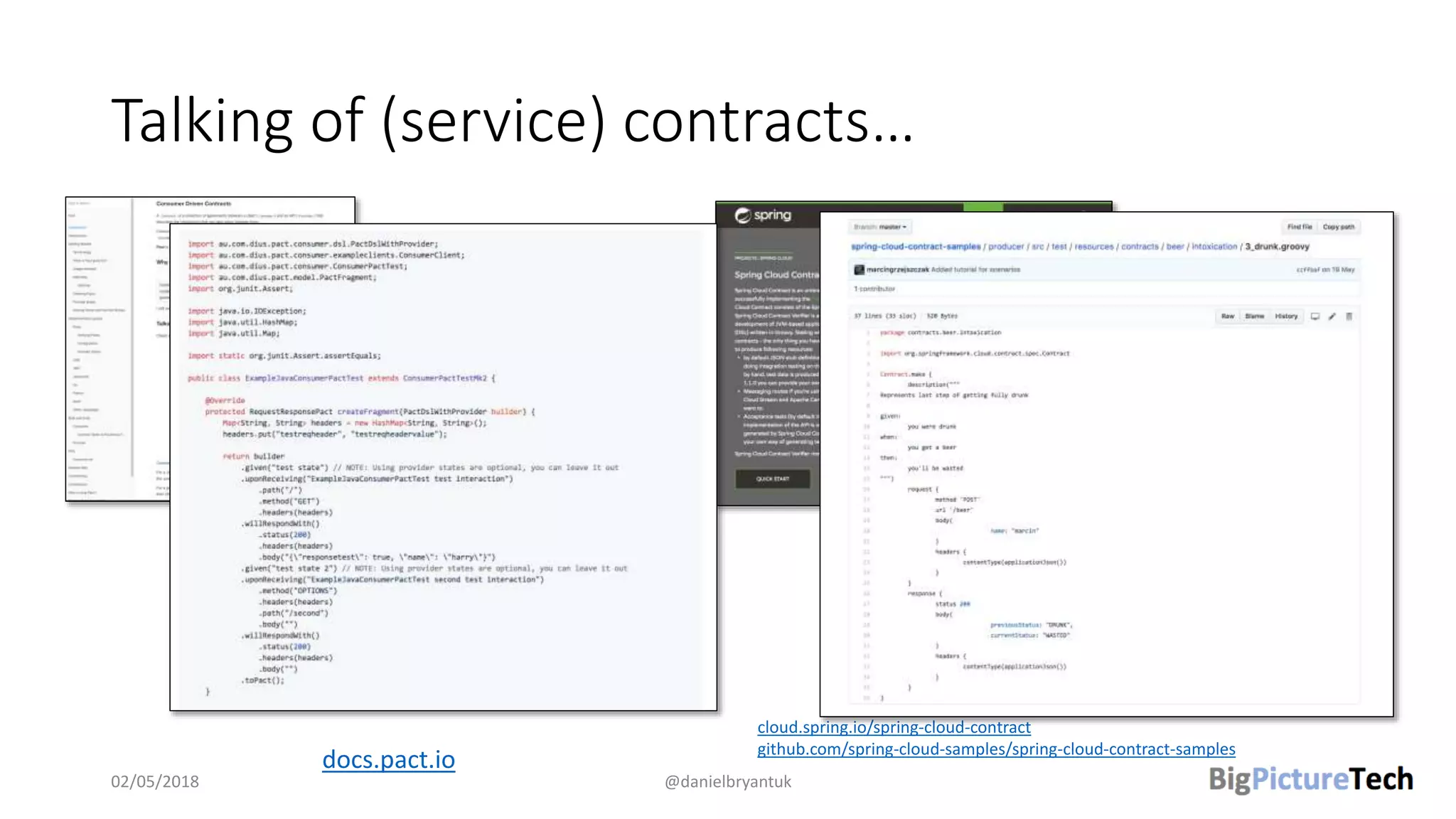

35. Talking of (service) contracts…
02/05/2018 @danielbryantuk
docs.pact.io
cloud.spring.io/spring-cloud-contract
github.com/spring-cloud-samples/spring-cloud-contract-samples

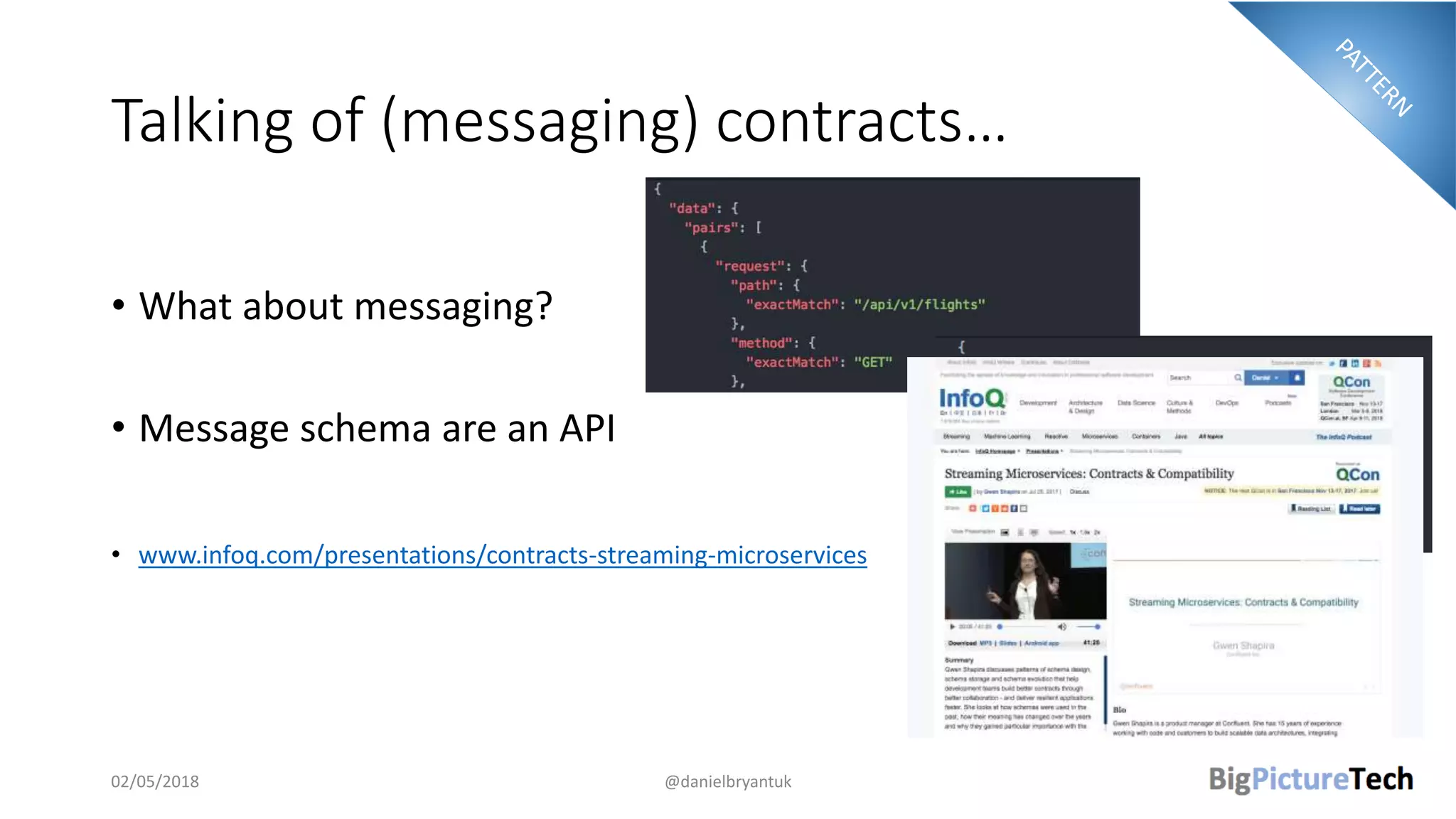

36. Talking of (messaging) contracts…
• What about messaging?
• Message schema are an API
• www.infoq.com/presentations/contracts-streaming-microservices
02/05/2018 @danielbryantuk

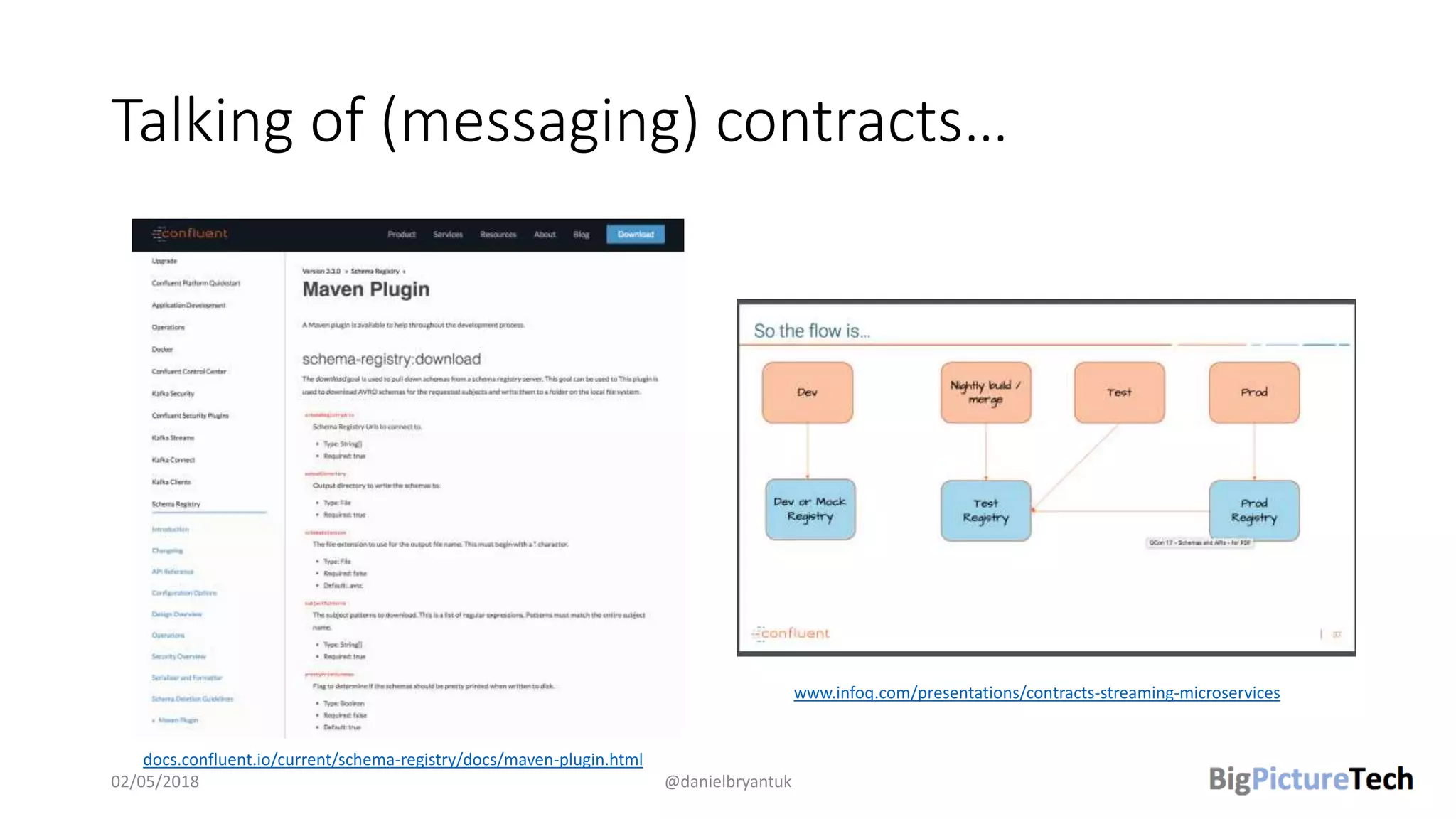

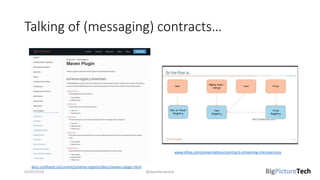

37. Talking of (messaging) contracts…
02/05/2018 @danielbryantuk
www.infoq.com/presentations/contracts-streaming-microservices
docs.confluent.io/current/schema-registry/docs/maven-plugin.html

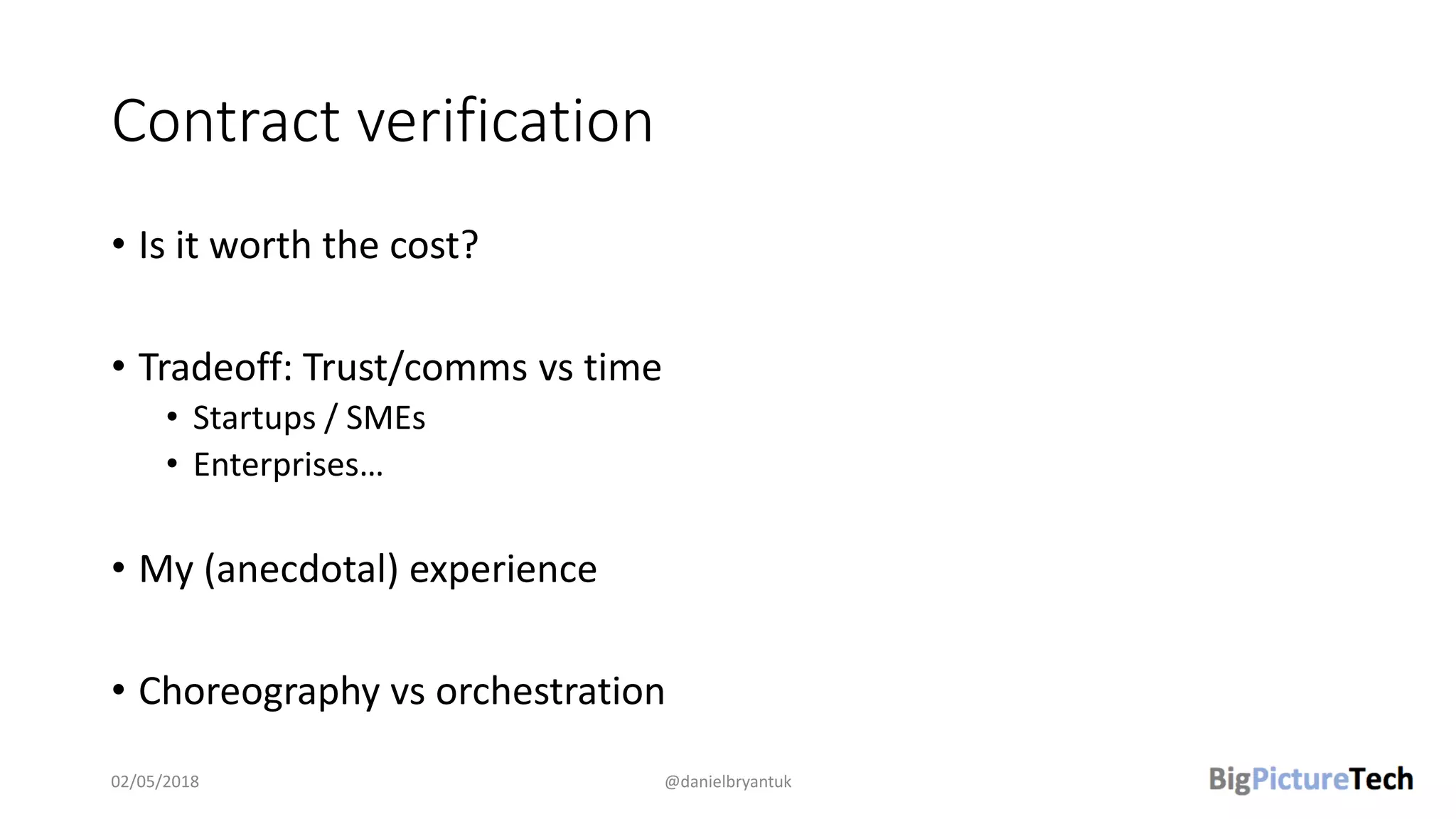

38. Contract verification
• Is it worth the cost?
• Tradeoff: Trust/comms vs time
• Startups / SMEs
• Enterprises…
• My (anecdotal) experience
• Choreography vs orchestration
02/05/2018 @danielbryantuk

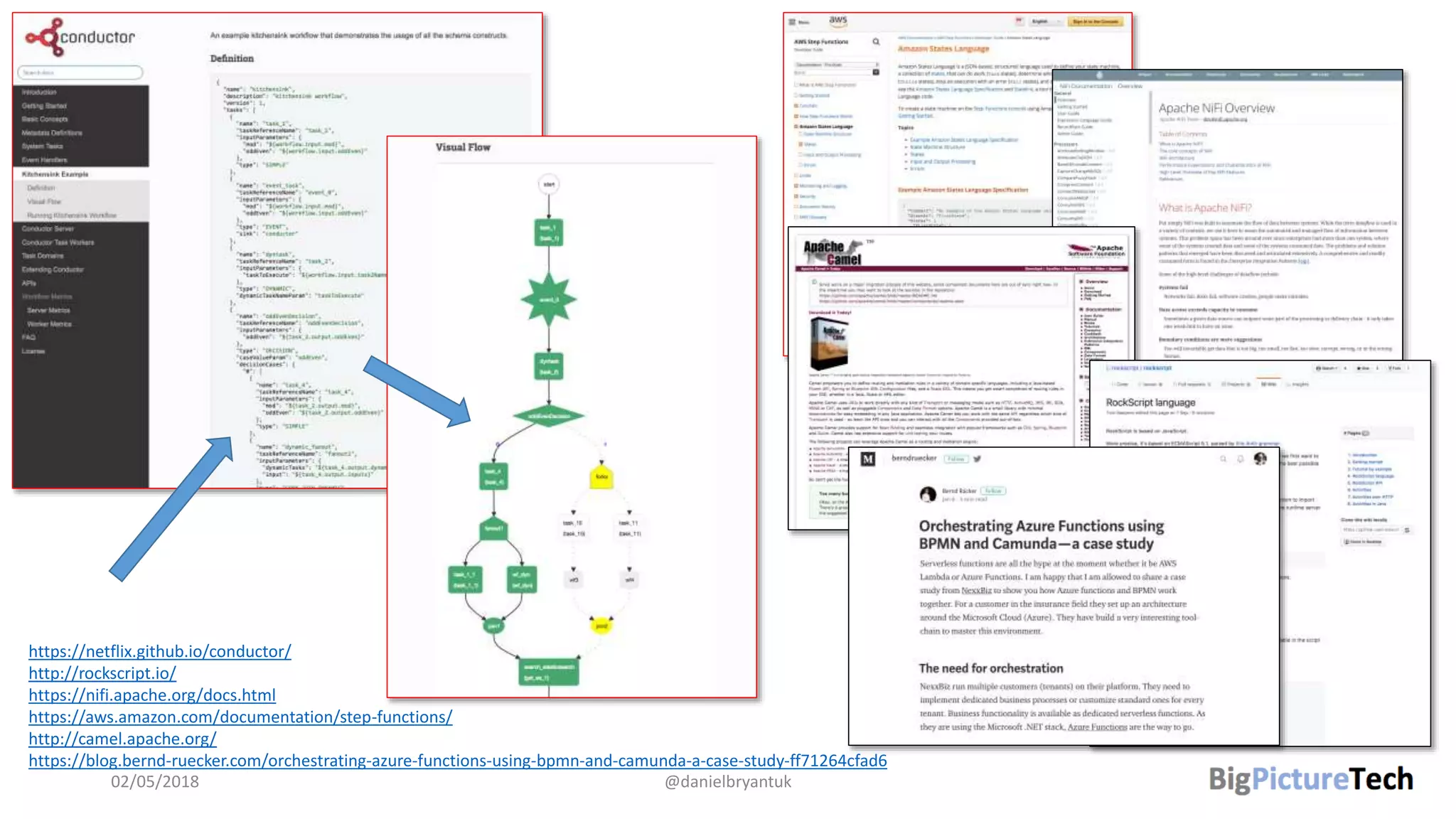

39. 02/05/2018 @danielbryantuk
https://netflix.github.io/conductor/
http://rockscript.io/
https://nifi.apache.org/docs.html
https://aws.amazon.com/documentation/step-functions/
http://camel.apache.org/
https://blog.bernd-ruecker.com/orchestrating-azure-functions-using-bpmn-and-camunda-a-case-study-ff71264cfad6

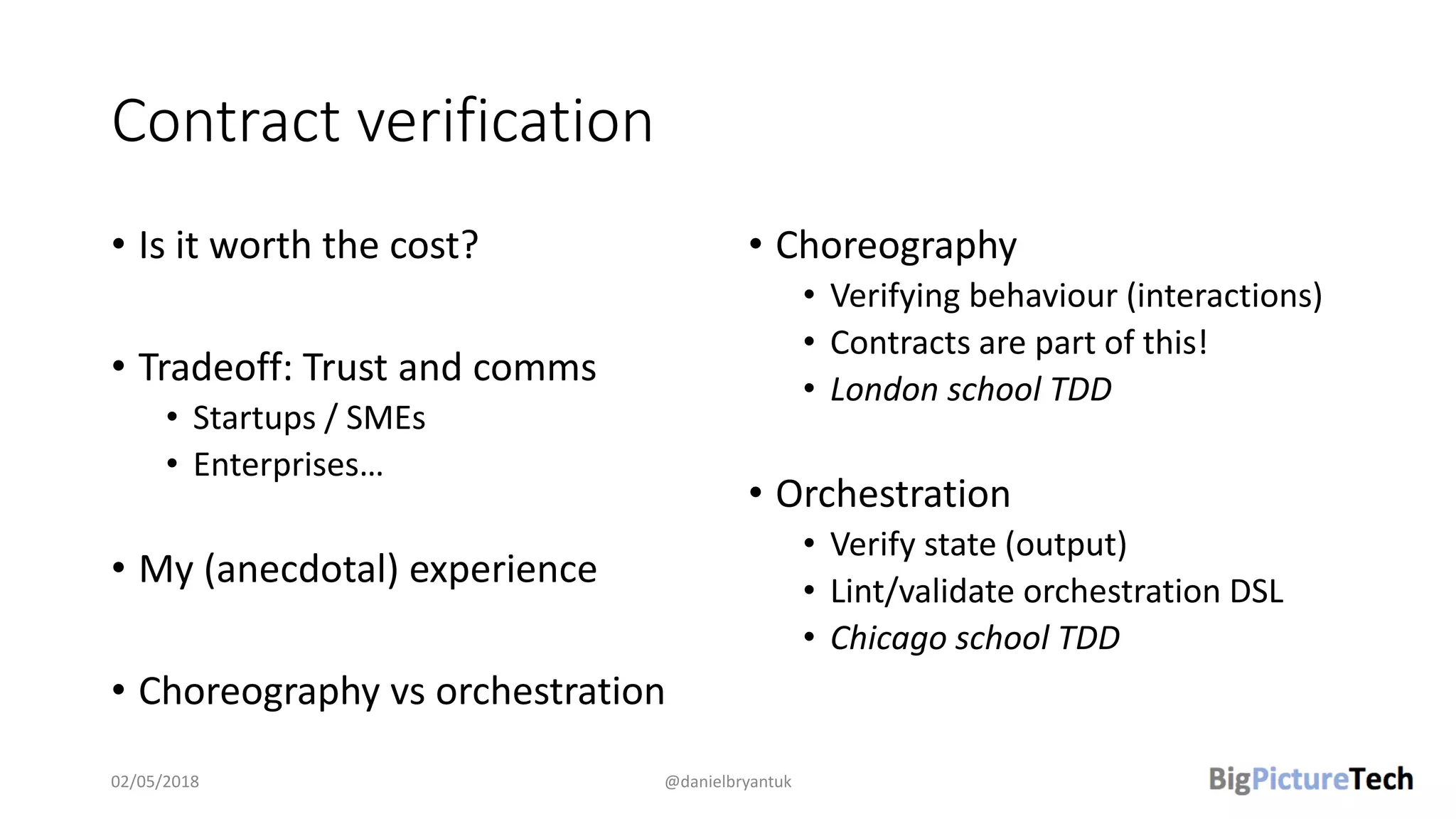

40. Contract verification
• Is it worth the cost?
• Tradeoff: Trust and comms
• Startups / SMEs
• Enterprises…
• My (anecdotal) experience
• Choreography vs orchestration
• Choreography
• Verifying behaviour (interactions)
• Contracts are part of this!
• London school TDD
• Orchestration
• Verify state (output)
• Lint/validate orchestration DSL
• Chicago school TDD
02/05/2018 @danielbryantuk

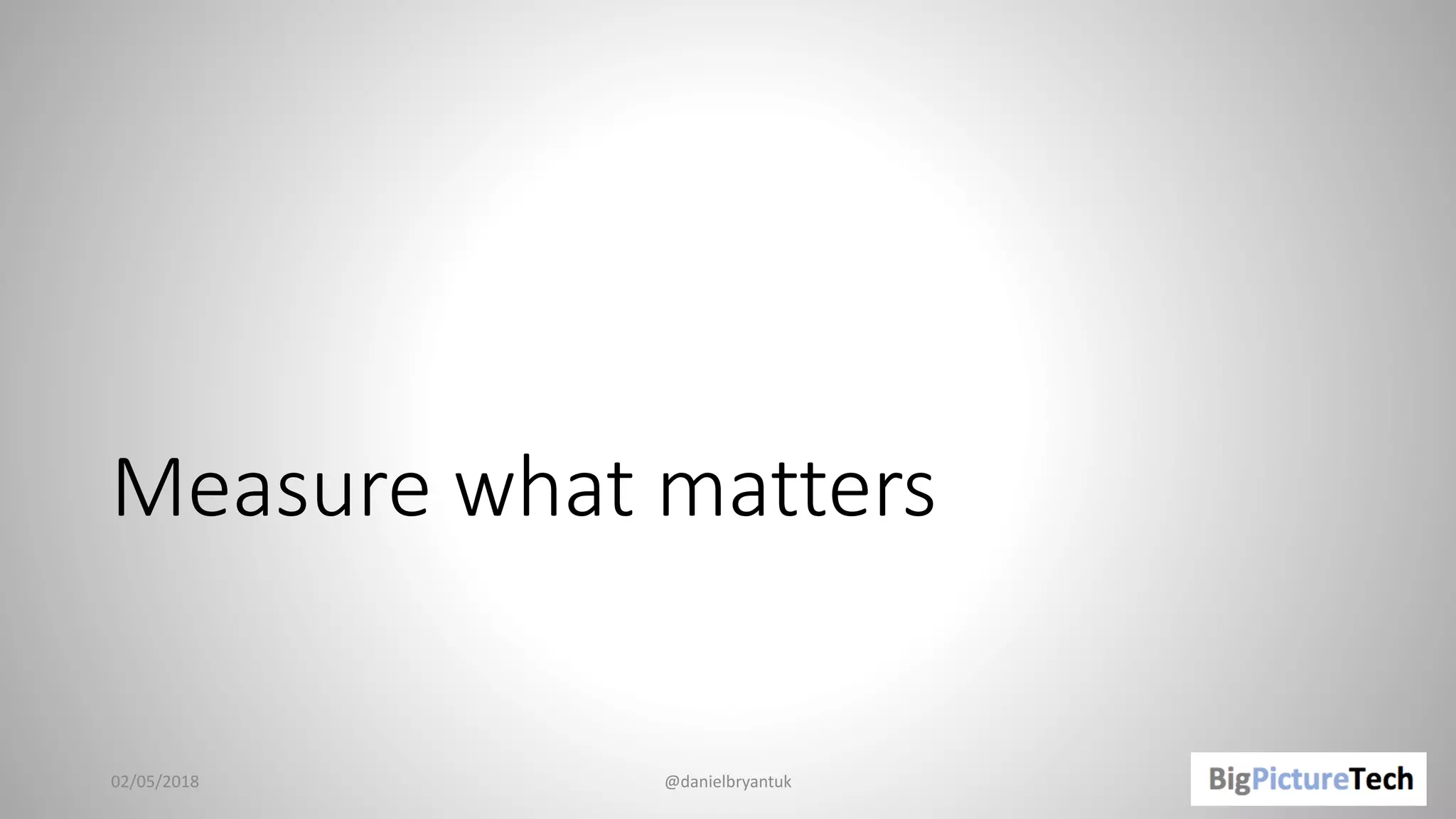

41. Measure what matters
02/05/2018 @danielbryantuk

42. 02/05/2018 @danielbryantuk

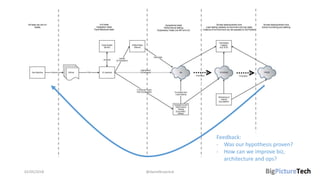

Feedback:
- Was our hypothesis proven?
- How can we improve biz,
architecture and ops?

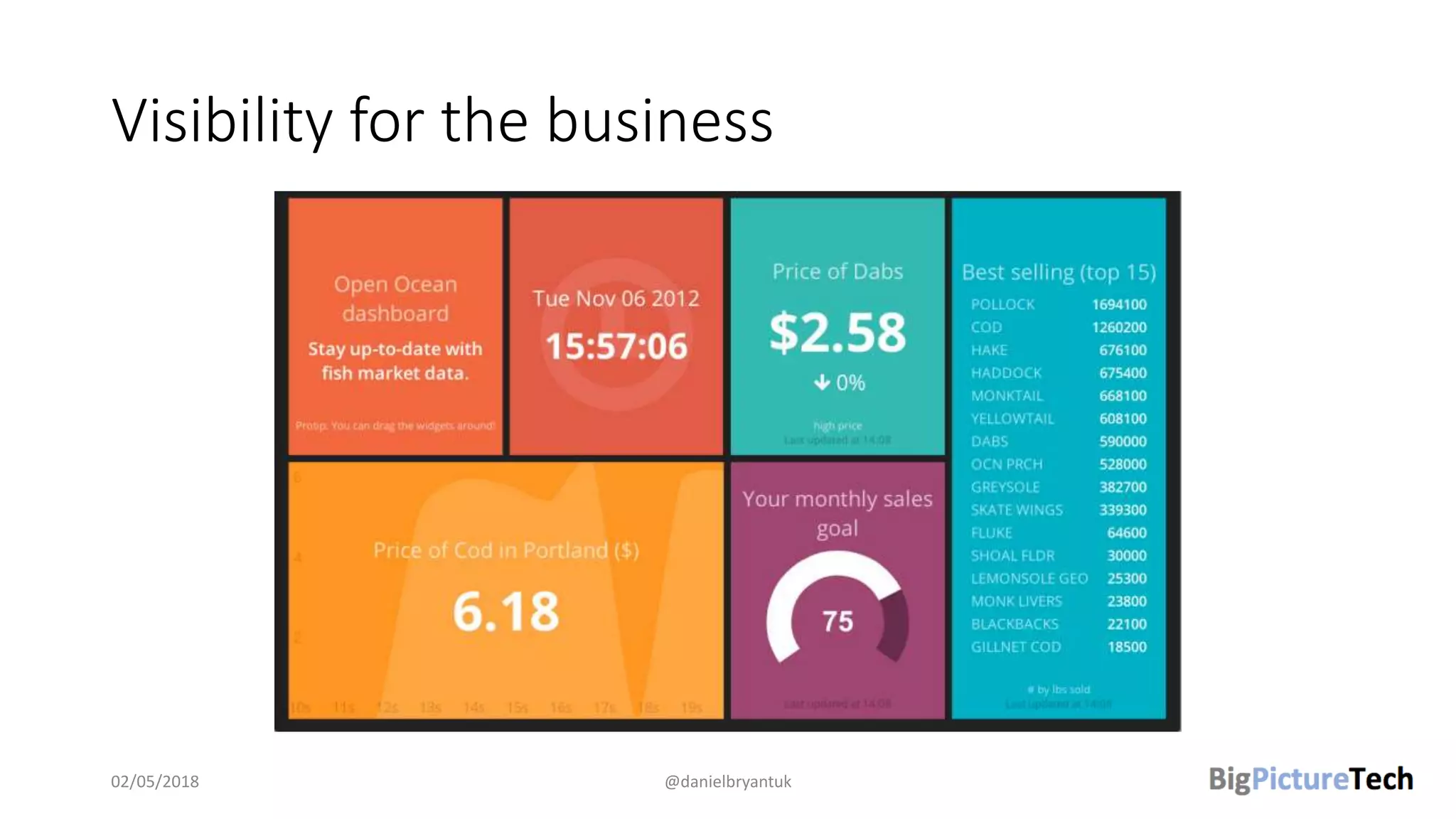

43. Visibility for the business
02/05/2018 @danielbryantuk

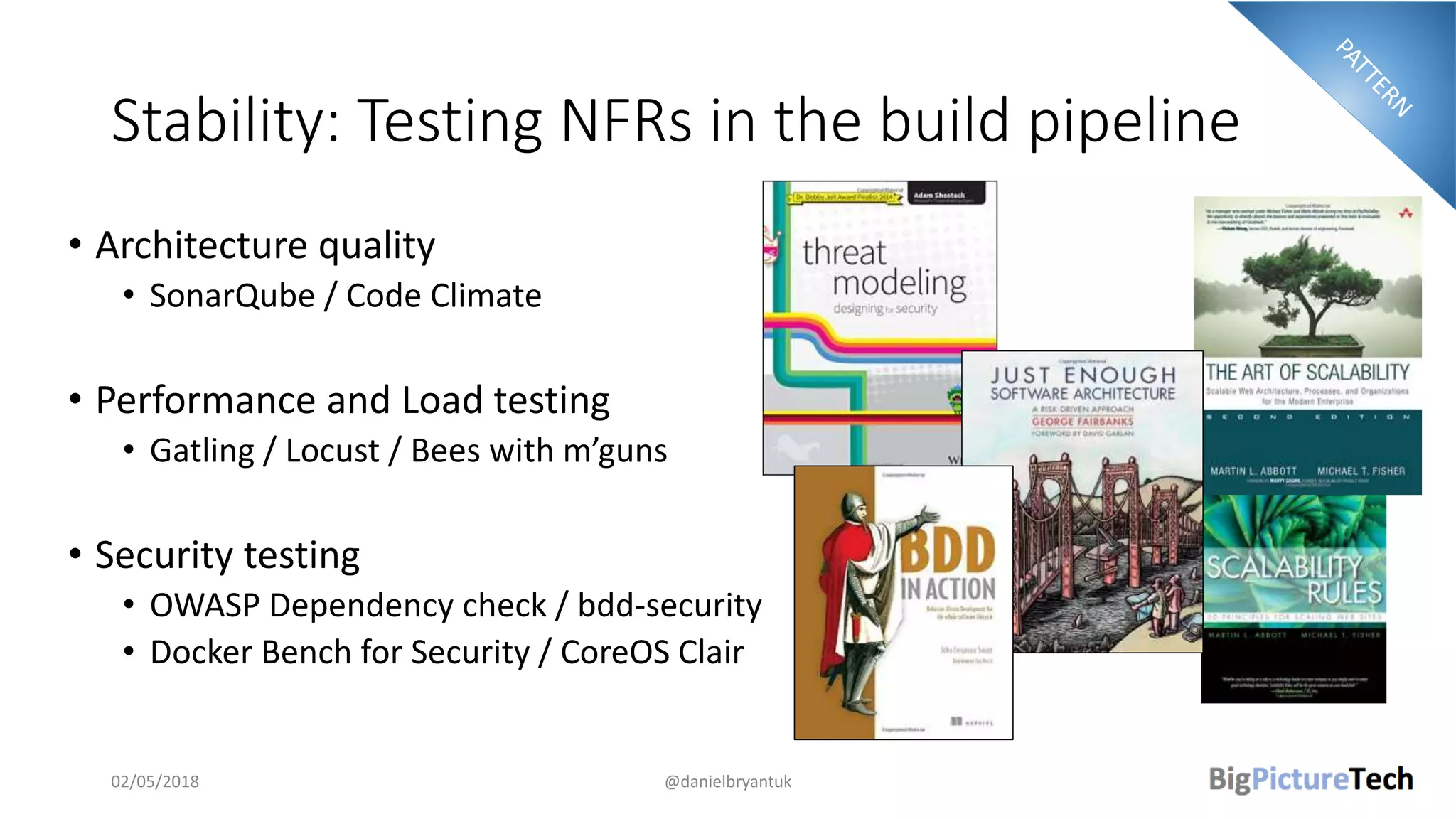

44. Stability: Testing NFRs in the build pipeline
• Architecture quality
• SonarQube / Code Climate
• Performance and Load testing
• Gatling / Locust / Bees with m’guns
• Security testing
• OWASP Dependency check / bdd-security
• Docker Bench for Security / CoreOS Clair
02/05/2018 @danielbryantuk

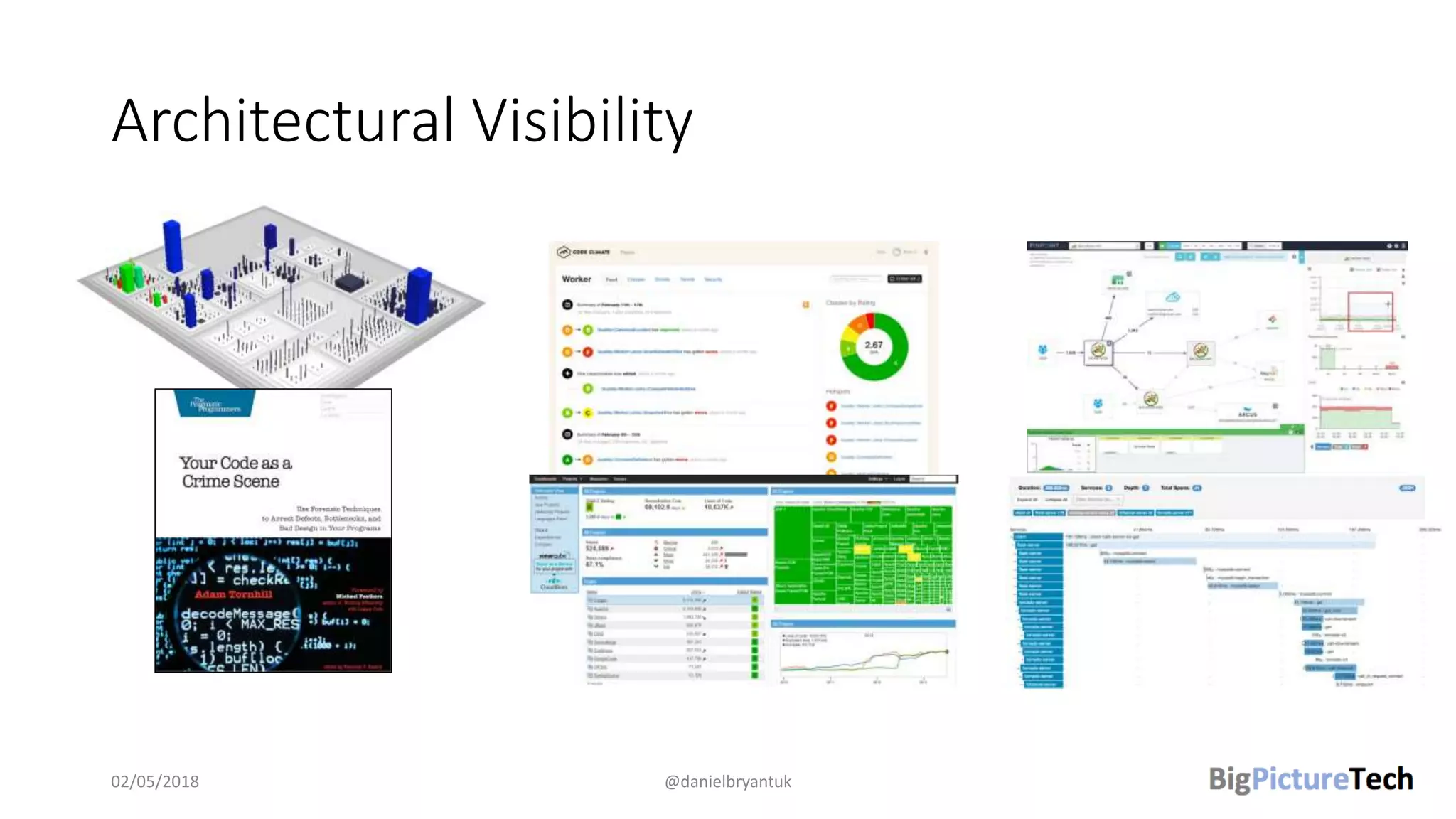

45. Architectural Visibility
02/05/2018 @danielbryantuk

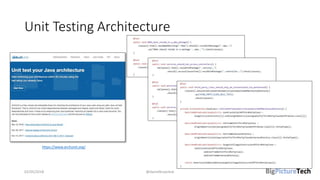

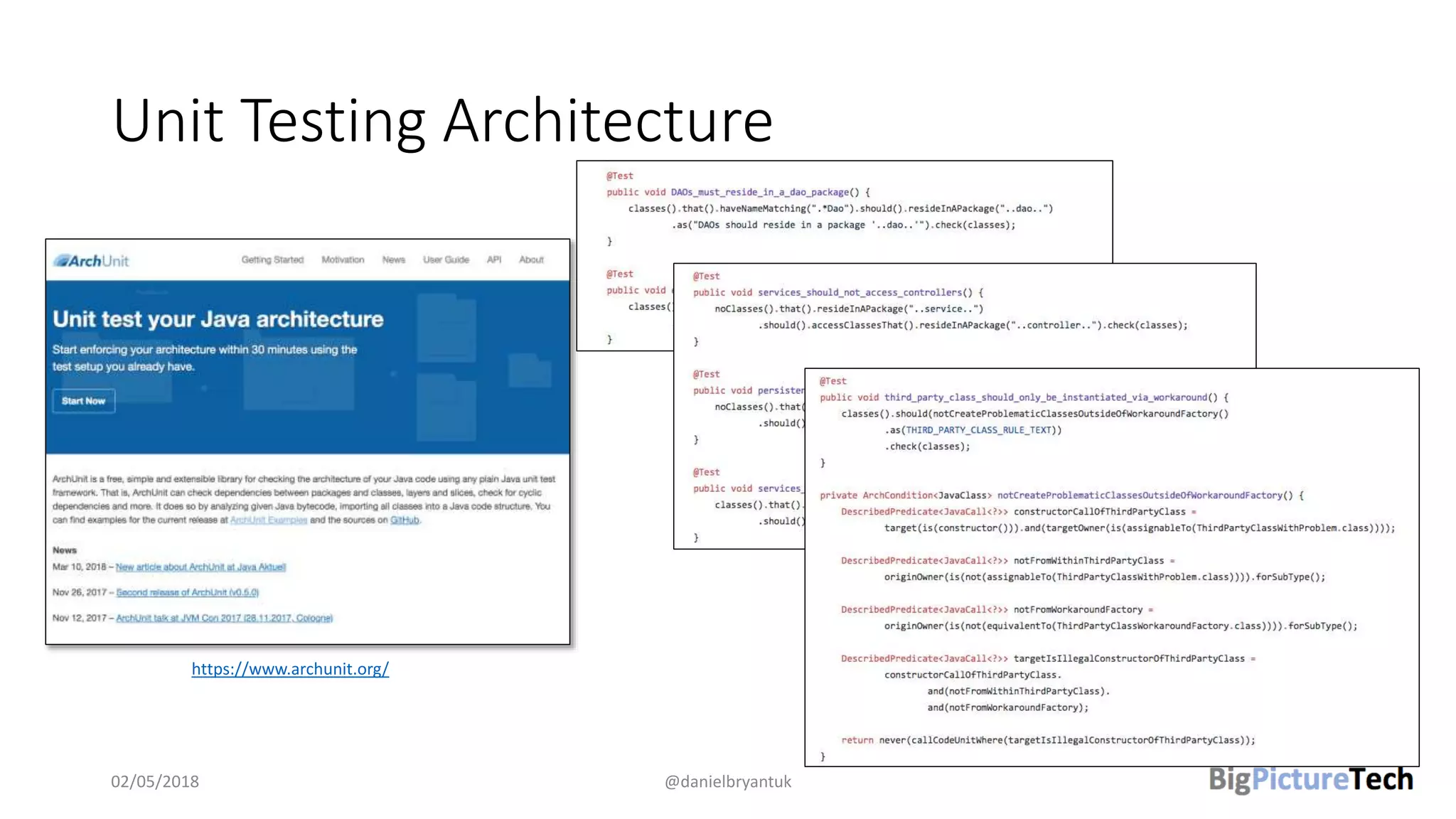

46. Unit Testing Architecture
02/05/2018 @danielbryantuk
https://www.archunit.org/

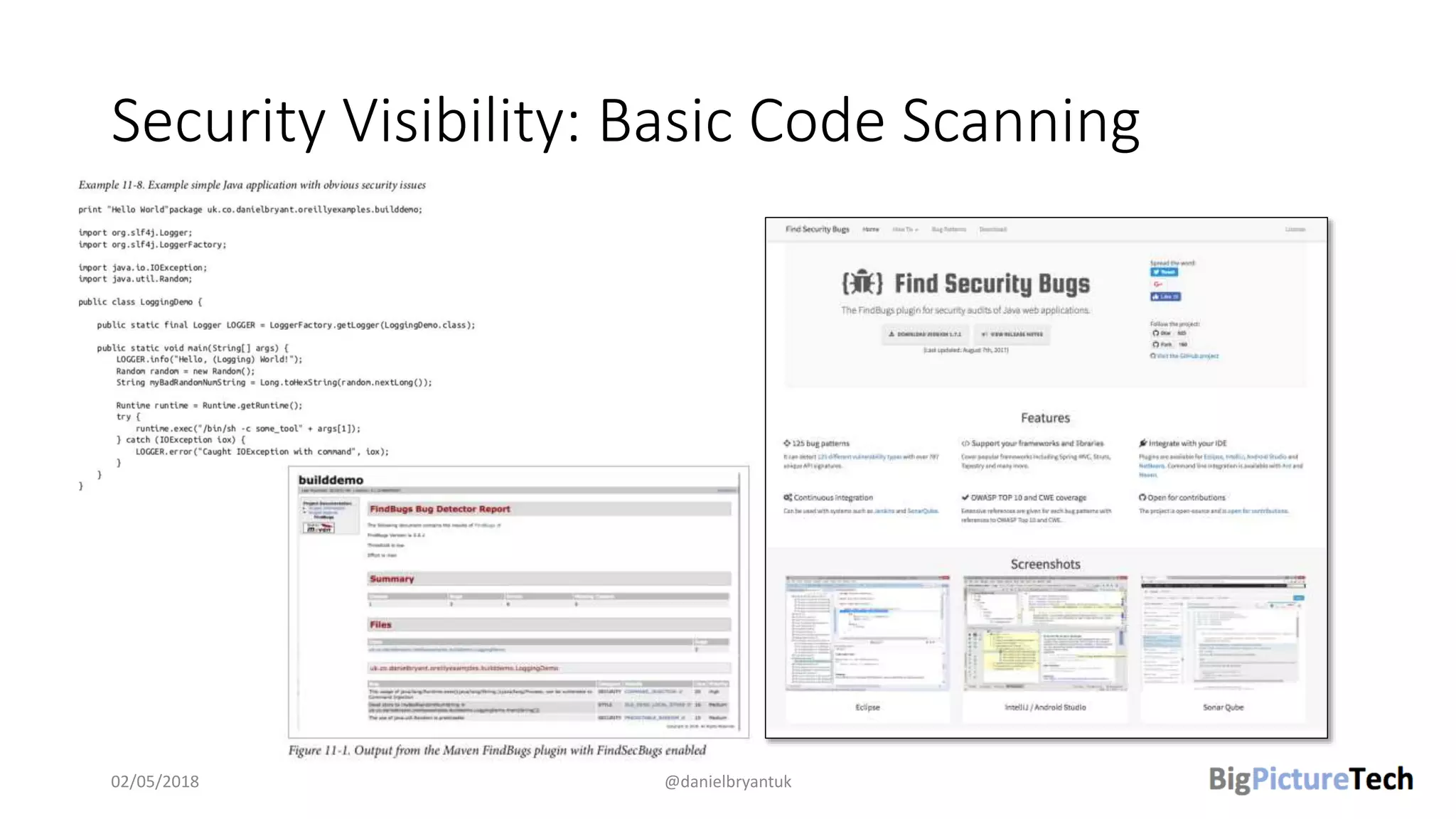

47. Security Visibility: Basic Code Scanning
02/05/2018 @danielbryantuk

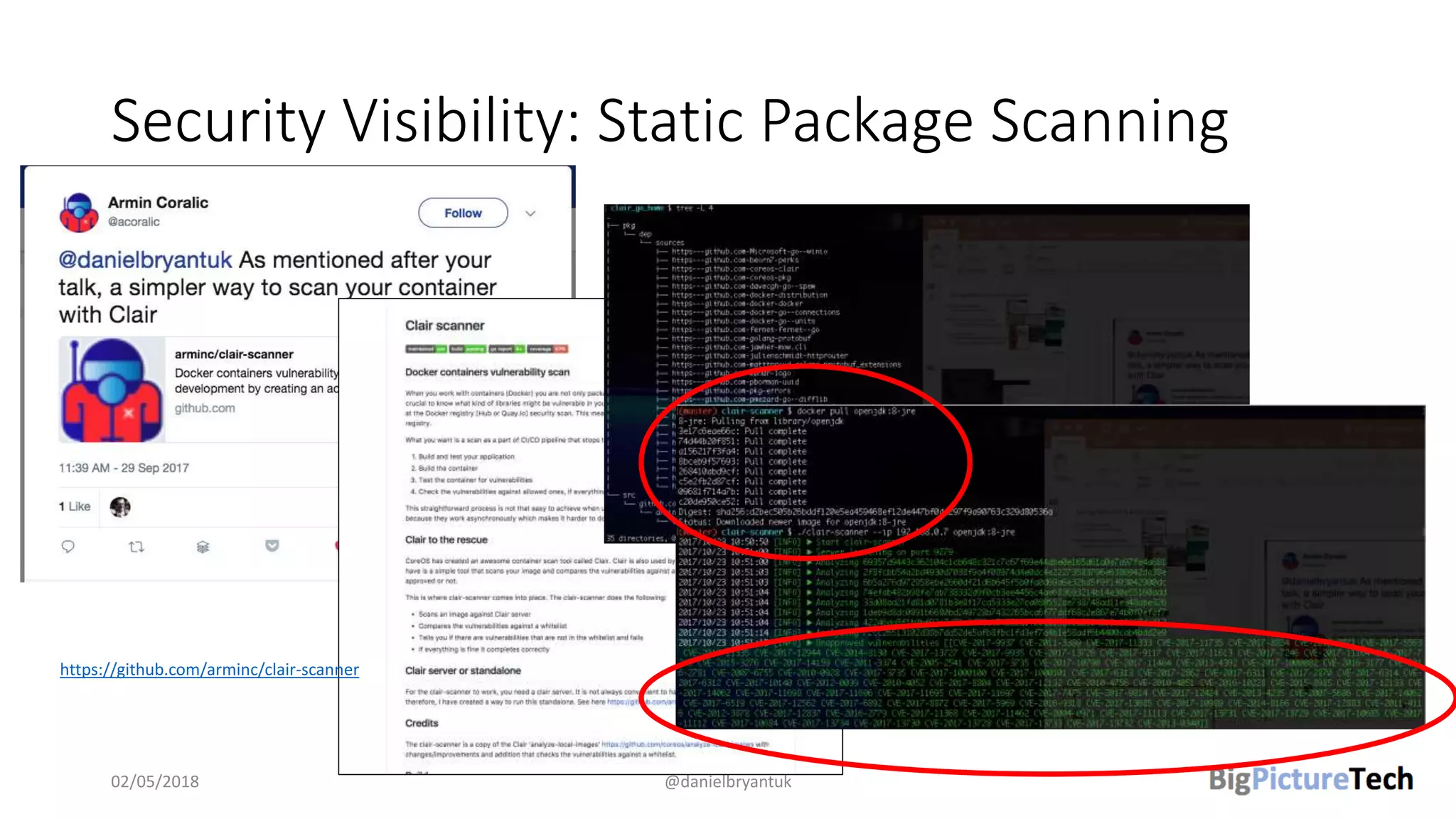

48. Security Visibility: Static Package Scanning
02/05/2018 @danielbryantuk
https://github.com/arminc/clair-scanner

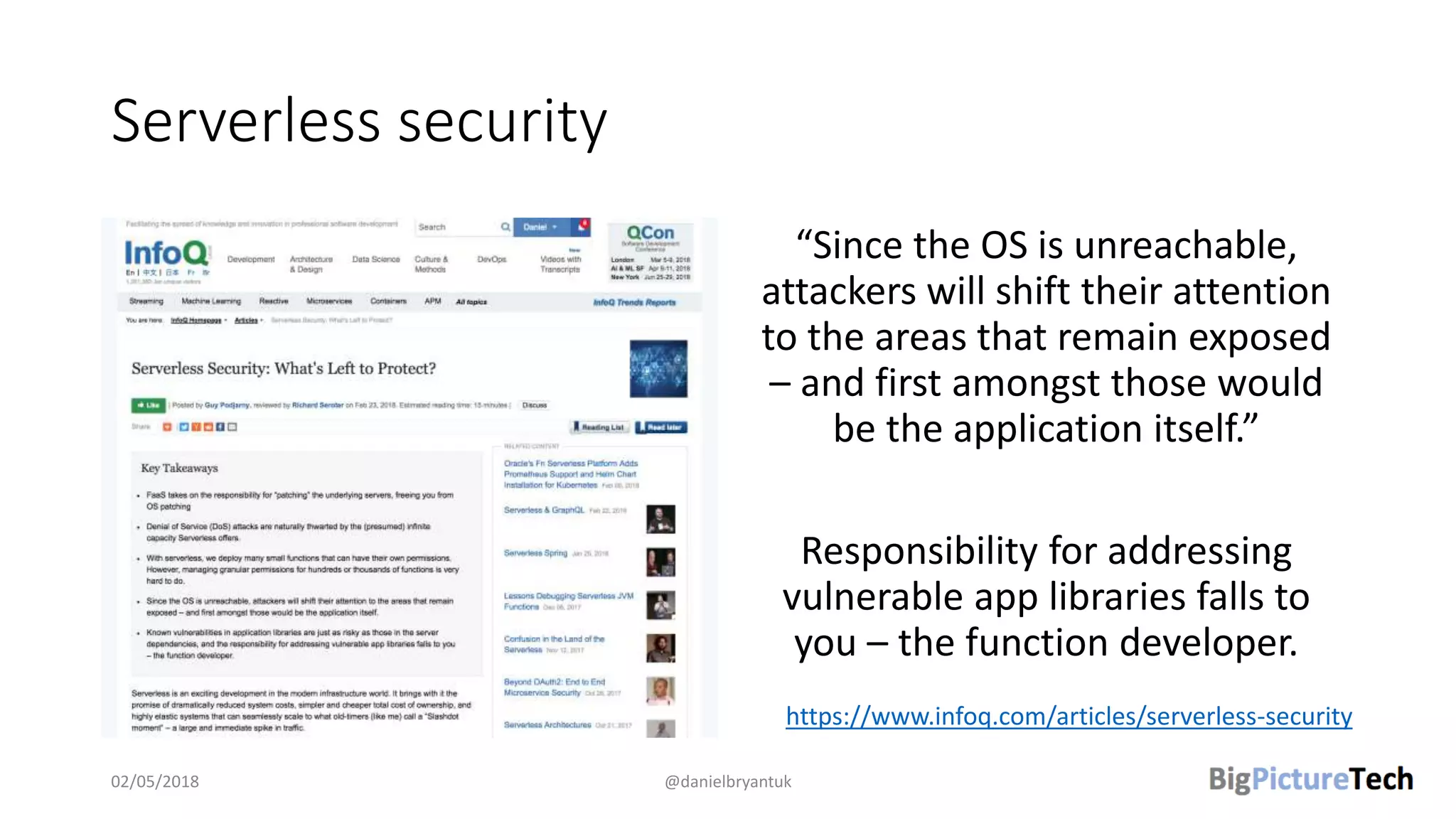

49. Serverless security
“Since the OS is unreachable,
attackers will shift their attention
to the areas that remain exposed
– and first amongst those would
be the application itself.”
Responsibility for addressing
vulnerable app libraries falls to
you – the function developer.
02/05/2018 @danielbryantuk
https://www.infoq.com/articles/serverless-security

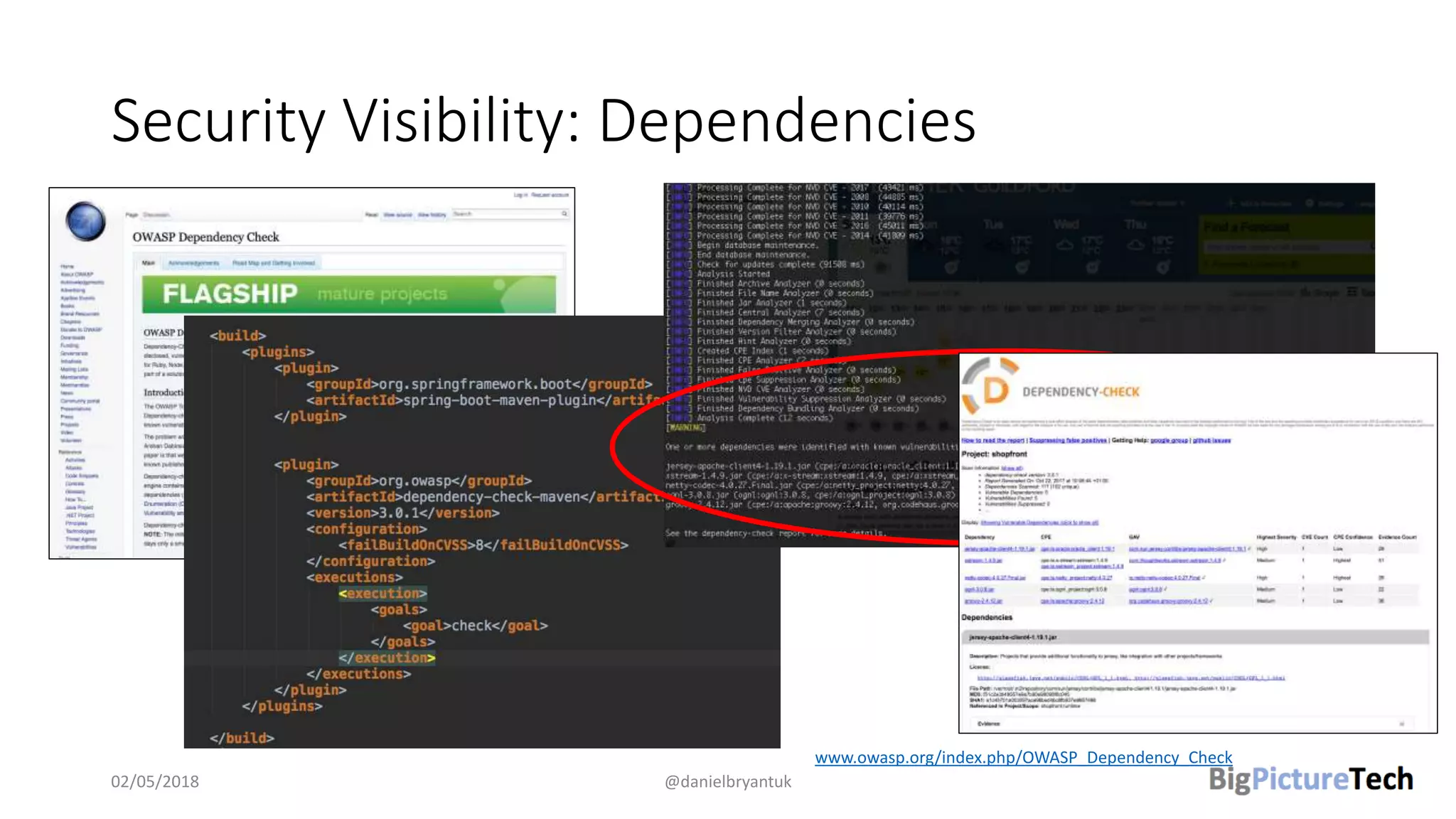

50. Security Visibility: Dependencies
02/05/2018 @danielbryantuk
www.owasp.org/index.php/OWASP_Dependency_Check

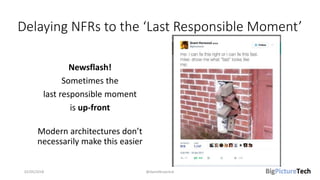

51. Delaying NFRs to the ‘Last Responsible Moment’
Newsflash!
Sometimes the
last responsible moment
is up-front
Modern architectures don’t
necessarily make this easier
02/05/2018 @danielbryantuk

52. Wrapping Up
02/05/2018 @danielbryantuk

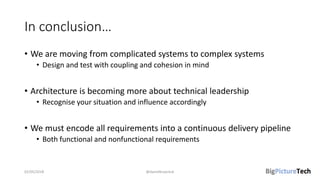

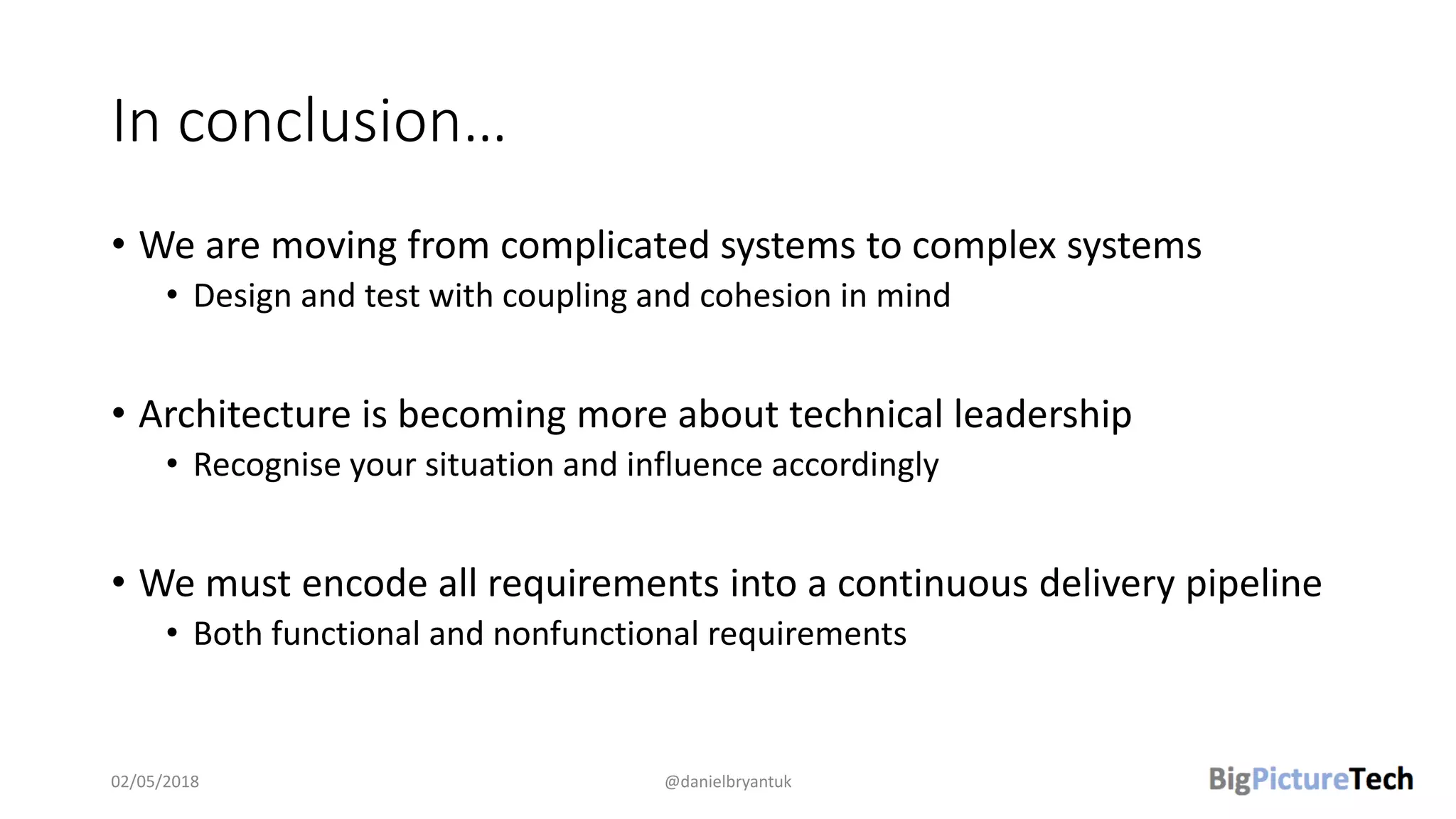

53. In conclusion…
• We are moving from complicated systems to complex systems
• Design and test with coupling and cohesion in mind
• Architecture is becoming more about technical leadership
• Recognise your situation and influence accordingly
• We must encode all requirements into a continuous delivery pipeline
• Both functional and nonfunctional requirements
02/05/2018 @danielbryantuk

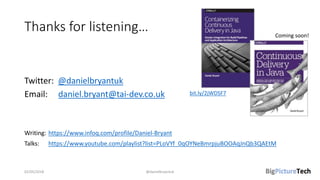

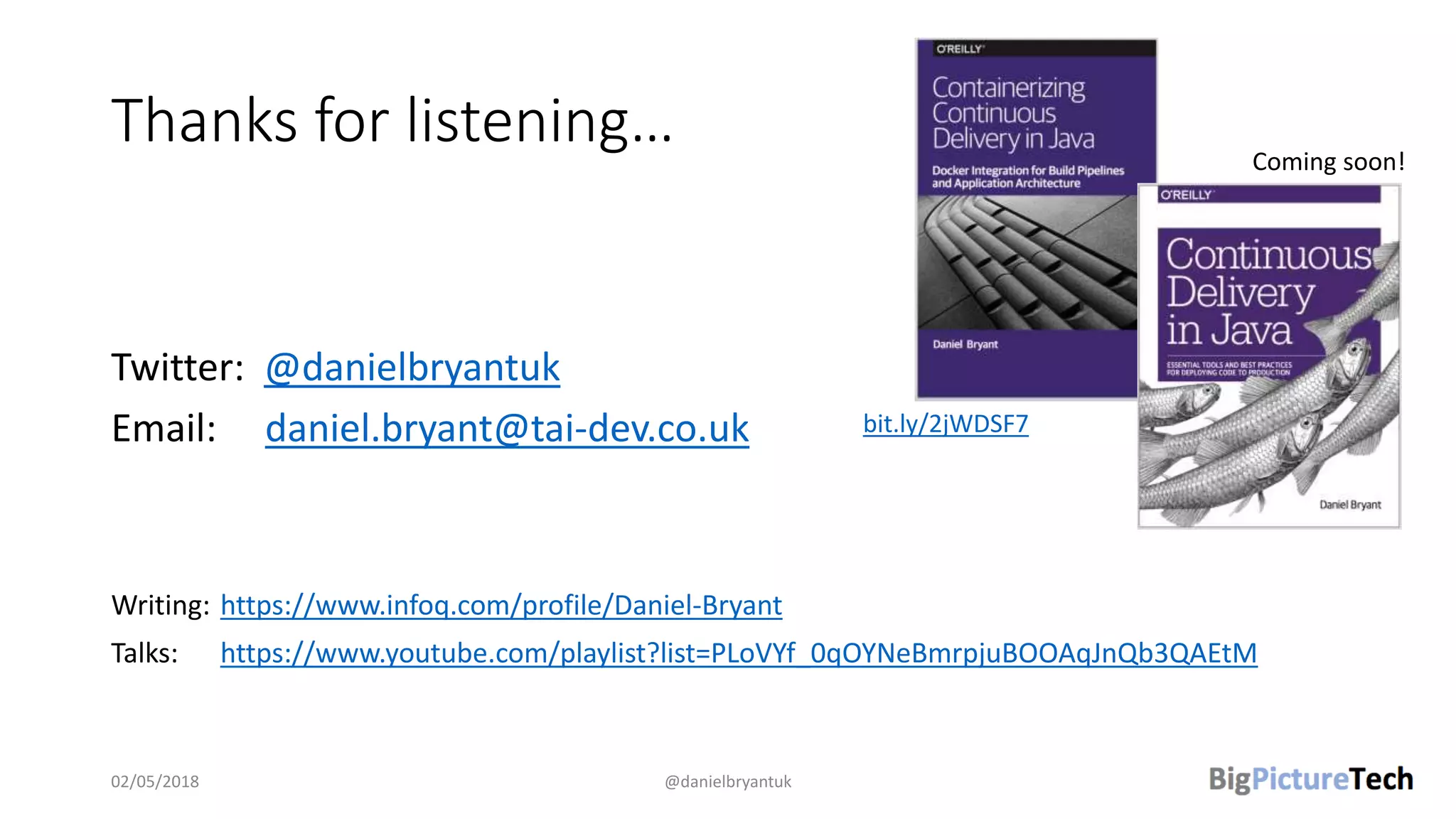

54. Thanks for listening…
Twitter: @danielbryantuk
Email: daniel.bryant@tai-dev.co.uk
Writing: https://www.infoq.com/profile/Daniel-Bryant
Talks: https://www.youtube.com/playlist?list=PLoVYf_0qOYNeBmrpjuBOOAqJnQb3QAEtM
02/05/2018 @danielbryantuk
bit.ly/2jWDSF7
Coming soon!

55. Bonus Content
02/05/2018 @danielbryantuk

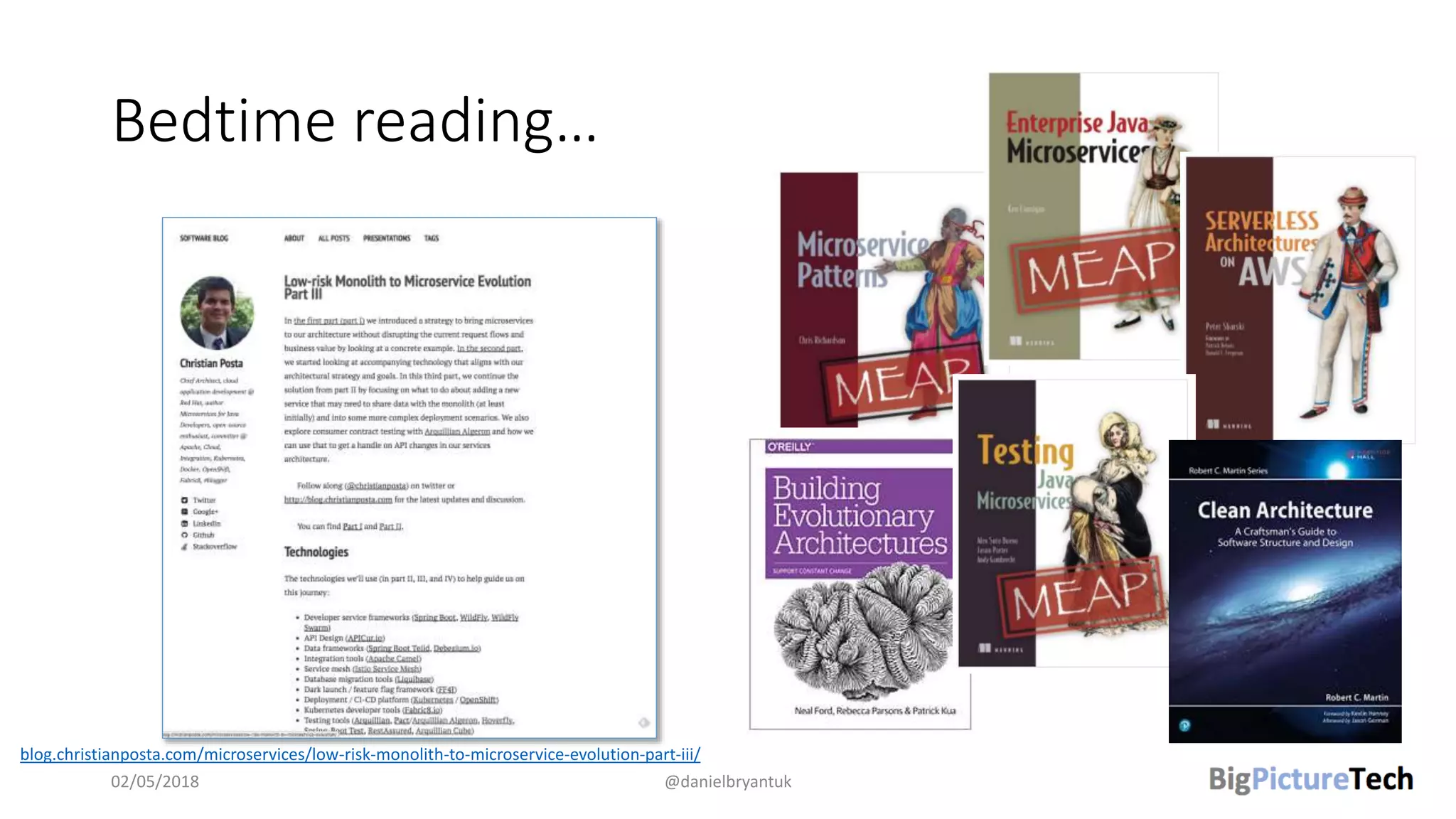

56. Bedtime reading…
02/05/2018 @danielbryantuk
blog.christianposta.com/microservices/low-risk-monolith-to-microservice-evolution-part-iii/

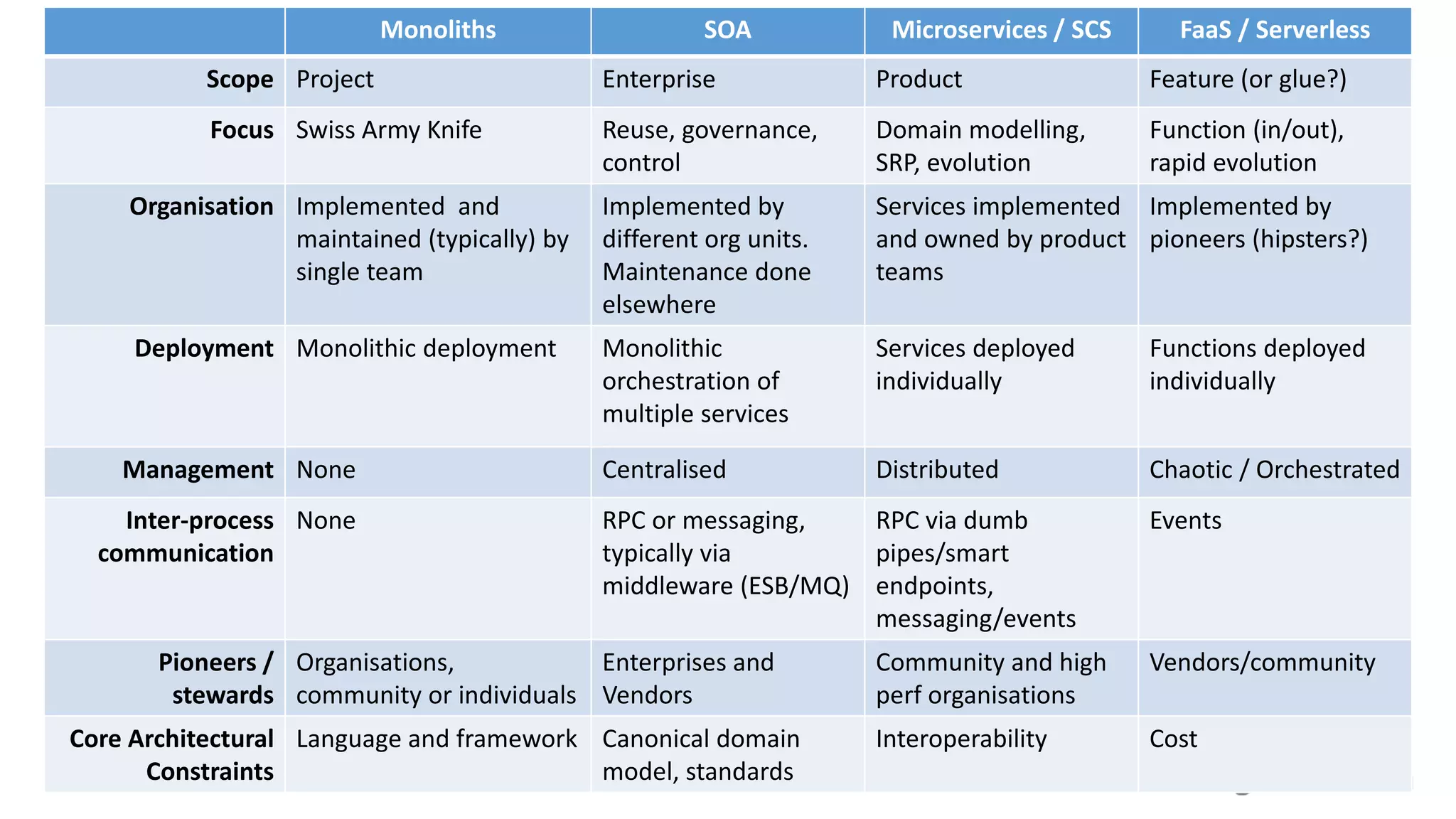

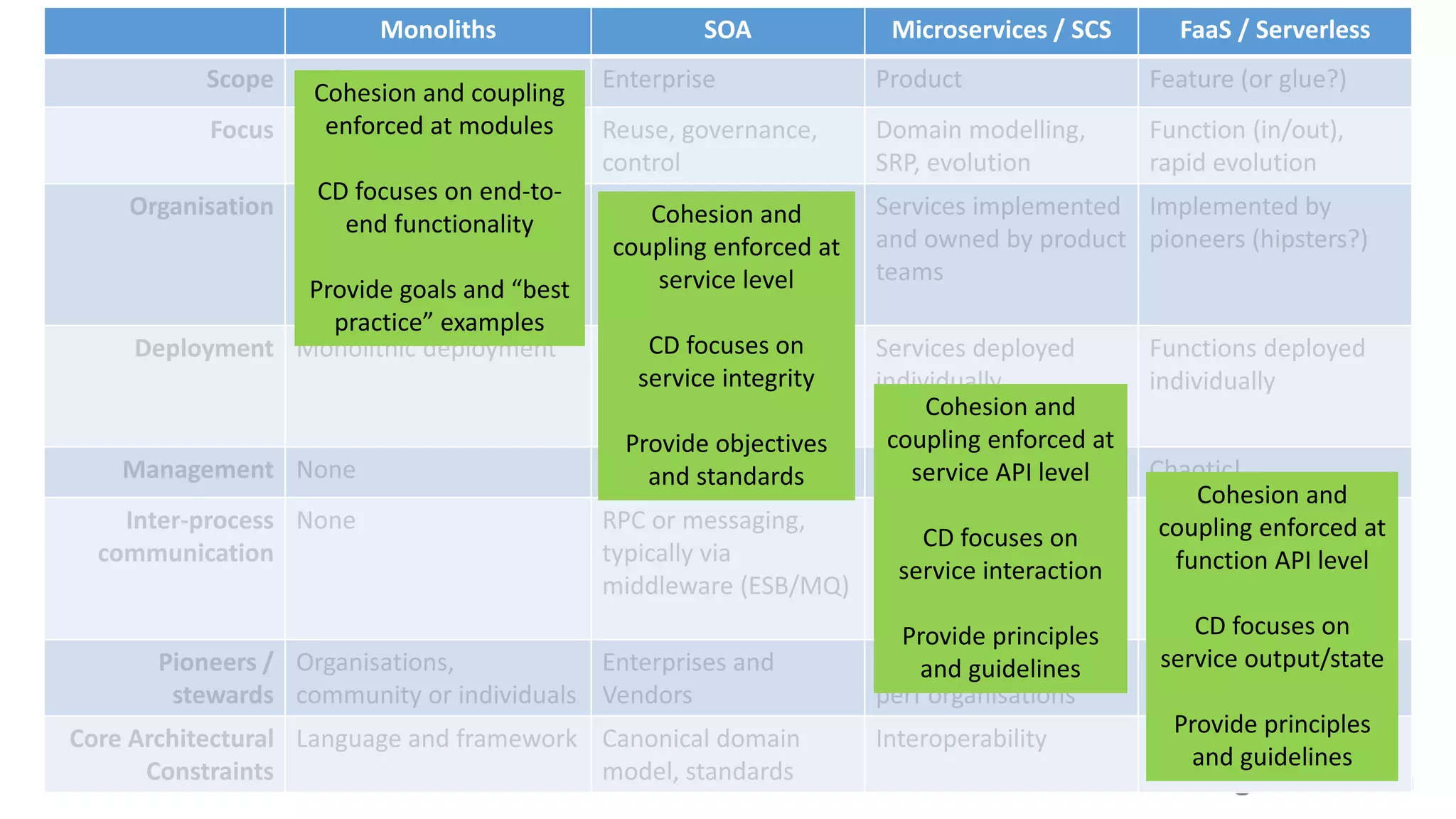

57. 02/05/2018 @danielbryantuk
Monoliths SOA Microservices / SCS FaaS / Serverless
Scope Project Enterprise Product Feature (or glue?)
Focus Swiss Army Knife Reuse, governance,
control
Domain modelling,
SRP, evolution
Function (in/out),
rapid evolution
Organisation Implemented and
maintained (typically) by
single team
Implemented by
different org units.
Maintenance done
elsewhere
Services implemented
and owned by product
teams
Implemented by
pioneers (hipsters?)
Deployment Monolithic deployment Monolithic
orchestration of
multiple services
Services deployed
individually
Functions deployed
individually
Management None Centralised Distributed Chaotic / Orchestrated
Inter-process
communication
None RPC or messaging,
typically via
middleware (ESB/MQ)
RPC via dumb
pipes/smart
endpoints,
messaging/events
Events
Pioneers /
stewards
Organisations,
community or individuals
Enterprises and
Vendors
Community and high
perf organisations
Vendors/community
Core Architectural
Constraints
Language and framework Canonical domain
model, standards
Interoperability Cost

58. 02/05/2018 @danielbryantuk
Monoliths SOA Microservices / SCS FaaS / Serverless
Cohesion and coupling
enforced at modules
CD focuses on end-to-
end functionality
Provide goals and “best
practice” examples
Cohesion and
coupling enforced at
service level
CD focuses on
service integrity
Provide objectives
and standards
Cohesion and
coupling enforced at
service API level
CD focuses on
service interaction
Provide principles
and guidelines
Cohesion and
coupling enforced at
function API level
CD focuses on
service output/state
Provide principles
and guidelines

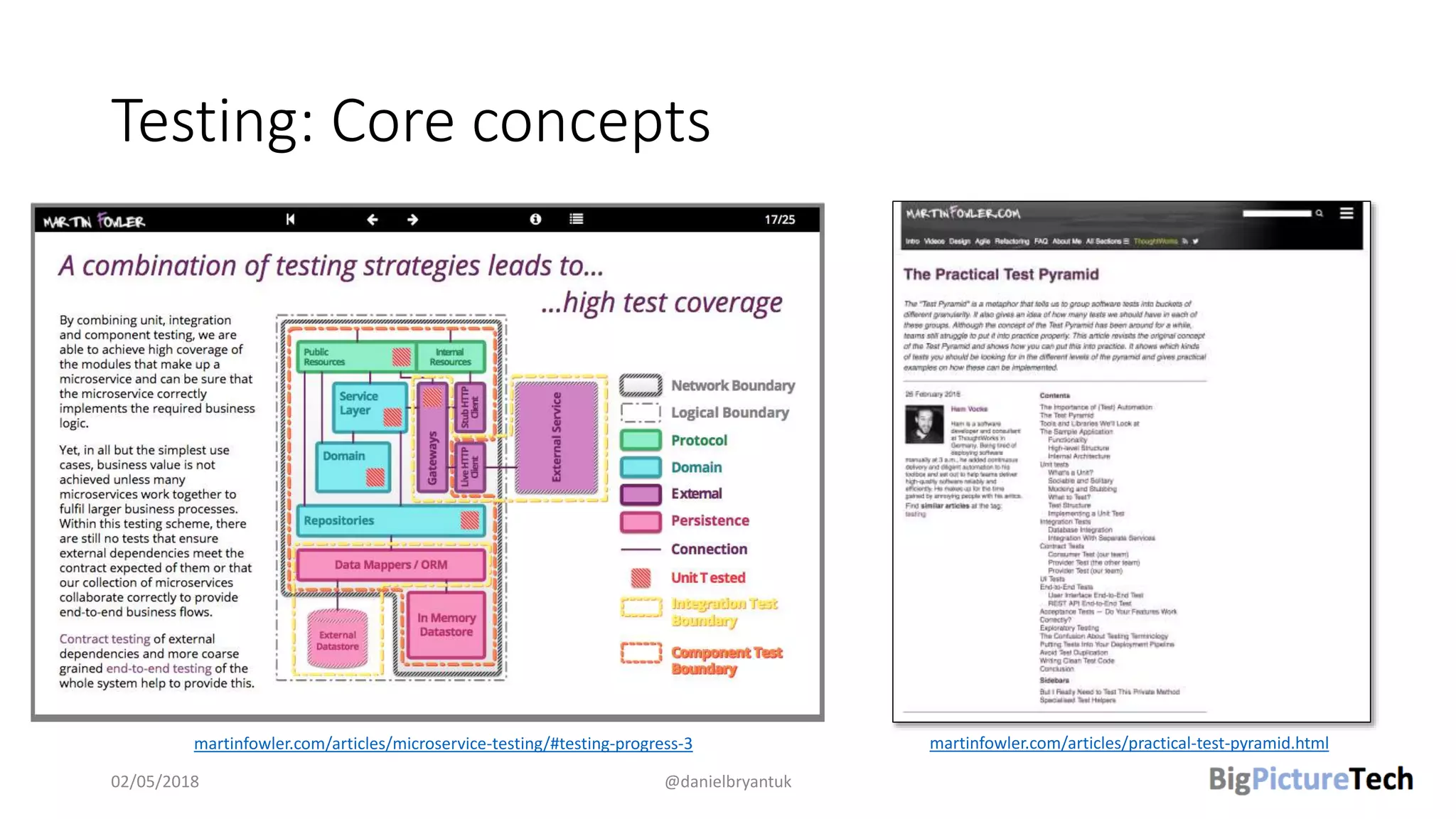

59. Testing: Core concepts
02/05/2018 @danielbryantuk
martinfowler.com/articles/microservice-testing/#testing-progress-3 martinfowler.com/articles/practical-test-pyramid.html
