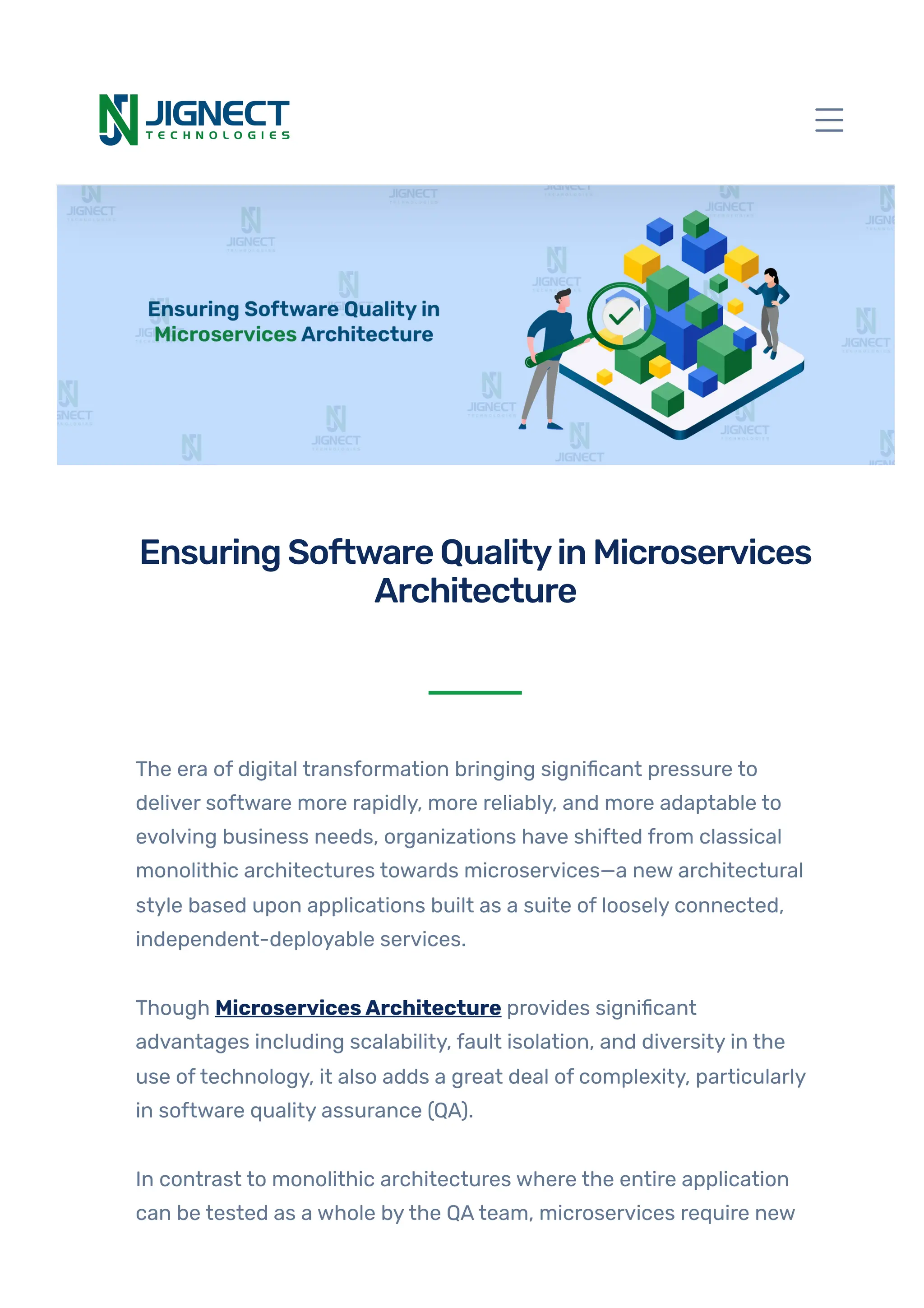

Ensuring Software Quality in Microservices Architecture

The era of digital transformation bringing significant pressure to
deliver software more rapidly, more reliably, and more adaptable to
evolving business needs, organizations have shifted from classical
monolithic architectures towards microservices—a new architectural
style based upon applications built as a suite of loosely connected,
independent-deployable services.
Though MicroservicesArchitecture provides significant
advantages including scalability, fault isolation, and diversity in the
use oftechnology, it also adds a great deal of complexity, particularly
in software quality assurance (QA).
In contrast to monolithic architectures where the entire application
can be tested as a whole bythe QAteam, microservices require new
EnsuringSoftwareQualityinMicroservices
Architecture

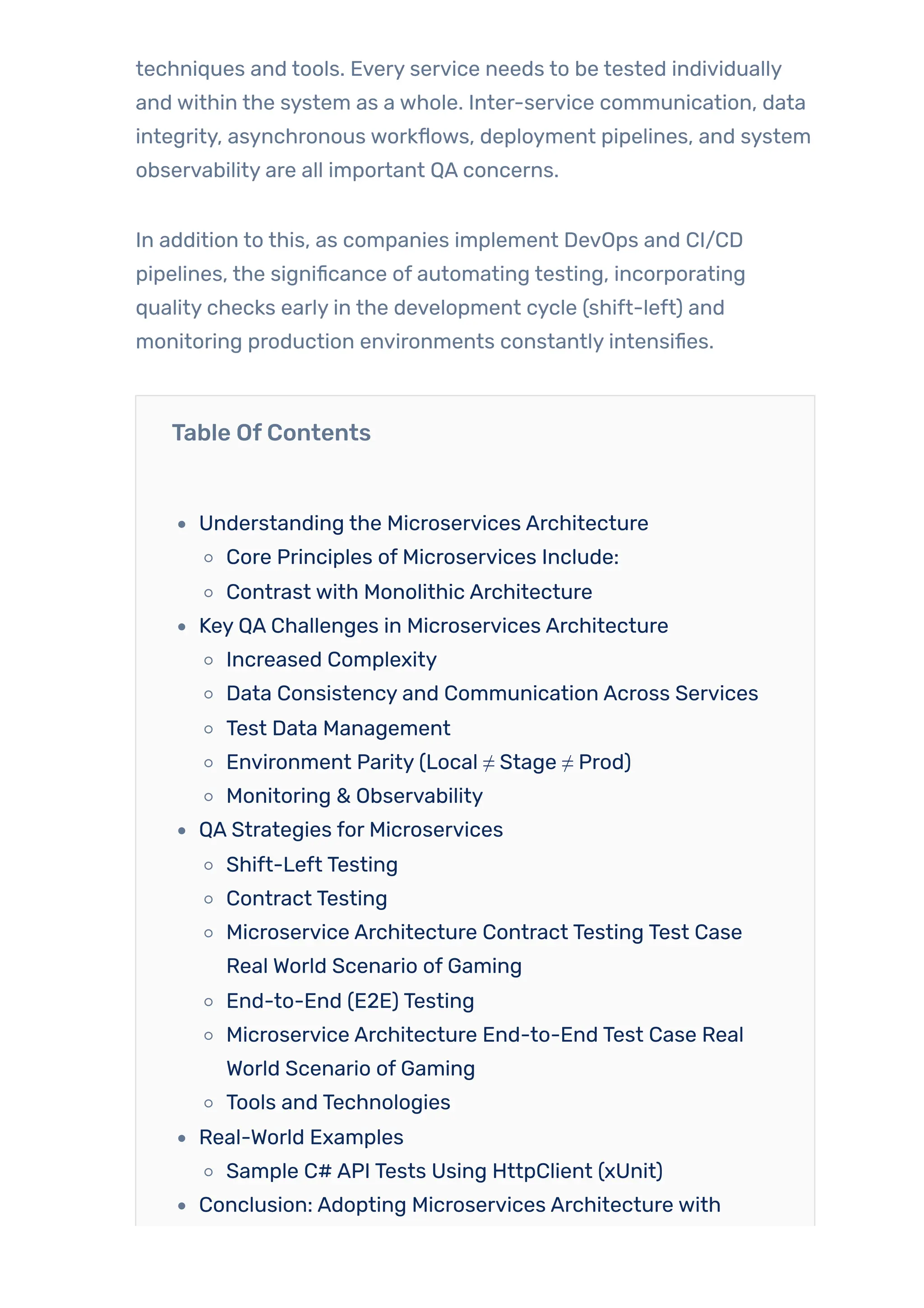

techniques and tools. Every service needs to be tested individually
and within the system as a whole. Inter-service communication, data
integrity, asynchronous workflows, deployment pipelines, and system
observability are all important QA concerns.
In addition to this, as companies implement DevOps and CI/CD
pipelines, the significance of automating testing, incorporating
quality checks early in the development cycle (shift-left) and
monitoring production environments constantly intensifies.
Table OfContents
Understanding the Microservices Architecture
Core Principles of Microservices Include:
Contrast with Monolithic Architecture
Key QA Challenges in Microservices Architecture
Increased Complexity
Data Consistency and Communication Across Services
Test Data Management
Environment Parity (Local ≠ Stage ≠ Prod)
Monitoring & Observability
QA Strategies for Microservices
Shift-Left Testing
Contract Testing
Microservice Architecture Contract Testing Test Case
Real World Scenario of Gaming

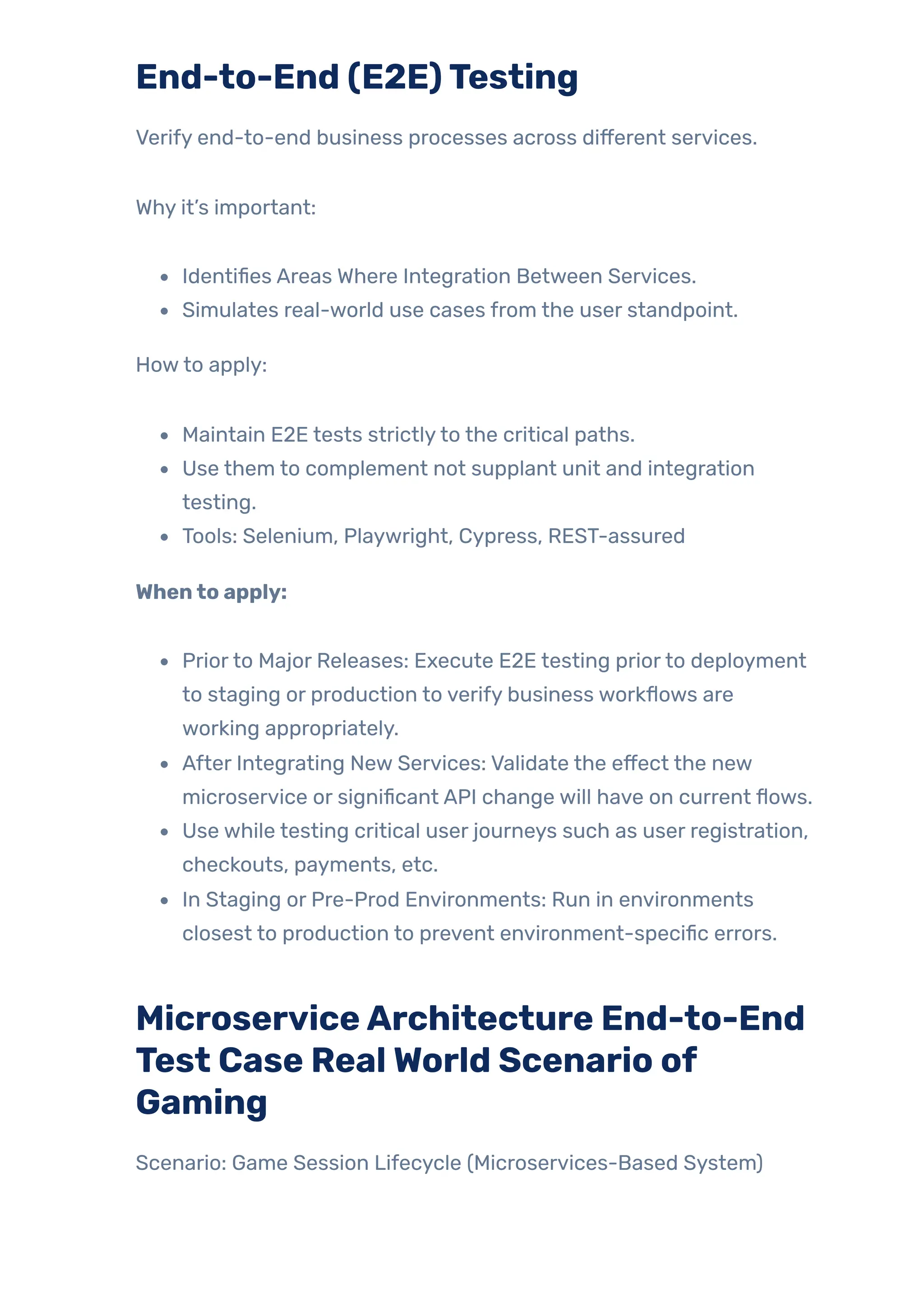

End-to-End (E2E) Testing
Microservice Architecture End-to-End Test Case Real
World Scenario of Gaming
Tools and Technologies
Real-World Examples

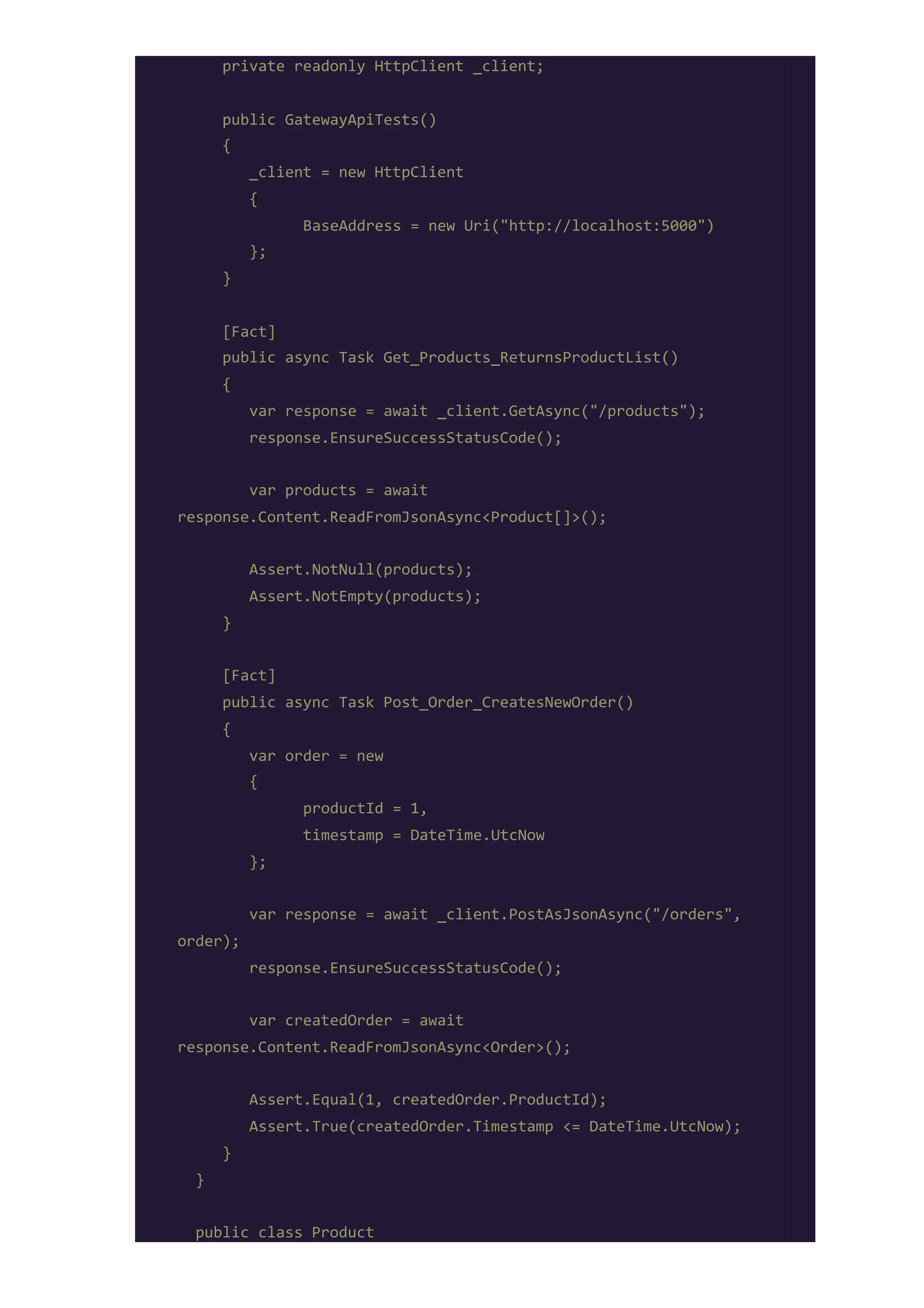

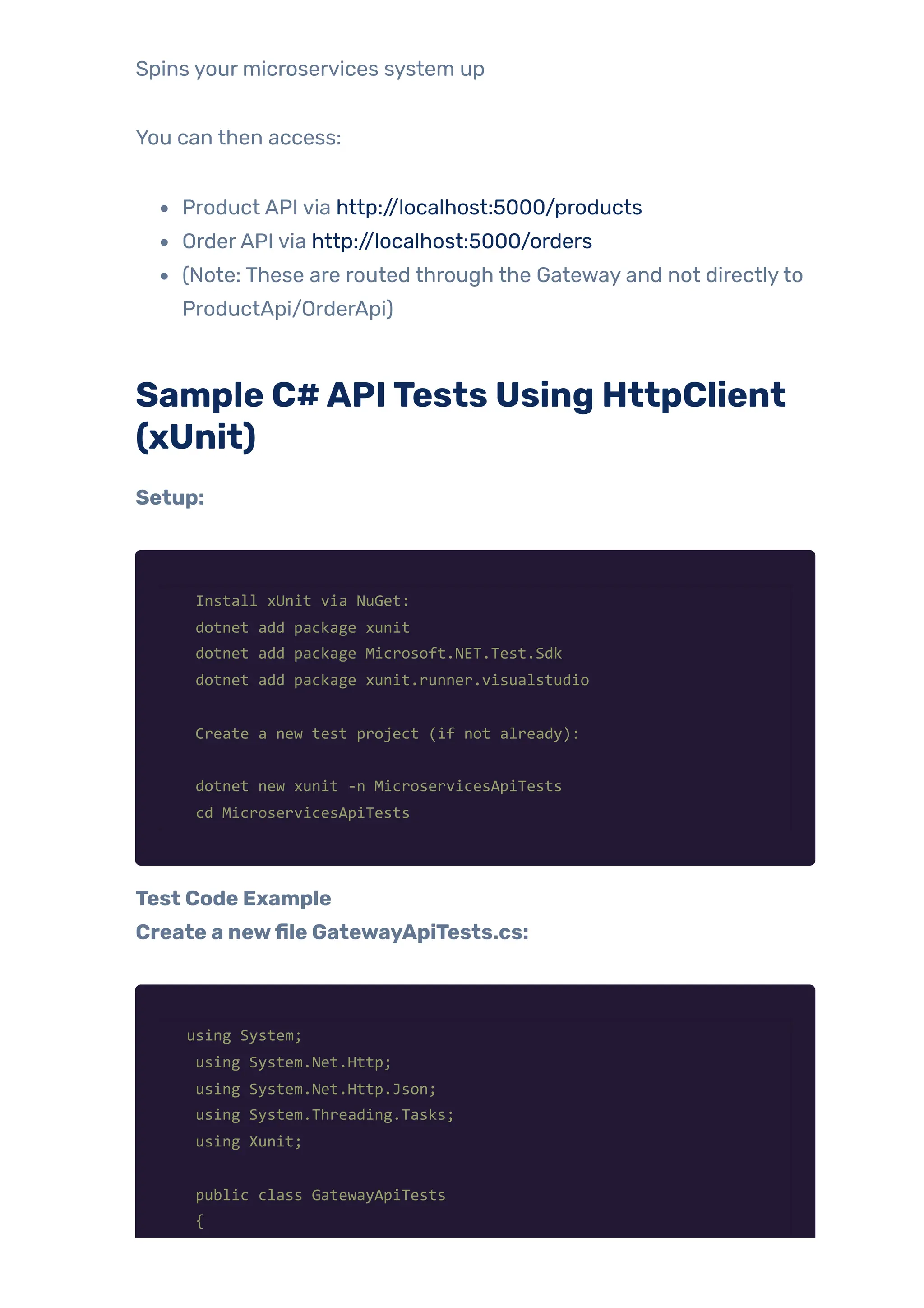

Sample C# API Tests Using HttpClient (xUnit)

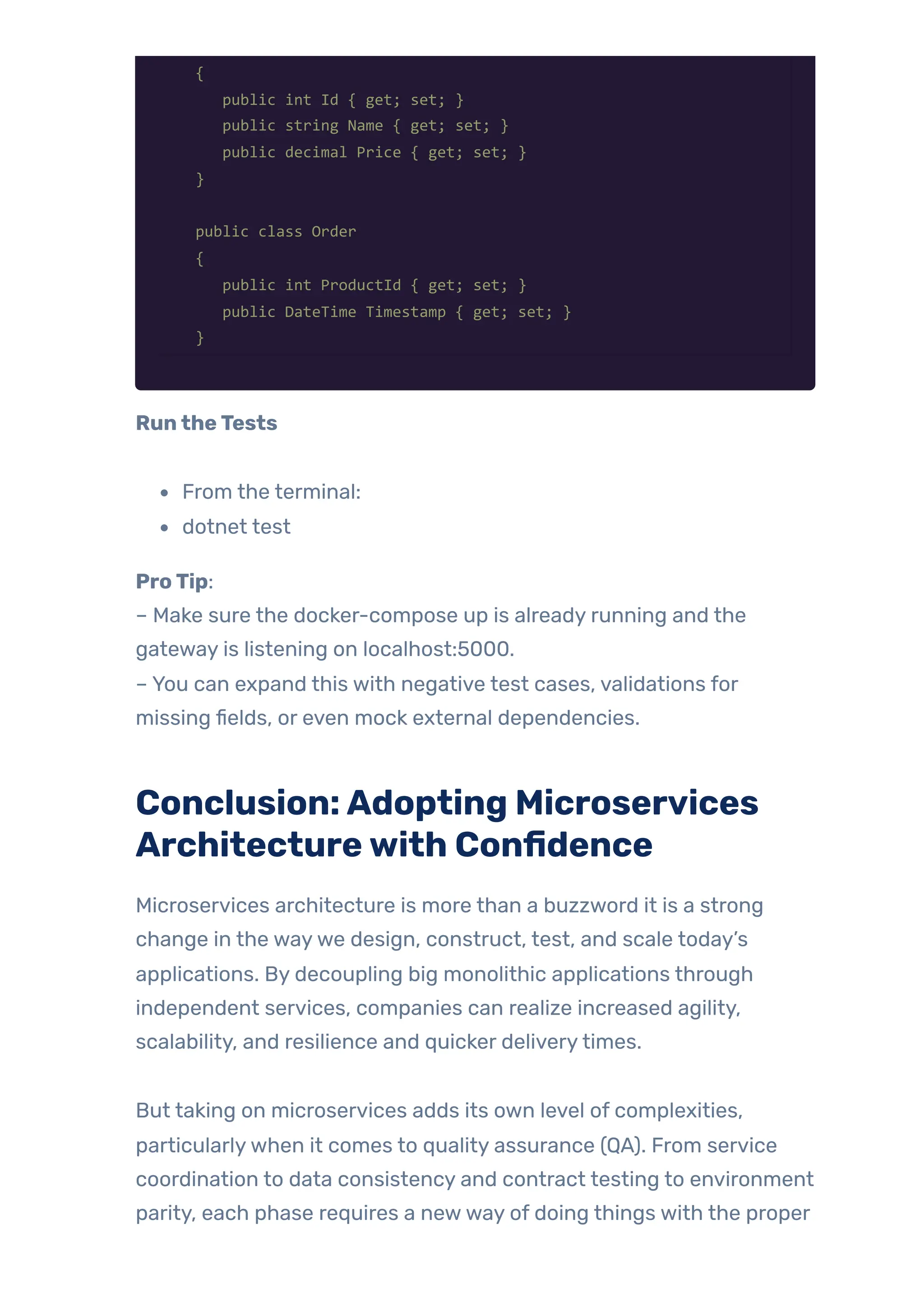

Conclusion: Adopting Microservices Architecture with

Confidence

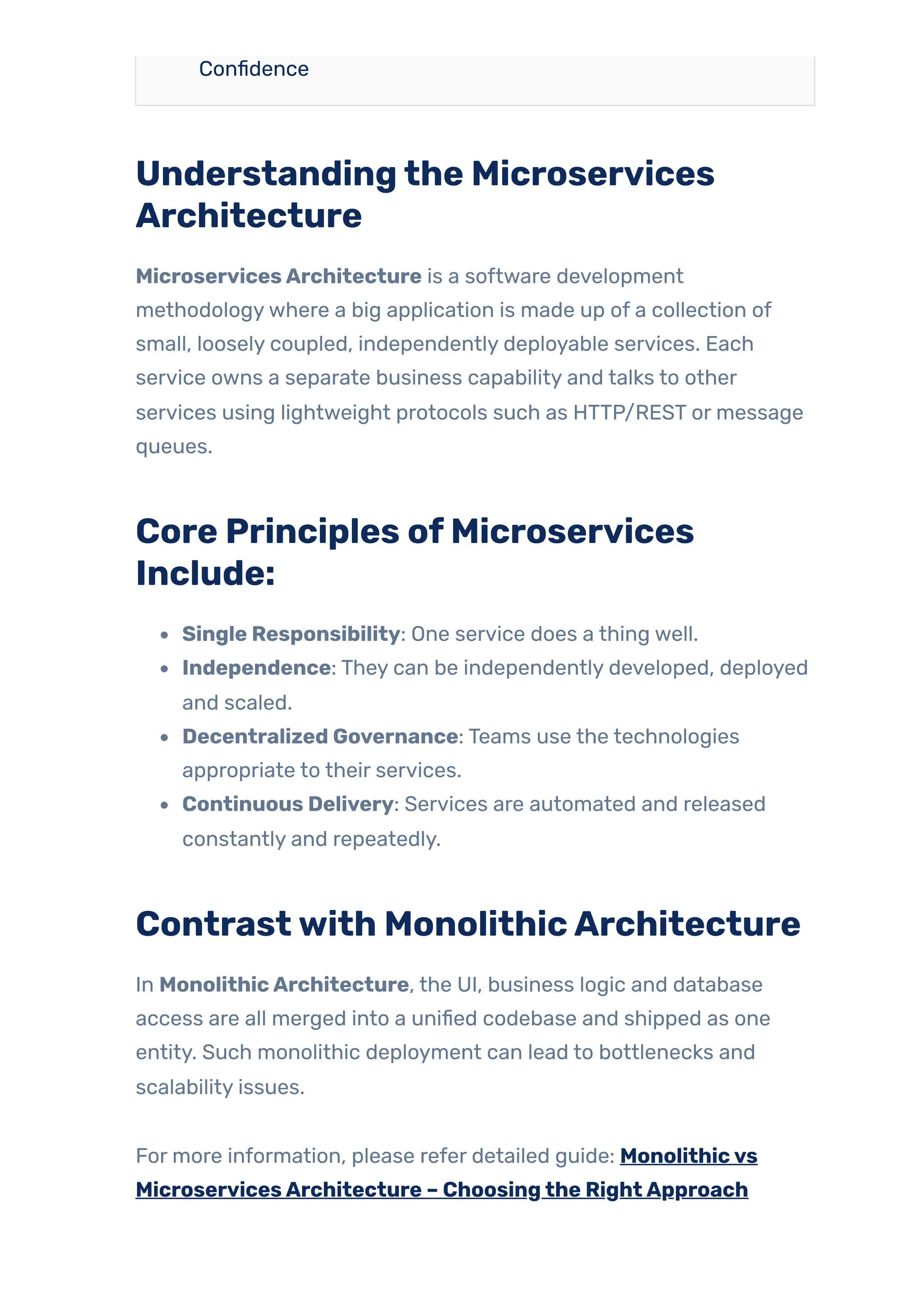

Understandingthe Microservices
Architecture
MicroservicesArchitecture is a software development
methodologywhere a big application is made up of a collection of
small, loosely coupled, independently deployable services. Each
service owns a separate business capability and talks to other
services using lightweight protocols such as HTTP/REST or message
queues.
Core Principles ofMicroservices
Include:
Single Responsibility: One service does a thing well.
Independence: They can be independently developed, deployed
and scaled.
Decentralized Governance: Teams use the technologies
appropriate to their services.
Continuous Delivery: Services are automated and released
constantly and repeatedly.
Contrastwith MonolithicArchitecture
In MonolithicArchitecture, the UI, business logic and database
access are all merged into a unified codebase and shipped as one
entity. Such monolithic deployment can lead to bottlenecks and
scalability issues.
For more information, please refer detailed guide: Monolithicvs
MicroservicesArchitecture – Choosingthe RightApproach

KeyQAChallenges in Microservices
Architecture
As more organizations transitioning from monolithic to microservices
architectures, software quality assurance gets much more complex.
Microservices are more agile, more scalable, and more flexible but
they also come with a host oftesting and QA issues owing to their
distributed nature.
Following are the biggest challenges you can expect to face and how
to handle them.
Increased Complexity
In a microservices architecture, you are no longertesting one
application but testing many individually deployable services with
their own codebases, CI/CD pipelines, dependencies, and runtime

behavior.

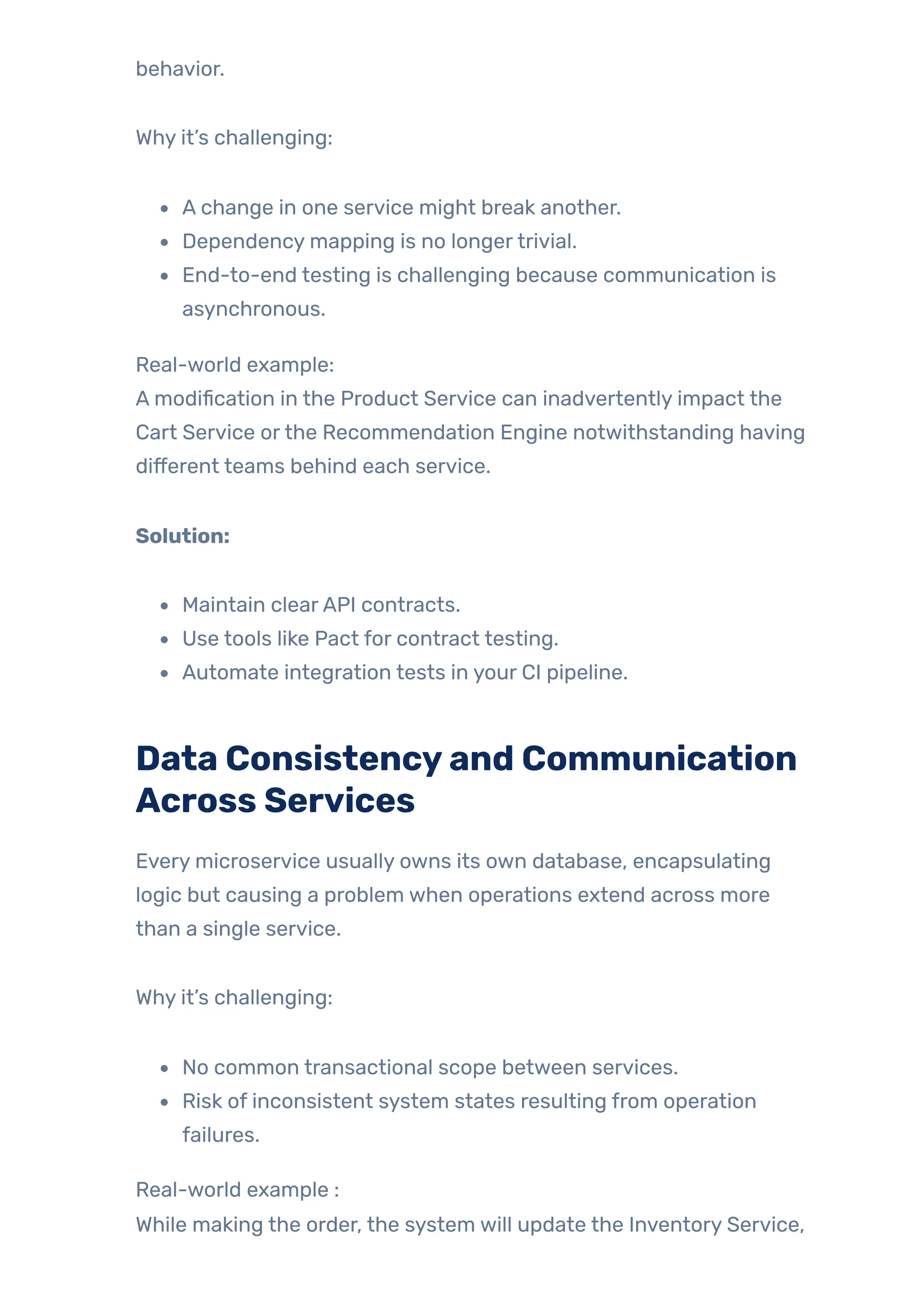

Why it’s challenging:
A change in one service might break another.
Dependency mapping is no longertrivial.
End-to-end testing is challenging because communication is
asynchronous.
Real-world example:
A modification in the Product Service can inadvertently impact the
Cart Service orthe Recommendation Engine notwithstanding having
different teams behind each service.
Solution:
Maintain clearAPI contracts.
Use tools like Pact for contract testing.
Automate integration tests in your CI pipeline.
Data Consistencyand Communication
Across Services
Every microservice usually owns its own database, encapsulating
logic but causing a problem when operations extend across more
than a single service.
Why it’s challenging:
No common transactional scope between services.
Risk of inconsistent system states resulting from operation
failures.

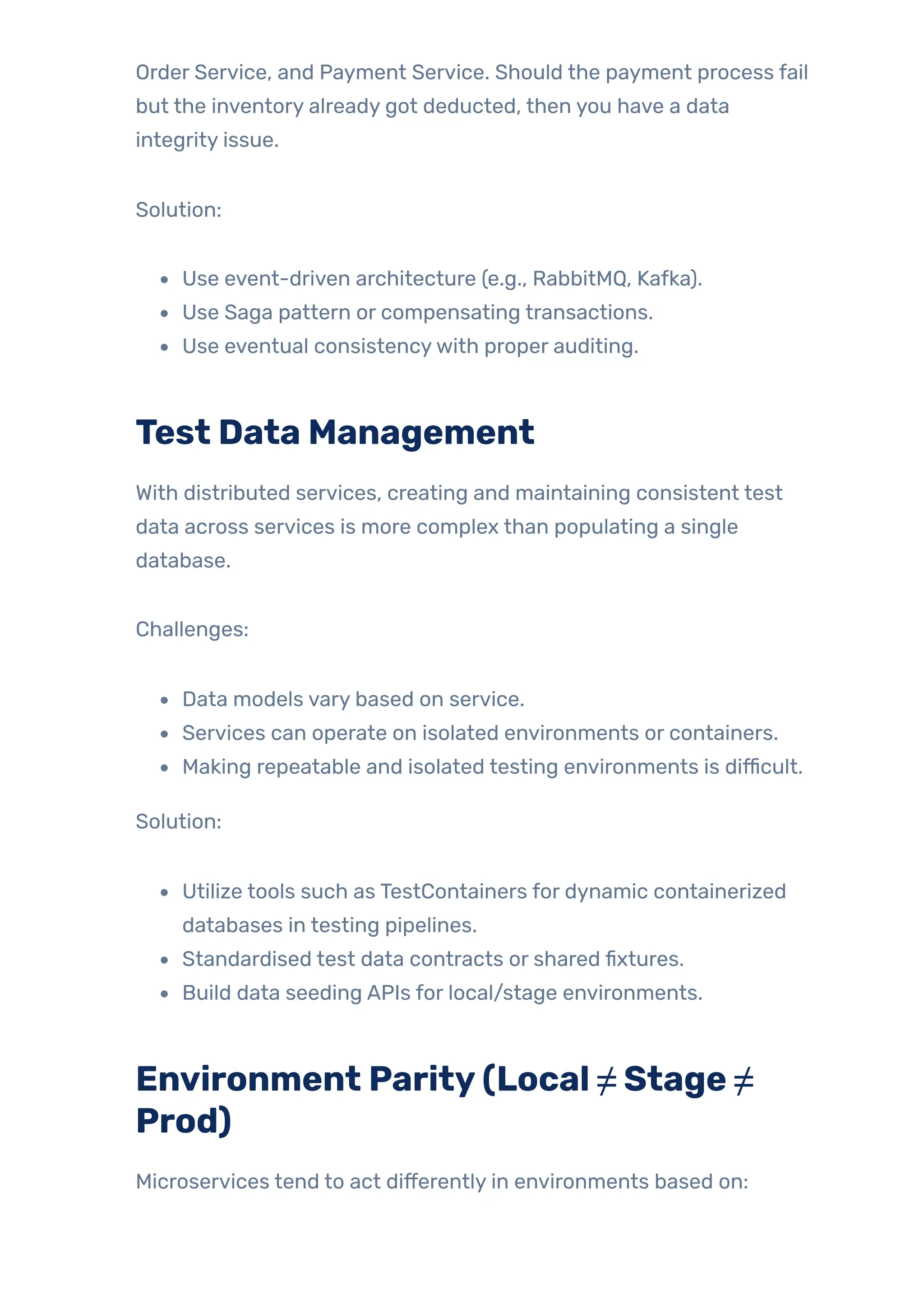

Real-world example :
While making the order, the system will update the Inventory Service,

Order Service, and Payment Service. Should the payment process fail
but the inventory already got deducted, then you have a data
integrity issue.
Solution:
Use event-driven architecture (e.g., RabbitMQ, Kafka).
Use Saga pattern or compensating transactions.
Use eventual consistencywith proper auditing.
Test Data Management
With distributed services, creating and maintaining consistent test
data across services is more complex than populating a single
database.
Challenges:
Data models vary based on service.
Services can operate on isolated environments or containers.
Making repeatable and isolated testing environments is difficult.
Solution:
Utilize tools such as TestContainers for dynamic containerized
databases in testing pipelines.
Standardised test data contracts or shared fixtures.
Build data seeding APIs for local/stage environments.
Environment Parity(Local ≠ Stage ≠
Prod)
Microservices tend to act differently in environments based on:

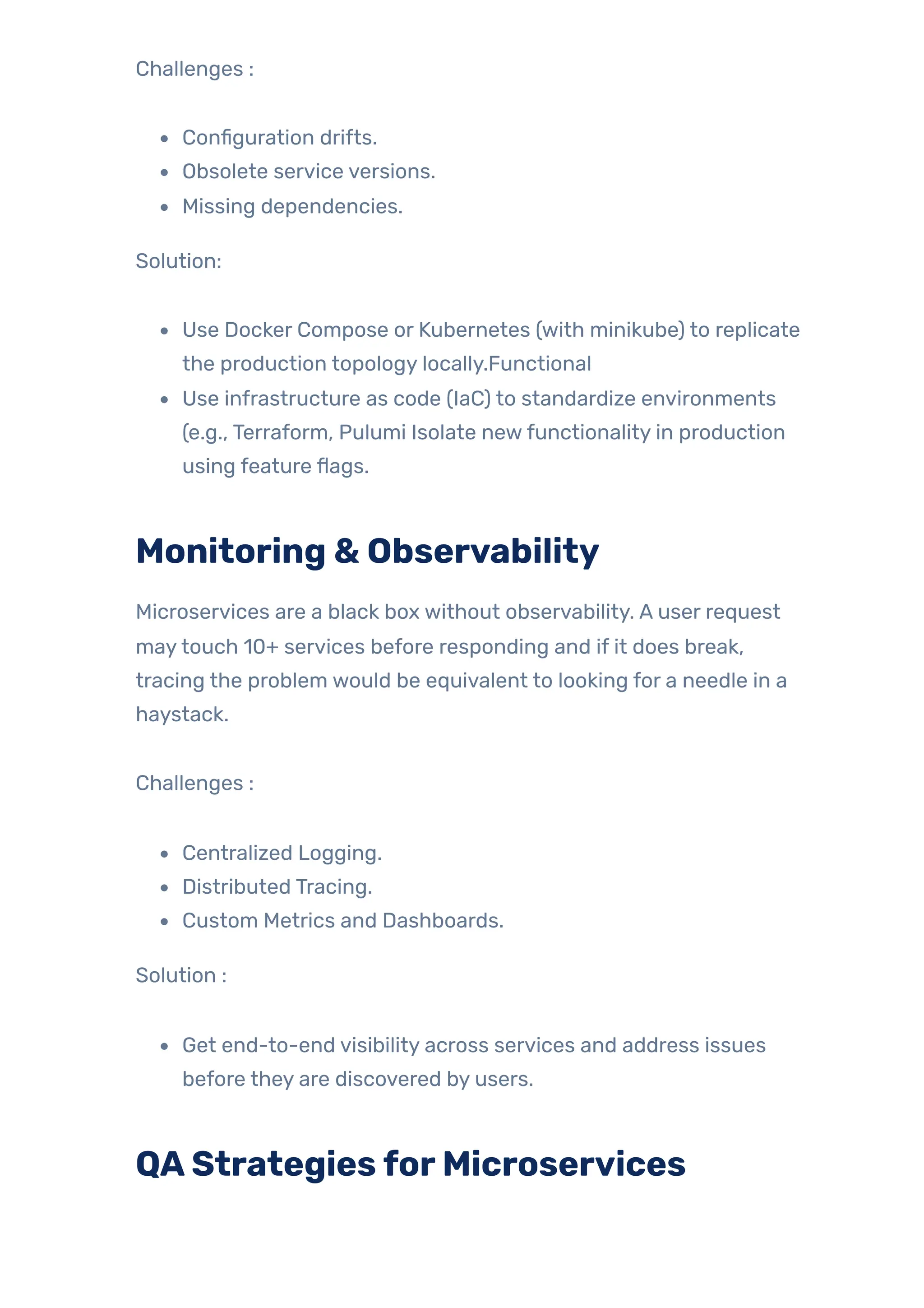

Challenges :
Configuration drifts.
Obsolete service versions.
Missing dependencies.
Solution:
Use Docker Compose or Kubernetes (with minikube) to replicate
the production topology locally.Functional
Use infrastructure as code (IaC) to standardize environments
(e.g., Terraform, Pulumi Isolate newfunctionality in production
using feature flags.
Monitoring & Observability
Microservices are a black box without observability. A user request
maytouch 10+ services before responding and if it does break,
tracing the problem would be equivalent to looking for a needle in a
haystack.
Challenges :
Centralized Logging.
Distributed Tracing.
Custom Metrics and Dashboards.
Solution :
Get end-to-end visibility across services and address issues
before they are discovered by users.
QAStrategiesforMicroservices

To ensure quality in a microservices architecture, QA must evolve
from traditional centralized testing toward a decentralized, layered,
and automated strategy. Each service must be tested in isolation, in
integration, and across end-to-end workflows.
Below are the most effective QA strategies tailored specificallyfor
microservices systems:
Shift-LeftTesting
Earlytesting shifts towards the left in the software development
cycle, specificallyto the development and stages.
Whyit Matters:
Early-detection bugs are less expensive and quickerto mend.
Developers can catch issues before code reaches QA.
HowtoApply:

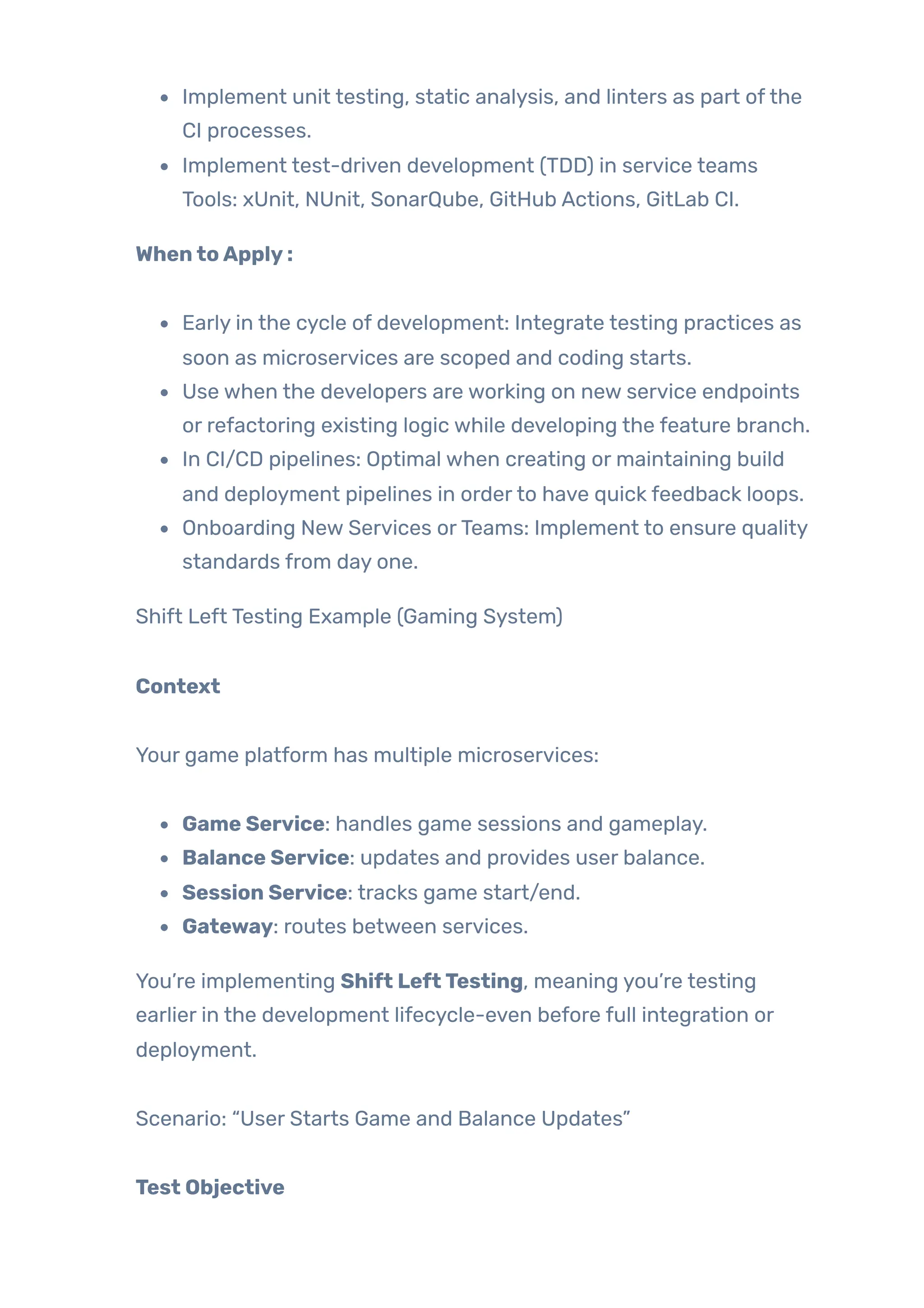

Implement unit testing, static analysis, and linters as part ofthe
CI processes.
Implement test-driven development (TDD) in service teams
Tools: xUnit, NUnit, SonarQube, GitHub Actions, GitLab CI.
WhentoApply:
Early in the cycle of development: Integrate testing practices as
soon as microservices are scoped and coding starts.
Use when the developers are working on new service endpoints
or refactoring existing logic while developing the feature branch.
In CI/CD pipelines: Optimal when creating or maintaining build
and deployment pipelines in orderto have quick feedback loops.
Onboarding New Services orTeams: Implement to ensure quality
standards from day one.
Shift Left Testing Example (Gaming System)
Context
Your game platform has multiple microservices:
Game Service: handles game sessions and gameplay.
Balance Service: updates and provides user balance.
Session Service: tracks game start/end.
Gateway: routes between services.
You’re implementing Shift LeftTesting, meaning you’re testing
earlier in the development lifecycle-even before full integration or
deployment.
Scenario: “User Starts Game and Balance Updates”
Test Objective

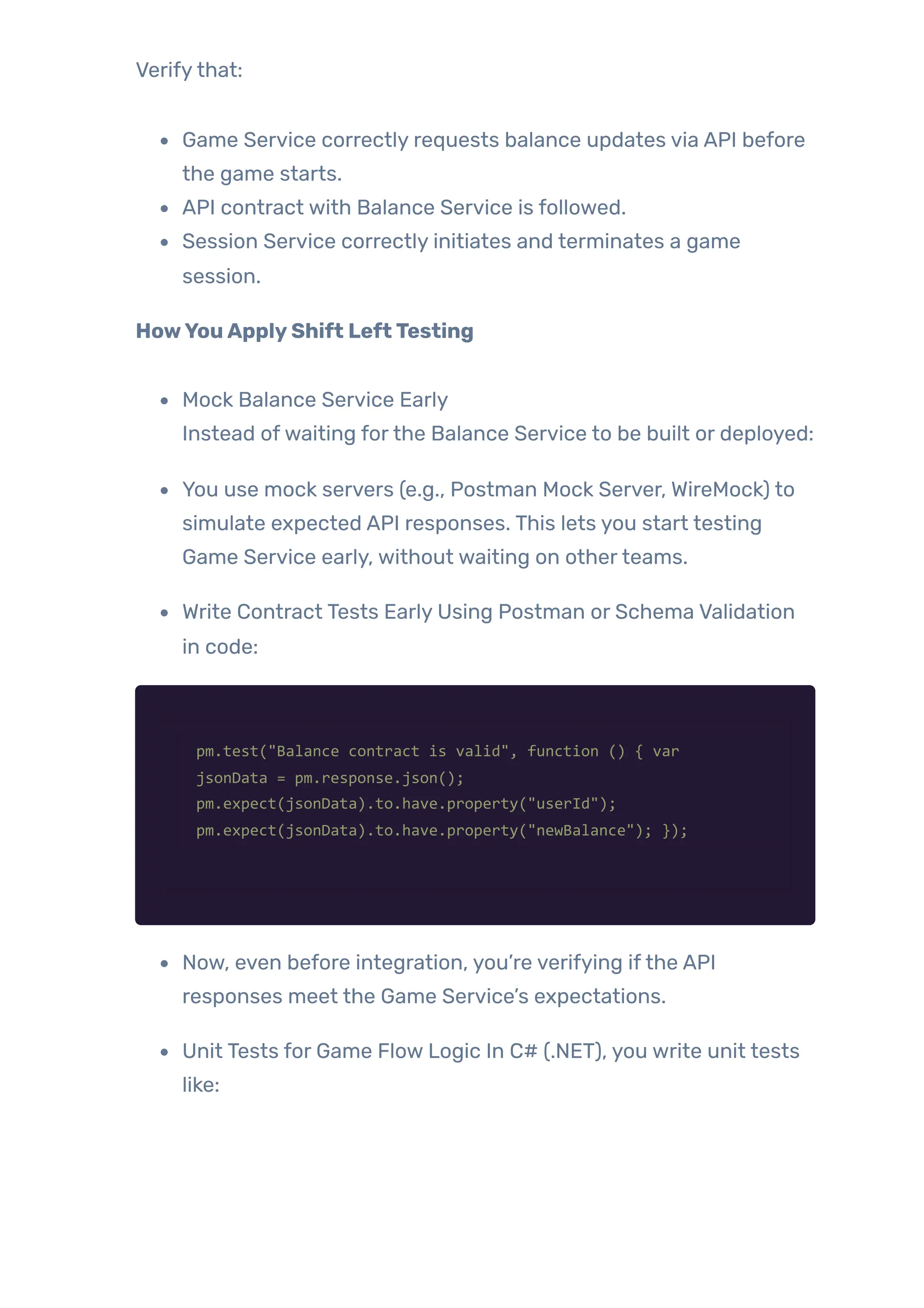

Verifythat:
Game Service correctly requests balance updates via API before
the game starts.
API contract with Balance Service is followed.
Session Service correctly initiates and terminates a game
session.
HowYouApplyShift LeftTesting
Mock Balance Service Early
Instead ofwaiting forthe Balance Service to be built or deployed:
You use mock servers (e.g., Postman Mock Server, WireMock) to
simulate expected API responses. This lets you start testing
Game Service early, without waiting on otherteams.
Write Contract Tests Early Using Postman or Schema Validation
in code:
pm.test("Balance contract is valid", function () { var
jsonData = pm.response.json();
pm.expect(jsonData).to.have.property("userId");
pm.expect(jsonData).to.have.property("newBalance"); });
Now, even before integration, you’re verifying ifthe API
responses meet the Game Service’s expectations.
Unit Tests for Game Flow Logic In C# (.NET), you write unit tests
like:

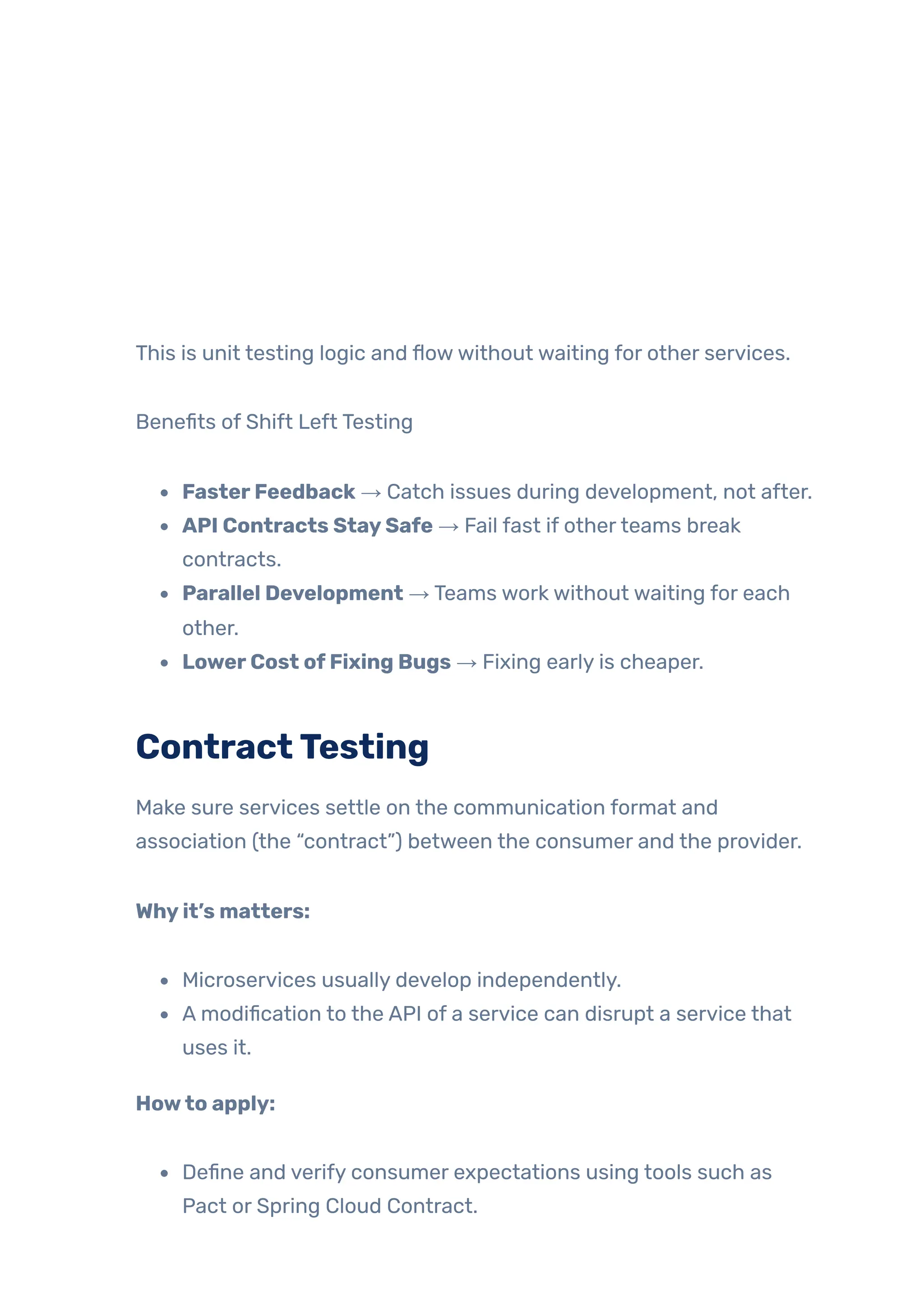

This is unit testing logic and flowwithout waiting for other services.
Benefits of Shift Left Testing
FasterFeedback → Catch issues during development, not after.
API Contracts StaySafe → Fail fast if otherteams break
contracts.
Parallel Development → Teams work without waiting for each
other.
LowerCost ofFixing Bugs → Fixing early is cheaper.
ContractTesting
Make sure services settle on the communication format and
association (the “contract”) between the consumer and the provider.
Whyit’s matters:
Microservices usually develop independently.
A modification to the API of a service can disrupt a service that
uses it.
Howto apply:
Define and verify consumer expectations using tools such as
Pact or Spring Cloud Contract.

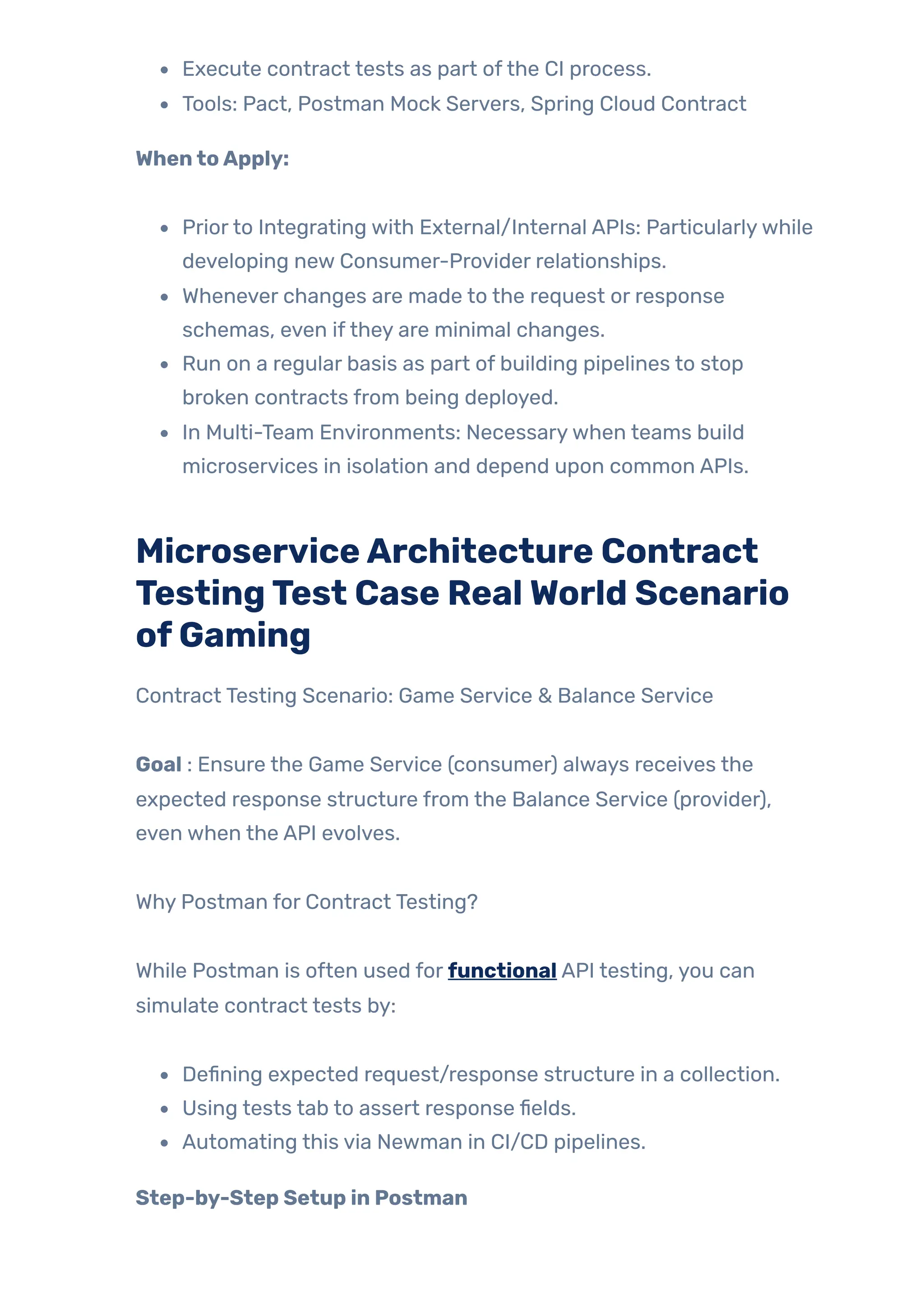

Execute contract tests as part ofthe CI process.
Tools: Pact, Postman Mock Servers, Spring Cloud Contract
WhentoApply:
Priorto Integrating with External/Internal APIs: Particularlywhile
developing new Consumer-Provider relationships.
Whenever changes are made to the request or response
schemas, even ifthey are minimal changes.
Run on a regular basis as part of building pipelines to stop
broken contracts from being deployed.
In Multi-Team Environments: Necessarywhen teams build
microservices in isolation and depend upon common APIs.
MicroserviceArchitecture Contract
TestingTest Case RealWorld Scenario
ofGaming
Contract Testing Scenario: Game Service & Balance Service
Goal : Ensure the Game Service (consumer) always receives the
expected response structure from the Balance Service (provider),
even when the API evolves.
Why Postman for Contract Testing?
While Postman is often used for functional API testing, you can
simulate contract tests by:
Defining expected request/response structure in a collection.
Using tests tab to assert response fields.
Automating this via Newman in CI/CD pipelines.
Step-by-Step Setup in Postman

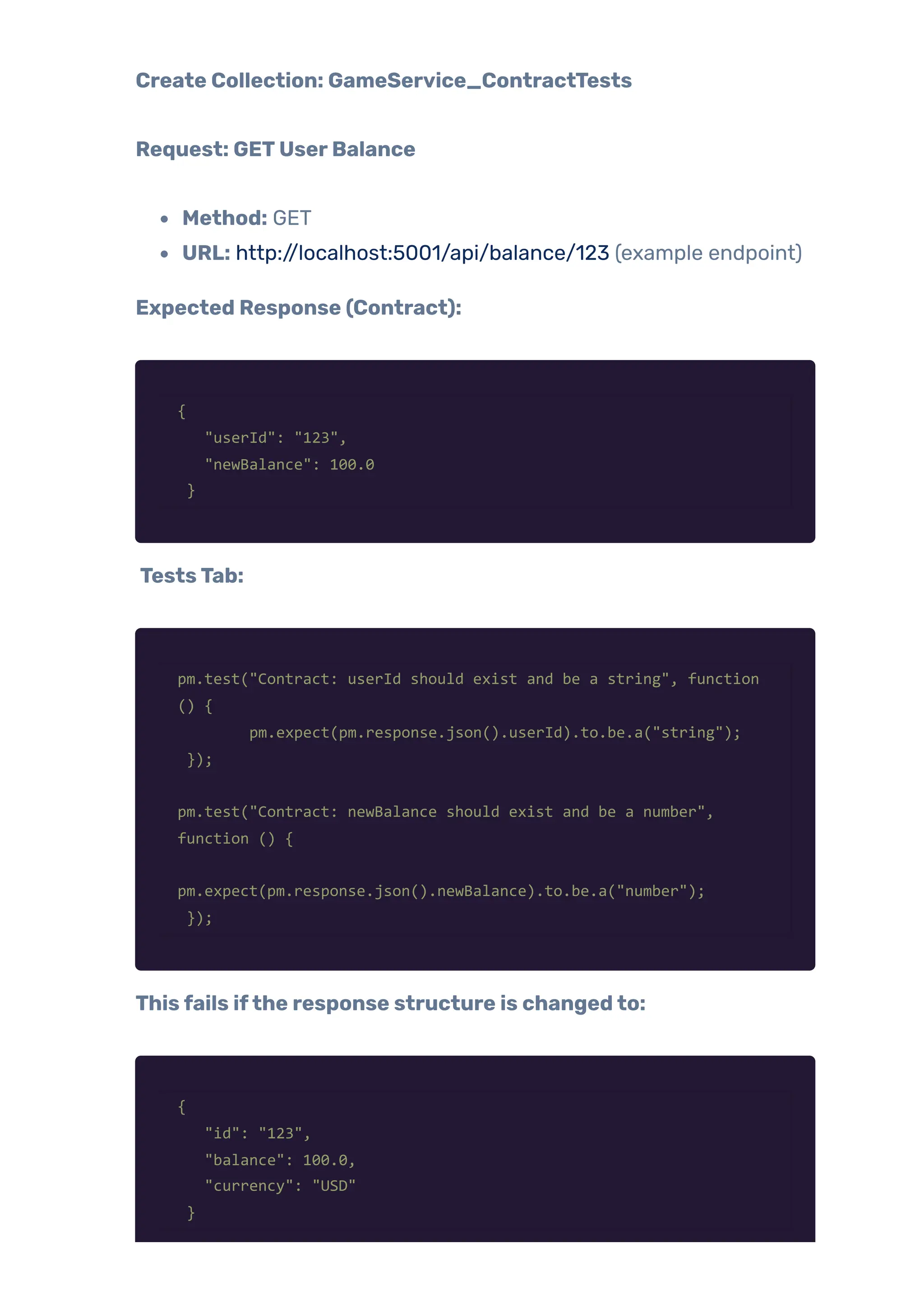

Create Collection: GameService_ContractTests
Request: GETUserBalance
Method: GET
URL: http://localhost:5001/api/balance/123 (example endpoint)
Expected Response (Contract):
{
"userId": "123",
"newBalance": 100.0
}
TestsTab:
pm.test("Contract: userId should exist and be a string", function
() {
pm.expect(pm.response.json().userId).to.be.a("string");
});
pm.test("Contract: newBalance should exist and be a number",
function () {
pm.expect(pm.response.json().newBalance).to.be.a("number");
});
Thisfails ifthe response structure is changedto:
{
"id": "123",
"balance": 100.0,
"currency": "USD"
}

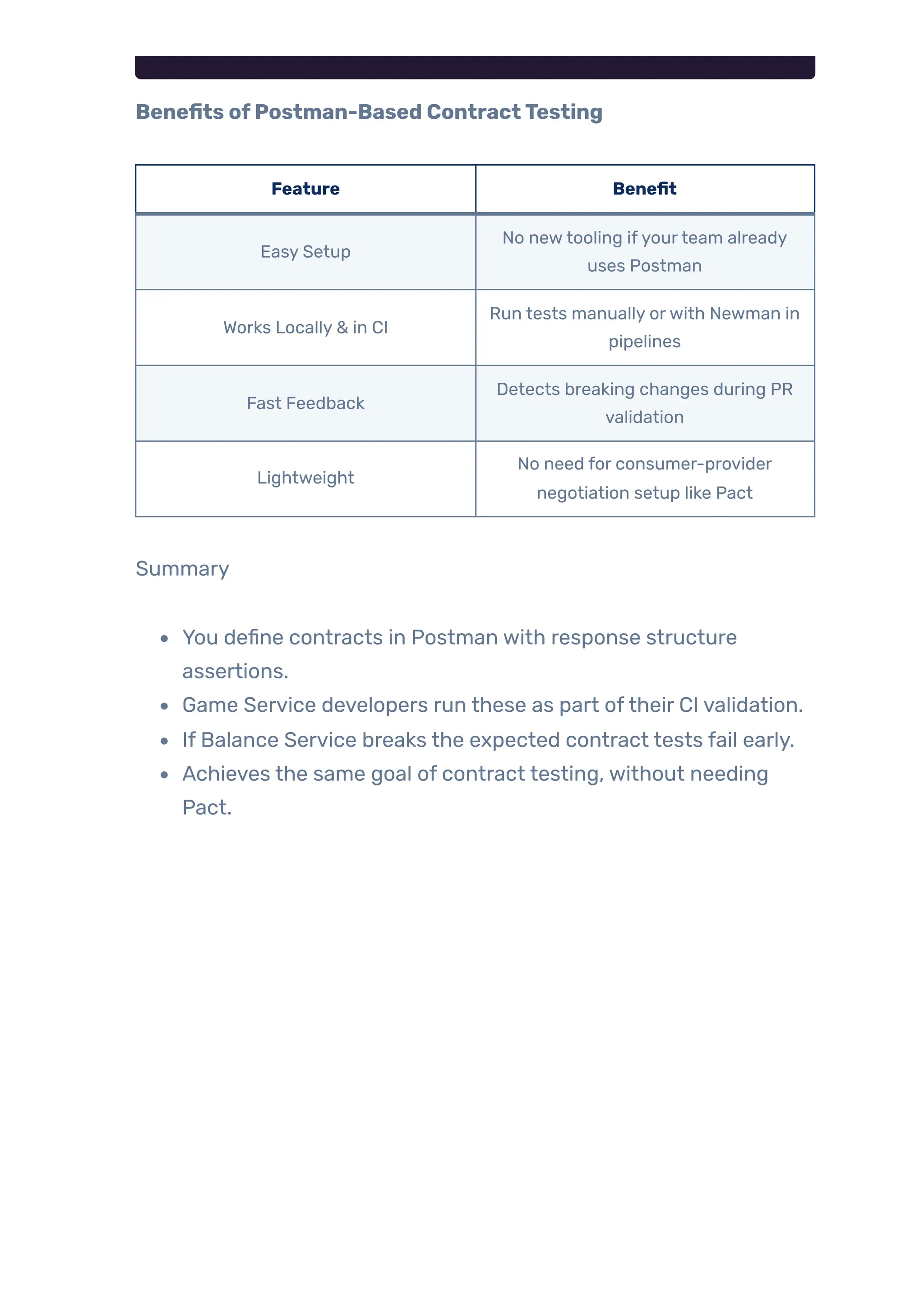

Benefits ofPostman-Based ContractTesting
Feature Benefit
Easy Setup
No newtooling ifyourteam already
uses Postman
Works Locally & in CI
Run tests manually orwith Newman in
pipelines
Fast Feedback
Detects breaking changes during PR
validation
Lightweight
No need for consumer-provider
negotiation setup like Pact
Summary
You define contracts in Postman with response structure
assertions.
Game Service developers run these as part oftheir CI validation.
If Balance Service breaks the expected contract tests fail early.
Achieves the same goal of contract testing, without needing
Pact.

End-to-End (E2E)Testing
Verify end-to-end business processes across different services.
Why it’s important:
Identifies Areas Where Integration Between Services.
Simulates real-world use cases from the user standpoint.
Howto apply:
Maintain E2E tests strictlyto the critical paths.
Use them to complement not supplant unit and integration
testing.
Tools: Selenium, Playwright, Cypress, REST-assured
Whento apply:
Priorto Major Releases: Execute E2E testing priorto deployment
to staging or production to verify business workflows are
working appropriately.
After Integrating New Services: Validate the effect the new
microservice or significant API change will have on current flows.
Use while testing critical user journeys such as user registration,
checkouts, payments, etc.
In Staging or Pre-Prod Environments: Run in environments
closest to production to prevent environment-specific errors.
MicroserviceArchitecture End-to-End
Test Case RealWorld Scenario of
Gaming
Scenario: Game Session Lifecycle (Microservices-Based System)

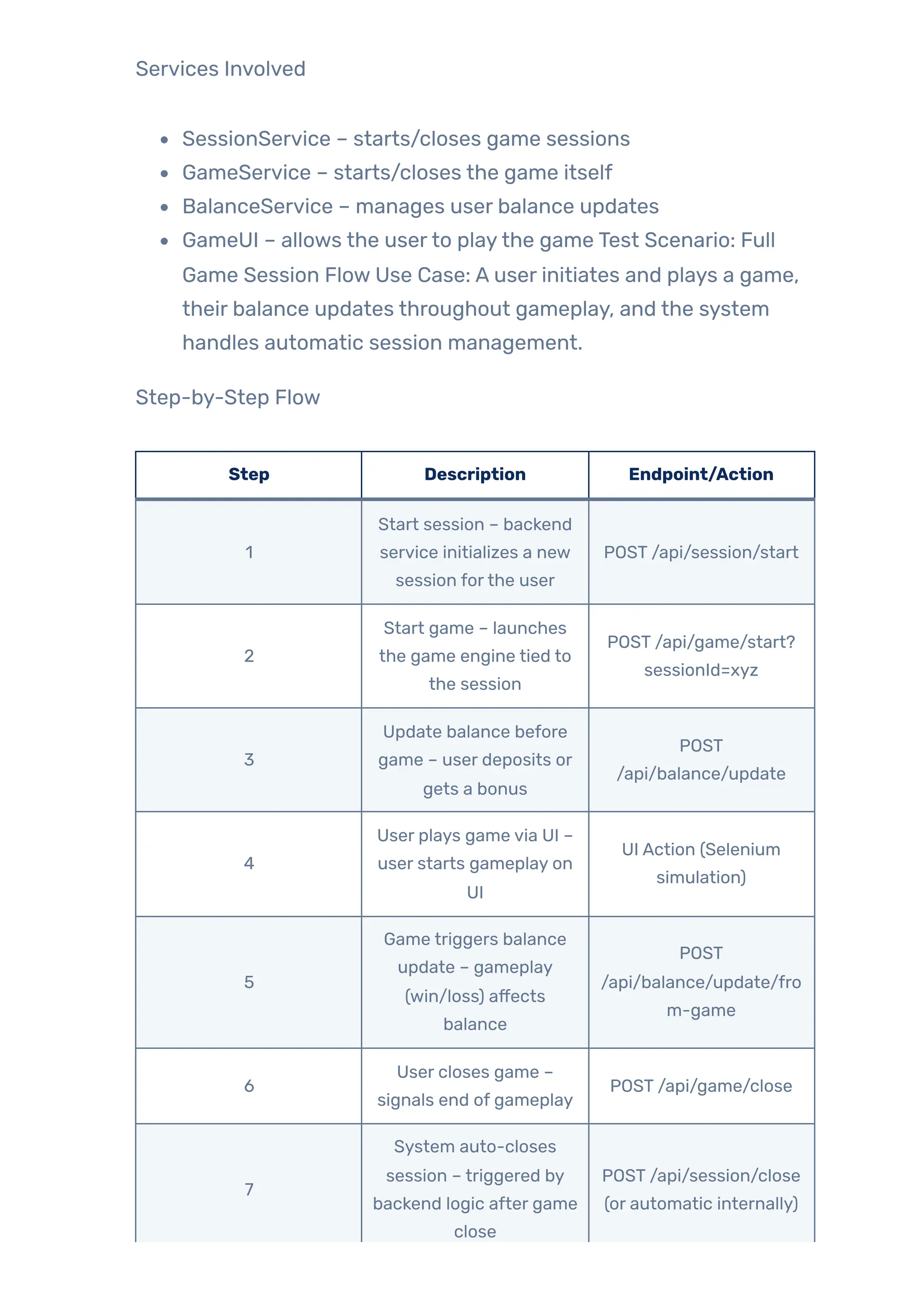

Services Involved
SessionService – starts/closes game sessions
GameService – starts/closes the game itself
BalanceService – manages user balance updates
GameUI – allows the userto playthe game Test Scenario: Full
Game Session Flow Use Case: A user initiates and plays a game,
their balance updates throughout gameplay, and the system
handles automatic session management.
Step-by-Step Flow
Step Description Endpoint/Action
1
Start session – backend
service initializes a new
session forthe user
POST /api/session/start
2
Start game – launches
the game engine tied to
the session
POST /api/game/start?
sessionId=xyz
3
Update balance before
game – user deposits or
gets a bonus
POST
/api/balance/update
4
User plays game via UI –
user starts gameplay on
UI
UI Action (Selenium
simulation)
5
Game triggers balance
update – gameplay
(win/loss) affects
balance
POST
/api/balance/update/fro
m-game
6
User closes game –
signals end of gameplay
POST /api/game/close
7
System auto-closes
session – triggered by
backend logic after game
close
POST /api/session/close
(or automatic internally)

Step Description Endpoint/Action
This simulates how microservices are loosely coupled: each service
handles one part (session, game, balance).
Tools andTechnologies
Purpose Tools/Technologies
Unit Testing JUnit, TestNG, xUnit
API Testing Postman, REST-assured
Contract Testing Pact, Spring Cloud Contract
Containerization Docker, Kubernetes
CI/CD Jenkins, GitLab CI, ArgoCD
Monitoring Prometheus, Grafana, ELK Stack
Real-World Examples
This demo simulates a basic microservices-based product ordering
system, implemented in ASP.NET Core using in-memory data for
simplicity. It follows best practices in microservices development

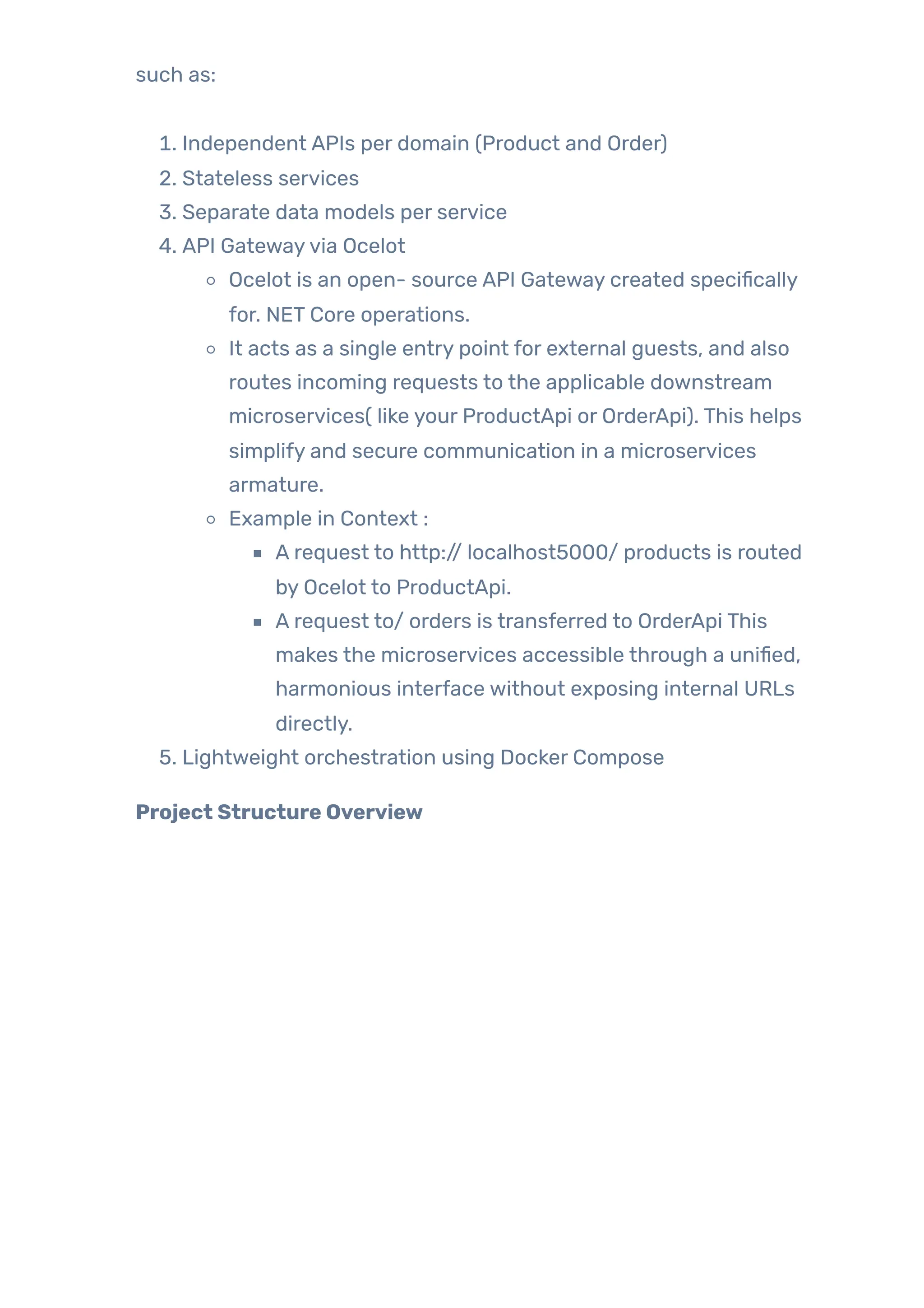

such as:
1. Independent APIs per domain (Product and Order)
2. Stateless services
3. Separate data models per service
4. API Gatewayvia Ocelot
Ocelot is an open- source API Gateway created specifically
for. NET Core operations.
It acts as a single entry point for external guests, and also
routes incoming requests to the applicable downstream
microservices( like your ProductApi or OrderApi). This helps
simplify and secure communication in a microservices
armature.
Example in Context :
A request to http:// localhost5000/ products is routed
by Ocelot to ProductApi.
A request to/ orders is transferred to OrderApi This
makes the microservices accessible through a unified,
harmonious interface without exposing internal URLs
directly.
5. Lightweight orchestration using Docker Compose
Project Structure Overview

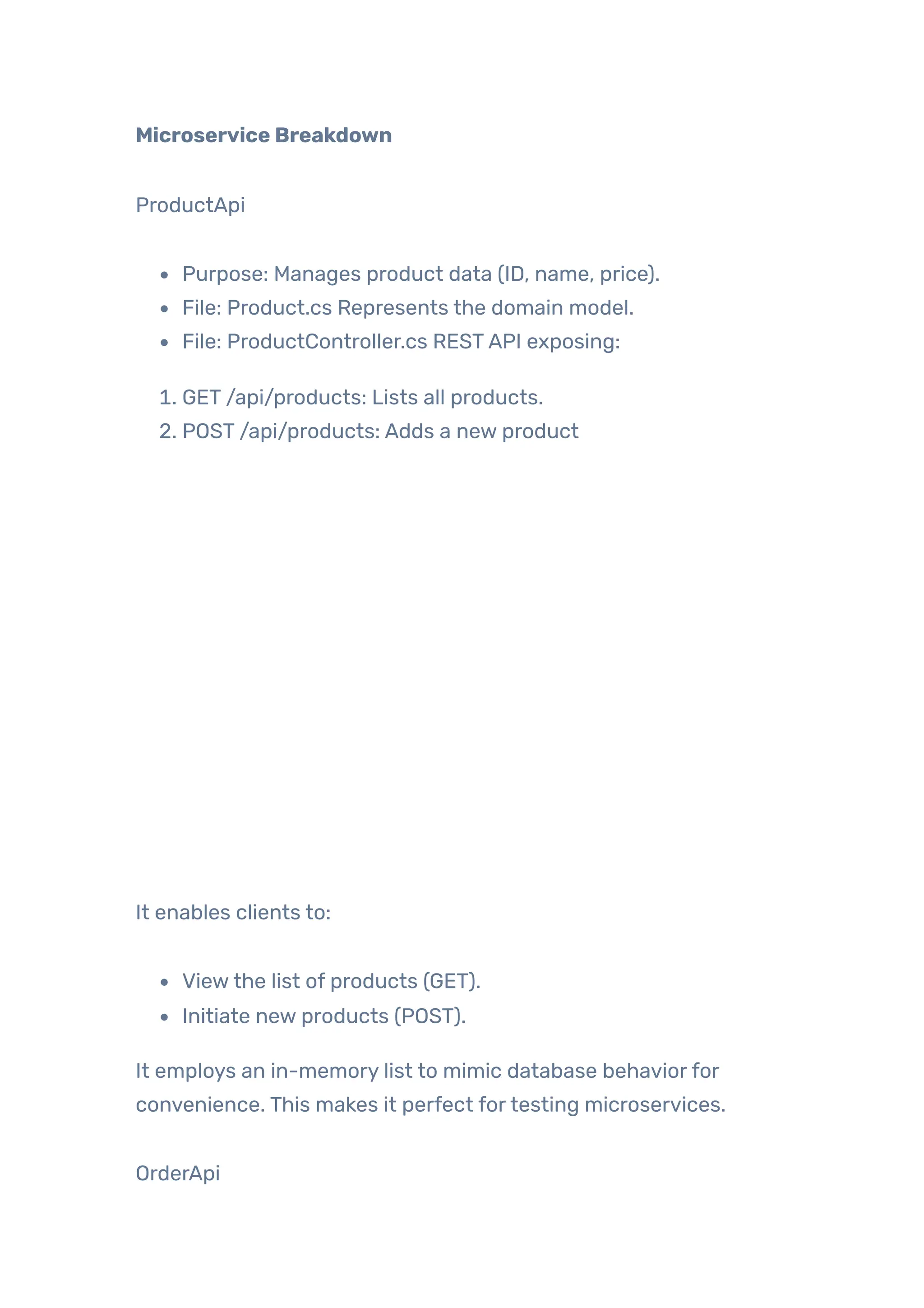

Microservice Breakdown
ProductApi
Purpose: Manages product data (ID, name, price).
File: Product.cs Represents the domain model.
File: ProductController.cs RESTAPI exposing:
1. GET /api/products: Lists all products.
2. POST /api/products: Adds a new product
It enables clients to:
Viewthe list of products (GET).
Initiate new products (POST).
It employs an in-memory list to mimic database behaviorfor
convenience. This makes it perfect fortesting microservices.
OrderApi

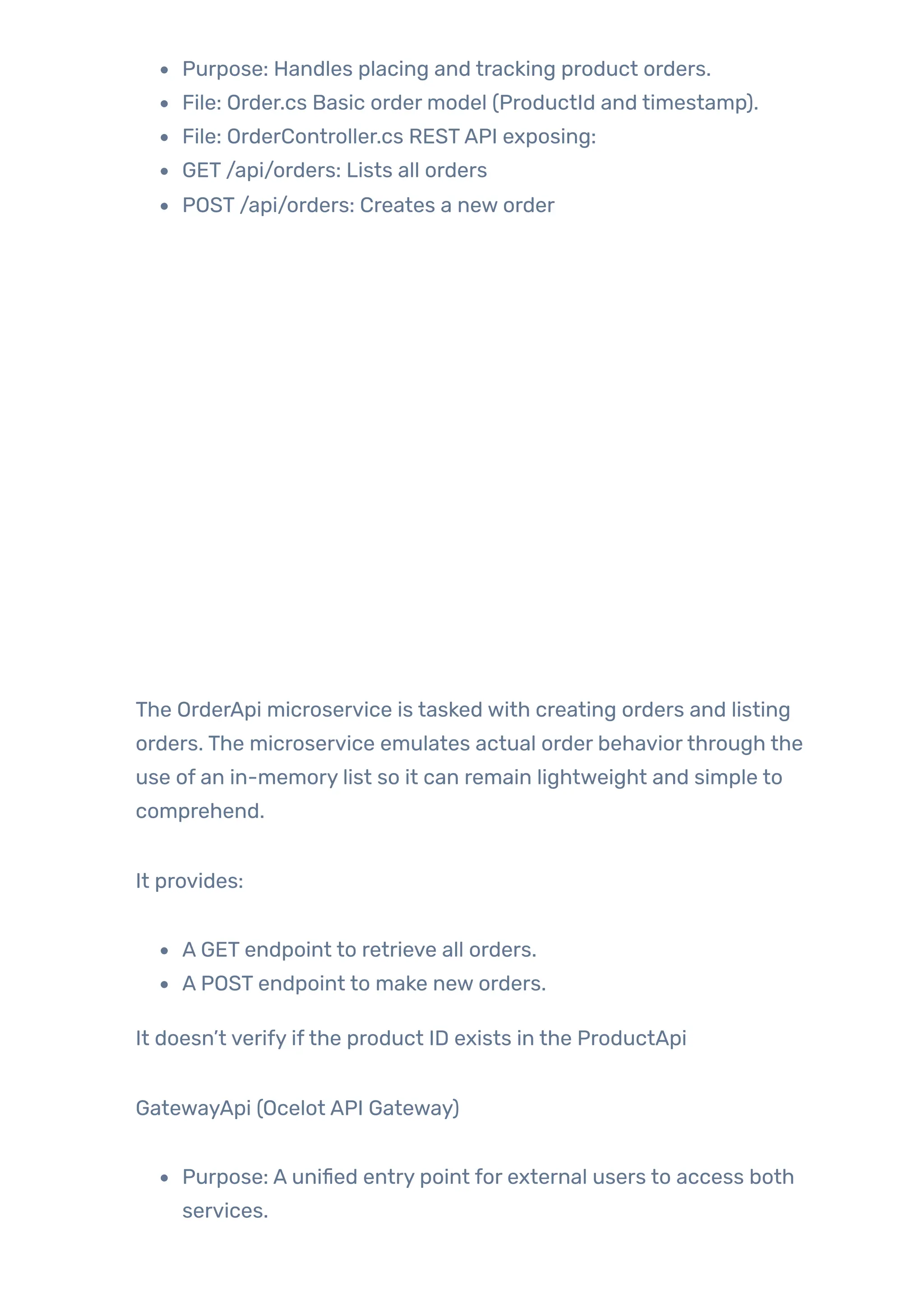

Purpose: Handles placing and tracking product orders.
File: Order.cs Basic order model (ProductId and timestamp).
File: OrderController.cs RESTAPI exposing:
GET /api/orders: Lists all orders
POST /api/orders: Creates a new order
The OrderApi microservice is tasked with creating orders and listing
orders. The microservice emulates actual order behaviorthrough the
use of an in-memory list so it can remain lightweight and simple to
comprehend.
It provides:
A GET endpoint to retrieve all orders.
A POST endpoint to make new orders.
It doesn’t verify ifthe product ID exists in the ProductApi
GatewayApi (Ocelot API Gateway)
Purpose: A unified entry point for external users to access both
services.

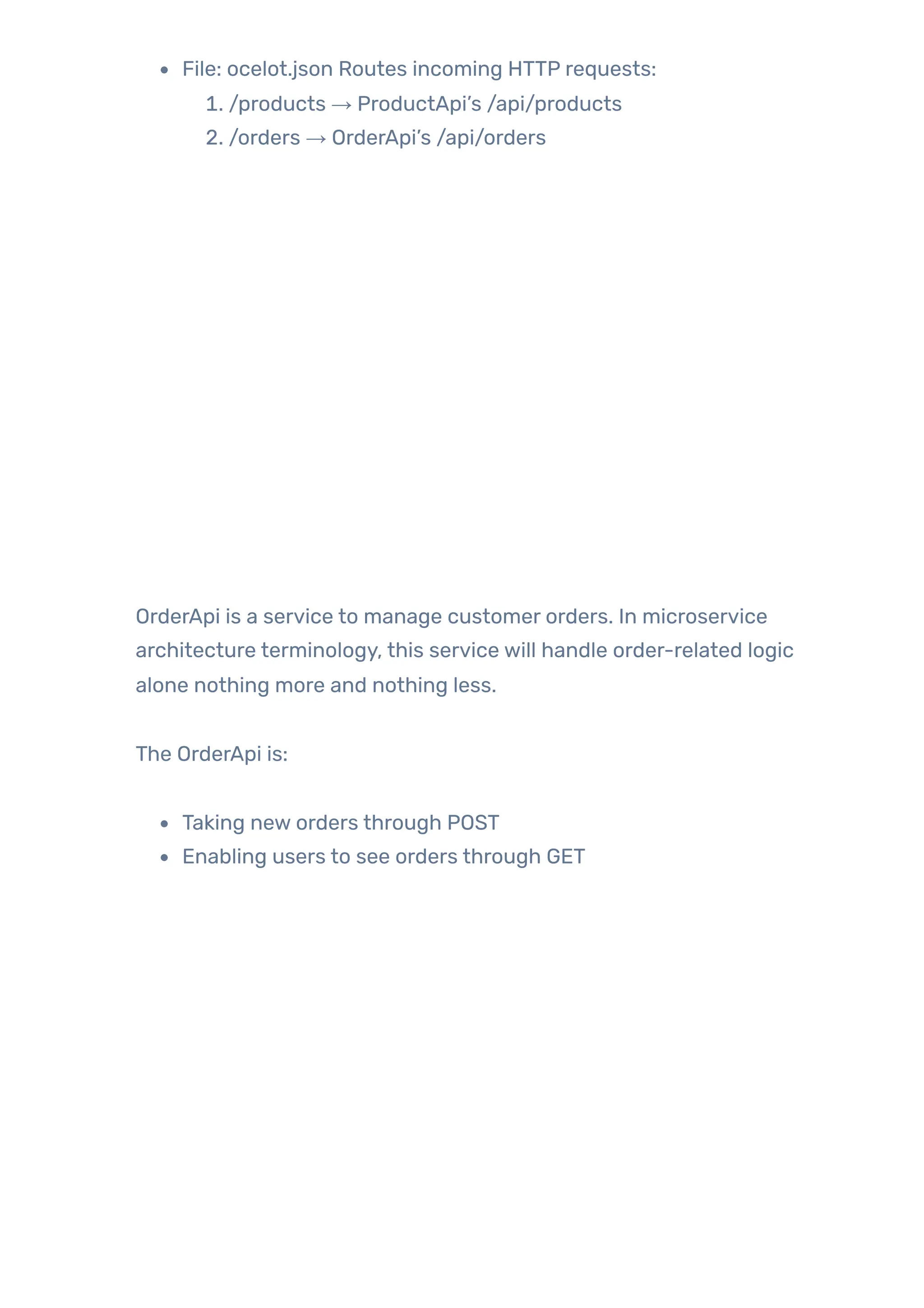

File: ocelot.json Routes incoming HTTP requests:
1. /products → ProductApi’s /api/products
2. /orders → OrderApi’s /api/orders
OrderApi is a service to manage customer orders. In microservice
architecture terminology, this service will handle order-related logic
alone nothing more and nothing less.
The OrderApi is:
Taking new orders through POST
Enabling users to see orders through GET

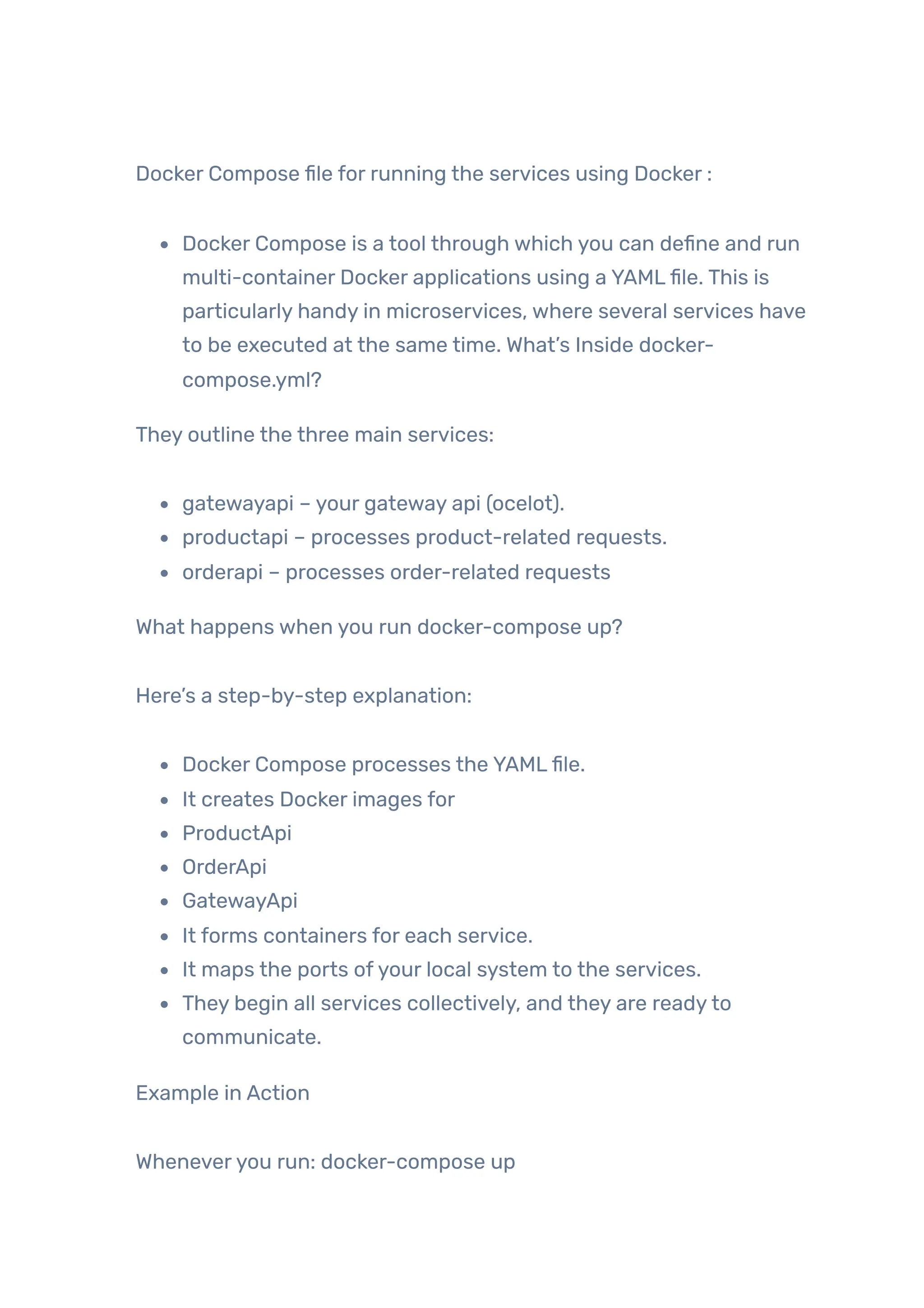

Docker Compose file for running the services using Docker :
Docker Compose is a tool through which you can define and run
multi-container Docker applications using a YAMLfile. This is
particularly handy in microservices, where several services have
to be executed at the same time. What’s Inside docker-
compose.yml?
They outline the three main services:
gatewayapi – your gateway api (ocelot).
productapi – processes product-related requests.
orderapi – processes order-related requests
What happens when you run docker-compose up?
Here’s a step-by-step explanation:
Docker Compose processes the YAMLfile.
It creates Docker images for
ProductApi
OrderApi
GatewayApi
It forms containers for each service.
It maps the ports ofyour local system to the services.
They begin all services collectively, and they are readyto
communicate.
Example in Action
Wheneveryou run: docker-compose up

Spins your microservices system up
You can then access:
Product API via http://localhost:5000/products
OrderAPI via http://localhost:5000/orders
(Note: These are routed through the Gateway and not directlyto
ProductApi/OrderApi)
Sample C#APITests Using HttpClient
(xUnit)
Setup:
Install xUnit via NuGet:
dotnet add package xunit
dotnet add package Microsoft.NET.Test.Sdk
dotnet add package xunit.runner.visualstudio
Create a new test project (if not already):
dotnet new xunit -n MicroservicesApiTests
cd MicroservicesApiTests
Test Code Example
Create a newfile GatewayApiTests.cs:
using System;
using System.Net.Http;
using System.Net.Http.Json;
using System.Threading.Tasks;
using Xunit;
public class GatewayApiTests
{

private readonly HttpClient _client;
public GatewayApiTests()
{
_client = new HttpClient
{
BaseAddress = new Uri("http://localhost:5000")
};
}
[Fact]
public async Task Get_Products_ReturnsProductList()
{
var response = await _client.GetAsync("/products");
response.EnsureSuccessStatusCode();
var products = await
response.Content.ReadFromJsonAsync<Product[]>();
Assert.NotNull(products);
Assert.NotEmpty(products);
}
[Fact]
public async Task Post_Order_CreatesNewOrder()
{
var order = new
{
productId = 1,
timestamp = DateTime.UtcNow
};
var response = await _client.PostAsJsonAsync("/orders",
order);
response.EnsureSuccessStatusCode();
var createdOrder = await
response.Content.ReadFromJsonAsync<Order>();
Assert.Equal(1, createdOrder.ProductId);
Assert.True(createdOrder.Timestamp <= DateTime.UtcNow);
}
}
public class Product

{
public int Id { get; set; }
public string Name { get; set; }
public decimal Price { get; set; }
}
public class Order
{
public int ProductId { get; set; }
public DateTime Timestamp { get; set; }
}
RuntheTests
From the terminal:
dotnet test
ProTip:
– Make sure the docker-compose up is already running and the
gateway is listening on localhost:5000.
– You can expand this with negative test cases, validations for
missing fields, or even mock external dependencies.
Conclusion:Adopting Microservices
Architecturewith Confidence
Microservices architecture is more than a buzzword it is a strong
change in the waywe design, construct, test, and scale today’s
applications. By decoupling big monolithic applications through
independent services, companies can realize increased agility,
scalability, and resilience and quicker deliverytimes.
But taking on microservices adds its own level of complexities,
particularlywhen it comes to quality assurance (QA). From service
coordination to data consistency and contract testing to environment
parity, each phase requires a newway of doing things with the proper

tools and practices.

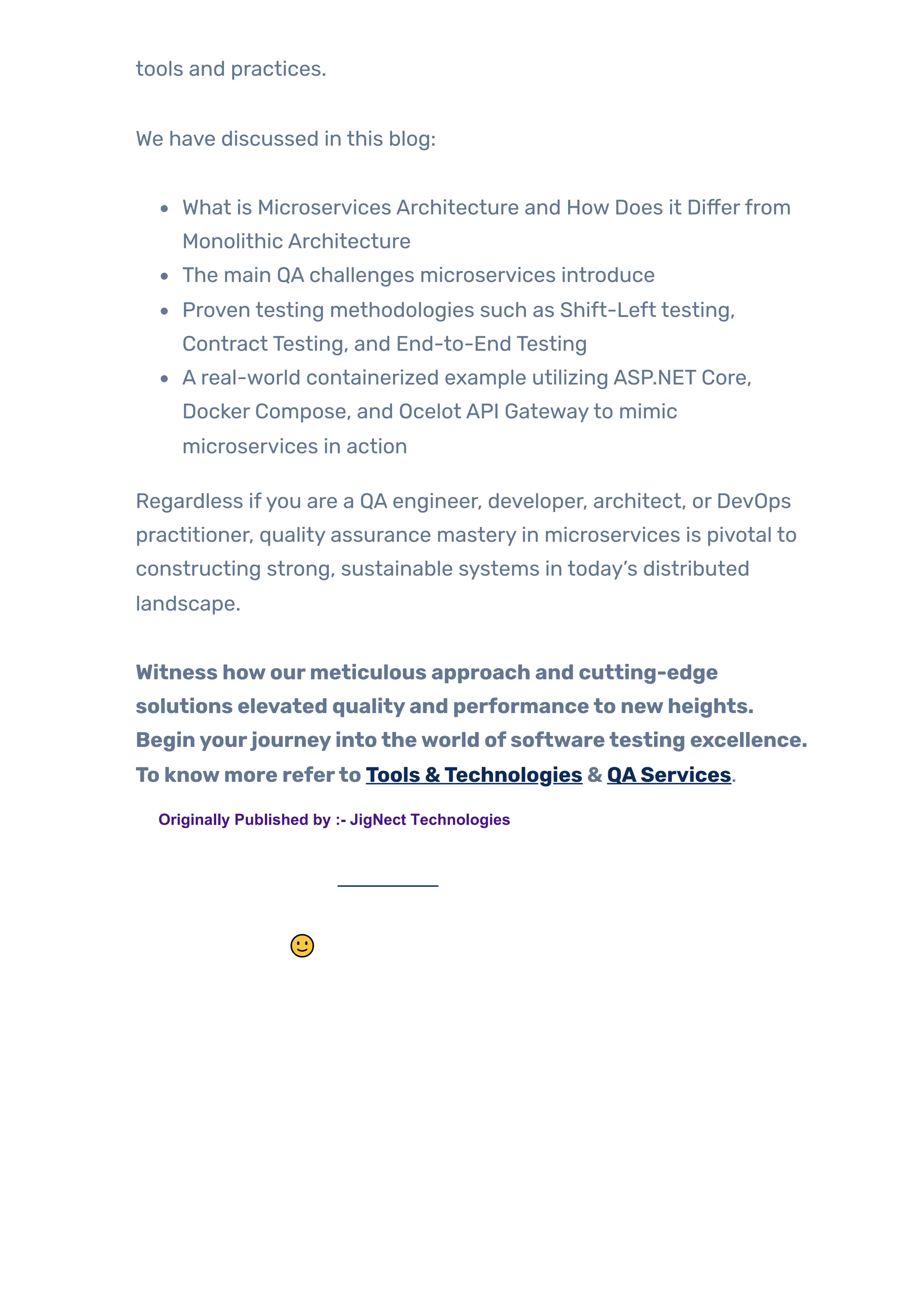

We have discussed in this blog:
What is Microservices Architecture and How Does it Differfrom
Monolithic Architecture
The main QA challenges microservices introduce
Proven testing methodologies such as Shift-Left testing,
Contract Testing, and End-to-End Testing
A real-world containerized example utilizing ASP.NET Core,
Docker Compose, and Ocelot API Gatewayto mimic
microservices in action
Regardless ifyou are a QA engineer, developer, architect, or DevOps
practitioner, quality assurance mastery in microservices is pivotal to
constructing strong, sustainable systems in today’s distributed
landscape.
Witness howourmeticulous approach and cutting-edge
solutions elevated qualityand performanceto newheights.
Beginyourjourneyintotheworld ofsoftwaretesting excellence.
To knowmore referto Tools &Technologies & QAServices.
🙂
TAGS:
Originally Published by :- JigNect Technologies

Ensuring Software Quality in Microservices Architecture

More Related Content

Similar to Ensuring Software Quality in Microservices Architecture

More from digitaljignect

Recently uploaded

Ensuring Software Quality in Microservices Architecture
