Abstract: In the last few years energy efficiency of large scale infrastructures gained a lot of attention, as power consumption became one of the most impacting factors of the operative costs of a data-center and of its Total Cost of Ownership (TCO). Power consumption can be observed at different layers of the data-center, from the overall power grid, moving to each rack and arriving to each machine and system. Given the rise of application containers both in the cloud computing and High Performance Computing (HPC) scenarios, it becomes more and more important to measure power consumption also at the application level, where power-aware schedulers and orchestrators can optimize the execution of the workloads not only from a performance perspective, but also considering performance/power trade-offs. What we propose is DEEP-mon, a novel monitoring tool able to measure power consumption and attribute it for each thread and application container running in the system. Moreover, we show how the proposed approach has a negligible impact on the monitored system and on the running workloads, overcoming the limitations of the previous works in the field.

1. DEEP-mon
HPPAC - Vancouver 21/05/2018
Dynamic and Energy Efcient Power monitoring
for container-based infrastructures
Tommaso Sardelli, Rolando Brondolin, Marco D. Santambrogio

2. Data Center - Power Consumption
Environment
20%
Of Costs
wasted on
power
consumption[1]
Power
Cap
Costs
Y. Cui, C. Ingalz, T. Gao, and A. Heydari, “Total cost of ownership model for data center technology
evaluation,” in Thermal and Thermomechanical Phenomena in Electronic Systems (ITherm), 2017 16th
IEEE Intersociety Conference on. IEEE, 2017, pp. 936–942.
2

3. Need For Power Awareness
Power
Aware
balancing
of IT
workloadsPower
Efciency
Monitoring
Data
Driven
3

4. Application Containers
29B+
Downloads
of Docker
containers
4
https://www.docker.com
https://singularity.lbl.gov

5. Kubernetes Orchestration
5
Manage
Container
Execution
environments
https://kubernetes.io

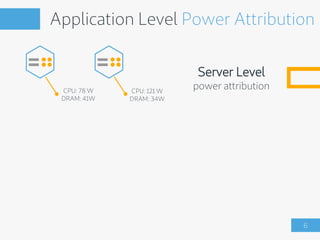

6. Application Level Power Attribution
6
CPU: 78 W
DRAM: 41W
CPU: 121 W
DRAM: 34W
Server Level
power attribution

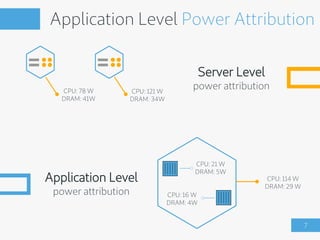

7. Application Level Power Attribution
Server Level
power attribution
Application Level
power attribution
CPU: 78 W
DRAM: 41W
CPU: 121 W
DRAM: 34W
CPU: 21 W
DRAM: 5W
CPU: 16 W
DRAM: 4W
CPU: 114 W
DRAM: 29 W
7

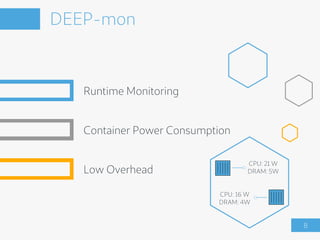

8. DEEP-mon
8
Runtime Monitoring
Container Power Consumption
Low Overhead
CPU: 21 W
DRAM: 5W
CPU: 16 W
DRAM: 4W

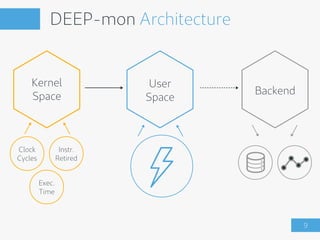

9. DEEP-mon Architecture
9
User
Space
Backend
Kernel
Space
Clock
Cycles
Instr.
Retired
Exec.
Time

10. Kernel - Runtime Monitoring

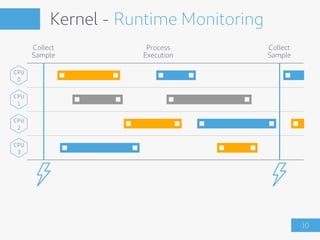

10

11. Kernel - Runtime Monitoring
11

12. Kernel - Runtime Monitoring
12

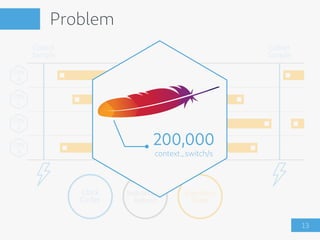

13. Problem
200,000
context_switch/s
13

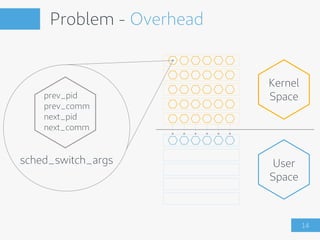

14. Problem - Overhead
Kernel
Space
User
Space
prev_pid
prev_comm
next_pid
next_comm
sched_switch_args
14

15. Solution – In Kernel Aggregation
Use eBPF to aggregate data in kernel
space
Use a dynamic window to take
aggregated data at intervals
Deal with one event instead 200k
15
Container
C
Container
B
Container
A

16. User Space Power Attribution
16
Container
C
Container
B
Container
A
PMC
PMC
PMC

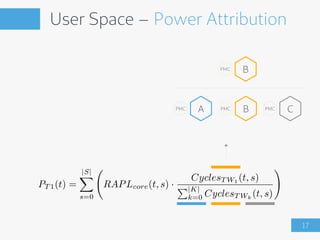

17. User Space – Power Attribution
17
BPMC
APMC CPMCBPMC

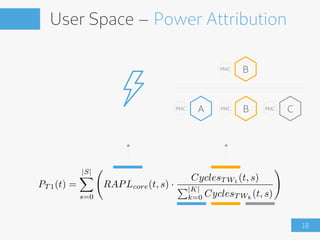

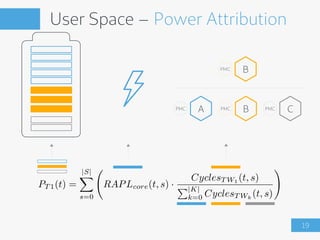

18. User Space – Power Attribution
18
BPMC
APMC CPMCBPMC

19. User Space – Power Attribution
19
BPMC
APMC CPMCBPMC

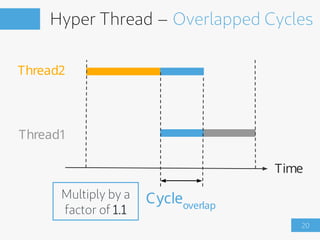

20. Hyper Thread – Overlapped Cycles
20
Multiply by a
factor of 1.1
Thread1
Thread2
Time
Cycleoverlap

21. DEEP-mon CLI Interface
21
Container ID Cycles Exec. Time (s) Power (mW)
4fd630d438 1,756,600 0.0008 1.334
0eb34499da 47,514,323 0.0319 243.746

22. Kubernetes – Data Enrichment
22
CPU: 21 W
DRAM: 5W
CPU: 16 W
DRAM: 4W
Application Name
Hostname
IP Address
Namespace

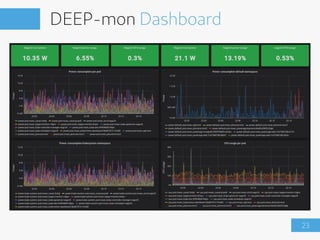

23. DEEP-mon Dashboard
23

24. Benchmarks - Setup
24
Objective : Measure performance and power
consumption overhead introduced by the agent
2x Intel Xeon E5-2680 40 threads - 380GB RAM
Ubuntu 16.04 Linux 4.13 with eBPF support
HPC
Benchmark
Cloud
Benchmark
Phoronix
Test
Suite
NAS
Parallel
Benchmark

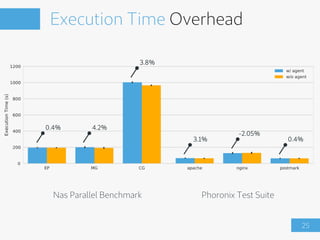

25. Execution Time Overhead
25
Phoronix Test SuiteNas Parallel Benchmark
3.8%
4.2%0.4%
0.4%
-2.05%
3.1%

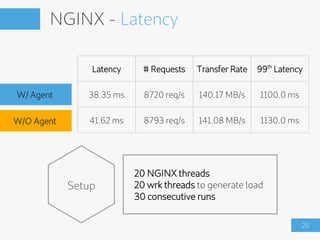

26. NGINX - Latency
26
Latency # Requests Transfer Rate 99th
Latency
38.35 ms 8720 req/s 140.17 MB/s 1100.0 ms
41.62 ms 8793 req/s 141.08 MB/s 1130.0 ms
W/ Agent
W/O Agent
20 NGINX threads
20 wrk threads to generate load
30 consecutive runs
Setup

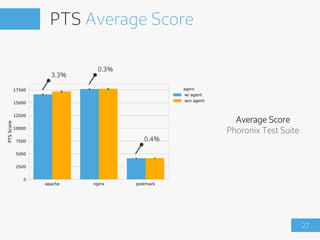

27. PTS Average Score
27
Average Score
Phoronix Test Suite
0.4%
0.3%
3.3%

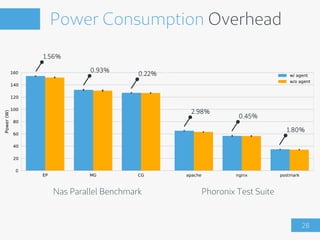

28. Power Consumption Overhead
28
Phoronix Test SuiteNas Parallel Benchmark
0.22%
0.93%
1.56%
1.80%
0.45%
2.98%

29. Conclusions
29
Fine grained container power monitoring
Low overhead thanks to in-kernel aggregation
Validation of the approach with a cloud-like
and an HPC-like benchmark

30. Future Work
30
Impact on latency-sensitive applications
Adjust dynamic window for long running jobs
Integration with a power-aware orchestrator
