This document provides an overview of deep generative models for images. It discusses generative adversarial networks (GANs) which define generative modeling as an adversarial game between a generator and discriminator. Conditional GANs can generate images from text or translate between image domains. Variational autoencoders (VAEs) learn latent representations of the data. Fully convolutional models use transposed convolutions in the decoder. CycleGAN can perform unpaired image-to-image translation using cycle consistency losses. Overall, generative models aim to understand data distributions in order to generate new, realistic samples.

1. Deep Generative Modelling

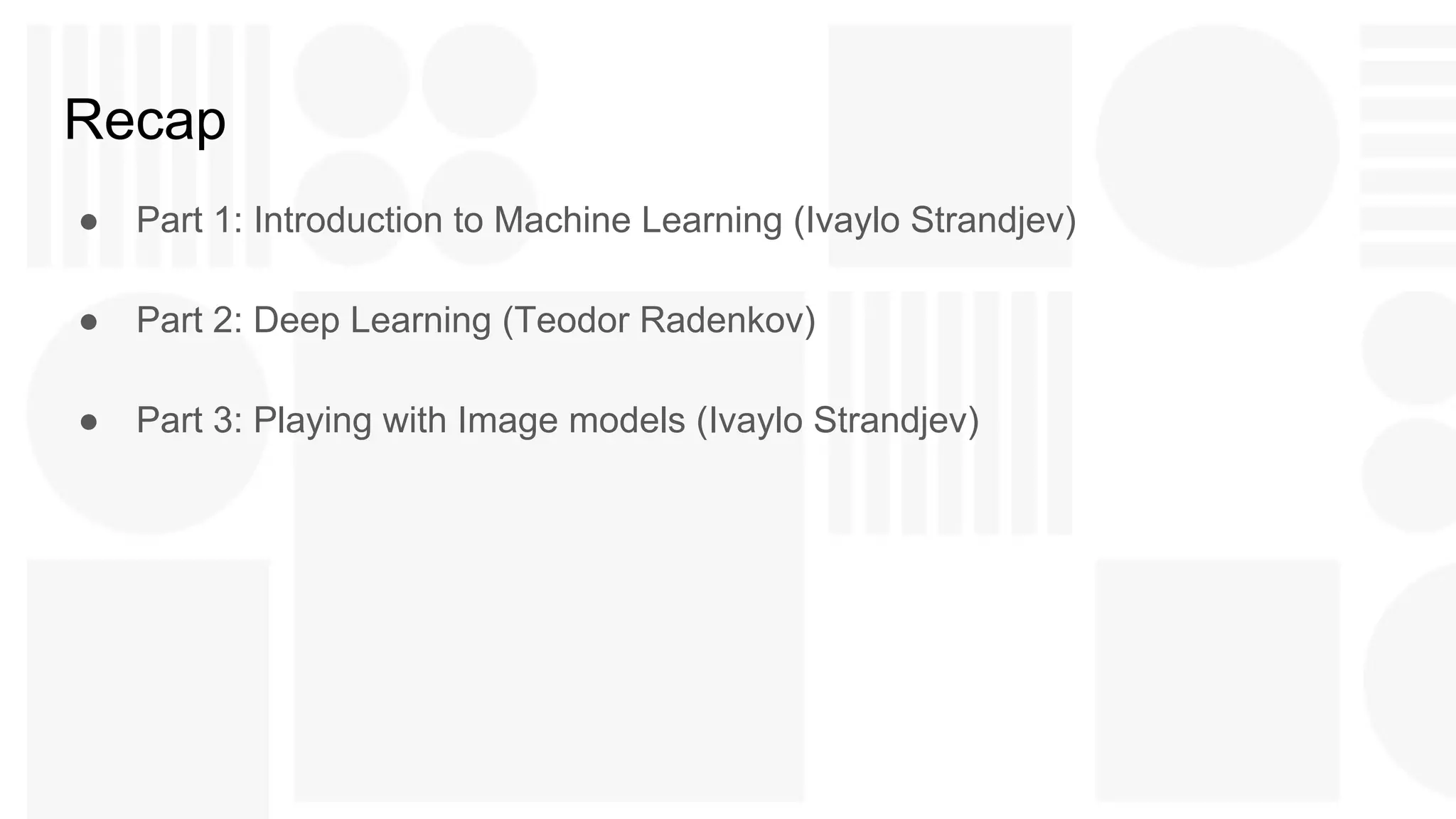

2. Recap
● Part 1: Introduction to Machine Learning (Ivaylo Strandjev)
● Part 2: Deep Learning (Teodor Radenkov)
● Part 3: Playing with Image models (Ivaylo Strandjev)

3. Playing with image models
● The convolution operator for images
● Deep CNNs like Inception Resnet V2
● Interpretability of Deep Neural Networks
● Adversarial Examples

4. ● Motivation
● Generative and Discriminative Models
● Popular Deep Generative Models for Images
● Conditional Generative Models
Today

5. Generative Models
Generates new random observable data, models the joint distribution of all
variables.
Given some dataset D generate new samples like D, but not the same.
We need to adjust their hidden parameters
Considered as branch of unsupervised learning, but they can be used for tasks
like classification

6. “What I cannot create, I do not
understand.”
—Richard Feynman

7. Motivation
● Tremendous amount of information out there in the world
● Machines are good in solving specific tasks
● Better than humans in Object recognition, Go, Speech recognition
● Cannot build compact representations of the world

8. How can we overcome this intelligence
gap?
By forcing our models to learn very compact and
disentangled representations.

9. Disentangled factors
● P( X | Z), where X is an image, Z is a vector that causes (explains) X
● We would like the dimensions of Z to describe
real world factors
● Z which has a separate dimension for lighting, guitar,
bookshelf , rotation will be considered more
disentangled than the raw pixels of X
● P(guitar | Z) can be easily computed with
Disentangled representation.

10. Applications
Short term applications
● Image translation, denoising, super-resolution
● Domain Adaptation
● Music, Audio and Text Generation
Long term applications
● Understanding of the real world

11. Discriminative Models
● ImageNet. Here y would be the vector of 1000 labels and x some image from
the dataset.
● They are trying to maximize log P(y | x)
● Predictions obtained by argmax of yi
: P(yi
| x)
● Classification models are discriminative ones.

12. ● During training maximize the probability log P(X)
● Generate new sampled images close to the ImageNet distribution P(X)
● During inference for some image X depending on the model you might be
able to estimate the probability of the image X under the model
Generative Models

13. p(y, w, β)p(y, β ; w)
Discriminative Generative
y - text categories
w - sequence of words
β - model parameters

14. Properties and Drawbacks of Discriminative Models
● Good at capturing statistical regularities of the data
● Find features invariant to characteristics you don’t care for the task
○ Object classification: Rotation, Translation, Lighting, Color
○ Segmentation: You care for Rotation, Translation
● Having difficulties to build disentangled representations
● Adversarial examples are good example for that

15. Generation from Discriminative Model (Example)
Handwriting Model This is regarding my friend, Kate Zack
Gradient ascent on the input image X

16. Generation from Discriminative Model (Example)
Handwriting Model
P E T K O
X
Maximize

17. Generative Models
● Gaussian mixture model
● Hidden Markov model
● Naive Bayes
● Latent Dirichlet allocation
● … many others

18. Deep Generative Models
● Restricted Boltzmann Machines
● Variational Autoencoders
● PixelRNN, PixelCNN
● Generative Adversarial Networks
● Neural Language Models
● WaveNet

19. Deep Generative Models
● Restricted Boltzmann Machines
● Variational Autoencoders
● PixelRNN, PixelCNN
● Generative Adversarial Networks
● Neural Language Models
● WaveNet

20. Deep Generative Models
Generator
Latent variables (code)

21. Autoencoders
Autoencoder
network
Loss = Pixelwise L2 or Softmax.

22. ● Latent variables
● Lower dimensional than the input
Autoencoders
Encoder Decoder
Loss =

23. Autoencoders
● random latent code won’t get us anywhere
● Pass an image to the encoder to get “valid” code
Encoder Decoder

24. ● Encoder-Decoder architecture
● Forcing the latent code to be Gaussian distributed
● Sample the latent code from the Gaussian and pass it to the decoder network
Variational Autoencoders

25. Variational Autoencoders
Encoder Decoder
Loss =
Mean
Std
Sampled code

26. ● CIFAR-10
● Blurry images
● Good
approximation
of the likelihood
of the input
data
Variational Autoencoders - Samples
Input Output

27. Deep Recurrent Attentive Writer
● Generates the image sequentially
● On each step the model decides where to focus and draw
● Uses an attention mechanism to achieve it
○ A topic of different lecture :(

28. Deep Recurrent Attention Writer (DRAW)
● Google Street View Numbers
● The red rectangle is showing
where the model is attending on
the current step
● Impressive as DRAW is the first
successful model that generates
images sequentially

29. Deep Recurrent Attentive Writer
VAEs DRAW

30. Fully Convolutional Model
● Typically using pre-trained classification network as encoder
● Most often VGG-16, because it’s fast and has less parameters
● Using transposed convolution layers as decoder until we reach the desired
shape
● Often the architecture of the encoder is the transposed of the one of the
decoder

31. Fully Convolutional Decoder
Radford et al 2015

32. Transposed Convolution (Deconvolution)
● Kernel size = 3
● Stride = 1
Animation source: leonardoaraujosantos.gitbooks.io
Input layer
Output layer

33. Properties of Transposed Convolution
● During backpropagation a convolutional layer becomes transposed
convolution
● Checkerboard pattern might appear in the generated image (sensitive to
kernel and stride sizes)
Odena, et al., "Deconvolution and Checkerboard
Artifacts", Distill, 2016. http://doi.org/10.23915

34. ● In practice, VAEs latent code dimensions are very interpretable
● To achieve this it collapses some latent dimensions and doesn’t use them
● Able to generate samples close to the data distribution
Pros of VAEs

35. Drawbacks of VAEs
● Pixels in the L2 loss function are independent, which leads to blurry images
● The exact probability of a generated image under the model is intractable to
compute
X - input image, Z latent code

36. Generative Adversarial Networks (GAN)
● A generative model invented by Ian Goodfellow in 2014
● Already widely adopted and an area of massive research
● New GAN paper is published every week
● Has many awesome applications. We’ll see some of them later on.
● GANs define the generative problem as an adversarial game between two
networks

37. GANs
Generator
Discriminator
Sample
Real
Images
Sample
Real Fake
Loss

38. GANs - Discriminator Training
Generator
Discriminator
Sample
Real
Images
Sample
Real Fake
Classification Loss

39. GANs - Generator Training
Generator
Discriminator
Sample
Real
Images
Sample
Real Fake
Maximize

40. Problems in GAN Training
● Instable during training
● Mode colapse
● Higher Log-likelihood != better samples
However, GAN training is getting easier. Checkout Wassterstein GANs and
LSGANs .

41. DCGAN
Radford et al 2015

42. Generative Adversarial Networks

43. Generative Adversarial Networks

44. Conditional Generative Adversarial Networks
Real
Data
● Consists of pairs (X,Y)
● P(Y|X) : generate Y given X

45. Image-to-Image translation (pix2pix)
pix2pix:Image-to-Image Translation with CANs, Isola et al 2016

46. Image-to-Image translation (example)
pix2pix:Image-to-Image Translation with CANs, Isola et al 2016

47. CycleGAN
X Y
● X and Y are unpaired collections of images
● different domains of the same world
● Learn to translate image X into Y

48. CycleGAN
Zhu et al 2017 (Unpaired Image-to-Image Translation using Cycle-Consisten GANs)

49. CycleGAN (failure case)
Zhu et al 2017 (Unpaired Image-to-Image Translation using Cycle-Consisten GANs)

50. CycleGAN
Zhu et al 2017 (Unpaired Image-to-Image Translation using Cycle-Consisten GANs)
● Cycle Consistency Loss
○ || F(G(X)) - X ||
○ || G(F(Y)) - Y ||

51. CycleGAN

52. Generating Images from Text

53. Generating Images from Text

54. References
● https://blog.openai.com/generative-models
● http://distill.pub/2016/deconv-checkerboard/
● https://github.com/junyanz/CycleGAN
● https://github.com/phillipi/pix2pix
● http://videolectures.net/deeplearning2015_bengio_generative_models/
● https://www.youtube.com/watch?v=P78QYjWh5sM&spfreload=1
● http://image-net.org/explore
