- 1. UCL Data Centres InfrastructureDesign James Clements Emma Cardinal-Richards

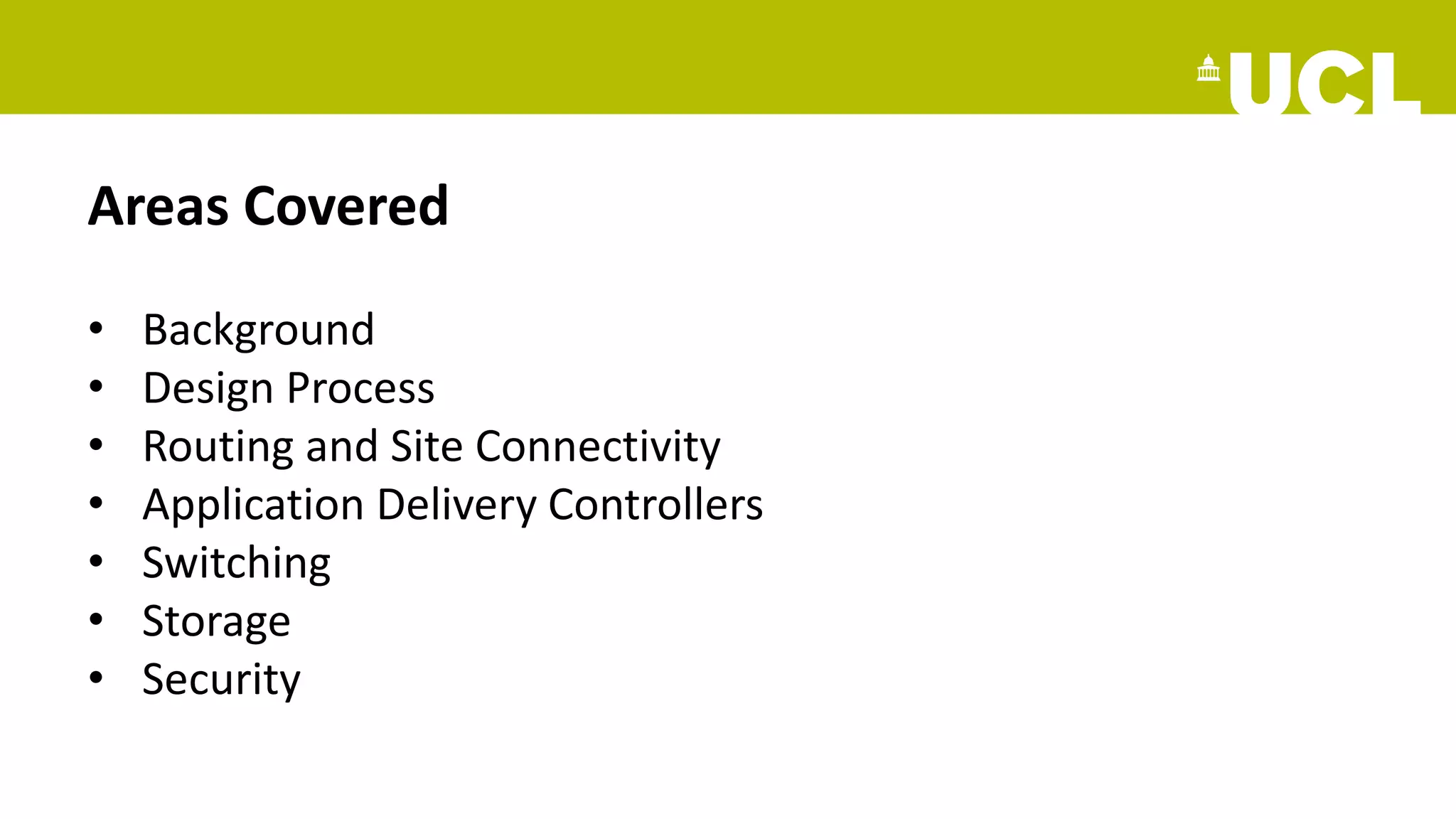

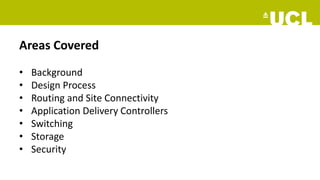

- 2. Areas Covered • Background •Design Process • Routing and Site Connectivity • Application Delivery Controllers • Switching • Storage • Security

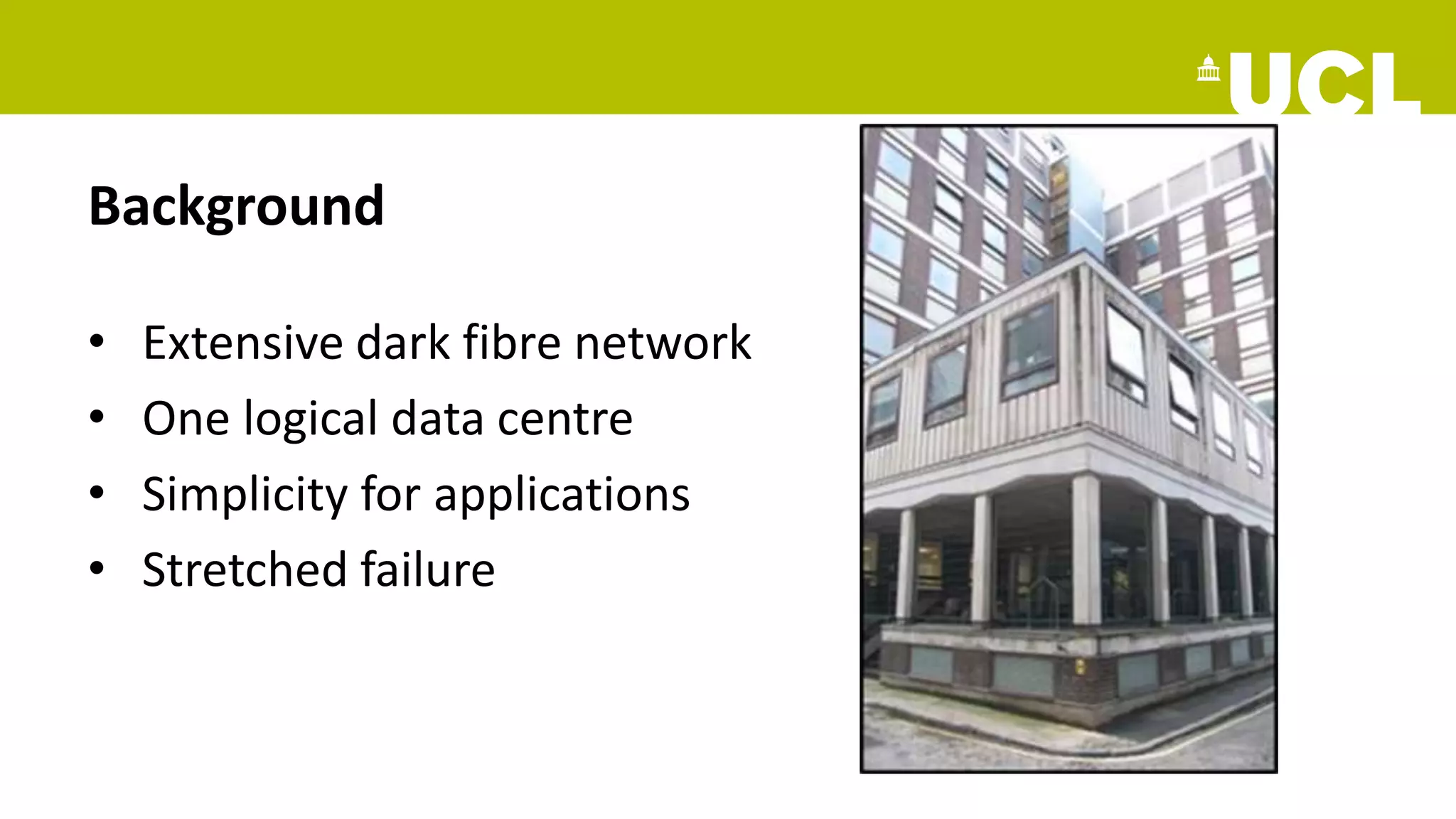

- 3. Background • Extensive darkfibre network • One logical data centre • Simplicity for applications • Stretched failure

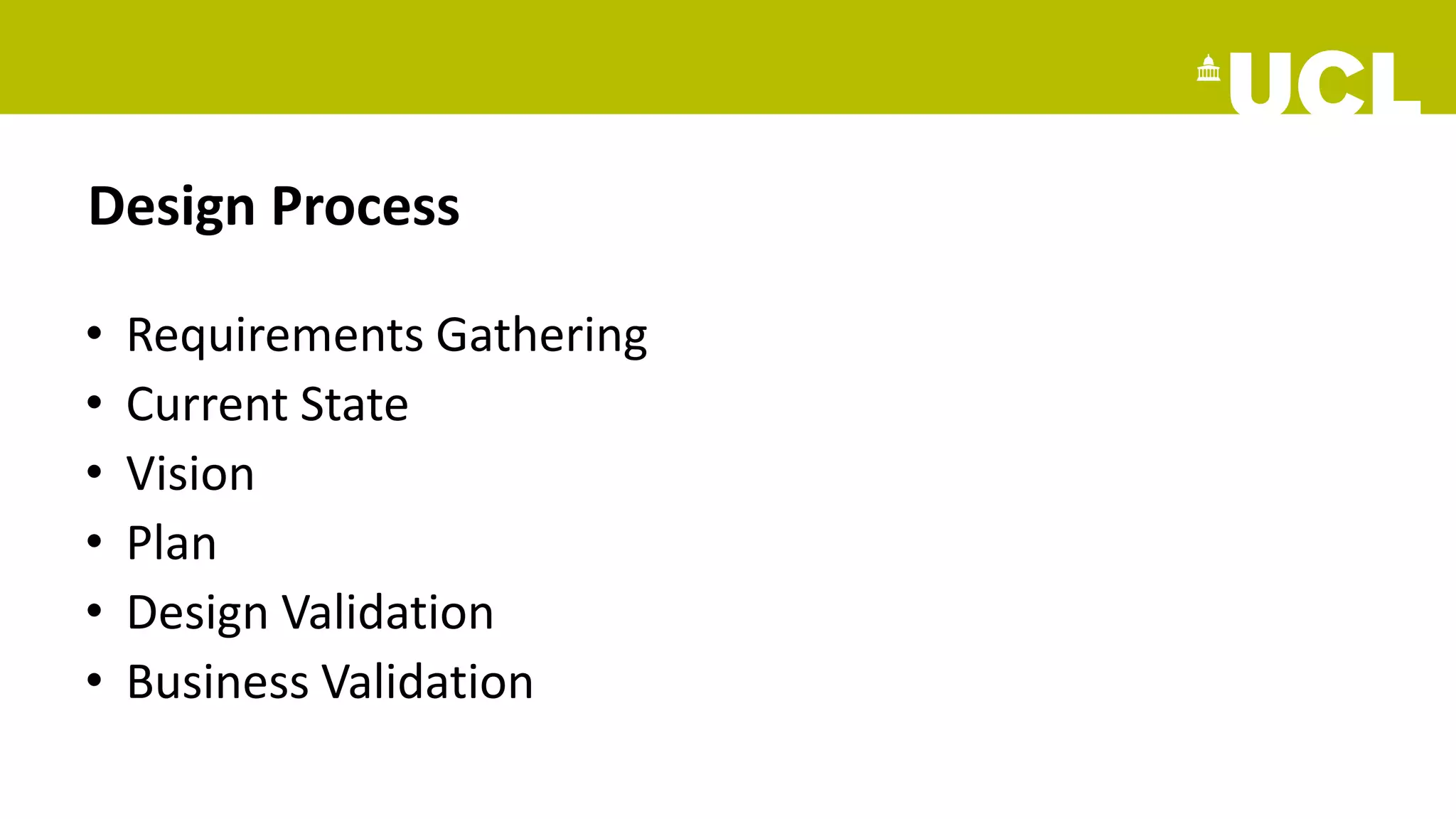

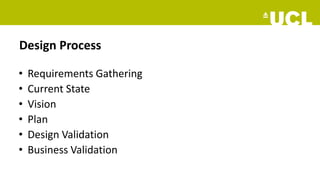

- 4. Design Process • RequirementsGathering • Current State • Vision • Plan • Design Validation • Business Validation

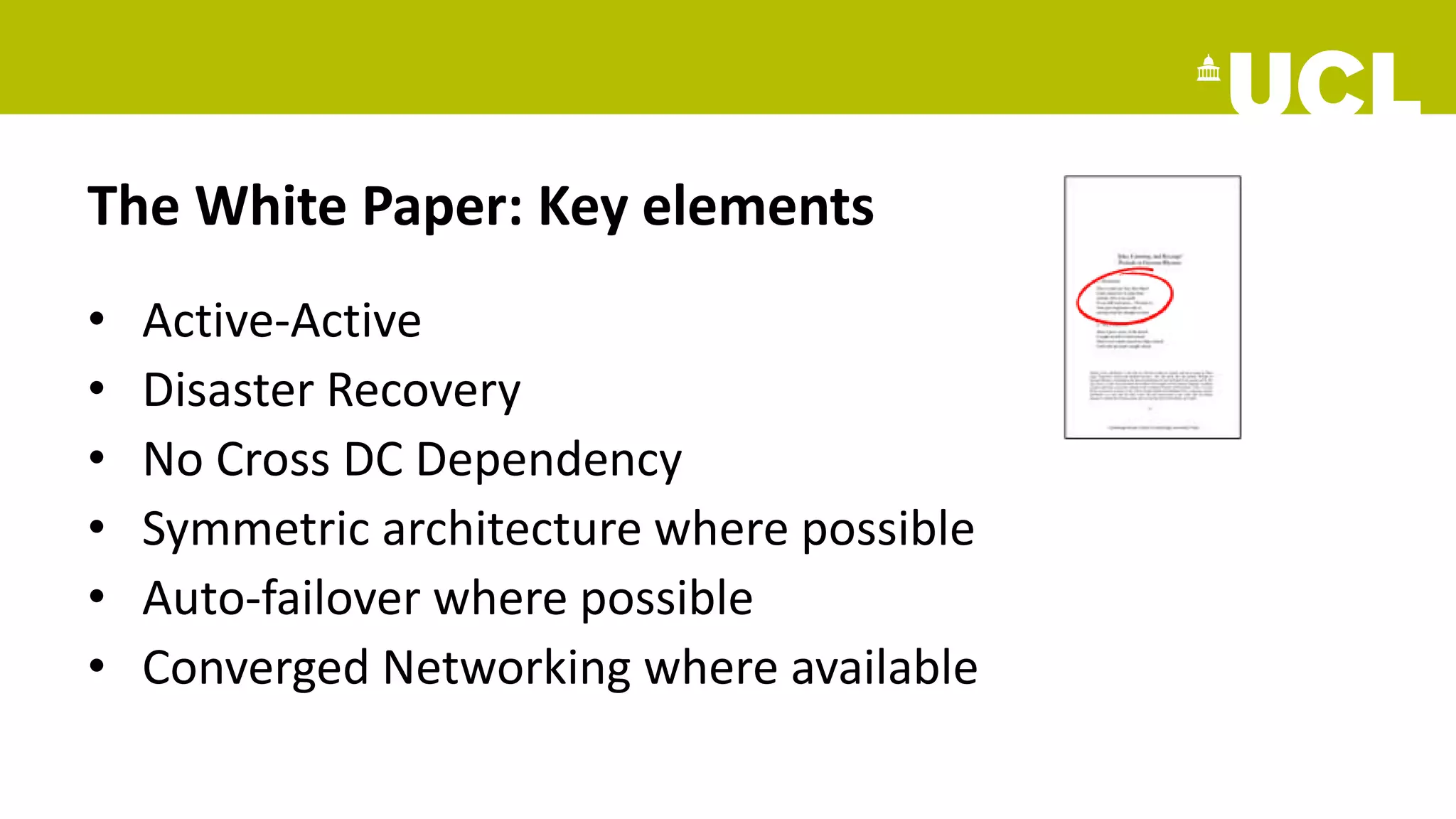

- 5. The White Paper:Key elements • Active-Active • Disaster Recovery • No Cross DC Dependency • Symmetric architecture where possible • Auto-failover where possible • Converged Networking where available

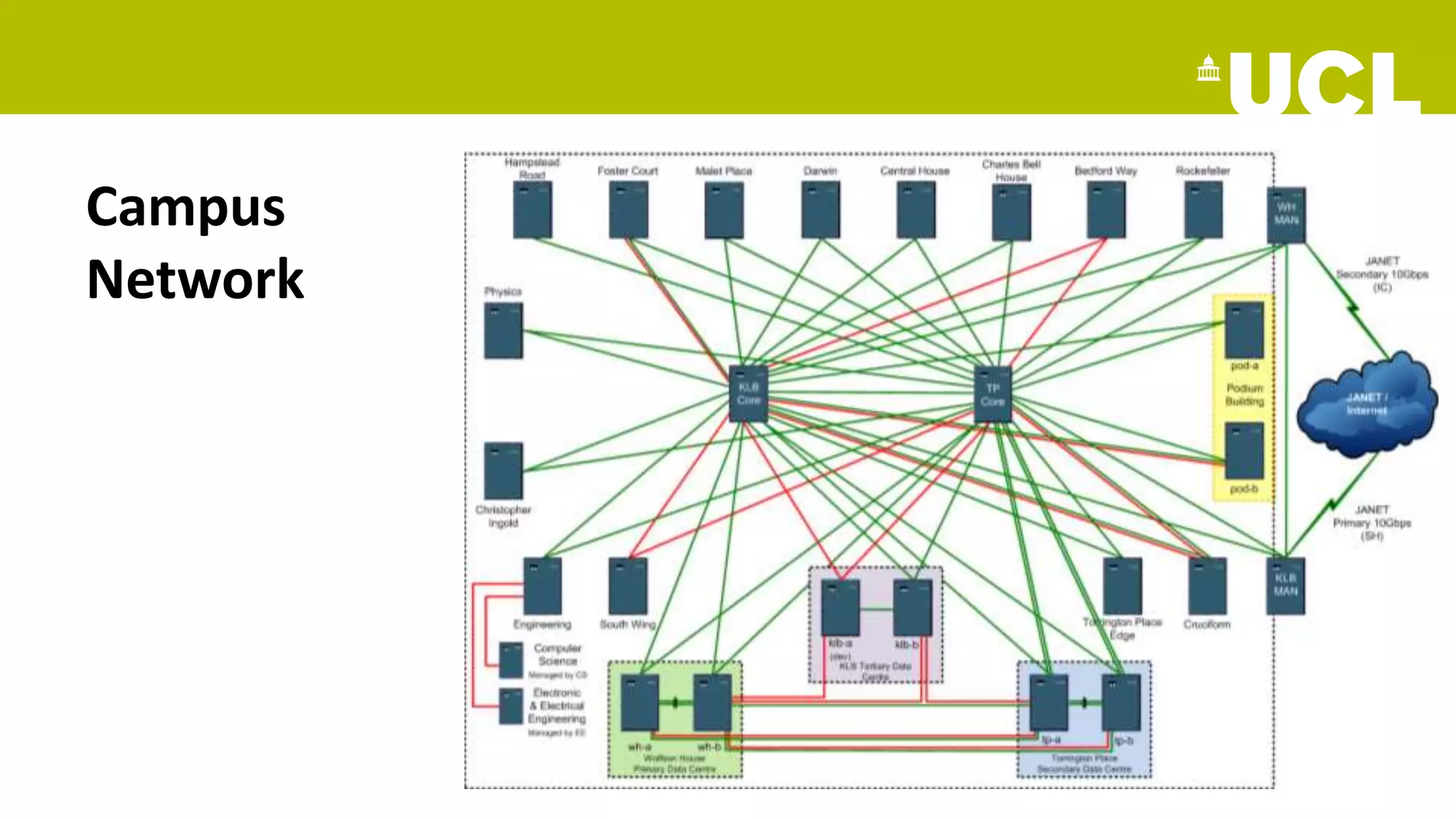

- 6.

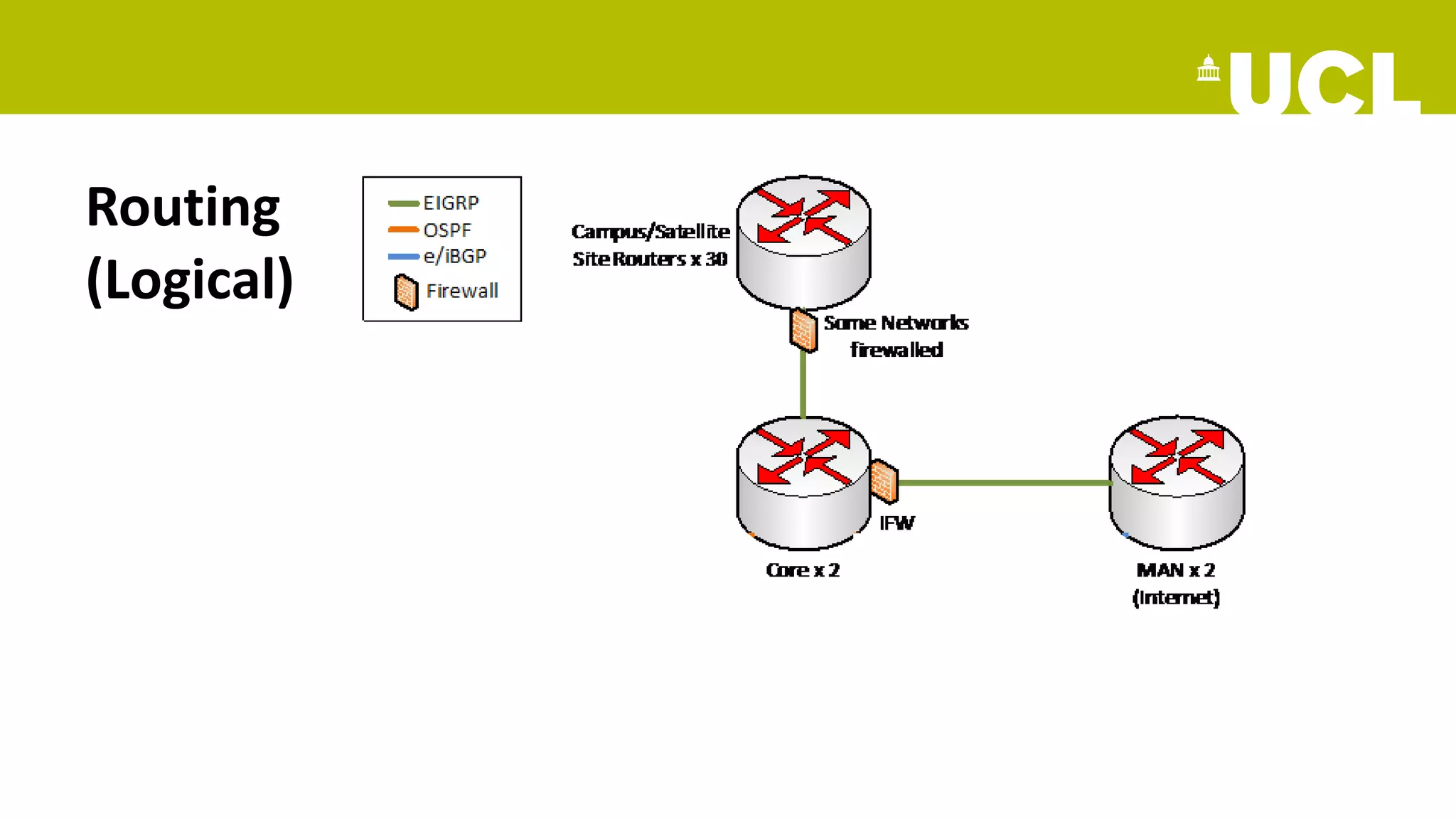

- 7.

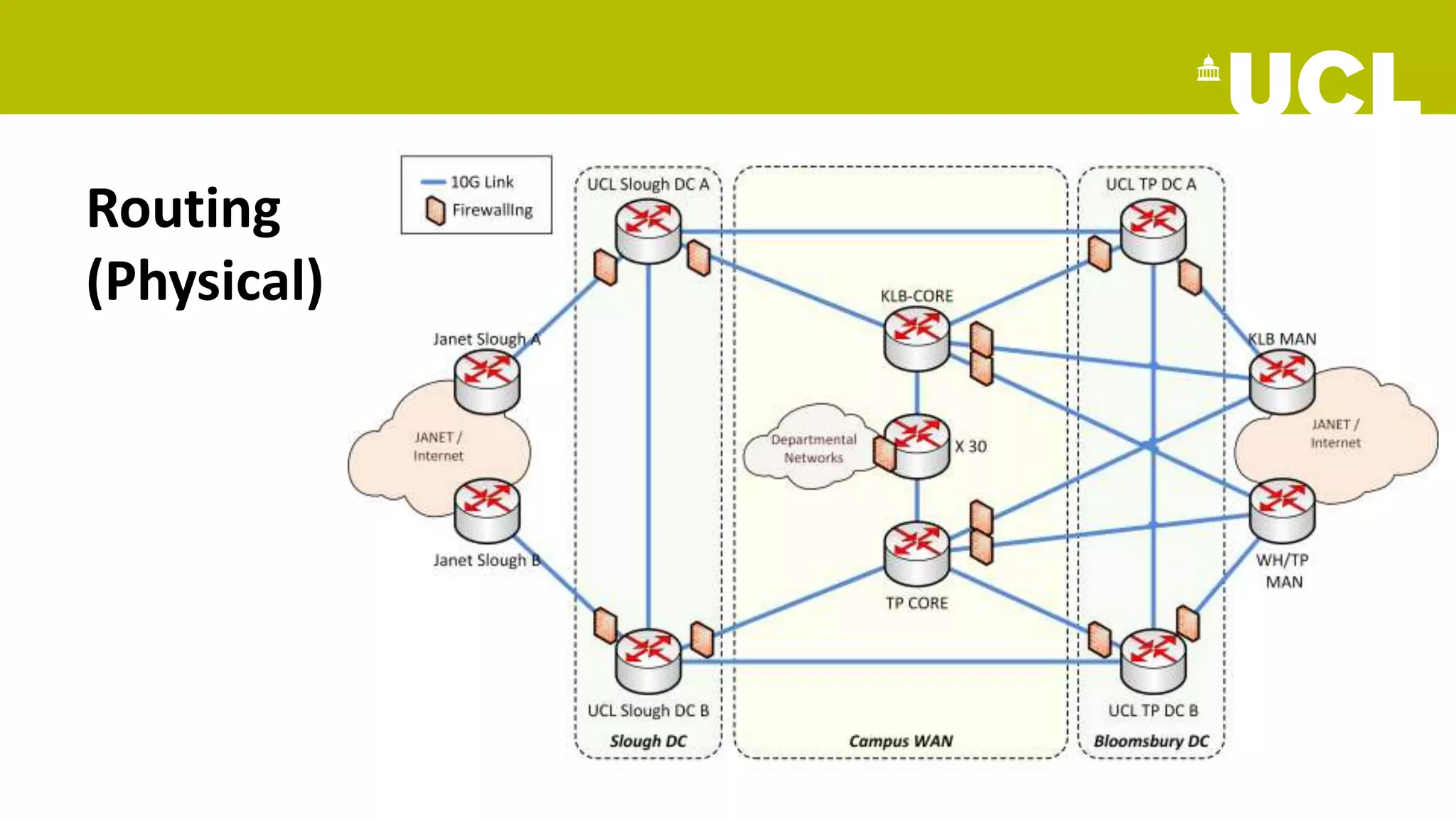

- 8.

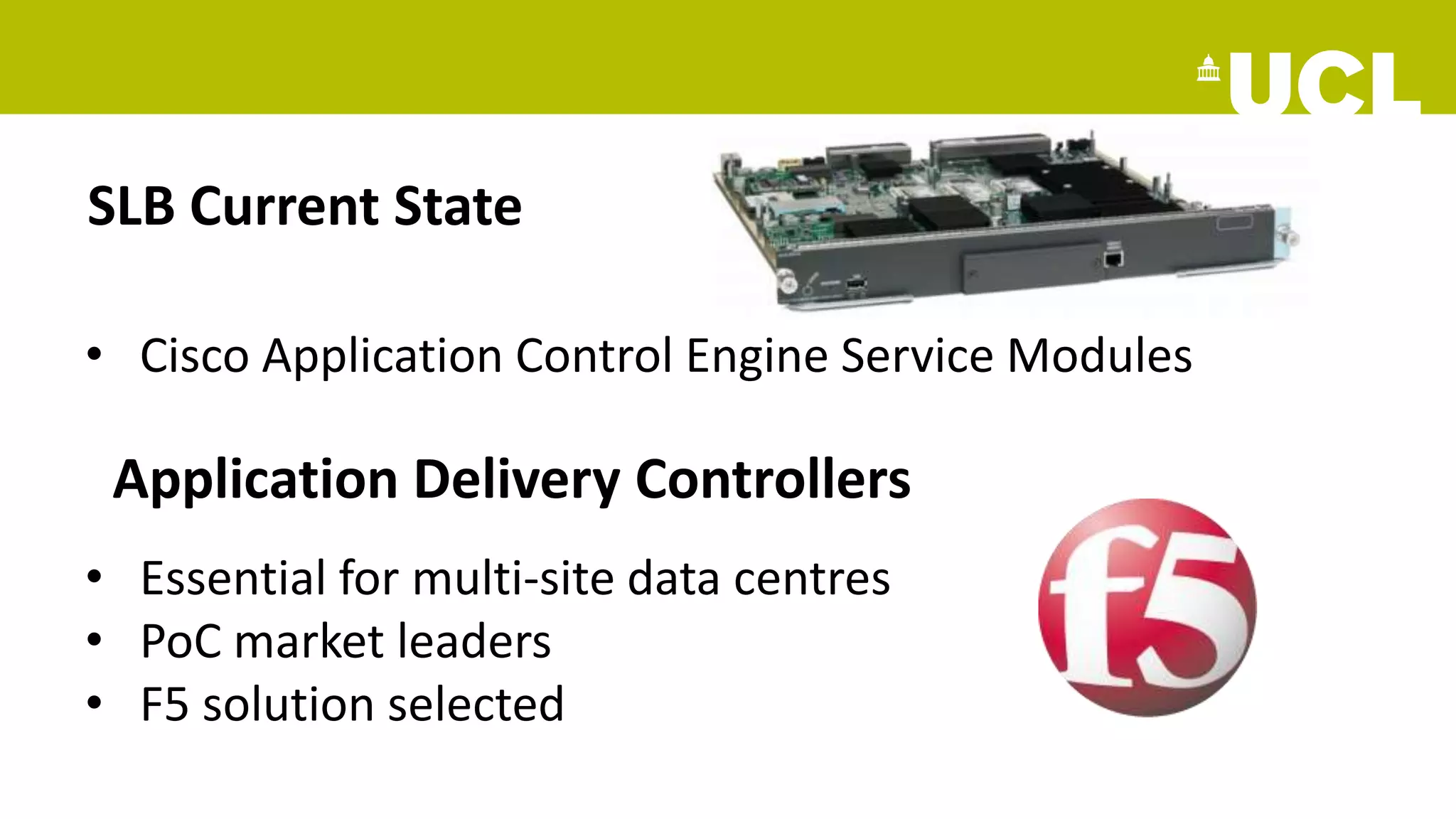

- 9. SLB Current State •Cisco Application Control Engine Service Modules Application Delivery Controllers • Essential for multi-site data centres • PoC market leaders • F5 solution selected

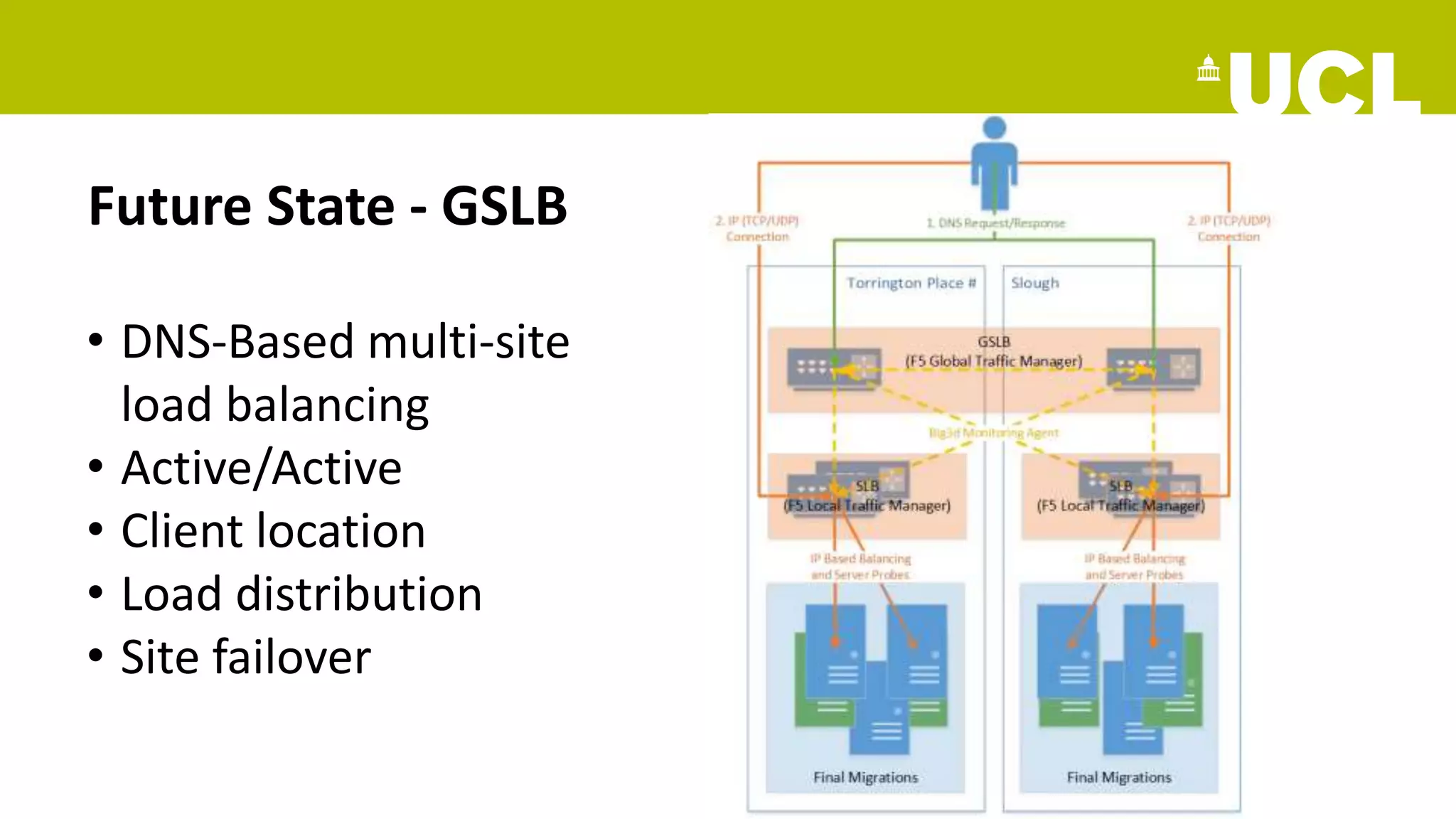

- 10. Future State -GSLB • DNS-Based multi-site load balancing • Active/Active • Client location • Load distribution • Site failover

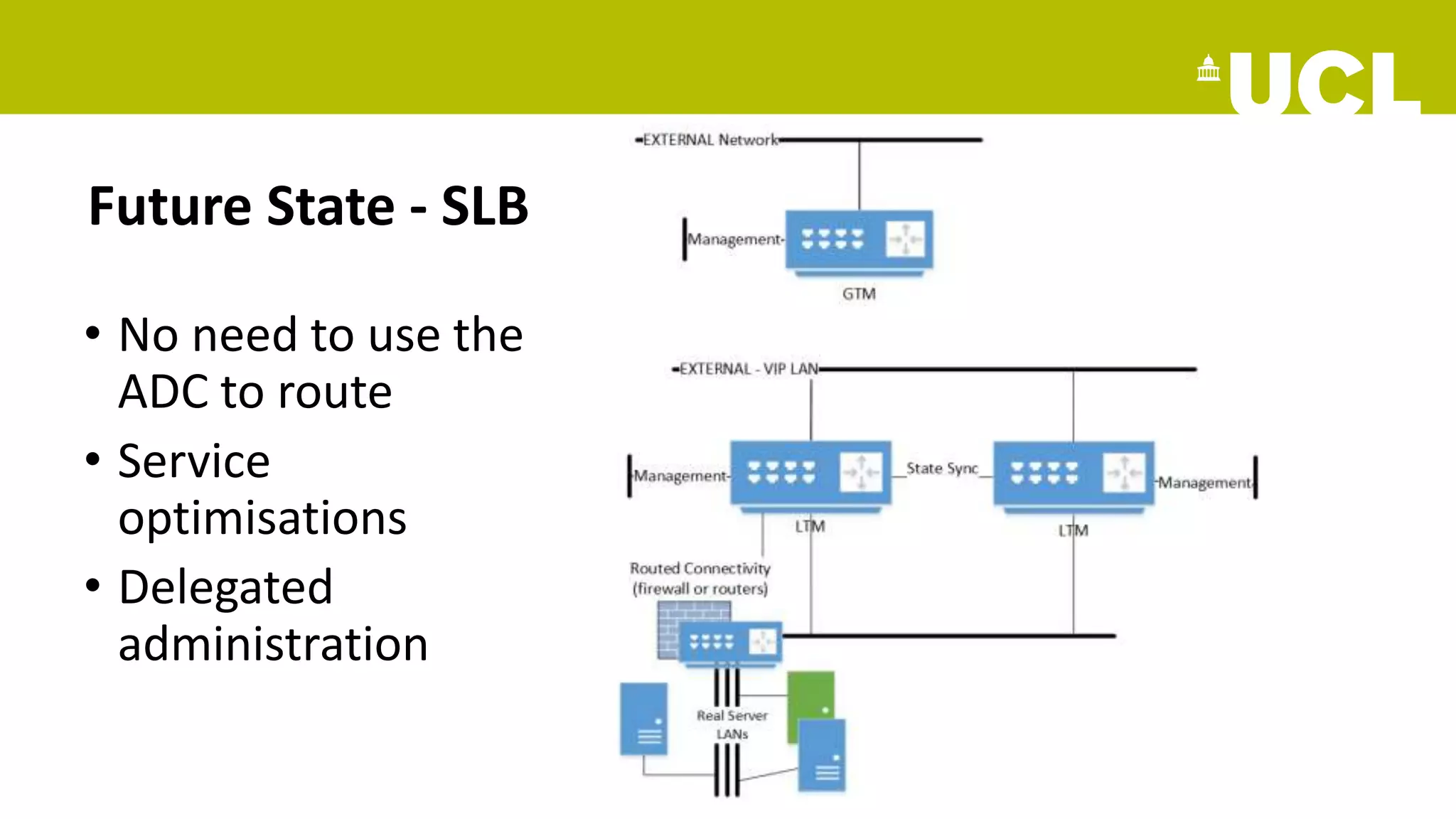

- 11. Future State -SLB • No need to use the ADC to route • Service optimisations • Delegated administration

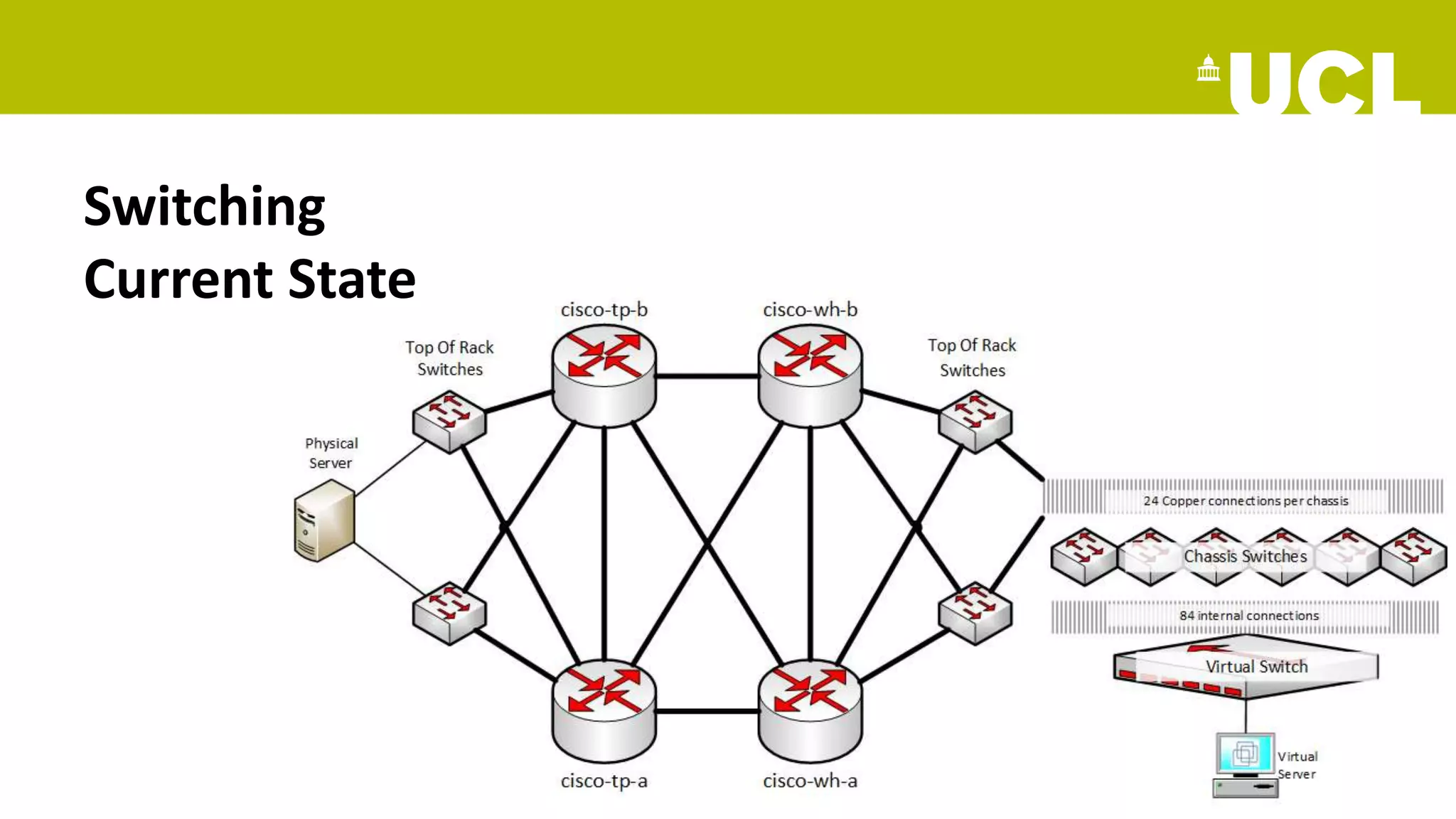

- 12.

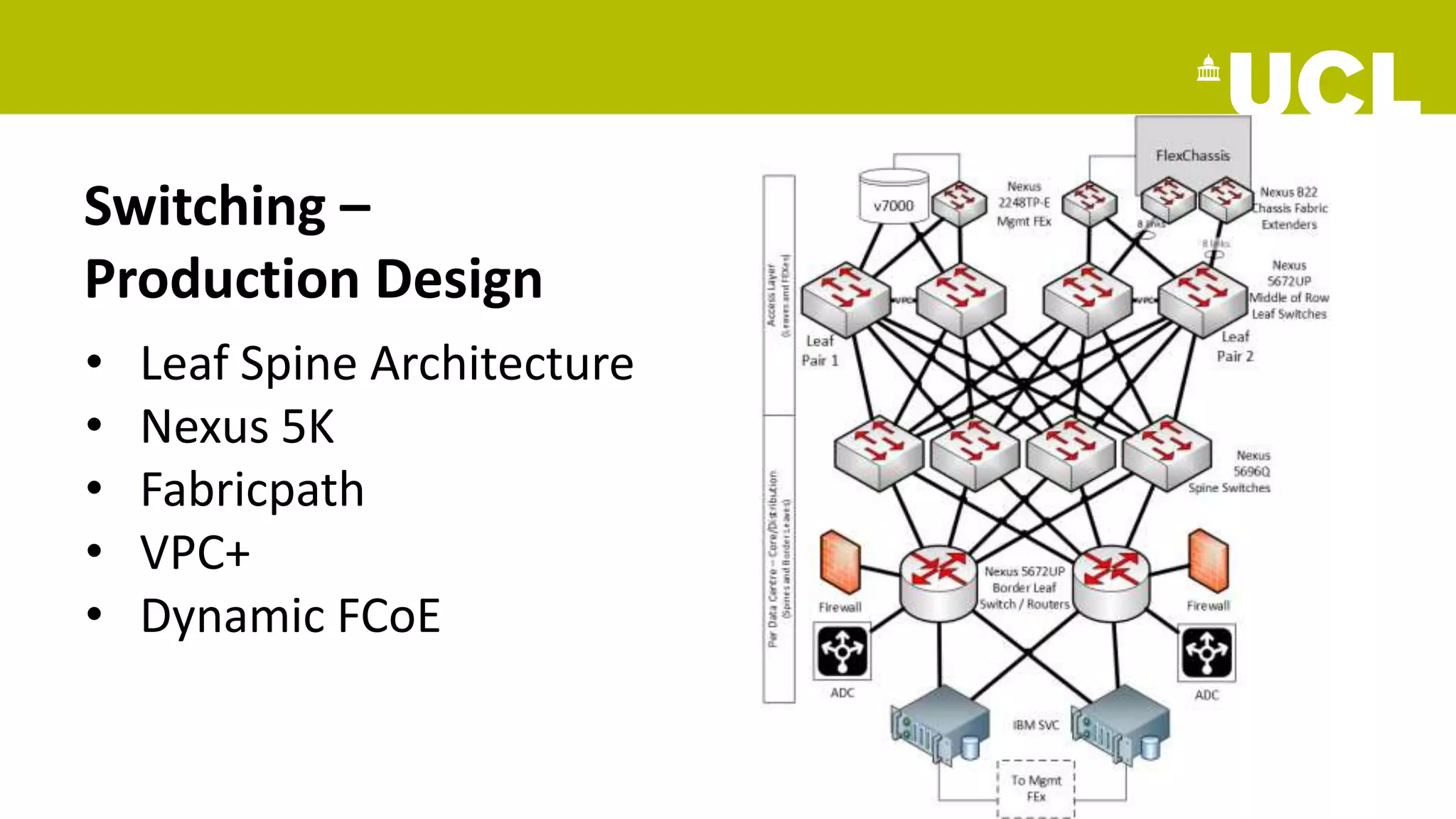

- 13. Switching – Production Design •Leaf Spine Architecture • Nexus 5K • Fabricpath • VPC+ • Dynamic FCoE

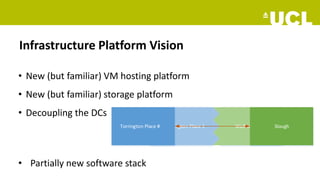

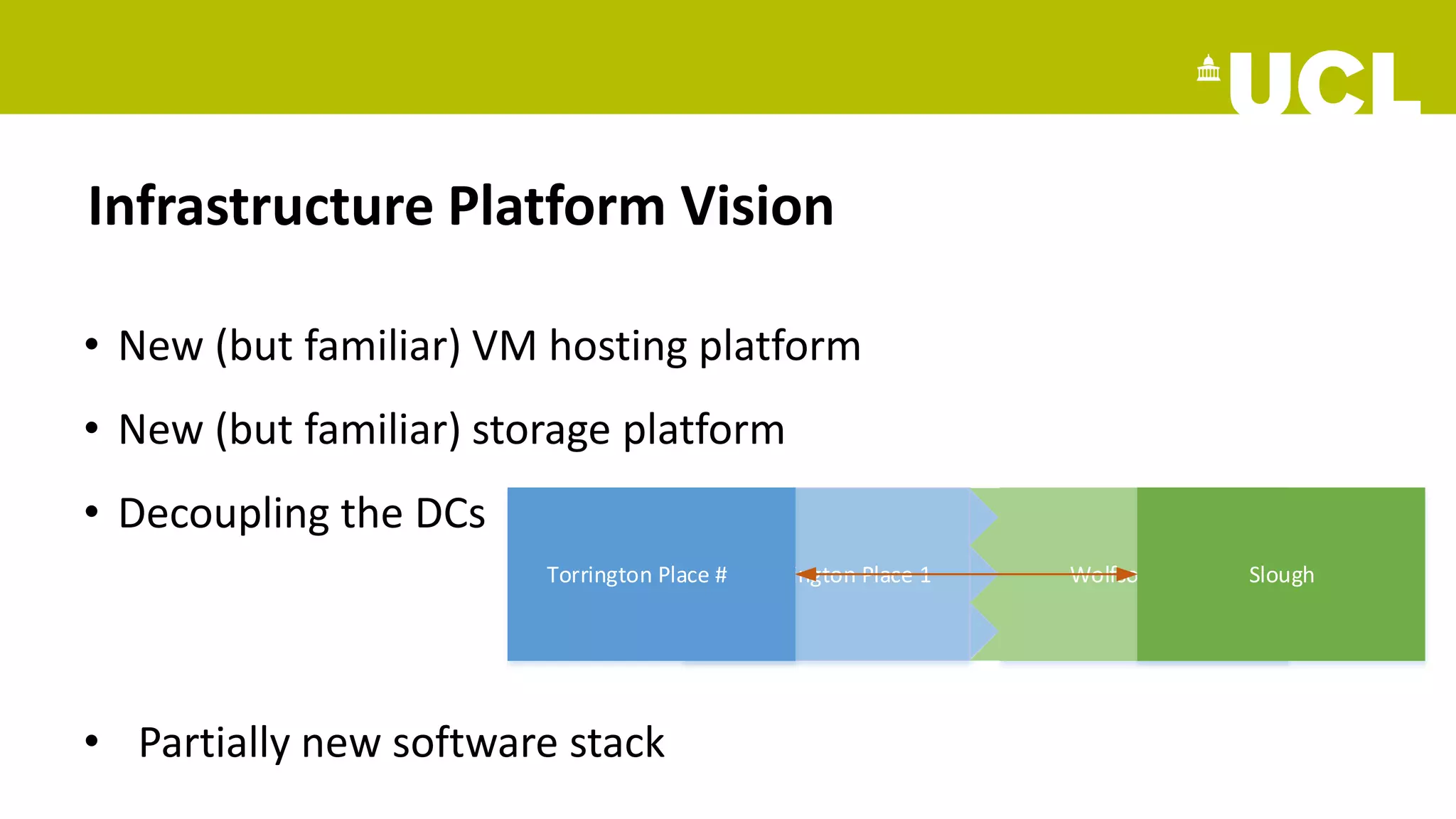

- 14. • New (butfamiliar) VM hosting platform • New (but familiar) storage platform • Decoupling the DCs • Partially new software stack Torrington Place 1 Wolfson House SloughTorrington Place # Infrastructure Platform Vision

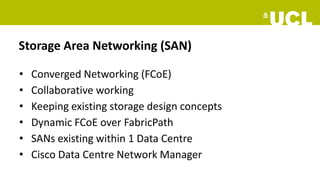

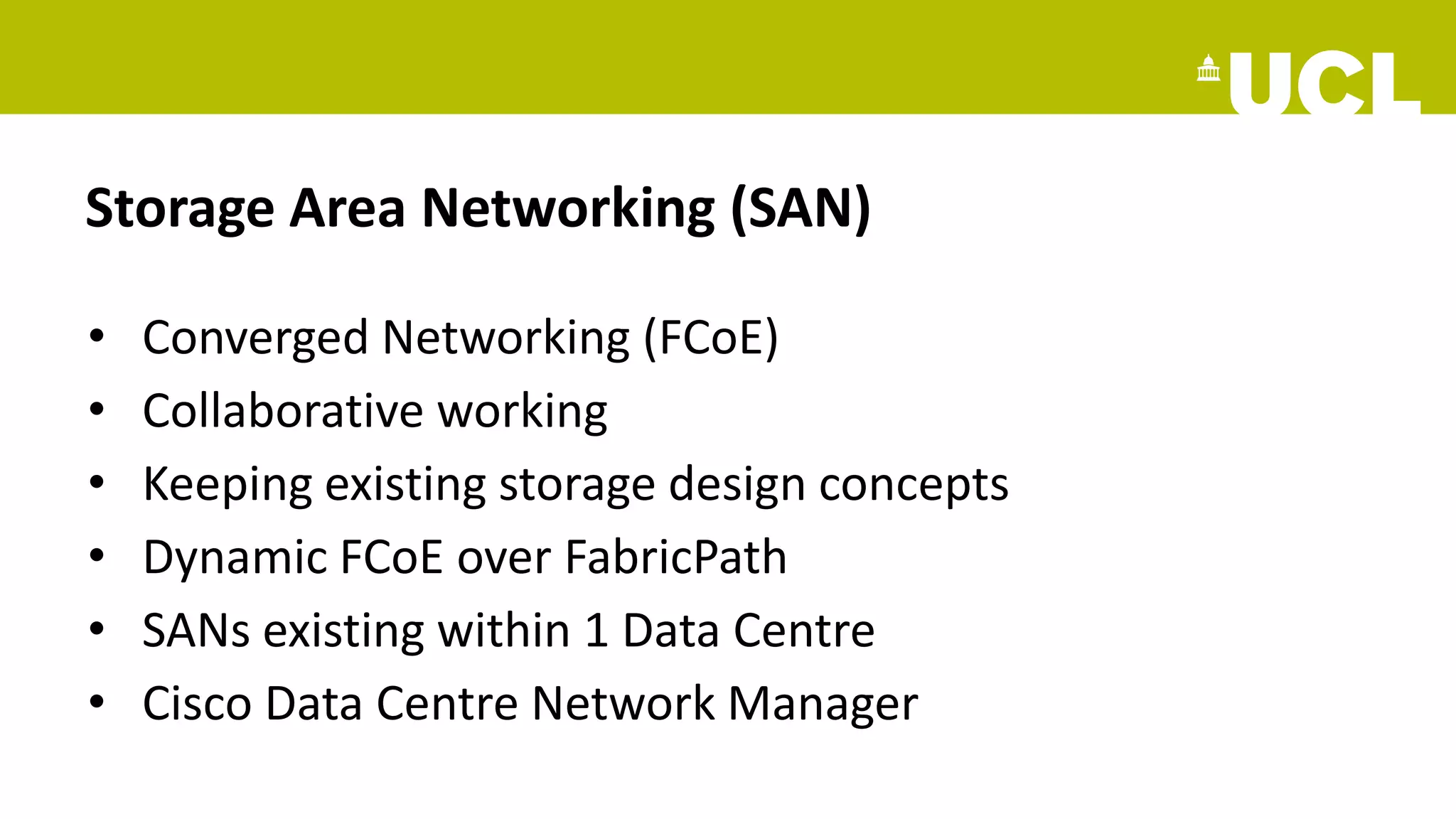

- 15. Storage Area Networking(SAN) • Converged Networking (FCoE) • Collaborative working • Keeping existing storage design concepts • Dynamic FCoE over FabricPath • SANs existing within 1 Data Centre • Cisco Data Centre Network Manager

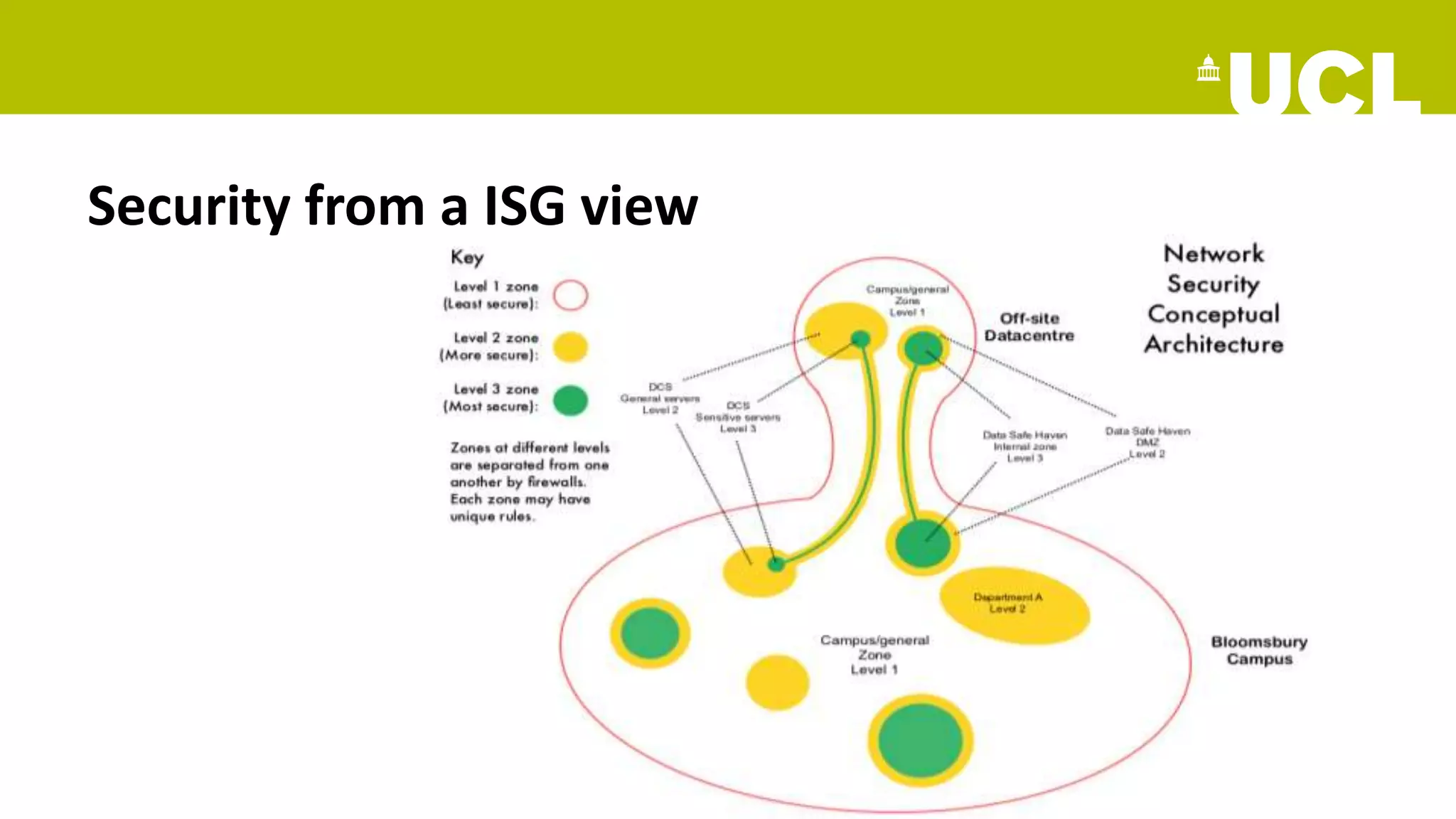

- 16. Security from aISG view

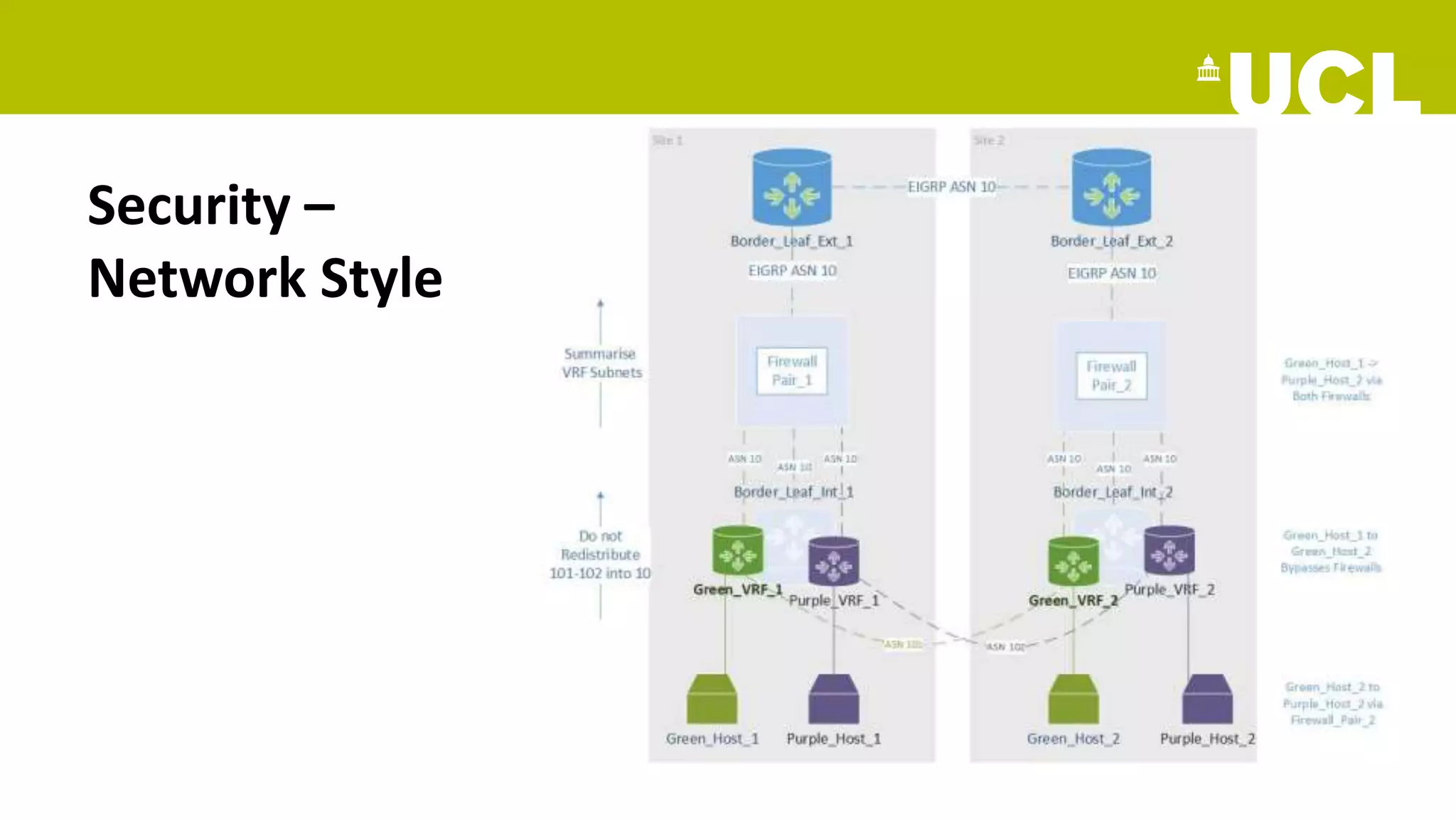

- 17.

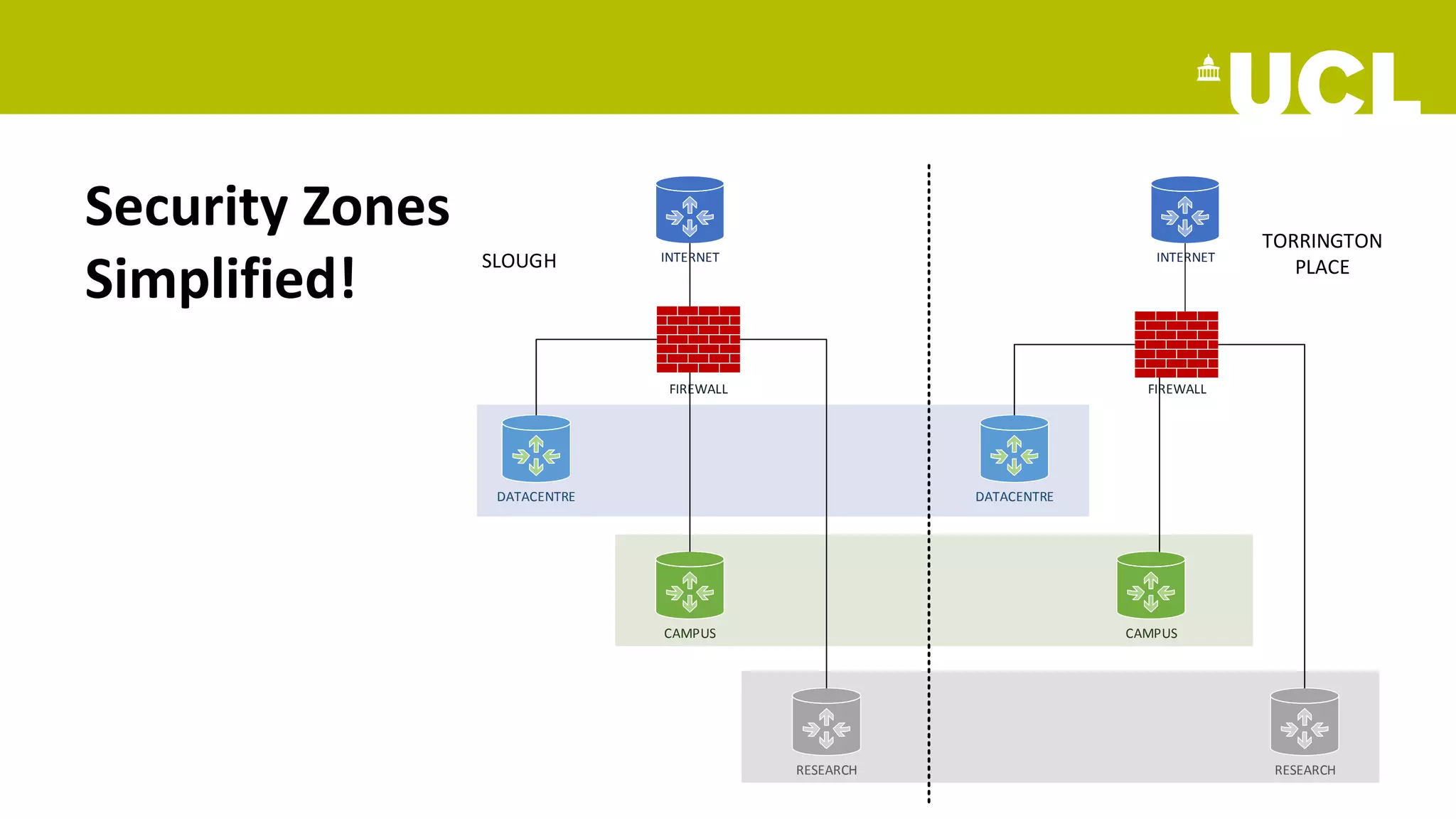

- 18.

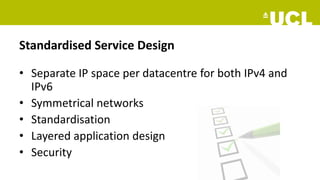

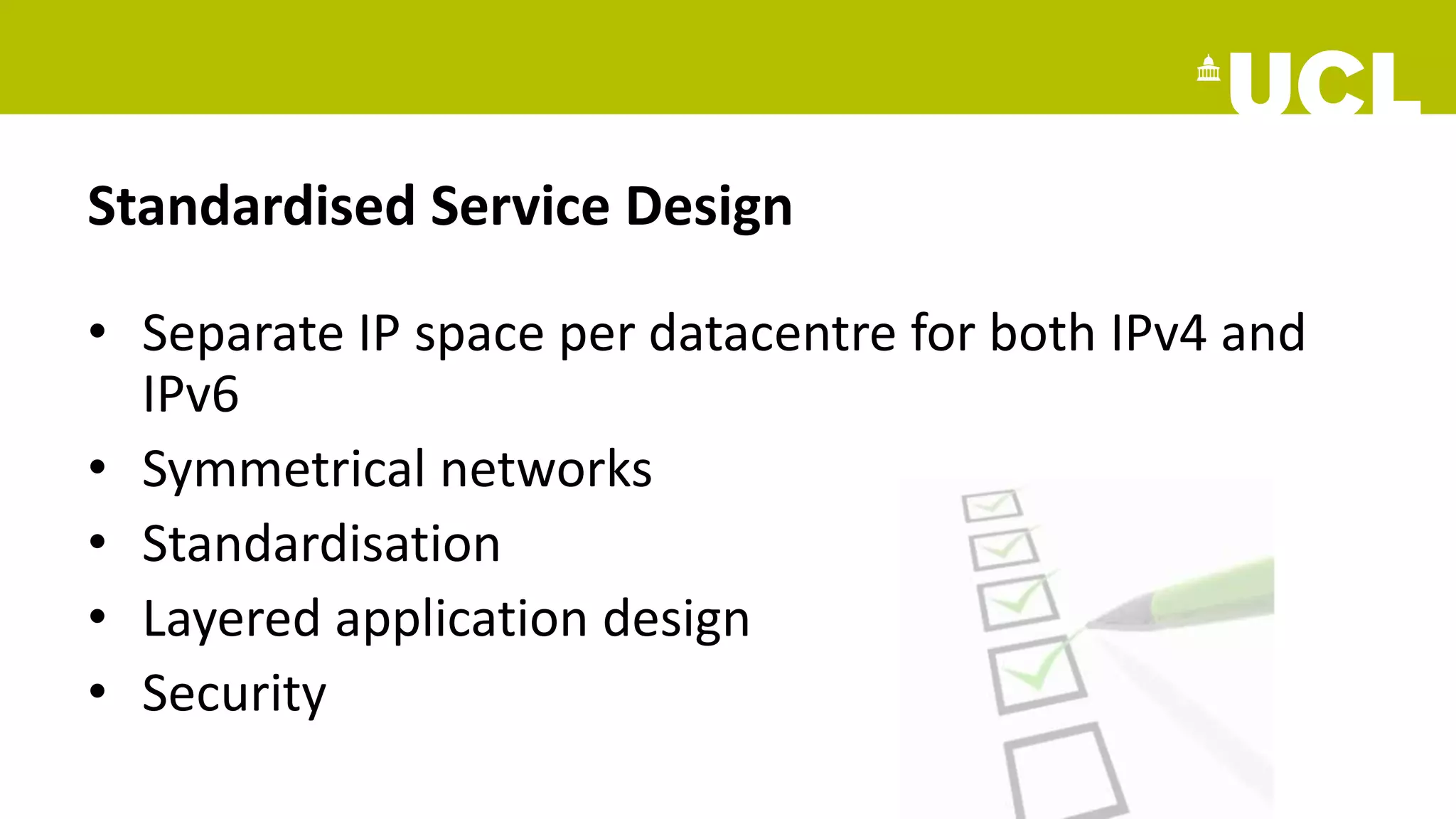

- 19. Standardised Service Design •Separate IP space per datacentre for both IPv4 and IPv6 • Symmetrical networks • Standardisation • Layered application design • Security

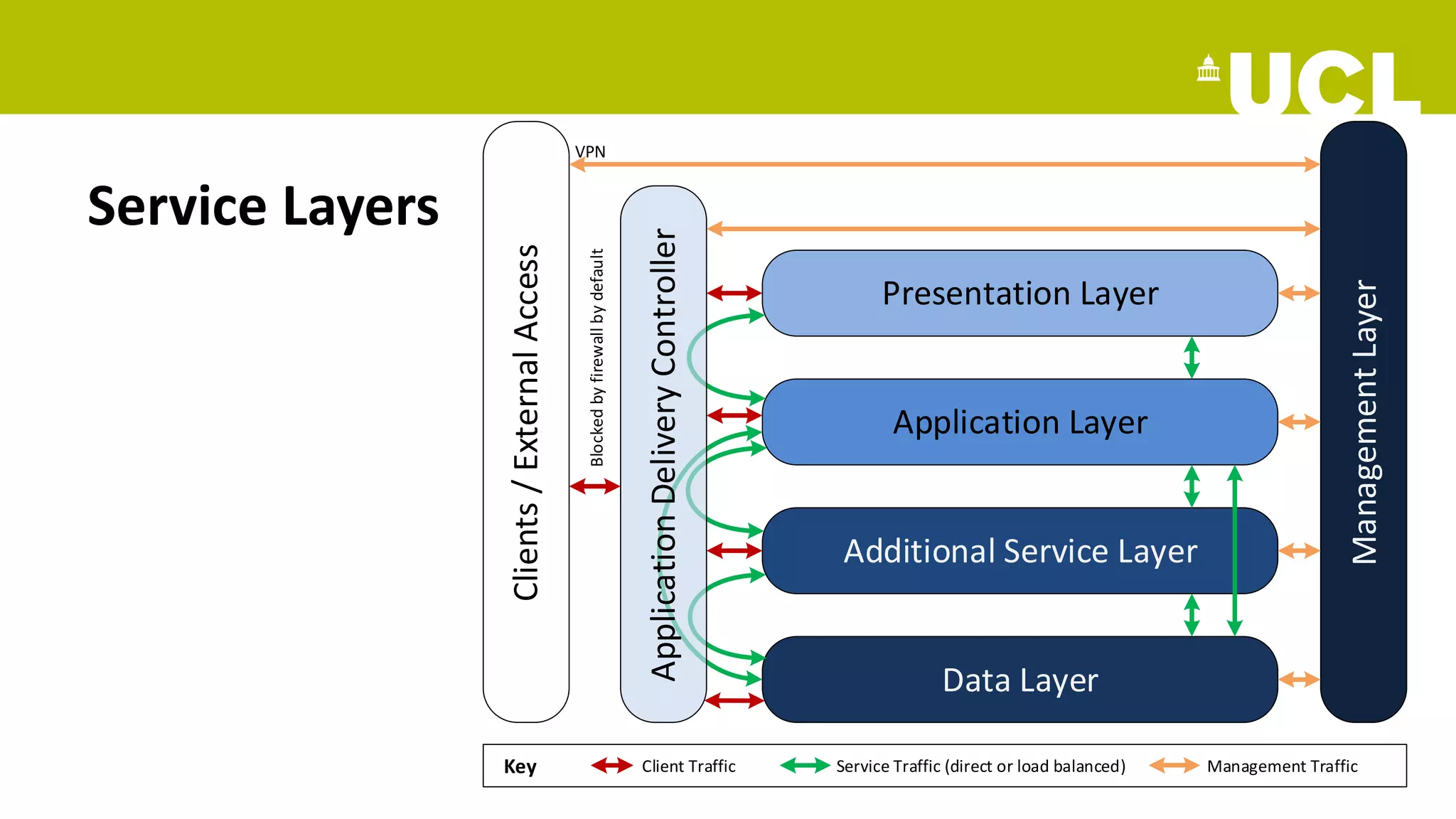

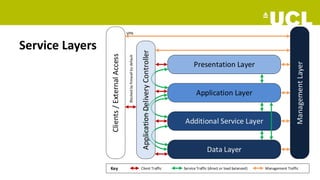

- 20. Service Layers Presentation Layer ApplicationLayer Additional Service Layer Data Layer Clients/ExternalAccess Blockedbyfirewallbydefault ManagementLayer VPN ApplicationDeliveryController Client Traffic Service Traffic (direct or load balanced) Management TrafficKey

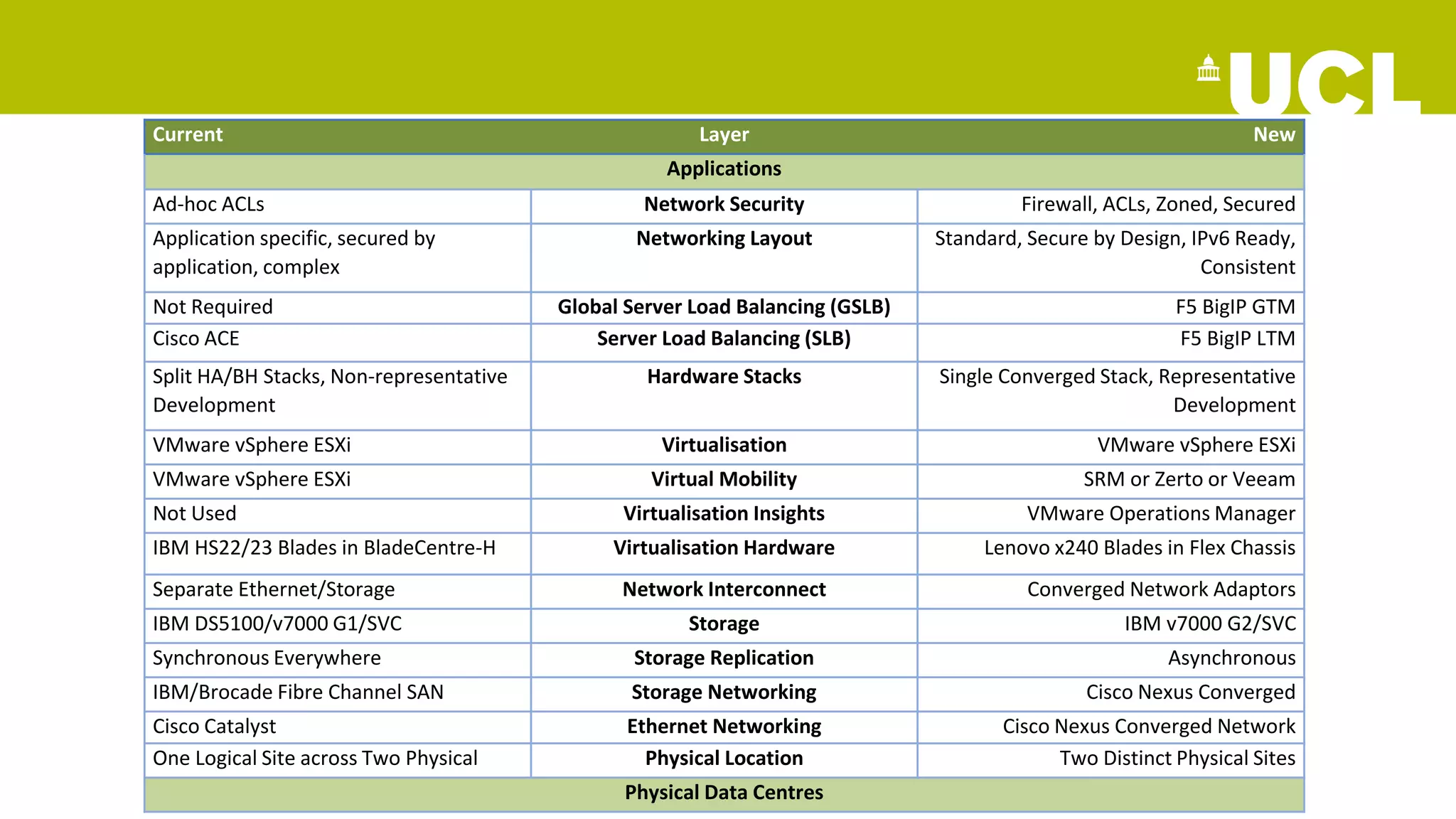

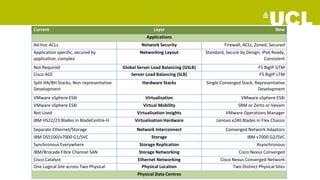

- 21. Current Layer New Applications Ad-hocACLs Network Security Firewall, ACLs, Zoned, Secured Application specific, secured by application, complex Networking Layout Standard, Secure by Design, IPv6 Ready, Consistent Not Required Global Server Load Balancing (GSLB) F5 BigIP GTM Cisco ACE Server Load Balancing (SLB) F5 BigIP LTM Split HA/BH Stacks, Non-representative Development Hardware Stacks Single Converged Stack, Representative Development VMware vSphere ESXi Virtualisation VMware vSphere ESXi VMware vSphere ESXi Virtual Mobility SRM or Zerto or Veeam Not Used Virtualisation Insights VMware Operations Manager IBM HS22/23 Blades in BladeCentre-H Virtualisation Hardware Lenovo x240 Blades in Flex Chassis Separate Ethernet/Storage Network Interconnect Converged Network Adaptors IBM DS5100/v7000 G1/SVC Storage IBM v7000 G2/SVC Synchronous Everywhere Storage Replication Asynchronous IBM/Brocade Fibre Channel SAN Storage Networking Cisco Nexus Converged Cisco Catalyst Ethernet Networking Cisco Nexus Converged Network One Logical Site across Two Physical Physical Location Two Distinct Physical Sites Physical Data Centres

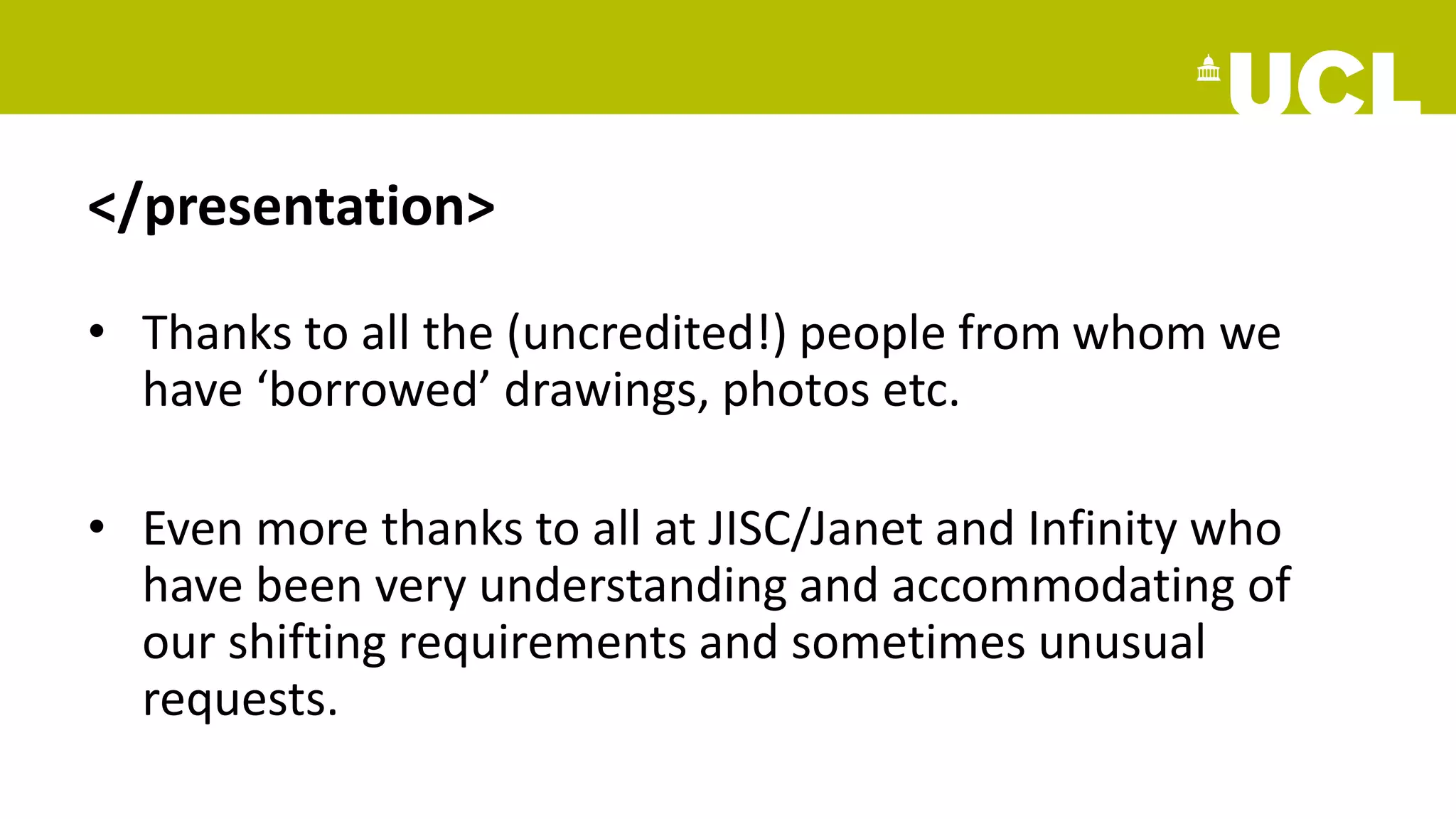

- 22. </presentation> • Thanks toall the (uncredited!) people from whom we have ‘borrowed’ drawings, photos etc. • Even more thanks to all at JISC/Janet and Infinity who have been very understanding and accommodating of our shifting requirements and sometimes unusual requests.
- 23. Contact James Clements Network CoreServices Manager james.clements@ucl.ac.uk Emma Cardinal-Richards Senior Network Architect e.cardinal-richards@ucl.ac.uk
