- Data modeling for NoSQL databases is different than relational databases and requires designing the data model around access patterns rather than object structure. Key differences include not having joins so data needs to be duplicated and modeling the data in a way that works for querying, indexing, and retrieval speed. - The data model should focus on making the most of features like atomic updates, inner indexes, and unique identifiers. It's also important to consider how data will be added, modified, and retrieved factoring in object complexity, marshalling/unmarshalling costs, and index maintenance. - The _id field can be tailored to the access patterns, such as using dates for time-series data to keep recent

1. Data Modeling for NoSQL
Tony Tam
@fehguy

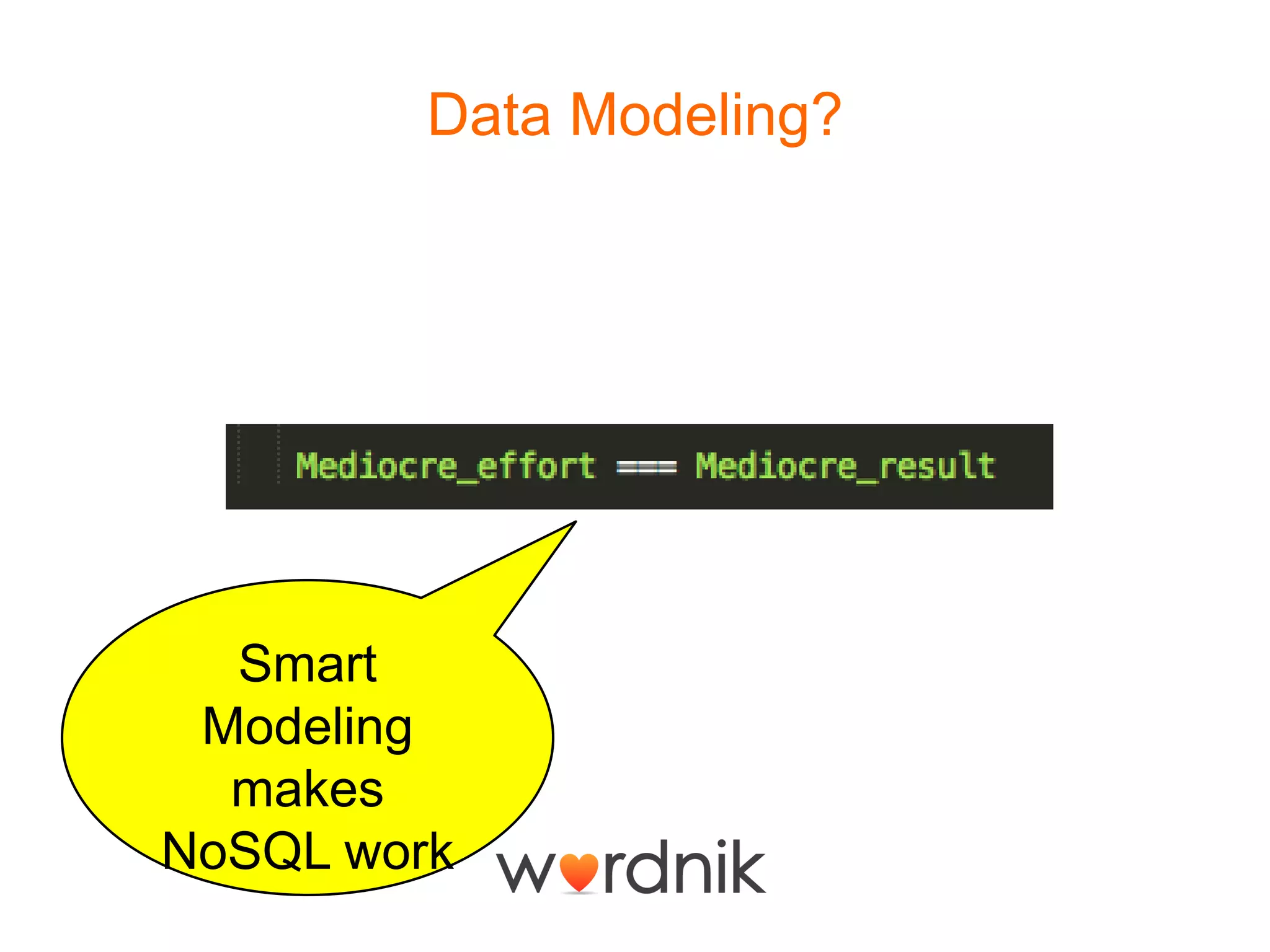

2. Data Modeling?
Smart
Modeling
makes
NoSQL work

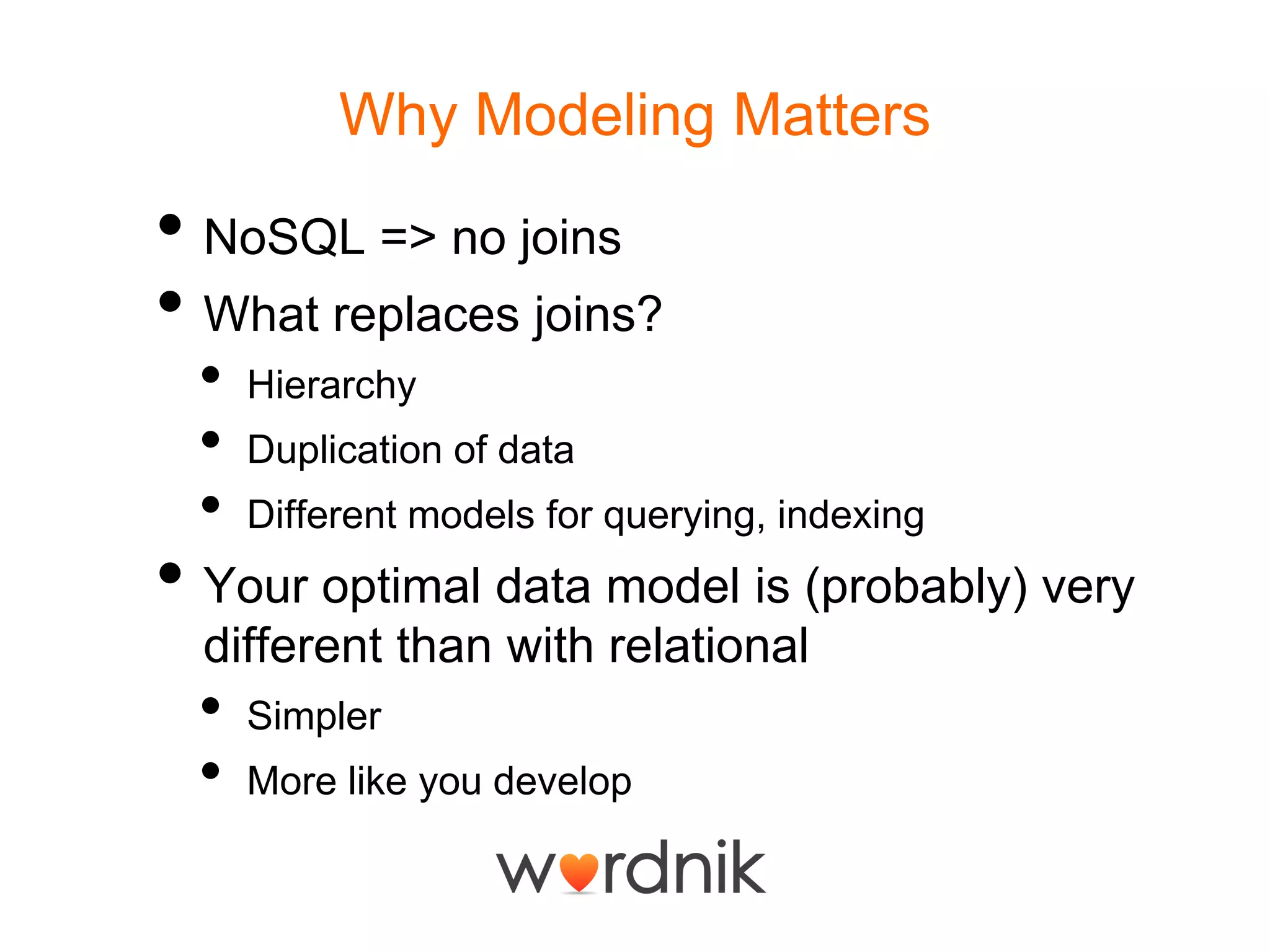

3. Why Modeling Matters
• NoSQL => no joins
• What replaces joins?
• Hierarchy
• Duplication of data
• Different models for querying, indexing
• Your optimal data model is (probably) very
different than with relational
• Simpler
• More like you develop

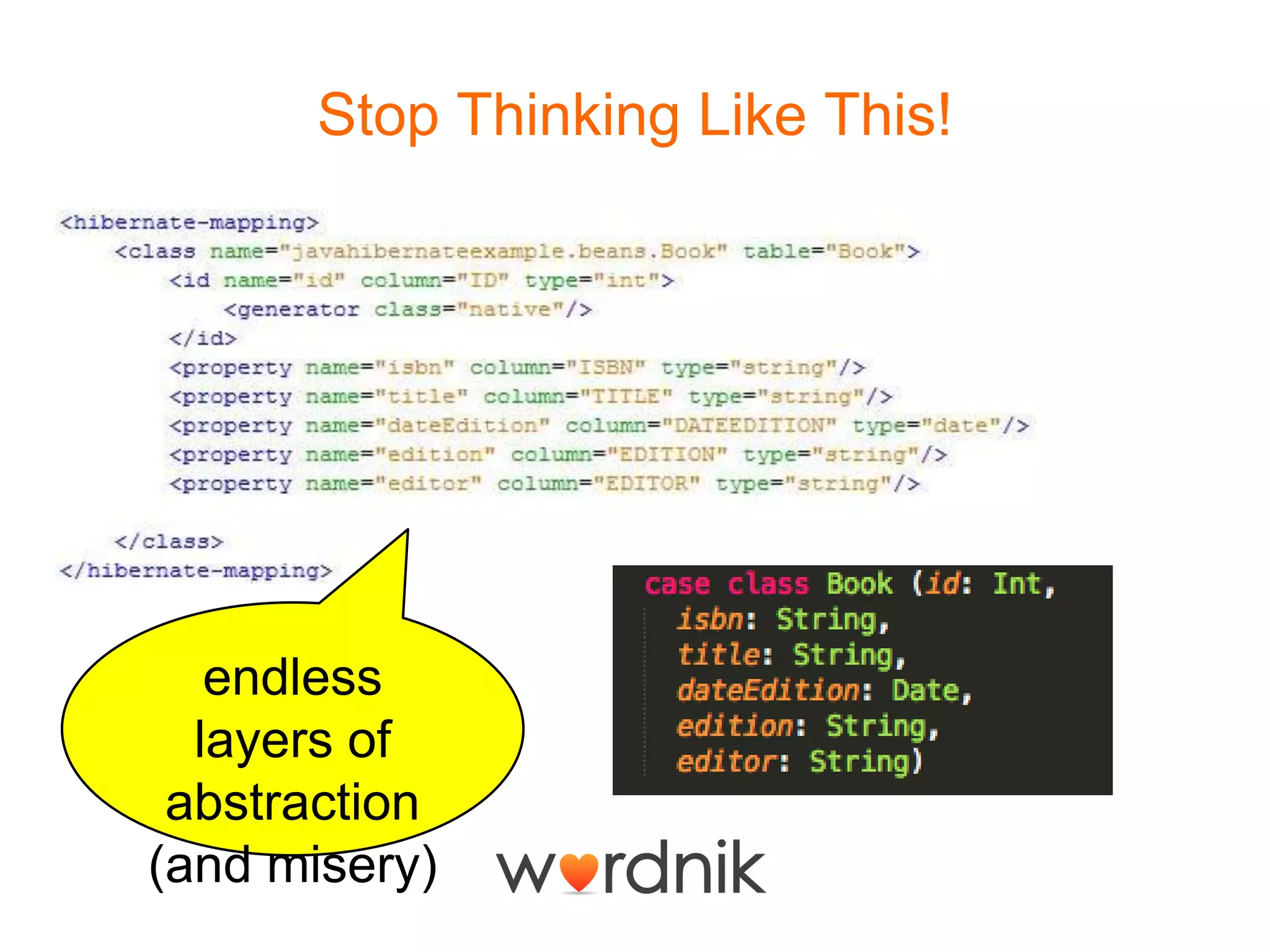

4. Stop Thinking Like This!
endless
layers of
abstraction
(and misery)

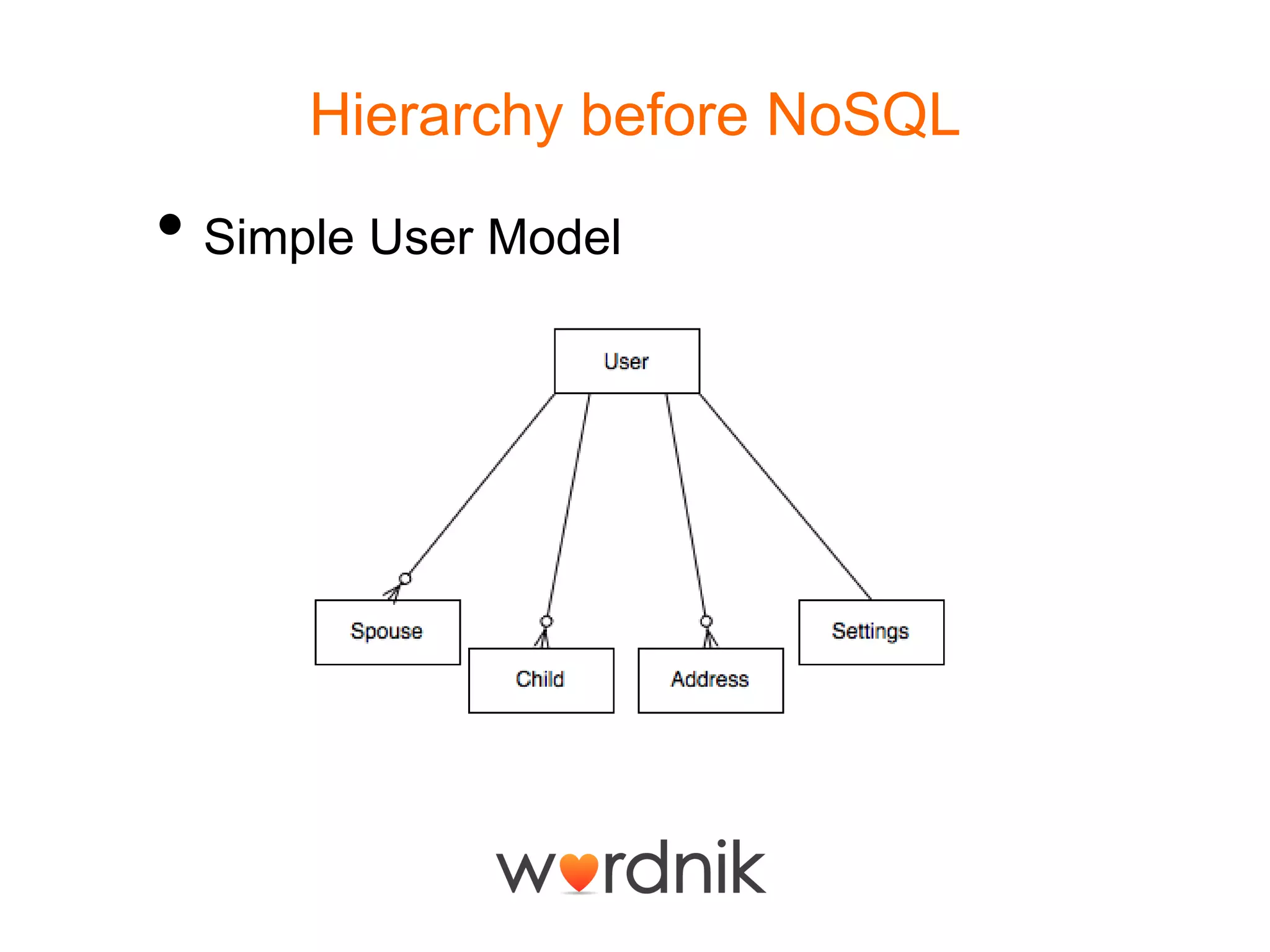

5. Hierarchy before NoSQL
• Simple User Model

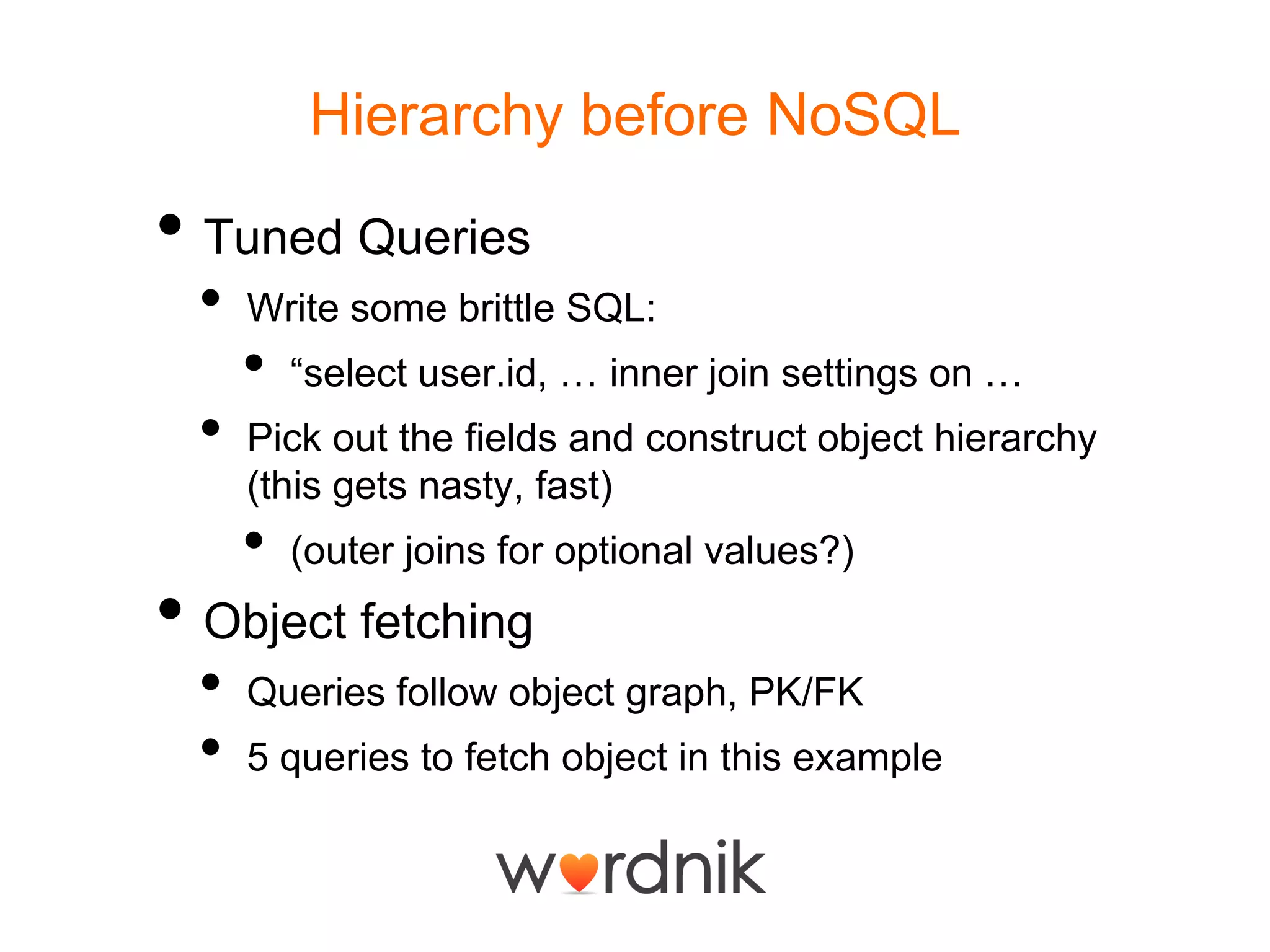

6. Hierarchy before NoSQL
• Tuned Queries
• Write some brittle SQL:
• “select user.id, … inner join settings on …
• Pick out the fields and construct object hierarchy
(this gets nasty, fast)
• (outer joins for optional values?)
• Object fetching
• Queries follow object graph, PK/FK
• 5 queries to fetch object in this example

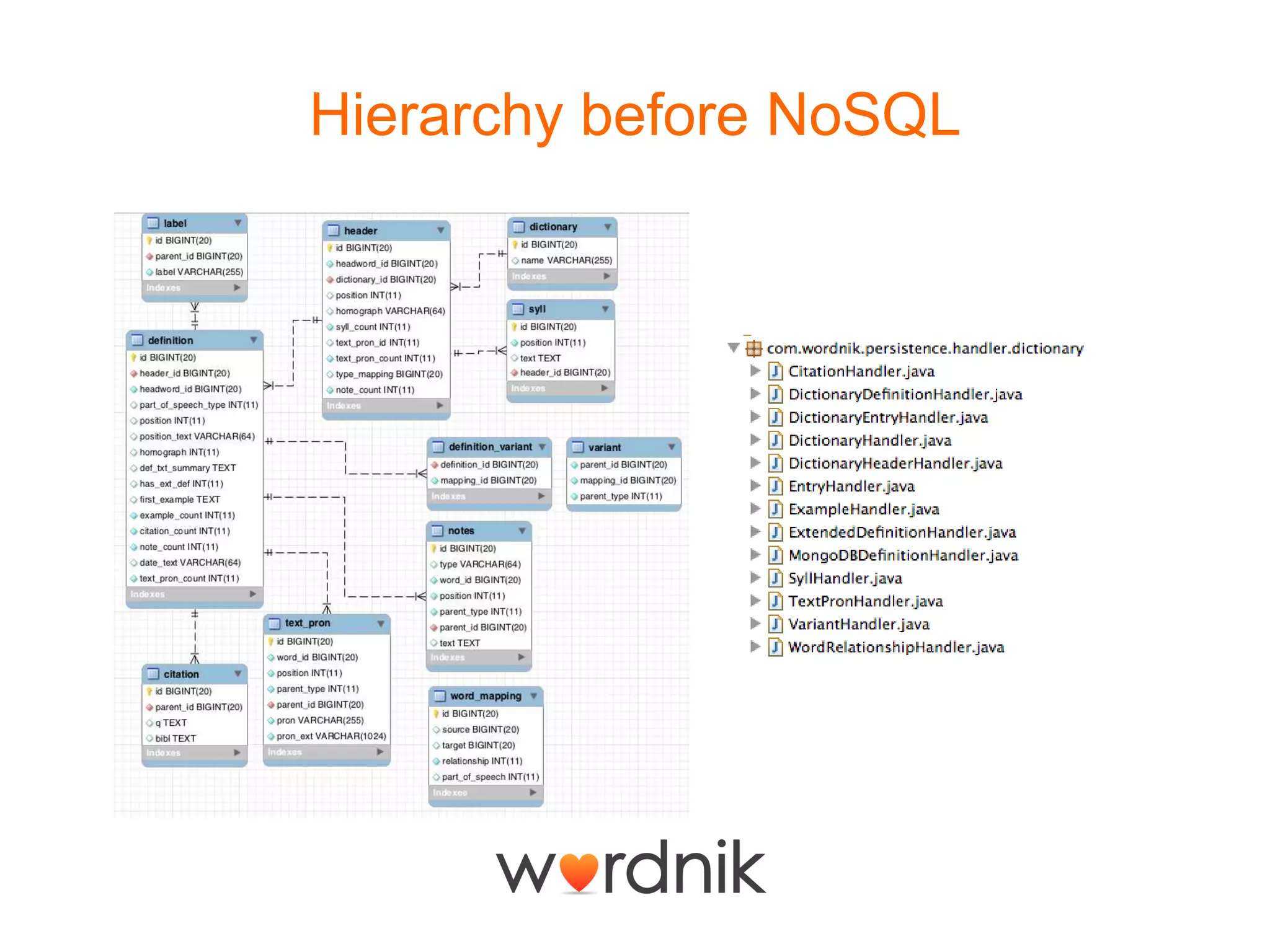

7. Hierarchy before NoSQL

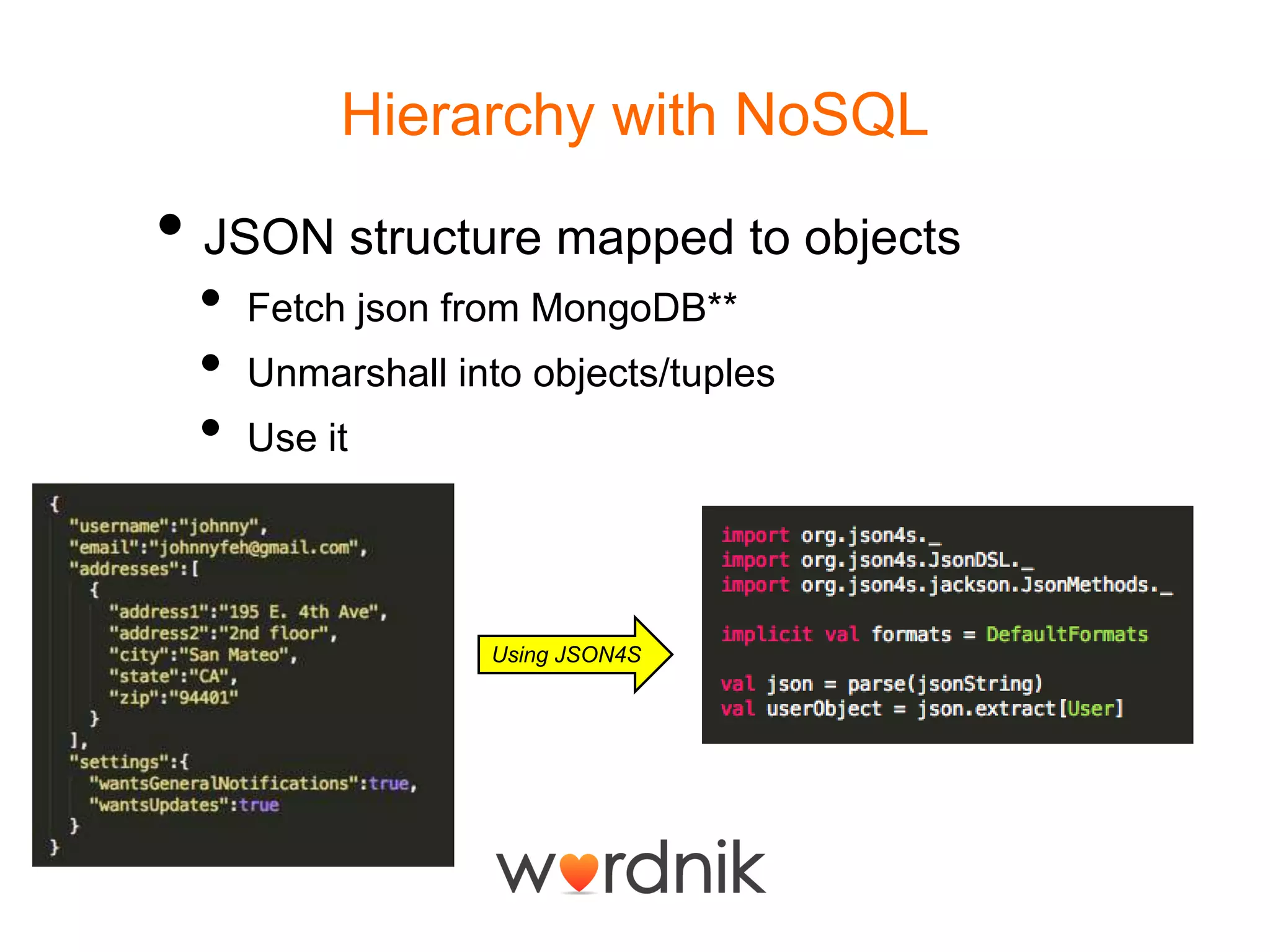

8. Hierarchy with NoSQL
• JSON structure mapped to objects
• Fetch json from MongoDB**
• Unmarshall into objects/tuples
• Use it
Using JSON4S

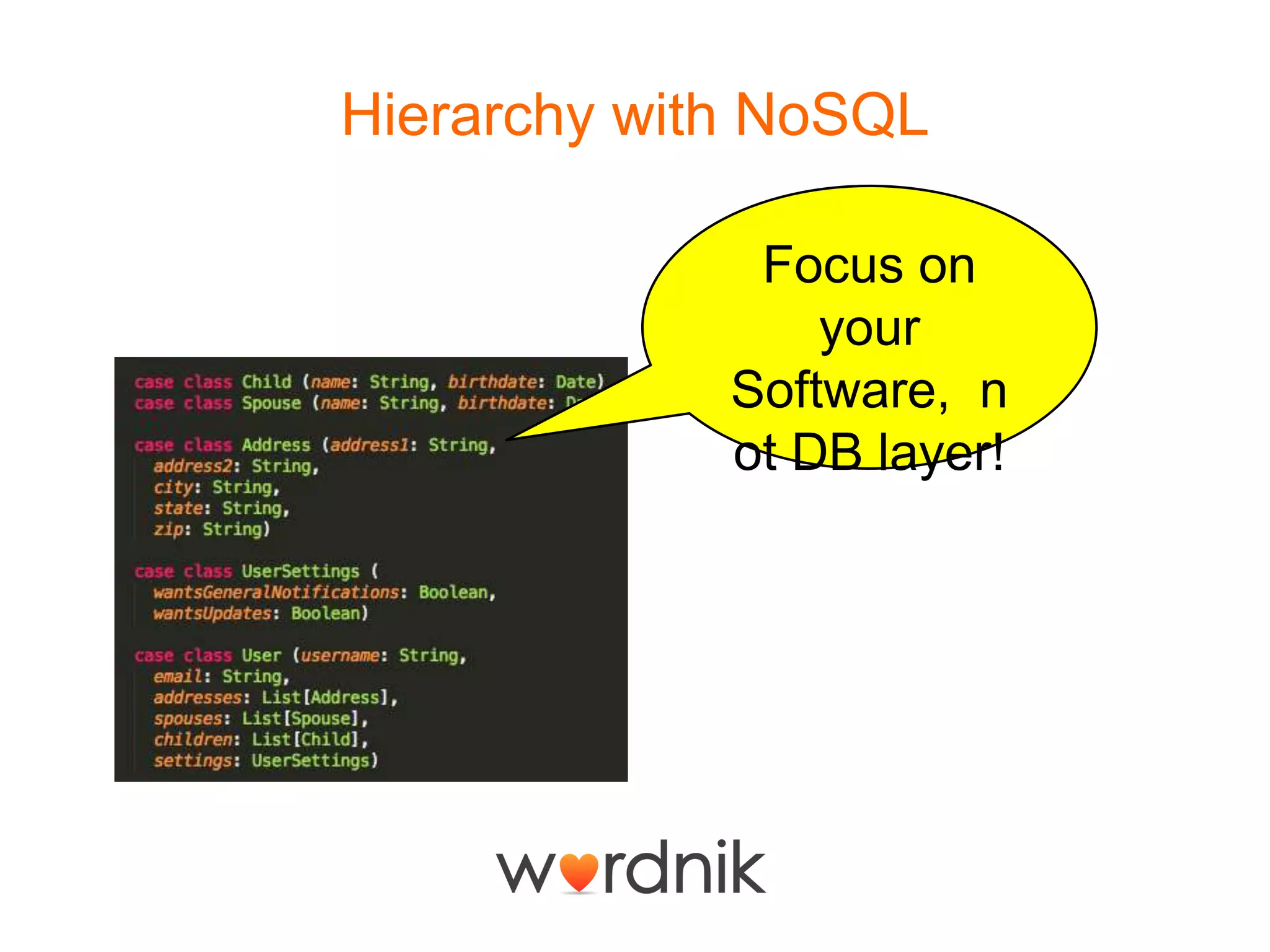

9. Hierarchy with NoSQL
Focus on
your
Software, n
ot DB layer!

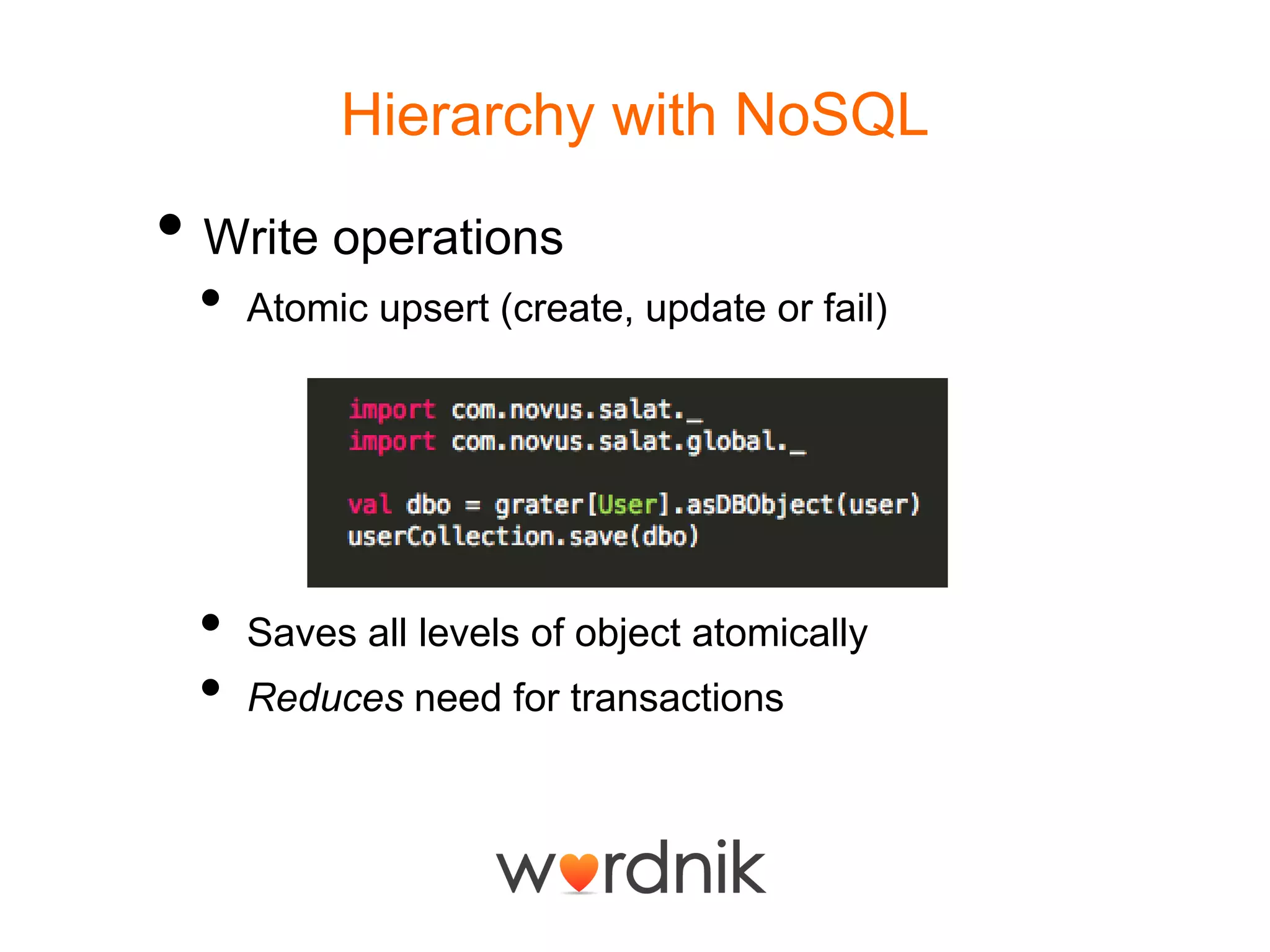

10. Hierarchy with NoSQL
• Write operations
• Atomic upsert (create, update or fail)
• Saves all levels of object atomically
• Reduces need for transactions

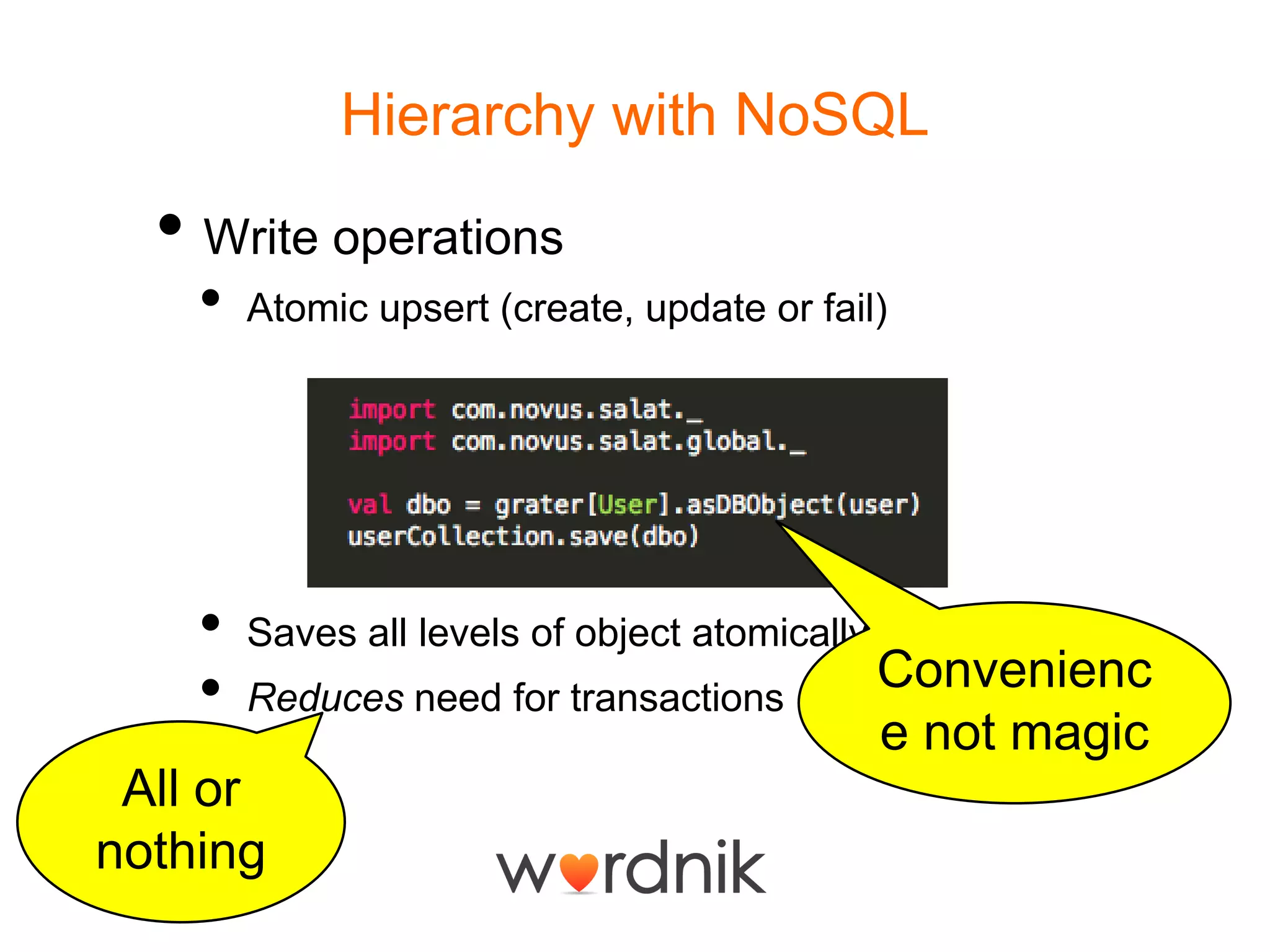

11. Hierarchy with NoSQL
• Write operations
• Atomic upsert (create, update or fail)
• Saves all levels of object atomically
• Reduces need for transactions
Convenienc
e not magic
All or
nothing

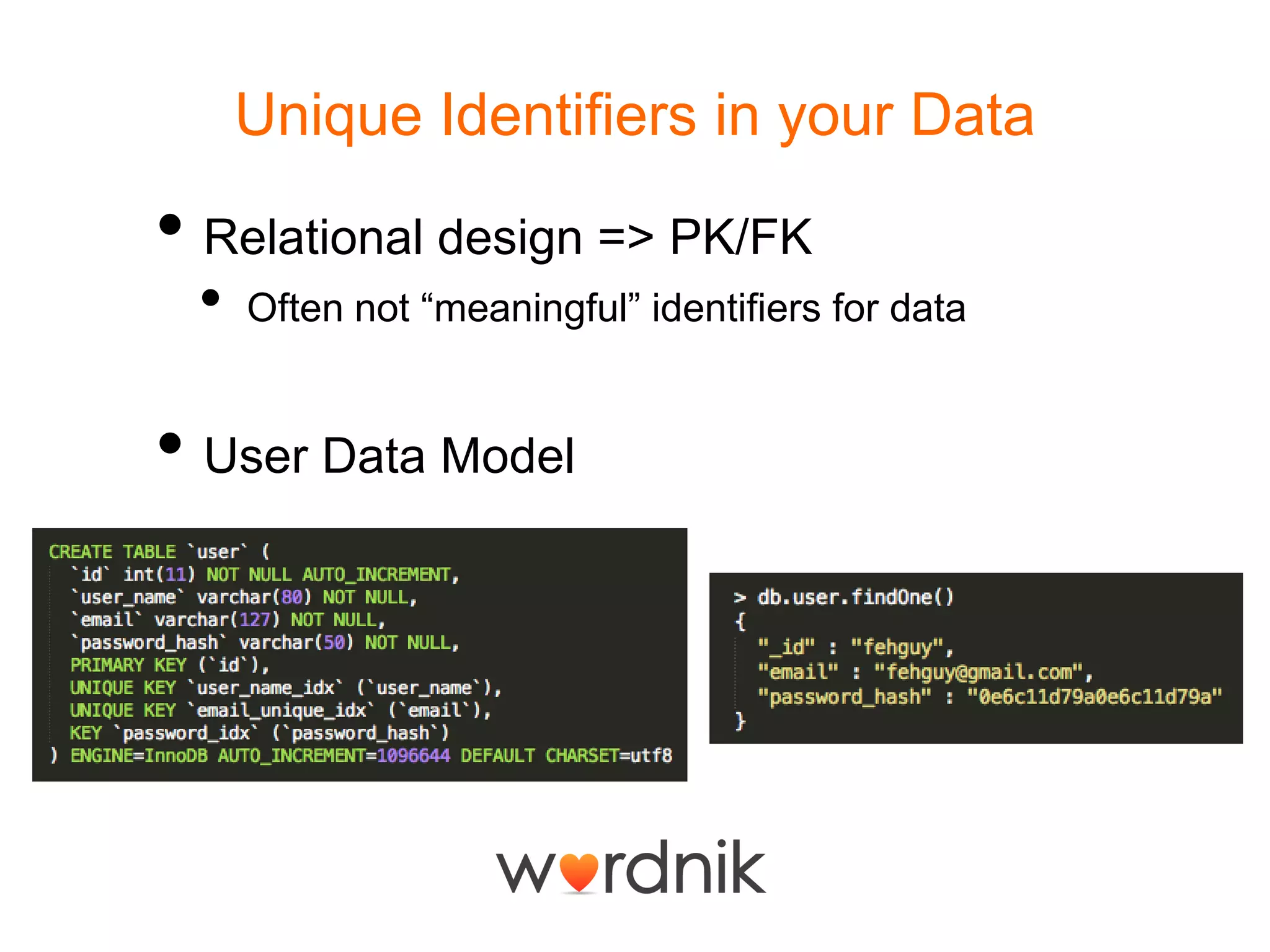

12. Unique Identifiers in your Data
• Relational design => PK/FK
• Often not “meaningful” identifiers for data
• User Data Model

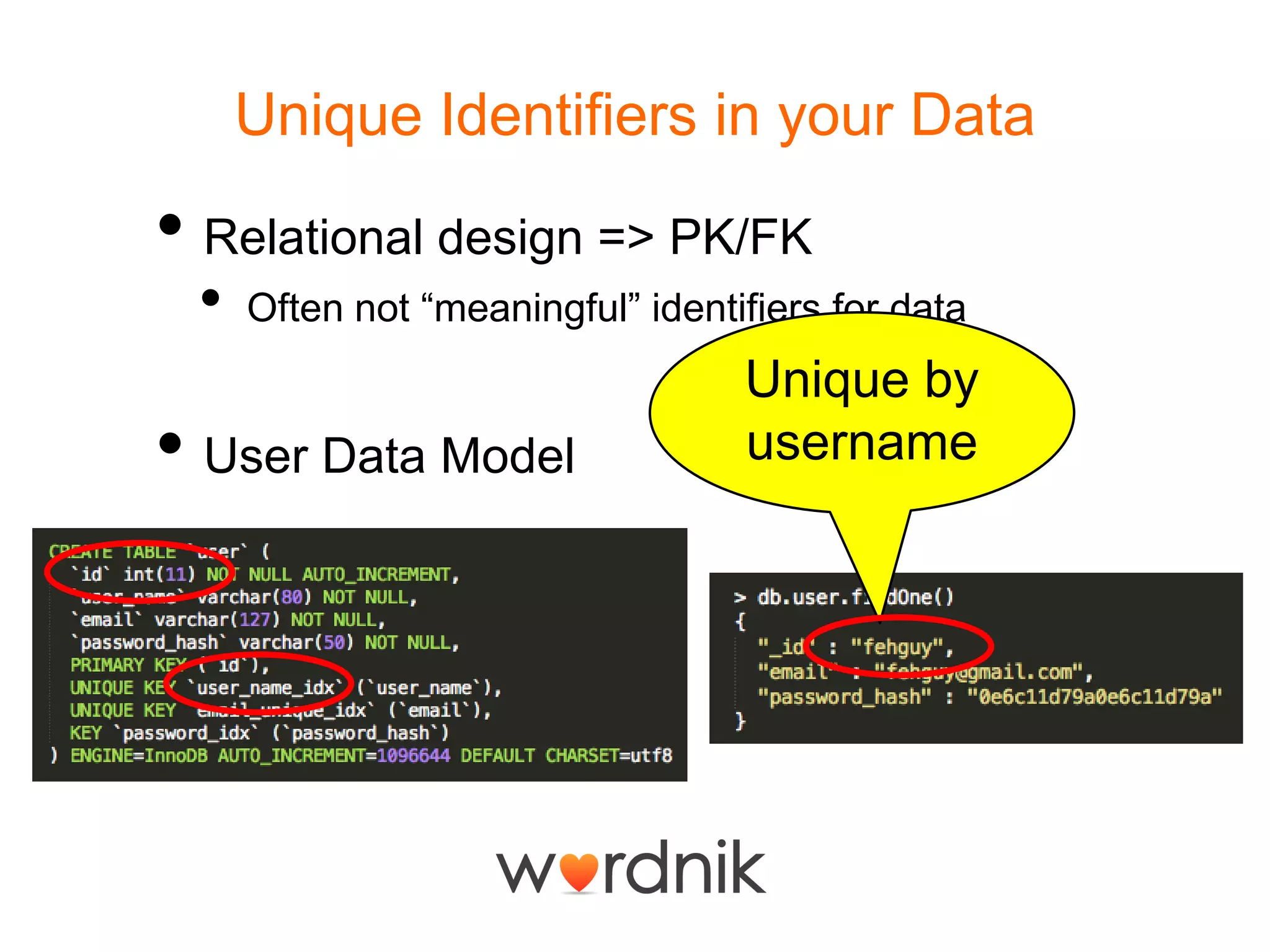

13. Unique Identifiers in your Data
• Relational design => PK/FK
• Often not “meaningful” identifiers for data
Unique by
• User Data Model username

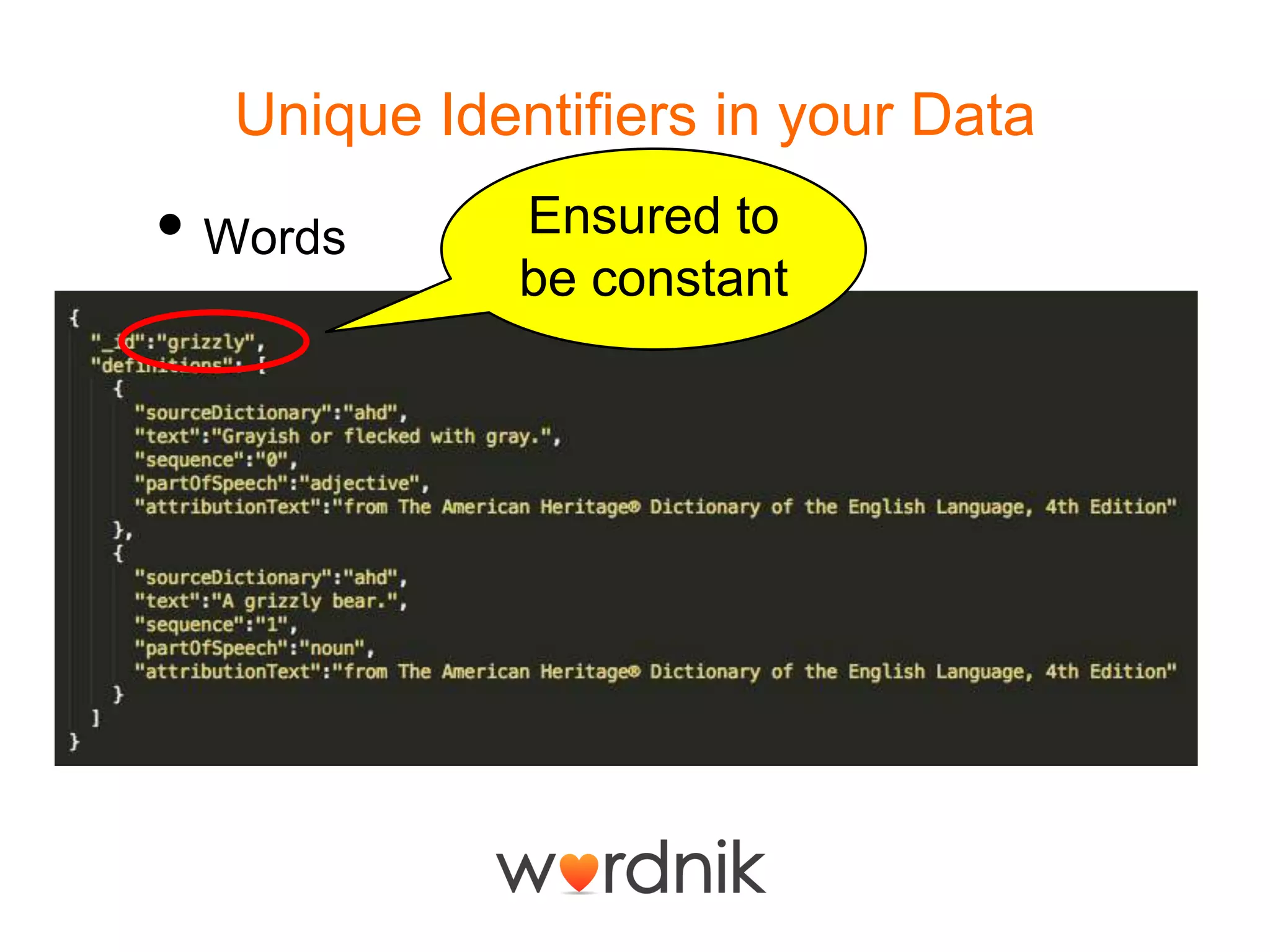

14. Unique Identifiers in your Data
• Words Ensured to
be constant

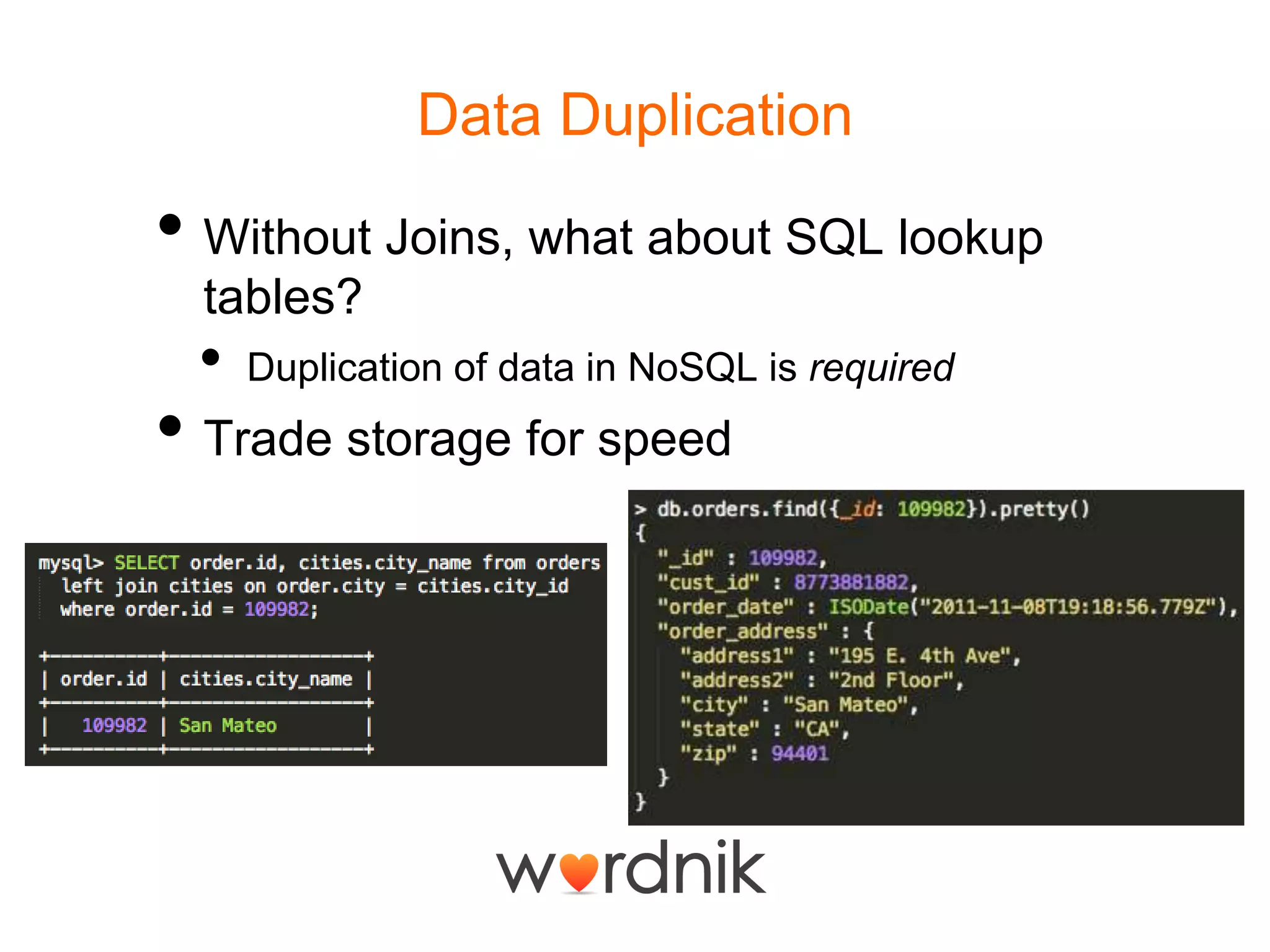

15. Data Duplication
• Without Joins, what about SQL lookup
tables?
• Duplication of data in NoSQL is required
• Trade storage for speed

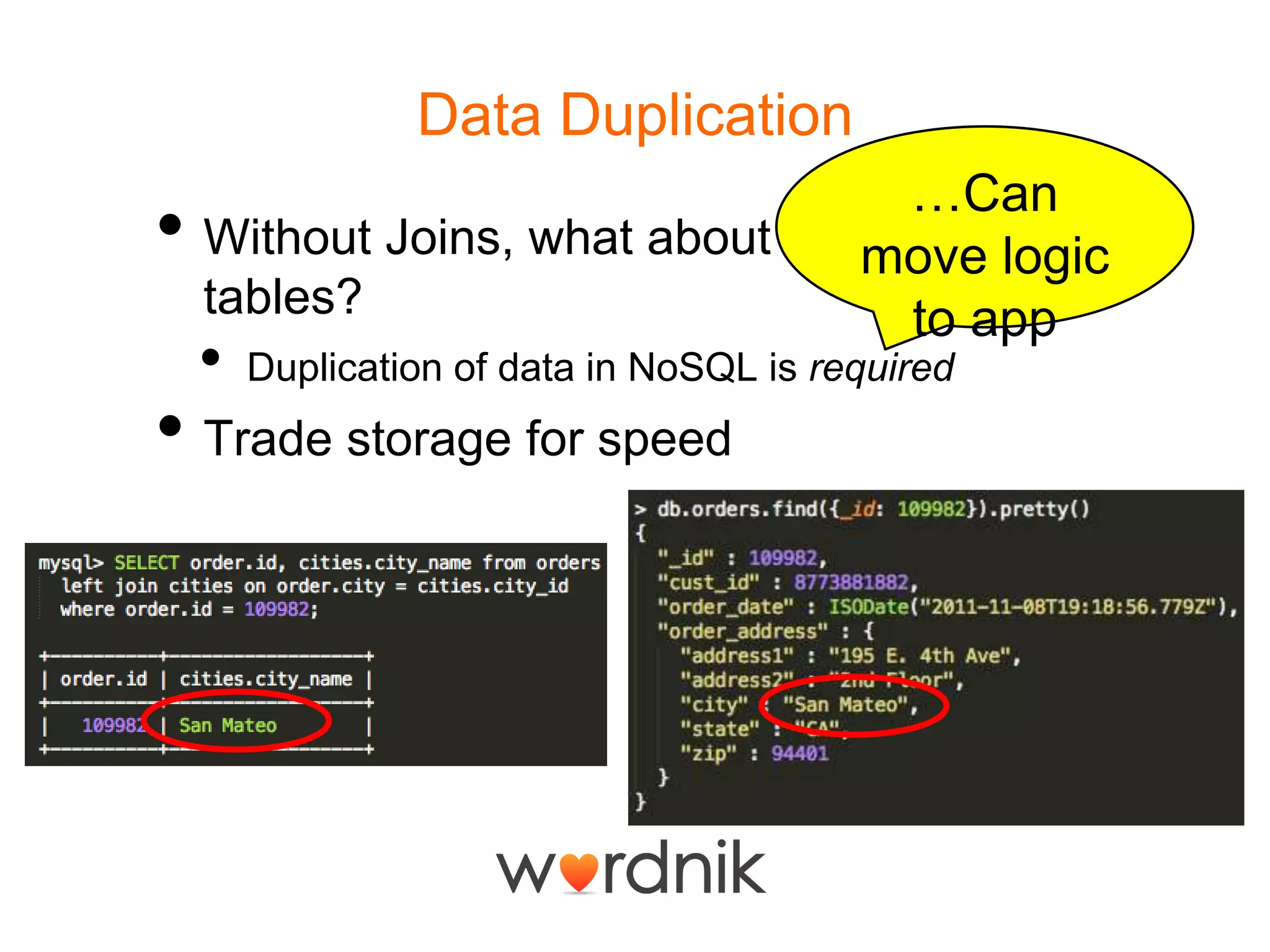

16. Data Duplication
…Can
• Without Joins, what about SQL lookup
move logic
tables? to app
• Duplication of data in NoSQL is required
• Trade storage for speed

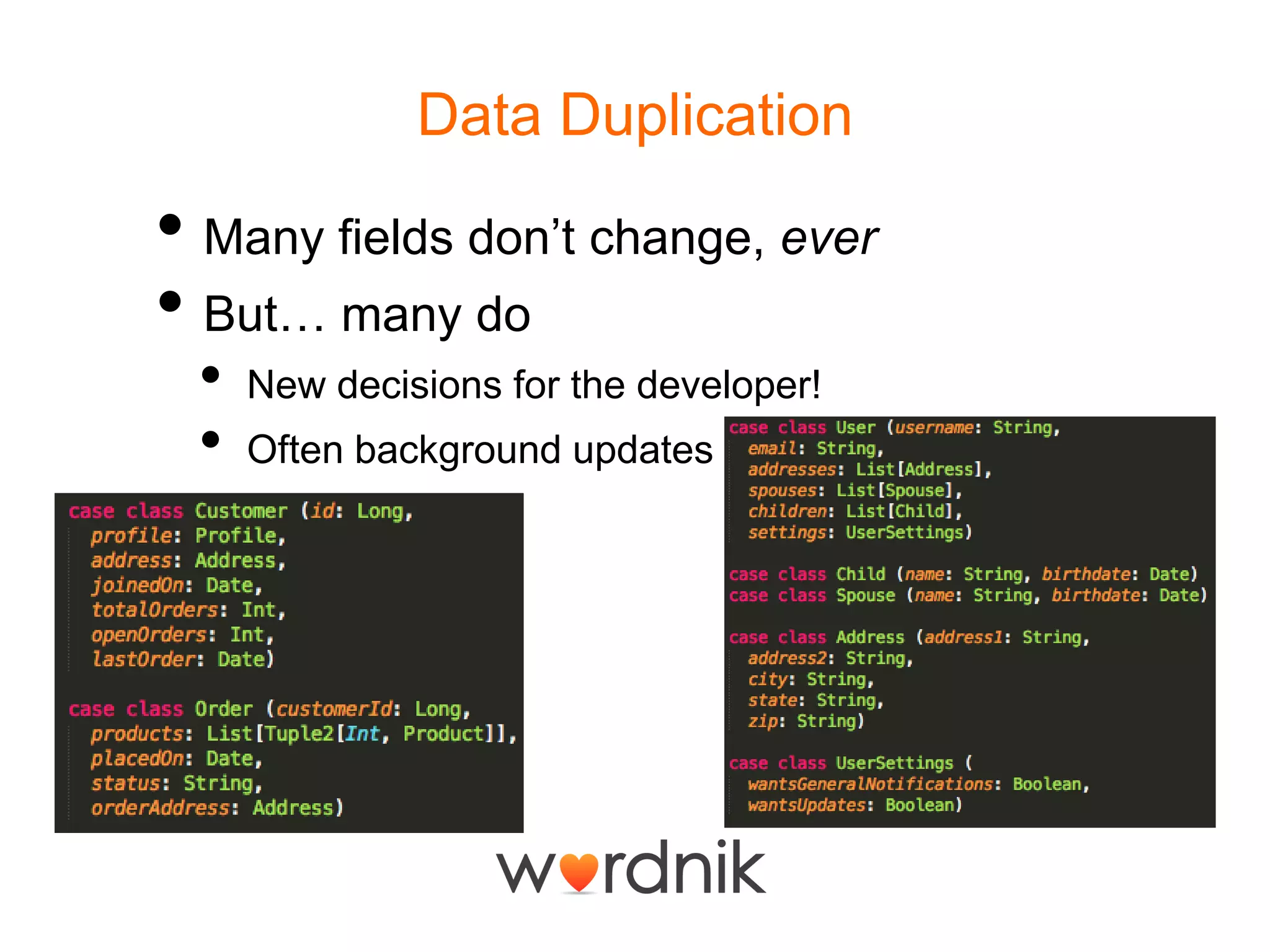

17. Data Duplication
• Many fields don’t change, ever
• But… many do
• New decisions for the developer!
• Often background updates

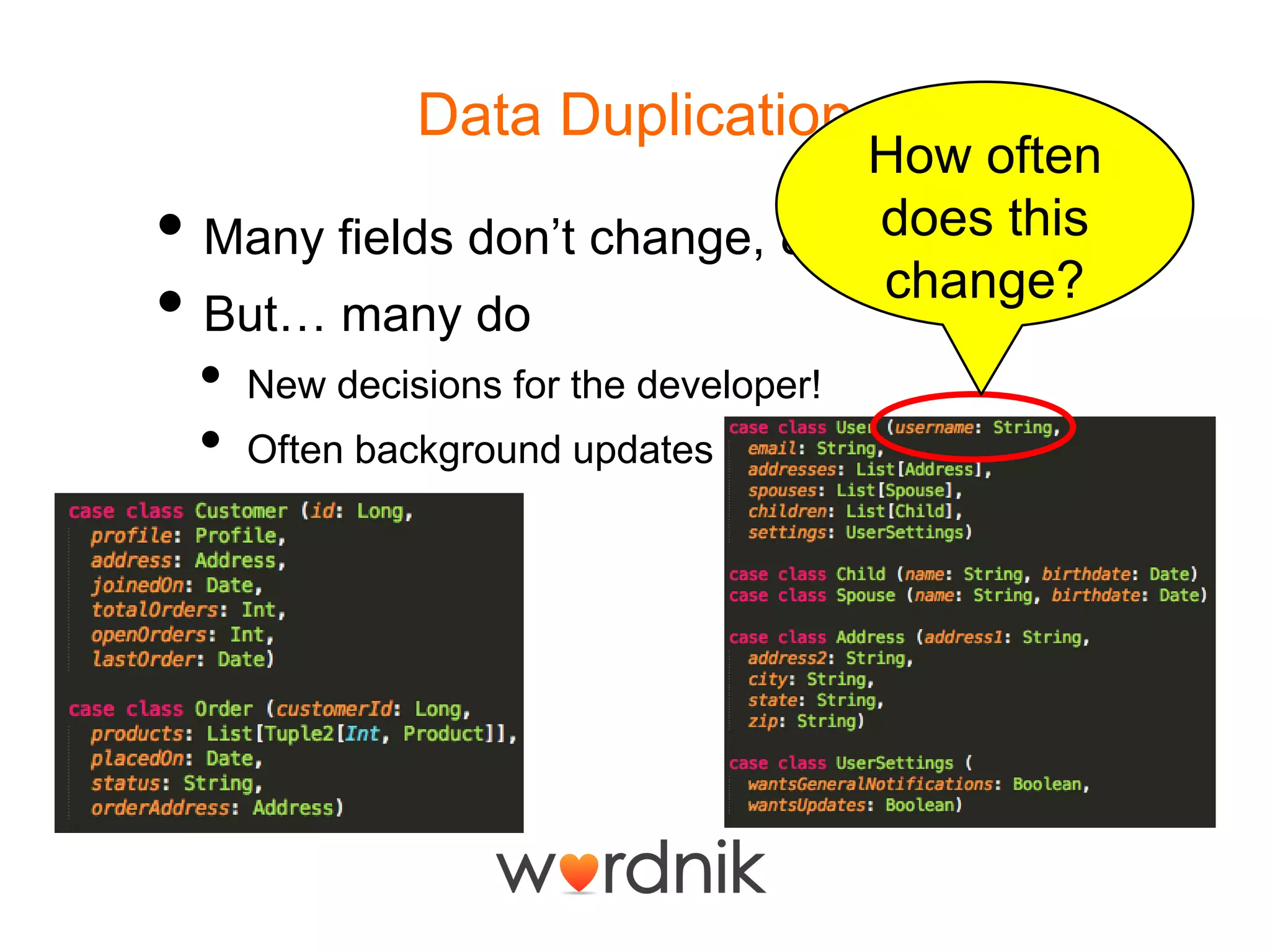

18. Data Duplication
How often
• Many fields don’t change, ever does this
• But… many do
change?
• New decisions for the developer!
• Often background updates

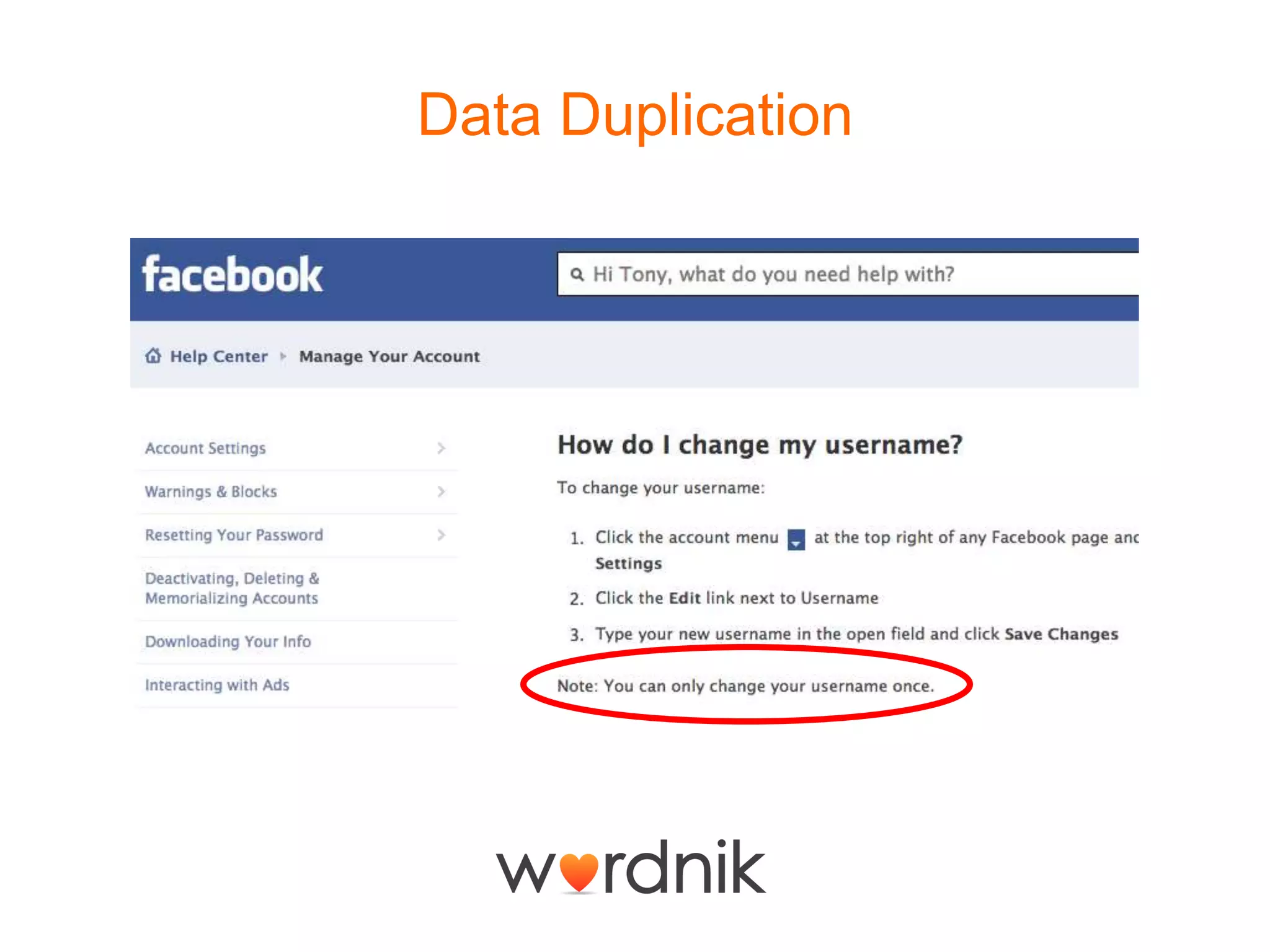

19. Data Duplication

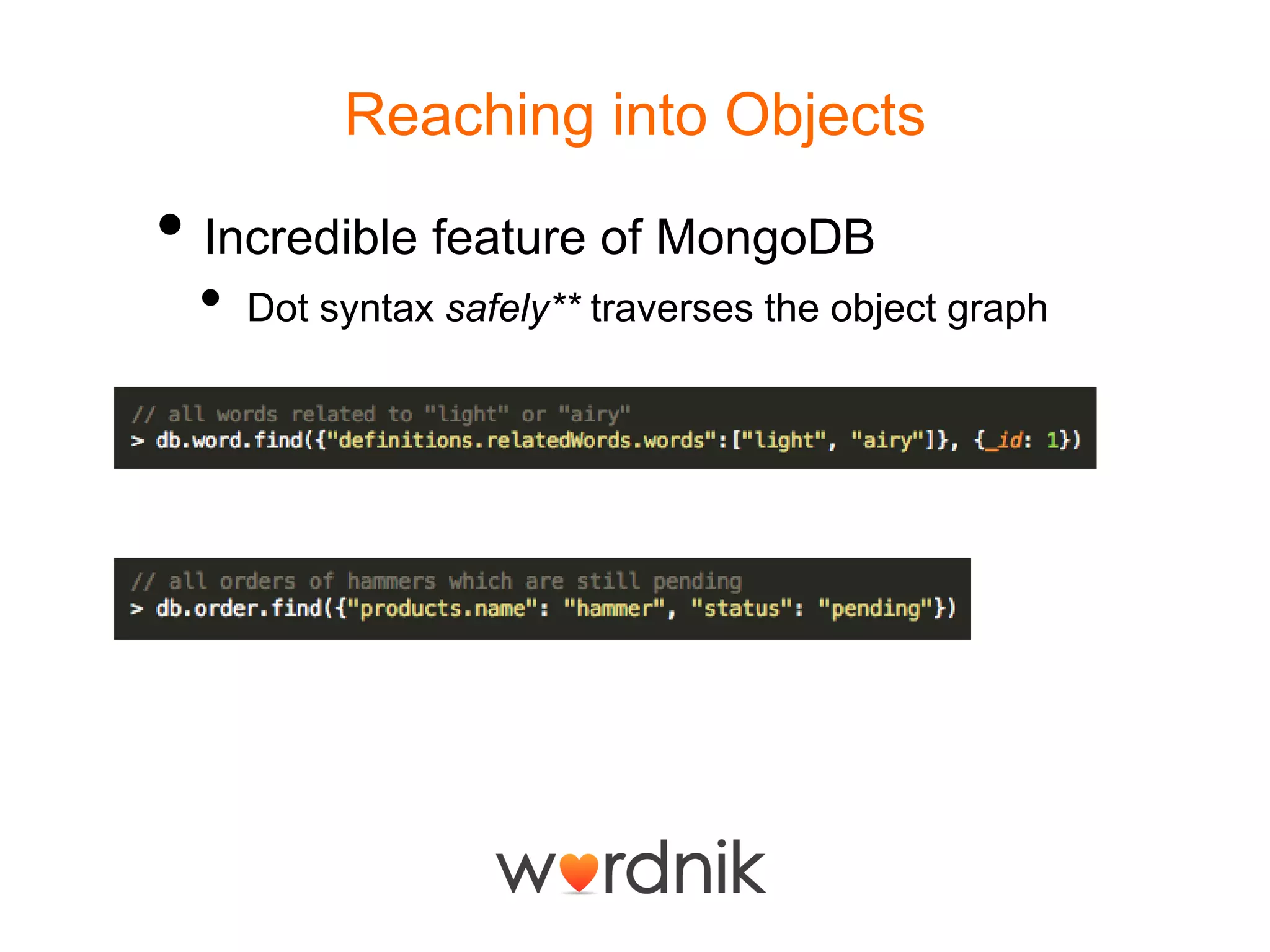

20. Reaching into Objects
• Incredible feature of MongoDB
• Dot syntax safely** traverses the object graph

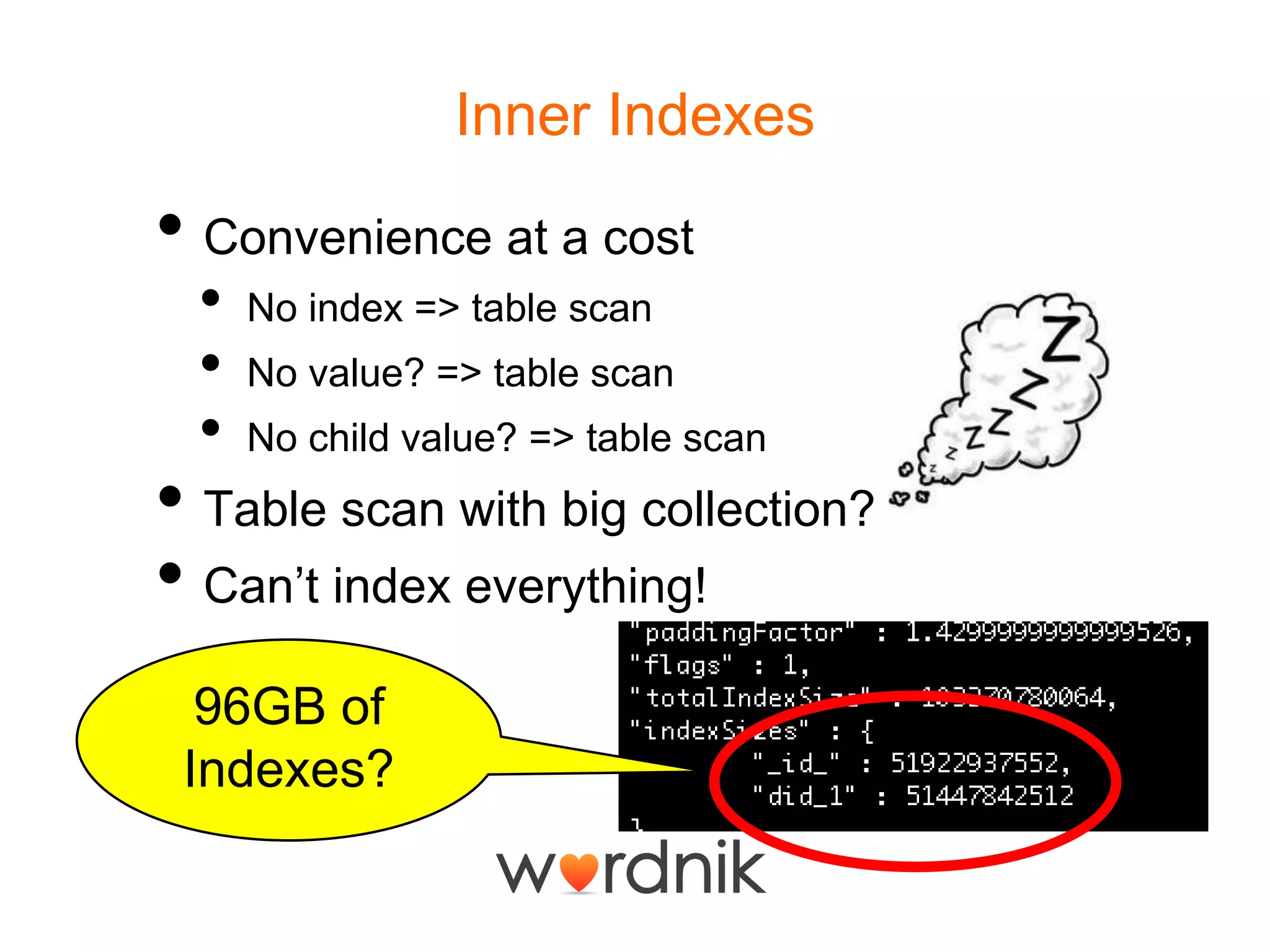

21. Inner Indexes
• Convenience at a cost
• No index => table scan
• No value? => table scan
• No child value? => table scan
• Table scan with big collection?
• Can’t index everything!
96GB of
Indexes?

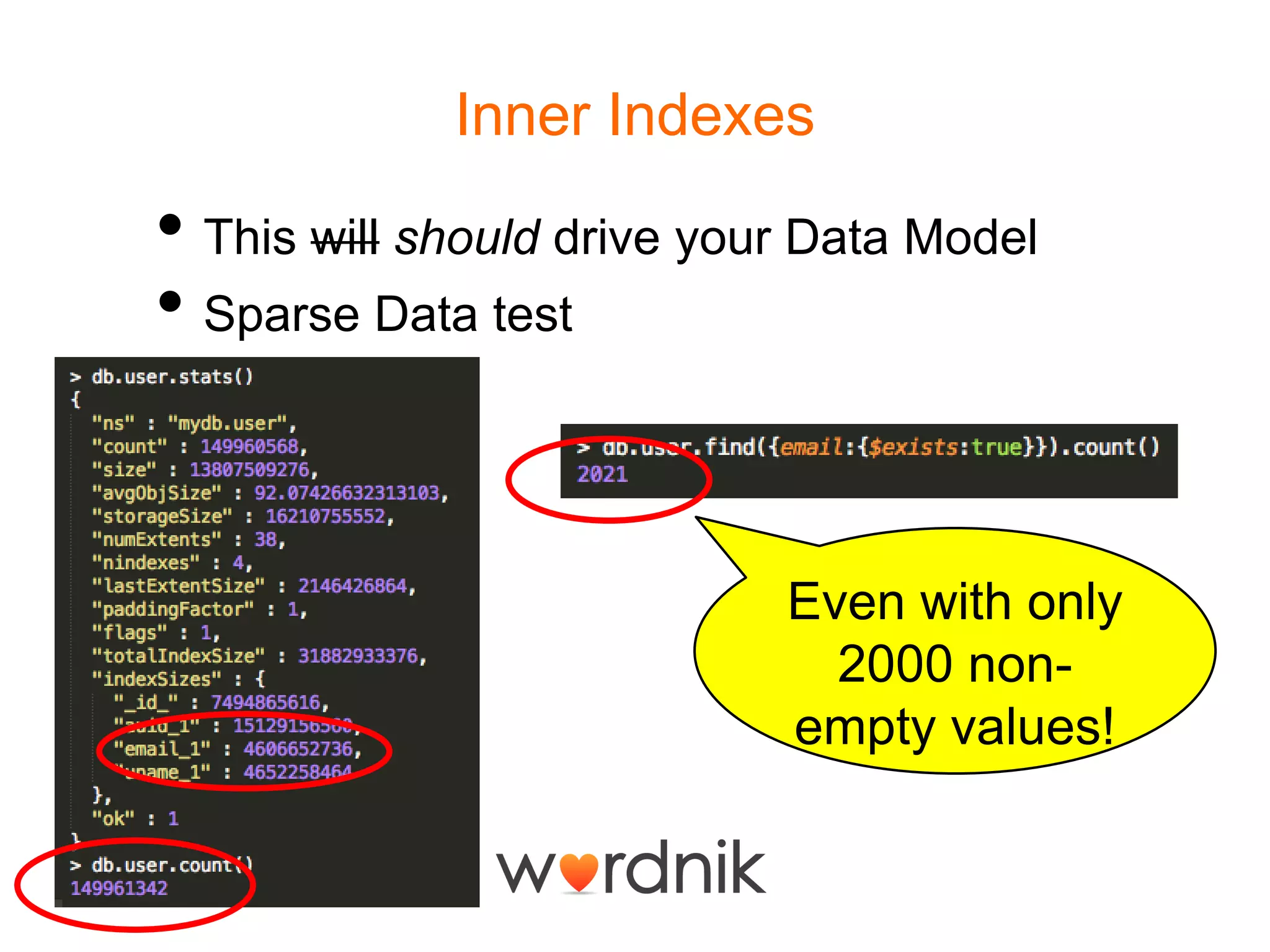

22. Inner Indexes
• This will should drive your Data Model
• Sparse Data test
Even with only
2000 non-
empty values!

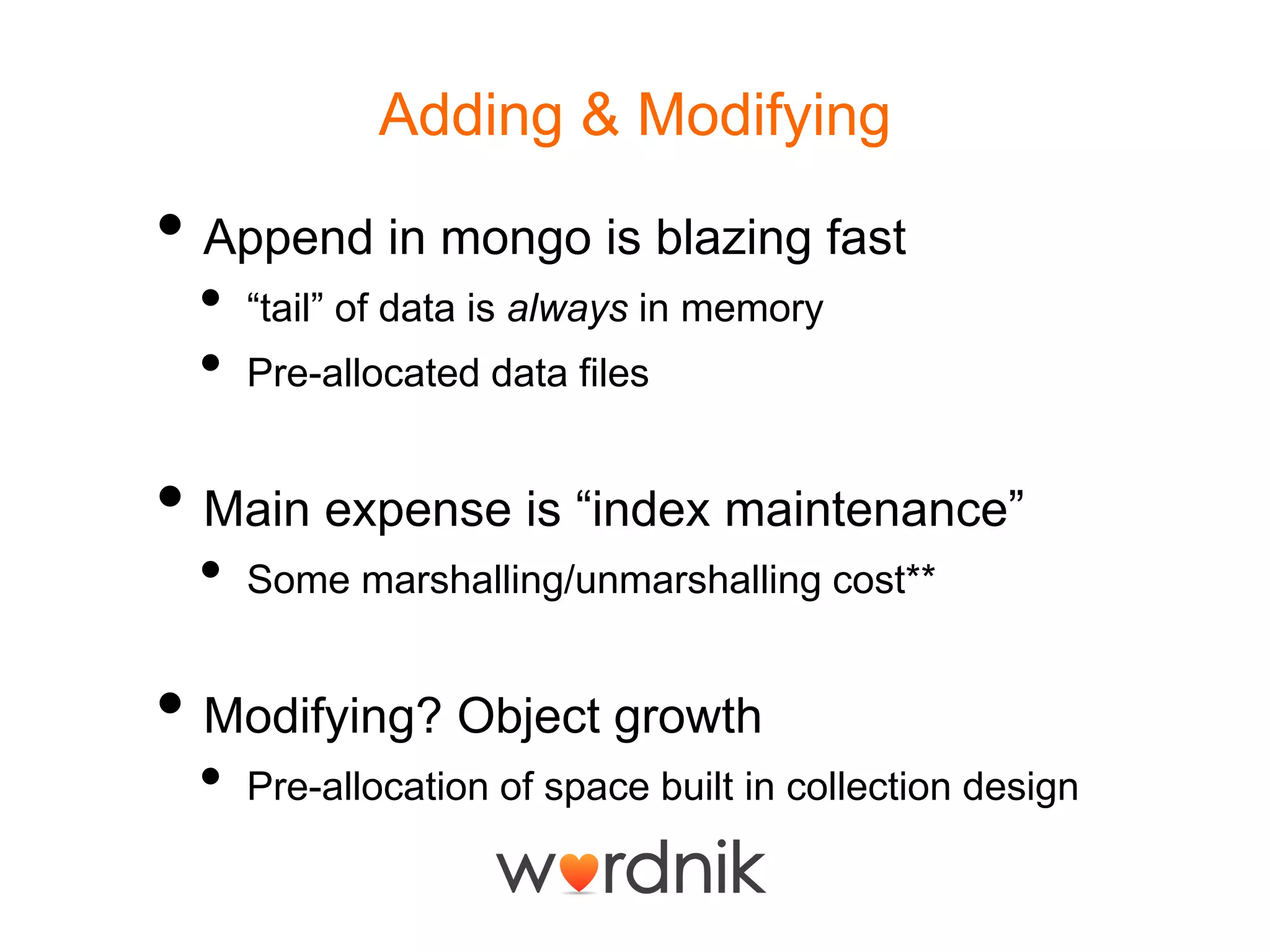

23. Adding & Modifying
• Append in mongo is blazing fast
• “tail” of data is always in memory
• Pre-allocated data files
• Main expense is “index maintenance”
• Some marshalling/unmarshalling cost**
• Modifying? Object growth
• Pre-allocation of space built in collection design

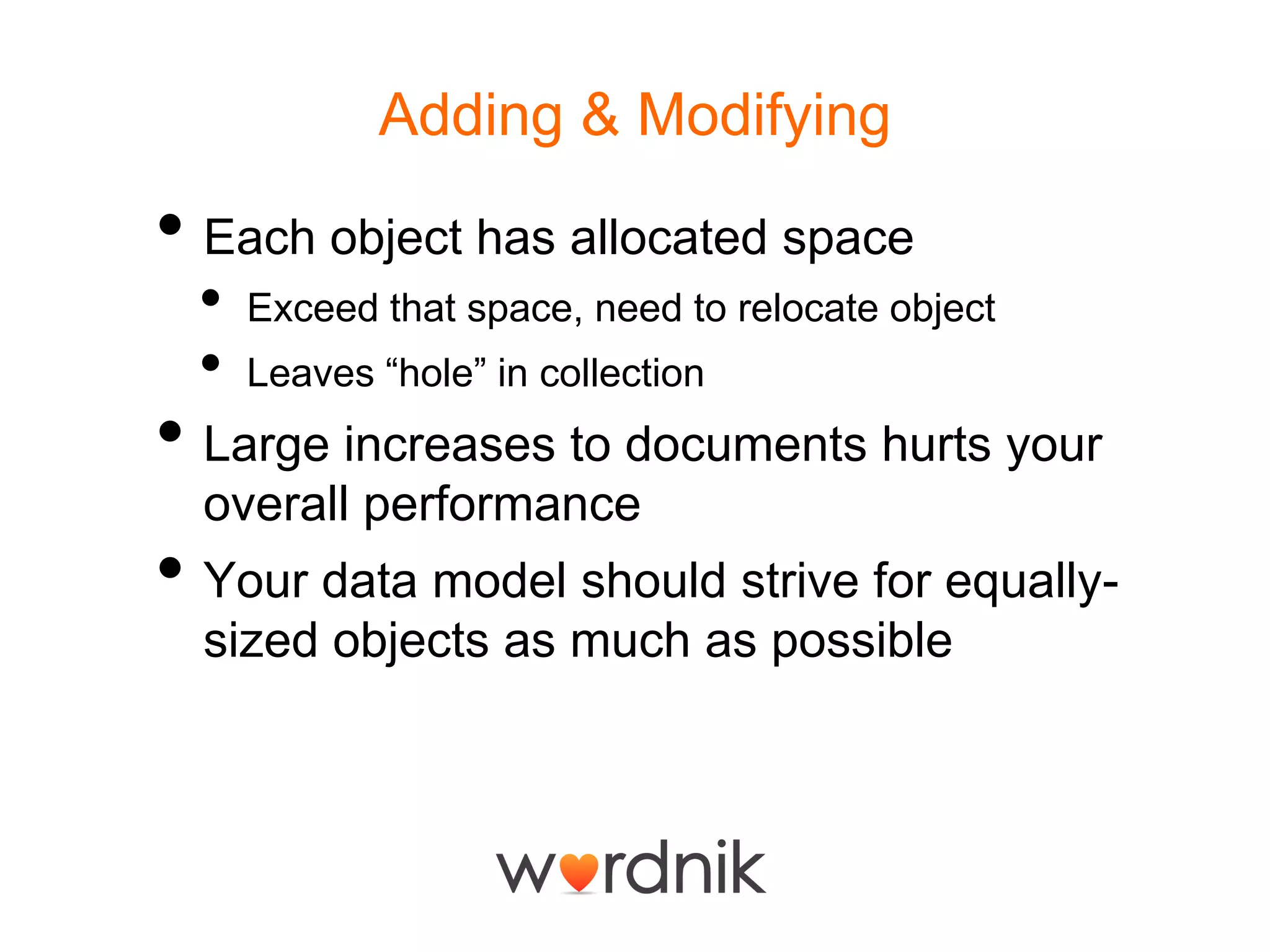

24. Adding & Modifying
• Each object has allocated space
• Exceed that space, need to relocate object
• Leaves “hole” in collection
• Large increases to documents hurts your
overall performance
• Your data model should strive for equally-
sized objects as much as possible

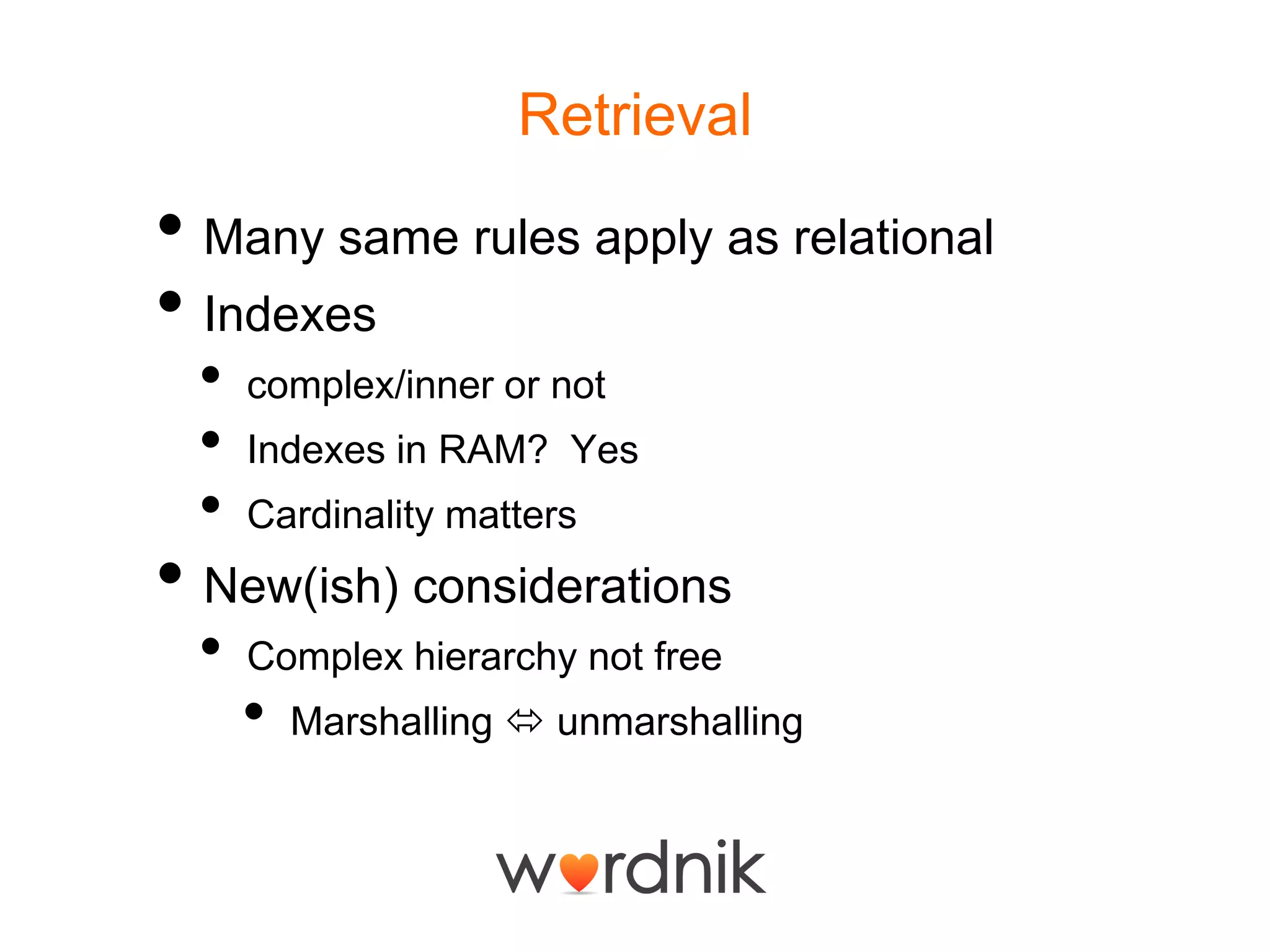

25. Retrieval
• Many same rules apply as relational
• Indexes
• complex/inner or not
• Indexes in RAM? Yes
• Cardinality matters
• New(ish) considerations
• Complex hierarchy not free
• Marshalling  unmarshalling

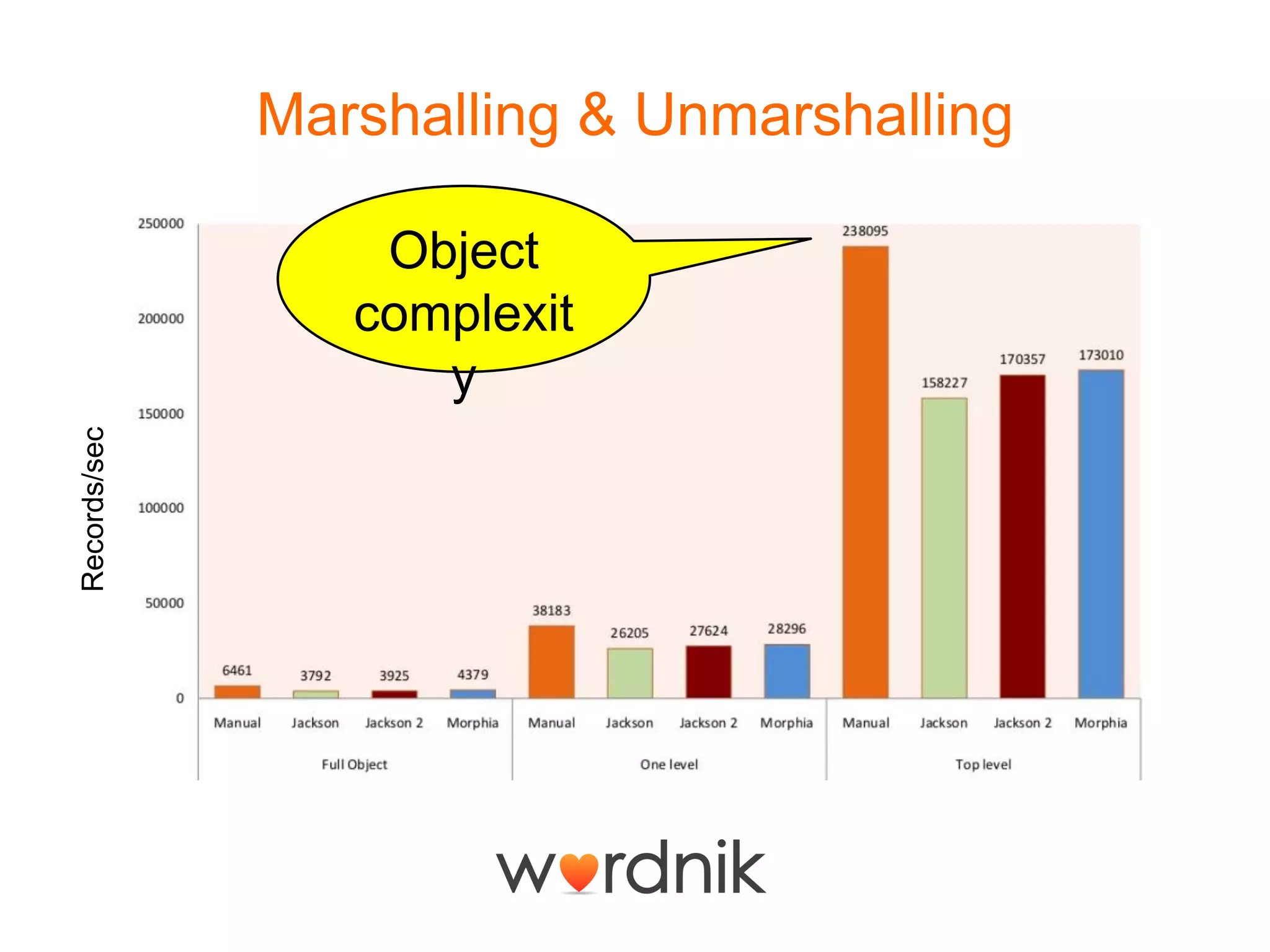

26. Marshalling & Unmarshalling
Object
complexit
y
Records/sec

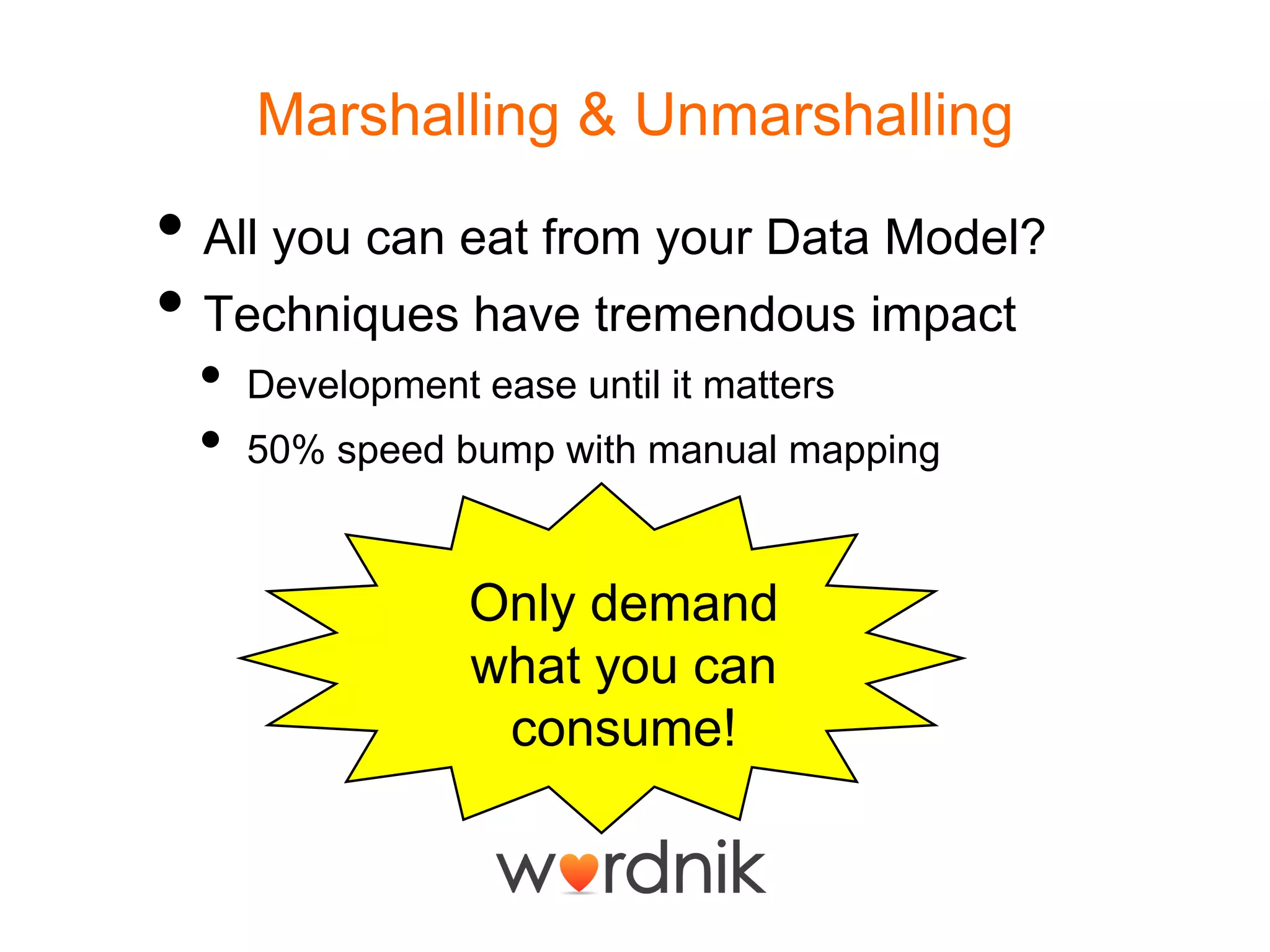

27. Marshalling & Unmarshalling
• All you can eat from your Data Model?
• Techniques have tremendous impact
• Development ease until it matters
• 50% speed bump with manual mapping
Only demand
what you can
consume!

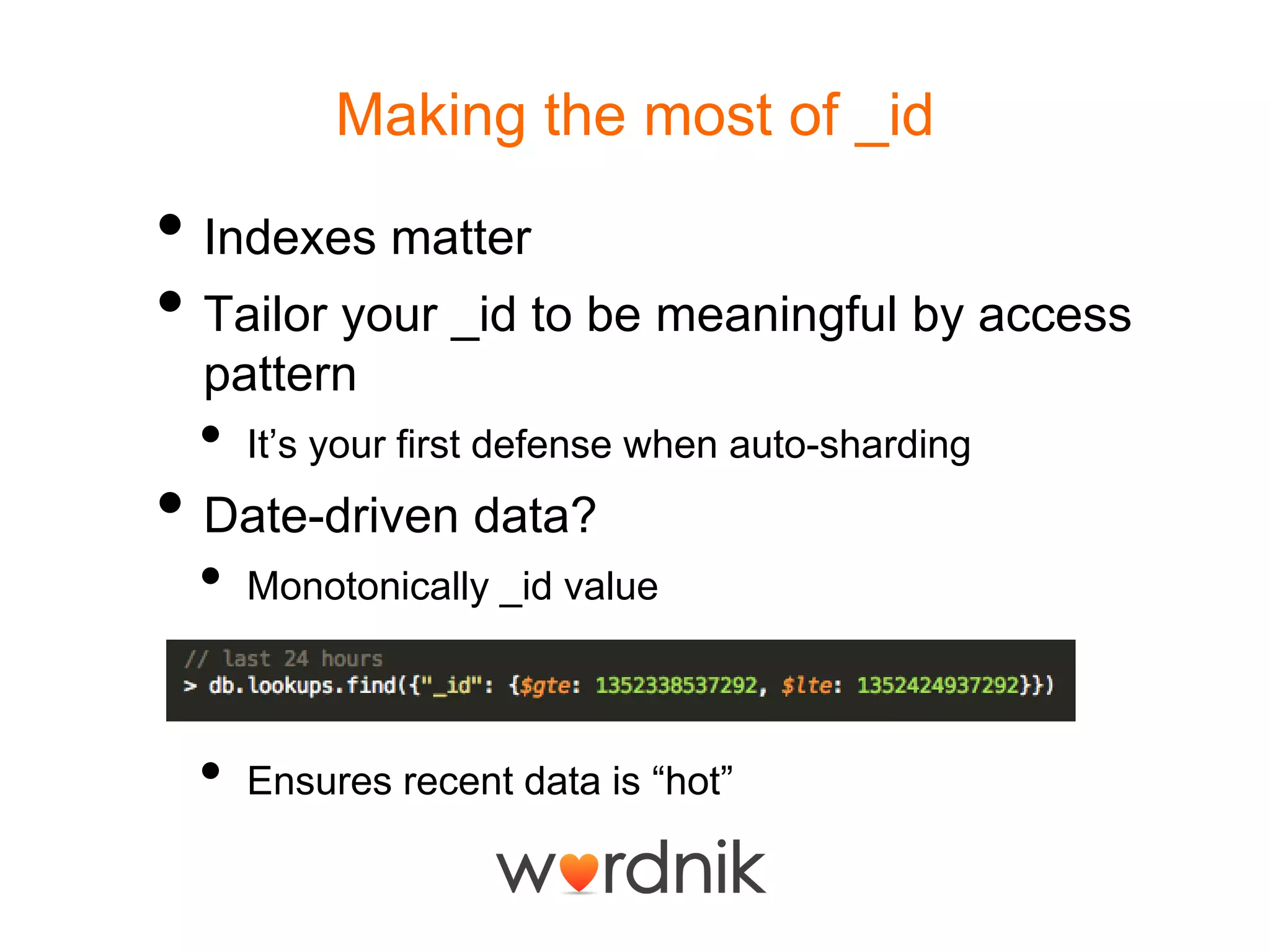

28. Making the most of _id
• Indexes matter
• Tailor your _id to be meaningful by access
pattern
• It’s your first defense when auto-sharding
• Date-driven data?
• Monotonically _id value
• Ensures recent data is “hot”

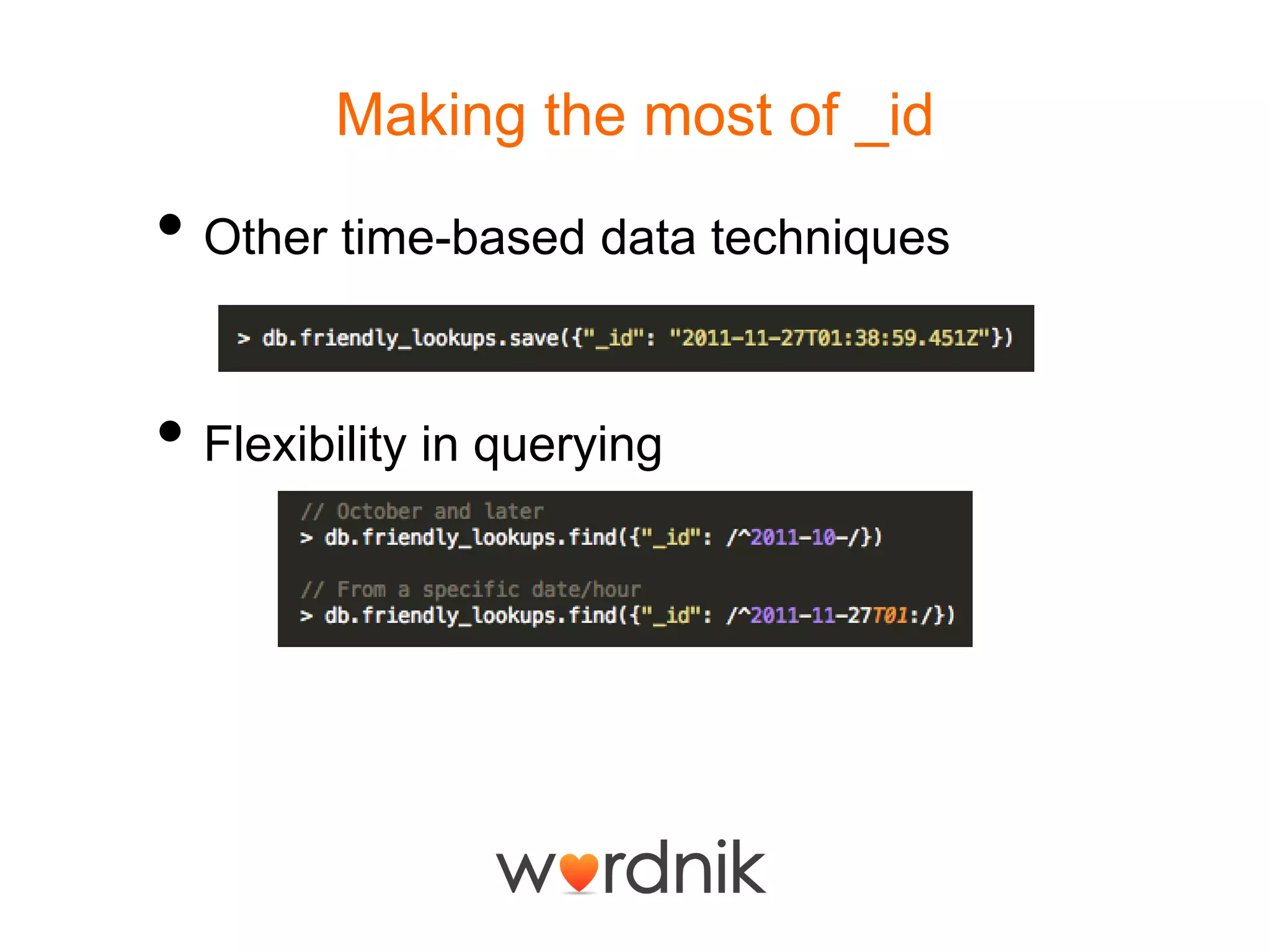

29. Making the most of _id
• Other time-based data techniques
• Flexibility in querying

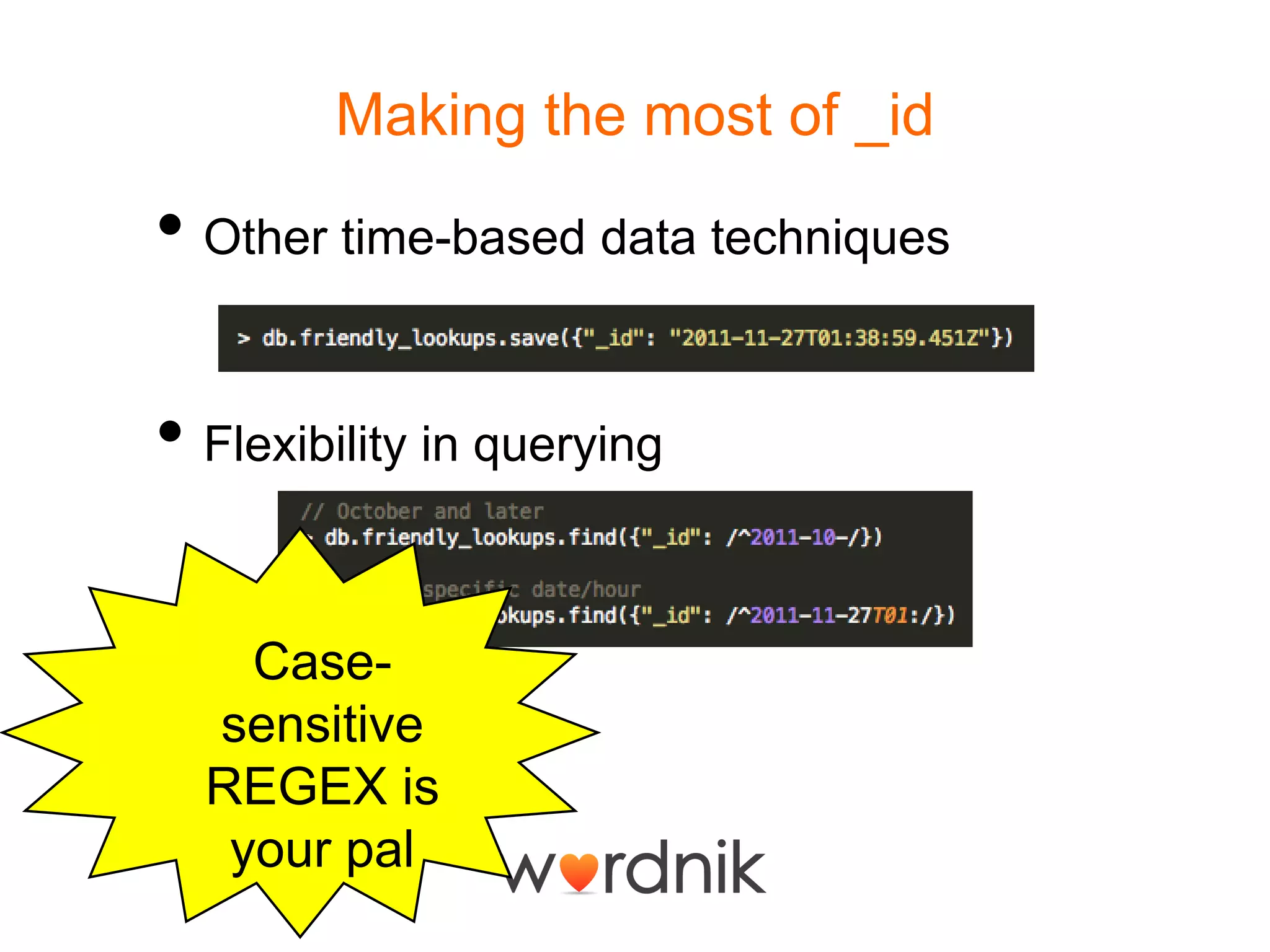

30. Making the most of _id
• Other time-based data techniques
• Flexibility in querying
Case-
sensitive
REGEX is
your pal

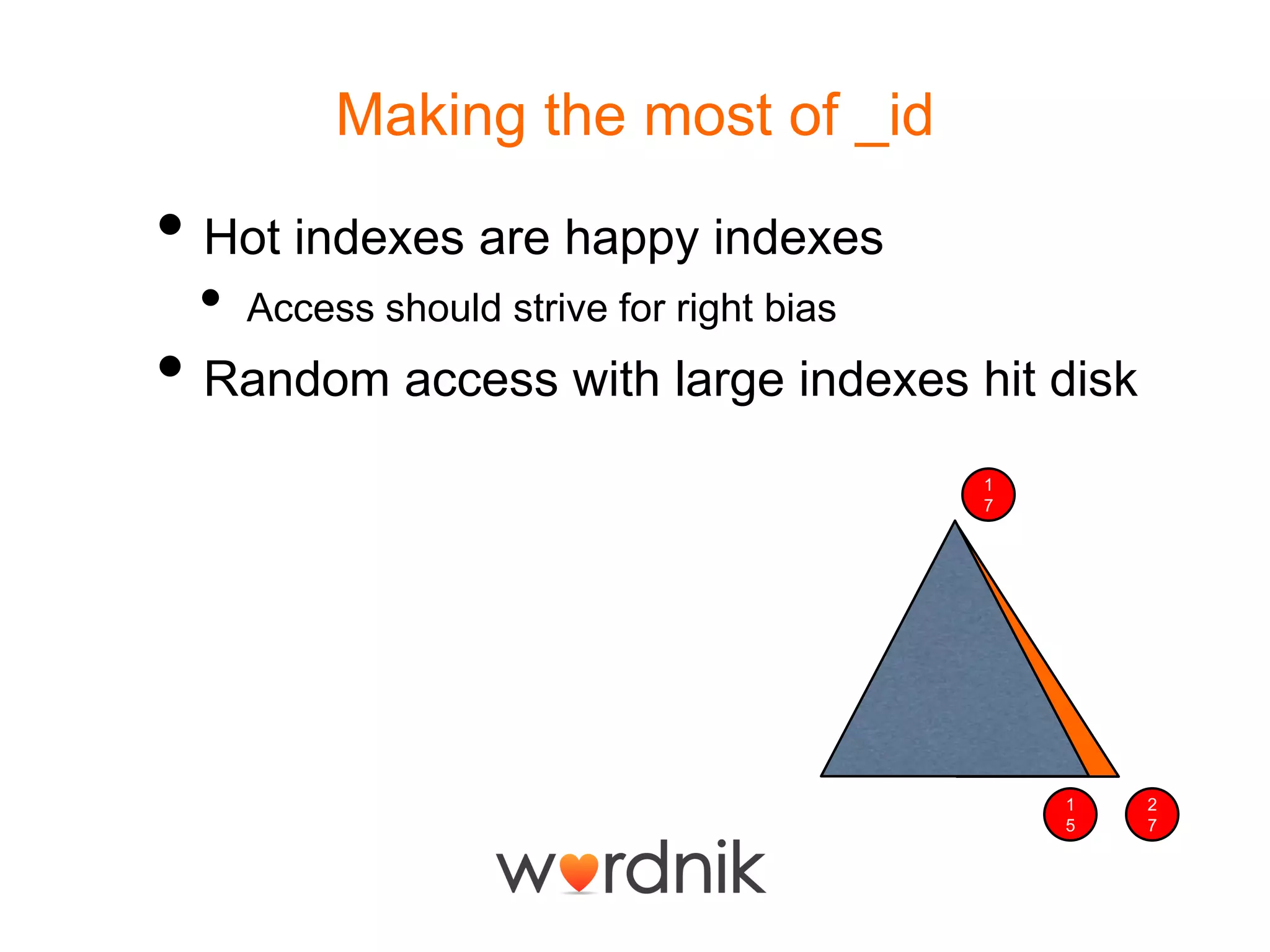

31. Making the most of _id
• Hot indexes are happy indexes
• Access should strive for right bias
• Random access with large indexes hit disk
1
7
1 2
5 7

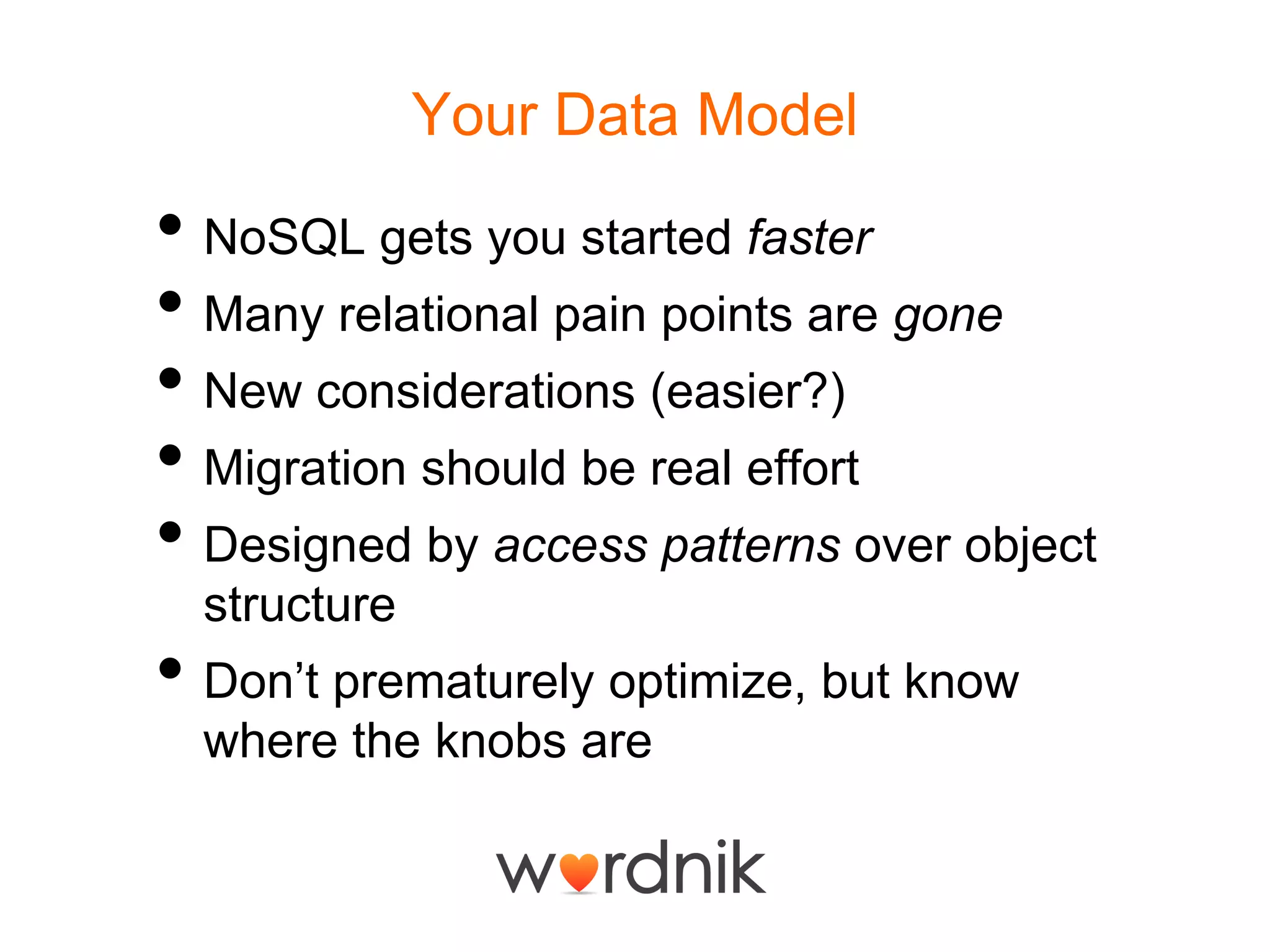

32. Your Data Model
• NoSQL gets you started faster
• Many relational pain points are gone
• New considerations (easier?)
• Migration should be real effort
• Designed by access patterns over object
structure
• Don’t prematurely optimize, but know
where the knobs are

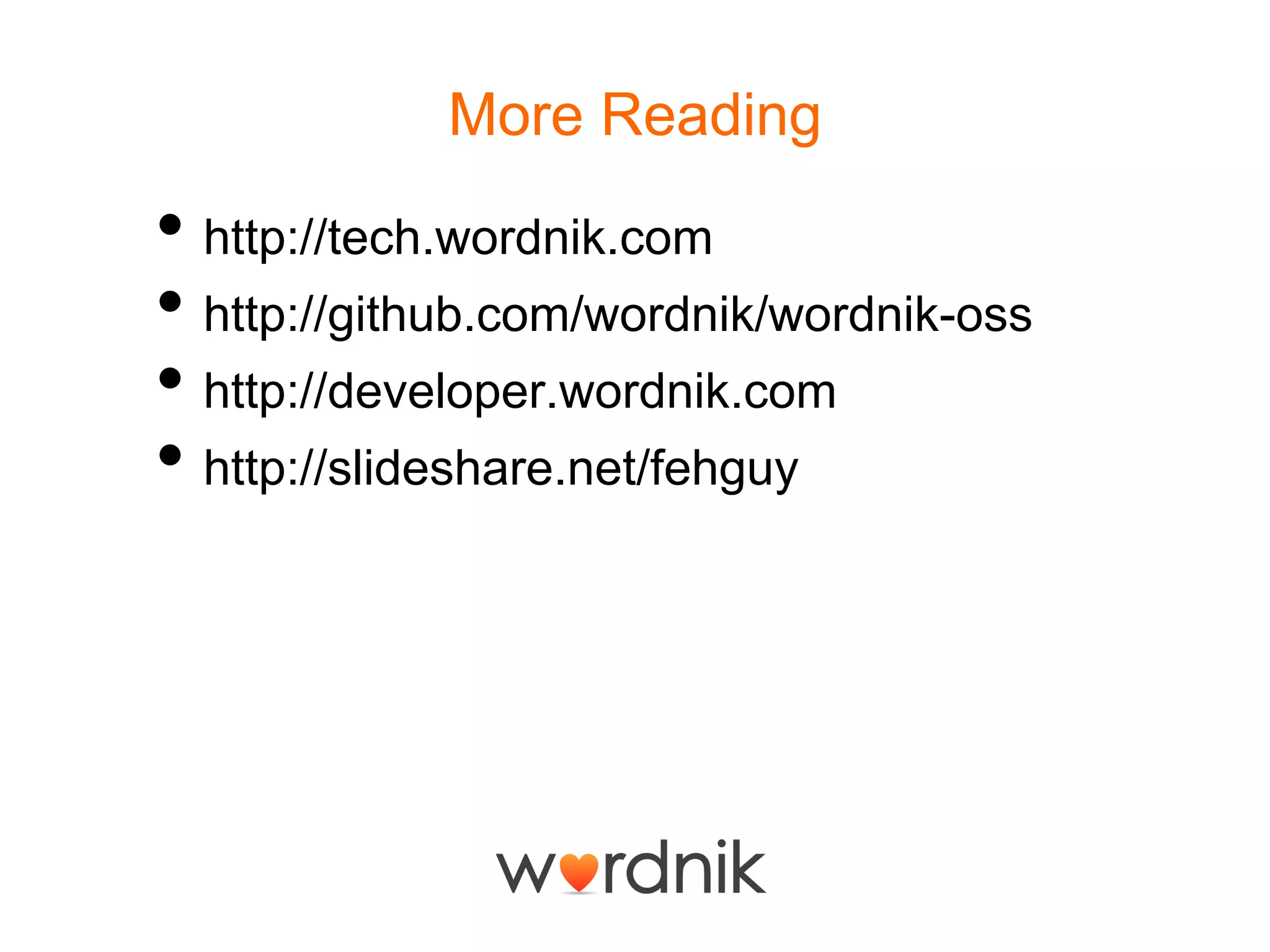

33. More Reading
• http://tech.wordnik.com
• http://github.com/wordnik/wordnik-oss
• http://developer.wordnik.com
• http://slideshare.net/fehguy
