This document provides an overview of SQL and NoSQL databases. It defines SQL as a language used to communicate with relational databases, allowing users to query, manipulate, and retrieve data. NoSQL databases are defined as non-relational and allow for flexible schemas. The document compares key aspects of SQL and NoSQL such as data structure, querying, scalability and provides examples of popular SQL and NoSQL database systems. It concludes that both SQL and NoSQL databases will continue to be important with polyglot persistence, using the best database for each storage need.

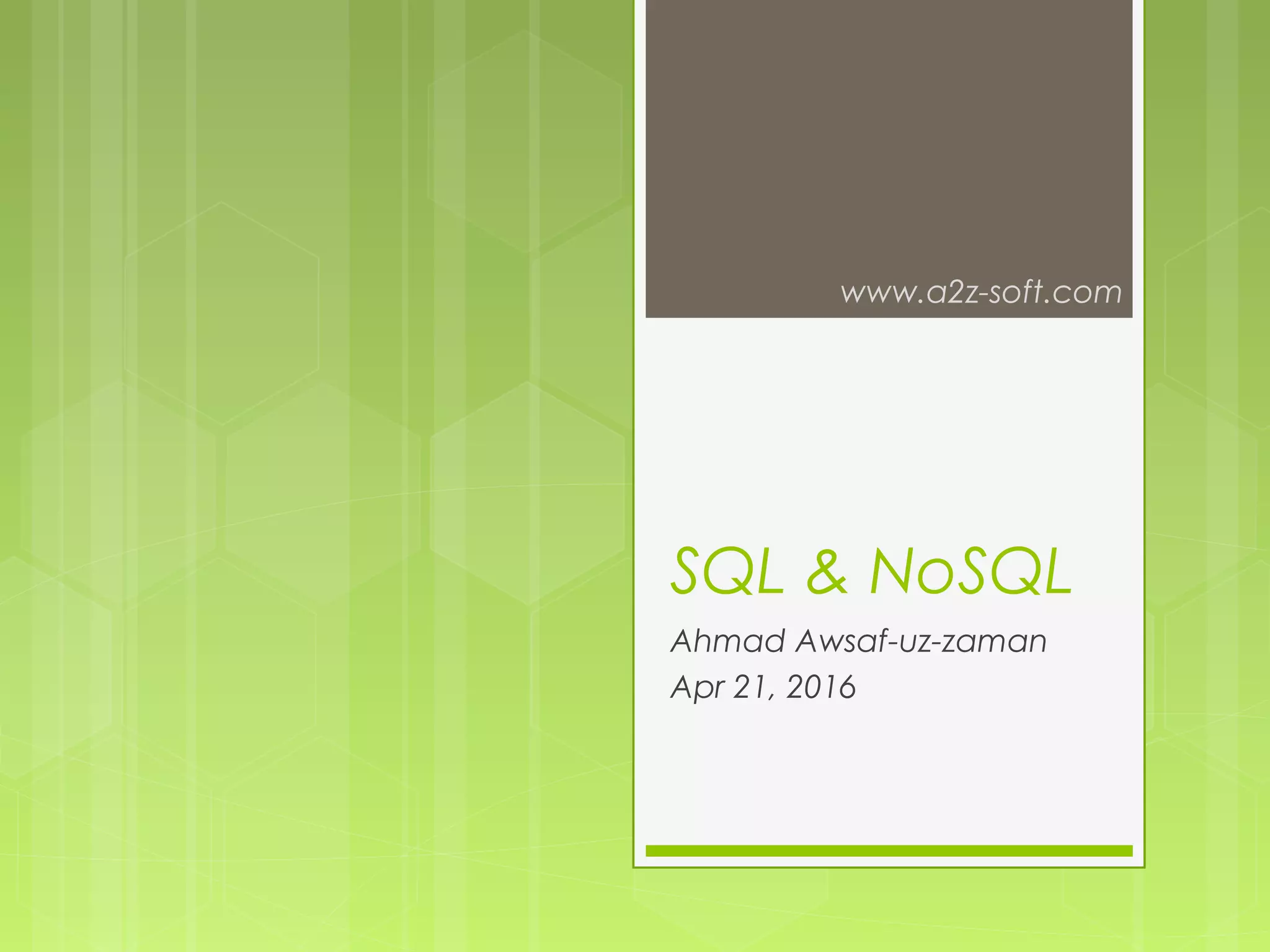

1. SQL & NoSQL
Ahmad Awsaf-uz-zaman
Apr 21, 2016
www.a2z-soft.com

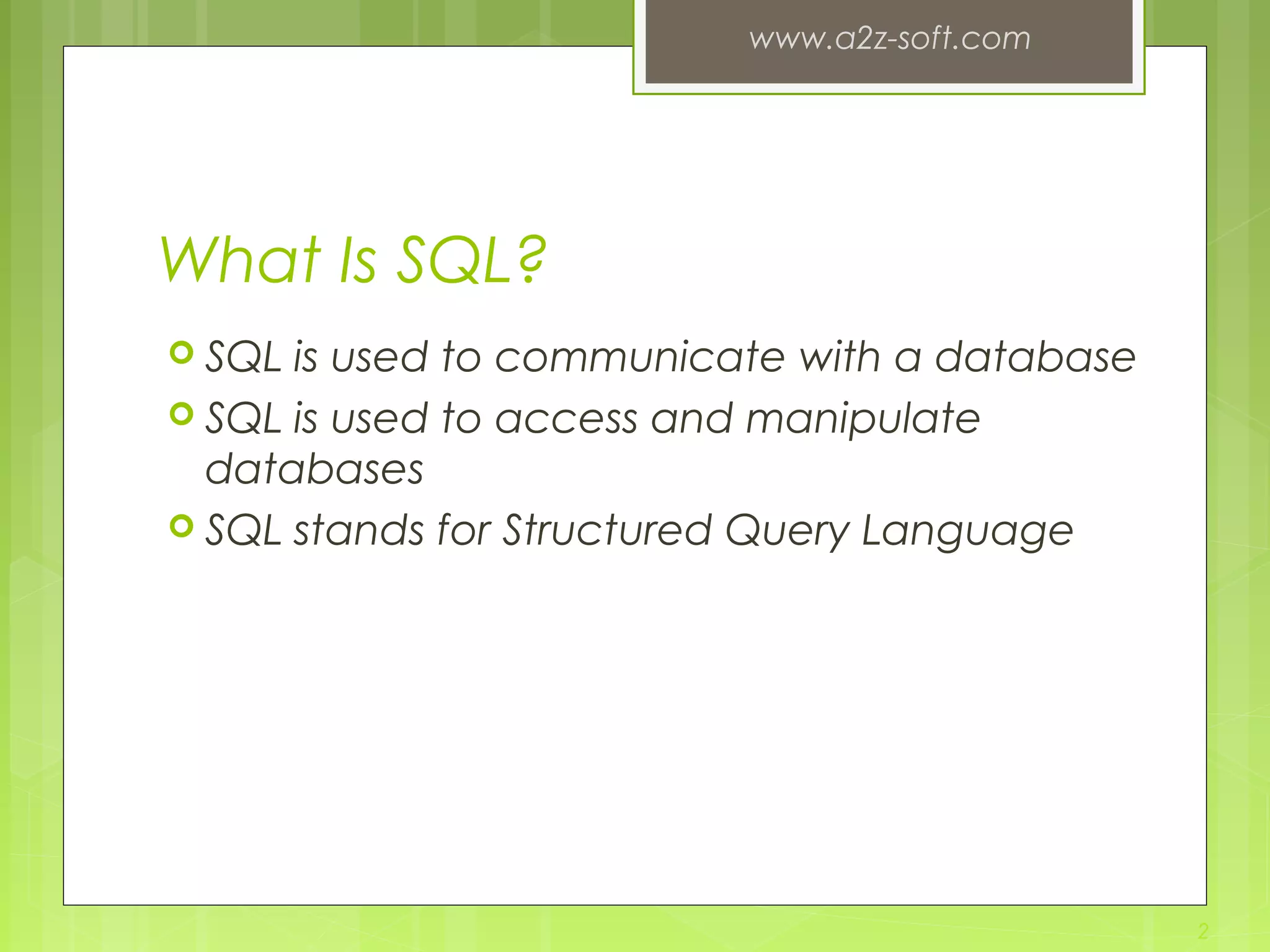

2. What Is SQL?
 SQL is used to communicate with a database
 SQL is used to access and manipulate
databases
 SQL stands for Structured Query Language
www.a2z-soft.com
2

3. What Can SQL do?
 SQL can execute queries against a database
 SQL can retrieve data from a database
 SQL can insert records in a database
 SQL can update records in a database
 SQL can delete records from a database
 SQL can create new databases
 SQL can create new tables in a database
 SQL can create stored procedures in a database
 SQL can create views in a database
 SQL can set permissions on tables, procedures, and
views
www.a2z-soft.com
3

4. SQL Used
 An RDBMS database program (i.e. MS Access, SQL
Server, MySQL)
 To use a server-side scripting language, like PHP or ASP
 To use SQL to get the data we want
 To use HTML / CSS
www.a2z-soft.com
4

5. RDBMS
 RDBMS stands for Relational Database Management
System.
 RDBMS is the basis for SQL, and for all modern database
systems such as MS SQL Server, IBM DB2, Oracle, MySQL,
and Microsoft Access.
 The data in RDBMS is stored in database objects called
tables.
 A table is a collection of related data entries and it
consists of columns and rows.
www.a2z-soft.com
5

6. Why Is SQL Important?
 It is mature and well understood
 It can handle relational data models
 It can handle hierarchical data models
 It can handle unstructured data models
 It can handle complex/nested transactions
 It is an ISO / IEC standard
 It can be used centralized applications (e.g. ERP)
www.a2z-soft.com
6

7. SQL Database (Popular)
 SQL Server
 Oracle
 MySQL
 SQLite
 PostgreSQL
www.a2z-soft.com
7

8. What Is NoSQL?
 Originally referring to "Non SQL" or "Not Only SQL"
or "Non Relational"
 NoSQL databases are sometimes referred to as
cloud databases, non-relational databases, Big
Data databases
 A NoSQL database environment is, simply put, a
non-relational and largely distributed database
system that enables rapid, ad-hoc organization
and analysis of extremely high-volume, disparate
data types.
www.a2z-soft.com
8

9. Types of NoSQL Databases
 Graph database
 Key-Value store
 Column store
 Document database
www.a2z-soft.com
9

10. Why NoSQL?
 The Growth of Big Data
 Continuous Data Availability
 Real Location Independence
 Modern Transactional Capabilities
 Flexible Data Models
 Better Architecture
 Analytics and Business Intelligence
www.a2z-soft.com
10

11. Evaluating NoSQL databases
Data model Performance Scalability Flexibility Complexity Functionality
Key-value
store
High High High None
Variable
(None)
Column
Store
High High Moderate Low Minimal
Document
Store
High
Variable
(High)
High Low
Variable
(Low)
Graph
Database
Variable Variable High High
Graph
Theory
www.a2z-soft.com
11

12. NoSQL Database (Popular)
 MongoDB
 Redis
 Cassandra
 CouchDB
 HBase
www.a2z-soft.com
12

13. Difference between SQL and
NoSQL
SQL NoSQL
Store related data in tables Store related data in JSON-like, name-value documents
Require a schema which defines tables prior to use Can store data without specifying a schema
Encourage normalization to reduce data redundancy
Must usually be denormalized so information about an
item is contained in a single document
Support table joins to retrieve related data from
multiple tables in a single command
Should not require joins (presuming denormalized
documents are used)
Implement data integrity rules
Permit any data to be saved anywhere at any time
without verification
www.a2z-soft.com
13

14. Difference between SQL and
NoSQL
SQL NoSQL
Provide transactions to guarantee two or more
updates succeed or fail as an atomic unit
Guarantee updates to a single document — but not
multiple documents
Can be scaled (with some effort) Provide excellent performance and scalability
Use a powerful declarative language for querying Use JSON data objects for querying
Offer plenty of support, expertise and tools. It is a newer, exciting technology.
MySQL, Postgres, Microsoft SQL Server, Oracle
Database
MongoDB, Cassandra, HBase, Neo4j
www.a2z-soft.com
14

15. Difference between SQL and
NoSQL
SQL NoSQL
One type with minor variations
Many different types including key-value stores,
document databases, wide-column stores, and
graph databases
Mix of open-source (e.g., Postgres, MySQL) and
closed source (e.g., Oracle Database)
Open-source
Specific language using Select, Insert, and Update
statements, e.g. SELECT fields FROM table
WHERE etc.
Through object-oriented APIs
Can be configured for strong consistency
Depends on product.
Some provide strong consistency (e.g., MongoDB,
with tunable consistency for reads) whereas others
offer eventual consistency (e.g., Cassandra).
www.a2z-soft.com
15

16. Why Is NoSQL Important?
 Large volumes of rapidly changing structured,
semi-structured, and unstructured data
 Agile sprints, quick schema iteration, and
frequent code pushes
 Object-oriented programming that is easy to use
and flexible
 Geographically distributed scale-out architecture
instead of expensive, monolithic architecture
www.a2z-soft.com
16

17. Conclusion
All the choice provided by the rise of NoSQL
databases does not mean the demise of
RDBMS databases. We are entering an era of
polyglot persistence, a technique that uses
different data storage technologies to
handle varying data storage needs. Polyglot
persistence can apply across an enterprise or
within a single application.
www.a2z-soft.com
17
