The document presents a detailed overview of data-driven testing frameworks in Selenium, highlighting the benefits and the use of the Apache POI library for handling Excel files. It explains how TestNG can facilitate parameterization in testing, enabling the execution of tests with multiple data sets efficiently. Additionally, it covers the etiquette expected during sessions and the importance of constructive feedback.

1. Presented By : Anshita Mathur
QA Consultant
Data Driven Framework
in Selenium

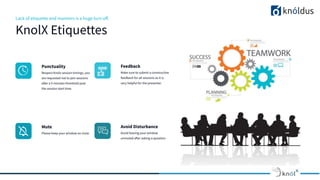

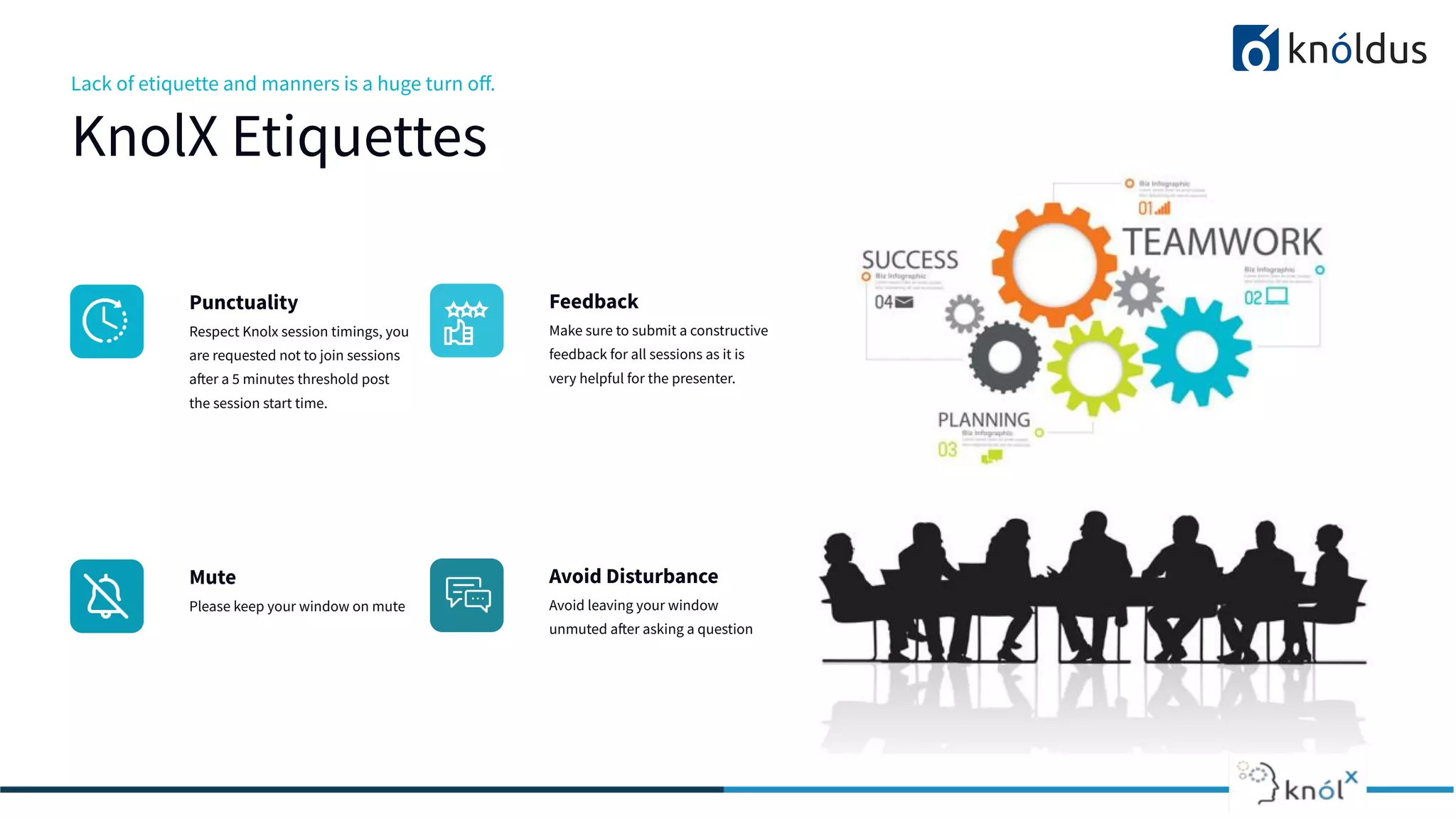

2. Lack of etiquette and manners is a huge turn off.
KnolX Etiquettes
Punctuality
Respect Knolx session timings, you
are requested not to join sessions
after a 5 minutes threshold post
the session start time.
Feedback
Make sure to submit a constructive
feedback for all sessions as it is
very helpful for the presenter.
Mute
Please keep your window on mute
Avoid Disturbance
Avoid leaving your window
unmuted after asking a question

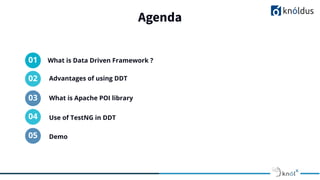

3. Agenda
01 What is Data Driven Framework ?
02 Advantages of using DDT
04 Use of TestNG in DDT
What is Apache POI library
03
05 Demo

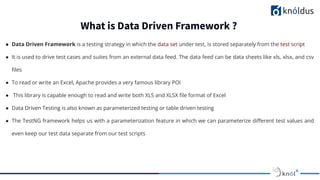

5. What is Data Driven Framework ?
● Data Driven Framework is a testing strategy in which the data set under test, is stored separately from the test script
● It is used to drive test cases and suites from an external data feed. The data feed can be data sheets like xls, xlsx, and csv
files
● To read or write an Excel, Apache provides a very famous library POI
● This library is capable enough to read and write both XLS and XLSX file format of Excel
● Data Driven Testing is also known as parameterized testing or table driven testing
● The TestNG framework helps us with a parameterization feature in which we can parameterize different test values and
even keep our test data separate from our test scripts

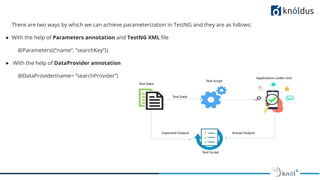

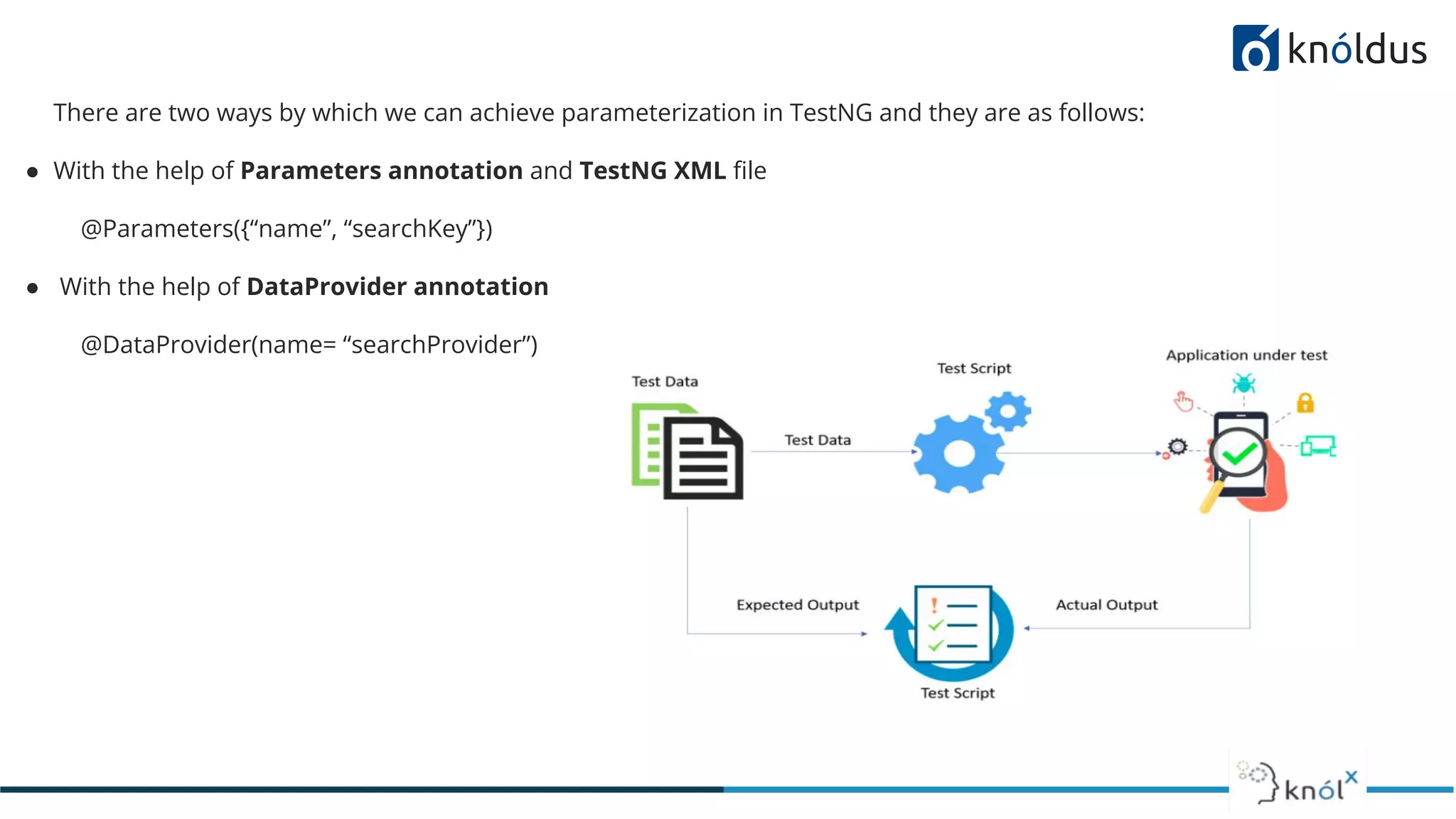

6. There are two ways by which we can achieve parameterization in TestNG and they are as follows:
● With the help of Parameters annotation and TestNG XML file
@Parameters({“name”, “searchKey”})
● With the help of DataProvider annotation
@DataProvider(name= “searchProvider”)

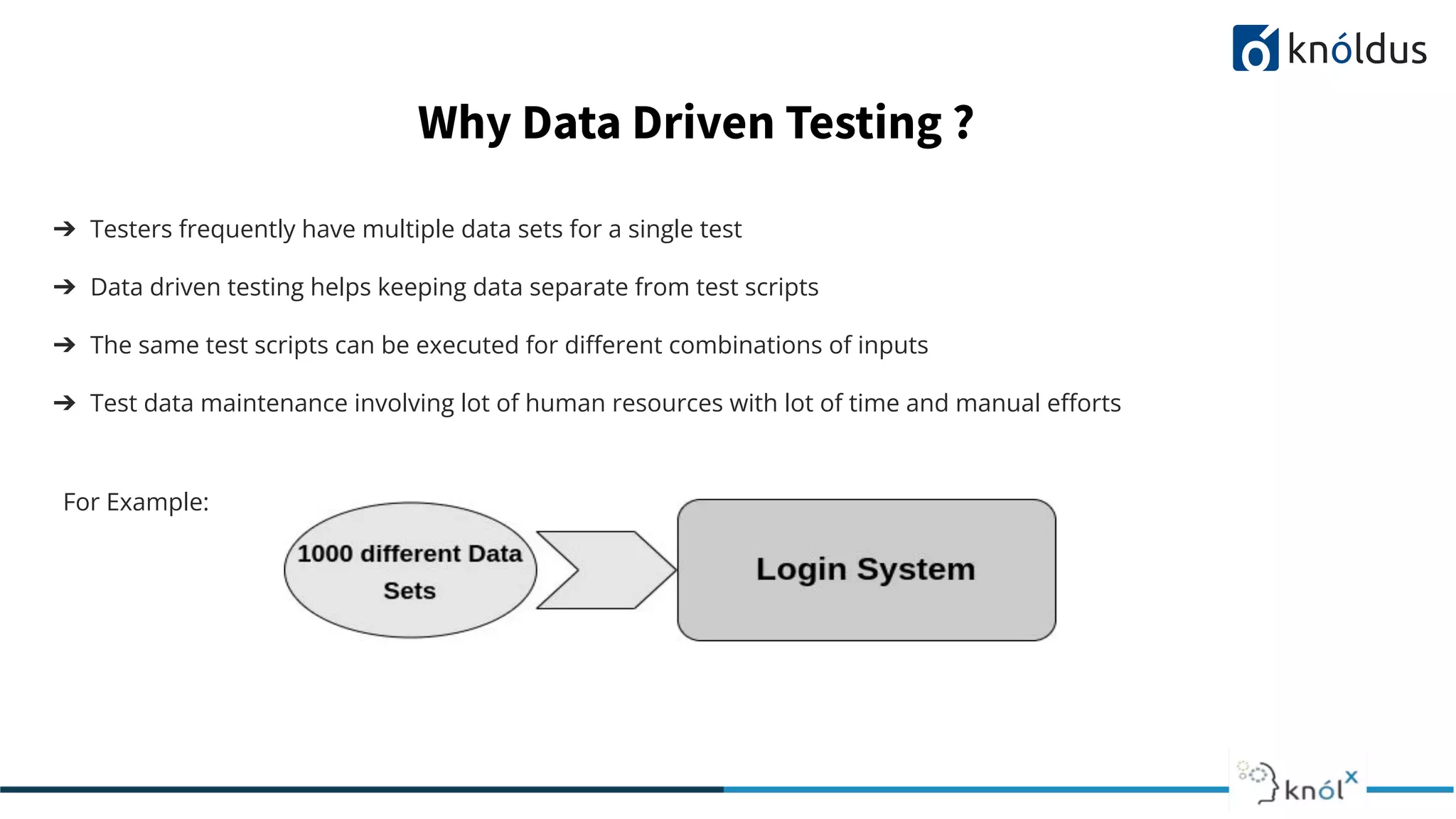

7. Why Data Driven Testing ?
➔ Testers frequently have multiple data sets for a single test
➔ Data driven testing helps keeping data separate from test scripts
➔ The same test scripts can be executed for different combinations of inputs
➔ Test data maintenance involving lot of human resources with lot of time and manual efforts
For Example:

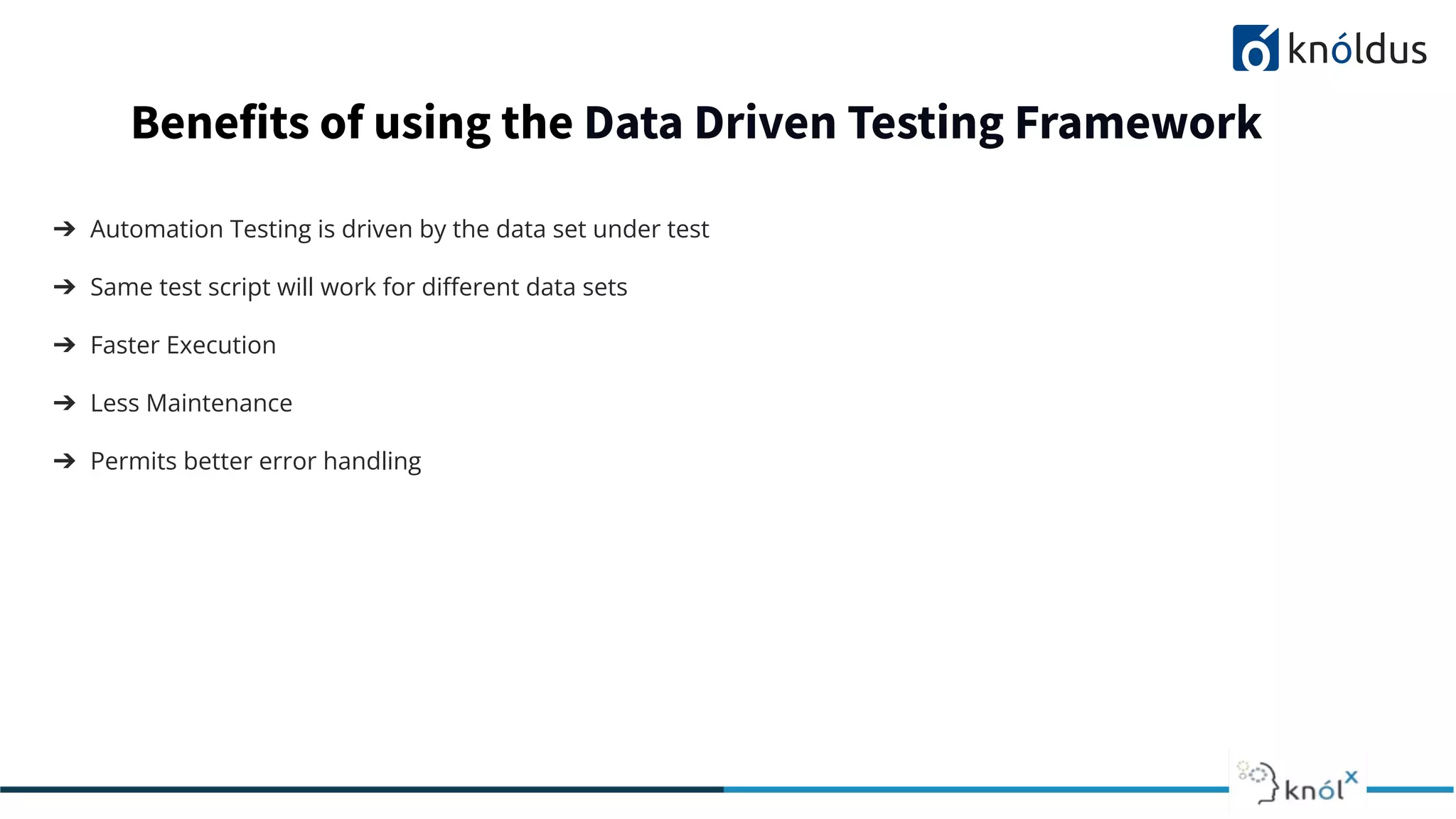

8. Benefits of using the Data Driven Testing Framework
➔ Automation Testing is driven by the data set under test
➔ Same test script will work for different data sets
➔ Faster Execution
➔ Less Maintenance
➔ Permits better error handling

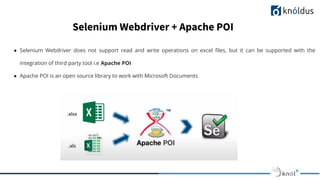

9. Selenium Webdriver + Apache POI
● Selenium Webdriver does not support read and write operations on excel files, but it can be supported with the
integration of third party tool i.e Apache POI
● Apache POI is an open source library to work with Microsoft Documents

10. Integrating Selenium Webdriver and Apache POI
1. Using Maven:
● Go to IDE and create a project
● Add the required dependencies for Apache POI
2. Using Jars:
● Go to poi.apache.org
● Download the Jar file
● Add this jar file in your project directory

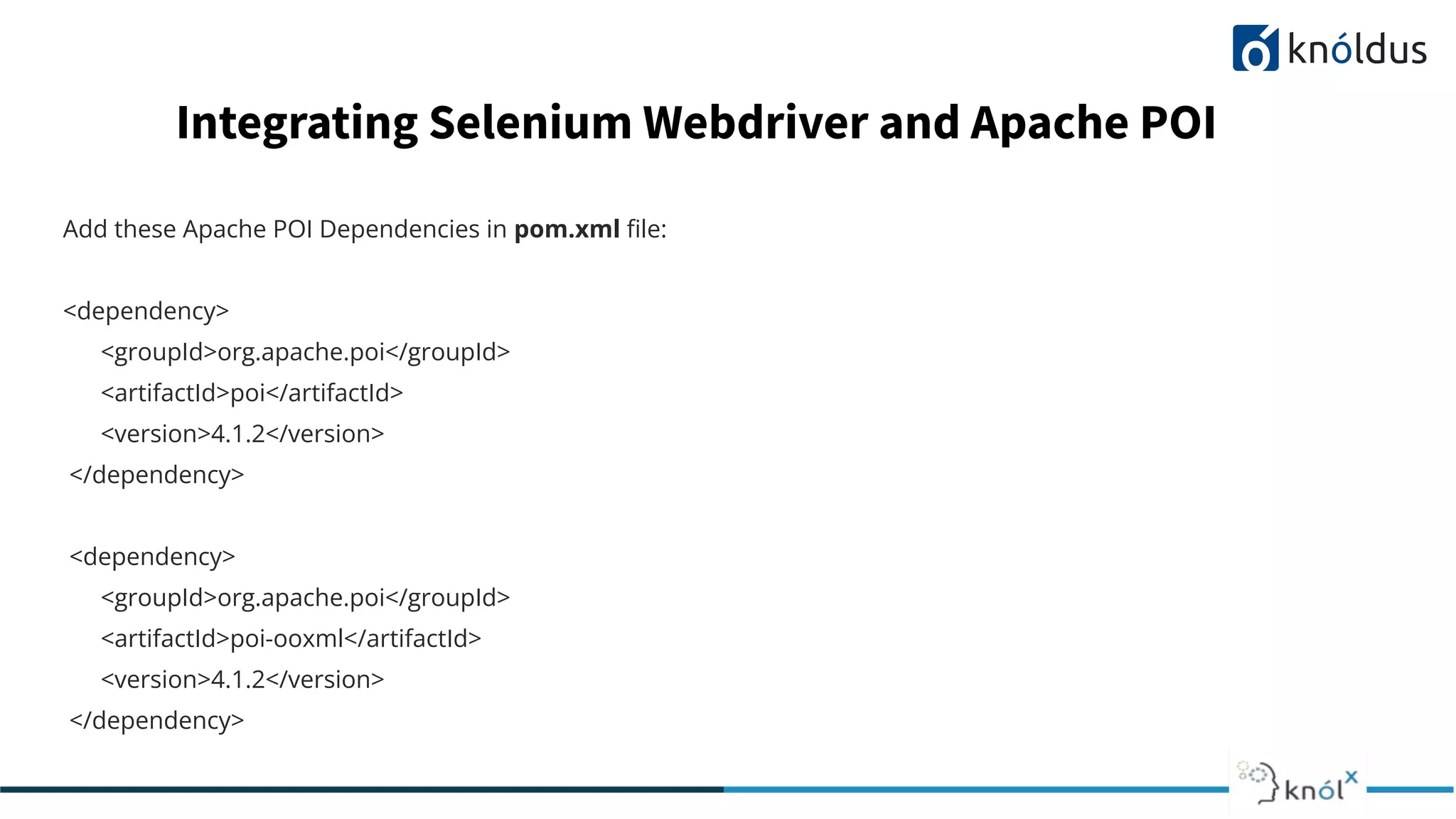

11. Integrating Selenium Webdriver and Apache POI
Add these Apache POI Dependencies in pom.xml file:
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>4.1.2</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>4.1.2</version>
</dependency>

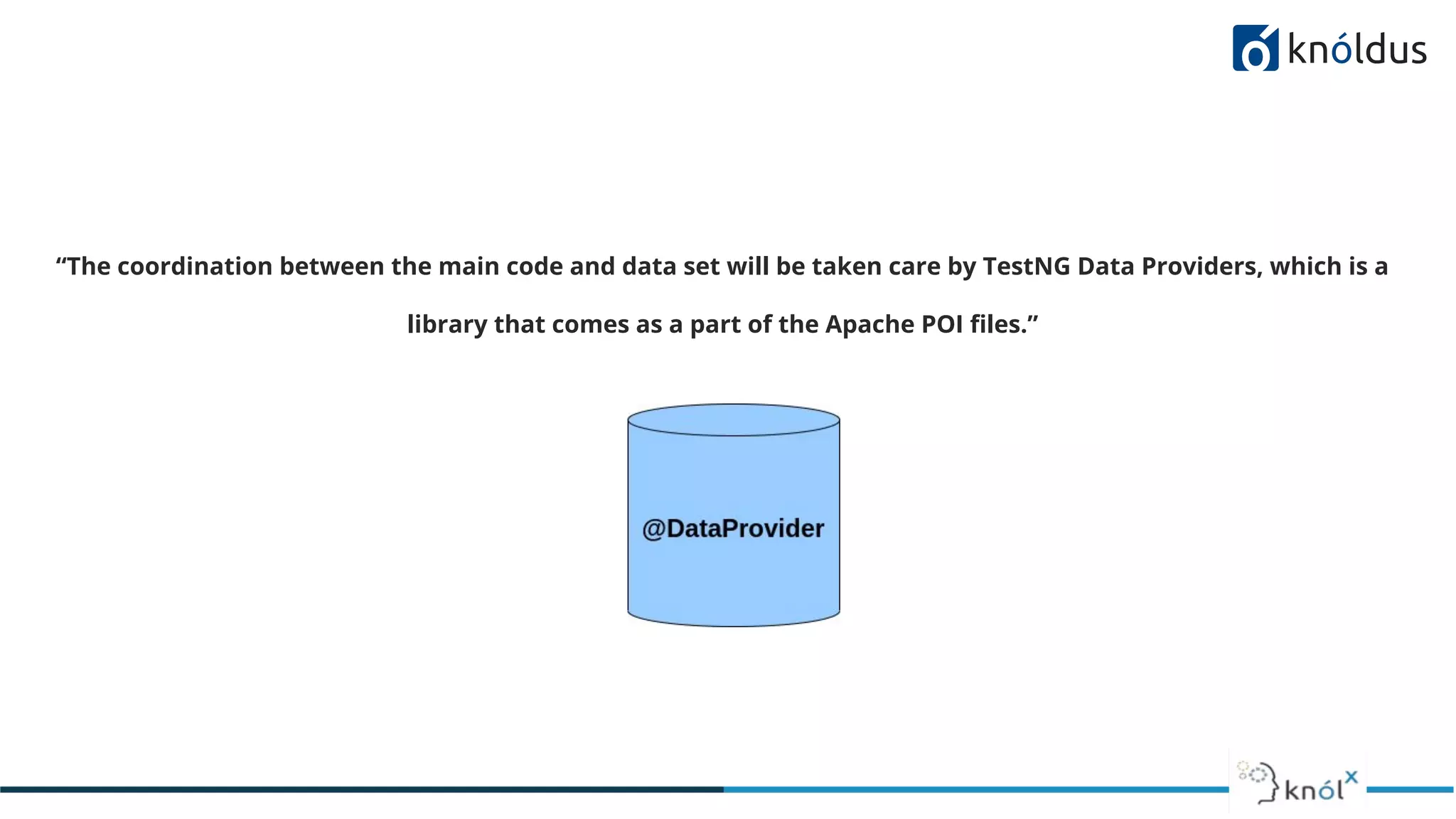

12. “The coordination between the main code and data set will be taken care by TestNG Data Providers, which is a
library that comes as a part of the Apache POI files.”

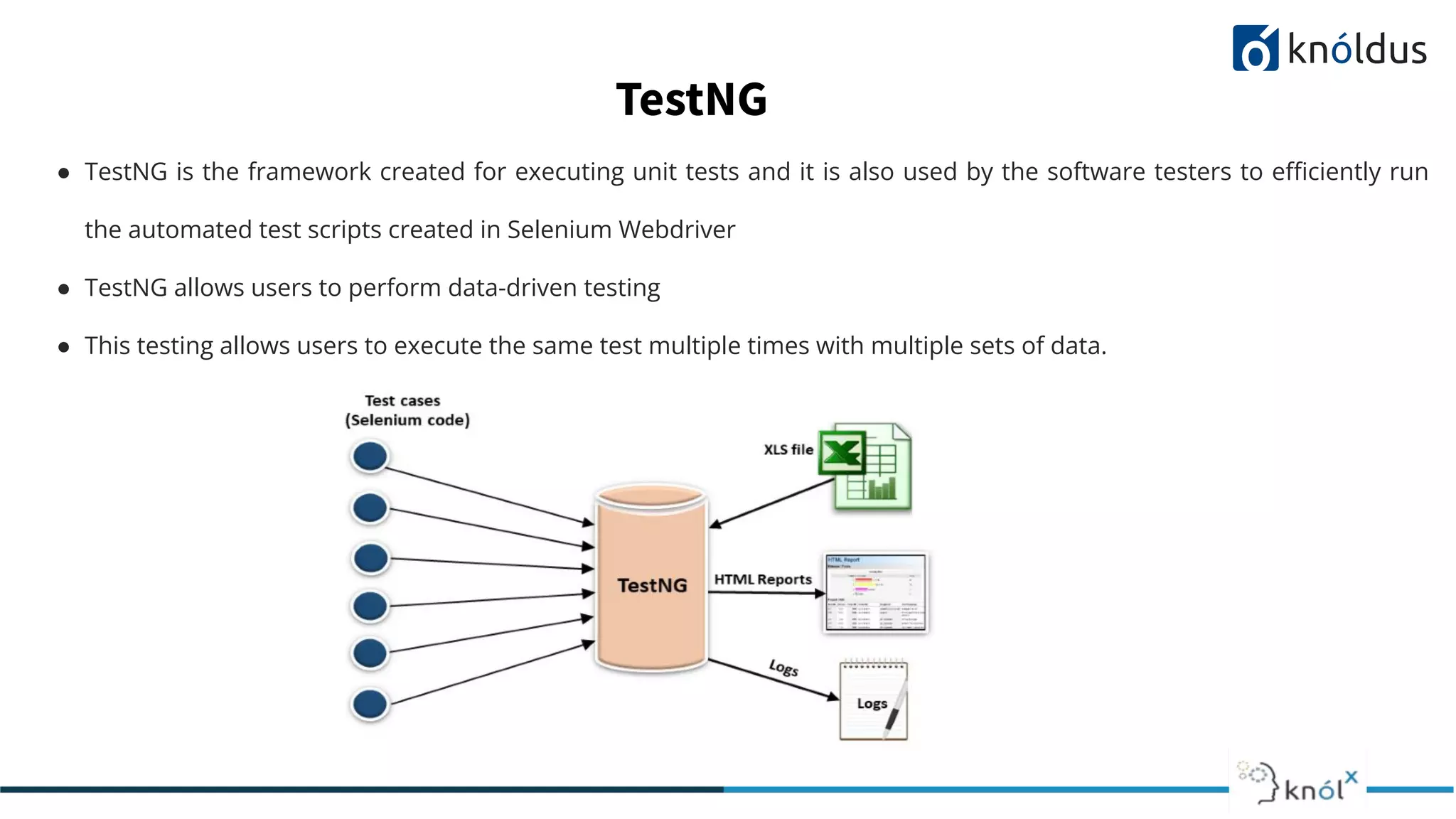

13. TestNG
● TestNG is the framework created for executing unit tests and it is also used by the software testers to efficiently run
the automated test scripts created in Selenium Webdriver
● TestNG allows users to perform data-driven testing
● This testing allows users to execute the same test multiple times with multiple sets of data.

14. Data Driven Testing using @DataProvider
● TestNG supports two ways for passing parameters directly to our Test Methods.
● We can pass parameters through Data Providers or an xml File.
● To achieve the data-driven testing, DataProvider feature is used.
● DataProvider is a data feeder method that executes the test method with multiple sets of data.
● Similar to TestNG Parameters, DataProviders are a means to pass data to test scripts in TestNG.
● Using DataProvider in TestNG, we can easily inject multiple values into the same test case.
● It comes inbuilt in TestNG and is popularly used in data-driven frameworks.

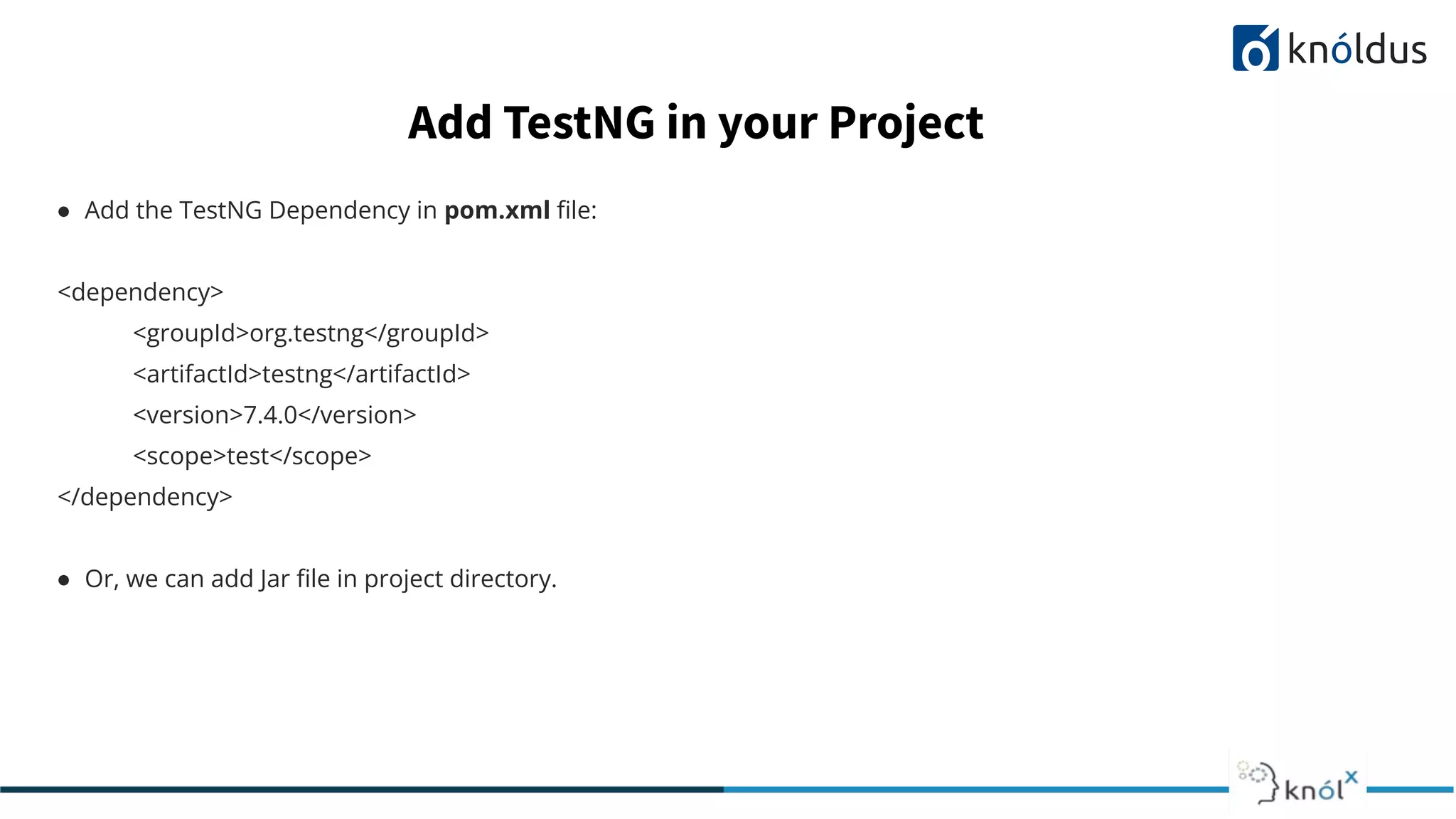

15. Add TestNG in your Project
● Add the TestNG Dependency in pom.xml file:
<dependency>
<groupId>org.testng</groupId>
<artifactId>testng</artifactId>
<version>7.4.0</version>
<scope>test</scope>
</dependency>
● Or, we can add Jar file in project directory.

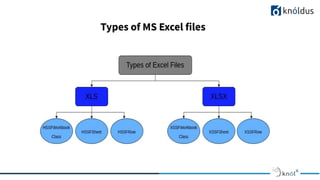

17. Types of MS Excel files

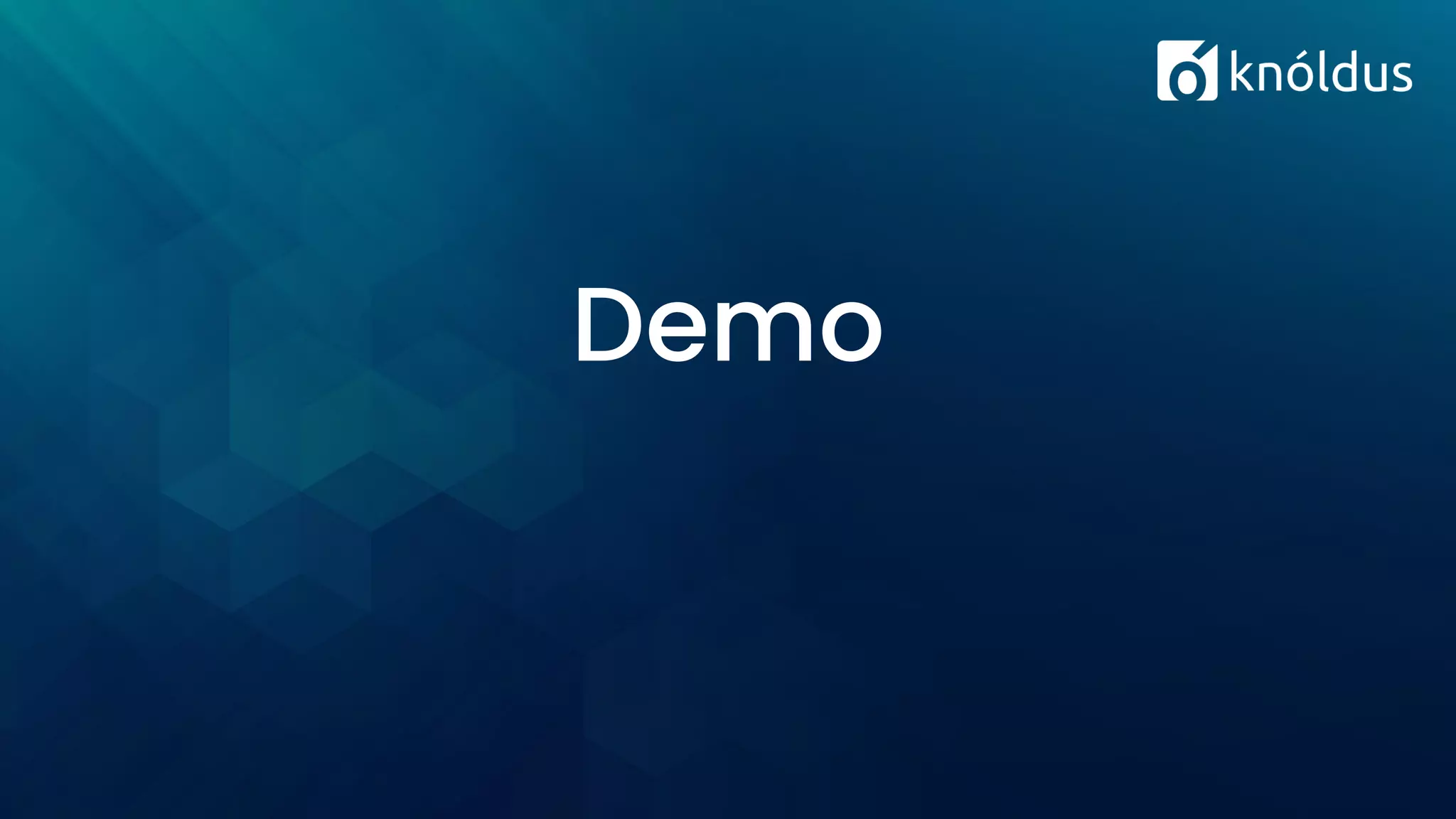

18. Demo

19. QA

20. Thank You !
