5 STAR HOTEL TOILET DESIGN IDEA

1. TOILET
MATERIAL & SANITARY FITTINGS

2. SINGLE
ROOM
BATHROOM
LAYOUT

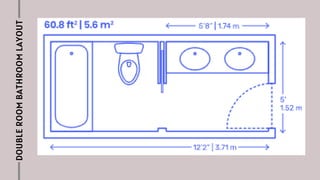

3. DOUBLE
ROOM
BATHROOM
LAYOUT

4. DOUBLE
ROOM
BATHROOM
LAYOUT

5. WHEEL
CHAIR
-BATHROOM
LAYOUT

6. MATERIALS
FLOORING 1
The options for bathroom flooring in
hotel rooms
Stone vinyl tiles
Porcelain tiles
Marble
Granite tiles
Ceramic tile

7. MATERIALS
FLOORING 1
Radiant Floor Heating In Bathroom
Radiant floor heating works by installing heated wires under a floor.
This heat radiates upward, warming the floor and surrounding area.
This can be installed under virtually any floor covering,
The amount of time it takes to heat a bathroom floor depends on a
number of factors, like insulation, design, and room size.

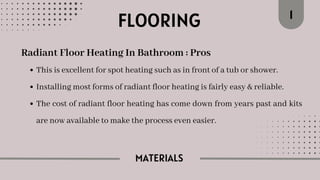

8. MATERIALS
FLOORING 1
Radiant Floor Heating In Bathroom : Pros
This is excellent for spot heating such as in front of a tub or shower.
Installing most forms of radiant floor heating is fairly easy & reliable.
The cost of radiant floor heating has come down from years past and kits
are now available to make the process even easier.

9. MATERIALS
FLOORING 1
Radiant Floor Heating In Bathroom : Cons
This can be expensive to operate, especially electric versions.
Since a system goes under the finished floor, some amount of demolition
and repair will be required.
A mistake made during installation can be expensive to repair.

10. MATERIALS
FLOORING 1
TYPOLOGY
Electric mat & Electric
single wire.
Electric membrane
https://todayshomeowner.com/flooring/guides
/radiant-floor-heating-for-bathroom/

11. MATERIALS
WALLS 1I
The choice of toilet wall materials in a five-star hotel should reflect luxury,
durability, and a sophisticated aesthetic
Porcelain or Ceramic Tiles
Natural Stone
Travertine or onyx
Glass
Textured or frosted glass
Metallic Finishes

12. MATERIALS
FIXTURES 1II
Many hotel bathrooms utilize fixtures that are easy to clean & maintain.
These fixtures are made with materials that are easy to clean & gives a
elegant appearance,
Brass
Steel
plastic
ceramic
glass
wood.

13. MATERIALS
VANITY & COUNTERTOP 1v
Creating a luxurious bathroom vanity & countertop in a five-star hotel
involves selecting high-quality materials that are both visually appealing
and durable
Terrazzo
Recycled Glass
Onyx
Natural stone
Wood
Metal
Terrazzo
Recycled Glass
onyx

14. DESIGNER FAUCETS
In a five-star hotel bathroom,
the choice of sanitary fittings
is changeling for providing a
luxurious & functional
experience.
With high-quality and stylish
sanitary fittings.
SANITARY
FITTINGS

15. DESIGNER FAUCETS
Height (Overall): 7.125” | 18 cm
Height (Spout): 3.625” | 9 cm
Depth (Spout): 4.5” | 11 cm
Width: 1.625” | 4 cm
SANITARY
FITTINGS
Height (Overall): 11.75” | 30 cm
Height (Spout): 8.5” | 21.5 cm
Depth (Spout): 6.375” | 16 cm
Width: 1.625” | 4 cm
TALL
STANDARD

16. RAINFALL SHOWERHEADS
The benefit of adding a
rainshower head is that the full
coverage keeps your whole body
warm/cold at once.
SANITARY
FITTINGS

17. RAINFALL SHOWERHEADS
Shower Head Height
(Standard): 80” | 203 cm
Shower Control Height:
40”-50” | 102-127 cm
Grab Bar Height: 33”-36” |
84-91 cm
Shower Depth (Seat): 54” |
137 cm
Seat Height: 15” | 38 cm
SANITARY
FITTINGS

18. RAINFALL SHOWERHEADS
Height: 2.375” | 6 cm
Width: 10” | 25.4 cm
SANITARY
FITTINGS
Height: 2.875” | 7.3 cm
Width: 10” | 25.4 cm

19. HANDHELD SHOWER
By allowing you to quickly
reach every area of your body
for washing and rinsing with
the detachable shower head,
these shower heads can
shorten your overall shower
time and waste less water.
SANITARY
FITTINGS

20. HANDHELD SHOWER
Height: 8.75” | 22.3 cm
Width: 3.625” | 9.2 cm
SANITARY
FITTINGS

21. FREESTANDING BATHTUBS
By allowing you to quickly
reach every area of your body
for washing and rinsing with
the detachable shower head,
these shower heads can
shorten your overall shower
time and waste less water.
SANITARY
FITTINGS

22. HANDHELD SHOWER
Height: 23.625” | 60 cm
Width: 37.375” | 94.9 cm
Depth: 17.5” | 44.5 cm
Length: 70.875” | 180 cm
SANITARY
FITTINGS

23. CLOSET
SANITARY
FITTINGS

24. CLOSET
To front obstruction : 24”
To front obstruction : 36”
To side wall : 12”
To side wall : 22”
Toilet paper from floor: 30”
Toilet paper reach : 12”
SANITARY
FITTINGS
Toilet Clearances
Dimensions

25. CLOSET
Height:18-22”
Width:14.2”
Depth:21.1”
Height (Seat):15-19”
SANITARY
FITTINGS
Wall-Hung Toilet

26. MATERIALS
VANITY & COUNTERTOP 1v
Height: 35” | 88.9 cm
Depth: 18.25” | 46.4 cm
Length: 35.5” | 90.2 cm
Height (Vanity): 21.5” | 54.6 cm
Height (From Floor): 13.5” | 34.3 cm

27. VENTILATION
A ventilation system ensures fresh air at all times, which
contributes to hygiene and allows hot water vapor to evaporate.
In bathrooms with baths and showers, mechanical ventilation is
required in the form of an extractor fan.
In bathrooms with baths and showers, mechanical ventilation is
required in the form of an extractor fan.
Most modern ventilators stand about 4 foot tall and a couple
feet deep and wide.
SANITARY
FITTINGS

28. INTERIORS

29. LIGHTING
Colour changing lights
were used to emphasise
the space, the colours, the
luxurious aesthetic and
change the mood at the
touch of a button,
transforming the space.
SANITARY
FITTINGS

30. LIGHTING
Energy efficient LED downlighting provides illumination onto the blue
tiles creating sense of drama and space.
The impressive shower and water therapy features are accentuated
with the blue lighting and concealed lighting behind the wall casting a
cool glow into the space.
SANITARY
FITTINGS

31. https://www.dimensions.com/
https://www.indiamart.com/
https://www.ikea.com/in/en/
https://todayshomeowner.com/flooring/guides/radiant-floor-
heating-for-bathroom/
https://lightdimensions.co.uk/portfolio/five-star-hotel-
bathroom-lighting-surrey/
SOURCE
