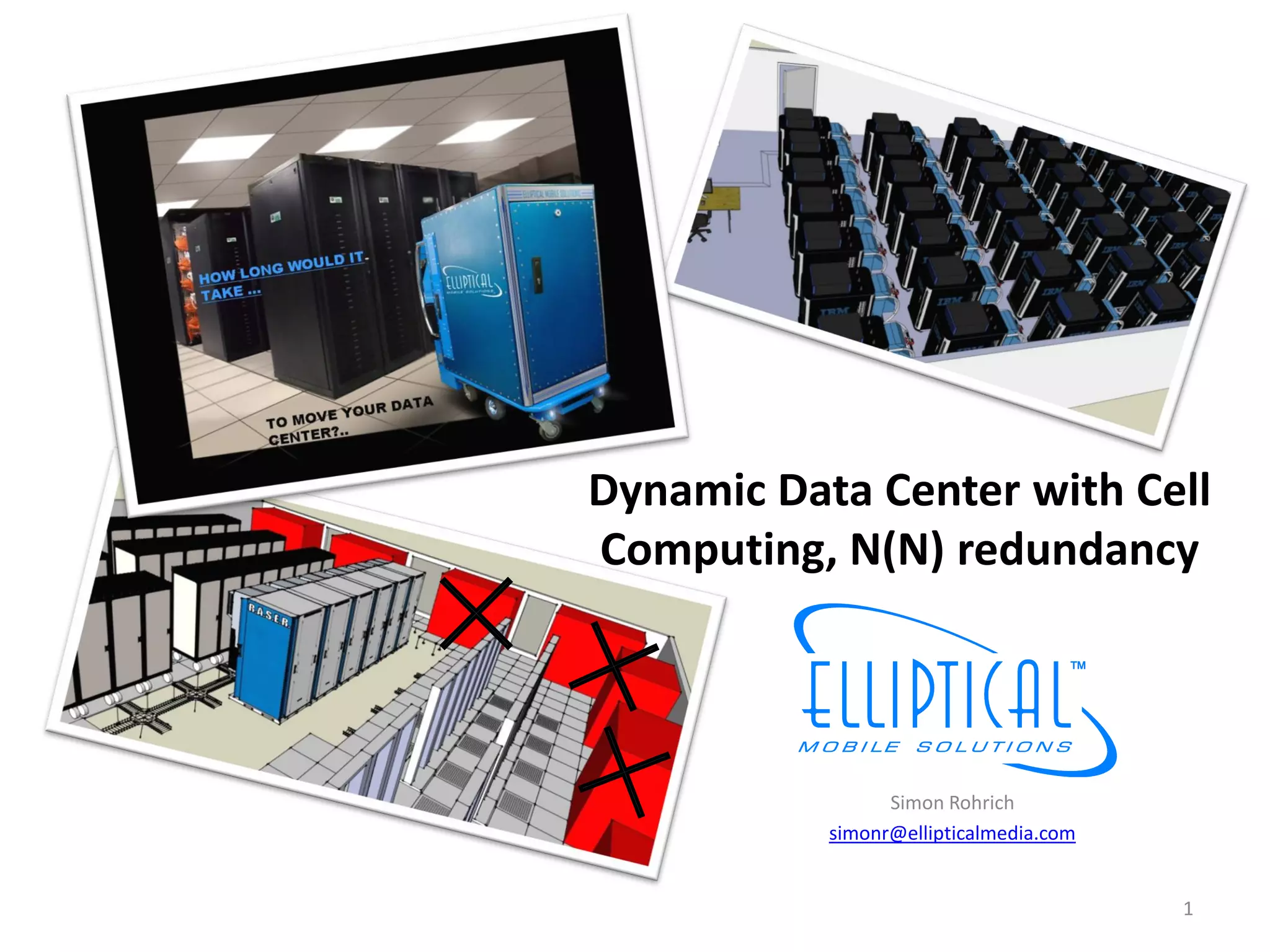

1. Dynamic Data Center with Cell
Computing, N(N) redundancy
Simon Rohrich
simonr@ellipticalmedia.com
1

2. Introduction
Data Center 2.1 uses EMS’ Cell Computing to attain a “RAID like”
configuration of cooperating RASERS in a virtualized environment
• N(N) Redundancy-The points of failure are the number is enclosures
• Energy Efficiency
• 50-80% Reduced CapEx
• 20-50% Energy Savings
• Modular and Scalable
• Rapid Deployment
RASERS’ integrated intelligence will dynamically adjust for
workload placed on them without power management
software or network
• Plug and Play Dynamic Infrastructure
• Vendor Agnostic
• Adjust Automatically During Technology Refresh
2

3. TIER IV Redundancy vs. Data Center 2.1
TIER I-IV Data Centers N, N+1, Cell Computing N(N) redundancy
N+2, N2
Expensive Brick and Mortar Facility Inexpensive Warehouse/Metal Shell
Backup Backup Backup Possible NEDC
HVAC Power Power Power
HVAC Power component
HVAC HVAC HVAC HVAC
HVAC HVAC HVAC HVAC
$12-25,000/KW Compute Capacity $5,000/KW Compute Capacity-
50-80% SAVINGS plus more reliability 3

4. Foundations of Cell Computing: Virtualization, “Services
(SOA)”, Automation, Dynamic HVAC/ Power Control
• “Container” or OS Virtualization
– Virtual Resource Management
– Storage Virtualization
– Server Virtualization
• Services (SOA Service-Oriented Architecture )
– Cloud Computing
– SaaS
– BPM
• Automation
– IBM Tivoli
– Dell PAN
– SAP
• Virtualized Power/HVAC Control
– Appistry EnergySaver
– Cassatt Active Power Management
– Virtual Iron LivePower
– VMware Distributed Power Management
– Platform Computing Dynamic Power Control
4

5. RASERs as Component Of Cell Computing
Tier I Virtualization
• Automatically connect
applications to services
Application Virtualization • Dynamic & intelligent
provisioning
Tier II Virtualization
Infrastructure Virtualization • Dynamic & intelligent
provisioning
• Automatic failover
Tier III Facility Virtualization
Dynamic Power and
HVAC control with or
without network or
third party power
management
5

6. RASER with current Dynamic Data Center Environmental Controls
Networked Virtualized Power and HVAC Control Application
Work Load Monitoring
Policy Manager
Energy Use Host Power RASER Optimized
Scheduler Manager Equipment Profiles
Resource Demand, Capacity, Usage
Resource Pool, Cores, Storage Virtual Machines
Dynamic Infrastructure Power, Airflow, Temperature Set Points
6

7. RASER with EMS’ Plug and Play Integrated Dynamic
Environmental/Power Controls
Sensor feed to VFD RASER Unique High
Vendor Agnostic Real Time HVAC controller Efficiency Static
Power Usage, Temp, Airflow firmware
Environment
VFD Air
Cycle
Zero U HVAC 17
Smart PDU KW
w/ Sensors
VFD
Water
Door
20KW
Sensors: VFD
Hot Side, Cold
Side Temp, Air Water
Flow, Humidity, HVAC
30KW
Power Consumption at PDU Data Drives Proactive and Reactive
Dynamic HVAC/ Power Controls at Rack Level.
Network/Software not required 7

8. Real World Energy Savings = Less OpEX
Power Use Scheduling Increase Temp Set Points
Save 26% Energy Cost
1° set
Equipment Profiles point
increase
Save 20% HVAC Energy Cost
•Temp Set Points
•Airflow
•Workload Efficiencies
4% energy
savings per
degree increase
8

9. RASER integrated intelligence dynamically adjusting for
core/storage demand with or without network/software
Compute
Capacity
Inexpensive Warehouse/Metal Shell
Energy
Virtual
Equipment
Policy Driven Workload Profile Driven
10% Manager
50%
100
%
9

10. Conclusion
Data Center 2.1 with Cell Computing
and self adjusting RASERS represent
the Future of data center construction.
•Less CapEx
•Less Opex
•More Reliable
•High Density
•Plug and Play dynamic power/HVAC
management
•Scalable
•Modular
•Rapid Deployment
10
