Encrypting File System (EFS) and BitLocker are encryption methods included in Windows operating systems that encrypt data at rest on self-encrypting drives (SEDs) using AES. EFS encrypts individual files while BitLocker encrypts entire drives. Both methods encrypt data with keys that are never stored in page files for improved security. SEDs offer hardware-based encryption that is transparent to users and allows drives to be securely erased by generating new encryption keys. Array-based encryption uses appliances integrated with storage arrays to provide encryption without performance impacts.

1. Encryption @ REST
By: Steven Aiello

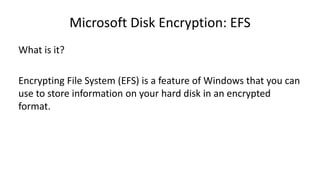

2. Microsoft Disk Encryption: EFS
What is it?
Encrypting File System (EFS) is a feature of Windows that you can
use to store information on your hard disk in an encrypted
format.

3. Microsoft Disk Encryption: EFS
How does it work?
• Uses AES to encrypt data at rest
• Encryption keys are never stored in the page file (not true with
TrueCrypt)
“Kernel memory isn’t paged (generally), and it can be forced never to page. This mitigated the
possibility of a stolen laptop having the EFS encryption keys stored in the page file”.
http://msdn.microsoft.com/en-us/library/windows/hardware/ff541920(v=vs.85).aspx

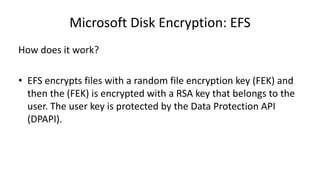

4. Microsoft Disk Encryption: EFS
How does it work?
• EFS encrypts files with a random file encryption key (FEK) and
then the (FEK) is encrypted with a RSA key that belongs to the
user. The user key is protected by the Data Protection API
(DPAPI).

5. Microsoft Disk Encryption: EFS
Recovery options?
• The system CAN be setup with a recovery key, this CAN be the
local admin; however, this can (and most likely should be)
changed.
• Backups are a life saver:
http://windows.microsoft.com/en-us/windows-vista/back-up-encrypting-file-system-efs-certificate

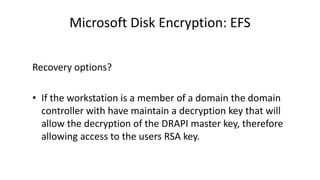

6. Microsoft Disk Encryption: EFS
Recovery options?
• If the workstation is a member of a domain the domain
controller with have maintain a decryption key that will
allow the decryption of the DRAPI master key, therefore
allowing access to the users RSA key.

7. Microsoft Disk Encryption: EFS
How do you enable it?
• Windows 7 / Windows 8 Professional, Ultimate, Enterprise

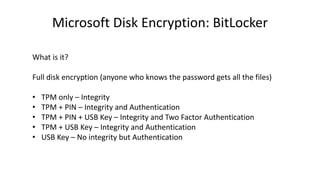

8. Microsoft Disk Encryption: BitLocker
What is it?
Full disk encryption (anyone who knows the password gets all the files)
• TPM only – Integrity
• TPM + PIN – Integrity and Authentication
• TPM + PIN + USB Key – Integrity and Two Factor Authentication
• TPM + USB Key – Integrity and Authentication
• USB Key – No integrity but Authentication

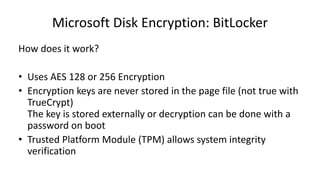

9. Microsoft Disk Encryption: BitLocker
How does it work?
• Uses AES 128 or 256 Encryption
• Encryption keys are never stored in the page file (not true with
TrueCrypt)
The key is stored externally or decryption can be done with a
password on boot
• Trusted Platform Module (TPM) allows system integrity
verification

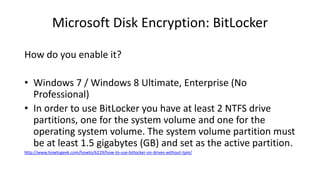

10. Microsoft Disk Encryption: BitLocker
How do you enable it?
• Windows 7 / Windows 8 Ultimate, Enterprise (No
Professional)
• In order to use BitLocker you have at least 2 NTFS drive
partitions, one for the system volume and one for the
operating system volume. The system volume partition must
be at least 1.5 gigabytes (GB) and set as the active partition.
http://www.howtogeek.com/howto/6229/how-to-use-bitlocker-on-drives-without-tpm/

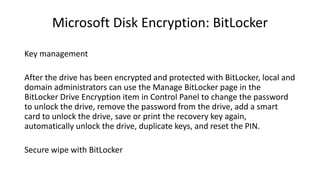

11. Microsoft Disk Encryption: BitLocker
Key management
After the drive has been encrypted and protected with BitLocker, local and
domain administrators can use the Manage BitLocker page in the
BitLocker Drive Encryption item in Control Panel to change the password
to unlock the drive, remove the password from the drive, add a smart
card to unlock the drive, save or print the recovery key again,
automatically unlock the drive, duplicate keys, and reset the PIN.
Secure wipe with BitLocker

12. Hard Disk Encryption: SEDs
What is it?
• SEDs are hard drives that have encryption hardware built in
• Completely transparent to the user
• Comes with software to generate a new key
• Admins can preform a “secure erase” by simply generating a
new key

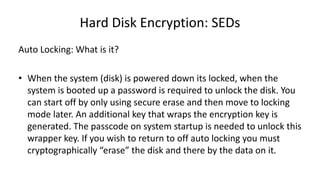

13. Hard Disk Encryption: SEDs
Auto Locking: What is it?
• When the system (disk) is powered down its locked, when the
system is booted up a password is required to unlock the disk. You
can start off by only using secure erase and then move to locking
mode later. An additional key that wraps the encryption key is
generated. The passcode on system startup is needed to unlock this
wrapper key. If you wish to return to off auto locking you must
cryptographically “erase” the disk and there by the data on it.

14. Hard Disk Encryption: SEDs
Pros: What are they?
• You can use self-encrypting drives in lower cost arrays like
Equallogic:
– PS4100
– PS6100
– PS6500

15. Hard Disk Encryption: SEDs
Cons: What are they?
• Limited drive types
• Need a key management server (IBM Tivoli Key Lifecycle
Manager)

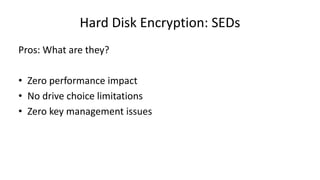

16. Hard Disk Encryption: SEDs
Pros: What are they?
• Zero performance impact
• No drive choice limitations
• Zero key management issues

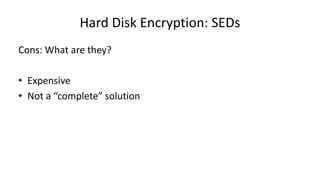

17. Hard Disk Encryption: SEDs
Cons: What are they?
• Expensive
• Not a “complete” solution

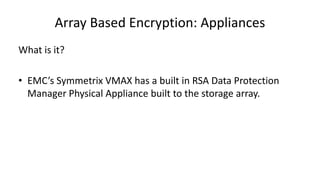

18. Array Based Encryption: Appliances
What is it?
• EMC’s Symmetrix VMAX has a built in RSA Data Protection
Manager Physical Appliance built to the storage array.

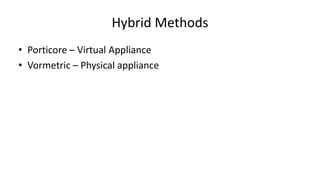

19. Hybrid Methods
• Porticore – Virtual Appliance
• Vormetric – Physical appliance

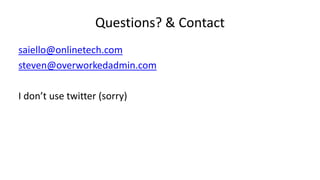

20. Questions? & Contact
saiello@onlinetech.com
steven@overworkedadmin.com
I don’t use twitter (sorry)
