AN ICE-COLD BOOT TO BREAK THE BITLOCKER Olle Segerdahl & Pasi Saarinen
WHOWEARE § Olle Segerdahl § Principal Security Consultant § Background in verifying security of cryptographic products § Pasi Saarinen § Technical Security Consultant § Worked with 5G security & formal protocol verification methods

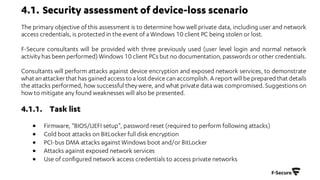

THEASSIGNMENT

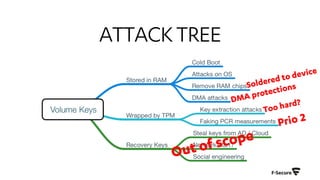

ATTACKTREE Out of scope Too hard? Soldered to device DMA protections Prio 2

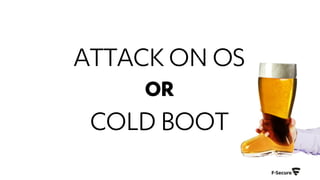

ATTACK ON OS OR COLD BOOT

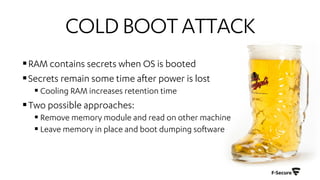

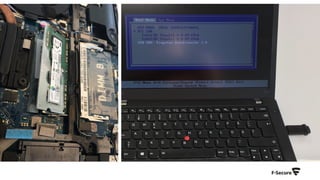

COLDBOOTATTACK §RAM contains secrets when OS is booted §Secrets remain some time after power is lost § Cooling RAM increases retention time §Two possible approaches: § Remove memory module and read on other machine § Leave memory in place and boot dumping software

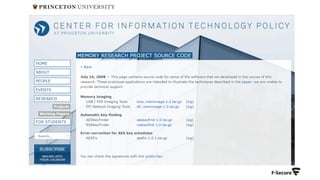

TIMOSWORK
MEMORY WIPED!

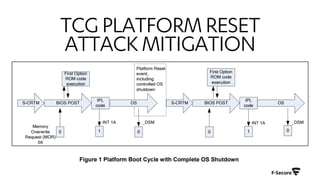

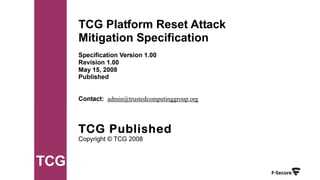

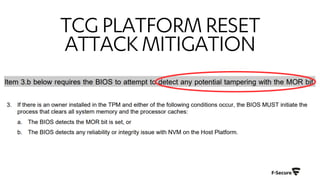

TCGPLATFORMRESET ATTACKMITIGATION

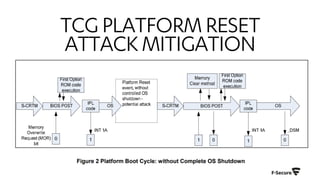

TCGPLATFORMRESET ATTACKMITIGATION
TCGPLATFORMRESET ATTACKMITIGATION
WESHOULDTRYTHAT...

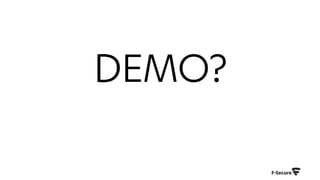

DEMO?

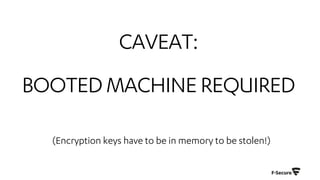

CAVEAT: BOOTEDMACHINEREQUIRED (Encryption keys have to be in memory to be stolen!)

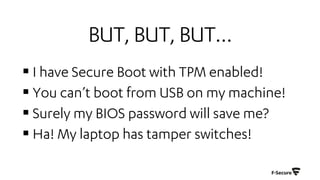

BUT,BUT,BUT… § I have Secure Boot with TPM enabled! § You can’t boot from USB on my machine! § Surely my BIOS password will save me? § Ha! My laptop has tamper switches!

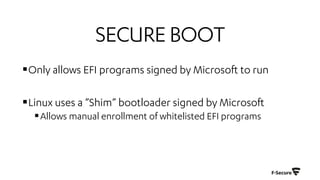

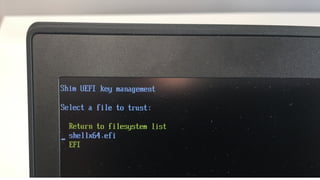

SECUREBOOT §Only allows EFI programs signed by Microsoft to run §Linux uses a ”Shim” bootloader signed by Microsoft §Allows manual enrollment of whitelisted EFI programs

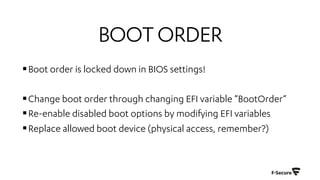

BOOTORDER §Boot order is locked down in BIOS settings! §Change boot order through changing EFI variable ”BootOrder” §Re-enable disabled boot options by modifying EFI variables §Replace allowed boot device (physical access, remember?)

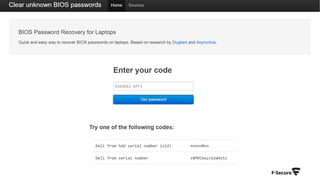

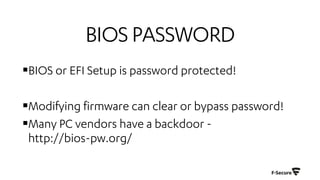

BIOSPASSWORD §BIOS or EFI Setup is password protected! §Modifying firmware can clear or bypass password! §Many PC vendors have a backdoor - http://bios-pw.org/

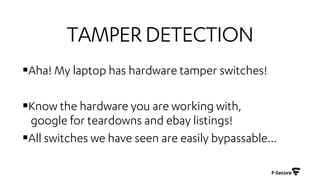

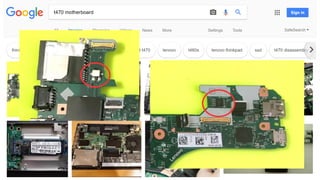

TAMPERDETECTION §Aha! My laptop has hardware tamper switches! §Know the hardware you are working with, google for teardowns and ebay listings! §All switches we have seen are easily bypassable…

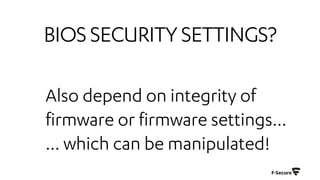

BIOSSECURITYSETTINGS? Also depend on integrity of firmware or firmware settings… … which can be manipulated!

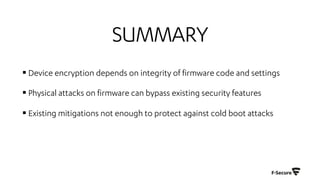

SUMMARY § Device encryption depends on integrity of firmware code and settings § Physical attacks on firmware can bypass existing security features § Existing mitigations not enough to protect against cold boot attacks
Today: Sleep mode is vulnerable mode!

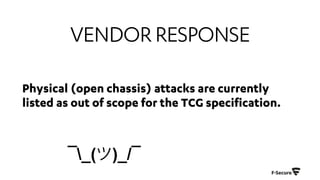

VENDORRESPONSE Physical (open chassis) attacks are currently listed as out of scope for the TCG specification.

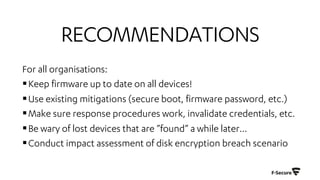

RECOMMENDATIONS For all organisations: §Keep firmware up to date on all devices! §Use existing mitigations (secure boot, firmware password, etc.) §Make sure response procedures work, invalidate credentials, etc. §Be wary of lost devices that are ”found” a while later… §Conduct impact assessment of disk encryption breach scenario

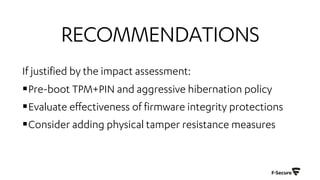

RECOMMENDATIONS If justified by the impact assessment: §Pre-boot TPM+PIN and aggressive hibernation policy §Evaluate effectiveness of firmware integrity protections §Consider adding physical tamper resistance measures
