- 1. Custom Elements with PolymerWeb Components John Riviello @JohnRiv Distinguished Engineer, Comcast Interactive Media Elements: The Web Conference at Penn State – June 14, 2016
- 2. Polymer & Web Components ”250/365- Bricks" by Kenny Louie is licensed under CC BY 2.0 Why? What? How?
- 3. Communicating & shipping webdesign & functionality updates across a large organization is HARD WORK

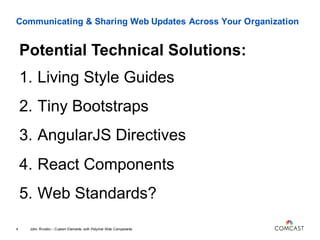

- 4. Communicating & SharingWeb Updates Across Your Organization 1. Living Style Guides 2. Tiny Bootstraps 3. AngularJS Directives 4. React Components 5. Web Standards? John Riviello – Custom Elements with Polymer Web Components4 Potential Technical Solutions:
- 5.
- 6.
- 7. What are WebComponents? 4 Specs John Riviello – Custom Elements with Polymer Web Components7

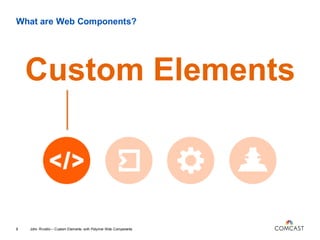

- 8. What are WebComponents? Custom Elements John Riviello – Custom Elements with Polymer Web Components8
- 9. What are WebComponents? Custom Elements John Riviello – Custom Elements with Polymer Web Components9 •Provides a way for authors to build their own fully-featured DOM elements. - <xc-tab>Your Wifi</xc-tab> •Can extend existing HTML elements - <button is="xc-button">Edit</button>

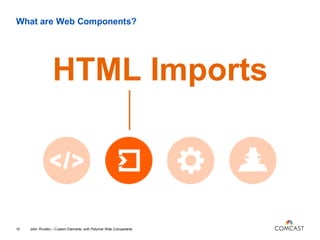

- 10. What are WebComponents? HTML Imports John Riviello – Custom Elements with Polymer Web Components10

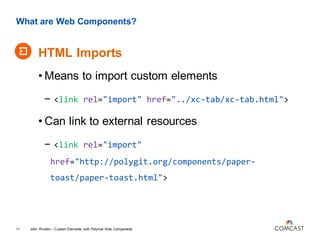

- 11. What are WebComponents? HTML Imports John Riviello – Custom Elements with Polymer Web Components11 • Means to import custom elements - <link rel="import" href="../xc-tab/xc-tab.html"> • Can link to external resources - <link rel="import" href="http://polygit.org/components/paper- toast/paper-toast.html">

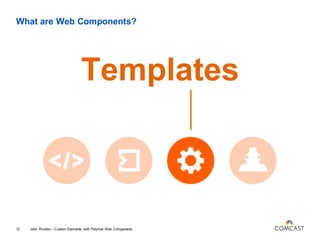

- 12. What are WebComponents? Templates John Riviello – Custom Elements with Polymer Web Components12

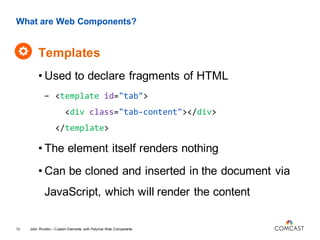

- 13. What are WebComponents? Templates John Riviello – Custom Elements with Polymer Web Components13 • Used to declare fragments of HTML - <template id="tab"> <div class="tab-content"></div> </template> • The element itself renders nothing • Can be cloned and inserted in the document via JavaScript, which will render the content

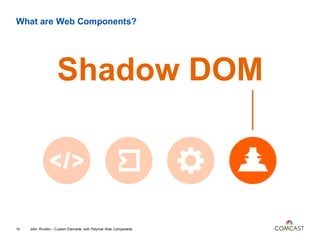

- 14. What are WebComponents? Shadow DOM John Riviello – Custom Elements with Polymer Web Components14

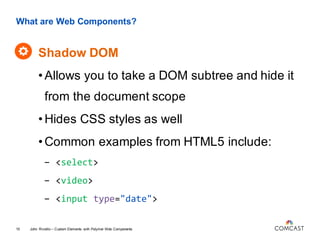

- 15. What are WebComponents? Shadow DOM John Riviello – Custom Elements with Polymer Web Components15 •Allows you to take a DOM subtree and hide it from the document scope •Hides CSS styles as well •Common examples from HTML5 include: - <select> - <video> - <input type="date">

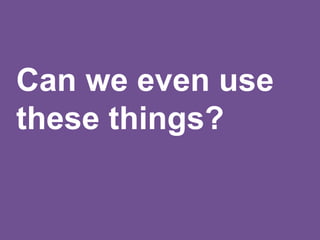

- 16. Can we evenuse these things?

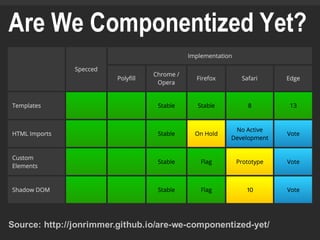

- 17. Source: http://jonrimmer.github.io/are-we-componentized-yet/ Are WeComponentized Yet?
- 18. There’s hope. What’s betterthan hope?
- 19. POLYFILLS! *as long asthere is still hope*

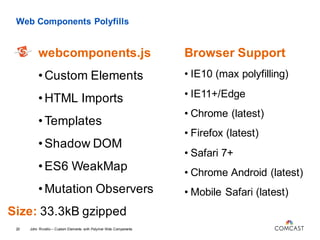

- 20. Web Components Polyfills webcomponents.js JohnRiviello – Custom Elements with Polymer Web Components20 •Custom Elements •HTML Imports •Templates •Shadow DOM •ES6 WeakMap •Mutation Observers Browser Support • IE10 (max polyfilling) • IE11+/Edge • Chrome (latest) • Firefox (latest) • Safari 7+ • Chrome Android (latest) • Mobile Safari (latest) Size: 33.3kB gzipped

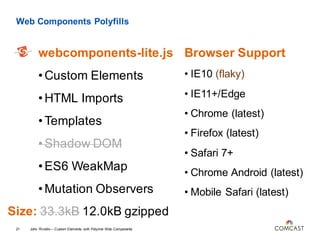

- 21. Web Components Polyfills webcomponents-lite.js JohnRiviello – Custom Elements with Polymer Web Components21 •Custom Elements •HTML Imports •Templates •Shadow DOM •ES6 WeakMap •Mutation Observers Browser Support • IE10 (flaky) • IE11+/Edge • Chrome (latest) • Firefox (latest) • Safari 7+ • Chrome Android (latest) • Mobile Safari (latest) Size: 33.3kB 12.0kB gzipped
- 22.

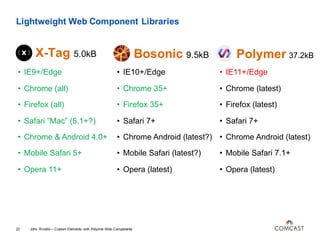

- 23. Lightweight Web ComponentLibraries X-Tag 5.0kB John Riviello – Custom Elements with Polymer Web Components23 • IE9+/Edge • Chrome (all) • Firefox (all) • Safari ”Mac” (5.1+?) • Chrome & Android 4.0+ • Mobile Safari 5+ • Opera 11+ • IE10+/Edge • Chrome 35+ • Firefox 35+ • Safari 7+ • Chrome Android (latest?) • Mobile Safari (latest?) • Opera (latest) • IE11+/Edge • Chrome (latest) • Firefox (latest) • Safari 7+ • Chrome Android (latest) • Mobile Safari 7.1+ • Opera (latest) Bosonic 9.5kB Polymer 37.2kB
- 24.

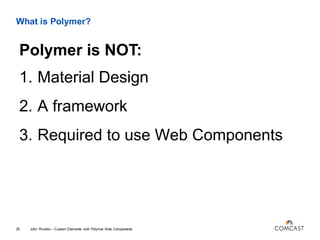

- 25. What is Polymer? 1.Material Design 2. A framework 3. Required to use Web Components John Riviello – Custom Elements with Polymer Web Components25 Polymer is NOT:

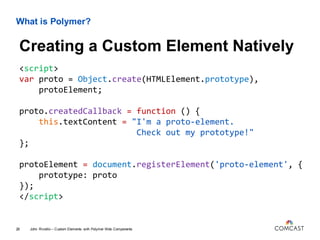

- 26. What is Polymer? <script> varproto = Object.create(HTMLElement.prototype), protoElement; proto.createdCallback = function () { this.textContent = "I'm a proto-element. Check out my prototype!" }; protoElement = document.registerElement('proto-element', { prototype: proto }); </script> John Riviello – Custom Elements with Polymer Web Components26 Creating a Custom Element Natively
- 27. What is Polymer? <linkrel="import" href="bower_components/polymer/polymer.html"> <script> Polymer({ is: "proto-element", created: function() { this.textContent = "I'm a proto-element. Check out my prototype!" } }); </script> John Riviello – Custom Elements with Polymer Web Components27 Creating a Polymer Custom Element
- 28. What is Polymer? <!DOCTYPEhtml> <html> <head> <script src="webcomponents-lite.js"></script> <link rel="import" href="proto-element.html"> </head> <body> <proto-element></proto-element> </body> </html> RESULT: I'm a proto-element. Check out my prototype! John Riviello – Custom Elements with Polymer Web Components28 Using Our Custom Element

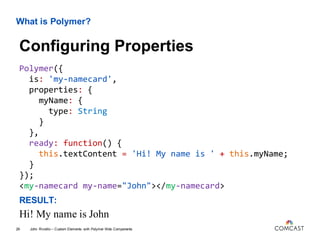

- 29. What is Polymer? Polymer({ is:'my-namecard', properties: { myName: { type: String } }, ready: function() { this.textContent = 'Hi! My name is ' + this.myName; } }); <my-namecard my-name="John"></my-namecard> RESULT: Hi! My name is John John Riviello – Custom Elements with Polymer Web Components29 Configuring Properties

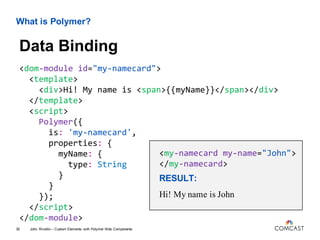

- 30. What is Polymer? <dom-moduleid="my-namecard"> <template> <div>Hi! My name is <span>{{myName}}</span></div> </template> <script> Polymer({ is: 'my-namecard', properties: { myName: { type: String } } }); </script> </dom-module> John Riviello – Custom Elements with Polymer Web Components30 Data Binding <my-namecard my-name="John"> </my-namecard> RESULT: Hi! My name is John

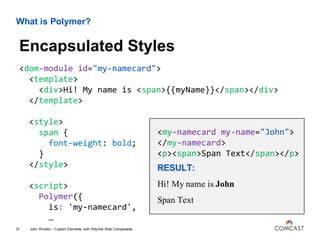

- 31. What is Polymer? <dom-moduleid="my-namecard"> <template> <div>Hi! My name is <span>{{myName}}</span></div> </template> <style> span { font-weight: bold; } </style> <script> Polymer({ is: 'my-namecard', … John Riviello – Custom Elements with Polymer Web Components31 Encapsulated Styles <my-namecard my-name="John"> </my-namecard> <p><span>Span Text</span></p> RESULT: Hi! My name is John Span Text
- 32. What is Polymer? xc-styles/xc-styles.html: <styleis="custom-style"> :root { --si-blue-sky: #2B9CD8; } </style> xc-custom-element/xc-custom-element.html: <link rel="import" href="../xc-styles/xc-styles.html"> <dom-module id="xc-custom-element"> <template> <style> :host { border: 1px solid var(--si-blue-sky); } </style> </template> </dom-module> John Riviello – Custom Elements with Polymer Web Components32 CSS Variables for Sharing Properties

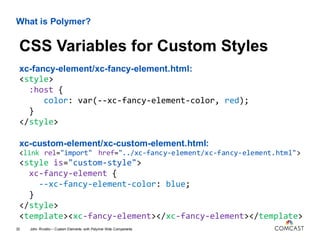

- 33. What is Polymer? xc-fancy-element/xc-fancy-element.html: <style> :host{ color: var(--xc-fancy-element-color, red); } </style> xc-custom-element/xc-custom-element.html: <link rel="import" href="../xc-fancy-element/xc-fancy-element.html"> <style is="custom-style"> xc-fancy-element { --xc-fancy-element-color: blue; } </style> <template><xc-fancy-element></xc-fancy-element></template> John Riviello – Custom Elements with Polymer Web Components33 CSS Variables for Custom Styles

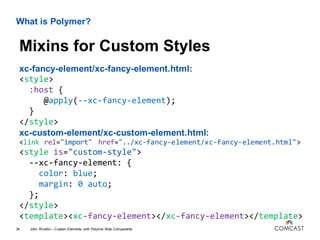

- 34. What is Polymer? xc-fancy-element/xc-fancy-element.html: <style> :host{ @apply(--xc-fancy-element); } </style> xc-custom-element/xc-custom-element.html: <link rel="import" href="../xc-fancy-element/xc-fancy-element.html"> <style is="custom-style"> --xc-fancy-element: { color: blue; margin: 0 auto; }; </style> <template><xc-fancy-element></xc-fancy-element></template> John Riviello – Custom Elements with Polymer Web Components34 Mixins for Custom Styles

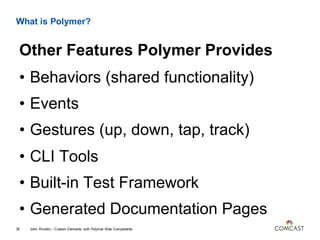

- 35. What is Polymer? •Behaviors (shared functionality) • Events • Gestures (up, down, tap, track) • CLI Tools • Built-in Test Framework • Generated Documentation Pages John Riviello – Custom Elements with Polymer Web Components35 Other Features Polymer Provides
- 36.

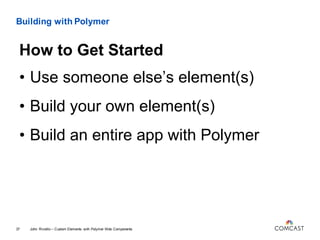

- 37. Building with Polymer •Use someone else’s element(s) • Build your own element(s) • Build an entire app with Polymer John Riviello – Custom Elements with Polymer Web Components37 How to Get Started
- 38. Using Open Source PolymerElements

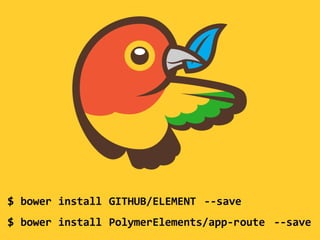

- 39. $ bower installGITHUB/ELEMENT --save $ bower install PolymerElements/app-route --save
- 40.
- 41.

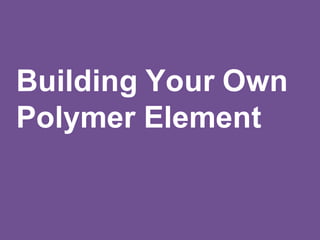

- 42. Building Your Own PolymerElement

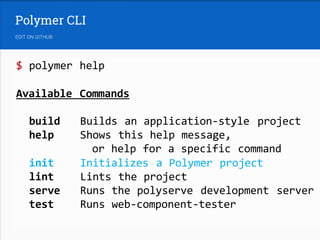

- 44. $ polymer help AvailableCommands build Builds an application-style project help Shows this help message, or help for a specific command init Initializes a Polymer project lint Lints the project serve Runs the polyserve development server test Runs web-component-tester

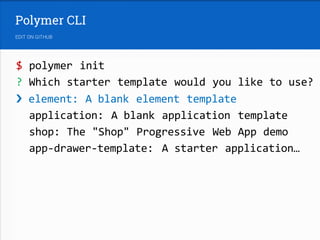

- 45. $ polymer init ?Which starter template would you like to use? › element: A blank element template application: A blank application template shop: The "Shop" Progressive Web App demo app-drawer-template: A starter application…
- 49. Building with Polymer •A component should do 1 thing • Break up into smaller components • Component doesn’t have to be visual • Syndicating outside of primary use John Riviello – Custom Elements with Polymer Web Components49 Things to Consider
- 50.

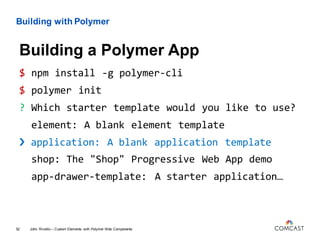

- 52. Building with Polymer $npm install -g polymer-cli $ polymer init ? Which starter template would you like to use? element: A blank element template › application: A blank application template shop: The "Shop" Progressive Web App demo app-drawer-template: A starter application… John Riviello – Custom Elements with Polymer Web Components52 Building a Polymer App
- 53. Building with Polymer ?Application name cli-demo ? Main element name cli-demo-app ? Brief description of the application App Demo John Riviello – Custom Elements with Polymer Web Components53 Building a Polymer App

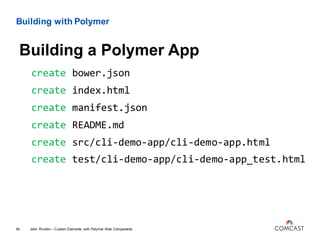

- 54. Building with Polymer createbower.json create index.html create manifest.json create README.md create src/cli-demo-app/cli-demo-app.html create test/cli-demo-app/cli-demo-app_test.html John Riviello – Custom Elements with Polymer Web Components54 Building a Polymer App

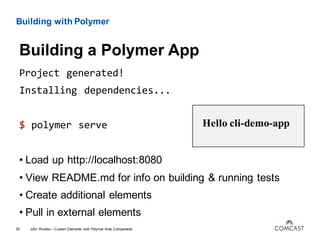

- 55. Building with Polymer Projectgenerated! Installing dependencies... $ polymer serve • Load up http://localhost:8080 John Riviello – Custom Elements with Polymer Web Components55 Building a Polymer App Hello cli-demo-app • View README.md for info on building & running tests • Create additional elements • Pull in external elements
- 56.
- 57. Deploying with Polymer •HTML Import external components • Bundle internal components - vulcanize (gulp, grunt or standalone) - Polymer CLI: $ polymer build John Riviello – Custom Elements with Polymer Web Components57 External vs. Internal
- 58. Custom Elements withPolymer Web Components John Riviello – Custom Elements with Polymer Web Components58 Learning More • polymer-project.org • webcomponents.org • Polycasts with Rob Dodson on YouTube • 2016 Google I/O Polymer videos on YouTube • Polymer Summit videos on YouTube • Polymer Slack: polymer-slack.herokuapp.com For Further Info & Feedback: Twitter: @JohnRiv
