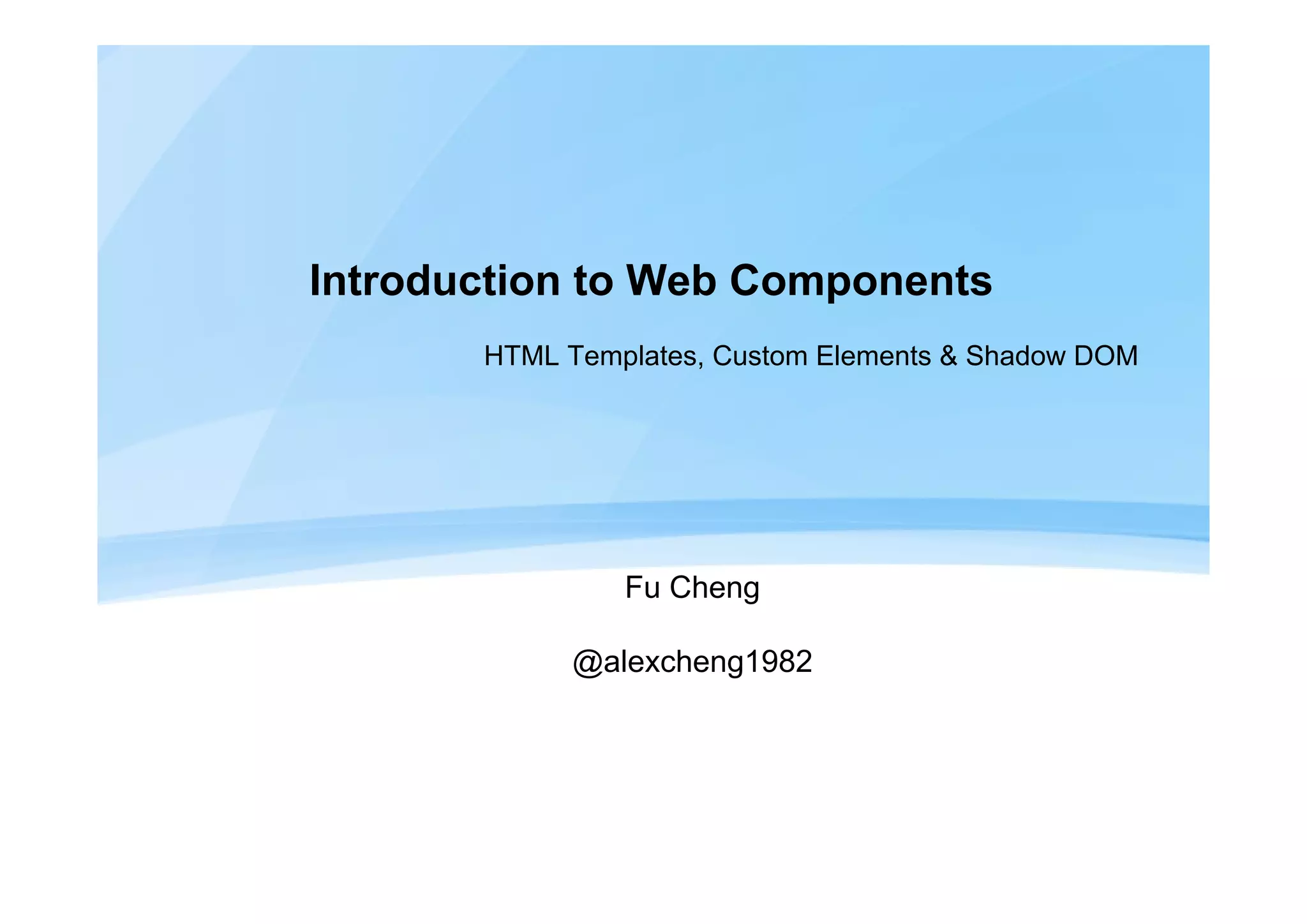

1. Introduction to Web Components
HTML Templates, Custom Elements & Shadow DOM
Fu Cheng
@alexcheng1982

2. 2

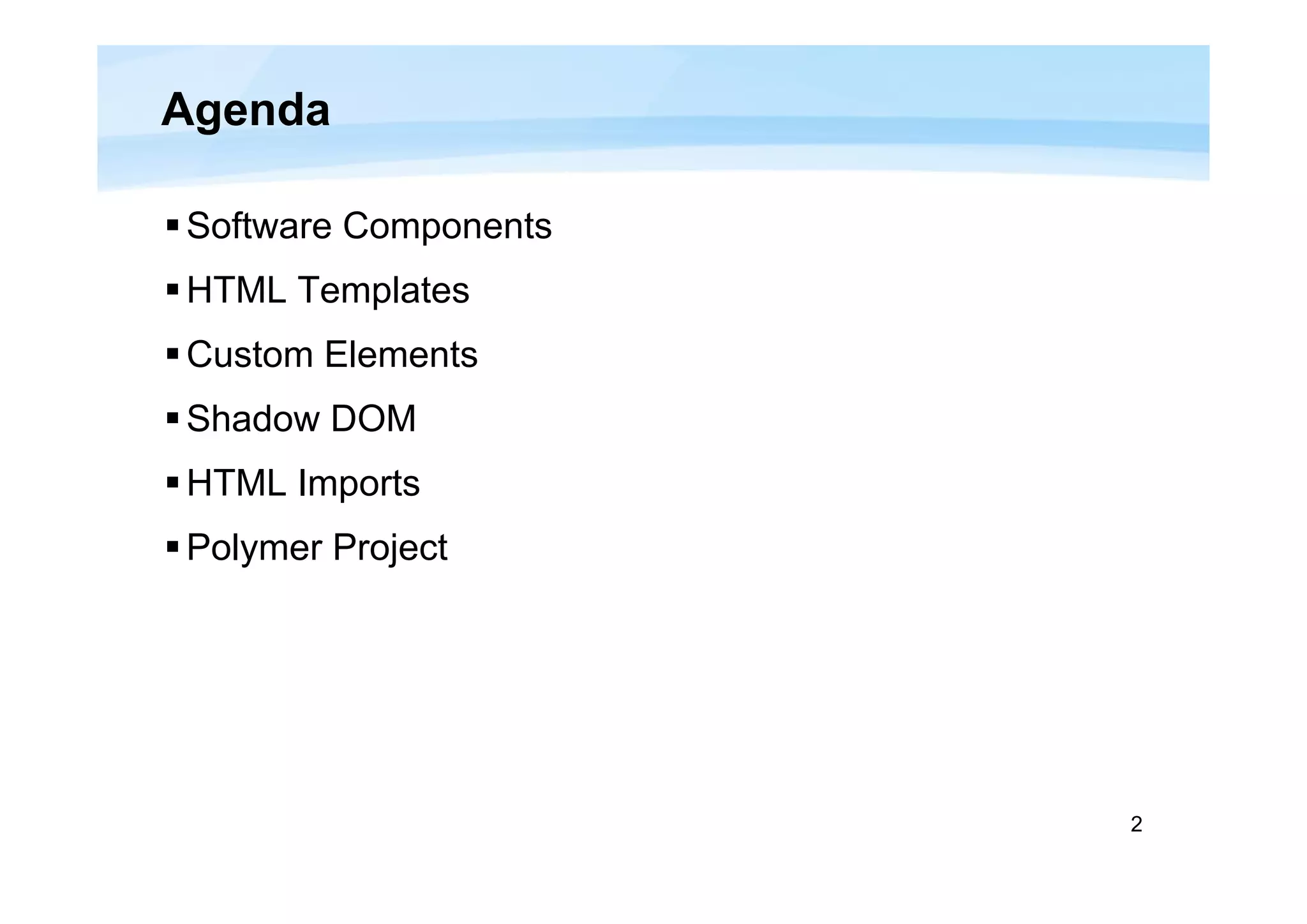

Agenda
Software Components
HTML Templates
Custom Elements
Shadow DOM
HTML Imports
Polymer Project

3. 3

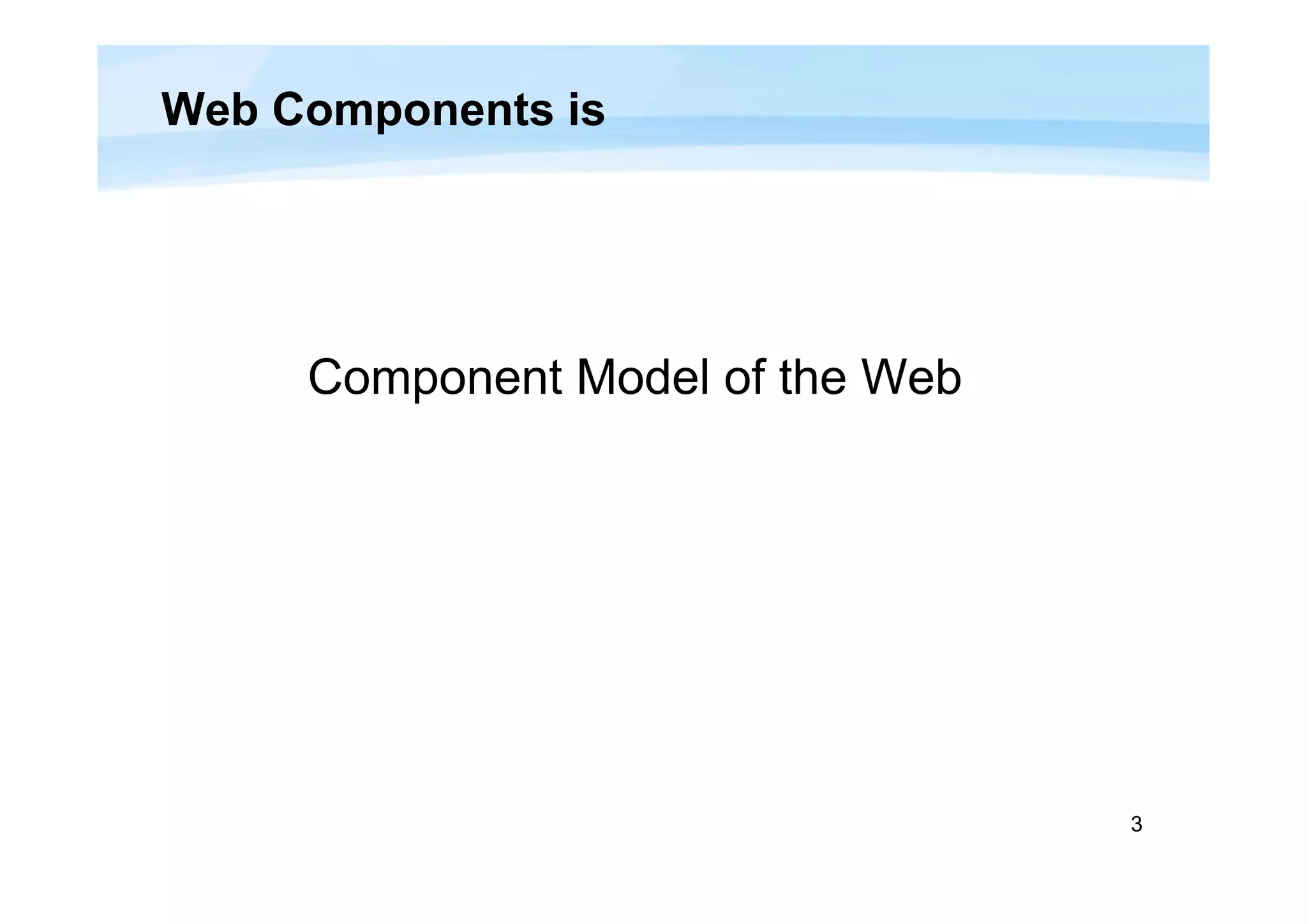

Web Components is
Component Model of the Web

4. 4
Components
http://www.flickr.com/photos/bdesham/2432400623

5. 5

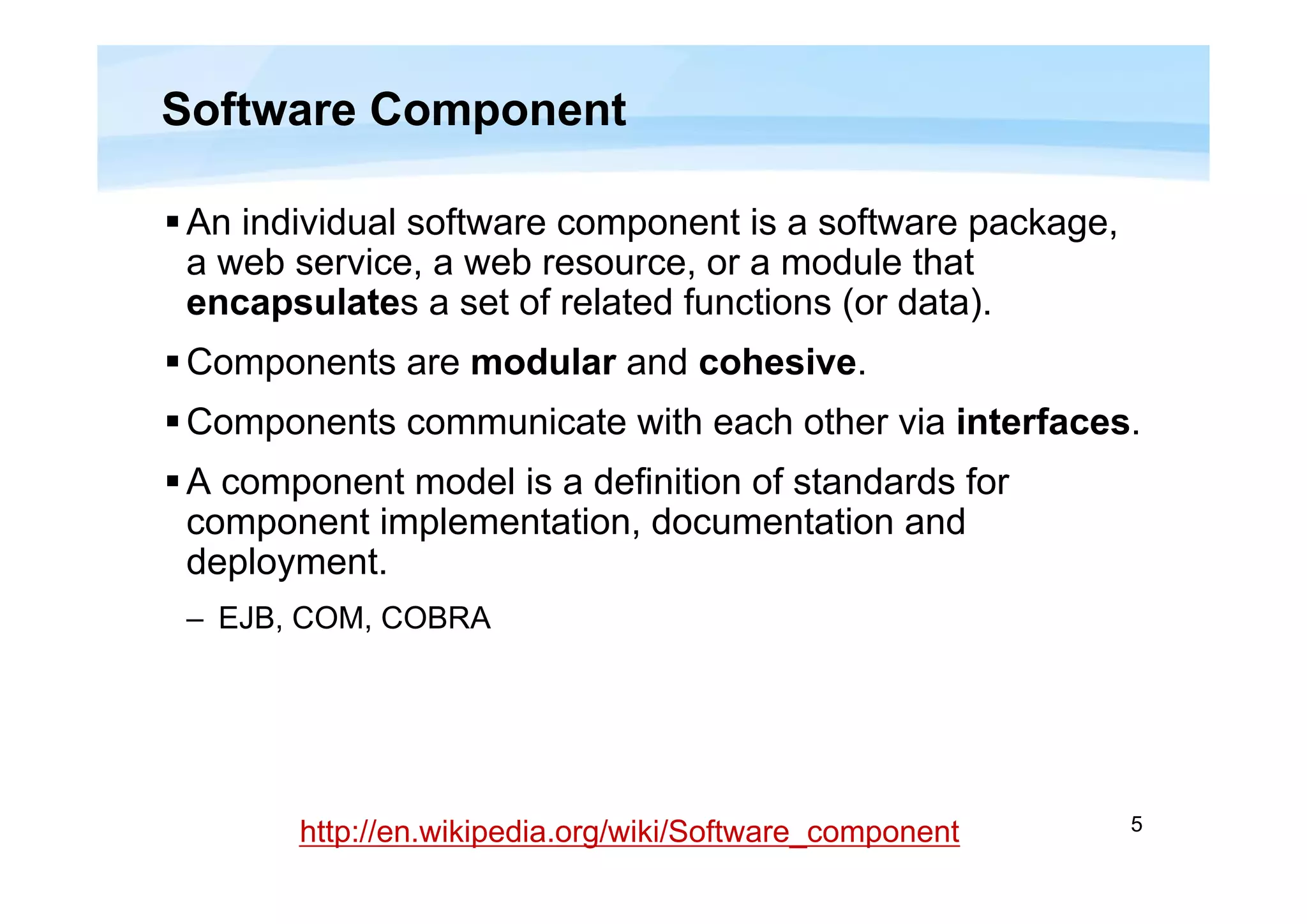

Software Component
An individual software component is a software package,
a web service, a web resource, or a module that
encapsulates a set of related functions (or data).
Components are modular and cohesive.
Components communicate with each other via interfaces.
A component model is a definition of standards for
component implementation, documentation and
deployment.
– EJB, COM, COBRA
http://en.wikipedia.org/wiki/Software_component

6. 6
Software Component is for
 Reuse
 Sharing
http://www.flickr.com/photos/wheatfields/118700012/
Don't Reinvent the Wheels

7. 7

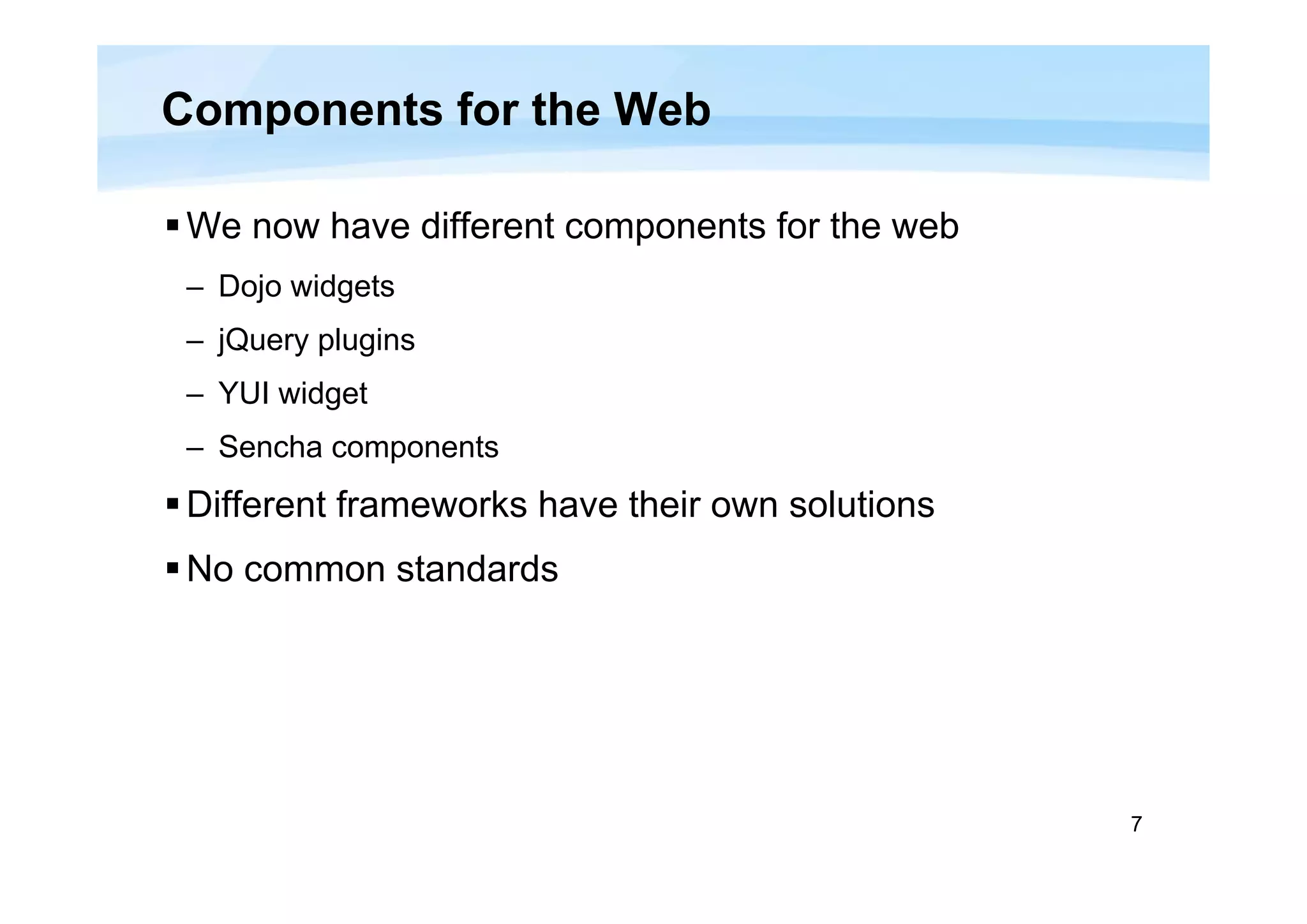

Components for the Web
We now have different components for the web
– Dojo widgets
– jQuery plugins
– YUI widget
– Sencha components
Different frameworks have their own solutions
No common standards

8. 8
What's the Problem?
Bad encapsulation
http://www.flickr.com/photos/27898848@N06/3174611184

9. 9

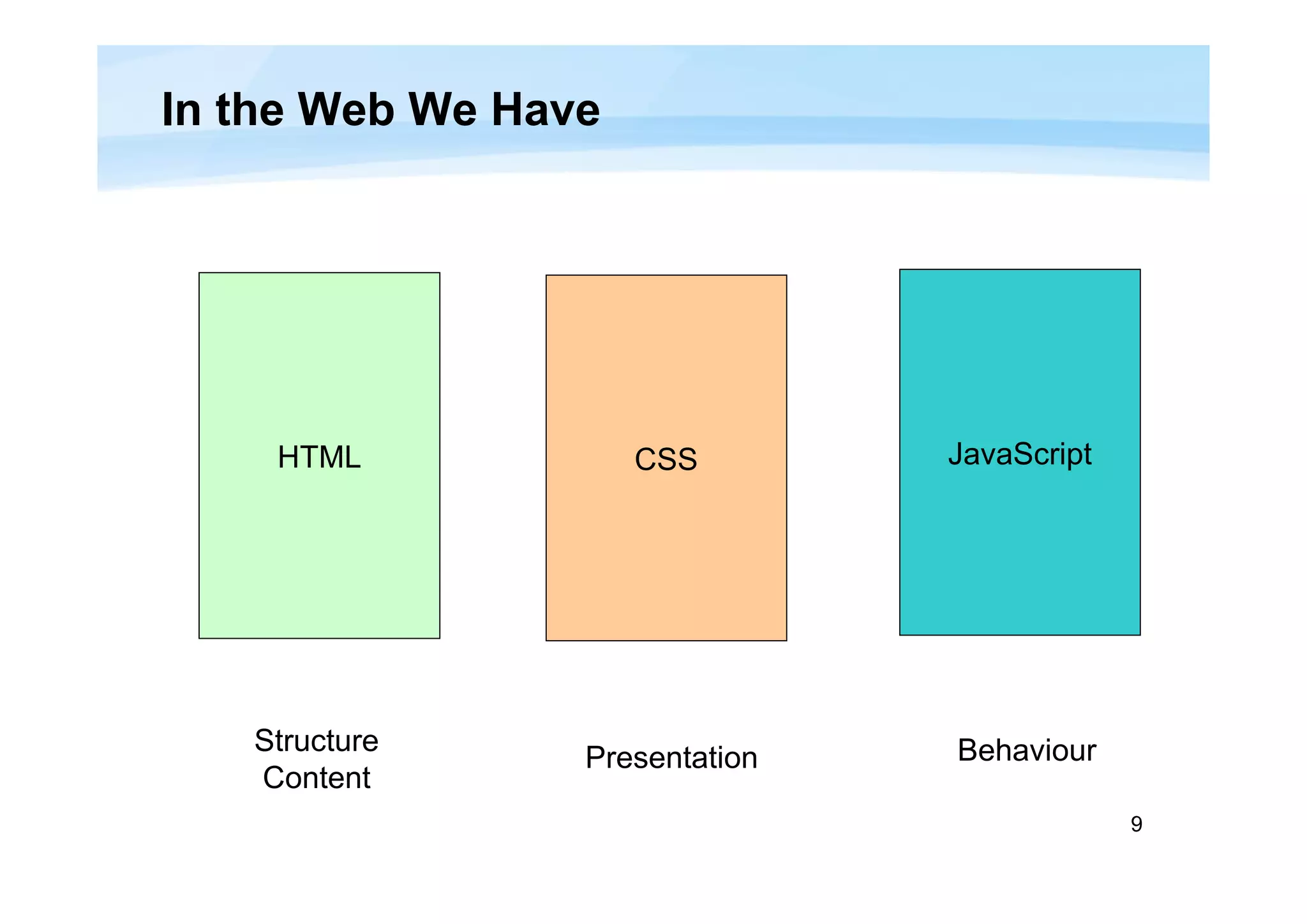

In the Web We Have
HTML CSS JavaScript
Structure
Content
Presentation Behaviour

10. 10

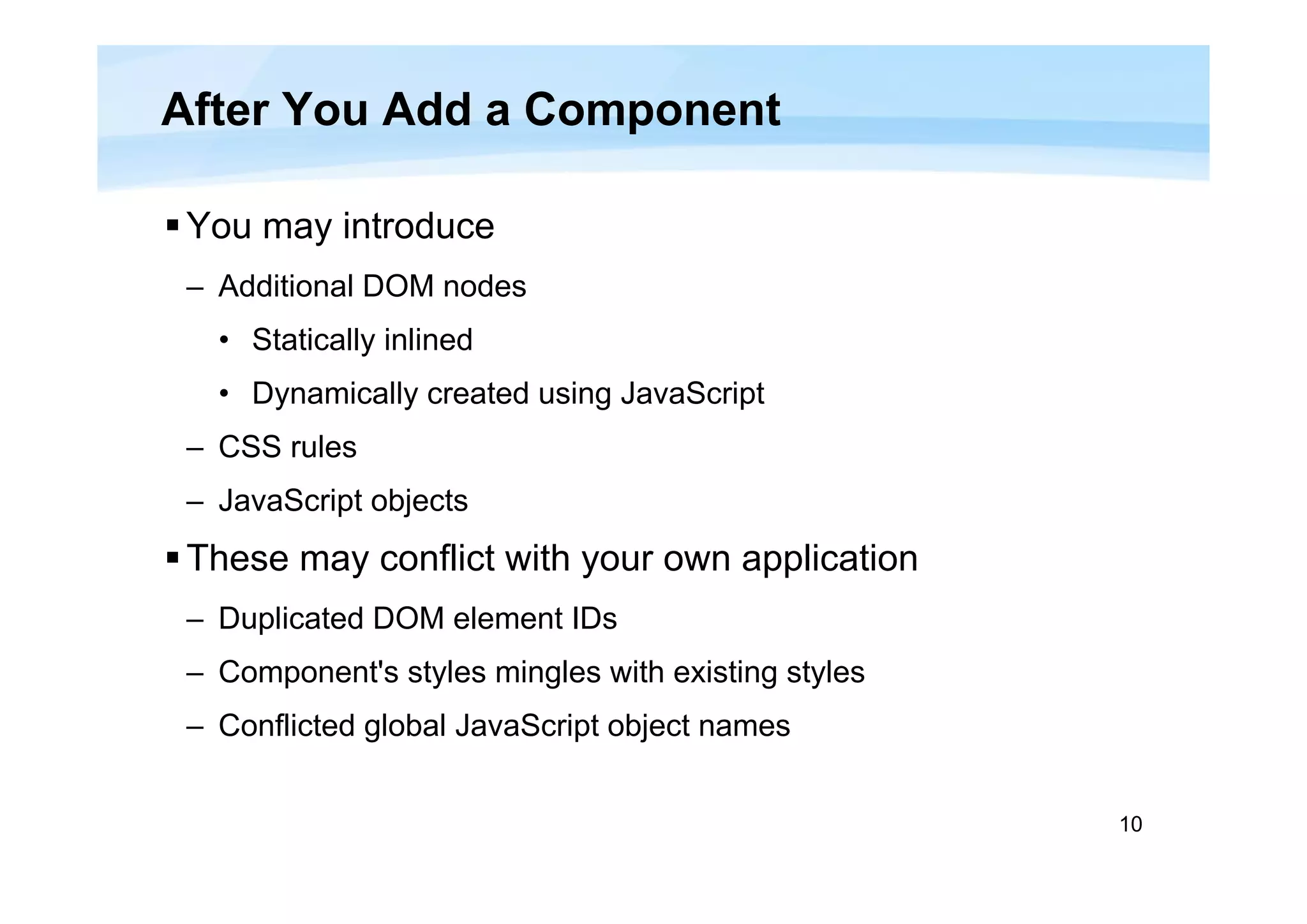

After You Add a Component
You may introduce
– Additional DOM nodes
• Statically inlined
• Dynamically created using JavaScript
– CSS rules
– JavaScript objects
These may conflict with your own application
– Duplicated DOM element IDs
– Component's styles mingles with existing styles
– Conflicted global JavaScript object names

11. 11

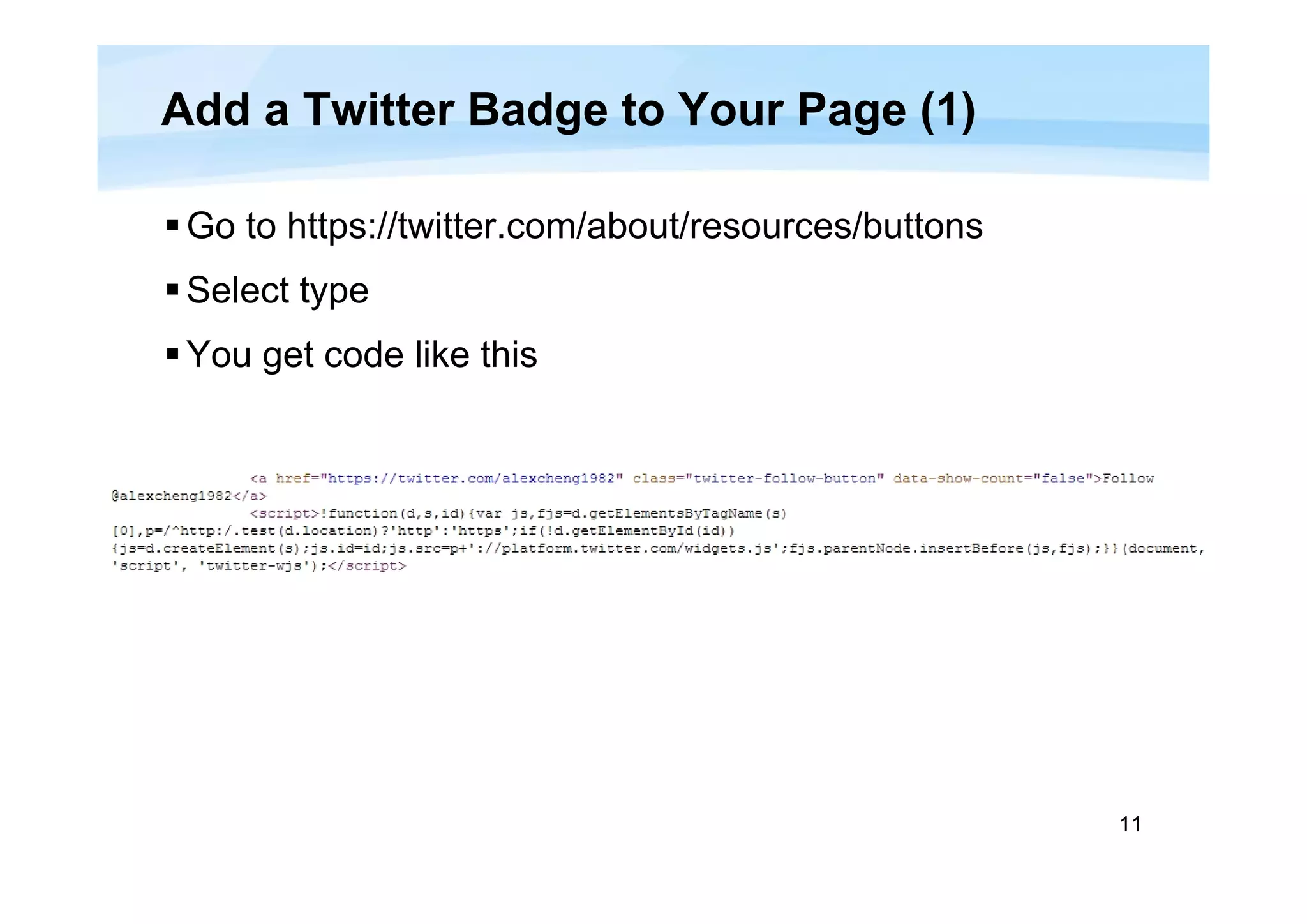

Add a Twitter Badge to Your Page (1)
Go to https://twitter.com/about/resources/buttons
Select type
You get code like this

12. 12

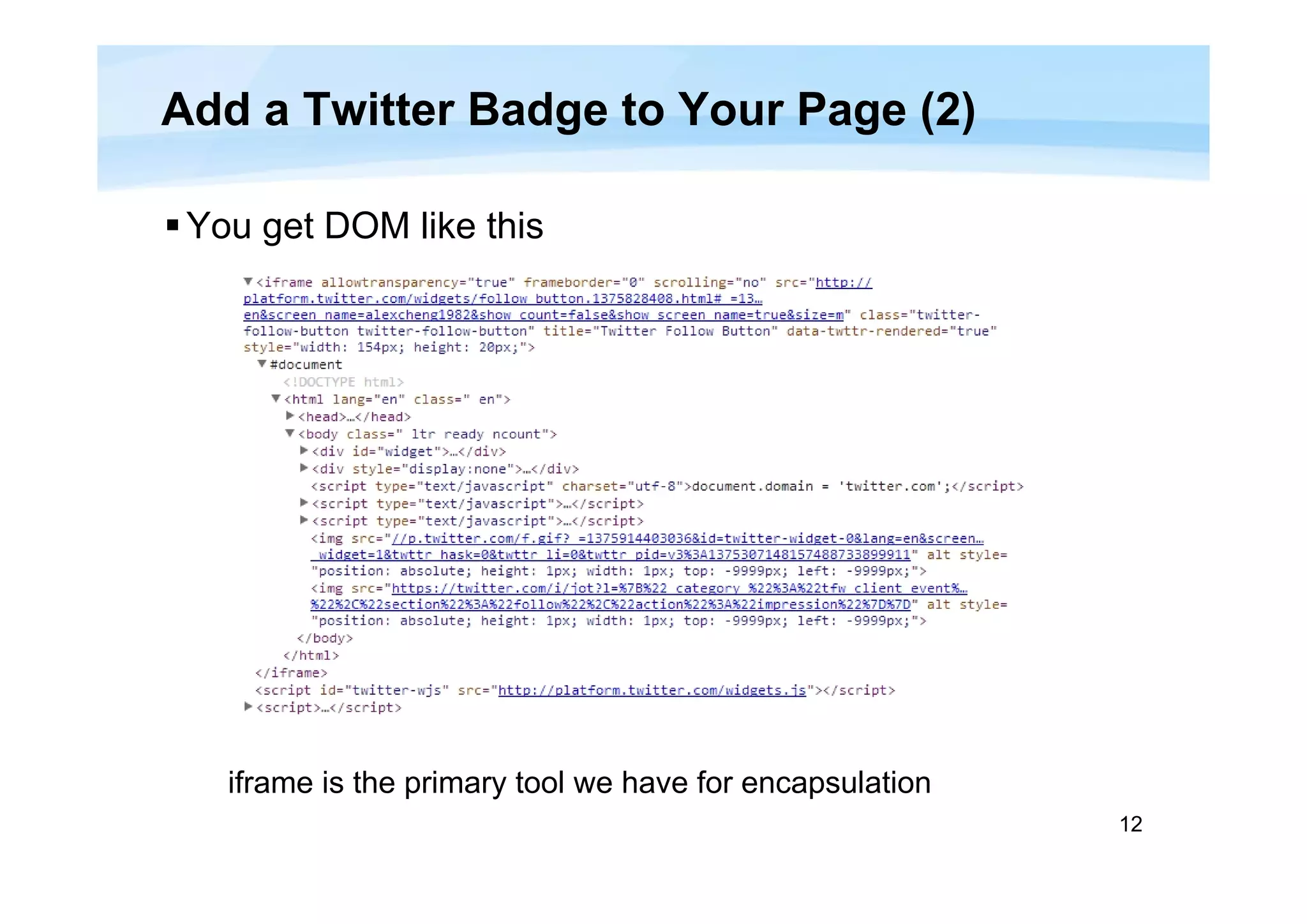

Add a Twitter Badge to Your Page (2)
You get DOM like this
iframe is the primary tool we have for encapsulation

13. 13

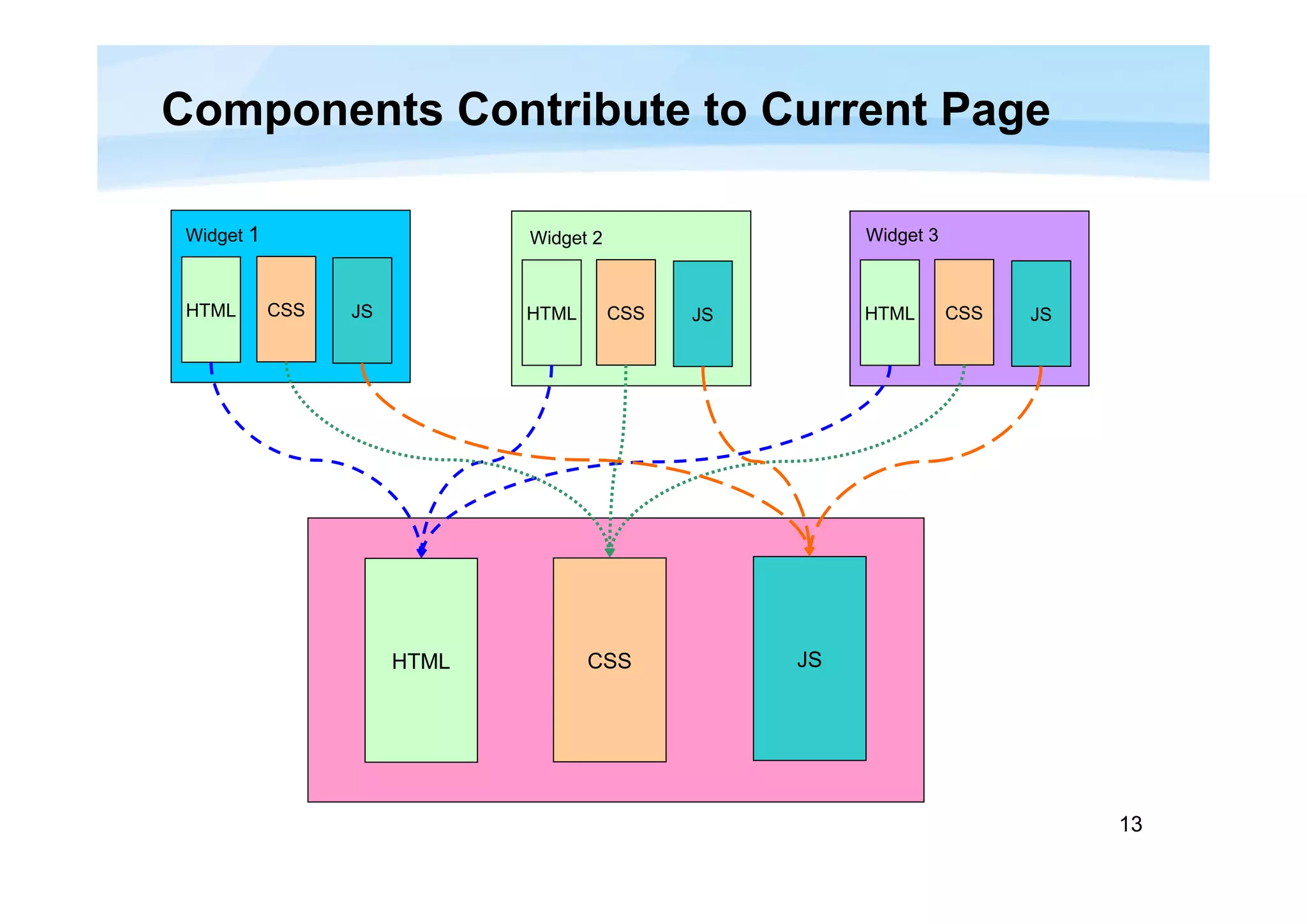

Components Contribute to Current Page
HTML CSS JS
HTML CSS JS HTML CSS JS HTML CSS JS
Widget 1 Widget 2 Widget 3

14. 14

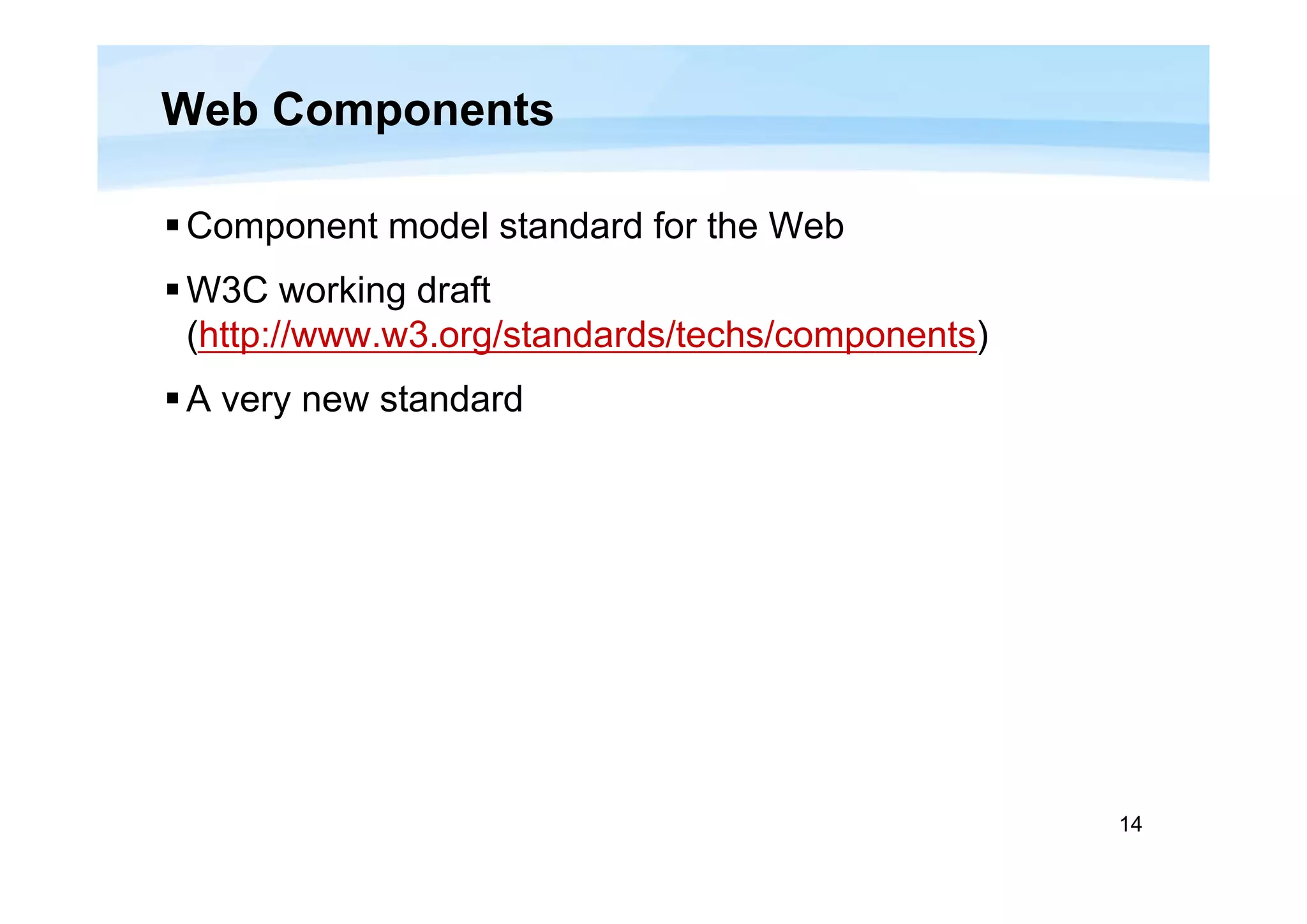

Web Components
Component model standard for the Web
W3C working draft
(http://www.w3.org/standards/techs/components)
A very new standard

15. 15

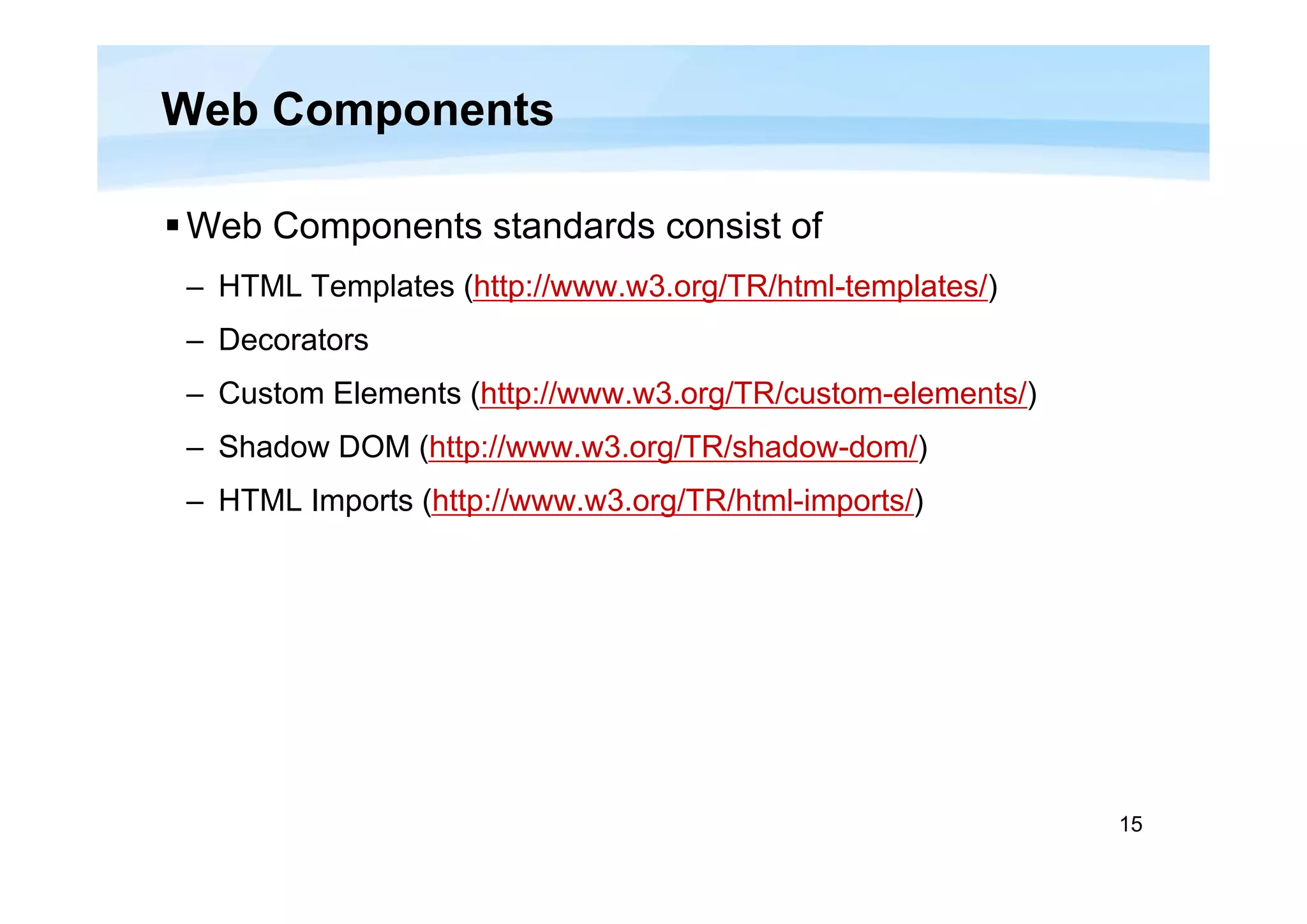

Web Components
Web Components standards consist of
– HTML Templates (http://www.w3.org/TR/html-templates/)
– Decorators
– Custom Elements (http://www.w3.org/TR/custom-elements/)
– Shadow DOM (http://www.w3.org/TR/shadow-dom/)
– HTML Imports (http://www.w3.org/TR/html-imports/)

16. 16

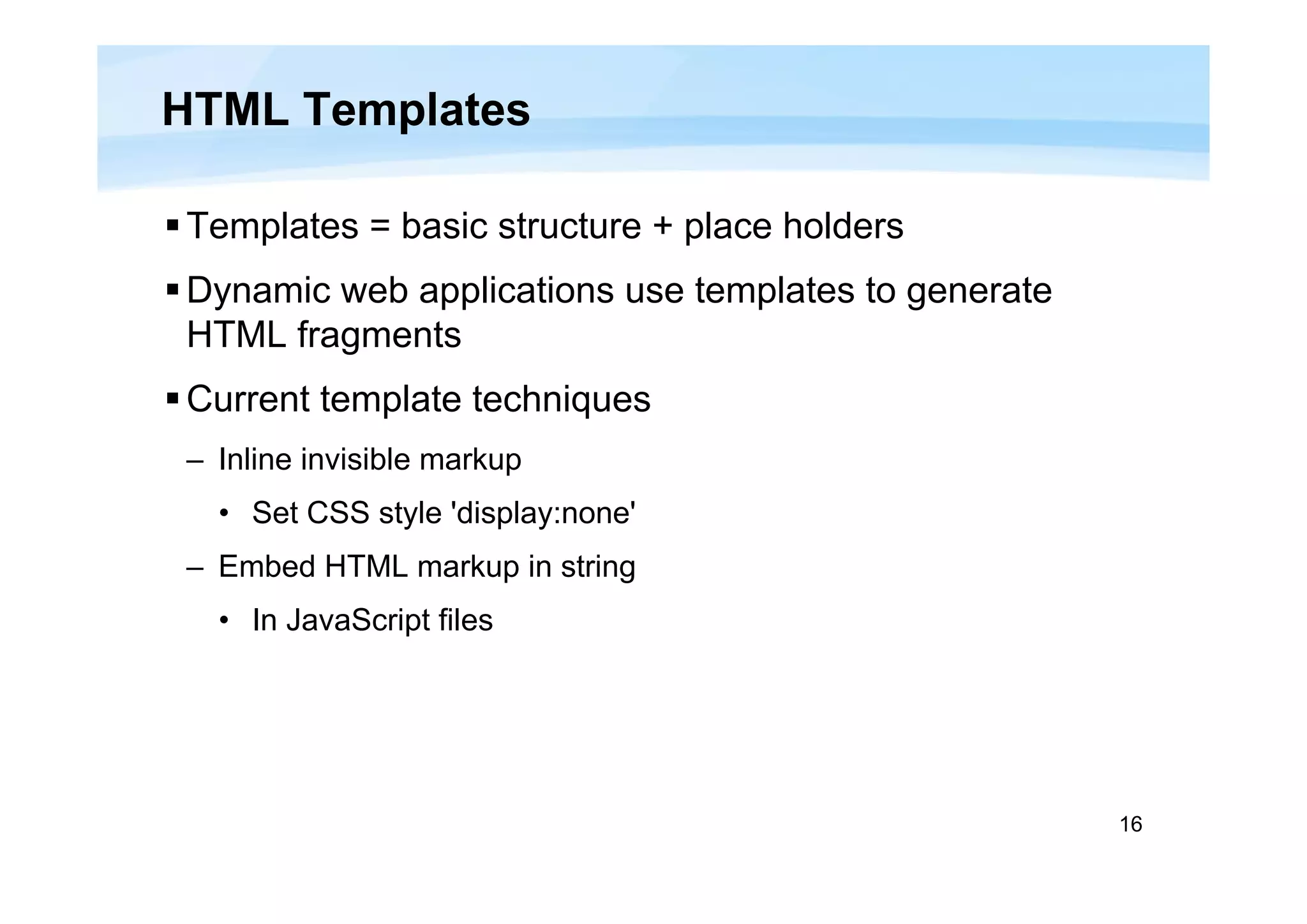

HTML Templates
Templates = basic structure + place holders
Dynamic web applications use templates to generate
HTML fragments
Current template techniques
– Inline invisible markup
• Set CSS style 'display:none'
– Embed HTML markup in string
• In JavaScript files

17. 17

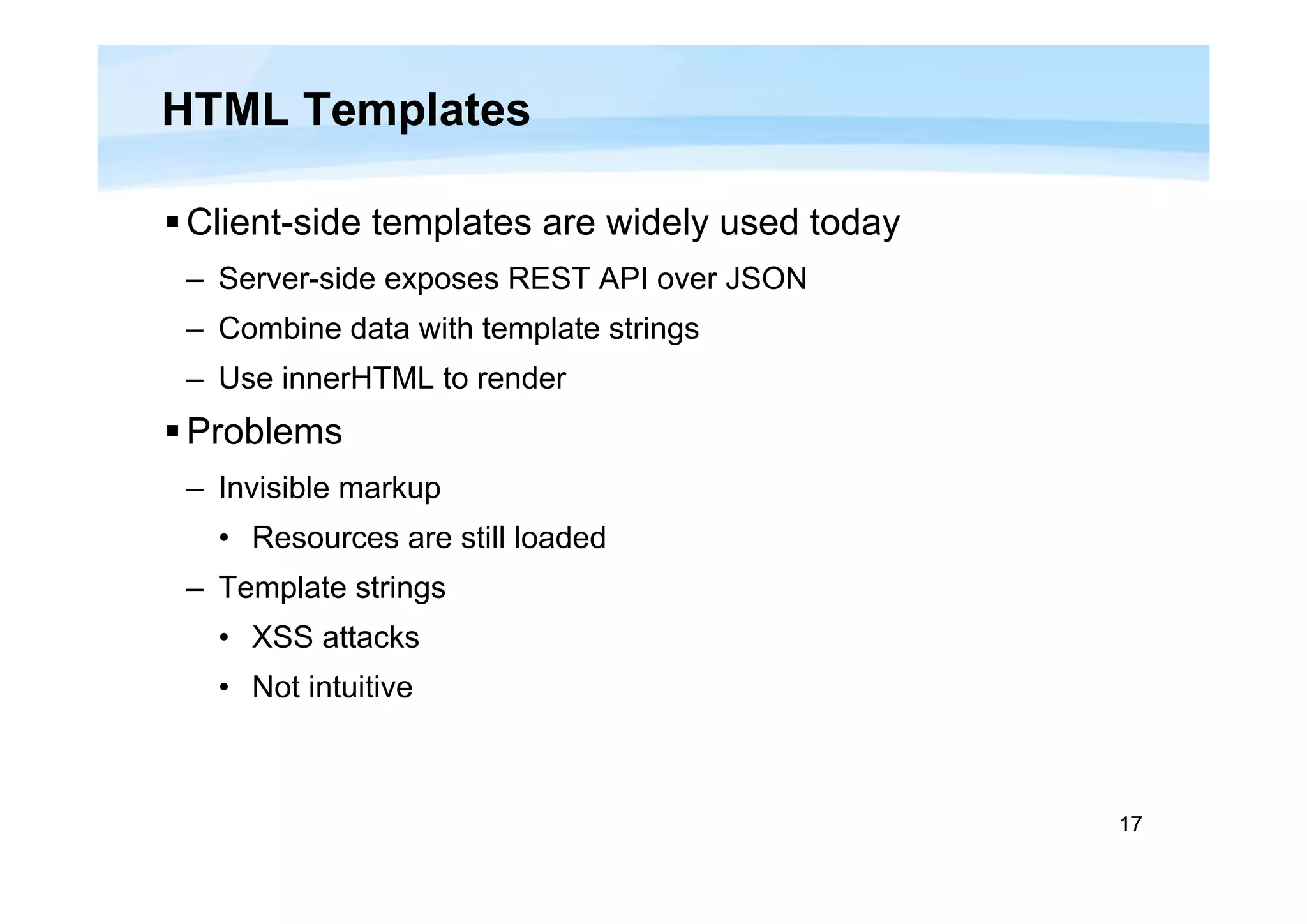

HTML Templates
Client-side templates are widely used today
– Server-side exposes REST API over JSON
– Combine data with template strings
– Use innerHTML to render
Problems
– Invisible markup
• Resources are still loaded
– Template strings
• XSS attacks
• Not intuitive

18. 18

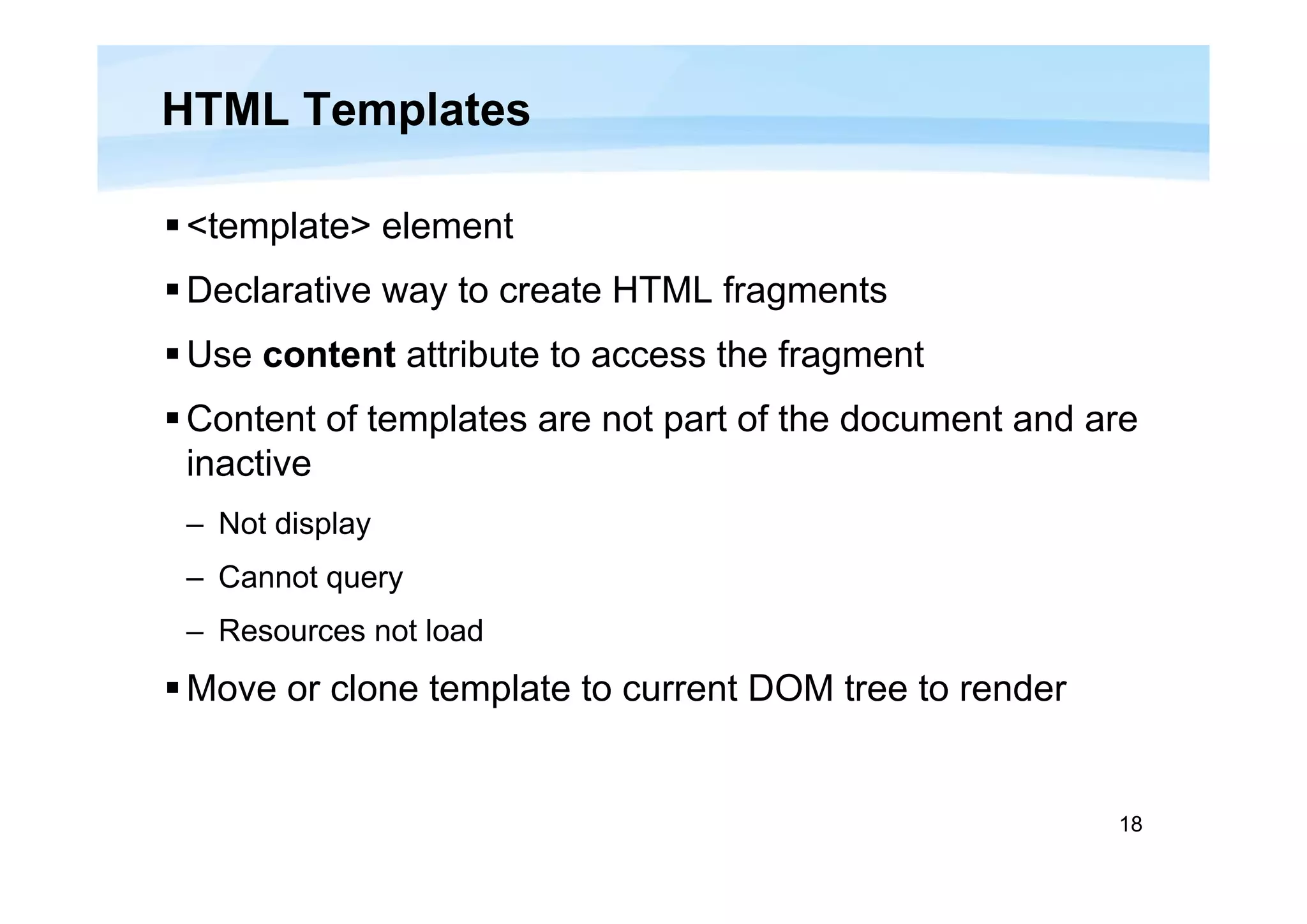

HTML Templates
<template> element
Declarative way to create HTML fragments
Use content attribute to access the fragment
Content of templates are not part of the document and are
inactive
– Not display
– Cannot query
– Resources not load
Move or clone template to current DOM tree to render

19. 19

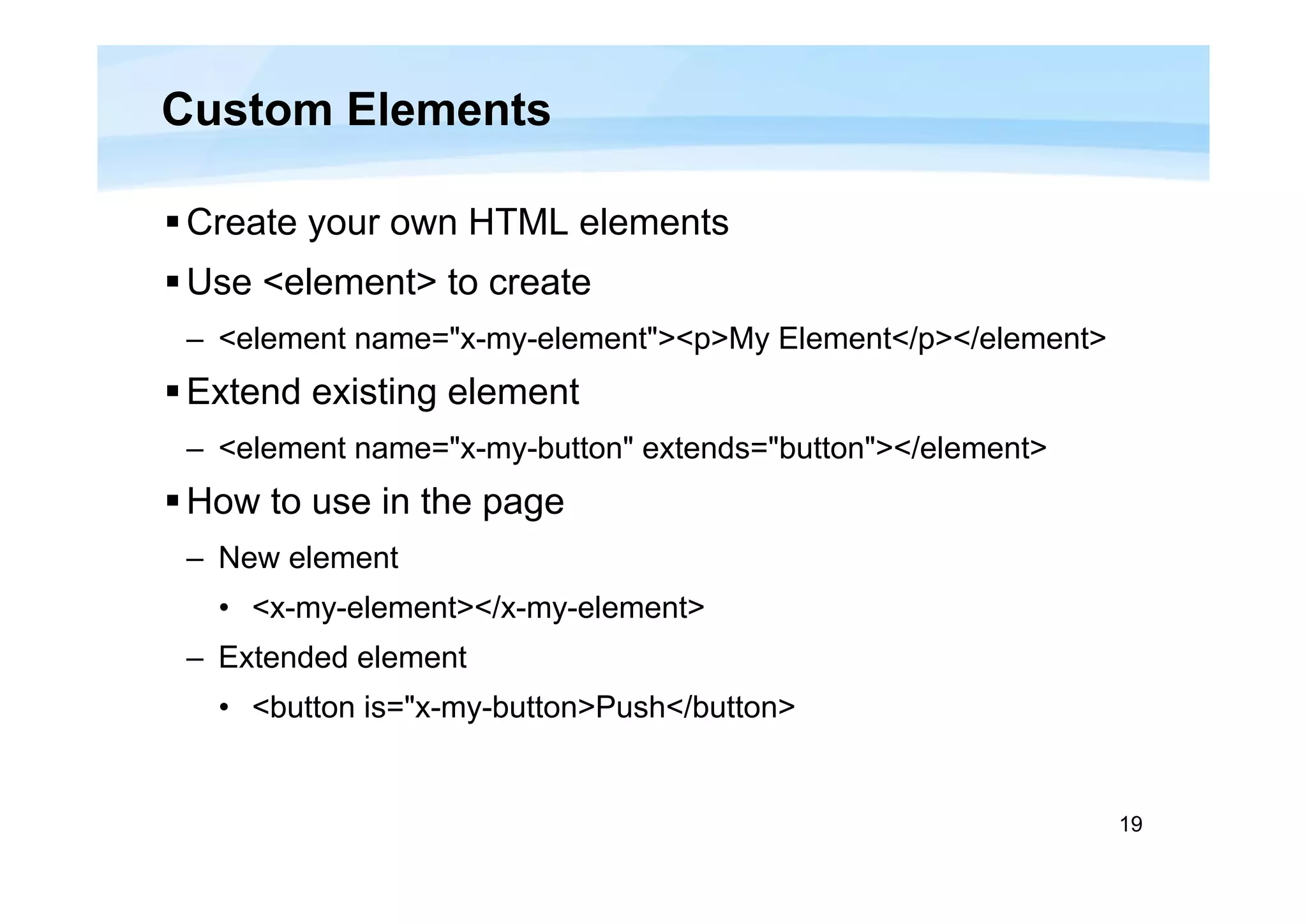

Custom Elements
Create your own HTML elements
Use <element> to create
– <element name="x-my-element"><p>My Element</p></element>
Extend existing element
– <element name="x-my-button" extends="button"></element>
How to use in the page
– New element
• <x-my-element></x-my-element>
– Extended element
• <button is="x-my-button>Push</button>

20. 20

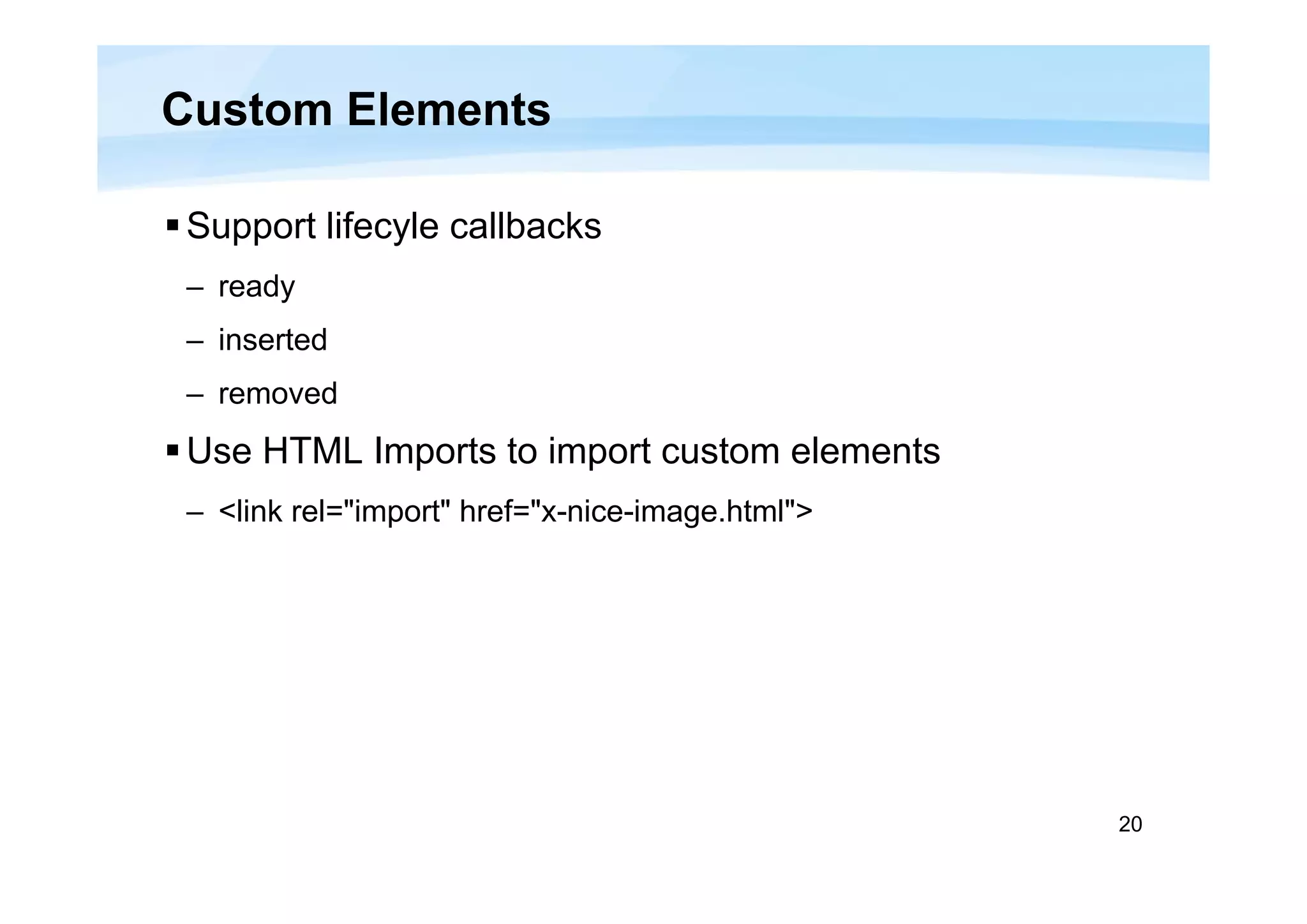

Custom Elements
Support lifecyle callbacks
– ready
– inserted
– removed
Use HTML Imports to import custom elements
– <link rel="import" href="x-nice-image.html">

21. 21

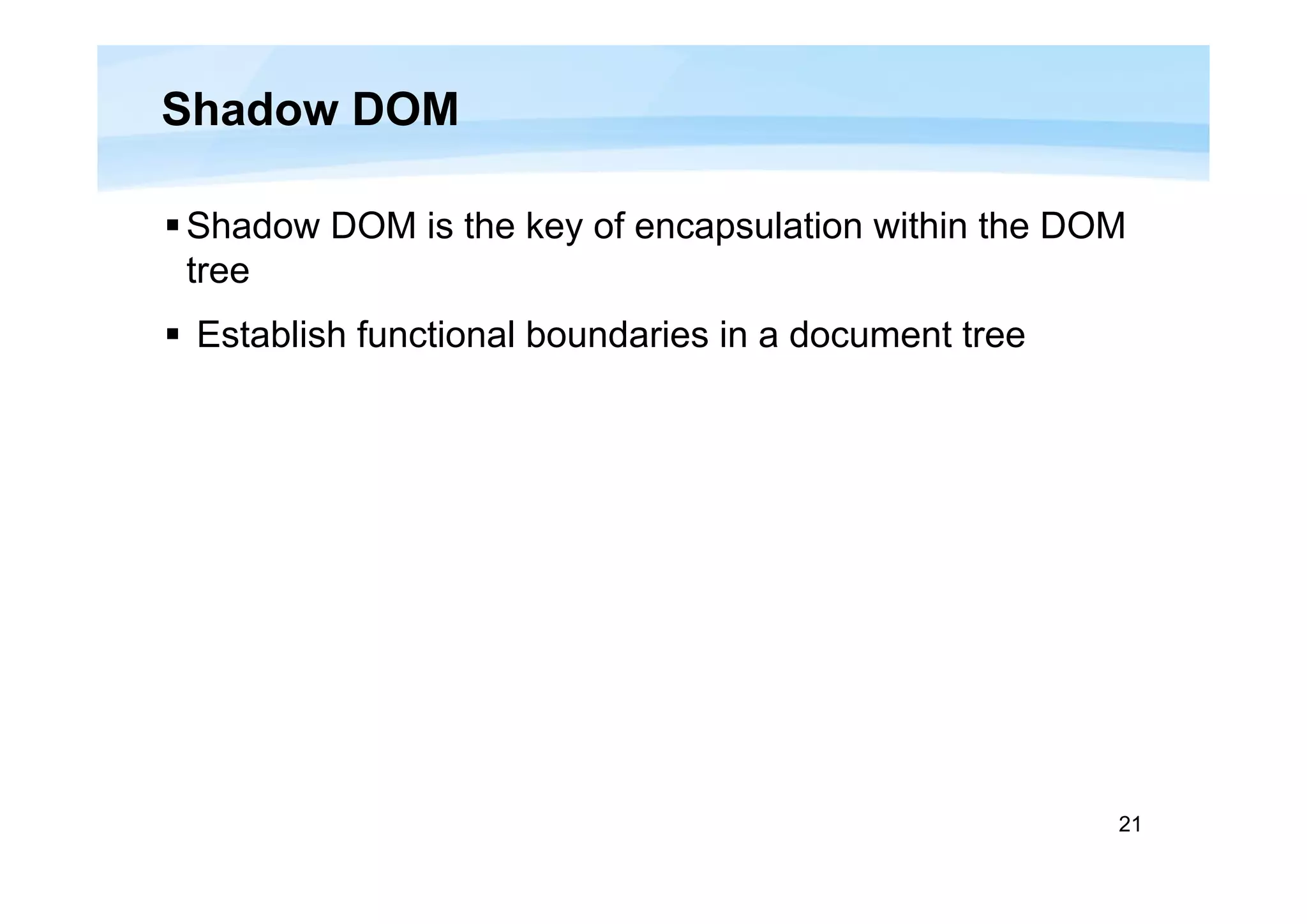

Shadow DOM
Shadow DOM is the key of encapsulation within the DOM
tree
 Establish functional boundaries in a document tree

22. 22

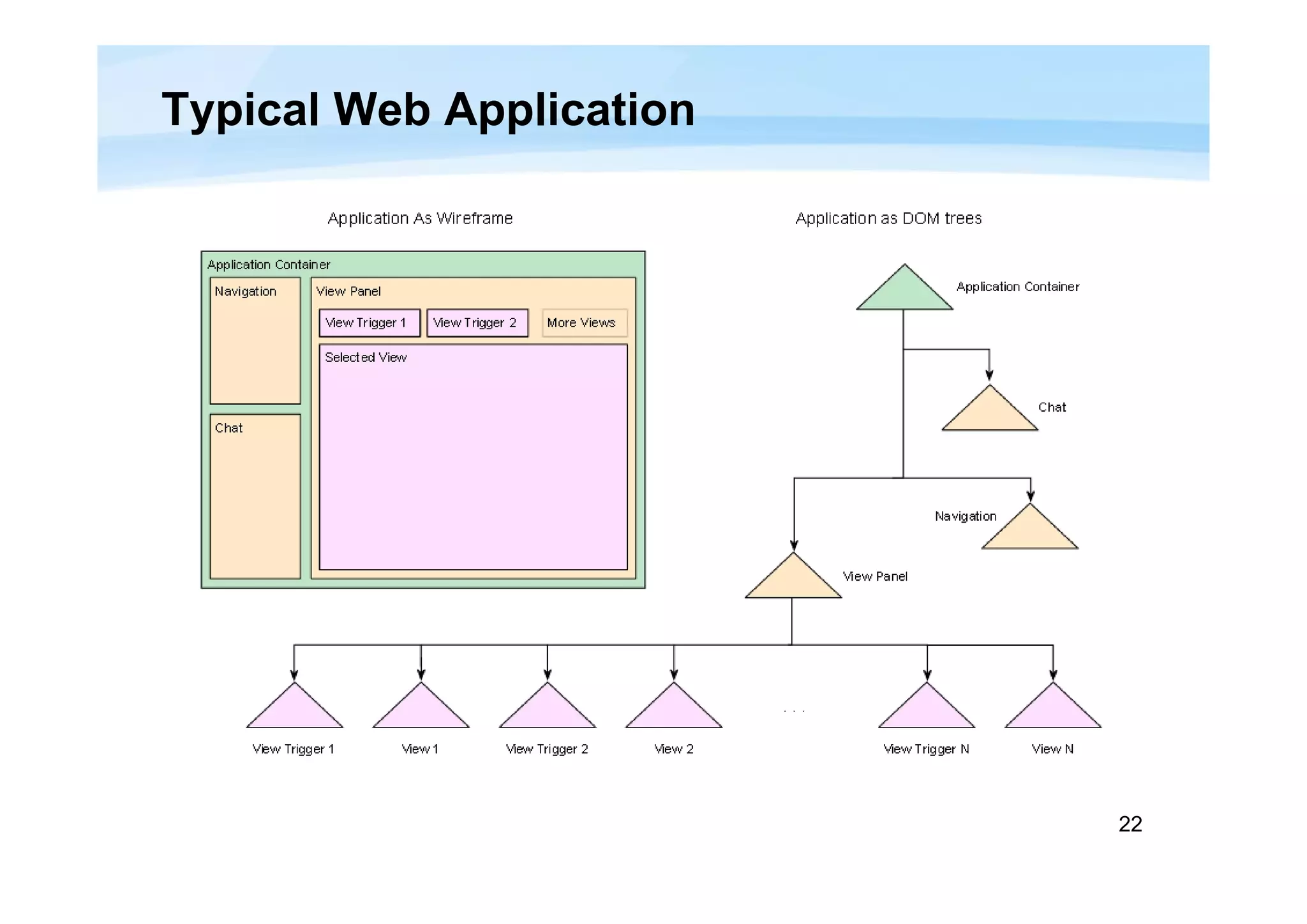

Typical Web Application

23. 23

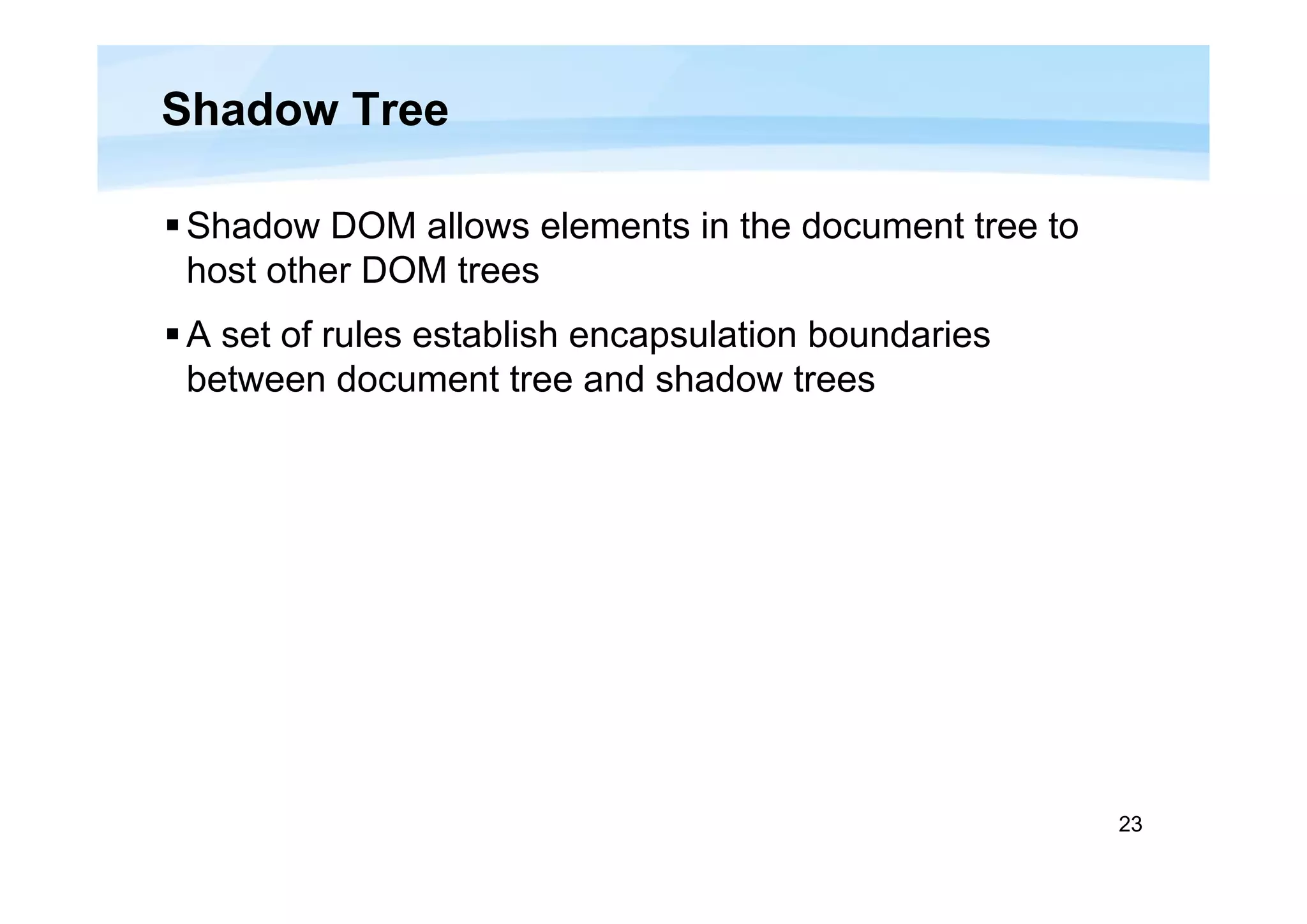

Shadow Tree
Shadow DOM allows elements in the document tree to
host other DOM trees
A set of rules establish encapsulation boundaries
between document tree and shadow trees

24. 24

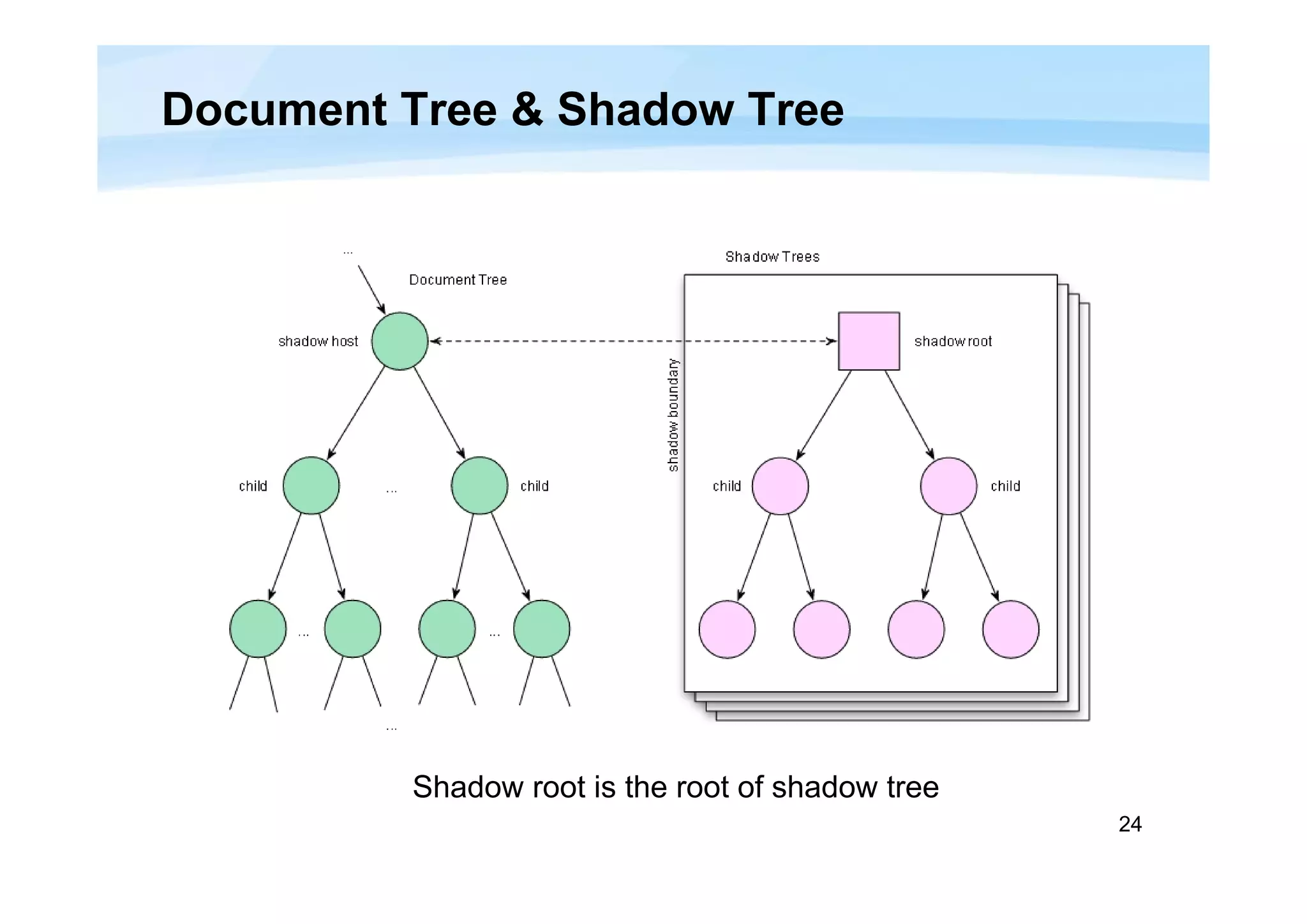

Document Tree & Shadow Tree
Shadow root is the root of shadow tree

25. 25

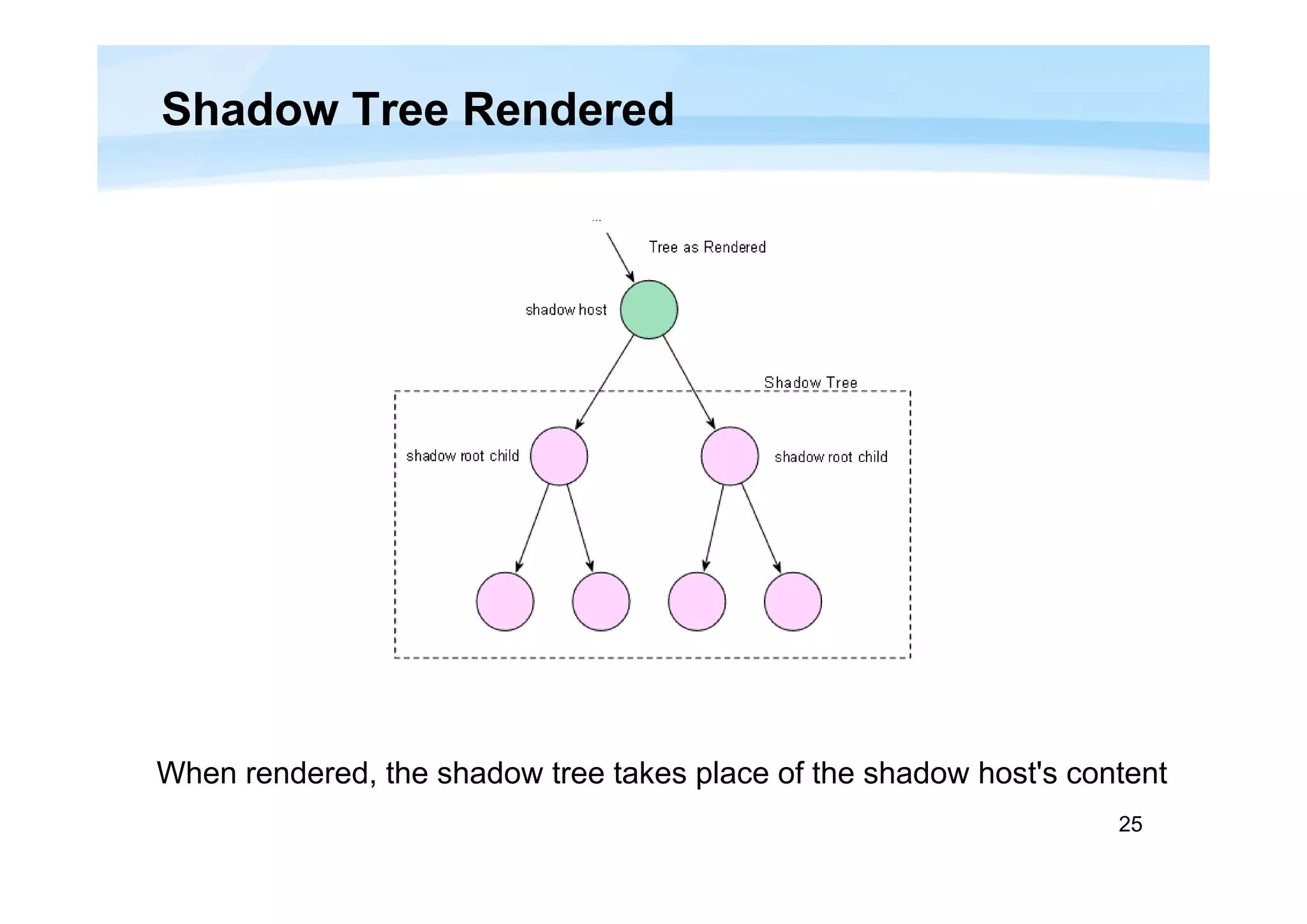

Shadow Tree Rendered
When rendered, the shadow tree takes place of the shadow host's content

26. 26

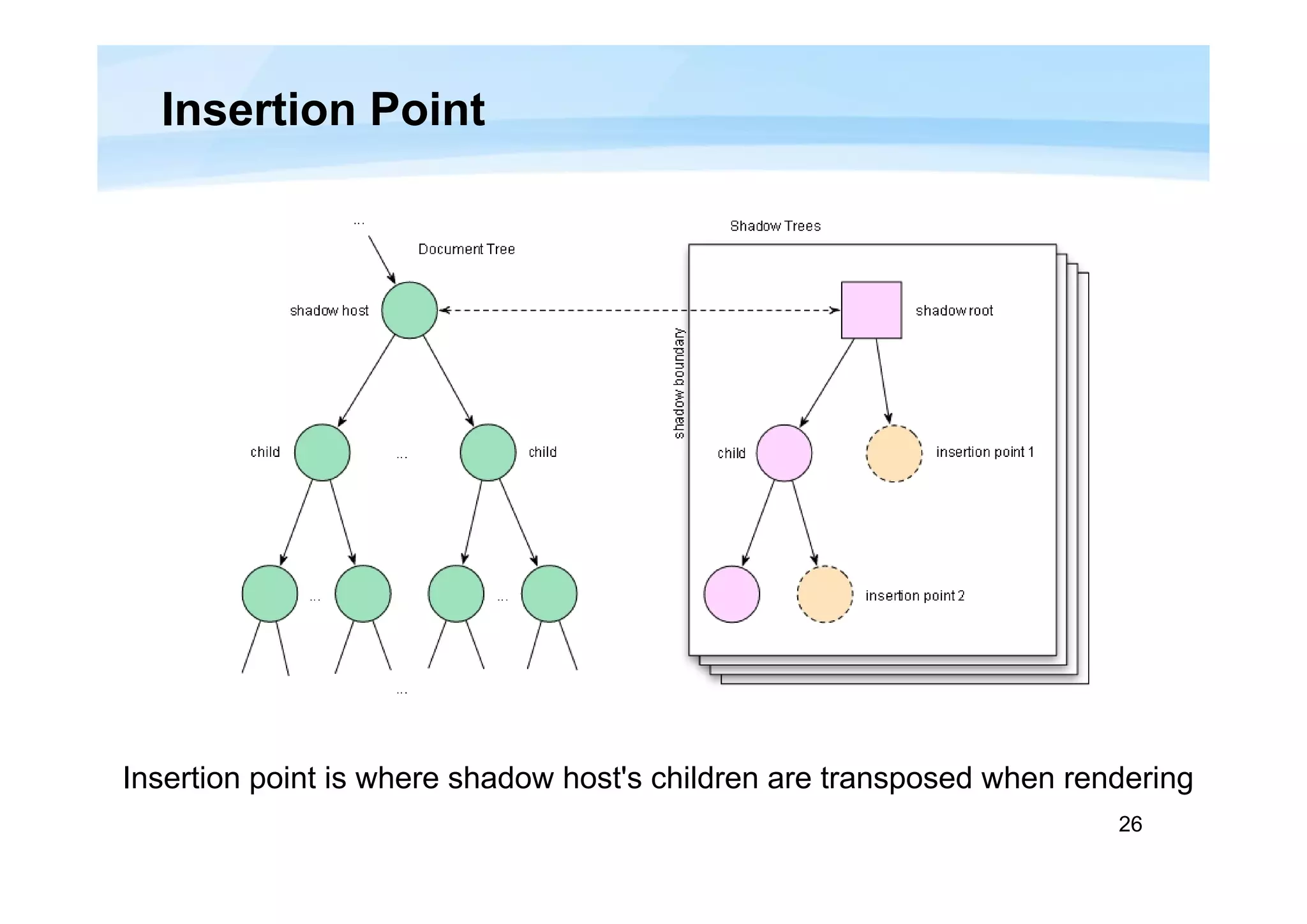

Insertion Point
Insertion point is where shadow host's children are transposed when rendering

27. 27

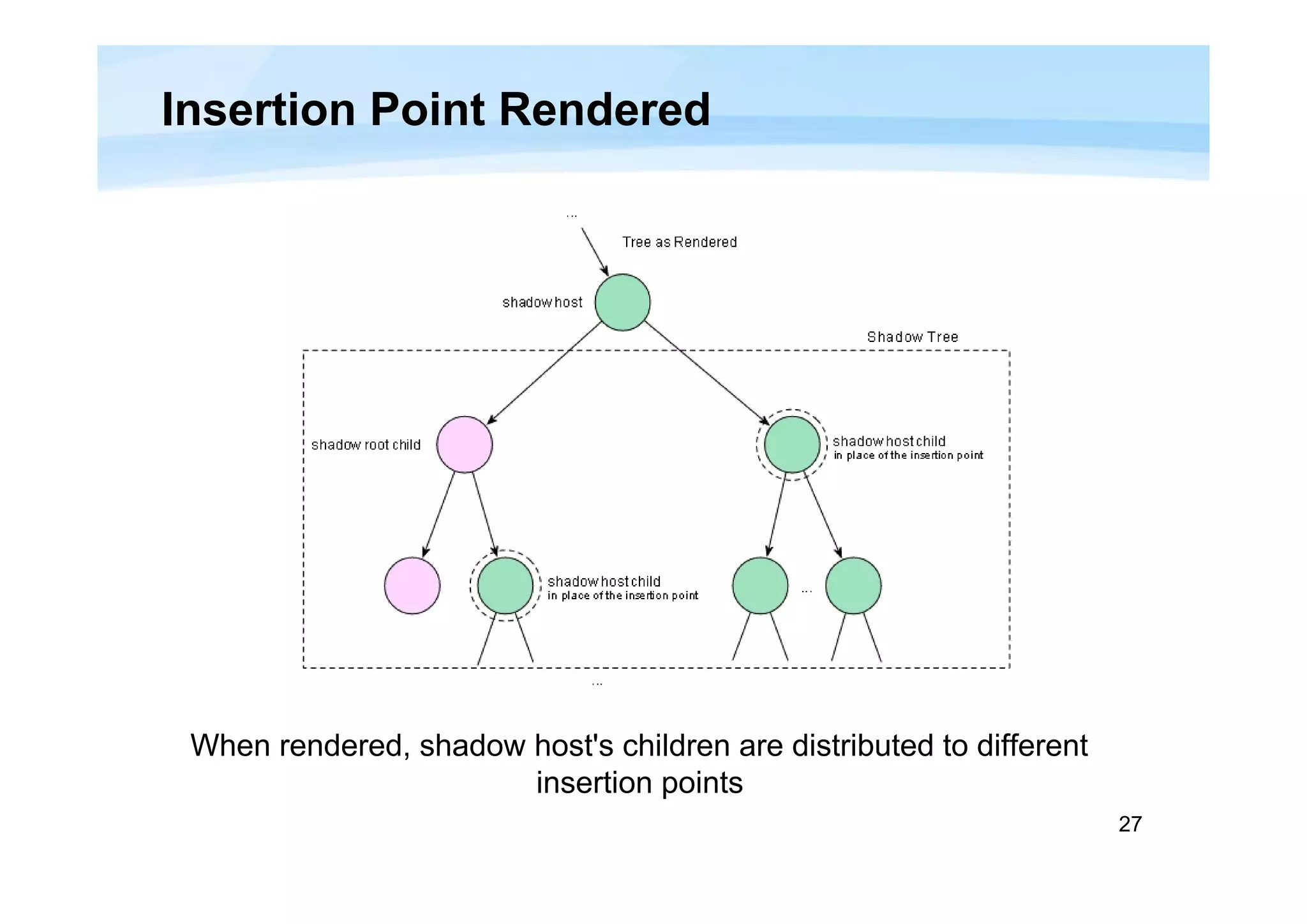

Insertion Point Rendered
When rendered, shadow host's children are distributed to different
insertion points

28. 28

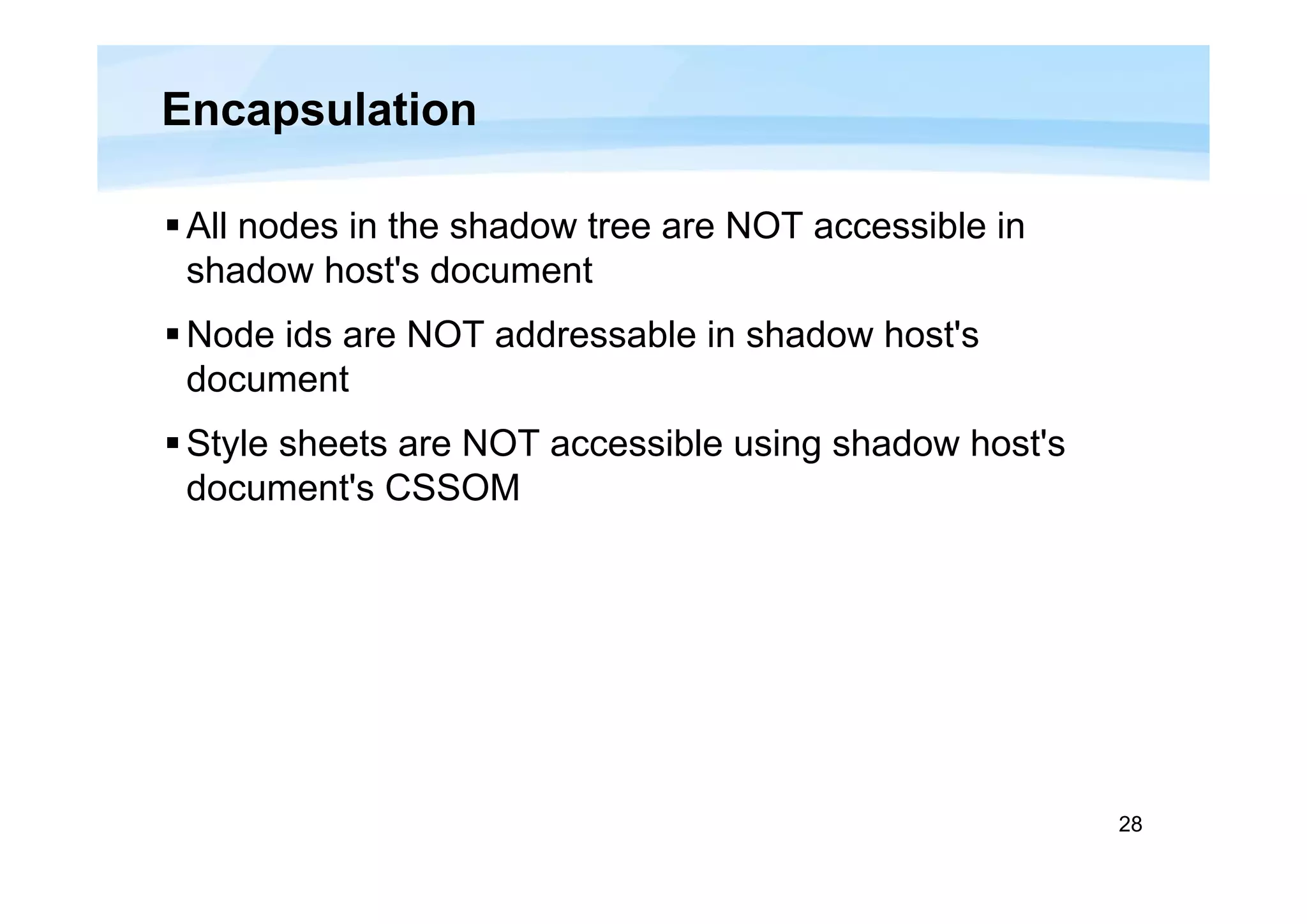

Encapsulation
All nodes in the shadow tree are NOT accessible in
shadow host's document
Node ids are NOT addressable in shadow host's
document
Style sheets are NOT accessible using shadow host's
document's CSSOM

29. 29

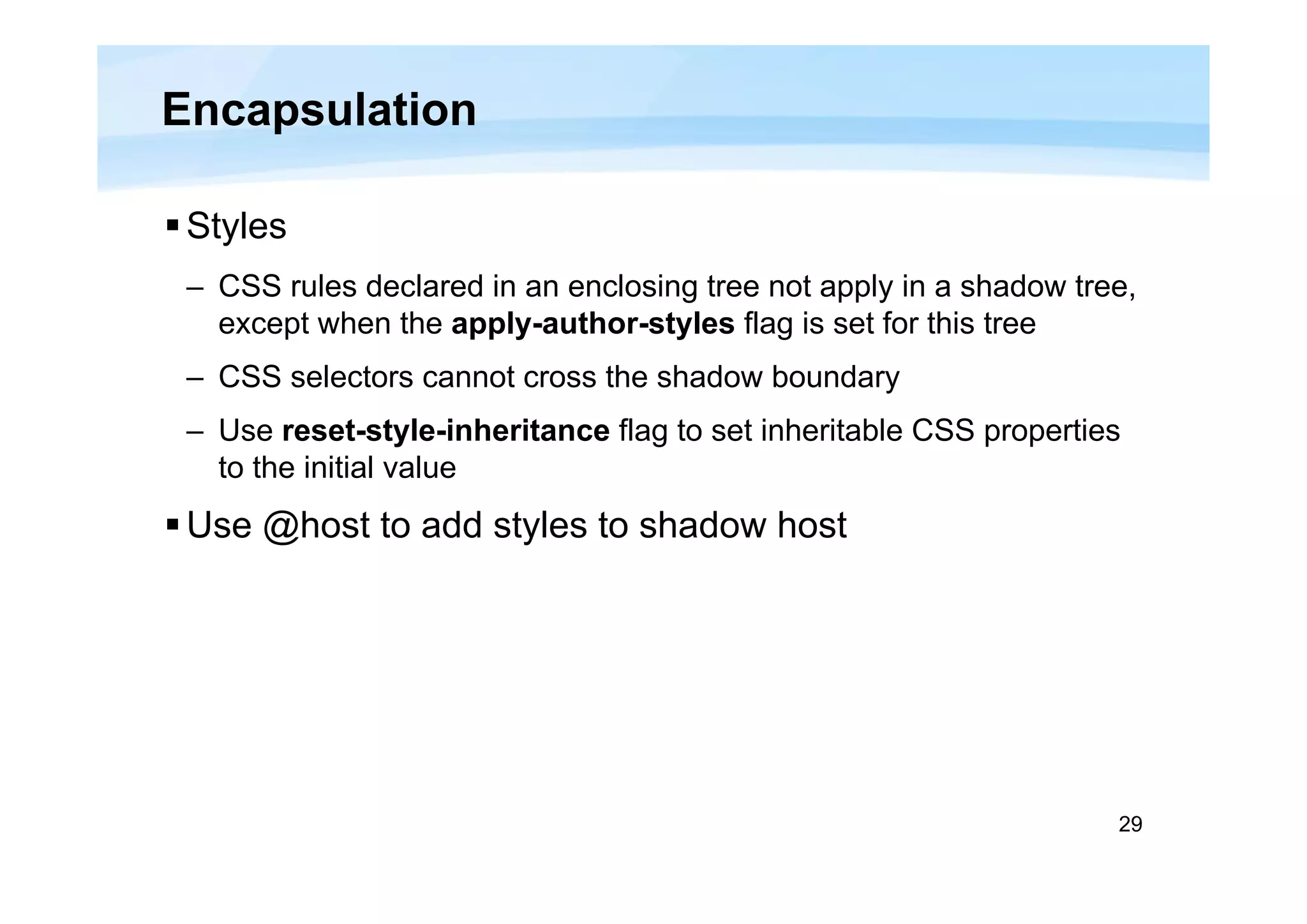

Encapsulation
Styles
– CSS rules declared in an enclosing tree not apply in a shadow tree,
except when the apply-author-styles flag is set for this tree
– CSS selectors cannot cross the shadow boundary
– Use reset-style-inheritance flag to set inheritable CSS properties
to the initial value
Use @host to add styles to shadow host

30. 30

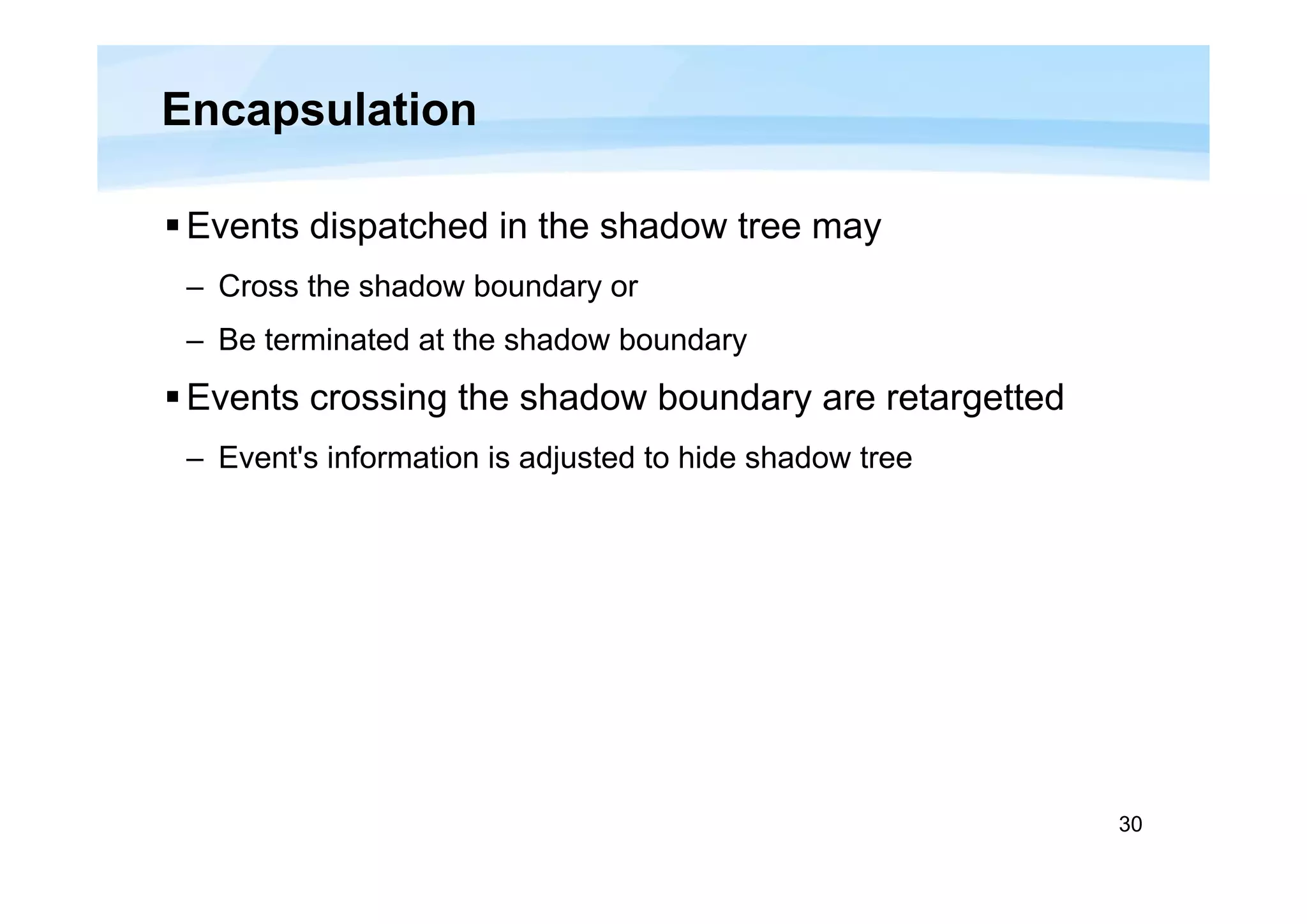

Encapsulation
Events dispatched in the shadow tree may
– Cross the shadow boundary or
– Be terminated at the shadow boundary
Events crossing the shadow boundary are retargetted
– Event's information is adjusted to hide shadow tree

31. 31

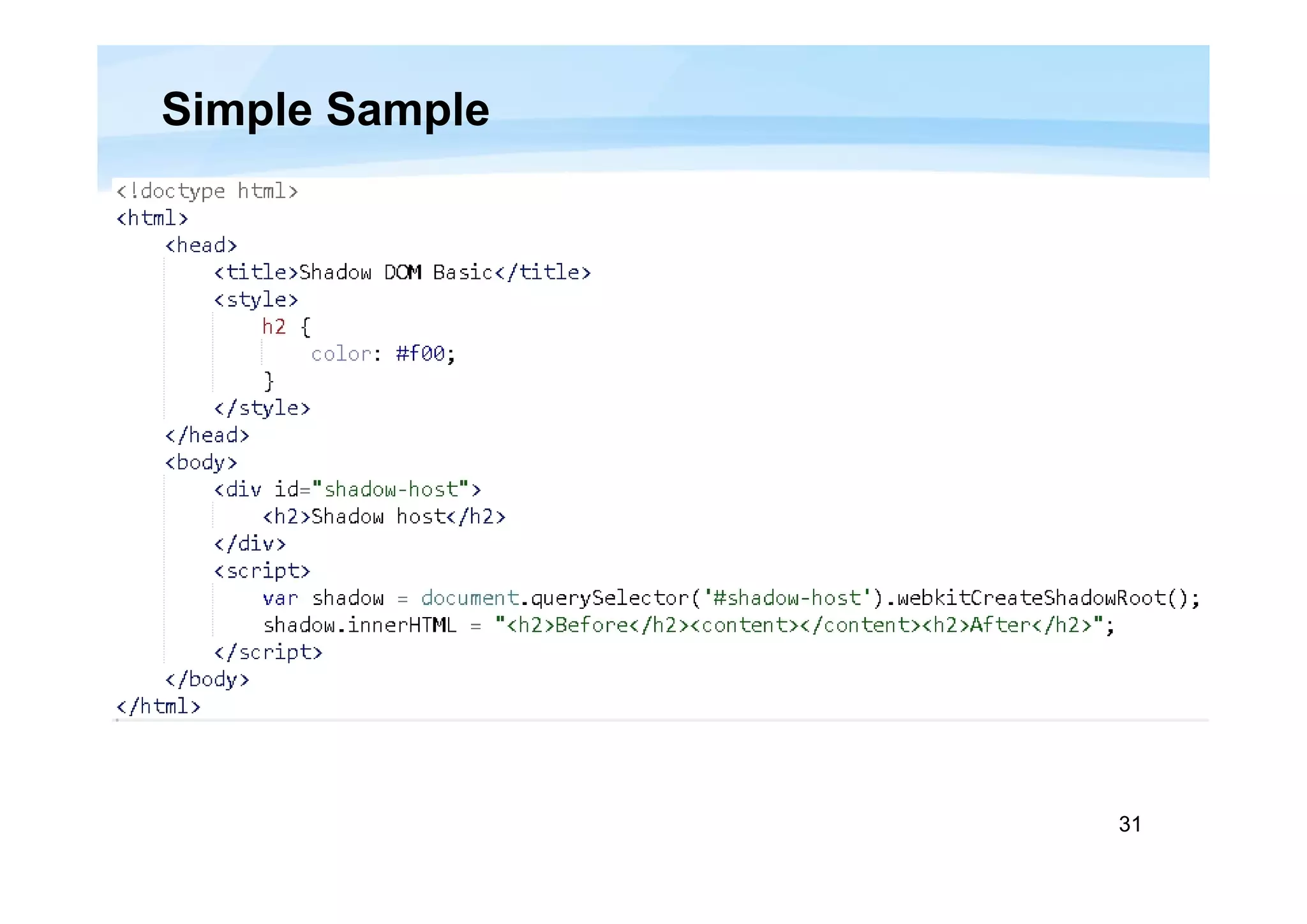

Simple Sample

32. 32

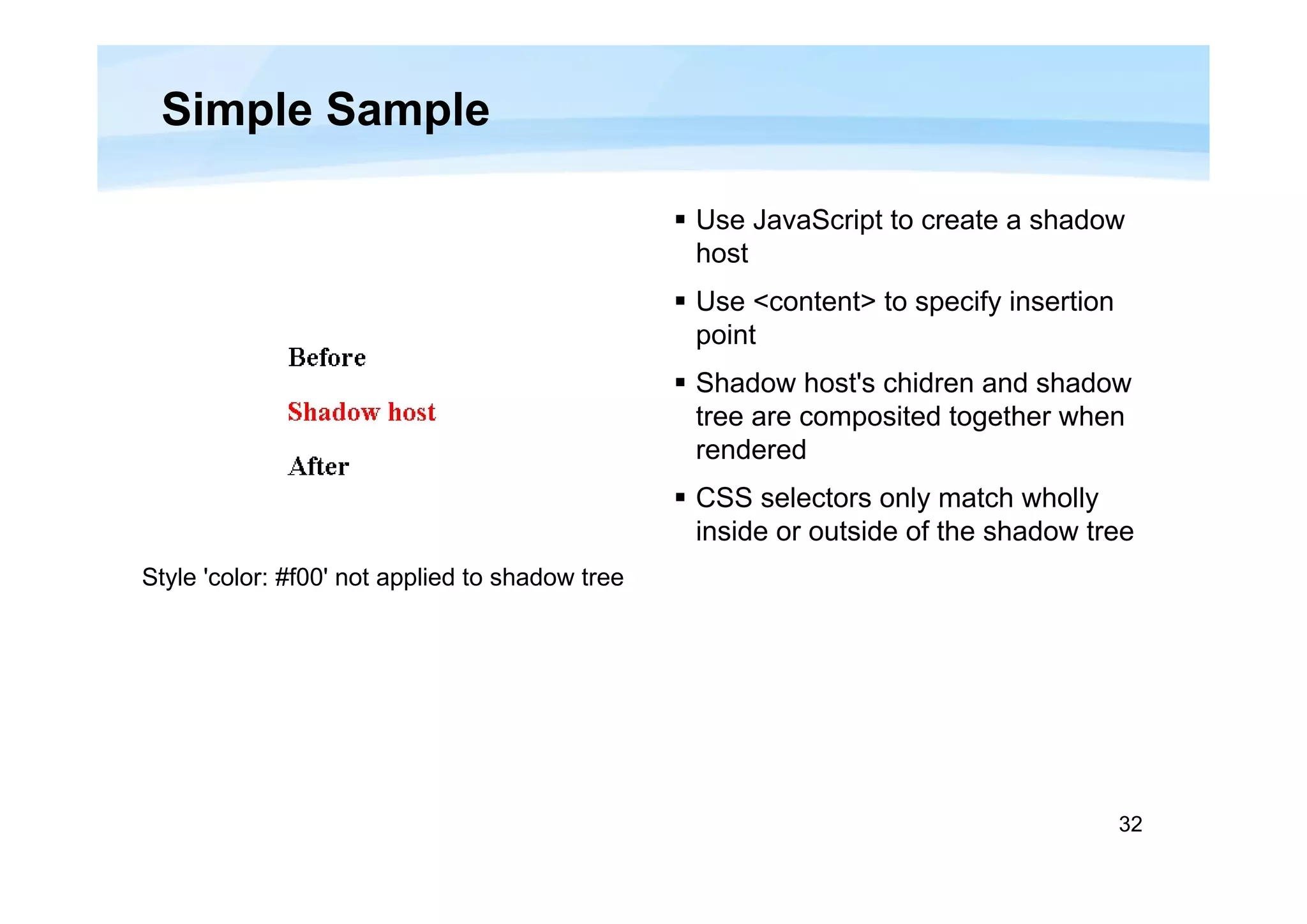

Simple Sample
 Use JavaScript to create a shadow
host
 Use <content> to specify insertion
point
 Shadow host's chidren and shadow
tree are composited together when
rendered
 CSS selectors only match wholly
inside or outside of the shadow tree
Style 'color: #f00' not applied to shadow tree

33. 33

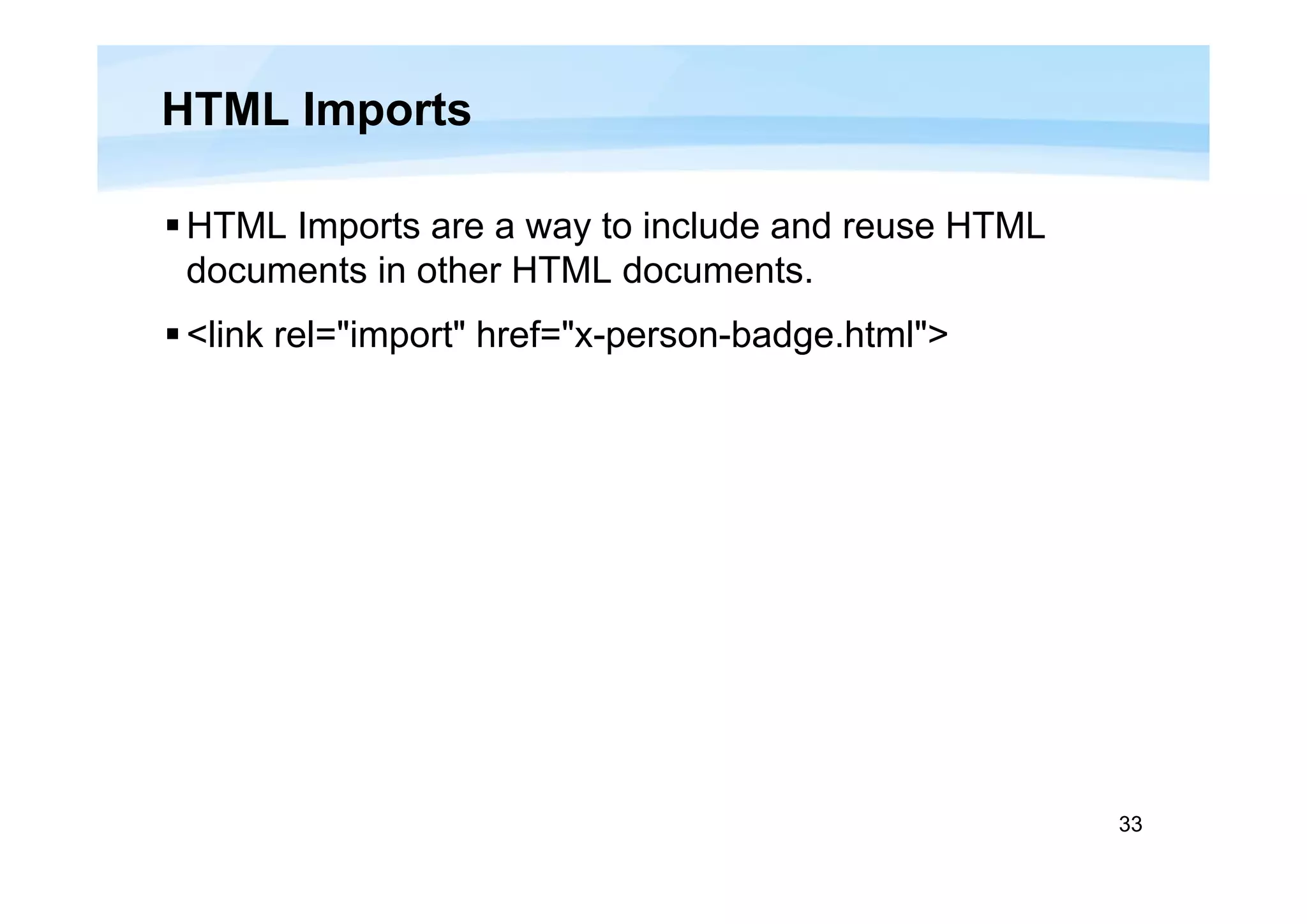

HTML Imports
HTML Imports are a way to include and reuse HTML
documents in other HTML documents.
<link rel="import" href="x-person-badge.html">

34. 34

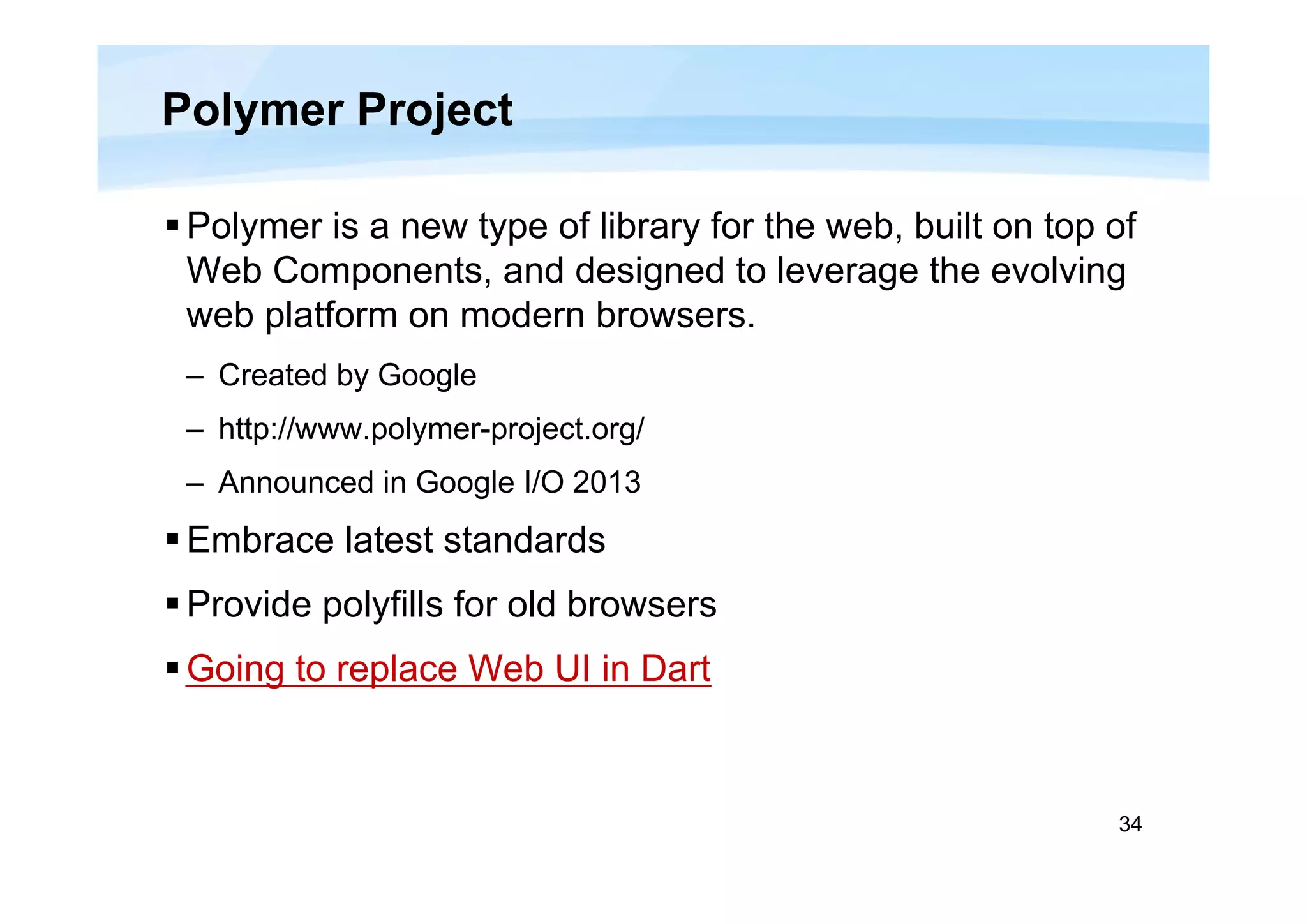

Polymer Project
Polymer is a new type of library for the web, built on top of
Web Components, and designed to leverage the evolving
web platform on modern browsers.
– Created by Google
– http://www.polymer-project.org/
– Announced in Google I/O 2013
Embrace latest standards
Provide polyfills for old browsers
Going to replace Web UI in Dart

35. 35

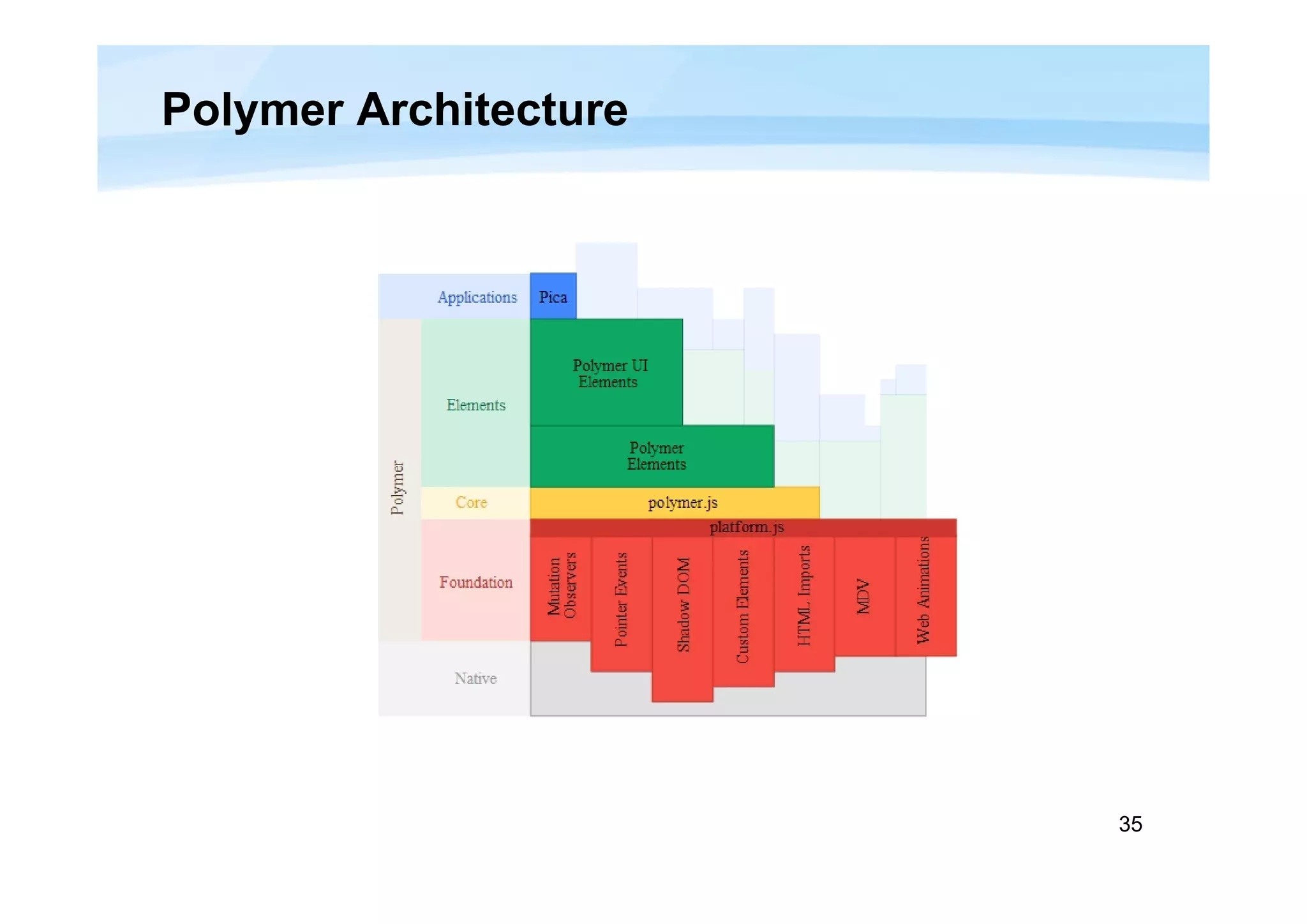

Polymer Architecture

36. 36

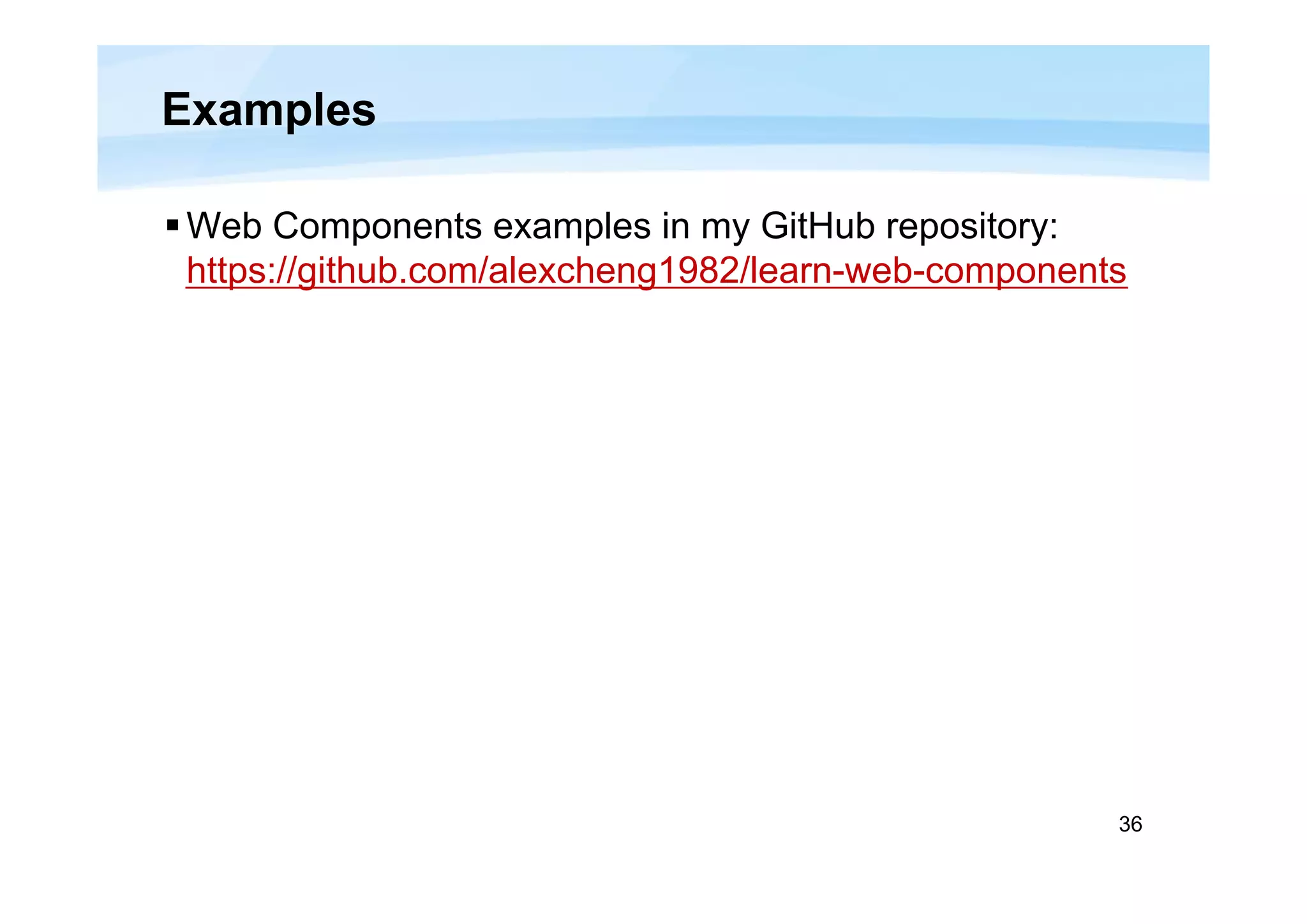

Examples
Web Components examples in my GitHub repository:
https://github.com/alexcheng1982/learn-web-components
