Ted Gies, profile picture
Uploaded byTed Gies
PPTX, PDF180 views

CSUN 2023 Analytics.pptx

The document discusses accessibility analytics and the assessment of various Elsevier products against WCAG 2.1 standards, focusing on the importance of accessibility metrics and the use of VPAT evaluations. It highlights progress in meeting accessibility goals, such as improving VPAT scores and addressing shortcomings in products' compliance with audio descriptions, alt text, and other criteria. The document also emphasizes the use of data-driven insights for informed decision-making to enhance web accessibility across their offerings.

Embed presentation

Downloaded 26 times
Accessibility Analytics – Being Data Driven With VPATs CSUN Thursday March 16 2023 Platinum 7-8 9:20 am Jay Nemchik Ted Gies
Elsevier Mission Elsevier helps researchers and healthcare professionals advance science and improve health outcomes for the benefit of society. 2

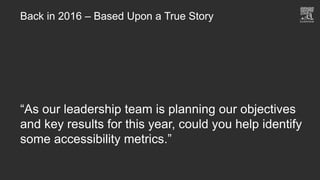

Back in 2016 – Based Upon a True Story “As our leadership team is planning our objectives and key results for this year, could you help identify some accessibility metrics.”
VPAT/ACR Criteria Conformance Level Remarks and Explanations 1.1.1 Non-text Content (Level A) 1.2.1 Audio-only and Video-only (Prerecorded) (Level A) 1.2.2 Captions (Prerecorded) (Level A) 1.2.3 Audio Description or Media Alternative (Prerecorded) (Level A) 1.3.1 Info and Relationships (Level A) 1.3.2 Meaningful Sequence (Level A) 1.3.3 Sensory Characteristics (Level A) 1.4.1 Use of Color (Level A) 1.4.2 Audio Control (Level A) 2.1.1 Keyboard (Level A) 2.1.2 No Keyboard Trap (Level A) 2.1.4 Character Key Shortcuts (Level A 2.1 only) 2.2.1 Timing Adjustable (Level A) 2.2.2 Pause, Stop, Hide (Level A) 2.3.1 Three Flashes or Below Threshold (Level A) 2.4.1 Bypass Blocks (Level A) 2.4.2 Page Titled (Level A) 2.4.3 Focus Order (Level A) 2.4.4 Link Purpose (In Context) (Level A) 2.5.1 Pointer Gestures (Level A 2.1 only) 2.5.2 Pointer Cancellation (Level A 2.1 only) 2.5.3 Label in Name (Level A 2.1 only) 2.5.4 Motion Actuation (Level A 2.1 only) 3.1.1 Language of Page (Level A) 3.2.1 On Focus (Level A) 3.2.2 On Input (Level A) 3.3.1 Error Identification (Level A) 3.3.2 Labels or Instructions (Level A) 4.1.1 Parsing (Level A)
Example of 1 VPAT/ACR Checkpoint WCAG 2.1 Checkpoint Supporting Features Remarks 1.1.1: Non-Text Content (A) Provide text alternatives for non- text content (e.g. images) Partially Supports The product presents non-text content with a text alternative that serves the equivalent purpose. Supporting Remarks Linked icons are labelled such as Help and Institution. Exceptions A rating of Partially Supports has been given for the following reasons: • There are images within the pages that do not have an alt attribute or aria- label set. • There are buttons using icons only that are missing accessible name/labels. • There are values within the alt attribute that are not descriptive. • Invalid use of the alt attribute.
| 6 ACR Evaluation of 1 Product WCAG 2.1 Success Criterion Evaluation 1.1.1 Non-text Content A Partially Supports 1.2.1 Audio-only and Video-only (Prerecorded) A Supports (N/A) 1.2.2 Captions (Prerecorded) A Supports (N/A) 1.2.3 Audio Description /Full Text Alternative A Supports (N/A) 1.2.4 Captions (Live) AA Supports (N/A) 1.2.5 Audio Description AA Supports (N/A) 1.3.1 Info and Relationships A Supports 1.3.2 Meaningful Sequence A Partially Supports 1.3.3 Sensory Characteristics A Supports 1.3.4 Orientation AA Supports 1.3.5 Identify Input Purpose AA Does not Support 1.4.1 Use of Color A Partially Supports 1.4.2 Audio Control A Supports (N/A) 1.4.3 Contrast (Minimum) AA Partially Supports 1.4.4 Resize text AA Supports 1.4.5 Images of Text AA Supports 1.4.10 Reflow AA Supports 1.4.11 Non-text Contrast AA Partially Supports 1.4.12 Text Spacing AA Supports 1.4.13 Content on Hover or Focus AA Does not Support 2.1.1 Keyboard A Partially Supports 2.1.2 No Keyboard Trap A Supports 2.1.4 Character Key Shortcuts A Supports (N/A) 2.2.1 Timing Adjustable A Supports 2.2.2 Pause, Stop, Hide A Supports (N/A) WCAG 2.1 Success Criterion Evaluation 2.3.1 Three Flashes or Below Threshold A Supports (N/A) 2.4.1 Bypass Blocks A Supports 2.4.2 Page Titled A Supports 2.4.3 Focus Order A Supports 2.4.4 Link Purpose (In Context) A Partially Supports 2.4.5 Multiple Ways AA Supports 2.4.6 Headings and Labels AA Supports 2.4.7 Focus Visible AA Supports 2.5.1 Pointer Gestures A Supports (N/A) 2.5.2 Pointer Cancellation A Supports 2.5.3 Label in Name A Supports 2.5.4 Motion Actuation A Supports (N/A) 3.1.1 Language of Page A Supports 3.1.2 Language of Parts AA Supports (N/A) 3.2.1 On Focus A Supports 3.2.2 On Input A Supports 3.2.3 Consistent Navigation AA Partially Supports 3.2.4 Consistent Identification AA Supports 3.3.1 Error Identification A Supports 3.3.2 Labels or Instructions A Partially Supports 3.3.3 Error Suggestion AA Supports 3.3.4 Error Prevention (Legal, Financial, Data) AA Supports 4.1.1 Parsing A Supports 4.1.2 Name, Role, Value A Partially Supports 4.1.3 Status Messages AA Supports
Problem Statements • Managers and employees use numbers to measure things and set goals. • Web accessibility data generated from an ACR is mostly qualitative. • There is a mismatch between the nature of ACR accessibility data and providing simple quantitative reports. Goal: We want to inform decision makers with analytics to help improve and maintain high levels of accessibility
Our Approach: Create an Excel Database out of Mined ACR Data • Originally input 38 websites ACR Ratings into Excel • Translated the conformance grading to percentages in Excel • Used Excel Pivot Tables/Pivot Charts to generate graphs Total Supports Total Partially supports Total Does not Support Percentage Supports Percentage Partially Supports Percentage Does not Support Product 1 40 8 2 80% 16% 4% Product 2 38 3 9 76% 6% 18% Product 3 45 3 2 90% 6% 4%
Data Around Each WCAG 2.1 Criterion 1.1.1: Non-text Content 1.2.2: Captions (Prerecorded) 1.2.1: Audio-only and Video-only (Prerecorded) 1.2.2: Captions (Prerecorded) 1.2.3: Audio Description or Full Text Alternative 1.2.4: Captions (Live) 1.2.5: Audio Description Product 1 Partially supports Supports Supports Supports Supports Supports Partially supports Product 2 Partially supports Supports Supports Supports Supports Supports Partially supports Product 3 Partially supports Supports Supports Supports Supports Supports Partially supports 1.1.1: Non-text Content 1.2.1: Audio-only and Video-only (Prerecorded) 1.2.2: Captions (Prerecorded) 1.2.3: Audio Description or Full Text Alternative 1.2.4: Captions (Live) 1.2.5: Audio Description Total Supporting Products 6 59 51 52 68 43 Total Partially Supporting Products 57 3 4 10 0 8 Total Not Supporting Products 5 6 13 6 0 17
Other Than Self-Torture, Why Did We Do This? • New Capability to make comparisons between products • Rankings became part of our topline service package summary • Allowed mining of data to surface top problem areas (alt text or closed captions?) • Model was influenced by customers for a 80% fully supports threshold

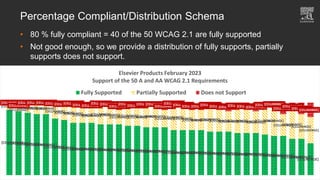

Percentage Compliant/Distribution Schema • 80 % fully compliant = 40 of the 50 WCAG 2.1 are fully supported • Not good enough, so we provide a distribution of fully supports, partially supports does not support. [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] [CELLRANGE] Elsevier Products February 2023 Support of the 50 A and AA WCAG 2.1 Requirements Fully Supported Partially Supported Does not Support

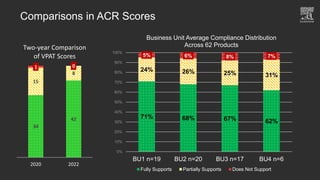

Comparisons in ACR Scores 34 42 15 8 1 0 2020 2022 Two-year Comparison of VPAT Scores 71% 68% 67% 62% 24% 26% 25% 31% 5% 6% 8% 7% 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% BU1 n=19 BU2 n=20 BU3 n=17 BU4 n=6 Business Unit Average Compliance Distribution Across 62 Products Fully Supports Partially Supports Does Not Support
Product Case Study (Evolve vs. Sherpath) • Setting a division target of 80% minimum • Evolve achieves 1st place • Sherpath edges out Evolve • How Evolve reacted to Sherpath 1st place − Indignant response to being overtaken − Wanting a separate ranking for larger vs. smaller products − Led to stressing that compliance rankings are not the only way to determine accessibility • Evolve strikes back the following year to take back 1st place. “The ability to see how our site compares to other sites in the company is great motivation for the squad, they pride themselves on having a #1 position” – Evolve Product Manager

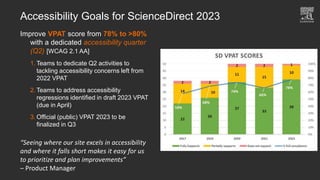

Accessibility Goals for ScienceDirect 2023 Improve VPAT score from 78% to >80% with a dedicated accessibility quarter (Q2) [WCAG 2.1 AA] 1. Teams to dedicate Q2 activities to tackling accessibility concerns left from 2022 VPAT 2. Teams to address accessibility regressions identified in draft 2023 VPAT (due in April) 3. Official (public) VPAT 2023 to be finalized in Q3 “Seeing where our site excels in accessibility and where it falls short makes it easy for us to prioritize and plan improvements” – Product Manager
Deeper Analytics • Most frequently failed checkpoints • Checkpoints which need the most work (failed + partially supports) • Identifying low hanging fruit amongst the weeds 2 4 4 4 5 8 9 17 24 23 24 24 25 30 33 39 44 44 48 48 48 51 54 56 56 56 57 57 57 58 60 60 61 62 63 64 64 64 58 51 55 55 59 53 55 44 24 34 40 40 39 32 13 8 3 20 2 9 16 6 10 2 8 8 4 5 7 6 4 4 3 2 1 0 0 0 4 9 5 5 0 3 0 3 16 7 0 0 0 2 18 17 17 0 14 7 0 7 0 6 0 0 3 2 0 0 0 0 0 0 0 0 0 0 1.3.1: Info and Relationships 3.3.2: Labels or Instructions 4.1.2: Name, Role, Value 1.1.1: Non-text Content 1.4.3: Contrast (Minimum) 2.1.1: Keyboard 2.4.3: Focus Order 2.4.7: Focus Visible 2.4.2: Page Titled 2.4.1: Bypass Blocks 1.4.1: Use of Color 1.3.2: Meaningful Sequence 2.4.4: Link Purpose (In Context) 3.3.1: Error Identification 3.1.1: Language of Page 1.2.5: Audio Description 2.2.1: Timing Adjustable 1.4.5: Images of Text 1.2.2: Captions (Prerecorded) 1.2.3: Audio Description or Full Text Alternative 1.4.4: Resize text 3.1.2: Language of Parts 4.1.1: Parsing 1.2.1: Audio-only and Video-only (Prerecorded) 3.2.3: Consistent Navigation 2.4.5: Multiple Ways 2.2.2: Pause, Stop, Hide 2.1.2: No Keyboard Trap 3.2.2: On Input 1.3.3: Sensory Characteristics 3.2.1: On Focus 2.4.6: Headings and Labels 3.3.3: Error Suggestion 3.2.4: Consistent Identification 1.4.2: Audio Control 3.3.4: Error Prevention (Legal, Financial, Data) 2.3.1: Three Flashes or Below Threshold 1.2.4: Captions (Live) Support for WCAG 2.0 Standard Across 64 Reviewed Elsevier Products

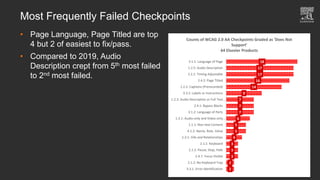

Most Frequently Failed Checkpoints • Page Language, Page Titled are top 4 but 2 of easiest to fix/pass. • Compared to 2019, Audio Description crept from 5th most failed to 2nd most failed. 2 2 3 3 3 4 5 5 6 7 7 7 9 14 16 17 17 18 3.3.1: Error Identification 2.1.2: No Keyboard Trap 2.4.7: Focus Visible 2.2.2: Pause, Stop, Hide 2.1.1: Keyboard 1.3.1: Info and Relationships 4.1.2: Name, Role, Value 1.1.1: Non-text Content 1.2.1: Audio-only and Video-only… 3.1.2: Language of Parts 2.4.1: Bypass Blocks 1.2.3: Audio Description or Full Text… 3.3.2: Labels or Instructions 1.2.2: Captions (Prerecorded) 2.4.2: Page Titled 2.2.1: Timing Adjustable 1.2.5: Audio Description 3.1.1: Language of Page Counts of WCAG 2.0 AA Checkpoints Graded as 'Does Not Support' 64 Elsevier Products

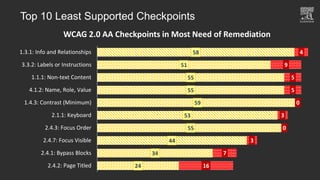

Top 10 Least Supported Checkpoints 24 34 44 55 53 59 55 55 51 58 16 7 3 0 3 0 5 5 9 4 2.4.2: Page Titled 2.4.1: Bypass Blocks 2.4.7: Focus Visible 2.4.3: Focus Order 2.1.1: Keyboard 1.4.3: Contrast (Minimum) 4.1.2: Name, Role, Value 1.1.1: Non-text Content 3.3.2: Labels or Instructions 1.3.1: Info and Relationships WCAG 2.0 AA Checkpoints in Most Need of Remediation

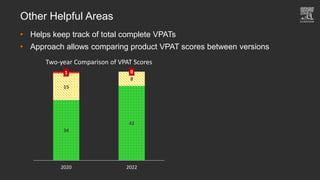

Other Helpful Areas • Helps keep track of total complete VPATs • Approach allows comparing product VPAT scores between versions 34 42 15 8 1 0 2020 2022 Two-year Comparison of VPAT Scores

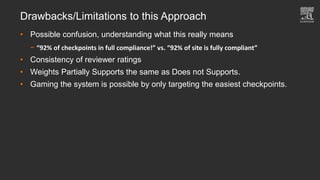

Drawbacks/Limitations to this Approach • Possible confusion, understanding what this really means − “92% of checkpoints in full compliance!” vs. “92% of site is fully compliant” • Consistency of reviewer ratings • Weights Partially Supports the same as Does not Supports. • Gaming the system is possible by only targeting the easiest checkpoints.
Drawbacks/Limitations to this Approach (Continued) • Example of high impact requirements − e.g., Captions have same weight as Page Language. • Takes deliberate work to maintain data (you better love Excel) • Higher compliance percentage does not equal better accessibility • Some sites are very simple with no videos. Video adds at least 5 checkpoints. − According to W3C on conformance, "If there is no content to which a success criterion applies, the success criterion is satisfied." • Treats all applications on the same scale.
Other Challenges • WCAG updates require rethinking our data structure − We already had to adjust when WCAG 2.1 came out. − Another update is coming with WCAG 2.2. A new strategy is required for this. − WCAG 3 could introduce a whole new way of scoring applications that could render our work here unnecessary. • Excel is a bit cumbersome way to manage an ever-increasing amount of data. • Versioning a document where all team members have access can be difficult. • Ensuring team members know how to update data and graphs.
Conclusions on our Approach • We inform decision makers with analytics to help improve and maintain high levels of accessibility. • Creates a new layer of intelligence around ACRs • Digestible benchmark and ranking system around ACRs proved useful to help answer stakeholders' questions
After Analytics – Based Upon a True Story Jay (Accessibility Team Lead) gets another call from the CTO (played by Ted)
Thank You/ Q&A
Links and References ScienceDirect VPAT/ACR Example ScienceDirect Accessibility Statement ITI VPAT Templates Accessibility Checklist Tool Elsevier Accessibility Statement Contact us at accessibility@elsevier.com
EXTRAS
VPAT/ACR is Just 1 Lens to Measure Accessibility Automated Scanning VPATs User Testing Company Maturity Model “the quick and dirty” “the full compliance picture” “the truth” “the how” P R O S Customers use it too Easy to measure, Easy to improve Industry standard, Can rank products using analytics Is it accessible by a real person? Is it usable? Quick to measure Provides higher assessment C O N S Only finds 30% of issues Amplifies common issues (100 instances of a color violation) All 50 WCAG 2.1 AA Slow to measure, slow to improve, Too many freebies to allow gaming scores. Slow to improve Can be TRANSFORMATIVE Is the company doing it right? Slow to measure, slow to improve. Not just UX/Dev. T I M E <1 hour 1.5 weeks 1.5 weeks 1 year
Why Care About Accessibility Data Analytics? • Accessibility reviews/VPATs generate complex data • People want to set benchmarks and goals around initiatives • What is the difference between a good and bad score for VPATs? • Organizational drive to make data driven decisions • "How is my product doing compared to other Elsevier products?" • Hidden insights may lie within complex data. • What are the main trends? • Identify global issues across many products.

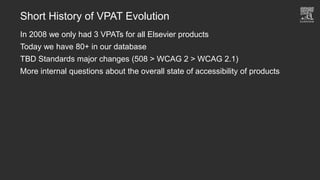

Short History of VPAT Evolution In 2008 we only had 3 VPATs for all Elsevier products Today we have 80+ in our database TBD Standards major changes (508 > WCAG 2 > WCAG 2.1) More internal questions about the overall state of accessibility of products
Why Did We Do This? • Quantitative vs. Qualitative data • Most of the review results are qualitative. However, a lot of business decisions are based on quantitative data. • This effort is a way to provide that quantitative data to those stakeholders.
