1) Trench collapses can kill workers within minutes by burying or entrapping them under soil and debris. Soil weighs over 2,700 pounds per cubic yard, similar to having a vehicle fall on a person. 2) Factors that increase trench collapse risk include water, vibration, and changes in soil moisture levels from drying. 3) Trench safety tips include removing water, diverting surface water, keeping spoil back from edges, installing protective systems from top down before entry, and supporting utilities overhead. Questions are used to discuss past incidents and hazards.

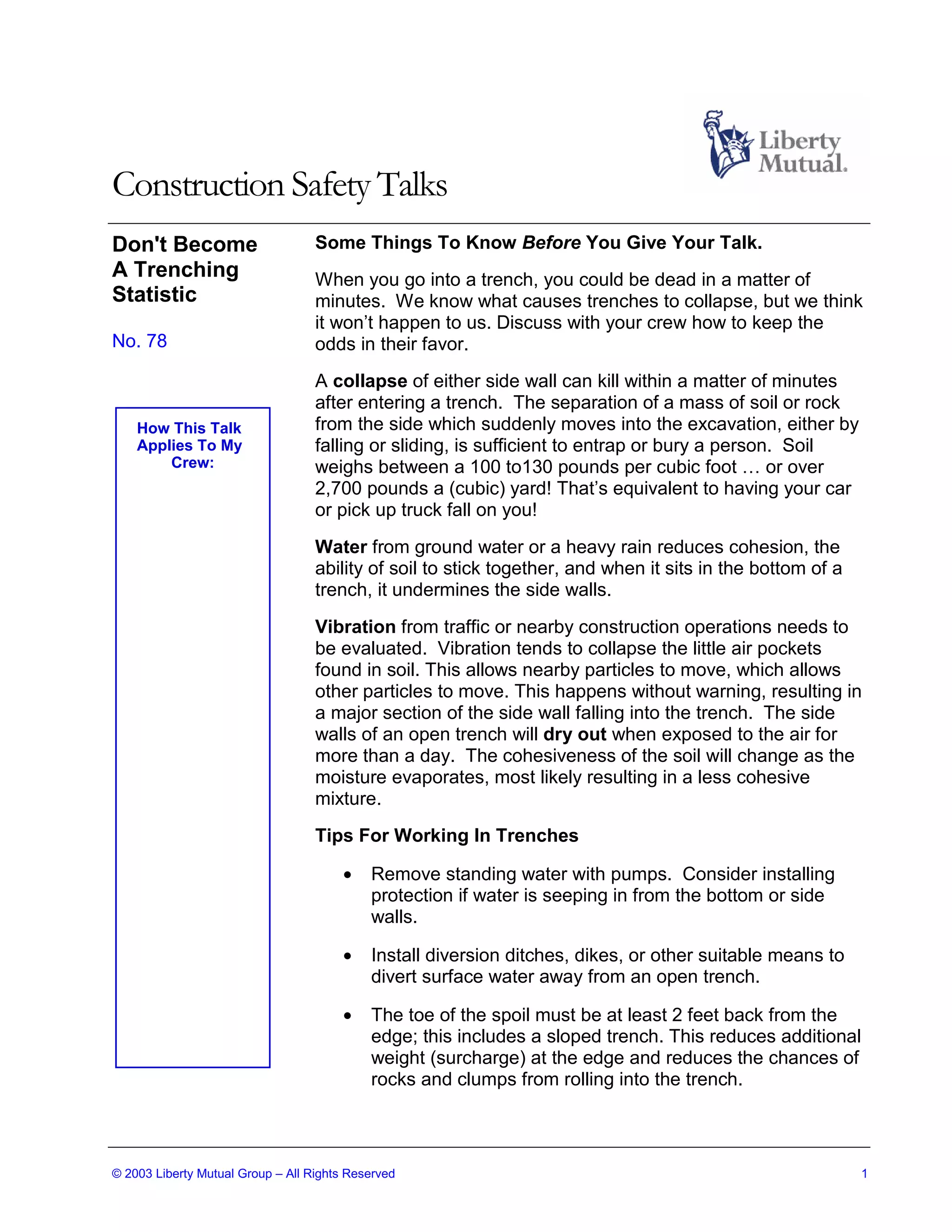

1. Construction Safety Talks
Don't Become Some Things To Know Before You Give Your Talk.
A Trenching When you go into a trench, you could be dead in a matter of
Statistic minutes. We know what causes trenches to collapse, but we think
it won’t happen to us. Discuss with your crew how to keep the
No. 78 odds in their favor.
A collapse of either side wall can kill within a matter of minutes
after entering a trench. The separation of a mass of soil or rock
How This Talk from the side which suddenly moves into the excavation, either by
Applies To My falling or sliding, is sufficient to entrap or bury a person. Soil
Crew: weighs between a 100 to130 pounds per cubic foot … or over
2,700 pounds a (cubic) yard! That’s equivalent to having your car
or pick up truck fall on you!
Water from ground water or a heavy rain reduces cohesion, the
ability of soil to stick together, and when it sits in the bottom of a
trench, it undermines the side walls.
Vibration from traffic or nearby construction operations needs to
be evaluated. Vibration tends to collapse the little air pockets
found in soil. This allows nearby particles to move, which allows
other particles to move. This happens without warning, resulting in
a major section of the side wall falling into the trench. The side
walls of an open trench will dry out when exposed to the air for
more than a day. The cohesiveness of the soil will change as the
moisture evaporates, most likely resulting in a less cohesive
mixture.
Tips For Working In Trenches
• Remove standing water with pumps. Consider installing
protection if water is seeping in from the bottom or side
walls.
• Install diversion ditches, dikes, or other suitable means to
divert surface water away from an open trench.
• The toe of the spoil must be at least 2 feet back from the
edge; this includes a sloped trench. This reduces additional
weight (surcharge) at the edge and reduces the chances of
rocks and clumps from rolling into the trench.
© 2003 Liberty Mutual Group – All Rights Reserved 1

2. • Install protective systems from the top down. Using this method, no one has to
work in an unprotected trench.
• Install protective systems whenever excavation is done under sidewalks or
pavement.
• When shoring a trench, extend the protective system at least 39 inches above
the surface. The system will help prevent collapse, in addition to preventing falls
from the surface.
• Prohibit crossing over a trench unless a walkway with guardrails is used.
• Follow the tabular data on the trench box. The bottom has to be within 2 feet of
the bottom of the trench. The access ladder must be inside the trench box.
• Support any utilities that run across the trench to prevent damage.
Try This For Show And Tell!
• Have the crew look around where the trench is to be dug. Are there cracks or
fissures in the surface? Any signs of previous excavation?
• Ask the crew to identify sources of heavy vibration within 100 feet of the trench.
• If you use a trench box, read some of the key limitations and notes from the
tabular data.
Questions You Can Use To Get Them Talking:
• Have you ever seen a cave-in or heard of one happening? What do you think
caused it?
• Does the soil have to cover your face for you to die in a collapse? No! Even if
you are buried up to your neck, the soil will compact every time you exhale,
making it hardier to take the next breath.
• What are some of the other hazards workers are exposed to when working in a
trench? Struck-by soil and materials; crushed by excavator bucket; crushed by
heavy mobile equipment falling into the trench; hazardous atmospheres.
Attended By:
