Cookies




10/31/2012   R.V.S.Lalitha.,M.Tech(Ph.D)   1

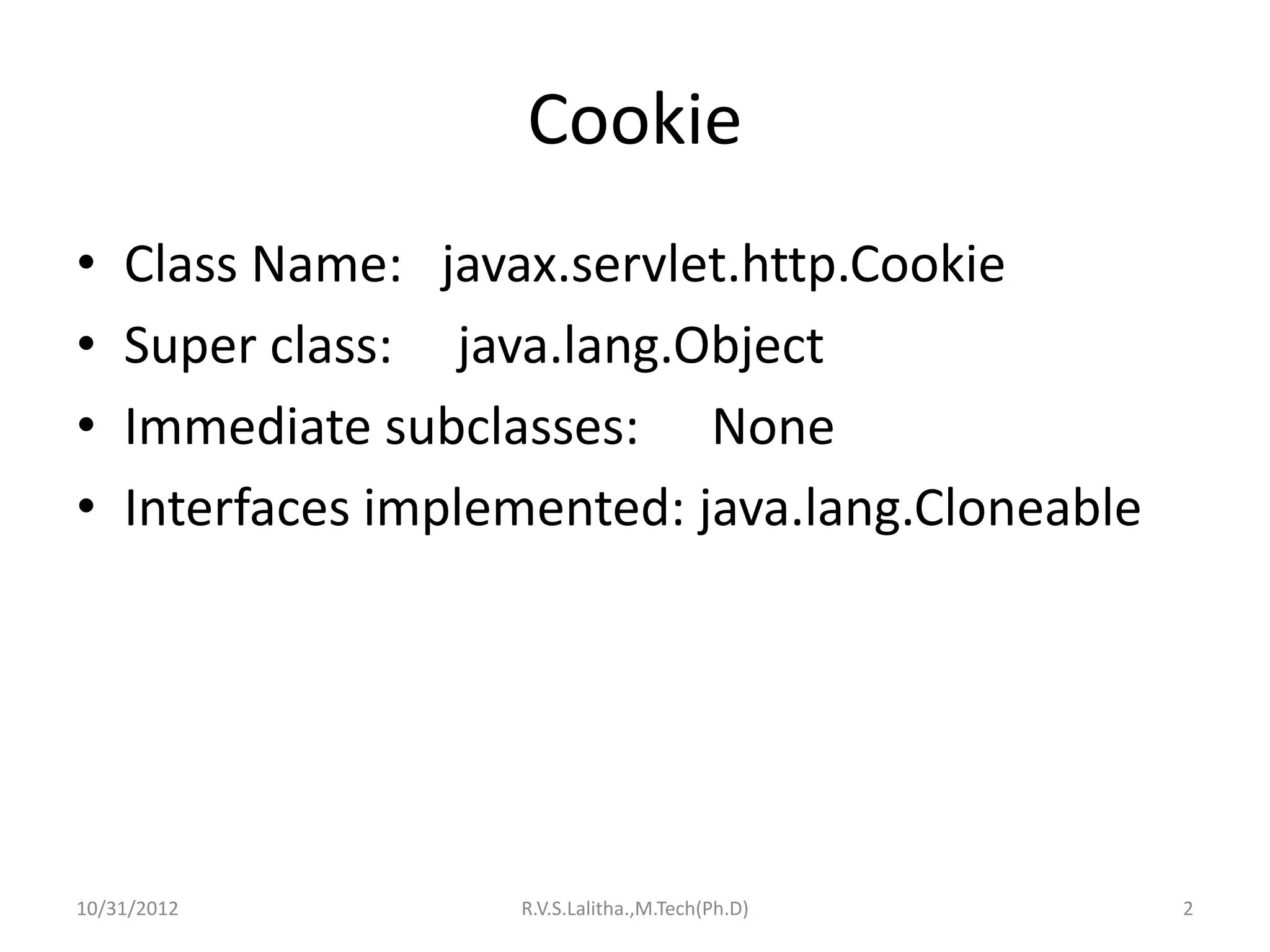

Cookie
•   Class Name: javax.servlet.http.Cookie
•   Super class: java.lang.Object
•   Immediate subclasses: None
•   Interfaces implemented: java.lang.Cloneable




10/31/2012          R.V.S.Lalitha.,M.Tech(Ph.D)   2

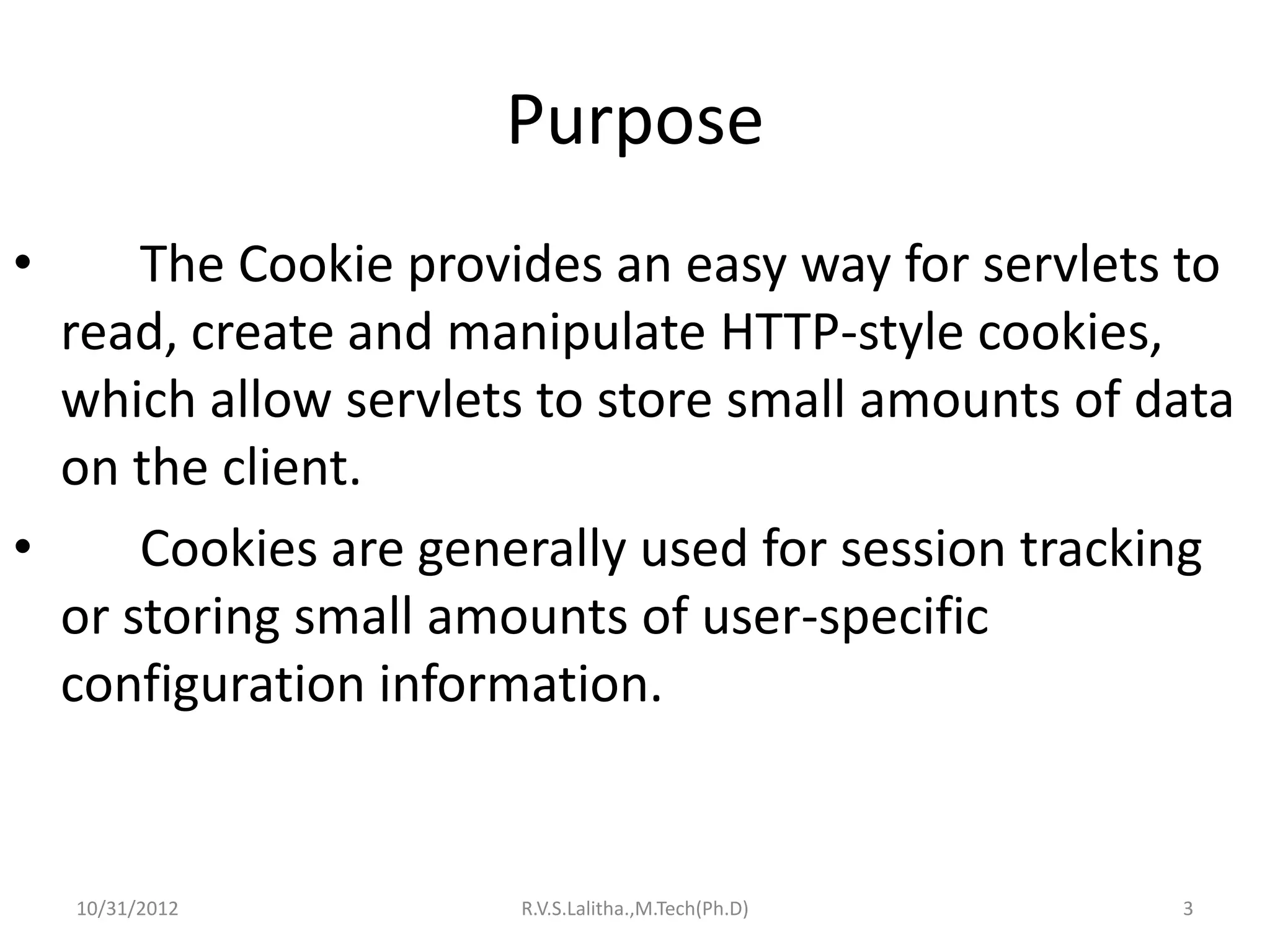

Purpose
•     The Cookie provides an easy way for servlets to
  read, create and manipulate HTTP-style cookies,
  which allow servlets to store small amounts of data
  on the client.
•     Cookies are generally used for session tracking
  or storing small amounts of user-specific
  configuration information.


    10/31/2012        R.V.S.Lalitha.,M.Tech(Ph.D)   3

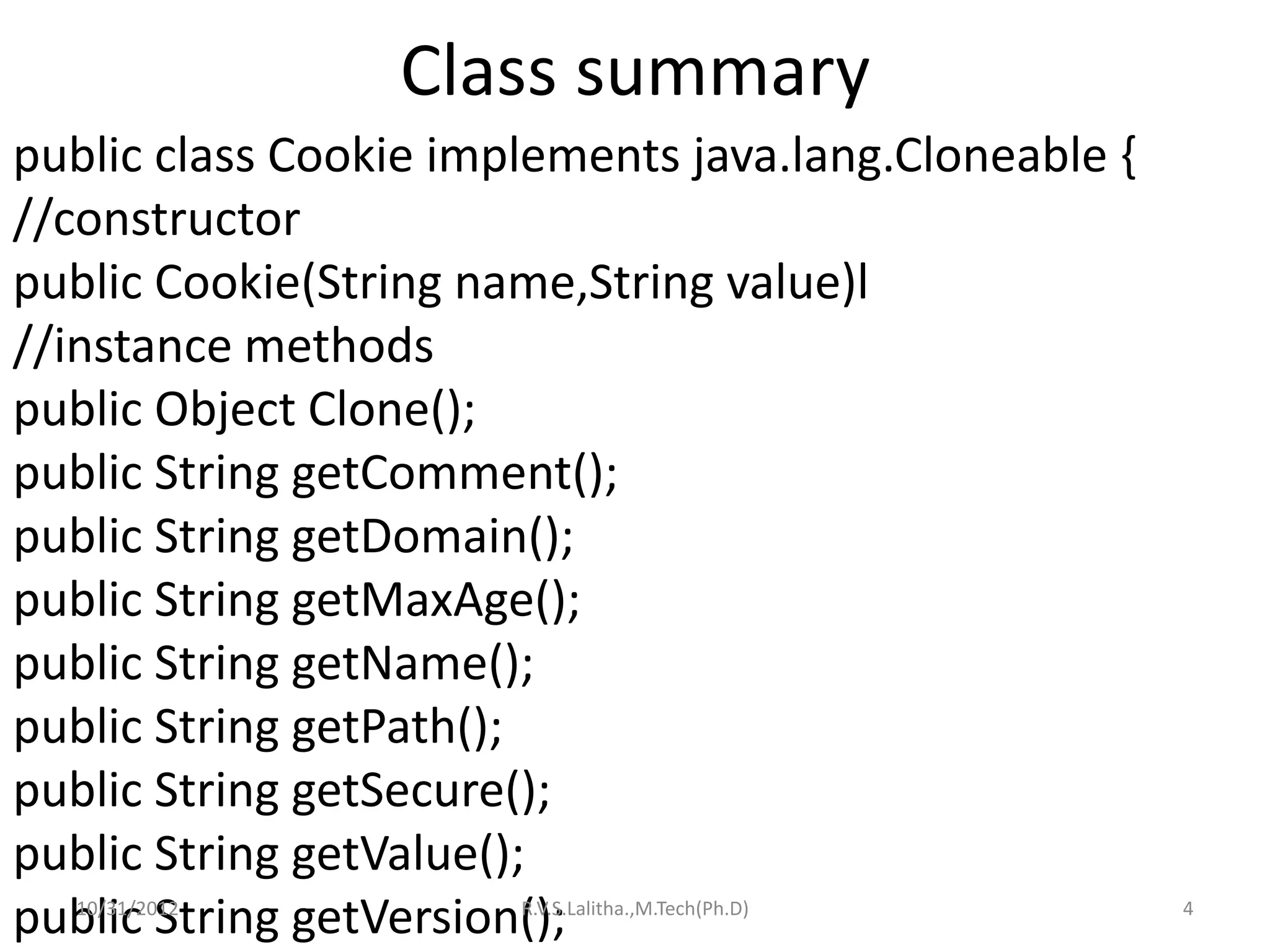

Class summary
public class Cookie implements java.lang.Cloneable {
//constructor
public Cookie(String name,String value)l
//instance methods
public Object Clone();
public String getComment();
public String getDomain();
public String getMaxAge();
public String getName();
public String getPath();
public String getSecure();
public String getValue();
public String getVersion();
  10/31/2012           R.V.S.Lalitha.,M.Tech(Ph.D)     4

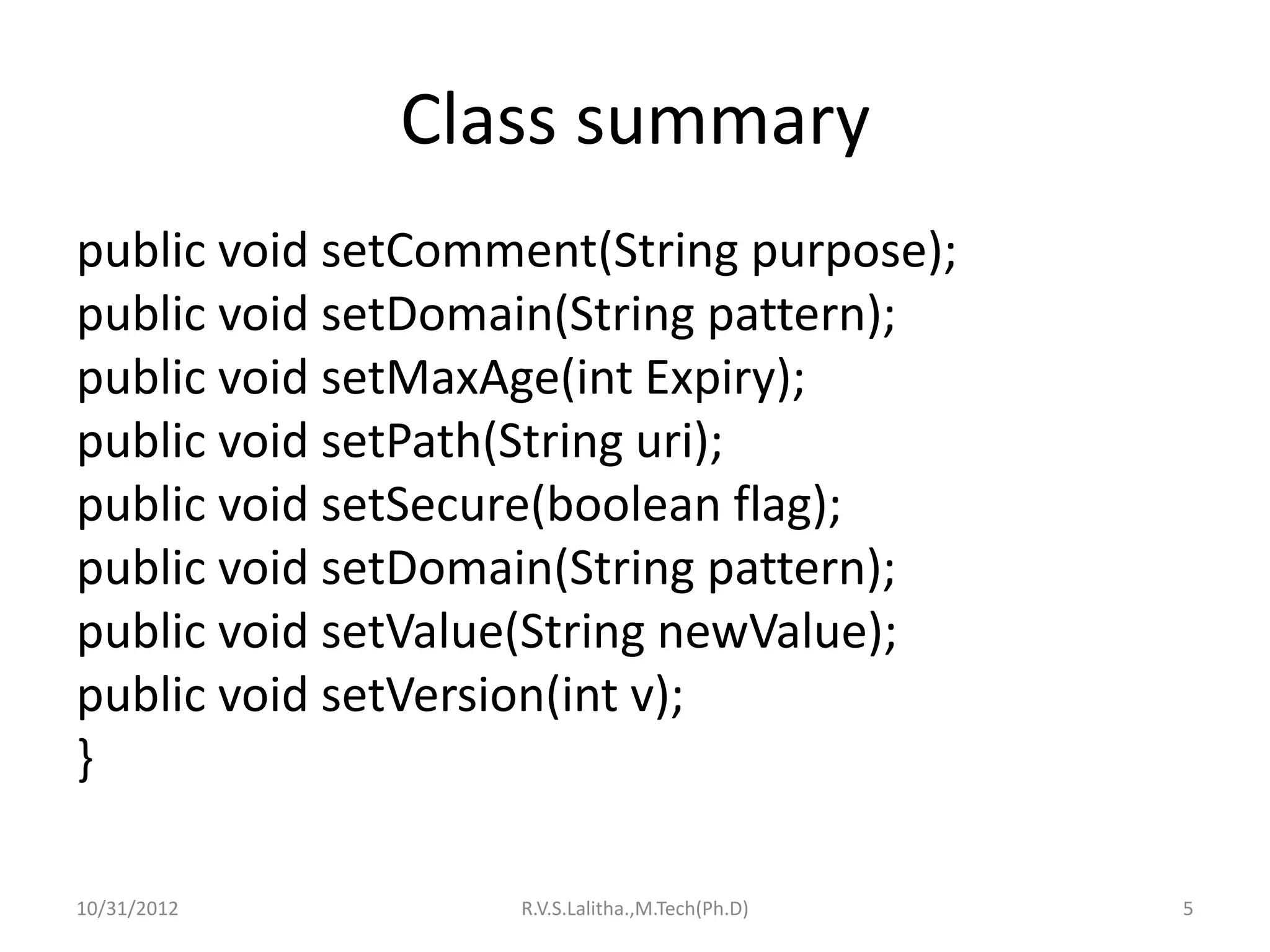

Class summary
public void setComment(String purpose);
public void setDomain(String pattern);
public void setMaxAge(int Expiry);
public void setPath(String uri);
public void setSecure(boolean flag);
public void setDomain(String pattern);
public void setValue(String newValue);
public void setVersion(int v);
}

10/31/2012         R.V.S.Lalitha.,M.Tech(Ph.D)   5
Class summary
• Cookie()
Constructs a new cookie with a initial name and value
• clone()
To return a copy of object(duplicate cookie)
• getComment()
Returns comments associated with cookie
• getDomain()
Returns domain limitation associated with cookie
• getMaxAge()
Returns max age allowed for this cookie
• getPath
Returns path limitation for this servlet
• getSecure()
Returns true if the cookie requires a secure connection, false
   otherwise
   10/31/2012                R.V.S.Lalitha.,M.Tech(Ph.D)         6

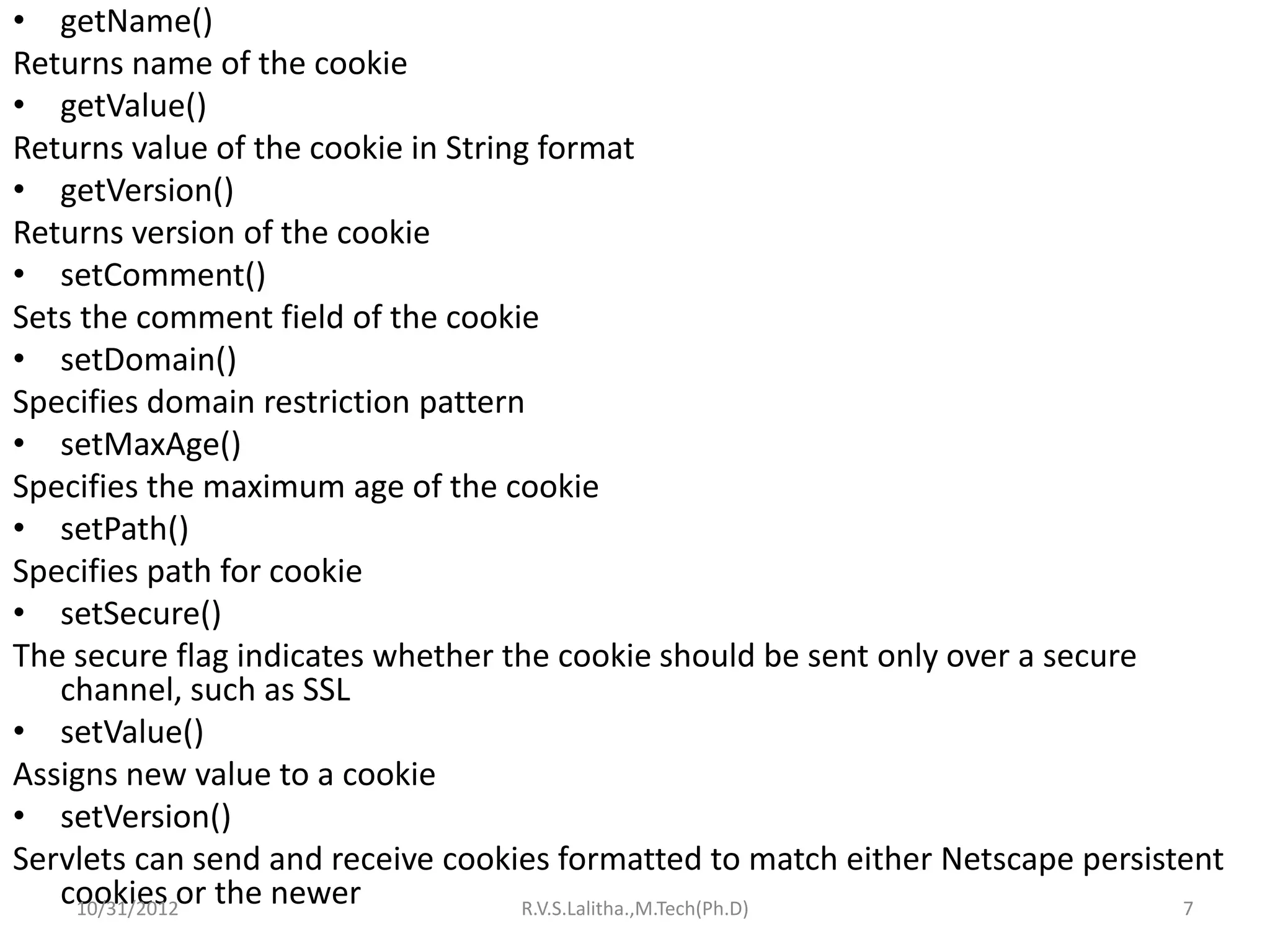

• getName()
Returns name of the cookie
• getValue()
Returns value of the cookie in String format
• getVersion()
Returns version of the cookie
• setComment()
Sets the comment field of the cookie
• setDomain()
Specifies domain restriction pattern
• setMaxAge()
Specifies the maximum age of the cookie
• setPath()
Specifies path for cookie
• setSecure()
The secure flag indicates whether the cookie should be sent only over a secure
   channel, such as SSL
• setValue()
Assigns new value to a cookie
• setVersion()
Servlets can send and receive cookies formatted to match either Netscape persistent
   cookies or the newer
     10/31/2012                      R.V.S.Lalitha.,M.Tech(Ph.D)                7

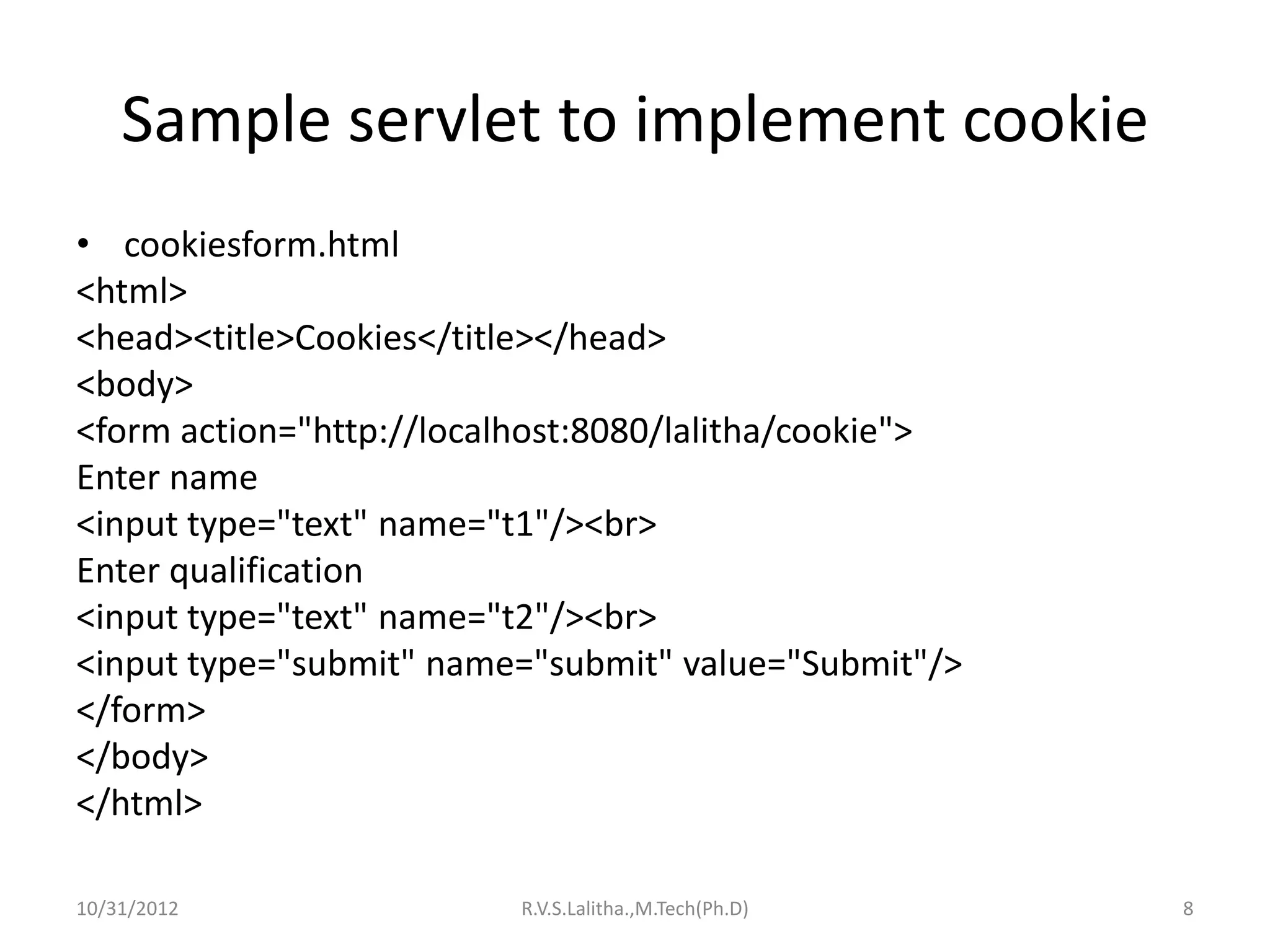

Sample servlet to implement cookie
• cookiesform.html
<html>
<head><title>Cookies</title></head>
<body>
<form action="http://localhost:8080/lalitha/cookie">
Enter name
<input type="text" name="t1"/><br>
Enter qualification
<input type="text" name="t2"/><br>
<input type="submit" name="submit" value="Submit"/>
</form>
</body>
</html>

10/31/2012                R.V.S.Lalitha.,M.Tech(Ph.D)   8

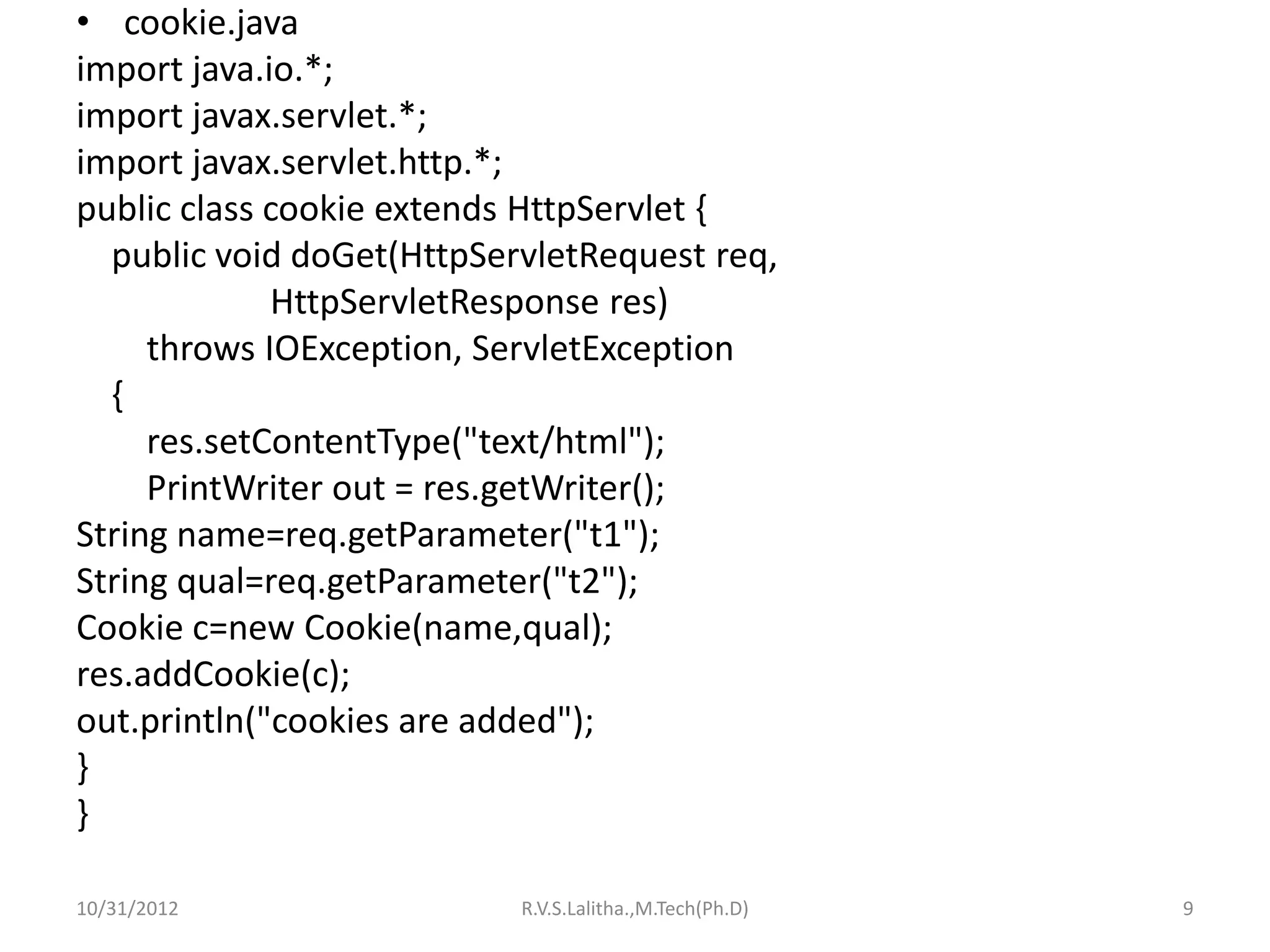

• cookie.java
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class cookie extends HttpServlet {
  public void doGet(HttpServletRequest req,
             HttpServletResponse res)
     throws IOException, ServletException
  {
     res.setContentType("text/html");
     PrintWriter out = res.getWriter();
String name=req.getParameter("t1");
String qual=req.getParameter("t2");
Cookie c=new Cookie(name,qual);
res.addCookie(c);

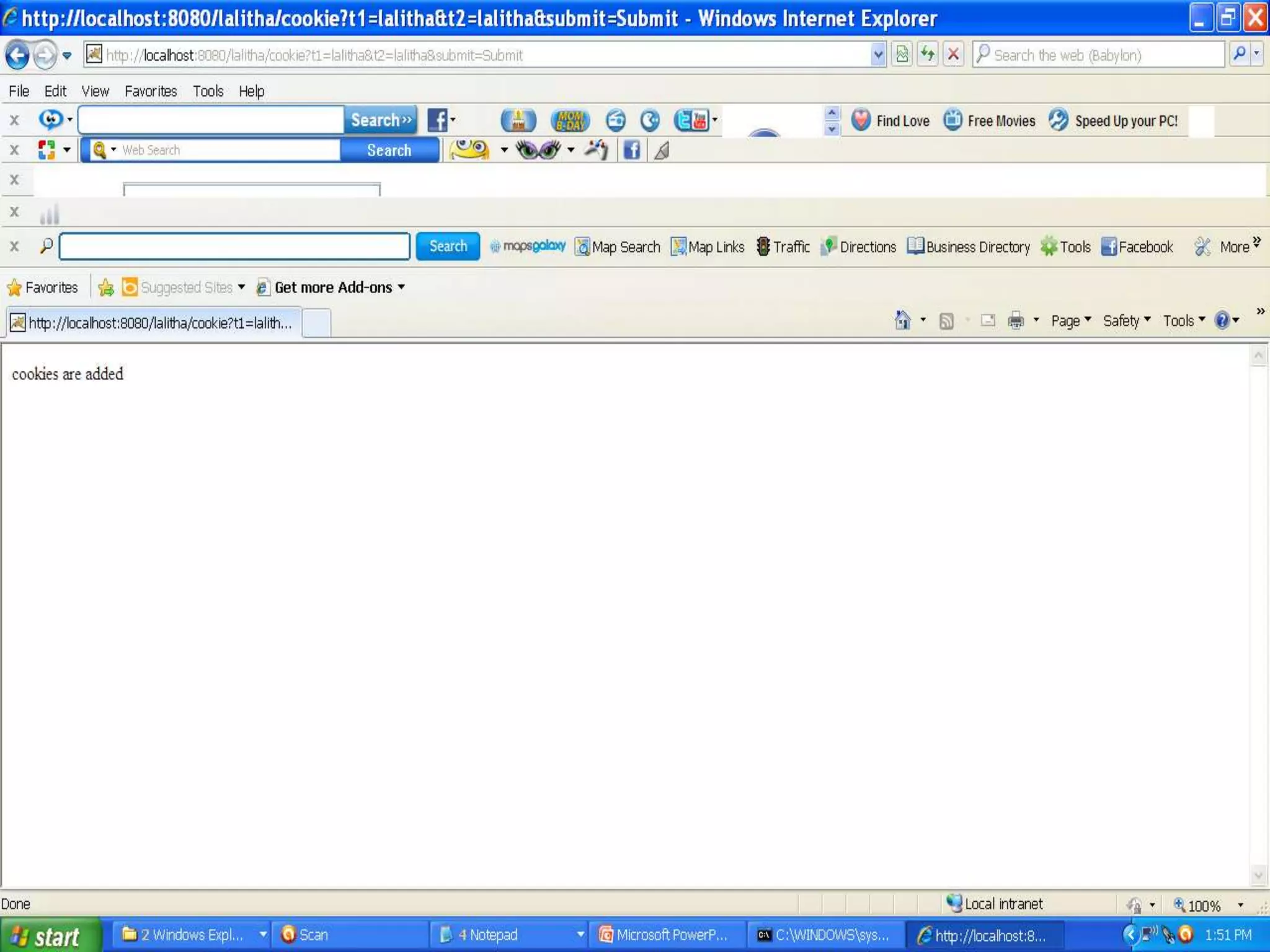

out.println("cookies are added");
}
}

10/31/2012                 R.V.S.Lalitha.,M.Tech(Ph.D)   9

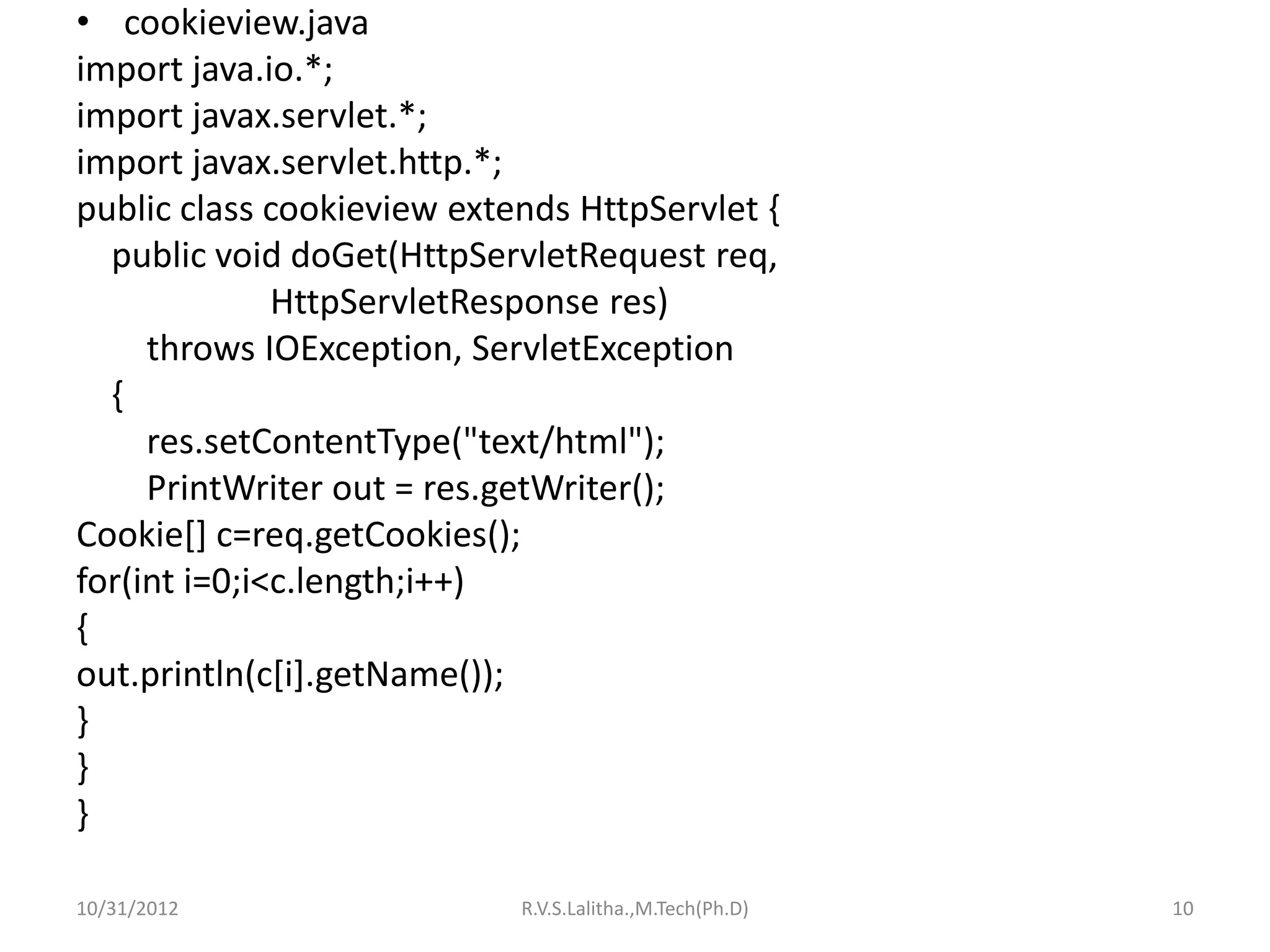

• cookieview.java
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class cookieview extends HttpServlet {
  public void doGet(HttpServletRequest req,
              HttpServletResponse res)
     throws IOException, ServletException
  {
     res.setContentType("text/html");
     PrintWriter out = res.getWriter();
Cookie[] c=req.getCookies();
for(int i=0;i<c.length;i++)
{
out.println(c[i].getName());
}
}
}

10/31/2012                  R.V.S.Lalitha.,M.Tech(Ph.D)   10

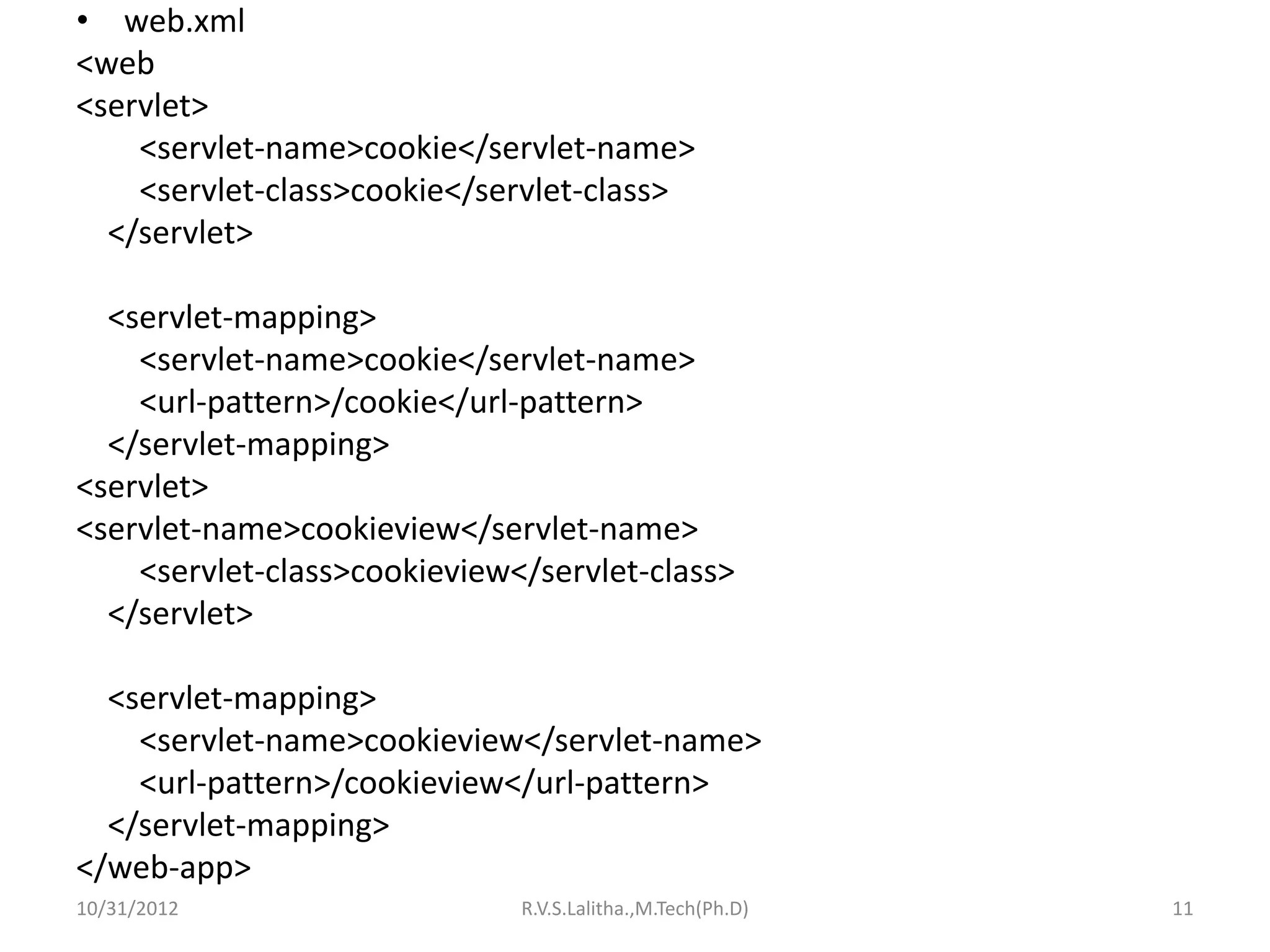

• web.xml
<web
<servlet>
    <servlet-name>cookie</servlet-name>
    <servlet-class>cookie</servlet-class>
  </servlet>

  <servlet-mapping>
    <servlet-name>cookie</servlet-name>
    <url-pattern>/cookie</url-pattern>
  </servlet-mapping>
<servlet>
<servlet-name>cookieview</servlet-name>
    <servlet-class>cookieview</servlet-class>
  </servlet>

  <servlet-mapping>
    <servlet-name>cookieview</servlet-name>
    <url-pattern>/cookieview</url-pattern>
  </servlet-mapping>
</web-app>
10/31/2012                    R.V.S.Lalitha.,M.Tech(Ph.D)   11
Compiling servlets..
C:Program FilesApache Software FoundationTomcat
   5.5webappslalithaWEB-INFclasses>javac -classpath "C:Program
   FilesApache Software oundationTomcat 5.5commonlibservlet-
   api.jar" cookie.java

C:Program FilesApache Software FoundationTomcat
   5.5webappslalithaWEB-INFclasses>javac -classpath "C:Program
   FilesApache Software FoundationTomcat 5.5commonlibservlet-
   api.jar" cookieview.java




   10/31/2012               R.V.S.Lalitha.,M.Tech(Ph.D)         12

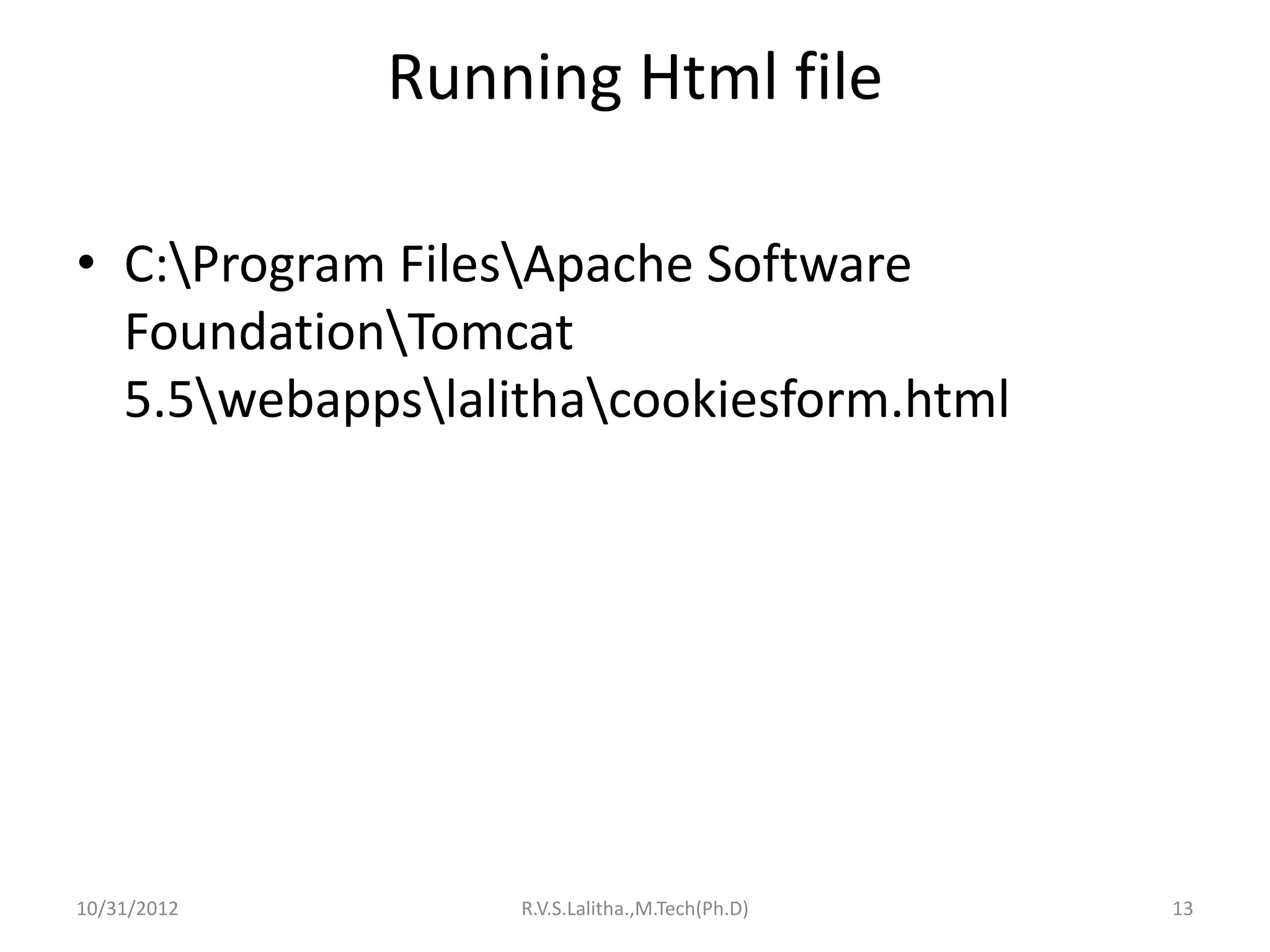

Running Html file

• C:Program FilesApache Software
  FoundationTomcat
  5.5webappslalithacookiesform.html




10/31/2012        R.V.S.Lalitha.,M.Tech(Ph.D)   13

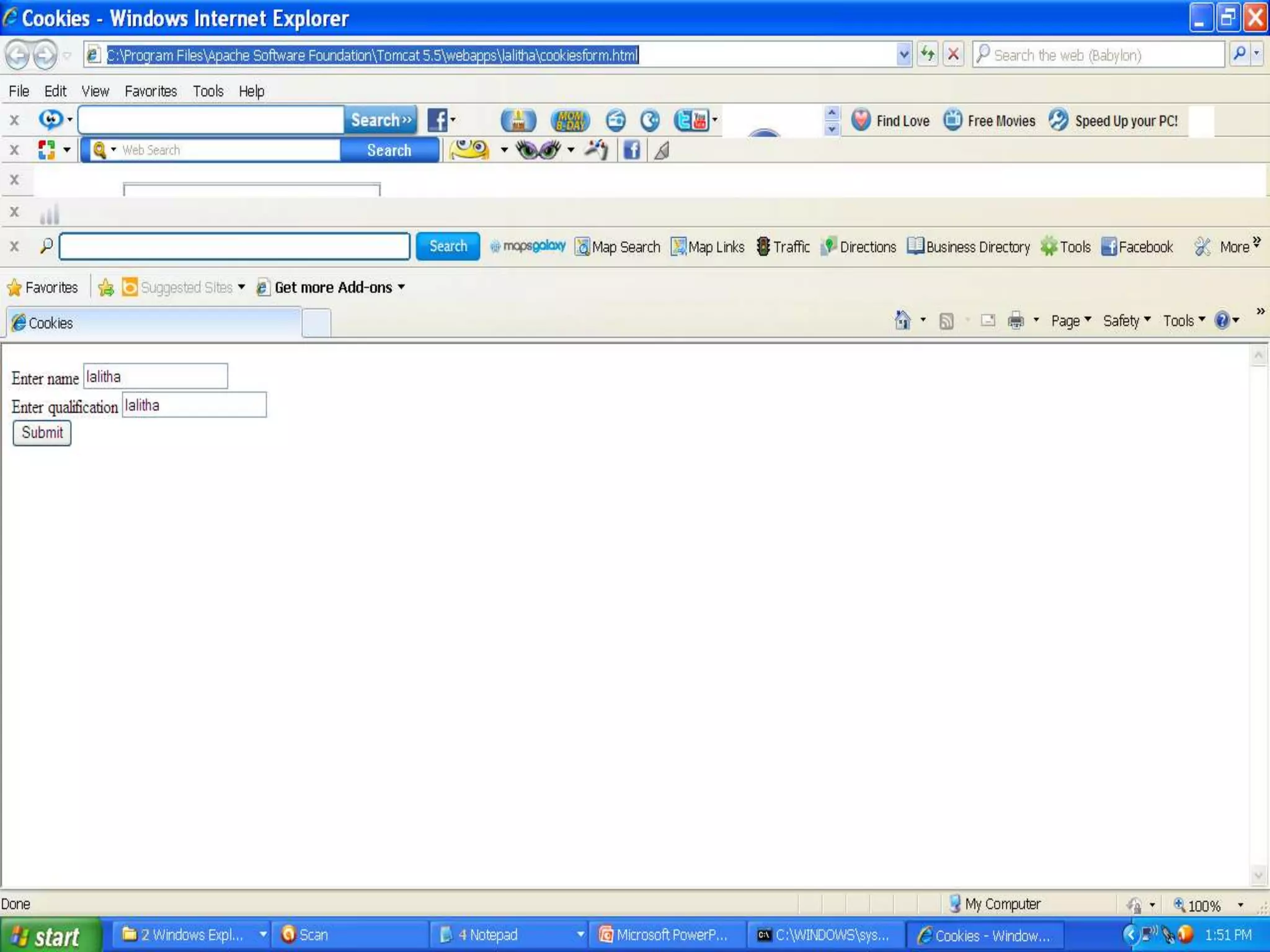

10/31/2012   R.V.S.Lalitha.,M.Tech(Ph.D)   14
10/31/2012   R.V.S.Lalitha.,M.Tech(Ph.D)   15

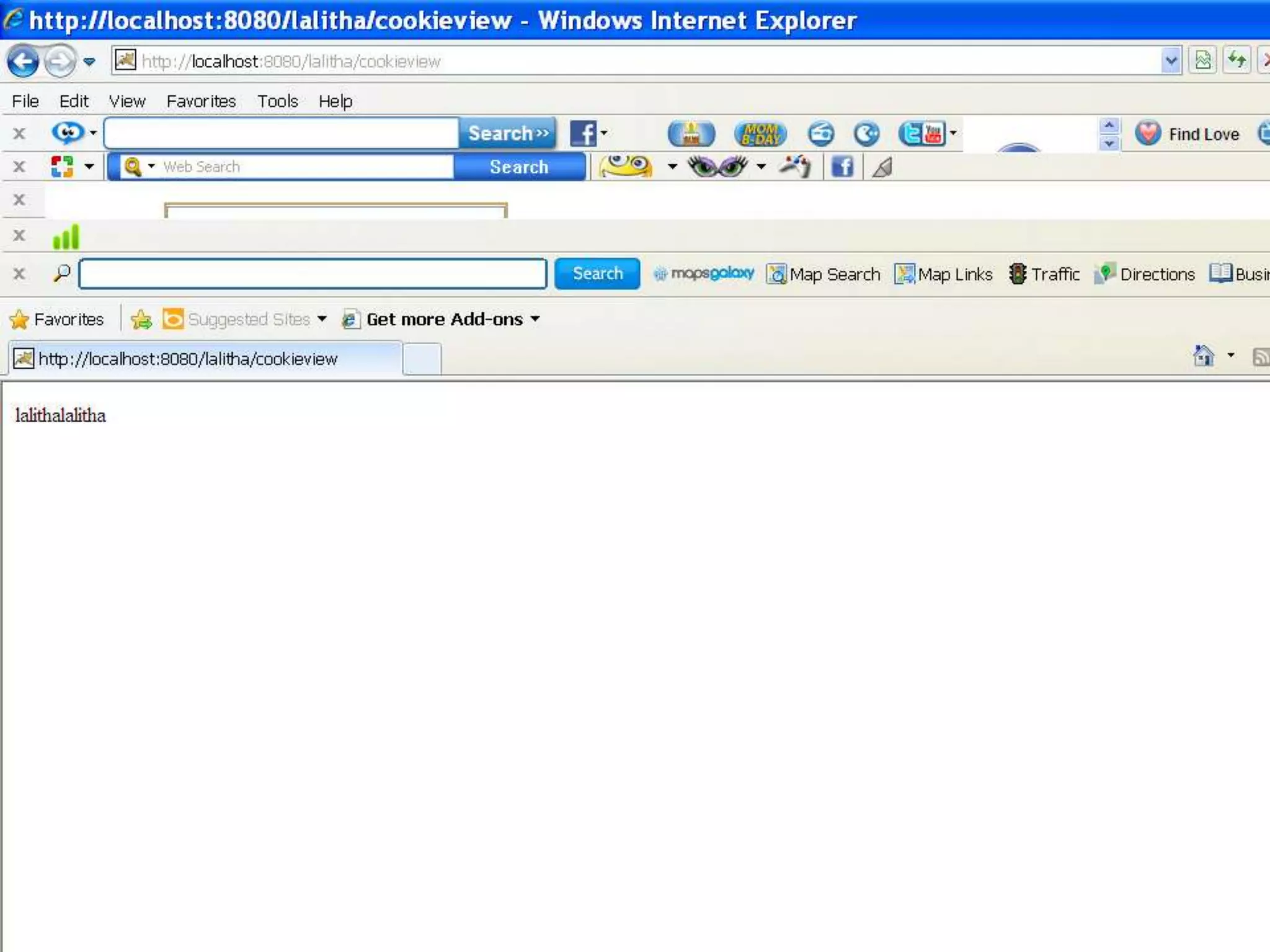

10/31/2012   R.V.S.Lalitha.,M.Tech(Ph.D)   16
10/31/2012   R.V.S.Lalitha.,M.Tech(Ph.D)   17
