1. Chapter 14
Unix domain protocol

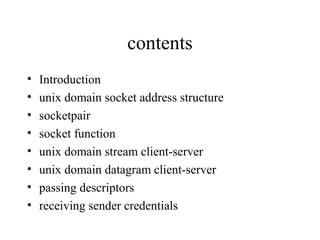

2. contents
• Introduction
• unix domain socket address structure
• socketpair
• socket function
• unix domain stream client-server
• unix domain datagram client-server
• passing descriptors
• receiving sender credentials

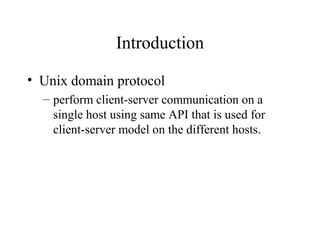

3. Introduction
• Unix domain protocol
– perform client-server communication on a
single host using same API that is used for
client-server model on the different hosts.

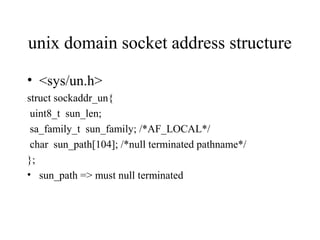

4. unix domain socket address structure
• <sys/un.h>
struct sockaddr_un{
uint8_t sun_len;
sa_family_t sun_family; /*AF_LOCAL*/
char sun_path[104]; /*null terminated pathname*/
};
• sun_path => must null terminated

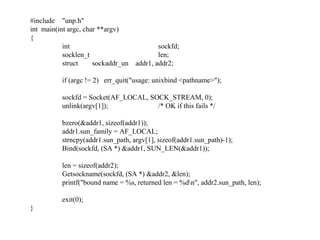

5. #include "unp.h"
int main(int argc, char **argv)
{
int sockfd;
socklen_t len;
struct sockaddr_un addr1, addr2;
if (argc != 2) err_quit("usage: unixbind <pathname>");
sockfd = Socket(AF_LOCAL, SOCK_STREAM, 0);
unlink(argv[1]); /* OK if this fails */
bzero(&addr1, sizeof(addr1));
addr1.sun_family = AF_LOCAL;
strncpy(addr1.sun_path, argv[1], sizeof(addr1.sun_path)-1);
Bind(sockfd, (SA *) &addr1, SUN_LEN(&addr1));
len = sizeof(addr2);
Getsockname(sockfd, (SA *) &addr2, &len);
printf("bound name = %s, returned len = %dn", addr2.sun_path, len);
exit(0);
}

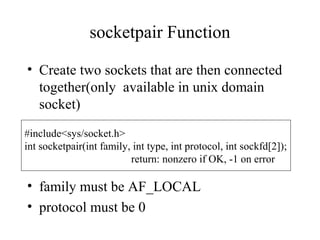

6. socketpair Function
• Create two sockets that are then connected
together(only available in unix domain
socket)
#include<sys/socket.h>
int socketpair(int family, int type, int protocol, int sockfd[2]);
return: nonzero if OK, -1 on error
• family must be AF_LOCAL
• protocol must be 0

7. socket function(restriction)
• Default file access permition created by bind shiuld be 0777, modified
by the current umask value
• path name must be absolute pathname not a relative path name
• the path name in the connect must be a pathname that is currently
bound to an open unix domain socket of the same type.
• Unix domain stream socket are similar to TCP socket
• unix domain datagram are similar to UDP socket
• unlike UDP socket, sending a datagram on an unbound unix domain
datagram does not bind a pathname to the socket

8. unix domain stream client-server
#include "unp.h"
int main(int argc, char **argv)
{
int listenfd, connfd;
pid_t childpid;
socklen_t clilen;
struct sockaddr_un cliaddr, servaddr;
void sig_chld(int);
listenfd = Socket(AF_LOCAL, SOCK_STREAM, 0);
unlink(UNIXSTR_PATH);
bzero(&servaddr, sizeof(servaddr));
servaddr.sun_family = AF_LOCAL;
strcpy(servaddr.sun_path, UNIXSTR_PATH);
Bind(listenfd, (SA *) &servaddr, sizeof(servaddr));
Listen(listenfd, LISTENQ);
Signal(SIGCHLD, sig_chld);

9. unix domain stream client-server(2)
for ( ; ; ) {
clilen = sizeof(cliaddr);
if ( (connfd = accept(listenfd, (SA *) &cliaddr, &clilen)) < 0) {
if (errno == EINTR)
continue; /* back to for() */
else
err_sys("accept error");
}
if ( (childpid = Fork()) == 0) { /* child process */
Close(listenfd); /* close listening socket */
str_echo(connfd); /* process the request */
exit(0);
}
Close(connfd); /* parent closes connected socket */
}
}

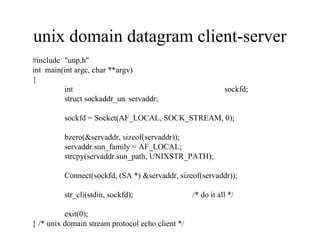

10. unix domain datagram client-server
#include "unp.h"
int main(int argc, char **argv)
{
int sockfd;
struct sockaddr_un servaddr;
sockfd = Socket(AF_LOCAL, SOCK_STREAM, 0);
bzero(&servaddr, sizeof(servaddr));
servaddr.sun_family = AF_LOCAL;
strcpy(servaddr.sun_path, UNIXSTR_PATH);
Connect(sockfd, (SA *) &servaddr, sizeof(servaddr));
str_cli(stdin, sockfd); /* do it all */
exit(0);
} /* unix domain stream protocol echo client */

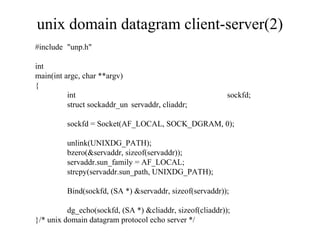

11. unix domain datagram client-server(2)
#include "unp.h"
int
main(int argc, char **argv)
{
int sockfd;
struct sockaddr_un servaddr, cliaddr;
sockfd = Socket(AF_LOCAL, SOCK_DGRAM, 0);
unlink(UNIXDG_PATH);
bzero(&servaddr, sizeof(servaddr));
servaddr.sun_family = AF_LOCAL;
strcpy(servaddr.sun_path, UNIXDG_PATH);
Bind(sockfd, (SA *) &servaddr, sizeof(servaddr));
dg_echo(sockfd, (SA *) &cliaddr, sizeof(cliaddr));
}/* unix domain datagram protocol echo server */

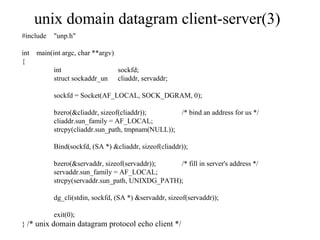

12. unix domain datagram client-server(3)
#include "unp.h"
int main(int argc, char **argv)
{
int sockfd;
struct sockaddr_un cliaddr, servaddr;
sockfd = Socket(AF_LOCAL, SOCK_DGRAM, 0);
bzero(&cliaddr, sizeof(cliaddr)); /* bind an address for us */
cliaddr.sun_family = AF_LOCAL;
strcpy(cliaddr.sun_path, tmpnam(NULL));
Bind(sockfd, (SA *) &cliaddr, sizeof(cliaddr));
bzero(&servaddr, sizeof(servaddr)); /* fill in server's address */
servaddr.sun_family = AF_LOCAL;
strcpy(servaddr.sun_path, UNIXDG_PATH);
dg_cli(stdin, sockfd, (SA *) &servaddr, sizeof(servaddr));
exit(0);
} /* unix domain datagram protocol echo client */

13. passing descriptors
• Current unix system provide a way to pass
any open descriptor from one process to any
other process.(using sendmsg)

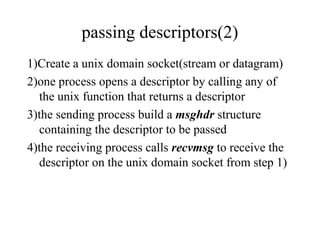

14. passing descriptors(2)
1)Create a unix domain socket(stream or datagram)
2)one process opens a descriptor by calling any of
the unix function that returns a descriptor
3)the sending process build a msghdr structure
containing the descriptor to be passed
4)the receiving process calls recvmsg to receive the
descriptor on the unix domain socket from step 1)

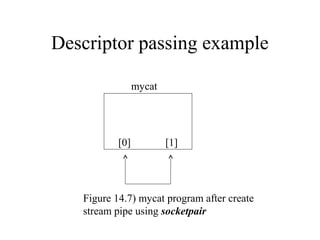

15. Descriptor passing example
mycat
[0] [1]
Figure 14.7) mycat program after create
stream pipe using socketpair

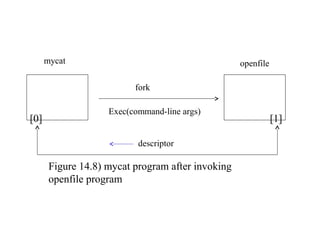

16. mycat openfile
fork
Exec(command-line args)
[0] [1]
descriptor
Figure 14.8) mycat program after invoking
openfile program

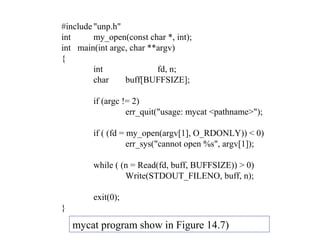

17. #include "unp.h"
int my_open(const char *, int);
int main(int argc, char **argv)
{
int fd, n;
char buff[BUFFSIZE];
if (argc != 2)
err_quit("usage: mycat <pathname>");
if ( (fd = my_open(argv[1], O_RDONLY)) < 0)
err_sys("cannot open %s", argv[1]);
while ( (n = Read(fd, buff, BUFFSIZE)) > 0)
Write(STDOUT_FILENO, buff, n);
exit(0);
}
mycat program show in Figure 14.7)

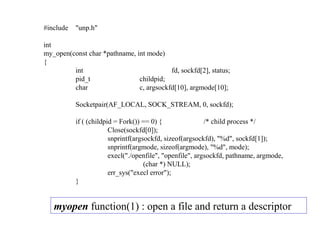

18. #include "unp.h"
int
my_open(const char *pathname, int mode)
{
int fd, sockfd[2], status;
pid_t childpid;
char c, argsockfd[10], argmode[10];
Socketpair(AF_LOCAL, SOCK_STREAM, 0, sockfd);
if ( (childpid = Fork()) == 0) { /* child process */
Close(sockfd[0]);
snprintf(argsockfd, sizeof(argsockfd), "%d", sockfd[1]);
snprintf(argmode, sizeof(argmode), "%d", mode);
execl("./openfile", "openfile", argsockfd, pathname, argmode,
(char *) NULL);
err_sys("execl error");
}
myopen function(1) : open a file and return a descriptor

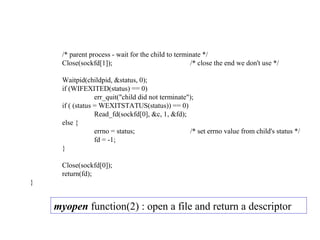

19. /* parent process - wait for the child to terminate */
Close(sockfd[1]); /* close the end we don't use */
Waitpid(childpid, &status, 0);
if (WIFEXITED(status) == 0)
err_quit("child did not terminate");
if ( (status = WEXITSTATUS(status)) == 0)
Read_fd(sockfd[0], &c, 1, &fd);
else {
errno = status; /* set errno value from child's status */
fd = -1;
}
Close(sockfd[0]);
return(fd);
}
myopen function(2) : open a file and return a descriptor

20. receiving sender credentials
• User credentials via fcred structure
Struct fcred{
uid_t fc_ruid; /*real user ID*/
gid_t fc_rgid; /*real group ID*/
char fc_login[MAXLOGNAME];/*setlogin() name*/
uid_t fc_uid; /*effectivr user ID*/
short fc_ngroups; /*number of groups*/
gid_t fc_groups[NGROUPS]; /*supplemenary group IDs*/
};
#define fc_gid fc_groups[0] /* effective group ID */

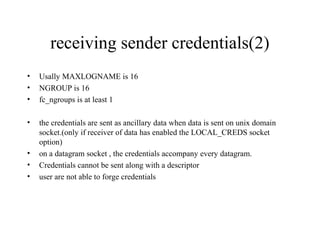

21. receiving sender credentials(2)
• Usally MAXLOGNAME is 16
• NGROUP is 16
• fc_ngroups is at least 1
• the credentials are sent as ancillary data when data is sent on unix domain
socket.(only if receiver of data has enabled the LOCAL_CREDS socket
option)
• on a datagram socket , the credentials accompany every datagram.
• Credentials cannot be sent along with a descriptor
• user are not able to forge credentials
