ARC Advisory Group's 2014 European Industry Forum in the Netherlands included this interesting presentation from Willem Hazenberg of Stork on control system migration.
Facility personnel often face the choice of maintaining aging equipment or buying new. Now there is another, more cost-effective, option to increase equipment reliability, efficiency and productivity….modernization. Learn key considerations and advantages of upgrading existing equipment to current technology.
Measuring Up to Chemical Compliance ChallengesYokogawa1
Regulatory compliance can come from many different directions and cost impacts in different points.
Cost pressures associated with regulatory compliance can be impacted from not on the non-compliance, but also equipment, sample systems, man power with manual checks and audit preparations.
View the full webinar here: https://info.us.yokogawa.com/20200730-Measuring-Up-to-Chemical-Compliance-Challenges_Webinar-Recording-Page-v2.html
Application of PLC’s for Automation of Processes in IndustriesIJERA Editor
Several industries utilize sequential industrial process which is respective in nature. For such processes
industries have to depend upon use of relays, stepping drum, timers and controls, considerable difficulties
experienced in reprogramming necessitated due to change in the nature of production. Often the whole system
has to be scrapped and a redesigning is required. To overcome these problems PLC control system was
introduced. The PLC can be described as a control ladder comprising a sequence program. PLC sequence
program consists of normally open and normally closed contacts connected in parallel or in series. It also has
relay coils, which turns ON and OFF as the state of these contacts change. In this paper, about all aspects of
these powerful and versatile tools and its applications to process automation has been discussed.
Introduction to Reliability Centered MaintenanceDibyendu De
Introduces Reliability Centered Maintenance, strategies employed, formulation of effective maintenance plan, reduction of consequences of failures and failure rate.
Reliability Centered Maintenance for minimizing integrity failure by Bhavesh Shukla at APAC 2015 Process Safety Management Conference 9th March 2015 Singapore.
2. 2
GE Title or job number
9/29/2015
2
The Avionics Supply Chain
1. Parts &
Materials
Suppliers
2. Board
Assemblers
3. Avionics
OEMs,
Logistics,
Maintenance
and Repair
4. Platform
Integrators
5. Operators
& Regulators
Parts
Boards
Contract Mfg.
Suppliers CustomersSolder etc.
Suppliers
Customers
15 - 40 yr
Lifecycle
3 - 6 yr
Lifecycle
Suppliers managed per
ECMP and Anti-counterfeit
Most life cycle
costs are incurred here
and managed by ECMP
Global Supply Chain
Avoiding counterfeit components
Requirements
flow-down vs.
products flow-up
process is
disrupted here
Aerospace
Captive
To build products that must
meet mil-aero requirements
(what we must control)
Using COTS components
targeted for other markets
(what we cannot control)
Aerospace Electronics
• Depends on
materials and
components
developed for other
industries
• Vastly different
lifecycle applications
3. 3
GE Title or job number
9/29/2015

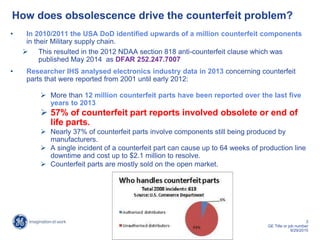

How does obsolescence drive the counterfeit problem?
• In 2010/2011 the USA DoD identified upwards of a million counterfeit components
in their Military supply chain.
This resulted in the 2012 NDAA section 818 anti-counterfeit clause which was
published May 2014 as DFAR 252.247.7007
• Researcher IHS analysed electronics industry data in 2013 concerning counterfeit
parts that were reported from 2001 until early 2012:
More than 12 million counterfeit parts have been reported over the last five
years to 2013
57% of counterfeit part reports involved obsolete or end of
life parts.
Nearly 37% of counterfeit parts involve components still being produced by
manufacturers.
A single incident of a counterfeit part can cause up to 64 weeks of production line
downtime and cost up to $2.1 million to resolve.
Counterfeit parts are mostly sold on the open market.
4. 4
GE Title or job number
9/29/2015

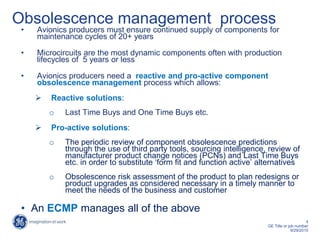

Obsolescence management process
• Avionics producers must ensure continued supply of components for
maintenance cycles of 20+ years
• Microcircuits are the most dynamic components often with production
lifecycles of 5 years or less
• Avionics producers need a reactive and pro-active component
obsolescence management process which allows:
Reactive solutions:
o Last Time Buys and One Time Buys etc.
Pro-active solutions:
o The periodic review of component obsolescence predictions
through the use of third party tools, sourcing intelligence, review of
manufacturer product change notices (PCNs) and Last Time Buys
etc. in order to substitute ‘form fit and function active’ alternatives
o Obsolescence risk assessment of the product to plan redesigns or
product upgrades as considered necessary in a timely manner to
meet the needs of the business and customer
• An ECMP manages all of the above
5. 5
GE Title or job number
9/29/2015

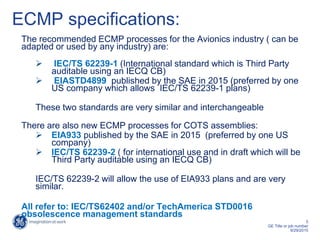

ECMP specifications:
The recommended ECMP processes for the Avionics industry ( can be
adapted or used by any industry) are:
IEC/TS 62239-1 (International standard which is Third Party
auditable using an IECQ CB)
EIASTD4899 published by the SAE in 2015 (preferred by one
US company which allows IEC/TS 62239-1 plans)
These two standards are very similar and interchangeable
There are also new ECMP processes for COTS assemblies:
EIA933 published by the SAE in 2015 (preferred by one US
company)
IEC/TS 62239-2 ( for international use and in draft which will be
Third Party auditable using an IECQ CB)
IEC/TS 62239-2 will allow the use of EIA933 plans and are very
similar.
All refer to: IEC/TS62402 and/or TechAmerica STD0016
obsolescence management standards
6. 6
GE Title or job number
9/29/2015
IEC/TS 62239-1 Electronic Component
Management Plan
• Based on the concept of ‘manage the component application
process’ rather than customise or screen components for the
Avionics applications
• Allows the use of Mil specified components where considered
necessary
• Main advantage is that it provides the process to maximise the
use of reliable COTS components
• Assists Avionics OEMs in using small quantities of COTS
components
• Is essentially a ‘eleven step’ horizontal Process Management
Plan which can be integrated with the OEM’s AS9100 processes,
including lead-free management, anti-counterfeit management,
obsolescence management and flow-down to suppliers.
• Facilitates the substitution of alternatives
7. 7
GE Title or job number
9/29/2015
IEC/TS62239-1, 11 step OEM ‘systems level’
ECMPThis is a cross functional process linked to a company’s AS9100 procedures:
1. Component Manufacturer approval i.e. ISO9001, AS9100, TS16949, S/0001
including COTS assemblers and subcontractors ( jointly with Supplier
quality)
2. Component selection i.e. use of PPL, approved manufacturers, minimise
uprated components (jointly with hardware design)
3. Component application i.e. derating, thermal management, vibration
environmental requirements, SEU mitigation, semiconductor wear-out
mitigation etc. for each application
4. Component qualification i.e. component testing or analysis of data for each
application
5. Component quality assurance every lot ordered i.e. outgoing ppm rate,
product ESS testing
6. Component dependability (reliability) , which includes obsolescence
management, reliability predictions etc.
7. Component compatibility with the equipment manufacturing process, e.g.
reworking lead-free BGAs, refinishing component terminations
8. Component data and Component configuration control, including PCN
monitoring
9. Anti-counterfeit management e.g. special testing of untraceable components
and audits of suppliers
10. Lead-free management, e.g. capture termination finishes and rework as
required
11. Subcontractor and COTS assembler ECMP approval and management (jointly
with Supplier Quality)
Colour key: could be managed by component engineering, Managed by other
8. 8
GE Title or job number
9/29/2015
IEC/TS 62239-1 Electronic Component Management Plan
IEC/TS 62239-2 (
allows the use of SAE
EIA-933) for COTS
Assemblies
9. 9
GE Title or job number
9/29/2015

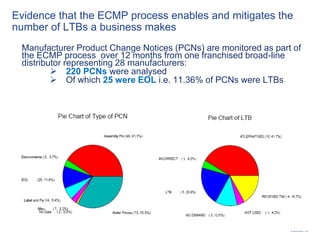

Evidence that the ECMP process enables and mitigates the
number of LTBs a business makes
Manufacturer Product Change Notices (PCNs) are monitored as part of
the ECMP process over 12 months from one franchised broad-line
distributor representing 28 manufacturers:
220 PCNs were analysed
Of which 25 were EOL i.e. 11.36% of PCNs were LTBs
10. 10
GE Title or job number
9/29/2015
PCN analysis
• This resulted in 25 LTBS being found impacting our
business from one broad-line franchised distributor
requiring analysis
• Using the IEC/TS 62239-1 ECMP process we were able
to find and approve alternatives for 40% of these LTBs
and only 5 LTBS were actioned e.g.
Manufacturer Recommended alternatives were
approved
Lead-free alternatives were approved
Second sources were approved
New suppliers alternatives were approved.
11. 11
11

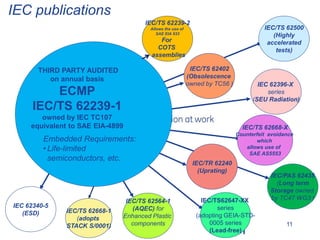

IEC publications
THIRD PARTY AUDITED
on annual basis
ECMP
IEC/TS 62239-1
owned by IEC TC107
equivalent to SAE EIA-4899
IEC/TS62647-XX
series
(adopting GEIA-STD-
0005 series
(Lead-free)
IEC/TS 62668-X
Counterfeit avoidance
which
allows use of
SAE AS5553
IEC 62396-X
series
(SEU Radiation)
IEC/TS 62402
(Obsolescence
owned by TC56 )
Embedded Requirements:
•Life-limited
semiconductors, etc.
IEC/TR 62240
(Uprating)
IEC/TS 62564-1
(AQEC) for
Enhanced Plastic
components
IEC/PAS 62435
(Long term
Storage owned
by TC47 WG3 )
IEC 62340-5
(ESD)
IEC/TS 62500
(Highly
accelerated
tests)
IEC/TS 62668-1
(adopts
STACK S/0001)
IEC/TS 62239-2
Allows the use of
SAE EIA 933
For
COTS
assemblies
12. 12
GE Title or job number
9/29/2015

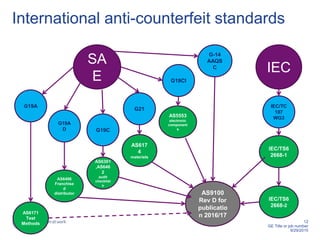

International anti-counterfeit standards
SA
E
IEC
IEC/TC
107
WG3
G-14
AAQS
C
IEC/TS6
2668-2
G19A
IEC/TS6
2668-1
G19A
D G19C
AS6171
Test
Methods
AS6496
Franchise
d
distributor
AS6301
,AS646
2
audit
checklist
s
G19CI
AS5553
electronic
component
s
G21
AS617
4
materiels
AS9100
Rev D for
publicatio
n 2016/17
13. 13
GE Title or job number
9/29/2015

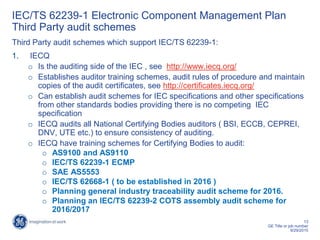

IEC/TS 62239-1 Electronic Component Management Plan
Third Party audit schemes
Third Party audit schemes which support IEC/TS 62239-1:
1. IECQ
o Is the auditing side of the IEC , see http://www.iecq.org/
o Establishes auditor training schemes, audit rules of procedure and maintain
copies of the audit certificates, see http://certificates.iecq.org/
o Can establish audit schemes for IEC specifications and other specifications
from other standards bodies providing there is no competing IEC
specification
o IECQ audits all National Certifying Bodies auditors ( BSI, ECCB, CEPREI,
DNV, UTE etc.) to ensure consistency of auditing.
o IECQ have training schemes for Certifying Bodies to audit:
o AS9100 and AS9110
o IEC/TS 62239-1 ECMP
o SAE AS5553
o IEC/TS 62668-1 ( to be established in 2016 )
o Planning general industry traceability audit scheme for 2016.
o Planning an IEC/TS 62239-2 COTS assembly audit scheme for
2016/2017
14. 14
GE Title or job number
9/29/2015
IEC/TS 62239-1 Electronic
Component Management

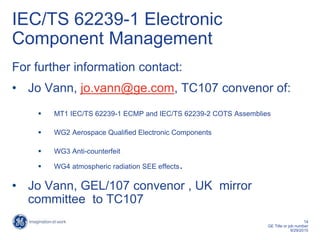

For further information contact:
• Jo Vann, jo.vann@ge.com, TC107 convenor of:
MT1 IEC/TS 62239-1 ECMP and IEC/TS 62239-2 COTS Assemblies
WG2 Aerospace Qualified Electronic Components
WG3 Anti-counterfeit
WG4 atmospheric radiation SEE effects.
• Jo Vann, GEL/107 convenor , UK mirror
committee to TC107
