This document discusses how to use the Salesforce1 platform and APIs to connect internet of things (IoT) devices and integrate sensor data into Salesforce. It provides examples of using the HTTP callout class to control Christmas lights connected to an Arduino board and using the REST API and a workflow to flash lights when a case is created. Another example demonstrates reading temperature data from a sensor using the REST API. Resources for learning more about the Salesforce REST API and integration patterns are also included.

1. Control Your World Using the Salesforce1
Platform (IoT)
Chris Ferraro
Chief IT Architect
@chrisf_59

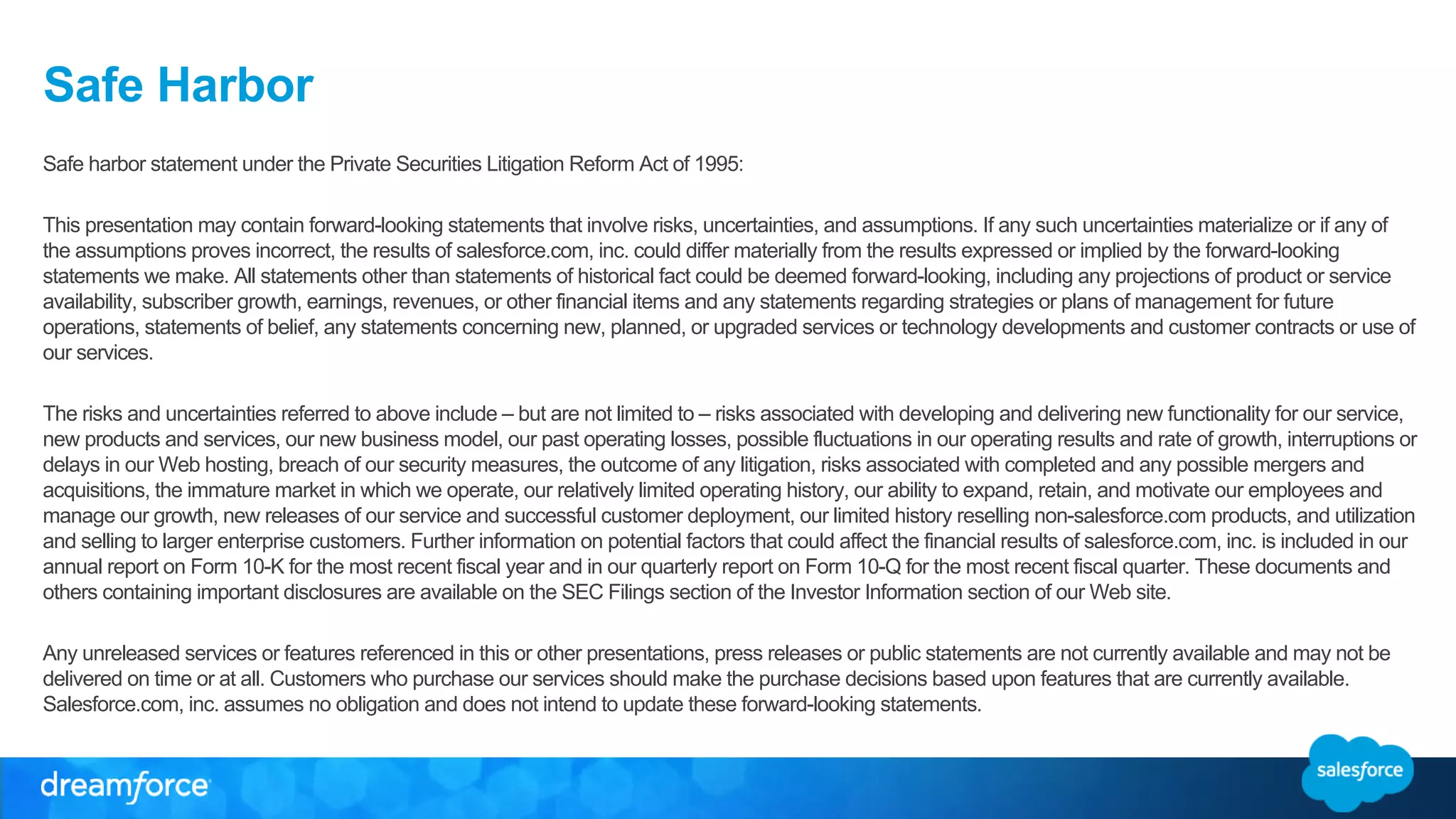

2. Safe Harbor
Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties materialize or if any of
the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results expressed or implied by the forward-looking
statements we make. All statements other than statements of historical fact could be deemed forward-looking, including any projections of product or service
availability, subscriber growth, earnings, revenues, or other financial items and any statements regarding strategies or plans of management for future
operations, statements of belief, any statements concerning new, planned, or upgraded services or technology developments and customer contracts or use of
our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new functionality for our service,
new products and services, our new business model, our past operating losses, possible fluctuations in our operating results and rate of growth, interruptions or
delays in our Web hosting, breach of our security measures, the outcome of any litigation, risks associated with completed and any possible mergers and
acquisitions, the immature market in which we operate, our relatively limited operating history, our ability to expand, retain, and motivate our employees and
manage our growth, new releases of our service and successful customer deployment, our limited history reselling non-salesforce.com products, and utilization
and selling to larger enterprise customers. Further information on potential factors that could affect the financial results of salesforce.com, inc. is included in our
annual report on Form 10-K for the most recent fiscal year and in our quarterly report on Form 10-Q for the most recent fiscal quarter. These documents and
others containing important disclosures are available on the SEC Filings section of the Investor Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently available and may not be
delivered on time or at all. Customers who purchase our services should make the purchase decisions based upon features that are currently available.
Salesforce.com, inc. assumes no obligation and does not intend to update these forward-looking statements.

3. Chris Ferraro
Chief IT Architect

4. About Internet Creations
http://www.internetcreations.com
• Salesforce Consulting & AppExchange Apps
• Member of the Cloud Collective: AppExchange Category Leaders
• #1 Rated App for Agent Productivity
Internet Creations Labs
We balance work with the passion for learning. Technical
staff are encouraged to spend up to 20% of their time on
developing and pursuing their own creative ideas.

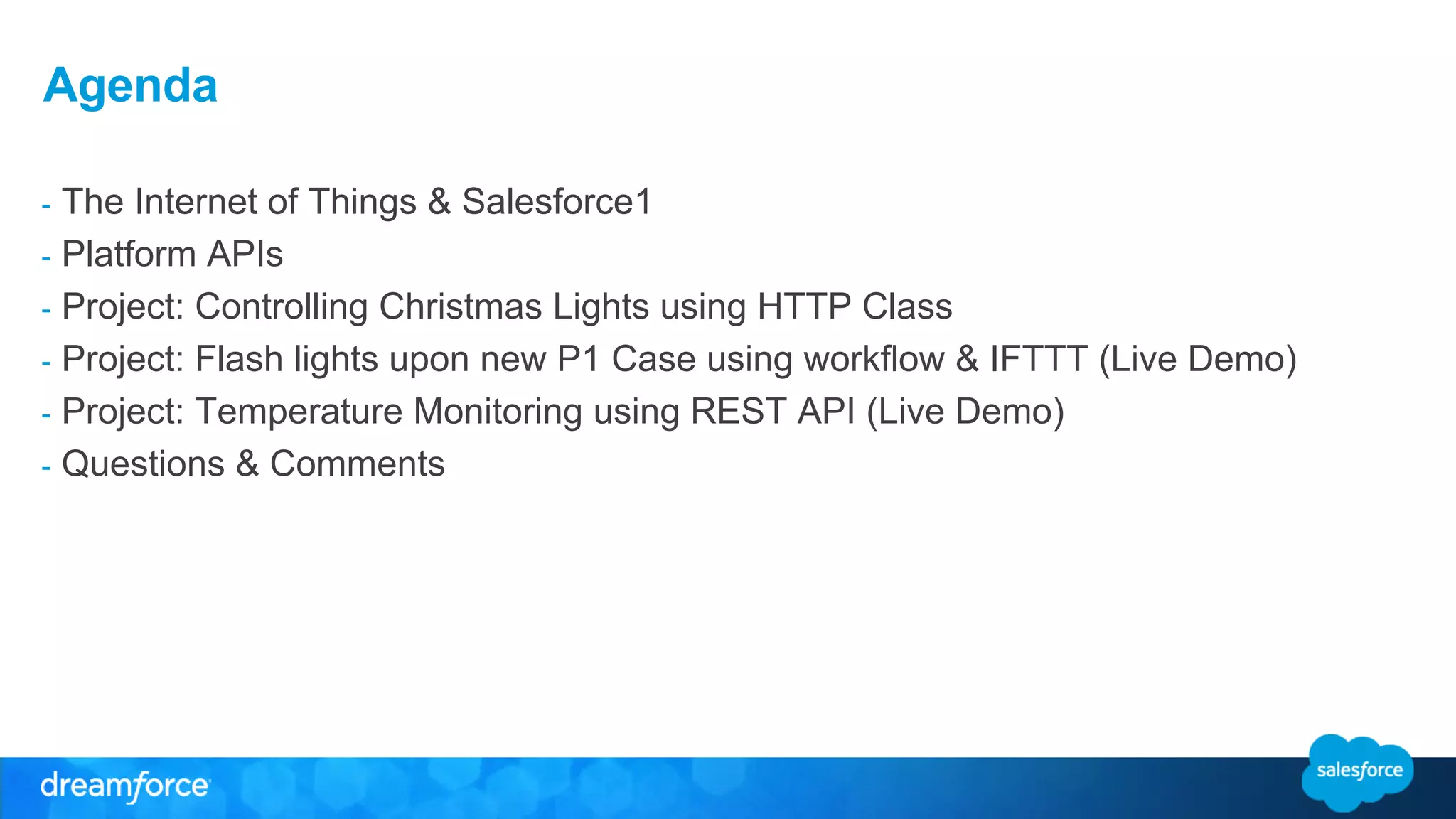

5. Agenda
- The Internet of Things & Salesforce1
- Platform APIs
- Project: Controlling Christmas Lights using HTTP Class
- Project: Flash lights upon new P1 Case using workflow & IFTTT (Live Demo)
- Project: Temperature Monitoring using REST API (Live Demo)
- Questions & Comments

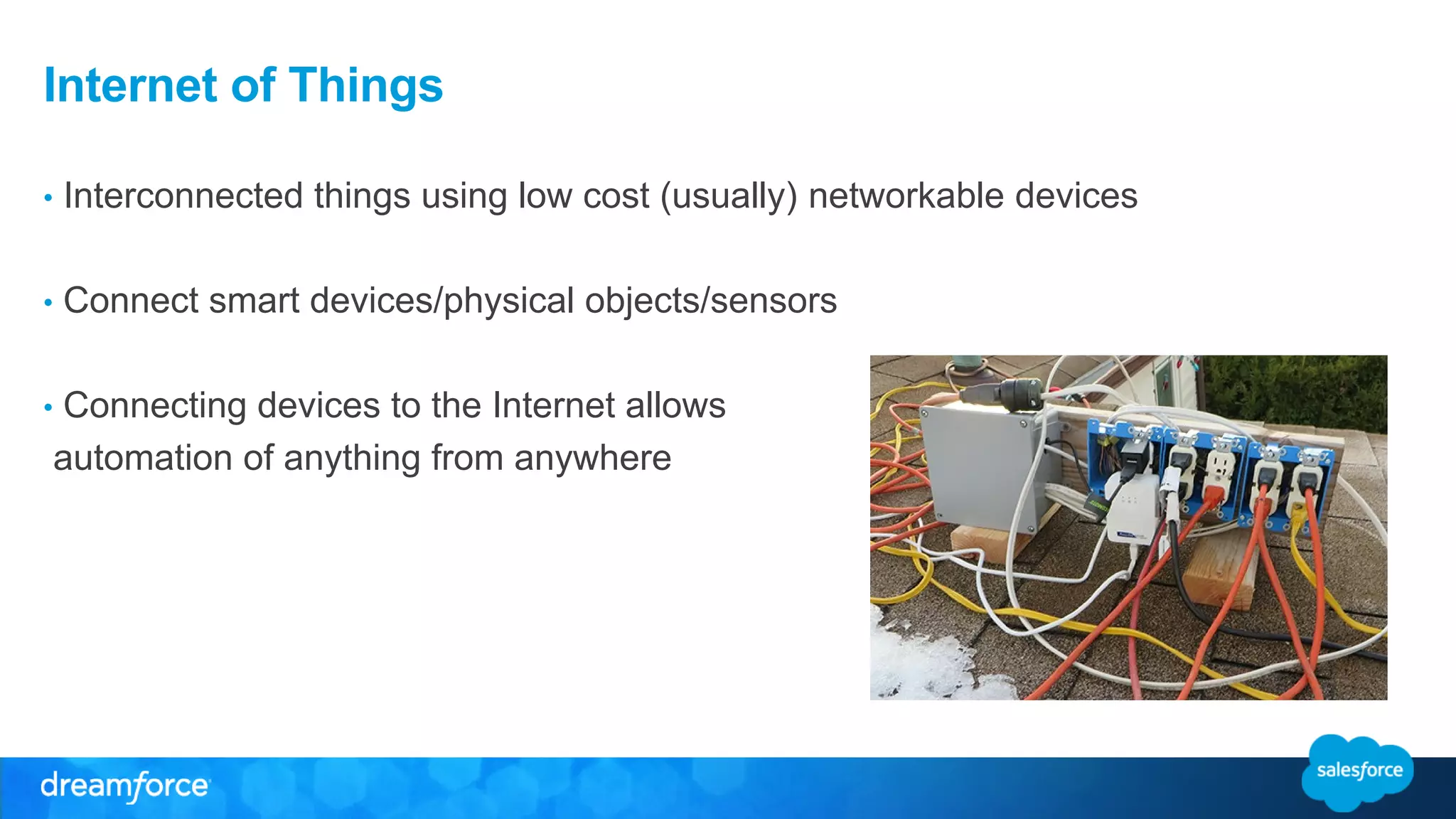

6. Internet of Things
• Interconnected things using low cost (usually) networkable devices
• Connect smart devices/physical objects/sensors
• Connecting devices to the Internet allows
automation of anything from anywhere

7. Salesforce1
Salesforce1 Platform
(Force.com, Heroku, and ExactTarget Fuel)
Salesforce1 Mobile App

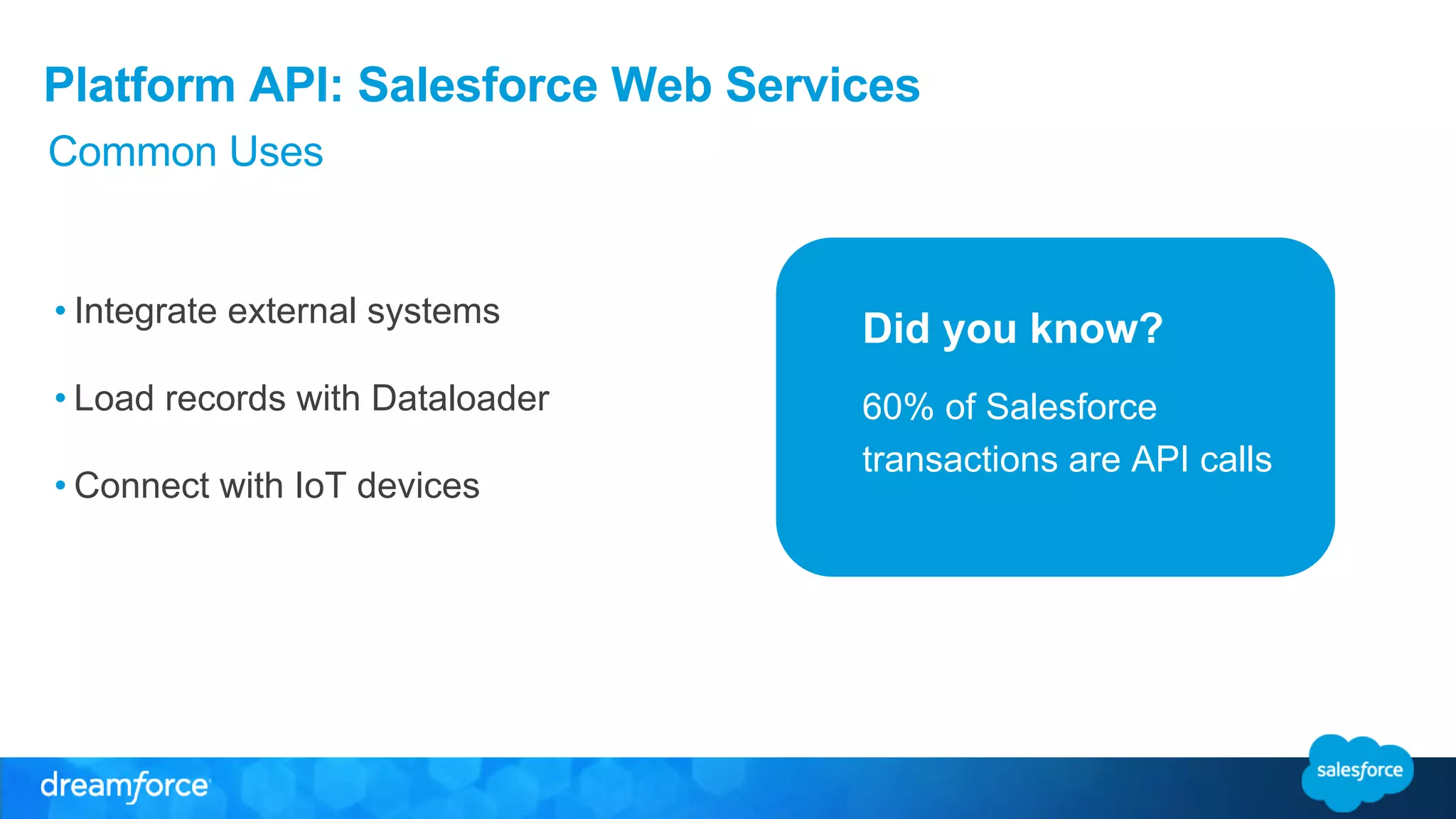

8. Platform API: Salesforce Web Services
Did you know?
Common Uses
• Integrate external systems
• Load records with Dataloader
• Connect with IoT devices
60% of Salesforce
transactions are API calls

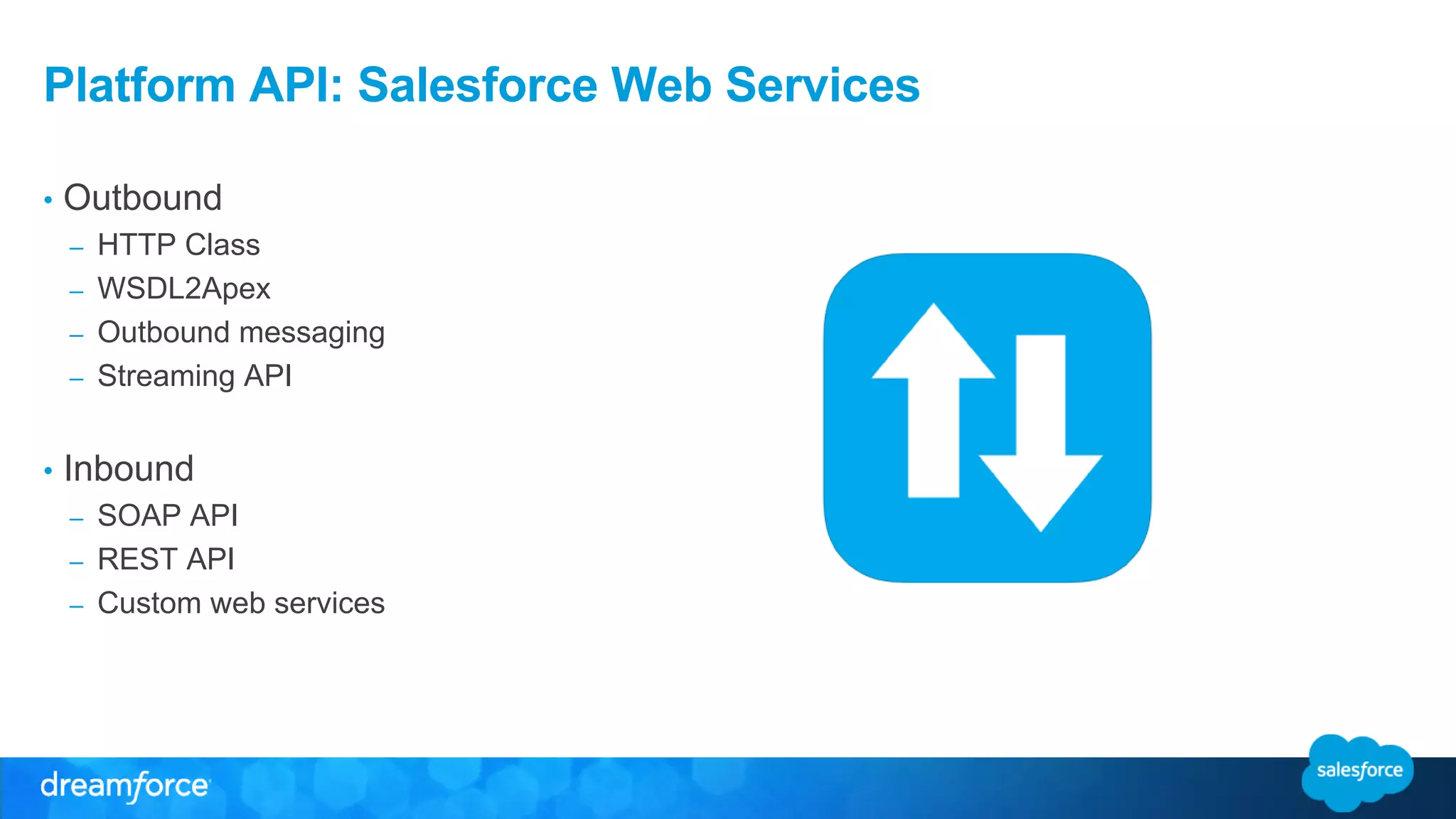

9. Platform API: Salesforce Web Services
• Outbound
– HTTP Class
– WSDL2Apex
– Outbound messaging
– Streaming API
• Inbound
– SOAP API
– REST API
– Custom web services

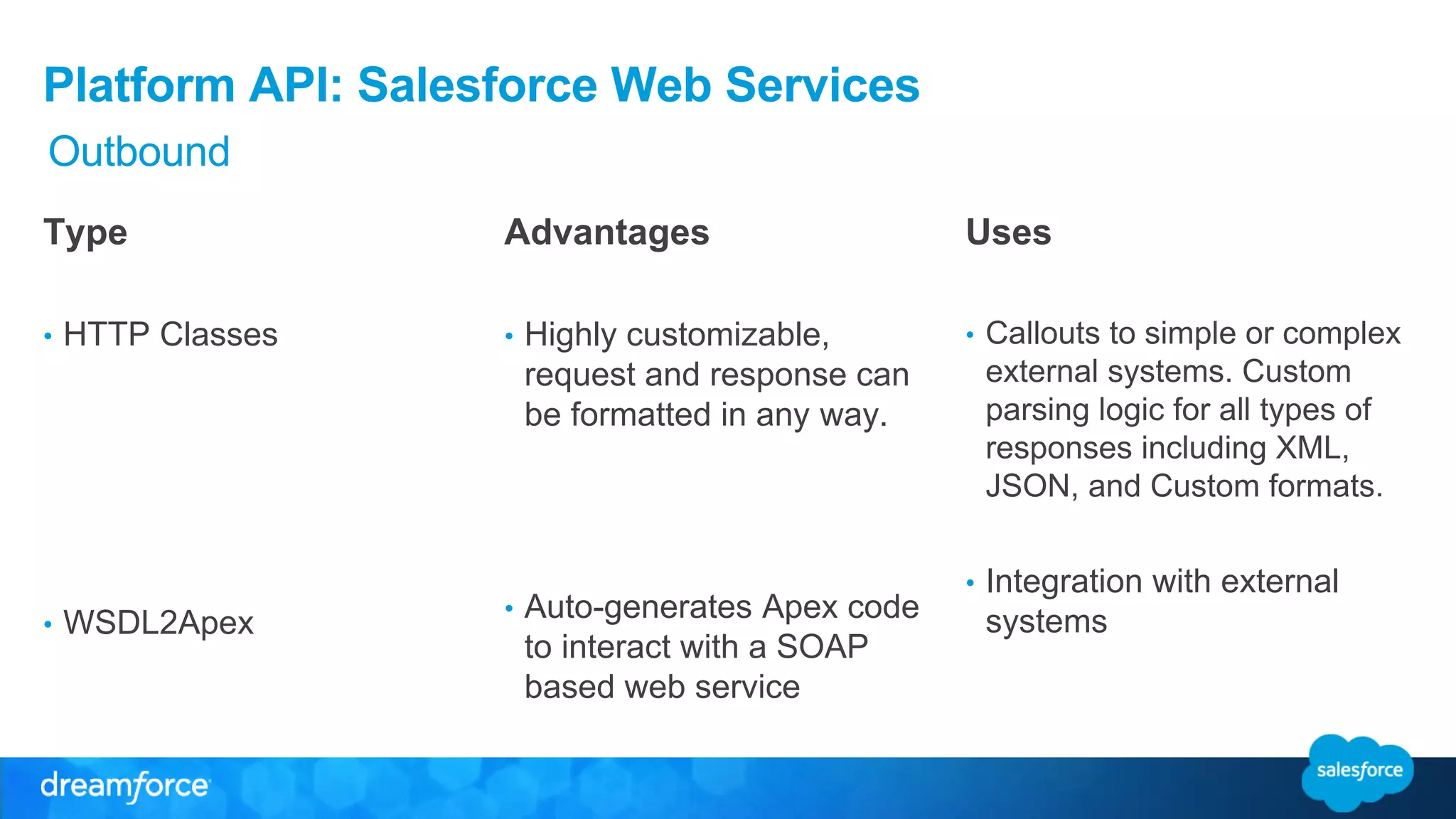

10. Platform API: Salesforce Web Services
Type
• HTTP Classes
• WSDL2Apex
Advantages
• Highly customizable,
request and response can
be formatted in any way.
• Auto-generates Apex code
to interact with a SOAP
based web service
Uses
• Callouts to simple or complex
external systems. Custom
parsing logic for all types of
responses including XML,
JSON, and Custom formats.
• Integration with external
systems
Outbound

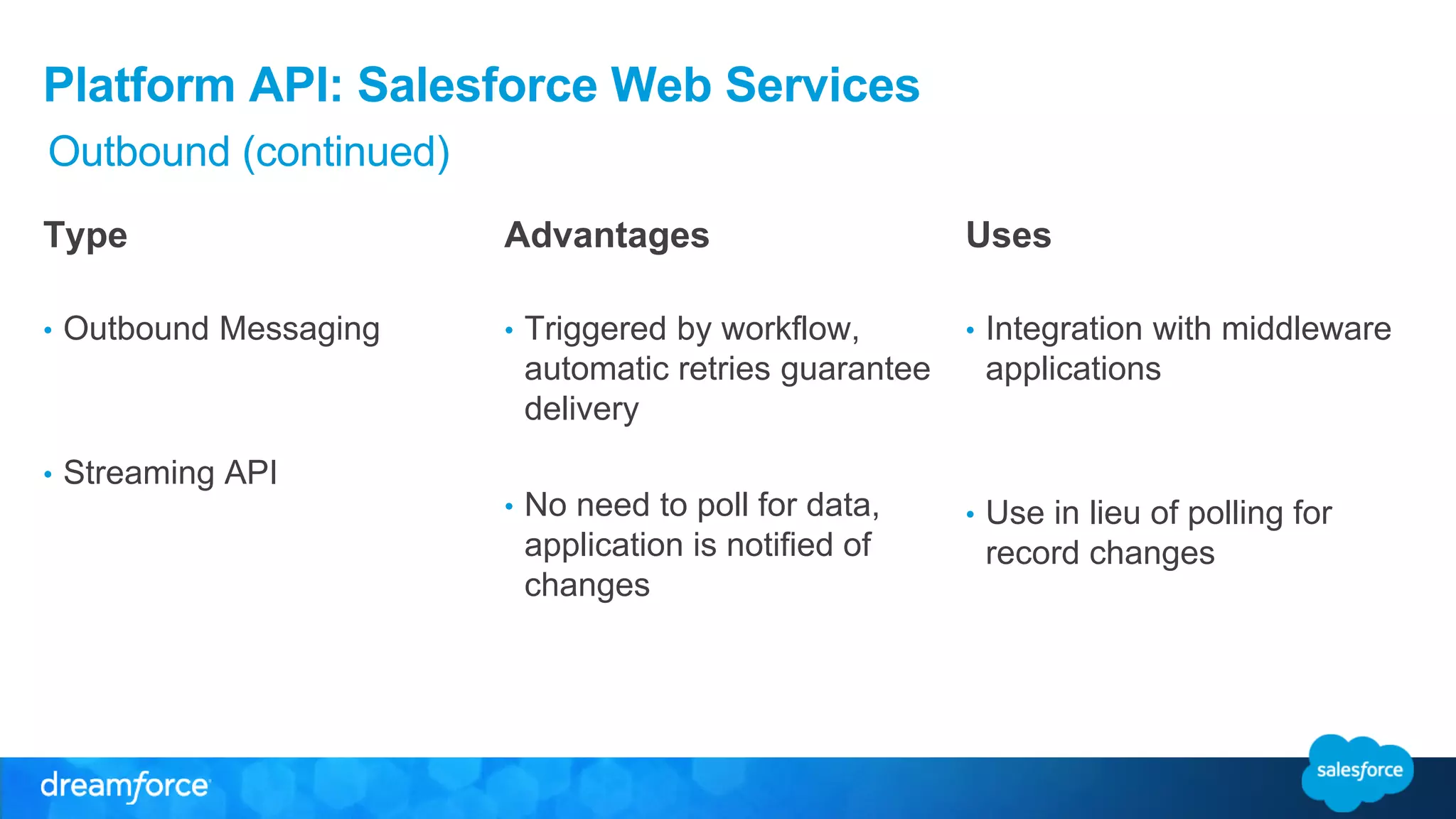

11. Platform API: Salesforce Web Services
Type
• Outbound Messaging
• Streaming API
Advantages
• Triggered by workflow,
automatic retries guarantee
delivery
• No need to poll for data,
application is notified of
changes
Uses
• Integration with middleware
applications
• Use in lieu of polling for
record changes
Outbound (continued)

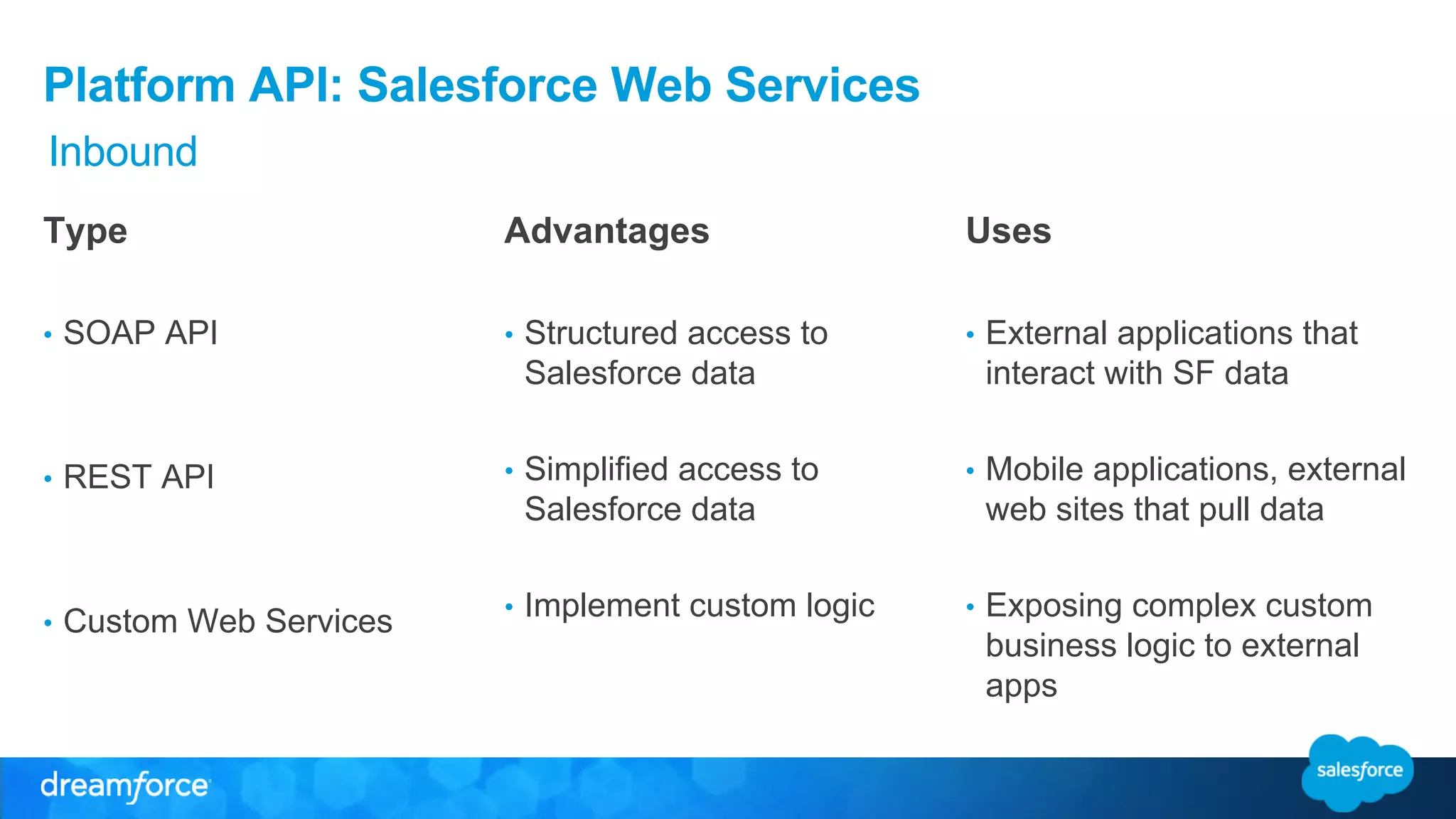

12. Platform API: Salesforce Web Services
Type
• SOAP API
• REST API
• Custom Web Services
Advantages
• Structured access to
Salesforce data
• Simplified access to
Salesforce data
• Implement custom logic
Uses
• External applications that
interact with SF data
• Mobile applications, external
web sites that pull data
• Exposing complex custom
business logic to external
apps
Inbound

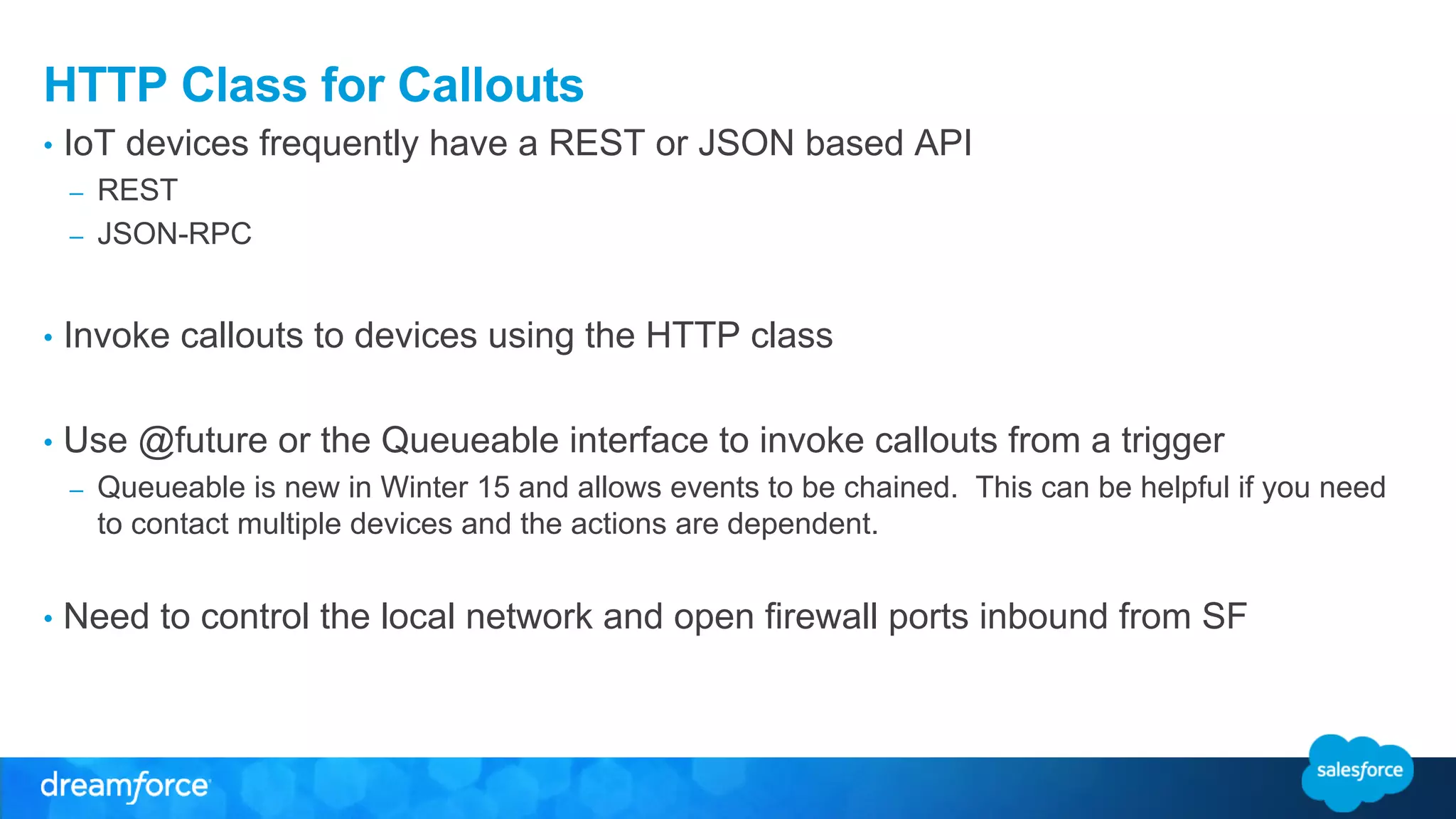

13. HTTP Class for Callouts
• IoT devices frequently have a REST or JSON based API
– REST
– JSON-RPC
• Invoke callouts to devices using the HTTP class
• Use @future or the Queueable interface to invoke callouts from a trigger
– Queueable is new in Winter 15 and allows events to be chained. This can be helpful if you need
to contact multiple devices and the actions are dependent.
• Need to control the local network and open firewall ports inbound from SF

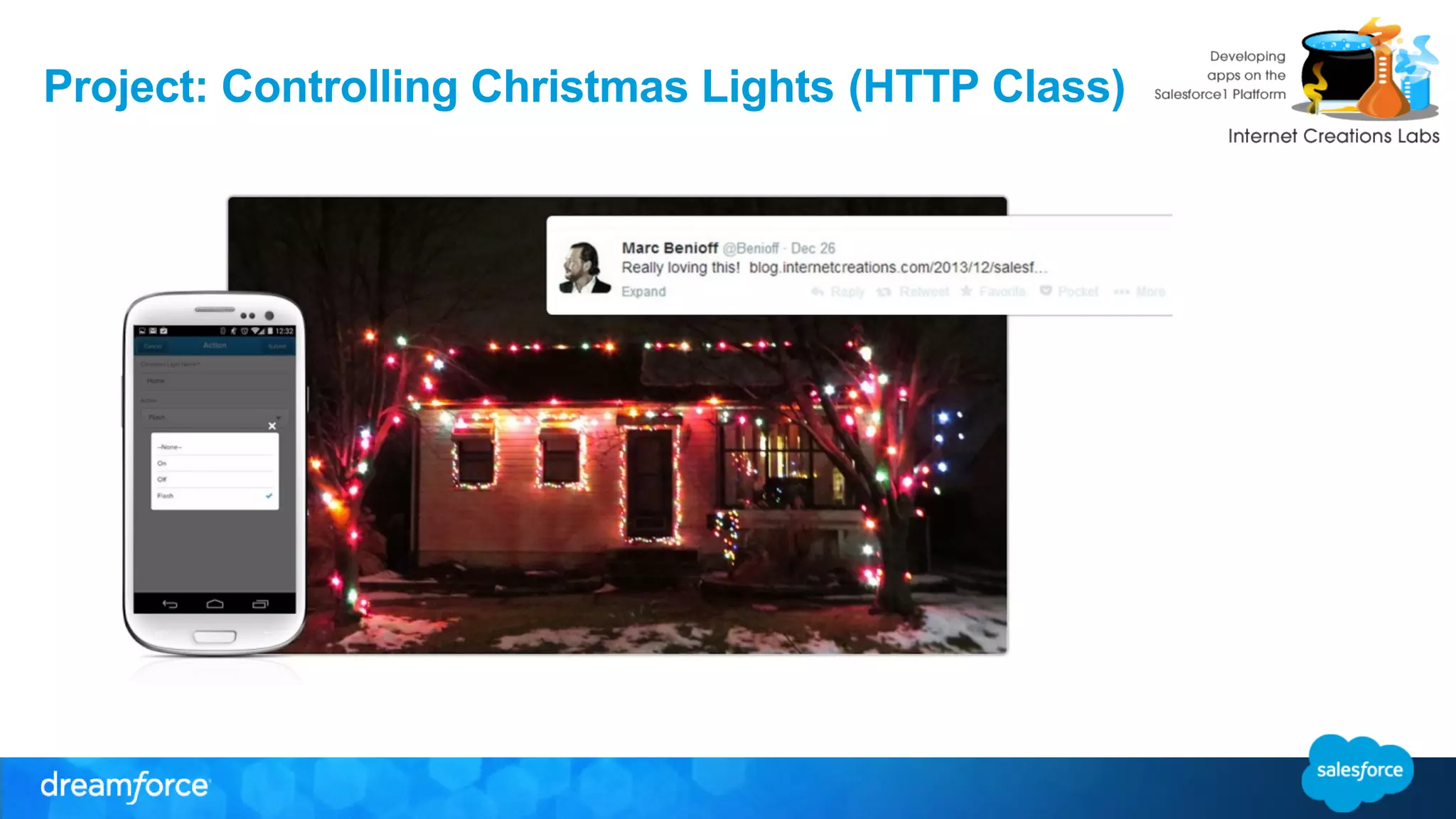

14. Project: Controlling Christmas Lights (HTTP Class)

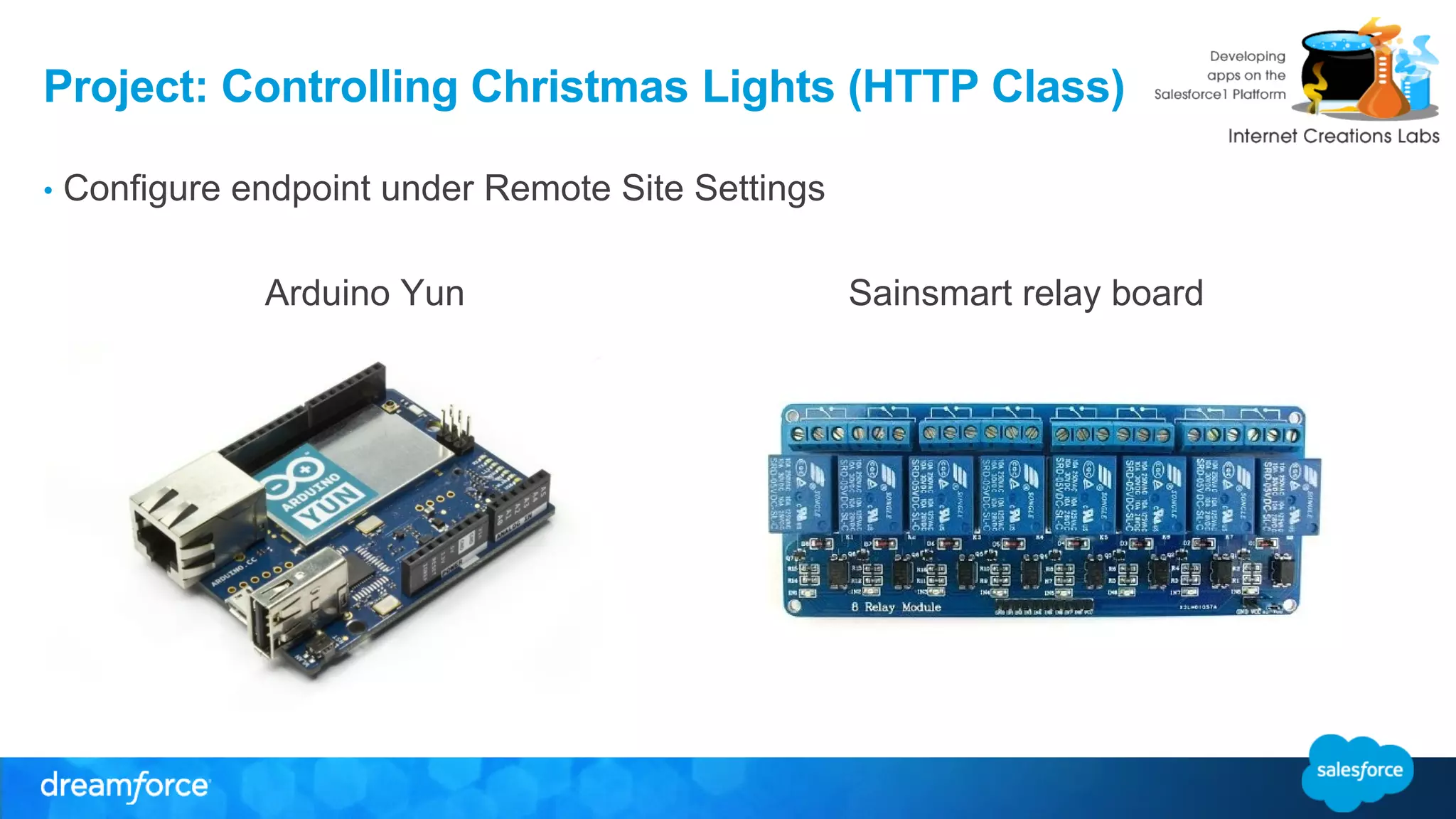

15. Project: Controlling Christmas Lights (HTTP Class)
• Configure endpoint under Remote Site Settings
Arduino Yun Sainsmart relay board

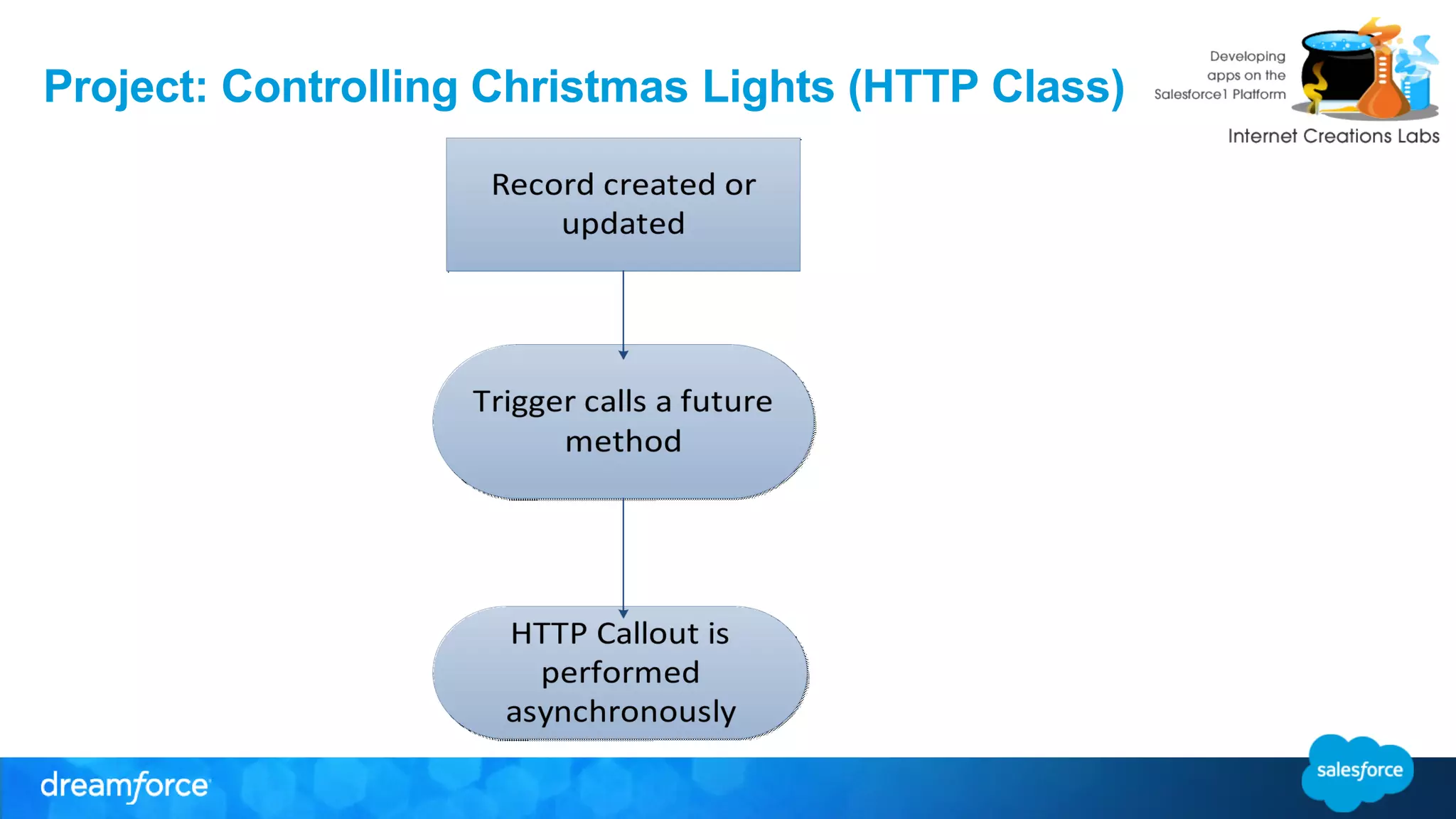

16. Project: Controlling Christmas Lights (HTTP Class)

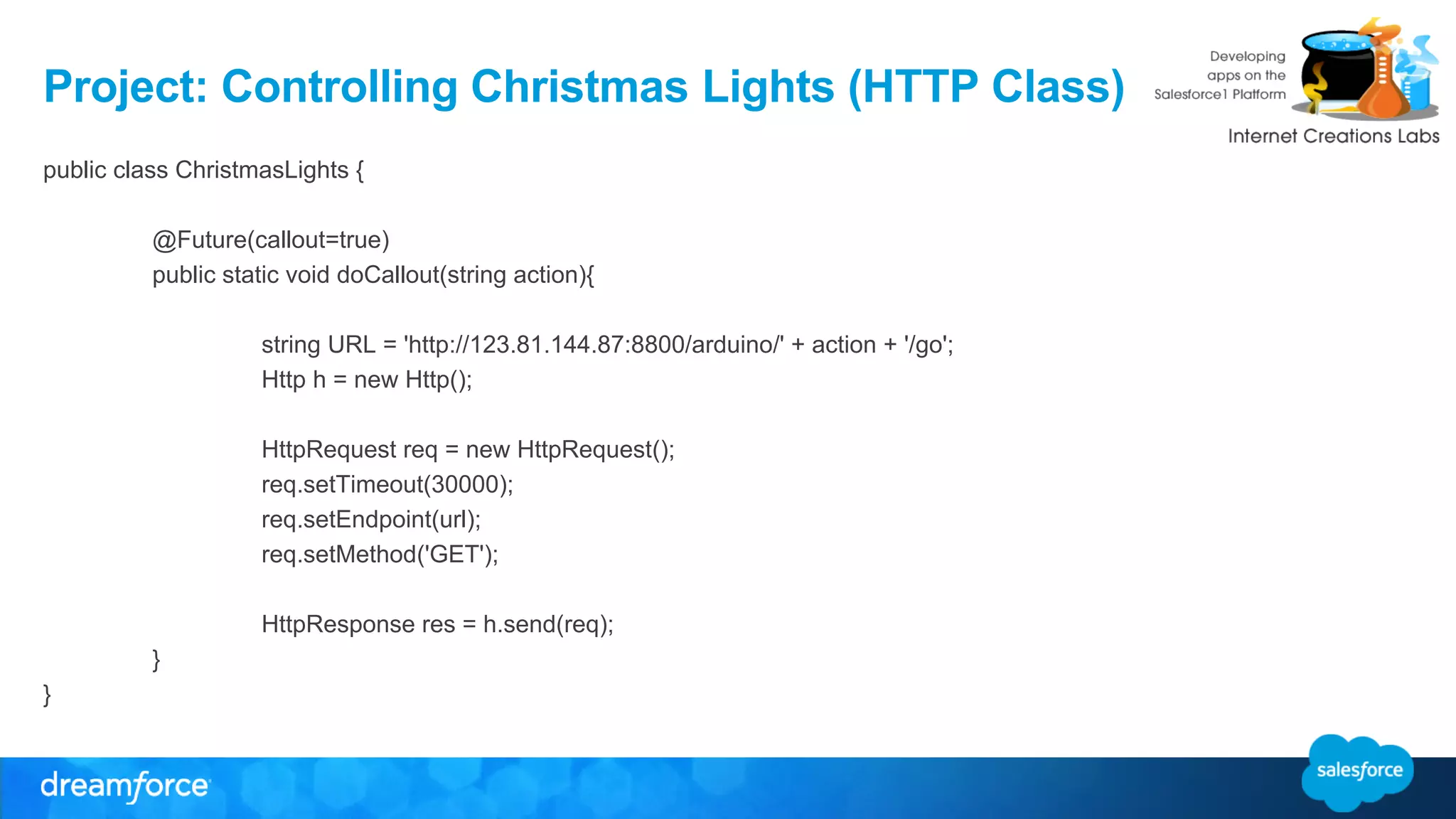

17. Project: Controlling Christmas Lights (HTTP Class)
public class ChristmasLights {
@Future(callout=true)
public static void doCallout(string action){
string URL = 'http://123.81.144.87:8800/arduino/' + action + '/go';
Http h = new Http();
HttpRequest req = new HttpRequest();
req.setTimeout(30000);
req.setEndpoint(url);
req.setMethod('GET');
HttpResponse res = h.send(req);
}
}

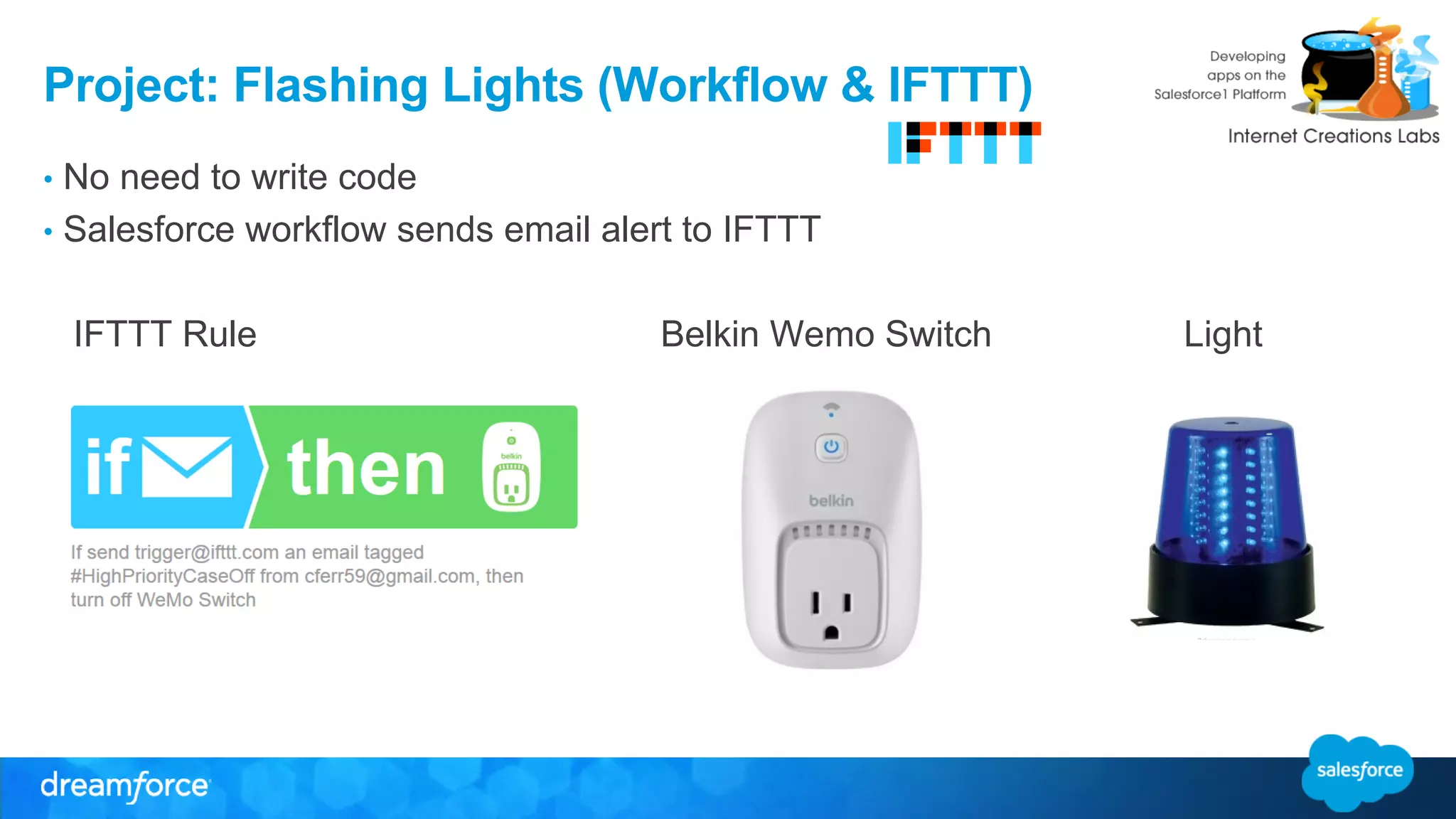

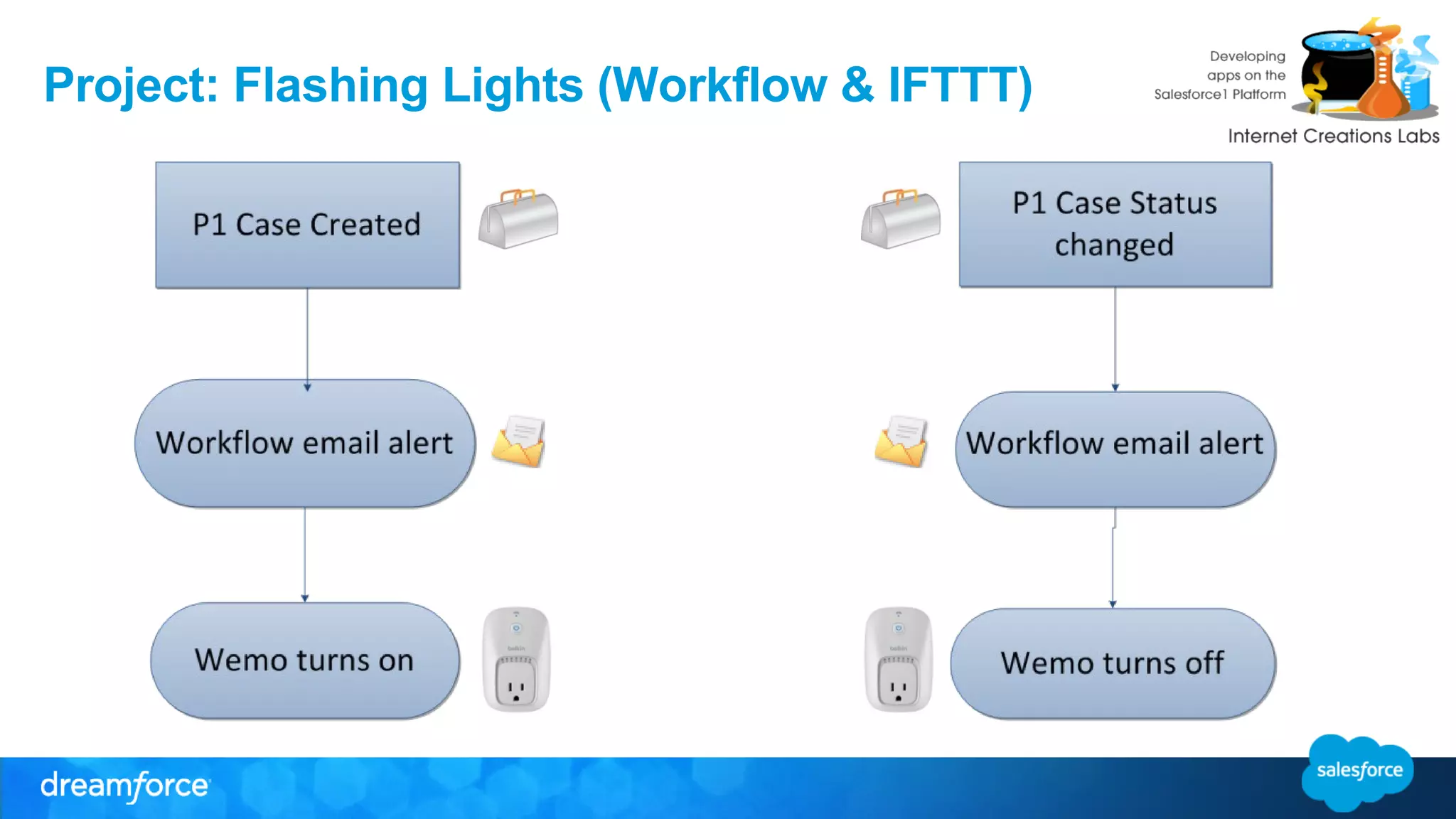

18. Project: Flashing Lights (Workflow & IFTTT)
• No need to write code
• Salesforce workflow sends email alert to IFTTT
IFTTT Rule Belkin Wemo Switch Light

19. Project: Flashing Lights (Workflow & IFTTT)

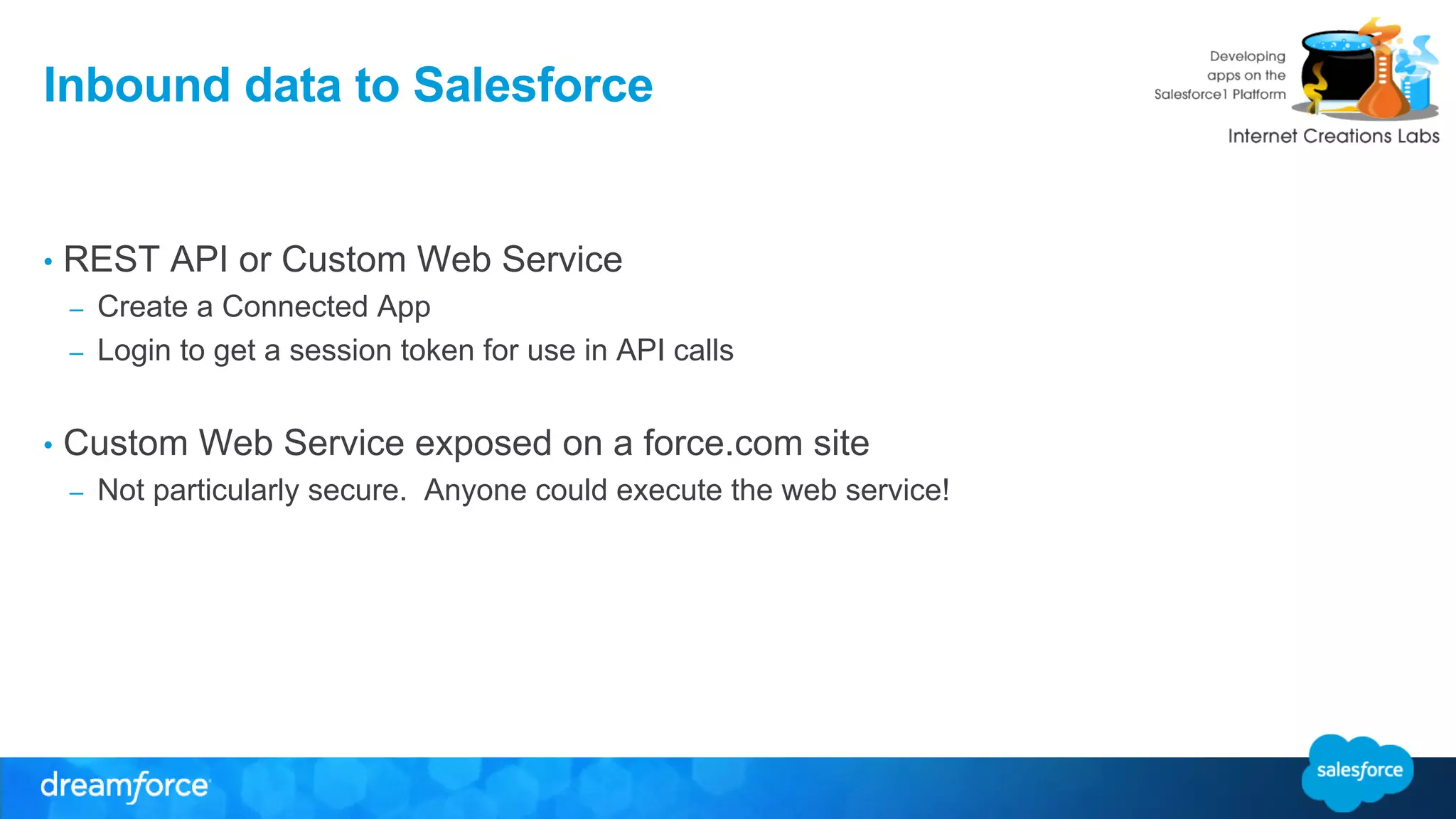

20. Inbound data to Salesforce
• REST API or Custom Web Service
– Create a Connected App
– Login to get a session token for use in API calls
• Custom Web Service exposed on a force.com site
– Not particularly secure. Anyone could execute the web service!

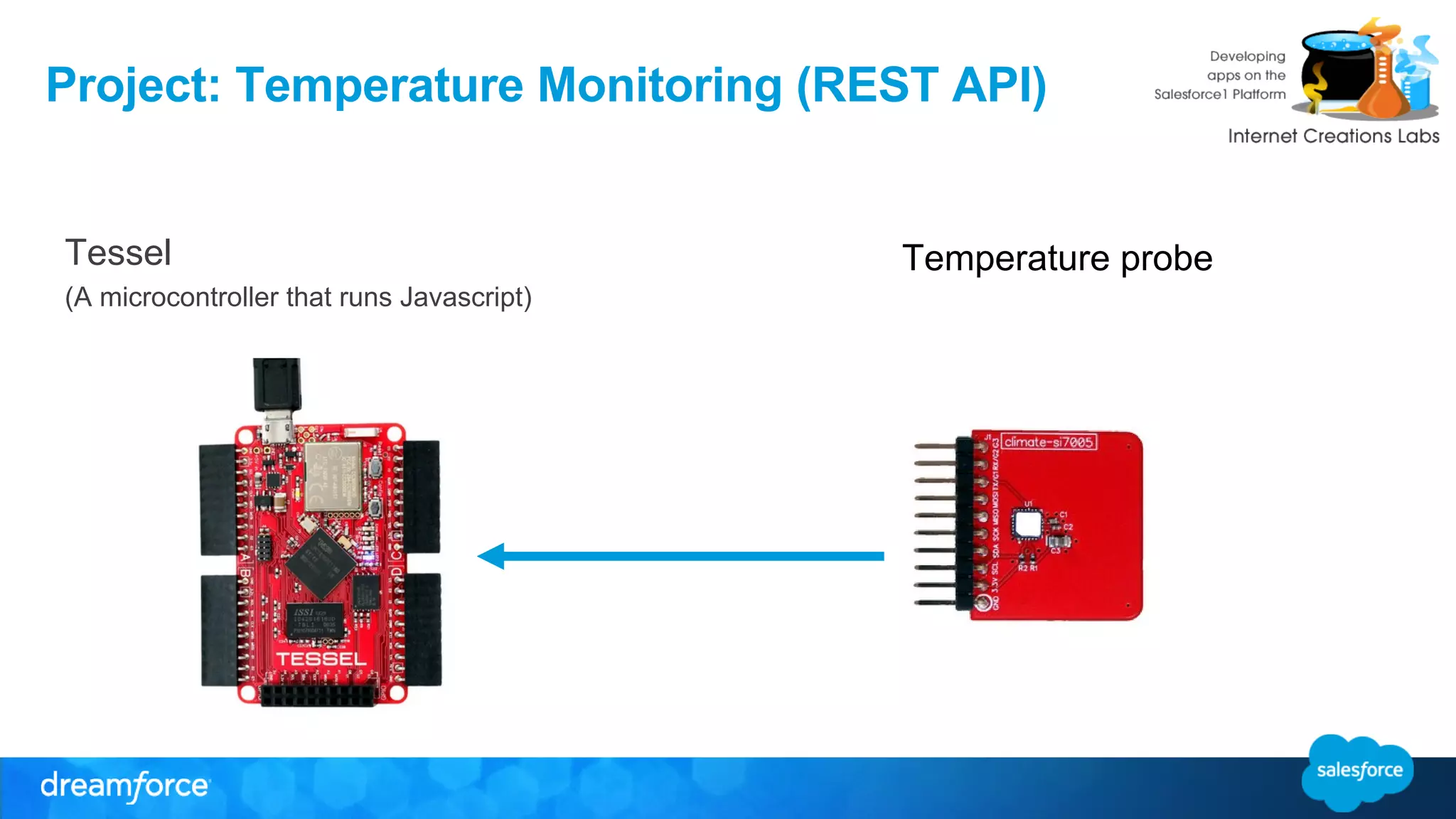

21. Project: Temperature Monitoring (REST API)
Tessel
(A microcontroller that runs Javascript)
Temperature probe

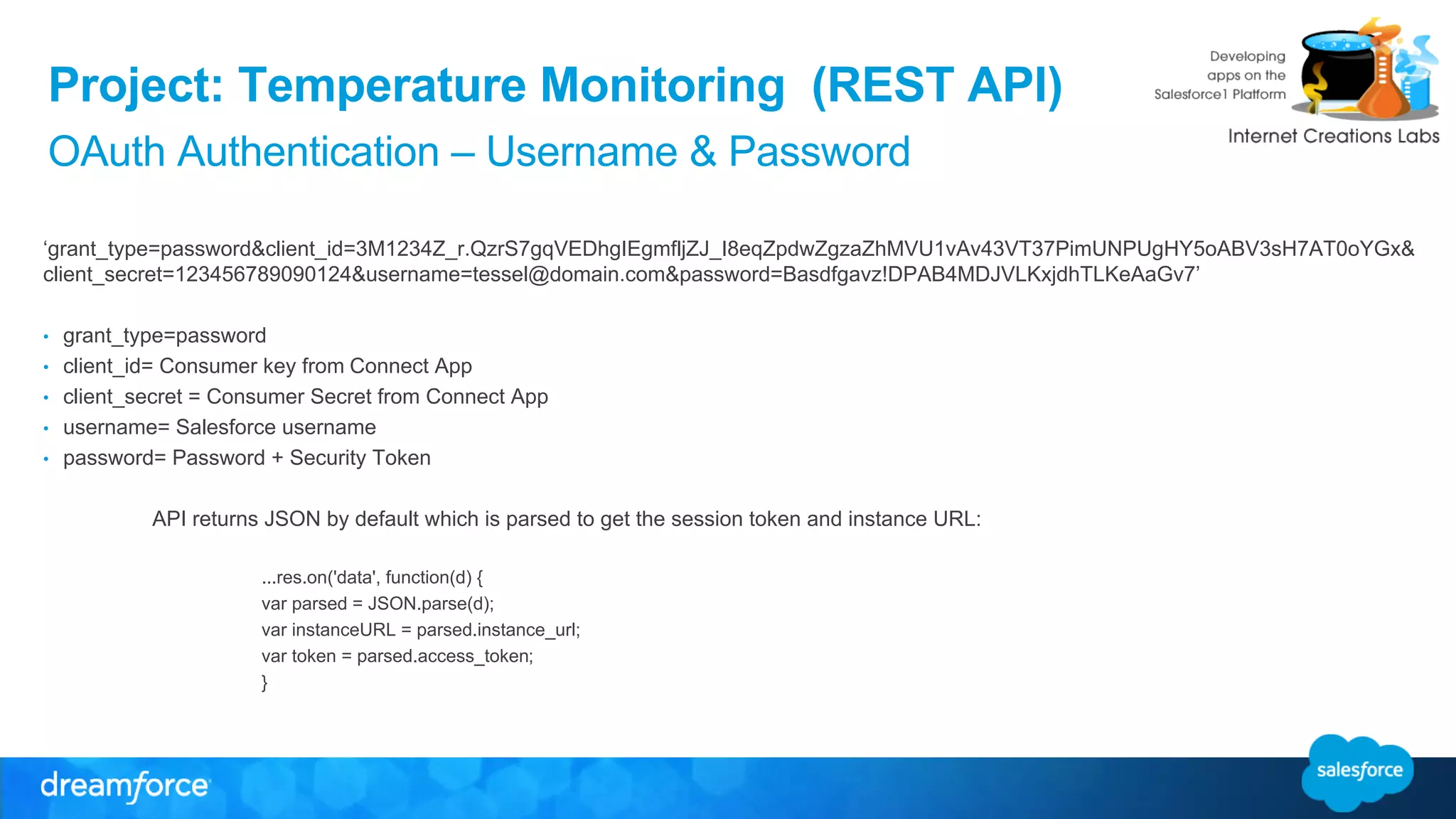

22. Project: Temperature Monitoring (REST API)
OAuth Authentication – Username & Password
‘grant_type=password&client_id=3M1234Z_r.QzrS7gqVEDhgIEgmfljZJ_I8eqZpdwZgzaZhMVU1vAv43VT37PimUNPUgHY5oABV3sH7AT0oYGx&
client_secret=123456789090124&username=tessel@domain.com&password=Basdfgavz!DPAB4MDJVLKxjdhTLKeAaGv7’
• grant_type=password
• client_id= Consumer key from Connect App
• client_secret = Consumer Secret from Connect App
• username= Salesforce username
• password= Password + Security Token
API returns JSON by default which is parsed to get the session token and instance URL:
...res.on('data', function(d) {
var parsed = JSON.parse(d);
var instanceURL = parsed.instance_url;
var token = parsed.access_token;
}

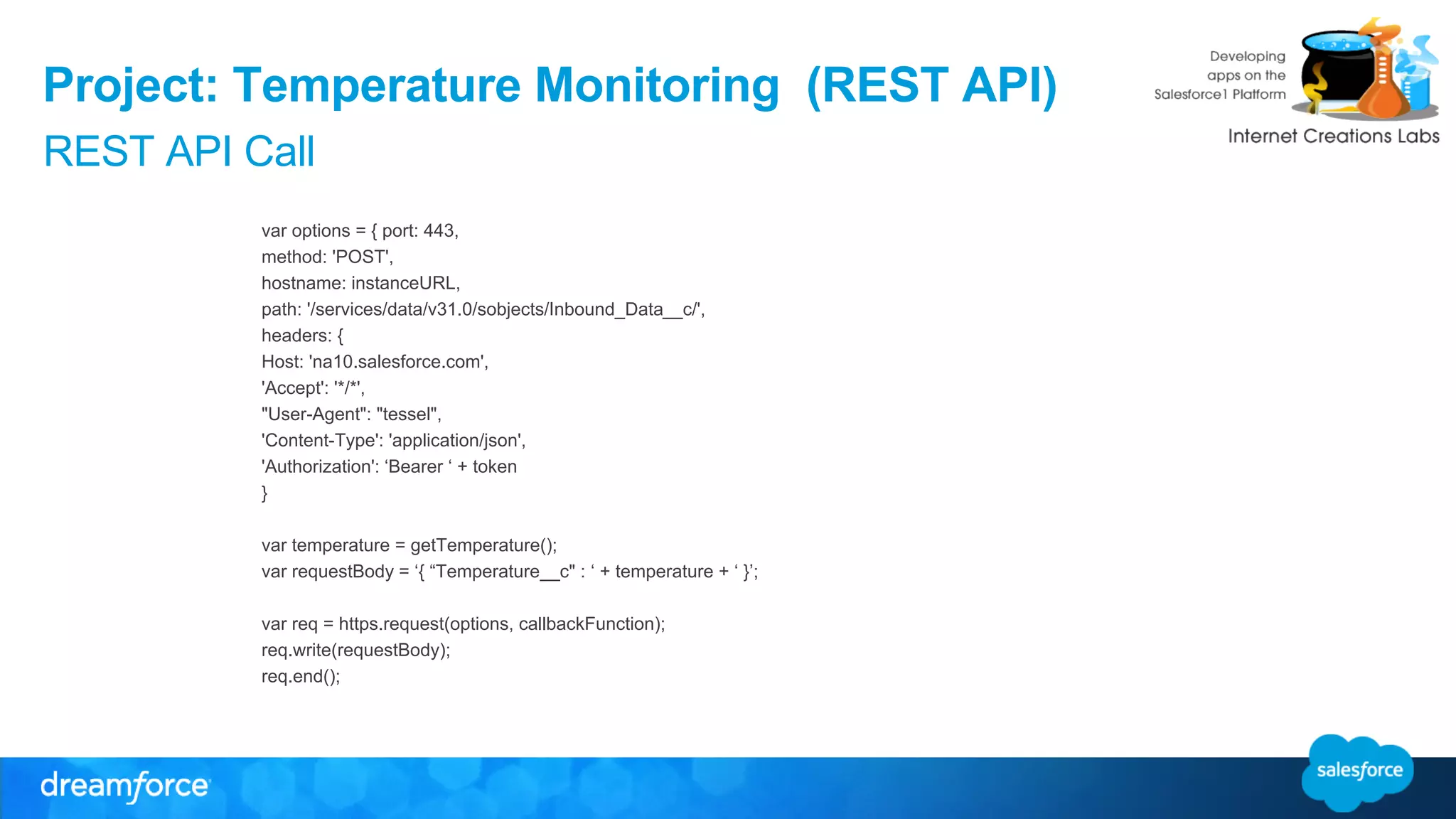

23. Project: Temperature Monitoring (REST API)
REST API Call
var options = { port: 443,
method: 'POST',
hostname: instanceURL,
path: '/services/data/v31.0/sobjects/Inbound_Data__c/',
headers: {
Host: 'na10.salesforce.com',
'Accept': '*/*',
"User-Agent": "tessel",
'Content-Type': 'application/json',
'Authorization': ‘Bearer ‘ + token
}
var temperature = getTemperature();
var requestBody = ‘{ “Temperature__c" : ‘ + temperature + ‘ }’;
var req = https.request(options, callbackFunction);
req.write(requestBody);
req.end();

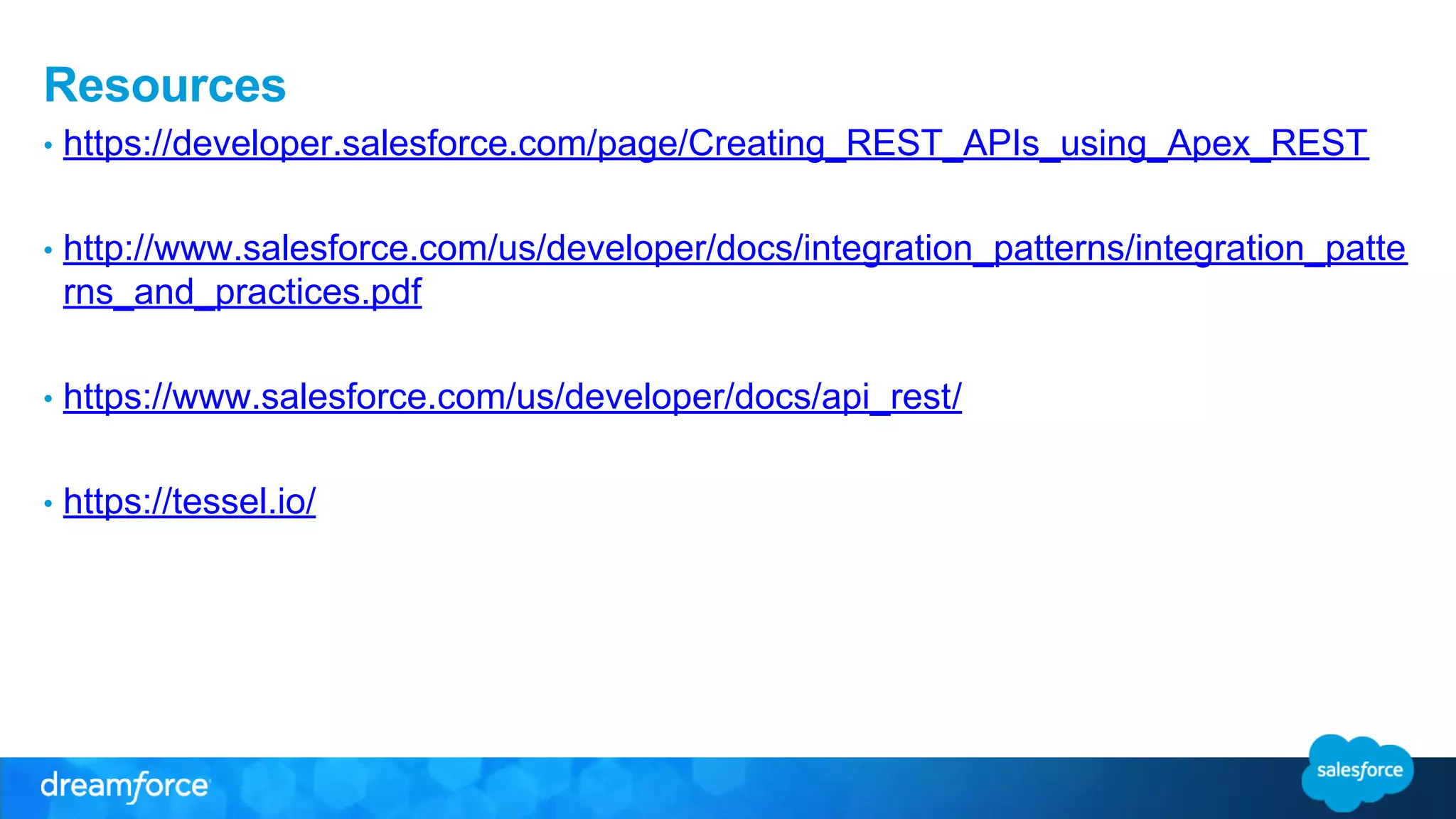

24. Resources
• https://developer.salesforce.com/page/Creating_REST_APIs_using_Apex_REST
• http://www.salesforce.com/us/developer/docs/integration_patterns/integration_patte
rns_and_practices.pdf
• https://www.salesforce.com/us/developer/docs/api_rest/
• https://tessel.io/

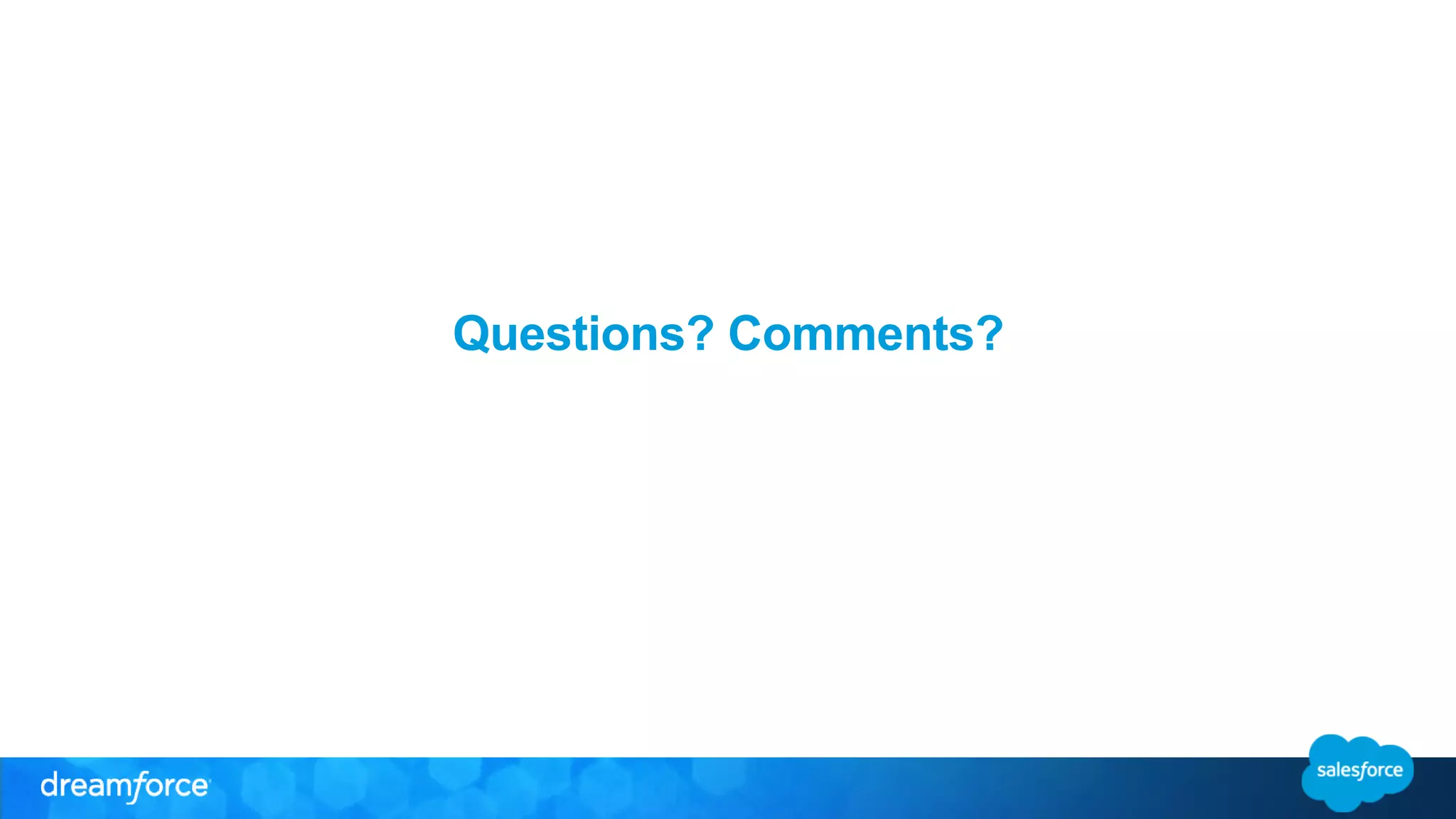

25. Questions? Comments?
