1. Software Project
Lab -1
Name : Md. Arif Hasan
Roll : BSSE 1112
Superviser : Nadia Nahar
01

2. “ Code
Categorization ”
Project Name:
02

3. What is Code categorization ?
Code categorization can be defined as separating some
codes in basis of some predefined characteristics.
These characteristics are determined using a control flow
and data flow graph .
03

4. Code-2 :
#include<bits/stdc++.h>
using namespace std;
int main()
{
Int x , y , ans;
cout<<"Enter two integers:";
cin>>x>>y;
ans = x + y;
cout<<ans;
return 0;
}
#include<bits/stdc++.h>
using namespace std;
int main()
{
int a, b, sum;
cout<<"Enter two integers:";
cin>>a>>b;
sum = (a+b);
cout<<sum;
return 0;
}
Code- 1 :
04

5. Code-4 :
1. #include<bits/stdc++.h>
2. using namespace std;
3. void sum(int x,int y)
4. {
5. int ans= x+y;
6. cout<<"The sum is :"<< ans;
7. }
8. int main()
9. {
10. int a, b;
11. cout<<"Enter two integers:";
12. cin>>a>>b;
13. sum(a,b);
14.}
1. #include<bits/stdc++.h>
2. using namespace std;
3. int main()
4. {
5. int a, b, sum;
6. cout<<"Enter two integers:";
7. cin>>a>>b;
8. sum = (a+b);
9. cout<<sum;
10. return 0;
11. }
Code- 3 :
05

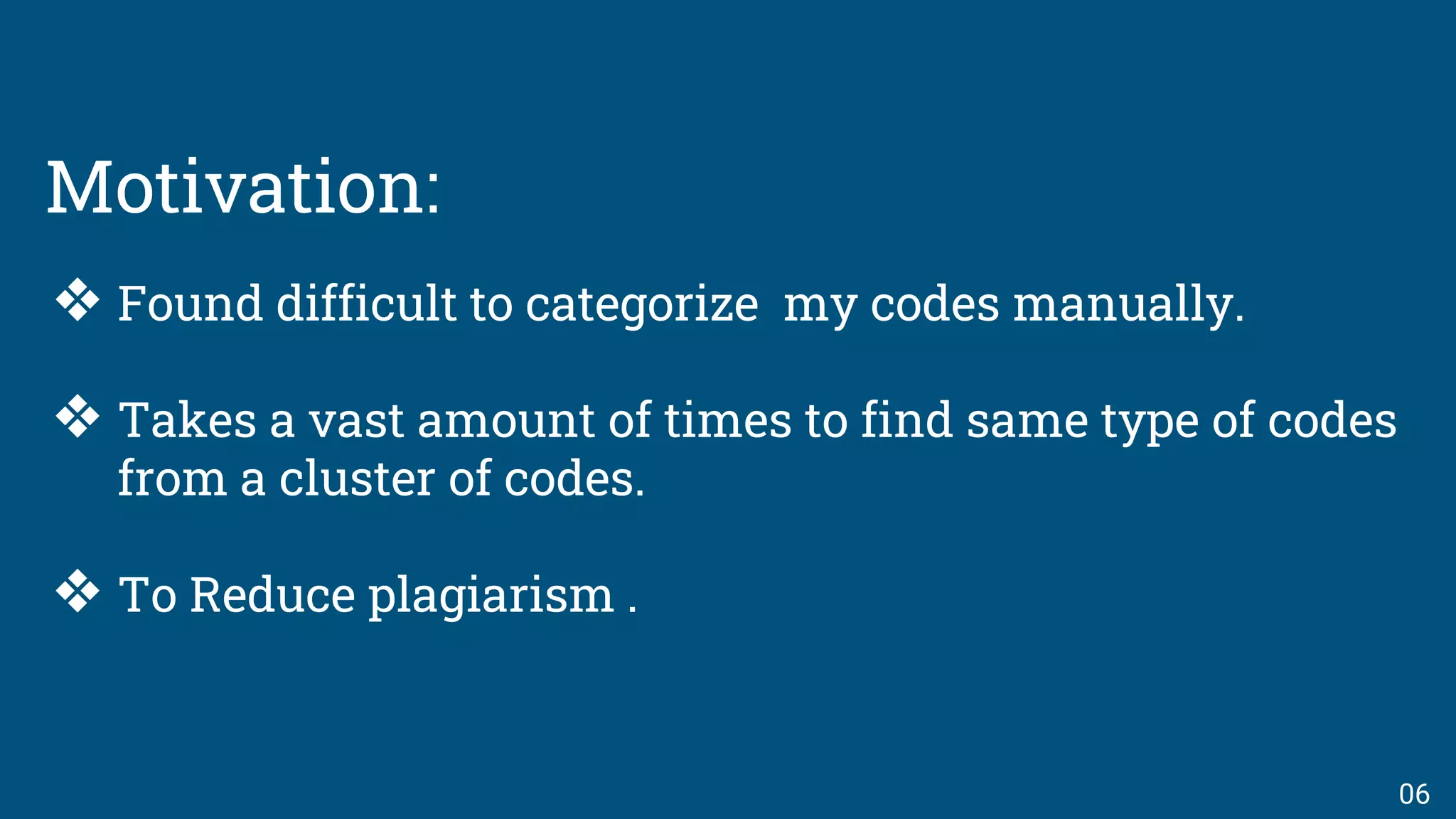

6. Motivation:
❖ Found difficult to categorize my codes manually.
❖ Takes a vast amount of times to find same type of codes
from a cluster of codes.
❖ To Reduce plagiarism .
06

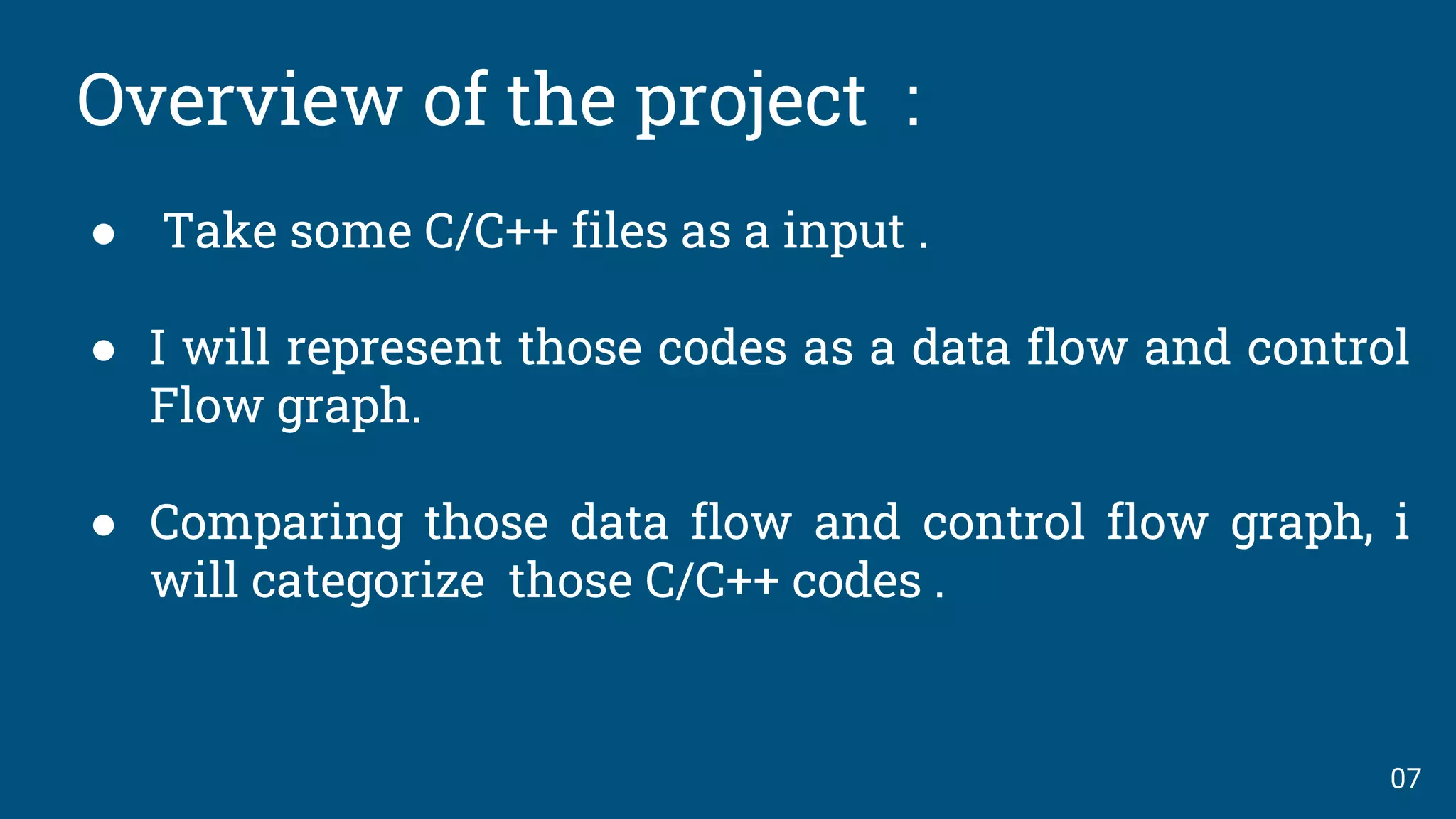

7. Overview of the project :
● Take some C/C++ files as a input .
● I will represent those codes as a data flow and control
Flow graph.
● Comparing those data flow and control flow graph, i
will categorize those C/C++ codes .
07

8. Background Study
i) Control Flow Graph
ii) Data flow Graph
iii) Abstract Syntax Tree
08

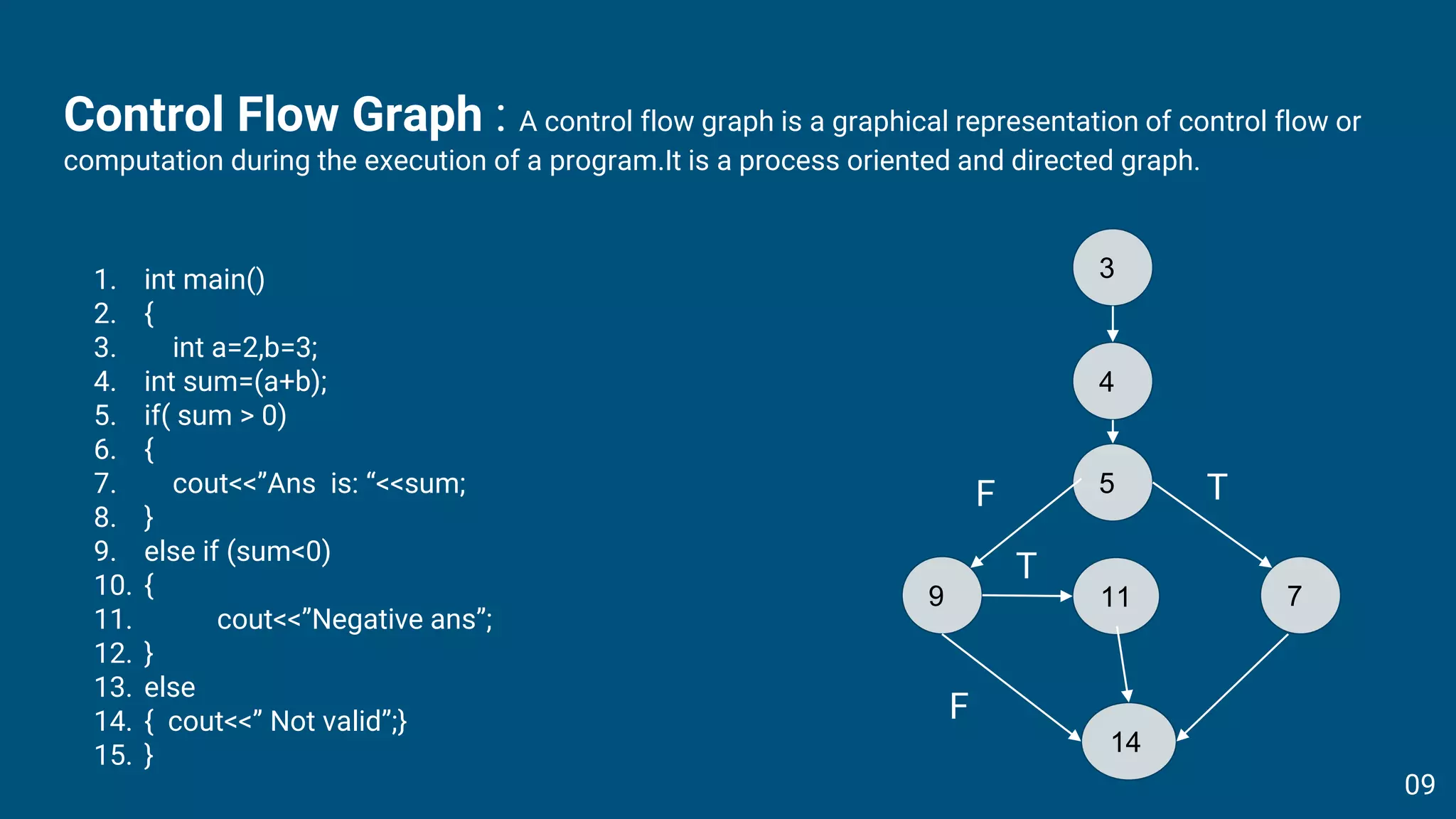

9. Control Flow Graph : A control flow graph is a graphical representation of control flow or
computation during the execution of a program.It is a process oriented and directed graph.
1. int main()
2. {
3. int a=2,b=3;
4. int sum=(a+b);
5. if( sum > 0)
6. {
7. cout<<”Ans is: “<<sum;
8. }
9. else if (sum<0)
10. {
11. cout<<”Negative ans”;
12. }
13. else
14. { cout<<” Not valid”;}
15. }
3
4
5
14
11 7
9
F T
T
F
09

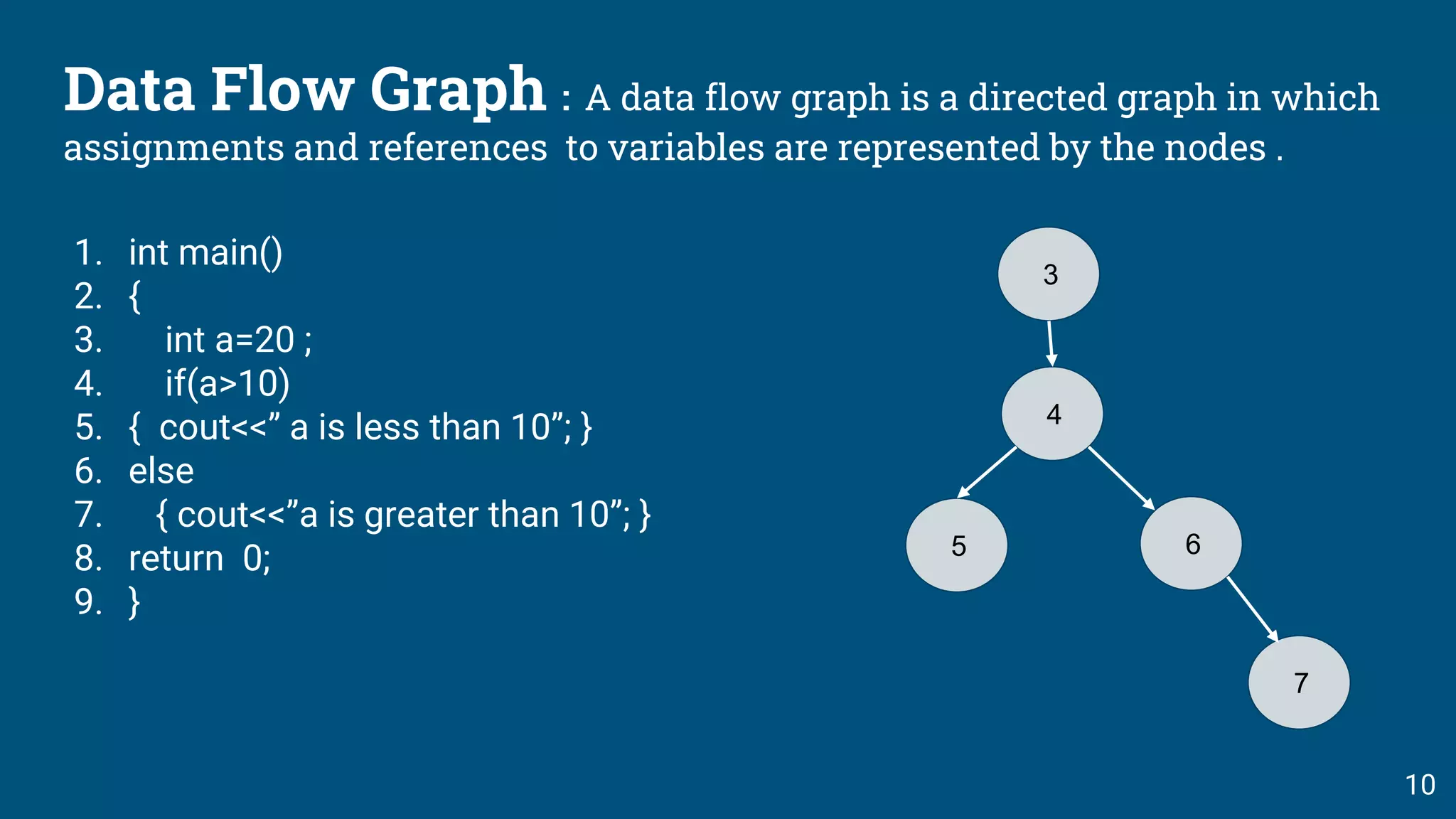

10. Data Flow Graph : A data flow graph is a directed graph in which
assignments and references to variables are represented by the nodes .
1. int main()
2. {
3. int a=20 ;
4. if(a>10)
5. { cout<<” a is less than 10”; }
6. else
7. { cout<<”a is greater than 10”; }
8. return 0;
9. }
3
4
6
7
5
10

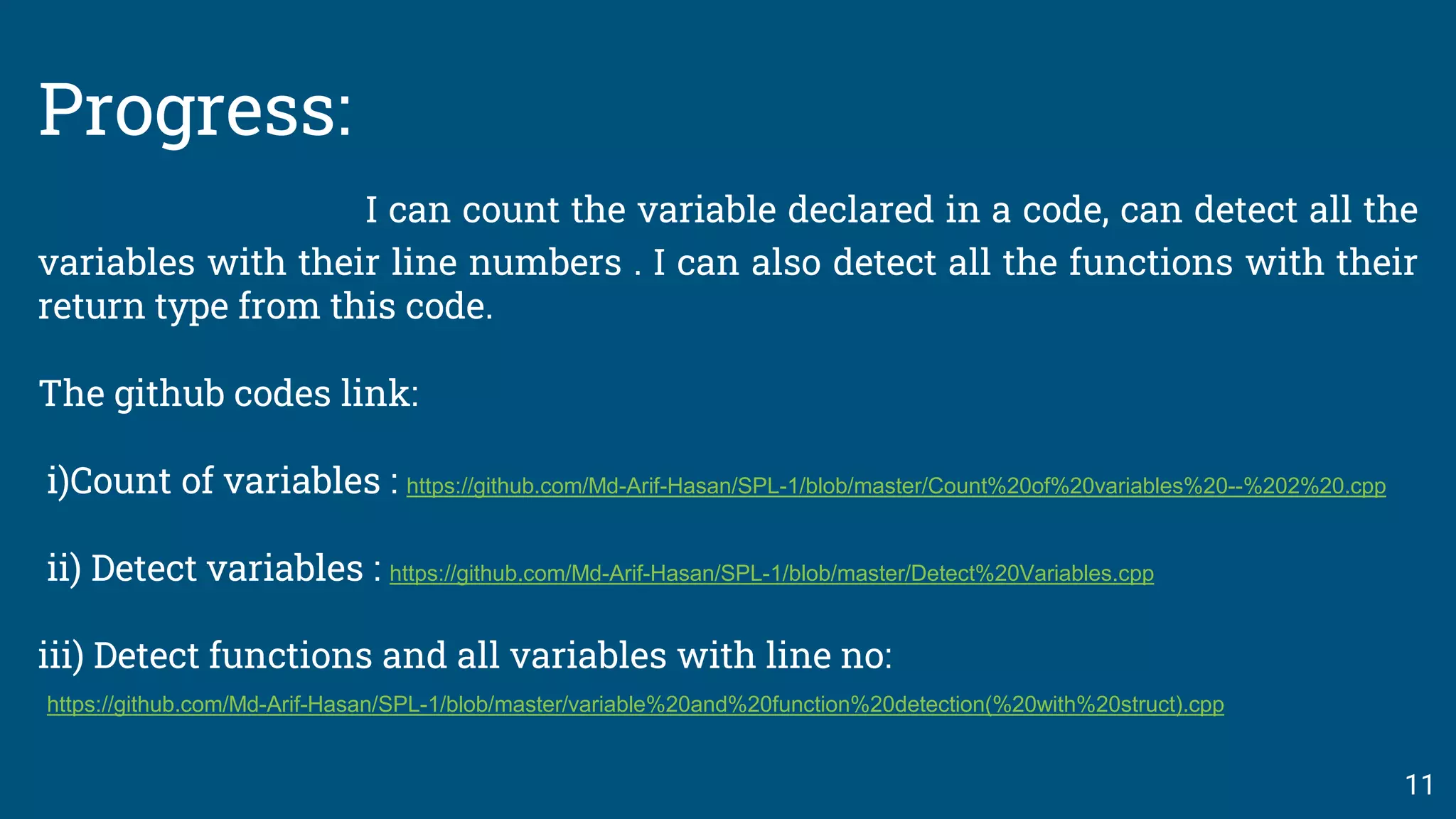

11. Progress:
I can count the variable declared in a code, can detect all the
variables with their line numbers . I can also detect all the functions with their
return type from this code.
The github codes link:
i)Count of variables : https://github.com/Md-Arif-Hasan/SPL-1/blob/master/Count%20of%20variables%20--%202%20.cpp
ii) Detect variables : https://github.com/Md-Arif-Hasan/SPL-1/blob/master/Detect%20Variables.cpp
iii) Detect functions and all variables with line no:
https://github.com/Md-Arif-Hasan/SPL-1/blob/master/variable%20and%20function%20detection(%20with%20struct).cpp
11

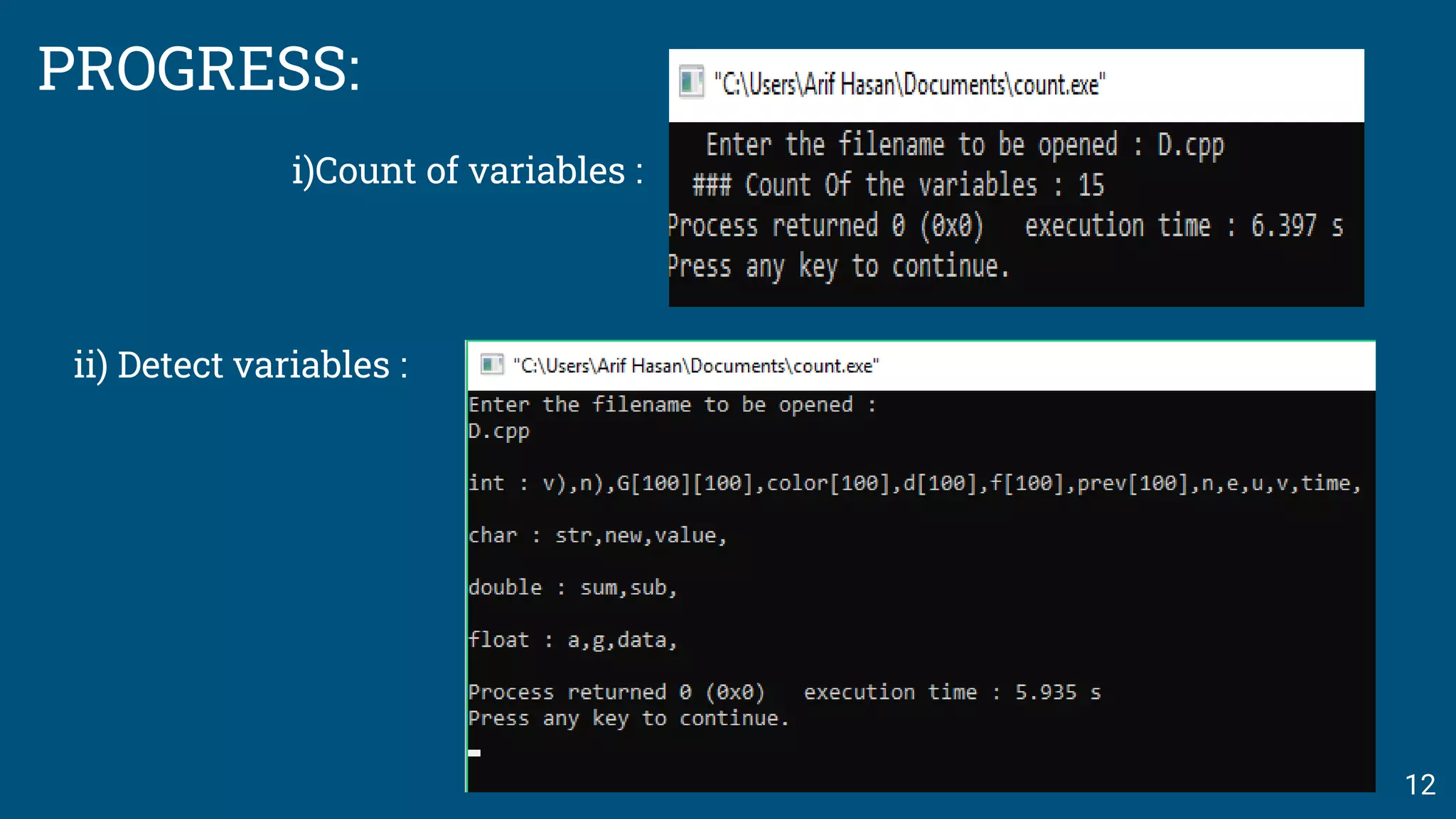

12. PROGRESS:
i)Count of variables :
ii) Detect variables :
12

13. iii) Detect functions and all variables with line no:
13

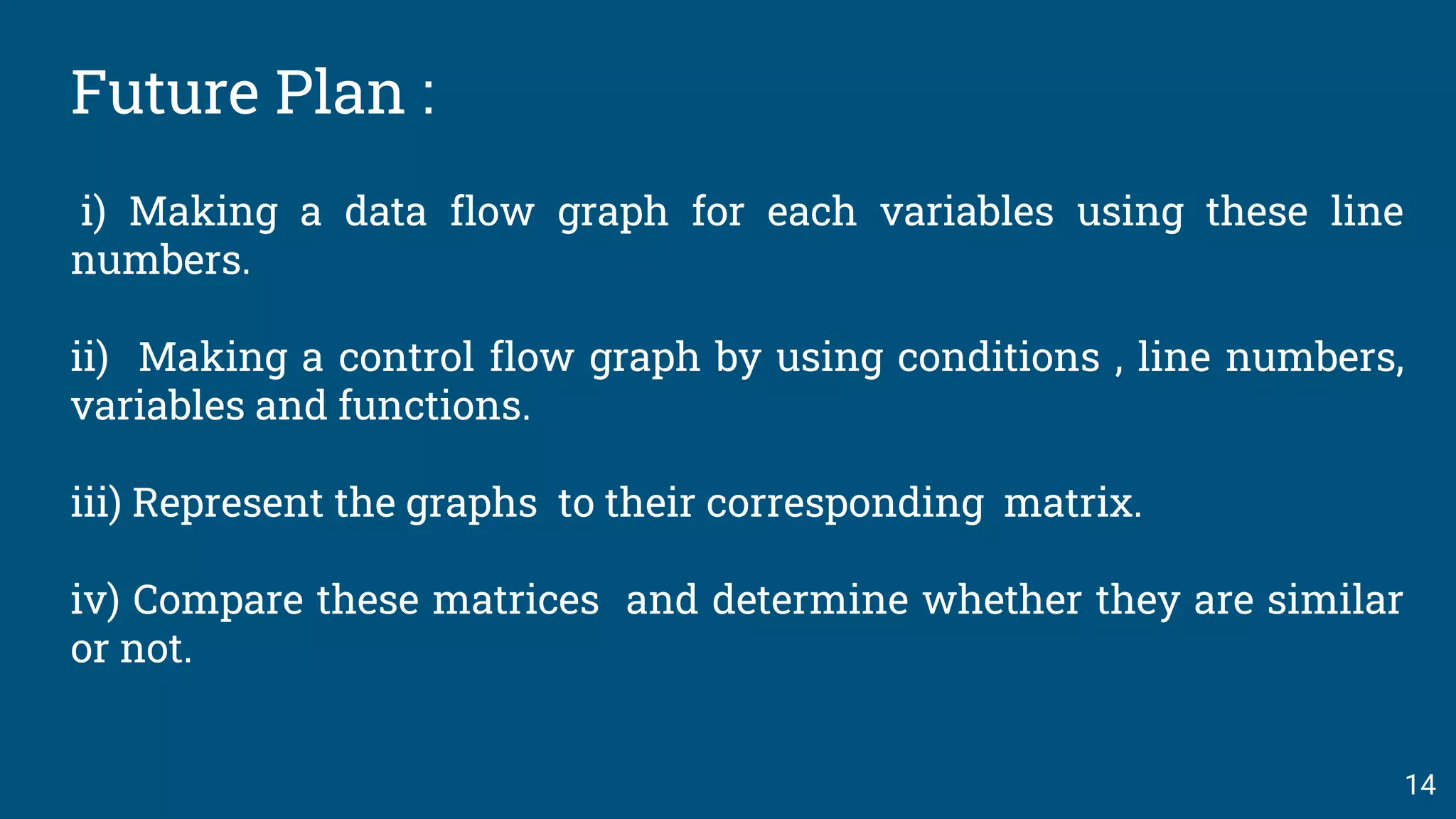

14. Future Plan :
i) Making a data flow graph for each variables using these line
numbers.
ii) Making a control flow graph by using conditions , line numbers,
variables and functions.
iii) Represent the graphs to their corresponding matrix.
iv) Compare these matrices and determine whether they are similar
or not.
14

15. THANK YOU
15
