The document provides guidelines for contouring the clinical target volume (CTV) and organs at risk for carcinoma of the cervix treated with 3D conformal radiation therapy or intensity-modulated radiation therapy. The CTV includes the involved lymph nodes (GTV N) and relevant draining nodal groups. The CTV for the primary tumor (CTV-P) includes the gross tumor, uterus, cervix, parametrium, vagina, and ovaries. Detailed guidelines are provided for contouring the lymph node regions, uterus, vagina, and parametrium. A planning target volume (PTV) is created by adding a 10 mm margin to the total CTV. Additional margins are used to create an

1. Contouring Guidelines for
Carcinoma Cervix ( 3DCRT/IMRT)
CTV N: Involved nodes (GTV N) and relevant
draining nodal groups (common iliac, external
iliac, internal iliac, obturator and pre sacral
lymph nodes)
CTV Primary (CTV-P) includes GTV Primary,
Uterine Cervix, Uterine Corpus, Parametrium,
Vagina and Ovaries
TOTAL CTV: CTV N + CTV P
Dr. Debarshi Lahiri, MD

6. Summary of Recommendations
(LN CTV)
CTV N includes involved nodes and relevant draining nodal groups
(common iliac, external iliac, internal iliac, obturator and pre
sacral lymph nodes).

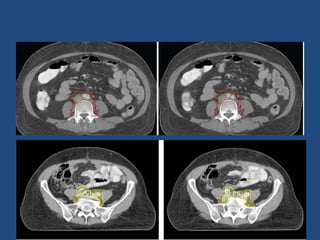

• Start contouring iliac vessels from aortic bifurcation down till
the appearance of femoral head.
• Uniformly, pelvic blood vessels are given a margin of 7mm.
The upper border is maintained at aortic bifurcation.
• The contour is extended around common iliac vessels
posteriorly and laterally so as to include connective tissue
between iliopsoas muscles and lateral surface of vertebral
body.
• All visible nodes (contoured as GTV node) are given a margin
of 10mm to create CTV node.
• Muscle and bone are excluded from CTV N.

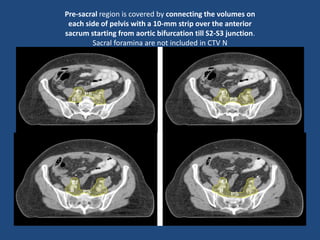

8. Pre-sacral region is covered by connecting the volumes on
each side of pelvis with a 10-mm strip over the anterior
sacrum starting from aortic bifurcation till S2-S3 junction.
Sacral foramina are not included in CTV N

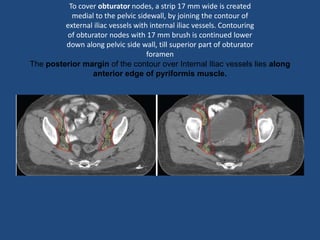

9. To cover obturator nodes, a strip 17 mm wide is created
medial to the pelvic sidewall, by joining the contour of
external iliac vessels with internal iliac vessels. Contouring
of obturator nodes with 17 mm brush is continued lower
down along pelvic side wall, till superior part of obturator
foramen
The posterior margin of the contour over Internal Iliac vessels lies along
anterior edge of pyriformis muscle.

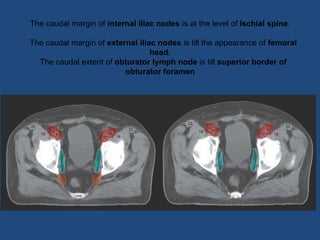

10. The caudal margin of internal iliac nodes is at the level of Ischial spine.
The caudal margin of external iliac nodes is till the appearance of femoral
head.
The caudal extent of obturator lymph node is till superior border of
obturator foramen

11. CTV Primary (CTV-P) includes GTV Primary, Uterine Cervix,
Uterine Corpus, Parametrium, Vagina and Ovaries
The uterine corpus, entire cervix and the vagina are
contoured along with the gross disease (GTV primary) as a
single structure (CTV P1)
VAGINA: paravaginal tissue is included along with the vaginal
wall.
A vaginal marker is placed at the lower extent of vaginal disease while
taking CT and as per RTOG guidelines:
Minimal or no vaginal wall involvement: The contouring is stopped
few slices above the lower border of obturator foramen, so that when
1.5 cm ITV (internal target volume) margin is given over the uterus, the
lower border does not extend beyond the lower border of obturator
foramen.
Upper vaginal involvement: Upper two-thirds
Extensive vaginal involvement: Entire vagina

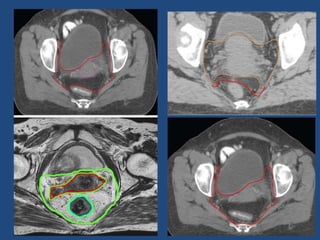

12. PARAMETRIUM (CTV P2)
To delineate the parametrium , connective tissue
extending from the cervix to the pelvic wall are included, along
with the visible linear structures that run laterally (e.g. vessels,
nerves and fibrous structures)
Cranial border : defined at the level where the true pelvis begins. Contours
should stop once loops of bowel are seen next to the uterus (Lim/Toita et
al.)
Anteriorly: contouring is done up to the level of posterior border of bladder in
the central region, while, in periphery it extends till the anterior end of lateral
pelvic bony wall.
Posteriorly: parametrium is contoured only till the anterior part (semicircular)
of mesorectal fascia. In case of significant parametrial
invasion(IIIB)/uterosacral ligament involvement, include entire
mesorectum.(Lim et al.(RTOG)/PGI Guidelines).
Laterally, the parametrium is contoured till the lateral pelvic wall, upto the
medial edge of internal obturator muscle.
Caudal border of parametrium is taken at the pelvic floor.

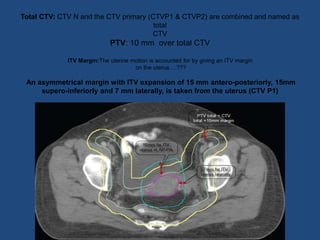

14. Total CTV: CTV N and the CTV primary (CTVP1 & CTVP2) are combined and named as
total
CTV
PTV: 10 mm over total CTV
ITV Margin:The uterine motion is accounted for by giving an ITV margin
on the uterus….???
An asymmetrical margin with ITV expansion of 15 mm antero-posteriorly, 15mm
supero-inferiorly and 7 mm laterally, is taken from the uterus (CTV P1)

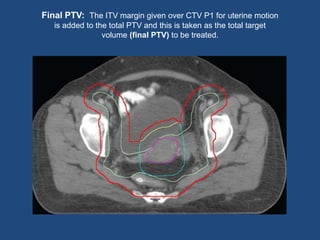

15. Final PTV: The ITV margin given over CTV P1 for uterine motion
is added to the total PTV and this is taken as the total target
volume (final PTV) to be treated.

16. Normal Tissue Delineation (RTOG)
• Bowel: The small and large bowel can be contoured together as a Bowel-
Bag. Inferiorly, the bowel bag should begin with the first small or large bowel
loop or above the ano-rectum, whichever is most inferior.
The contours should end 1 cm. above the PTV if coplanar beams are used.
If non coplanar beams are chosen, the contours will need to
extend further.
• Ano-Rectum:Ano-Rectum should be contoured from the level of the
anus to the sigmoid flexure. It should extend from the anal verge (marked by a
radiopaque marker at simulation) to superiorly where it loses its round shape
in the axial plane and connects anteriorly with the sigmoid.
• Bladder: Contoured inferiorly from its base, and superiorly to the dome.
• Femoral Heads & Pelvic Bones

17. Dose Prescription & Constraints
• PTV: 50.4 Gy/ 28#
• Bladder: V50 < 50%
• Bowel Bag: V45 < 195 cc.
• Femoral Head: V50 < 5%
Mean < 45 Gy
• Bone Marrow: V40 < 37%
Mean < 34 Gy
• Rectum: V50 < 35%
Rectum Constraint not given ( IIIB disease/Risk of
Uterosacral ligament infiltration) and included in PTV
