1. Timo Pagel
DevSecOps Trainer/Architect/Strategist

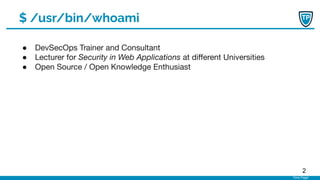

2. Timo Pagel
2
$ /usr/bin/whoami
● DevSecOps Trainer and Consultant
● Lecturer for Security in Web Applications at different Universities
● Open Source / Open Knowledge Enthusiast

3. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity

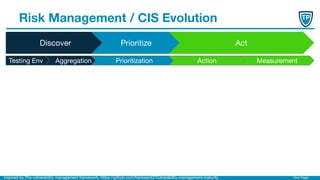

4. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Testing Env Aggregation Prioritization Action Measurement
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity

5. Timo Pagel
Companies using modern technologies e.g.
User/Creator of the ClusterImageScanner:
Typical ClusterImageScanner User
Containers Kubernetes Multi Cloud Micro Services

6. Timo Pagel
Typical Problems
● Missing patch management leads to exploitable
containers
● Are we using the vulnerable component/version X?
● What vulnerabilities are potentially exploitable?
● Misconfigurations

7. Timo Pagel
Handling of security misconfigurations and known
vulnerabilities
Solution Overview
Prod. (Kubernetes) Cluster
Container W
Image A
Container X
Image A
Container Y
Image B
Container Z
Image C
Developers
Report Known
Vulnerabilities

8. Timo Pagel
Handling of security misconfigurations and known
vulnerabilities
Solution Overview
Prod. (Kubernetes) Cluster
Container W
Image A
Container X
Image A
Container Y
Image B
Container Z
Image C
Report Lifetime
Operators
Developers
Report Known
Vulnerabilities

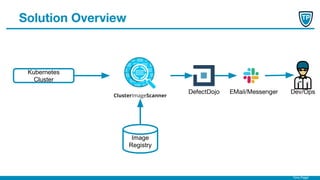

9. Timo Pagel
Solution Overview
Kubernetes
Cluster
DefectDojo EMail/Messenger
Registry
Dev/Ops

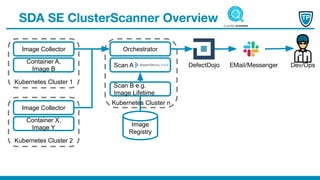

10. Kubernetes Cluster 1
Image Collector
Container A,
Image B
Kubernetes Cluster n
Orchestrator
Scan A
Kubernetes Cluster 2
Image Collector
Container X,
Image Y
DefectDojo EMail/Messenger
SDA SE ClusterScanner Overview
Registry
Scan B e.g.
Image Lifetime
Dev/Ops

11. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
2019 2021

12. Timo Pagel

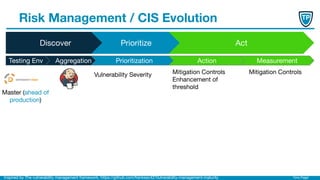

Risk Management / CIS Evolution
Discover Prioritize Act
Testing Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity

13. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Dependency Check (master) with DefectDojo
2019 2021

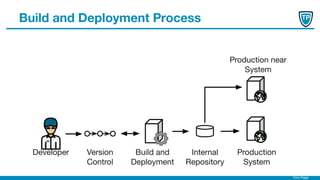

14. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process

15. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process
Issue detected

16. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process
Issue detected
Developer is working on something else
Maybe the developer patched a vulnerability but another is raised
Is a good process for introduced vulnerabilities, e.g. SQLi

17. Timo Pagel

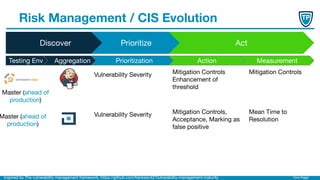

Risk Management / CIS Evolution
Discover Prioritize Act
Testing Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Vulnerability Severity Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
Master (ahead of
production)
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity

18. Timo Pagel
Inform about known vulnerabilities
Developer doesn’t change something
-> Asynchronous information about known
vulnerabilities in third party libraries

19. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
2019 2021

20. Timo Pagel
Master != Production
● Process (e.g. approval)
● Technical issues

21. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process
Technical issue

22. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process
Technical issue
Approval
Product Owner

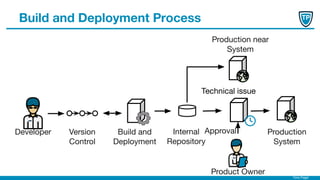

23. Timo Pagel
Developer Version
Control
Build and
Deployment
Production
System
Internal
Repository
Production near
System
Build and Deployment Process
Technical issue
Approval
Product Owner

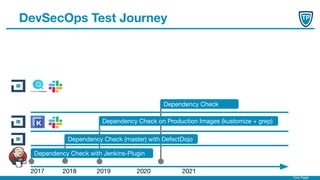

24. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
2019 2021

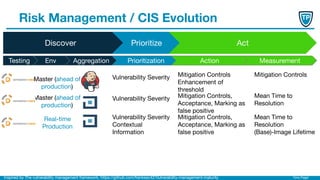

25. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Vulnerability Severity Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
Master (ahead of
production)
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity
Vulnerability Severity
Contextual
Information
Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
(Base)-Image Lifetime
Real-time
Production
Testing

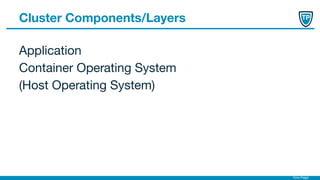

26. Timo Pagel
Cluster Components/Layers
Application
Container Operating System
(Host Operating System)

27. Timo Pagel
Patching, a solved issue raises
t
Build
Vulnerability
Discovered
Patch
Published
Start
Container
Build
Run Container

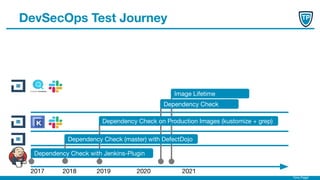

28. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
2019 2021

29. Timo Pagel
Images
BaseImage-Layer1
BaseImage-Layer2
BaseImage-Layer3
Project Layer

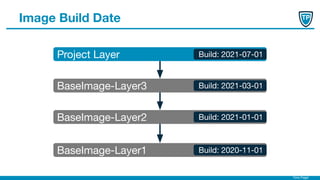

30. Timo Pagel
Image Build Date
BaseImage-Layer1
BaseImage-Layer2
BaseImage-Layer3
Project Layer Build: 2021-07-01
Build: 2021-03-01
Build: 2021-01-01
Build: 2020-11-01

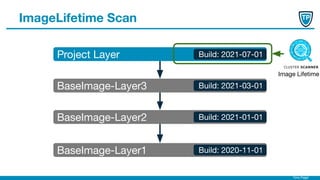

31. Timo Pagel
ImageLifetime Scan
BaseImage-Layer1
BaseImage-Layer2
BaseImage-Layer3
Project Layer Build: 2021-07-01
Build: 2021-03-01
Build: 2021-01-01
Build: 2020-11-01
Image Lifetime

32. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
2019 2021

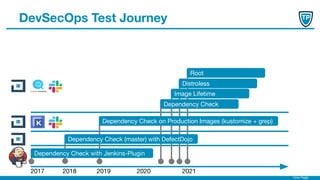

33. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
Root
2019 2021

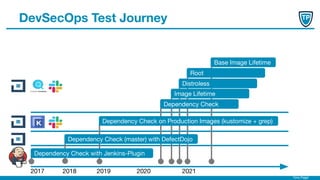

34. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
Base Image Lifetime
Root
2019 2021

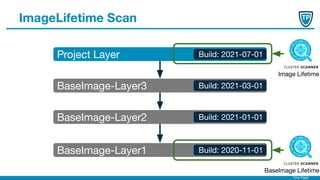

35. Timo Pagel
ImageLifetime Scan
BaseImage-Layer1
BaseImage-Layer2
BaseImage-Layer3
Project Layer Build: 2021-07-01
Build: 2021-03-01
Build: 2021-01-01
Build: 2020-11-01
Image Lifetime
BaseImage Lifetime

36. Timo Pagel
BaseImageLifetime Scan
BaseImage-Layer1
BaseImage-Layer2
BaseImage-Layer3
Project Layer Build: 2021-07-01
Build: 2021-03-01
Build: 2021-01-01
Build: 2020-11-01
Image Lifetime
BaseImage Lifetime
Official Distribution Image Build: 2020-02-01

37. Timo Pagel
BaseImageLifetime Scan
BaseImage-Layer1 yum update
BaseImage-Layer2
BaseImage-Layer3
Project Layer Build: 2021-07-01
Build: 2021-03-01
Build: 2021-01-01
Build: 2020-11-01
Image Lifetime
BaseImage Lifetime
Official Distribution Image Build: 2020-02-01

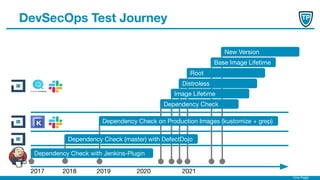

38. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
Base Image Lifetime
Root
2019 2021
New Version

39. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Vulnerability Severity Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
Master (ahead of
production)
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity
Vulnerability Severity
Contextual
Information
Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
(Base)-Image Lifetime
Real-time
Production
Testing

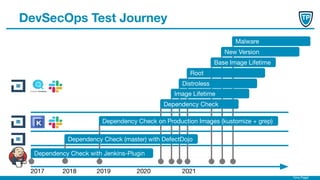

40. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
Base Image Lifetime
Root
2019 2021
New Version
Malware

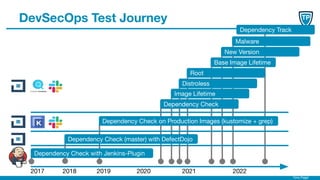

41. Timo Pagel
DevSecOps Test Journey
2017 2018 2020
Dependency Check with Jenkins-Plugin
Image Lifetime
Distroless
Dependency Check
Dependency Check on Production Images (kustomize + grep)
Dependency Check (master) with DefectDojo
Base Image Lifetime
Root
2019 2021
New Version
Malware
Dependency Track
2022

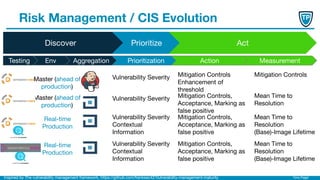

42. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Vulnerability Severity Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
Master (ahead of
production)
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity
Vulnerability Severity
Contextual
Information
Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
(Base)-Image Lifetime
Real-time
Production
Testing

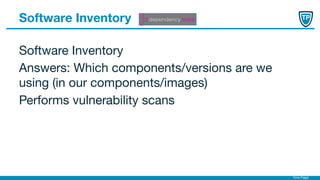

43. Timo Pagel
Software Inventory
Answers: Which components/versions are we
using (in our components/images)
Performs vulnerability scans
Software Inventory

44. Timo Pagel
Gathering SBOM
● Build time with a package manager analyser /
plugin (cdxgen)
● Post-build: Image analysis (syft)

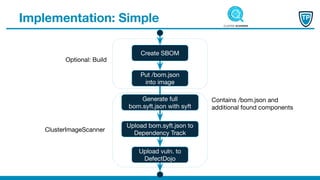

45. Implementation: Simple
Upload bom.syft.json to
Dependency Track
Upload vuln. to
DefectDojo
Create SBOM
Put /bom.json
into image
Optional: Build
ClusterImageScanner
Generate full
bom.syft.json with syft
Contains /bom.json and
additional found components

46. Timo Pagel

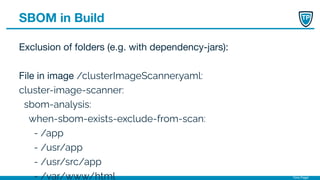

SBOM in Build
Exclusion of folders (e.g. with dependency-jars):
File in image /clusterImageScanner.yaml:
cluster-image-scanner:
sbom-analysis:
when-sbom-exists-exclude-from-scan:
- /app
- /usr/app
- /usr/src/app
- /var/www/html

47. Timo Pagel
Risk Management / CIS Evolution
Discover Prioritize Act
Env Aggregation Prioritization Action Measurement
Vulnerability Severity Mitigation Controls
Enhancement of
threshold
Mitigation Controls
Vulnerability Severity Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
Master (ahead of
production)
Master (ahead of
production)
Inspired by The vulnerability management framework, https://github.com/franksec42/Vulnerability-management-maturity
Vulnerability Severity
Contextual
Information
Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
(Base)-Image Lifetime
Real-time
Production
Testing
Vulnerability Severity
Contextual
Information
Mitigation Controls,
Acceptance, Marking as
false positive
Mean Time to
Resolution
(Base)-Image Lifetime
Real-time
Production

48. Timo Pagel

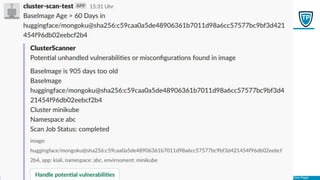

Slack Notification
Team communications
Channel #communications-security

49. Timo Pagel

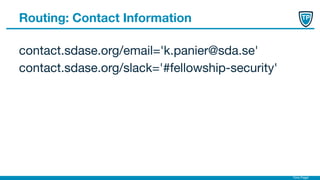

Routing: Contact Information
contact.sdase.org/email='k.panier@sda.se'
contact.sdase.org/slack='#fellowship-security'

50. Timo Pagel
Conclusion
A patch policy is defined (indirect)
Automated PRs for patches (indirect)
Nightly build of images (indirect)
Usage of a maximum lifetime for images (indirect)
Usage of a maximum lifetime for
images (indirect)

51. Timo Pagel
Conclusion
A patch policy is defined (indirect)
Automated PRs for patches (indirect)
Nightly build of images (indirect)
Usage of a maximum lifetime for images (indirect)
Usage of a maximum lifetime for
images (indirect)
Test of server side components
with known vulnerabilities
Test of virtualized environments (e.g. root, distroless)
Test for Malware
Test for new image version

52. Timo Pagel
Cluster Scanner
+
DefectDojo

53. Timo Pagel
Conclusion
The process is important
Vulnerability Management via OWASP DefectDojo

54. Thank you
Questions?
Contact clusterscanner@pagel.pro
Repo: https://github.com/SDA-SE/cluster-image-scanner/
Article:
https://medium.com/sda-se/discovery-of-known-vulnerabili
ties-and-inventories-for-modern-applications-fb8542555c0
5
