1. Drupal 8: Configuration Management
by Alex Goja

2. What Is Drupal Config?
A quick quiz01

3. What is Drupal config ?
Blog post

4. What is Drupal config ?
Permissions

5. What is Drupal config ?
Vocabulary

6. What is Drupal config ?
Taxonomy term

7. What is Drupal config ?
Field definition

8. What is Drupal config ?
Menu

9. What is Drupal config ?
Variable

10. What is Drupal config ?
Menu item

11. What is Drupal config ?
User

12. What is Drupal config ?
Contents of a block

13. Content An article page, uploaded files
Session
State
Configuration
Logged in status, shopping carts
Last cron run
Everything else

14. Challenge
• Developer:
• Wants to work on code
• Wants to change the config
• Wants to deploy across environments
• Client:
• Wants to work on content
• Doesn’t want to lose work

15. Current Situation
02

16. Current Situation
Drupal 7 Configuration
How do we currently manage configuration in Drupal?
• Features
• Install/Update hooks
• Install Profiles

17. Current Situation
Features
• Features ‘Overridden’ sadness
• Adding Features support for modules is not easy
• Export and import of certain configurations as modules

18. Current Situation
Install/Update Hooks
• Create tables
• Set up variables
• Fill in ‘gaps’ in Features modules

19. Current Situation
Install Profiles
• Combine Features modules and install hooks
• Full site setup out of the box
• Limited Drupal API available
• Doesn’t always work as planned

20. Drupal 8 CM
03

21. Drupal 8 CM
Configuration Management
• Move configuration management into core
• Allow storage of configuration in files
• Allow the transfer of configuration between environments
• Create an API to allow custom configurations
• Integrate UUID into core so certain configurations can be given machine names

22. Usage
04

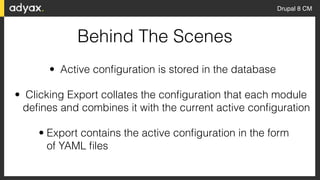

34. Drupal 8 CM
Behind The Scenes
• Active configuration is stored in the database
• Clicking Export collates the configuration that each module
defines and combines it with the current active configuration
• Export contains the active configuration in the form
of YAML files

35. Drupal 8 CM
Behind The Scenes
• YAML files are used to store the configuration
• Used to store and compare the current configuration
• By default the directories are stored in the location /sites/default/files/
config_<hash>/

36. Drupal 8 CM
YAML Filenames In Drupal 8
• < module >.< component >.yml
system.settings.yml
views.settings.yml
• < module >.< component >.< entity >.yml
image.style.medium.yml
views.view.content.yml

37. Configuration API
05

38. Configuration API
Configuration Schema
• Needed to define what your configuration will hold
• Used to define what types of data the configuration will contain
• See more at: https://drupal.org/node/1905070

39. Configuration API
system.schema.yml
system.site:
type: mapping
label: 'Site information'
mapping:
uuid:
type: string
label: 'Site UUID'
name:
type: label
label: 'Site name'
mail:
type: email
label: 'E-mail address'
slogan:
type: label
label: 'Slogan'
page:
type: mapping
label: 'Pages'
mapping:
403:
type: path
label: 'Default 403 (access denied) page'
404:
type: path
label: 'Default 404 (not found) page'
front:
type: path
label: 'Default front page'
admin_compact_mode:
type: boolean
label: 'Compact mode'
weight_select_max:
type: integer
label: 'Weight element maximum value'
langcode:
type: string
label: 'Default language'

40. Configuration API
system.schema.yml
Schema name
- Used to reference this configuration
- Also shows the configuration filename
“system.site.yml”
system.site:
type: mapping
label: 'Site information'
mapping:
uuid:
type: string
label: 'Site UUID'
name:
type: label
label: 'Site name'

41. Configuration API
Container data type
- ‘mapping’ is for key value sets
- allows for associative arrays of
different data types
system.site:
type: mapping
label: 'Site information'
mapping:
uuid:
type: string
label: 'Site UUID'
name:
type: label
label: 'Site name'
system.schema.yml

42. Configuration API
system.site:
type: mapping
label: 'Site information'
mapping:
uuid:
type: string
label: 'Site UUID'
name:
type: label
label: 'Site name'
Label
- Used as an interface label
system.schema.yml

43. Configuration API
system.site:
type: mapping
label: 'Site information'
mapping:
uuid:
type: string
label: 'Site UUID'
name:
type: label
label: 'Site name'
system.schema.yml
Start of mapping section
Item key
Item type
Item label

44. Configuration API
Simple Configuration
• Can be single values or arrays of values
• Used to store global configuration options
• Easy to implement:
• Create schema YAML file in
< module >/config/install/schema
• Create config YAML file
< module >/config/install

45. Configuration API
Getting Configuration
uuid: ''
name: Drupal
mail: ''
slogan: ''
page:
403: ''
404: ''
front: user
admin_compact_mode: false
weight_select_max: 100
langcode: en
$config = Drupal::config('system.site');
$email = $config->get('mail');
$cofig = Drupal::config(‘system.site')
$page403 = $config->get('page.403');

46. Configuration API
Setting Configuration
$config = Drupal::config('system.site'); $config->set(‘mail’,
‘test@example.com’); $config->save();
$config = Drupal::config(‘system.site’)->set('mail', ‘test@example.com’);
$config->save();
Drupal::config(‘system.site’)->set('mail', ‘test@example.com)- >save();

47. Configuration API
Clear Configuration
$config = Drupal::config('system.site');
$config->clear('mail')->save();
Drupal::config('system.site')->delete();

48. Configuration API
Configuration Entities
• Used to store custom entity configurations
• More complex and therefore harder to implement
• Used for configurations that have multiple entries
Example: Views, Image cache settings, Contact form
categories

49. Configuration API
Contact Category Interface
namespace Drupalcontact;
use DrupalCoreConfigEntityConfigEntityInterface;
/**
* Provides an interface defining a contact category entity.
*/
interface CategoryInterface extends ConfigEntityInterface {
}

50. Configuration API
Contact Category Entity

51. Configuration API
class Category extends ConfigEntityBase implements CategoryInterface {
/**
* The category ID.
*
* @var string
*/
public $id;
/**
* The category label.
*
* @var string
*/
public $label;
/**
* List of recipient e-mail addresses.
*
* @var array
*/
public $recipients = array();
/**
* An auto-reply message to send to the message author.
*
* @var string
*/
public $reply = '';
/**
* Weight of this category (used for sorting).
*
* @var int
*/
public $weight = 0;

52. Configuration API
contact.category.personal.yml
id: personal
label: 'Personal contact form'
recipients: { }
reply: ''
weight: 0
status: true
uuid: 43155e41-8a58-4264-ab00-be97a0736aa0 langcode: en
dependencies: { }
$contact_category = $this->entityManager()
->getStorage('contact_category')
->load(‘personal');
$contact_category->label();

53. Configuration API
contact.category.personal.yml
id: personal
label: 'Personal contact form'
recipients: { }
reply: ''
weight: 0
status: true
uuid: 43155e41-8a58-4264-ab00-be97a0736aa0 langcode: en
dependencies: { }
$config = Drupal::config('contact.category.personal')->get();
$label = $config['label'];
$label = Drupal::config(‘contact.category.personal')->get('label');

54. Configuration API
Drush
Export config from the active configuration to the staging
directory
drush config-export
drush cex

55. Configuration API
Drush
Import the staging configuration into the active configuration
drush config-import
drush cim

56. Configuration API
Workflow
• Staging config should become part of your
codebase
• New configuration changes should be exported
and integrated into code base
• Configuration in code should then be used to move
configuration between servers

57. Configuration API

58. Configuration API

59. Drupal 7
06

60. Configuration API
Drupal 7
• Configuration management has been back ported
• Configuration Management module
https://drupal.org/project/configuration

61. Resources
07

62. Configuration API
Resources
• Creating Drupal 8.x modules
https://drupal.org/developing/modules/8
• Configuration API in Drupal 8
https://drupal.org/node/1667894
• Understanding Drupal 8's config entities
http://www.previousnext.com.au/blog/understanding-drupal-8s-config-entities
• Configuration schema/metadata
https://drupal.org/node/1905070
• Configuration inspector for Drupal 8
https://drupal.org/project/config_inspector

63. Questions ?

64. Alex Goja
Team Lead
agoja@adyax.com
