Session given at Drupalaton 2013. Overview of the configuration management system in Drupal 8. Covers the api, config entities, context system.

1. Drupal 8 Configuration system for
coders and site builders
Friday 16 August 13

2. who are we?
Kristof De Jaeger
@swentel
co-maintainer of Field API
Lead maintainer of Display Suite
Developer @ Wunderkraut
Friday 16 August 13

3. who are we?
Gábor Hojtsy
@gaborhojtsy
Multilingual Initiative owner
Long time Drupal Core contributor
Number one employee @ Acquia
Friday 16 August 13

4. Stop serving me Palinka
Friday 16 August 13

5. Ok, maybe one ...
Friday 16 August 13

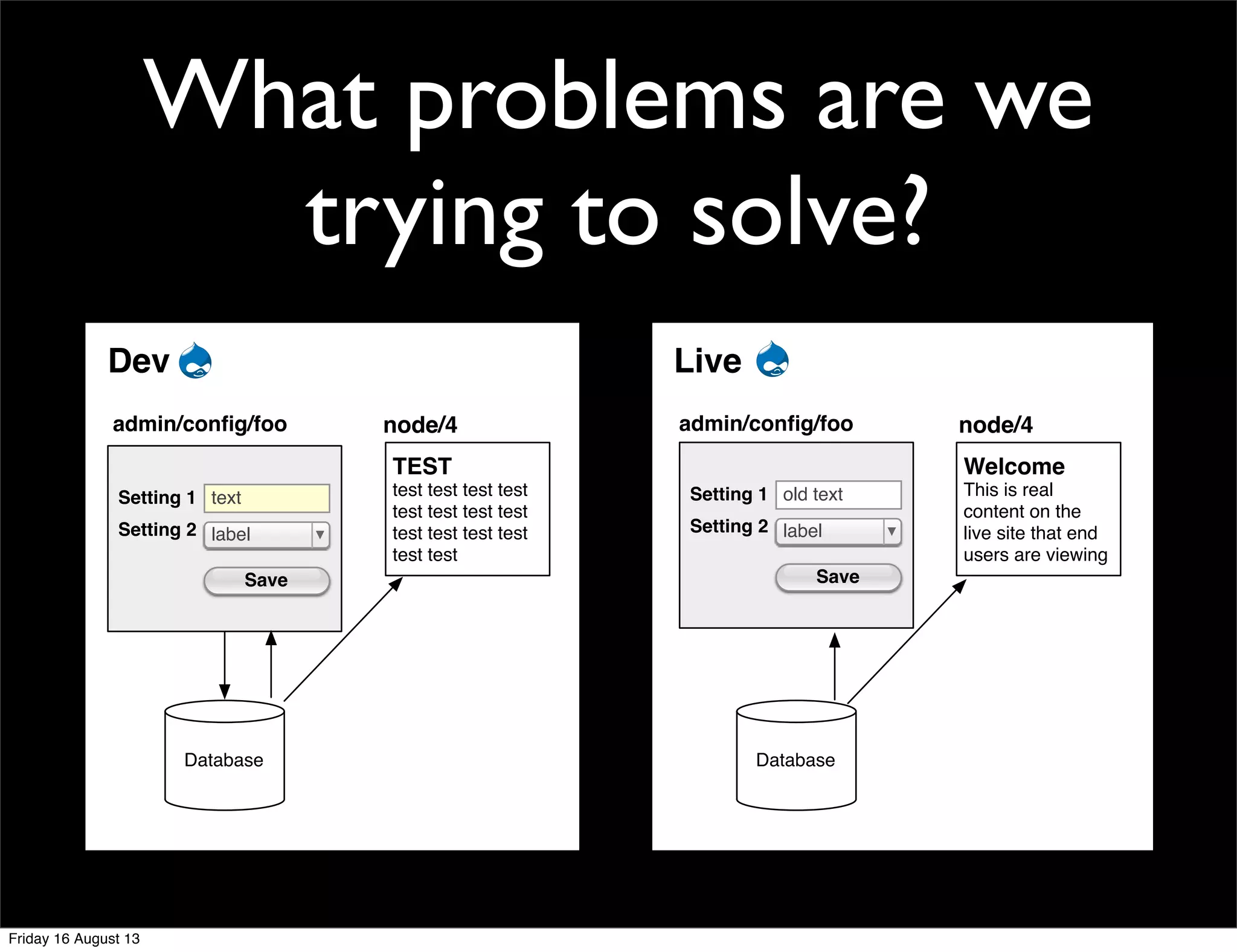

6. What problems are we
trying to solve?
• Variable soup
Live
Save
textSetting 1
Setting 2 label
Database Database
Dev
TEST
test test test test
test test test test
test test test test
test test
node/4admin/config/foo
Welcome
This is real
content on the
live site that end
users are viewing
node/4
Save
old textSetting 1
Setting 2 label
admin/config/foo
Friday 16 August 13

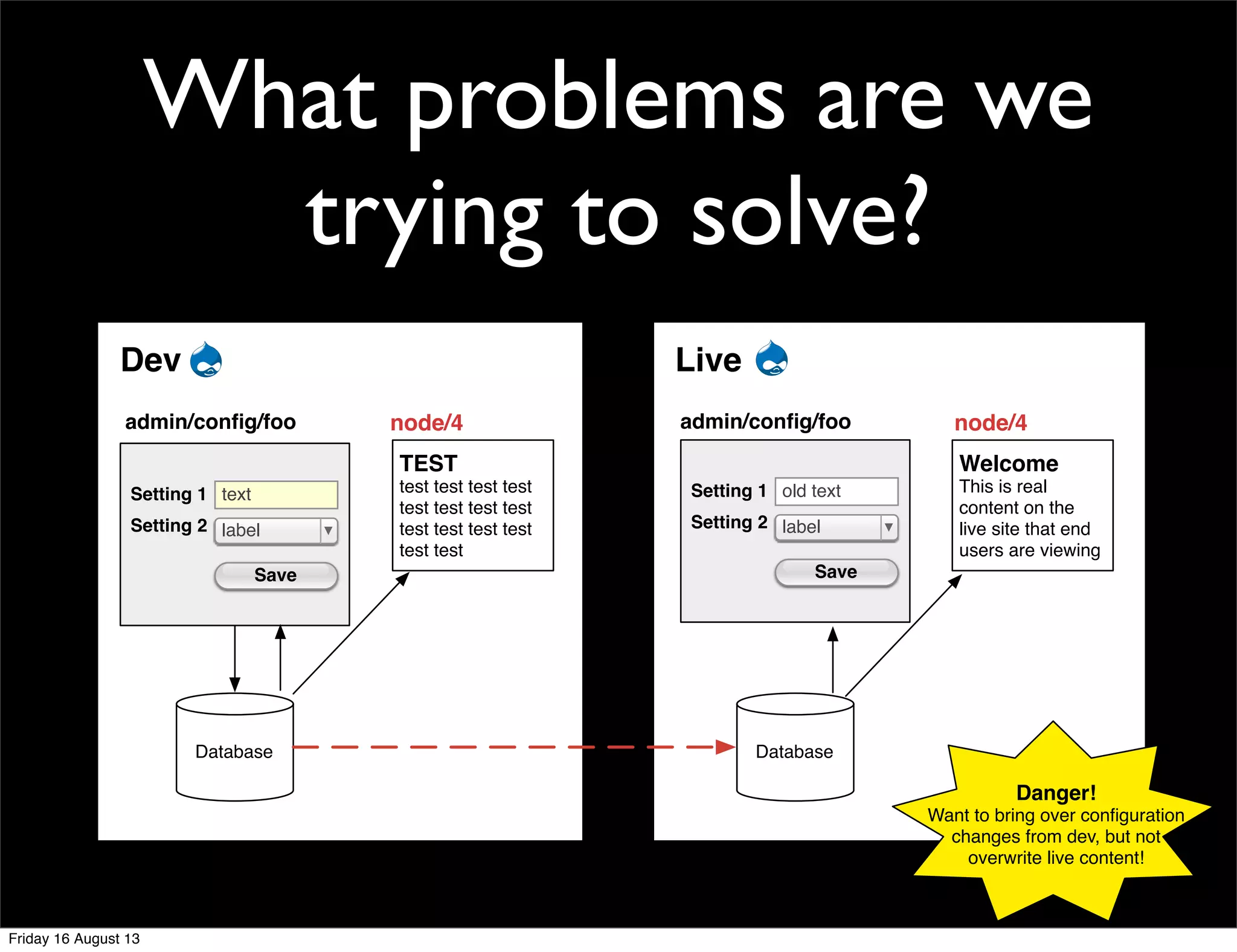

7. Live
Save
textSetting 1
Setting 2 label
Database Database
Dev
TEST
test test test test
test test test test
test test test test
test test
node/4admin/config/foo
Welcome
This is real
content on the
live site that end
users are viewing
node/4
Save
old textSetting 1
Setting 2 label
admin/config/foo
Danger!
Want to bring over configuration
changes from dev, but not
overwrite live content!
What problems are we
trying to solve?
Friday 16 August 13

8. What problems are we
trying to solve?
variable_set()/variable_get()
ctools_export_object()/
ctools_export_load_object()
db_select()/db_update()/
db_delete()
$conf[...];
hook_update_N()
drush fu
http://www.flickr.com/photos/bean/322616749
napkins
Friday 16 August 13

9. Friday 16 August 13

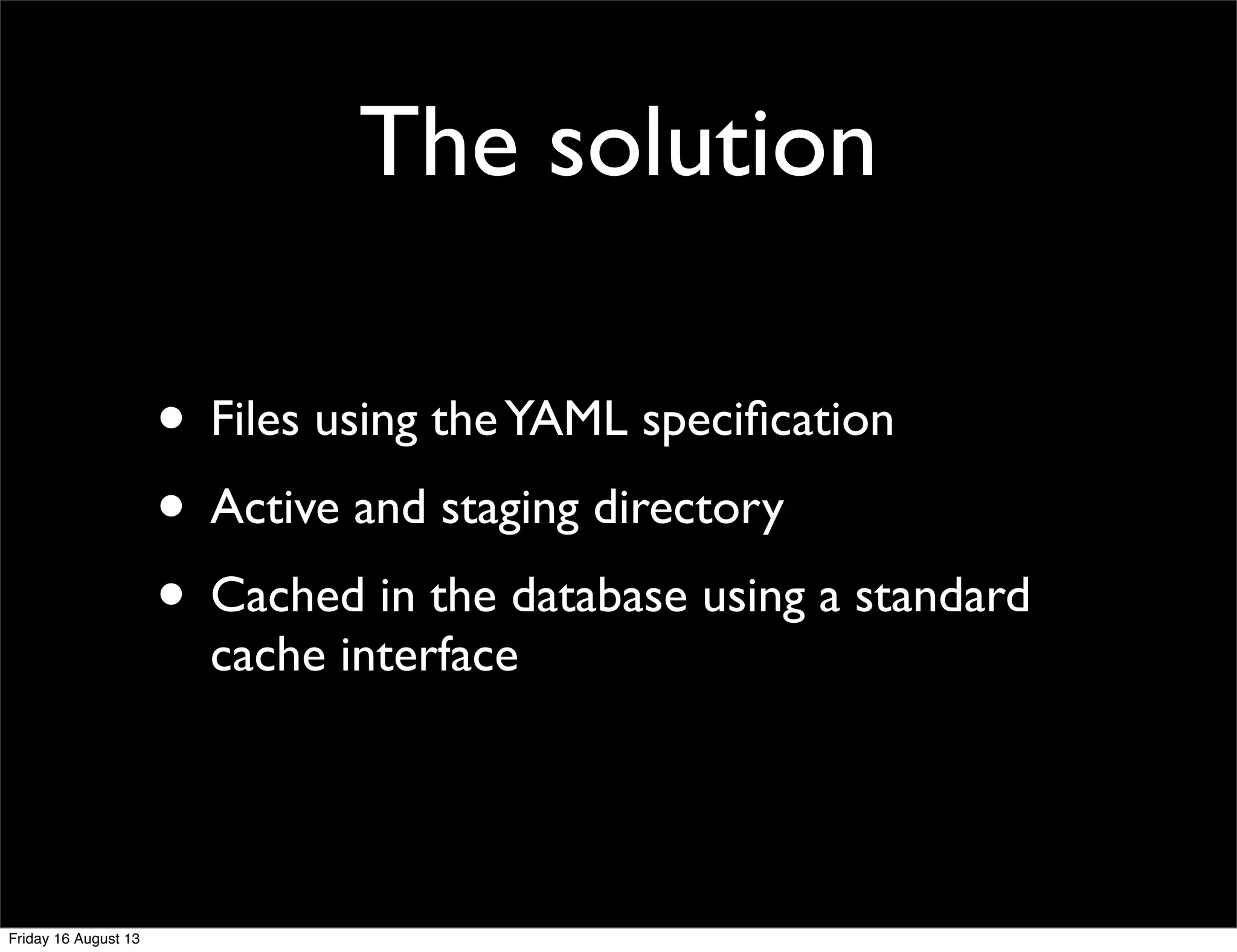

10. The solution
• Files using theYAML specification
• Active and staging directory
• Cached in the database using a standard
cache interface
Friday 16 August 13

11. The anatomy of a
configuration file
Friday 16 August 13

12. system.site.yml
Friday 16 August 13

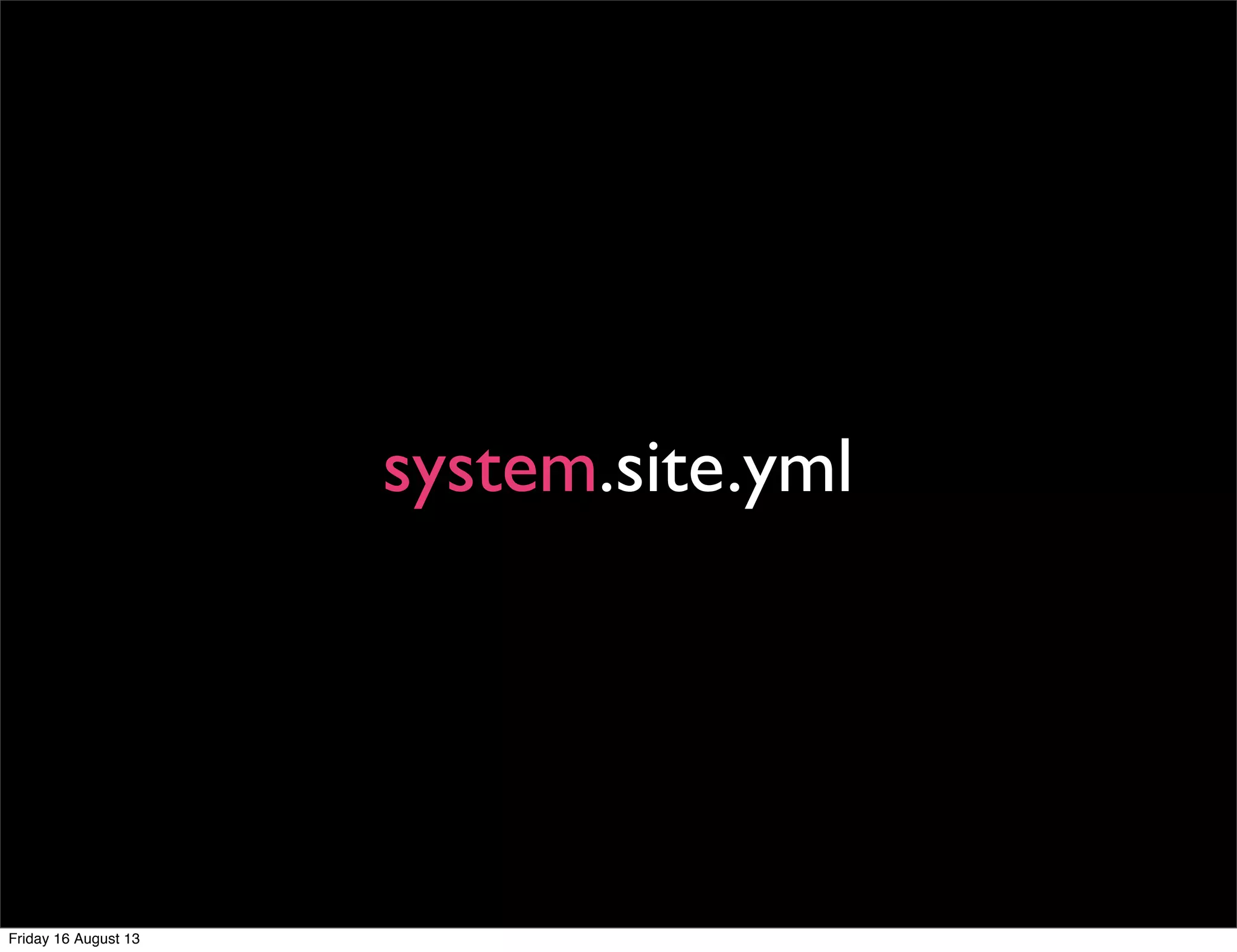

13. system.site.yml
Friday 16 August 13

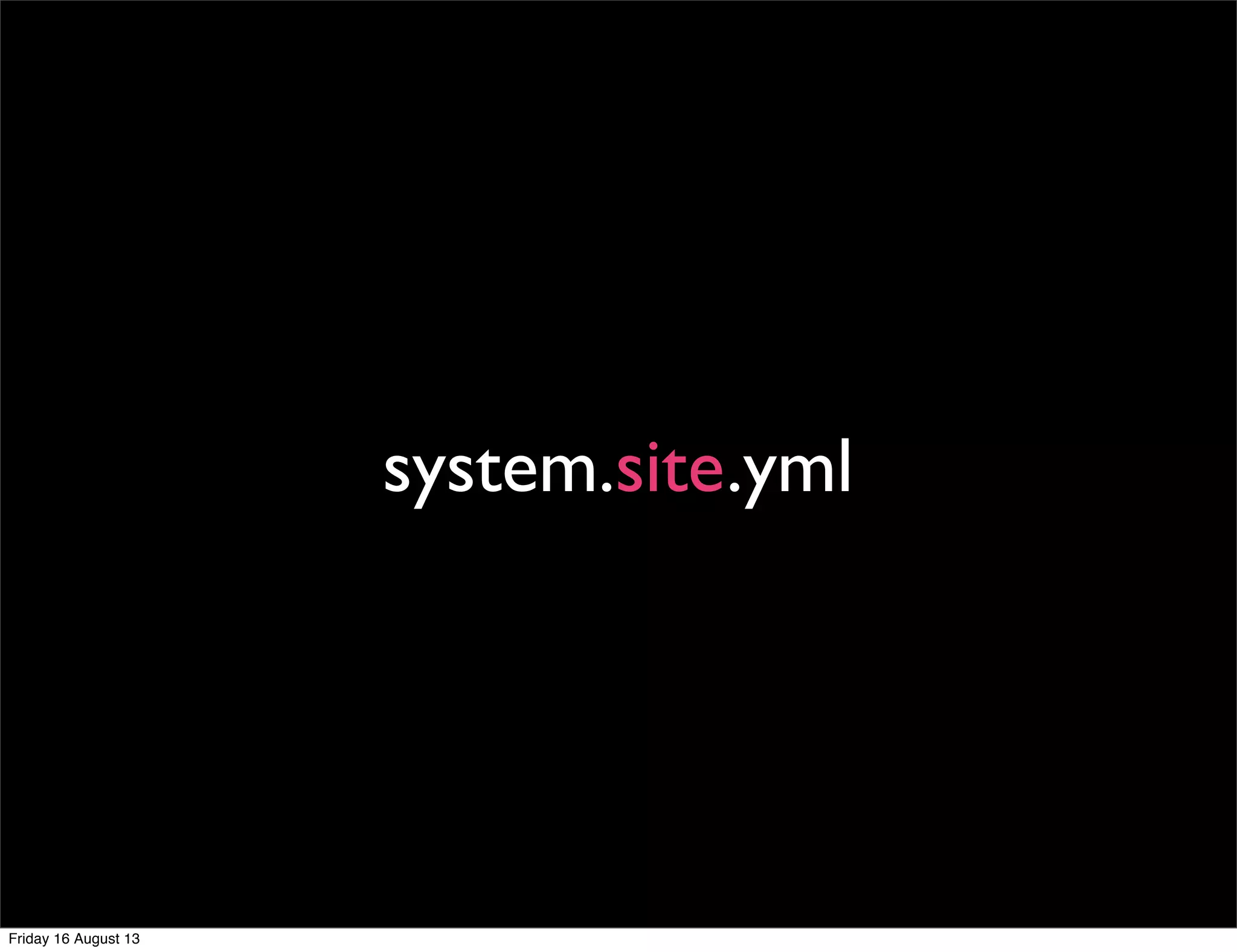

14. system.site.yml
Friday 16 August 13

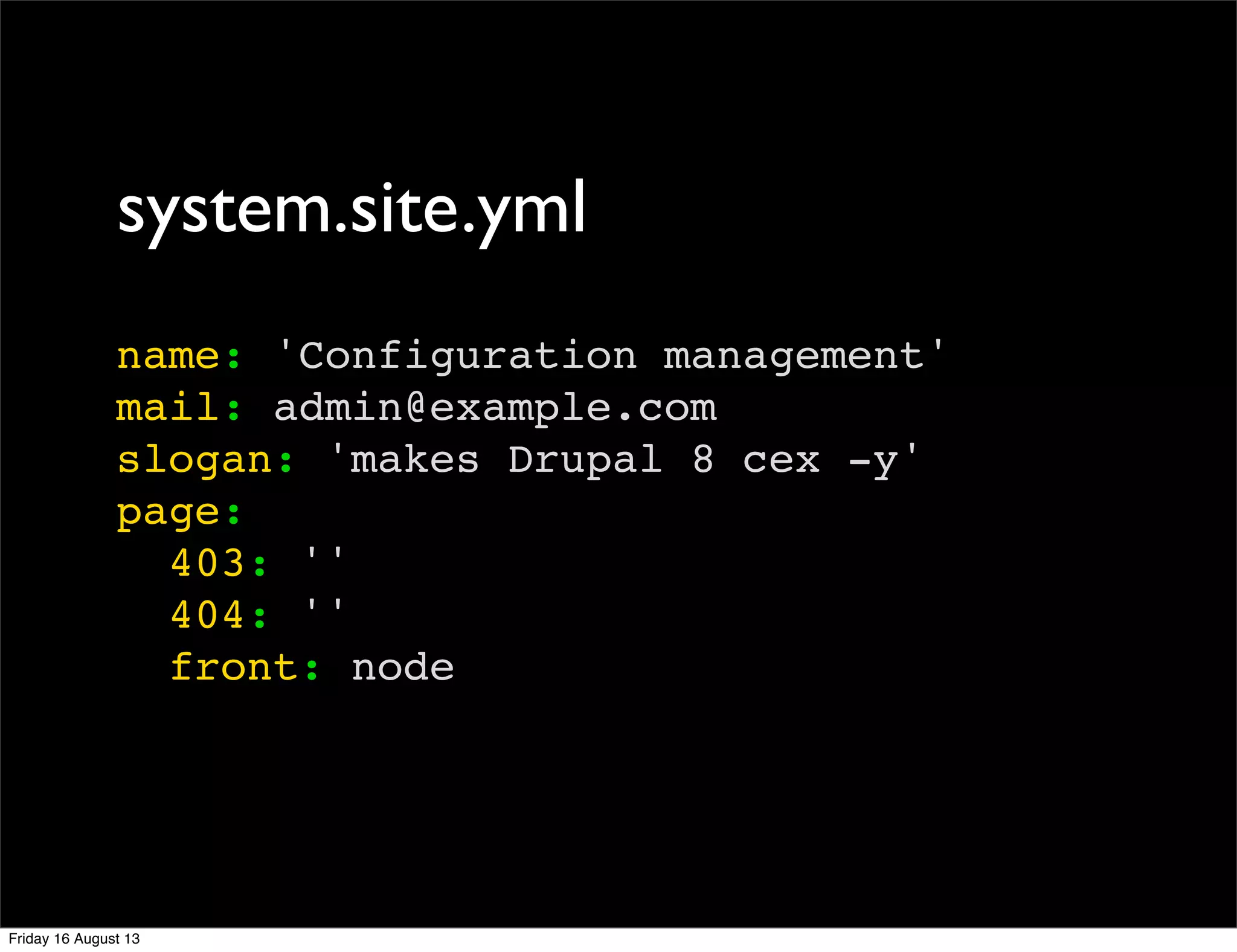

15. name: 'Configuration management'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
system.site.yml
Friday 16 August 13

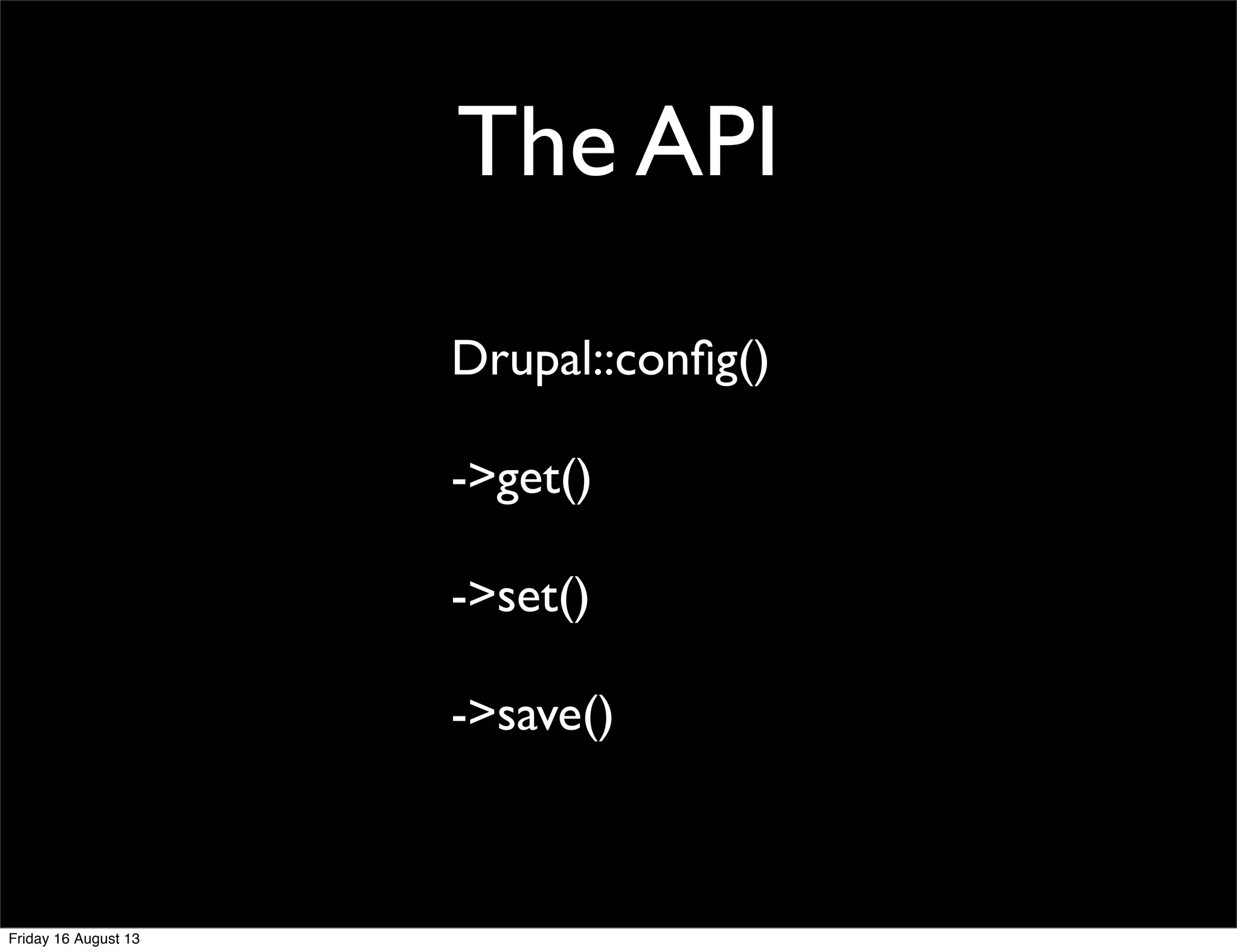

16. The API
Drupal::config()
->get()
->set()
->save()
Friday 16 August 13

17. Accessing data
Friday 16 August 13

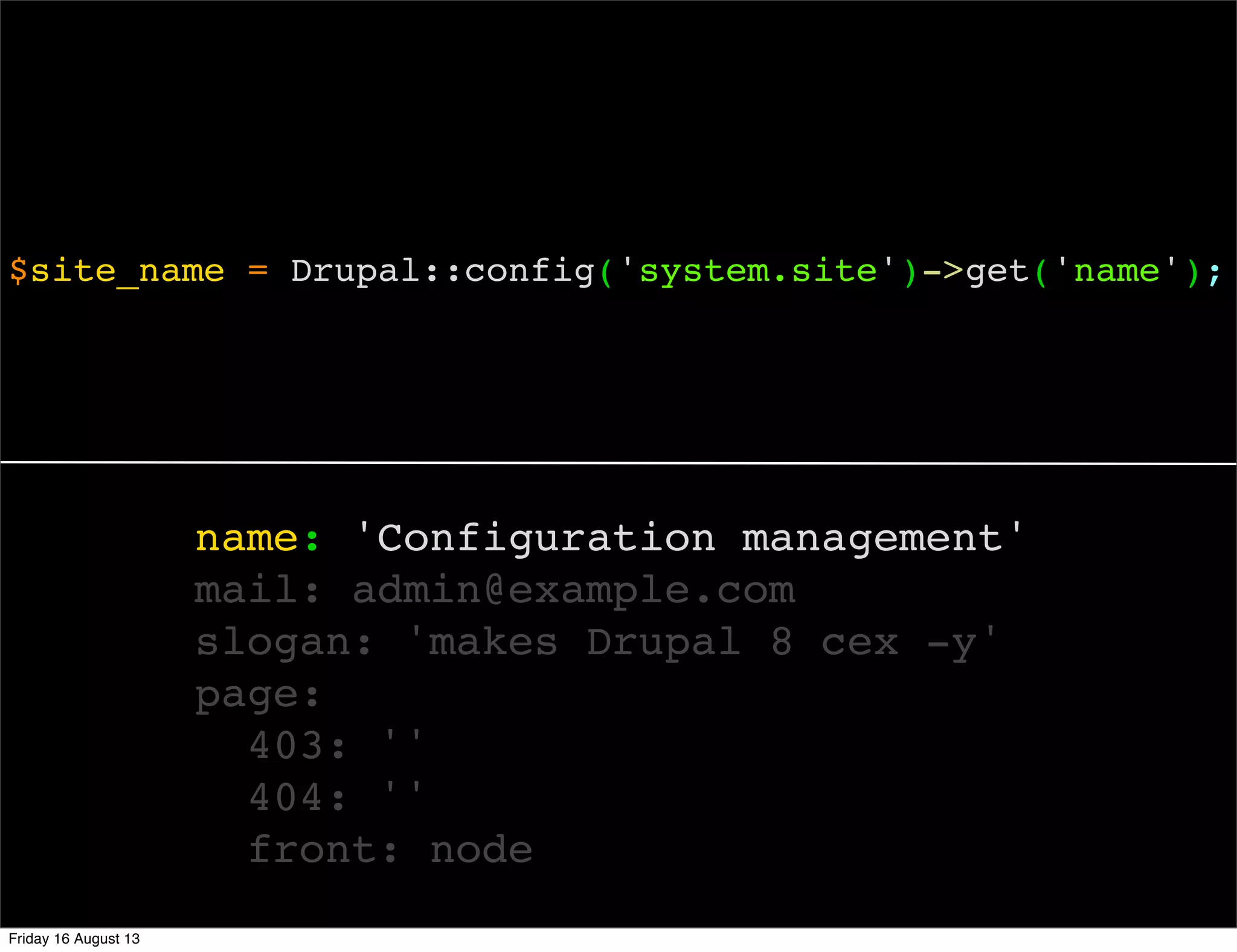

18. name: 'Configuration management'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
$site_name = Drupal::config('system.site')->get('name');
Friday 16 August 13

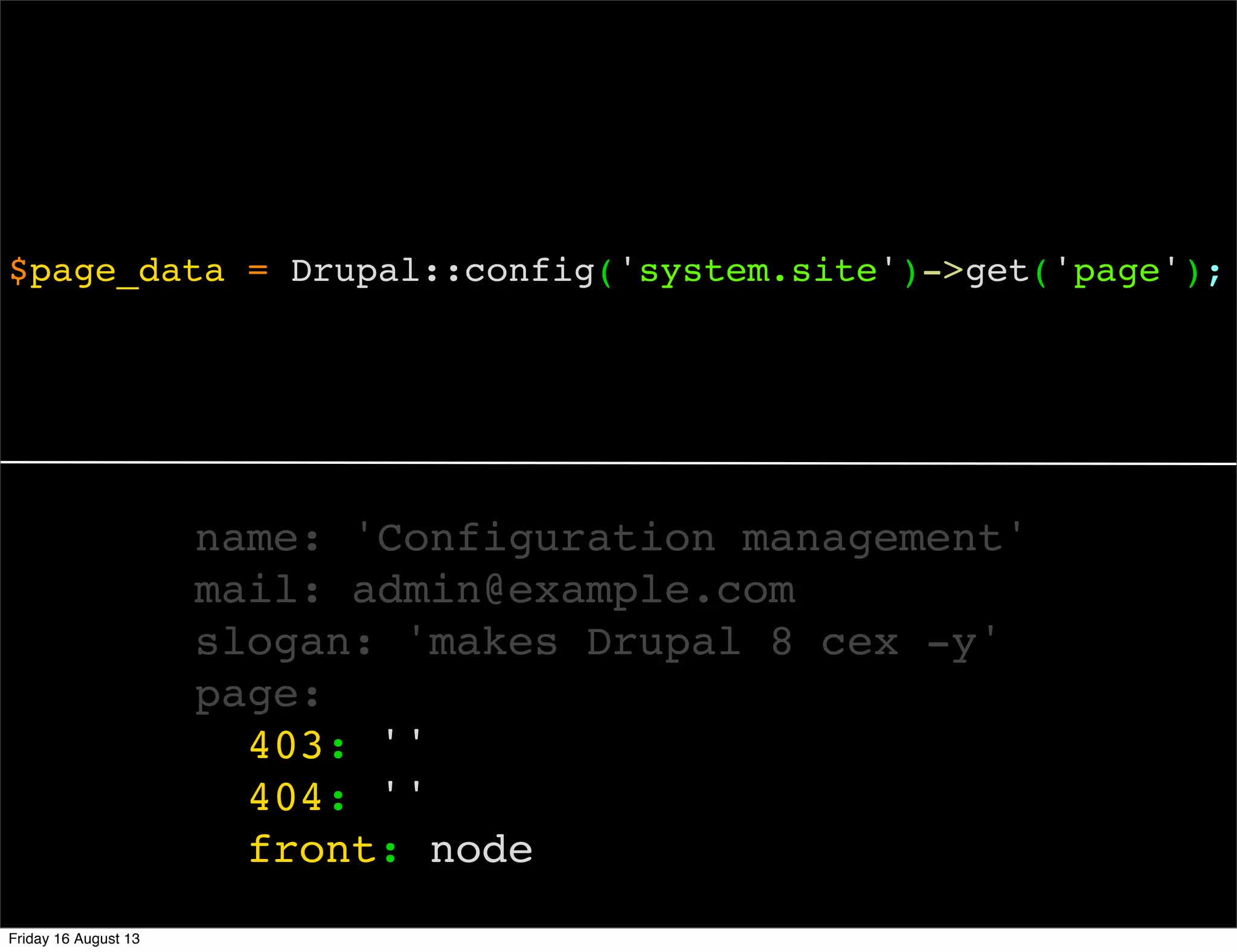

19. $page_data = Drupal::config('system.site')->get('page');
name: 'Configuration management'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
Friday 16 August 13

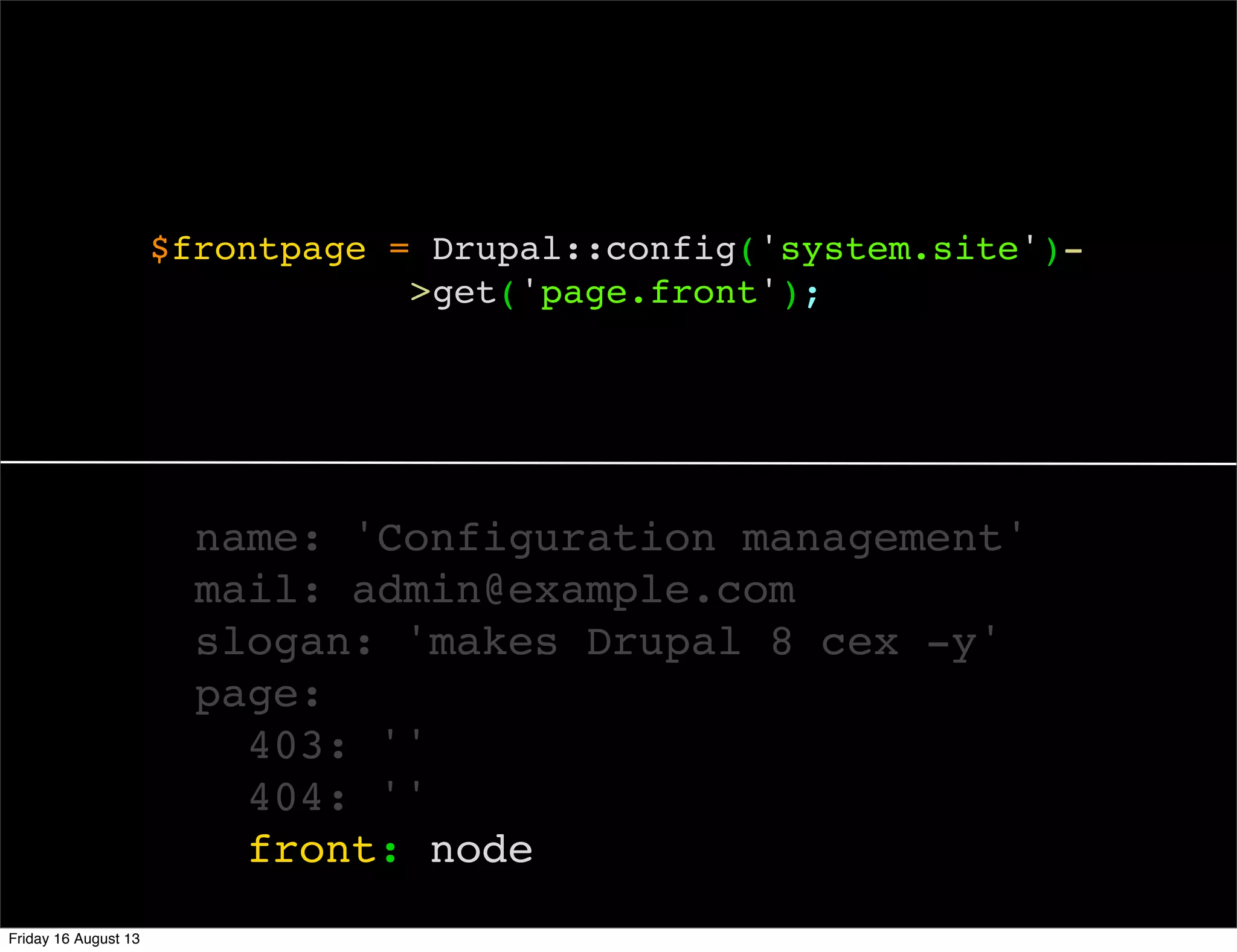

20. $frontpage = Drupal::config('system.site')-
>get('page.front');
name: 'Configuration management'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
Friday 16 August 13

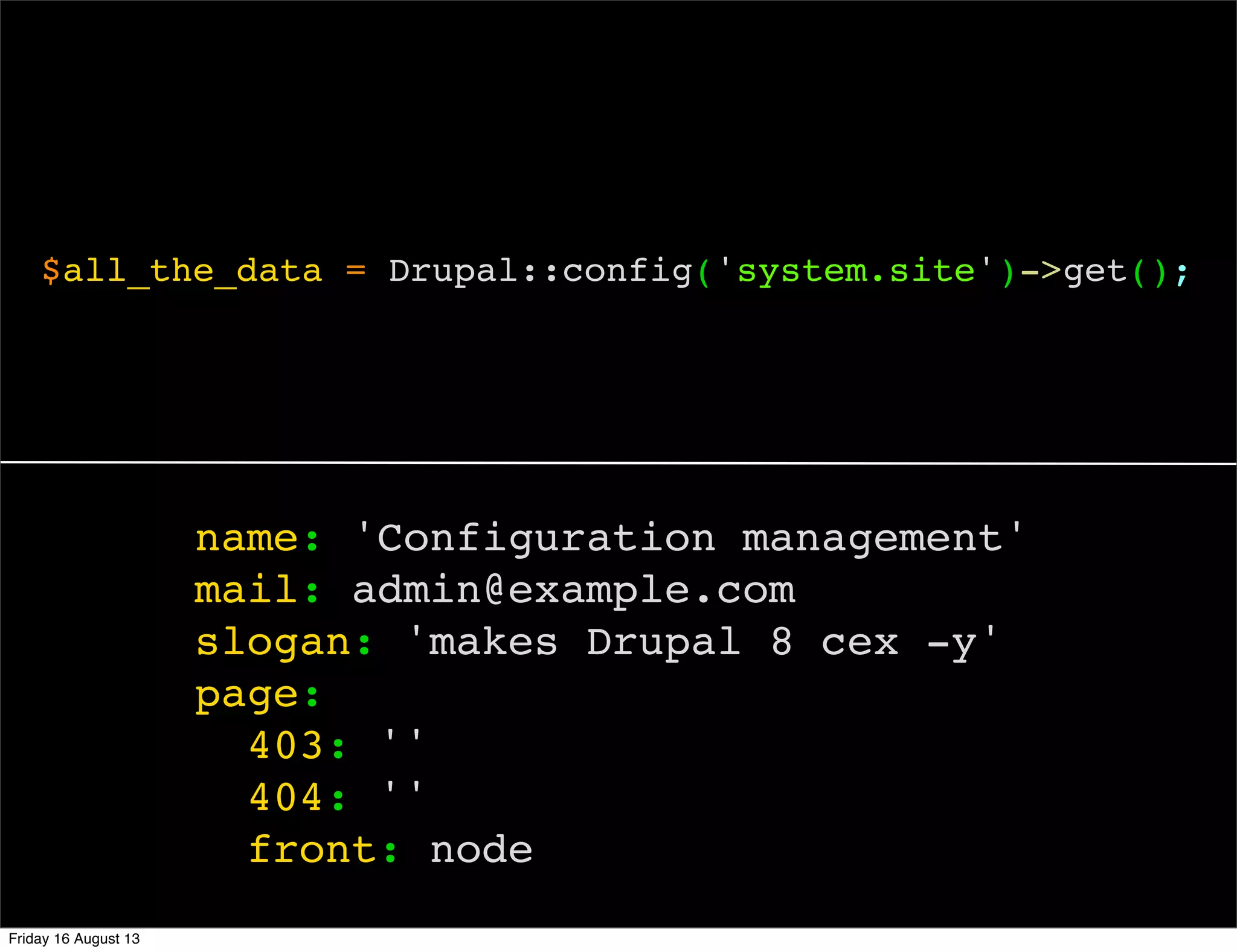

21. $all_the_data = Drupal::config('system.site')->get();
name: 'Configuration management'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
Friday 16 August 13

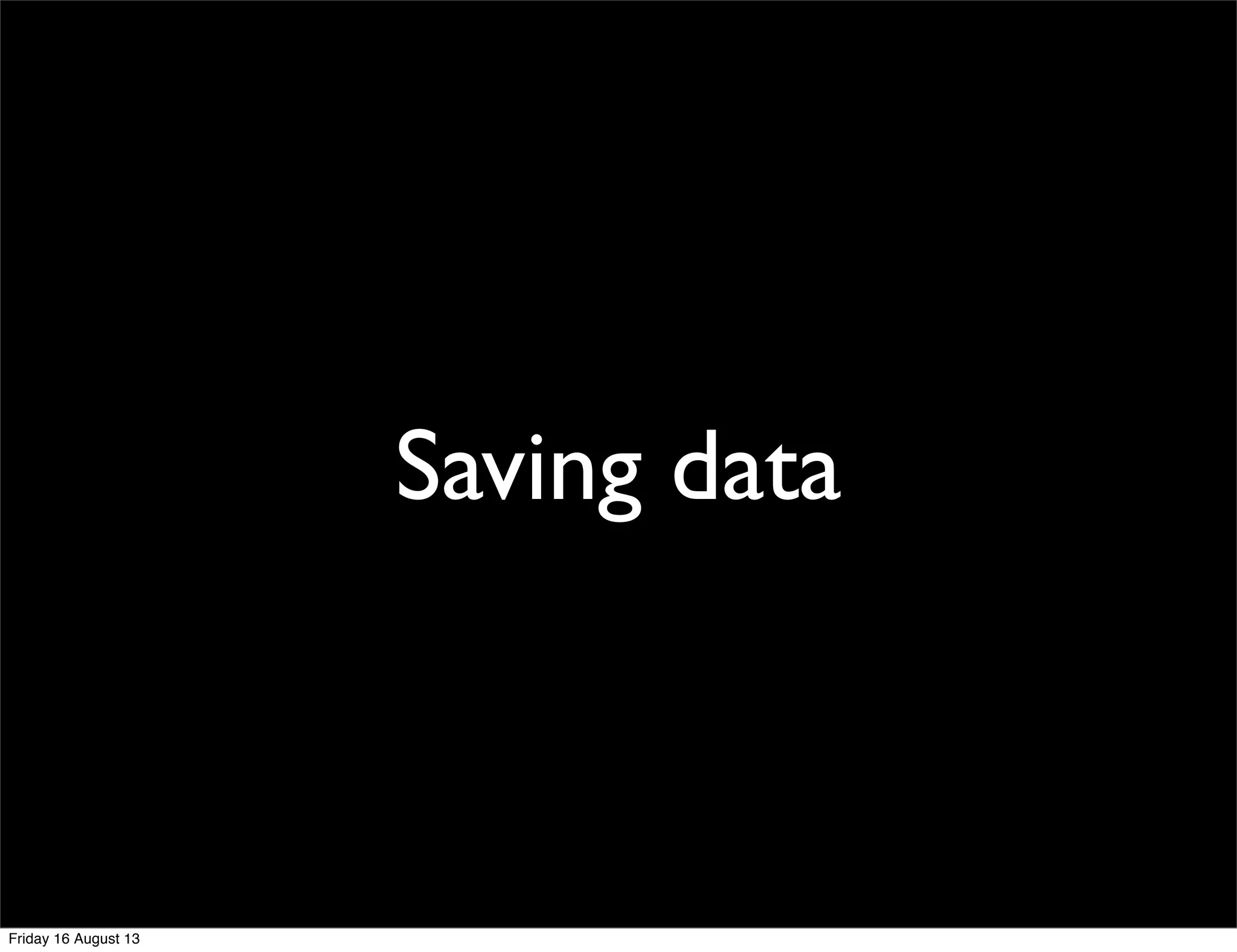

22. Saving data
Friday 16 August 13

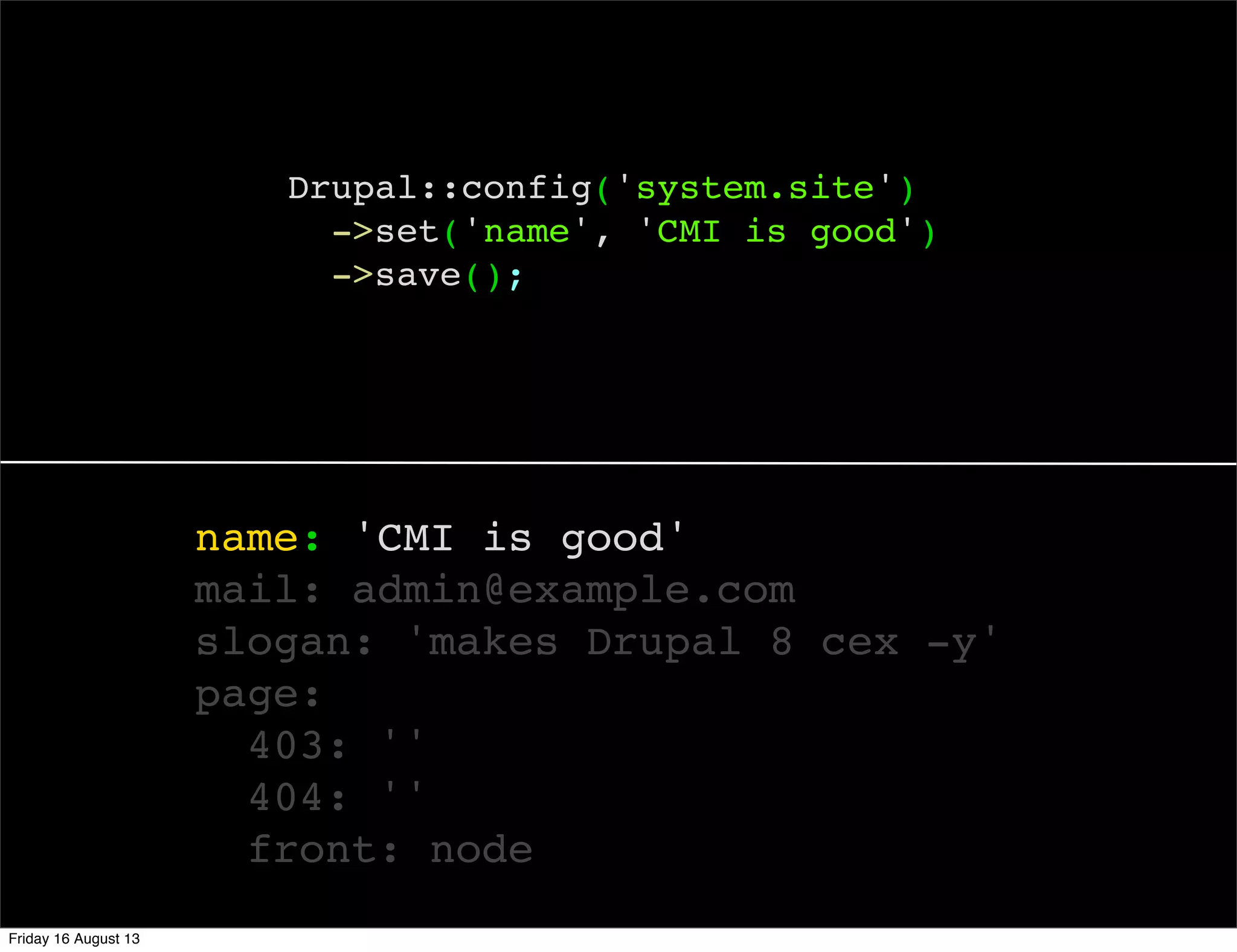

23. name: 'CMI is good'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: ''
404: ''
front: node
Drupal::config('system.site')
->set('name', 'CMI is good')
->save();
Friday 16 August 13

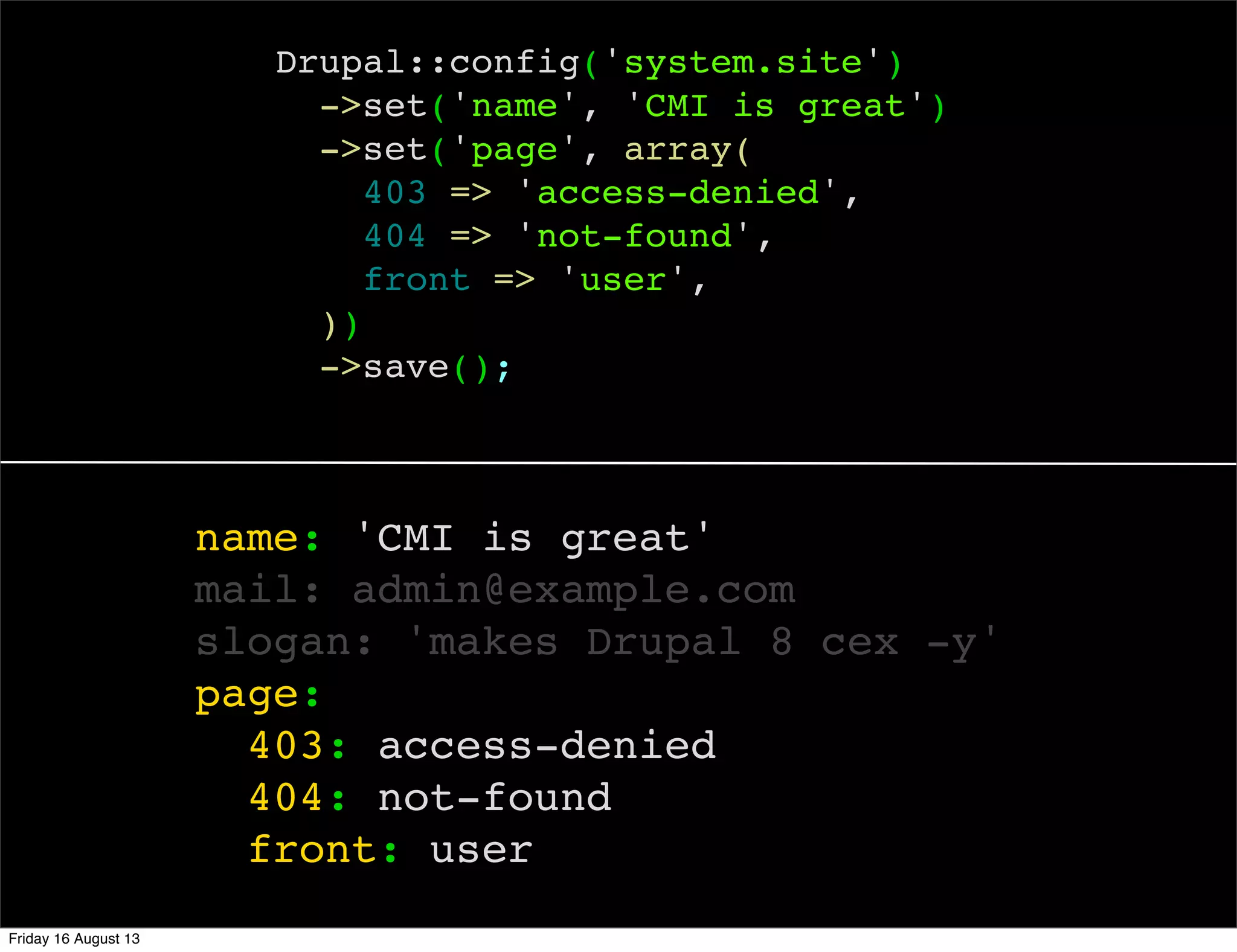

24. name: 'CMI is great'
mail: admin@example.com
slogan: 'makes Drupal 8 cex -y'
page:
403: access-denied
404: not-found
front: user
Drupal::config('system.site')
->set('name', 'CMI is great')
->set('page', array(
403 => 'access-denied',
404 => 'not-found',
front => 'user',
))
->save();
Friday 16 August 13

25. Friday 16 August 13

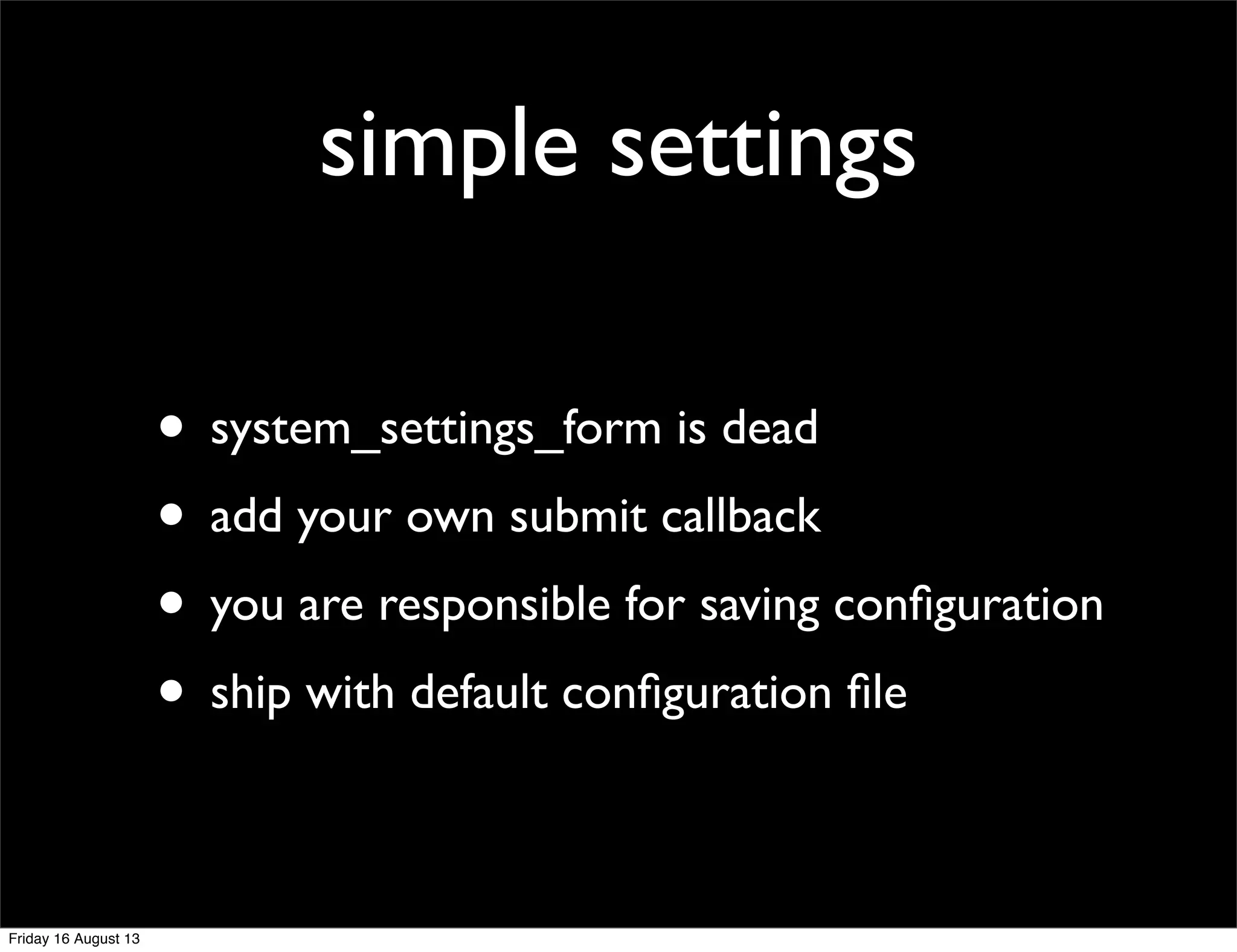

26. • system_settings_form is dead
• add your own submit callback
• you are responsible for saving configuration
• ship with default configuration file
simple settings
Friday 16 August 13

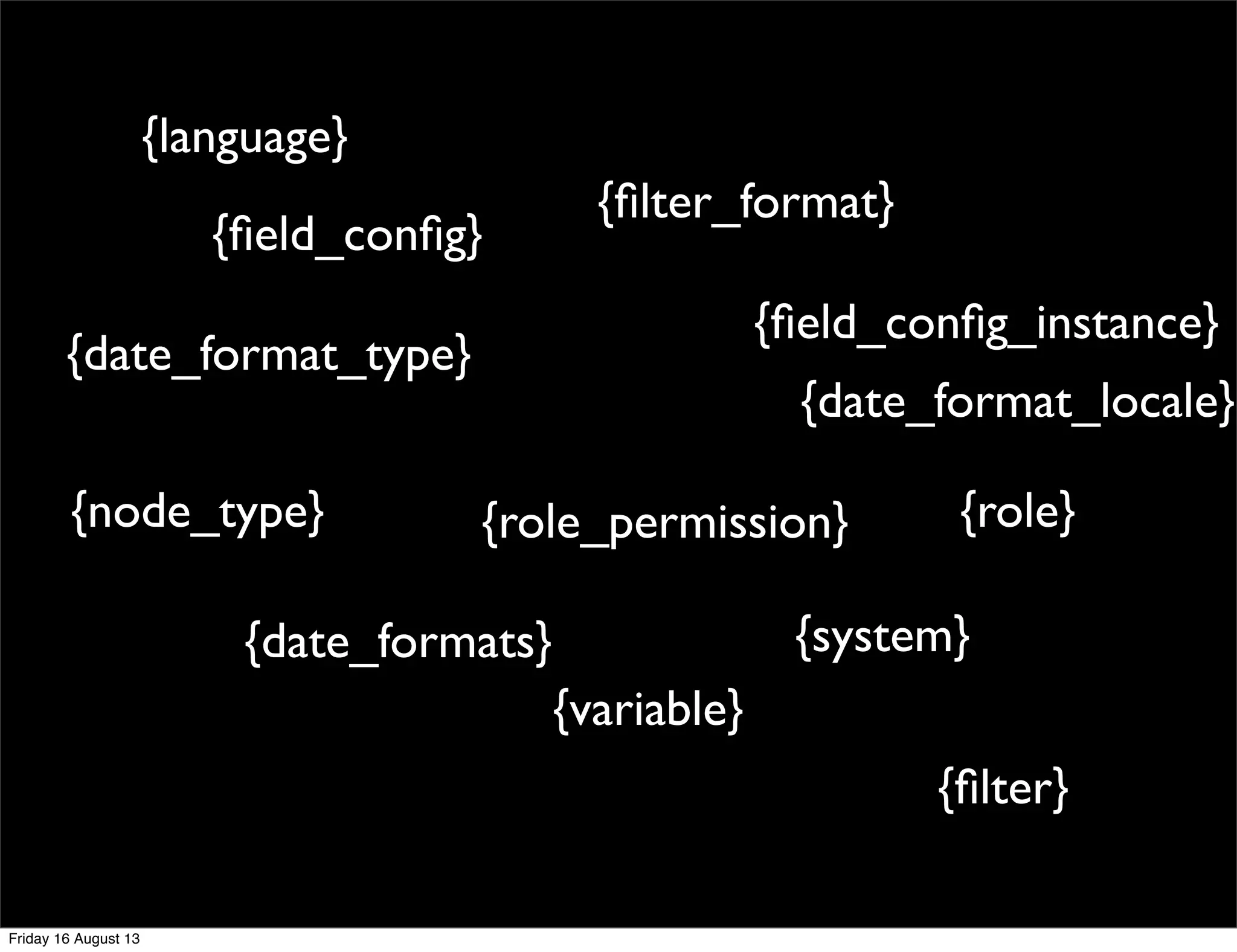

27. {system}
{date_format_locale}
{date_formats}
{date_format_type}
{field_config}
{field_config_instance}
{filter}
{filter_format}
{node_type} {role}{role_permission}
{variable}
{language}
Friday 16 August 13

28. Config all the things!
Friday 16 August 13

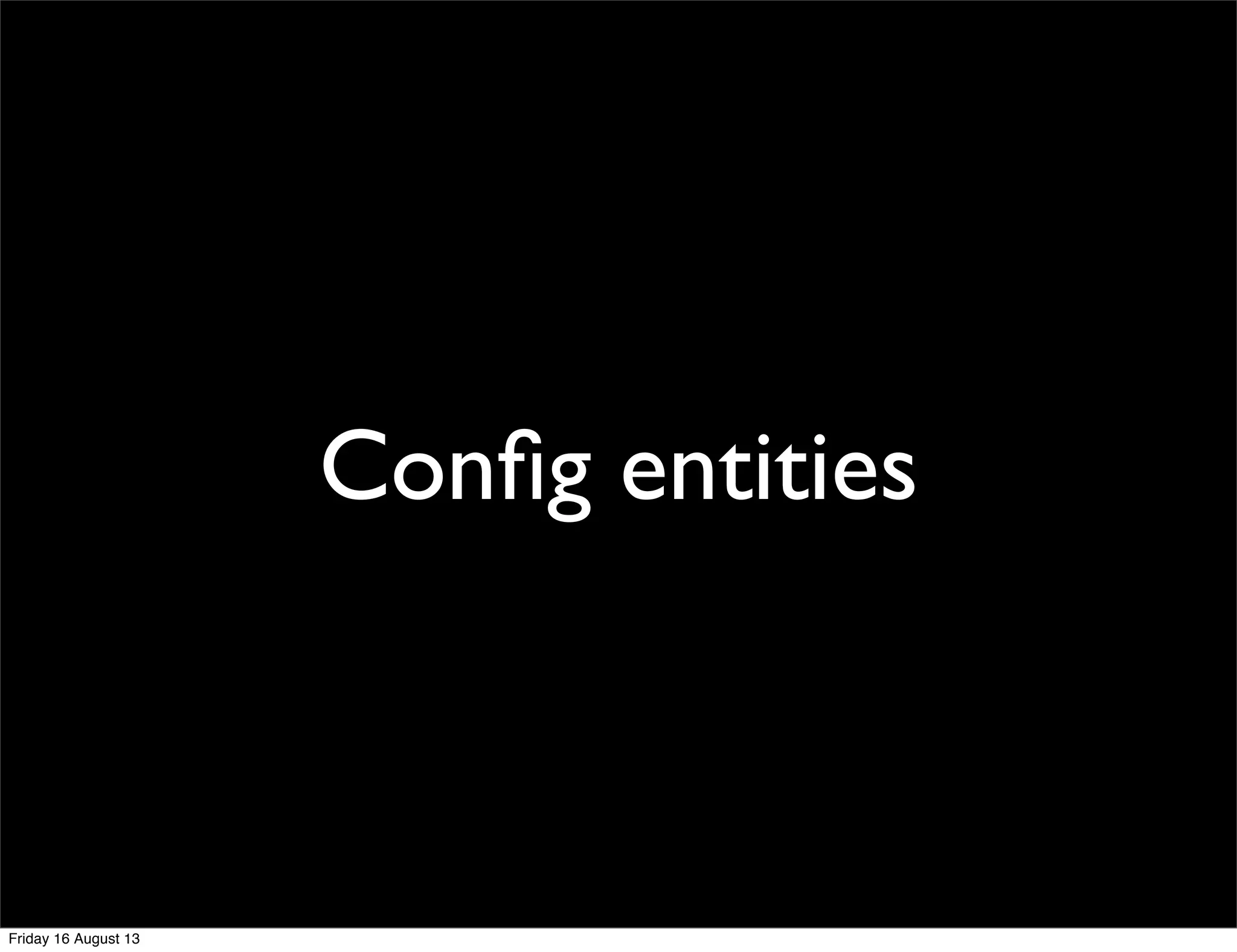

29. Config entities
Friday 16 August 13

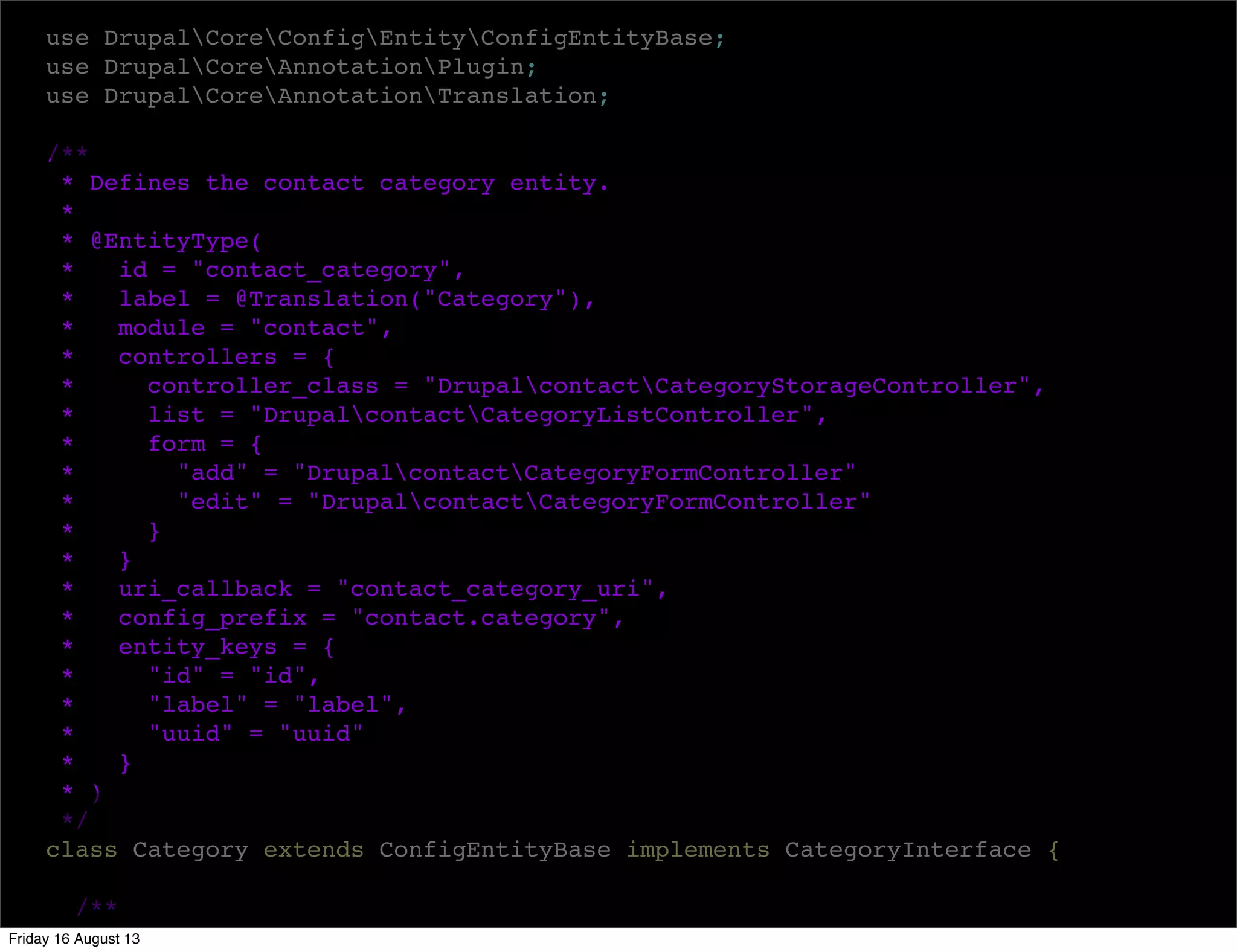

30. use DrupalCoreConfigEntityConfigEntityBase;
use DrupalCoreAnnotationPlugin;
use DrupalCoreAnnotationTranslation;
/**
* Defines the contact category entity.
*
* @EntityType(
* id = "contact_category",
* label = @Translation("Category"),
* module = "contact",
* controllers = {
* controller_class = "DrupalcontactCategoryStorageController",
* list = "DrupalcontactCategoryListController",
* form = {
* "add" = "DrupalcontactCategoryFormController"
* "edit" = "DrupalcontactCategoryFormController"
* }
* }
* uri_callback = "contact_category_uri",
* config_prefix = "contact.category",
* entity_keys = {
* "id" = "id",
* "label" = "label",
* "uuid" = "uuid"
* }
* )
*/
class Category extends ConfigEntityBase implements CategoryInterface {
/**
* The category ID.Friday 16 August 13

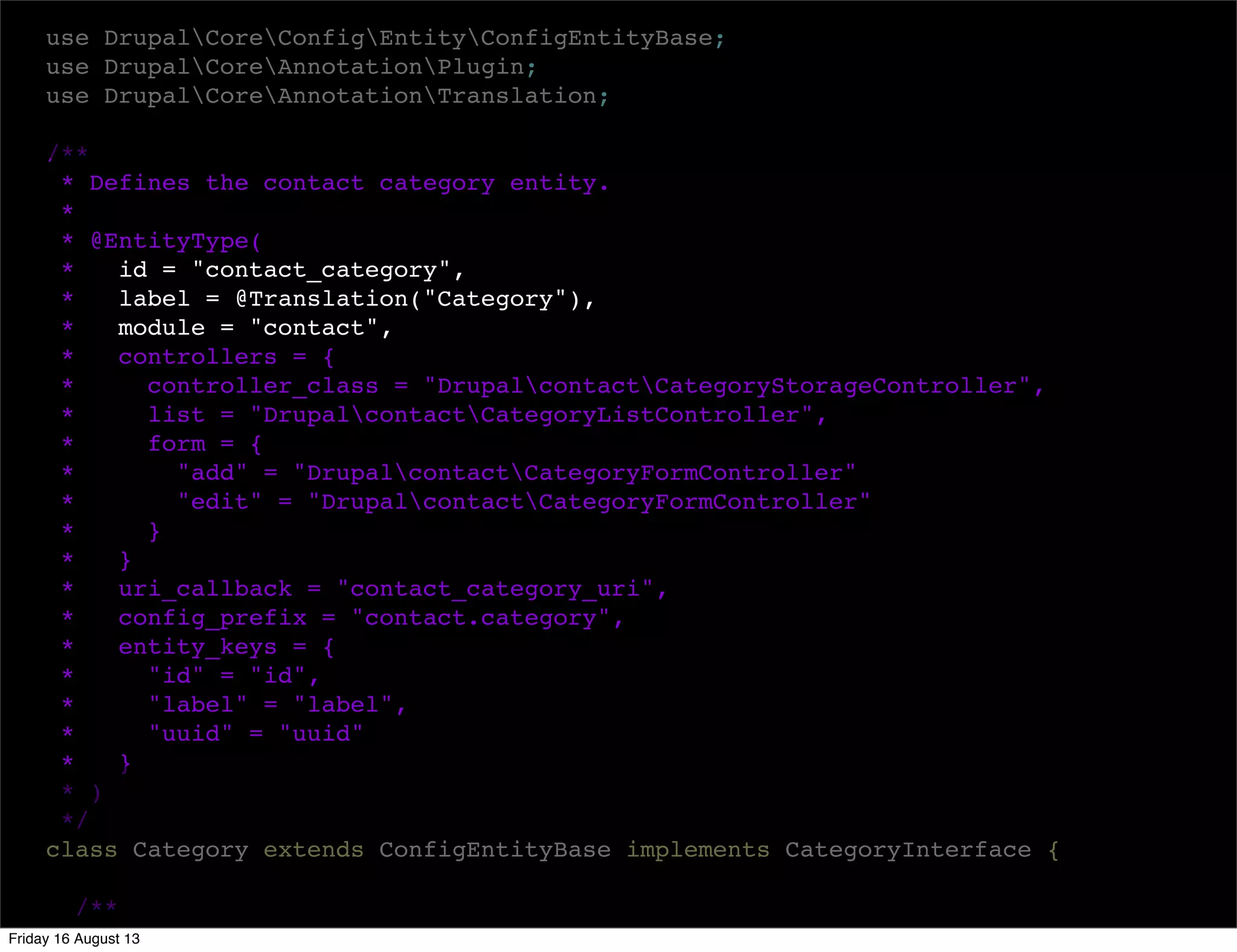

31. use DrupalCoreConfigEntityConfigEntityBase;
use DrupalCoreAnnotationPlugin;
use DrupalCoreAnnotationTranslation;
/**
* Defines the contact category entity.
*
* @EntityType(
* id = "contact_category",
* label = @Translation("Category"),
* module = "contact",
* controllers = {
* controller_class = "DrupalcontactCategoryStorageController",
* list = "DrupalcontactCategoryListController",
* form = {
* "add" = "DrupalcontactCategoryFormController"
* "edit" = "DrupalcontactCategoryFormController"
* }
* }
* uri_callback = "contact_category_uri",
* config_prefix = "contact.category",
* entity_keys = {
* "id" = "id",
* "label" = "label",
* "uuid" = "uuid"
* }
* )
*/
class Category extends ConfigEntityBase implements CategoryInterface {
/**
* The category ID.Friday 16 August 13

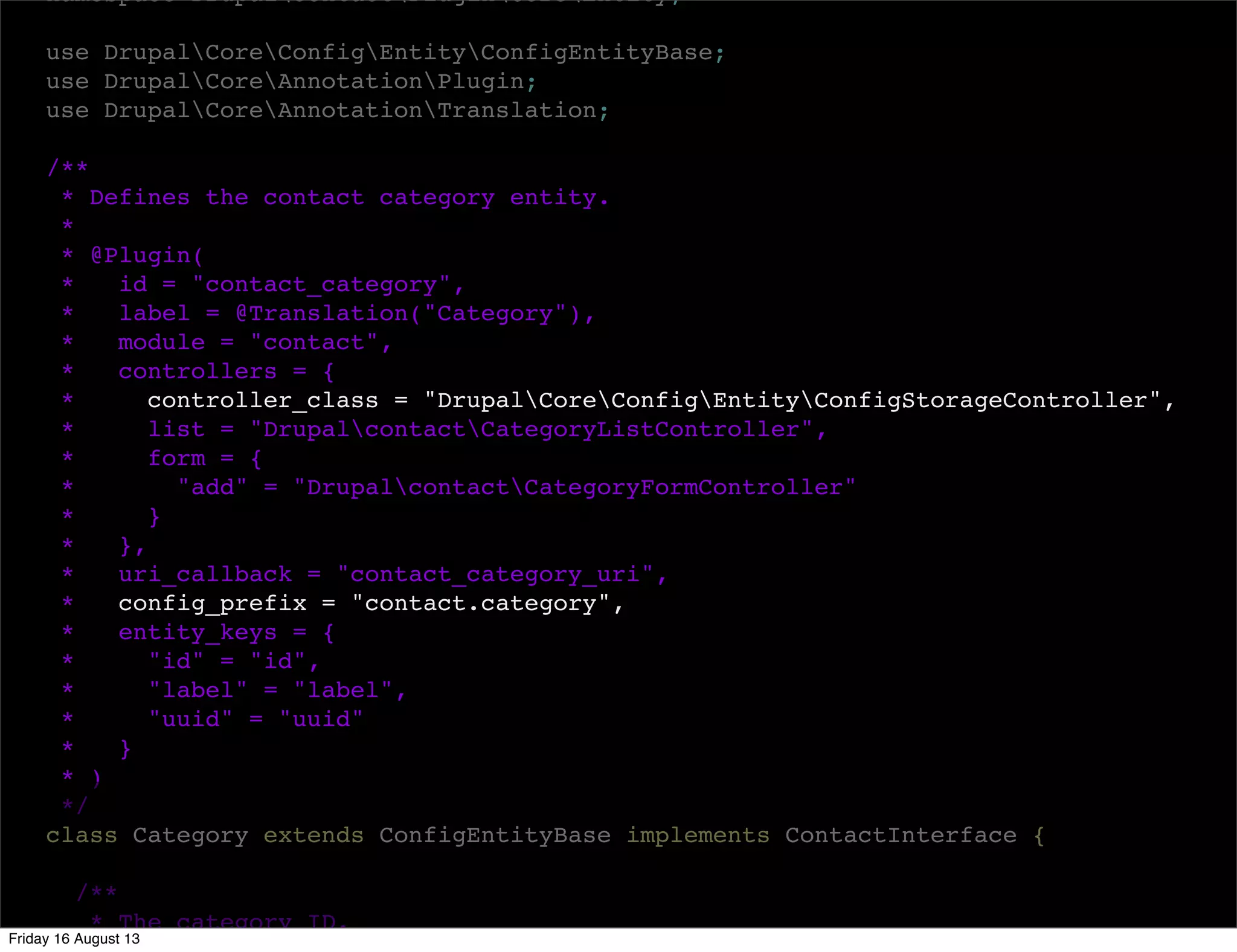

32. namespace DrupalcontactPluginCoreEntity;
use DrupalCoreConfigEntityConfigEntityBase;
use DrupalCoreAnnotationPlugin;
use DrupalCoreAnnotationTranslation;
/**
* Defines the contact category entity.
*
* @Plugin(
* id = "contact_category",
* label = @Translation("Category"),
* module = "contact",
* controllers = {
* controller_class = "DrupalCoreConfigEntityConfigStorageController",
* list = "DrupalcontactCategoryListController",
* form = {
* "add" = "DrupalcontactCategoryFormController"
* }
* },
* uri_callback = "contact_category_uri",
* config_prefix = "contact.category",
* entity_keys = {
* "id" = "id",
* "label" = "label",
* "uuid" = "uuid"
* }
* )
*/
class Category extends ConfigEntityBase implements ContactInterface {
/**
* The category ID.
Friday 16 August 13

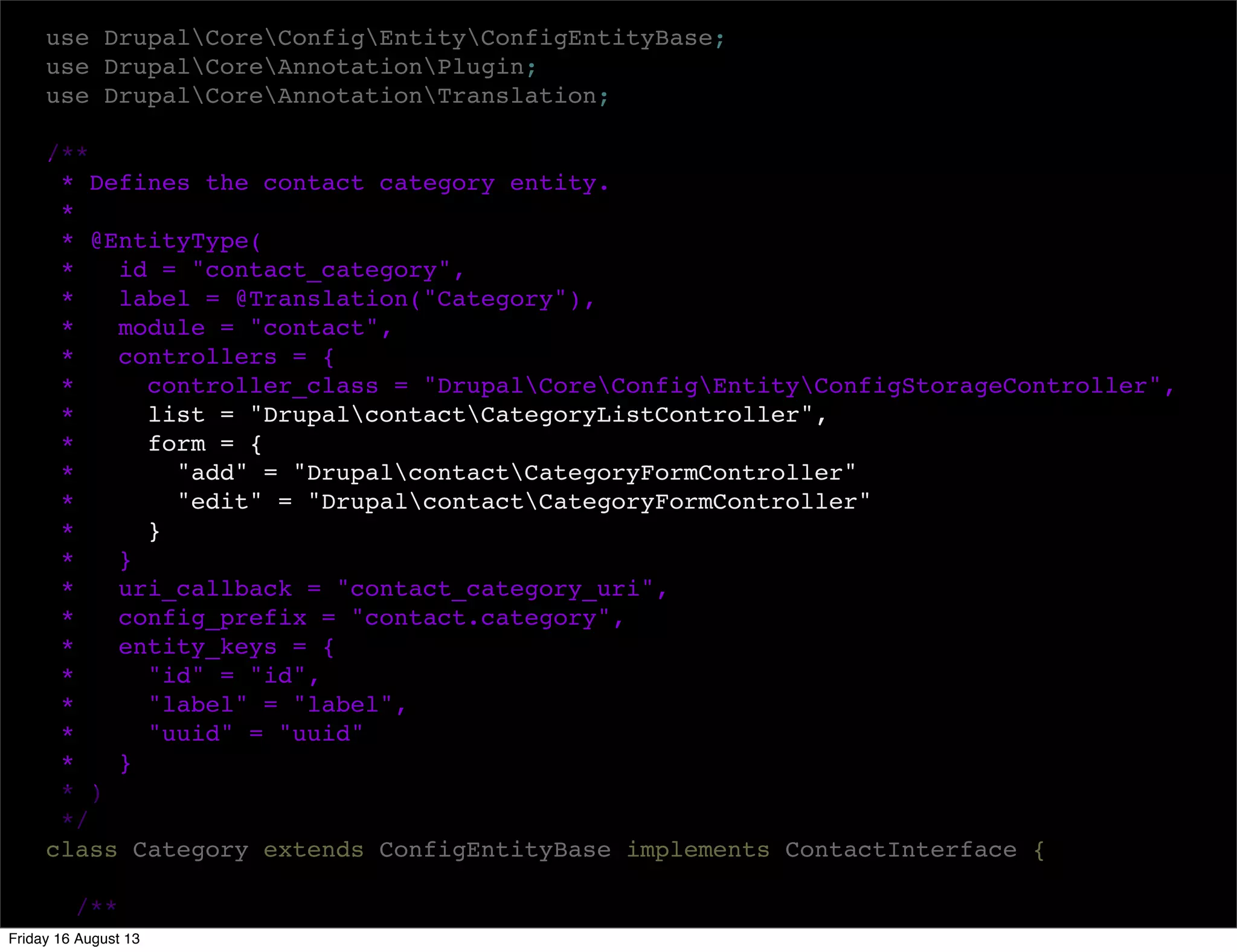

33. use DrupalCoreConfigEntityConfigEntityBase;
use DrupalCoreAnnotationPlugin;
use DrupalCoreAnnotationTranslation;
/**
* Defines the contact category entity.
*
* @EntityType(
* id = "contact_category",
* label = @Translation("Category"),
* module = "contact",
* controllers = {
* controller_class = "DrupalCoreConfigEntityConfigStorageController",
* list = "DrupalcontactCategoryListController",
* form = {
* "add" = "DrupalcontactCategoryFormController"
* "edit" = "DrupalcontactCategoryFormController"
* }
* }
* uri_callback = "contact_category_uri",
* config_prefix = "contact.category",
* entity_keys = {
* "id" = "id",
* "label" = "label",
* "uuid" = "uuid"
* }
* )
*/
class Category extends ConfigEntityBase implements ContactInterface {
/**
* The category ID.Friday 16 August 13

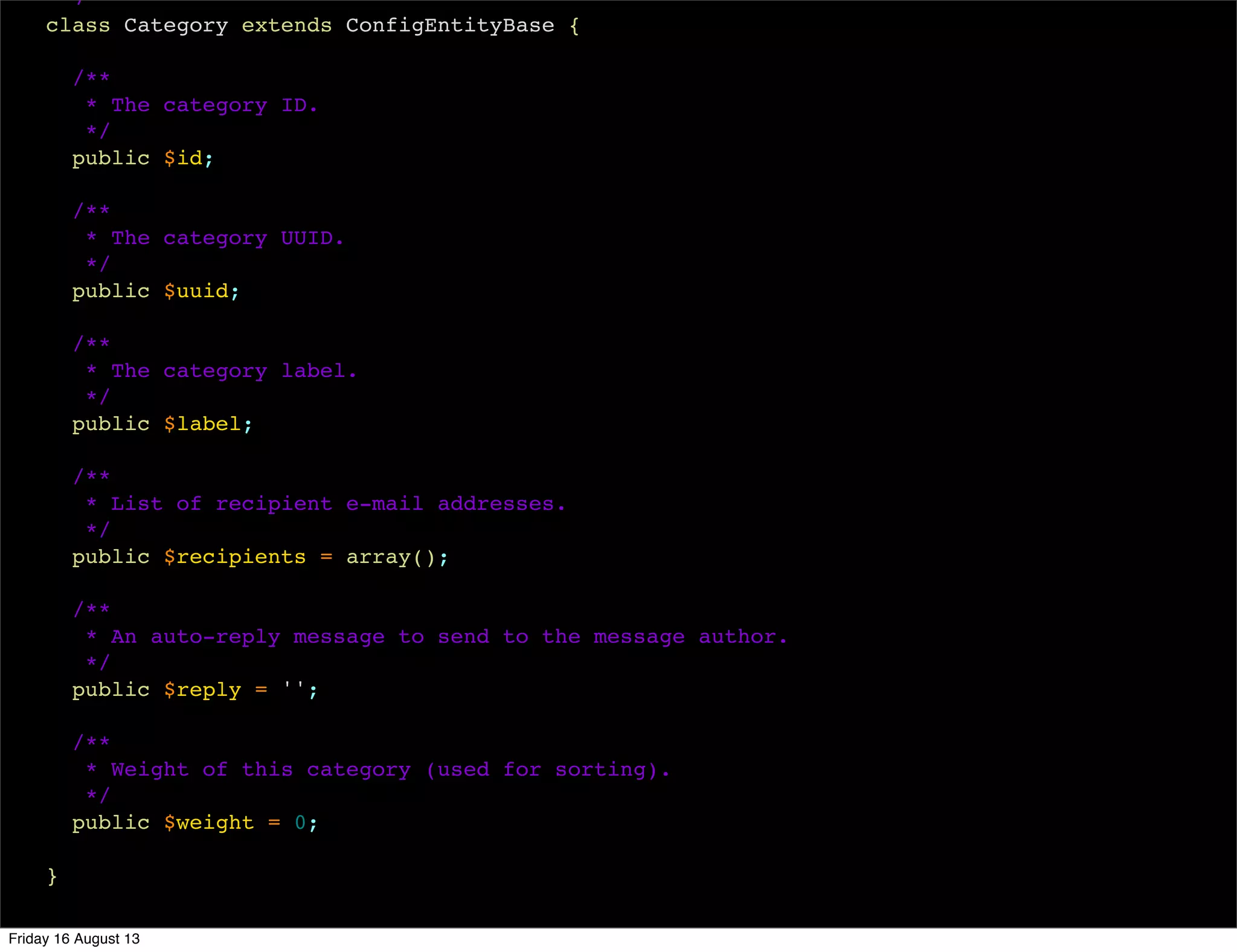

34. */
class Category extends ConfigEntityBase {
/**
* The category ID.
*/
public $id;
/**
* The category UUID.
*/
public $uuid;
/**
* The category label.
*/
public $label;
/**
* List of recipient e-mail addresses.
*/
public $recipients = array();
/**
* An auto-reply message to send to the message author.
*/
public $reply = '';
/**
* Weight of this category (used for sorting).
*/
public $weight = 0;
}
Friday 16 August 13

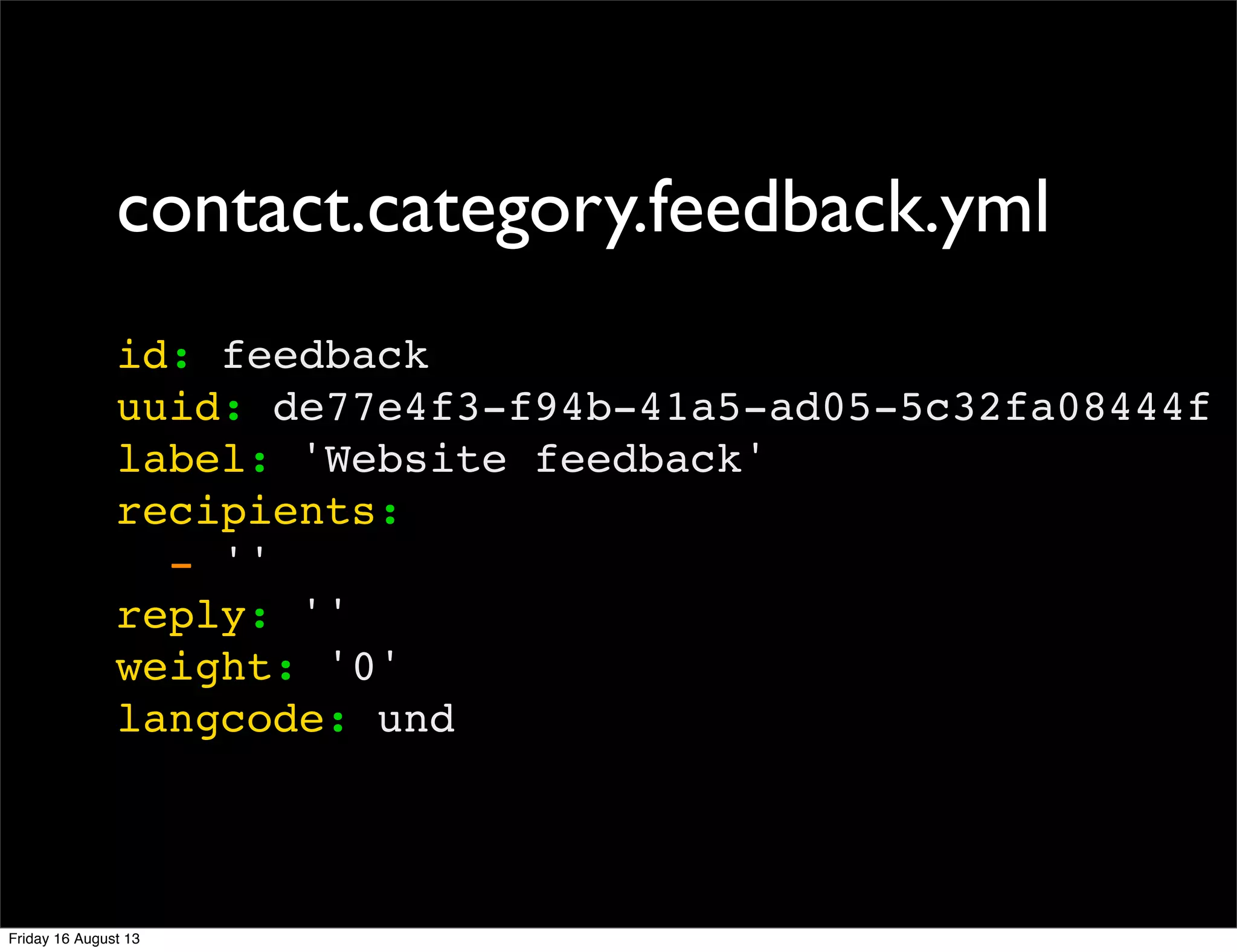

35. id: feedback
uuid: de77e4f3-f94b-41a5-ad05-5c32fa08444f
label: 'Website feedback'
recipients:
- ''
reply: ''
weight: '0'
langcode: und
contact.category.feedback.yml
Friday 16 August 13

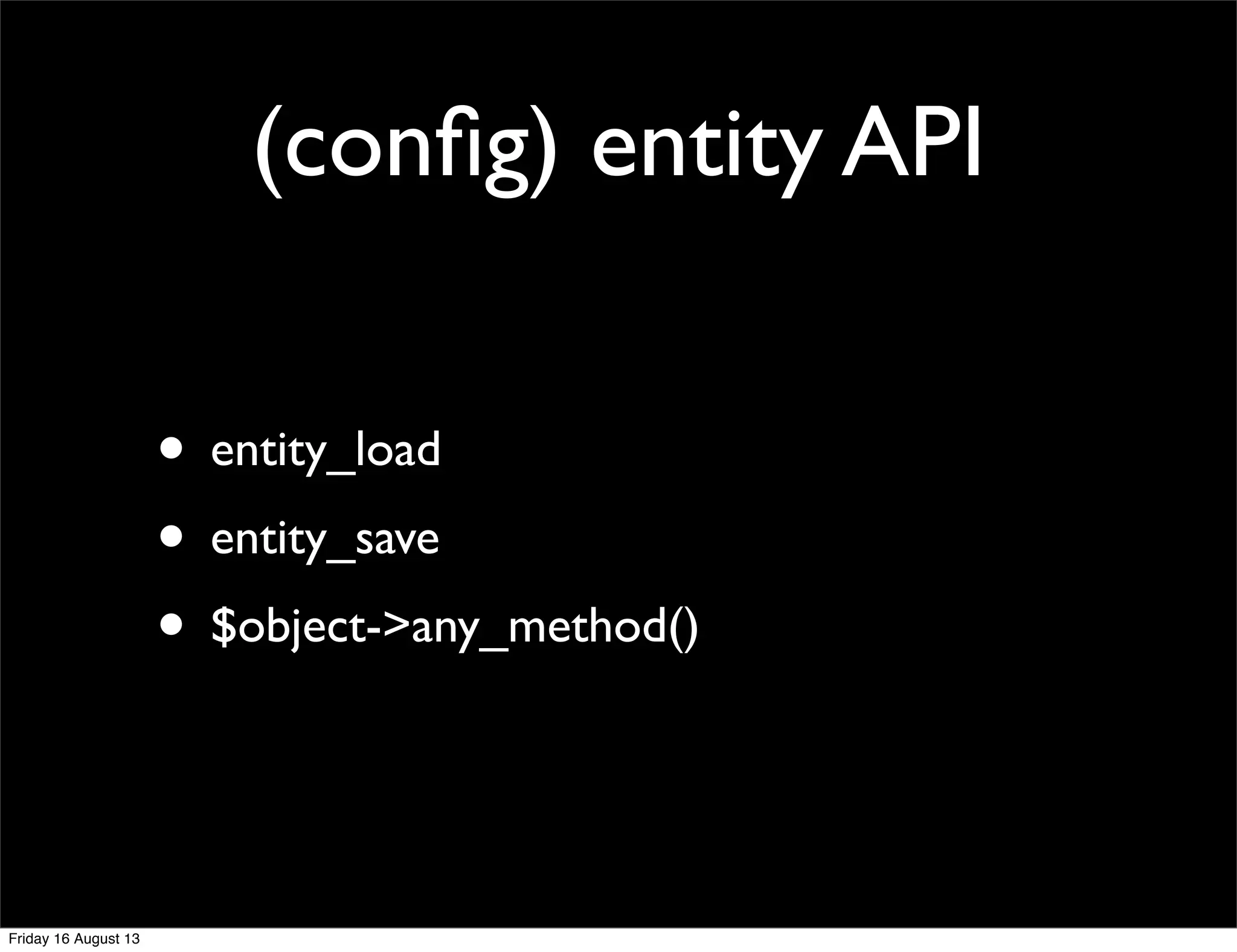

36. (config) entity API
• entity_load
• entity_save
• $object->any_method()
Friday 16 August 13

37. Deployment
Friday 16 August 13

38. Database
Development environment
Active
Directory
1
Friday 16 August 13

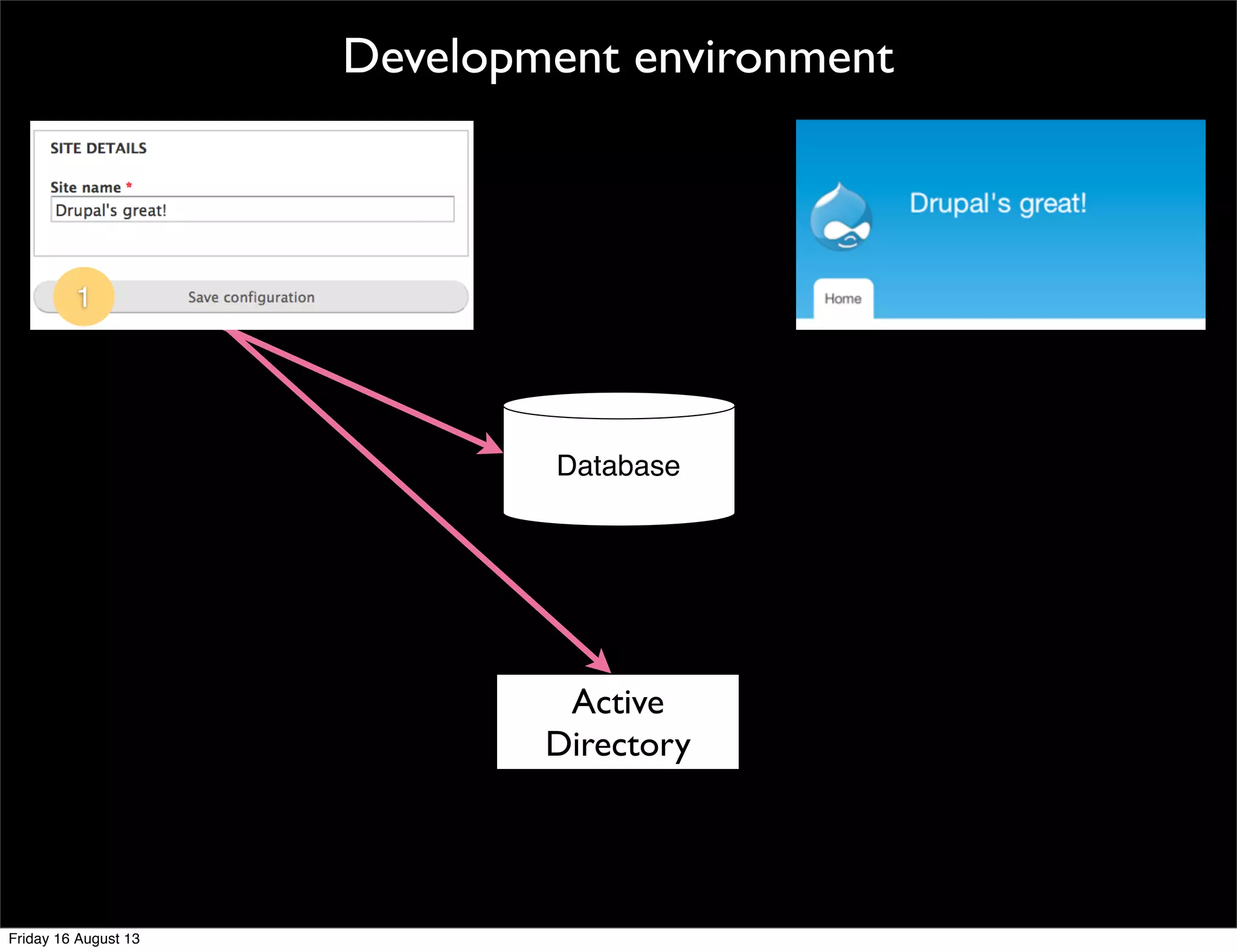

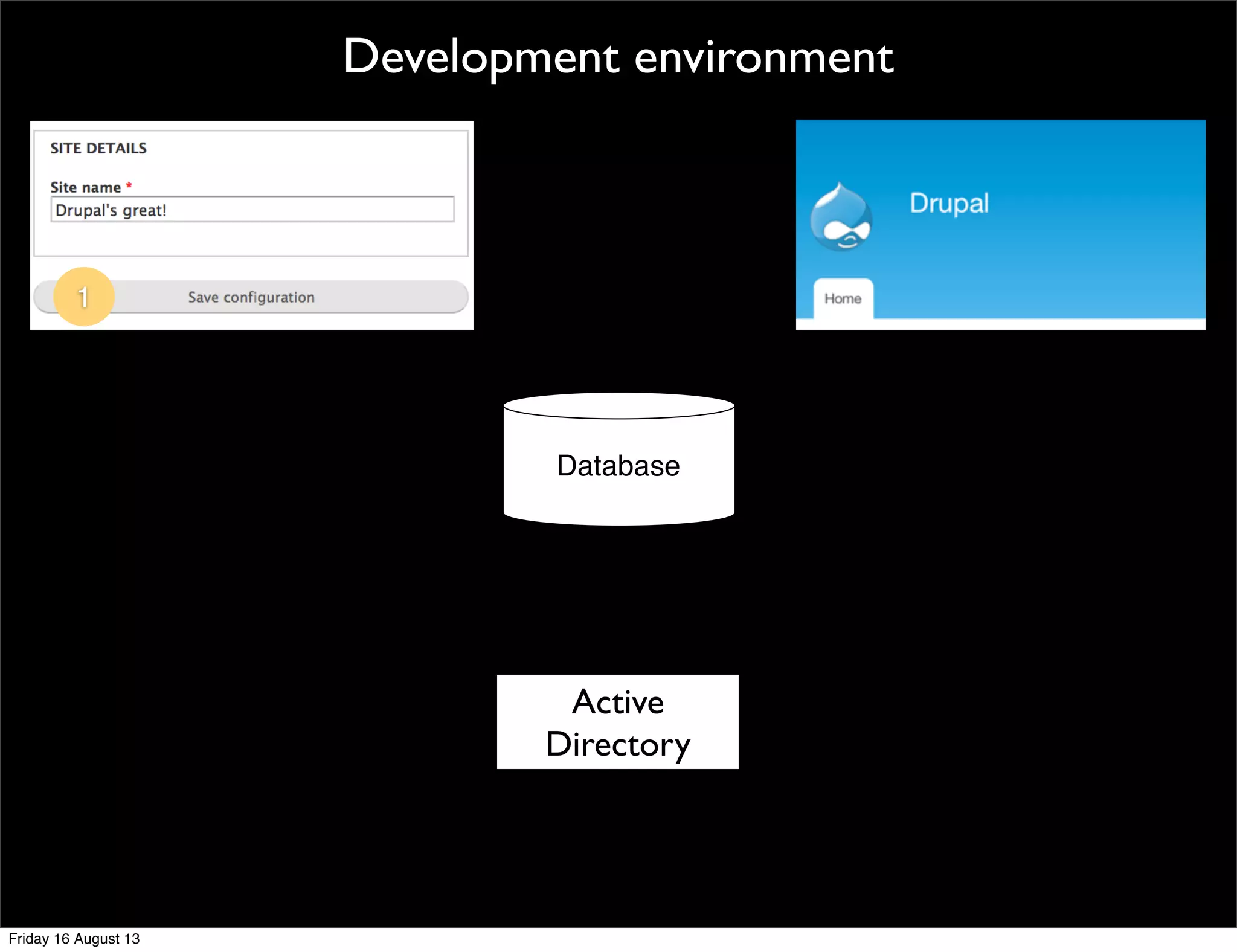

39. Database
Development environment
Active
Directory
1
Friday 16 August 13

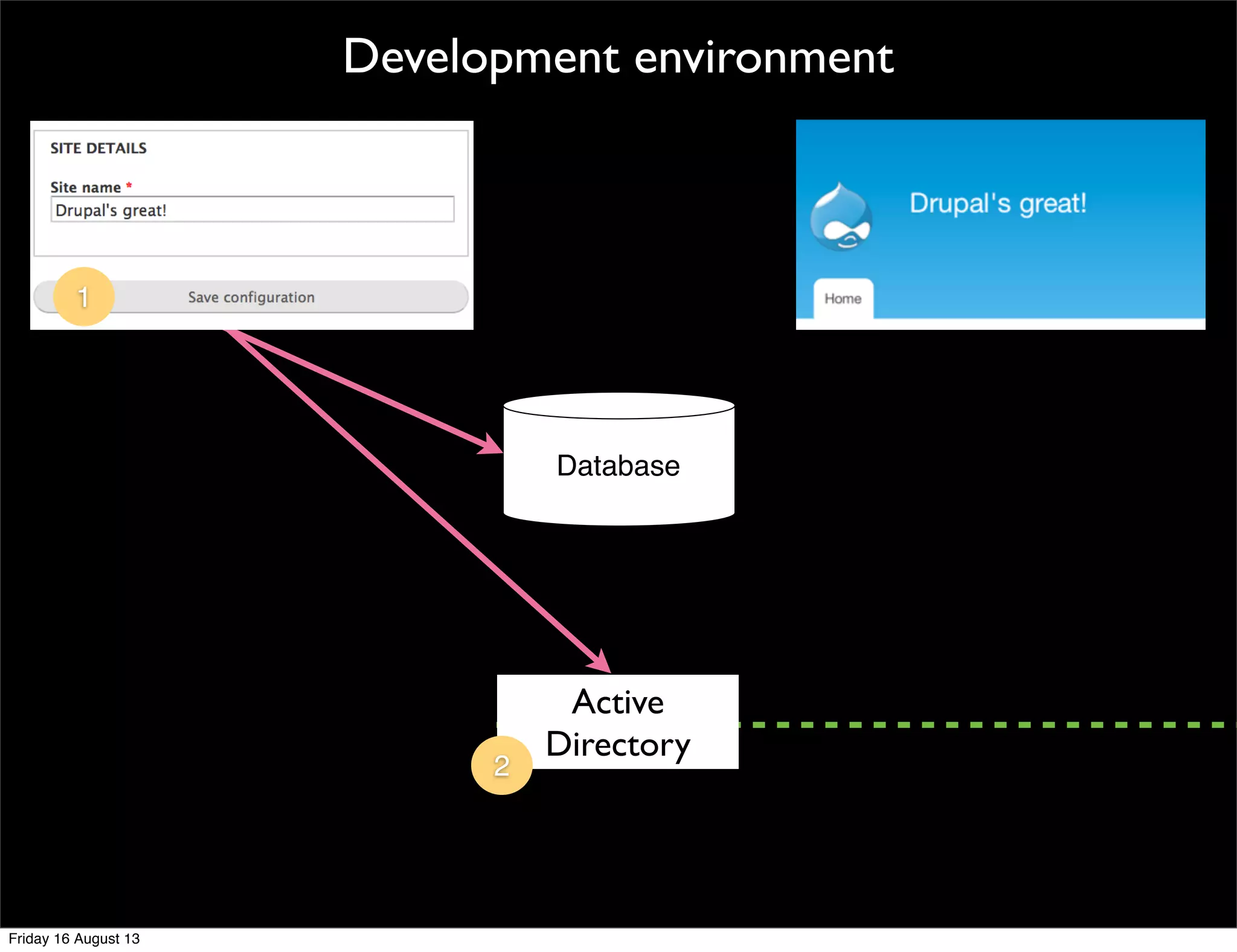

40. Database
Development environment
Active
Directory
1
2
Friday 16 August 13

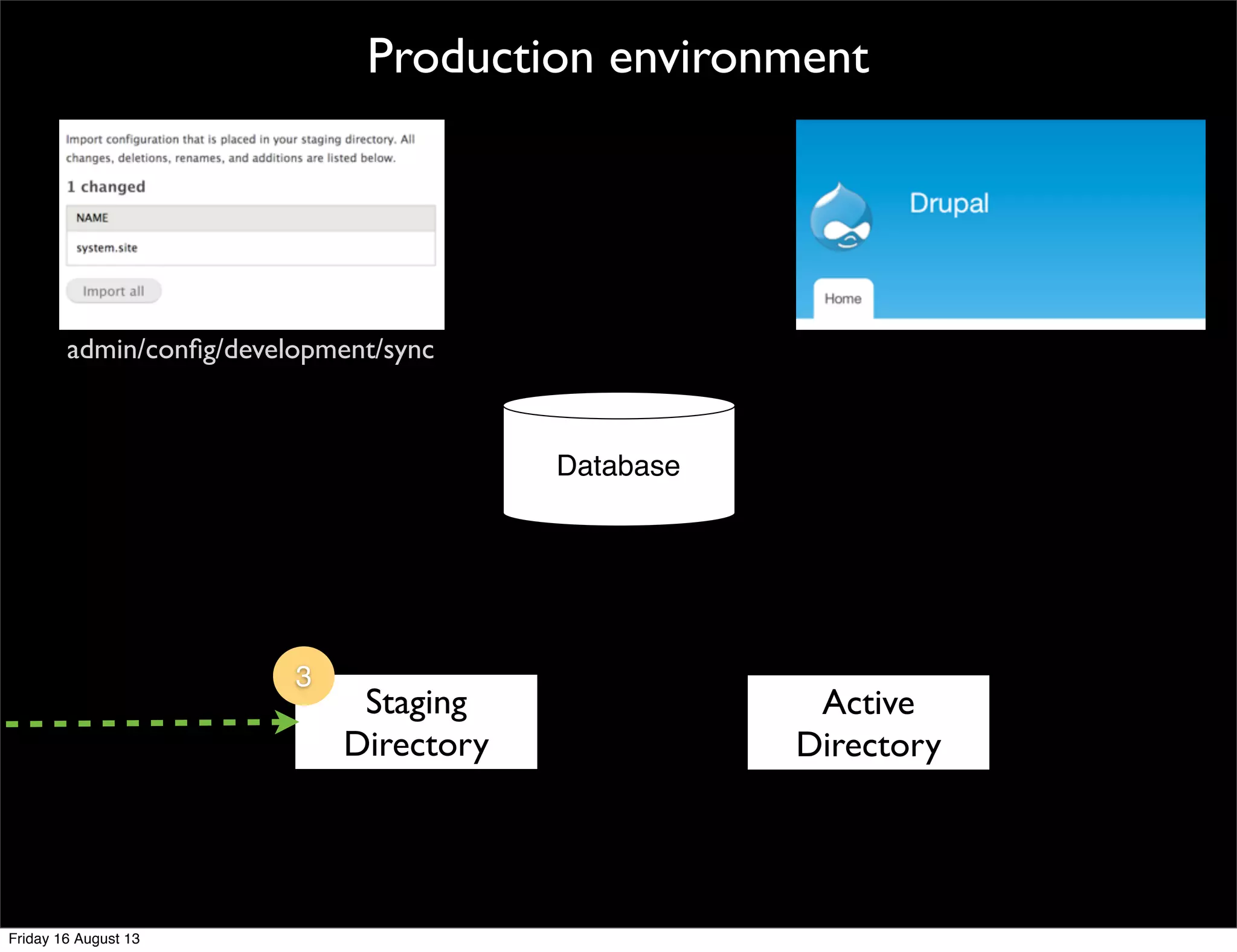

41. Database
Production environment
Staging
Directory
Active
Directory
3
admin/config/development/sync
Friday 16 August 13

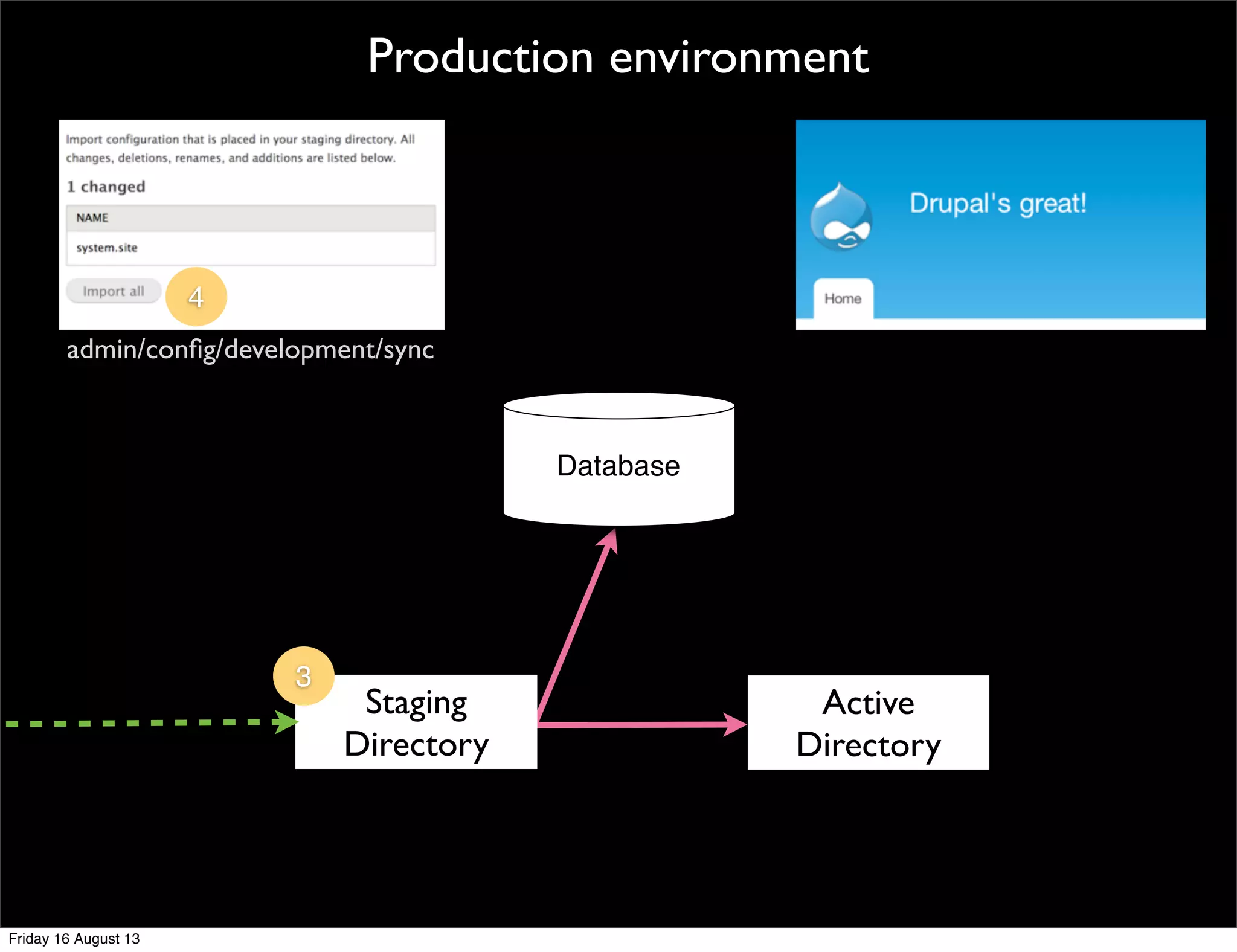

42. Database
Production environment
Staging
Directory
Active
Directory
3
4
admin/config/development/sync
Friday 16 August 13

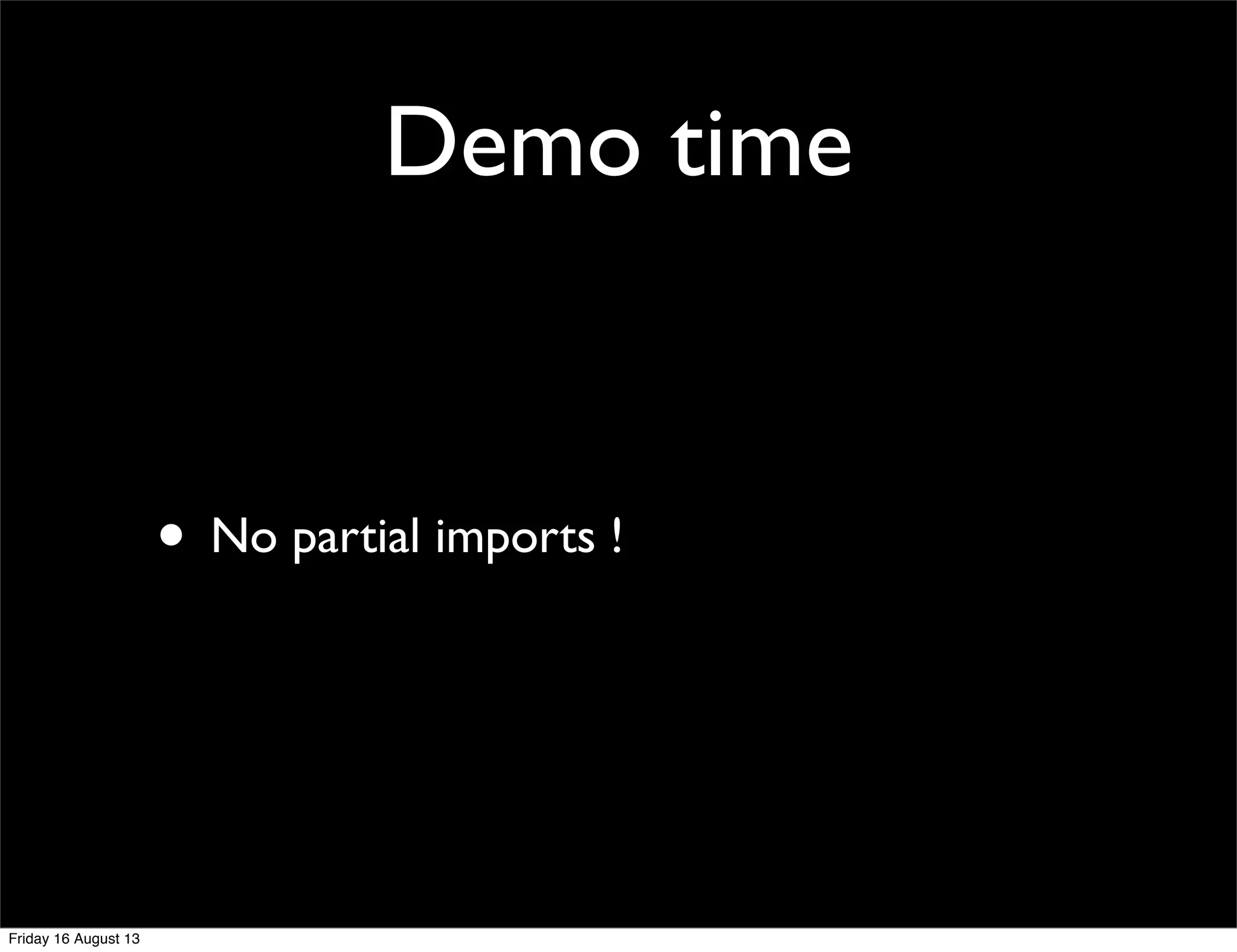

43. Demo time
• No partial imports !
Friday 16 August 13

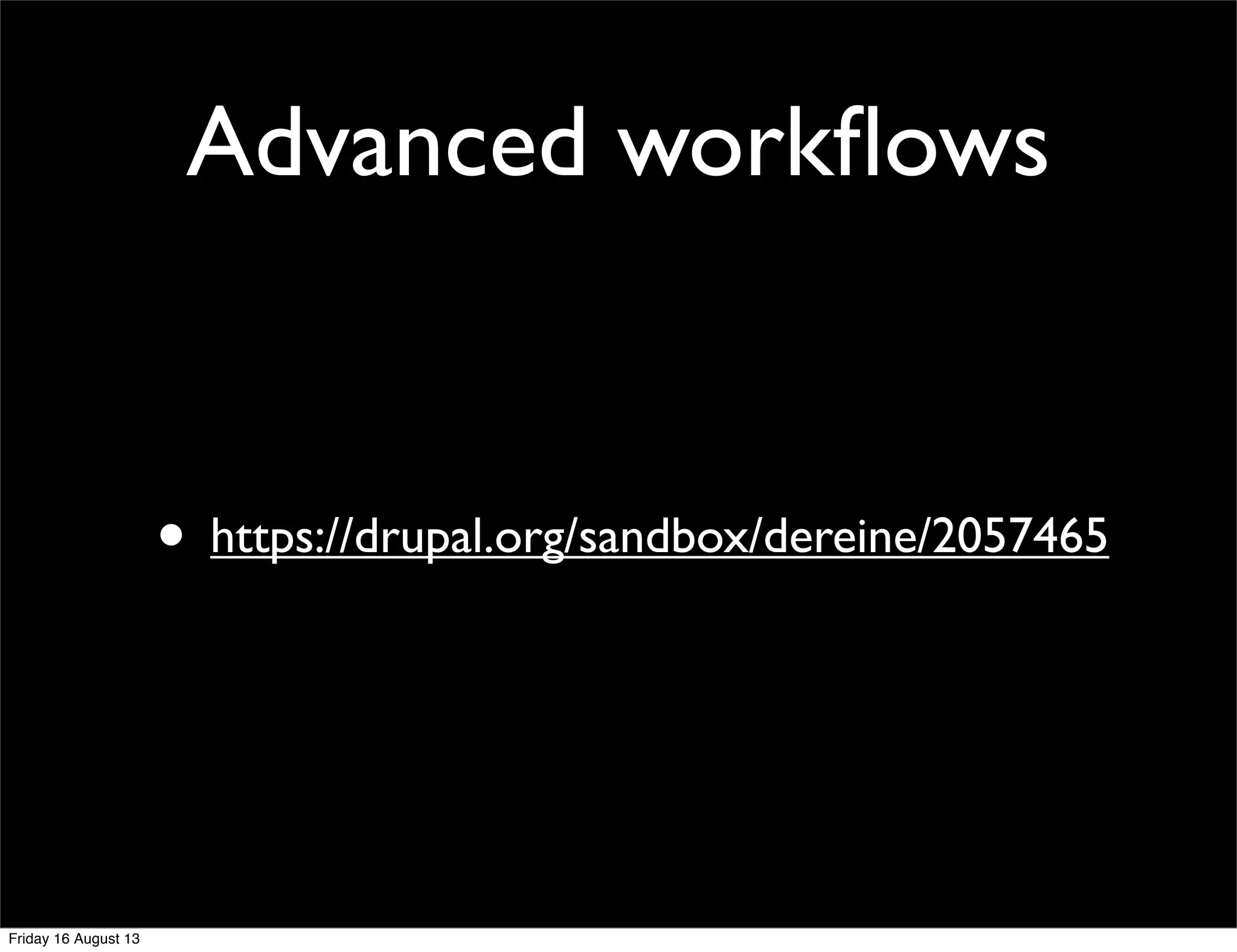

44. Advanced workflows
• https://drupal.org/sandbox/dereine/2057465
Friday 16 August 13

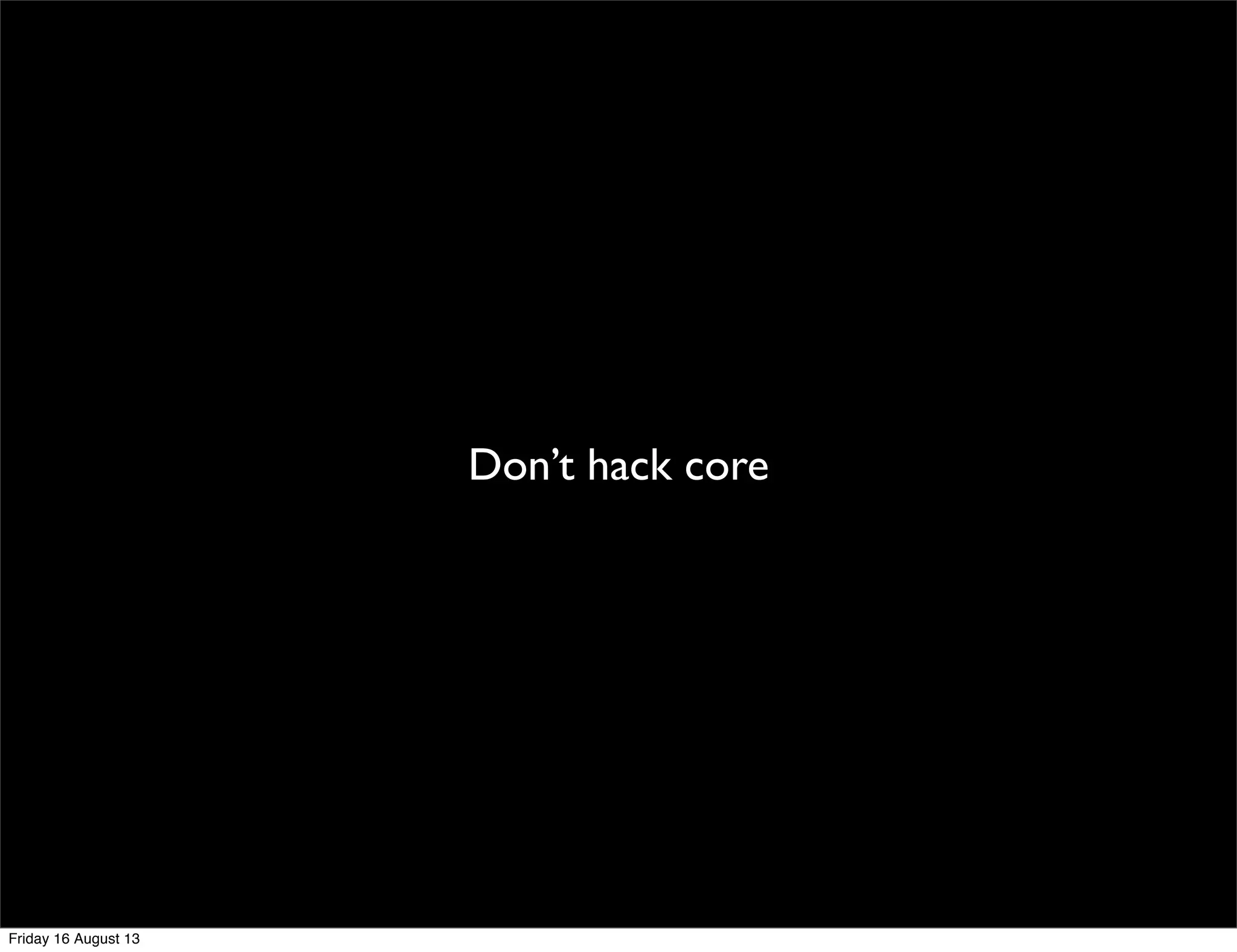

45. Don’t hack core
Friday 16 August 13

46. Don’t hack active config
Friday 16 August 13

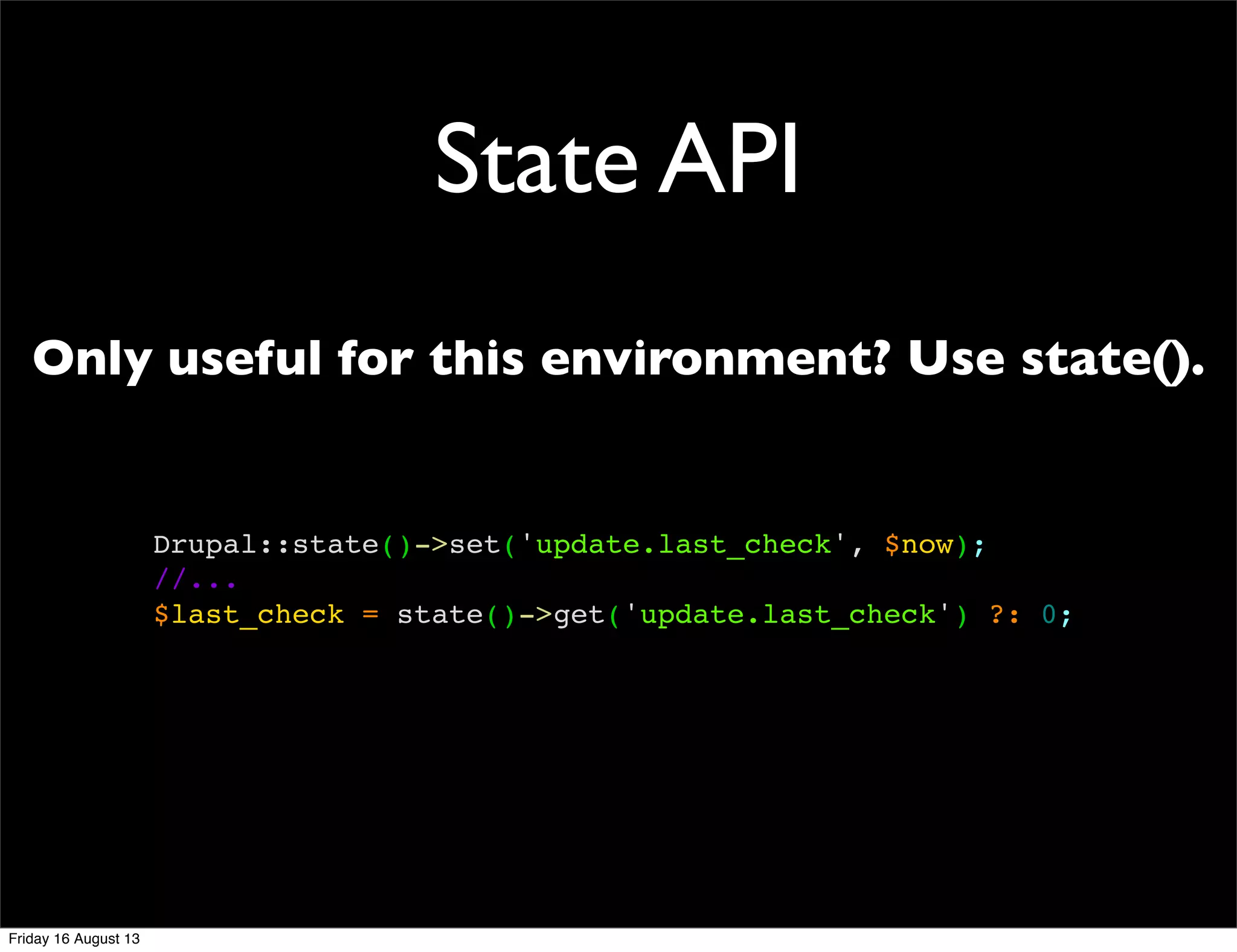

47. State API
Drupal::state()->set('update.last_check', $now);
//...
$last_check = state()->get('update.last_check') ?: 0;
Only useful for this environment? Use state().
Friday 16 August 13

48. Drush integration
Friday 16 August 13

49. Context system,
Events & Overrides
Friday 16 August 13

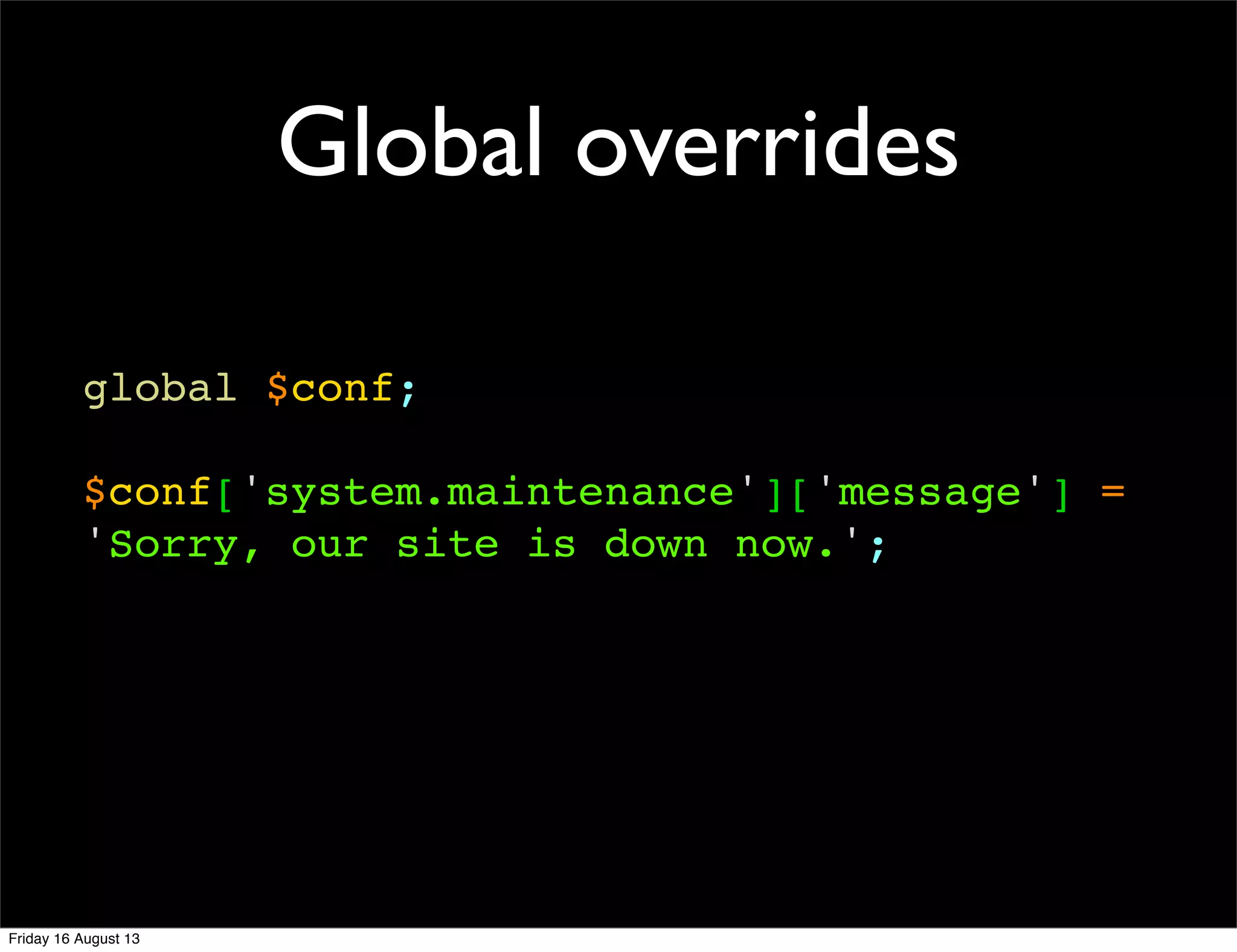

50. global $conf;
$conf['system.maintenance']['message'] =
'Sorry, our site is down now.';
Global overrides
Friday 16 August 13

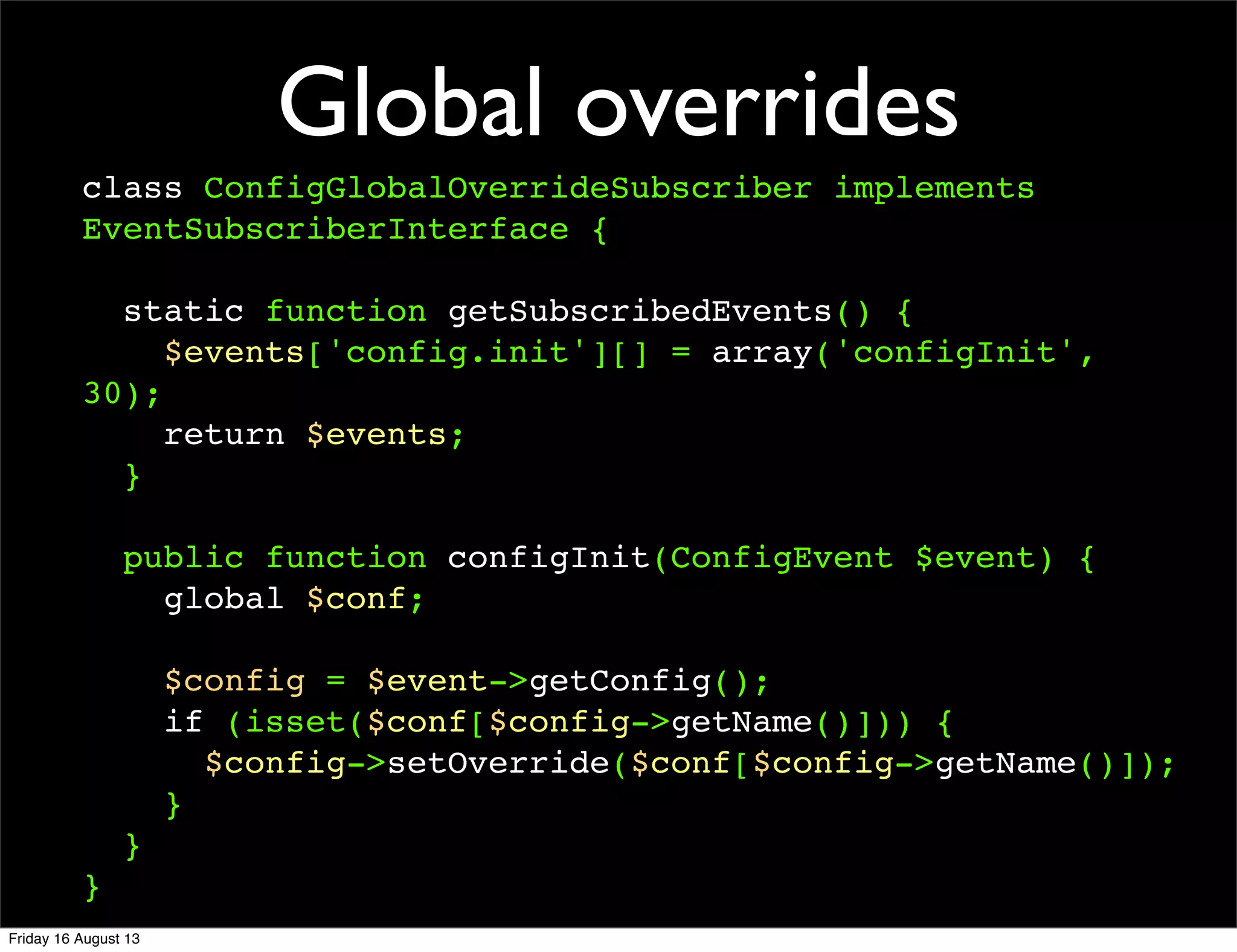

51. class ConfigGlobalOverrideSubscriber implements
EventSubscriberInterface {
static function getSubscribedEvents() {
$events['config.init'][] = array('configInit',
30);
return $events;
}
public function configInit(ConfigEvent $event) {
global $conf;
$config = $event->getConfig();
if (isset($conf[$config->getName()])) {
$config->setOverride($conf[$config->getName()]);
}
}
}
Global overrides
Friday 16 August 13

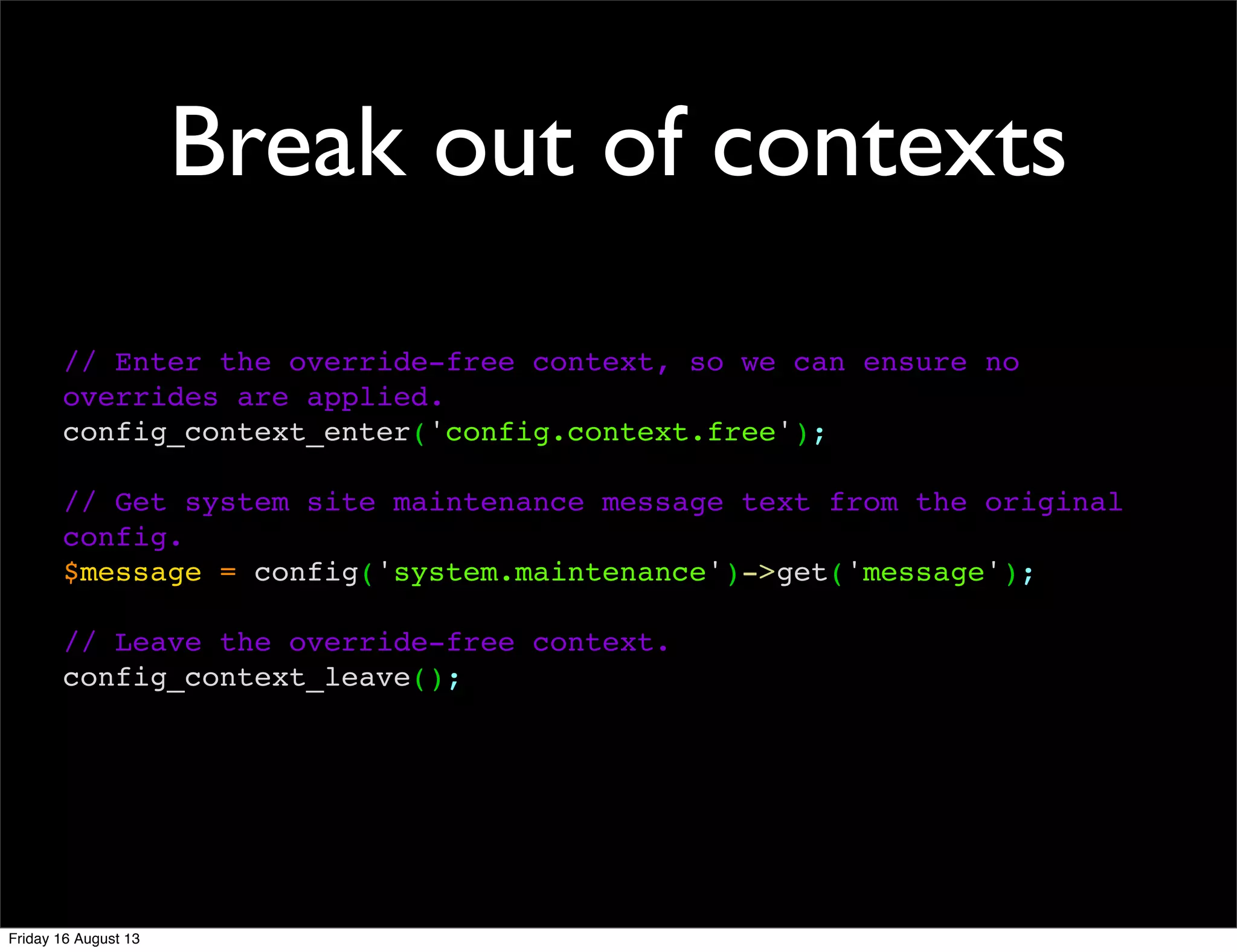

52. Break out of contexts
// Enter the override-free context, so we can ensure no
overrides are applied.
config_context_enter('config.context.free');
// Get system site maintenance message text from the original
config.
$message = config('system.maintenance')->get('message');
// Leave the override-free context.
config_context_leave();
Friday 16 August 13

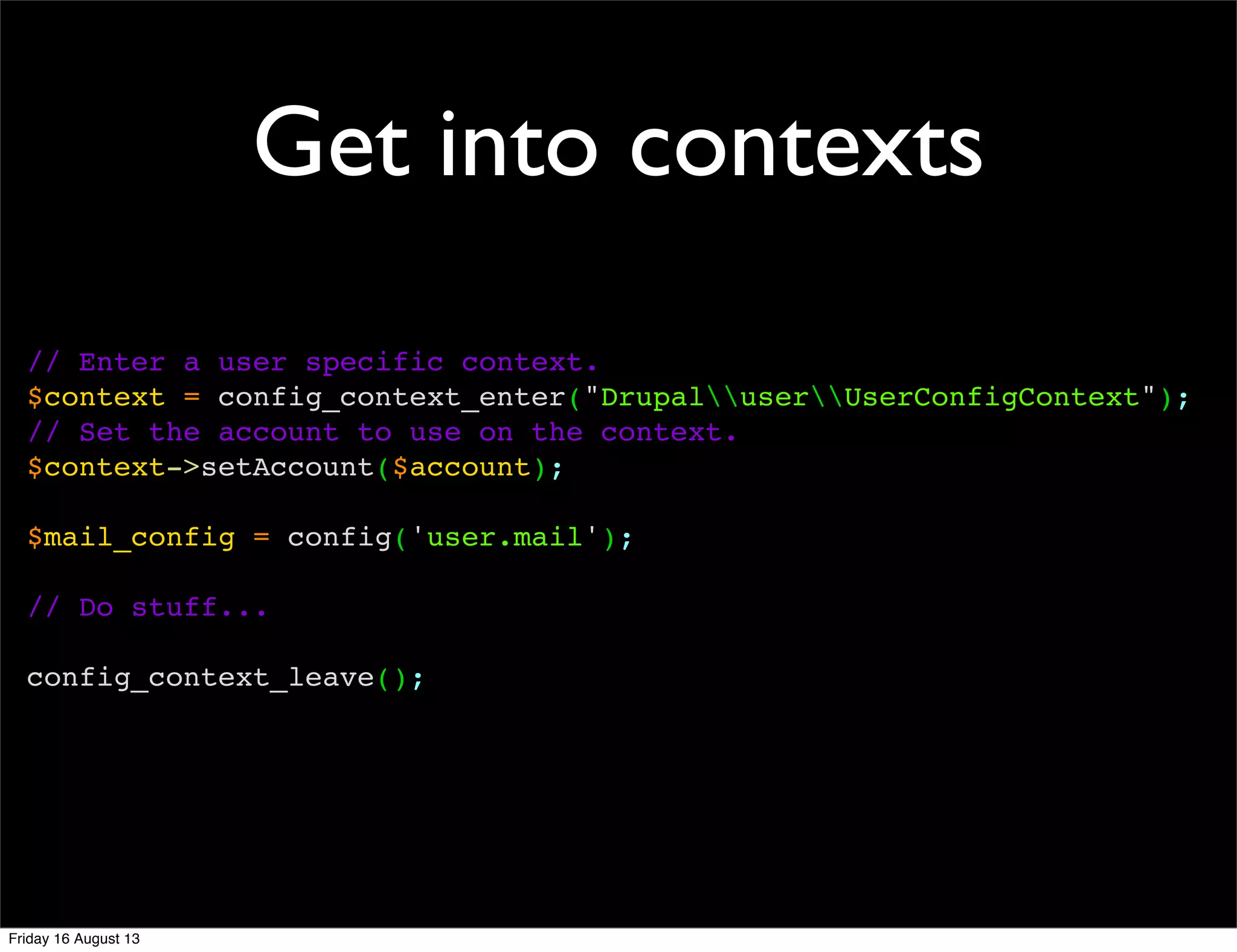

53. Get into contexts
// Enter a user specific context.
$context = config_context_enter("DrupaluserUserConfigContext");
// Set the account to use on the context.
$context->setAccount($account);
$mail_config = config('user.mail');
// Do stuff...
config_context_leave();
Friday 16 August 13

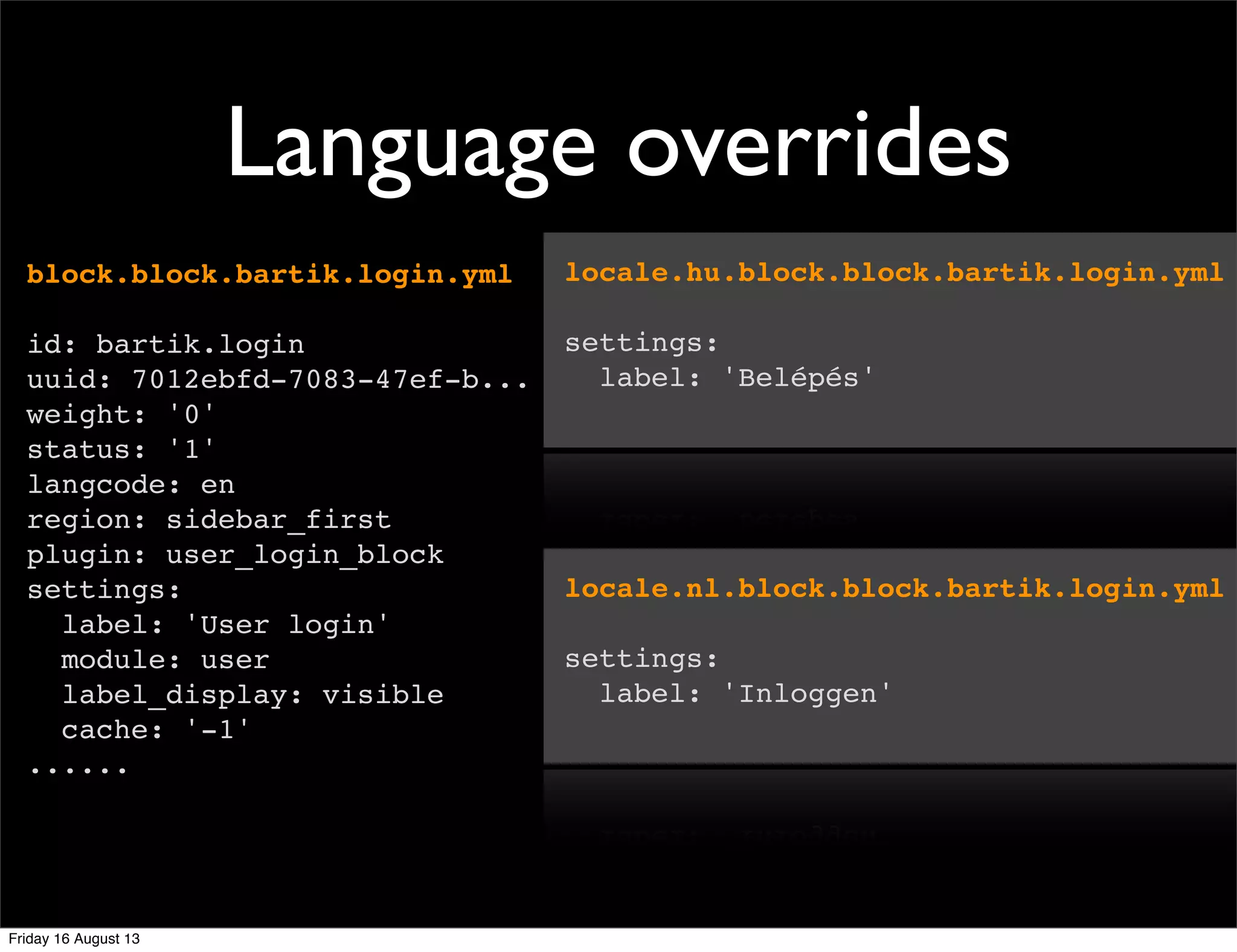

54. Language overrides
block.block.bartik.login.yml
id: bartik.login
uuid: 7012ebfd-7083-47ef-b...
weight: '0'
status: '1'
langcode: en
region: sidebar_first
plugin: user_login_block
settings:
label: 'User login'
module: user
label_display: visible
cache: '-1'
......
locale.hu.block.block.bartik.login.yml
settings:
label: 'Belépés'
locale.nl.block.block.bartik.login.yml
settings:
label: 'Inloggen'
Friday 16 August 13

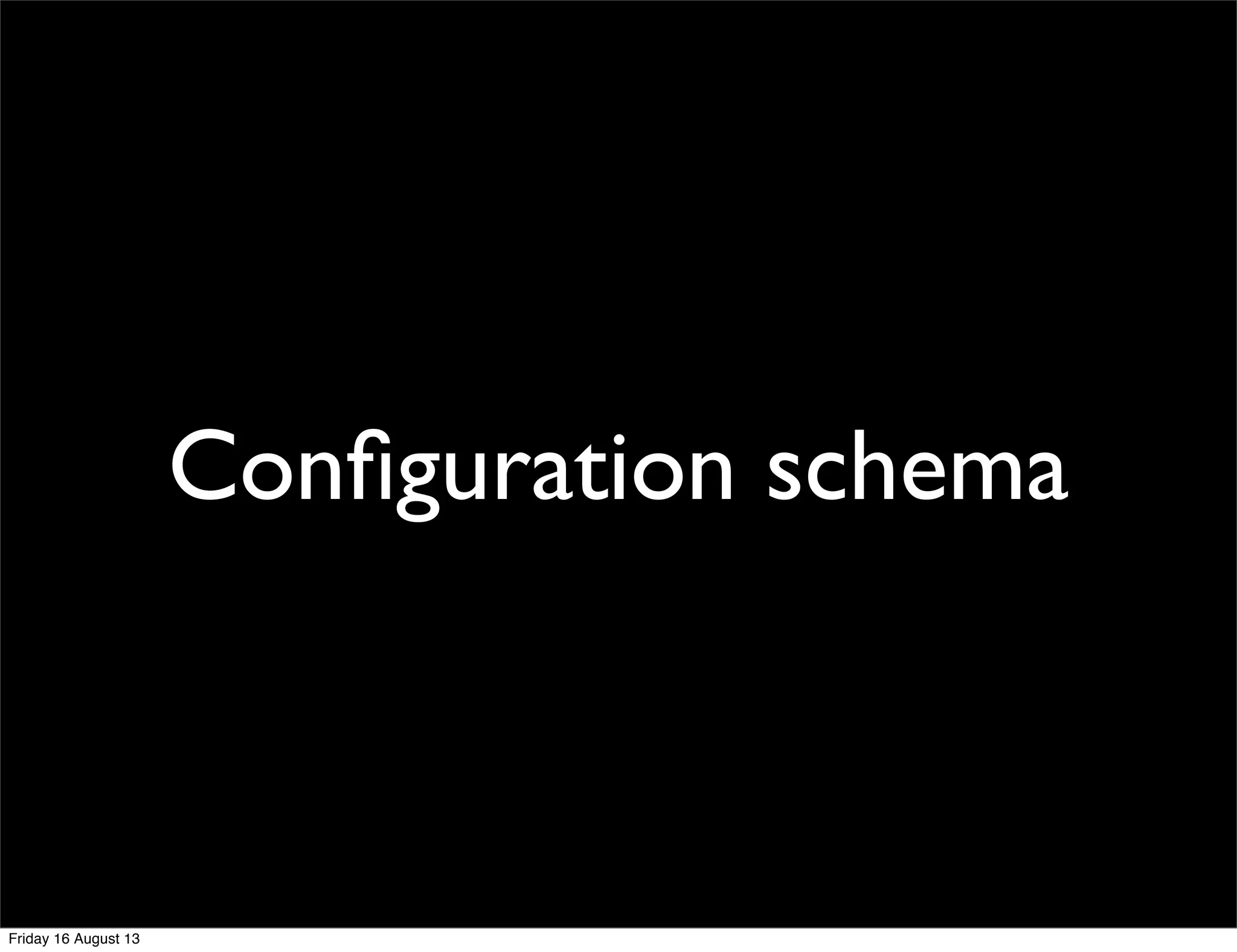

55. Configuration schema
Friday 16 August 13

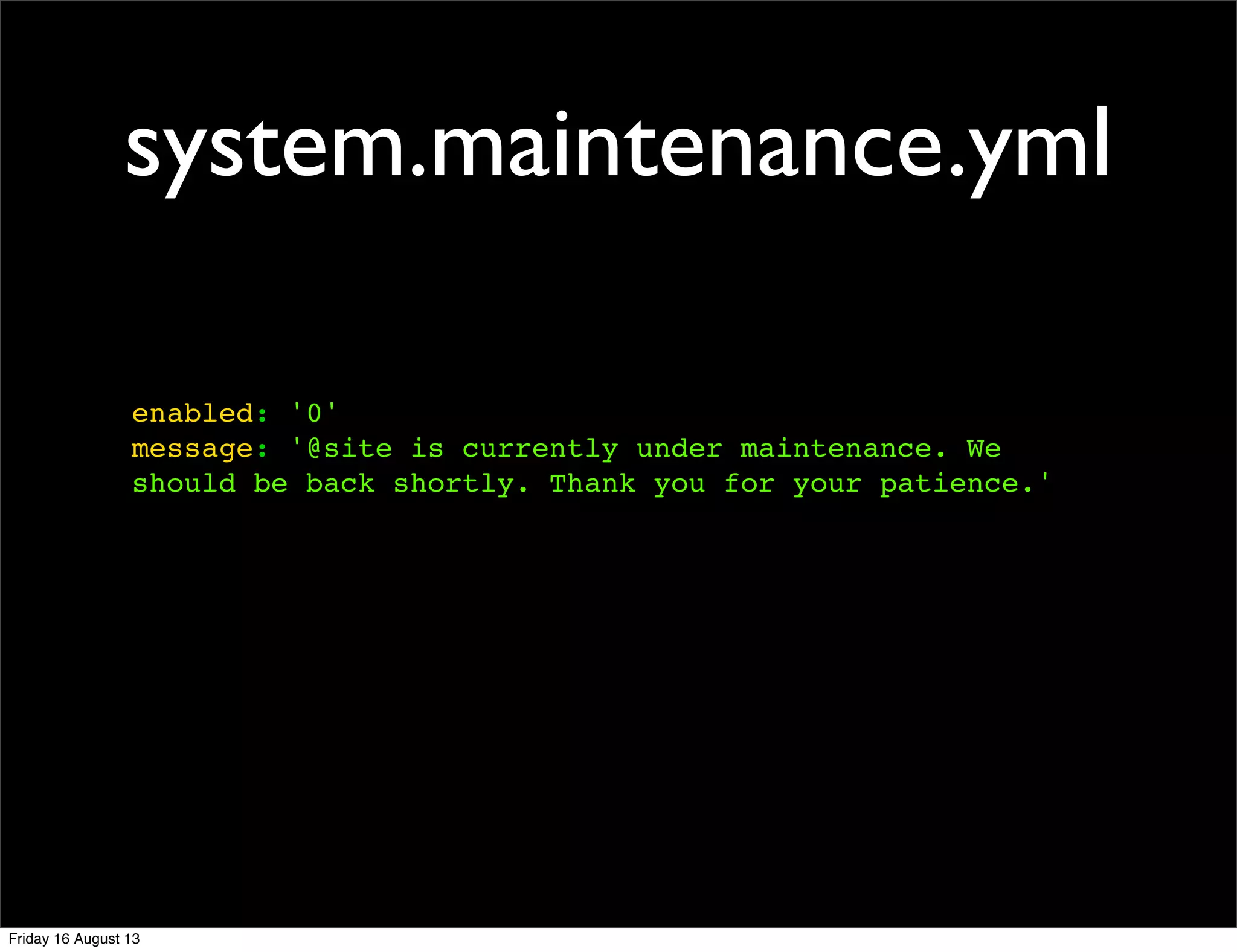

56. system.maintenance.yml
enabled: '0'
message: '@site is currently under maintenance. We
should be back shortly. Thank you for your patience.'
Friday 16 August 13

57. system.schema.yml
system.maintenance:
type: mapping
label: 'Maintenance mode'
mapping:
"enabled":
type: boolean
label: "Put site into maintenance mode"
"message":
type: text
label: "Message to display when in maintenance mode"
Friday 16 August 13

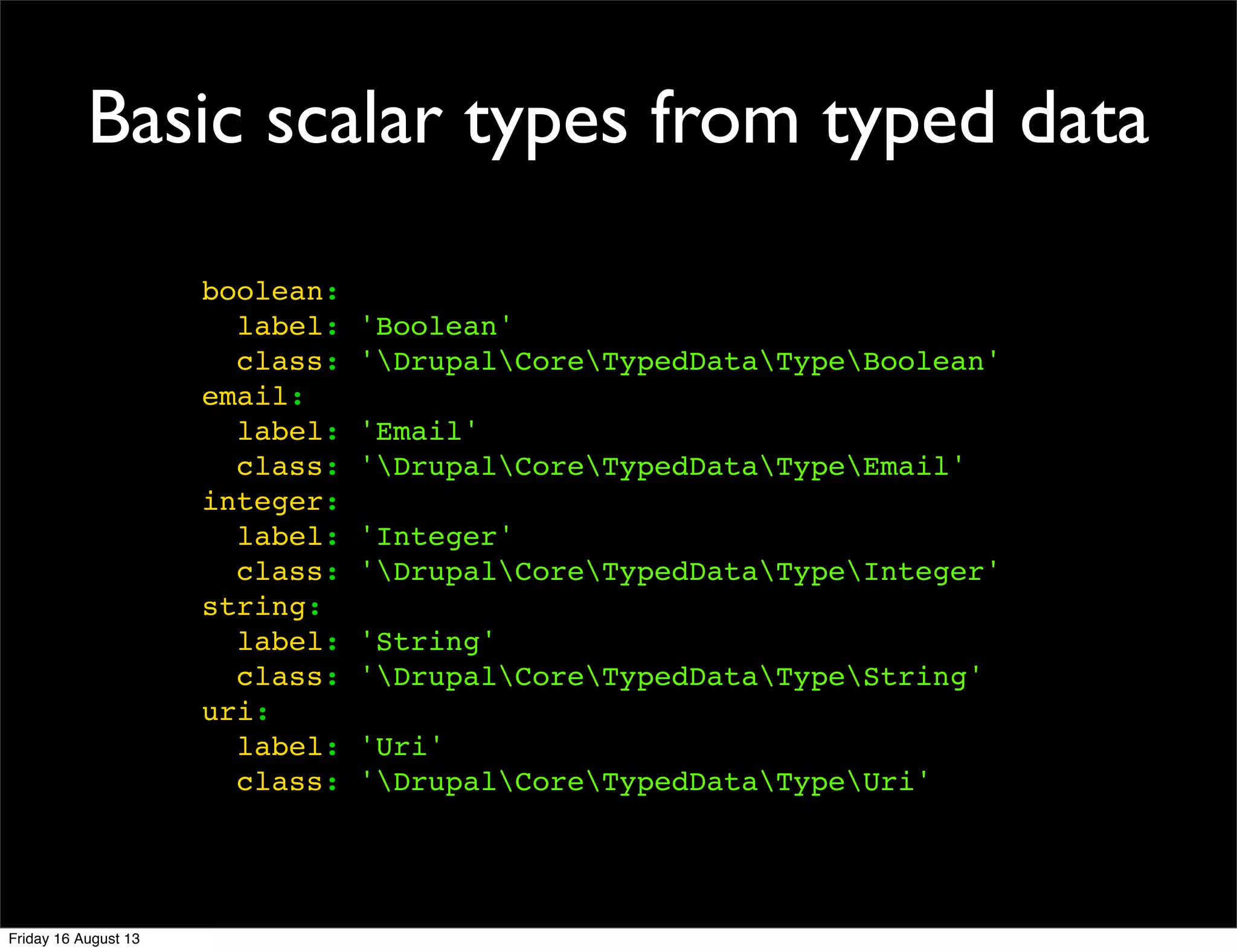

58. Basic scalar types from typed data
boolean:
label: 'Boolean'
class: 'DrupalCoreTypedDataTypeBoolean'
email:
label: 'Email'
class: 'DrupalCoreTypedDataTypeEmail'
integer:
label: 'Integer'
class: 'DrupalCoreTypedDataTypeInteger'
string:
label: 'String'
class: 'DrupalCoreTypedDataTypeString'
uri:
label: 'Uri'
class: 'DrupalCoreTypedDataTypeUri'
Friday 16 August 13

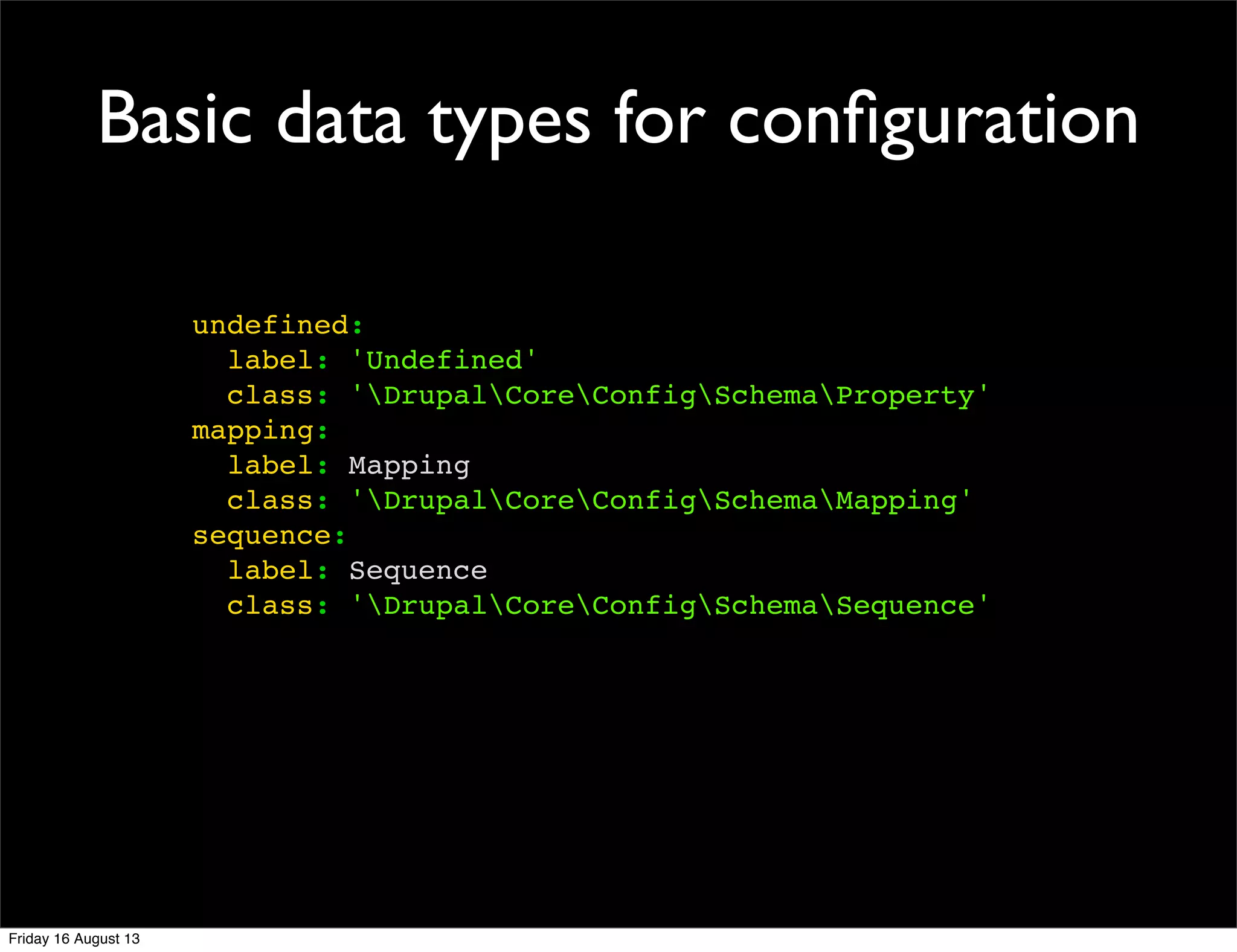

59. Basic data types for configuration
undefined:
label: 'Undefined'
class: 'DrupalCoreConfigSchemaProperty'
mapping:
label: Mapping
class: 'DrupalCoreConfigSchemaMapping'
sequence:
label: Sequence
class: 'DrupalCoreConfigSchemaSequence'
Friday 16 August 13

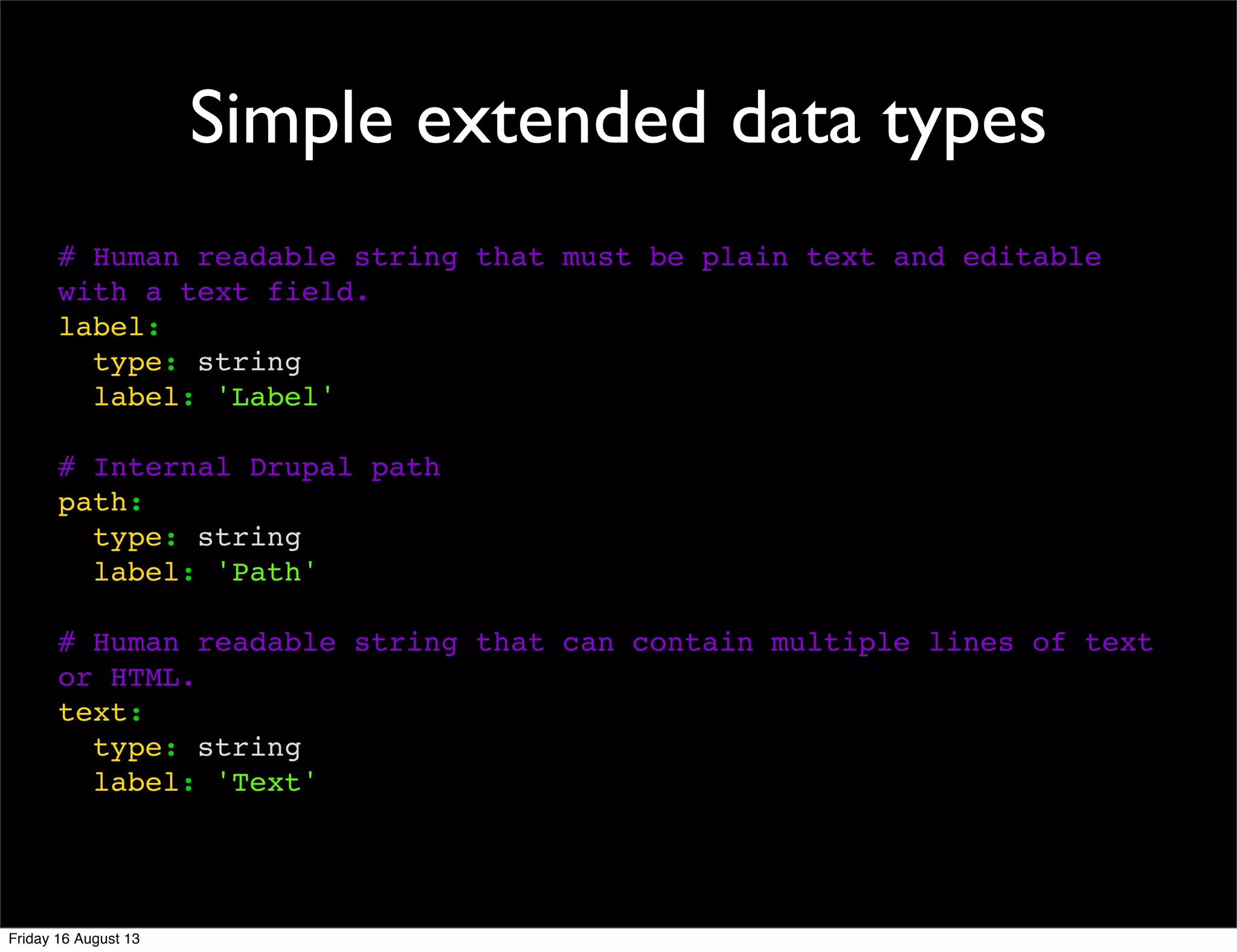

60. Simple extended data types
# Human readable string that must be plain text and editable
with a text field.
label:
type: string
label: 'Label'
# Internal Drupal path
path:
type: string
label: 'Path'
# Human readable string that can contain multiple lines of text
or HTML.
text:
type: string
label: 'Text'
Friday 16 August 13

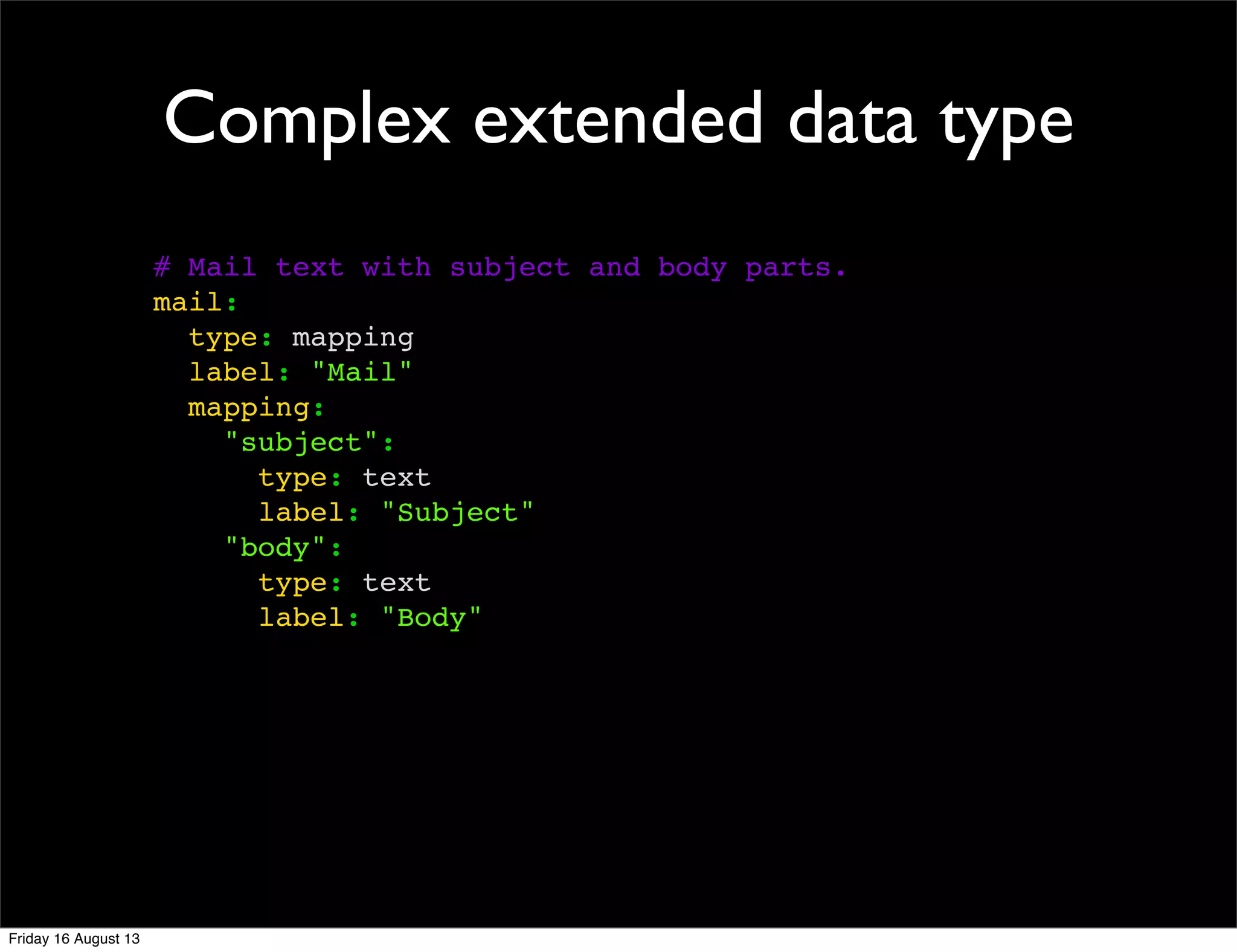

61. Complex extended data type
# Mail text with subject and body parts.
mail:
type: mapping
label: "Mail"
mapping:
"subject":
type: text
label: "Subject"
"body":
type: text
label: "Body"
Friday 16 August 13

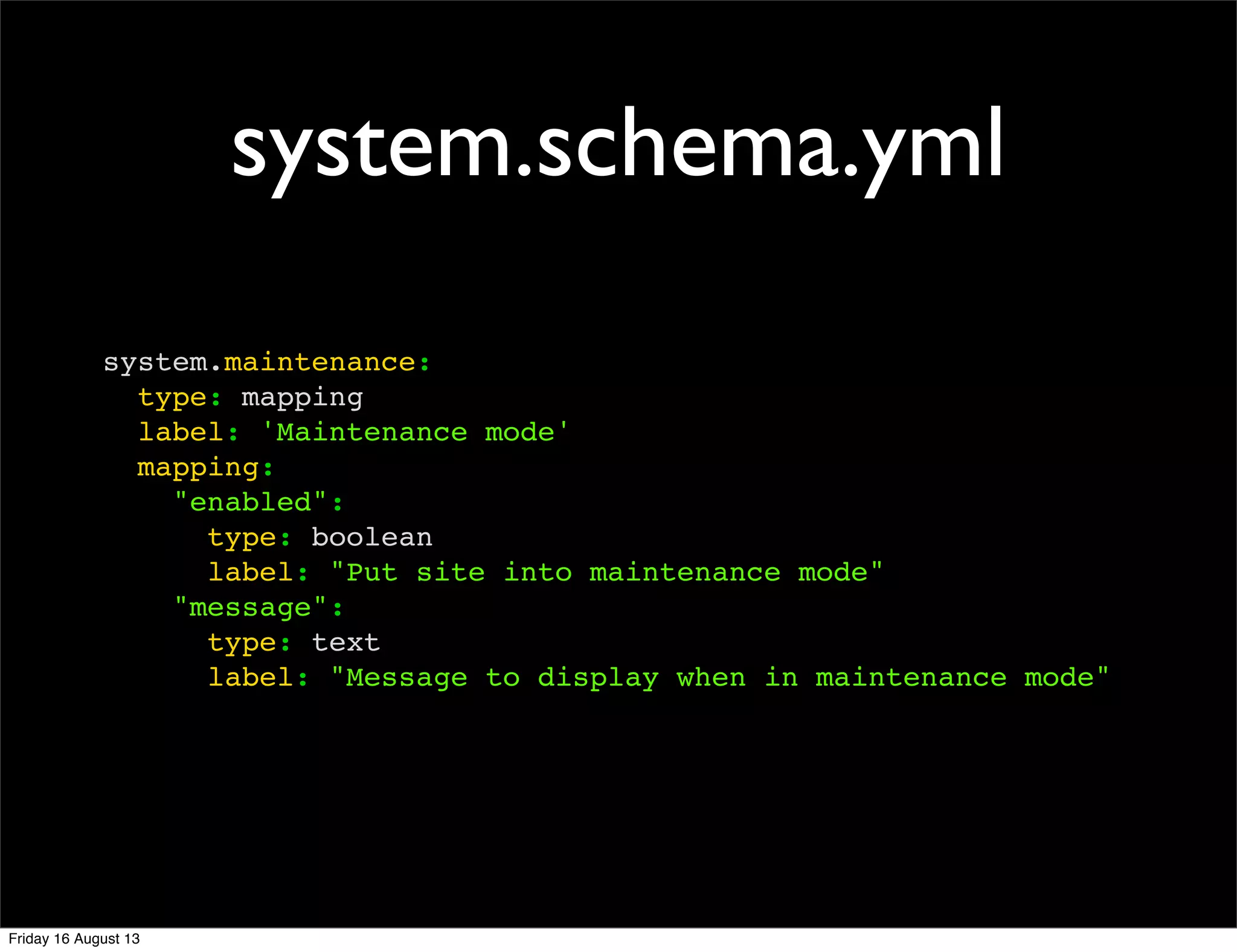

62. system.schema.yml
system.maintenance:
type: mapping
label: 'Maintenance mode'
mapping:
"enabled":
type: boolean
label: "Put site into maintenance mode"
"message":
type: text
label: "Message to display when in maintenance mode"
Friday 16 August 13

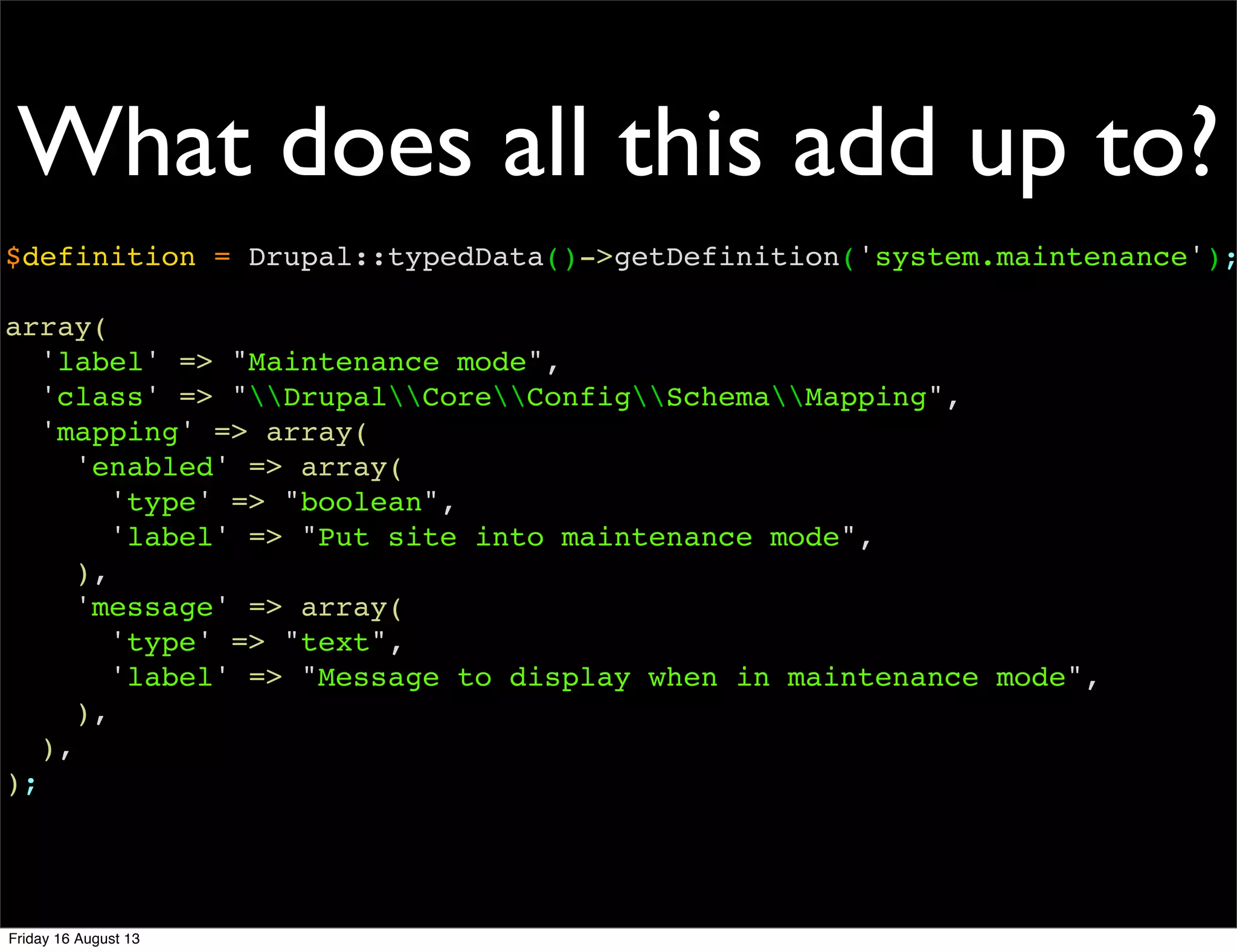

63. What does all this add up to?
$definition = Drupal::typedData()->getDefinition('system.maintenance');
array(
'label' => "Maintenance mode",
'class' => "DrupalCoreConfigSchemaMapping",
'mapping' => array(
'enabled' => array(
'type' => "boolean",
'label' => "Put site into maintenance mode",
),
'message' => array(
'type' => "text",
'label' => "Message to display when in maintenance mode",
),
),
);
Friday 16 August 13

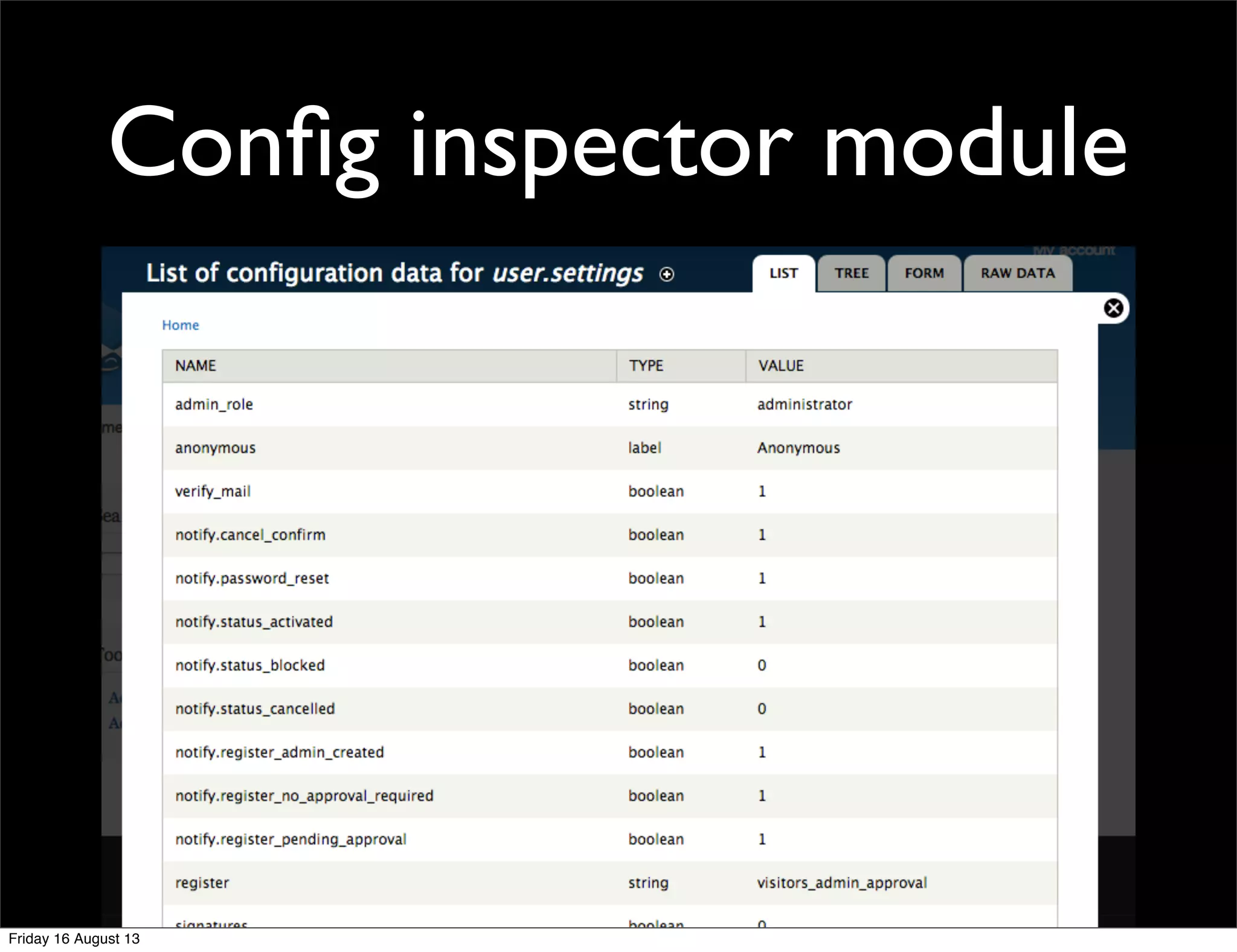

64. Config inspector module
Friday 16 August 13

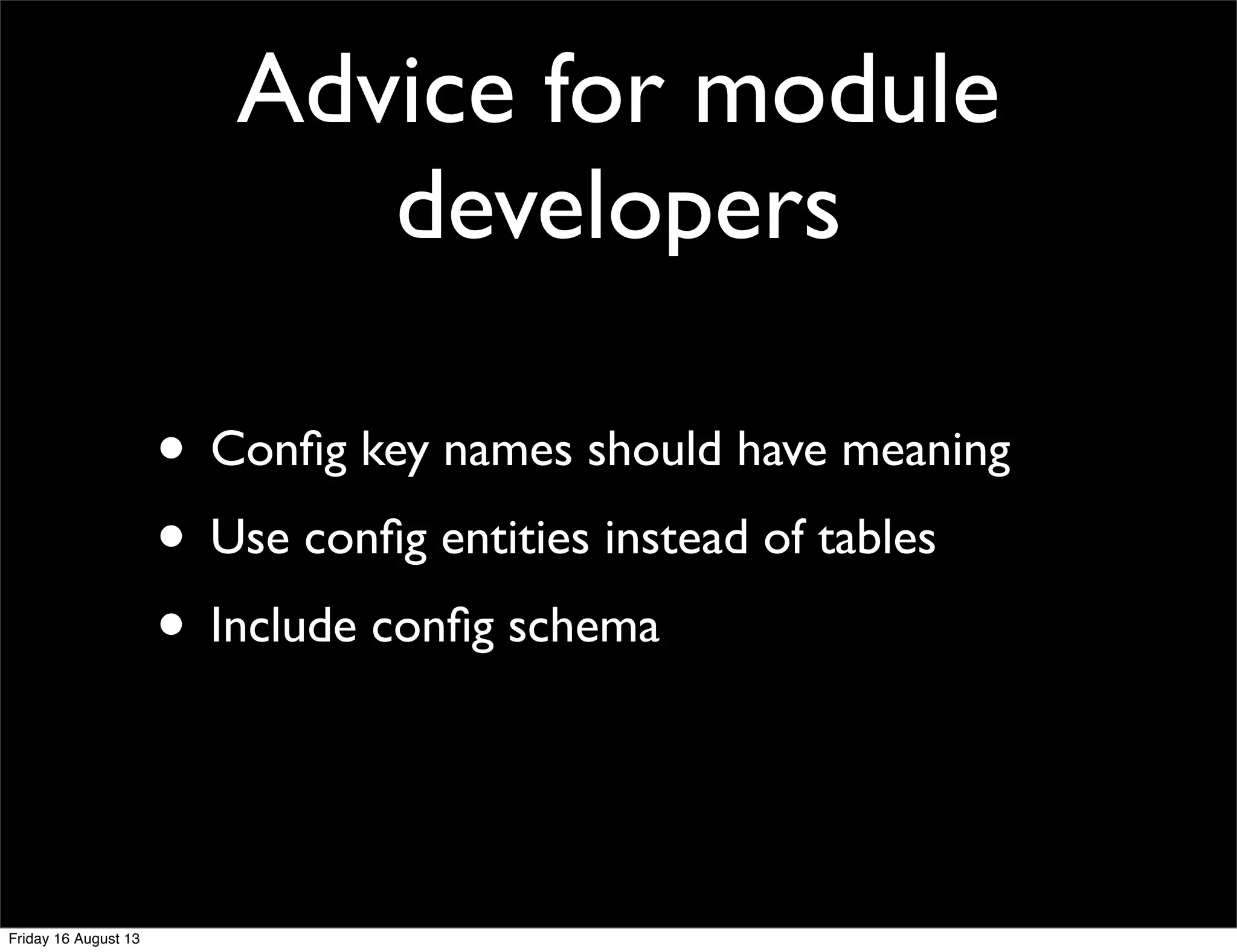

65. Advice for module
developers
• Config key names should have meaning
• Use config entities instead of tables
• Include config schema
Friday 16 August 13

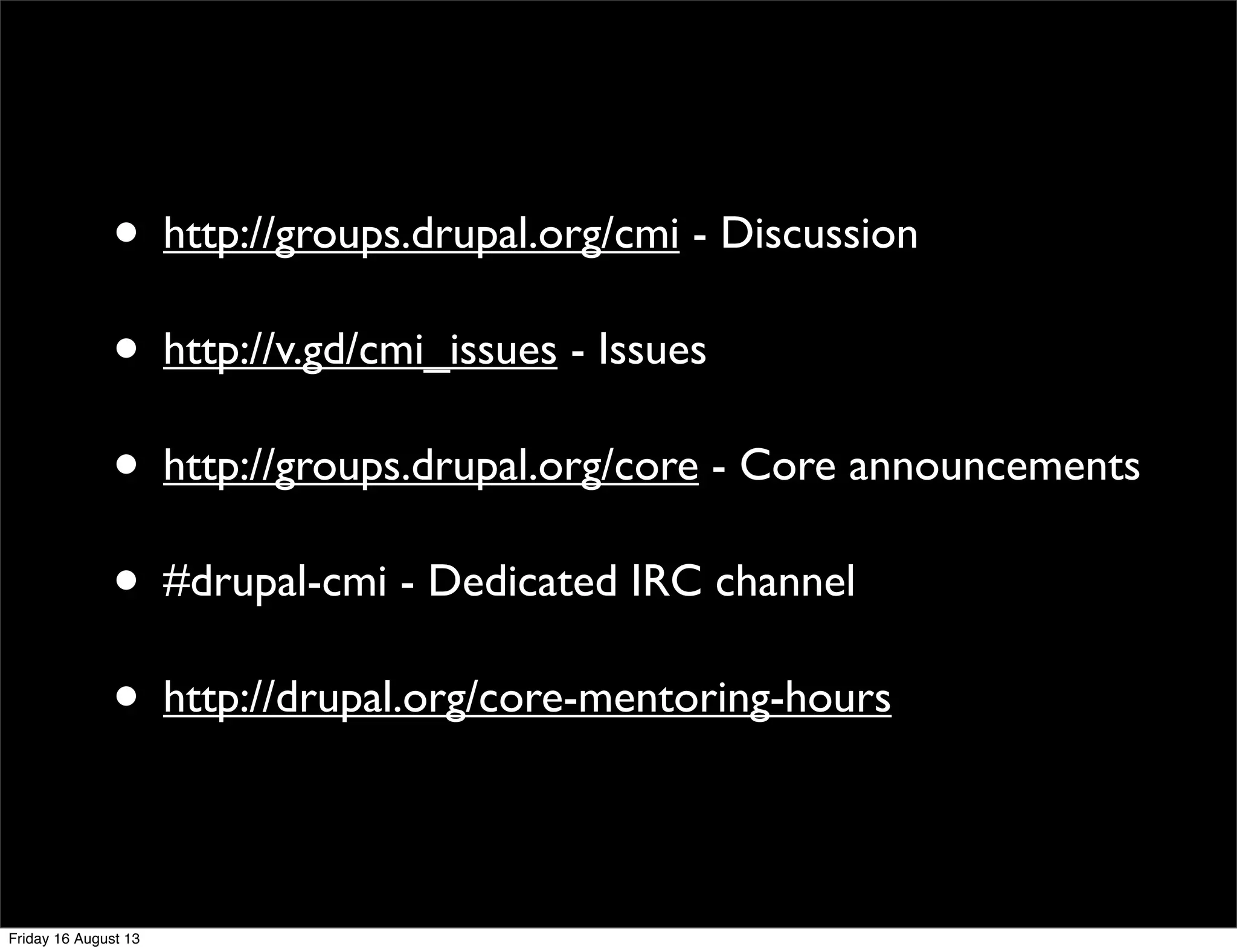

66. • http://groups.drupal.org/cmi - Discussion
• http://v.gd/cmi_issues - Issues
• http://groups.drupal.org/core - Core announcements
• #drupal-cmi - Dedicated IRC channel
• http://drupal.org/core-mentoring-hours
Friday 16 August 13

67. Thanks
@heyrocker
@webchick
@moshe_weitzman
@GaborHojtsy
@alexpott
Friday 16 August 13
