n December 1971, The Concrete
Society published a working
party paper(1–3)
on the proposed
standardisation of waffle floors and
trough floors. This proposed a module of 600
and 900mm rib centres for waffle slabs and
600mm rib centres for trough slabs.
This recommended standardisation was
generally accepted in the UK construction
industry at that time.
In the early days of the use of these
Standards,the manufacturers of the moulds –
mostly scaffolding and formwork companies
– had the moulds produced with narrow
flanges on two opposing sides of the moulds,
to allow the moulds to be used on a quick-
strip,drop head system held on their support
systems.
As most of the moulds were produced by
injection moulded polypropylene,the life
of the moulds was much longer and reuses
could be counted in the hundreds,so hiring
a complete package of moulds and support
systems became very popular.
Over the years,this changed in many
countries and the demands of contractors
for moulds with wide flanges on all sides
increased. This allowed contractors to hire
the moulds only and use whatever support
system they had,be it timber hit-and-miss
planks or complete flat decking.
In 1992, The Concrete Society published
Technical Report 42(4)
. This report was an
update from the 1971 report and having had
20 years’experience is,in fact,a work manual
of the practical uses of trough and waffle
slabs.
The report also mentions the different
types of materials used then and now for the
manufacture of moulds and the different sizes
that can now be produced to meet special
needs.
With all the gathered knowledge,this
change,in certain countries,has led to the
manufacture of both waffle and trough
moulds with full flanges all round and an
increase in the number of units available.
Also,there have been changes in the ways
to vary the lengths of trough units to fill a
variety of span lengths. These variations have
included telescopic pieces,bridging pieces
and infill sleeves,as well as longer length
troughs of up to 1125mm. They have also led
to an increase in the number and type of units
available for hire to the contractor.
Since 1971,use in the UK of waffle and
troughs reached a peak and then slowly
declined,until now there are few buildings
using the systems.
This has happened for a combination of
reasons.In the early days,the scaffolding and
formwork companies had many salespeople
on the road introducing the systems to
consulting engineers and this had a positive
effect on the number of contracts using the
systems.However,as the scaffolding and
formwork companies were badly effected
by the depression,they let go of many of
these salespeople,so fewer consultants were
reminded of the advantages of the systems.
Trough and waffle floors
Above: Edge
gymnasium in
São Paulo, Brazil
(designer, Casimiro
Fernandes;
contractor,
Alves Barcelos
Construction).
(Photo: Marcelo Donadussi.)
A residential block in the Czech Republic (contractor: Uninox).
Duringthepast63years,AlanCokerofATEXhasspenthisworkinglifeinvolved
intheformingofholesorvoidsofdifferenttypesandsizesinconcrete.Firstwith
rubbertubesfrom20mmto2mindiameter,thensteelovalsectionsofdifferent
sizesandmovingontosteeltroughformsofdifferentdepths.Allthisexperience
wasinvaluableforwhatwastofollow.
18 www.concrete.org.ukconcrete
Also,an increase in the number of fast
precast concrete systems meant a speeding up
of the work and a corresponding reduction of
labour on-site.
However,an interesting development has
taken place recently. The author knows of
two contracts in London at present where
alterations and additions to buildings that
were originally designed on waffle moulds,
are now using the same size and type of
waffle moulds to carry out the extensions or
alterations.
Overseas
Moving from the market in the UK and
Europe,to other overseas markets – for
example,in South Africa and South America
– we find a very different situation.
For some years,many contracts were
completed using both waffles and troughs
in South Africa and these contracts
encouraged consultants to design projects
in other African countries such as Angola,
Mozambique,Nigeria,Namibia and
Kenya. There are scaffolding and formwork
companies hiring out waffles and troughs in
these countries.
In South America,there is again a very
different situation.In Brazil,one company
has seven depots throughout the country,
manufacturing its own injection moulded
units and hiring them out, as well as forming
partnerships in Argentina,Peru,Mexico,
Bolivia,Colombia and Paraguay and hiring
out moulds in those countries too.
This company also markets 120 different
sizes and types of moulds as well as a flat slab
formwork system and quick strip support
systems.
Certain technological developments in
the systems have helped in these markets,
together with companies offering to redesign
for consultants to find the most economical
design alternatives,so reducing the consulting
engineer’s time spent on details that are best
handled by a specialist.
The use also by these companies of
computer programs – such as CypeCAD,
SAP2000,Eberick,Anasy and TQS –
makes the work so much faster and easier
for the client,and more economical for the
developer.
However,it is worth noting that with all
the developments in the sizes and variation
of moulds available,the basic dimensions in
most countries are still 900mm rib centres
for waffles and 600mm for troughs – that is,
the original sizes that The Concrete Society
recommended for standardisation in 1971.
In the 46 years that ATEX has existed,
it has sold waffle and trough moulds to 47
different countries and has seen companies
hiring and selling ATEX moulds established
in Brazil,Greece,Lebanon,Portugal,
Singapore and South Africa.
Lookagain
It is surprising that the number of buildings
in Europe using waffle and trough slabs has
reduced so much over the years.Has the
construction industry become so much more
sophisticated or the economics changed so
dramatically that the systems are no longer
viable? Or is it due to the lack of advertising
and promotion by the suppliers of moulds?
If it is just the lack of publicity or
availability,then it would be very good
if consulting engineers in Europe would
look again at the structural advantages and
economics of using a waffle and trough
system. ■
References:
1. CONCRETE SOCIETY.Trough and waffle floors. Report
of the working party on standardisation. Concrete,
Vol.5, No.12, December 1971.
2. CONCRETE SOCIETY.Trough and waffle floors. Report
of the working party on standardisation. Appendix 1
–Trough floors. Concrete,Vol.6, No.1, January 1972.
3. CONCRETE SOCIETY.Trough and waffle floors. Report
of the working party on standardisation. Appendix 2
–Waffle floors. Concrete,Vol.6, No.2, February 1972.
4. CONCRETE SOCIETY. Troughandwafflefloors.
Technical Report 42,The Concrete Society,Camberley,
1992,36pp.
Center Minas Mall Belo Horizonte, Brazil (designer, Raul
Neuenschwander; contractor, Smart Architects).
Residential block in Porto Alegre, Brazil (designer, Paulo
Stumm; contractor, Smart Architects).
www.concrete.org.uk concrete 19

More Related Content

Similar to Concrete Magazine´s article about Waffle Slab

Find out more about the Viscose Company! - check out our on line presentation
Find out more about the Viscose Company! - check out our on line presentation Find out more about the Viscose Company! - check out our on line presentation
Find out more about the Viscose Company! - check out our on line presentation
Hannah Farmer

Newsletter Proferro II
Newsletter Proferro IINewsletter Proferro II
Newsletter Proferro II
Picanol Group

Folleto Sistemas de Suelos de Entrada Nuway y Coral
Folleto Sistemas de Suelos de Entrada Nuway y Coral Folleto Sistemas de Suelos de Entrada Nuway y Coral
Folleto Sistemas de Suelos de Entrada Nuway y Coral
Forbo Pavimentos, S.A.

Evolution of additive manufacturing
Evolution of additive manufacturingEvolution of additive manufacturing
Evolution of additive manufacturing
Ayush41353

CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf
CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdfCISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf
CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf
CISUFLO

CISUFLO presentation to MMFA members_1 July 2021.pdf
CISUFLO presentation to MMFA members_1 July 2021.pdfCISUFLO presentation to MMFA members_1 July 2021.pdf
CISUFLO presentation to MMFA members_1 July 2021.pdf
CISUFLO

Innoval Technology newsletter 2013/14
Innoval Technology newsletter 2013/14Innoval Technology newsletter 2013/14
Innoval Technology newsletter 2013/14
Innoval Technology

2017 Newsletter
2017 Newsletter2017 Newsletter
2017 Newsletter
Innoval Technology

XO-Brochure_ENG
XO-Brochure_ENGXO-Brochure_ENG
XO-Brochure_ENG
Eric Dupee

Vumatel Brand Platform
Vumatel Brand PlatformVumatel Brand Platform
Vumatel Brand Platform
Dana Boo

Polyform Presentation
Polyform PresentationPolyform Presentation
Polyform Presentation
polyformbinder

Newsletter Proferro III
Newsletter Proferro IIINewsletter Proferro III
Newsletter Proferro III
Picanol Group

Rubber Automotive Hoses.pptx
Rubber Automotive Hoses.pptxRubber Automotive Hoses.pptx
Rubber Automotive Hoses.pptx
Luis Tormento

A Peek at the Past: 100th Anniversary of Loesche
A Peek at the Past: 100th Anniversary of LoescheA Peek at the Past: 100th Anniversary of Loesche
A Peek at the Past: 100th Anniversary of Loesche
LOESCHE

TD05077E HorseShoeWhitePaperC.PDF
TD05077E HorseShoeWhitePaperC.PDFTD05077E HorseShoeWhitePaperC.PDF
TD05077E HorseShoeWhitePaperC.PDF
Emily Herrington

SAMCO
SAMCOSAMCO
Picanol News April 2010
Picanol News April 2010Picanol News April 2010
Picanol News April 2010
Picanol Group

Coating Machine
Coating MachineCoating Machine
Taiyo Kogyo Indonesia
Taiyo Kogyo IndonesiaTaiyo Kogyo Indonesia
Taiyo Kogyo Indonesia
Taiyo Kogyo Indonesia

Planta D'Concreto Quito English
Planta D'Concreto Quito EnglishPlanta D'Concreto Quito English
Planta D'Concreto Quito English
Sergio Prahl


Similar to Concrete Magazine´s article about Waffle Slab (20)

Find out more about the Viscose Company! - check out our on line presentation
Find out more about the Viscose Company! - check out our on line presentation Find out more about the Viscose Company! - check out our on line presentation
Find out more about the Viscose Company! - check out our on line presentation

Newsletter Proferro II
Newsletter Proferro IINewsletter Proferro II
Newsletter Proferro II

Folleto Sistemas de Suelos de Entrada Nuway y Coral
Folleto Sistemas de Suelos de Entrada Nuway y Coral Folleto Sistemas de Suelos de Entrada Nuway y Coral
Folleto Sistemas de Suelos de Entrada Nuway y Coral

Evolution of additive manufacturing
Evolution of additive manufacturingEvolution of additive manufacturing
Evolution of additive manufacturing

CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf
CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdfCISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf
CISUFLO_intro_CTB_UNILIN_EPLF_event_20210512.pdf

CISUFLO presentation to MMFA members_1 July 2021.pdf
CISUFLO presentation to MMFA members_1 July 2021.pdfCISUFLO presentation to MMFA members_1 July 2021.pdf
CISUFLO presentation to MMFA members_1 July 2021.pdf

Innoval Technology newsletter 2013/14
Innoval Technology newsletter 2013/14Innoval Technology newsletter 2013/14
Innoval Technology newsletter 2013/14

2017 Newsletter
2017 Newsletter2017 Newsletter
2017 Newsletter

XO-Brochure_ENG
XO-Brochure_ENGXO-Brochure_ENG
XO-Brochure_ENG

Vumatel Brand Platform
Vumatel Brand PlatformVumatel Brand Platform
Vumatel Brand Platform

Polyform Presentation
Polyform PresentationPolyform Presentation
Polyform Presentation

Newsletter Proferro III
Newsletter Proferro IIINewsletter Proferro III
Newsletter Proferro III

Rubber Automotive Hoses.pptx
Rubber Automotive Hoses.pptxRubber Automotive Hoses.pptx
Rubber Automotive Hoses.pptx

A Peek at the Past: 100th Anniversary of Loesche
A Peek at the Past: 100th Anniversary of LoescheA Peek at the Past: 100th Anniversary of Loesche
A Peek at the Past: 100th Anniversary of Loesche

TD05077E HorseShoeWhitePaperC.PDF
TD05077E HorseShoeWhitePaperC.PDFTD05077E HorseShoeWhitePaperC.PDF
TD05077E HorseShoeWhitePaperC.PDF

SAMCO
SAMCOSAMCO
SAMCO

Picanol News April 2010
Picanol News April 2010Picanol News April 2010
Picanol News April 2010

Coating Machine
Coating MachineCoating Machine
Coating Machine

Taiyo Kogyo Indonesia
Taiyo Kogyo IndonesiaTaiyo Kogyo Indonesia
Taiyo Kogyo Indonesia

Planta D'Concreto Quito English
Planta D'Concreto Quito EnglishPlanta D'Concreto Quito English
Planta D'Concreto Quito English


More from Atex Brasil

Concrete Magazine Article 2021
Concrete Magazine Article 2021Concrete Magazine Article 2021
Concrete Magazine Article 2021
Atex Brasil

Natureza da Laje Nervurada
Natureza da Laje NervuradaNatureza da Laje Nervurada
Natureza da Laje Nervurada
Atex Brasil

Presentation of Floor System Atex
Presentation of Floor System AtexPresentation of Floor System Atex
Presentation of Floor System Atex
Atex Brasil

10,8x10,8m Presentation of Waffel Slab for Cost Comparision
10,8x10,8m Presentation of Waffel Slab for Cost Comparision10,8x10,8m Presentation of Waffel Slab for Cost Comparision
10,8x10,8m Presentation of Waffel Slab for Cost Comparision
Atex Brasil

Cost Comparison of Various Sizes and Types of Slab Panels
Cost Comparison of Various Sizes and Types of Slab PanelsCost Comparison of Various Sizes and Types of Slab Panels
Cost Comparison of Various Sizes and Types of Slab Panels
Atex Brasil

Atex Techcnical Catalogue (Metric)
Atex Techcnical Catalogue (Metric)Atex Techcnical Catalogue (Metric)
Atex Techcnical Catalogue (Metric)
Atex Brasil

Atex Technical Catalogue 2021 (Imperial)
Atex Technical Catalogue 2021 (Imperial)Atex Technical Catalogue 2021 (Imperial)
Atex Technical Catalogue 2021 (Imperial)
Atex Brasil

Livro: Engenharia Estrutural: Portfólio
Livro: Engenharia Estrutural: PortfólioLivro: Engenharia Estrutural: Portfólio
Livro: Engenharia Estrutural: Portfólio
Atex Brasil

Catálogo da Atex, a forma da laje
Catálogo da Atex, a forma da lajeCatálogo da Atex, a forma da laje
Catálogo da Atex, a forma da laje
Atex Brasil

Atex 700, uma solução econômica para laje nervurada
Atex 700, uma solução econômica para laje nervuradaAtex 700, uma solução econômica para laje nervurada
Atex 700, uma solução econômica para laje nervurada
Atex Brasil

INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX
INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEXINSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX
INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX
Atex Brasil

Atex, el encofrado para losa nervada
Atex, el encofrado para losa nervadaAtex, el encofrado para losa nervada
Atex, el encofrado para losa nervada
Atex Brasil

Norma de Desempenho NBR 15.575
Norma de Desempenho NBR 15.575Norma de Desempenho NBR 15.575
Norma de Desempenho NBR 15.575
Atex Brasil

Estudo Acústica em Laje Nervurada Atex - Protherm
Estudo Acústica em Laje Nervurada Atex - Protherm Estudo Acústica em Laje Nervurada Atex - Protherm
Estudo Acústica em Laje Nervurada Atex - Protherm
Atex Brasil

Estudo Acústica em uma Laje Nervurada Atex
Estudo Acústica em uma Laje Nervurada AtexEstudo Acústica em uma Laje Nervurada Atex
Estudo Acústica em uma Laje Nervurada Atex
Atex Brasil

Apresentação Atex
Apresentação AtexApresentação Atex
Apresentação Atex
Atex Brasil

Apresentação Atex Norma Acustica e Incêndio
Apresentação Atex Norma Acustica e IncêndioApresentação Atex Norma Acustica e Incêndio
Apresentação Atex Norma Acustica e Incêndio
Atex Brasil

Reportagem sobre Processo Construtivo de Lajes
Reportagem sobre Processo Construtivo de LajesReportagem sobre Processo Construtivo de Lajes
Reportagem sobre Processo Construtivo de Lajes
Atex Brasil

Palestra Técnica sobre Laje Nervurada com moldes recuperáveis
Palestra Técnica sobre Laje Nervurada com moldes recuperáveisPalestra Técnica sobre Laje Nervurada com moldes recuperáveis
Palestra Técnica sobre Laje Nervurada com moldes recuperáveis
Atex Brasil

Catálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada
Catálogo 2011 Atex do Brasil - A Fôrma da Laje NervuradaCatálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada
Catálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada
Atex Brasil


More from Atex Brasil (20)

Concrete Magazine Article 2021
Concrete Magazine Article 2021Concrete Magazine Article 2021
Concrete Magazine Article 2021

Natureza da Laje Nervurada
Natureza da Laje NervuradaNatureza da Laje Nervurada
Natureza da Laje Nervurada

Presentation of Floor System Atex
Presentation of Floor System AtexPresentation of Floor System Atex
Presentation of Floor System Atex

10,8x10,8m Presentation of Waffel Slab for Cost Comparision
10,8x10,8m Presentation of Waffel Slab for Cost Comparision10,8x10,8m Presentation of Waffel Slab for Cost Comparision
10,8x10,8m Presentation of Waffel Slab for Cost Comparision

Cost Comparison of Various Sizes and Types of Slab Panels
Cost Comparison of Various Sizes and Types of Slab PanelsCost Comparison of Various Sizes and Types of Slab Panels
Cost Comparison of Various Sizes and Types of Slab Panels

Atex Techcnical Catalogue (Metric)
Atex Techcnical Catalogue (Metric)Atex Techcnical Catalogue (Metric)
Atex Techcnical Catalogue (Metric)

Atex Technical Catalogue 2021 (Imperial)
Atex Technical Catalogue 2021 (Imperial)Atex Technical Catalogue 2021 (Imperial)
Atex Technical Catalogue 2021 (Imperial)

Livro: Engenharia Estrutural: Portfólio
Livro: Engenharia Estrutural: PortfólioLivro: Engenharia Estrutural: Portfólio
Livro: Engenharia Estrutural: Portfólio

Catálogo da Atex, a forma da laje
Catálogo da Atex, a forma da lajeCatálogo da Atex, a forma da laje
Catálogo da Atex, a forma da laje

Atex 700, uma solução econômica para laje nervurada
Atex 700, uma solução econômica para laje nervuradaAtex 700, uma solução econômica para laje nervurada
Atex 700, uma solução econômica para laje nervurada

INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX
INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEXINSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX
INSTRUCCIONES PARA MONTAJE Y UTILIZACIÓN DE LOS CASETONES ATEX

Atex, el encofrado para losa nervada
Atex, el encofrado para losa nervadaAtex, el encofrado para losa nervada
Atex, el encofrado para losa nervada

Norma de Desempenho NBR 15.575
Norma de Desempenho NBR 15.575Norma de Desempenho NBR 15.575
Norma de Desempenho NBR 15.575

Estudo Acústica em Laje Nervurada Atex - Protherm
Estudo Acústica em Laje Nervurada Atex - Protherm Estudo Acústica em Laje Nervurada Atex - Protherm
Estudo Acústica em Laje Nervurada Atex - Protherm

Estudo Acústica em uma Laje Nervurada Atex
Estudo Acústica em uma Laje Nervurada AtexEstudo Acústica em uma Laje Nervurada Atex
Estudo Acústica em uma Laje Nervurada Atex

Apresentação Atex
Apresentação AtexApresentação Atex
Apresentação Atex

Apresentação Atex Norma Acustica e Incêndio
Apresentação Atex Norma Acustica e IncêndioApresentação Atex Norma Acustica e Incêndio
Apresentação Atex Norma Acustica e Incêndio

Reportagem sobre Processo Construtivo de Lajes
Reportagem sobre Processo Construtivo de LajesReportagem sobre Processo Construtivo de Lajes
Reportagem sobre Processo Construtivo de Lajes

Palestra Técnica sobre Laje Nervurada com moldes recuperáveis
Palestra Técnica sobre Laje Nervurada com moldes recuperáveisPalestra Técnica sobre Laje Nervurada com moldes recuperáveis
Palestra Técnica sobre Laje Nervurada com moldes recuperáveis

Catálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada
Catálogo 2011 Atex do Brasil - A Fôrma da Laje NervuradaCatálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada
Catálogo 2011 Atex do Brasil - A Fôrma da Laje Nervurada


Recently uploaded

CSM Cloud Service Management Presentarion
CSM Cloud Service Management PresentarionCSM Cloud Service Management Presentarion
CSM Cloud Service Management Presentarion
rpskprasana

ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
Mukeshwaran Balu

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
Victor Morales

ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024
Rahul

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Christina Lin

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdfIron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
RadiNasr

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring
IJECEIAES

[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf
[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf
[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf
awadeshbabu

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

digital fundamental by Thomas L.floydl.pdf
digital fundamental by Thomas L.floydl.pdfdigital fundamental by Thomas L.floydl.pdf
digital fundamental by Thomas L.floydl.pdf
drwaing

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms
heavyhaig

bank management system in java and mysql report1.pdf
bank management system in java and mysql report1.pdfbank management system in java and mysql report1.pdf
bank management system in java and mysql report1.pdf
Divyam548318

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources
mahammadsalmanmech

PPT on GRP pipes manufacturing and testing
PPT on GRP pipes manufacturing and testingPPT on GRP pipes manufacturing and testing
PPT on GRP pipes manufacturing and testing
anoopmanoharan2

Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...
IJECEIAES

Literature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptxLiterature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptx
Dr Ramhari Poudyal

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Hitesh Mohapatra

CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECTCHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
jpsjournal1


Recently uploaded (20)

CSM Cloud Service Management Presentarion
CSM Cloud Service Management PresentarionCSM Cloud Service Management Presentarion
CSM Cloud Service Management Presentarion

ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...

KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsKuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions

ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdfIron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf
Iron and Steel Technology Roadmap - Towards more sustainable steelmaking.pdf

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring

[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf
[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf
[JPP-1] - (JEE 3.0) - Kinematics 1D - 14th May..pdf

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

digital fundamental by Thomas L.floydl.pdf
digital fundamental by Thomas L.floydl.pdfdigital fundamental by Thomas L.floydl.pdf
digital fundamental by Thomas L.floydl.pdf

Technical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prismsTechnical Drawings introduction to drawing of prisms
Technical Drawings introduction to drawing of prisms

bank management system in java and mysql report1.pdf
bank management system in java and mysql report1.pdfbank management system in java and mysql report1.pdf
bank management system in java and mysql report1.pdf

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources

PPT on GRP pipes manufacturing and testing
PPT on GRP pipes manufacturing and testingPPT on GRP pipes manufacturing and testing
PPT on GRP pipes manufacturing and testing

Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...

Literature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptxLiterature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptx

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content

CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECTCHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT
CHINA’S GEO-ECONOMIC OUTREACH IN CENTRAL ASIAN COUNTRIES AND FUTURE PROSPECT

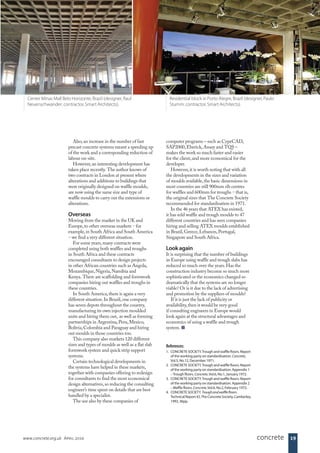

Concrete Magazine´s article about Waffle Slab

  • 1. I n December 1971, The Concrete Society published a working party paper(1–3) on the proposed standardisation of waffle floors and trough floors. This proposed a module of 600 and 900mm rib centres for waffle slabs and 600mm rib centres for trough slabs. This recommended standardisation was generally accepted in the UK construction industry at that time. In the early days of the use of these Standards,the manufacturers of the moulds – mostly scaffolding and formwork companies – had the moulds produced with narrow flanges on two opposing sides of the moulds, to allow the moulds to be used on a quick- strip,drop head system held on their support systems. As most of the moulds were produced by injection moulded polypropylene,the life of the moulds was much longer and reuses could be counted in the hundreds,so hiring a complete package of moulds and support systems became very popular. Over the years,this changed in many countries and the demands of contractors for moulds with wide flanges on all sides increased. This allowed contractors to hire the moulds only and use whatever support system they had,be it timber hit-and-miss planks or complete flat decking. In 1992, The Concrete Society published Technical Report 42(4) . This report was an update from the 1971 report and having had 20 years’experience is,in fact,a work manual of the practical uses of trough and waffle slabs. The report also mentions the different types of materials used then and now for the manufacture of moulds and the different sizes that can now be produced to meet special needs. With all the gathered knowledge,this change,in certain countries,has led to the manufacture of both waffle and trough moulds with full flanges all round and an increase in the number of units available. Also,there have been changes in the ways to vary the lengths of trough units to fill a variety of span lengths. These variations have included telescopic pieces,bridging pieces and infill sleeves,as well as longer length troughs of up to 1125mm. They have also led to an increase in the number and type of units available for hire to the contractor. Since 1971,use in the UK of waffle and troughs reached a peak and then slowly declined,until now there are few buildings using the systems. This has happened for a combination of reasons.In the early days,the scaffolding and formwork companies had many salespeople on the road introducing the systems to consulting engineers and this had a positive effect on the number of contracts using the systems.However,as the scaffolding and formwork companies were badly effected by the depression,they let go of many of these salespeople,so fewer consultants were reminded of the advantages of the systems. Trough and waffle floors Above: Edge gymnasium in São Paulo, Brazil (designer, Casimiro Fernandes; contractor, Alves Barcelos Construction). (Photo: Marcelo Donadussi.) A residential block in the Czech Republic (contractor: Uninox). Duringthepast63years,AlanCokerofATEXhasspenthisworkinglifeinvolved intheformingofholesorvoidsofdifferenttypesandsizesinconcrete.Firstwith rubbertubesfrom20mmto2mindiameter,thensteelovalsectionsofdifferent sizesandmovingontosteeltroughformsofdifferentdepths.Allthisexperience wasinvaluableforwhatwastofollow. 18 www.concrete.org.ukconcrete
  • 2. Also,an increase in the number of fast precast concrete systems meant a speeding up of the work and a corresponding reduction of labour on-site. However,an interesting development has taken place recently. The author knows of two contracts in London at present where alterations and additions to buildings that were originally designed on waffle moulds, are now using the same size and type of waffle moulds to carry out the extensions or alterations. Overseas Moving from the market in the UK and Europe,to other overseas markets – for example,in South Africa and South America – we find a very different situation. For some years,many contracts were completed using both waffles and troughs in South Africa and these contracts encouraged consultants to design projects in other African countries such as Angola, Mozambique,Nigeria,Namibia and Kenya. There are scaffolding and formwork companies hiring out waffles and troughs in these countries. In South America,there is again a very different situation.In Brazil,one company has seven depots throughout the country, manufacturing its own injection moulded units and hiring them out, as well as forming partnerships in Argentina,Peru,Mexico, Bolivia,Colombia and Paraguay and hiring out moulds in those countries too. This company also markets 120 different sizes and types of moulds as well as a flat slab formwork system and quick strip support systems. Certain technological developments in the systems have helped in these markets, together with companies offering to redesign for consultants to find the most economical design alternatives,so reducing the consulting engineer’s time spent on details that are best handled by a specialist. The use also by these companies of computer programs – such as CypeCAD, SAP2000,Eberick,Anasy and TQS – makes the work so much faster and easier for the client,and more economical for the developer. However,it is worth noting that with all the developments in the sizes and variation of moulds available,the basic dimensions in most countries are still 900mm rib centres for waffles and 600mm for troughs – that is, the original sizes that The Concrete Society recommended for standardisation in 1971. In the 46 years that ATEX has existed, it has sold waffle and trough moulds to 47 different countries and has seen companies hiring and selling ATEX moulds established in Brazil,Greece,Lebanon,Portugal, Singapore and South Africa. Lookagain It is surprising that the number of buildings in Europe using waffle and trough slabs has reduced so much over the years.Has the construction industry become so much more sophisticated or the economics changed so dramatically that the systems are no longer viable? Or is it due to the lack of advertising and promotion by the suppliers of moulds? If it is just the lack of publicity or availability,then it would be very good if consulting engineers in Europe would look again at the structural advantages and economics of using a waffle and trough system. ■ References: 1. CONCRETE SOCIETY.Trough and waffle floors. Report of the working party on standardisation. Concrete, Vol.5, No.12, December 1971. 2. CONCRETE SOCIETY.Trough and waffle floors. Report of the working party on standardisation. Appendix 1 –Trough floors. Concrete,Vol.6, No.1, January 1972. 3. CONCRETE SOCIETY.Trough and waffle floors. Report of the working party on standardisation. Appendix 2 –Waffle floors. Concrete,Vol.6, No.2, February 1972. 4. CONCRETE SOCIETY. Troughandwafflefloors. Technical Report 42,The Concrete Society,Camberley, 1992,36pp. Center Minas Mall Belo Horizonte, Brazil (designer, Raul Neuenschwander; contractor, Smart Architects). Residential block in Porto Alegre, Brazil (designer, Paulo Stumm; contractor, Smart Architects). www.concrete.org.uk concrete 19
