Computer Science Large Practical coursework

Computer Science Large Practical

Stephen Gilmore

School of Informatics

Friday 28th September, 2012

Stephen Gilmore (School of Informatics) Computer Science Large Practical Friday 28th September, 2012 1 / 45

Introduction

The requirement for the Computer Science Large Practical is to
create a command-line application implemented in Objective-C.
The purpose of the application is to implement a stochastic
discrete-event simulator for chemical reactions.

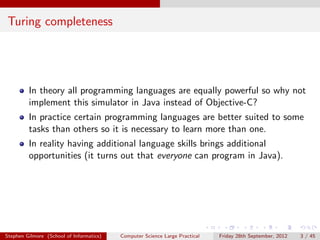

Turing completeness

In theory all programming languages are equally powerful so why not
implement this simulator in Java instead of Objective-C?
In practice certain programming languages are better suited to some
tasks than others so it is necessary to learn more than one.
In reality having additional language skills brings additional
opportunities (it turns out that everyone can program in Java).


Simulation

Stochastic simulation is an important tool to help understand the
chemical and biochemical processes which are constantly underway in
all living things.
Simulation is leading the way in scientific breakthroughs in medicine,
farming and veterinary science, with demonstrable benefits for the
health and wellbeing of humans, plants and animals.
Simulation is important in many other fields also, such as aerospace,
transport, logistics, healthcare, and many others.


Chemical reactions

Chemical reactions change the concentration of chemical species such
as proteins because molecules are created, altered, combined, broken
apart, or destroyed.
The simulation of these processes takes place one reaction event at a
time.
The simulation tracks the number of molecules of each species and
terminates when no other reaction can ﬁre, or when a pre-deﬁned
simulation end-time has been reached.

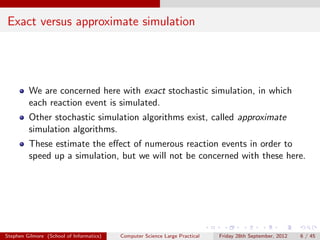

Exact versus approximate simulation

We are concerned here with exact stochastic simulation, in which
each reaction event is simulated.
Other stochastic simulation algorithms exist, called approximate
simulation algorithms.
These estimate the eﬀect of numerous reaction events in order to
speed up a simulation, but we will not be concerned with these here.

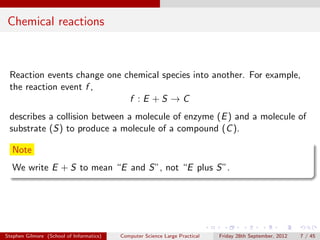

Chemical reactions

Reaction events change one chemical species into another. For example,
the reaction event f ,
f :E +S →C
describes a collision between a molecule of enzyme (E ) and a molecule of
substrate (S) to produce a molecule of a compound (C ).

Note
We write E + S to mean “E and S”, not “E plus S”.

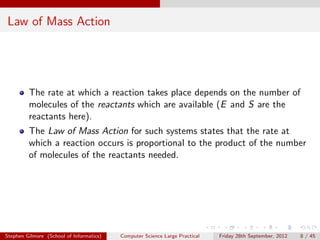

Law of Mass Action

The rate at which a reaction takes place depends on the number of
molecules of the reactants which are available (E and S are the
reactants here).
The Law of Mass Action for such systems states that the rate at
which a reaction occurs is proportional to the product of the number
of molecules of the reactants needed.

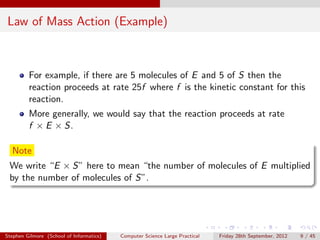

Law of Mass Action (Example)

For example, if there are 5 molecules of E and 5 of S then the
reaction proceeds at rate 25f where f is the kinetic constant for this
reaction.
More generally, we would say that the reaction proceeds at rate
f × E × S.

Note
We write “E × S” here to mean “the number of molecules of E multiplied
by the number of molecules of S”.

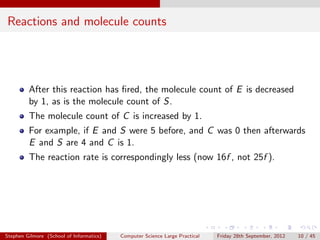

Reactions and molecule counts

After this reaction has ﬁred, the molecule count of E is decreased
by 1, as is the molecule count of S.
The molecule count of C is increased by 1.
For example, if E and S were 5 before, and C was 0 then afterwards
E and S are 4 and C is 1.
The reaction rate is correspondingly less (now 16f , not 25f ).


Molecule counts can never become negative

Note that this means that when any reactant is exhausted
(e.g. S = 0) then the reaction cannot ﬁre.
The rate f × E × S is 0, because of the multiplication
Thus, molecule counts can never become negative.

Note
If your simulator generates negative molecule numbers on any simulation
run then you have a bug in your simulator.


Compounds can break apart

Having formed, compounds can break apart again. For example, the
reaction event b,
b :C →E +S
describes a molecule of C breaking up into a molecule of E and a molecule
of S.

Law of Mass Action
This time C is the reactant and the Law of Mass Action states that this
reaction proceeds at rate b × C , where b is the kinetic constant for this
reaction.

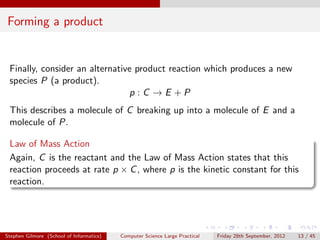

Forming a product

Finally, consider an alternative product reaction which produces a new
species P (a product).
p :C →E +P
This describes a molecule of C breaking up into a molecule of E and a
molecule of P.

Law of Mass Action
Again, C is the reactant and the Law of Mass Action states that this
reaction proceeds at rate p × C , where p is the kinetic constant for this
reaction.

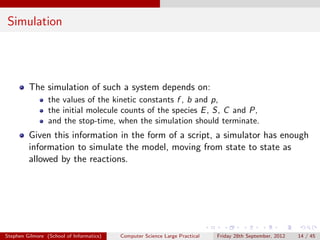

Simulation

The simulation of such a system depends on:
the values of the kinetic constants f , b and p,
the initial molecule counts of the species E , S, C and P,
and the stop-time, when the simulation should terminate.
Given this information in the form of a script, a simulator has enough
information to simulate the model, moving from state to state as
allowed by the reactions.

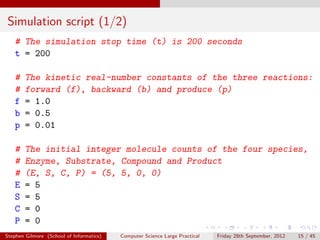

Simulation script (1/2)
# The simulation stop time (t) is 200 seconds
t = 200

# The kinetic real-number constants of the three reactions:
# forward (f), backward (b) and produce (p)
f = 1.0
b = 0.5
p = 0.01

# The initial integer molecule counts of the four species,
# Enzyme, Substrate, Compound and Product
# (E, S, C, P) = (5, 5, 0, 0)
E = 5
S = 5
C = 0
P = 0

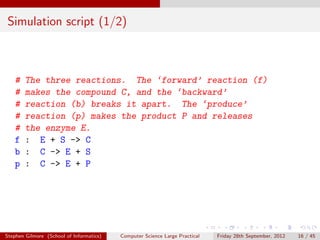

Simulation script (1/2)

# The three reactions. The ‘forward’ reaction (f)
# makes the compound C, and the ‘backward’
# reaction (b) breaks it apart. The ‘produce’
# reaction (p) makes the product P and releases
# the enzyme E.
f : E + S -> C
b : C -> E + S
p : C -> E + P

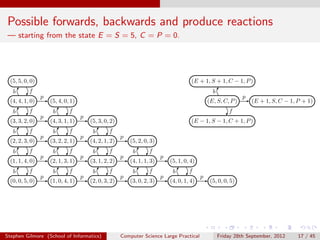

Possible forwards, backwards and produce reactions
— starting from the state E = S = 5, C = P = 0.

(5, 5, 0, 0) (E + 1, S + 1, C − 1, P )
b f b
p p
(4, 4, 1, 0) (5, 4, 0, 1) (E, S, C, P ) (E + 1, S, C − 1, P + 1)
b f b f f
p p
(3, 3, 2, 0) (4, 3, 1, 1) (5, 3, 0, 2) (E − 1, S − 1, C + 1, P )
b f b f b f
p p p
(2, 2, 3, 0) (3, 2, 2, 1) (4, 2, 1, 2) (5, 2, 0, 3)
b f b f b f b f
p p p p
(1, 1, 4, 0) (2, 1, 3, 1) (3, 1, 2, 2) (4, 1, 1, 3) (5, 1, 0, 4)
b f b f b f b f b f
p p p p p
(0, 0, 5, 0) (1, 0, 4, 1) (2, 0, 3, 2) (3, 0, 2, 3) (4, 0, 1, 4) (5, 0, 0, 5)

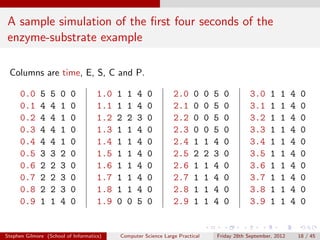

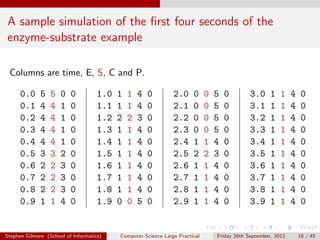

A sample simulation of the ﬁrst four seconds of the
enzyme-substrate example

Columns are time, E, S, C and P.

0.0 5 5 0 0 1.0 1 1 4 0 2.0 0 0 5 0 3.0 1 1 4 0
0.1 4 4 1 0 1.1 1 1 4 0 2.1 0 0 5 0 3.1 1 1 4 0
0.2 4 4 1 0 1.2 2 2 3 0 2.2 0 0 5 0 3.2 1 1 4 0
0.3 4 4 1 0 1.3 1 1 4 0 2.3 0 0 5 0 3.3 1 1 4 0
0.4 4 4 1 0 1.4 1 1 4 0 2.4 1 1 4 0 3.4 1 1 4 0
0.5 3 3 2 0 1.5 1 1 4 0 2.5 2 2 3 0 3.5 1 1 4 0
0.6 2 2 3 0 1.6 1 1 4 0 2.6 1 1 4 0 3.6 1 1 4 0
0.7 2 2 3 0 1.7 1 1 4 0 2.7 1 1 4 0 3.7 1 1 4 0
0.8 2 2 3 0 1.8 1 1 4 0 2.8 1 1 4 0 3.8 1 1 4 0
0.9 1 1 4 0 1.9 0 0 5 0 2.9 1 1 4 0 3.9 1 1 4 0


Plotting the simulation output as a time-series plot
— initially (5, 5, 0, 0)

5

4

3
molecule count

E
S
C
P
2

1

0
0 50 100 150 200
time


The problem with randomness
How do you know when you’ve got it right?

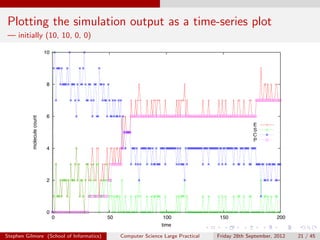

— initially (10, 10, 0, 0)

10

8

6
molecule count

E
S
C
P
4

2

0
0 50 100 150 200
time

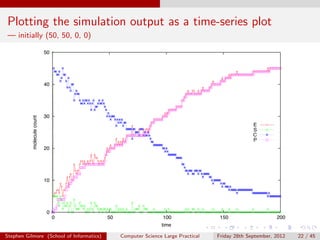

— initially (50, 50, 0, 0)

50

40

30
molecule count

E
S
C
P
20

10

0
0 50 100 150 200
time

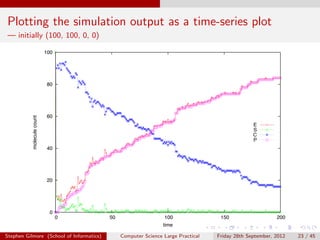

— initially (100, 100, 0, 0)

100

80

60
molecule count

E
S
C
P
40

20

0
0 50 100 150 200
time


— initially (500, 500, 0, 0)

500

400

300
molecule count

E
S
C
P
200

100

0
0 50 100 150 200
time

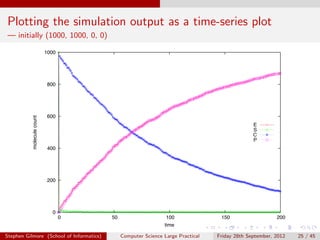

— initially (1000, 1000, 0, 0)

1000

800

600
molecule count

E
S
C
P
400

200

0
0 50 100 150 200
time


— initially (5000, 5000, 0, 0)

5000

4000

3000
molecule count

E
S
C
P
2000

1000

0
0 50 100 150 200
time


— initially (10000, 10000, 0, 0)

10000

8000

6000
molecule count

E
S
C
P
4000

2000

0
0 50 100 150 200
time

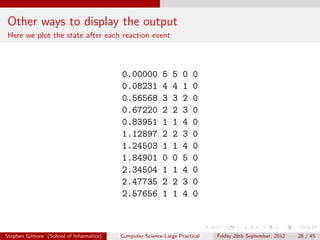

Other ways to display the output
Here we plot the state after each reaction event

0.00000 5 5 0 0
0.08231 4 4 1 0
0.56568 3 3 2 0
0.67220 2 2 3 0
0.83951 1 1 4 0
1.12897 2 2 3 0
1.24503 1 1 4 0
1.84901 0 0 5 0
2.34504 1 1 4 0
2.47735 2 2 3 0
2.57656 1 1 4 0


Removing molecules

In addition to the kinds of reactions we have seen so far, chemical species
can decay, or otherwise be removed from the simulation.

d :X →

The molecule count of species X is decreased by 1 when this reaction ﬁres,
and no other species count is changed.

Reaction rate
The reaction proceeds at rate d × X .

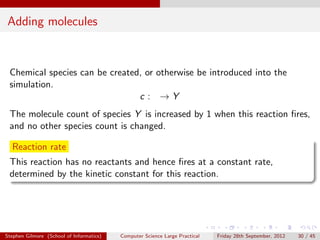

Adding molecules

Chemical species can be created, or otherwise be introduced into the
simulation.
c : →Y
The molecule count of species Y is increased by 1 when this reaction ﬁres,
and no other species count is changed.

Reaction rate
This reaction has no reactants and hence ﬁres at a constant rate,
determined by the kinetic constant for this reaction.


Types of reactions considered

In this practical we will never be concerned with reactions which
involve a collision between more than two molecules.
Tri-molecular collisions occur only vanishingly rarely in dilute ﬂuids.
Hence, the number of reactants which a reaction has will either be
zero, or one, or two.
Similarly, the number of chemical species produced by a reaction will
either be zero, or one, or two.

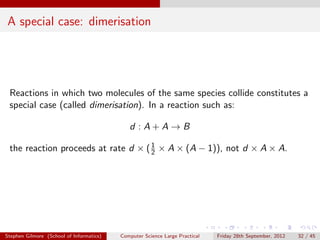

A special case: dimerisation

Reactions in which two molecules of the same species collide constitutes a
special case (called dimerisation). In a reaction such as:

d :A+A→B

the reaction proceeds at rate d × ( 1 × A × (A − 1)), not d × A × A.
2

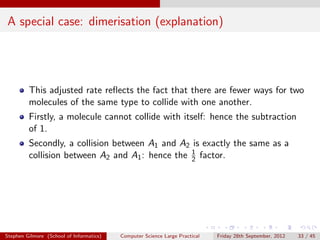

A special case: dimerisation (explanation)

This adjusted rate reﬂects the fact that there are fewer ways for two
molecules of the same type to collide with one another.
Firstly, a molecule cannot collide with itself: hence the subtraction
of 1.
Secondly, a collision between A1 and A2 is exactly the same as a
collision between A2 and A1 : hence the 1 factor.
2

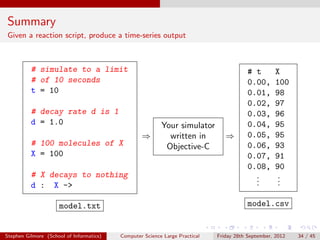

Summary
Given a reaction script, produce a time-series output

# simulate to a limit # t X
# of 10 seconds 0.00, 100
t = 10 0.01, 98
0.02, 97
# decay rate d is 1 0.03, 96
d = 1.0 Your simulator 0.04, 95
⇒ written in ⇒ 0.05, 95
# 100 molecules of X Objective-C 0.06, 93
X = 100 0.07, 91
0.08, 90
# X decays to nothing .
. .
.
d : X -> . .

model.txt model.csv


Requirements (1/2)

It should be possible to read and parse a reaction script
Reaction scripts can be formatted with comments and blank lines
Comments are indicated by a hash symbol (# ) and continue until the
end of the line
It should be possible to specify the simulation stop-time, reaction
kinetic constants and species initial concentrations
The simulation stop-time is always denoted by t
Reaction kinetic constants are positive real values and their identiﬁers
always begin with a lowercase letter (e.g. a, b, c, . . . , but not t, which
is reserved).

Species initial molecule counts are non-negative integer values and their
identiﬁers always begin with an uppercase letter (e.g. A, B, C, . . . ).

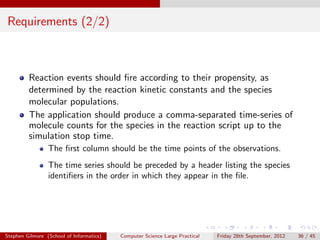

Requirements (2/2)

Reaction events should fire according to their propensity, as
determined by the reaction kinetic constants and the species
molecular populations.
The application should produce a comma-separated time-series of
molecule counts for the species in the reaction script up to the
simulation stop time.
The first column should be the time points of the observations.
The time series should be preceded by a header listing the species
identifiers in the order in which they appear in the file.


Extra credit

The requirements listed in the section above illustrate the core
functionality which is required from your application.
A well engineered solution which addresses all of the above
requirements should expect to attract a very good or excellent mark.
Additional credit will be awarded for additional useful features which
are not on the above list.
Thus, if you have time remaining before the submission deadline and
you have already met all the requirements listed above then you can
attract additional marks by being creative, conceiving of new features
which can helpfully be added to the application, and implementing
these.

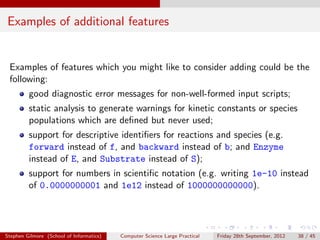

Examples of additional features

Examples of features which you might like to consider adding could be the
following:
good diagnostic error messages for non-well-formed input scripts;
static analysis to generate warnings for kinetic constants or species
populations which are defined but never used;
support for descriptive identifiers for reactions and species (e.g.
forward instead of f, and backward instead of b; and Enzyme
instead of E, and Substrate instead of S);
support for numbers in scientific notation (e.g. writing 1e-10 instead
of 0.0000000001 and 1e12 instead of 1000000000000).

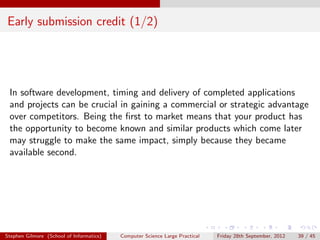

Early submission credit (1/2)

In software development, timing and delivery of completed applications
and projects can be crucial in gaining a commercial or strategic advantage
over competitors. Being the ﬁrst to market means that your product has
the opportunity to become known and similar products which come later
may struggle to make the same impact, simply because they became
available second.

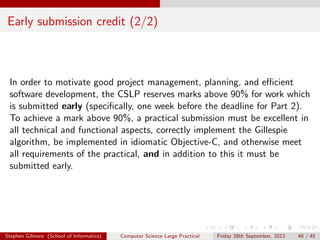

Early submission credit (2/2)

In order to motivate good project management, planning, and eﬃcient
software development, the CSLP reserves marks above 90% for work which
is submitted early (speciﬁcally, one week before the deadline for Part 2).
To achieve a mark above 90%, a practical submission must be excellent in
all technical and functional aspects, correctly implement the Gillespie
algorithm, be implemented in idiomatic Objective-C, and otherwise meet
all requirements of the practical, and in addition to this it must be
submitted early.

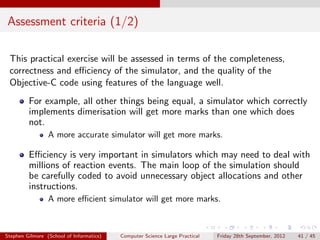

Assessment criteria (1/2)

This practical exercise will be assessed in terms of the completeness,
correctness and efficiency of the simulator, and the quality of the
Objective-C code using features of the language well.
For example, all other things being equal, a simulator which correctly
implements dimerisation will get more marks than one which does
not.
A more accurate simulator will get more marks.

Efficiency is very important in simulators which may need to deal with
millions of reaction events. The main loop of the simulation should
be carefully coded to avoid unnecessary object allocations and other
instructions.
A more efficient simulator will get more marks.

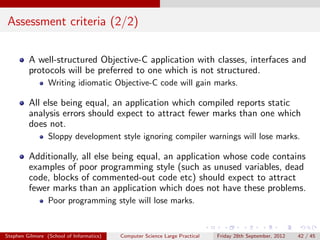

Assessment criteria (2/2)

A well-structured Objective-C application with classes, interfaces and
protocols will be preferred to one which is not structured.
Writing idiomatic Objective-C code will gain marks.

All else being equal, an application which compiled reports static
analysis errors should expect to attract fewer marks than one which
does not.
Sloppy development style ignoring compiler warnings will lose marks.

Additionally, all else being equal, an application whose code contains
examples of poor programming style (such as unused variables, dead
code, blocks of commented-out code etc) should expect to attract
fewer marks than an application which does not have these problems.
Poor programming style will lose marks.

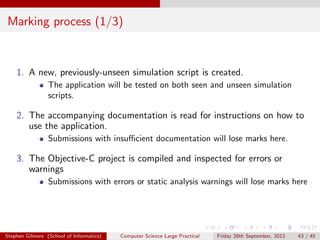

Marking process (1/3)

1. A new, previously-unseen simulation script is created.
The application will be tested on both seen and unseen simulation
scripts.

2. The accompanying documentation is read for instructions on how to
use the application.
Submissions with insuﬃcient documentation will lose marks here.

3. The Objective-C project is compiled and inspected for errors or
warnings
Submissions with errors or static analysis warnings will lose marks here

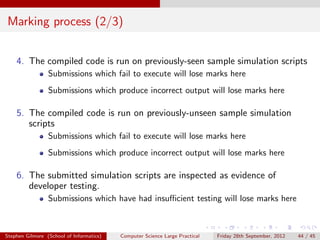

4. The compiled code is run on previously-seen sample simulation scripts
Submissions which fail to execute will lose marks here
Submissions which produce incorrect output will lose marks here

5. The compiled code is run on previously-unseen sample simulation
scripts
Submissions which fail to execute will lose marks here
Submissions which produce incorrect output will lose marks here

6. The submitted simulation scripts are inspected as evidence of
developer testing.
Submissions which have had insuﬃcient testing will lose marks here

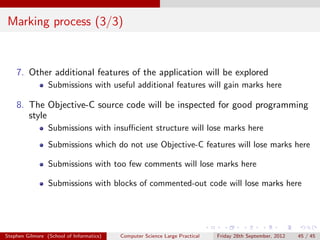

7. Other additional features of the application will be explored
Submissions with useful additional features will gain marks here

8. The Objective-C source code will be inspected for good programming
style
Submissions with insuﬃcient structure will lose marks here
Submissions which do not use Objective-C features will lose marks here

Submissions with too few comments will lose marks here

Submissions with blocks of commented-out code will lose marks here


Computer Science Large Practical coursework

More Related Content

Similar to Computer Science Large Practical coursework

More from Stephen Gilmore

Recently uploaded

Computer Science Large Practical coursework
