Lecture 1

AU/MITM/1.6 By Mohammed A. Saleh

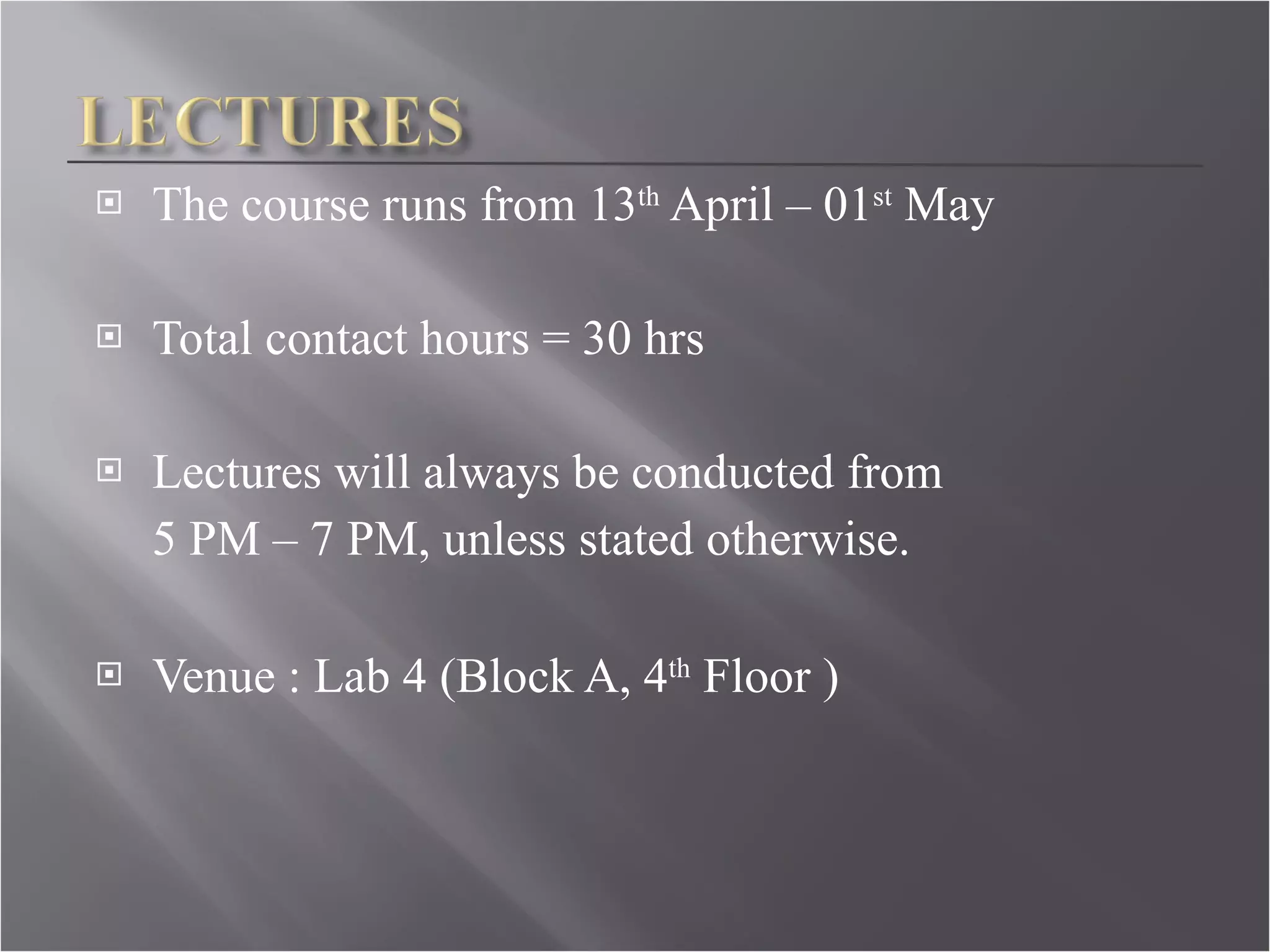

The course runs from 13 th April – 01 st May Total contact hours = 30 hrs Lectures will always be conducted from 5 PM – 7 PM, unless stated otherwise. Venue : Lab 4 (Block A, 4 th Floor )

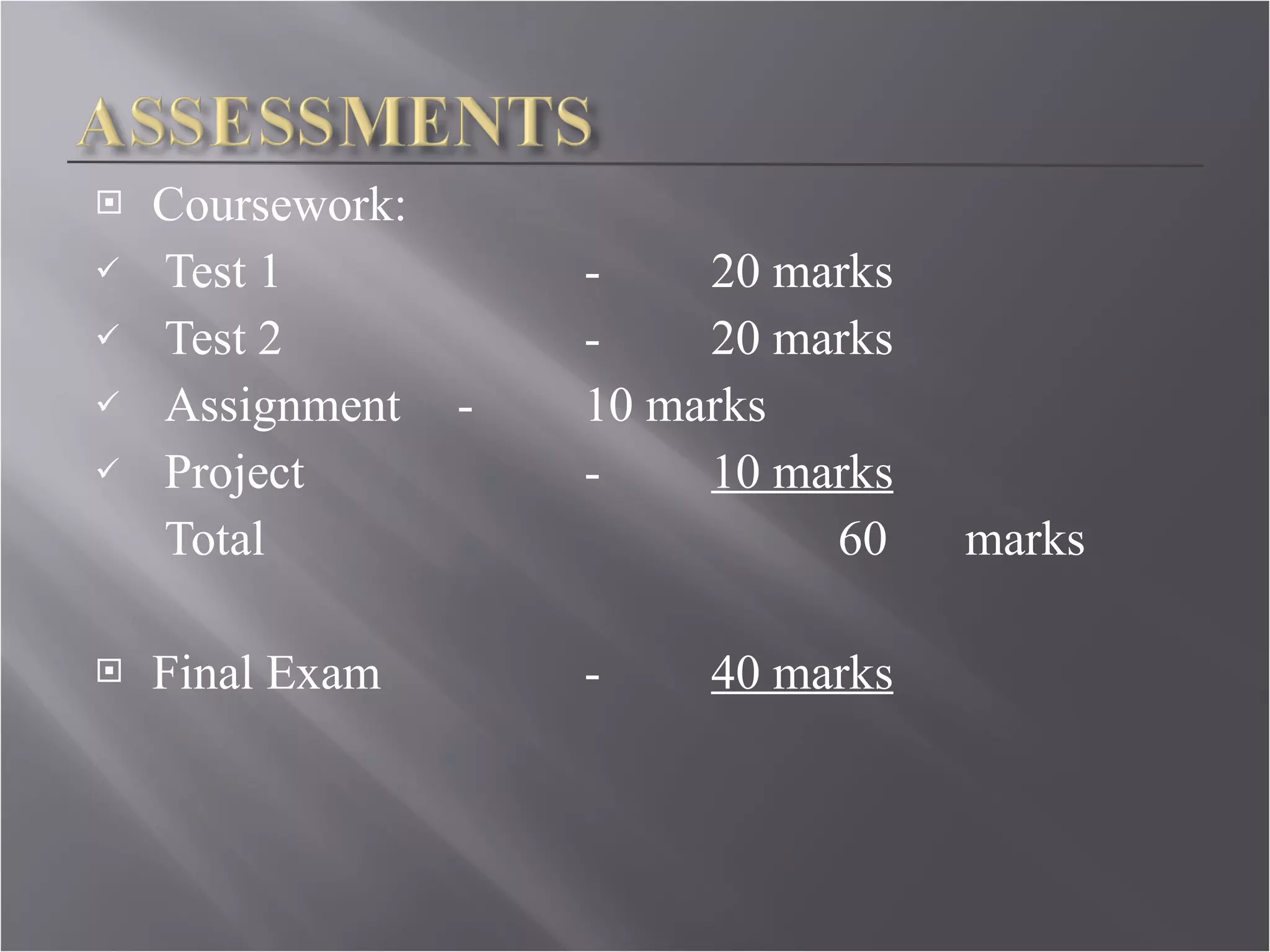

Coursework: Test 1 - 20 marks Test 2 - 20 marks Assignment - 10 marks Project - 10 marks Total 60 marks Final Exam - 40 marks

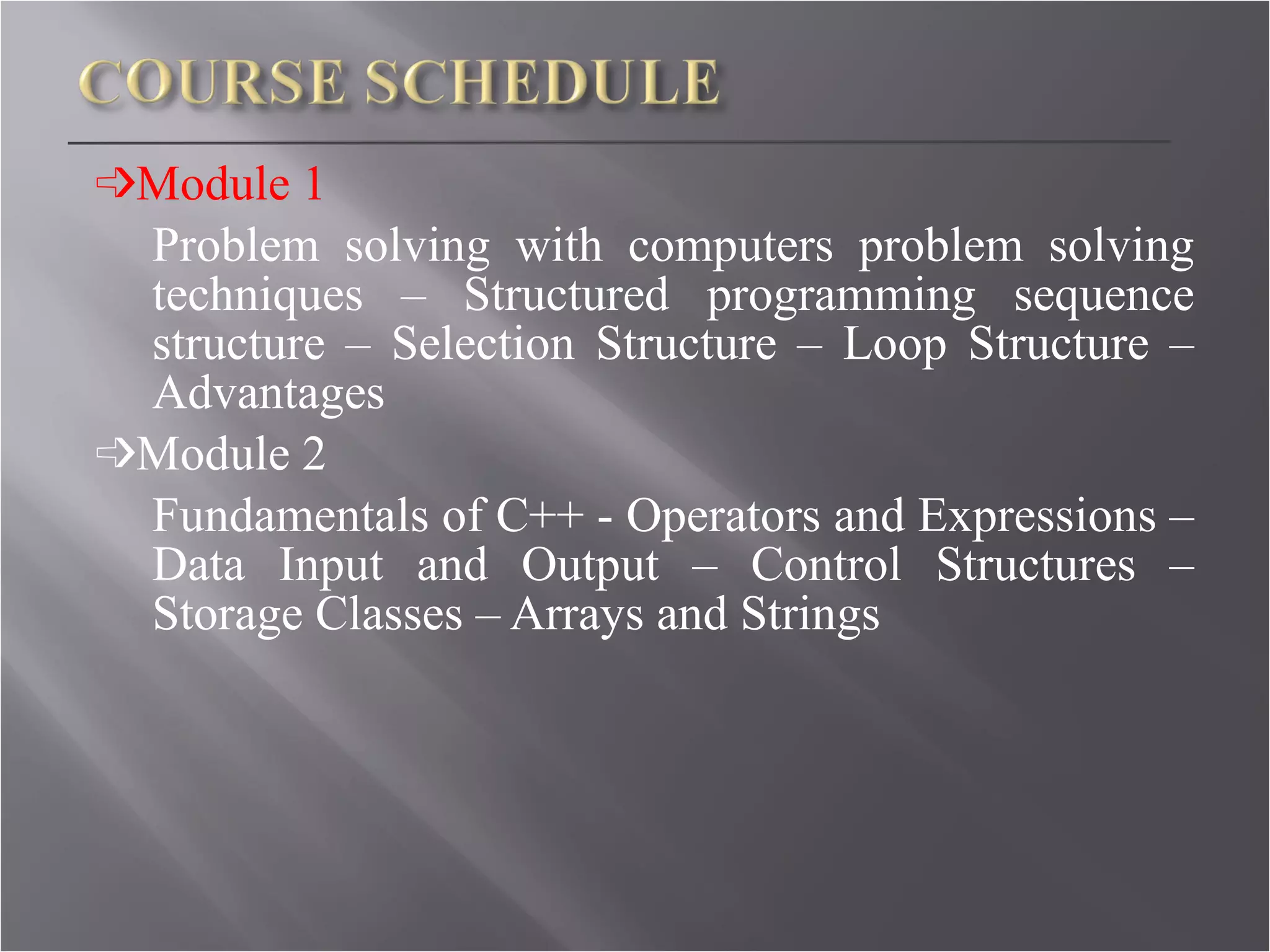

➩ Module 1 Problem solving with computers problem solving techniques – Structured programming sequence structure – Selection Structure – Loop Structure – Advantages ➩ Module 2 Fundamentals of C++ - Operators and Expressions – Data Input and Output – Control Structures – Storage Classes – Arrays and Strings

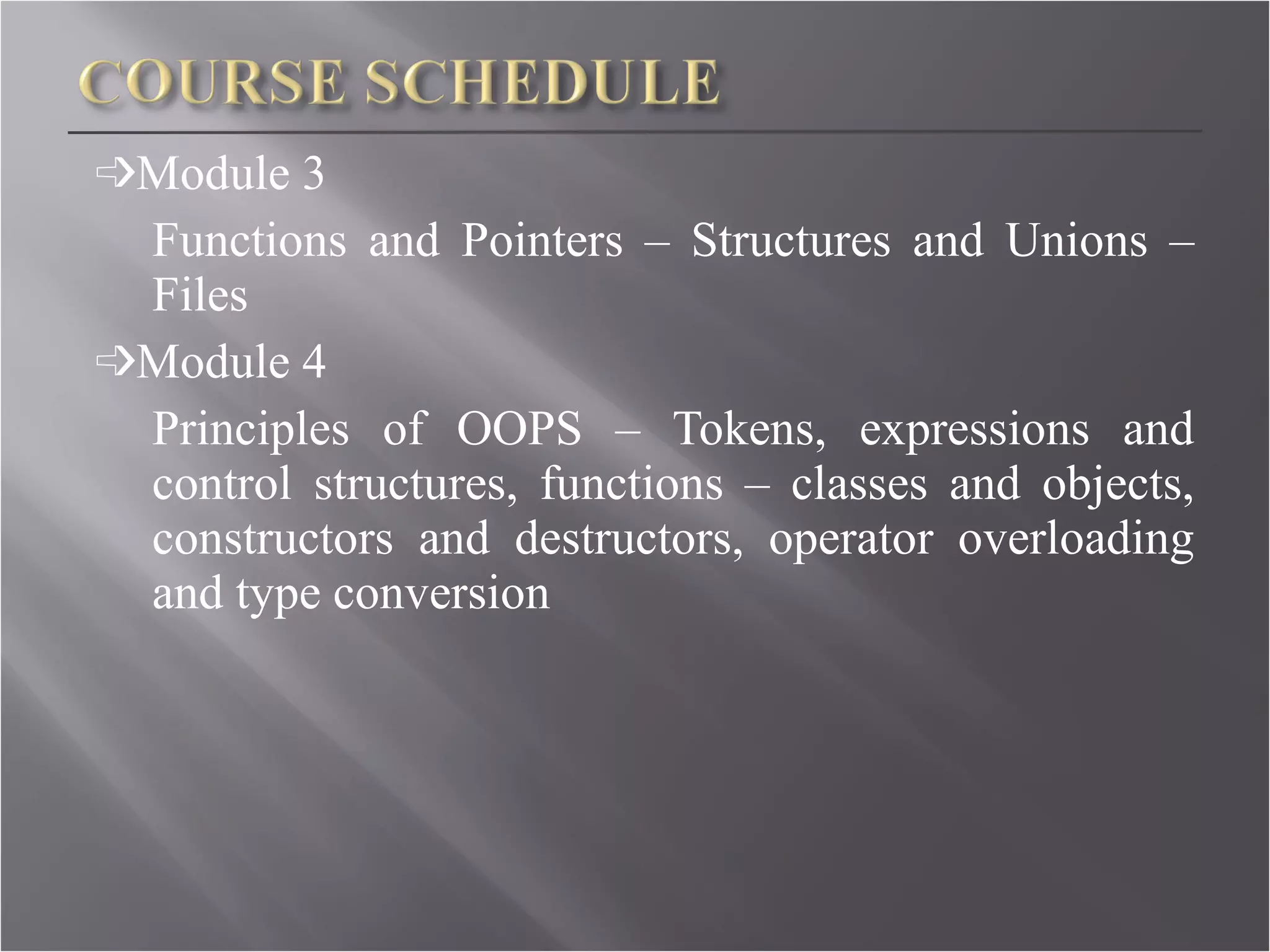

➩ Module 3 Functions and Pointers – Structures and Unions – Files ➩ Module 4 Principles of OOPS – Tokens, expressions and control structures, functions – classes and objects, constructors and destructors, operator overloading and type conversion

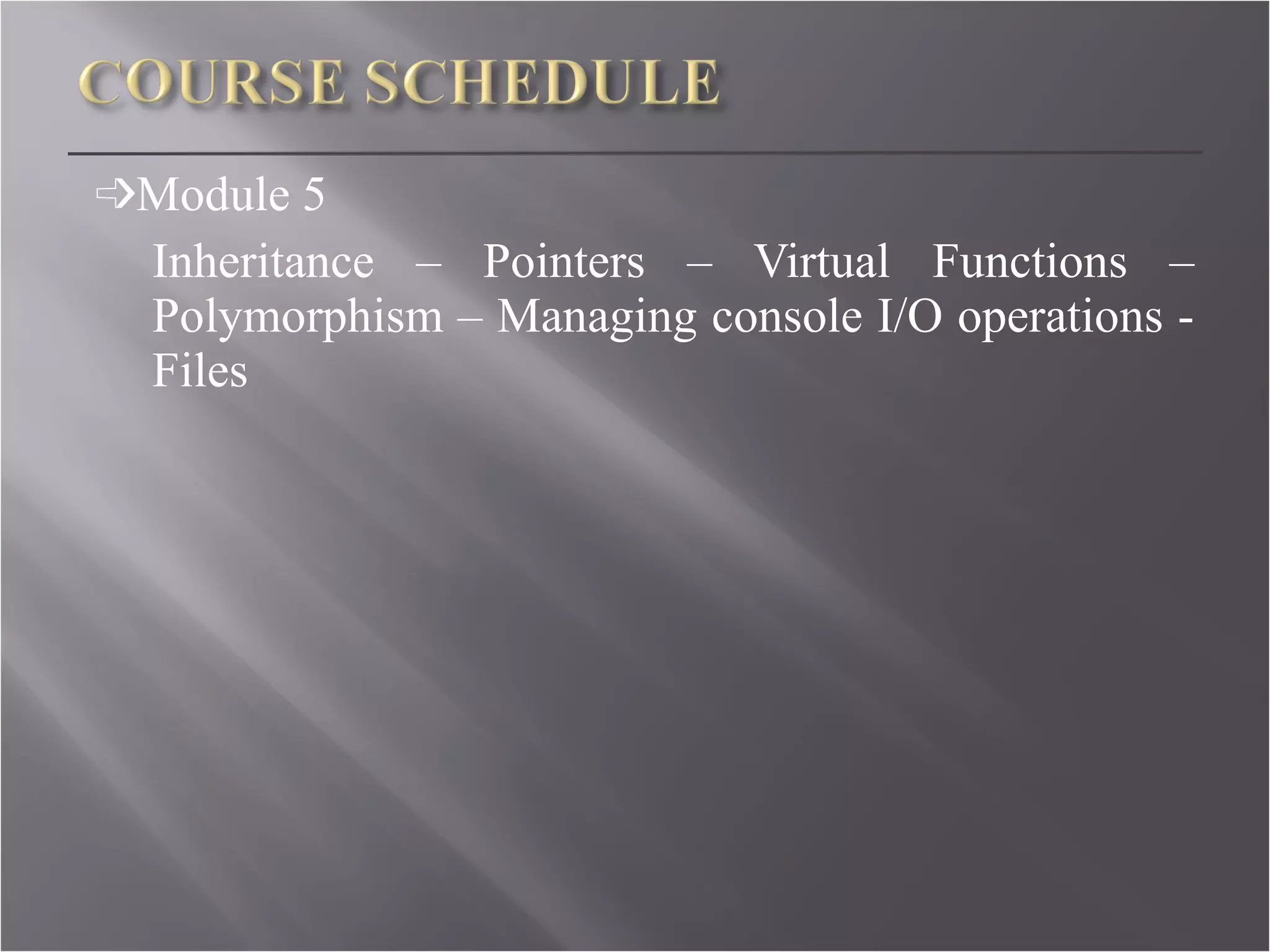

➩ Module 5 Inheritance – Pointers – Virtual Functions – Polymorphism – Managing console I/O operations - Files

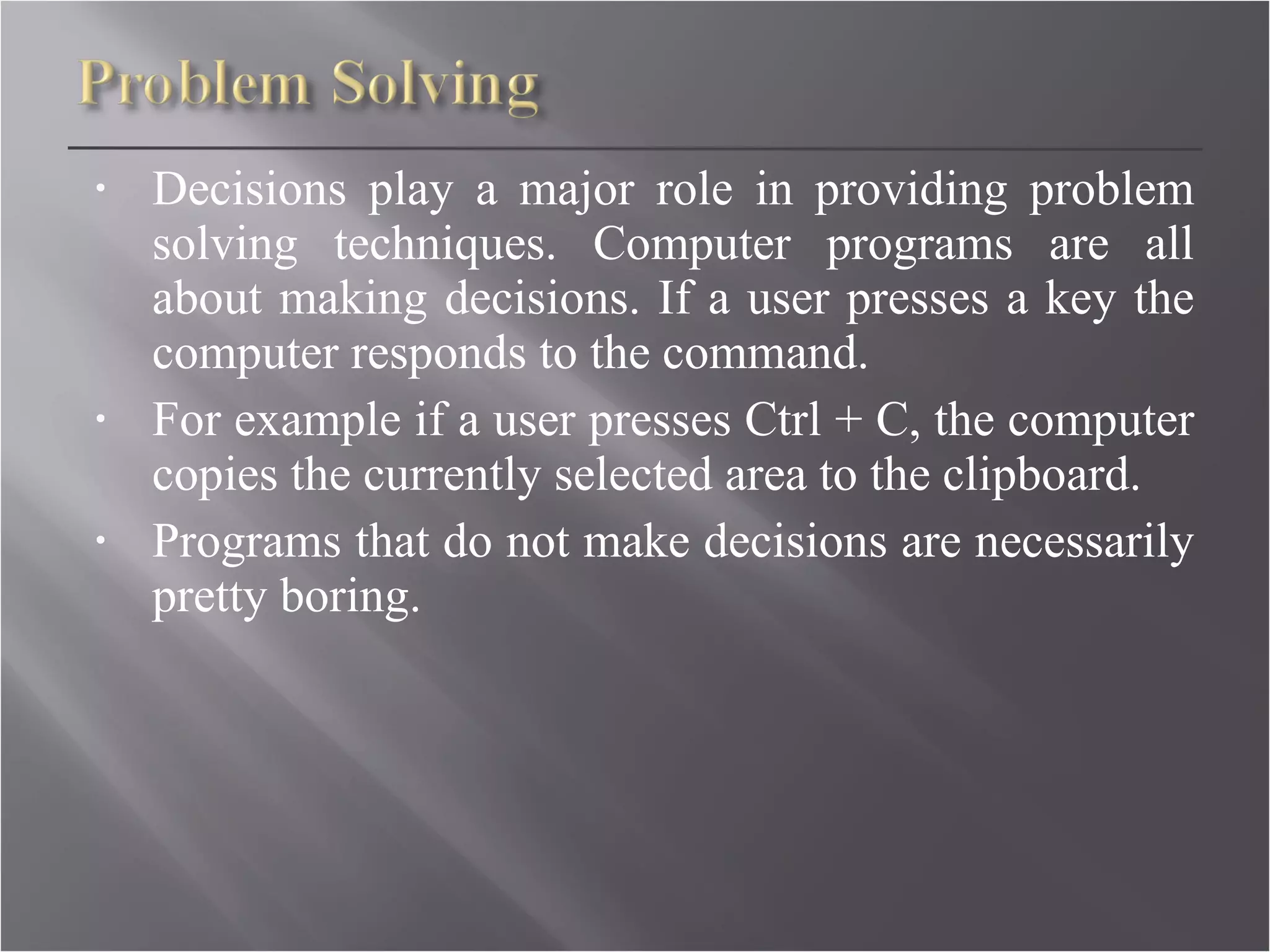

Decisions play a major role in providing problem solving techniques. Computer programs are all about making decisions. If a user presses a key the computer responds to the command. For example if a user presses Ctrl + C, the computer copies the currently selected area to the clipboard. Programs that do not make decisions are necessarily pretty boring.

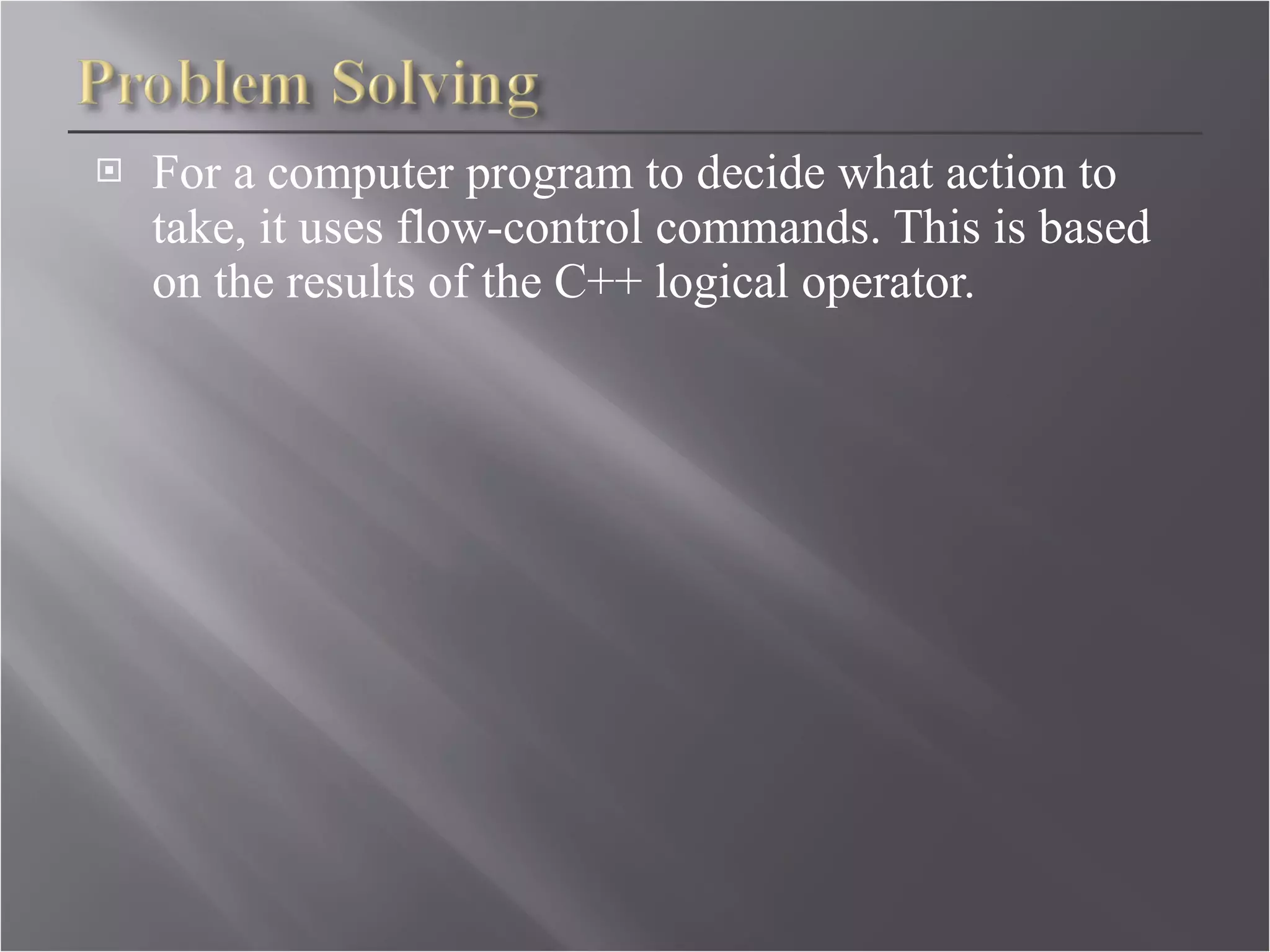

For a computer program to decide what action to take, it uses flow-control commands. This is based on the results of the C++ logical operator.

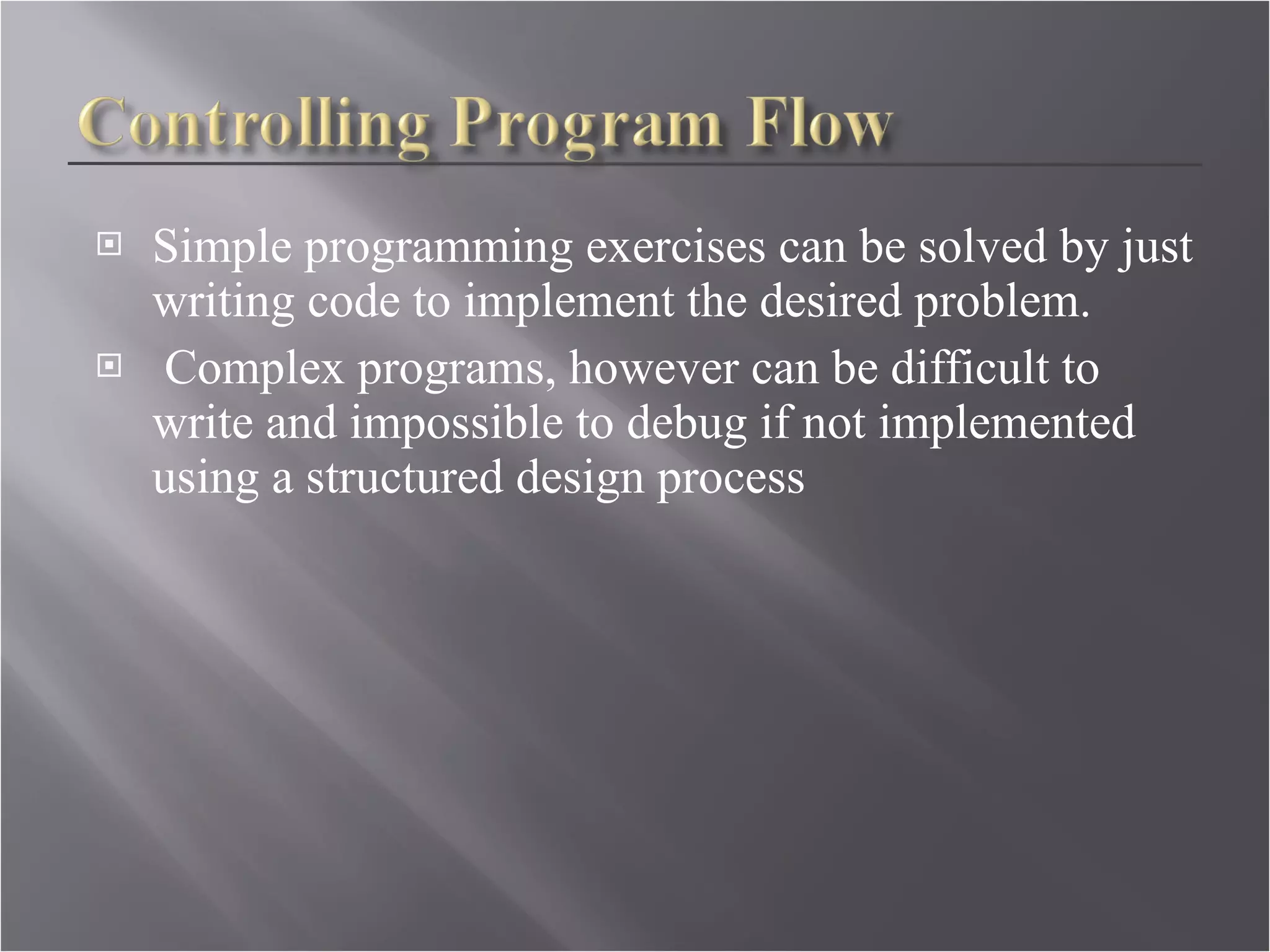

Simple programming exercises can be solved by just writing code to implement the desired problem. Complex programs, however can be difficult to write and impossible to debug if not implemented using a structured design process

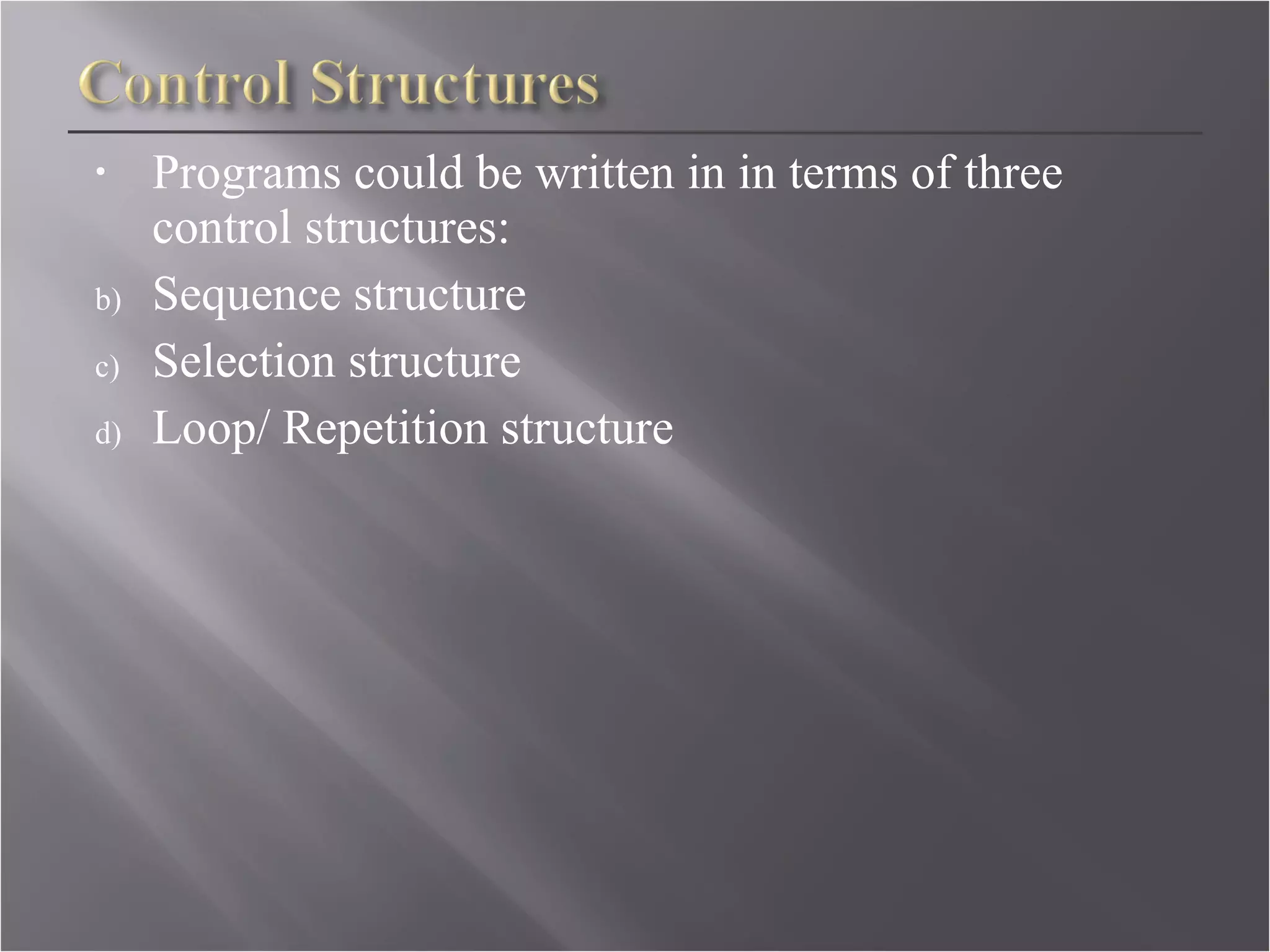

Programs could be written in in terms of three control structures: Sequence structure Selection structure Loop/ Repetition structure

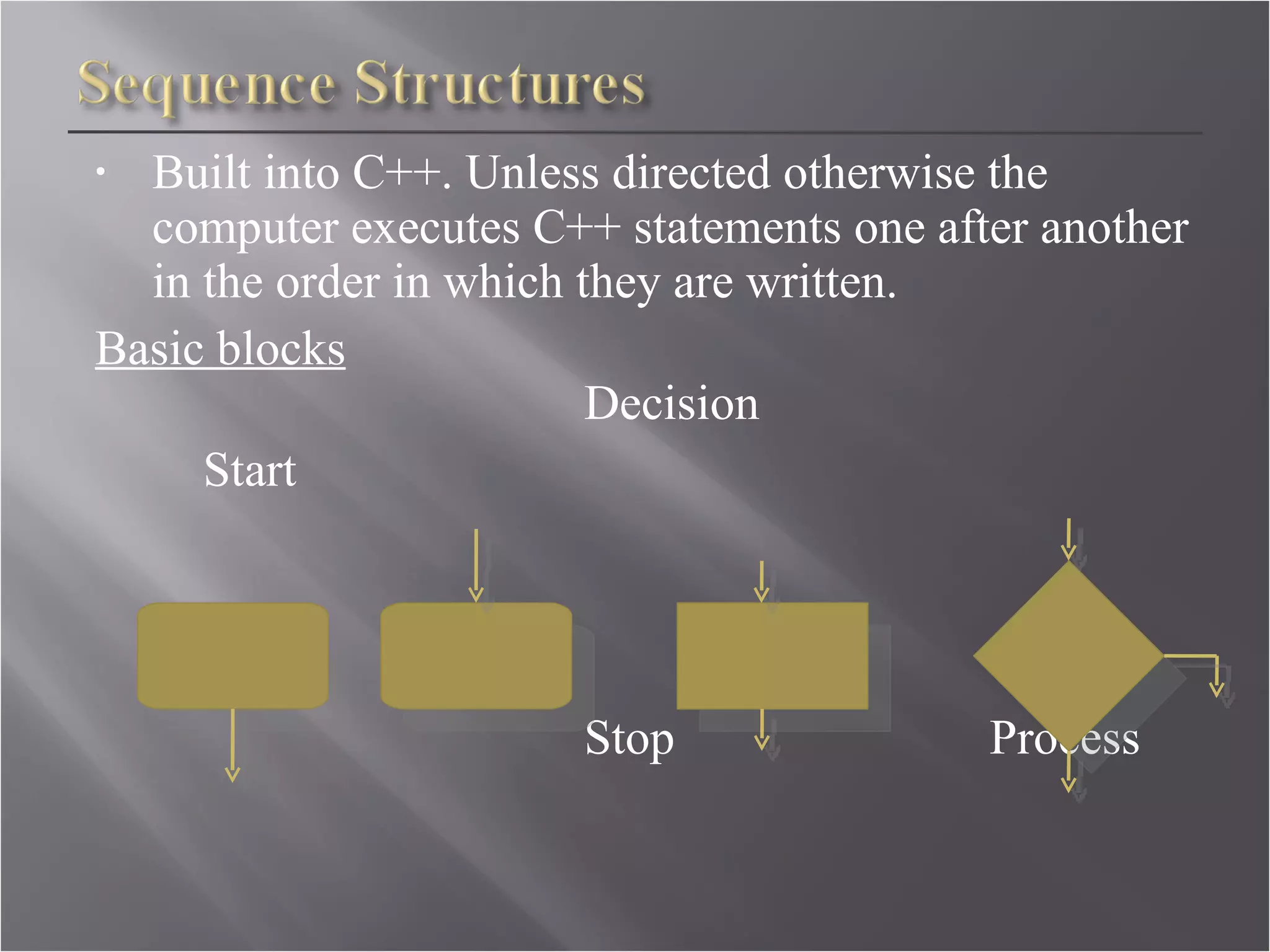

Built into C++. Unless directed otherwise the computer executes C++ statements one after another in the order in which they are written. Basic blocks Decision Start Stop Process

Basic structure Figure 1.0: SEQUENCE structure

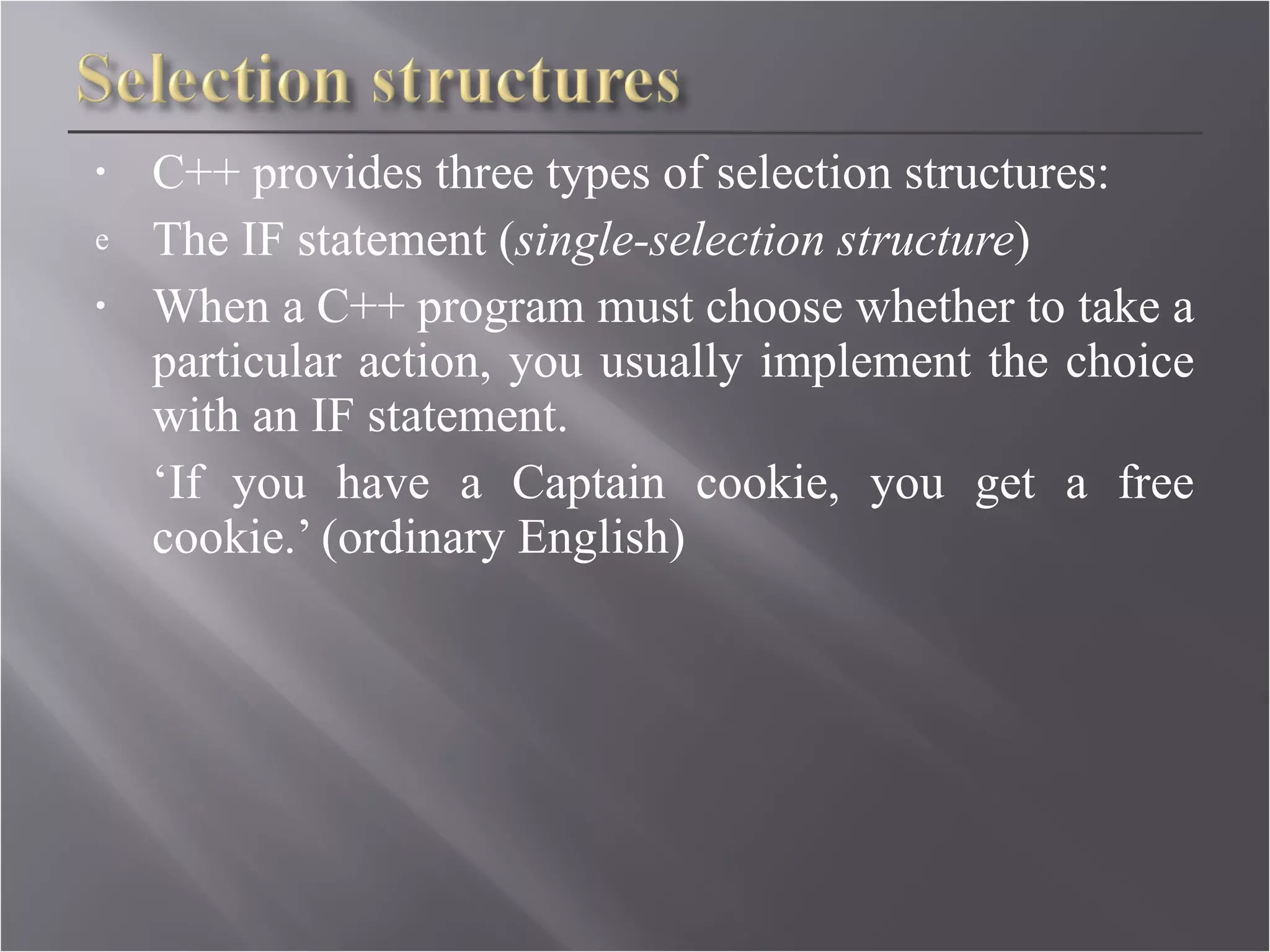

C++ provides three types of selection structures: The IF statement ( single-selection structure ) When a C++ program must choose whether to take a particular action, you usually implement the choice with an IF statement. ‘ If you have a Captain cookie, you get a free cookie.’ (ordinary English)

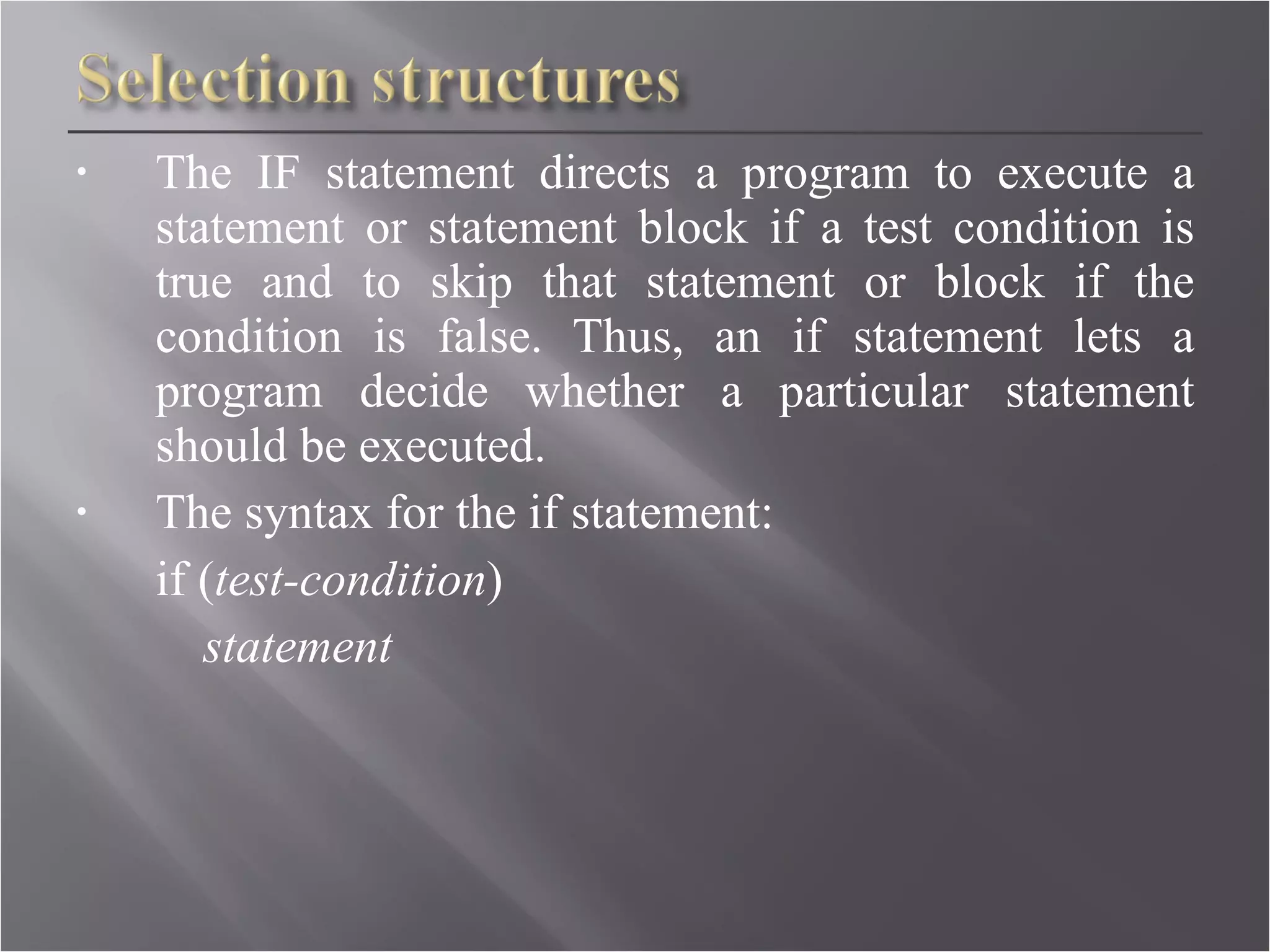

The IF statement directs a program to execute a statement or statement block if a test condition is true and to skip that statement or block if the condition is false. Thus, an if statement lets a program decide whether a particular statement should be executed. The syntax for the if statement: if ( test-condition ) statement

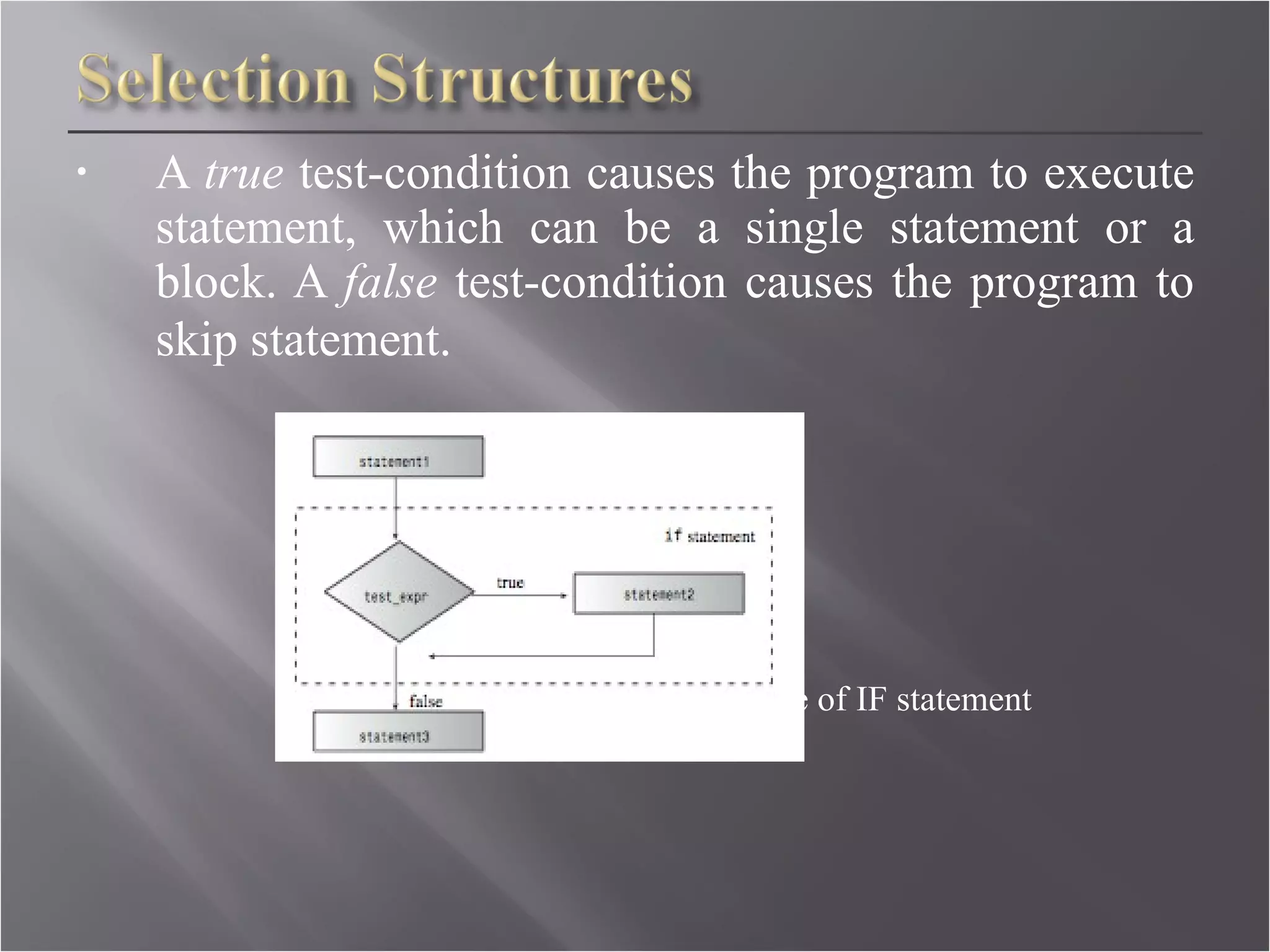

A true test-condition causes the program to execute statement, which can be a single statement or a block. A false test-condition causes the program to skip statement . Figure 2.0: The structure of IF statement

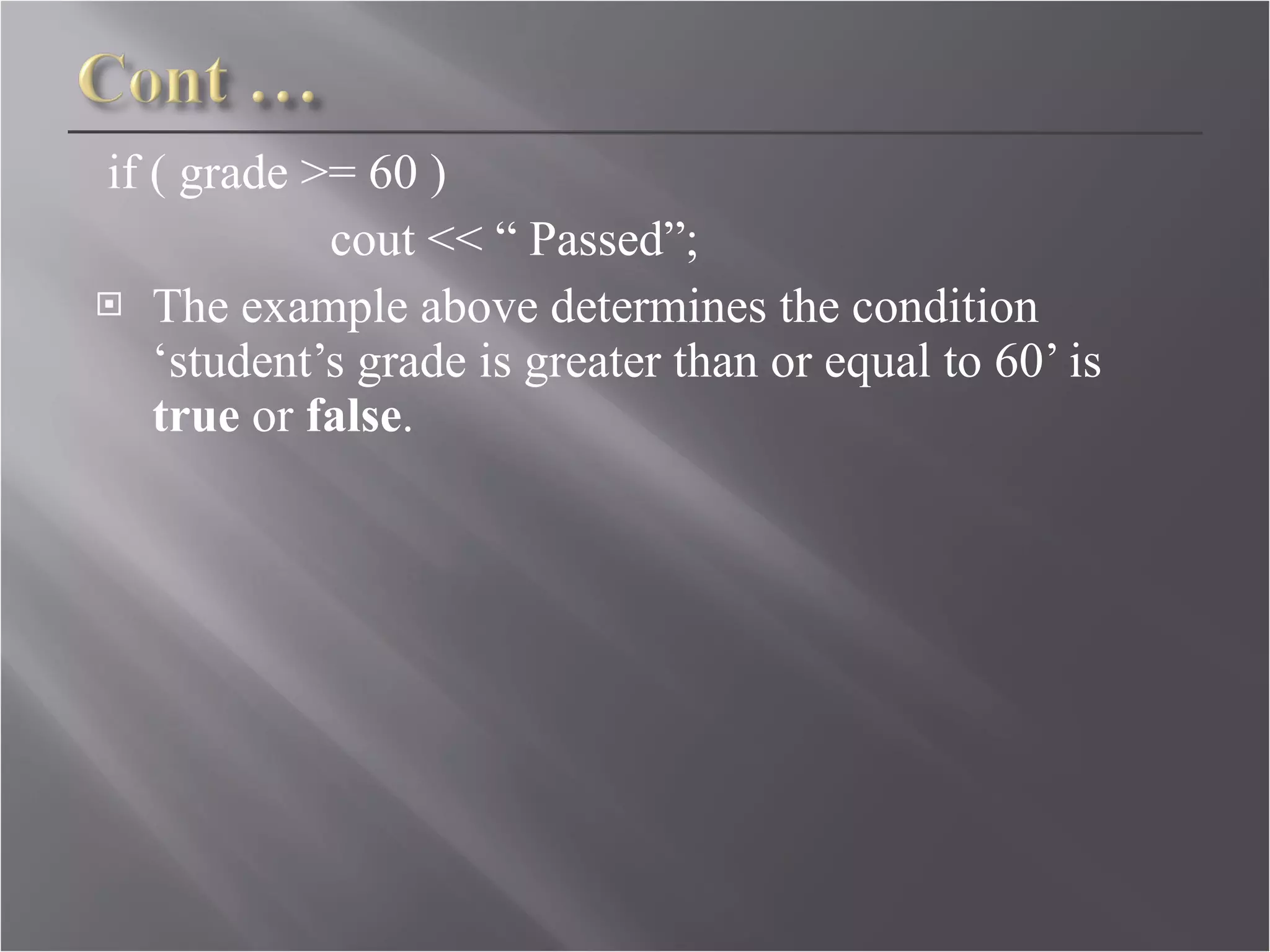

if ( grade >= 60 ) cout << “ Passed”; The example above determines the condition ‘student’s grade is greater than or equal to 60’ is true or false .

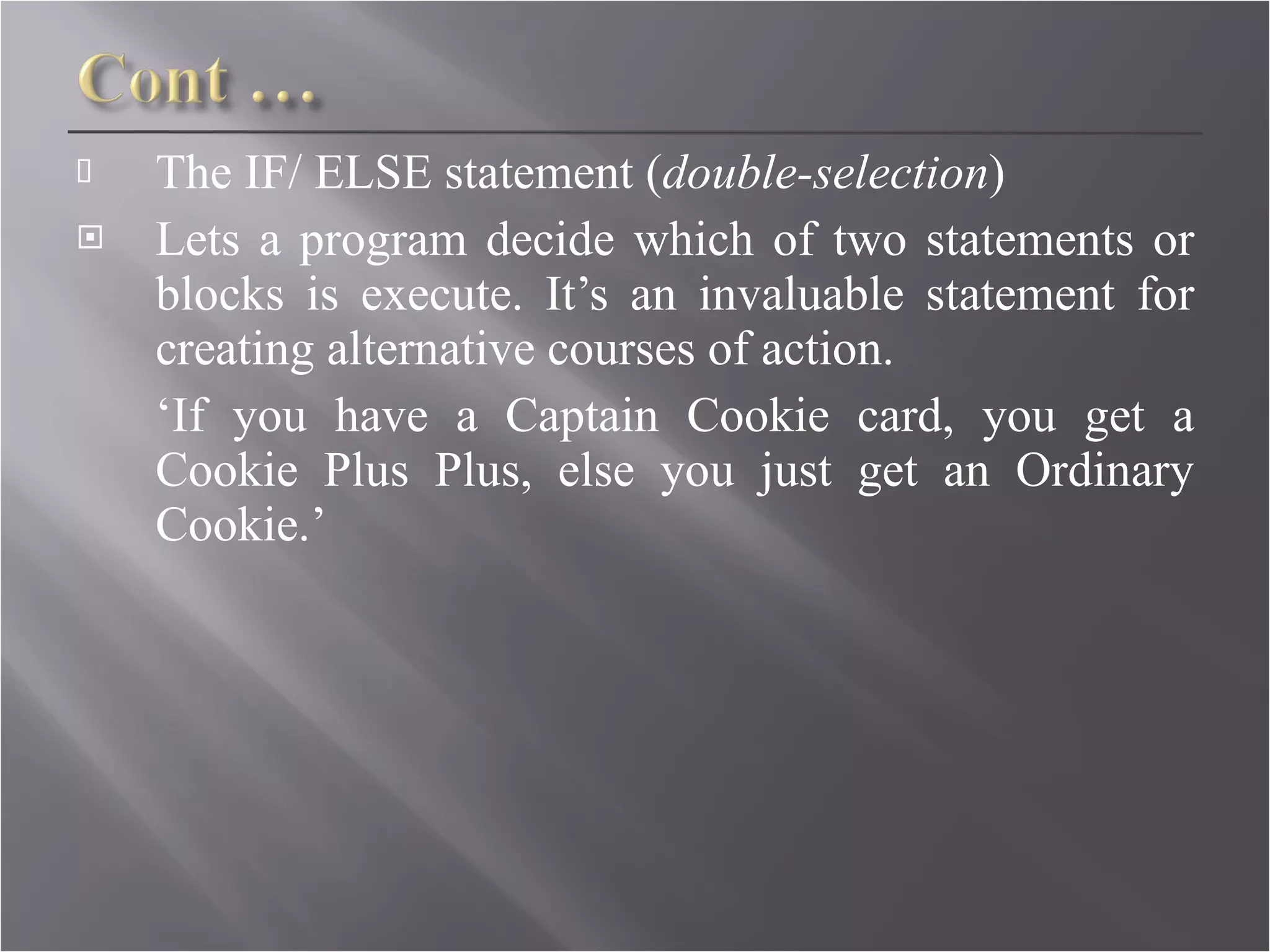

The IF/ ELSE statement ( double-selection ) Lets a program decide which of two statements or blocks is execute. It’s an invaluable statement for creating alternative courses of action. ‘ If you have a Captain Cookie card, you get a Cookie Plus Plus, else you just get an Ordinary Cookie.’

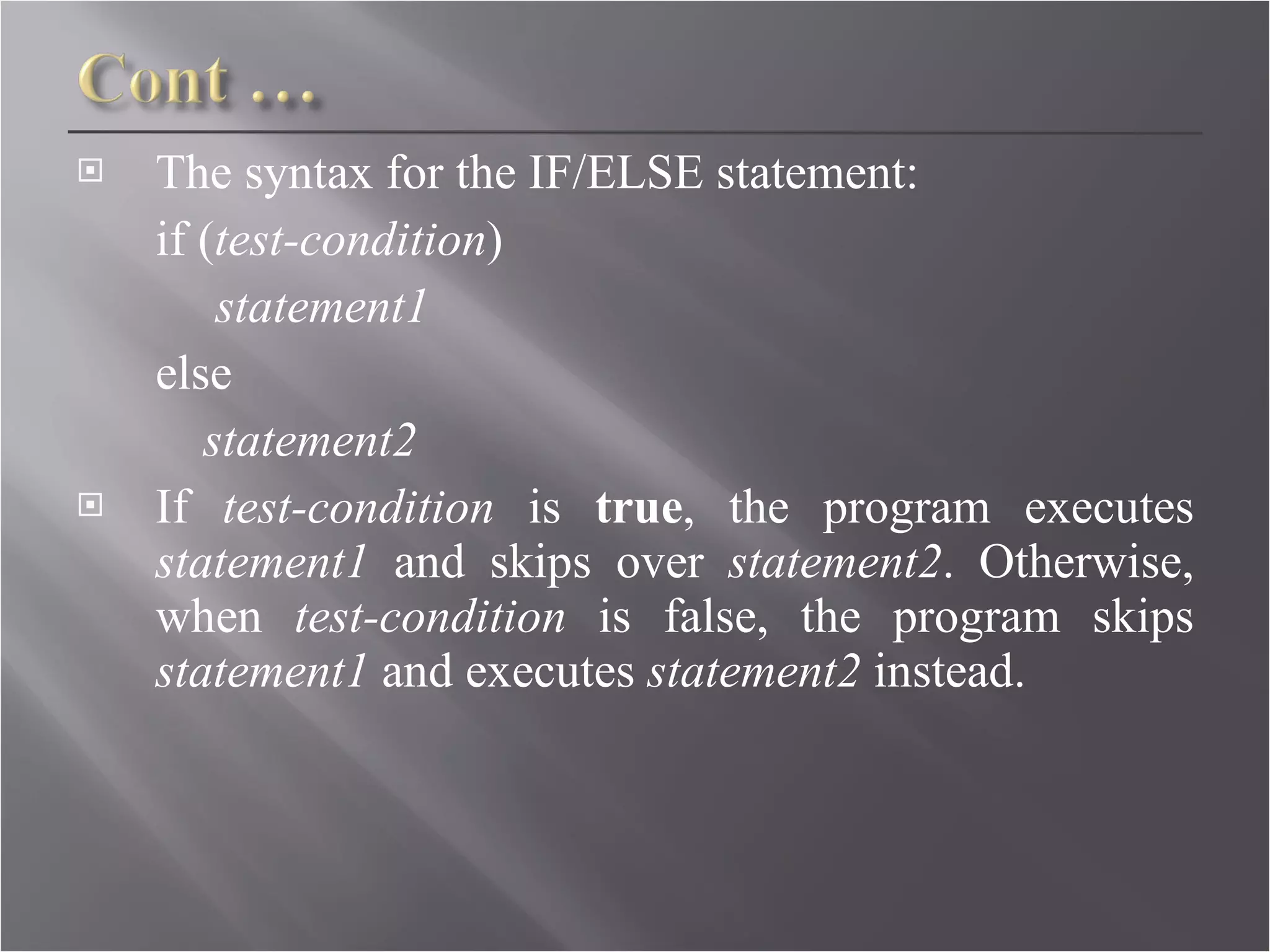

The syntax for the IF/ELSE statement: if ( test-condition ) statement1 else statement2 If test-condition is true , the program executes statement1 and skips over statement2 . Otherwise, when test-condition is false, the program skips statement1 and executes statement2 instead.

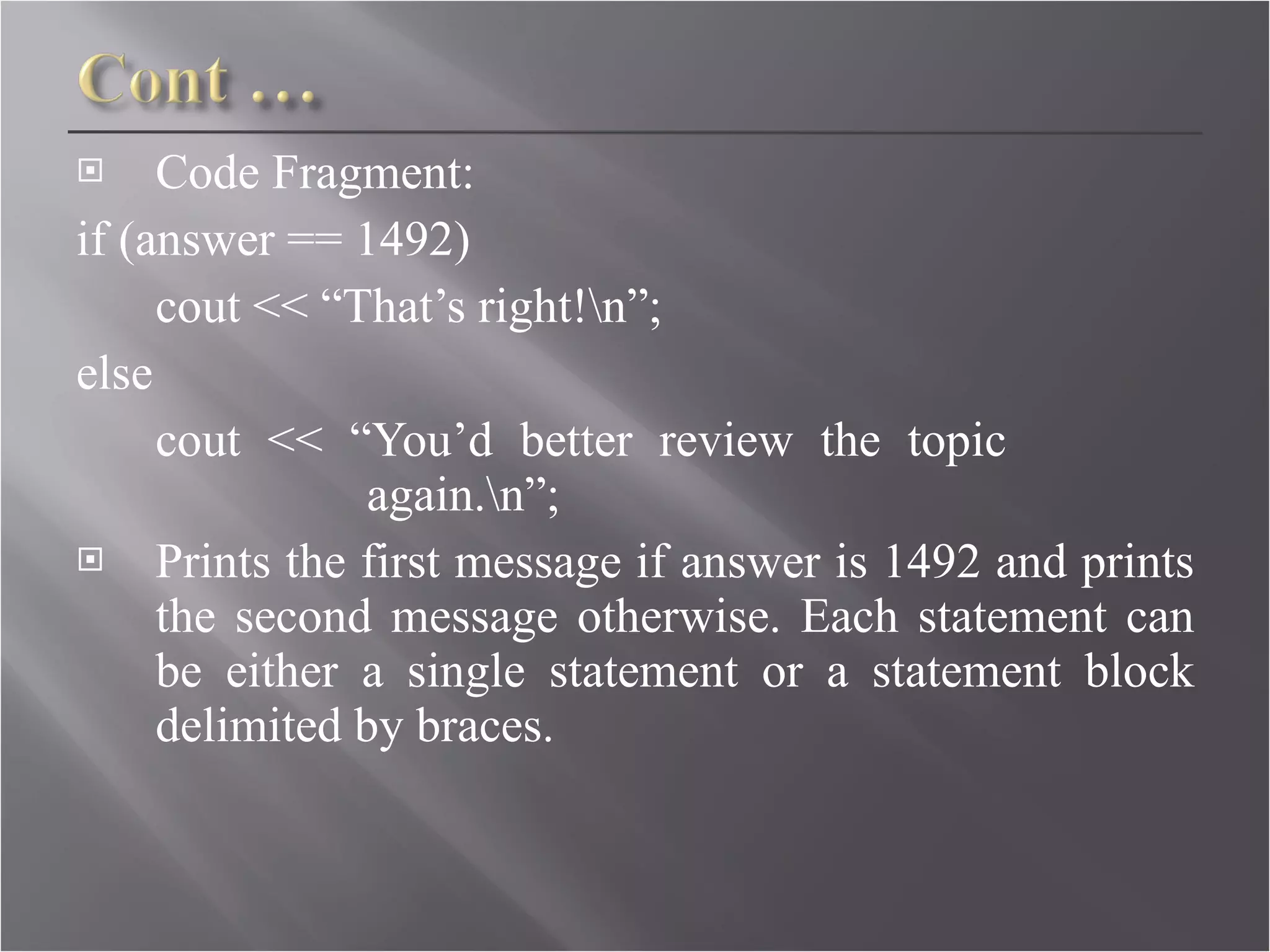

Code Fragment: if (answer == 1492) cout << “That’s right!\n”; else cout << “You’d better review the topic again.\n”; Prints the first message if answer is 1492 and prints the second message otherwise. Each statement can be either a single statement or a statement block delimited by braces.

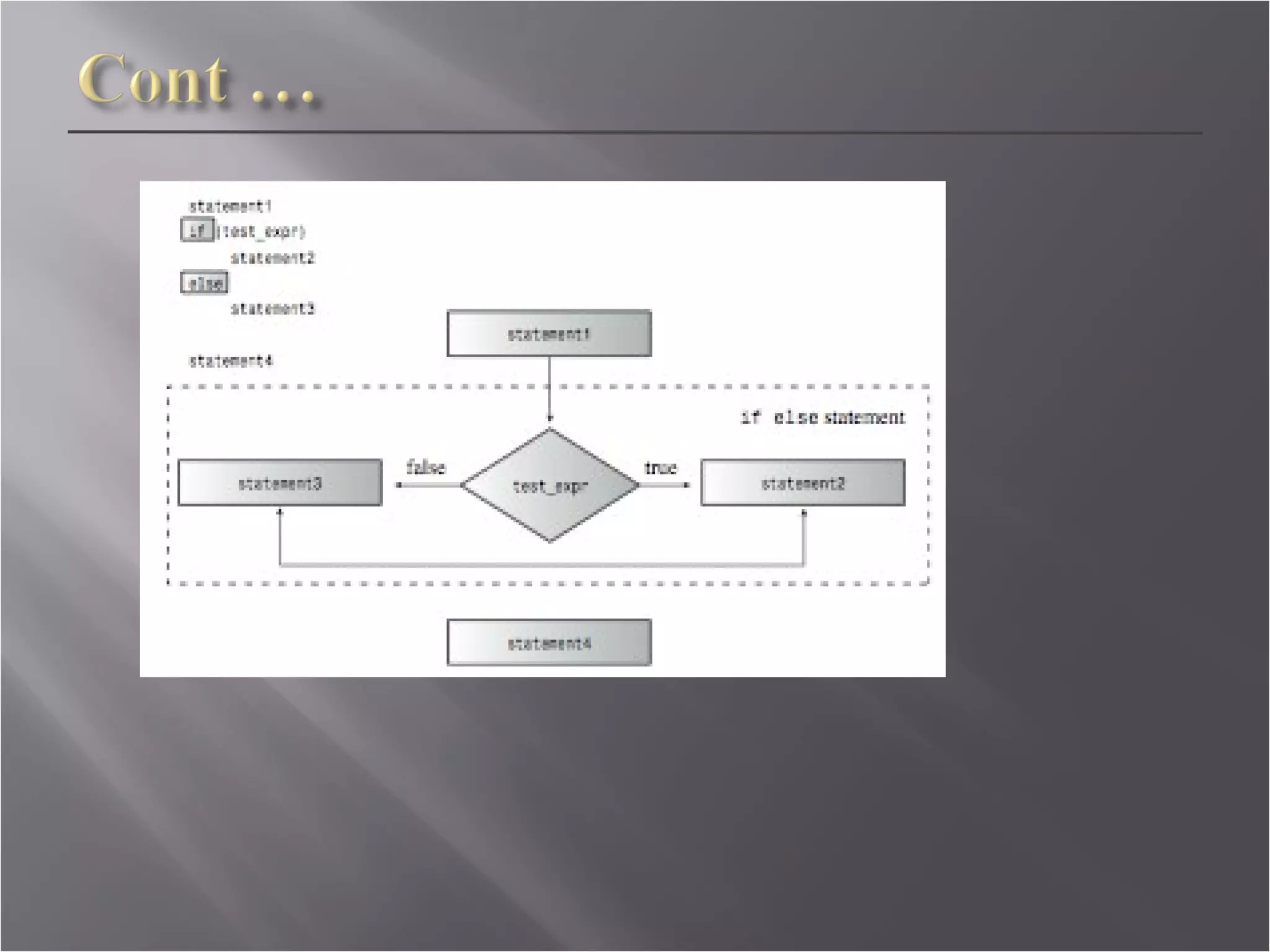

Figure 2.0: The structure of IF statement

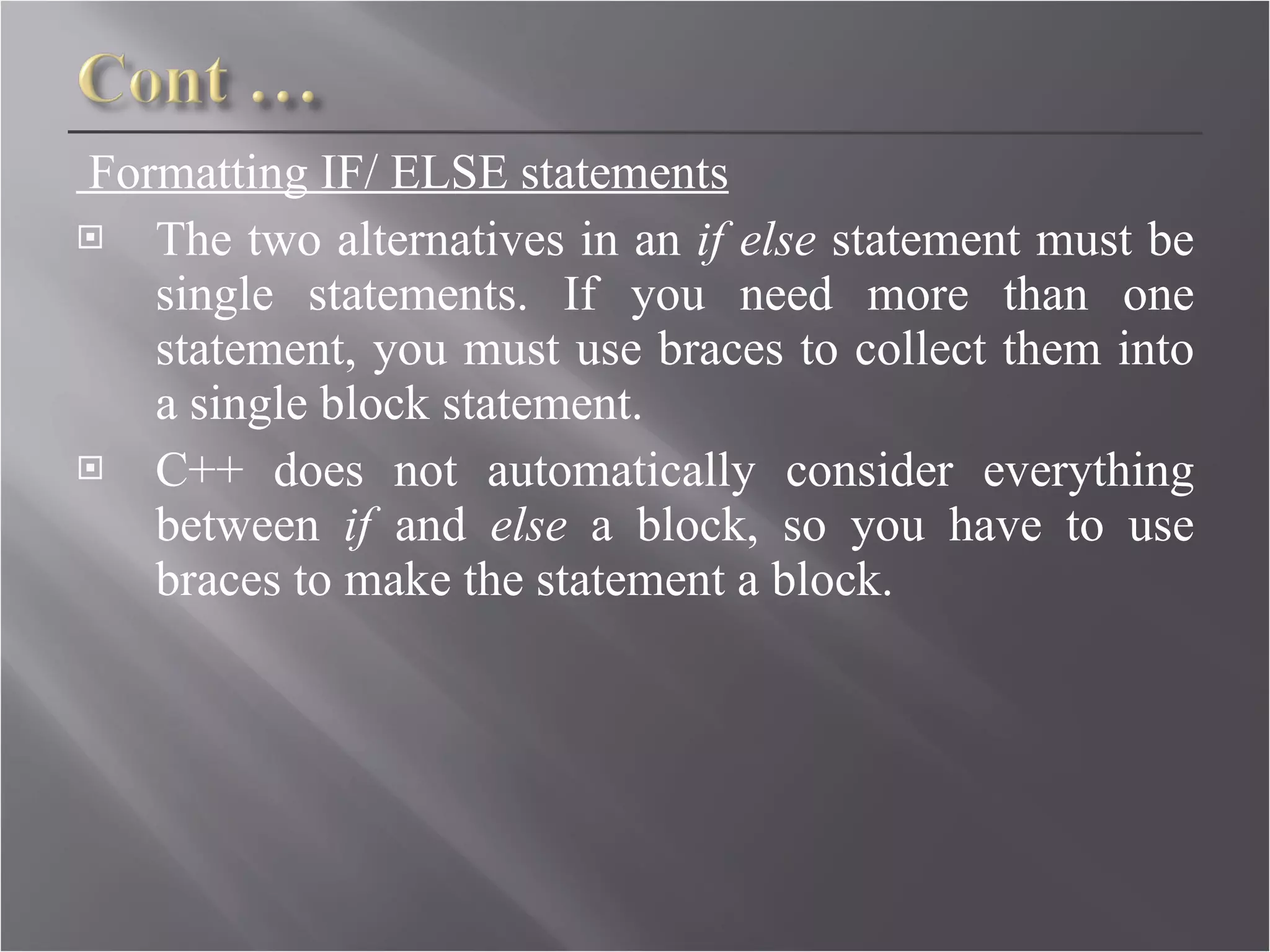

Formatting IF/ ELSE statements The two alternatives in an if else statement must be single statements. If you need more than one statement, you must use braces to collect them into a single block statement. C++ does not automatically consider everything between if and else a block, so you have to use braces to make the statement a block.

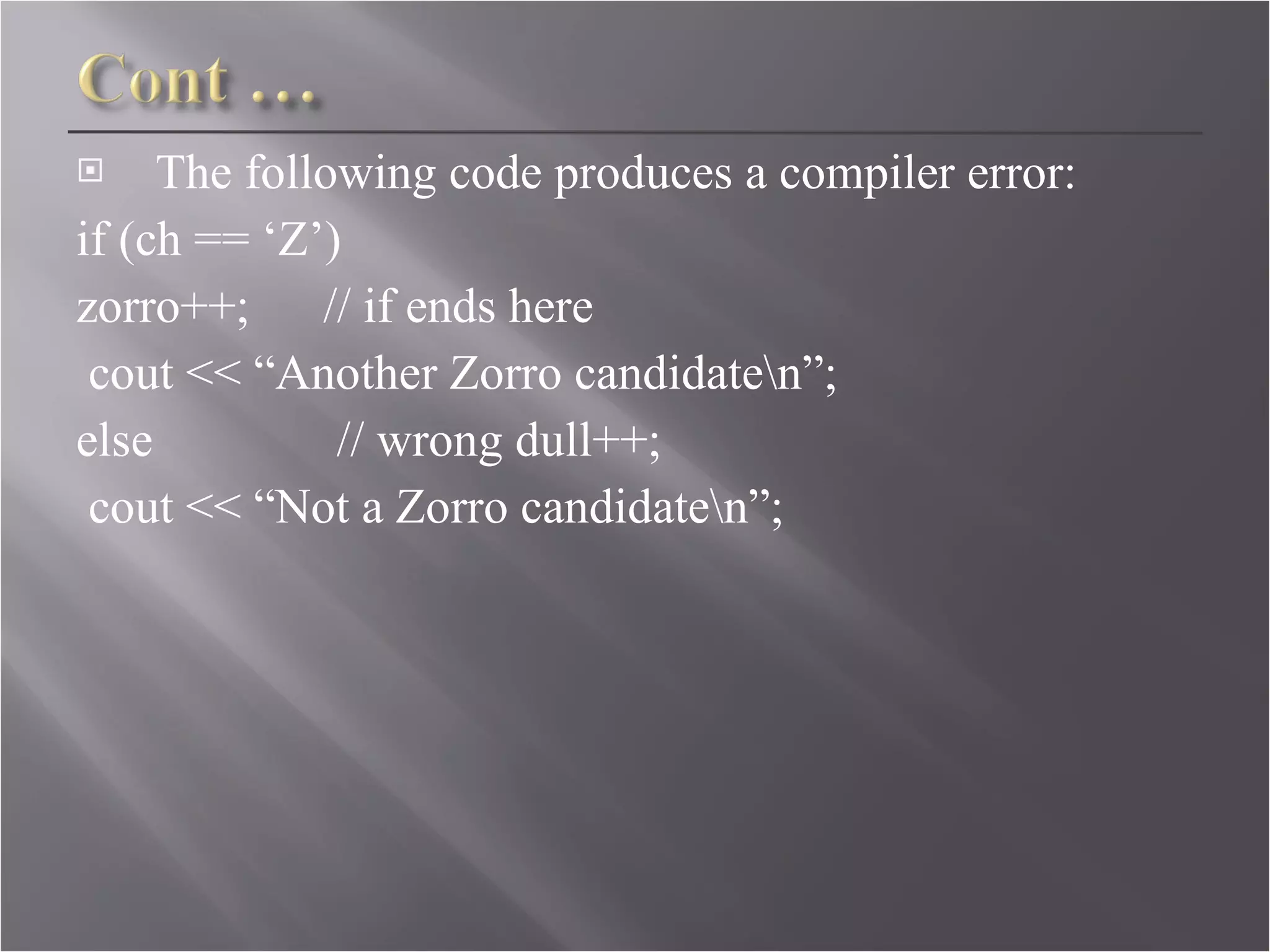

The following code produces a compiler error: if (ch == ‘Z’) zorro++; // if ends here cout << “Another Zorro candidate\n”; else // wrong dull++; cout << “Not a Zorro candidate\n”;

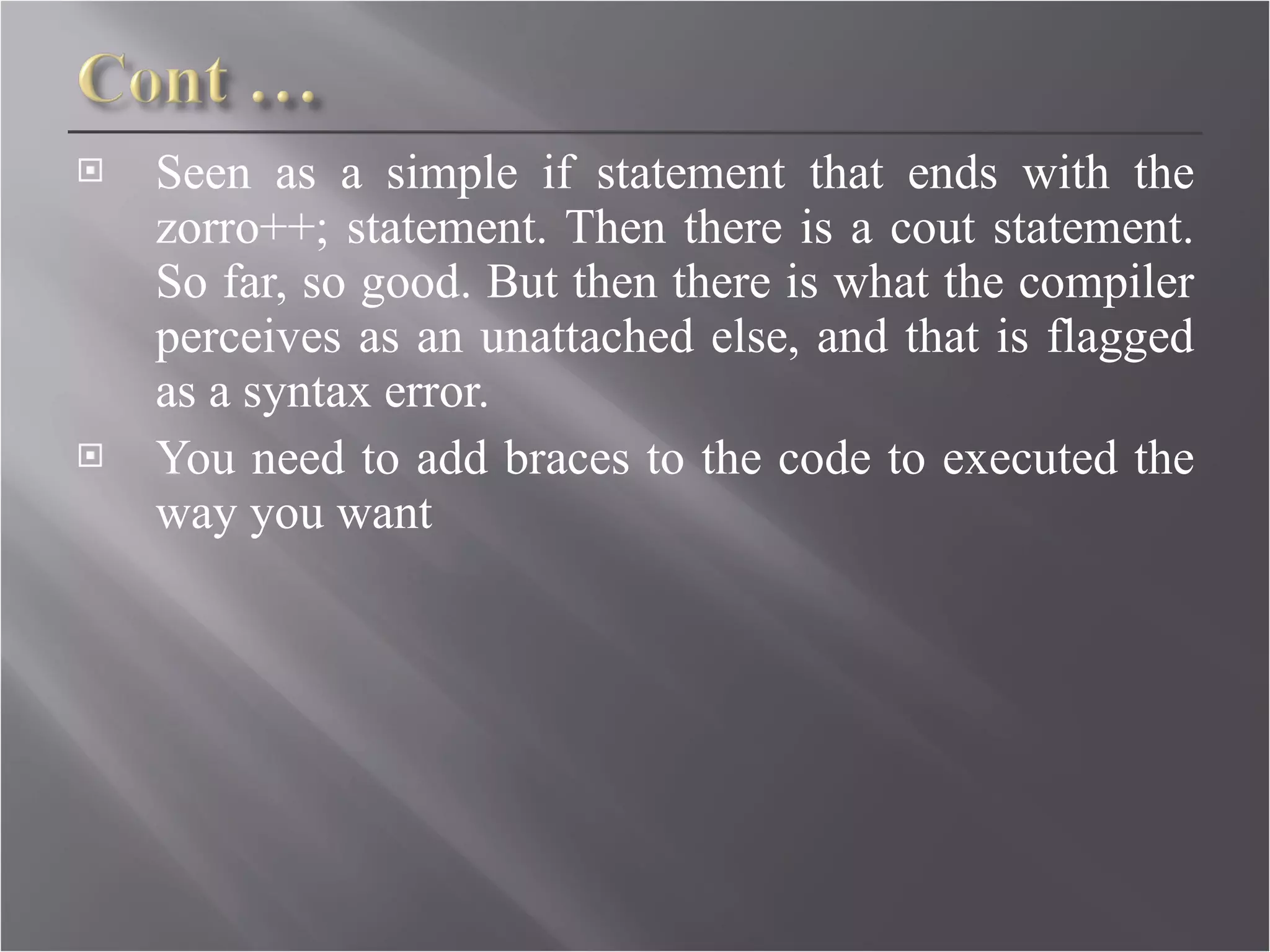

Seen as a simple if statement that ends with the zorro++; statement. Then there is a cout statement. So far, so good. But then there is what the compiler perceives as an unattached else, and that is flagged as a syntax error. You need to add braces to the code to executed the way you want

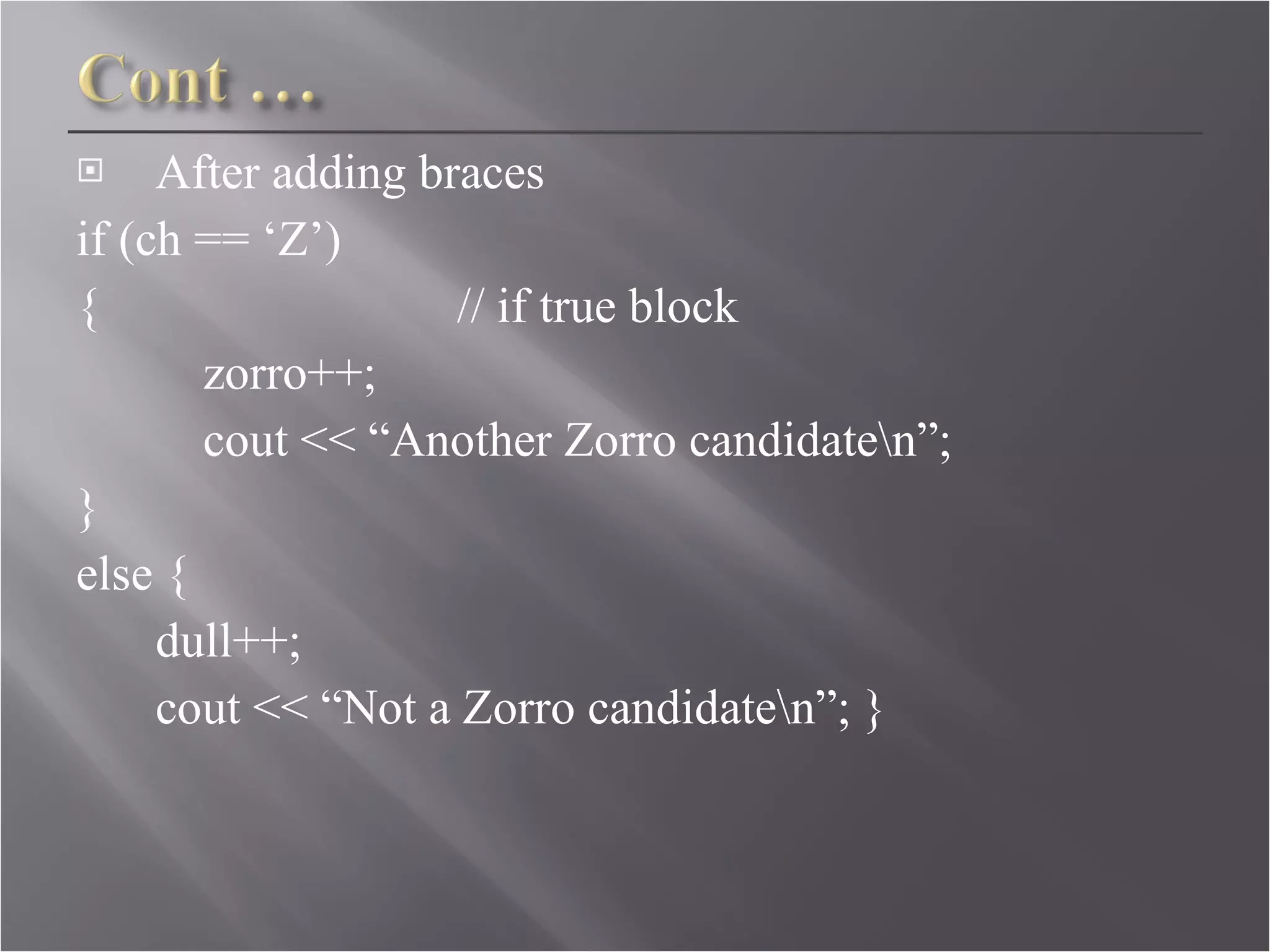

After adding braces if (ch == ‘Z’) { // if true block zorro++; cout << “Another Zorro candidate\n”; } else { dull++; cout << “Not a Zorro candidate\n”; }

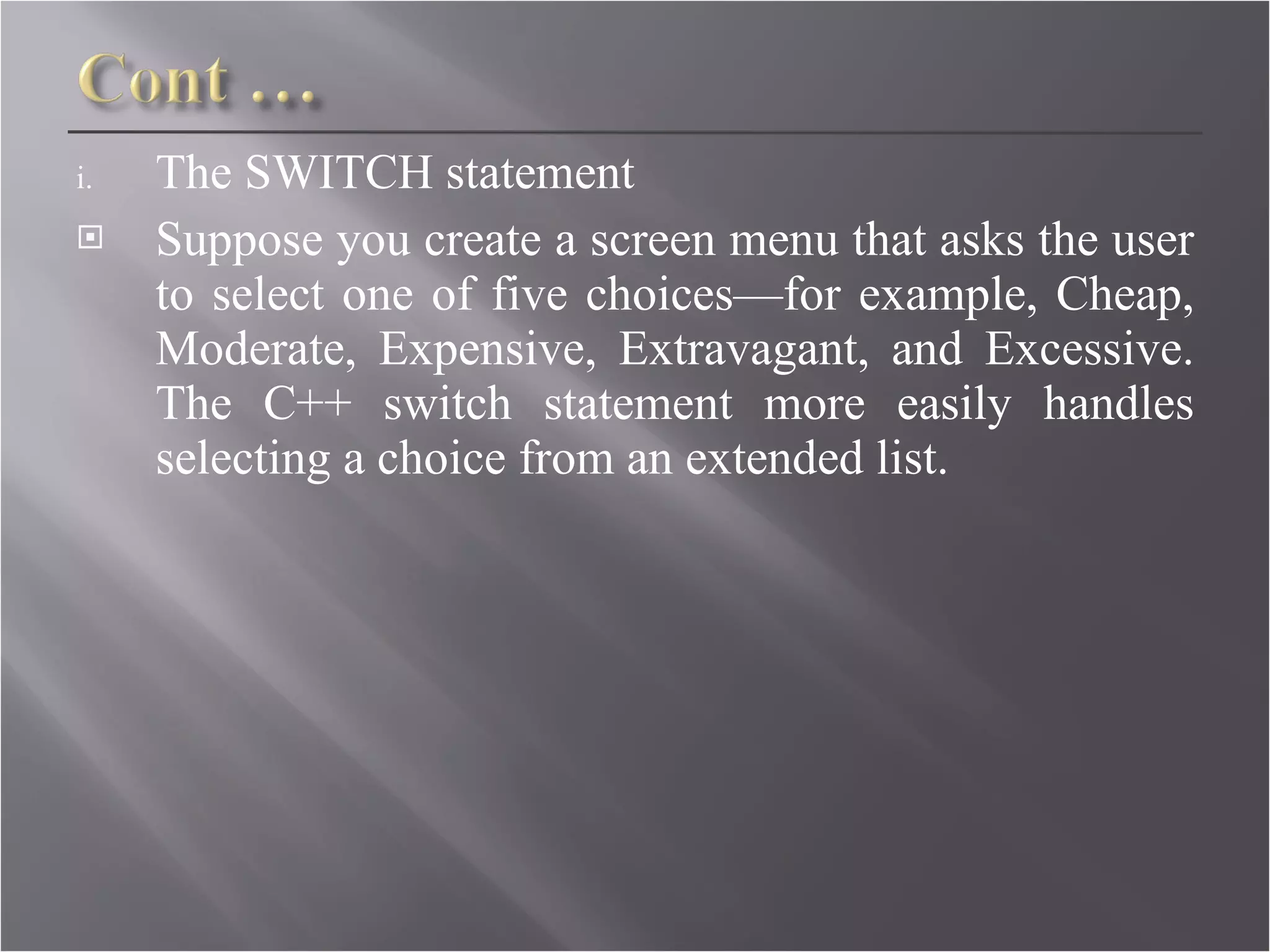

The SWITCH statement Suppose you create a screen menu that asks the user to select one of five choices—for example, Cheap, Moderate, Expensive, Extravagant, and Excessive. The C++ switch statement more easily handles selecting a choice from an extended list.

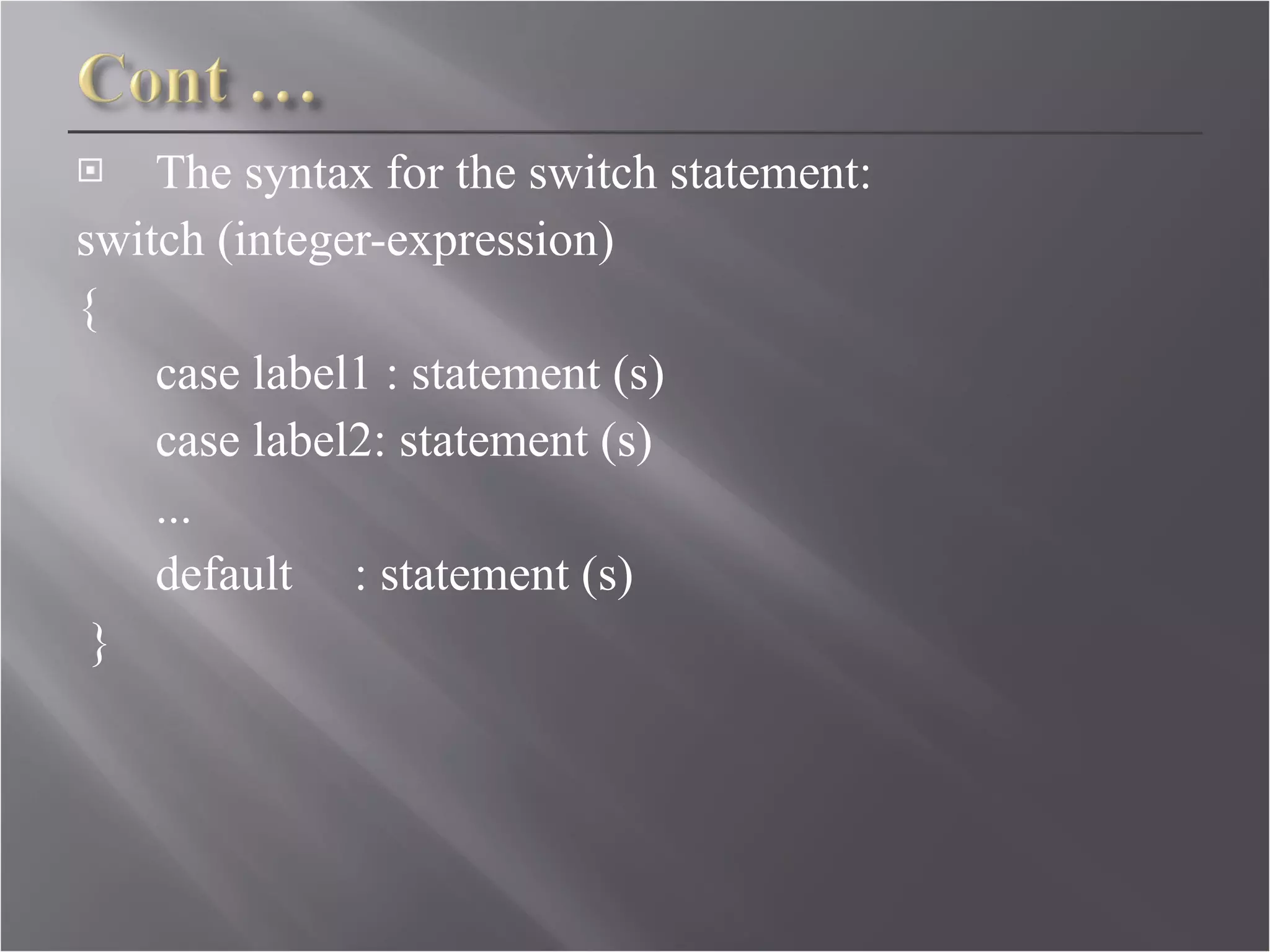

The syntax for the switch statement: switch (integer-expression) { case label1 : statement (s) case label2: statement (s) ... default : statement (s) }

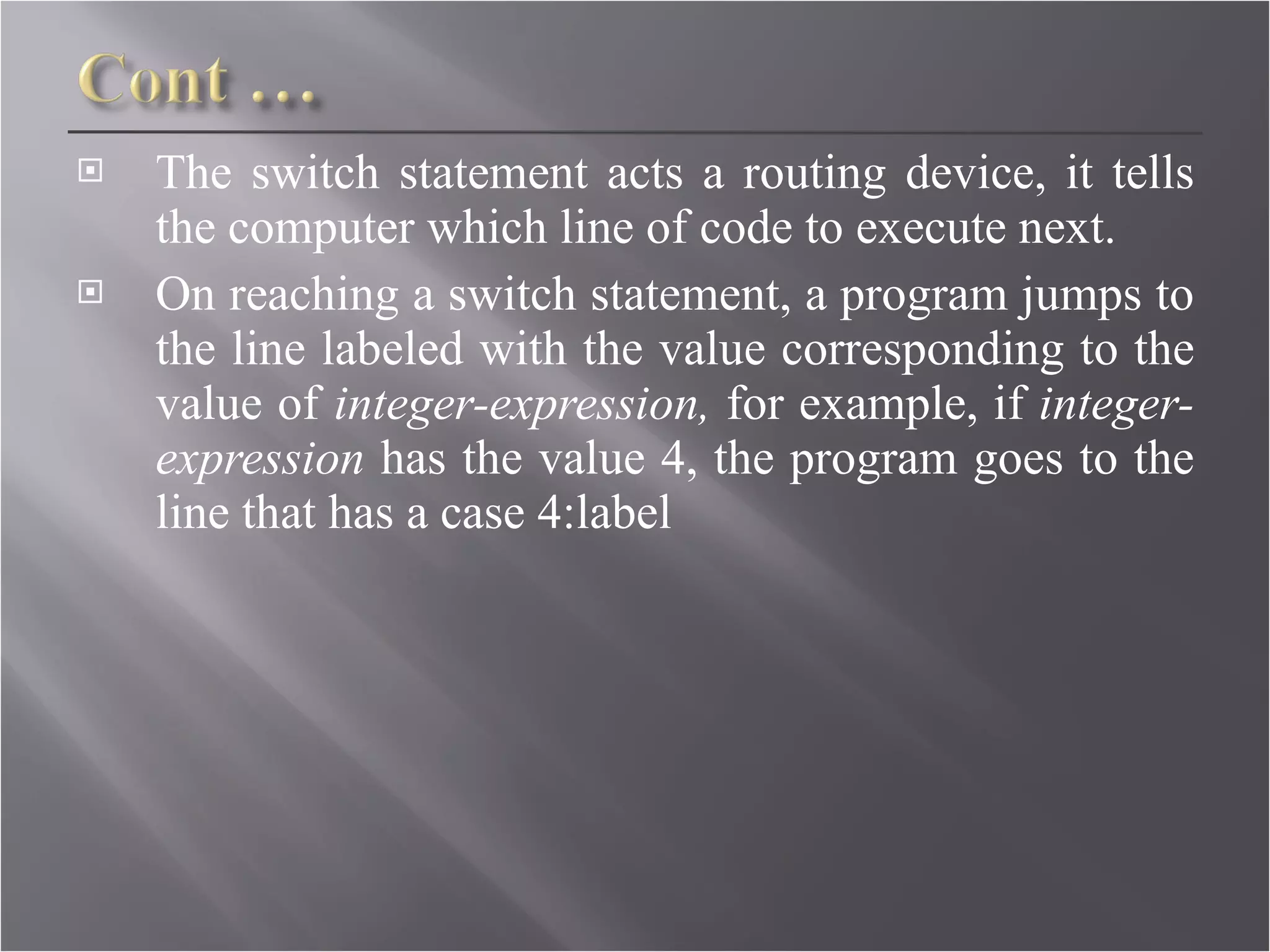

The switch statement acts a routing device, it tells the computer which line of code to execute next. On reaching a switch statement, a program jumps to the line labeled with the value corresponding to the value of integer-expression, for example, if integer- expression has the value 4, the program goes to the line that has a case 4:label

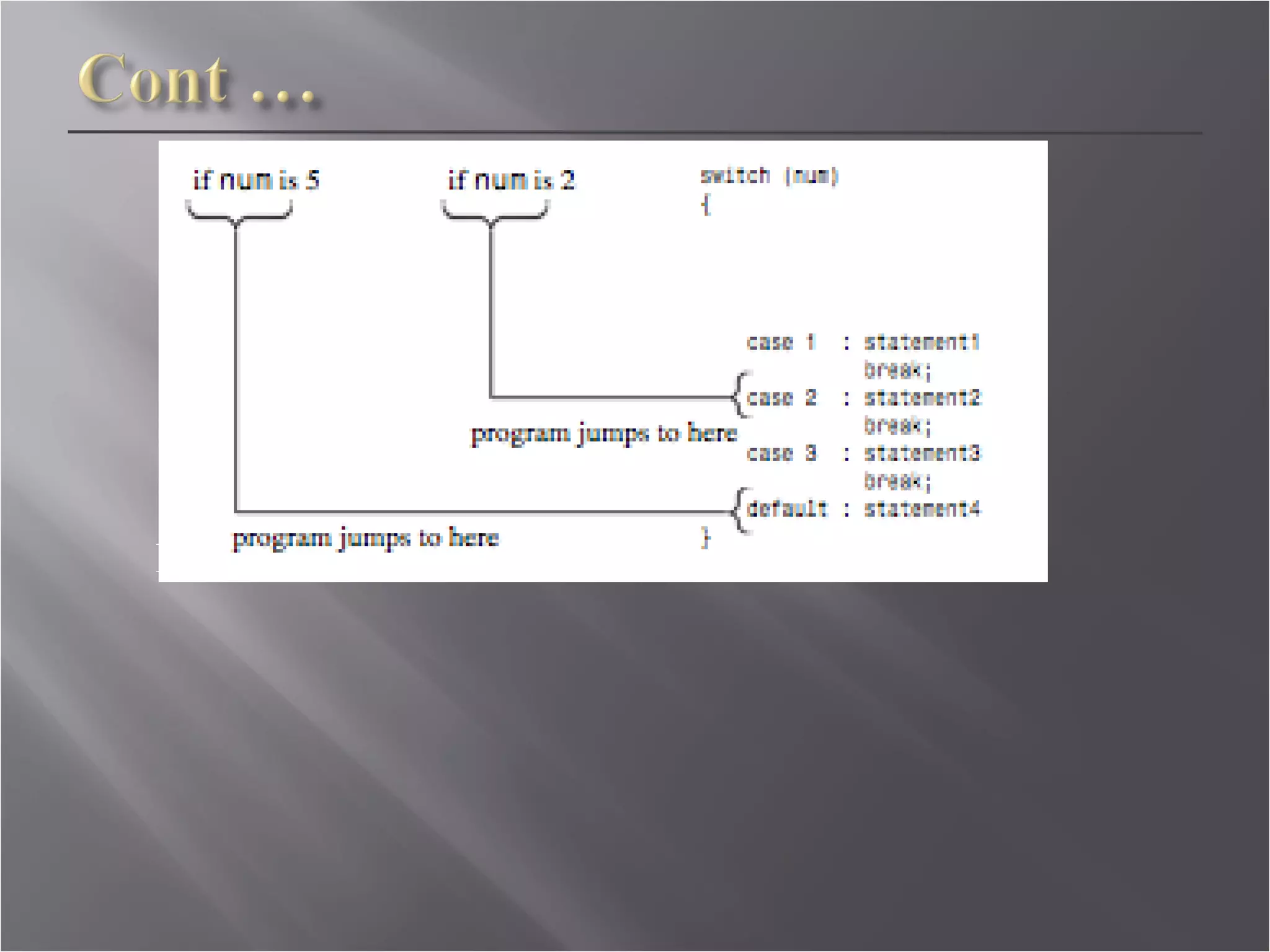

Figure 3.0: The structure of SWITCH statement

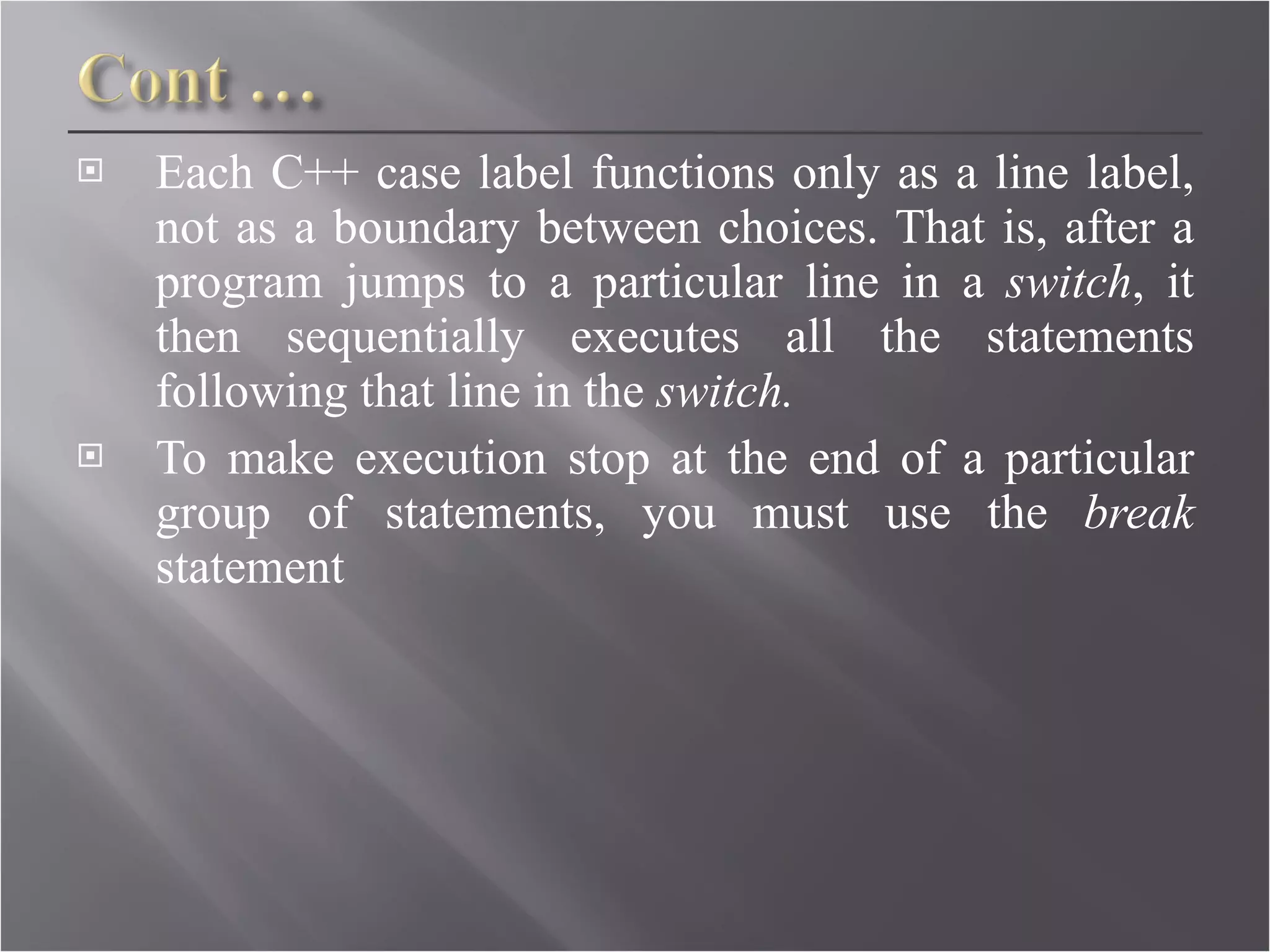

Each C++ case label functions only as a line label, not as a boundary between choices. That is, after a program jumps to a particular line in a switch , it then sequentially executes all the statements following that line in the switch. To make execution stop at the end of a particular group of statements, you must use the break statement

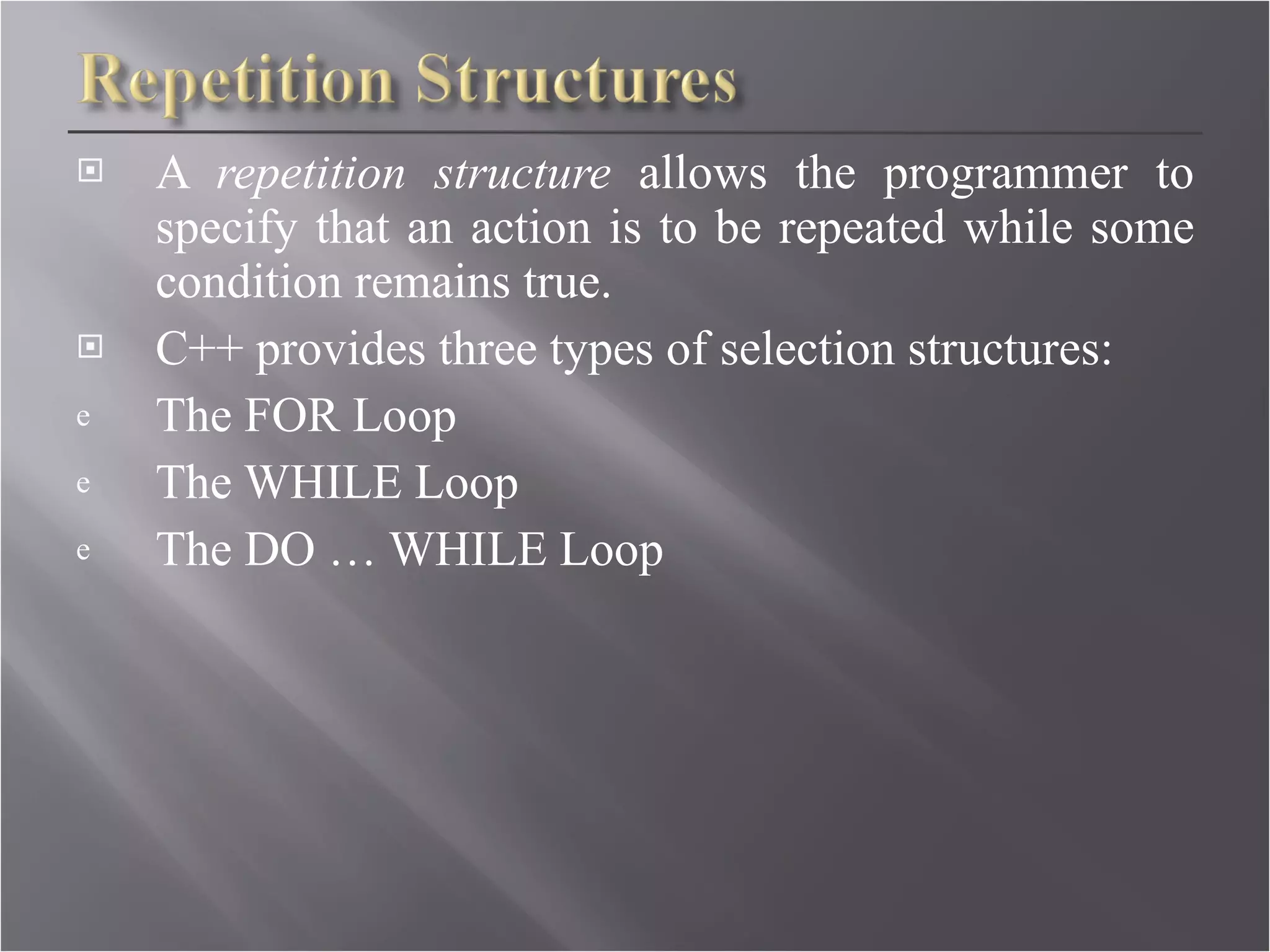

A repetition structure allows the programmer to specify that an action is to be repeated while some condition remains true. C++ provides three types of selection structures: The FOR Loop The WHILE Loop The DO … WHILE Loop

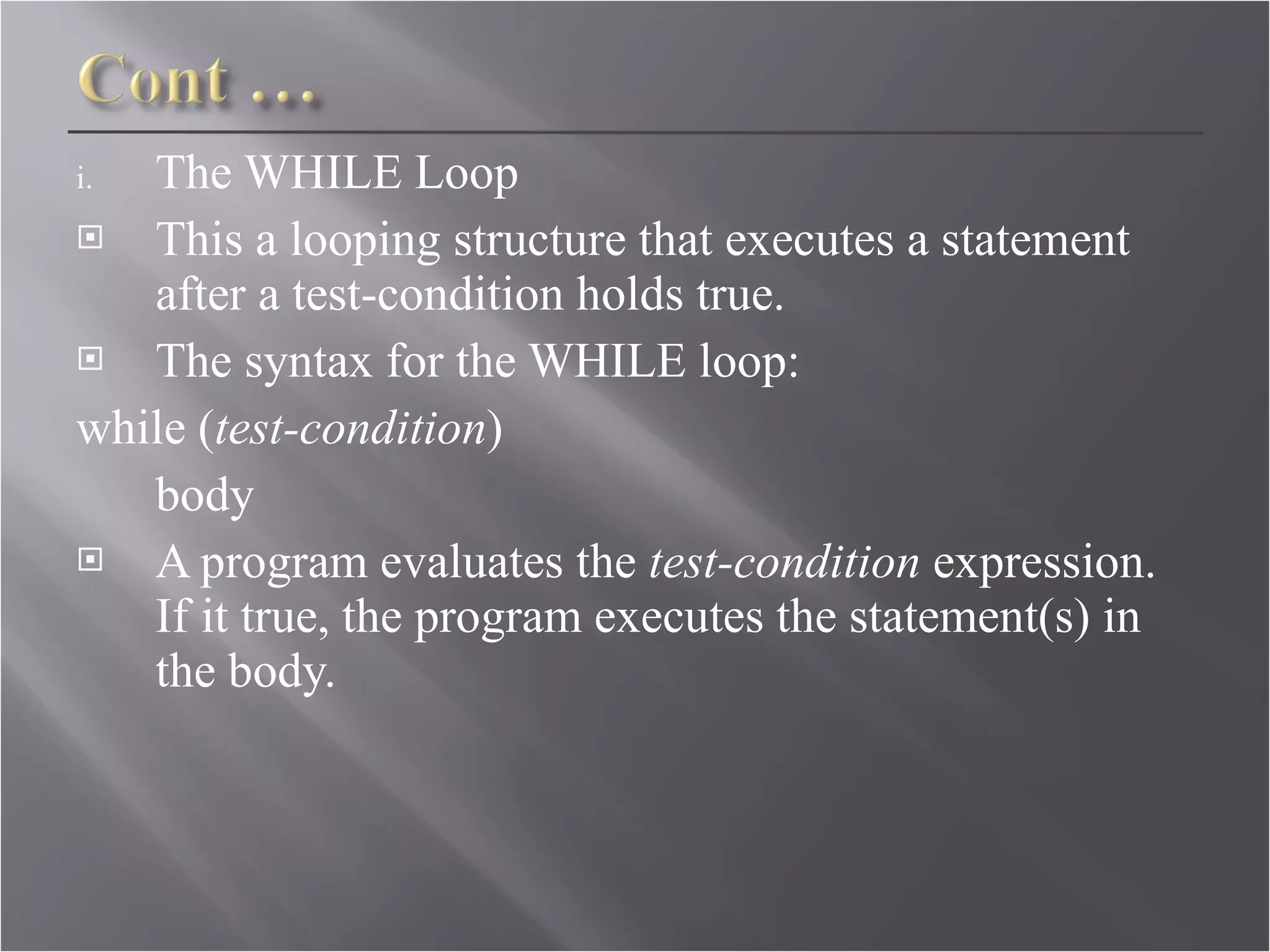

The WHILE Loop This a looping structure that executes a statement after a test-condition holds true. The syntax for the WHILE loop: while ( test-condition ) body A program evaluates the test-condition expression. If it true, the program executes the statement(s) in the body.

Figure 4.0: The structure of a WHILE loop

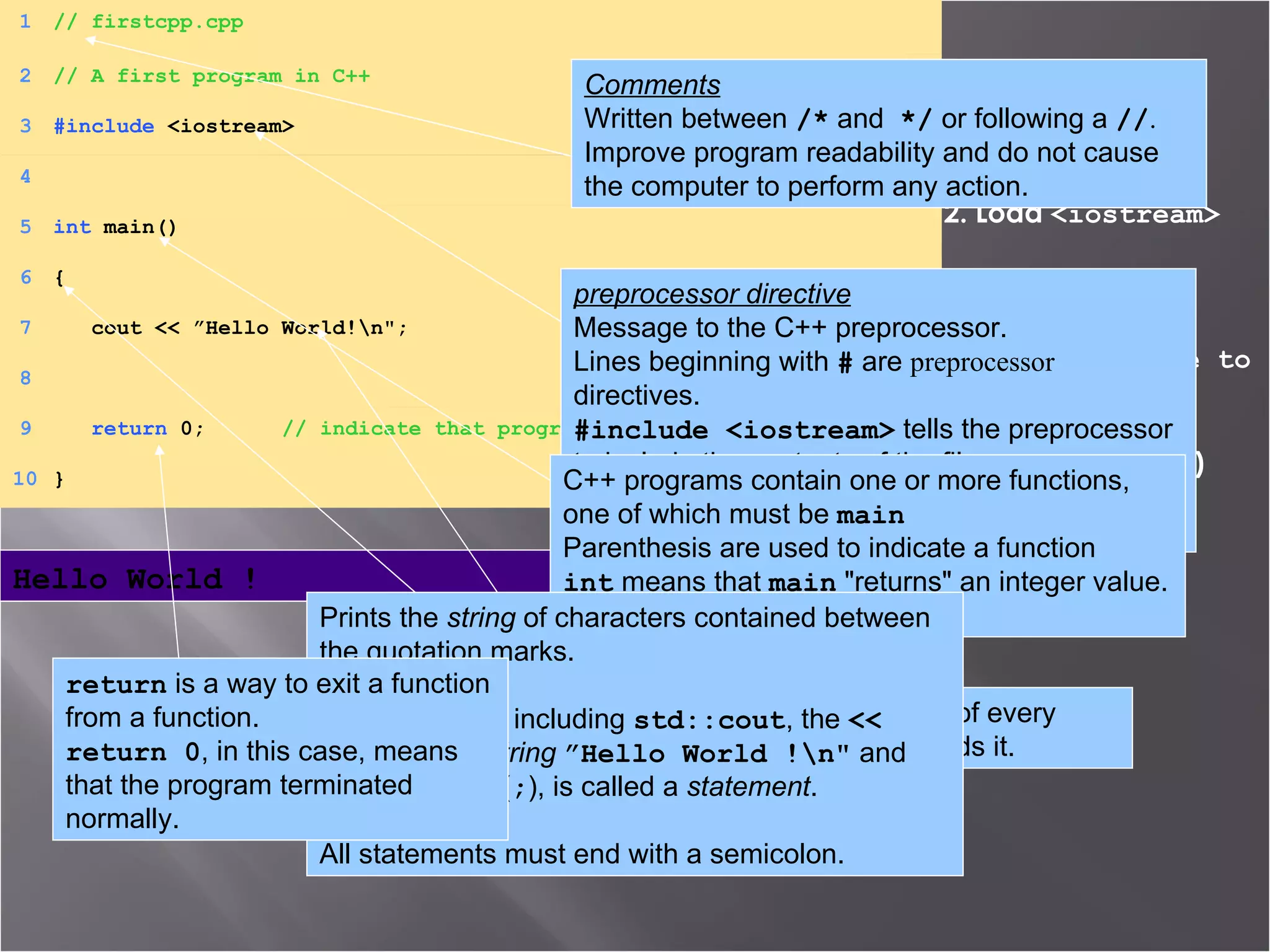

1. Comments 2. Load <iostream> 3. main 3.1 Print "Welcome to C++\n" 3.2 exit ( return 0 ) Program Output Hello World ! 1 // firstcpp.cpp 2 // A first program in C++ 3 #include <iostream> 4 5 int main() 6 { 7 cout << ”Hello World!\n"; 8 9 return 0; // indicate that program ended successfully 10 } preprocessor directive Message to the C++ preprocessor. Lines beginning with # are preprocessor directives. #include <iostream> tells the preprocessor to include the contents of the file <iostream> , which includes input/output operations (such as printing to the screen). Comments Written between /* and */ or following a // . Improve program readability and do not cause the computer to perform any action. C++ programs contain one or more functions, one of which must be main Parenthesis are used to indicate a function int means that main "returns" an integer value. A left brace { begins the body of every function and a right brace } ends it. Prints the string of characters contained between the quotation marks. The entire line, including std::cout , the << operator , the string ”Hello World !\n" and the semicolon ( ; ), is called a statement . All statements must end with a semicolon. return is a way to exit a function from a function. return 0 , in this case, means that the program terminated normally.

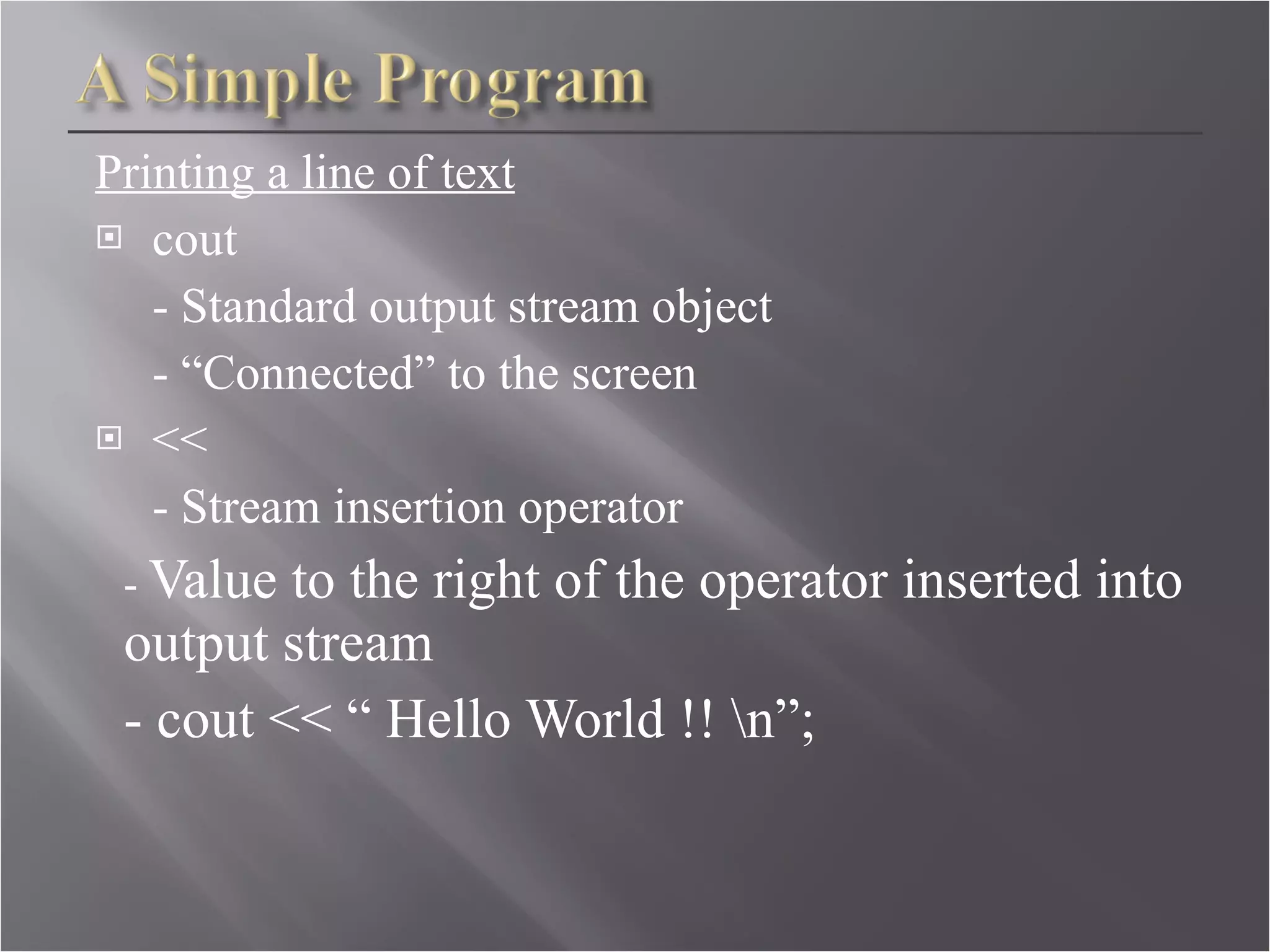

Printing a line of text cout - Standard output stream object - “Connected” to the screen << - Stream insertion operator - Value to the right of the operator inserted into output stream - cout << “ Hello World !! \n”;

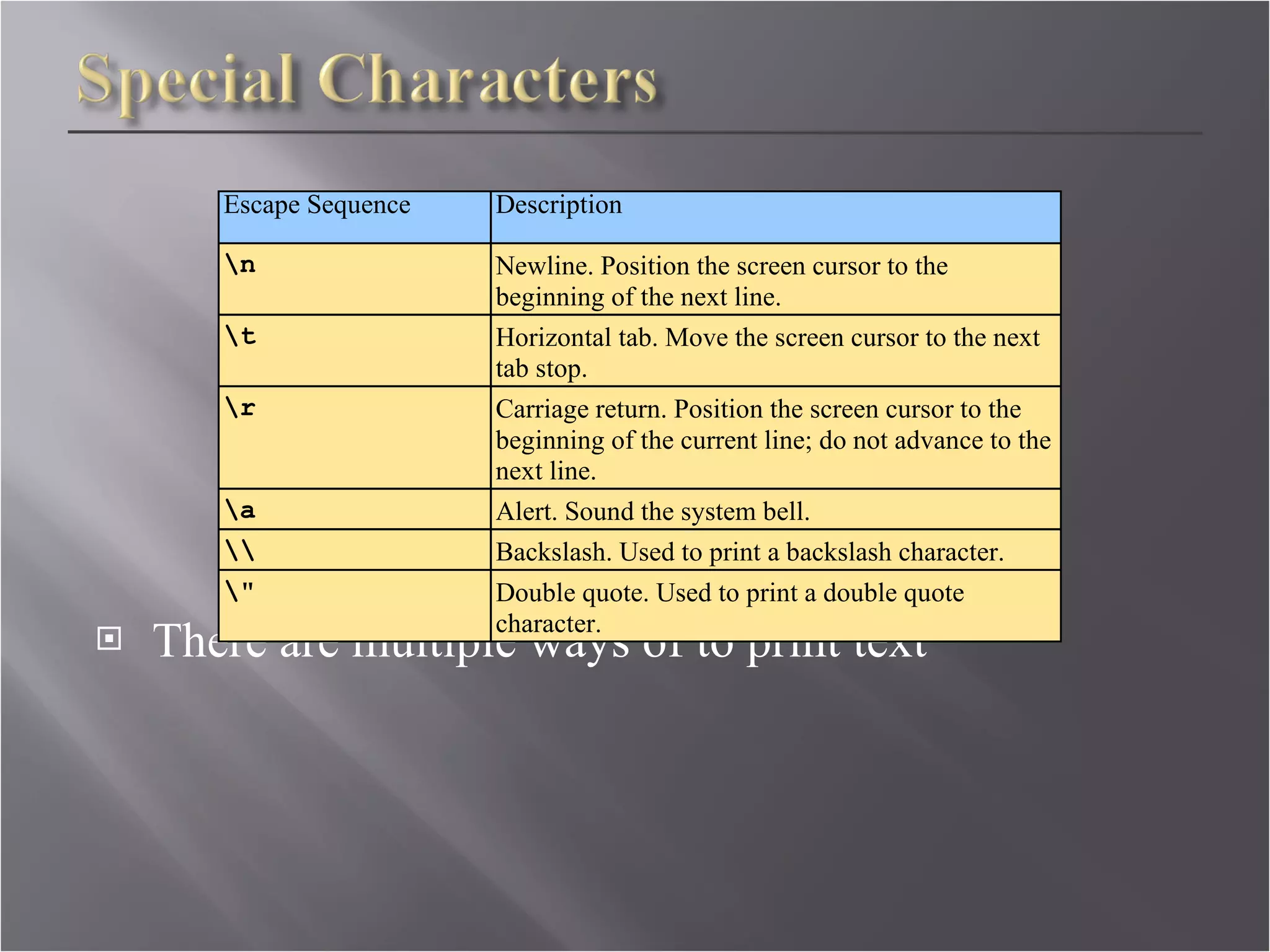

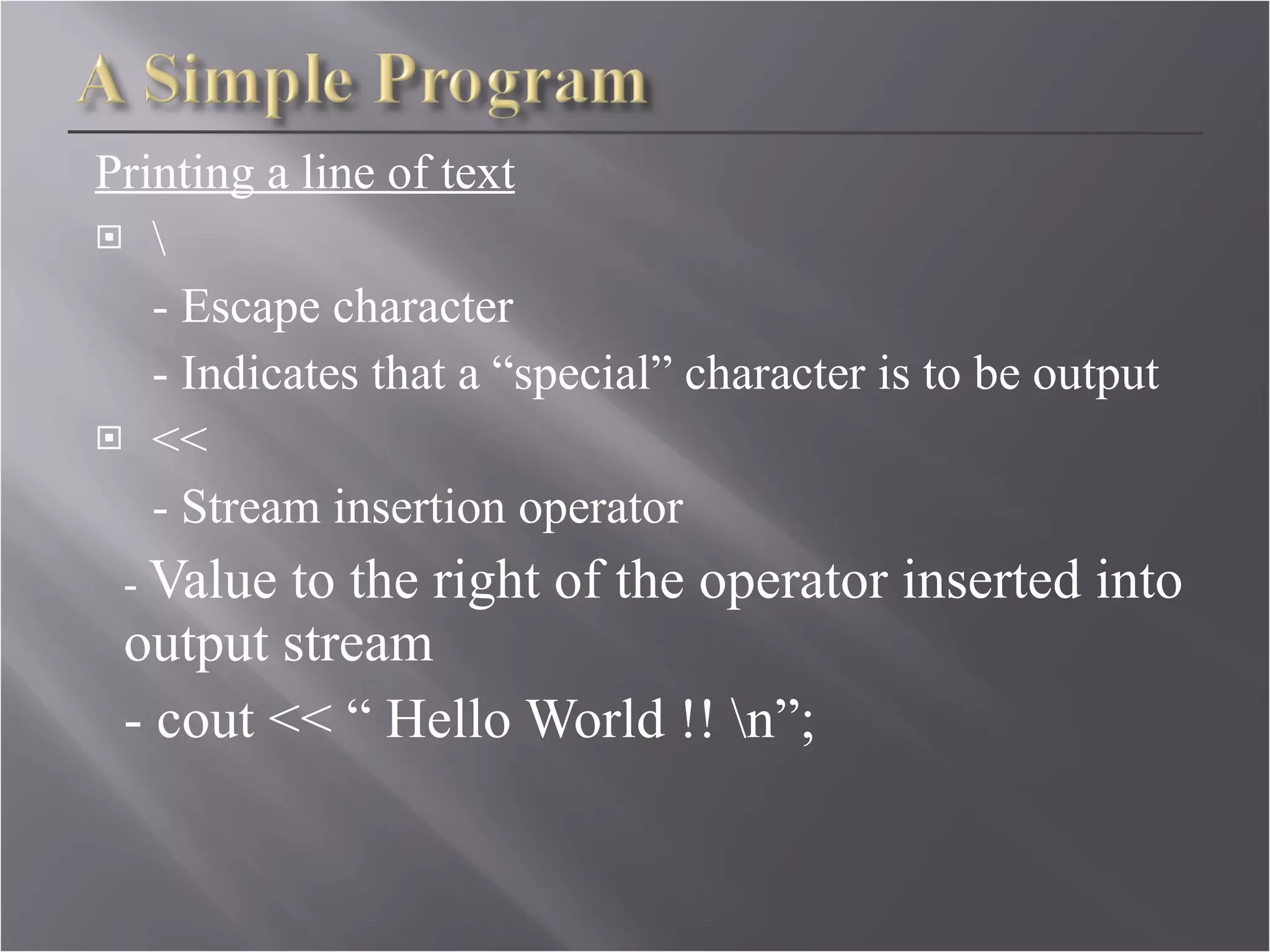

Printing a line of text \ - Escape character - Indicates that a “special” character is to be output << - Stream insertion operator - Value to the right of the operator inserted into output stream - cout << “ Hello World !! \n”;

There are multiple ways of to print text

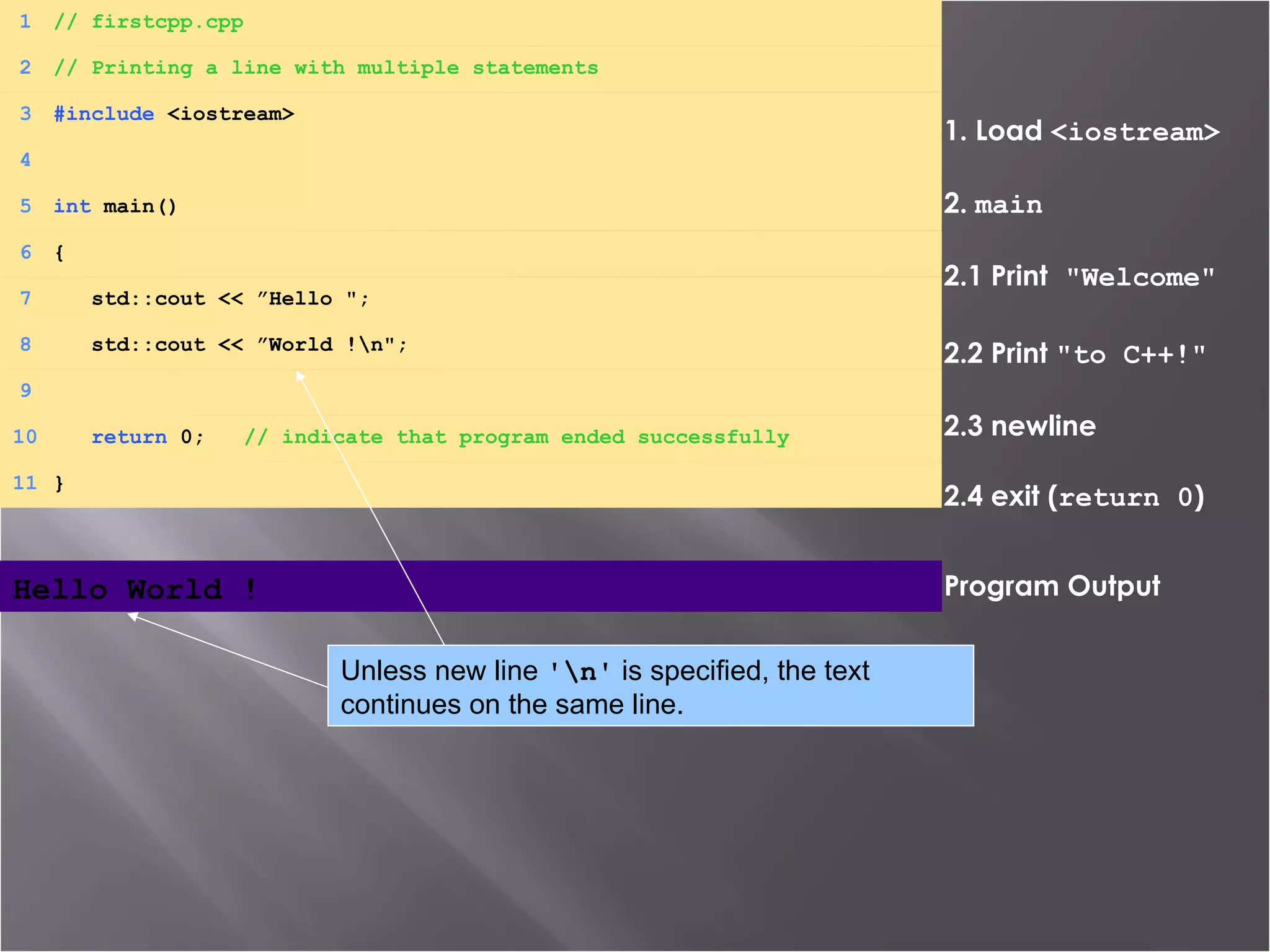

1. Load <iostream> 2. main 2.1 Print "Welcome" 2.2 Print "to C++!" 2.3 newline 2.4 exit ( return 0 ) Program Output Hello World ! 1 // firstcpp.cpp 2 // Printing a line with multiple statements 3 #include <iostream> 4 5 int main() 6 { 7 std::cout << ”Hello "; 8 std::cout << ”World !\n"; 9 10 return 0; // indicate that program ended successfully 11 } Unless new line '\n' is specified, the text continues on the same line.

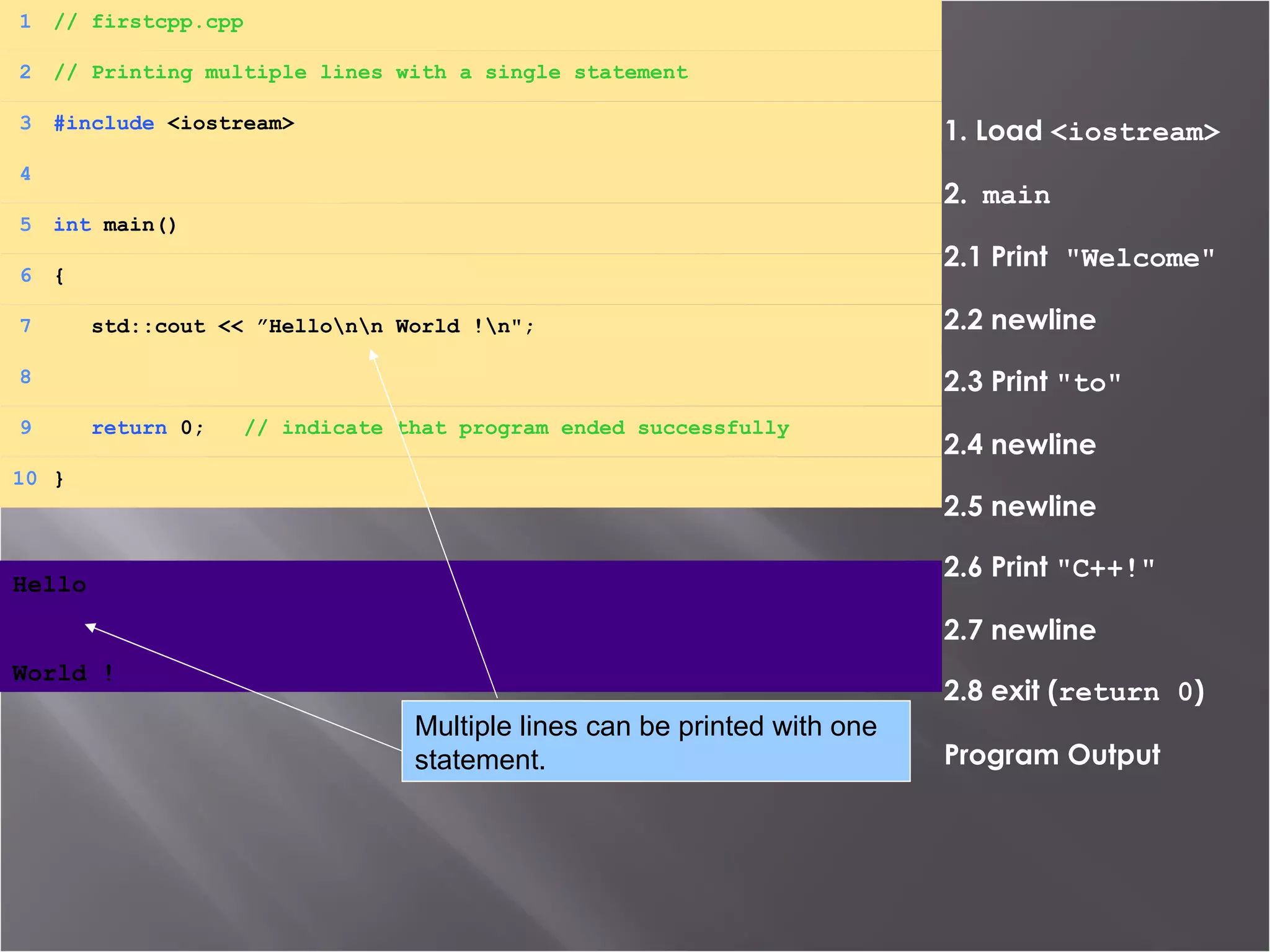

1. Load <iostream> 2. main 2.1 Print "Welcome" 2.2 newline 2.3 Print "to" 2.4 newline 2.5 newline 2.6 Print "C++!" 2.7 newline 2.8 exit ( return 0 ) Program Output Hello World ! 1 // firstcpp.cpp 2 // Printing multiple lines with a single statement 3 #include <iostream> 4 5 int main() 6 { 7 std::cout << ”Hello\n\n World !\n"; 8 9 return 0; // indicate that program ended successfully 10 } Multiple lines can be printed with one statement.

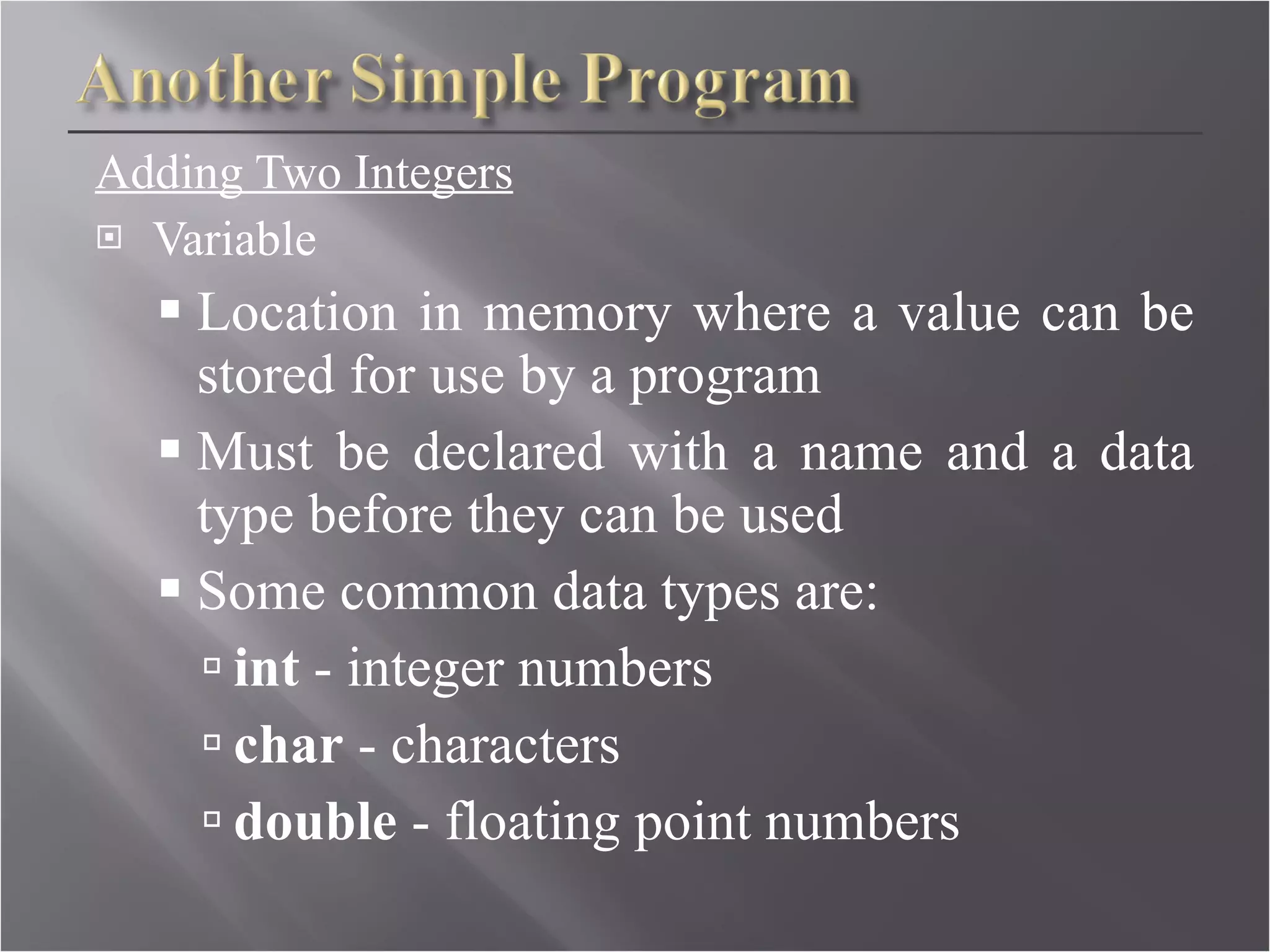

Adding Two Integers Variable Location in memory where a value can be stored for use by a program Must be declared with a name and a data type before they can be used Some common data types are: int - integer numbers char - characters double - floating point numbers

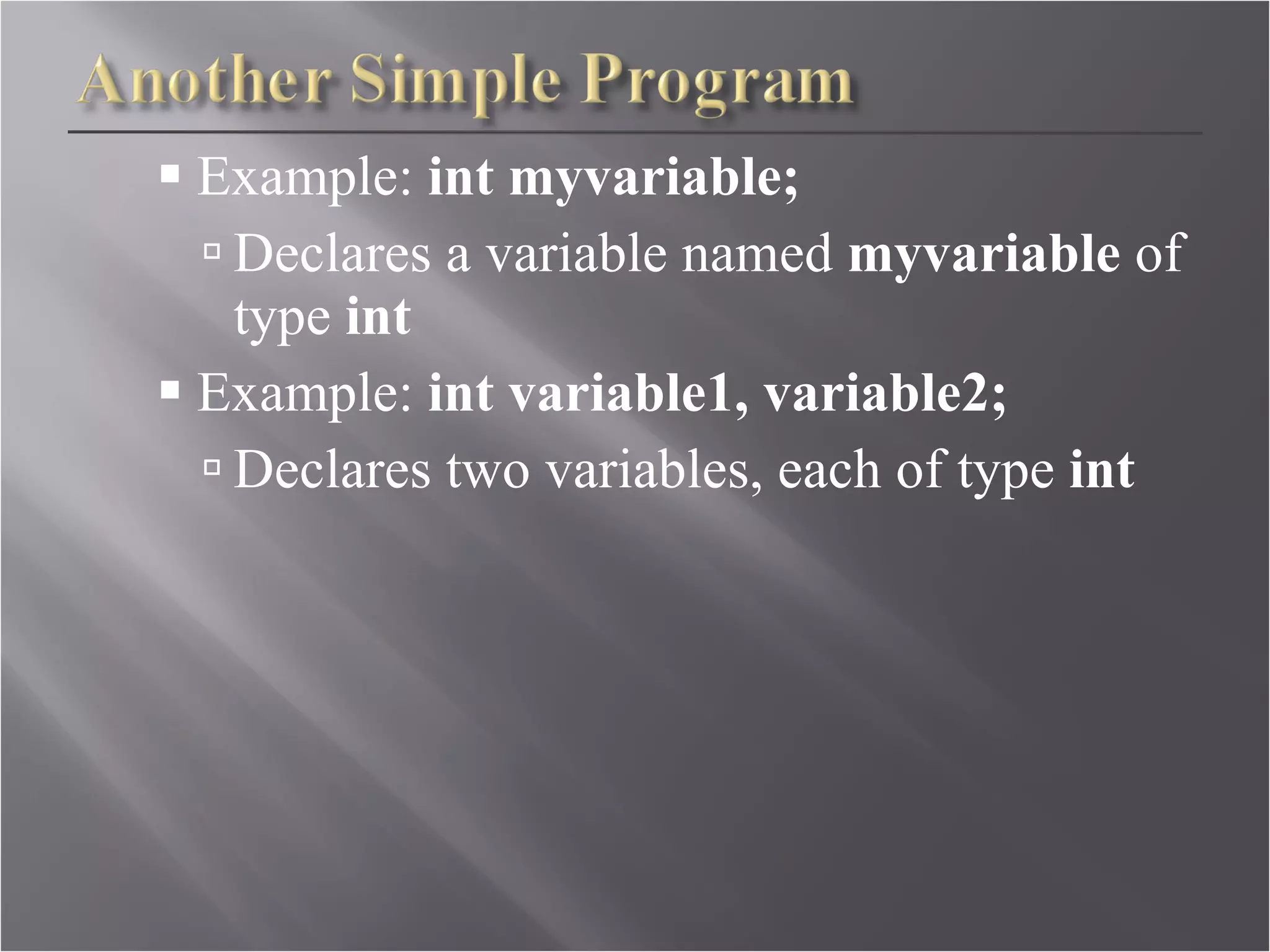

Example: int myvariable; Declares a variable named myvariable of type int Example: int variable1, variable2; Declares two variables, each of type int

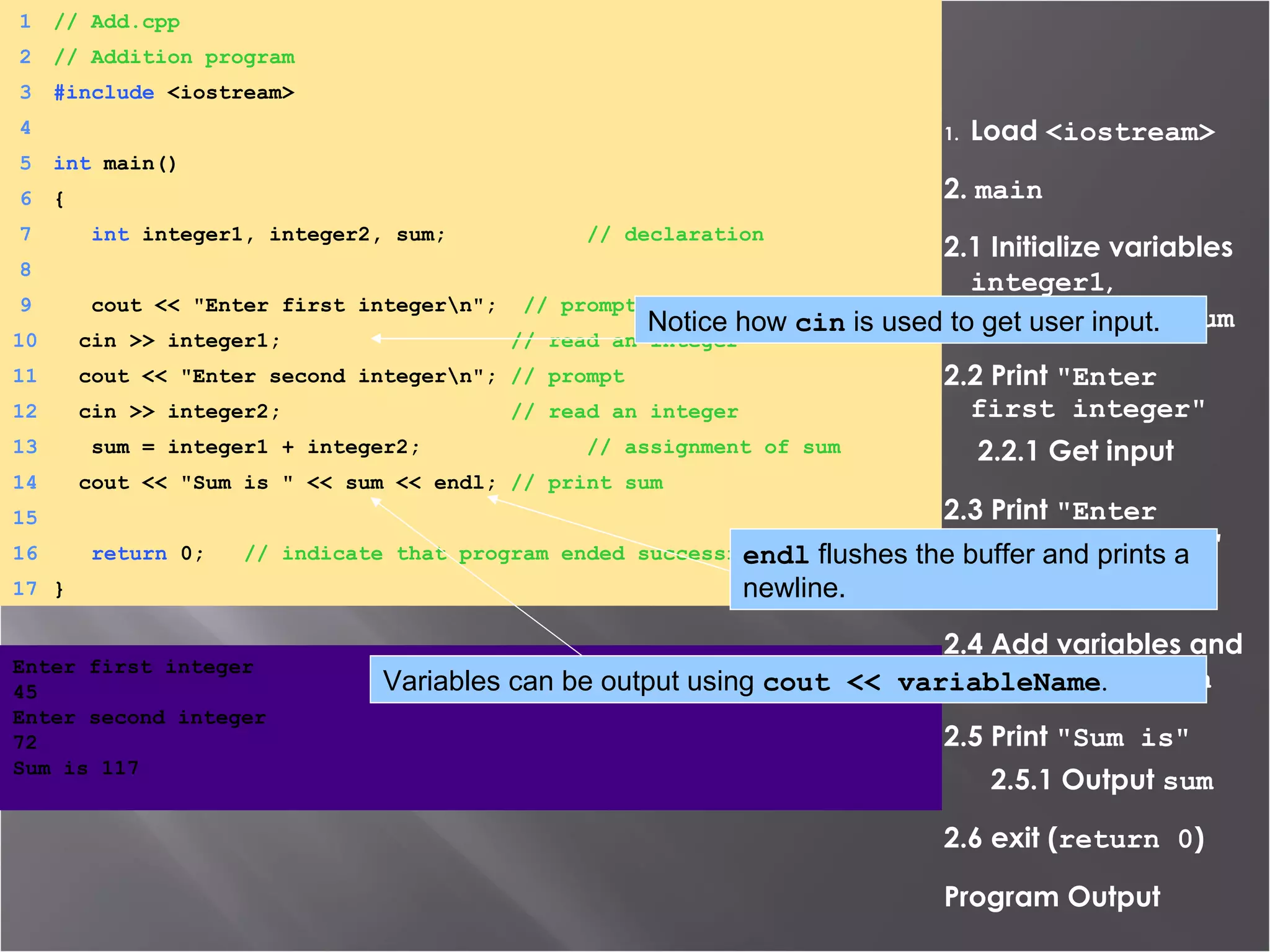

Load <iostream> 2. main 2.1 Initialize variables integer1 , integer2 , and sum 2.2 Print "Enter first integer" 2.2.1 Get input 2.3 Print "Enter second integer" 2.3.1 Get input 2.4 Add variables and put result into sum 2.5 Print "Sum is" 2.5.1 Output sum 2.6 exit ( return 0 ) Program Output Enter first integer 45 Enter second integer 72 Sum is 117 1 // Add.cpp 2 // Addition program 3 #include <iostream> 4 5 int main() 6 { 7 int integer1, integer2, sum; // declaration 8 9 cout << "Enter first integer\n"; // prompt 10 cin >> integer1; // read an integer 11 cout << "Enter second integer\n"; // prompt 12 cin >> integer2; // read an integer 13 sum = integer1 + integer2; // assignment of sum 14 cout << "Sum is " << sum << endl; // print sum 15 16 return 0; // indicate that program ended successfully 17 } Notice how cin is used to get user input. Variables can be output using cout << variableName . endl flushes the buffer and prints a newline.

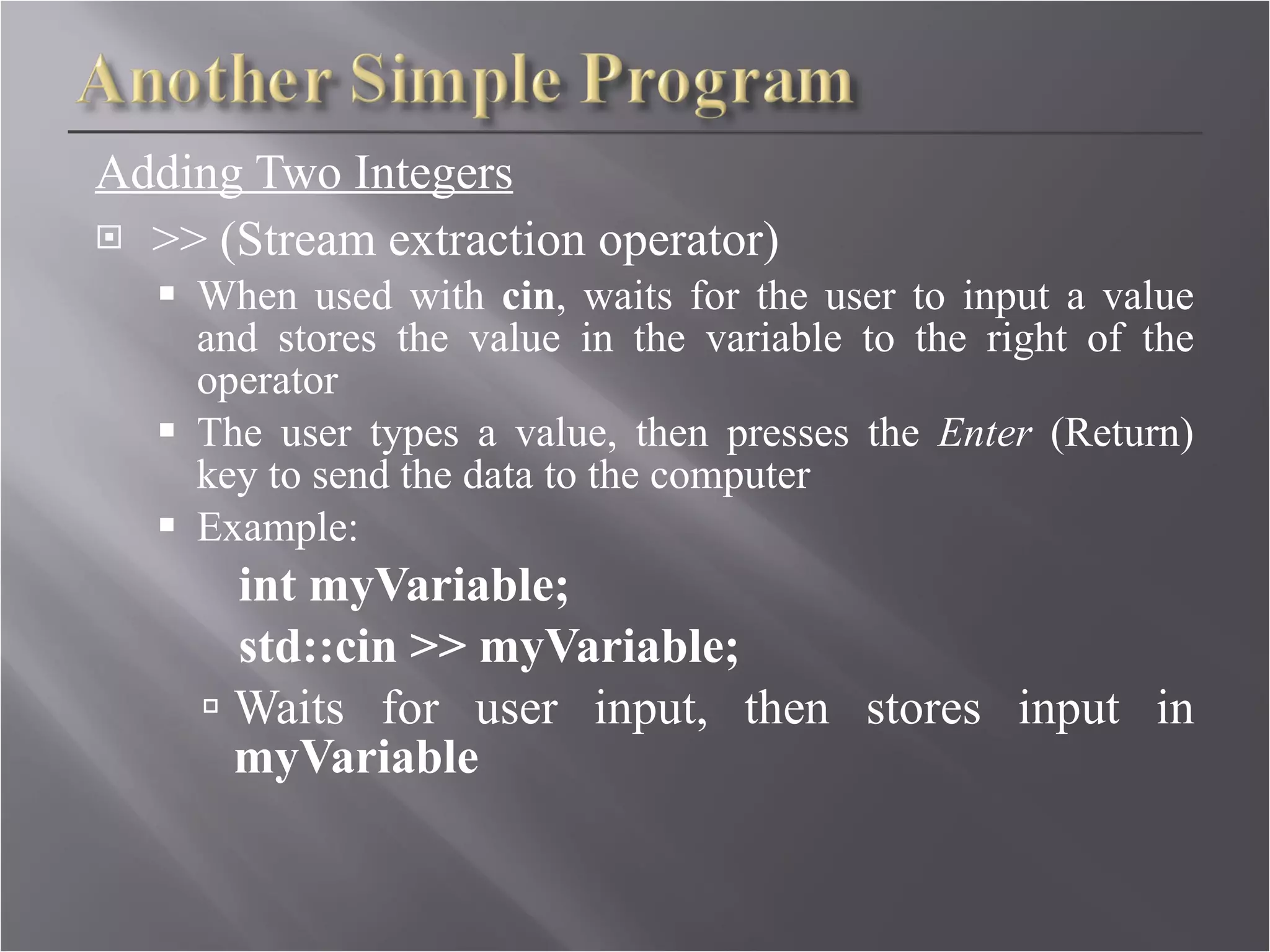

Adding Two Integers >> (Stream extraction operator) When used with cin , waits for the user to input a value and stores the value in the variable to the right of the operator The user types a value, then presses the Enter (Return) key to send the data to the computer Example: int myVariable; std::cin >> myVariable; Waits for user input, then stores input in myVariable

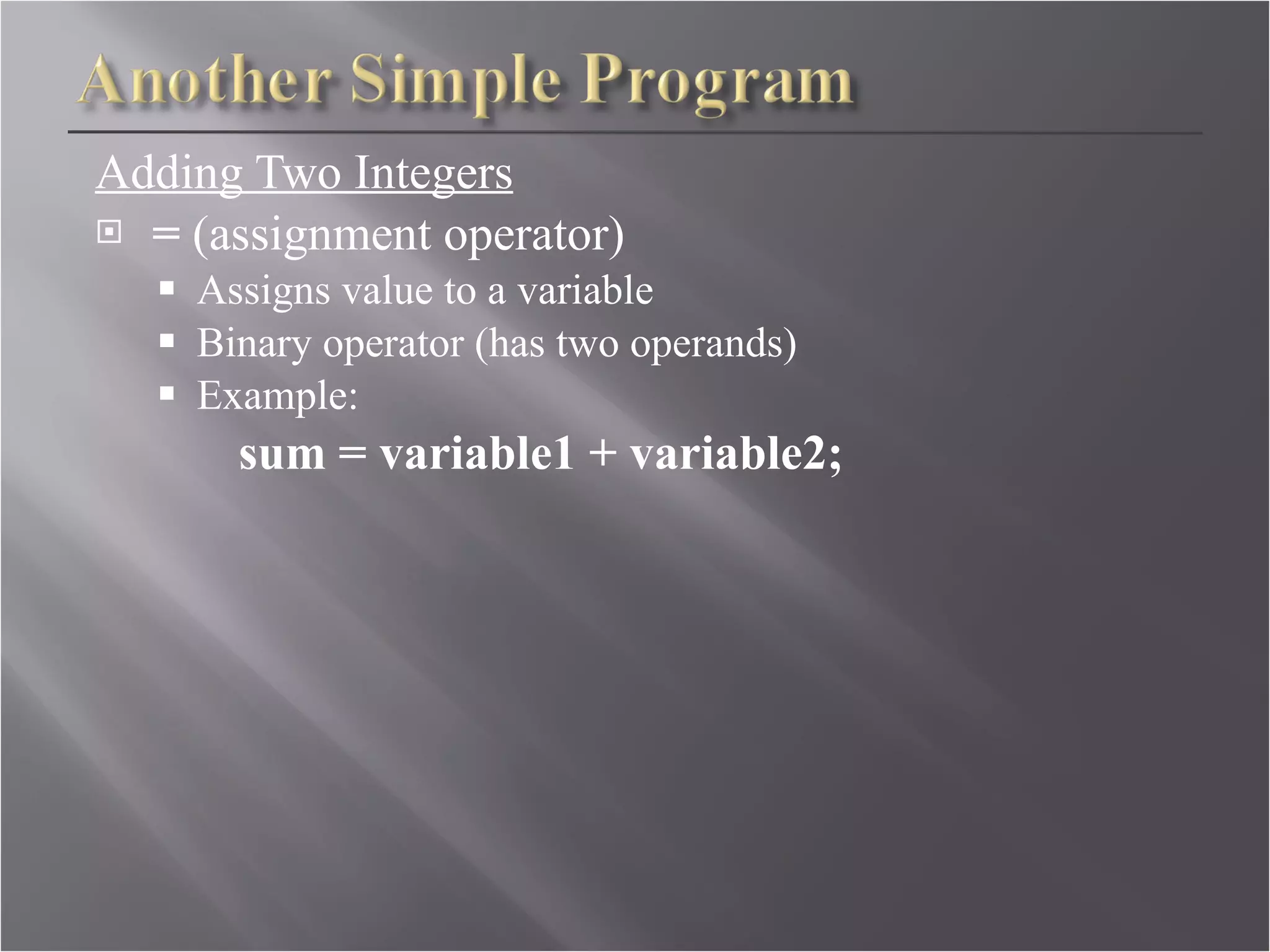

Adding Two Integers = (assignment operator) Assigns value to a variable Binary operator (has two operands) Example: sum = variable1 + variable2;
