1. HARDWARE TOOLS
COMPUTER SYSTEMS SERVICING NC-II

3. Objectives

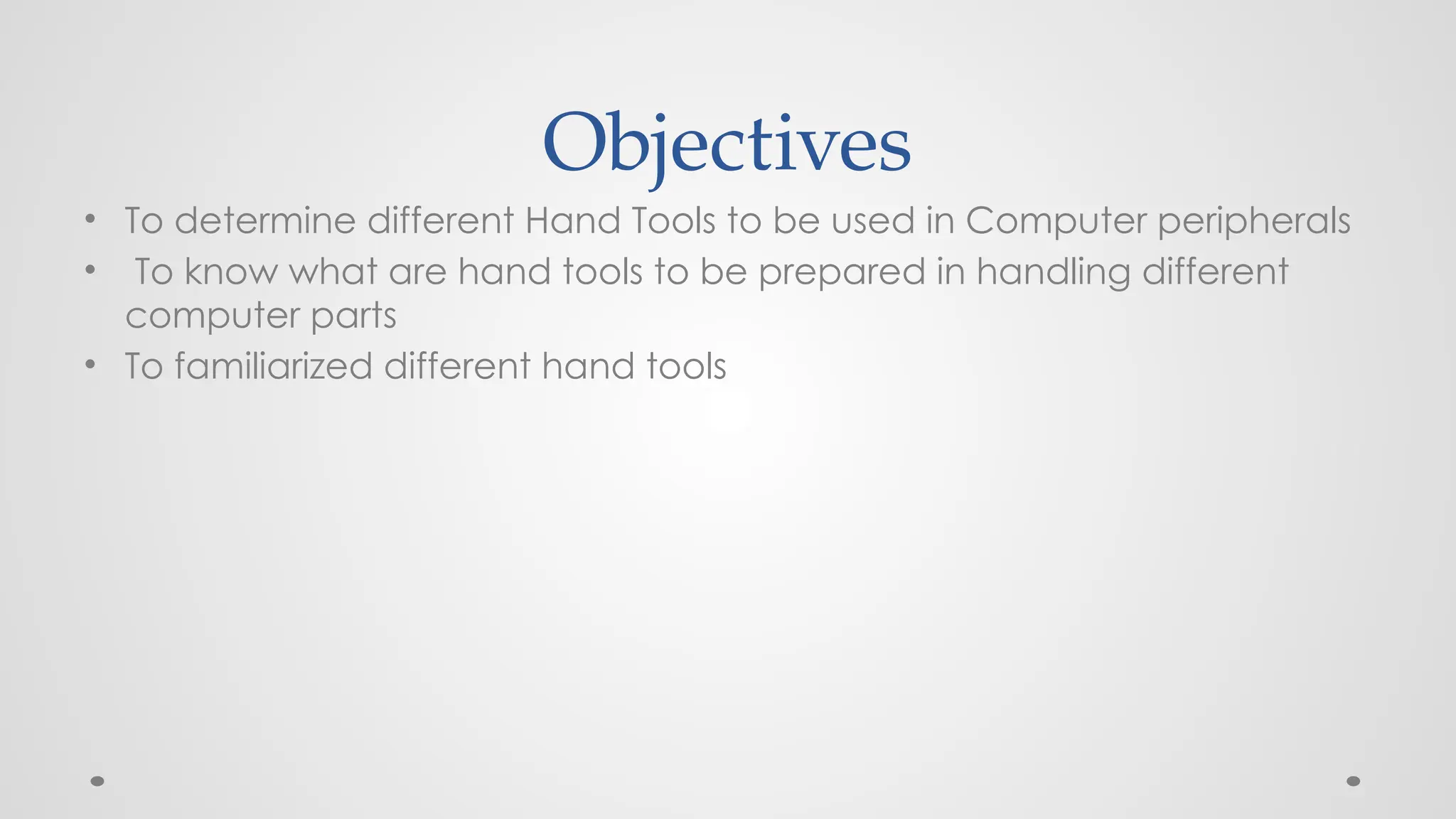

• To determine different Hand Tools to be used in Computer peripherals
• To know what are hand tools to be prepared in handling different
computer parts
• To familiarized different hand tools

4. Definition of Terms

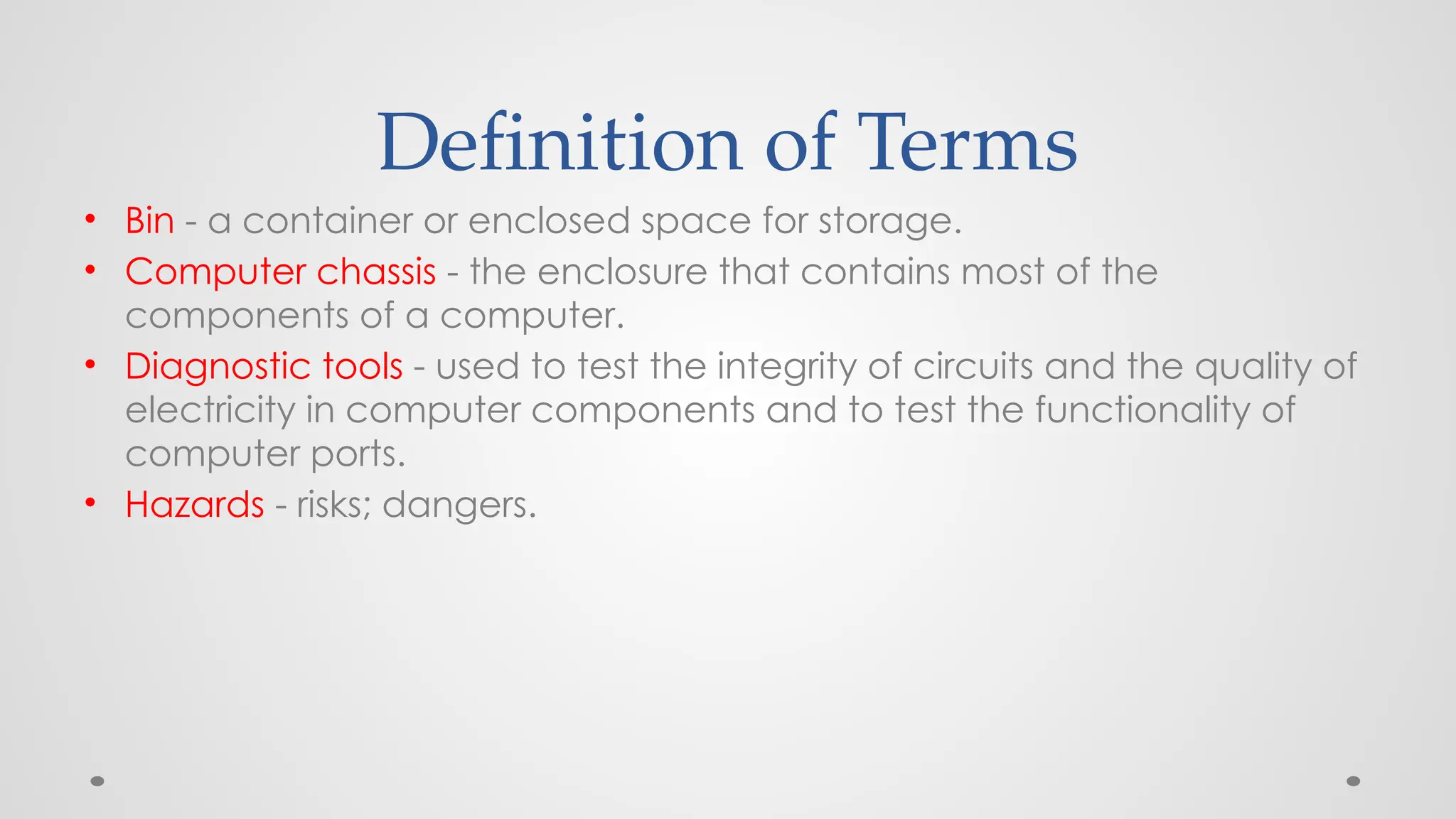

• Bin - a container or enclosed space for storage.
• Computer chassis - the enclosure that contains most of the
components of a computer.
• Diagnostic tools - used to test the integrity of circuits and the quality of
electricity in computer components and to test the functionality of
computer ports.
• Hazards - risks; dangers.

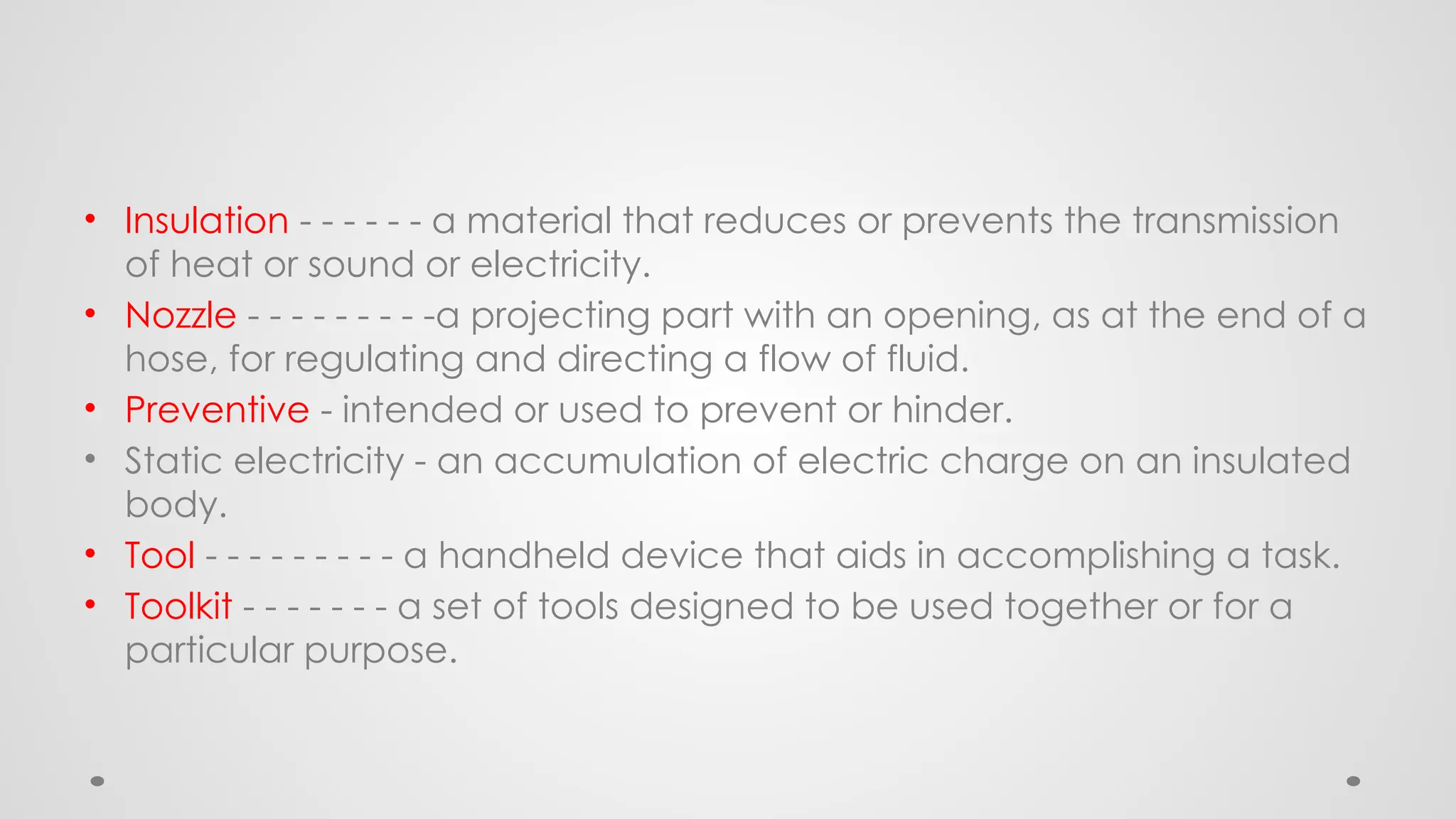

5. • Insulation - - - - - - a material that reduces or prevents the transmission
of heat or sound or electricity.
• Nozzle - - - - - - - - -a projecting part with an opening, as at the end of a
hose, for regulating and directing a flow of fluid.
• Preventive - intended or used to prevent or hinder.
• Static electricity - an accumulation of electric charge on an insulated
body.
• Tool - - - - - - - - - a handheld device that aids in accomplishing a task.
• Toolkit - - - - - - - a set of tools designed to be used together or for a
particular purpose.

6. HARDWARE TOOLS
Hardware tools are grouped into these four categories:
• Electro-Static Discharge (ESD) tools
• Hand tools
• Cleaning tools
• Diagnostic tools

7. Electro-Static Discharge (ESD)
Tools

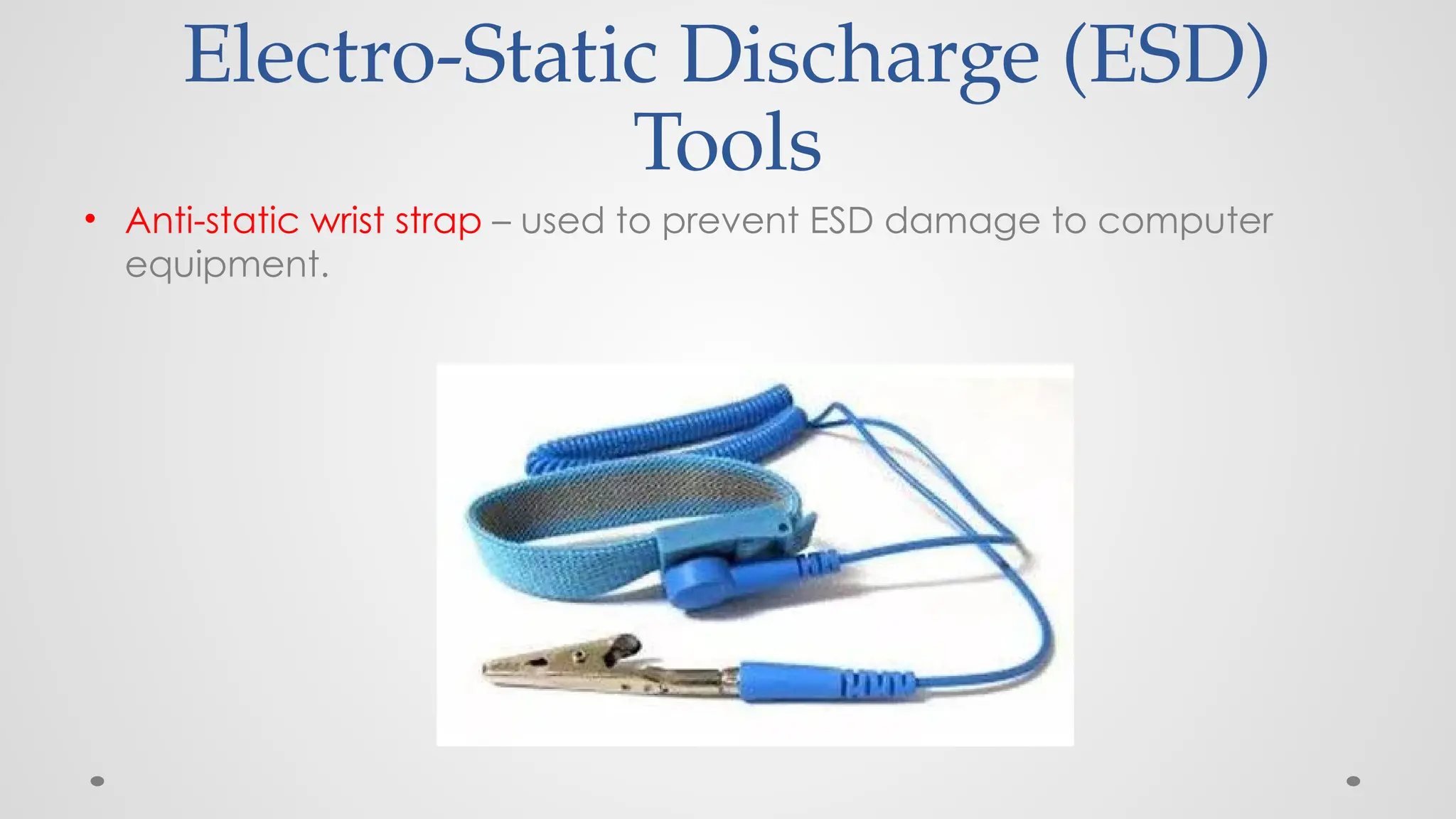

• Anti-static wrist strap – used to prevent ESD damage to computer
equipment.

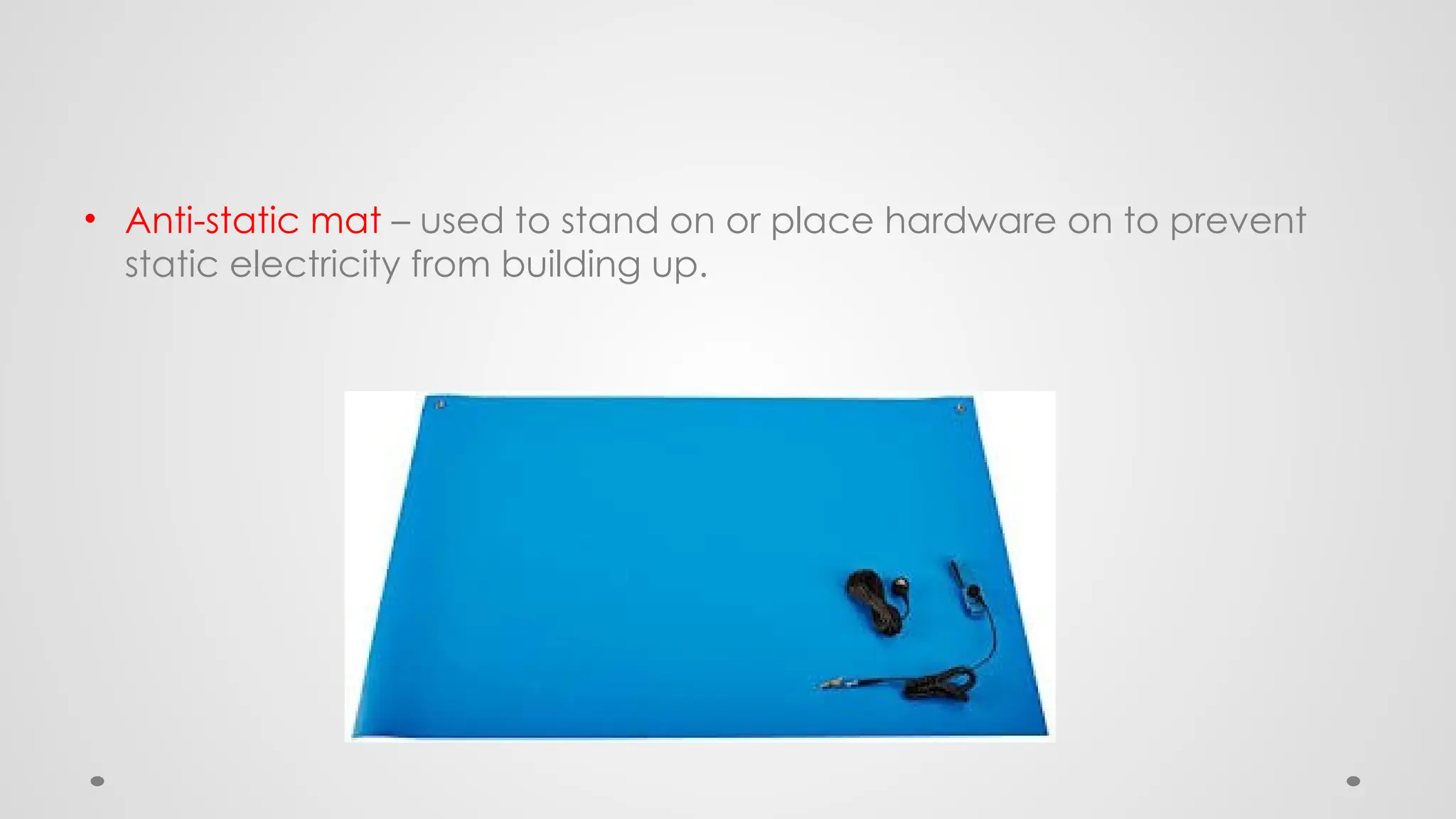

8. • Anti-static mat – used to stand on or place hardware on to prevent
static electricity from building up.

9. Hand Tools

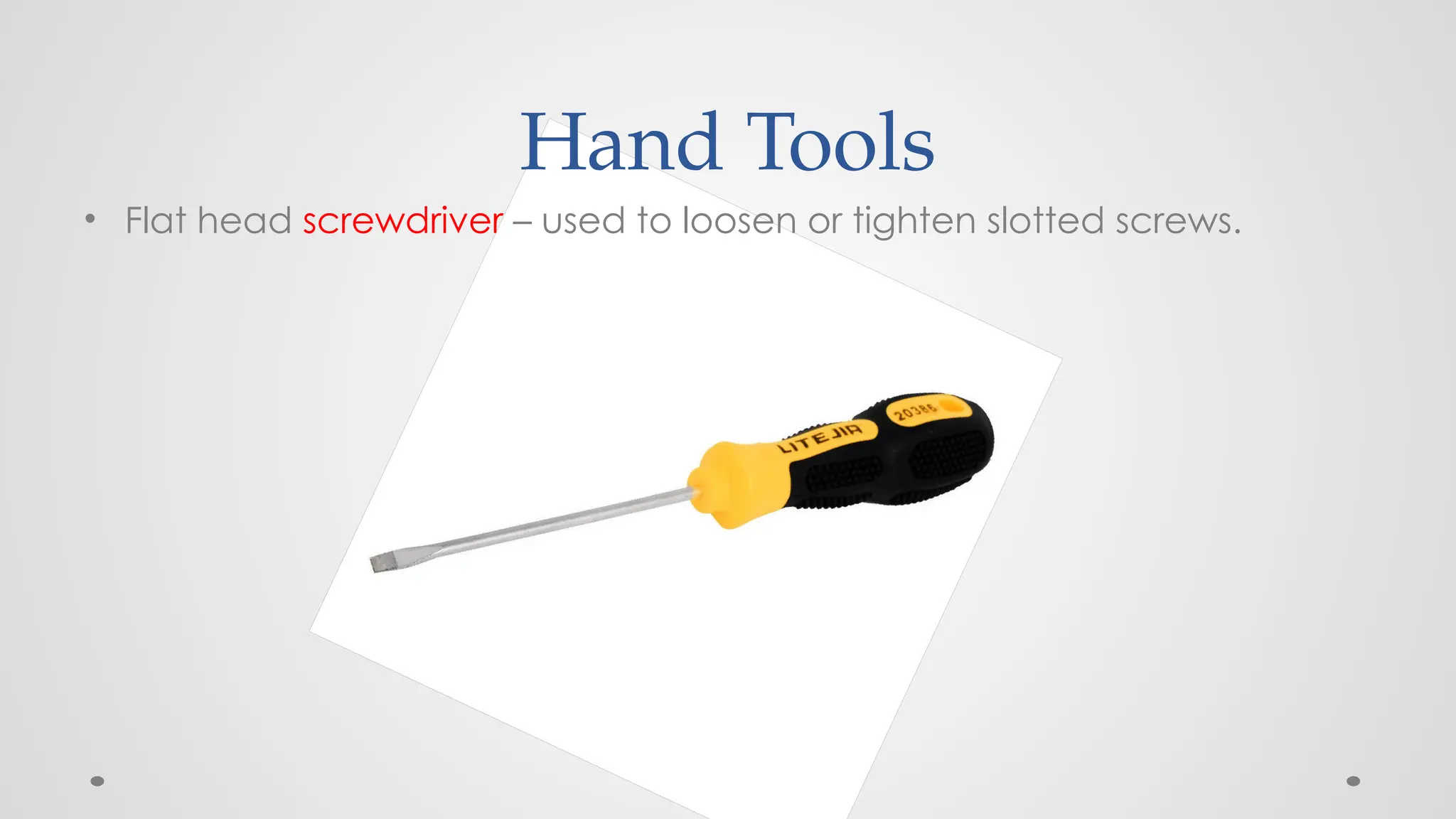

• Flat head screwdriver – used to loosen or tighten slotted screws.

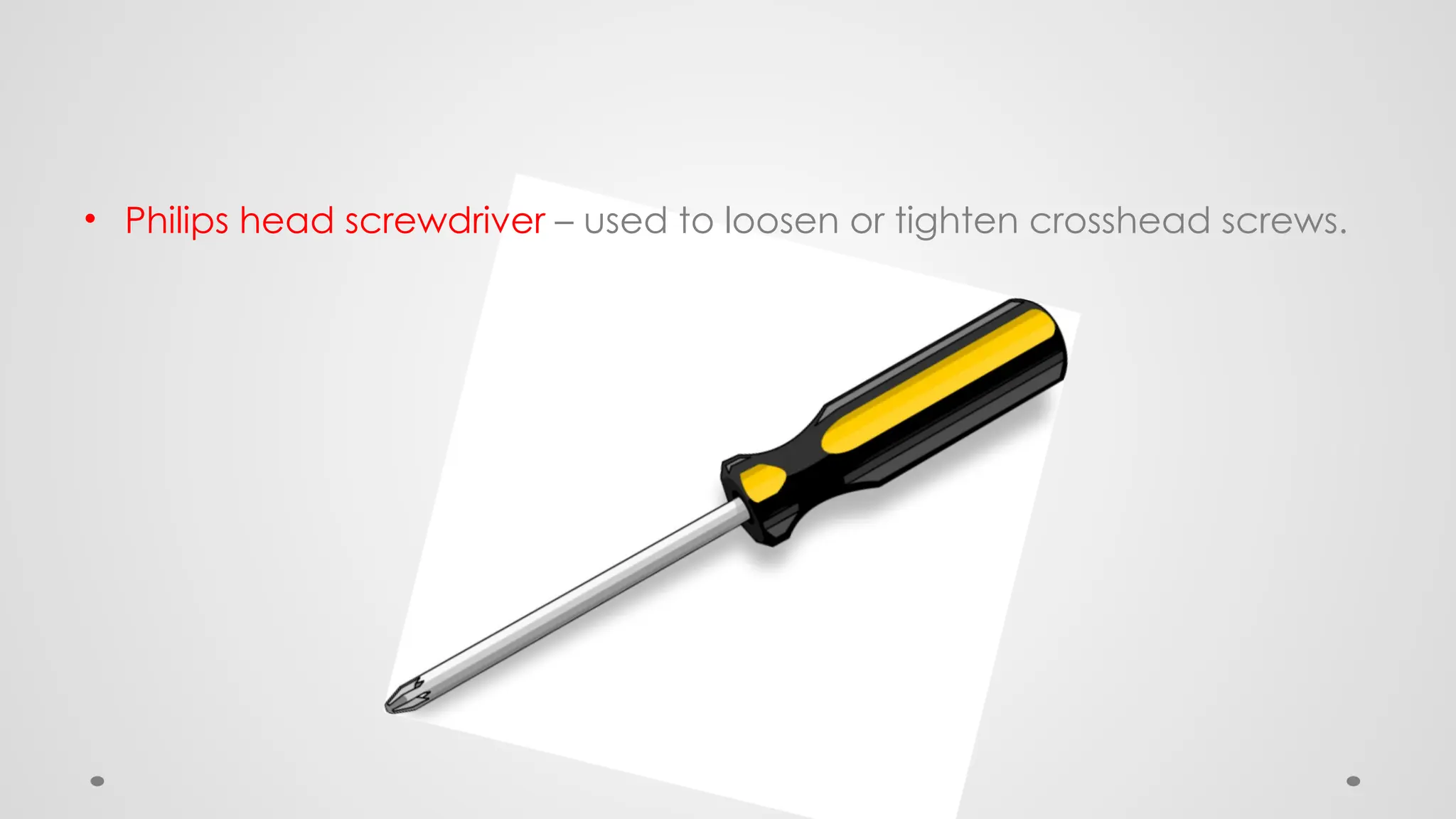

10. • Philips head screwdriver – used to loosen or tighten crosshead screws.

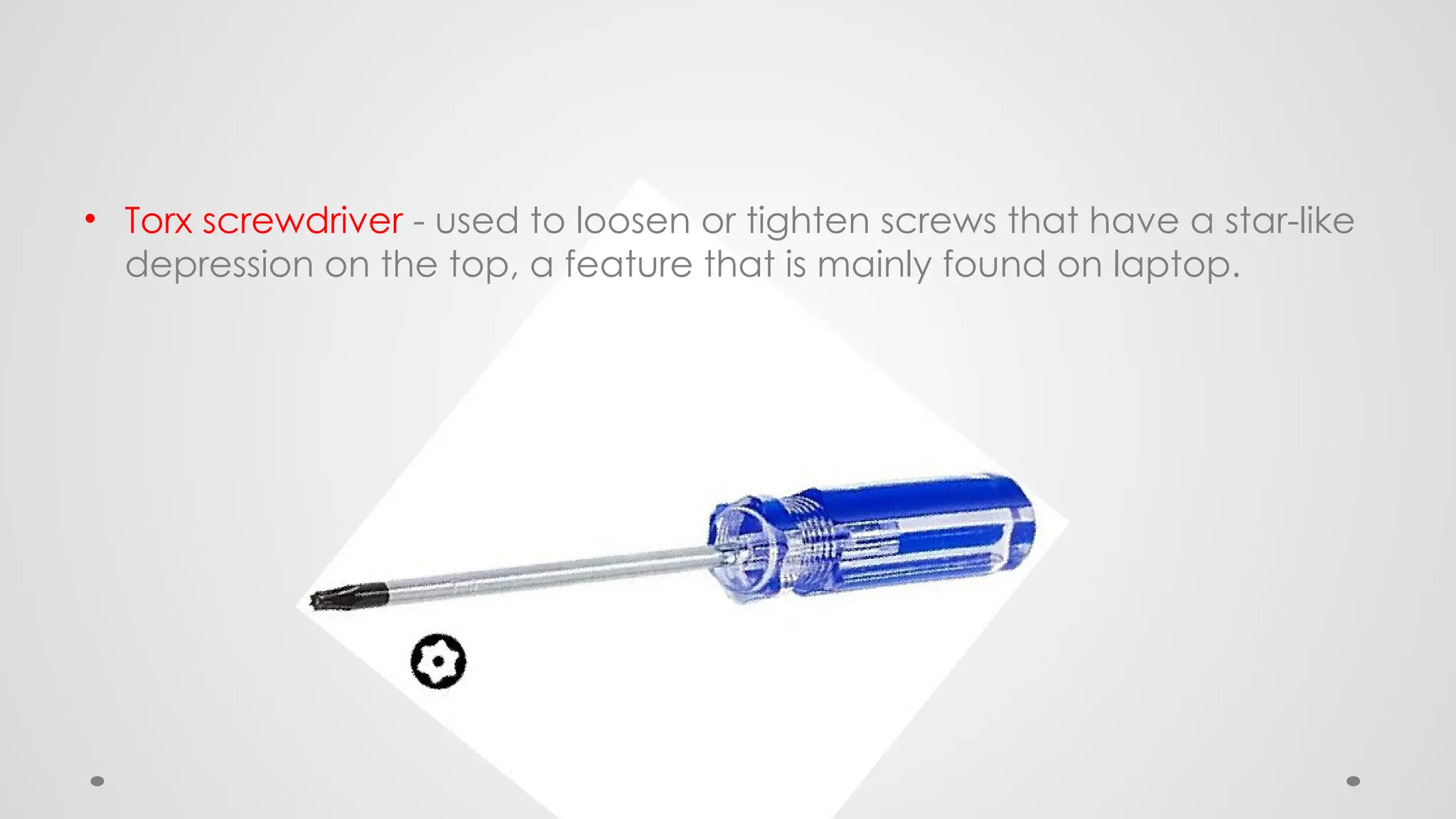

11. • Torx screwdriver - used to loosen or tighten screws that have a star-like
depression on the top, a feature that is mainly found on laptop.

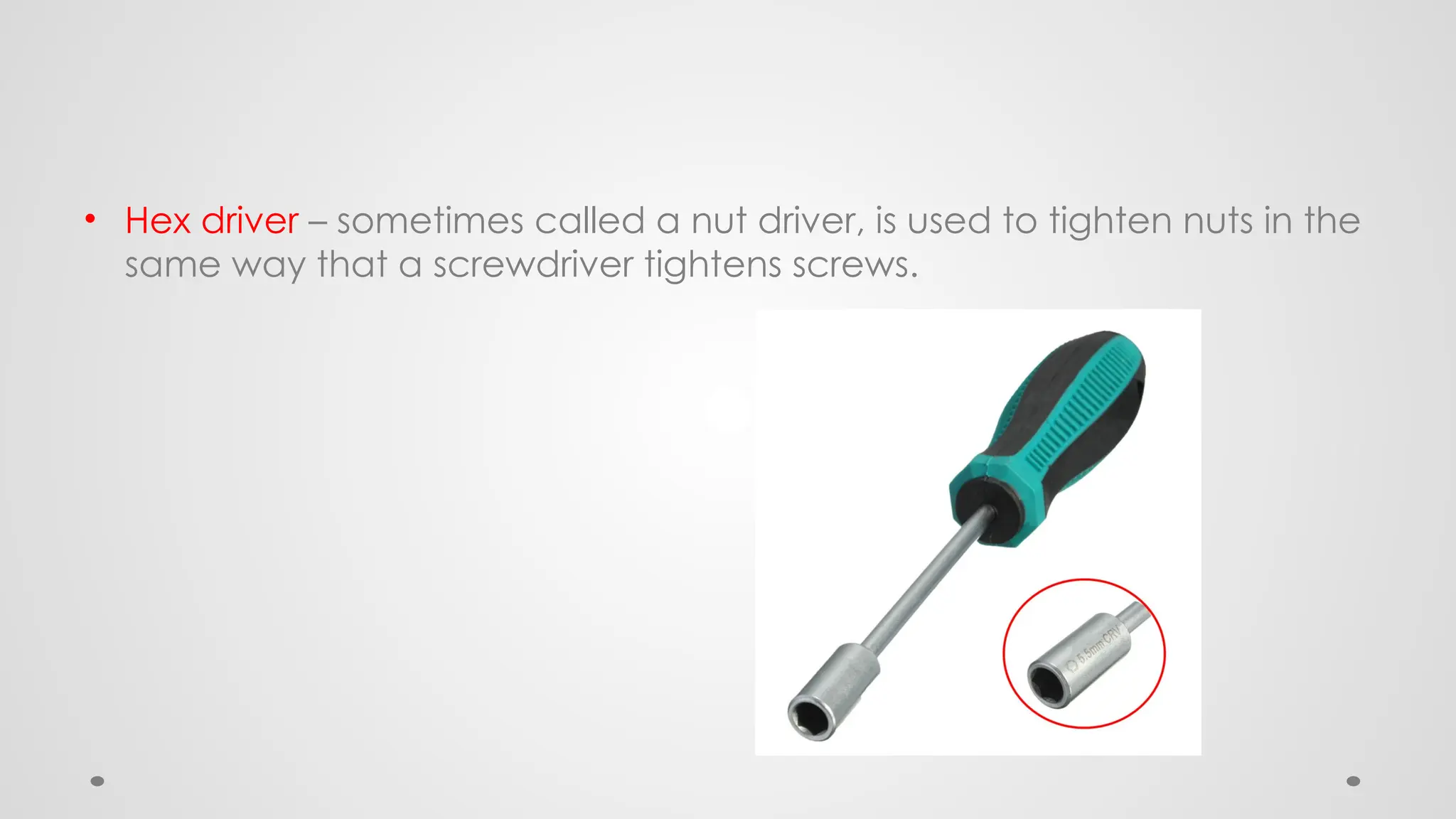

12. • Hex driver – sometimes called a nut driver, is used to tighten nuts in the
same way that a screwdriver tightens screws.

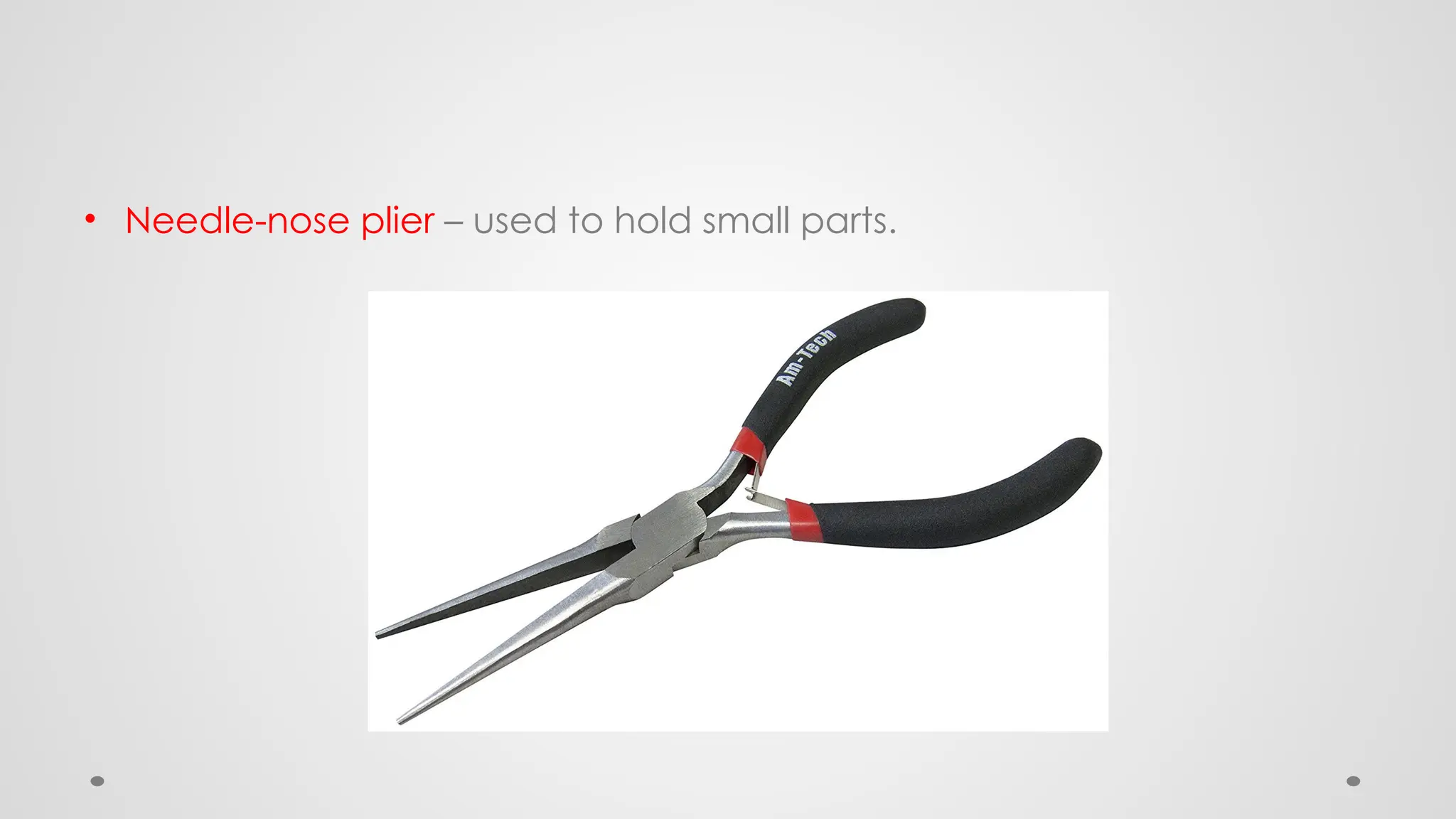

13. • Needle-nose plier – used to hold small parts.

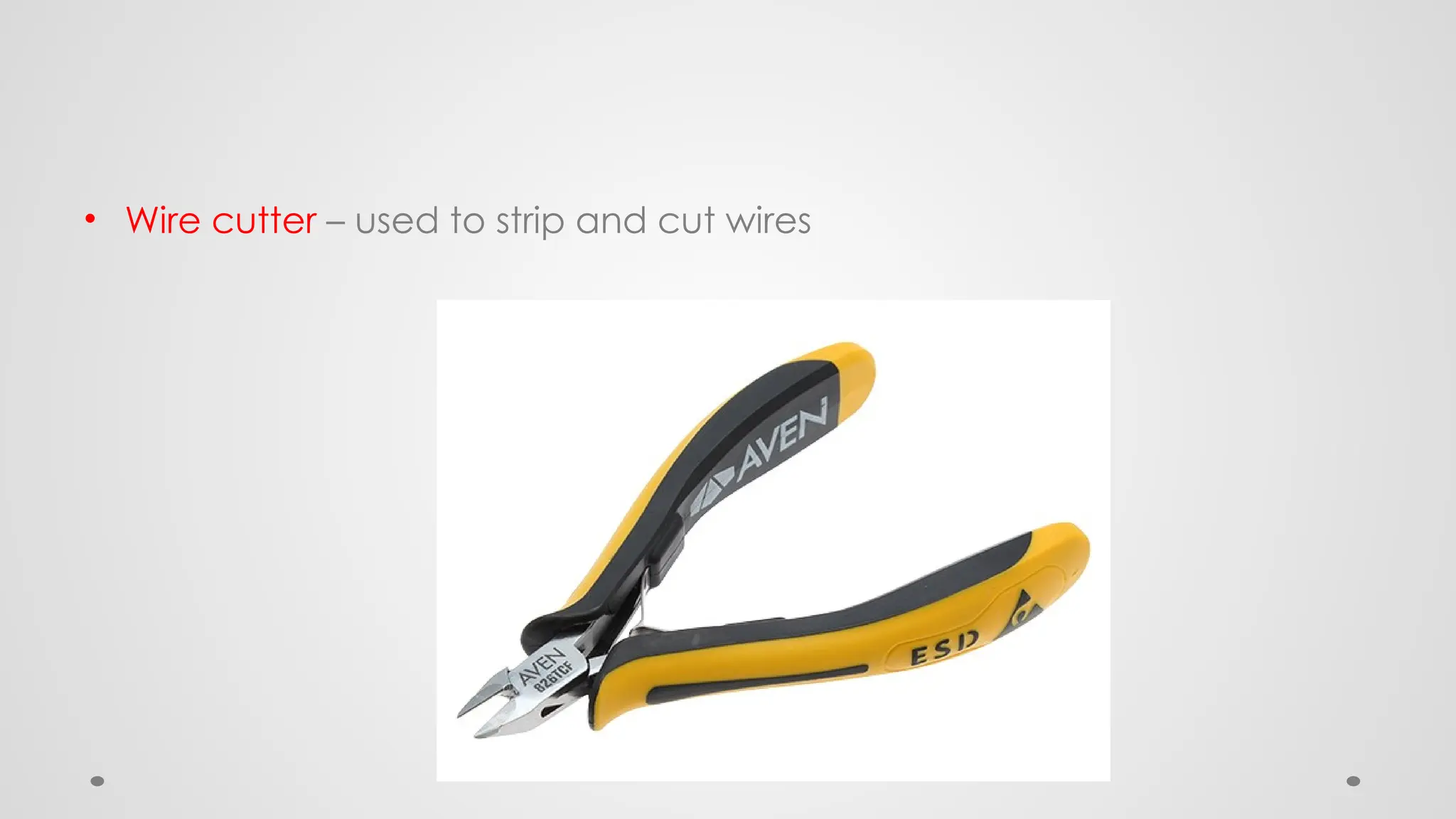

14. • Wire cutter – used to strip and cut wires

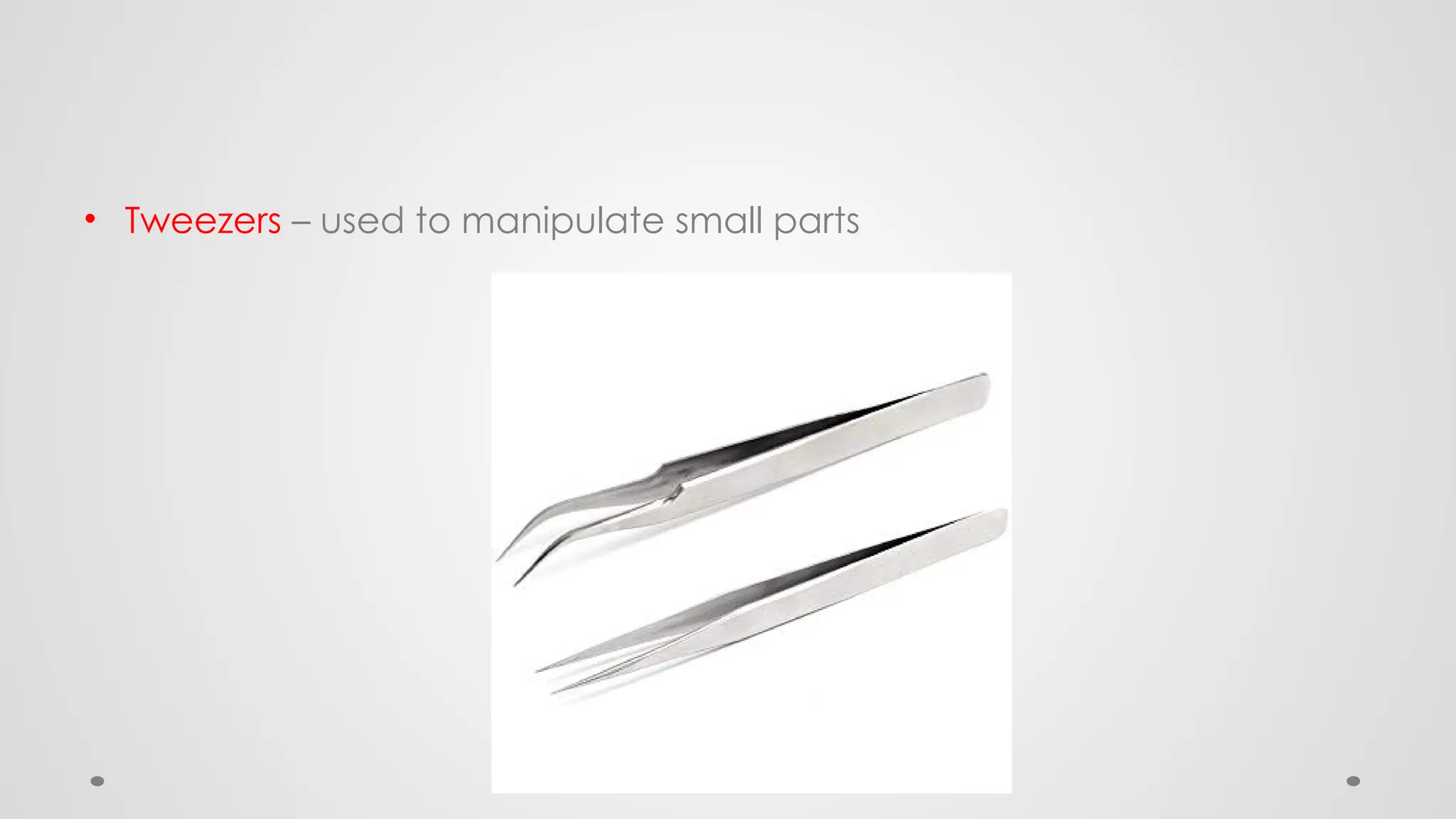

15. • Tweezers – used to manipulate small parts

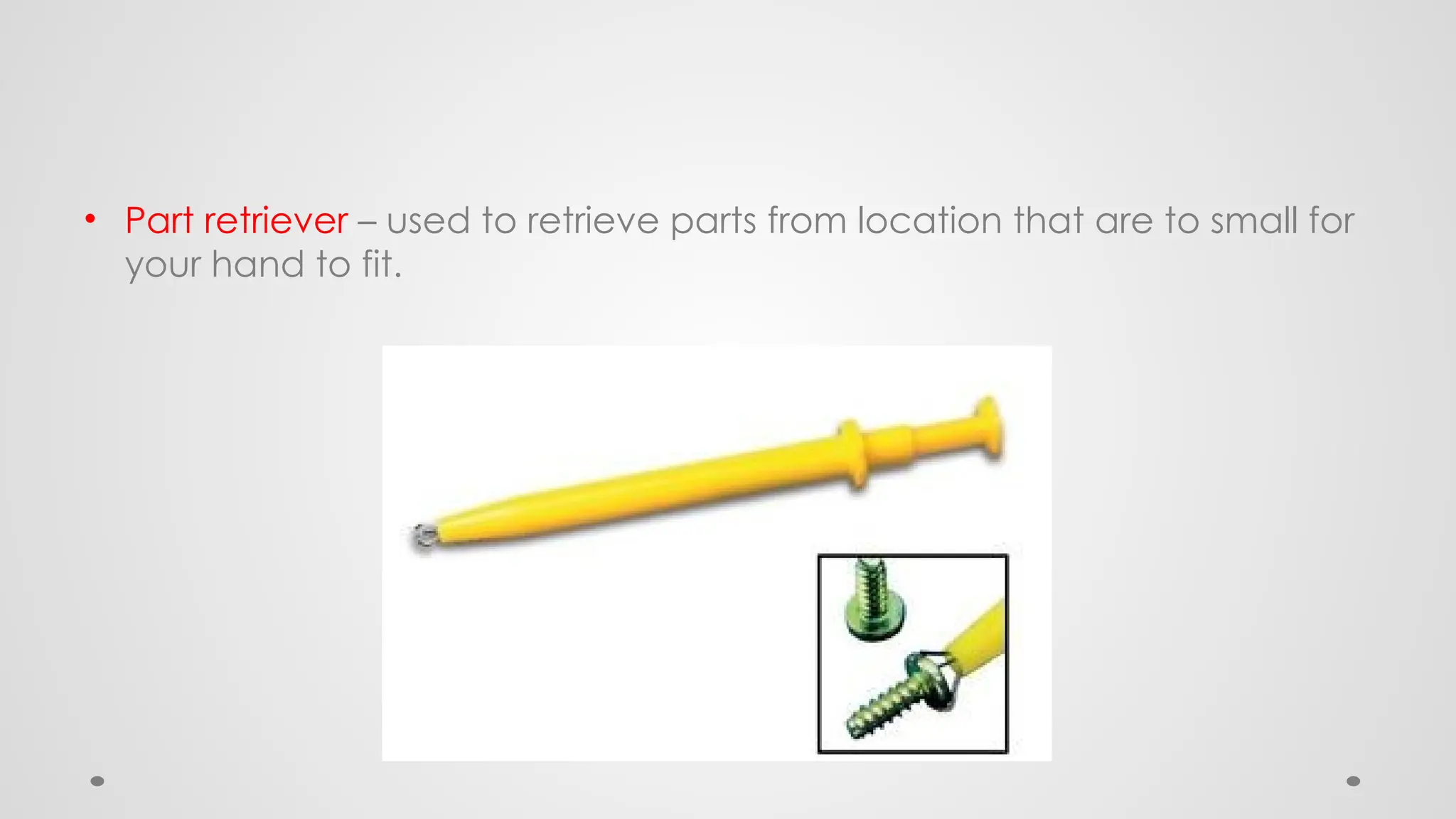

16. • Part retriever – used to retrieve parts from location that are to small for
your hand to fit.

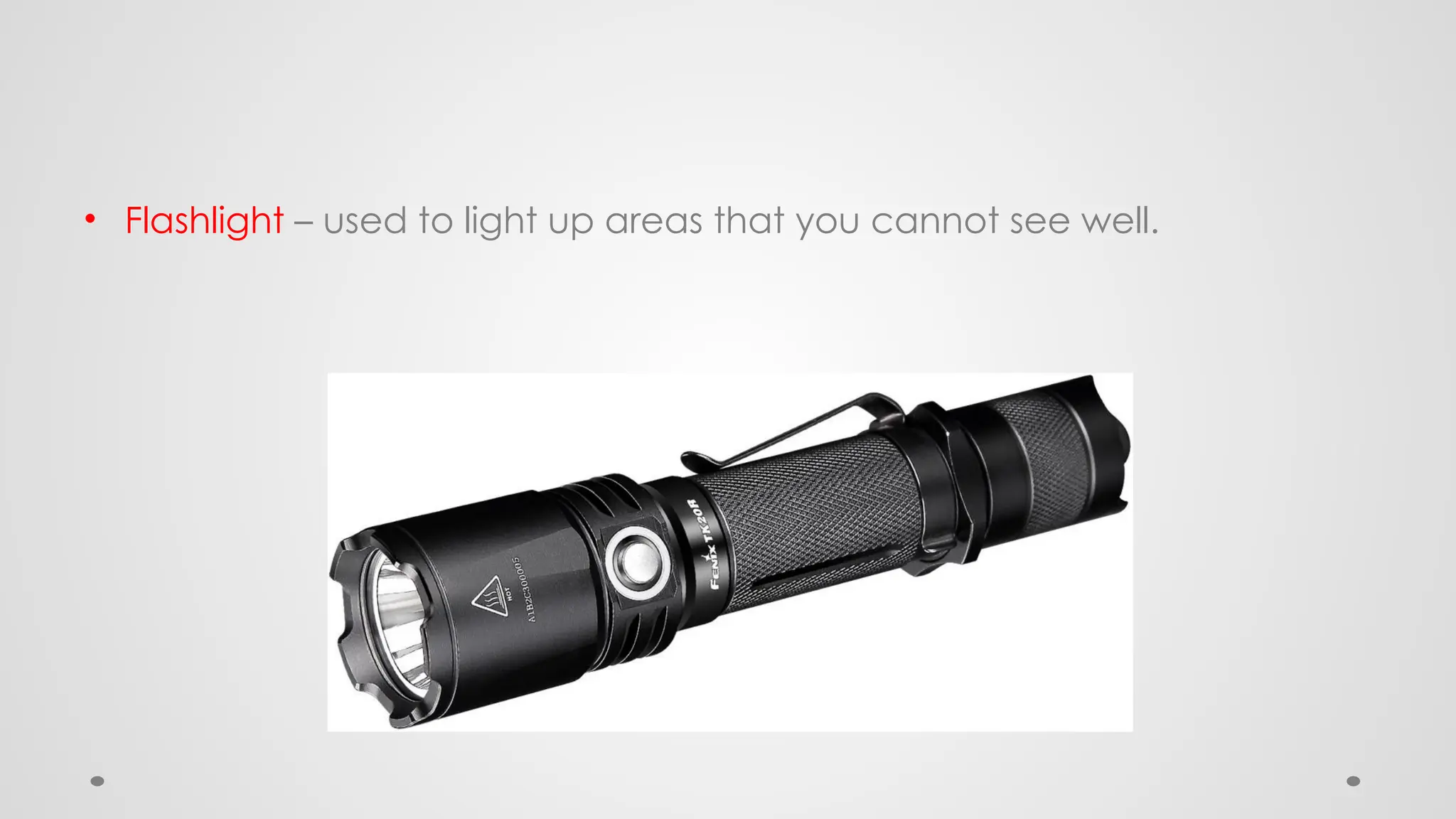

17. • Flashlight – used to light up areas that you cannot see well.

18. Cleaning Tools
• Having the appropriate cleaning tools is essential
when maintaining or repairing computers. Using
these tools ensures that computer components are
not damaged during cleaning.

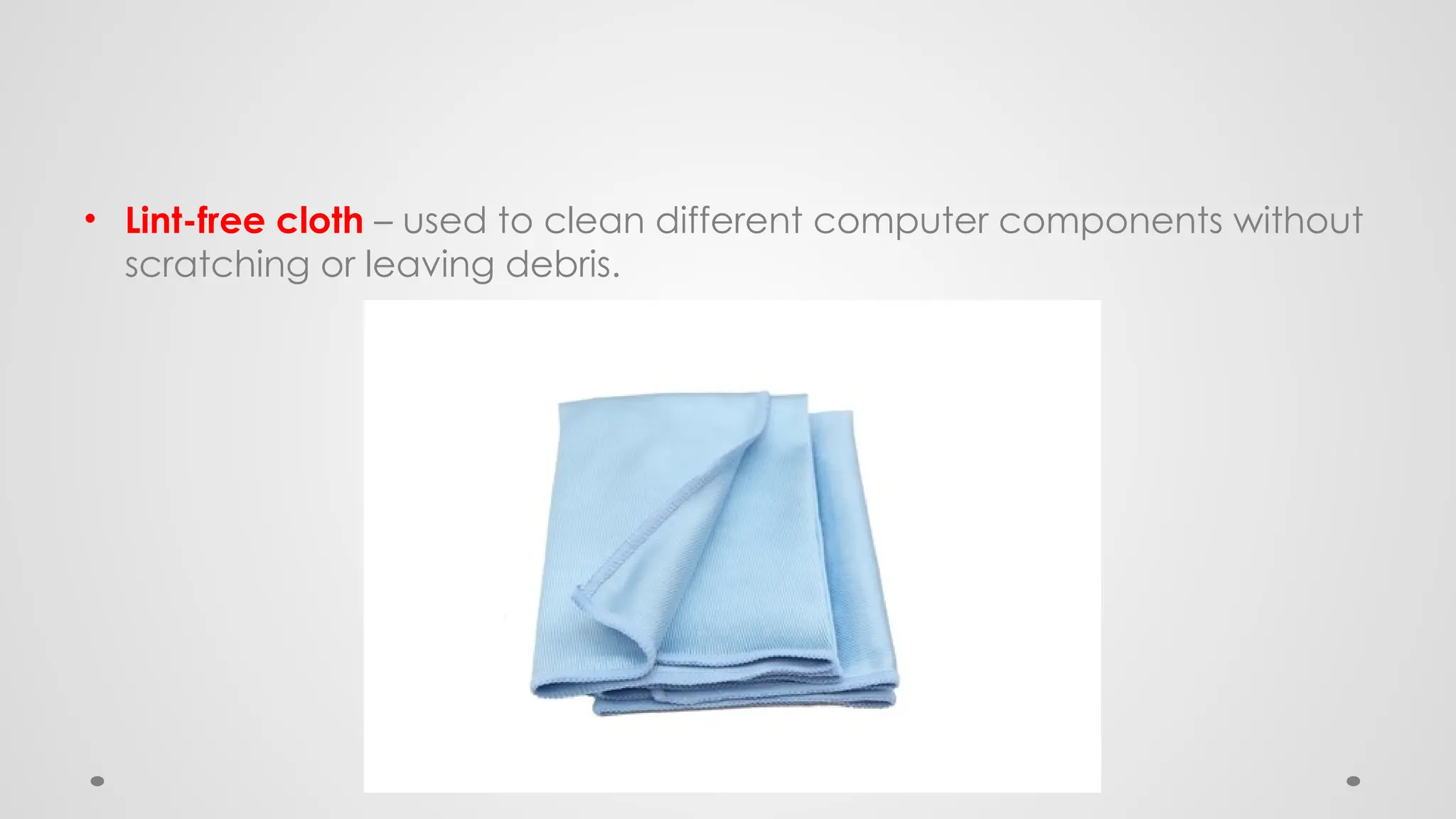

19. • Lint-free cloth – used to clean different computer components without
scratching or leaving debris.

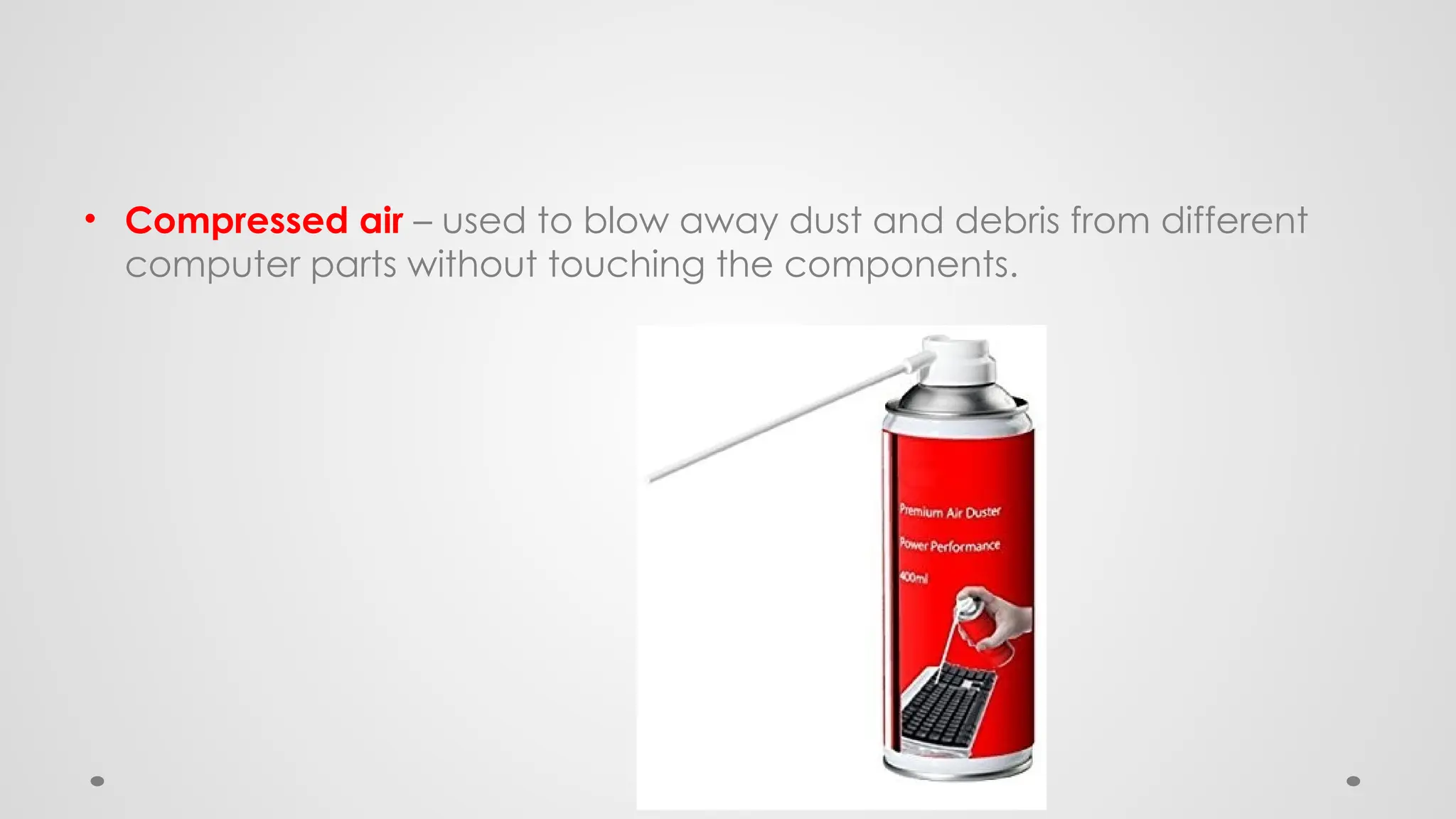

20. • Compressed air – used to blow away dust and debris from different
computer parts without touching the components.

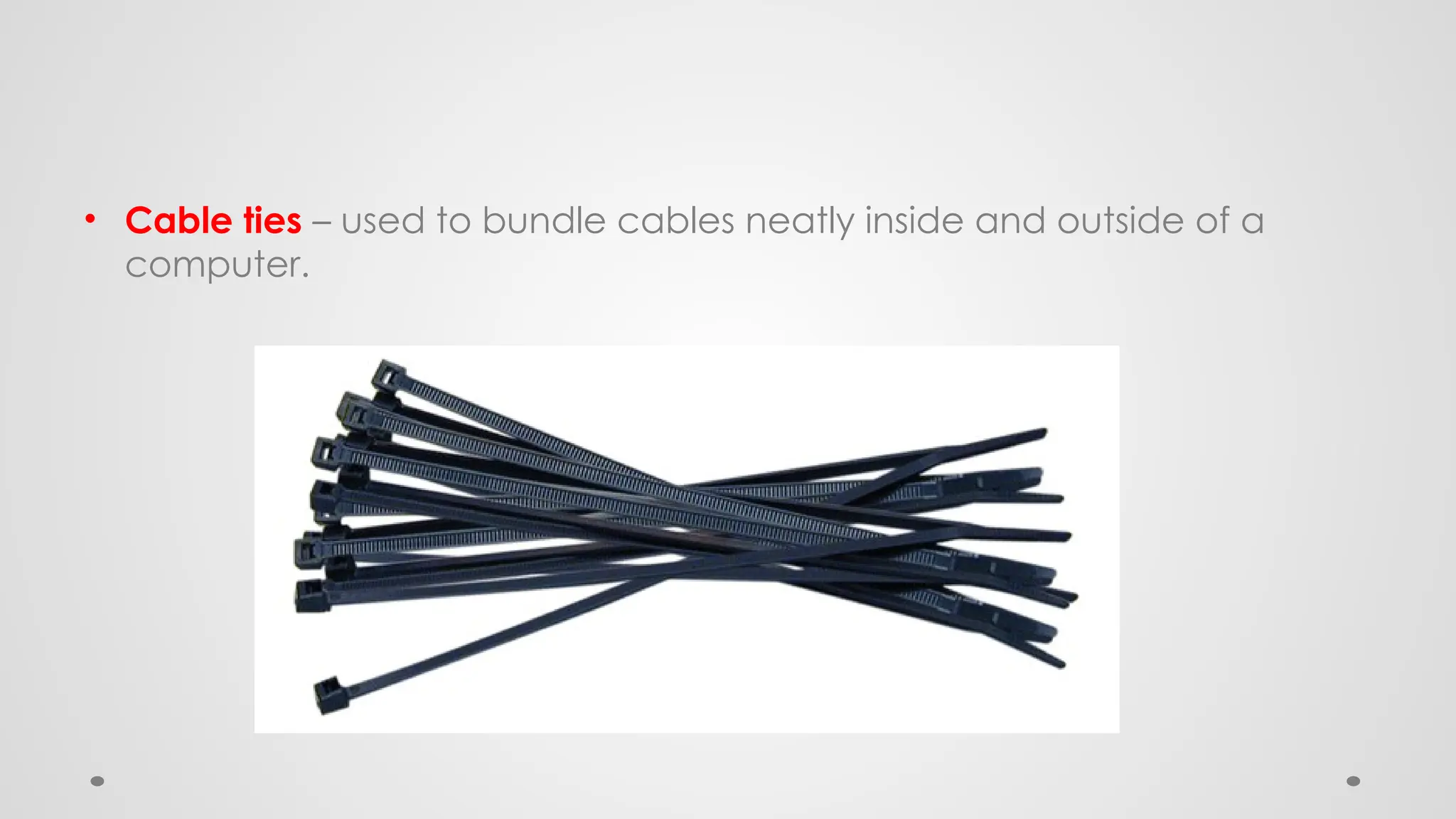

21. • Cable ties – used to bundle cables neatly inside and outside of a
computer.

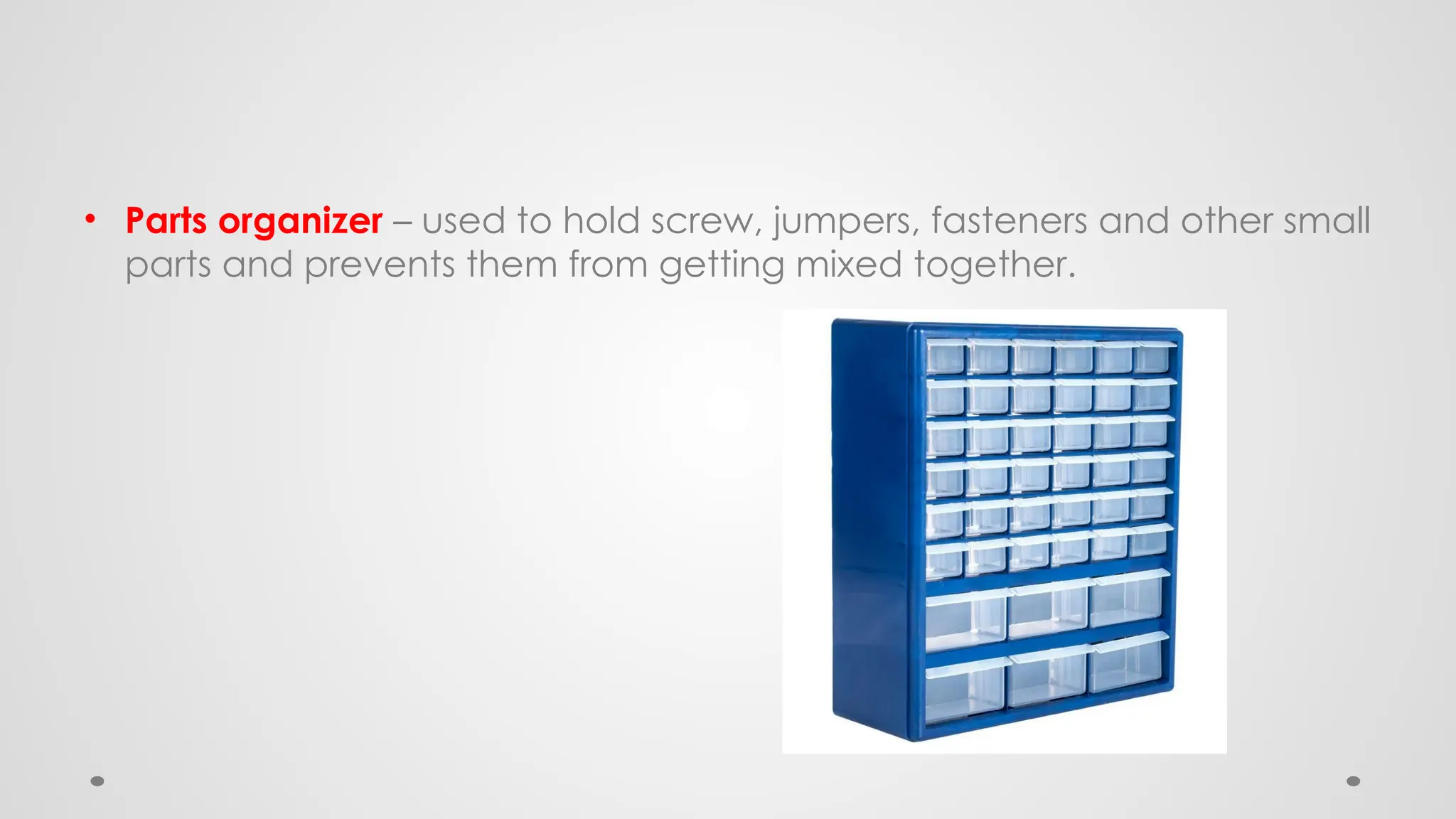

22. • Parts organizer – used to hold screw, jumpers, fasteners and other small
parts and prevents them from getting mixed together.

23. Diagnostic Tools

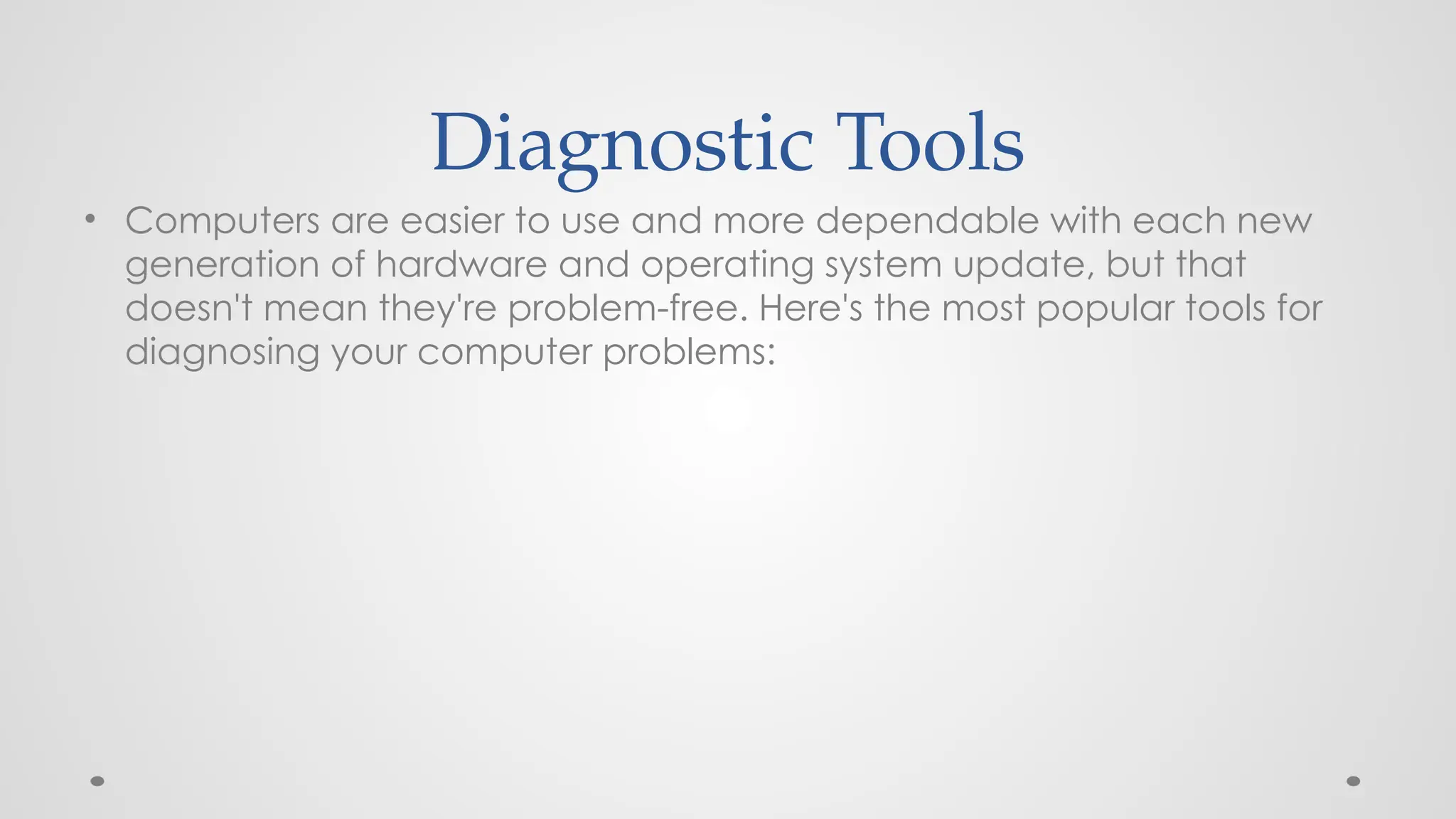

• Computers are easier to use and more dependable with each new
generation of hardware and operating system update, but that
doesn't mean they're problem-free. Here's the most popular tools for
diagnosing your computer problems:

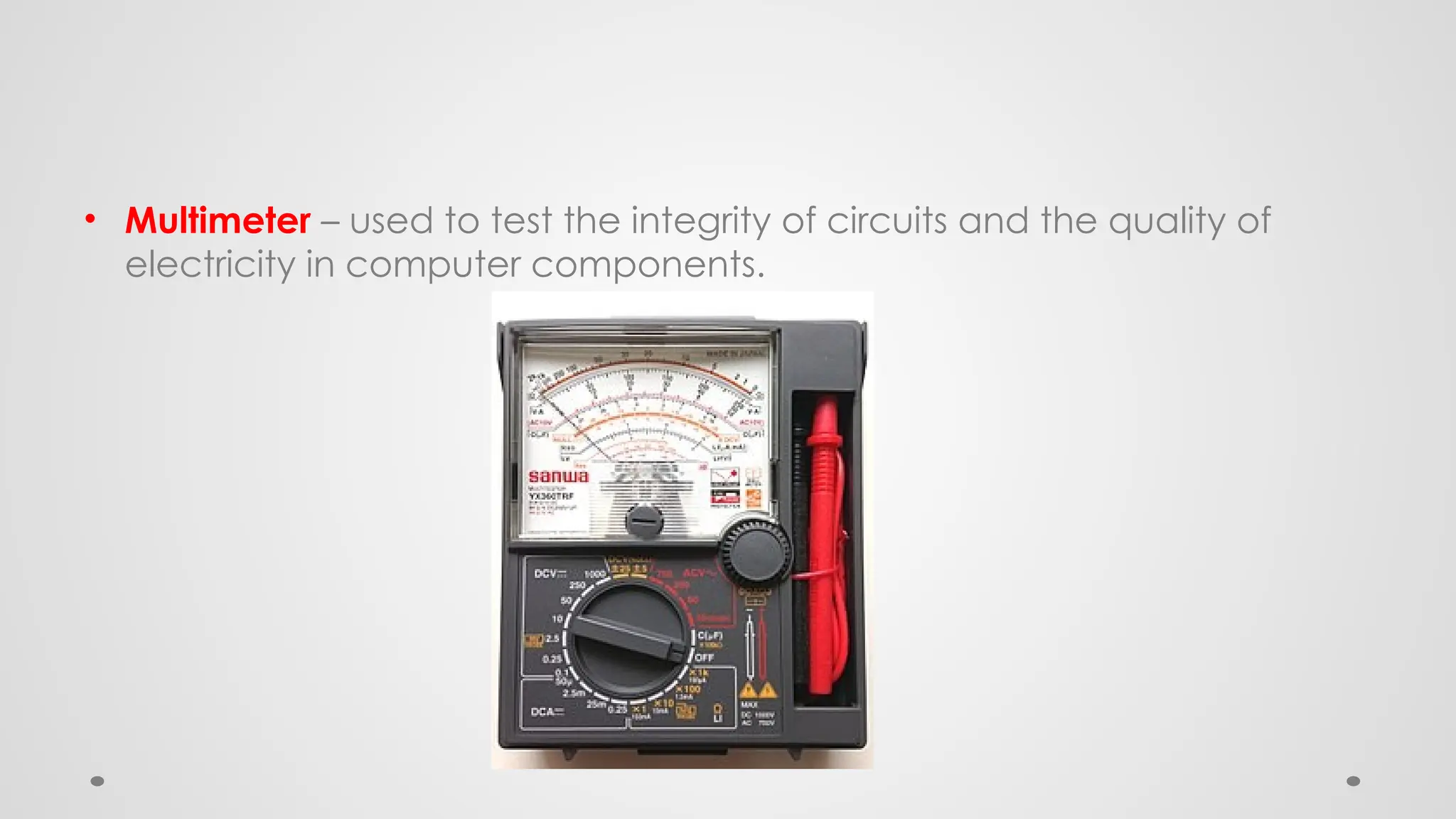

24. • Multimeter – used to test the integrity of circuits and the quality of
electricity in computer components.

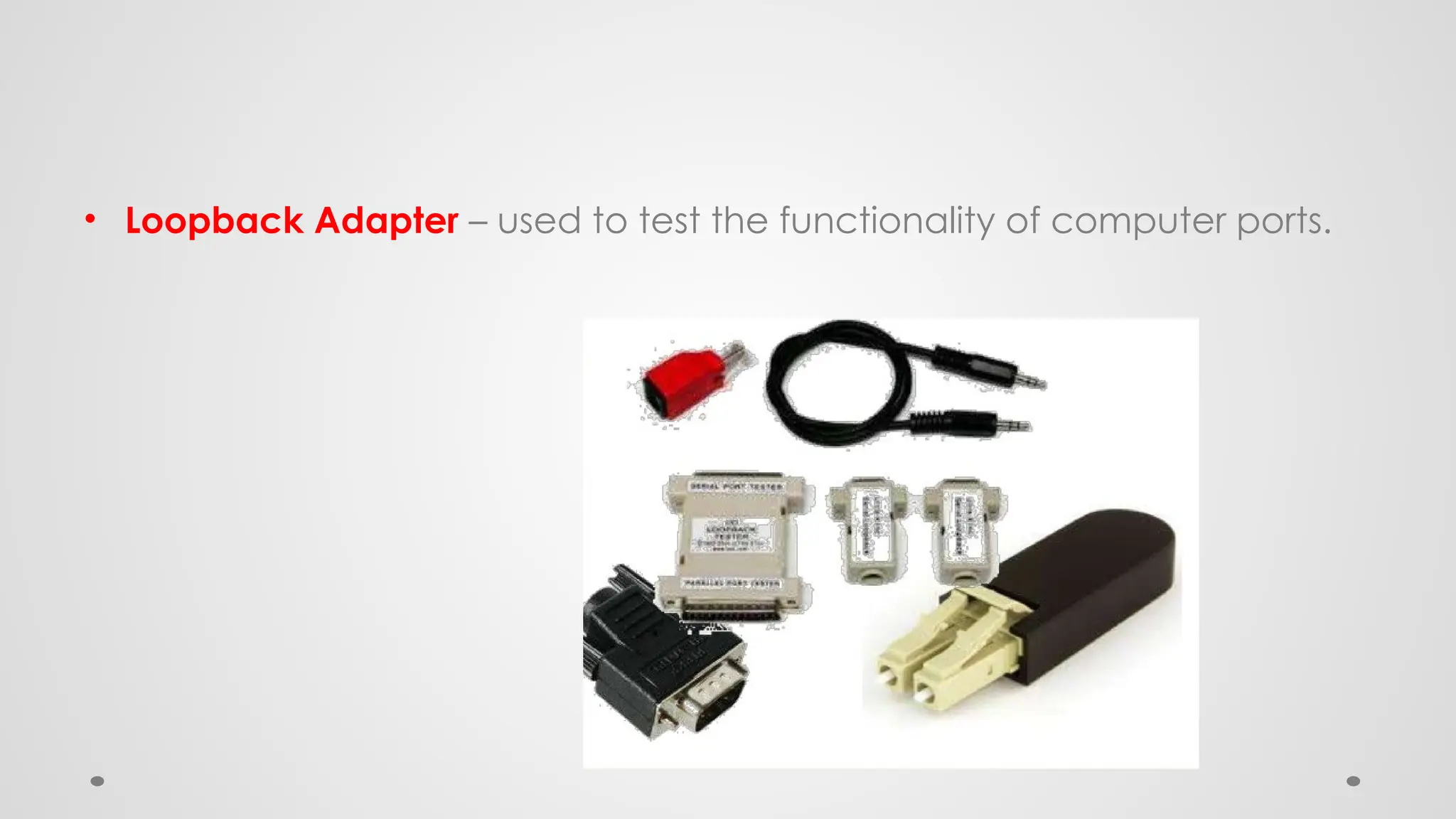

25. • Loopback Adapter – used to test the functionality of computer ports.

26. Quiz # 1
• 20 items quiz
• Prepare ¼ sheet of paper Or cut form your notebook ( ¼ size)
• Quiz in 10 minutes
• Open notes
