1. COMPUTER
DISASSEMBLY

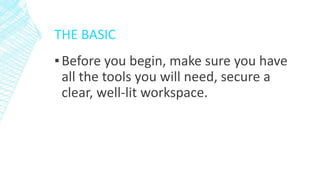

2. THE BASIC
▪Before you begin, make sure you have
all the tools you will need, secure a
clear, well-lit workspace.

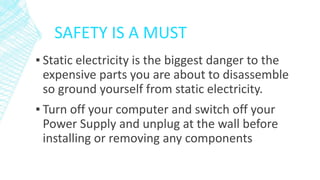

3. SAFETY IS A MUST
▪ Static electricity is the biggest danger to the
expensive parts you are about to disassemble
so ground yourself from static electricity.
▪ Turn off your computer and switch off your
Power Supply and unplug at the wall before
installing or removing any components

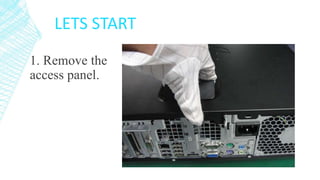

4. LETS START
1. Remove the
access panel.

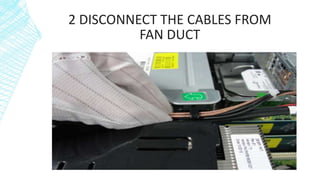

5. 2 DISCONNECT THE CABLES FROM
FAN DUCT

6. 3 REMOVE FAN DUCT FROM THE BOARD

7. 4 DISCONNECT THE CABLES
FROM THE MB

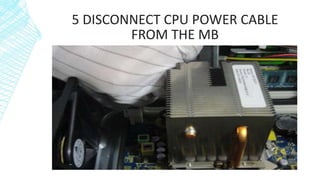

8. 5 DISCONNECT CPU POWER CABLE
FROM THE MB

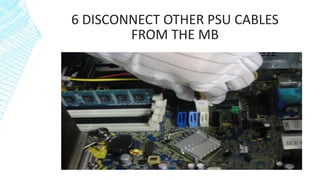

9. 6 DISCONNECT OTHER PSU CABLES
FROM THE MB

10. 7 DISCONNECT SATA CABLE
FROM ODD

11. 8 DISCONNECT SATA CABLE
FROM HDD

12. 9 PRESS THE ODD’S LATCH ON ODD
CAGE

13. 10 REMOVE THE ODD FROM CAGE

14. 11 PRESS THE HDD’S LATCH ON
HDD CAGE

15. 12 REMOVE THE HDD FROM CAGE

16. 13 REMOVE THE PSU FROM CAGE

17. 14 REMOVE FRONT PANEL

18. 15 DISCONNECT FRONT SYSTEM FAN
CABLE FROM MB

19. 16 REMOVE FRONT SYSTEM FAN

20. 17 DISCONNECT FIO CABLES FROM MB

21. 18 LOOSE THE SCREWS OF FIO AND
REMOVE IT

22. 19 LOOSE THE SCREWS OF SPEAKER
AND REMOVE IT

23. 20 REMOVE THE MEMORY CARD FROM
THE BOARD

24. 21 LOOSE THE SCREWS AND REMOVE
HEAT SINK

25. 22 ROTATE THE HANDLE
AND OPEN IT UP

26. 23 REMOVE THE CPU FROM THE BOARD

27. 24 LOOSE THE SCREWS OF MB FROM
BOARD

28. 25 REMOVE M/B FROM CHASSIS

29. THANK YOU.
AND NOW YOU HAVE COMPLETELY
DISASSEMBLE THE CPU OF A HP COMPAQ
PRO 6300
