Computer Aided Engineering Drawing (20ME12P)
Unit – 02
Part 02- Projections of Points

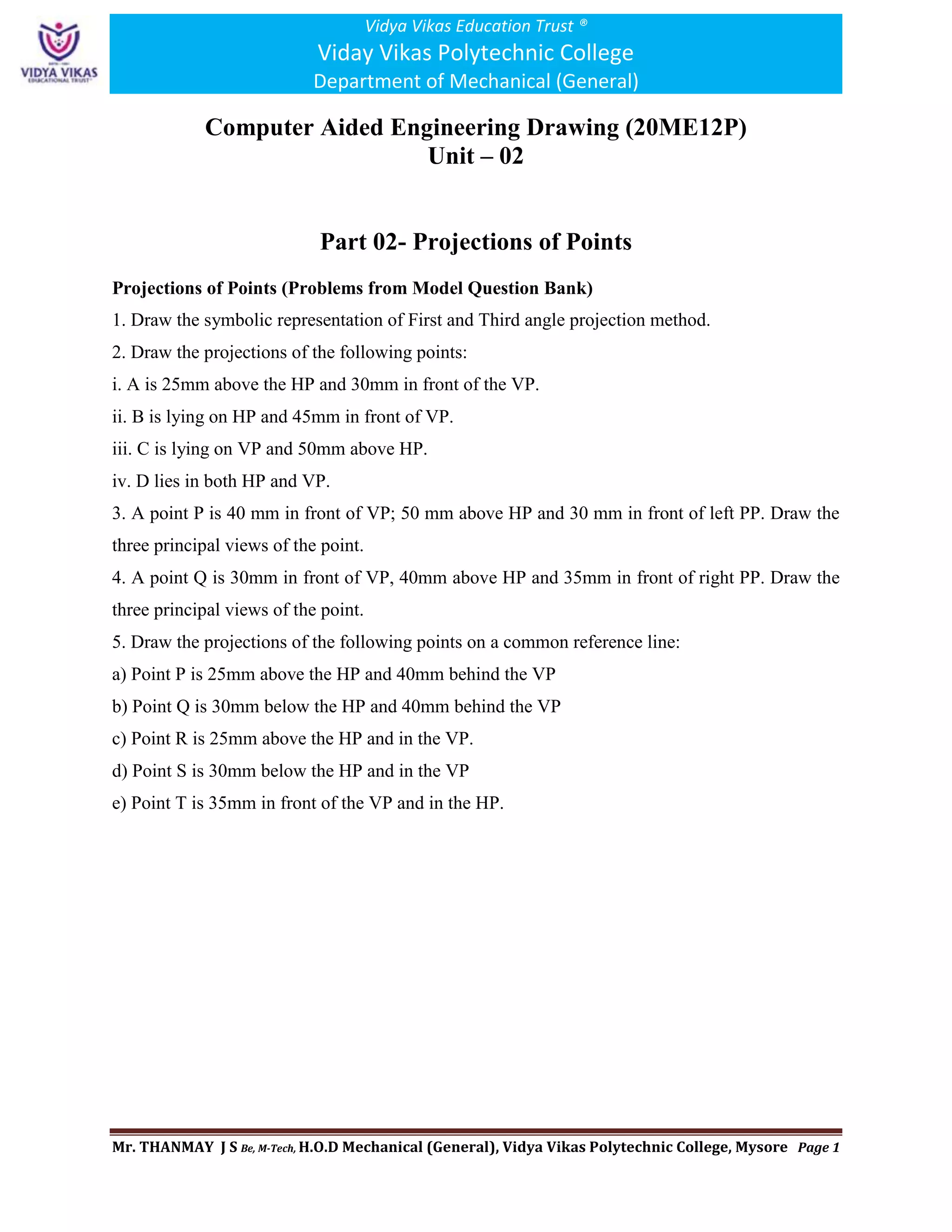

Projections of Points (Problems from Model Question Bank)
1. Draw the symbolic representation of First and Third angle projection method.
2. Draw the projections of the following points:
i. A is 25mm above the HP and 30mm in front of the VP.
ii. B is lying on HP and 45mm in front of VP.
iii. C is lying on VP and 50mm above HP.
iv. D lies in both HP and VP.
3. A point P is 40 mm in front of VP; 50 mm above HP and 30 mm in front of left PP. Draw the
three principal views of the point.
4. A point Q is 30mm in front of VP, 40mm above HP and 35mm in front of right PP. Draw the
three principal views of the point.
5. Draw the projections of the following points on a common reference line:
a) Point P is 25mm above the HP and 40mm behind the VP
b) Point Q is 30mm below the HP and 40mm behind the VP
c) Point R is 25mm above the HP and in the VP.
d) Point S is 30mm below the HP and in the VP
e) Point T is 35mm in front of the VP and in the HP.

2. Vidya Vikas Education Trust ®
Viday Vikas Polytechnic College
Department of Mechanical (General)
Mr. THANMAY J S Be, M-Tech, H.O.D Mechanical (General), Vidya Vikas Polytechnic College, Mysore Page 2
Projections of Points (Problems from Model Question Bank)

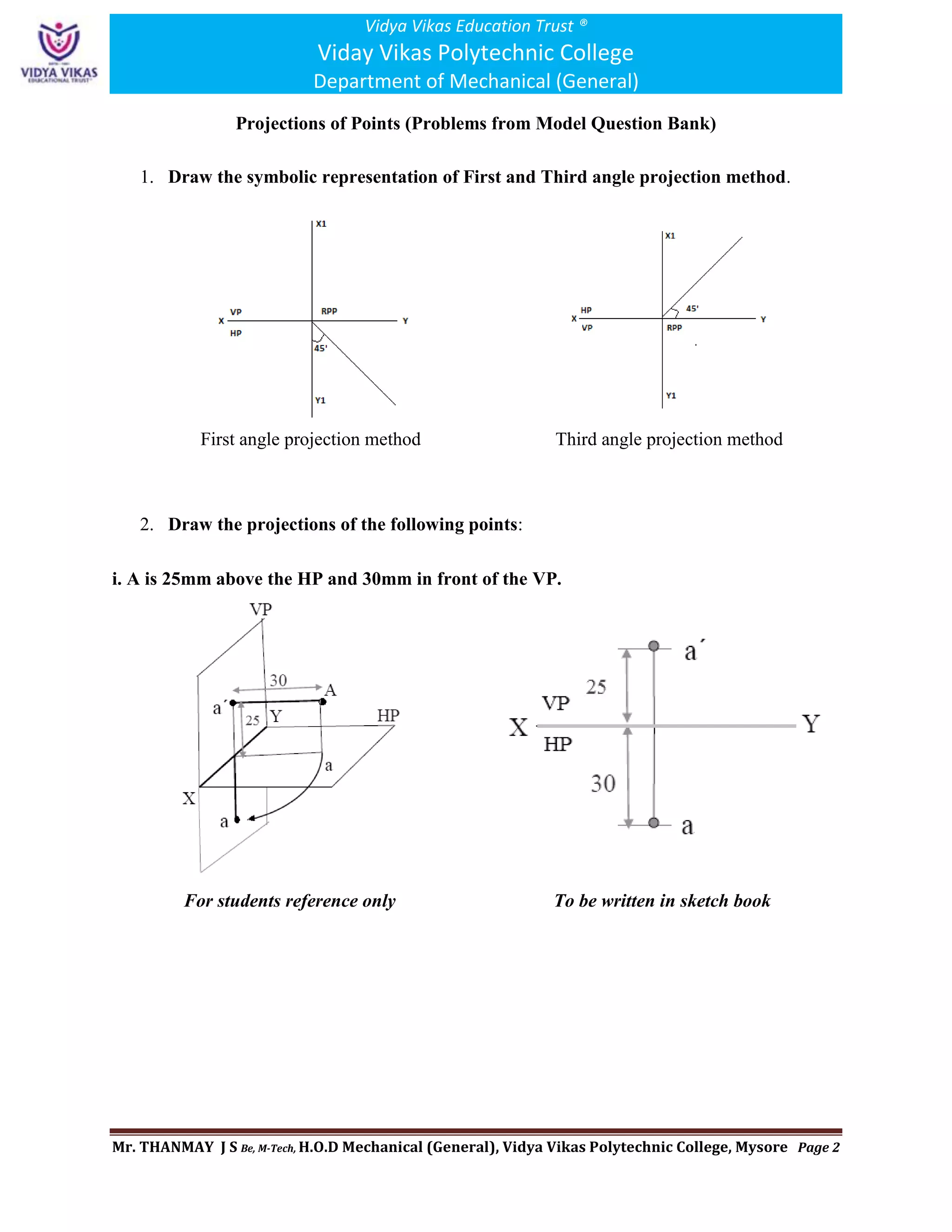

1. Draw the symbolic representation of First and Third angle projection method.
First angle projection method Third angle projection method
2. Draw the projections of the following points:
i. A is 25mm above the HP and 30mm in front of the VP.
For students reference only To be written in sketch book

3. Vidya Vikas Education Trust ®
Viday Vikas Polytechnic College
Department of Mechanical (General)
Mr. THANMAY J S Be, M-Tech, H.O.D Mechanical (General), Vidya Vikas Polytechnic College, Mysore Page 3

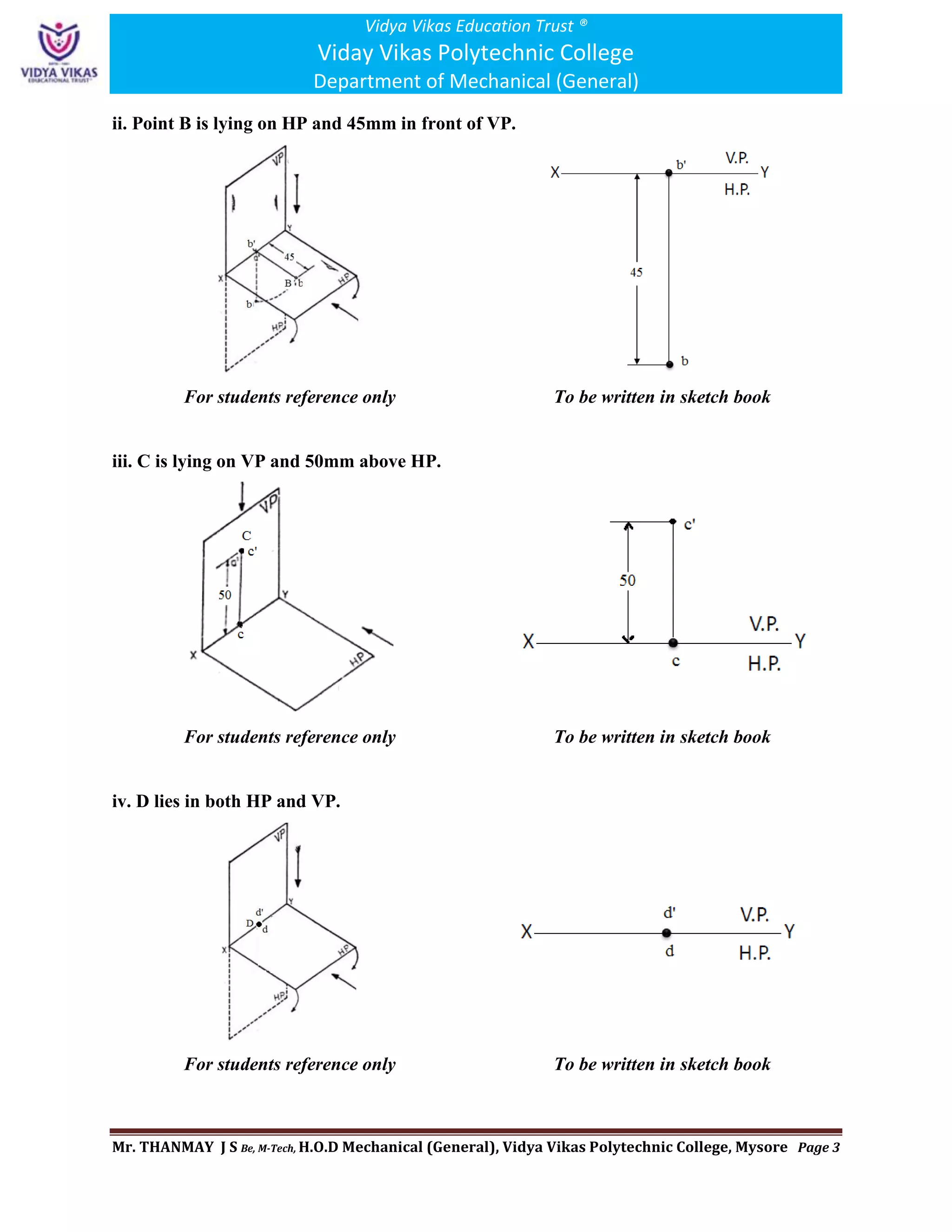

ii. Point B is lying on HP and 45mm in front of VP.
For students reference only To be written in sketch book
iii. C is lying on VP and 50mm above HP.
For students reference only To be written in sketch book
iv. D lies in both HP and VP.
For students reference only To be written in sketch book

4. Vidya Vikas Education Trust ®
Viday Vikas Polytechnic College
Department of Mechanical (General)
Mr. THANMAY J S Be, M-Tech, H.O.D Mechanical (General), Vidya Vikas Polytechnic College, Mysore Page 4

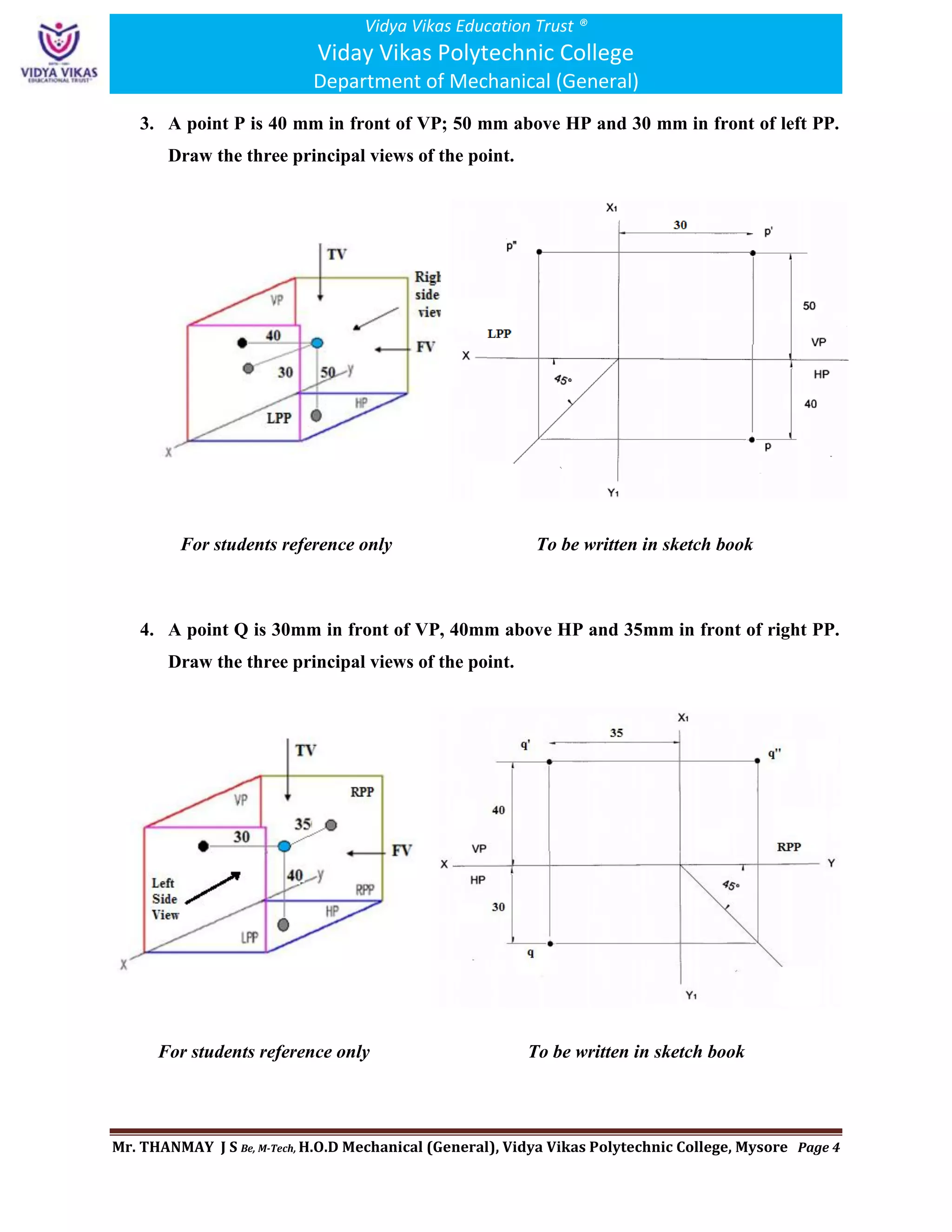

3. A point P is 40 mm in front of VP; 50 mm above HP and 30 mm in front of left PP.
Draw the three principal views of the point.
For students reference only To be written in sketch book
4. A point Q is 30mm in front of VP, 40mm above HP and 35mm in front of right PP.
Draw the three principal views of the point.
For students reference only To be written in sketch book

5. Vidya Vikas Education Trust ®
Viday Vikas Polytechnic College
Department of Mechanical (General)
Mr. THANMAY J S Be, M-Tech, H.O.D Mechanical (General), Vidya Vikas Polytechnic College, Mysore Page 5

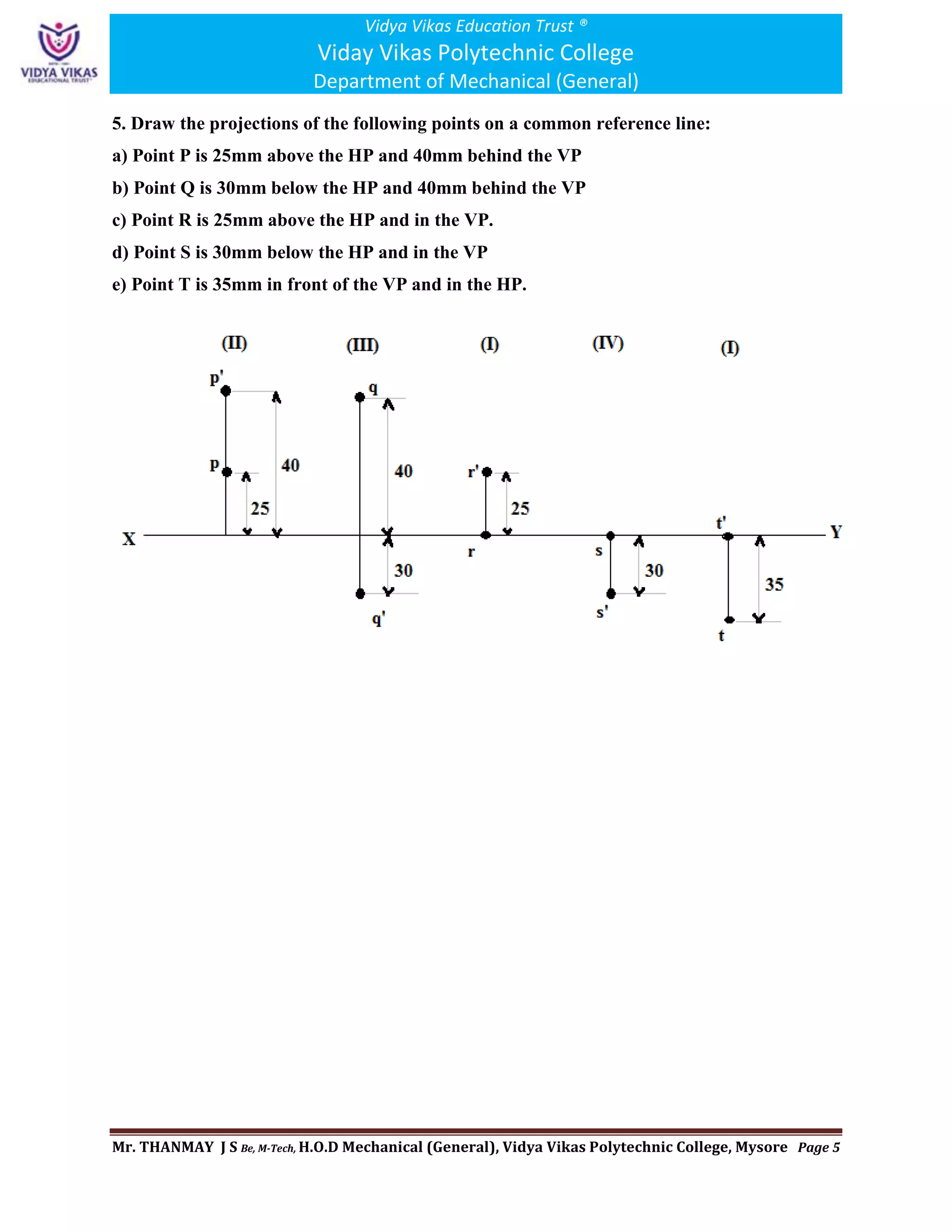

5. Draw the projections of the following points on a common reference line:
a) Point P is 25mm above the HP and 40mm behind the VP
b) Point Q is 30mm below the HP and 40mm behind the VP
c) Point R is 25mm above the HP and in the VP.
d) Point S is 30mm below the HP and in the VP
e) Point T is 35mm in front of the VP and in the HP.
