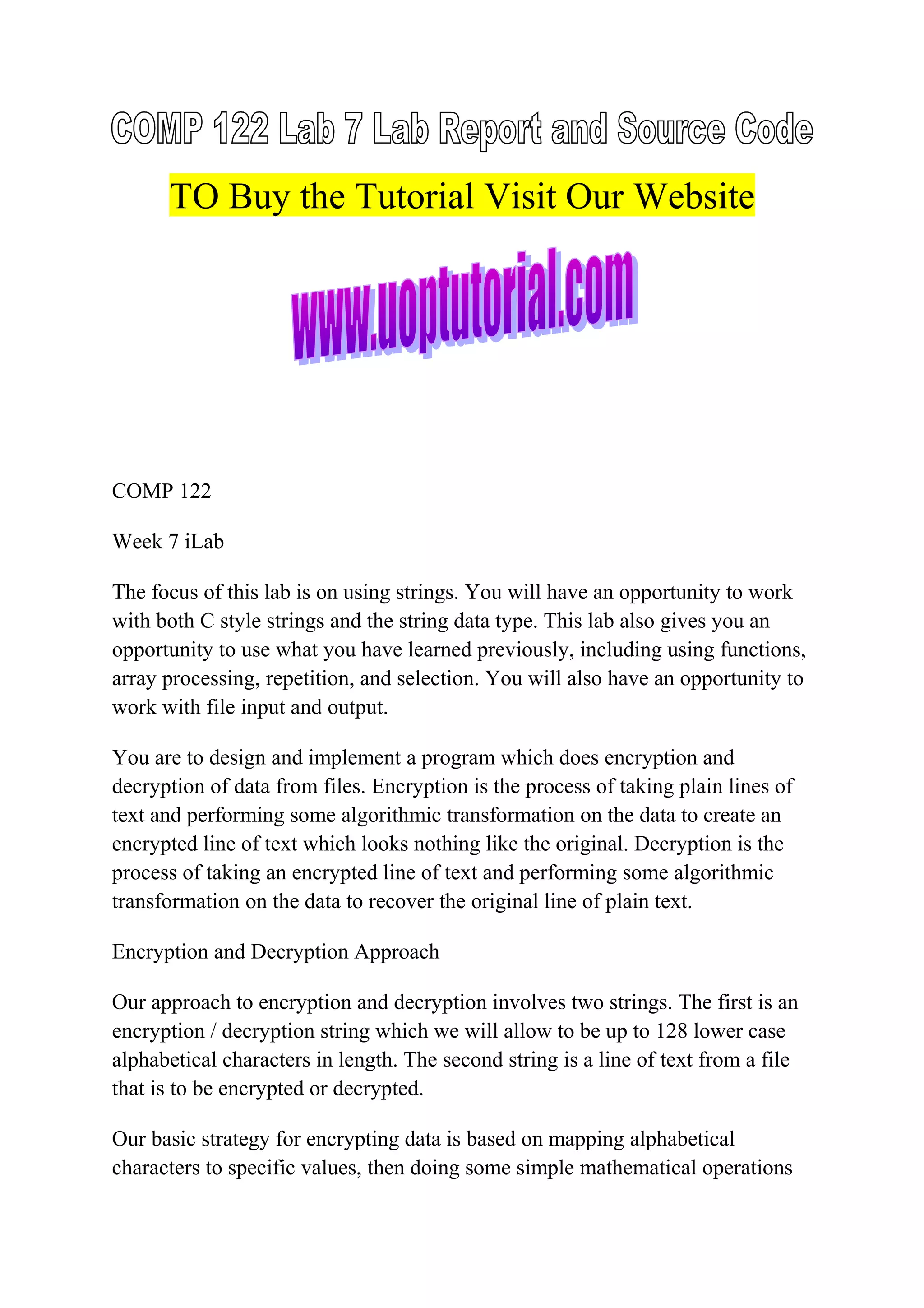

COMP 122
Week 7 iLab
The focus of this lab is on using strings. You will have an opportunity to work
with both C style strings and the string data type. This lab also gives you an
opportunity to use what you have learned previously, including using functions,
array processing, repetition, and selection. You will also have an opportunity to
work with file input and output.
You are to design and implement a program which does encryption and
decryption of data from files. Encryption is the process of taking plain lines of
text and performing some algorithmic transformation on the data to create an
encrypted line of text which looks nothing like the original. Decryption is the
process of taking an encrypted line of text and performing some algorithmic
transformation on the data to recover the original line of plain text.
Encryption and Decryption Approach
Our approach to encryption and decryption involves two strings. The first is an
encryption / decryption string which we will allow to be up to 128 lower case
alphabetical characters in length. The second string is a line of text from a file
that is to be encrypted or decrypted.
Our basic strategy for encrypting data is based on mapping alphabetical
characters to specific values, then doing some simple mathematical operations

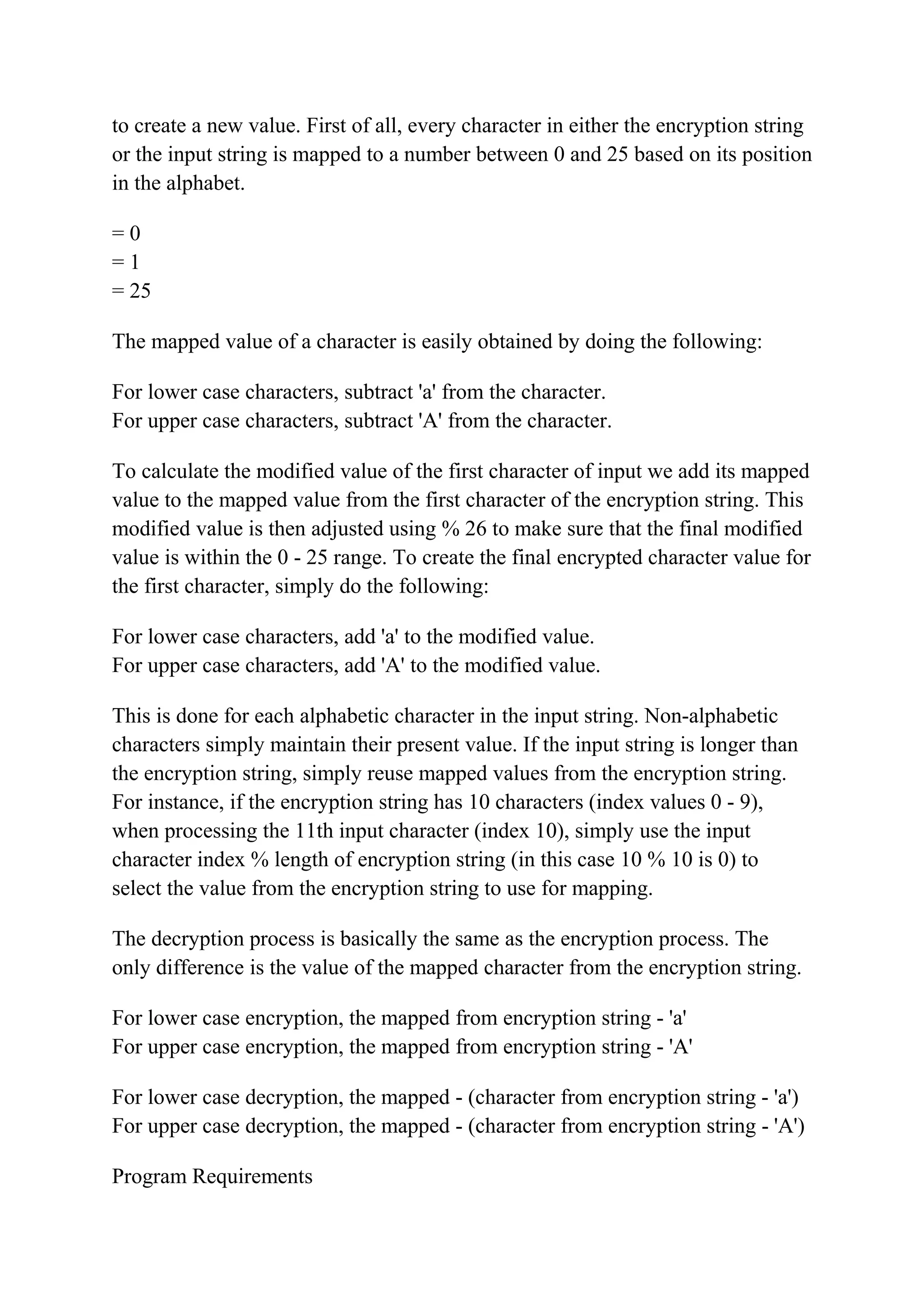

2. to create a new value. First of all, every character in either the encryption string
or the input string is mapped to a number between 0 and 25 based on its position
in the alphabet.
=0
=1
= 25
The mapped value of a character is easily obtained by doing the following:
For lower case characters, subtract 'a' from the character.
For upper case characters, subtract 'A' from the character.
To calculate the modified value of the first character of input we add its mapped
value to the mapped value from the first character of the encryption string. This
modified value is then adjusted using % 26 to make sure that the final modified
value is within the 0 - 25 range. To create the final encrypted character value for
the first character, simply do the following:
For lower case characters, add 'a' to the modified value.
For upper case characters, add 'A' to the modified value.
This is done for each alphabetic character in the input string. Non-alphabetic
characters simply maintain their present value. If the input string is longer than
the encryption string, simply reuse mapped values from the encryption string.
For instance, if the encryption string has 10 characters (index values 0 - 9),
when processing the 11th input character (index 10), simply use the input
character index % length of encryption string (in this case 10 % 10 is 0) to
select the value from the encryption string to use for mapping.
The decryption process is basically the same as the encryption process. The
only difference is the value of the mapped character from the encryption string.
For lower case encryption, the mapped from encryption string - 'a'
For upper case encryption, the mapped from encryption string - 'A'
For lower case decryption, the mapped - (character from encryption string - 'a')
For upper case decryption, the mapped - (character from encryption string - 'A')
Program Requirements

3. Your program must meet the following requirements:
1. You must ask the user if they want to perform an encryption or decryption
operation.
2. You must ask the user to enter the name of the file they want to encrypt or
decrypt.
3. You must get an encryption key from the user which can be up to 128
characters. The key must be all lower case alphabetic characters.
4. You must have a function which takes the encryption key and creates an
encryption map from it. For each character in the encryption key string, subtract
the lower case letter 'a' and store the result in the corresponding encryption map
array.
5. You must have a function which takes the encryption key and creates a
decryption map from it. For each character in the encryption key string, subtract
the lower case letter 'a' from it. Then subtract that result from 26 and store the
value in the corresponding decryption map array.
6. You must have a function which will do the encryption or decryption
transformation. This function takes the following parameters:
A constant C string containing the line of text to be transformed.
A constant C character array which contains the encryption or decryption map.
An integer which contains the length of the encryption map.
A string reference (output) which will contain the encrypted or decrypted string
upon completion.
The core of the encryption / decryption algorithm is as follows:
For each character (the ith character) in the text input line do the following:
if the character is not alphabetical, add it to the end of the output string
if the character is lower case alphabetical
subtract the character 'a' from the character
get the ith % map length element from the map and add it to the character
adjust the value of the character % 26 to keep it within the alphabet
add the character 'a' to the character
add the encrypted character value to the end of the output string
if the character is upper case alphabetical
do the same thing as for lower case except use 'A' instead of 'a'

4. 7. For decryption, the main program should create an ifstream for the file to be
decrypted. It should use the getline method of the ifstream to read lines from the
file, call the encryption / decryption function with the line to be decrypted, and
display the string which contains the result of the encryption / decryption
function call. Repeat until the ifstream reaches the end of the file, then close the
ifstream.
8. For encryption, the main program should create an ifstream for the file to be
encrypted. It should also create an ofstream for the file where the encrypted
result will be stored. The file name for this file can be gotten from the user or
can be the input file name with a special extension added at the end. The getline
method of the ifstream is used to read lines from the input file. Then the
encryption / decryption function is called to encrypt the line. Display the string
containing the result and write the string to the ofstream. Close the ifstream and
ofstreams when finished.
9. Make sure that your program allows the user to encrypt / decrypt more than
one file per session. This means adding a loop which allows the entire program
to repeat until the user has nothing more to do.
Hints
1. Use C strings for the encryption string and the file names. Use char arrays for
the encryption and decryption maps. You cannot treat these as C strings because
the maps can contain 0 as a valid data item rather than the end of string marker.
2. Use a string type variable to hold the encrypted and decrypted strings. The
string type allows you to add characters to the end of a string using
thepush_back method, and it allows you to dump the contents of the string using
the erase method.
3. For input streams, you can use the eof method to determine when you have
reached the end of a file.
4. Use a character array to read data from the files. Set the maximum length for
this buffer to be 256 characters.
Development Strategy

5. I would recommend that you build this project in two phases. The first phase
should concentrate on getting the encryption and decryption map functions and
the encryption / decryption function working. You can test this by using fixed C
strings for the input line and the encryption string. Call the map functions, then
encrypt the fixed input string, output the result, then decrypt the encrypted
string and output the result. When your final output is the same as the original
input, your encryption / decryption functions are working. The second phase
adds the file operations.
Testing and Deliverables
When you think you have a working program, use Notepad to create a file with
plain text in it. You should enter some different length lines containing a variety
of characters. Your file should have at least 10 lines. You should try using short
and long encryption keys. Using your program, encrypt the file, then decrypt the
encrypted file. Take a screen shot of your decrypted output and paste it into a
Word document. Also copy the contents of your original file and the encrypted
file into the Word document. Clearly label the contents of the Word document.
Then copy your source code into your document. Make sure that you have used
proper coding style and commenting conventions!

6. I would recommend that you build this project in two phases. The first phase
should concentrate on getting the encryption and decryption map functions and
the encryption / decryption function working. You can test this by using fixed C
strings for the input line and the encryption string. Call the map functions, then
encrypt the fixed input string, output the result, then decrypt the encrypted
string and output the result. When your final output is the same as the original
input, your encryption / decryption functions are working. The second phase
adds the file operations.
Testing and Deliverables
When you think you have a working program, use Notepad to create a file with
plain text in it. You should enter some different length lines containing a variety
of characters. Your file should have at least 10 lines. You should try using short
and long encryption keys. Using your program, encrypt the file, then decrypt the
encrypted file. Take a screen shot of your decrypted output and paste it into a
Word document. Also copy the contents of your original file and the encrypted
file into the Word document. Clearly label the contents of the Word document.
Then copy your source code into your document. Make sure that you have used
proper coding style and commenting conventions!
