This document outlines the development of a system called Coalmine for analyzing social media data to detect potential threats. It describes collecting over 1 billion tweets per week from Twitter's API and storing the data. The analysis method involves both manual querying of the data as well as automated detection algorithms. Example case studies where Coalmine detected botnet command and control channels and spam are provided. Future work to improve Coalmine's scalability is also discussed.

1. Coalmine:
An E xperience in B uilding a S ystem for S ocial
Media Analytics
Joshua S. White
Jeanna N. Matthews, PhD

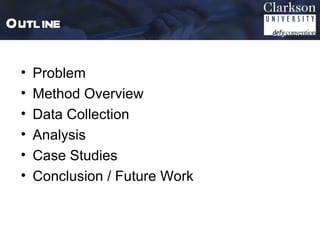

2. Outline
• Problem
• Method Overview
• Data Collection
• Analysis
• Case Studies
• Conclusion / Future Work

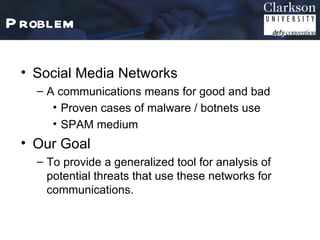

3. P roblem
• Social Media Networks
– A communications means for good and bad
• Proven cases of malware / botnets use
• SPAM medium
• Our Goal
– To provide a generalized tool for analysis of
potential threats that use these networks for
communications.

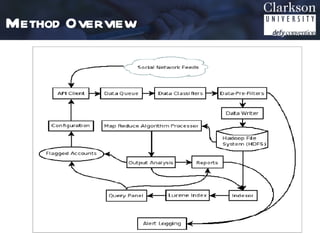

4. Method Overview

5. D ata Collection
• Initially (Spring 2011)
– Twitter approved oAuth application
• Firehose Subscription with white-listing
– ~20% of all Tweets
– (No longer available)
» Twitter no longer allows researchers to share
datasets
» We needed to develop a new collection method
» Can not violate terms of use

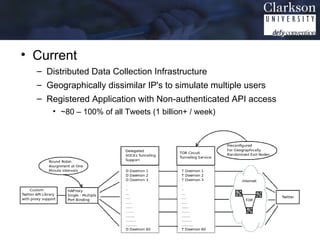

6. • Current
– Distributed Data Collection Infrastructure
– Geographically dissimilar IP's to simulate multiple users
– Registered Application with Non-authenticated API access
• ~80 – 100% of all Tweets (1 billion+ / week)

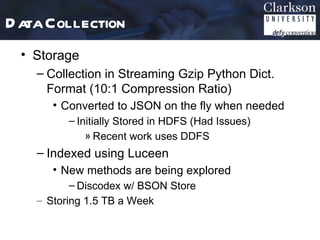

7. D ata Collection
• Storage
– Collection in Streaming Gzip Python Dict.
Format (10:1 Compression Ratio)
• Converted to JSON on the fly when needed
– Initially Stored in HDFS (Had Issues)
» Recent work uses DDFS
– Indexed using Luceen
• New methods are being explored
– Discodex w/ BSON Store
– Storing 1.5 TB a Week

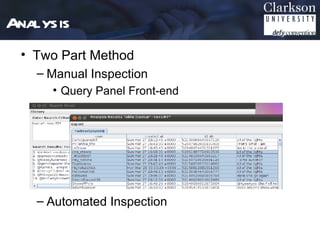

8. Analysis
• Two Part Method
– Manual Inspection
• Query Panel Front-end
– Automated Inspection

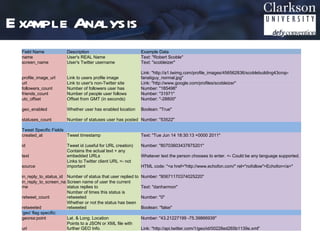

9. E xample Analysis
Field Name Description Example Data
name User's REAL Name Text: "Robert Scoble"
screen_name User's Twitter username Text: "scobleizer"
Link: "http://a1.twimg.com/profile_images/456562836/scoblebuilding43crop-
profile_image_url Link to users profile image fanatiguy_normal.jpg"
url Link to user's non-Twitter site Link: "http://www.google.com/profiles/scobleizer"
followers_count Number of followers user has Number: "185496"
friends_count Number of people user follows Number: "31971"
utc_offset Offset from GMT (in seconds) Number: "-28800"
geo_enabled Whether user has enabled location Boolean: "True"
statuses_count Number of statuses user has posted Number: "53522"
Tweet Specific Fields
created_at Tweet timestamp Text: "Tue Jun 14 18:30:13 +0000 2011"
id Tweet id (useful for URL creation) Number: "80703603437875201"
Contains the actual text + any
text embedded URLs Whatever text the person chooses to enter. <- Could be any language supported.
Links to Twitter client URL <- not
source important HTML code: "<a href="http://www.echofon.com/" rel="nofollow">Echofon</a>"
in_reply_to_status_id Number of status that user replied to Number: "80671170374025220"
in_reply_to_screen_na Screen name of user the current
me status replies to Text: "danharmon"
Number of times this status is
retweet_count retweeted Number: "0"
Whether or not the status has been
retweeted retweeted Boolean: "false"
'geo' flag specific:
georss:point Lat. & Long. Location Number: "43.21227199 -75.39866939"
Points to a JSON or XML file with
url further GEO Info. Link: "http://api.twitter.com/1/geo/id/00228ed265b1139e.xml"

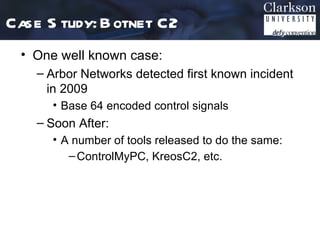

10. Case S tudy: B otnet C2
• One well known case:
– Arbor Networks detected first known incident
in 2009
• Base 64 encoded control signals
– Soon After:
• A number of tools released to do the same:
– ControlMyPC, KreosC2, etc.

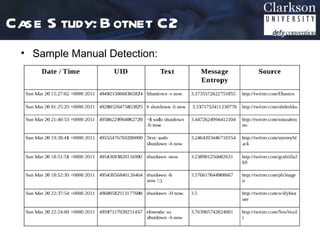

11. Case S tudy: B otnet C2
• Sample Manual Detection:

12. Case S tudy: S P AM
• Twitter's number one problem, artificially
increases traffic and bothers legitimate users
• Easily detected during manual analysis
• Automated detection based on wording and
rates at which messages are posted

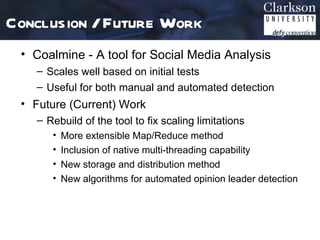

13. Conclusion / Future Work
• Coalmine - A tool for Social Media Analysis
– Scales well based on initial tests
– Useful for both manual and automated detection
• Future (Current) Work
– Rebuild of the tool to fix scaling limitations
• More extensible Map/Reduce method
• Inclusion of native multi-threading capability
• New storage and distribution method
• New algorithms for automated opinion leader detection

14. Questions
?

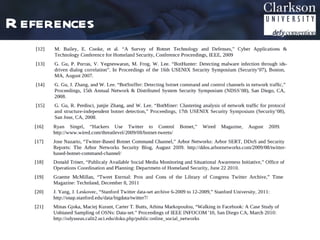

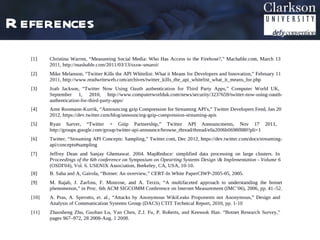

15. R eferences

16. R eferences

17. R eferences
