SPICE MODEL of CMZB24 (Standard+ Model) in SPICE PARK

•

0 likes•215 views

SPICE MODEL of CMZB24 (Standard+ Model) in SPICE PARK. English Version is http://www.spicepark.net.Japanese Version is http://www.spicepark.com by Bee Technologies.

Device Modeling Report

COMPONENTS: Zener Diode
PART NUMBER: CMZB24
MANUFACTURER: TOSHIBA

Bee Technologies Inc.

All Rights Reserved Copyright (c) Bee Technologies Inc. 2013

1

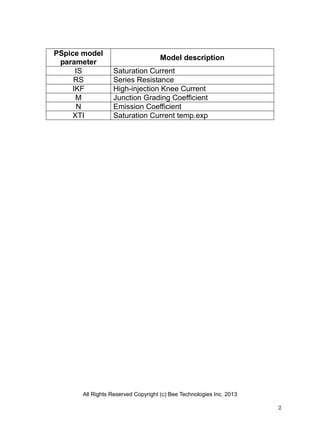

PSpice model
Model description
parameter
IS Saturation Current
RS Series Resistance
IKF High-injection Knee Current
M Junction Grading Coefficient
N Emission Coefficient
XTI Saturation Current temp.exp

All Rights Reserved Copyright (c) Bee Technologies Inc. 2013

2

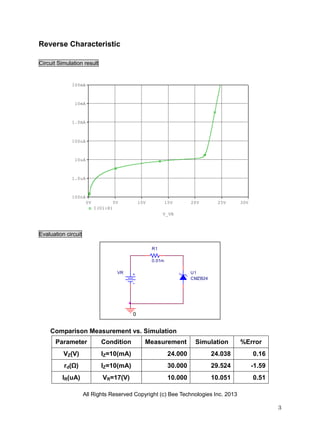

Reverse Characteristic

Circuit Simulation result

100mA

10mA

1.0mA

100uA

10uA

1.0uA

100nA
0V 5V 10V 15V 20V 25V 30V
I(U1:K)
V_VR

Evaluation circuit

R1

0.01m

VR U1
CMZB24

0

Comparison Measurement vs. Simulation
Parameter Condition Measurement Simulation %Error
VZ(V) IZ=10(mA) 24.000 24.038 0.16
rd(Ω) IZ=10(mA) 30.000 29.524 -1.59
IR(uA) VR=17(V) 10.000 10.051 0.51

All Rights Reserved Copyright (c) Bee Technologies Inc. 2013

3

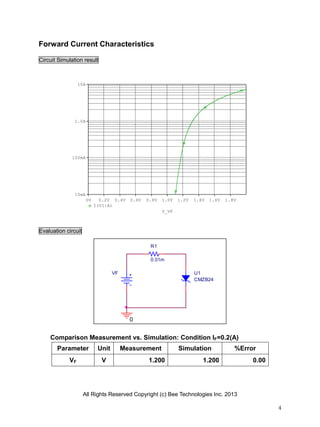

Forward Current Characteristics

Circuit Simulation result

10A

1.0A

100mA

10mA
0V 0.2V 0.4V 0.6V 0.8V 1.0V 1.2V 1.4V 1.6V 1.8V
I(U1:A)
V_VF

Evaluation circuit

R1

0.01m

VF U1
CMZB24

0

Comparison Measurement vs. Simulation: Condition IF=0.2(A)
Parameter Unit Measurement Simulation %Error
VF V 1.200 1.200 0.00

All Rights Reserved Copyright (c) Bee Technologies Inc. 2013

4
