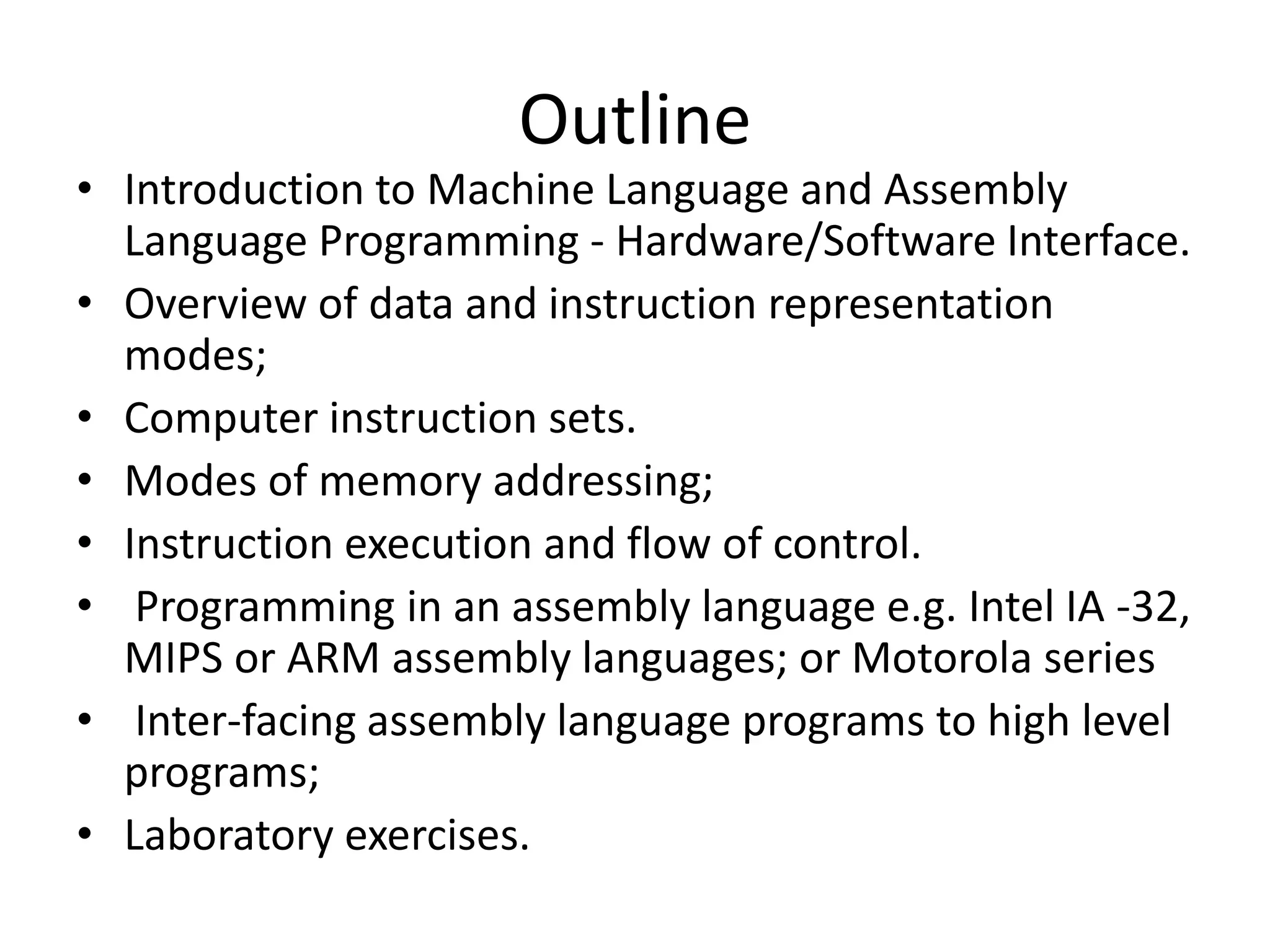

2. Outline
• Introduction to Machine Language and Assembly
Language Programming - Hardware/Software Interface.
• Overview of data and instruction representation
modes;
• Computer instruction sets.
• Modes of memory addressing;
• Instruction execution and flow of control.
• Programming in an assembly language e.g. Intel IA -32,
MIPS or ARM assembly languages; or Motorola series
• Inter-facing assembly language programs to high level
programs;
• Laboratory exercises.
3. Introduction
• Programs and programming languages
• Types of languages
• a. Low Level Language
– Machine Language
– Assembly language
• b. High level Language
– C, C++, Java, Python etc
4. Advantages of High Level Languages
• Program development is faster
• Programs are easier to maintain
• Programs are portable
5. Machine Language
– Native language of computer
– 0s and 1s based on the flow of current
– CPU specific
– Direct access to the hardware
– Requires no translator
9. Reading Machine Language
• first nine bits specifies the operation, last 6
• (or 7) bits specifies the arguments:
• 100000010 01 00101 Load Memory 5 --> R1
• 100000010 10 00101 Load Memory 5 --> R2
• 1010000100 00 01 10 R1 + R2 --> R0
• 100000100 00 00110 Store R0 --> Memory 6
• 1111111111111111 HALT
10. Merit and Demerit of ML
• Merit
– Efficient use of computer resources
– Fast
• demerit
– Tedious and cumbersome
– Prone to error
– Time consuming
– Expensive preparation and debugging
11. Assembly Language
• Machine Language Equivalent Assembly
• 1000000100100101 LOAD R1, 5
• 1000000101000101 LOAD R2, 5
• 1010000100000110 ADD R0, R1, R2
• 1000001000000110 SAVE R0, 6
• 1111111111111111 HALT
12. Assembly language
• Assembler: converts source code programs from
assembly language to machine language
• Linker: combines individual files created by an
assembler into a single executable program
• Debugger: allows you to step through a program
while it is running and examine registers and
memory
• Registers: named storage locations in the CPU that
hold intermediate results of operations
13. Reasons for assembly language
programming
• Two major reasons:
• Efficiency (space and time) and accessibility to system
hardware.
• Time efficiency
– Time convenience applications (to improve performance, e.g
graphic package:
– Time critical applications (real-time applications) e.g aircraft
navigation systems, process control systems, robot control
software, communication software, target acquisition (eg
missile tracking) software
Accessibility to hardware: system software requires direct
control of hardware, e.g OS, assembler, compiler, linker, loader,
device drivers, network interfaces, video games is an example of
applications that require hardware control
Space efficiency: important in portable and handheld devices, and
spacecraft control system.
14. Reasons for learning assembly
language
• It is useful in writing embedded programs.
• direct access to computer hardware
• understanding of the interaction between
computer hardware, operating systems and
application programs.
• device drivers
• subroutines
16. Machine Language vs Assembly
Language
Machine Language Assembly Language
Machine language is only understood by the computers.
Assembly language is only understood by human beings not by the
computers.
In machine language data only represented with the help of binary
format(0s and 1s), hexadecimal and octadecimal.
In assembly language data can be represented with the help of
mnemonics such as Mov, Add, Sub, End etc.
Machine language is very difficult to understand by the human beings.
Assembly language is easy to understand by the human being as
compare to machine language.
Modifications and error fixing cannot be done in machine language. Modifications and error fixing can be done in assembly language.
Machine language is very difficult to memorize so it is not tedious to
learn the machine language.
Easy to memorize the assembly language because some alphabets and
mnemonics are used.
Execution is fast in machine language because all data is already
present in binary format.
Execution is slow as compared to machine language.
There is no need of translator. The machine understandable form is
the machine language.
Assembler is used as translator to convert mnemonics into machine
understandable form.
Machine language is hardware dependent. Assembly language is the machine dependent and it is not portable.
17. Intel Microprocessors
• Intel introduced the 8086 microprocessor in 1979
• 8086, 8087, 8088, and 80186 processors
– 16-bit processors with 16-bit registers
– 16-bit data bus and 20-bit address bus
• Physical address space = 220 bytes = 1 MB
– 8087 Floating-Point co-processor
– Uses segmentation and real-address mode to address memory
• Each segment can address 216 bytes = 64 KB
– 8088 is a less expensive version of 8086
• Uses an 8-bit data bus
– 80186 is a faster version of 8086
18. Intel 80286 and 80386 Processors
• 80286 was introduced in 1982
– 24-bit address bus 224 bytes = 16 MB address space
– Introduced protected mode
• Segmentation in protected mode is different from the real mode
• 80386 was introduced in 1985
– First 32-bit processor with 32-bit general-purpose registers
– First processor to define the IA-32 architecture
– 32-bit data bus and 32-bit address bus
– 232 bytes 4 GB address space
– Introduced paging, virtual memory, and the flat memory model
• Segmentation can be turned off
19. Intel 80486 and Pentium Processors
• 80486 was introduced 1989
– Improved version of Intel 80386
– On-chip Floating-Point unit (DX versions)
– On-chip unified Instruction/Data Cache (8 KB)
– Uses Pipelining: can execute up to 1 instruction per clock cycle
• Pentium (80586) was introduced in 1993
– Wider 64-bit data bus, but address bus is still 32 bits
– Two execution pipelines: U-pipe and V-pipe
• Superscalar performance: can execute 2 instructions per clock cycle
– Separate 8 KB instruction and 8 KB data caches
– MMX instructions (later models) for multimedia applications
20. Intel P6 Processor Family
• P6 Processor Family: Pentium Pro, Pentium II and III
• Pentium Pro was introduced in 1995
– Three-way superscalar: can execute 3 instructions per clock cycle
– 36-bit address bus up to 64 GB of physical address space
– Introduced dynamic execution
• Out-of-order and speculative execution
– Integrates a 256 KB second level L2 cache on-chip
• Pentium II was introduced in 1997
– Added MMX instructions (already introduced on Pentium MMX)
• Pentium III was introduced in 1999
– Added SSE instructions and eight new 128-bit XMM registers
21. Pentium 4 and Xeon Family
• Pentium 4 is a seventh-generation x86 architecture
– Introduced in 2000
– New micro-architecture design called Intel Netburst
– Very deep instruction pipeline, scaling to very high frequencies
– Introduced the SSE2 instruction set (extension to SSE)
• Tuned for multimedia and operating on the 128-bit XMM registers
• In 2002, Intel introduced Hyper-Threading technology
– Allowed 2 programs to run simultaneously, sharing resources
• Xeon is Intel's name for its server-class microprocessors
– Xeon chips generally have more cache
– Support larger multiprocessor configurations
22. Pentium-M and EM64T
• Pentium M (Mobile) was introduced in 2003
– Designed for low-power laptop computers
– Modified version of Pentium III, optimized for power efficiency
– Large second-level cache (2 MB on later models)
– Runs at lower clock than Pentium 4, but with better performance
• Extended Memory 64-bit Technology (EM64T)
– Introduced in 2004
– 64-bit superset of the IA-32 processor architecture
– 64-bit general-purpose registers and integer support
– Number of general-purpose registers increased from 8 to 16
– 64-bit pointers and flat virtual address space
– Large physical address space: up to 240 = 1 Terabytes
23. IA-32 Processor Architecture
• modes of operation
– Protected mode
– virtual –
– Real addressing mode
– System management mode
24. Modes of Operation
• Real-Address mode (original mode provided by 8086)
– Only 1 MB of memory can be addressed, from 0 to FFFFF (hex)
– Programs can access any part of main memory
– MS-DOS runs in real-address mode
• Protected mode (introduced with the 80386 processor)
– Each program can address a maximum of 4 GB of memory
– The operating system assigns memory to each running program
– Programs are prevented from accessing each other’s memory
– Native mode used by Windows NT, 2000, XP, and Linux
• Virtual 8086 mode
– Processor runs in protected mode, and creates a virtual 8086
machine with 1 MB of address space for each running program
25. Real Address Mode
• A program can access up to six segments
at any time
– Code segment
– Stack segment
– Data segment
– Extra segments (up to 3)
• Each segment is 64 KB
• Logical address
– Segment = 16 bits
– Offset = 16 bits
• Linear (physical) address = 20 bits
26. Protected Mode Architecture
• Logical address consists of
– 16-bit segment selector (CS, SS, DS, ES, FS, GS)
– 32-bit offset (EIP, ESP, EBP, ESI ,EDI, EAX, EBX, ECX,
EDX)
• Segment unit translates logical address to linear
address
– Using a segment descriptor table
– Linear address is 32 bits (called also a virtual address)
• Paging unit translates linear address to physical
address
– Using a page directory and a page table
27. Logical to Linear Address Translation
Upper 13 bits of
segment selector are
used to index the
descriptor table
TI = Table Indicator
Select the descriptor table
0 = Global Descriptor Table
1 = Local Descriptor Table
GDTR, LDTR
29. Basic Program Execution Registers
CS
SS
DS
ES
EIP
EFLAGS
16-bit Segment Registers
EAX
EBX
ECX
EDX
32-bit General-Purpose Registers
FS
GS
EBP
ESP
ESI
EDI
• Registers are high speed memory inside the
CPU
– Eight 32-bit general-purpose registers
– Six 16-bit segment registers
– Processor Status Flags (EFLAGS) and Instruction Pointer (EIP)
30. General-Purpose Registers
• Used primarily for arithmetic and data movement
– mov eax, 10 move constant 10 into register eax
• Specialized uses of Registers
– EAX – Accumulator register
• Automatically used by multiplication and division instructions
– ECX – Counter register
• Automatically used by LOOP instructions
– ESP – Stack Pointer register
• Used by PUSH and POP instructions, points to top of stack
– ESI and EDI – Source Index and Destination Index register
• Used by string instructions
– EBP – Base Pointer register
• Used to reference parameters and local variables on the stack
31. Accessing Parts of Registers
• EAX, EBX, ECX, and EDX are 32-bit Extended registers
– Programmers can access their 16-bit and 8-bit parts
– Lower 16-bit of EAX is named AX
– AX is further divided into
• AL = lower 8 bits
• AH = upper 8 bits
• ESI, EDI, EBP, ESP have only
16-bit names for lower half
AH AL
16 bits
8
AX
EAX
8
32 bits
8 bits + 8 bits
32. Special-Purpose & Segment Registers
• EIP = Extended Instruction Pointer
– Contains address of next instruction to be executed
• EFLAGS = Extended Flags Register
– Contains status and control flags
– Each flag is a single binary bit
• Six 16-bit Segment Registers
– Support segmented memory
– Six segments accessible at a time
– Segments contain distinct contents
• Code
• Data
• Stack
33. EFLAGS Register
Status Flags
Status of arithmetic and logical operations
Control and System flags
Control the CPU operation
Programs can set and clear individual bits in the EFLAGS register
34. Status Flags
• Carry Flag
– Set when unsigned arithmetic result is out of range
• Overflow Flag
– Set when signed arithmetic result is out of range
• Sign Flag
– Copy of sign bit, set when result is negative
• Zero Flag
– Set when result is zero
• Auxiliary Carry Flag
– Set when there is a carry from bit 3 to bit 4
• Parity Flag
– Set when parity is even
– Least-significant byte in result contains even number of 1s
35. Floating-Point, MMX, XMM Registers
• Floating-point unit performs high speed FP operations
• Eight 80-bit floating-point data registers
– ST(0), ST(1), . . . , ST(7)
– Arranged as a stack
– Used for floating-point arithmetic
• Eight 64-bit MMX registers
– Used with MMX instructions
• Eight 128-bit XMM registers
– Used with SSE instructions
ST(0)
ST(1)
ST(2)
ST(3)
80-bit Data Registers
ST(4)
ST(5)
ST(6)
ST(7)
Opcode Register
37. Segment Registers
• Stack Segment (SS). Pointer to the stack.
• Code Segment (CS). Pointer to the code.
• Data Segment (DS). Pointer to the data.
• Extra Segment (ES). Pointer to extra data ('E'
stands for 'Extra').
• F Segment (FS). Pointer to more extra data ('F'
comes after 'E').
• G Segment (GS). Pointer to still more extra data
('G' comes after 'F').
60. 9’s complement subtraction
• A=1234 B = 1000
• Find the 9’s complement of B and add it to A
• 9’s complement of B = 8999
1234
8999
10233 Add the carry
+ 1
00234 = 234
61. 9’s complement subtraction
• A=1234 B = 3000
• 9’s complement f B =6999, add it to A
• 1234 + 6999 = 8233
• ans = -(9’s complement of 8233)
• -1766
62. 10’s complement subtraction
• A = 1234 B = 1000
• 10’s complement of B = 9000
1234
9000
10234 Discard the carry
234
A= 1234 B = 3000
10’s complement of B = 7000, add it to A
1234 + 7000 = 8234
Ans= -(10’s complement of 8234)
= -1766
63. Signed integers
• Signed integers are positive or negative,
• the MSB indicates the sign
• 0 is positive and 1 is negative
•
• 0111111 positive
• 1011011 negative
64. Converting signed binary to
hexadecimal
• Example: 1111 0000
• starting value 1111 0000
• step1: reverse the bits 0000 1111
• step2: add 1 + 1
• step3: form 2’s compliment 0001 0000
• step4: convert to decimal 1*24 =16
• Because the original integer (11110000) was
negative, it decimal value is -16.
65. Converting signed decimal to binary
• Example:
• -43
• Binary representation of 43 is 00101011
• Two’s compliment 11010100 +1
= 11010101
• -43 is 11010101
66. Converting signed decimal to
hexadecimal
• Convert the absolute value of the decimal integer to
hexadecimal
• If the original decimal integer was negative, form the two’s
compliment of the hexadecimal number from the previous
step
• E.g. -56710
• Convert absolute value 567 to hexadecimal
• 16 567
• 16 35 R 7
• 16 2 R 3
• 16 0 R 2 = 23716
• Form the 2’s complement of 237 = D C 8 +1 = D C 916
67. Converting signed hexadecimal to
decimal
• If the hexadecimal integer is negative, form its two’s
compliment otherwise retain the integer
• Using the integer from the previous step, convert it to
decimal. If its original value was negative, attach a
minus sign to the beginning of the decimal integer
• E.G convert DC916 to decimal
• Form the two’s compliment of DC9.
• Invert each digit and add 1
• DC9 = 236 +1 = 237
• Convert to decimal
• 2+162 + 3*16 + 7 = -56710
68. Boolean Operations
• values true and false
• NOT : ~ or ¬ or ʹ
• AND: Ʌ or ∙
• OR: ˅ or +
• Operator Precedence
• Parenthesis to avoid ambiguity
69. Real number constants
• decimal real
• {sign} integer . {integer} {exponent}
• Examples: 2. , +3.0 , +44.2E+05
• encoded real
• real number in hexadecimal using the IEEE
floating point format
70. Integer Constants
• [{+/-} digits {radix}]
• h hexadecimal r encoded real
b/y binary q/o octal
d/c decimal
• if no radix is given, the integer is assumed as decimal
• 26 /26d decimal 42o/42q octal
1A3h/0A3h hexadecimal
•
72. IA-32
• Character Constants : ‘A’ ,”G”
• String Constant : ‘Ade’, “Redeemer’s University”
• Reserved words
– Mnemonic eg MOV, ADD, SUB, MUL
– Directives
– attributes which provide size and usage information for
variables and operands e.g Byte, word
– operators used in constant expressions
– Predefined symbols such as @data,
Directives
recognized and acted upon by the assembler. They do not
execute at run time
73. Assembly Language Statements
• All assembly instructions, assembler directives and macros use the
following format:
• [label] mnemonic [operands] [; comment]
• label : Data Labels, Code Labels
• mnemonic/opcode: Mov, add, ca, sub, jmp operands: 0 – 3,
memory, register, constant or I/O eg STC
• Comment : Description of program’s purpose
• programmer’s name, dates etc
• Comments can be Single line or Block comments
• ; This line is a comment
– COMMENT!
• This line is a comment
• This line is a also comment
• !
74. Example: program to add three integers
• TITLE Add and Subtract {TITLE directive marks the entire
line as a comment}
• ; this program add and subtracts 32-bit integers
• .code {.code directive marks the beginning of the code
segment, where all executable statement in the program are
located}
• Main PROC {identifies the beginning of a procedure}
• mov eax, 10000h ; EAX = 10000h
• add eax, 40000h ; EAX = 50000h
• sub eax, 20000h ; EAX = 30000h
• call DumpRegs ; displays register
• exit {calls a predefined MS-Windows function that halts
the program}
• main ENDP {marks end f main procedure}
• END main
76. Immediate addressing
• operand is in the instruction. The effective
address is within the instruction.
• Example instruction: mov eax, 26
• All arithmetic instructions except DIV and IDIV
instructions allow the source operand to be an
immediate value
77. Register addressing mode
• operand is in a register. Source and
destination operands are located in any of the
registers
• The effective address is the register.
• mov eax, ecx
78. Direct Addressing mode
• operand is in memory and the address is specified
as an offset (effective address).
• The offset part of a memory address can be
specified either directly or as a static value
(displacement) or through an address computation
made up of one or more of the following
components: displacement, base, index scale factor
(value of 2,4 or 8 multiplied by the index value)
• Offset = Base + (index * scale) + Displacement
• Example: mov eax, var_name
79. Direct Addressing mode
• Base register can be EAX, EBX, ECX, EDX, ESP or EBP
• Index register can be EDI or ESI
• Scaling factor is 1,2,4,or 8
• [EAX] + [EDI *2] + 80
• The effective address calculated with be the
contents of register EDI multiplied by 2 added to the
constant 80, added to the contents of register EAX.
80. Register Indirect Addressing
• operand is found at the memory location
specified by the register. The register is
enclosed in square bracket
• e.g mov EAX, [EBX]
81. INSTRUCTION SET
• Data movement / Transfer Instructions
• Syntax: mov destination, source
• variants:
• mov reg, reg e.g mov EAX, EBX
• mov mem, reg e.g mov var2, EAX
• mov reg, mem e.g mov EAX, var2
• mov reg, imm e.g mov EAX, 16
• mov mem, imm e.g mov var2, 16
• Operands must be of the same size.
• Both operands cannot be memory operands
82. • .data
• var1 WORD
• var2 WORD
• .code
• Mov ax, var1
• Mov var2, ax
83. MOVZX instruction
• (move with zero extend) copies the contents of a source
operand into a destination operand and zero extends the
value to 16 r 32 bits used with unsigned integers.
• movzx r32, r/m8 ; zero extend and copy data
movzx r32, r/m16 ; r32 32-bit register,
movzx r16, r/m8 ; r/m8 8-bit
• example:
• movzx AX, 10001111b ; AX = 0000000010001111b
• mov bx, 0A69Bh
• movzx eax, bx ;EAX = 0000A69Bh
• movzx edx, bl ; EDX = 0000009Bh
• movzx cx, bl ; CX = 009Bh
Movzx ebx, bh ; EBX =000000A6h
84. MOVSX instruction
• move with sign extend: copies the contents of a source
operand into a destination operand and sign extends the
value to 16 or 32 bits. used for signed integers
• movsx r32, r/m8 ; sign extend and copy data
• movsx r32, r/m16 ; sign extend and copy data
• movsx r16, r/m8 ; sign extend and copy data
• repeat smaller operand’s highest bit throughout the
extended bits in the destination operand
• movsx ax, 10001111b ; AX = 1111111110001111b
• mov bx, 0A69Bh
• movsx eax, bx ; EAX = FFFFA69Bh
• movsx edx, bl ; EDX = FFFFFF9Bh
• movsx cx, bl ; CX = FF9Bh
85. LAHF and SAHF instructions
• Load status flags in AH, copies the low byte of the
EFLAGS register into AH.
• .data
• saveflags BYTE ?
• .code
• LAHF ; load flags into AH
• mov saveflags, ah ; move them in a variable
86. • SAHF instruction (store AH into status flags) :
copies AH into the low byte of the EFLAGS
register.
• mov ah, saveflags ; load saved flags
into AH
• sahf ; copy into flags register
• * sign, zero, auxiliary carry, parity and carry
87. XCHG instruction
• (exchange data): exchanges the contents of
two operands.
• Xchg reg, reg
• Xchg reg, mem
• Xchg mem, reg
• Example: Xchg ax, bx
• Xchg var1, bx
88. LEA (Load Effective Address):
• calculates and loads the 16-bit or 32-bit
effective address of a memory operand.
• LEA reg, mem
• Example:
• lea EBX, loop_top ; put the address assigned
;(by the assembler) to
;label loop_top into
;register EBX
89. Arithmetic Instructions
• INC instruction (increment) adds 1 to a single
operand , INC reg/mem
• DEC (decrement) subtracts 1 from a single
operand, DEC reg/mem
• overflow sign, zero, auxiliary carry and parity
flags are changed according to the value of the
operand
• .data
• myword WORD ;1000h
• .code inc myword ;1001h
• mov bx, myword
• dec bx ;1000h
90. Add AND Sub instructions
• ADD instruction: adds a source operand to a
destination operand of the same size
• ADD dst, src
• SUB instruction : subtracts a source operand from a
destination operand
• SUB dst, src
• The flags are changed accordingly
• NEG instruction (negate): reverses the sign of a number
by converting the number to its two’s compliment
• NEG reg
• NEG mem
91. • AND : Boolean AND on each pair of matching
bit
• AND destination, source
– AND reg, reg
– AND reg, mem
– AND mem, reg 00111011
– AND reg, imm AND 00001111
– AND mem, imm 00001011
– E.g MOV AL, 00111011b
AND AL, 00001111b ;AL= 00001011
BOOLEAN AND COMPARISON INSTRUCTIONS
92. OR Instruction
• OR: Boolean OR between pairs of matching
bits
– OR reg, reg
– OR reg, mem
– OR mem, reg 00111011
– OR reg, imm OR 00001111
– OR mem, imm 00111111
– E.g MOV AL, 00111011b
OR AL, 00001111b ; AL = 00111111
93. XOR Instruction
• XOR: Boolean exclusive OR on matching bits
– XOR reg, reg
– XOR reg, mem
– XOR mem, reg 00111011
– XOR reg, imm AND 00001111
– XOR mem, imm 00110100
– E.g MOV AL, 00111011b
XOR AL, 00001111b ; AL = 00110100
94. NOT instruction
• NOT: Toggles all bits in an operand
(Compliment)
• NOT reg
• NOT mem
• E.g mov AL, 11110000b
• NOT AL ; AL = 00001111
95. Test Instruction
• TEST: implied AND between pairs of matching
bits
• Does not modify the destination operand like
AND
• TEST AL, 00001001 ; test bits 0 and 3
• E.g 00100101
• 00001001
• 00000001
97. Jump and Loop Instructions
• Transfer of control
• Types
– Conditional
– Unconditional
– JMP destination
– JMP m ; unconditional jump
98. Conditional Jump
• Steps
• 1. operation that modifies the CPU flag
• 2. evaluate the flag and branch to a new address
• Types
1. based on specific flag values
2. based on equality between operands or the
value of ECX
3. based on comparison of unsigned operands
4. based on comparison of signed operands
99. Unconditional jump based on flag
values
• Jcond destination
• Jnc (jump if not carry)
• Jc (jump if carry)
• Jo jump if overflow
• Jno: jump if not overflow
• Js: jump if signed
• Jns : jump if not signed
• Jp: jump if parity
• Jnp: jump if not parity
100. Conditional jump Based on equality
• JE : jump if equal ( leftOp = rightOp),
• JNE,
• JCXZ,
• JECXZ (jump if ECX = 0)
• e.g mov edx, 0A53h
• cmp edx, 0A53h
• jne L5 ; jump not taken
• je L1 ; jump is taken
101. Conditional jump Based on unsigned
comparison
• JA: jump if above, i.e if leftOp > rightOp
• JNA: jump if not above
• JB: jump if below
• JNB: jump if not below
• JNBE: jump if not below or equal
• JAE: jump if above or equal
• JNAE: jump if not above or equal
• JBE: jump if below or equal
• e.g mov al, 7Fh ; (+127)
• cmp al, 80h ; (-128)
• ja IsAbove ; no jump, because 7Fh > 80h
• jg IsGreater ; jump, because +127 > -128
102. Conditional jump Based on signed
comparison
• JG: jump if greater (if leftOp > rightOp)
• JNLE: jump if not less than or equal
• JGE: jump if greater than or equal
• JNL: jump if not less
• JL: jump if less
• JNGE: jump if not greater or equal
• JLE: jump if less or equal
• JNG: jump if not greater
• e.g mov edx, -1
• cmp edx, 0
• JNL L5 ;jump not taken
103. Shift and rotate instructions
• Shifting means to move bits right and left inside an operand.
i) Logical Shifts
ii) Arithmetic Shifts
• Logical Shift: fills new positions with zeros
•
• 110001111, produce 011000111, CF = 1
• Arithmetic shift: fills the newly created bit position with a copy
of the original number’s sign bit
• E.g 110001111, produce 11100111 CF = 1
104. Logical Shift
• SHL (shift left): shifts destination operand to
the left, fills the empty space with zero, copies
the MSB into CF
• SHL destination, count
• E.g. MOV al, 10100111b
• SHL al, 2 ;AL=10011100, CF= 0
• Fast multiplication : multiply an operand by 2n
•
• E.g mov dl, 5 ; DL = 00000101
• shl dl, 1 ; DL = 00001010 CF = 0
105. • SHR (shift right): shifts destination operand to the right and replace
empty space with 0, copies LSB into CF
• mov al, 0D0h ;AL = 11010000b
• shr al, 1 ; AL = 01101000b CF = 0
• fast division: logically shifting an unsigned integer right by n bits
divides the operand by 2n .
• mov dl, 32 ; DL = 00100000
• shr dl, 1 ; DL = 00010000
• e.g mov al, 01000000
• shr al, 3 ; AL = 00001000
106. Arithmetic Shift
• SAR (shift Arithmetic Right)
• SAR destination, count
• e.g mov al, 0F0h ;AL = 11110000b (-16)
• sar al, 1 ; AL = 11111000 (-8) CF = 0
• signed division: divide a signed operand by a power
of 2, using SAR
• mov dl, 128 ;DL = 10000000
• sar al, 3 ;Dl = 11110000b
107. • SAL (Shift Arithmetic Left)
• SAL destination, count
• E,g MOV DL, 0A5h ;DL = 10100101
• SAL DL, 3 ; DL = 00101111 CF= 1
sign extend AX into EAX. First shift EAX 16 bits to the left, then
shift it arithmetically 16 bits to the right.
mov ax, -128 ; EAX = ????FF80h
shl eax, 16 ; EAX = FF800000h
sar eax, 16 ; EAX = FFFFFF80h
108. Rotate instruction
• Rotate left: shifts each bit to the left, copies MSB into the
carry flag and the lowest bit position
• mov al, 40h ; AL = 01000000b
• rol al, 1 ; AL = 10000000b CF =0
• rol al, 1 ; AL = 00000001 CF = 1
• multiple rotations: when using a rotation count greater than 1, the carry flag
contains the last bit rotated out of the MSB position.
• Exchanging groups of bits: ROL can change the upper bit (4 – 7) and lower bits
(0 - 3) halves of a byte.
• mov al, 26h ; AL = 00100110b
• rol al, 4 ; AL = 01100010b = 62h
109. • ROR Instruction (Rotate right): shifts each bit to the right, copies the lowest bit into
the carry flag and the highest bit position.
• mov al, 01h ;AL= 00000001b
• ror al, 1 ; AL = 10000000b CF = 1
• ror al, 1 ; AL = 0100000 CF = 0
110. • RCR (Rotate Carry Right): shifts each bit to the
right, copies the carry flag into MSB and copies the
LSB into the CF.
•
• Stc ; set carry flag, CF = 1
• mov ah, 10h ; AH = 00010000, CF = 1
• rcr ah, 1 ; AH = 10001000 CF = 0
111. Shift double instruction
• SHLD (shift left double): shift destination operand
to the left, fill the empty spaces with the MSB of
source operand
• SHLD destination, source, count
• E.g.
• .data
• wval WORD 9BA6h
• .code
• mov ax, 0AC36h ; AX = AC36h
• shld wval, ax, 4 ; wval = BA6Ah
112. • SHRD (shift right double): shift destination
operand to the right, fill the empty spaces
with the LSB of source operand
• E.g.
•
• mov ax, 234Bh ; AX = 234Bh
• mov dx, 7654h ; DX = 7654h
• shrd ax, dx, 4 ; AX = 4234h
114. Assembly Program Template
• TITLE Program template TITLE
• INCLUDE .686,.model flat, std call,
include Irvine 32.inc
• . data
• ; insert variables here
• .stack
• .code
• main PROC ; insert executable instructions here
•
• exit
• main ENDP
• ; insert additional procedures here
• END main
117. Defining BYTE and SBYTE
the BYTE (define byte) and SBYTE (define signed byte) directives allocate storage
for one or more unsigned or signed values. Each initialize writes into 8 bits of
storage
• value1 byte ‘A’ ; character constant
• value2 byte 0 ; smallest unsigned byte
• value4 byte -128 ; smallest signed byte
• value5 byte ? ; uninitialized variable,
;meaning it will be
;assigned at runtime
118. Defining String
• string of characters, are enclosed in single or double quotation marks.
• most common type of string ends with a null byte (containing 0)called a null-
terminated string
• greetings1 BYTE “Good morning” , 0
• a string can be spread across multiple lines
• greeting1 BYTE “welcome to assembly language demo class”
• BYTE “for 200l class”, 0dh,0ah
• Hexadecimal codes 0Dh and 0Ah are called CR/LF (carriage return line feed/ end of
line characters)
• character () concatenates two source code lines into a single statement
• greetings1 BYTE “Welcome to CMP221 class”
• and
• greetings1 BYTE “Welcome to CMP221 class ”
120. DUP operator
• Allocates storage for multiple data items
• BYTE 20 DUP (0) ;20 bytes, all equal to zero
• BYTE 20 DUP (?) ;20 bytes, uninitialized
• BYTE 4 DUP (“STACK”)
;”STACKSTACKSTACKSTACK”
121. Defining WORD or SWORD
• The WORD (define word) and SWORD (define signed word) directives allocate
storage for one or more signed or unsigned values. Each initializer writes into 16
bit storage
• word1 WORD 65535
• val1 DW 65535
• val2 DW -32768
• DW: Double Word directive allocate 32 bit
storage for each initializer.
122. Array of Words
• create an array of words by listing the elements or using the
DUP operator
• mydata WORD 1, 2, 3, 4, 5
•
• array WORD 5 DUP(?) {provides a
convenient way to initialize multiple words}
• DWORD, SWORD :32bit integers
• QWORD : 64-bits
• TBYTE : 80 bits
123. Sample program
• Write a program that adds and subtracts three integers using only 32-bit registers
Title Add and Subtract
INCLUDE Irvine 32
.data
• Val1 DWORD 10000h
• Val2 DWORD 40000h
• Val3 DWORD 20000h
• Finalval DWORD ?
• .code
• Main PROC
• mov eax, val1
• add eax, val2
• sub eax, val3
• mov finalval, eax
• call DumpRegs
• exit
• main ENDP
• END main
124. • TITLE Fibonacci calculator
• INCLUDE Irvine 32.inc
• .data
• Prev DWORD 0
• Value DWORD 1
• next DWORD ?
• Count DWORD 1
• .code
• Main PROC
• mov ecx, 12
• L1:
• mov count, ecx
• mov eax, prev
• mov ebx, value
• add eax, ebx
• mov next, eax
• mov ebx, value
• mov prev, ebx
• mov eax, next
• mov value, eax
• call DumpRegs
• loop L1
• exit
• main ENDP
• END main
125. Assembly in C
#include<stdio.h>
void main() {
int a = 10, b = 20, c;
asm {
mov eax, a
mov ebx, b
add eax, ebx
mov c, eax
}
printf("c= %d",c);
}
126. System Call
• System calls are APIs for the interface between the
user space and the kernel space.
• steps for using Linux system calls in your program −
• Put the system call number in the EAX register.
• Store the arguments to the system call in the registers
EBX, ECX, etc.
• Call the relevant interrupt (80h).
• The result is usually returned in the EAX register.
• EBX, ECX, EDX, ESI, EDI, and EBP. These registers take
the consecutive arguments, starting with the EBX
register.
127. System Calls
mov eax,1 ; system call number (sys_exit)
int 0x80 ; call kernel
mov edx,4 ; message length
mov ecx,msg ; message to write
mov ebx,1 ; file descriptor (stdout)
mov eax,4 ; system call number
(sys_write)
int 0x80 ; call kernel
the use of the system call sys_write −
the use of the system call sys_exit
Editor's Notes
Personal satisfaction that comes with learning something complex.
