1. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

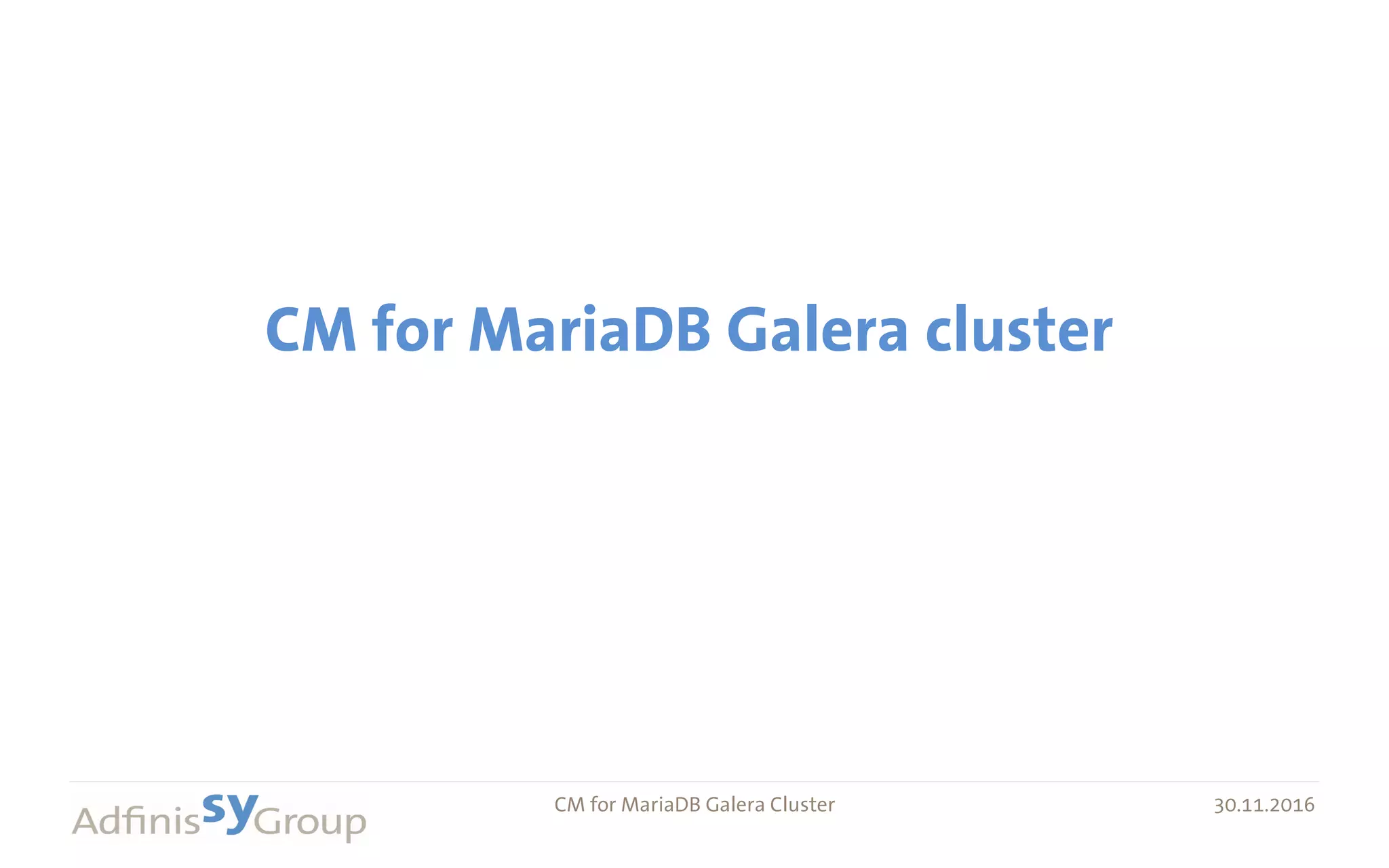

CM for MariaDB Galera cluster

2. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

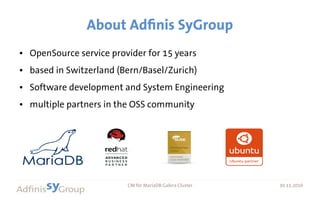

About Adfinis SyGroup
● OpenSource service provider for 15 years
● based in Switzerland (Bern/Basel/Zurich)
● Software development and System Engineering
● multiple partners in the OSS community

3. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

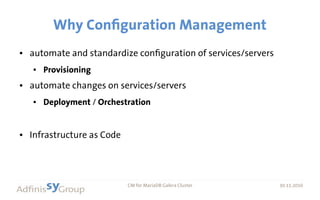

Why Configuration Management
● automate and standardize configuration of services/servers
● Provisioning
● automate changes on services/servers
● Deployment / Orchestration
● Infrastructure as Code

4. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016
Classical CM is not enough
● used for provisioning
● can't handle node interdependencies
● can't handle states from other nodes
● no timed execution
We need more than configuration management!

5. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

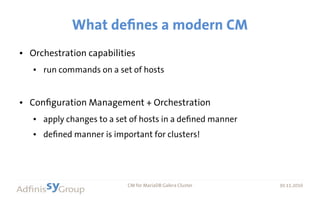

What defines a modern CM
● Orchestration capabilities
● run commands on a set of hosts
● Configuration Management + Orchestration
● apply changes to a set of hosts in a defined manner
● defined manner is important for clusters!

6. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

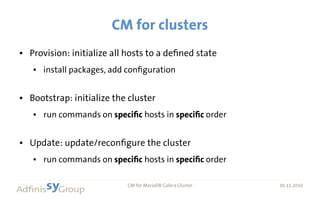

CM for clusters
● Provision: initialize all hosts to a defined state
● install packages, add configuration
● Bootstrap: initialize the cluster
● run commands on specific hosts in specific order
● Update: update/reconfigure the cluster
● run commands on specific hosts in specific order

7. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

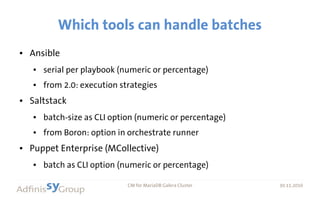

Which tools can handle batches
● Ansible
● serial per playbook (numeric or percentage)
● from 2.0: execution strategies
● Saltstack
● batch-size as CLI option (numeric or percentage)
● from Boron: option in orchestrate runner
● Puppet Enterprise (MCollective)
● batch as CLI option (numeric or percentage)

8. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

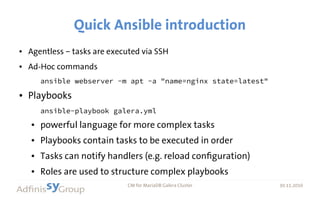

Quick Ansible introduction
● Agentless – tasks are executed via SSH
● Ad-Hoc commands
ansible webserver -m apt -a "name=nginx state=latest"
● Playbooks
ansible-playbook galera.yml
● powerful language for more complex tasks
● Playbooks contain tasks to be executed in order
● Tasks can notify handlers (e.g. reload configuration)
● Roles are used to structure complex playbooks

9. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016
Orchestration with Ansible
● batch size for rolling updates
● only update a number of hosts at a time
● maximum failure percentage
● stop after a percentage of hosts have failed
● delegation
● delegate a task to another node
● conditional execution
● only run a task under certain conditions

10. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

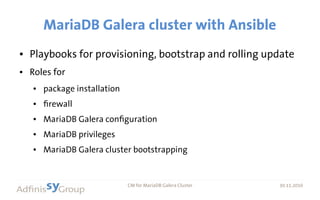

MariaDB Galera cluster with Ansible
● Playbooks for provisioning, bootstrap and rolling update
● Roles for
● package installation
● firewall
● MariaDB Galera configuration
● MariaDB privileges
● MariaDB Galera cluster bootstrapping
currently tested on RHEL/CentOS 7

11. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

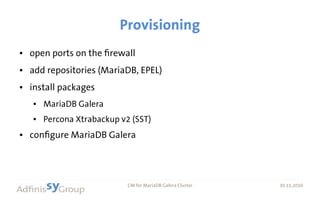

Provisioning
● open ports on the firewall
● add repositories (MariaDB, EPEL)
● install packages
● MariaDB Galera
● Percona Xtrabackup v2 (SST)
● configure MariaDB Galera

12. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

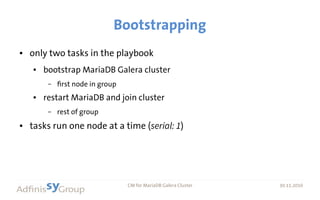

Bootstrapping
● only two tasks in the playbook
● bootstrap MariaDB Galera cluster
– first node in group
● restart MariaDB and join cluster
– rest of group
● tasks run one node at a time (serial: 1)

13. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

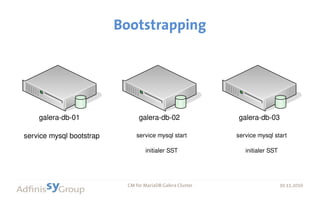

Bootstrapping
galera-db-01
service mysql bootstrap
galera-db-02
service mysql start
initialer SST
galera-db-03
service mysql start
initialer SST

14. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

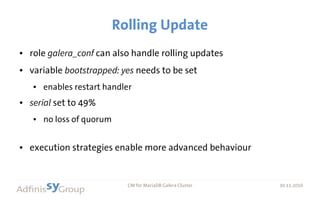

Rolling Update
● role galera_conf can also handle rolling updates
● variable bootstrapped: yes needs to be set
● enables restart handler
● serial set to 49%
● no loss of quorum
● execution strategies enable more advanced behaviour

15. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

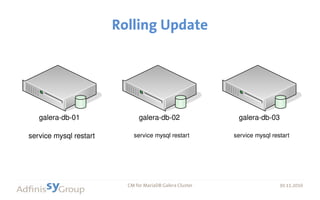

Rolling Update
galera-db-01
service mysql restart
galera-db-02
service mysql restart
galera-db-03
service mysql restart

16. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

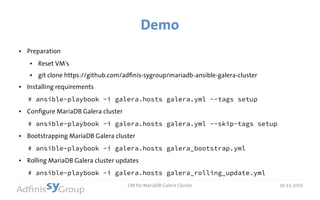

Demo
● Preparation
● Reset VM's
● git clone https://github.com/adfinis-sygroup/mariadb-ansible-galera-cluster
● Installing requirements
# ansible-playbook -i galera.hosts galera.yml --tags setup
● Configure MariaDB Galera cluster
# ansible-playbook -i galera.hosts galera.yml --skip-tags setup
● Bootstrapping MariaDB Galera cluster
# ansible-playbook -i galera.hosts galera_bootstrap.yml
● Rolling MariaDB Galera cluster updates
# ansible-playbook -i galera.hosts galera_rolling_update.yml

17. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

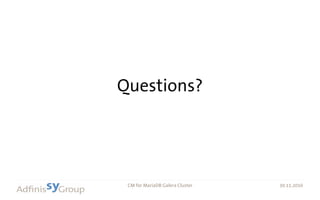

Questions?

18. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016
Sources and Links
● Ansible - https://docs.ansible.com/ansible/
● SaltStack - https://docs.saltstack.com/
● Puppet - https://docs.puppetlabs.com/
● MariaDB Galera Cluster Ansible Playbook -
https://github.com/adfinis-sygroup/mariadb-ansible-galera-cluster
● Adfinis SyGroup - https://adfinis-sygroup.ch/

19. 30.11.2016 CM for MariaDB Galera Cluster 30.11.2016

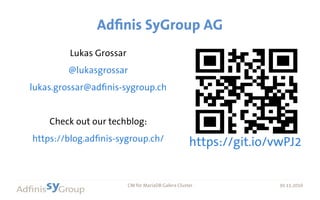

Adfinis SyGroup AG
Lukas Grossar
@lukasgrossar
lukas.grossar@adfinis-sygroup.ch
Check out our techblog:
https://blog.adfinis-sygroup.ch/ https://git.io/vwPJ2
