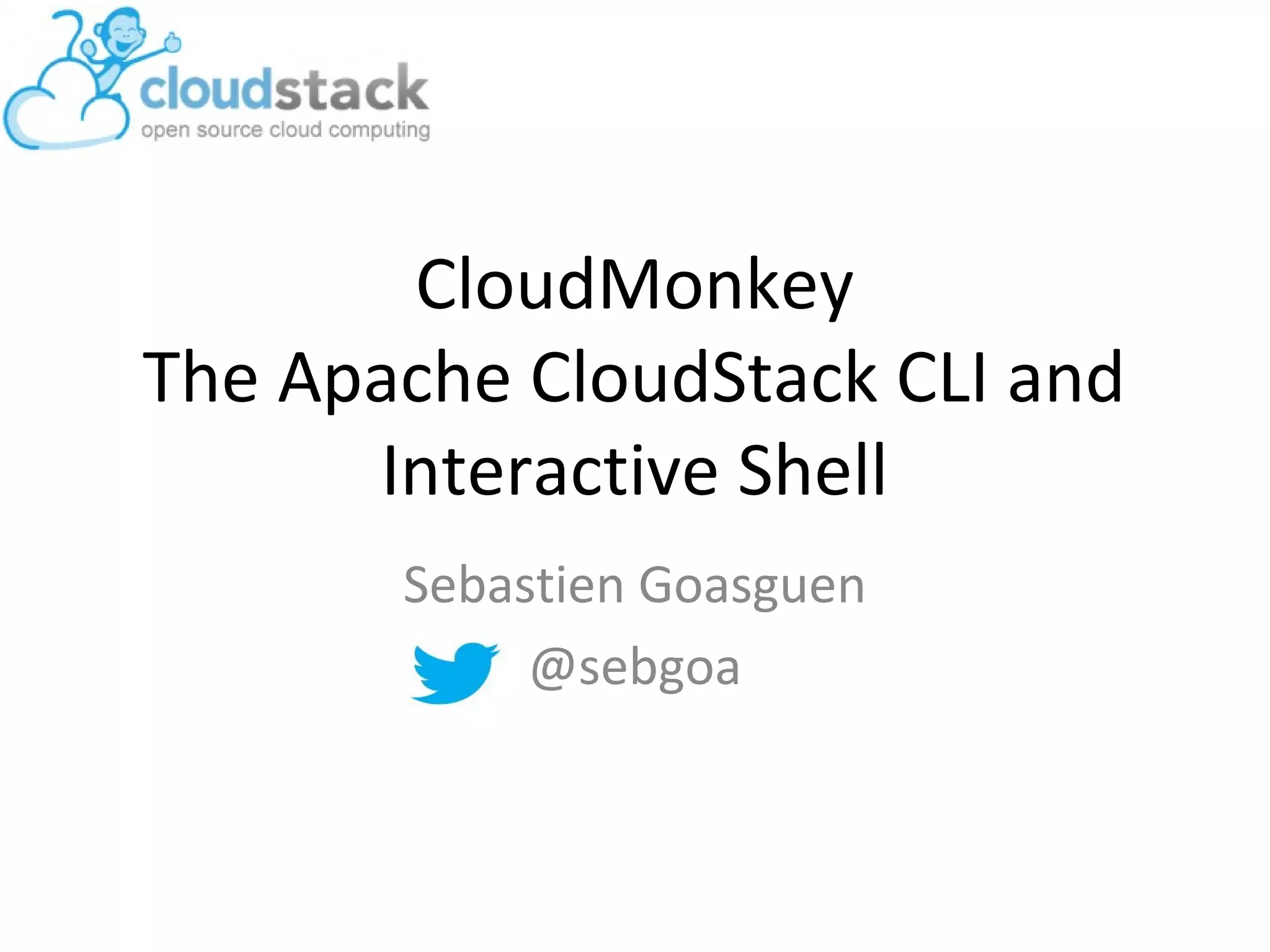

1. CloudMonkey
The Apache CloudStack CLI and
Interactive Shell
Sebastien Goasguen
@sebgoa

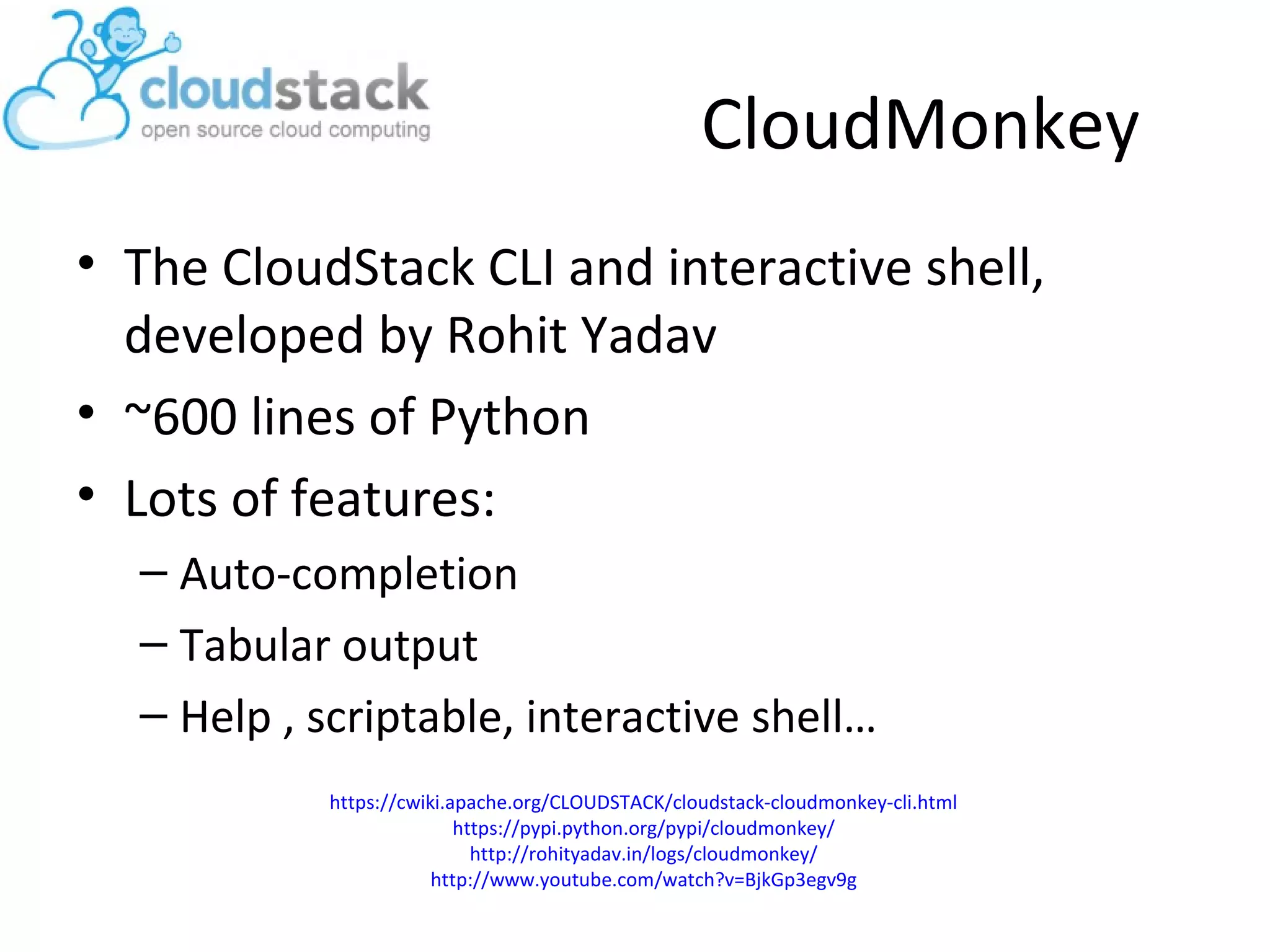

2. CloudMonkey
• The CloudStack CLI and interactive shell,
developed by Rohit Yadav
• ~600 lines of Python
• Lots of features:
– Auto-completion
– Tabular output
– Help , scriptable, interactive shell…
https://cwiki.apache.org/CLOUDSTACK/cloudstack-cloudmonkey-cli.html
https://pypi.python.org/pypi/cloudmonkey/
http://rohityadav.in/logs/cloudmonkey/
http://www.youtube.com/watch?v=BjkGp3egv9g

3. Documentation
https://cwiki.apache.org/CLOUDSTACK/cloudstack-cloudmonkey-cli.html
http://cloudstack.apache.org/docs/en-US/index.html

4. Requirements
• Cloudmonkey….
– Installed from CloudStack releases
– Installed via pypi
• A CloudStack based cloud (remote or local via
DevCloud):
– URL
– API keys

5. Installation
• From CloudStack releases
• Unofficial releases via the pypi:
$ pip install cloudmonkey
• Upgrade with:
$ pip install –upgrade cloudmonkey
http://cloudstack.apache.org/downloads.html
https://pypi.python.org/pypi/cloudmonkey/
http://www.pip-installer.org/en/latest/installing.html

6. API Keys
• Generate API keys for the user that will access
the cloud

7. Intro
• $ cloudmonkey
• ☁ Apache CloudStack ? cloudmonkey 4.0.0. Type
help or ? to list commands.
• ? cloudmonkey> set apikey plgWJfZK4gyS3mOMTVmjUVg-
X-jlWlnfaUJ9GAbBbf9EdM-
kAYMmAiLqzzq1ElZLYq_u38zCm0bewzGUdP66mg
• ? cloudmonkey> set secretkey
VDaACYb0LV9eNjTetIOElcVQkvJck_J_QljX_FcHRj87ZKiy0z
0ty0ZsYBkoXkY9b7eq1EhwJaw7FF3akA3KBQ

8. Set
variables
>set port 8080
>set host localhost
>set color true
>set prompt #
>set tabularize false

9. List APIs
• To list all APIs available the tab key is your
friend.
• Enter tab twice to list all possibilities
• Enter tab once to auto-complete
• --help to get the help for a specific call,
including the required parameters

10. Config files
$cd ~/.cloudmonkey
$ls
config history log
$cat config
[core]
cache_file = /Users/sebastiengoasguen/.cloudmonkey/cache
log_file = /Users/sebastiengoasguen/.cloudmonkey/log
asyncblock = true
paramcompletion = false
history_file =
/Users/sebastiengoasguen/.cloudmonkey/history
[ui]
color = false
prompt = #
tabularize = true
…

11. Examples
? cloudmonkey> list users
? cloudmonkey> list virtualmachines
? cloudmonkey> help list templates
? cloudmonkey> deploy virtualmachine –help
? cloudmonkey> list templates templatefilter=all
? cloudmonkey> list serviceofferings | grep id
? cloudmonkey> stop virtualmachine id=2c650856-
a080-4766-a8b3-4166042ccec7

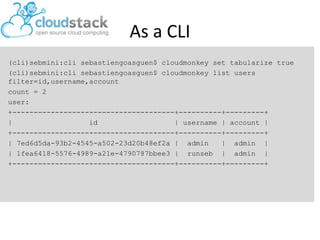

12. As a CLI
(cli)sebmini:cli sebastiengoasguen$ cloudmonkey set tabularize true
(cli)sebmini:cli sebastiengoasguen$ cloudmonkey list users
filter=id,username,account
count = 2
user:
+--------------------------------------+----------+---------+
| id | username | account |
+--------------------------------------+----------+---------+
| 7ed6d5da-93b2-4545-a502-23d20b48ef2a | admin | admin |
| 1fea6418-5576-4989-a21e-4790787bbee3 | runseb | admin |
+--------------------------------------+----------+---------+

13. Info
• Apache Top Level Project (TLP)
• http://cloudstack.apache.org
• #cloudstack and #cloudstack-dev on irc.freenode.net
• @CloudStack on Twitter
• http://www.slideshare.net/cloudstack
• dev-subscribe@cloudstack.apache.org
• users-subscribe@cloudstack.apache.org
Welcoming contributions and feedback, Join the fun !
