1. Cloudhub Connector With Mulesoft
JITENDRA BAFNA

2. Cloudhub connector

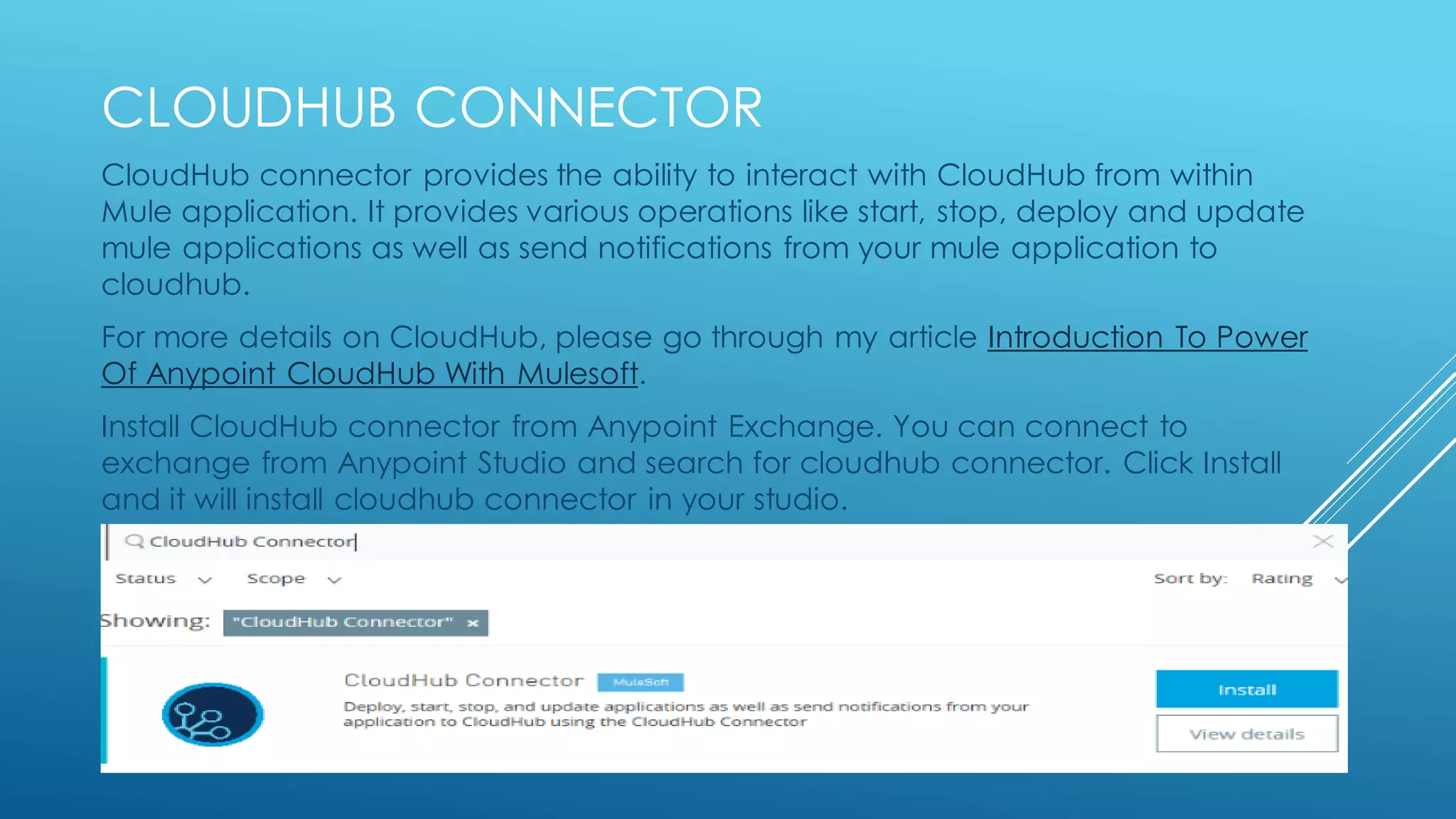

CloudHub connector provides the ability to interact with CloudHub from within
Mule application. It provides various operations like start, stop, deploy and
update mule applications as well as send notifications from your mule application
to cloudhub.
For more details on CloudHub, please go through my article IntroductionTo
Power Of Anypoint CloudHubWith Mulesoft.
Install CloudHub connector from Anypoint Exchange.You can connect to
exchange fromAnypoint Studio and search for cloudhub connector. Click Install
and it will install cloudhub connector in your studio.

3. Cloudhub connector
Once connector is installed, it will restart the Anypoint studio. Now we will
walkthrough how we can implement the cloudhub connector in your mule
application.
Create Notification
Place the HTTP listener into the canvas and click to open the Properties console.
Click the green + and configure as follows:

4. Cloudhub connector

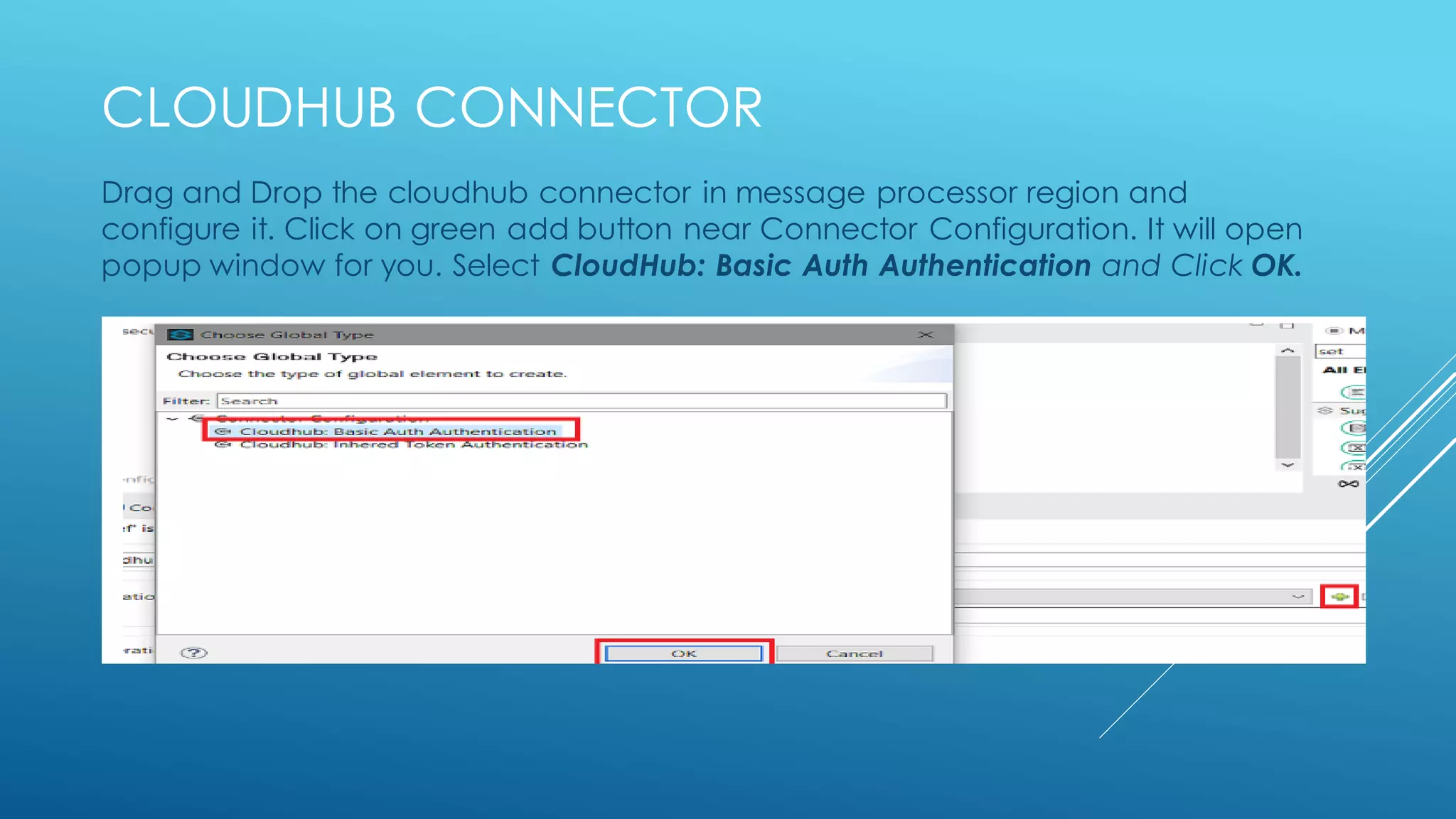

Drag and Drop the cloudhub connector in message processor region and
configure it. Click on green add button nearConnectorConfiguration. It will open
popup window for you. Select CloudHub: Basic Auth Authentication andClick
OK.

5. Cloudhub connector

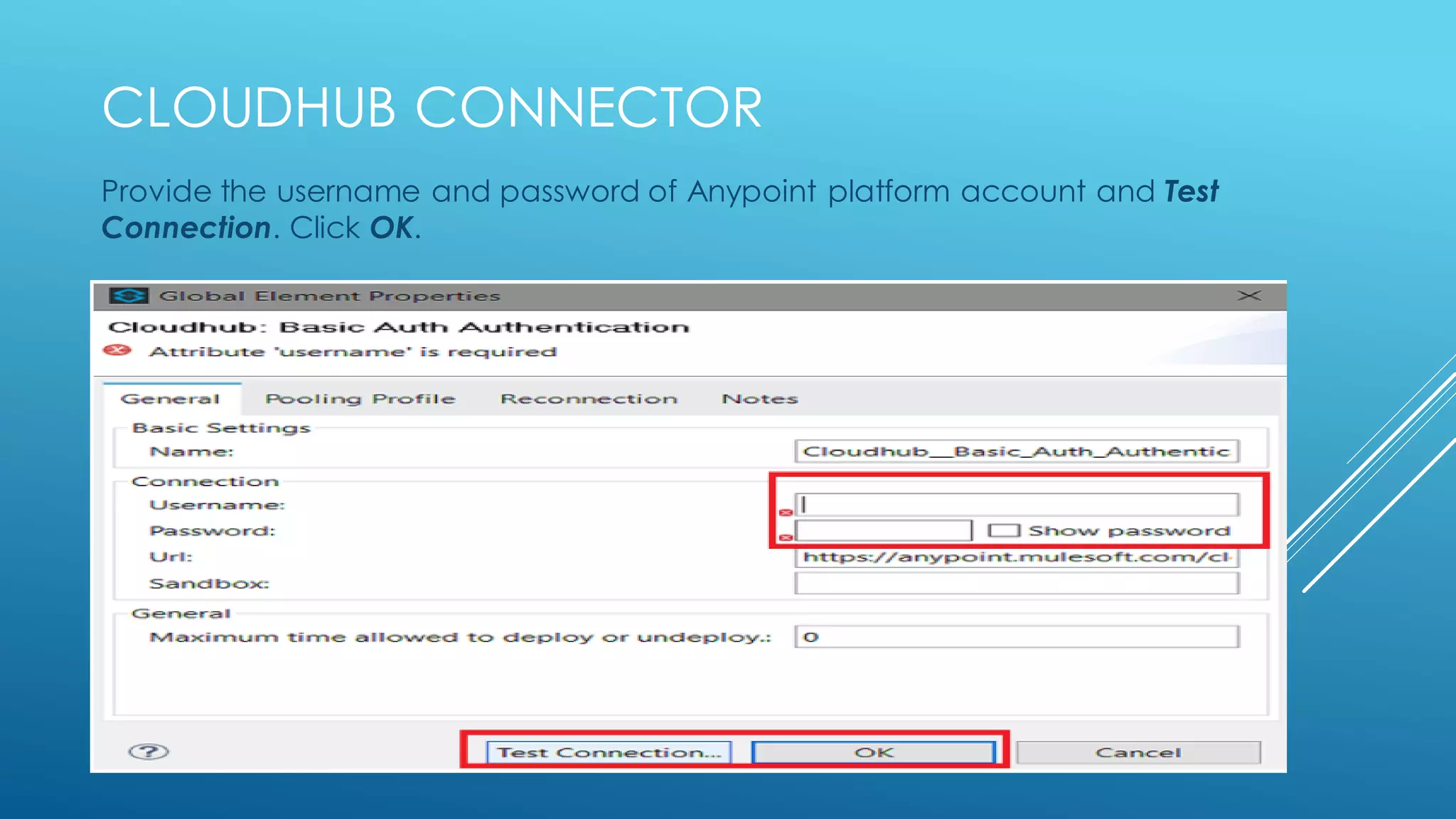

Provide the username and password of Anypoint platform accountand Test
Connection. Click OK.

6. Cloudhub connector
Select Operation from drop-down and in this case we will going to select Create
Notification.You need provide Domain, Message and Priority.

7. Cloudhub connector

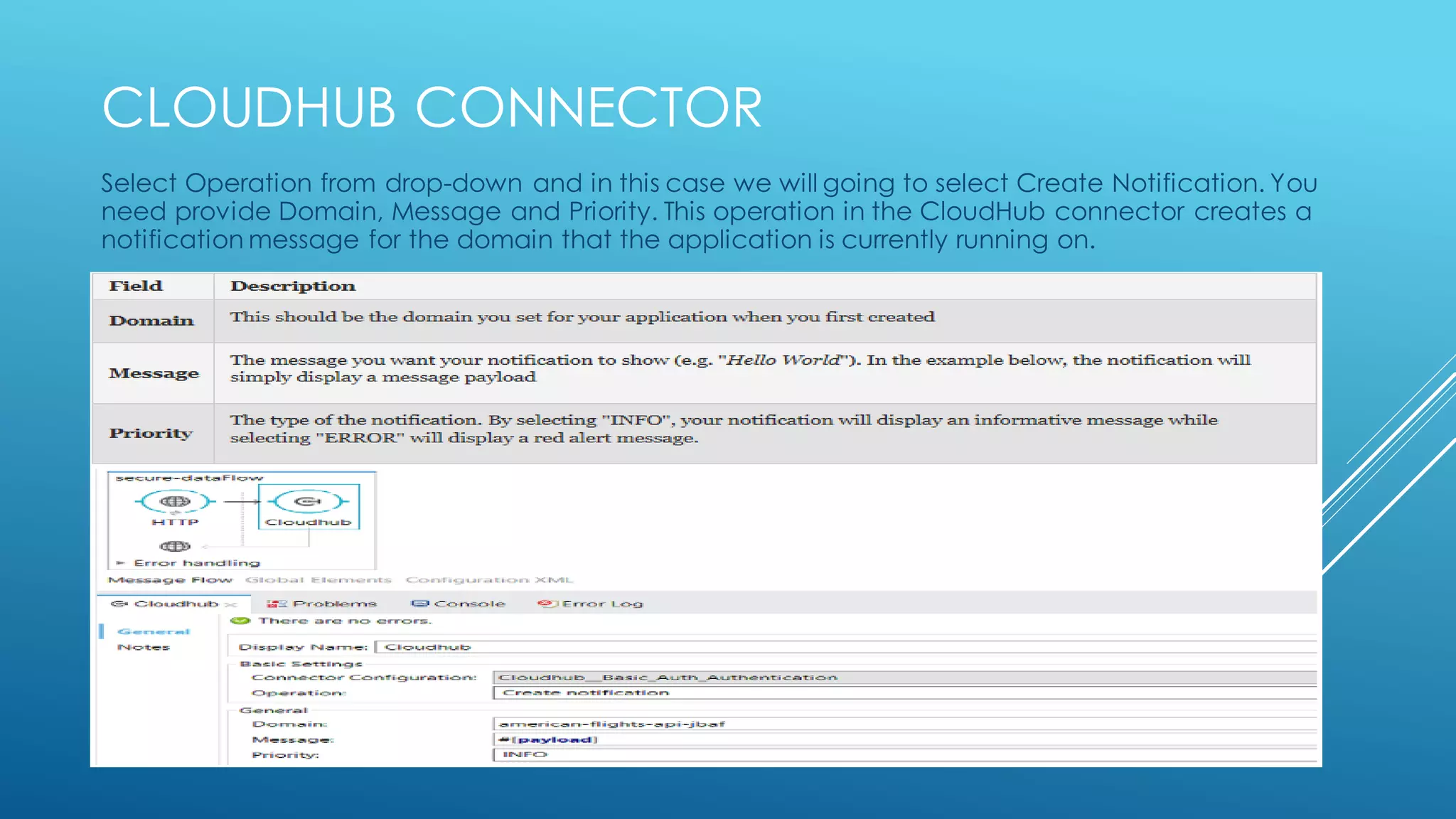

Select Operation from drop-down and in this case we will going to select Create Notification. You
need provide Domain, Message and Priority. This operation in the CloudHub connector creates a
notification message for the domain that the application is currently running on.

8. Cloudhub connector
Select Operation from drop-down and in this case we will going to select Create Notification. You
need provide Domain, Message and Priority. This operation in the CloudHub connector creates a
notification message for the domain that the application is currently running on.

9. Cloudhub connector

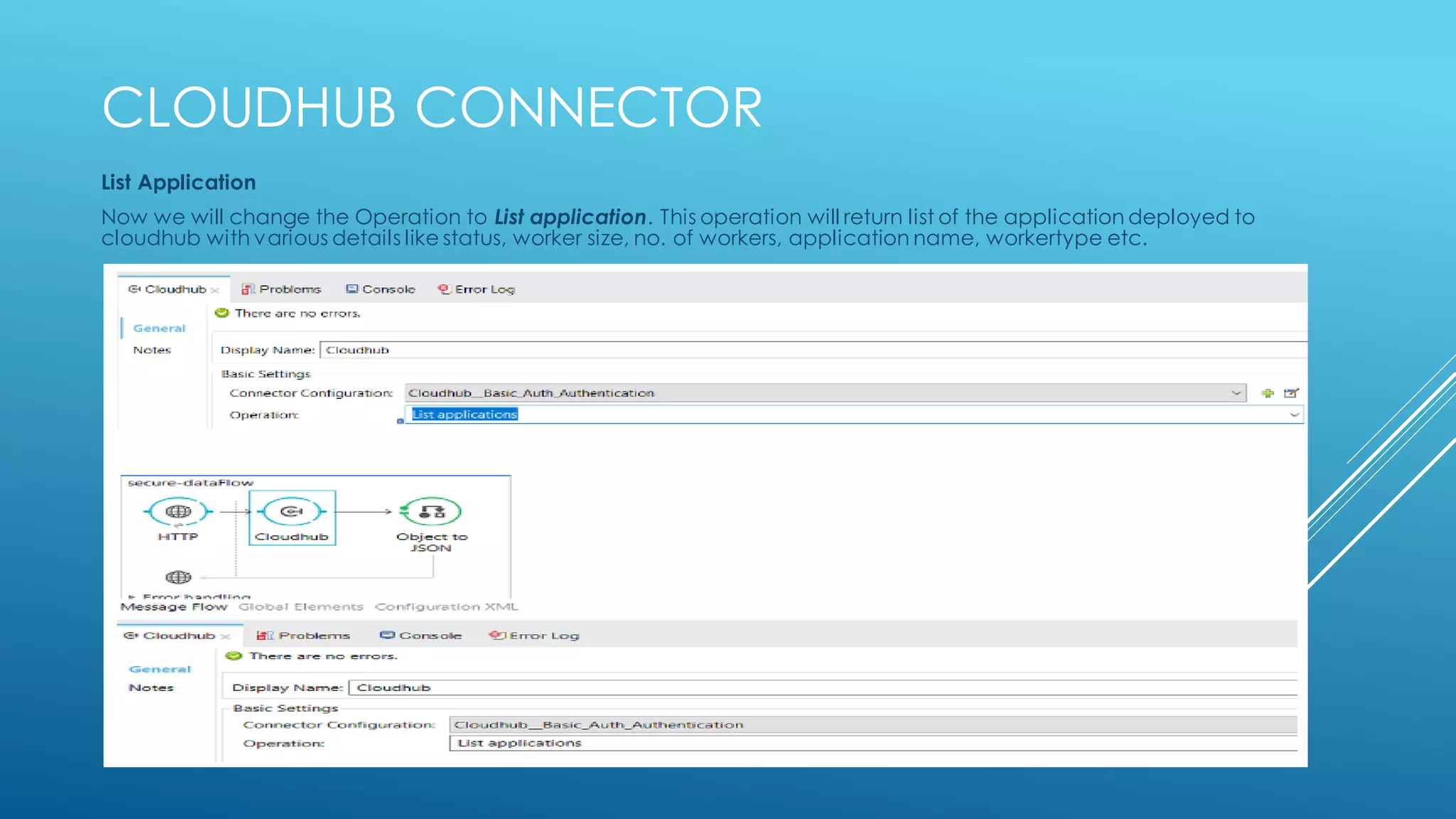

List Application
Now we will change theOperation to List application. This operation will return list of the application deployed to
cloudhub with various details like status, worker size, no. of workers, application name, workertype etc.

10. Cloudhub connector

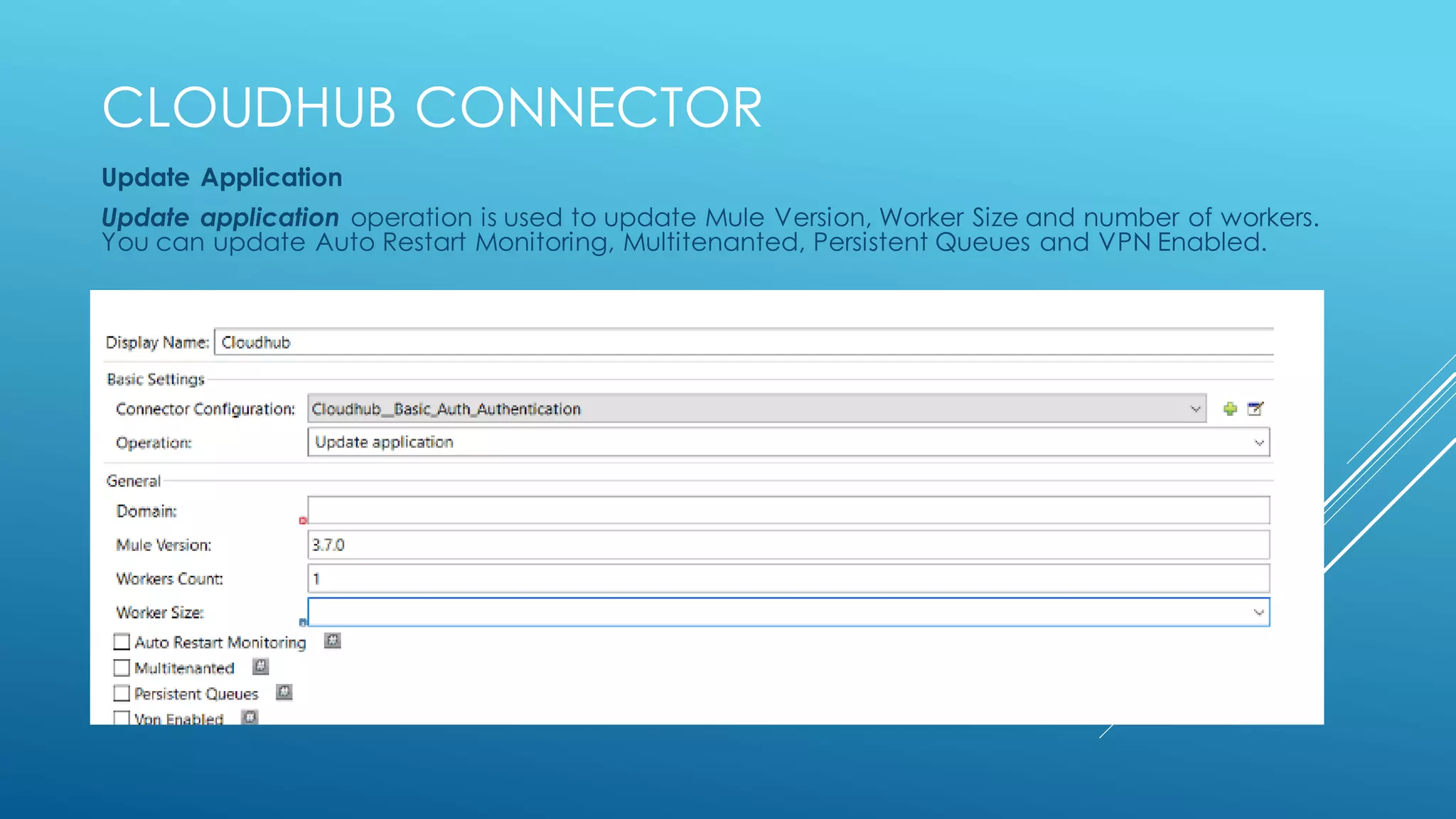

Update Application
Update application operation is used to update MuleVersion, Worker Size and number of workers. You can update
Auto Restart Monitoring, Multitenant, Persistent Queues and VPN Enabled.

11. Cloudhub connector

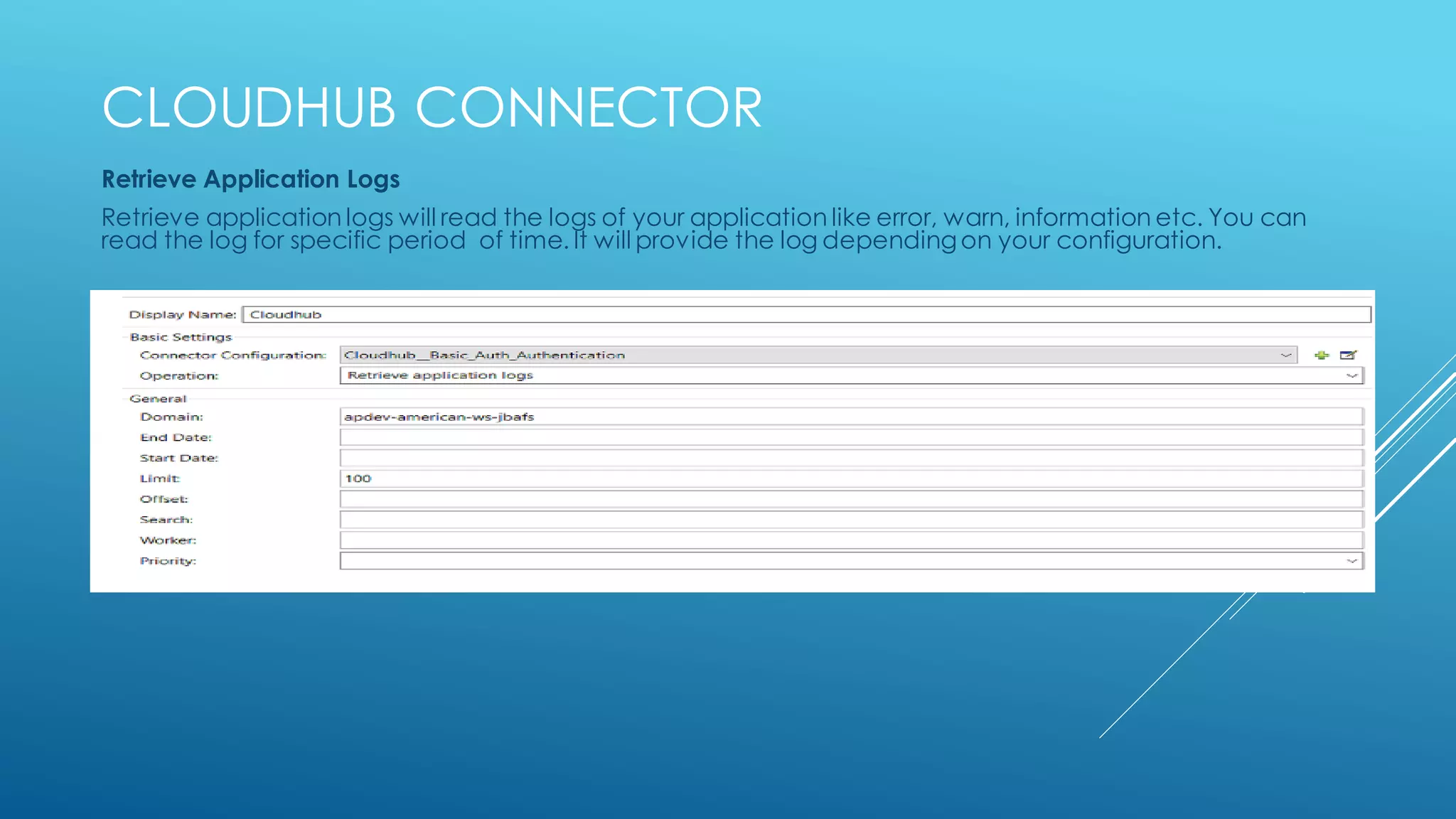

Retrieve Application Logs
Retrieve application logs will read the logs of your application like error, warn, information etc.You can read the log
for specific period of time. It will provide the log depending on your configuration.

12. Cloudhub connector

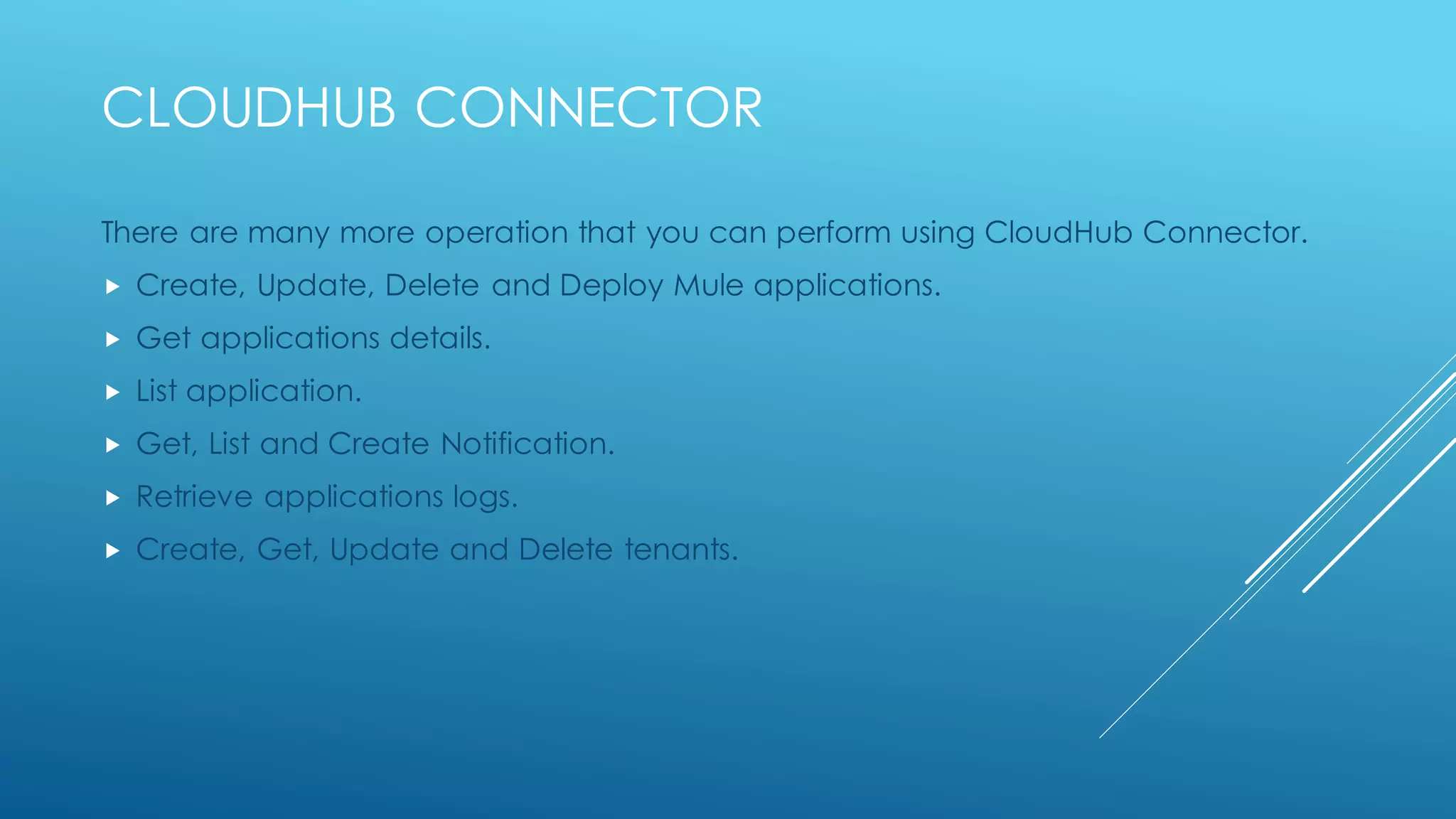

There are many more operation that you can perform using CloudHubConnector.
• Create, Update, Delete and Deploy Mule applications.
• Get applications details.
• List application.
• Get, List and Create Notification.
• Retrieve applications logs.
• Create,Get, Update and Delete tenants.

13. Thank you.
