This document discusses using Cloudflare to improve the performance, security, and reliability of Drupal websites. It outlines the problems Drupal sites often face like spam, traffic peaks, and complex infrastructure needs. Cloudflare is presented as a solution by providing a content delivery network, web application firewall, code optimizations and other features. The document reviews Cloudflare's specific capabilities and provides guidance on preparing a Drupal site for deployment with Cloudflare, including cache invalidation strategies and modules to integrate the two platforms. Areas for future work by the Drupal community are also identified.

1. Łukasz Klimek : www.softinn.eu

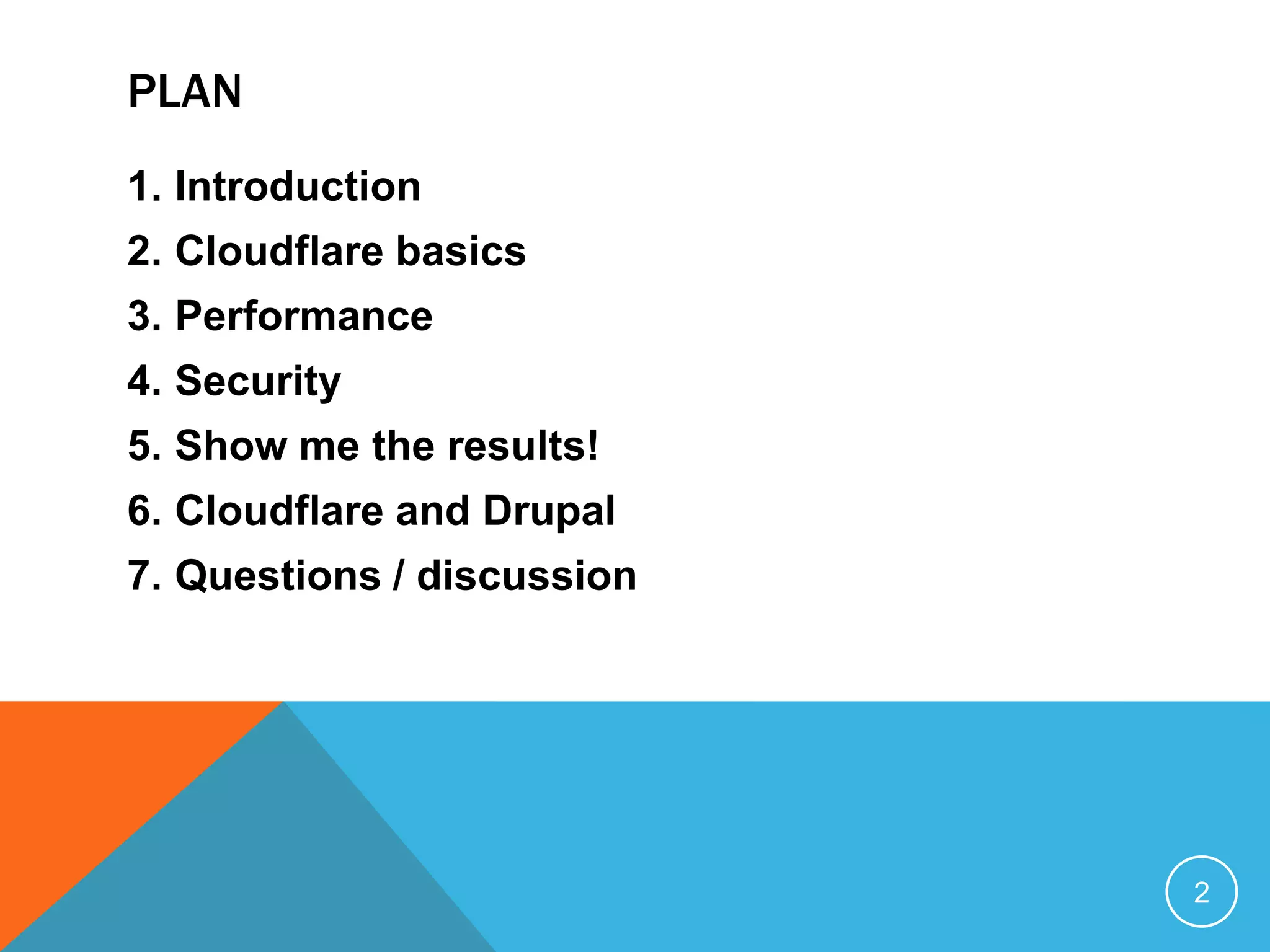

2. PLAN
1. Introduction
2. Cloudflare basics
3. Performance
4. Security
5. Show me the results!
6. Cloudflare and Drupal
7. Questions / discussion
2

3. 3

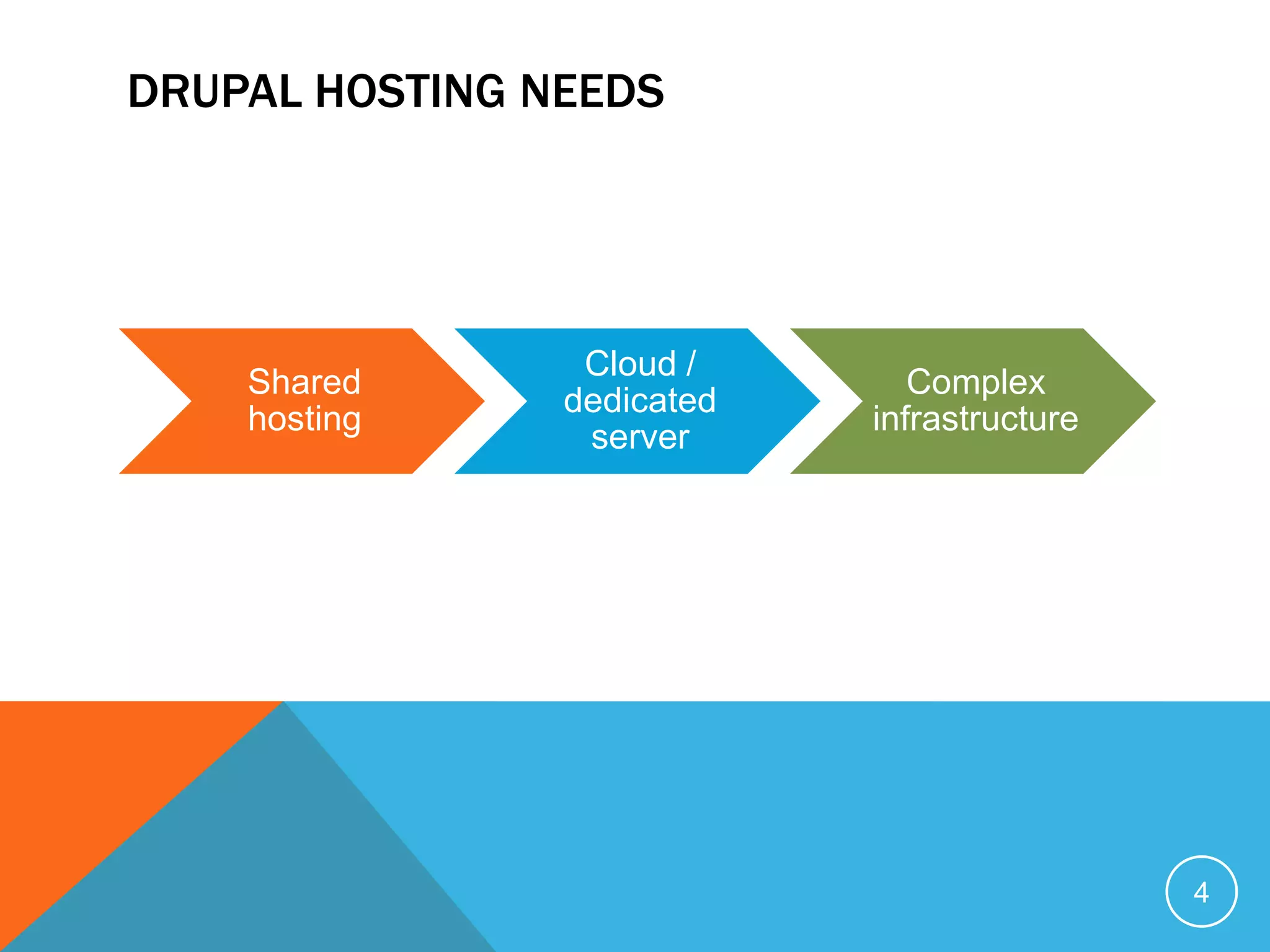

4. DRUPAL HOSTING NEEDS
Shared
hosting
Cloud /
dedicated
server
Complex
infrastructure
4

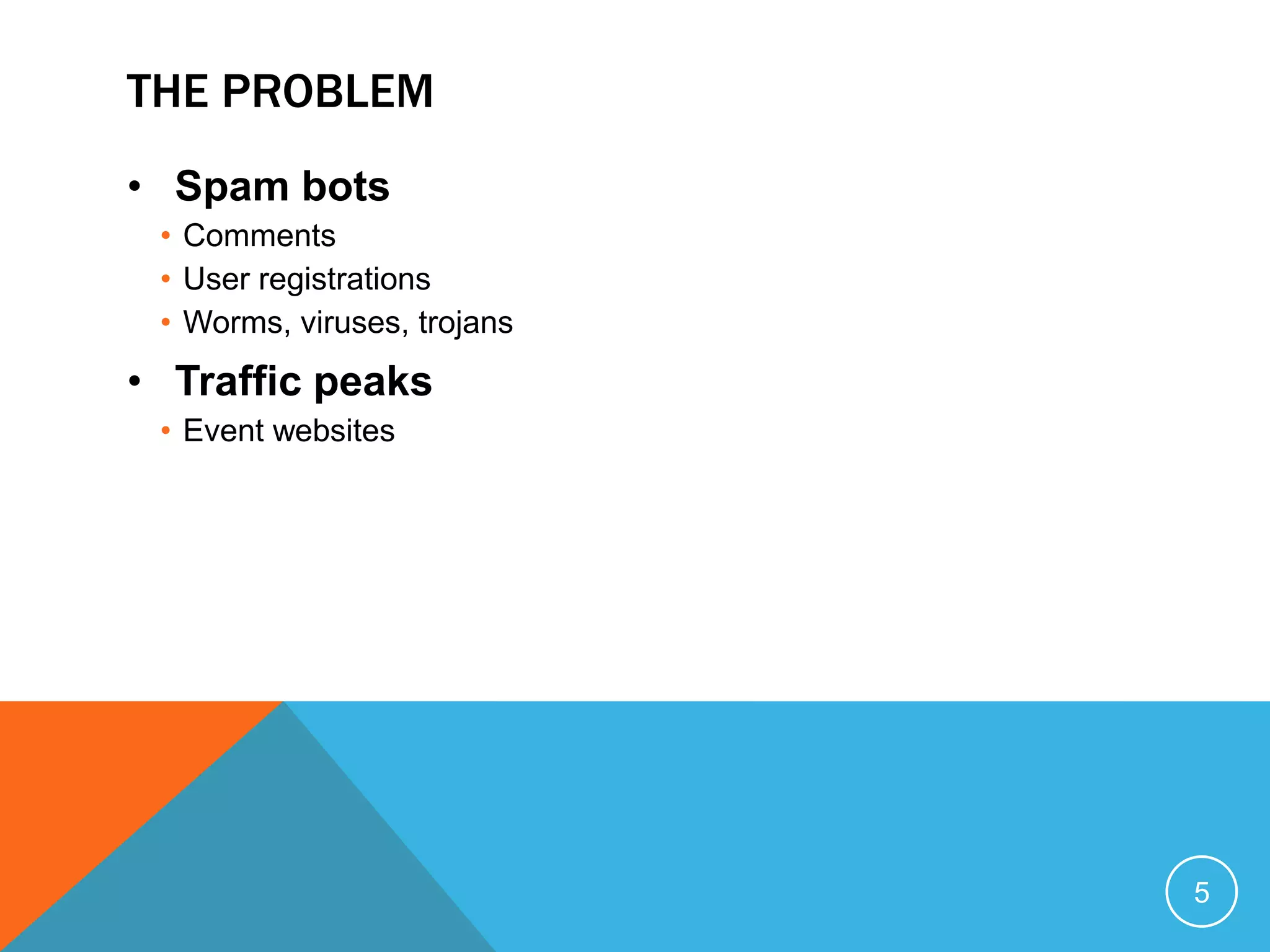

5. THE PROBLEM
• Spam bots
• Comments
• User registrations
• Worms, viruses, trojans
• Traffic peaks
• Event websites
5

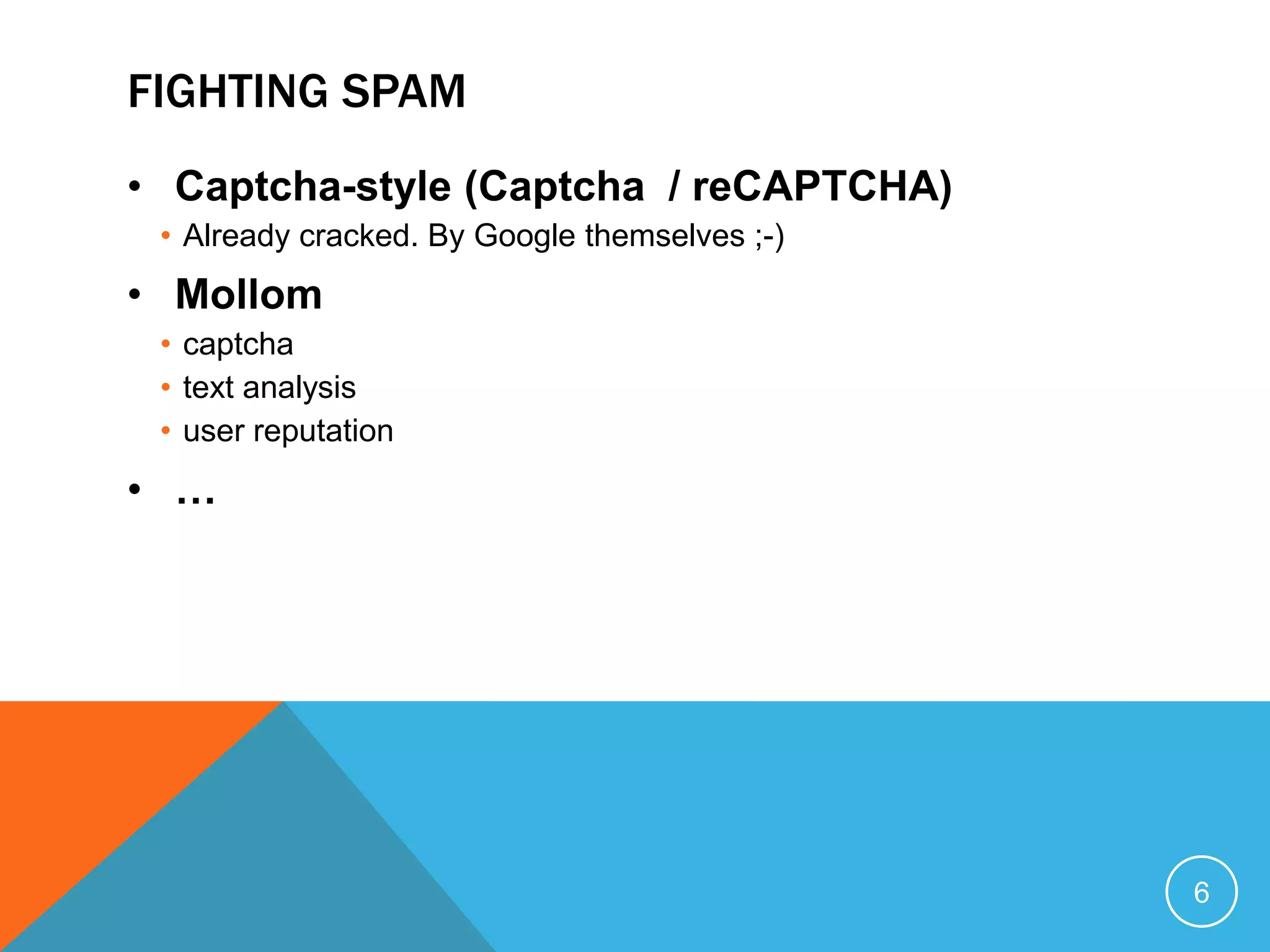

6. FIGHTING SPAM
• Captcha-style (Captcha / reCAPTCHA)
• Already cracked. By Google themselves ;-)
• Mollom
• captcha
• text analysis
• user reputation
• …
6

7. 7

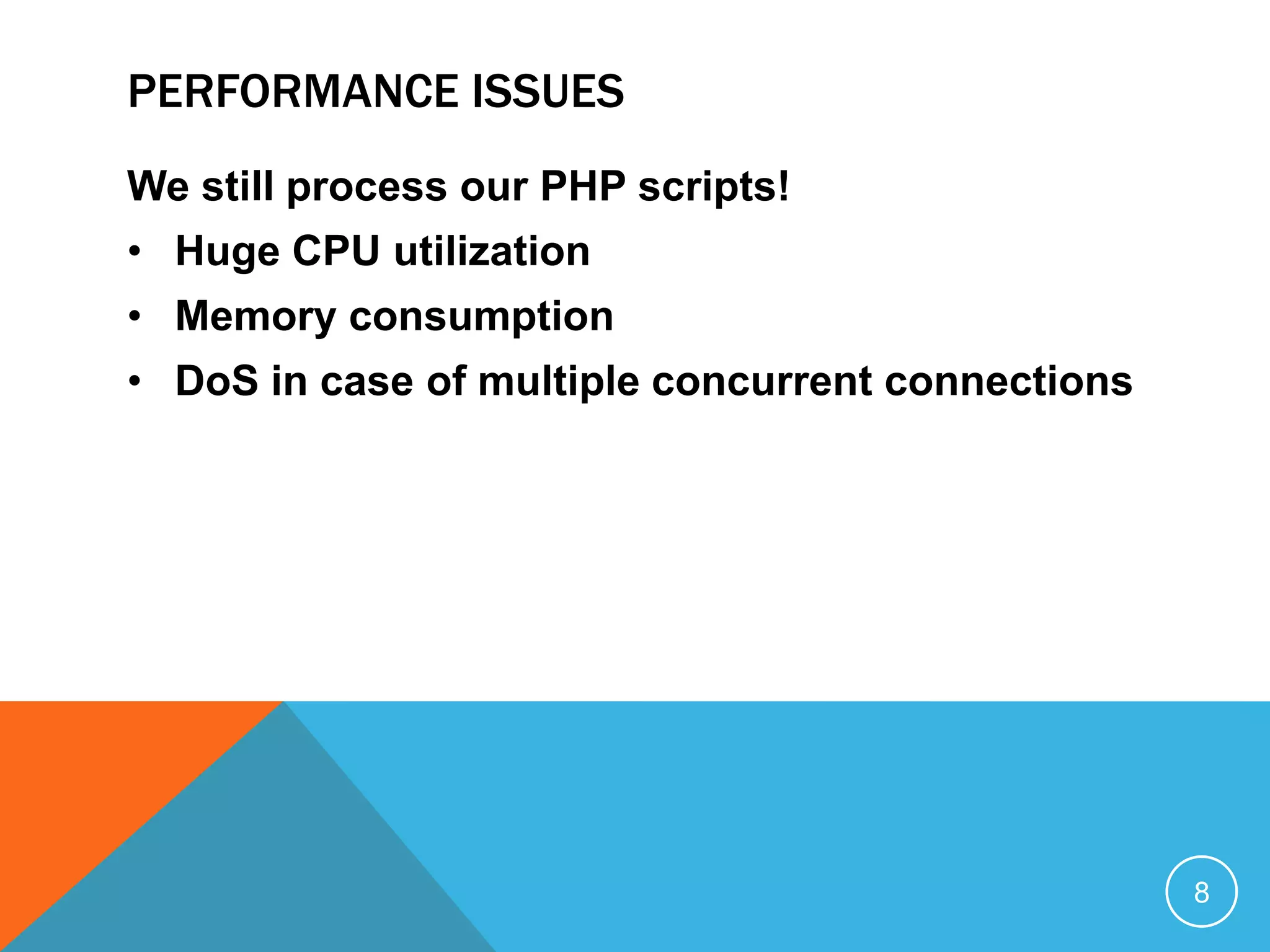

8. PERFORMANCE ISSUES
We still process our PHP scripts!
• Huge CPU utilization
• Memory consumption
• DoS in case of multiple concurrent connections
8

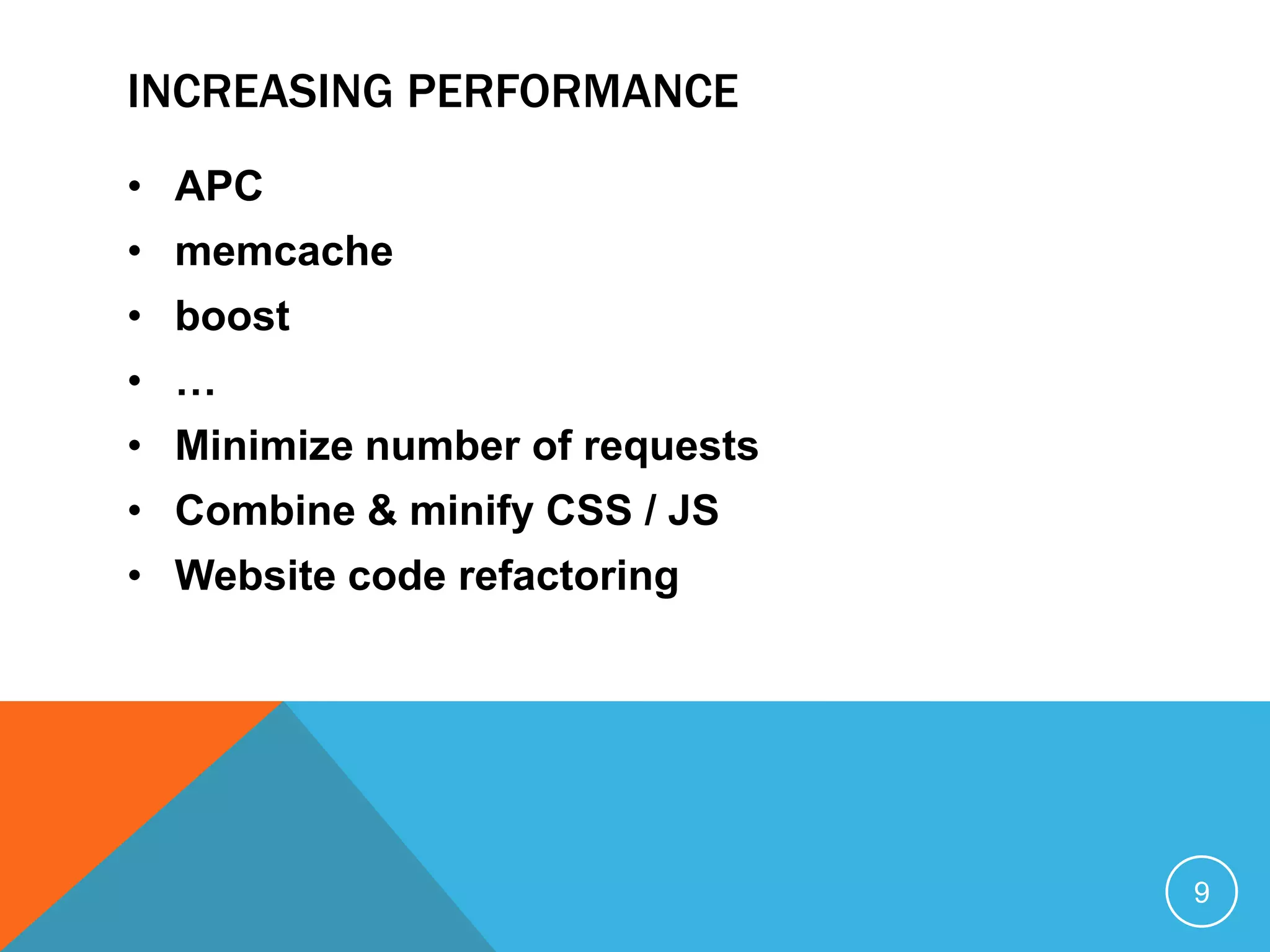

9. INCREASING PERFORMANCE
• APC
• memcache
• boost
• …
• Minimize number of requests
• Combine & minify CSS / JS
• Website code refactoring
9

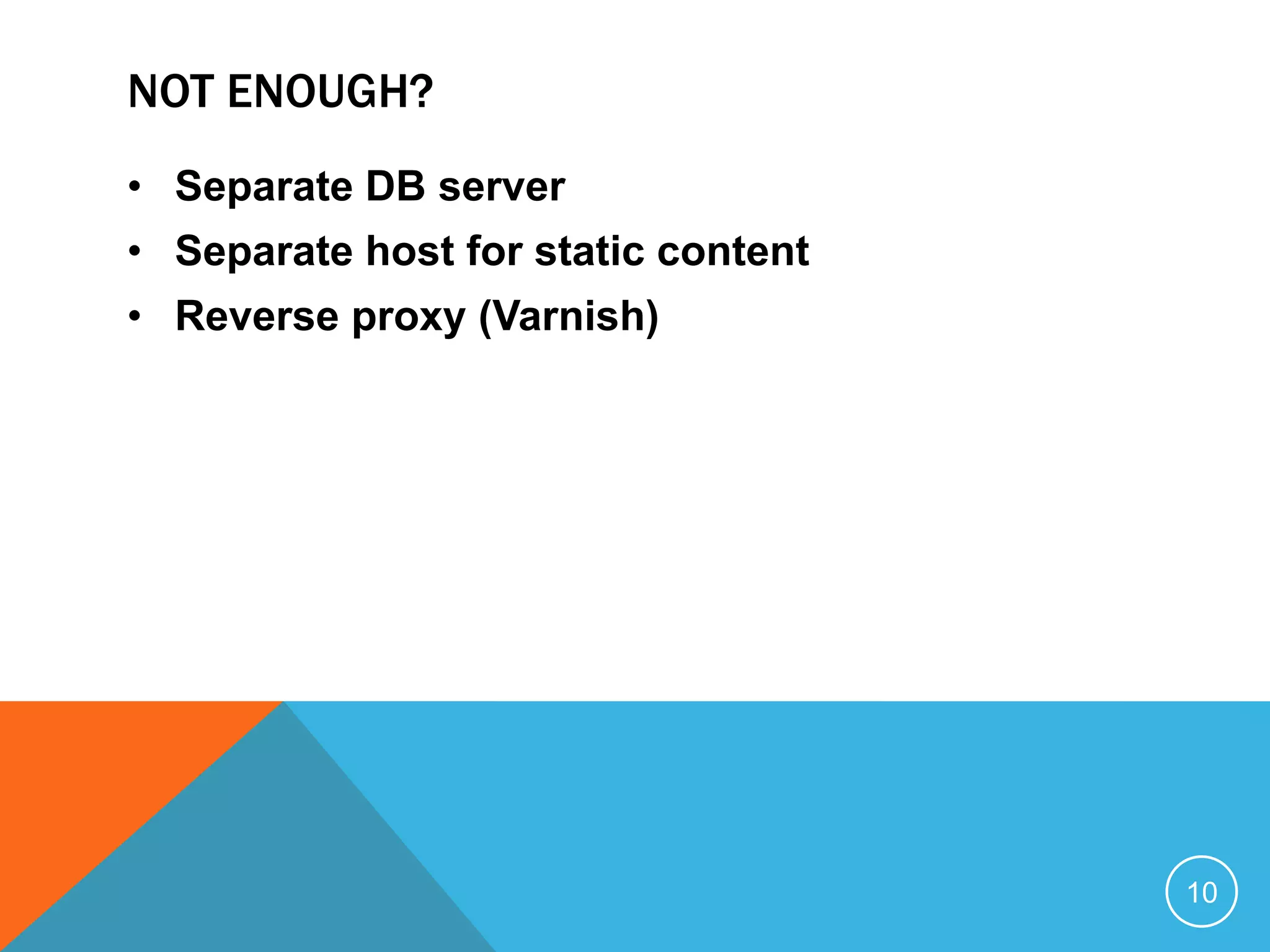

10. NOT ENOUGH?
• Separate DB server
• Separate host for static content
• Reverse proxy (Varnish)
10

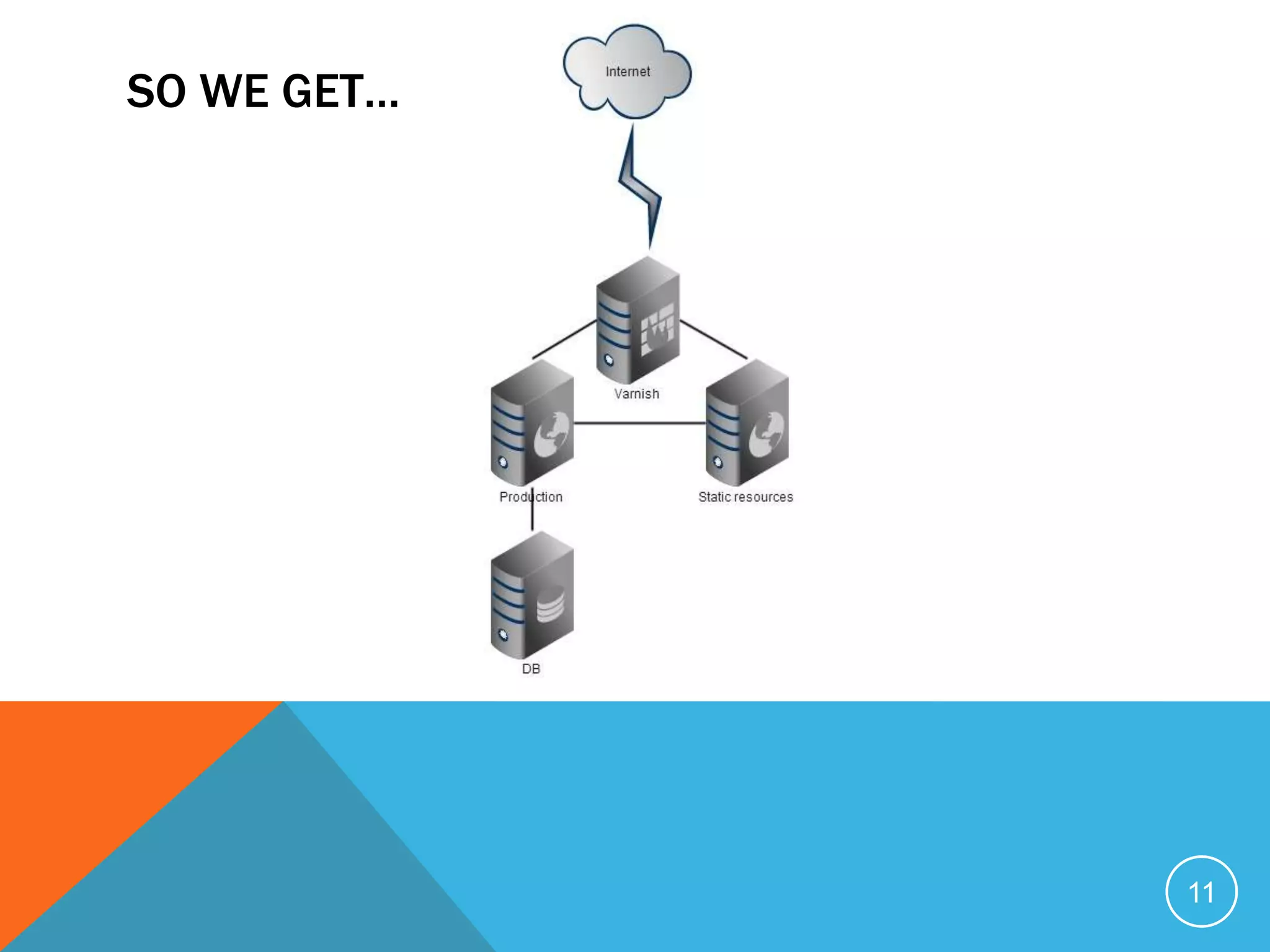

11. SO WE GET…
11

12. 12

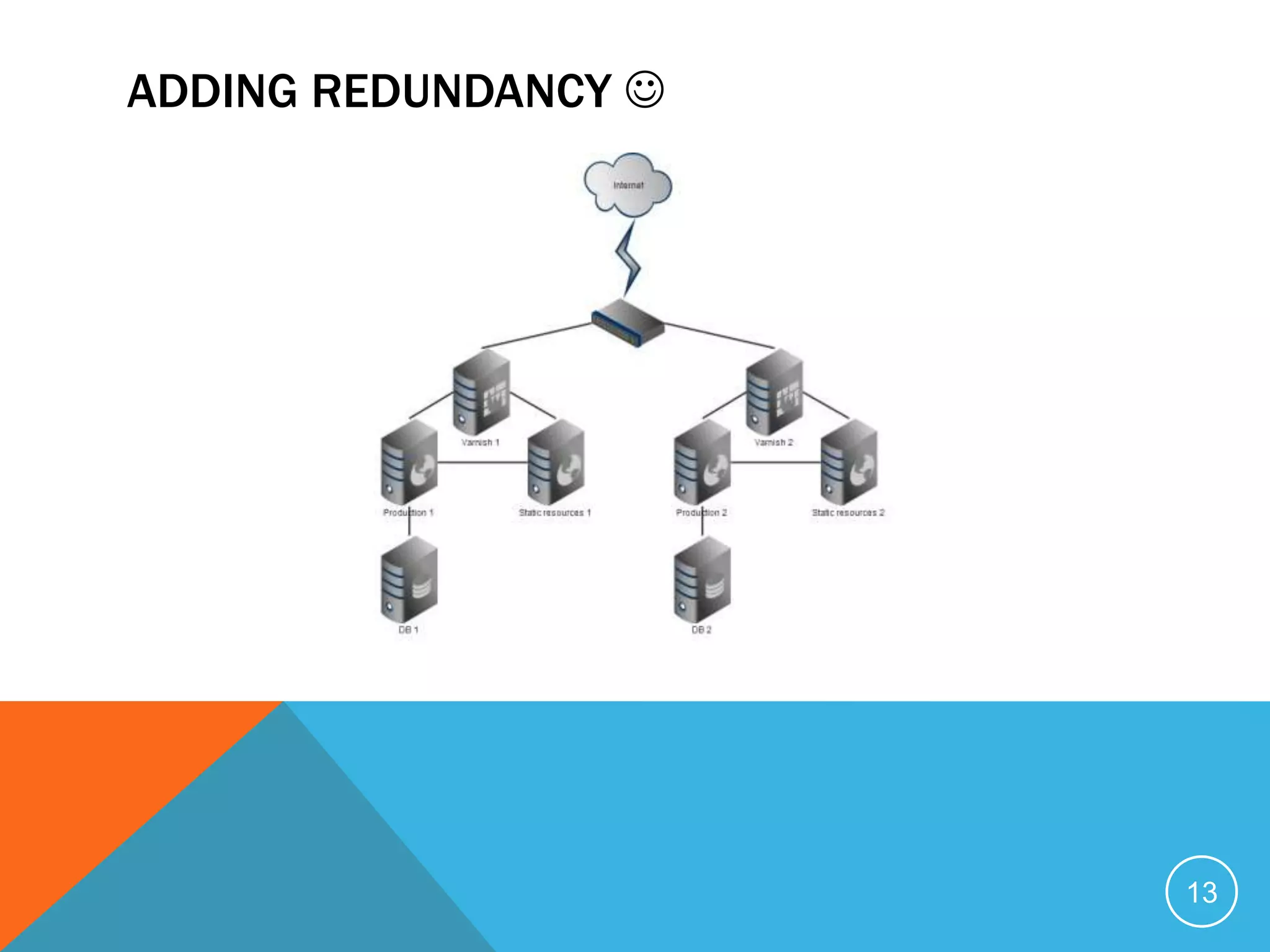

13. ADDING REDUNDANCY 
13

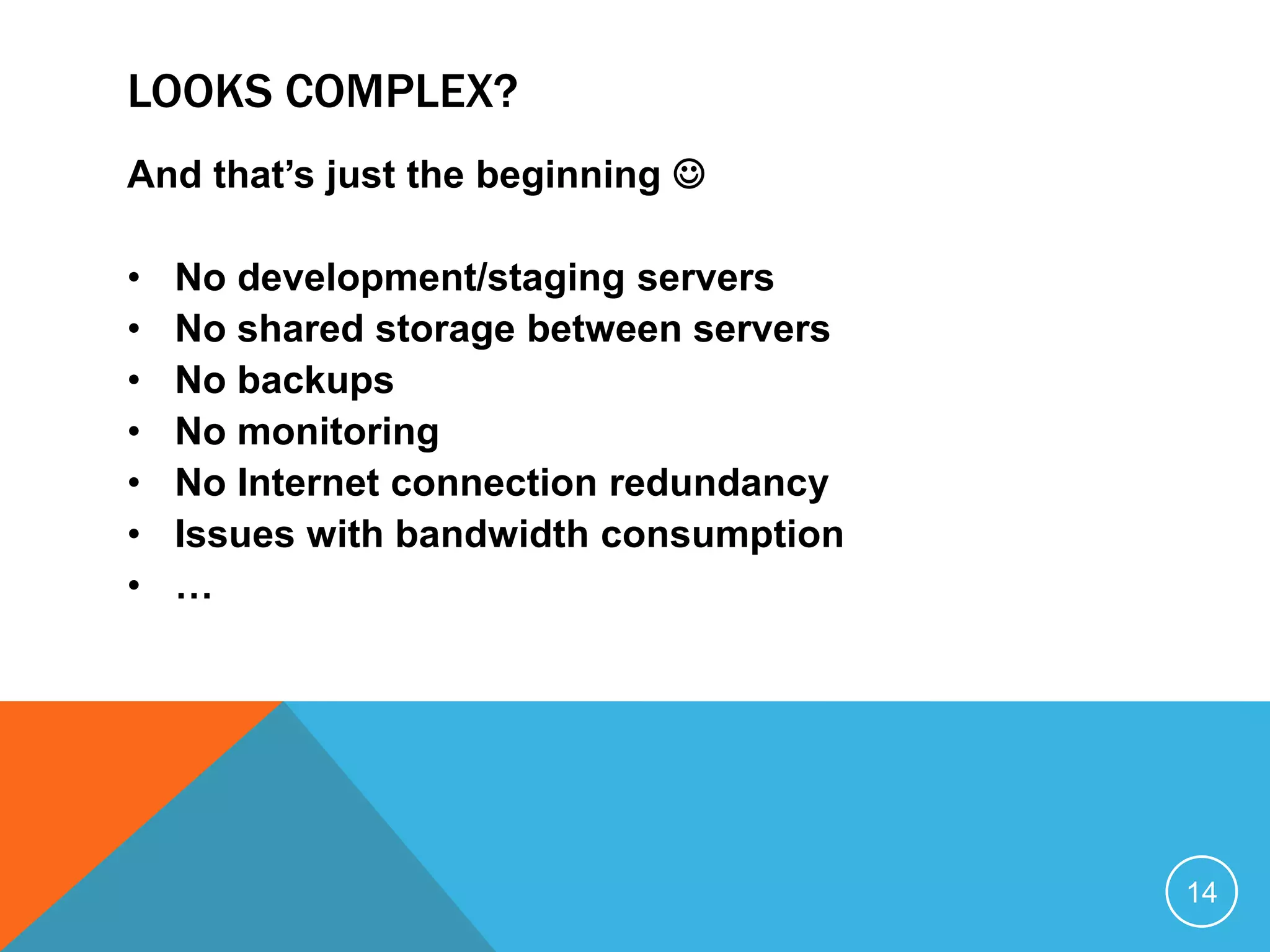

14. LOOKS COMPLEX?
And that’s just the beginning 
• No development/staging servers
• No shared storage between servers
• No backups
• No monitoring
• No Internet connection redundancy
• Issues with bandwidth consumption
• …
14

15. 15

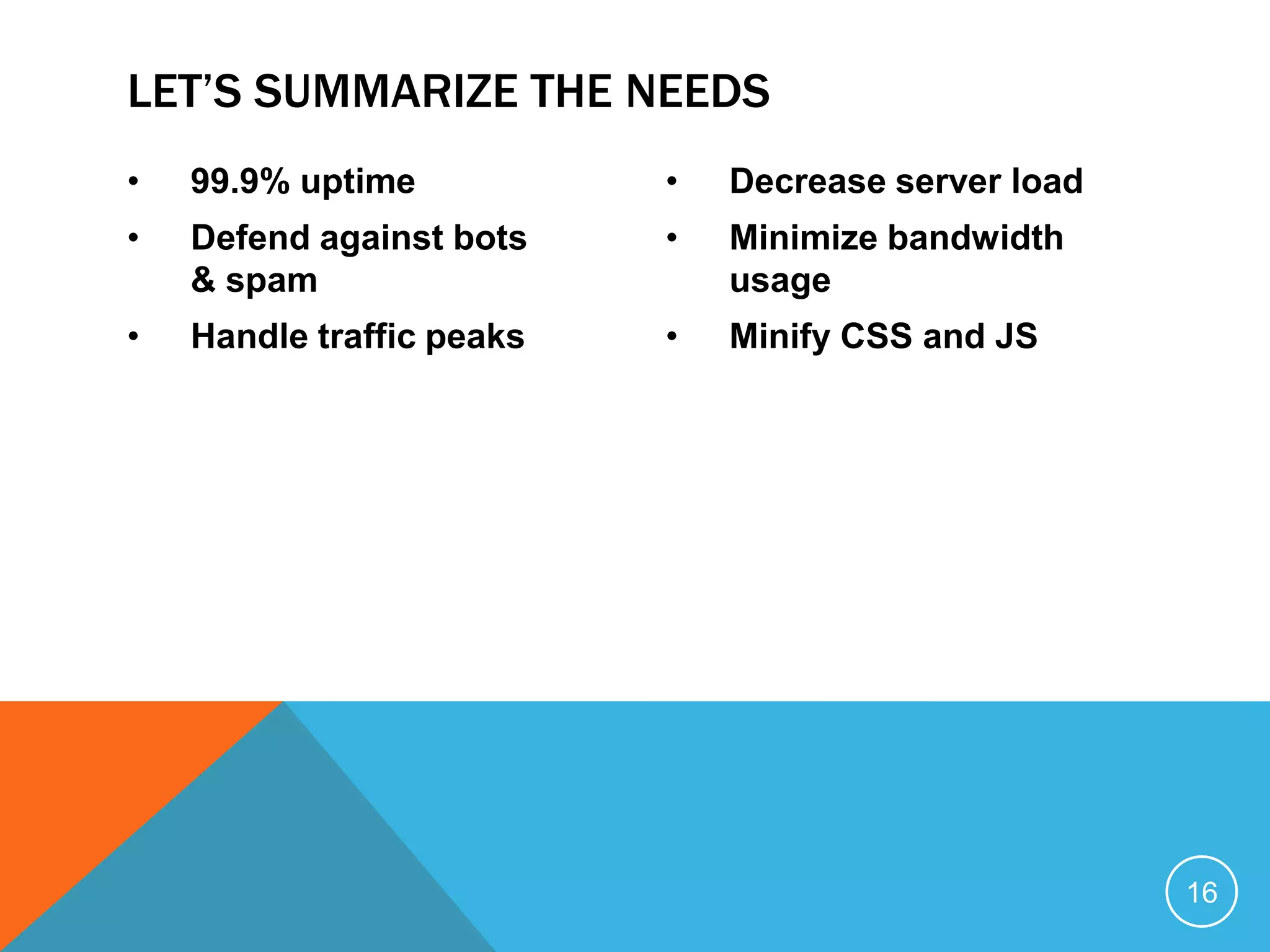

16. • 99.9% uptime
• Defend against bots
& spam
• Handle traffic peaks
• Decrease server load
• Minimize bandwidth
usage
• Minify CSS and JS
LET’S SUMMARIZE THE NEEDS
16

17. 17

18. 18

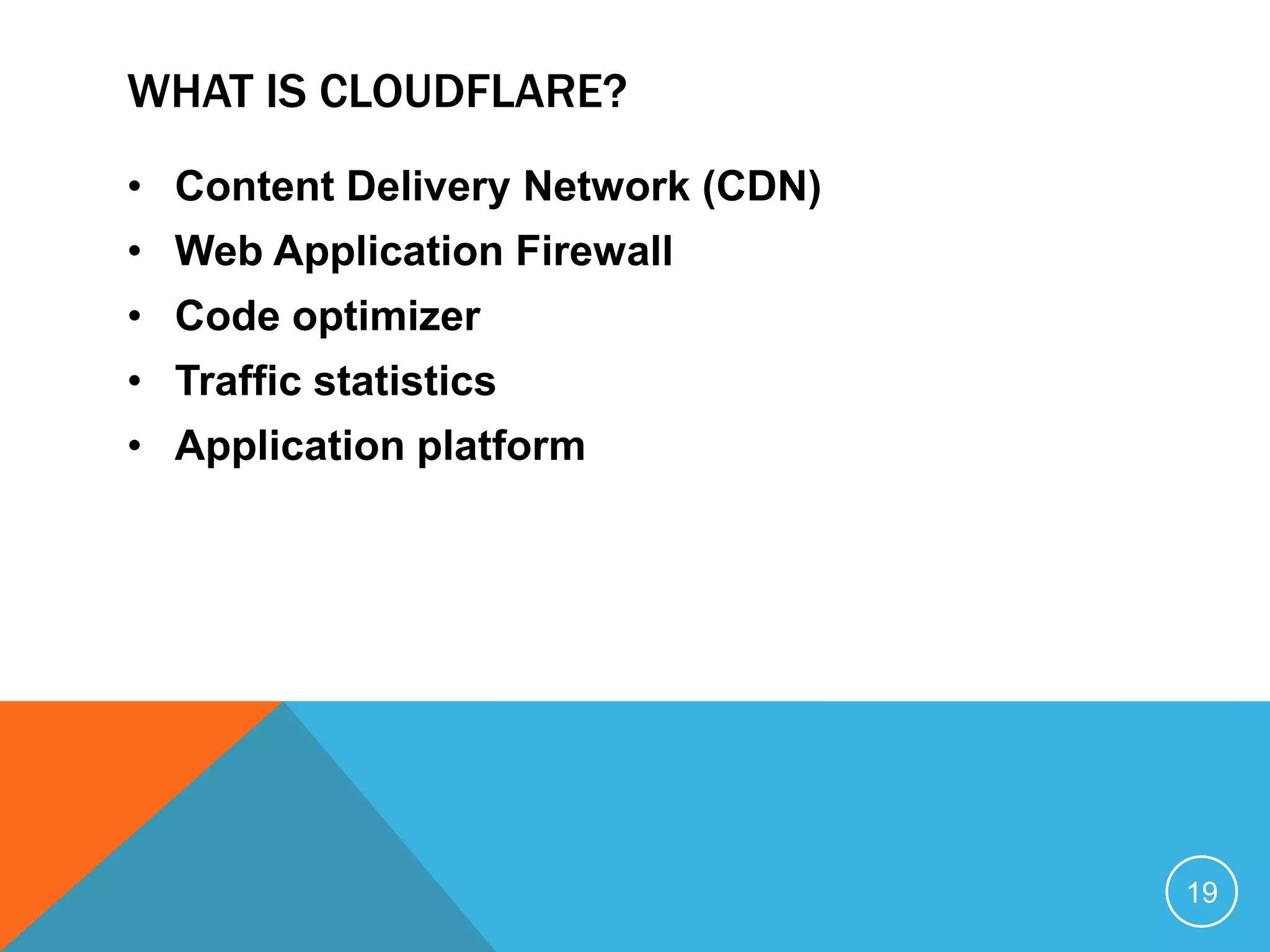

19. WHAT IS CLOUDFLARE?
• Content Delivery Network (CDN)
• Web Application Firewall
• Code optimizer
• Traffic statistics
• Application platform
19

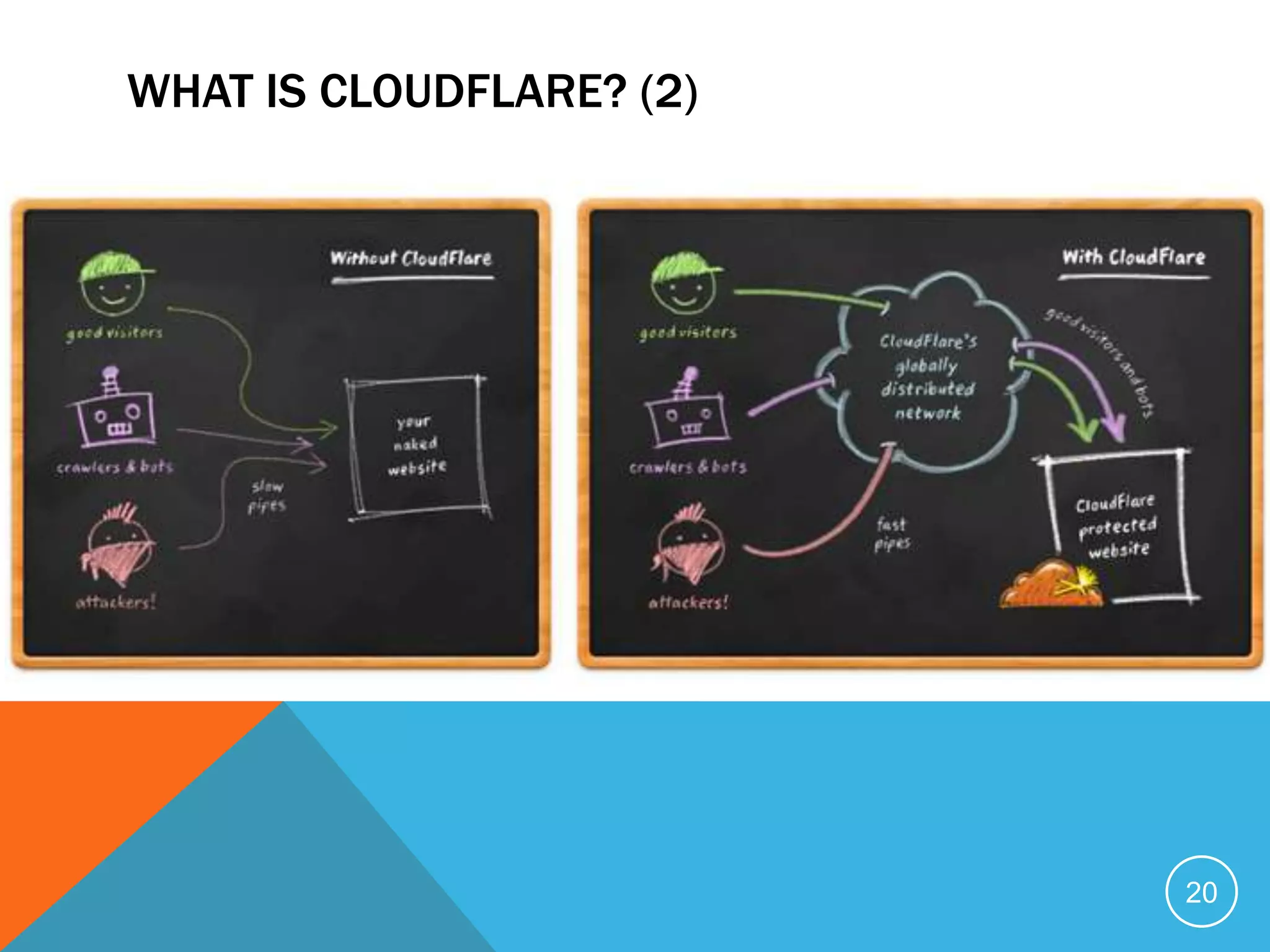

20. WHAT IS CLOUDFLARE? (2)
20

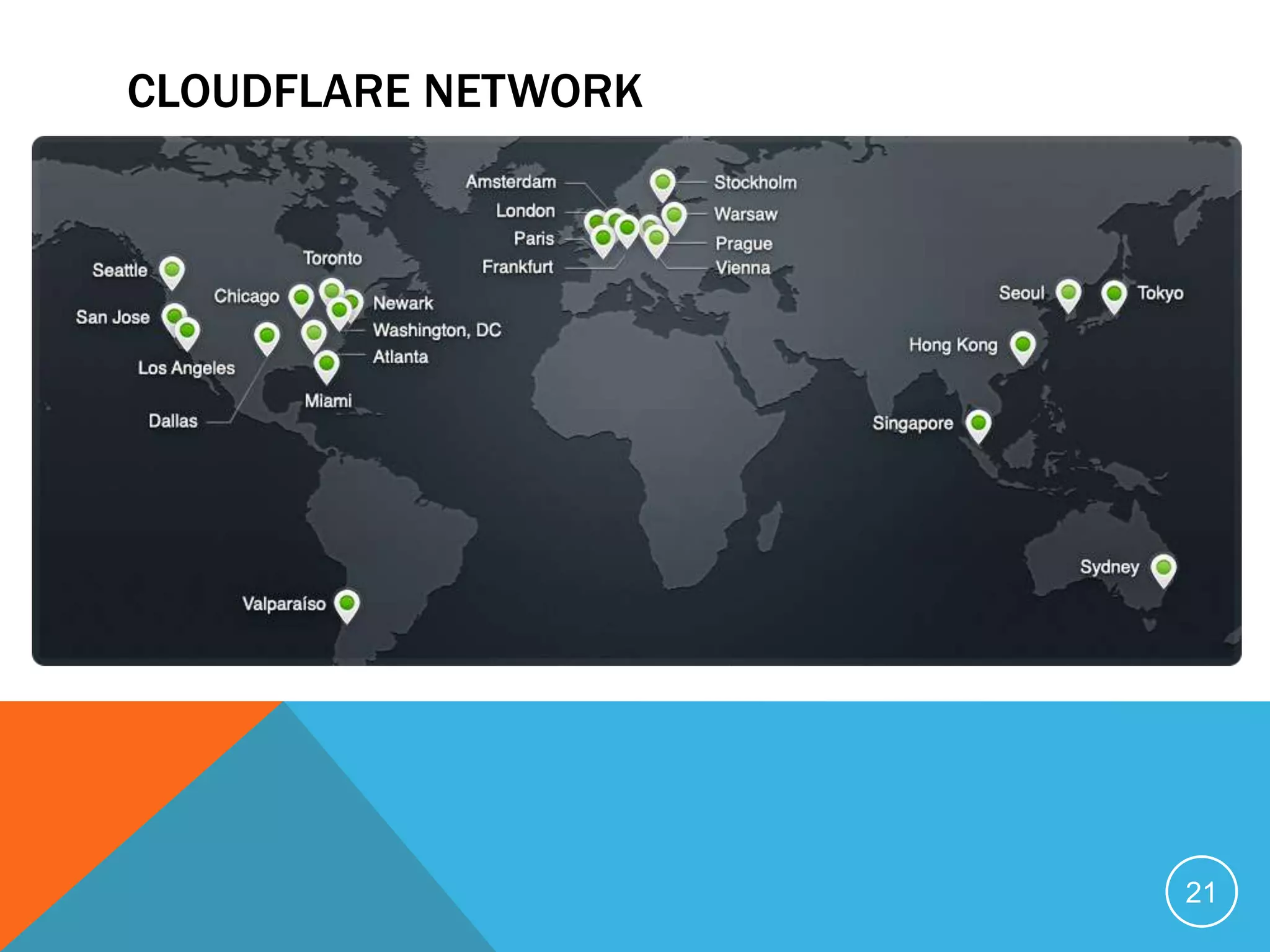

21. CLOUDFLARE NETWORK
21

22. 22

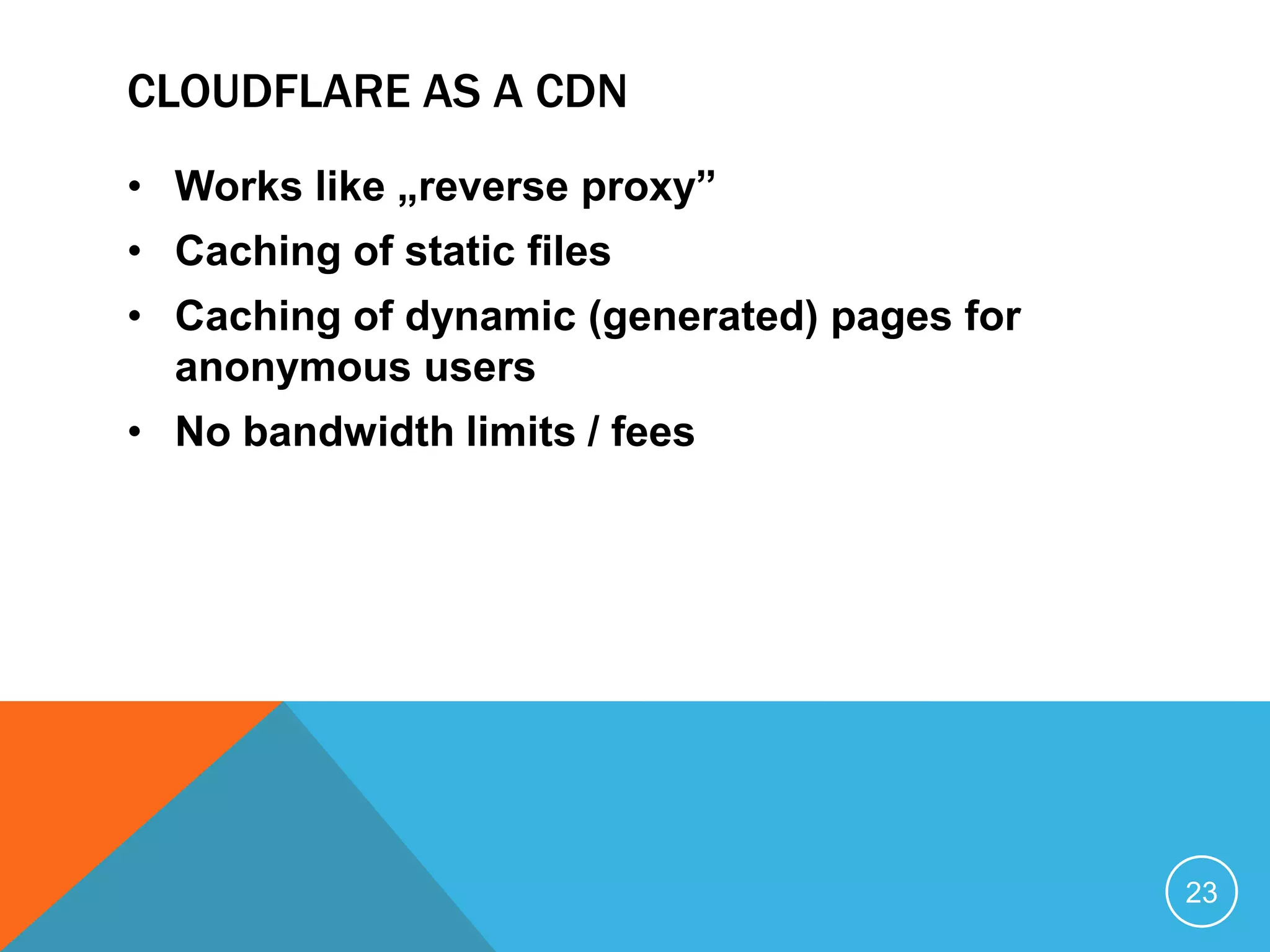

23. CLOUDFLARE AS A CDN
• Works like „reverse proxy”
• Caching of static files
• Caching of dynamic (generated) pages for
anonymous users
• No bandwidth limits / fees
23

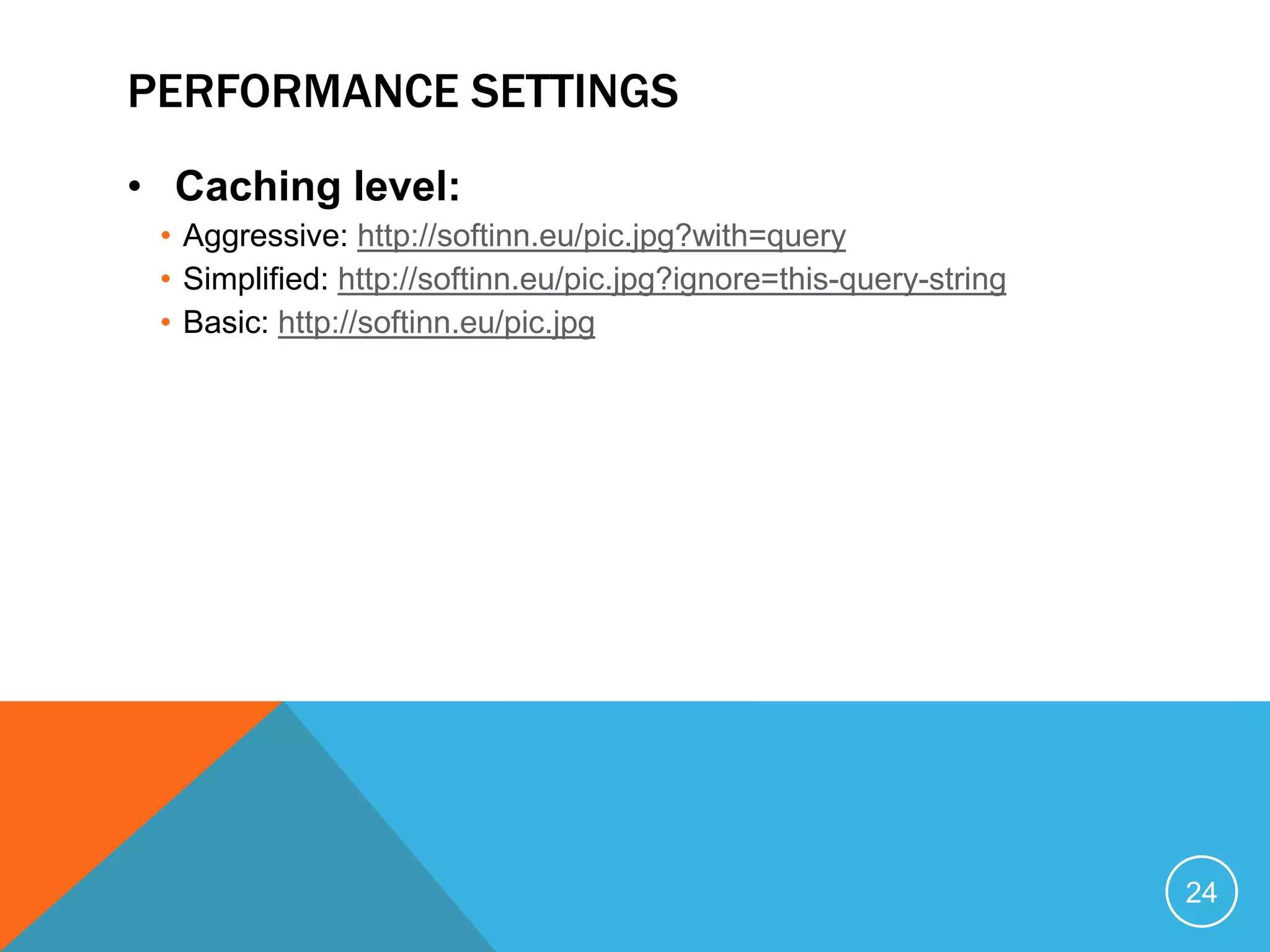

24. PERFORMANCE SETTINGS
• Caching level:
• Aggressive: http://softinn.eu/pic.jpg?with=query
• Simplified: http://softinn.eu/pic.jpg?ignore=this-query-string
• Basic: http://softinn.eu/pic.jpg
24

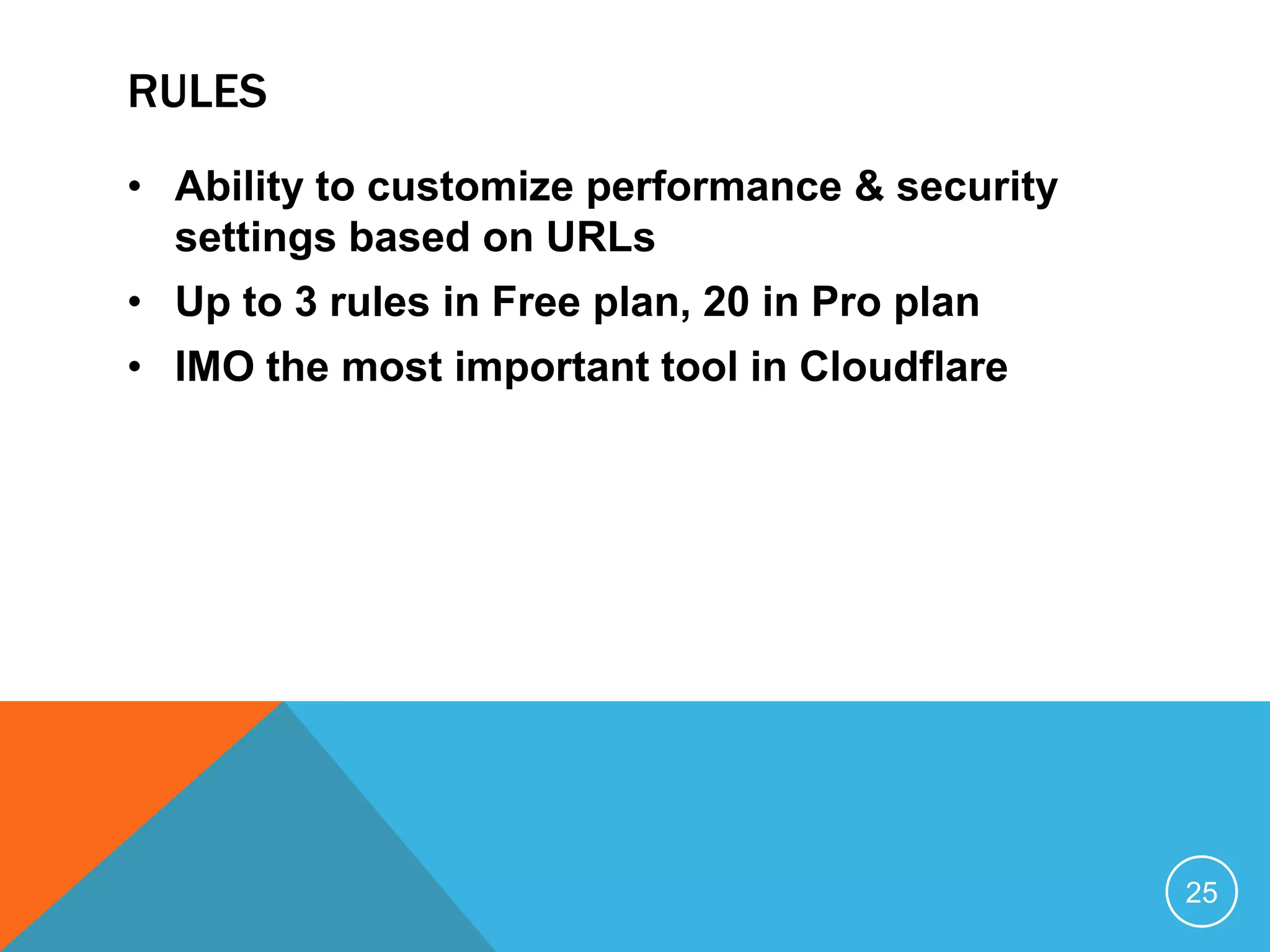

25. RULES
• Ability to customize performance & security
settings based on URLs
• Up to 3 rules in Free plan, 20 in Pro plan
• IMO the most important tool in Cloudflare
25

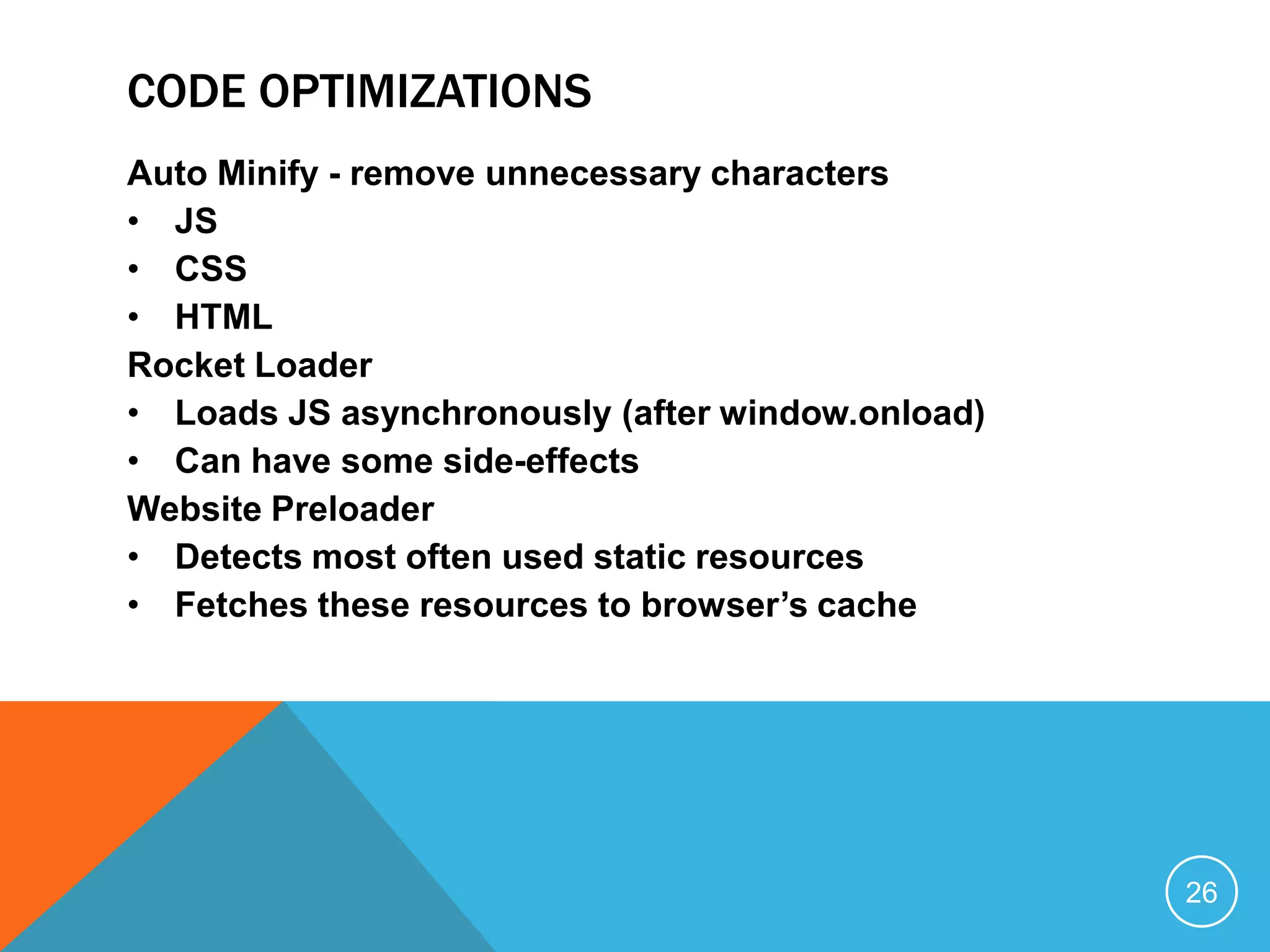

26. CODE OPTIMIZATIONS
Auto Minify - remove unnecessary characters
• JS
• CSS
• HTML
Rocket Loader
• Loads JS asynchronously (after window.onload)
• Can have some side-effects
Website Preloader
• Detects most often used static resources
• Fetches these resources to browser’s cache
26

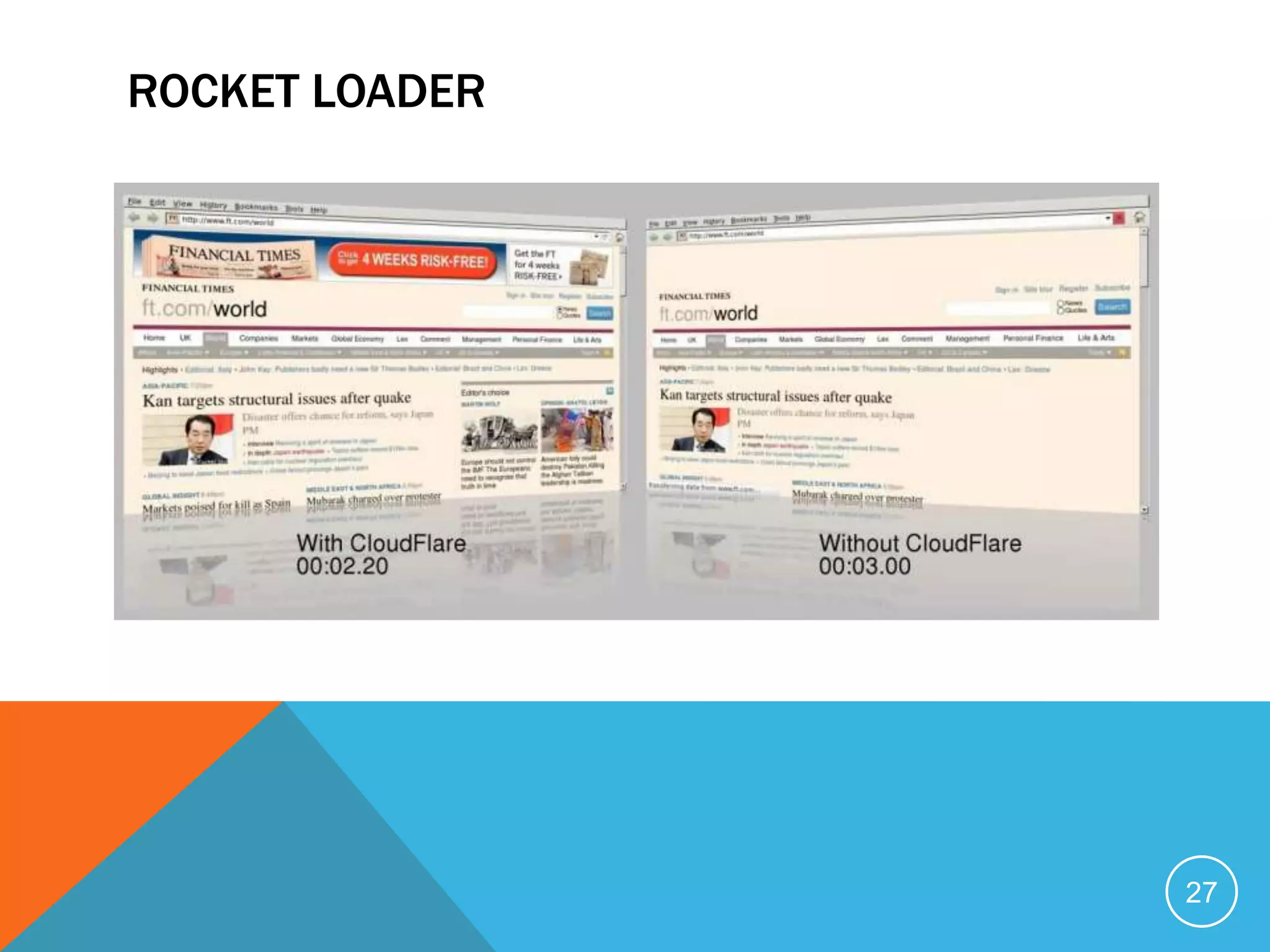

27. ROCKET LOADER
27

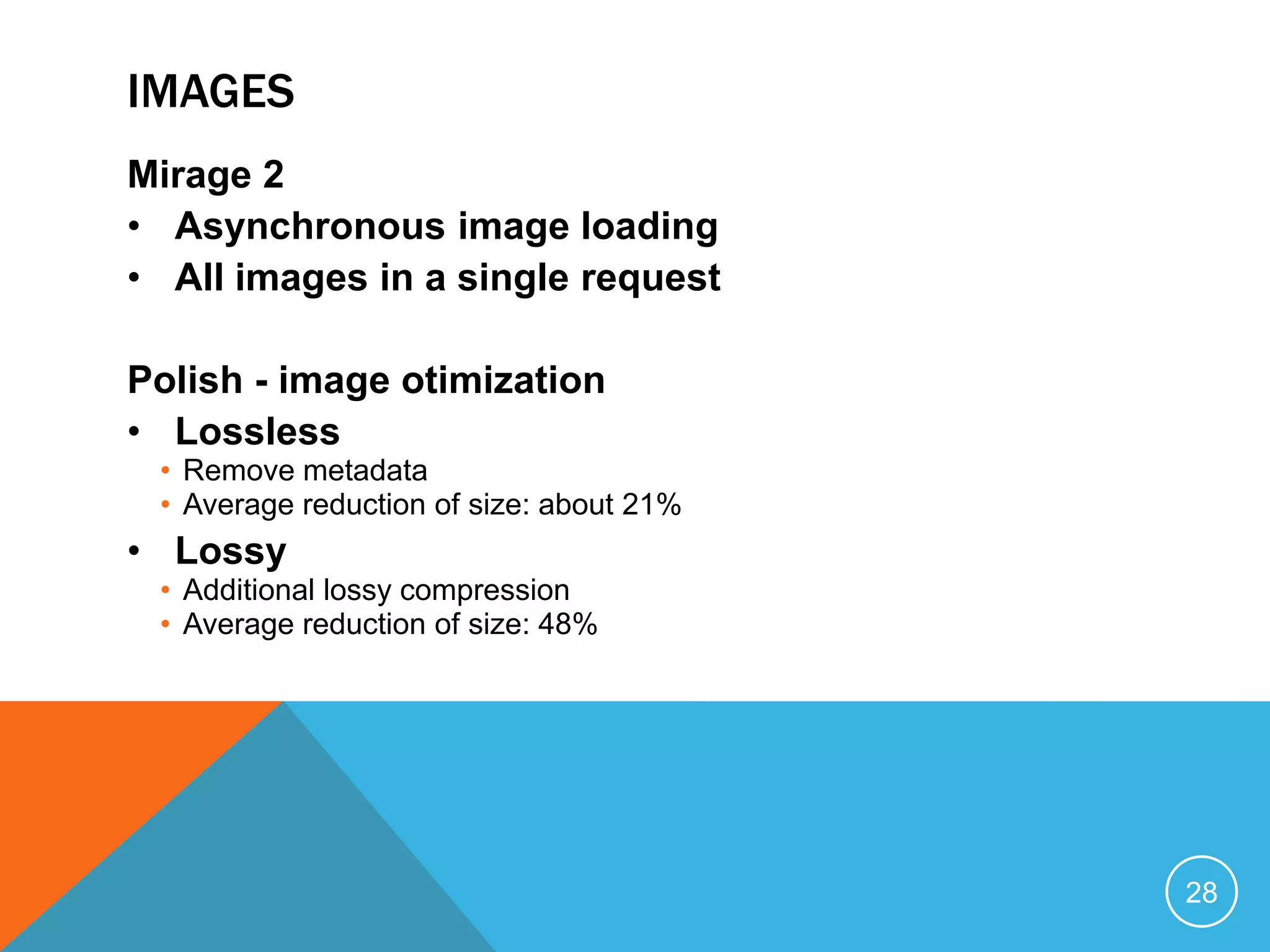

28. IMAGES
Mirage 2
• Asynchronous image loading
• All images in a single request
Polish - image otimization
• Lossless
• Remove metadata
• Average reduction of size: about 21%
• Lossy
• Additional lossy compression
• Average reduction of size: 48%
28

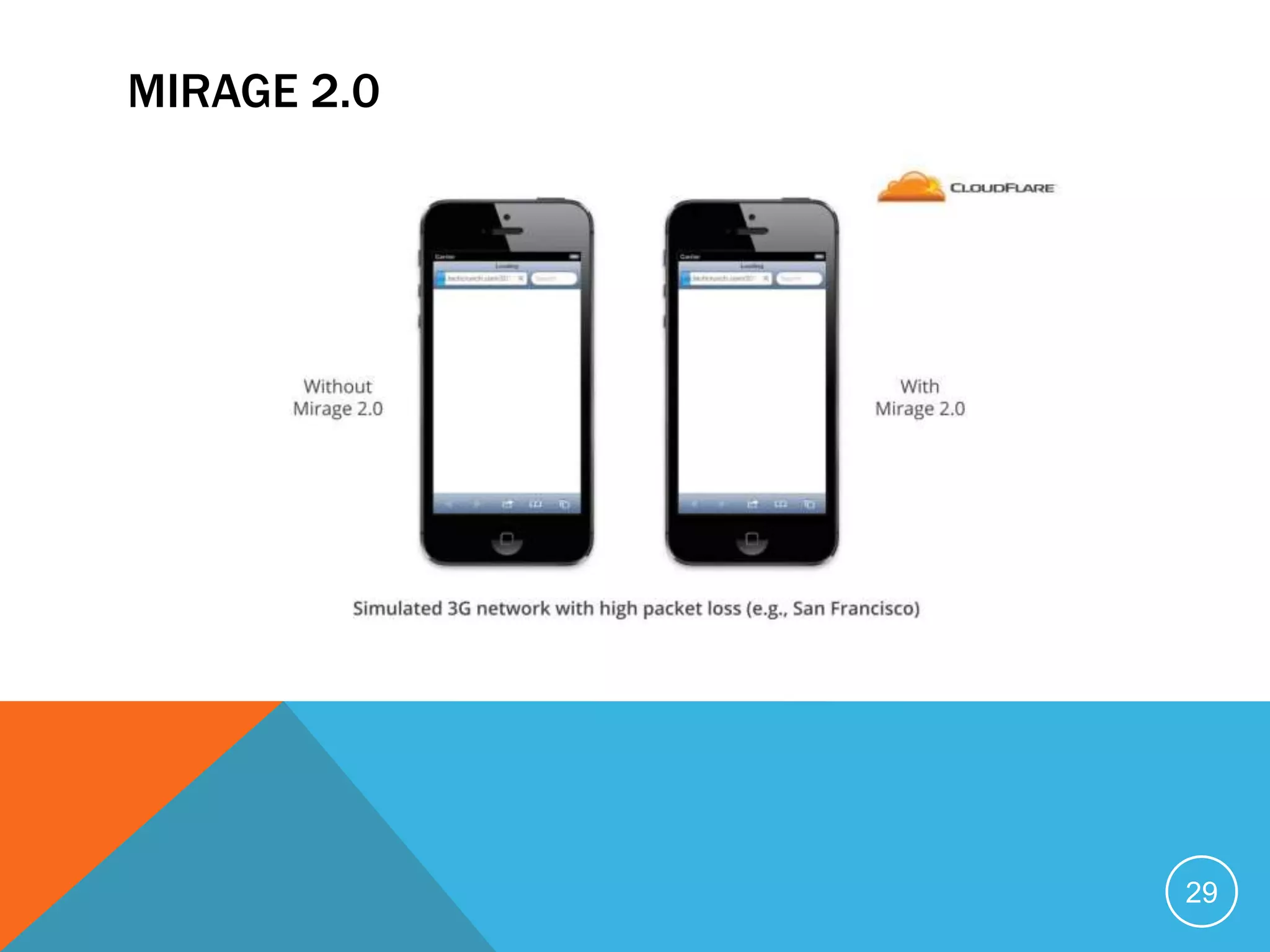

29. MIRAGE 2.0
29

30. 30

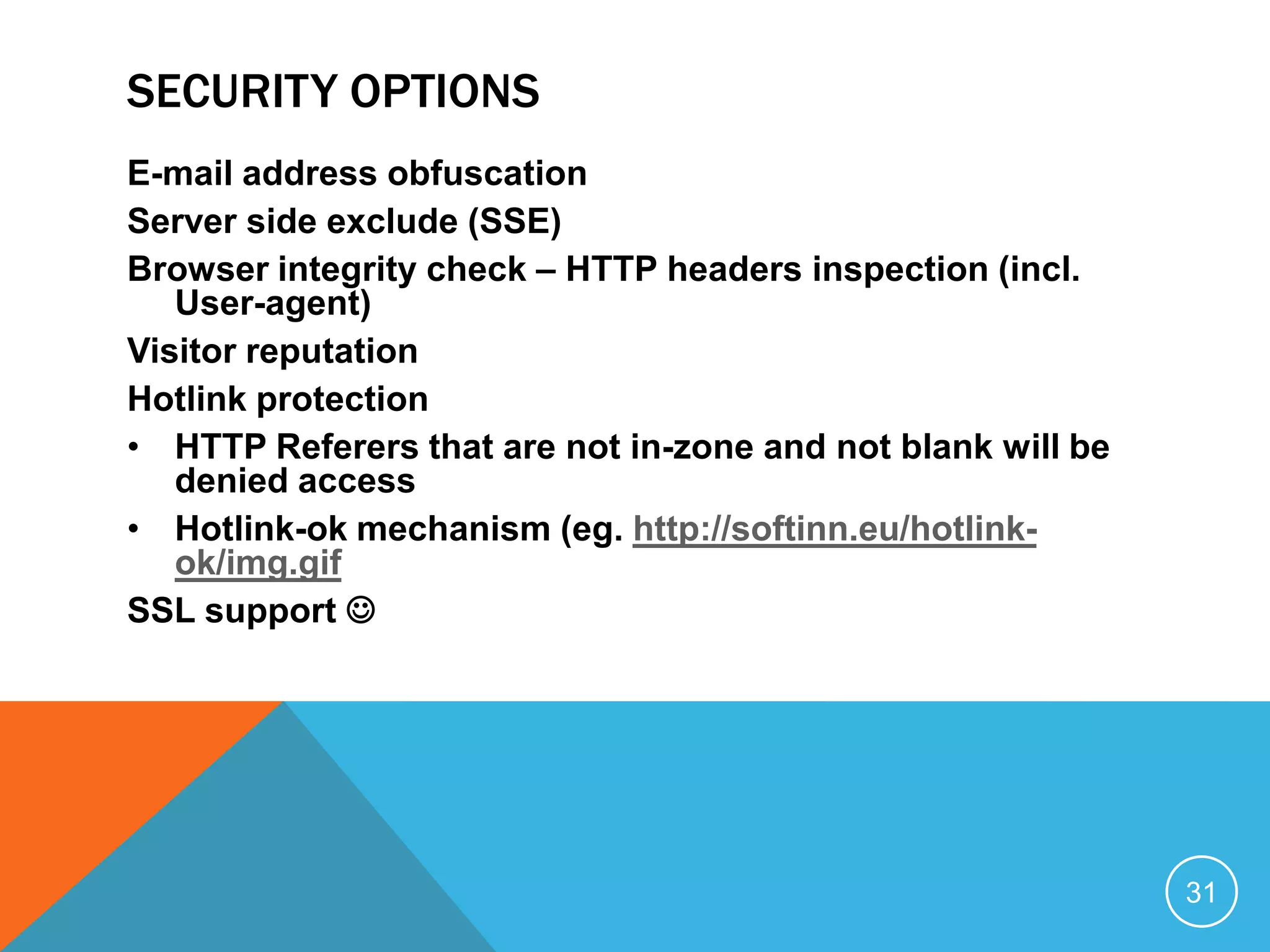

31. SECURITY OPTIONS
E-mail address obfuscation
Server side exclude (SSE)
Browser integrity check – HTTP headers inspection (incl.
User-agent)
Visitor reputation
Hotlink protection
• HTTP Referers that are not in-zone and not blank will be
denied access
• Hotlink-ok mechanism (eg. http://softinn.eu/hotlink-
ok/img.gif
SSL support 
31

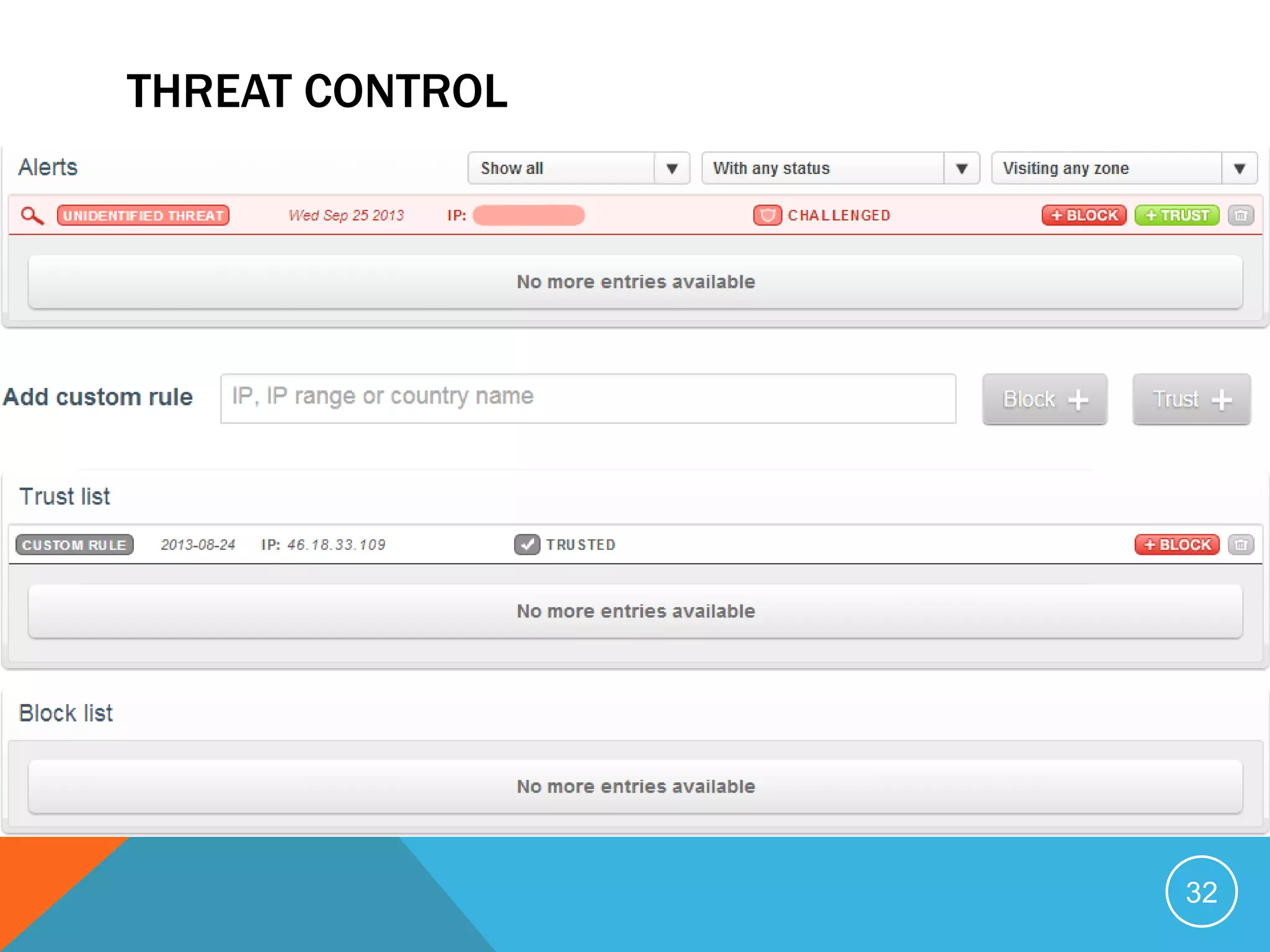

32. THREAT CONTROL
32

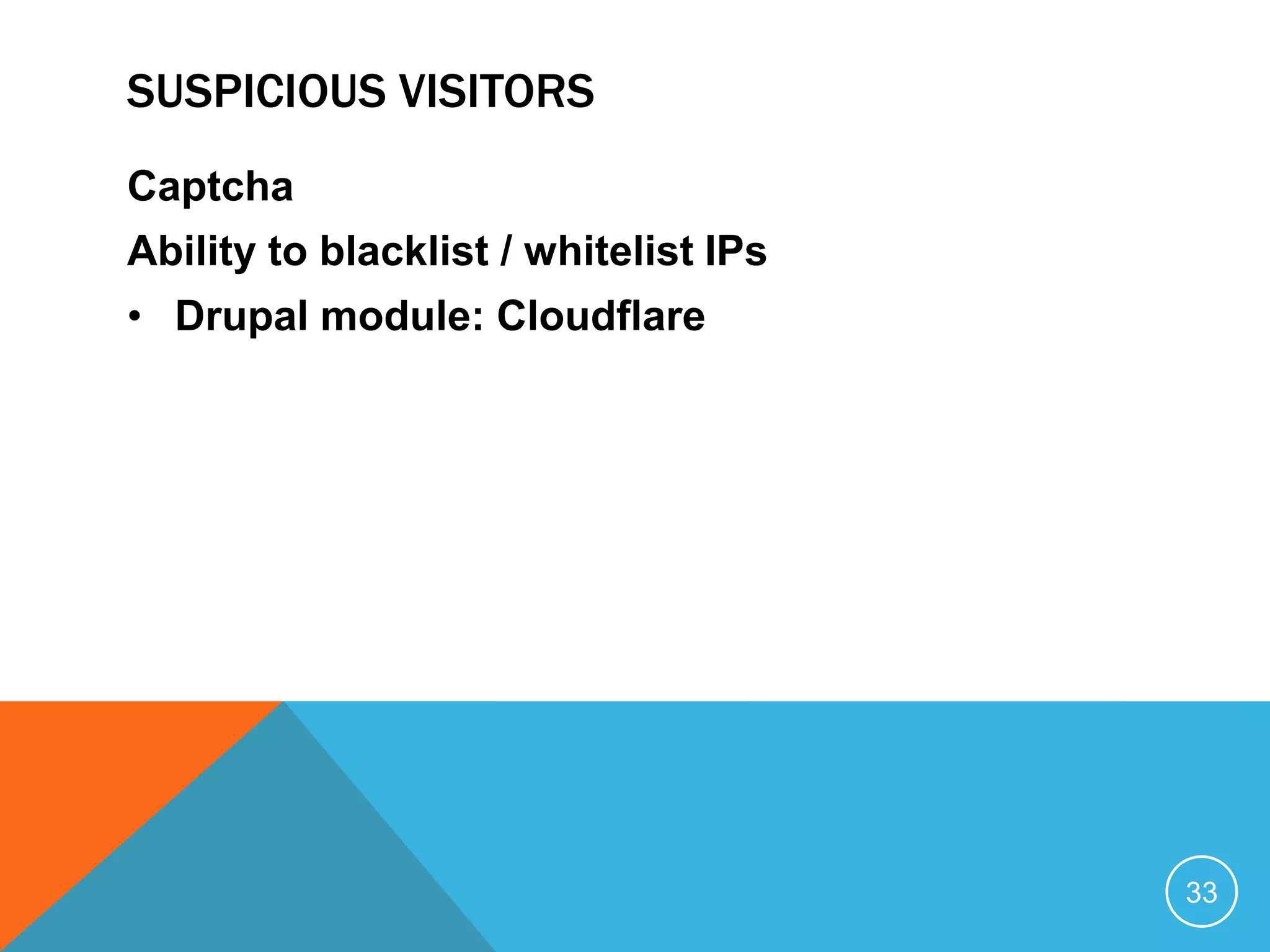

33. SUSPICIOUS VISITORS
Captcha
Ability to blacklist / whitelist IPs
• Drupal module: Cloudflare
33

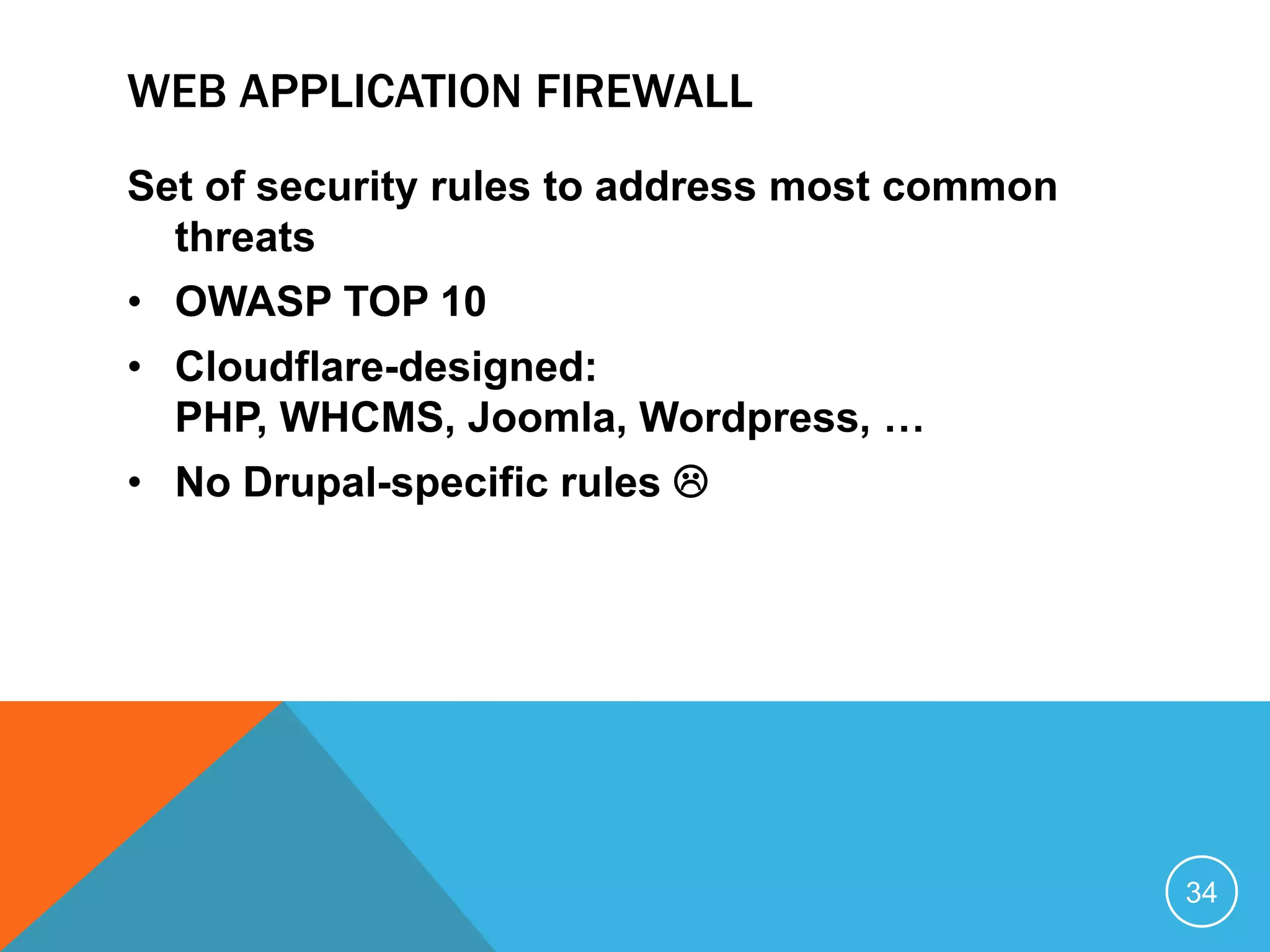

34. WEB APPLICATION FIREWALL
Set of security rules to address most common
threats
• OWASP TOP 10
• Cloudflare-designed:
PHP, WHCMS, Joomla, Wordpress, …
• No Drupal-specific rules 
34

35. ALWAYS ONLINE
• Limited version of your site is always online
• Only the most popular pages
• No POST and SSL support
• Crawler-based - crawling every 7, 3 or 1 day
• Triggers:
• HTTP status 502 or 504
• Connection timeout, SSL errors etc.
35

36. 36

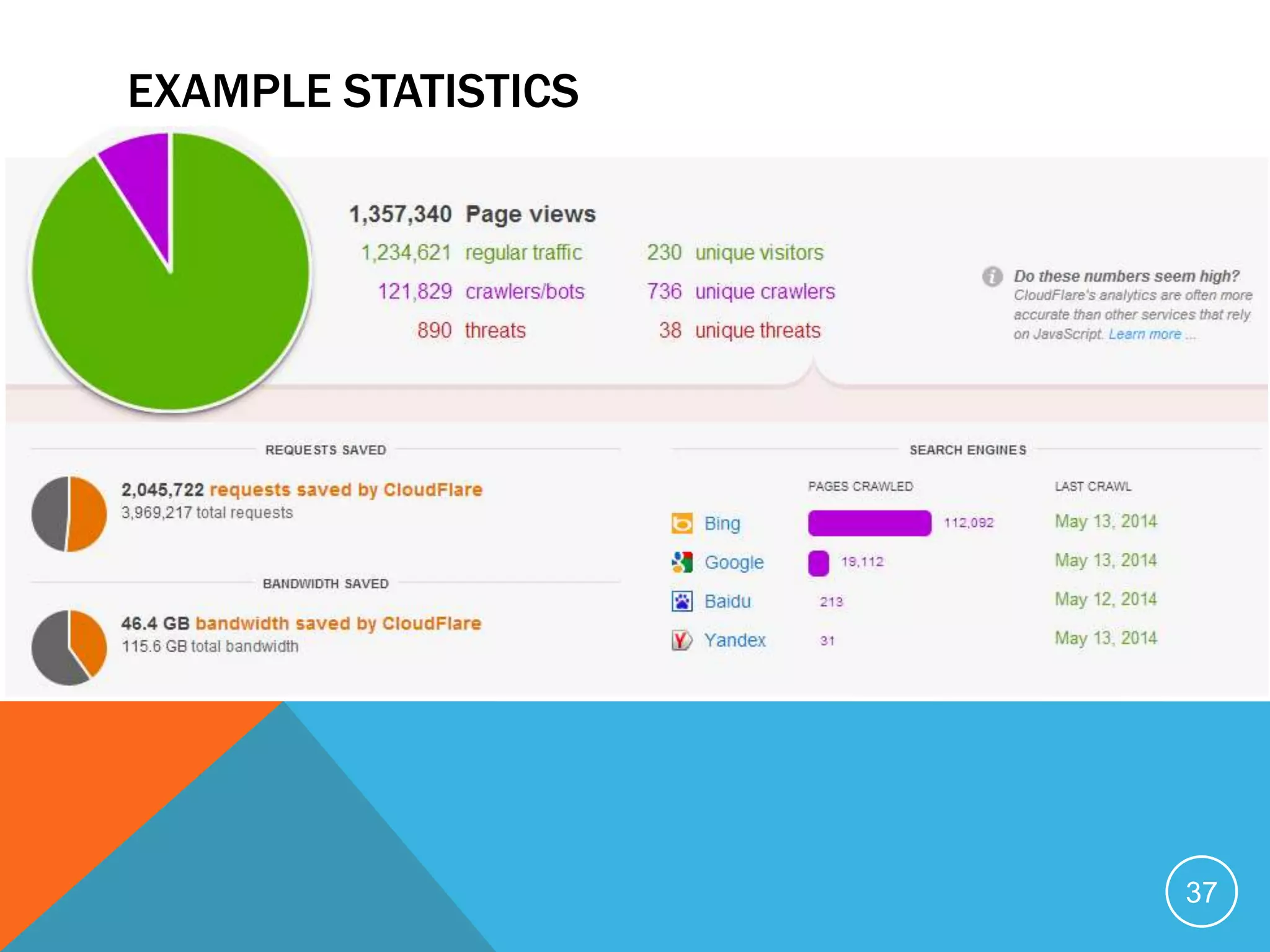

37. EXAMPLE STATISTICS
37

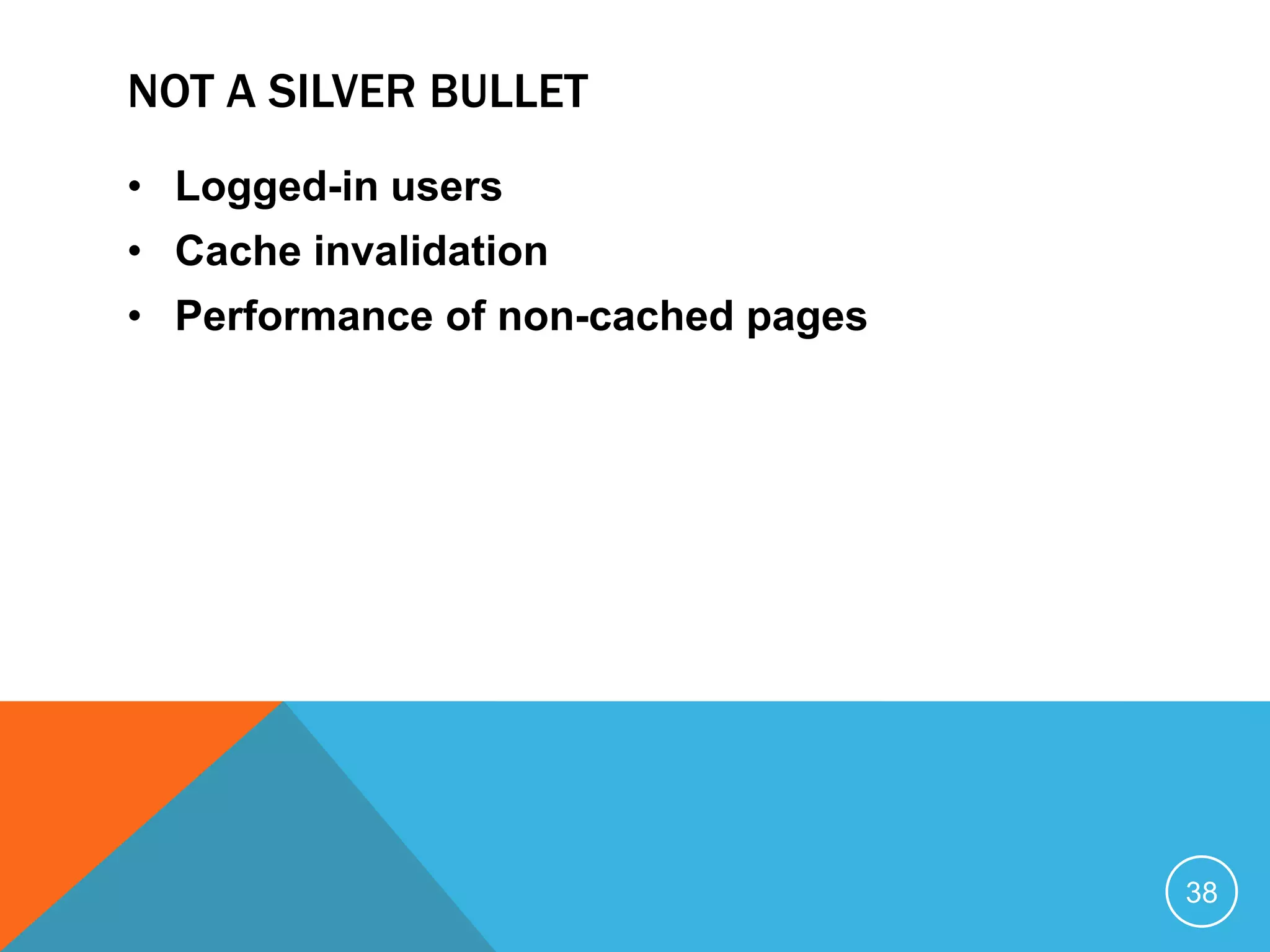

38. NOT A SILVER BULLET
• Logged-in users
• Cache invalidation
• Performance of non-cached pages
38

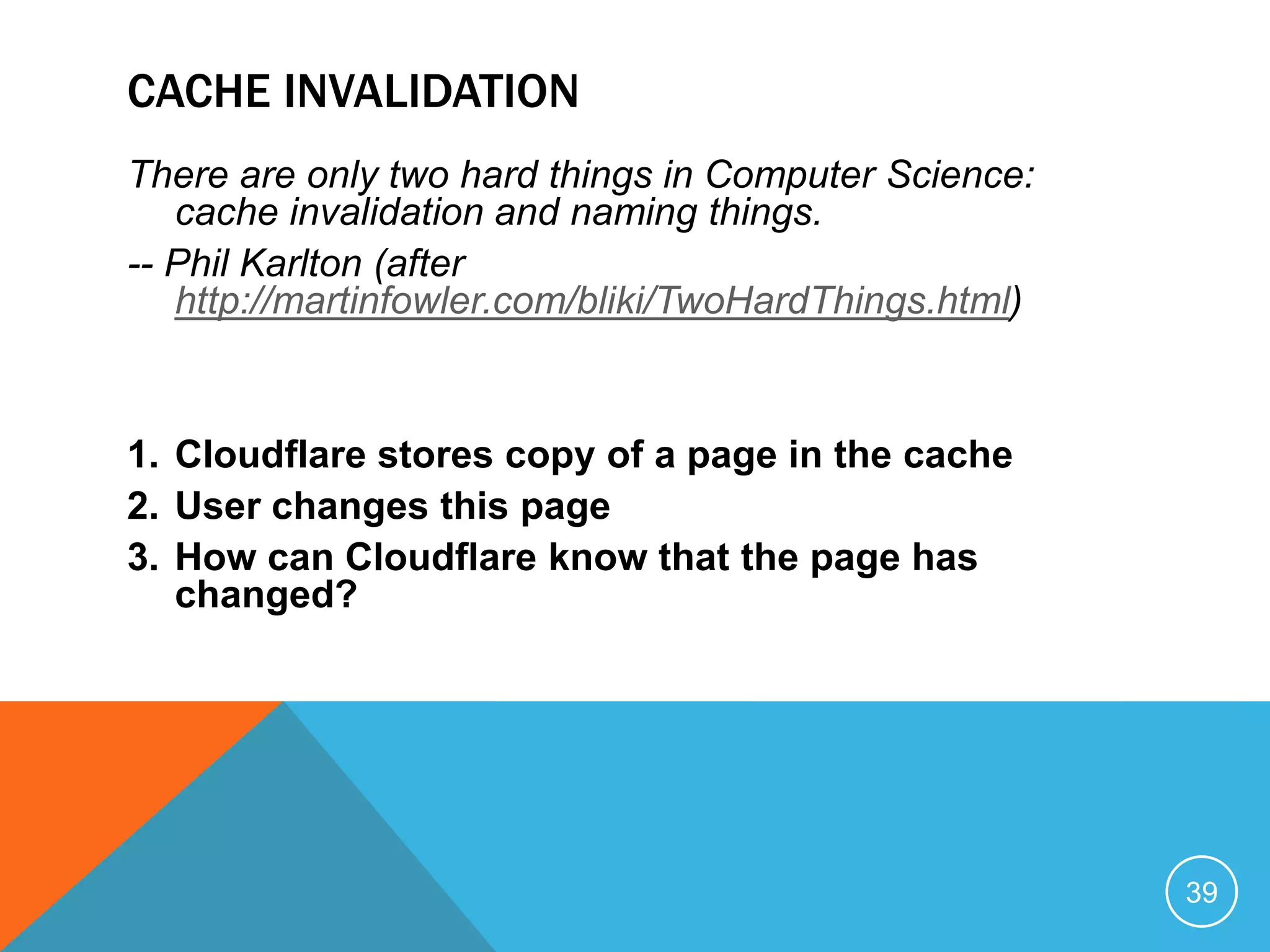

39. CACHE INVALIDATION
There are only two hard things in Computer Science:
cache invalidation and naming things.
-- Phil Karlton (after
http://martinfowler.com/bliki/TwoHardThings.html)
1. Cloudflare stores copy of a page in the cache
2. User changes this page
3. How can Cloudflare know that the page has
changed?
39

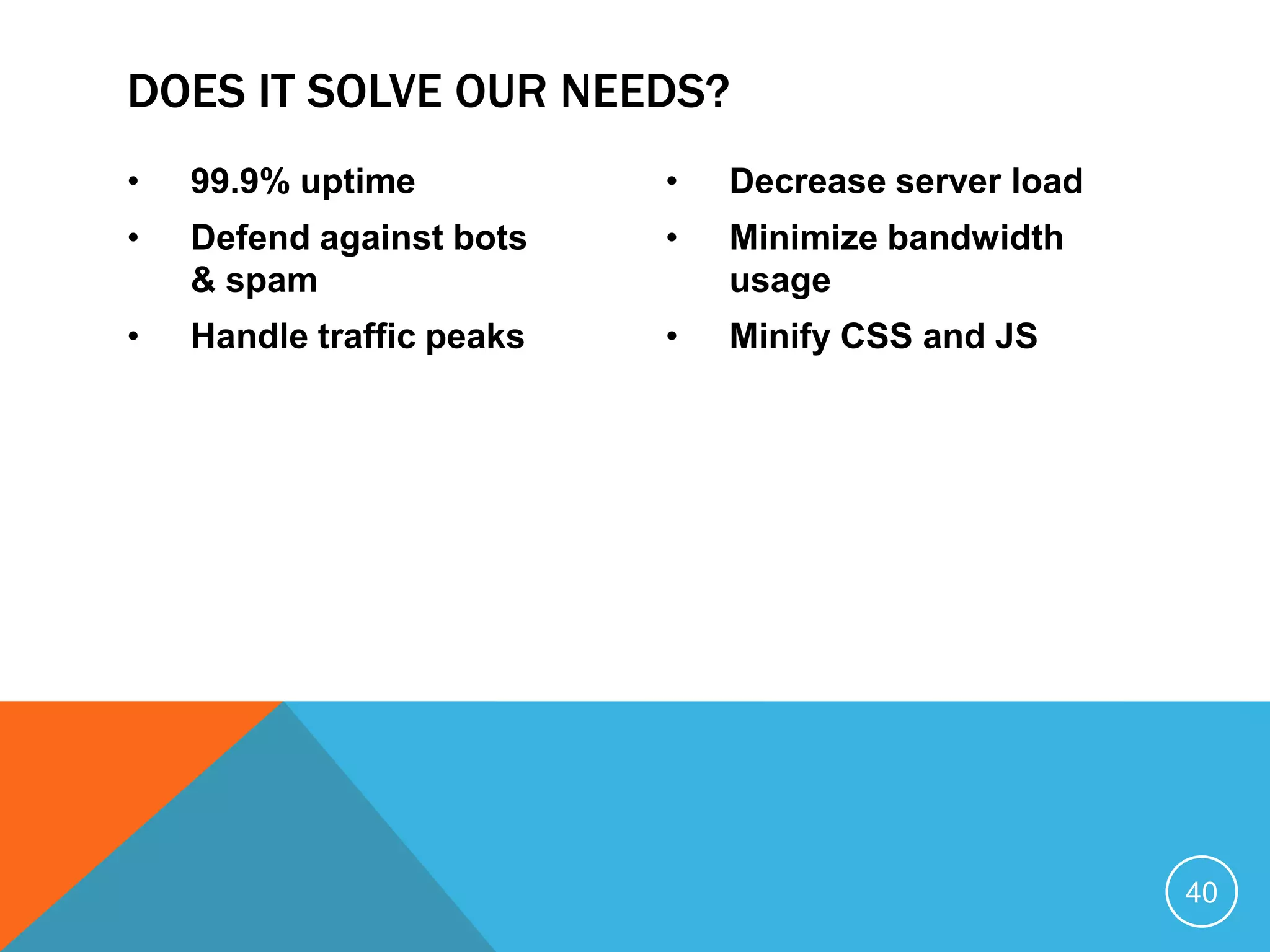

40. • 99.9% uptime
• Defend against bots
& spam
• Handle traffic peaks
• Decrease server load
• Minimize bandwidth
usage
• Minify CSS and JS
DOES IT SOLVE OUR NEEDS?
40

41. 41

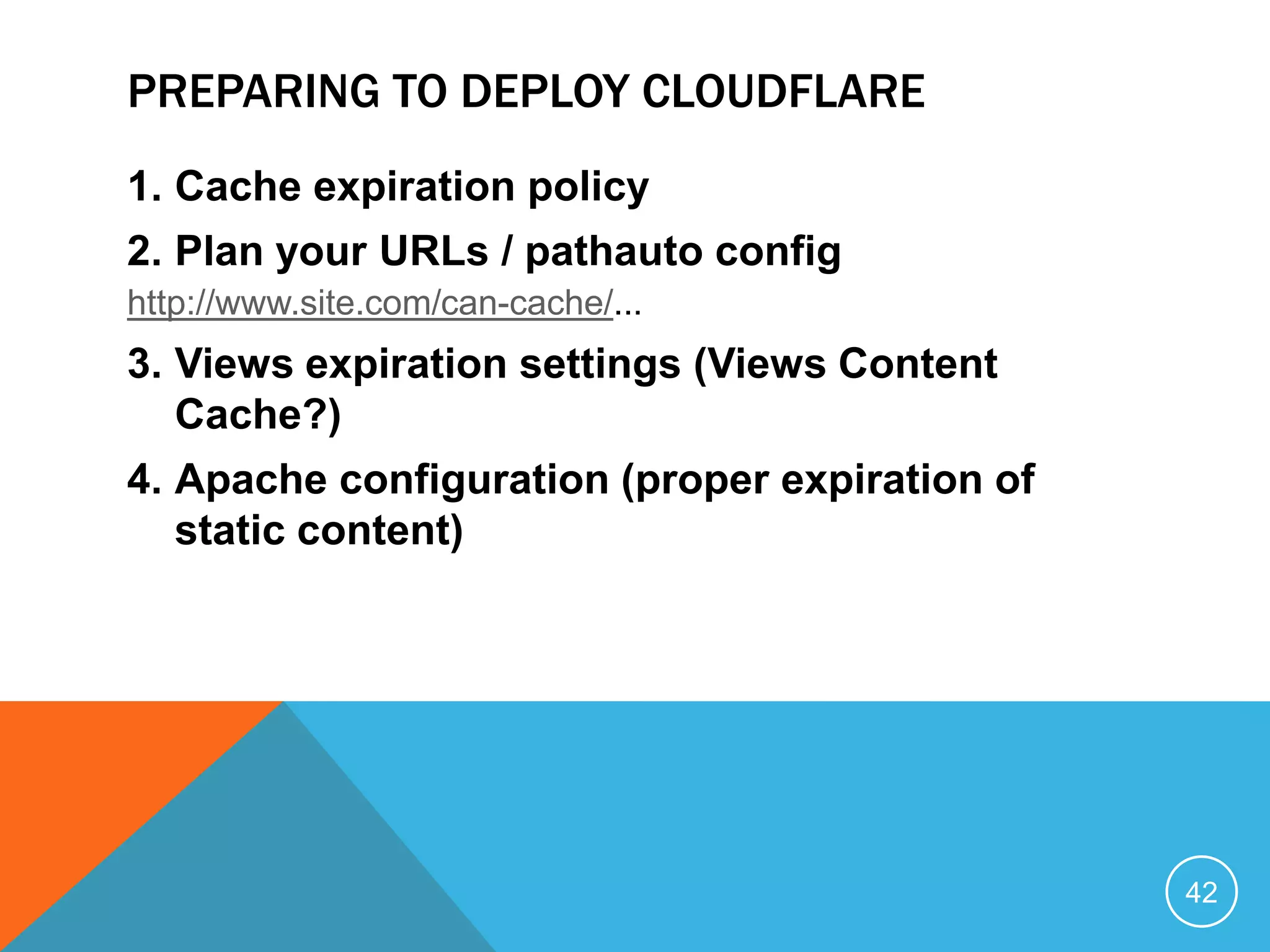

42. PREPARING TO DEPLOY CLOUDFLARE
1. Cache expiration policy
2. Plan your URLs / pathauto config
http://www.site.com/can-cache/...
3. Views expiration settings (Views Content
Cache?)
4. Apache configuration (proper expiration of
static content)
42

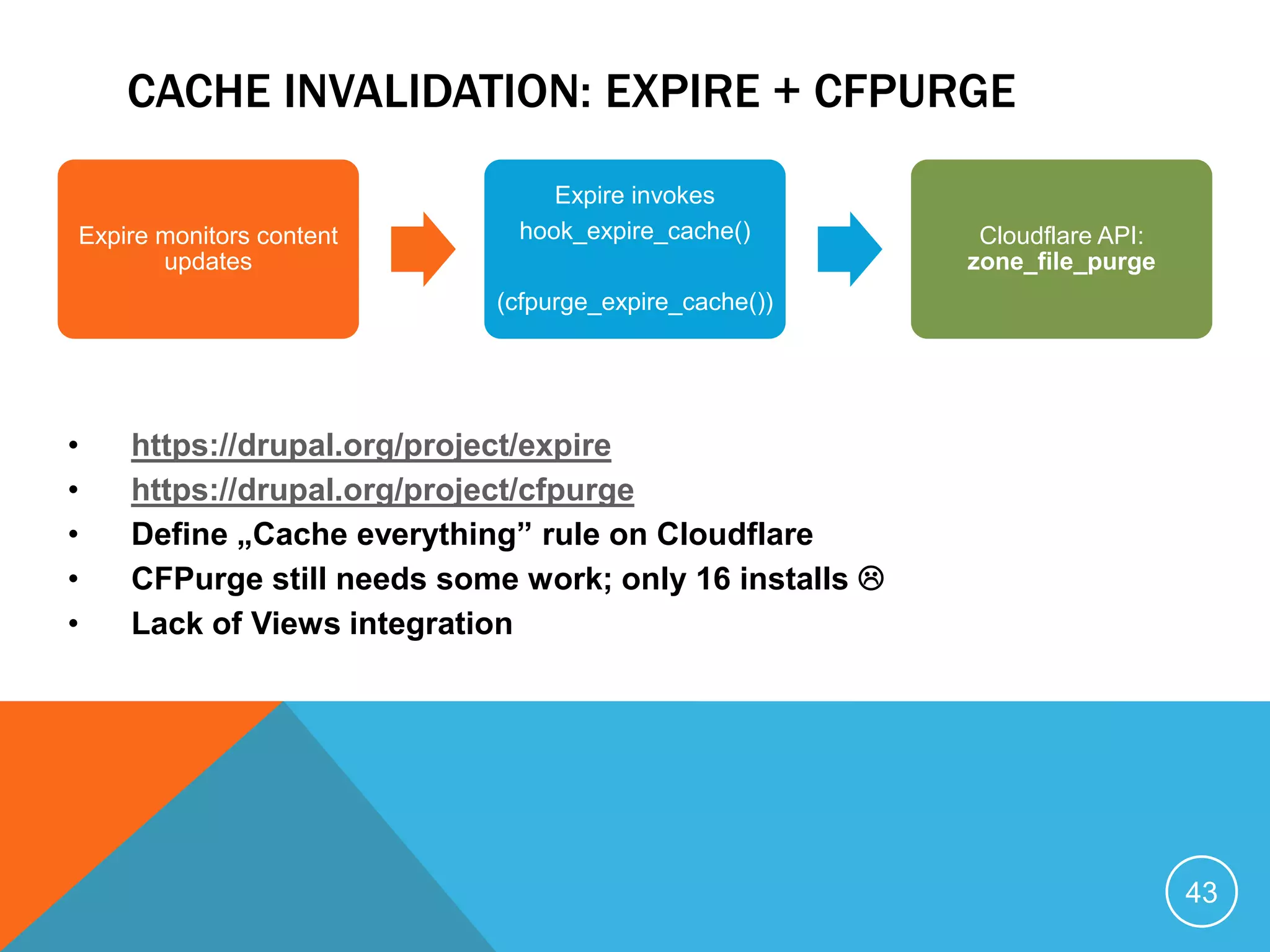

43. Expire monitors content
updates
Expire invokes
hook_expire_cache()
(cfpurge_expire_cache())
Cloudflare API:
zone_file_purge
• https://drupal.org/project/expire
• https://drupal.org/project/cfpurge
• Define „Cache everything” rule on Cloudflare
• CFPurge still needs some work; only 16 installs 
• Lack of Views integration
43
CACHE INVALIDATION: EXPIRE + CFPURGE

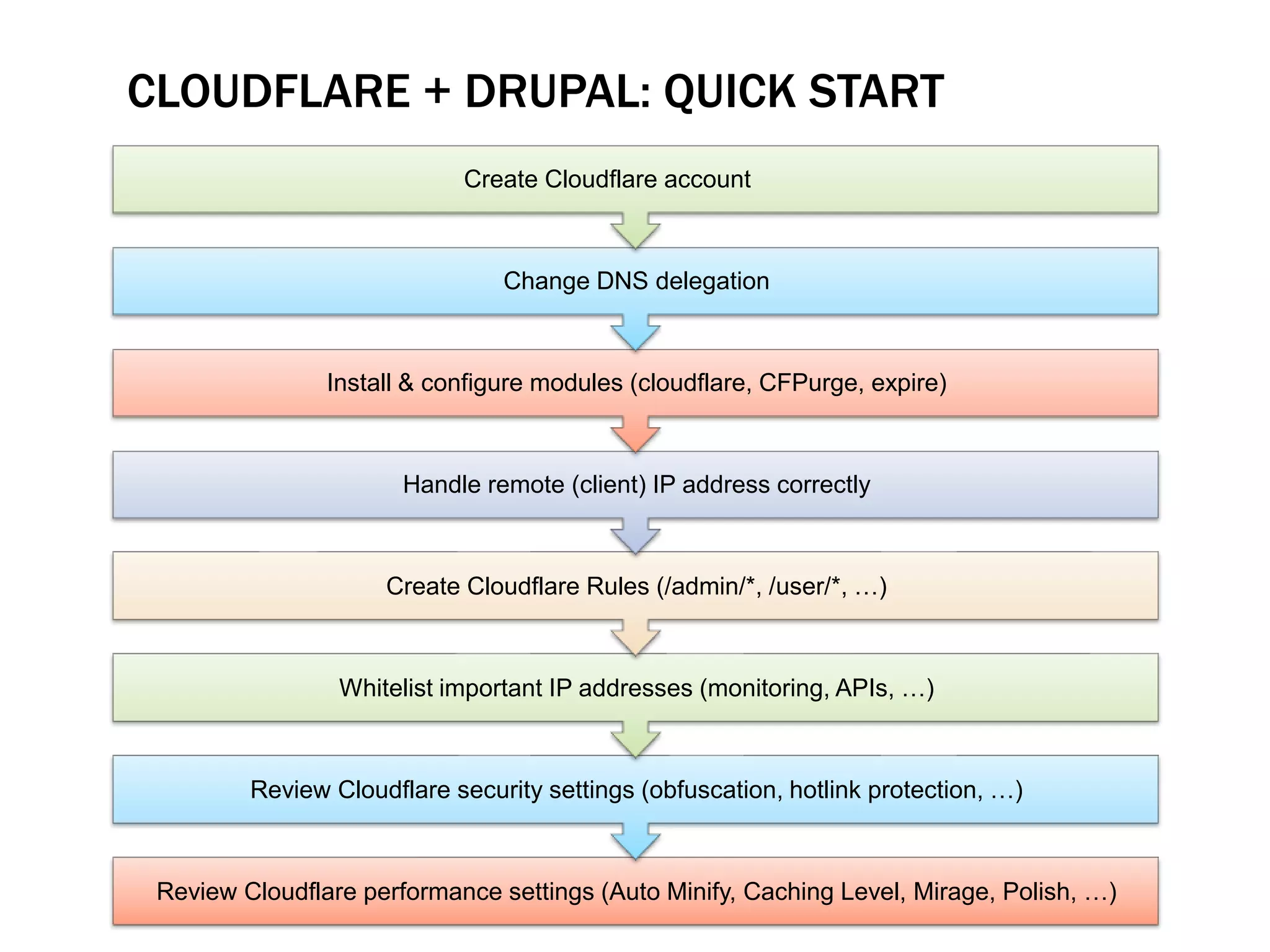

44. CLOUDFLARE + DRUPAL: QUICK START
Review Cloudflare performance settings (Auto Minify, Caching Level, Mirage, Polish, …)
Review Cloudflare security settings (obfuscation, hotlink protection, …)
Whitelist important IP addresses (monitoring, APIs, …)
Create Cloudflare Rules (/admin/*, /user/*, …)
Handle remote (client) IP address correctly
Install & configure modules (cloudflare, CFPurge, expire)
Change DNS delegation
Create Cloudflare account
44

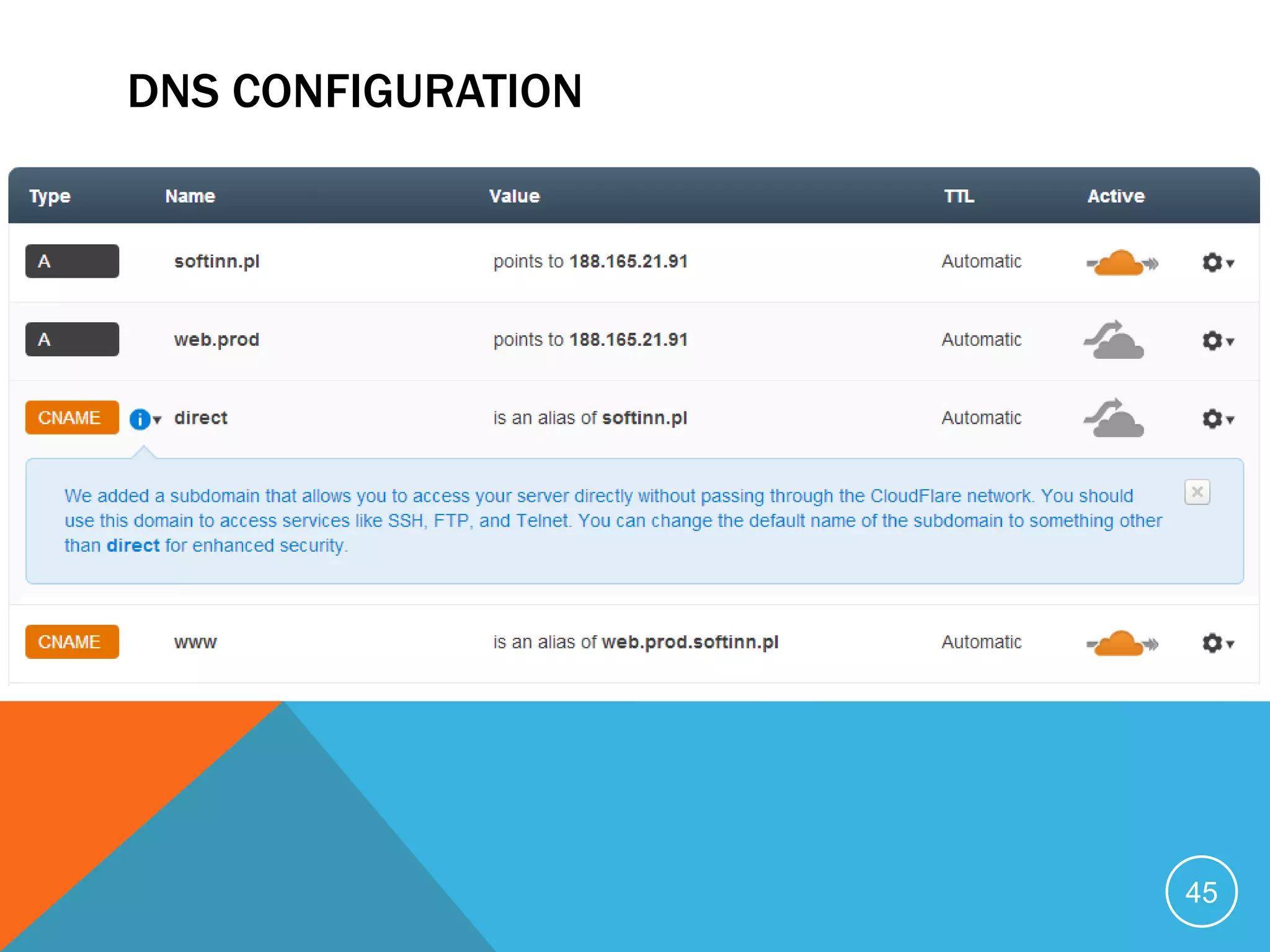

45. DNS CONFIGURATION
45

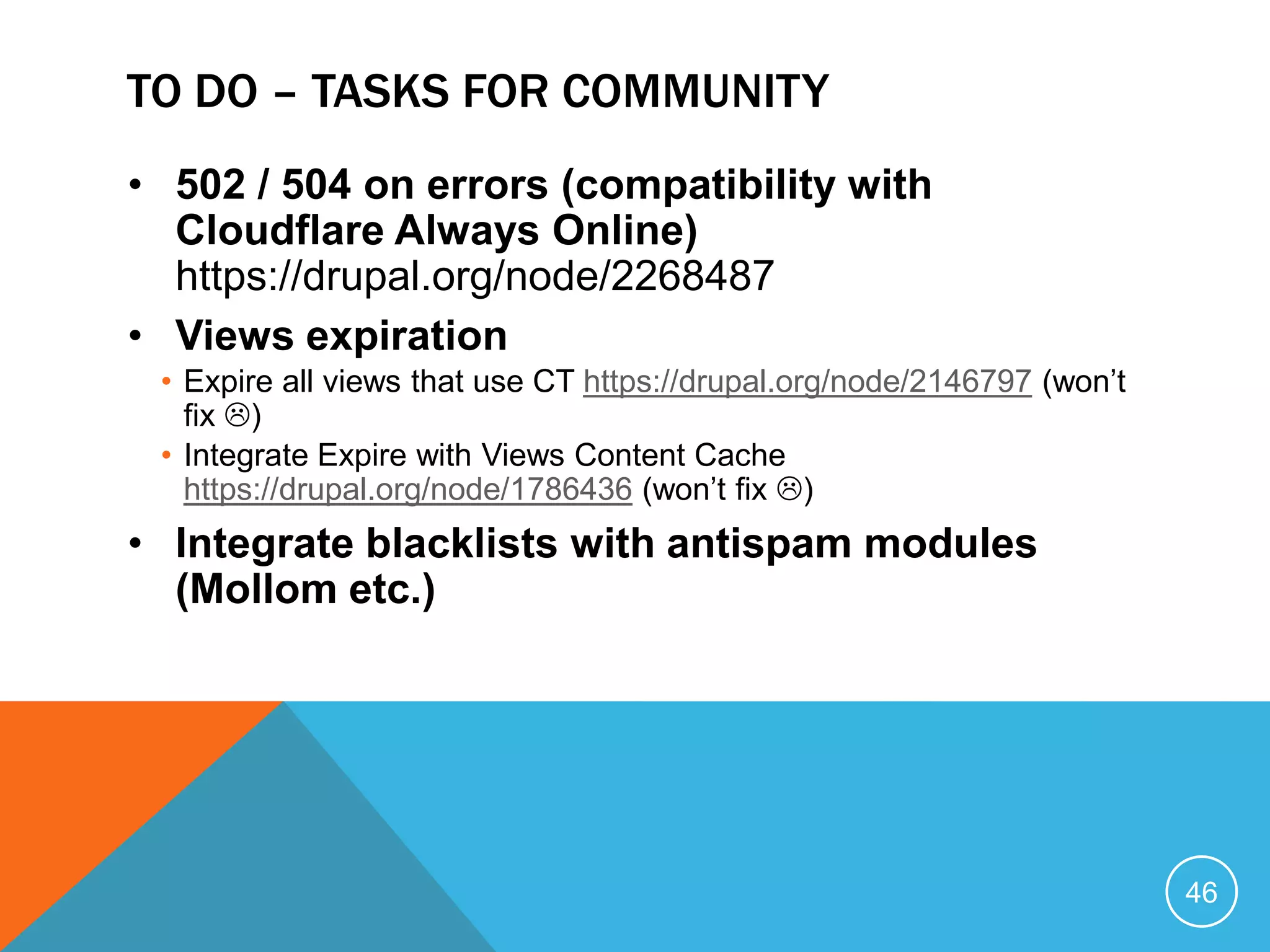

46. TO DO – TASKS FOR COMMUNITY
• 502 / 504 on errors (compatibility with
Cloudflare Always Online)
https://drupal.org/node/2268487
• Views expiration
• Expire all views that use CT https://drupal.org/node/2146797 (won’t
fix )
• Integrate Expire with Views Content Cache
https://drupal.org/node/1786436 (won’t fix )
• Integrate blacklists with antispam modules
(Mollom etc.)
46

47. THANK YOU!
47
Łukasz Klimek
E-mail: Lukasz@softinn.eu
Mobile: +48 66 999 2096
Skype: casatm | Twitter @lklimek
http://tinyurl.com/lklimek
http://goo.gl/2dEgs7
Software Inn
www.softinn.eu
