This document discusses the need for cloud management tools to effectively manage infrastructure in the cloud. It argues that while cloud computing removes some complexities, organizations still have responsibilities around architecture, configuration, monitoring, backups, scaling, logging, deployments and security. Cloud management tools aim to reduce the operational costs and risks of managing dynamic cloud infrastructure by providing automation, templates, monitoring dashboards and other capabilities. The document provides examples of how cloud management can help with tasks like scaling databases and securing access. It also outlines common features of cloud management solutions and discusses when they may be needed over creating custom scripts.

1. Cloud Management
24 May 2012
Andreas Chatzakis
Follow me on twitter: @achatzakis
AWS Usergroup Greece

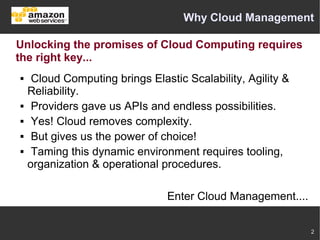

2. Why Cloud Management
Unlocking the promises of Cloud Computing requires
the right key...
 Cloud Computing brings Elastic Scalability, Agility &
Reliability.
 Providers gave us APIs and endless possibilities.
 Yes! Cloud removes complexity.
 But gives us the power of choice!
 Taming this dynamic environment requires tooling,
organization & operational procedures.
Enter Cloud Management....
2

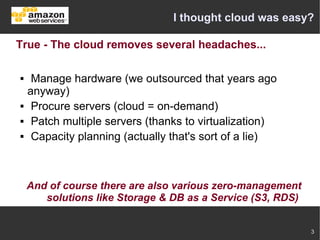

3. I thought cloud was easy?
True - The cloud removes several headaches...
 Manage hardware (we outsourced that years ago
anyway)
 Procure servers (cloud = on-demand)
 Patch multiple servers (thanks to virtualization)
 Capacity planning (actually that's sort of a lie)
And of course there are also various zero-management
solutions like Storage & DB as a Service (S3, RDS)
3

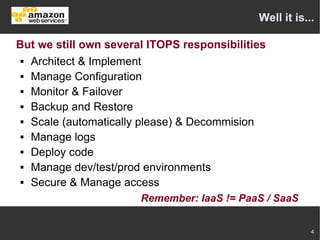

4. Well it is...
But we still own several ITOPS responsibilities
 Architect & Implement
 Manage Configuration
 Monitor & Failover
 Backup and Restore
 Scale (automatically please) & Decommision
 Manage logs
 Deploy code
 Manage dev/test/prod environments
 Secure & Manage access
Remember: IaaS != PaaS / SaaS
4

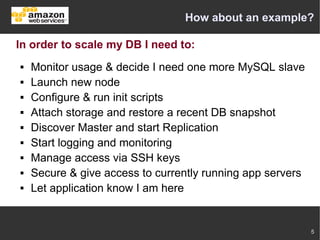

5. How about an example?
In order to scale my DB I need to:
 Monitor usage & decide I need one more MySQL slave
 Launch new node
 Configure & run init scripts
 Attach storage and restore a recent DB snapshot
 Discover Master and start Replication
 Start logging and monitoring
 Manage access via SSH keys
 Secure & give access to currently running app servers
 Let application know I am here
5

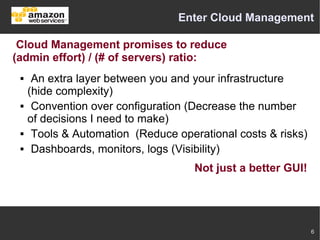

6. Enter Cloud Management
Cloud Management promises to reduce
(admin effort) / (# of servers) ratio:
 An extra layer between you and your infrastructure
(hide complexity)
 Convention over configuration (Decrease the number
of decisions I need to make)
 Tools & Automation (Reduce operational costs & risks)
 Dashboards, monitors, logs (Visibility)
Not just a better GUI!
6

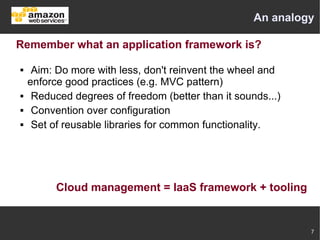

7. An analogy
Remember what an application framework is?
 Aim: Do more with less, don't reinvent the wheel and
enforce good practices (e.g. MVC pattern)
 Reduced degrees of freedom (better than it sounds...)
 Convention over configuration
 Set of reusable libraries for common functionality.
Cloud management = IaaS framework + tooling
7

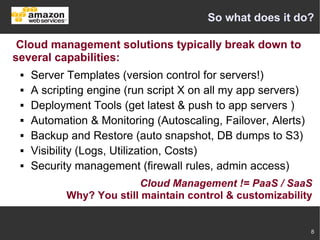

8. So what does it do?
Cloud management solutions typically break down to
several capabilities:
 Server Templates (version control for servers!)
 A scripting engine (run script X on all my app servers)
 Deployment Tools (get latest & push to app servers )
 Automation & Monitoring (Autoscaling, Failover, Alerts)
 Backup and Restore (auto snapshot, DB dumps to S3)
 Visibility (Logs, Utilization, Costs)
 Security management (firewall rules, admin access)
Cloud Management != PaaS / SaaS
Why? You still maintain control & customizability
8

9. Server Templates
Configuration management for dynamic infrastructure
 Ready-to-use templates – embedded best practices
 Import your own or customize
 “Version control” for your server images
 Easy roll out of updates
 Attach Scripts, Chef recipes
 Standardized Behaviors – consistent & reproducible
 Auto-provision – in context
 Auto-configure – variable inputs
 Auto-discovery – Who am I? - Who else is here?
9

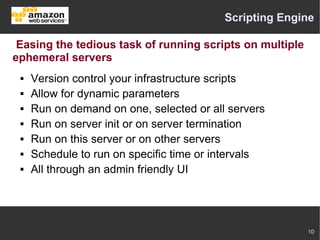

10. Scripting Engine
Easing the tedious task of running scripts on multiple
ephemeral servers
 Version control your infrastructure scripts
 Allow for dynamic parameters
 Run on demand on one, selected or all servers
 Run on server init or on server termination
 Run on this server or on other servers
 Schedule to run on specific time or intervals
 All through an admin friendly UI
10

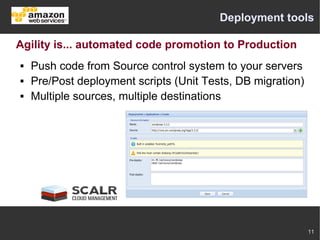

11. Deployment tools
Agility is... automated code promotion to Production
 Push code from Source control system to your servers
 Pre/Post deployment scripts (Unit Tests, DB migration)
 Multiple sources, multiple destinations
11

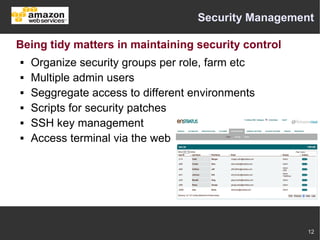

12. Security Management
Being tidy matters in maintaining security control
 Organize security groups per role, farm etc
 Multiple admin users
 Seggregate access to different environments
 Scripts for security patches
 SSH key management
 Access terminal via the web
12

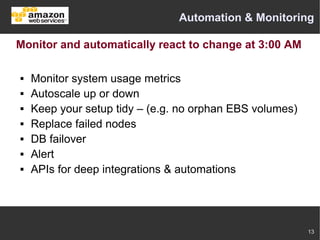

13. Automation & Monitoring
Monitor and automatically react to change at 3:00 AM
 Monitor system usage metrics
 Autoscale up or down
 Keep your setup tidy – (e.g. no orphan EBS volumes)
 Replace failed nodes
 DB failover
 Alert
 APIs for deep integrations & automations
13

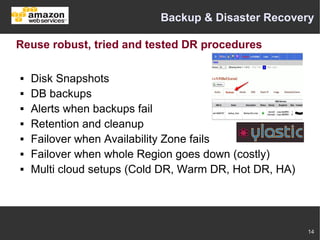

14. Backup & Disaster Recovery
Reuse robust, tried and tested DR procedures
 Disk Snapshots
 DB backups
 Alerts when backups fail
 Retention and cleanup
 Failover when Availability Zone fails
 Failover when whole Region goes down (costly)
 Multi cloud setups (Cold DR, Warm DR, Hot DR, HA)
14

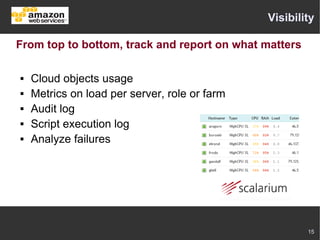

15. Visibility
From top to bottom, track and report on what matters
 Cloud objects usage
 Metrics on load per server, role or farm
 Audit log
 Script execution log
 Analyze failures
15

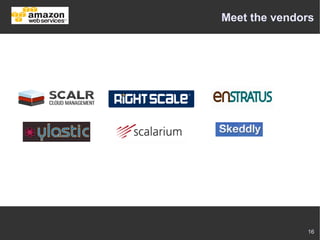

16. Meet the vendors
16

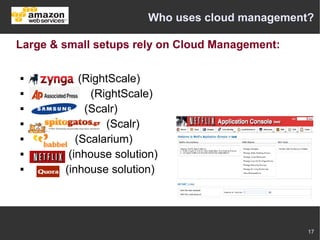

17. Who uses cloud management?
Large & small setups rely on Cloud Management:
 (RightScale)
 (RightScale)
 (Scalr)
 (Scalr)
 (Scalarium)
 (inhouse solution)
 (inhouse solution)
17

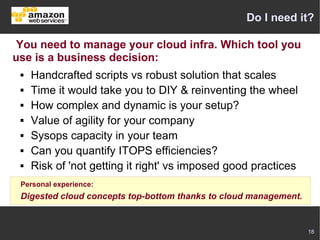

18. Do I need it?
You need to manage your cloud infra. Which tool you
use is a business decision:
 Handcrafted scripts vs robust solution that scales
 Time it would take you to DIY & reinventing the wheel
 How complex and dynamic is your setup?
 Value of agility for your company
 Sysops capacity in your team
 Can you quantify ITOPS efficiencies?
 Risk of 'not getting it right' vs imposed good practices
Personal experience:
Digested cloud concepts top-bottom thanks to cloud management.
18

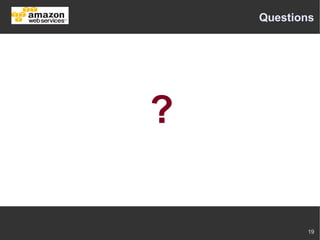

19. Questions
?
19
