CloudArray allows unlimited cloud storage capacity to be presented and managed like local storage. It uses dynamic caching of frequently accessed data on high-speed local disks for performance. Data is encrypted before transferring to cloud storage for security. CloudArray supports multiple cloud providers and both SAN and NAS protocols for integration with applications. It provides scalability, high performance, security and cost benefits of cloud with simplicity of management like local storage.

1. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved
JEUDI 19 NOVEMBRE 2015
Emmanuel BERNARD – Principal System Engineer
CLOUDARRAY : EXPLOITEZ LE
STOCKAGE EN TOUTE SIMPLICITE

2. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

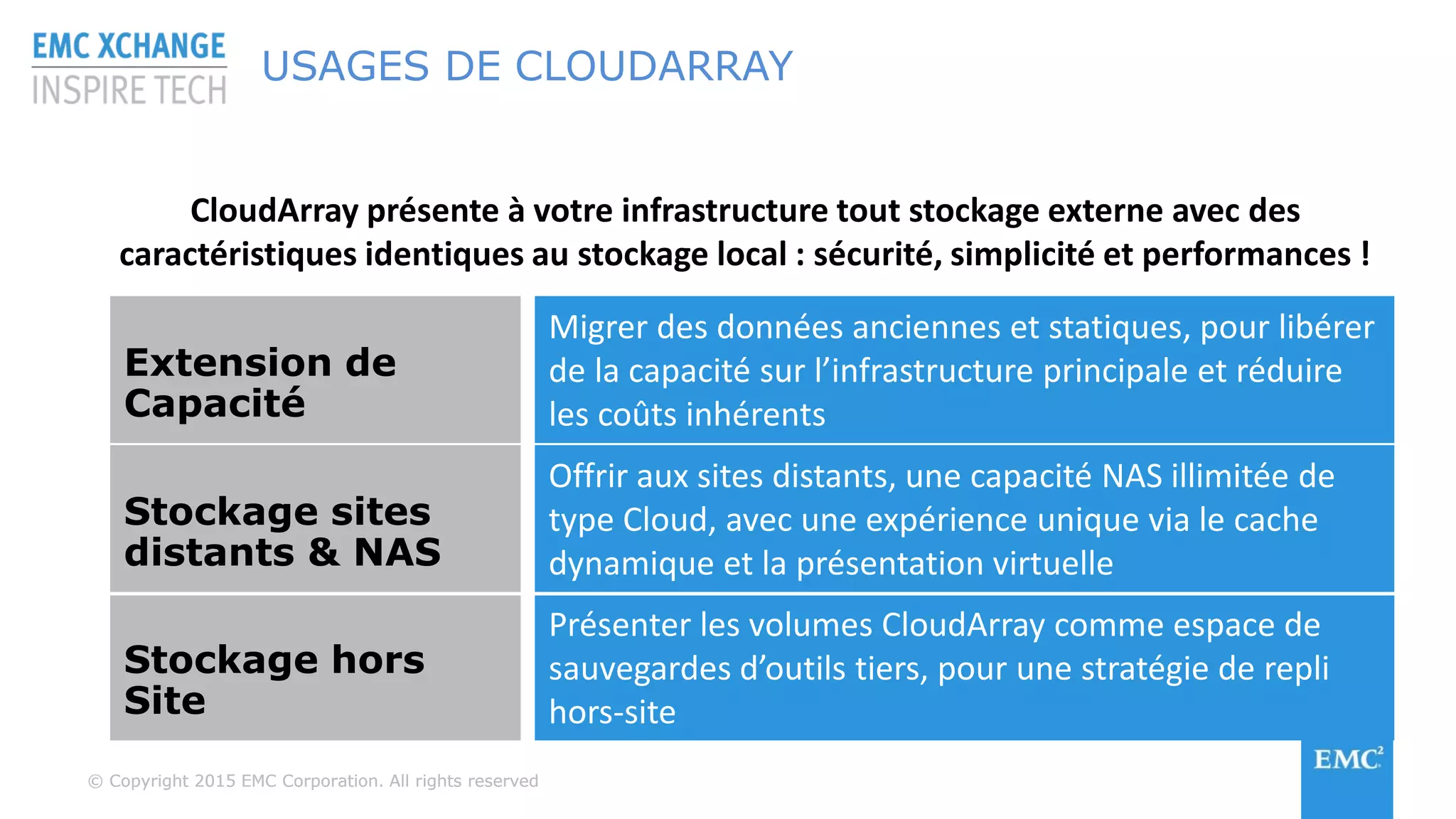

USAGES DE CLOUDARRAY
Extension de
Capacité
Stockage sites
distants & NAS
Migrer des données anciennes et statiques, pour libérer
de la capacité sur l’infrastructure principale et réduire
les coûts inhérents
Offrir aux sites distants, une capacité NAS illimitée de
type Cloud, avec une expérience unique via le cache
dynamique et la présentation virtuelle
2
Stockage hors
Site
Présenter les volumes CloudArray comme espace de
sauvegardes d’outils tiers, pour une stratégie de repli
hors-site
CloudArray présente à votre infrastructure tout stockage externe avec des
caractéristiques identiques au stockage local : sécurité, simplicité et performances !

3. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

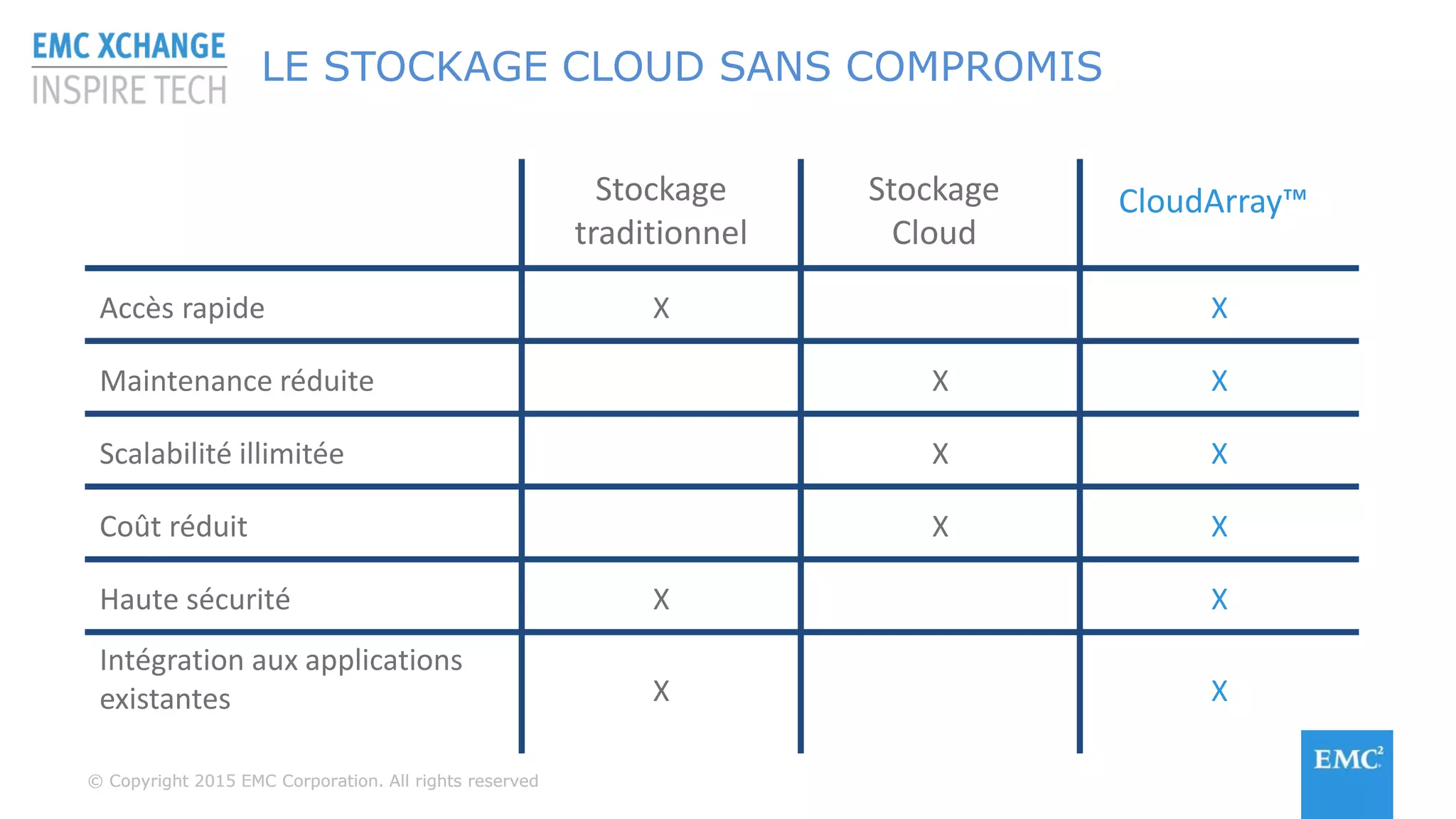

LE STOCKAGE CLOUD SANS COMPROMIS
Stockage
traditionnel
Stockage
Cloud
CloudArray™
Accès rapide
Maintenance réduite
Scalabilité illimitée
Coût réduit
Haute sécurité
Intégration aux applications
existantes
X
X
X
X
X
X
X
X
X
X
X
X

4. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

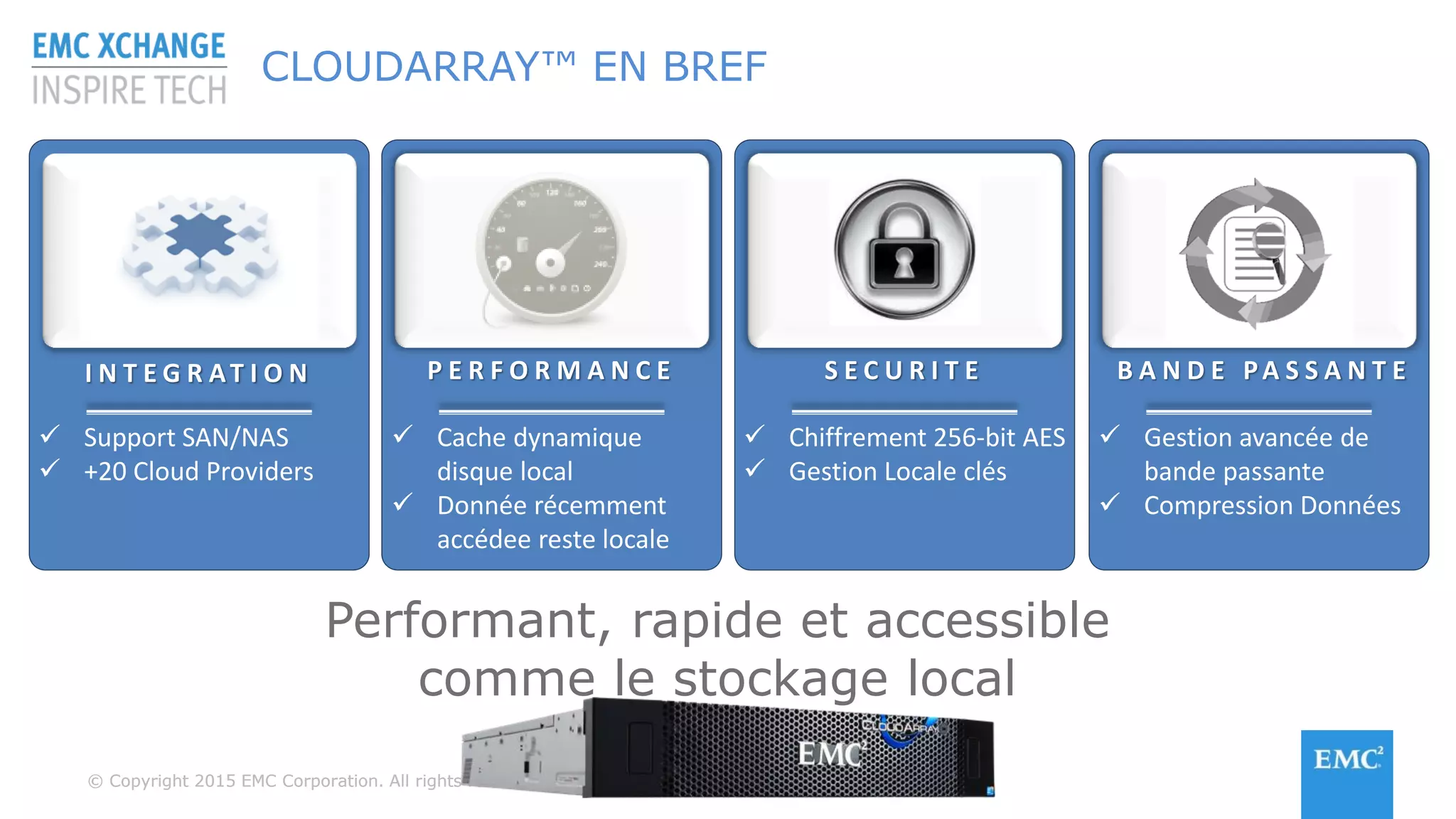

CLOUDARRAY™ EN BREF
I N T E G R AT I O N P E R F O R M A N C E S E C U R I T E B A N D E PA S S A N T E
 Support SAN/NAS
 +20 Cloud Providers
 Cache dynamique
disque local
 Donnée récemment
accédee reste locale
 Chiffrement 256-bit AES
 Gestion Locale clés
 Gestion avancée de
bande passante
 Compression Données
Performant, rapide et accessible
comme le stockage local

5. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

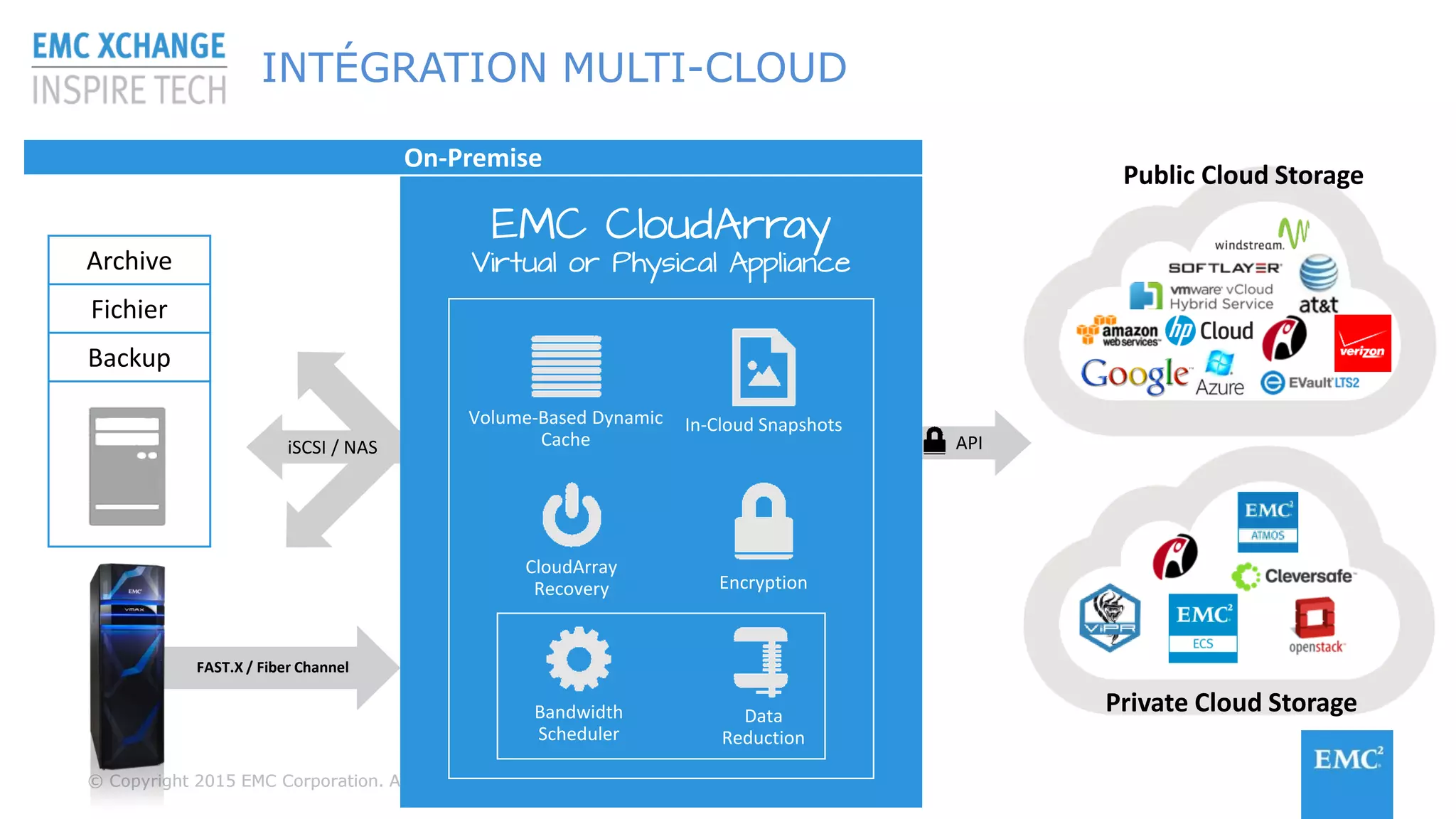

iSCSI / NAS
Volume-Based Dynamic
Cache
Data
Reduction
In-Cloud Snapshots
Encryption
CloudArray
Recovery
Bandwidth
Scheduler
INTÉGRATION MULTI-CLOUD
API
Archive
Fichier
Backup
EMC CloudArray
Virtual or Physical Appliance
Private Cloud Storage
Public Cloud Storage
On-Premise
FAST.X / Fiber Channel

6. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

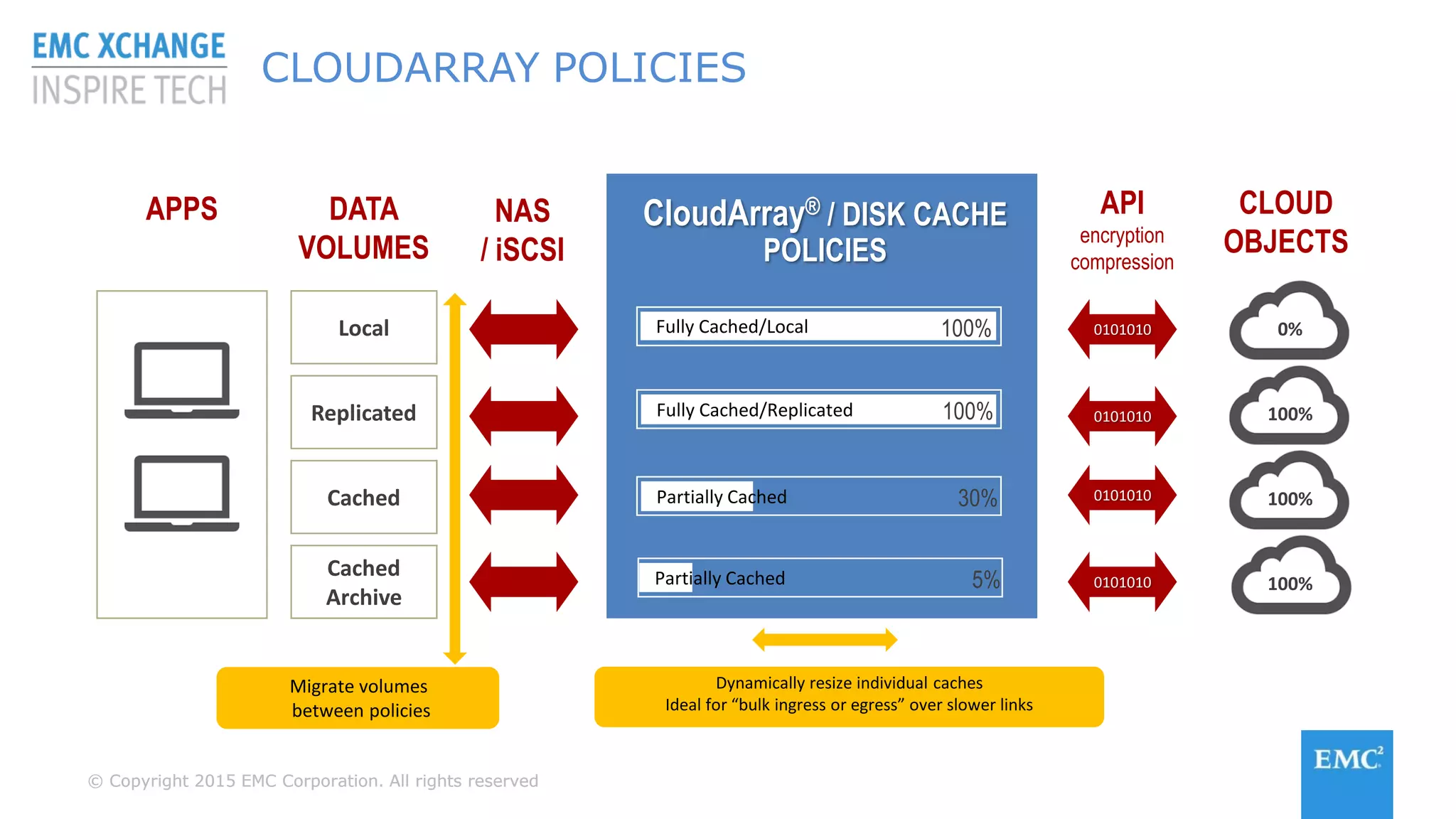

CloudArray® / DISK CACHE
POLICIES
CLOUD
OBJECTS
0%Local
Replicated
Cached
Cached
Archive
APPS DATA
VOLUMES
NAS
/ iSCSI
0101010
API
encryption
compression
Fully Cached/Local 100%
Fully Cached/Replicated 100%
Partially Cached 30%
Partially Cached 5%
0101010
0101010
0101010
100%
100%
100%
CLOUDARRAY POLICIES 6
Dynamically resize individual caches
Ideal for “bulk ingress or egress” over slower links
Migrate volumes
between policies

7. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

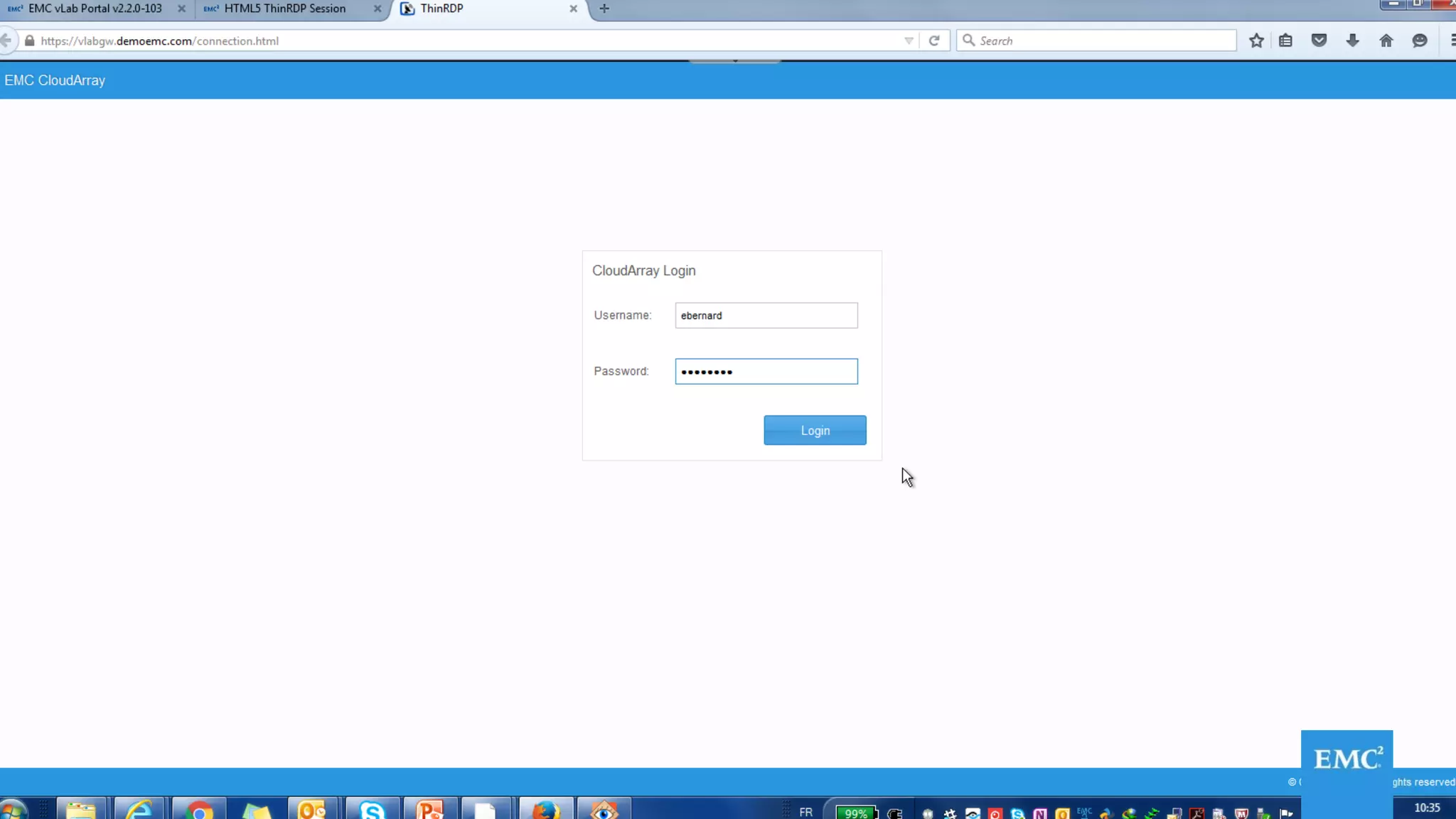

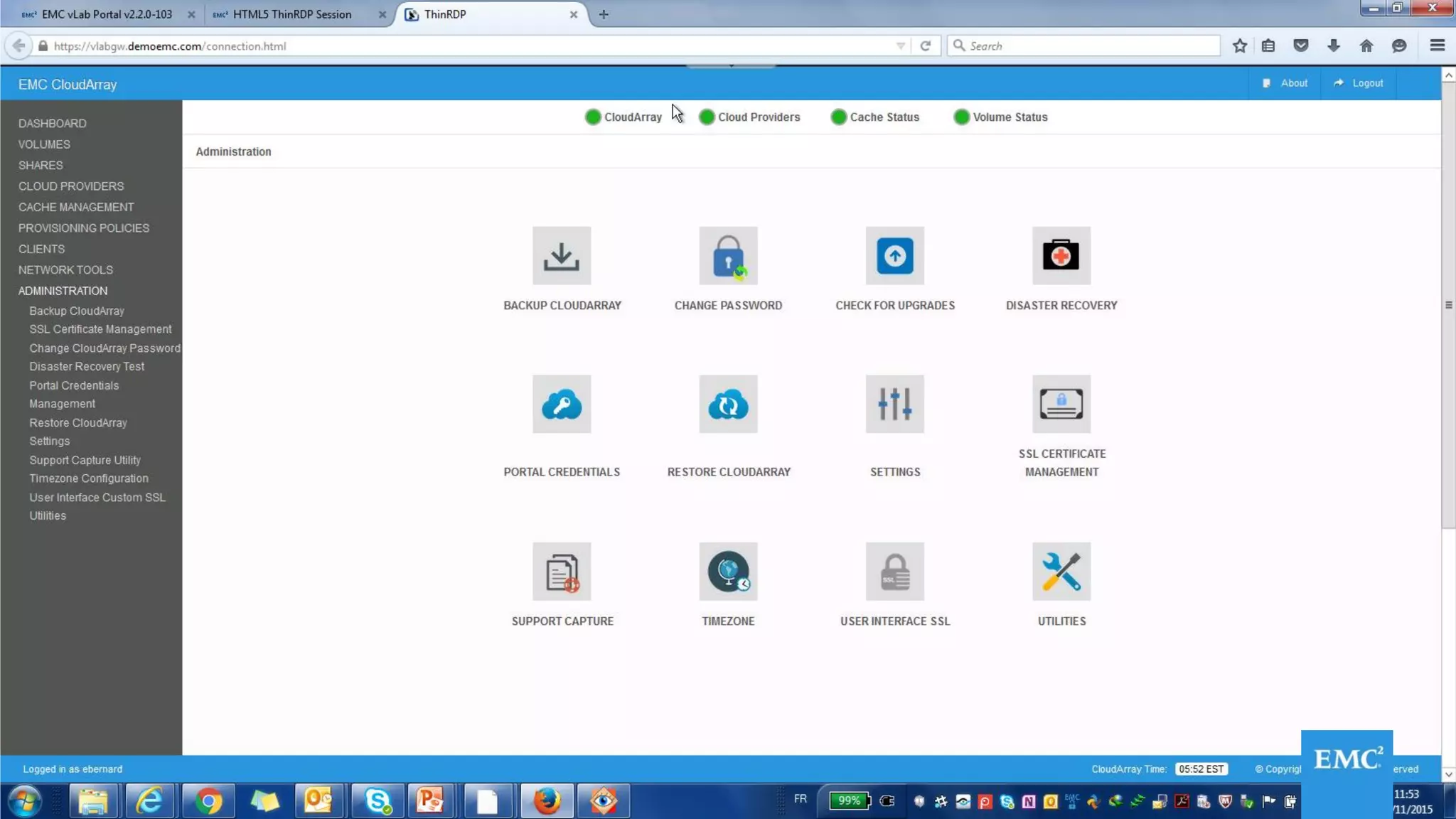

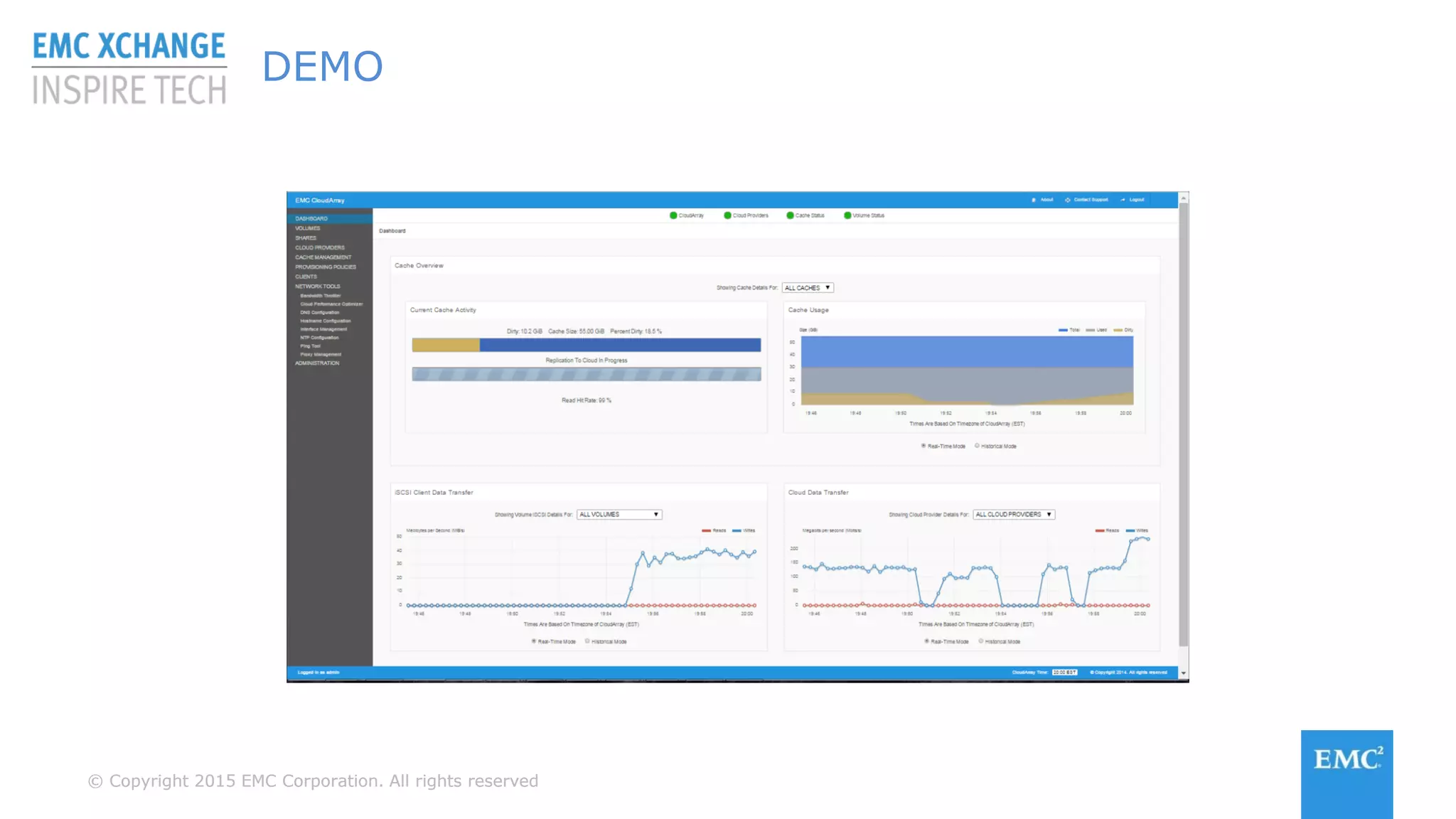

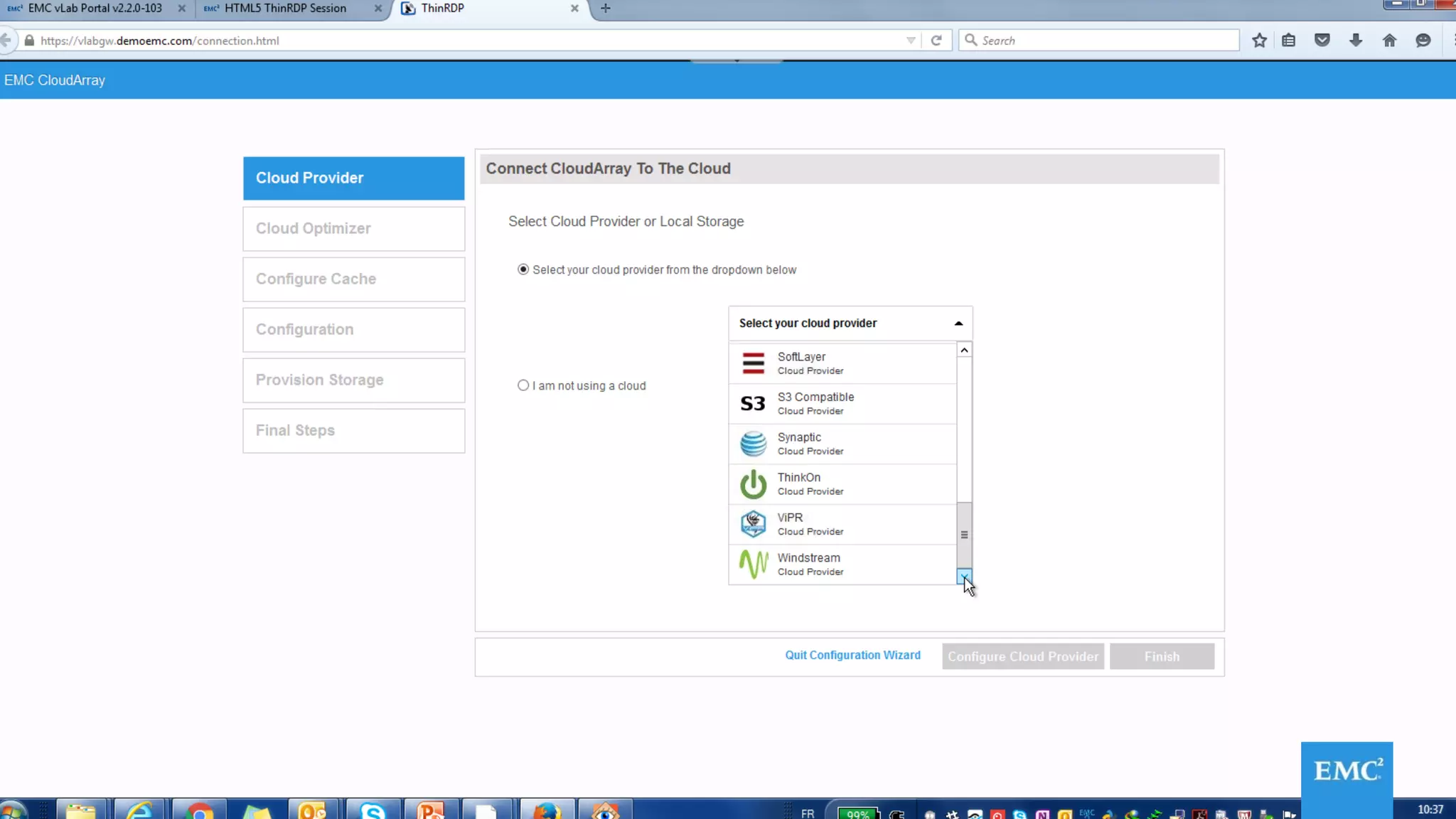

DEMO

8. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

9. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

10. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

11. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

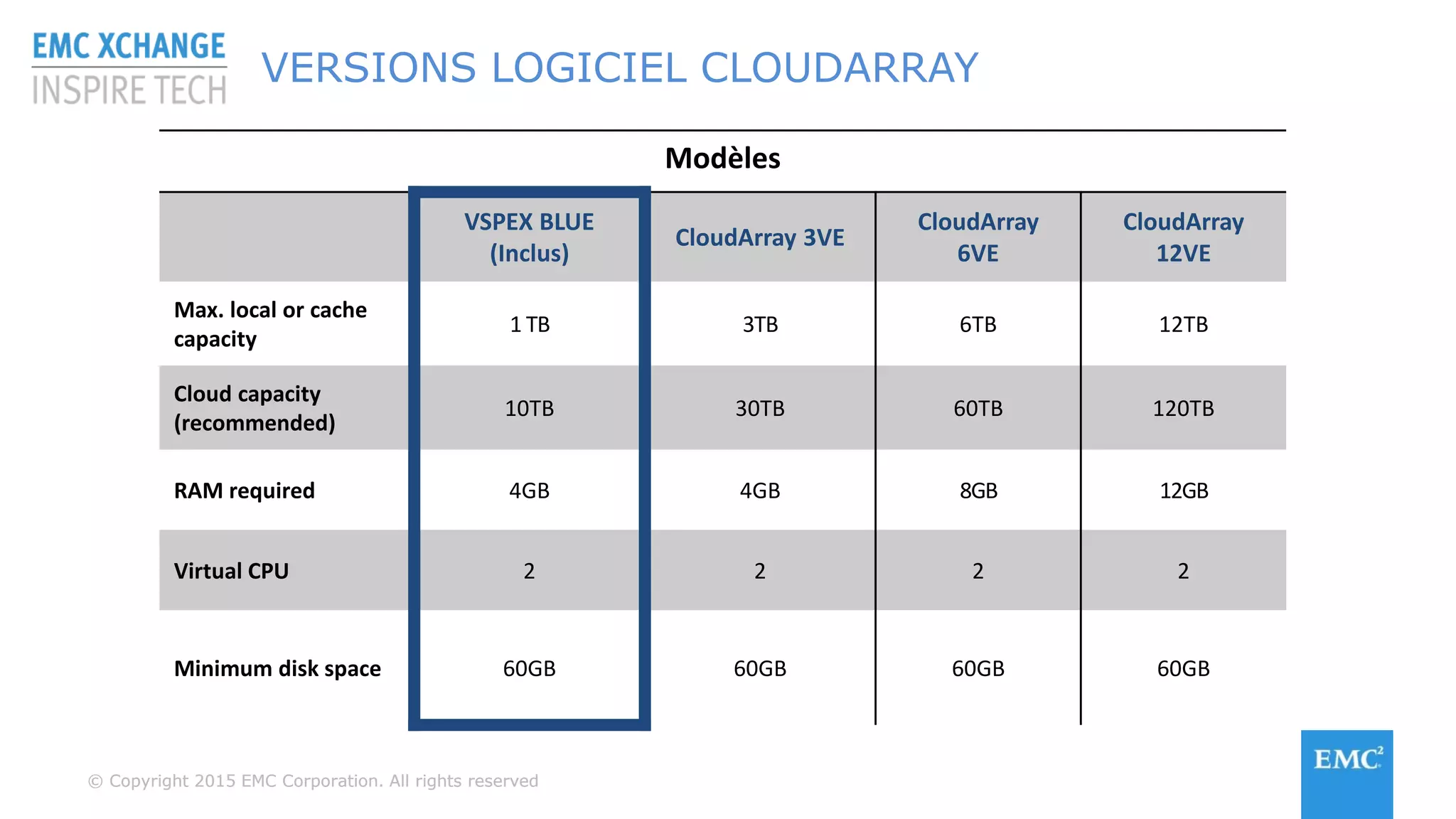

VERSIONS LOGICIEL CLOUDARRAY
Modèles
VSPEX BLUE
(Inclus)
CloudArray 3VE
CloudArray
6VE
CloudArray
12VE
Max. local or cache
capacity
1 TB 3TB 6TB 12TB
Cloud capacity
(recommended)
10TB 30TB 60TB 120TB
RAM required 4GB 4GB 8GB 12GB
Virtual CPU 2 2 2 2
Minimum disk space 60GB 60GB 60GB 60GB

12. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

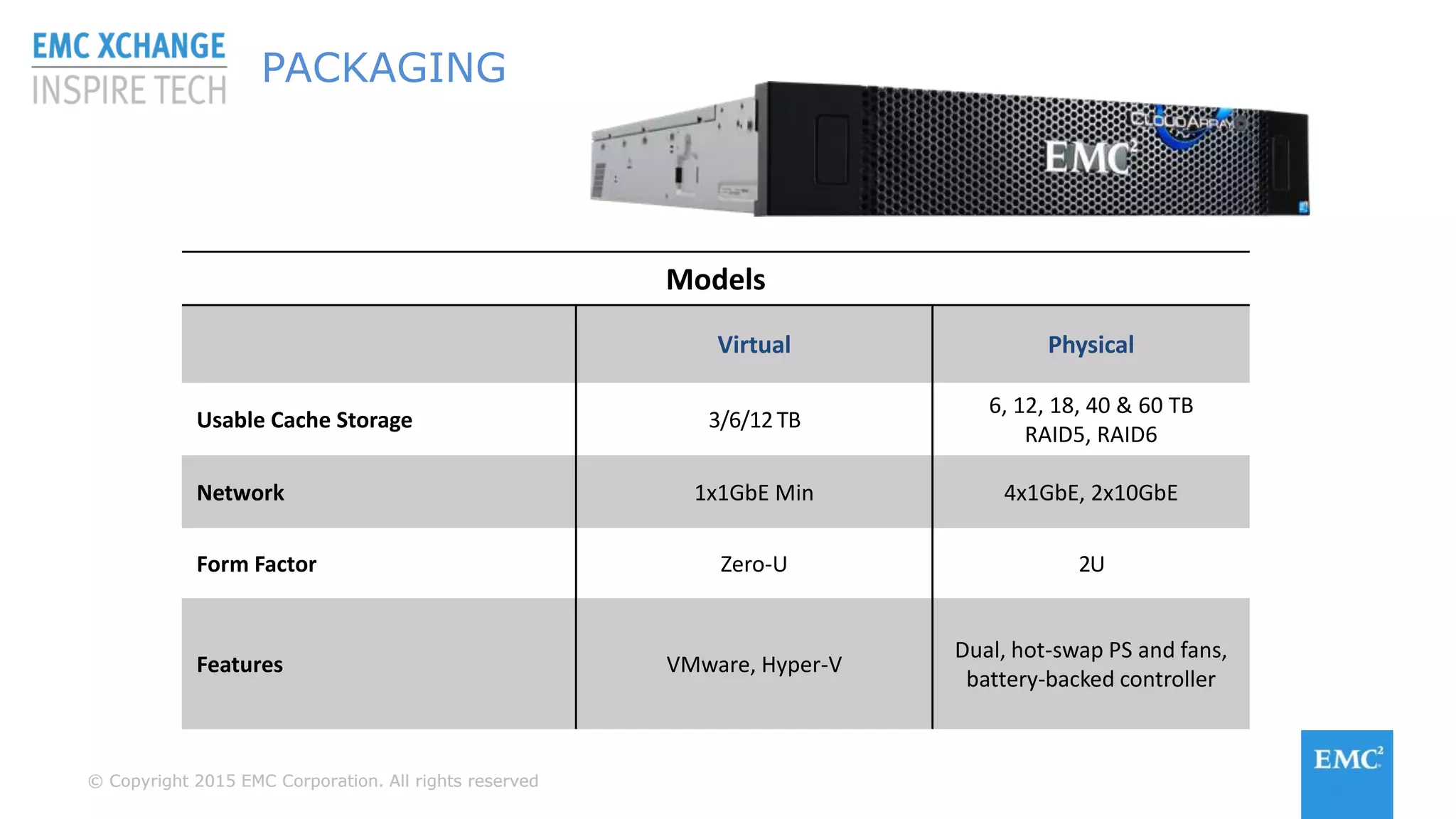

PACKAGING
Models
Virtual Physical
Usable Cache Storage 3/6/12TB
6, 12, 18, 40 & 60 TB
RAID5, RAID6
Network 1x1GbE Min 4x1GbE, 2x10GbE
Form Factor Zero-U 2U
Features VMware, Hyper-V
Dual, hot-swap PS and fans,
battery-backed controller

13. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

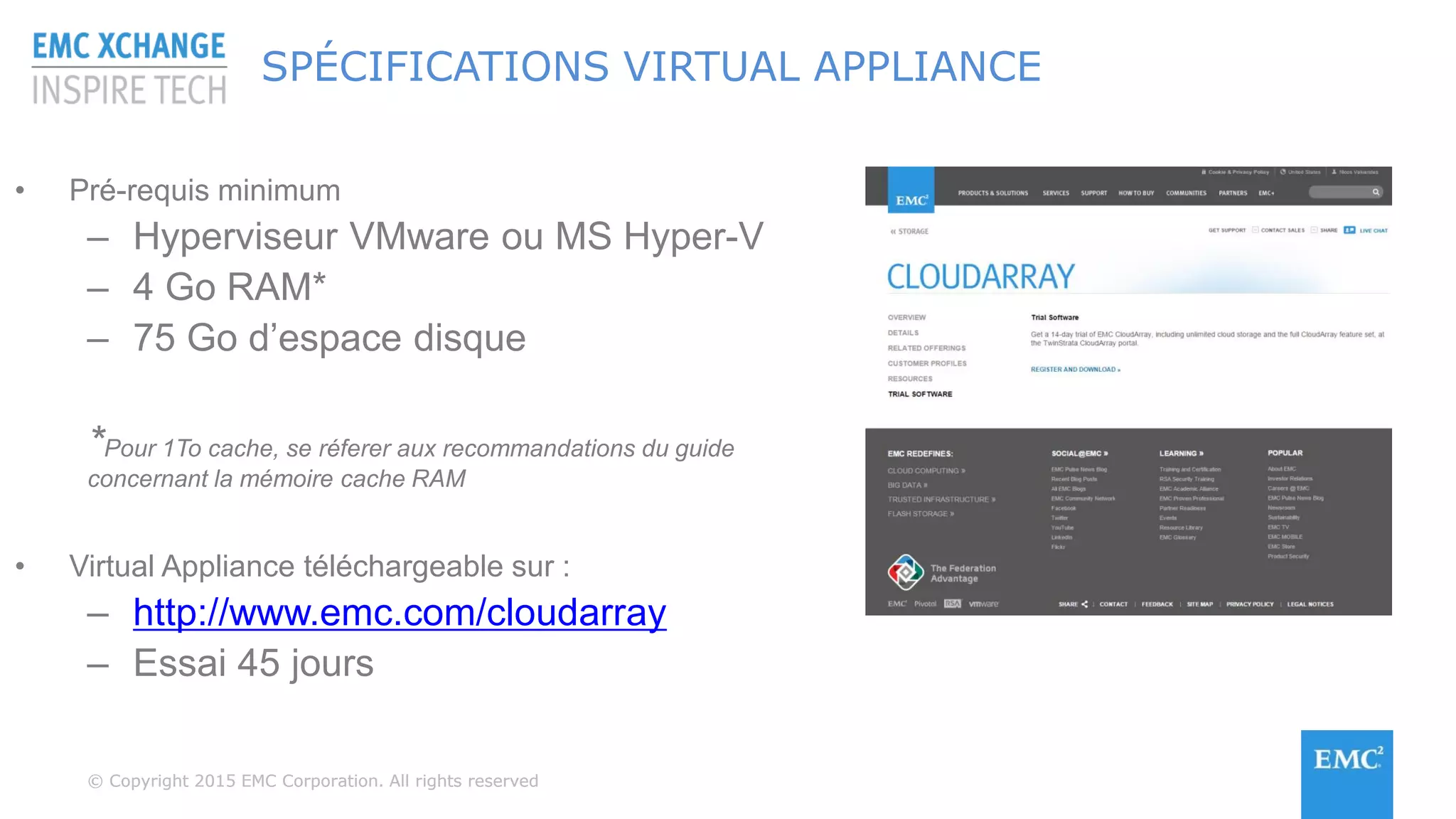

SPÉCIFICATIONS VIRTUAL APPLIANCE
• Pré-requis minimum
– Hyperviseur VMware ou MS Hyper-V
– 4 Go RAM*
– 75 Go d’espace disque
*Pour 1To cache, se réferer aux recommandations du guide
concernant la mémoire cache RAM
• Virtual Appliance téléchargeable sur :
– http://www.emc.com/cloudarray
– Essai 45 jours

14. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

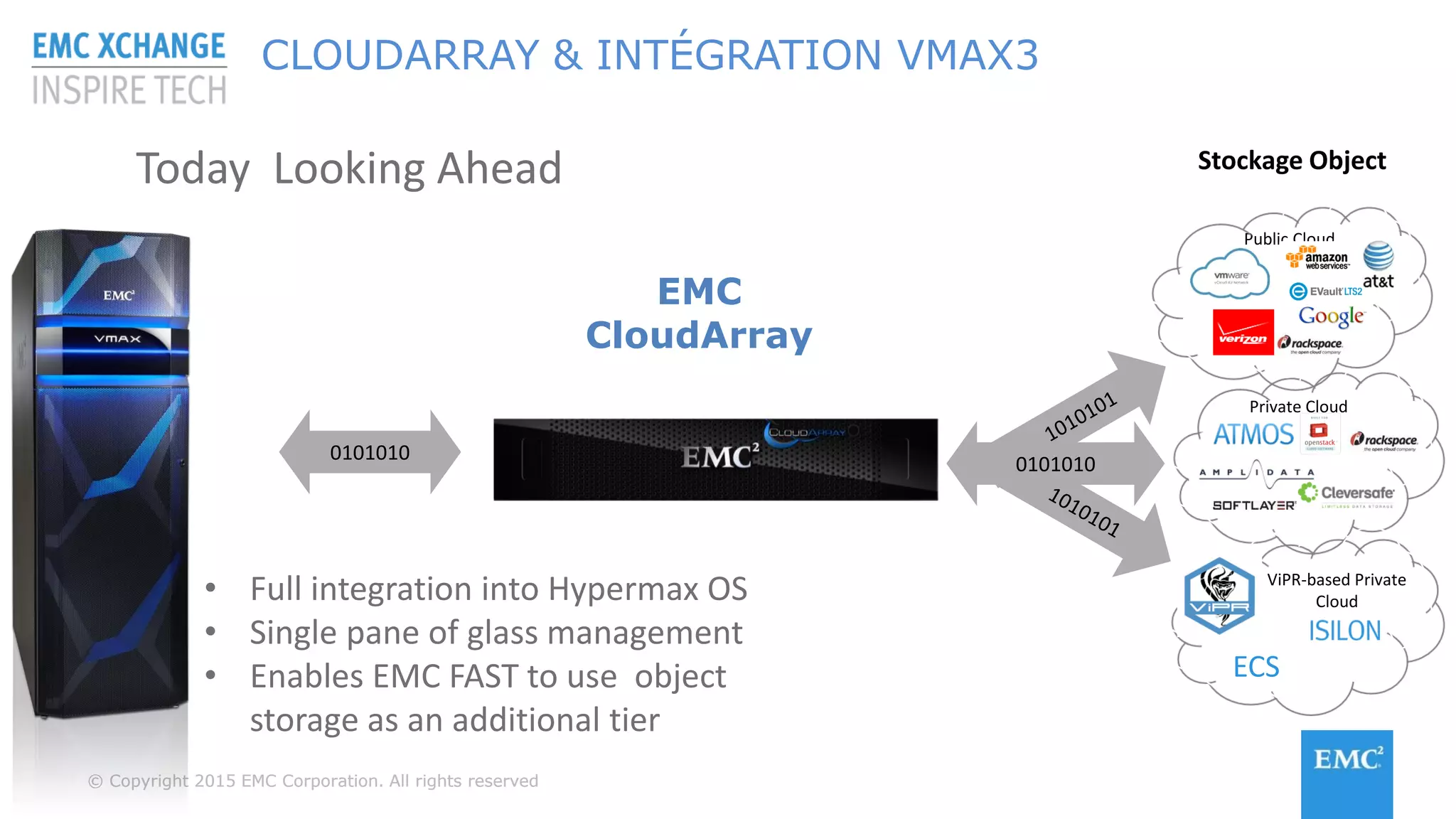

CLOUDARRAY & INTÉGRATION VMAX3
0101010
Today
Public Cloud
Private Cloud
Stockage Object
ViPR-based Private
Cloud
0101010
Looking Ahead
• Full integration into Hypermax OS
• Single pane of glass management
• Enables EMC FAST to use object
storage as an additional tier
ECS
EMC
CloudArray

15. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved

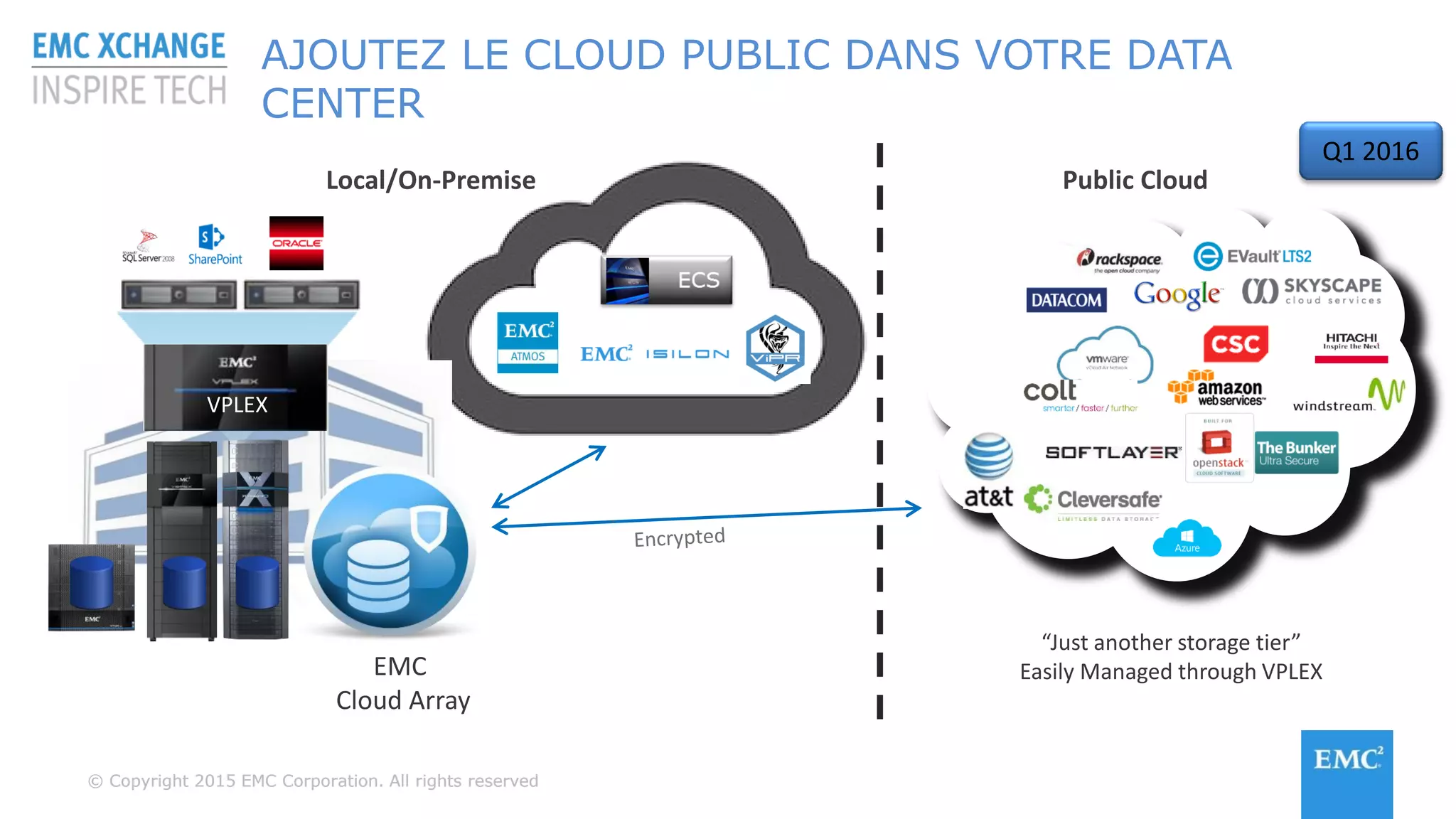

AJOUTEZ LE CLOUD PUBLIC DANS VOTRE DATA
CENTER
Local/On-Premise Public Cloud
VPLEX
EMC
Cloud Array
“Just another storage tier”
Easily Managed through VPLEX
Q1 2016

16. © Copyright 2015 EMC Corporation. All rights reserved© Copyright 2015 EMC Corporation. All rights reserved
Si vous avez des questions sur cette présentation,
n’hésitez pas à prendre contact directement contact
avec :
Emmanuel BERNARD
emmanuel.bernard@emc.com
