Climate Change Models to Estimate and Forecast Temperature Gaetan Lion September 2021 1

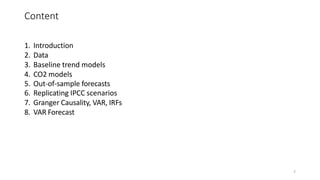

2 Content 1. Introduction 2. Data 3. Baseline trend models 4. CO2 models 5. Out-of-sample forecasts 6. Replicating IPCC scenarios 7. Granger Causality, VAR, IRFs 8. VAR Forecast

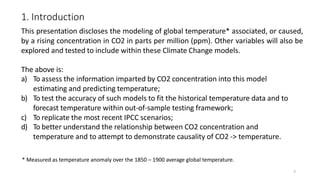

3 1. Introduction This presentation discloses the modeling of global temperature* associated, or caused, by a rising concentration in CO2 in parts per million (ppm). Other variables will also be explored and tested to include within these Climate Change models. The above is: a) To assess the information imparted by CO2 concentration into this model estimating and predicting temperature; b) To test the accuracy of such models to fit the historical temperature data and to forecast temperature within out-of-sample testing framework; c) To replicate the most recent IPCC scenarios; d) To better understand the relationship between CO2 concentration and temperature and to attempt to demonstrate causality of CO2 -> temperature. * Measured as temperature anomaly over the 1850 – 1900 average global temperature.

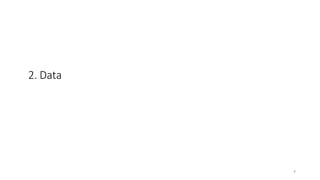

4 2. Data

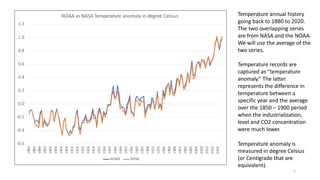

-0.6 -0.4 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 NOAA vs NASA Temperature anomaly in degree Celsius NOAA NASA Temperature annual history going back to 1880 to 2020. The two overlapping series are from NASA and the NOAA. We will use the average of the two series. 5 Temperature records are captured as “temperature anomaly.” The latter represents the difference in temperature between a specific year and the average over the 1850 – 1900 period when the industrialization, level and CO2 concentration were much lower. Temperature anomaly is measured in degree Celsius (or Centigrade that are equivalent).

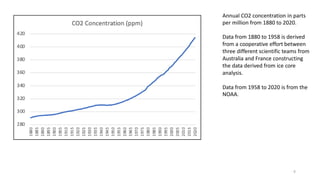

Annual CO2 concentration in parts per million from 1880 to 2020. Data from 1880 to 1958 is derived from a cooperative effort between three different scientific teams from Australia and France constructing the data derived from ice core analysis. Data from 1958 to 2020 is from the NOAA. 6

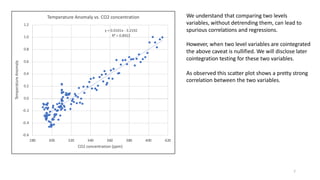

We understand that comparing two levels variables, without detrending them, can lead to spurious correlations and regressions. However, when two level variables are cointegrated the above caveat is nullified. We will disclose later cointegration testing for these two variables. As observed this scatter plot shows a pretty strong correlation between the two variables. 7

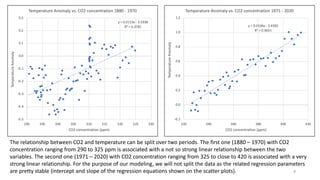

The relationship between CO2 and temperature can be split over two periods. The first one (1880 – 1970) with CO2 concentration ranging from 290 to 325 ppm is associated with a not so strong linear relationship between the two variables. The second one (1971 – 2020) with CO2 concentration ranging from 325 to close to 420 is associated with a very strong linear relationship. For the purpose of our modeling, we will not split the data as the related regression parameters are pretty stable (intercept and slope of the regression equations shown on the scatter plots). 8
Checking the Autocorrelation of the Residuals of the Ordinary Least Square (OLS) Cointegration Regression: Temperature ~ CO2 9 Given that we are using level variables, the residuals autocorrelation levels as captured by the ACF and PACF graphs is reasonably low. And, at the onset suggests that these two variables (CO2 and temperature) may be indeed cointegrated. The PACF graph at the bottom is the one used to select the number of yearly lags we should select to conduct our unit root testing to confirm that these residuals are indeed stationary (do not have a unit root). Even though within the PACF graph, only lag 1 crosses the line of statistical significance ( > 0.2), we will use up to lag 4 to be more conservative.
10 Testing the residuals of the OLS Cointegration Regression Temperature ~ CO2 for stationarity Test p-value Interpretation confirming residuals are stationary ADF test 0.01 Reject the null hypothesis that residuals are nonstationary Phillips Perron 0.01 Reject the null hypothesis that residuals are nonstationary KPSS > 0.1 Accept the null hypothesis that residuals are stationary We used 4 lags for each of the above unit root test. In each case, the respective unit root tests confirmed that the Cointegration Regression residuals were stationary. This confirmation allows us to proceed in modeling the relationship between CO2 and temperature using level variables knowing that these two variables are explicitly cointegrated. Further residual model testing often includes testing for autocorrelation, heteroskedasticity, and normal distribution. However, any related residual issues do not affect the regression coefficients biasness. They may affect the reliability of regression coefficients confidence intervals and their statistical significance. However, if such regression coefficients are associated with t-stats > 2.5 or 3.0, statistical significance is typically not an issue (even after adjusting with Robust Standard Errors). Additionally, in some cases as we’ll see we are not explicitly concerned with levels of statistical significance, as long as the variable make good sense in terms of explaining how the climate system works, and that the variable regression coefficient has the appropriate sign.

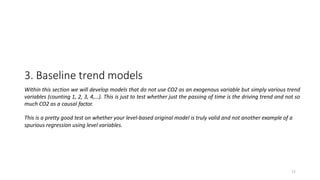

11 3. Baseline trend models Within this section we will develop models that do not use CO2 as an exogenous variable but simply various trend variables (counting 1, 2, 3, 4,…). This is just to test whether just the passing of time is the driving trend and not so much CO2 as a causal factor. This is a pretty good test on whether your level-based original model is truly valid and not another example of a spurious regression using level variables.
-0.4 -0.6 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. Historical Fit of a simple Trend Model Actual Trend This model uses a single Trend variable (counting 1, 2, 3, etc.) to estimate the temperature over time. It does not use any exogenous information. 12 As shown, this Trend model is pretty terrible. Notice how it way underestimates temperatures at the onset from 1880 to 1900 and at the end from 2005 to 2020. In between from 1901 to 2004 it typically overestimates temperatures.

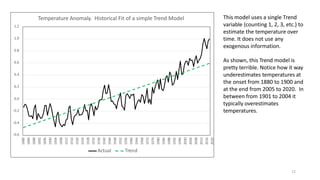

13 The Trend Model residuals are pretty awful looking -0.40 -0.30 -0.20 -0.10 0.00 0.10 0.20 0.30 0.40 0.50 Residual 280 300 320 340 360 380 400 420 CO2 concentration (ppm) Trend Model residuals -0.40 -0.30 -0.20 -0.10 0.00 0.10 0.20 0.30 0.40 0.50 -0.60 -0.40 -0.20 0.40 0.60 Residual 0.00 0.20 Model Estimate Trend Model residuals A good model should have a residual curve (red dashed line) that is flat, straight, and sits at the 0.00 level. This would indicate residuals that are stationary and mean reverting around the 0.00 level. These residuals are far away from meeting that standard. They are clearly nonstationary.
14 1.2 1.0 0.8 0.6 0.4 0.2 0.0 -0.2 -0.4 -0.6 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. Hist. Fit of a polynomial Trend Model Actual Trend 2 If we simply add a second Trend variable that represents the square of the Trend variable, we actually get a surprisingly good historical fit of the data in absence of any information from CO2. While the Trend variable starts with 1, 2, 3, etc.; the Trend square variable starts with 1, 4, 9, etc. The combination of those two variables make for a very good polynomial regression equation that fits the J shape curve of the data very well. We call this model Trend 2.

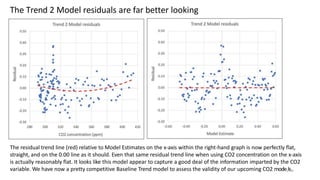

The residual trend line (red) relative to Model Estimates on the x-axis within the right-hand graph is now perfectly flat, straight, and on the 0.00 line as it should. Even that same residual trend line when using CO2 concentration on the x-axis is actually reasonably flat. It looks like this model appear to capture a good deal of the information imparted by the CO2 variable. We have now a pretty competitive Baseline Trend model to assess the validity of our upcoming CO2 mode1ls5. The Trend 2 Model residuals are far better looking

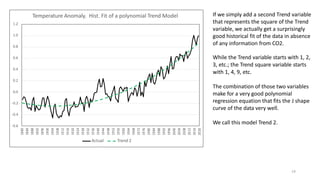

Description of the Trend 2 model The square of the trend (trend2) is a very large number, so the resulting regression coefficient is very small: 0.000085. 16 All the Goodness-of-fit measures are very high. And, the resulting model errors are pretty low. This is kind of amazing given that we have just used trend variables to fit the temperature history starting back in 1880.

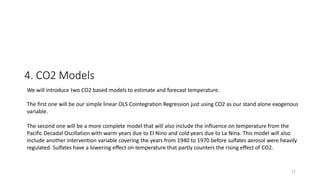

17 4. CO2 Models We will introduce two CO2 based models to estimate and forecast temperature. The first one will be our simple linear OLS Cointegration Regression just using CO2 as our stand alone exogenous variable. The second one will be a more complete model that will also include the influence on temperature from the Pacific Decadal Oscillation with warm years due to El Nino and cold years due to La Nina. This model will also include another intervention variable covering the years from 1940 to 1970 before sulfates aerosol were heavily regulated. Sulfates have a lowering effect on temperature that partly counters the rising effect of CO2.

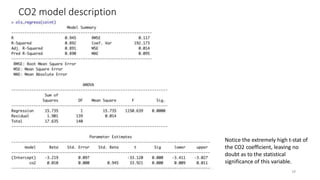

CO2 model description Notice the extremely high t-stat of the CO2 coefficient, leaving no doubt as to the statistical significance of this variable. 18

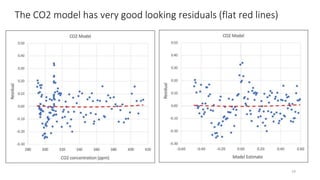

The CO2 model has very good looking residuals (flat red lines) 19

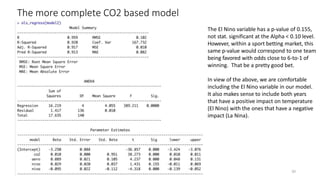

The more complete CO2 based model The El Nino variable has a p-value of 0.155, not stat. significant at the Alpha < 0.10 level. However, within a sport betting market, this same p-value would correspond to one team being favored with odds close to 6-to-1 of winning. That be a pretty good bet. In view of the above, we are comfortable including the El Nino variable in our model. It also makes sense to include both years that have a positive impact on temperature (El Nino) with the ones that have a negative impact (La Nina). 20

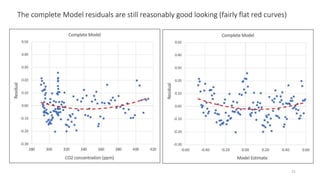

The complete Model residuals are still reasonably good looking (fairly flat red curves) 21
22 Model Competition regarding the fit of Temperature history CO2 model Model Trend 2 Adjusted R Square 0.891 0.917 0.888 Predicted R Square 0.890 0.913 0.885 RMSE 0.117 0.102 0.119 MAE 0.095 0.082 0.095 Whether looking at measure of variance explanation (Adjusted R Square), one-observation prediction (Predicted R Square) or model errors (RMSE and Mean Absolute Error), the three models are very close. The CO2 model and the Trend 2 model are just about dead even on all counts. The Model that includes the other variables such as El Nino and La Nina is fractionally more accurate. If we stopped our analysis now, one could prematurely conclude that the trend (including the trend square variable) just about explains everything regarding the progressive increase in temperature from 1880 and 2020. And, that the two CO2 based models really do not add much information if any above just capturing this trend. This could lead one to assessing our CO2 based models as “spurious.” Additional analysis will confirm otherwise supporting that including a CO2 variable far improves the prediction accuracy of such model. Fitting the historical data is one thing. Making reasonably accurate prediction is far more challenging and useful.

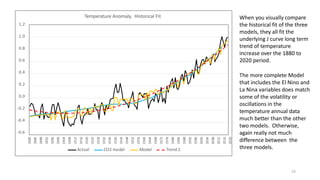

1.2 1.0 0.8 0.6 0.4 0.2 0.0 -0.2 -0.4 -0.6 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. Historical Fit Actual CO2 model Model Trend 2 When you visually compare the historical fit of the three models, they all fit the underlying J curve long term trend of temperature increase over the 1880 to 2020 period. 23 The more complete Model that includes the El Nino and La Nina variables does match some of the volatility or oscillations in the temperature annual data much better than the other two models. Otherwise, again really not much difference between the three models.
0.0 0.2 0.4 0.6 0.8 1.0 1.2 Temperature Anomaly. Historical Fit since 1990 Actual CO2 model Model Trend 2 Focusing on the more recent period since 1990 util 2020, we can observe similar pretty good fit between the three models. 24 The more complete Model has a slightly better fit by better capturing the temperature oscillations associated with El Nino/La Nina. However, notice how the Trend 2 model starts to underestimate the temperature level starting in 2014. This may be the first indication that CO2 does impart some valuable information to this temperature model.

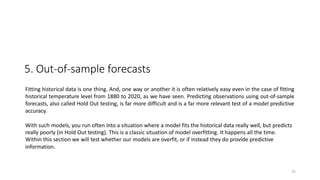

25 5. Out-of-sample forecasts Fitting historical data is one thing. And, one way or another it is often relatively easy even in the case of fitting historical temperature level from 1880 to 2020, as we have seen. Predicting observations using out-of-sample forecasts, also called Hold Out testing, is far more difficult and is a far more relevant test of a model predictive accuracy. With such models, you run often into a situation where a model fits the historical data really well, but predicts really poorly (in Hold Out testing). This is a classic situation of model overfitting. It happens all the time. Within this section we will test whether our models are overfit, or if instead they do provide predictive information.

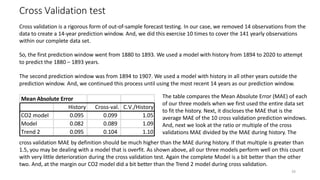

26 Cross Validation test Mean Absolute Error History Cross-val. C.V./History CO2 model 0.095 0.099 1.05 Model 0.082 0.089 1.09 Trend 2 0.095 0.104 1.10 Cross validation is a rigorous form of out-of-sample forecast testing. In our case, we removed 14 observations from the data to create a 14-year prediction window. And, we did this exercise 10 times to cover the 141 yearly observations within our complete data set. So, the first prediction window went from 1880 to 1893. We used a model with history from 1894 to 2020 to attempt to predict the 1880 – 1893 years. The second prediction window was from 1894 to 1907. We used a model with history in all other years outside the prediction window. And, we continued this process until using the most recent 14 years as our prediction window. The table compares the Mean Absolute Error (MAE) of each of our three models when we first used the entire data set to fit the history. Next, it discloses the MAE that is the average MAE of the 10 cross validation prediction windows. And, next we look at the ratio or multiple of the cross validations MAE divided by the MAE during history. The cross validation MAE by definition should be much higher than the MAE during history. If that multiple is greater than 1.5, you may be dealing with a model that is overfit. As shown above, all our three models perform well on this count with very little deterioration during the cross validation test. Again the complete Model is a bit better than the other two. And, at the margin our CO2 model did a bit better than the Trend 2 model during cross validation.

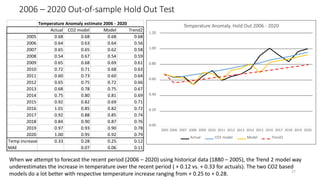

2006 – 2020 Out-of-sample Hold Out Test 27 Temperature Anomaly estimate 2006 - 2020 Actual CO2 model Model Trend2 2005 0.68 0.68 0.68 0.68 2006 0.64 0.63 0.64 0.56 2007 0.65 0.65 0.62 0.58 2008 0.54 0.67 0.54 0.59 2009 0.65 0.68 0.69 0.61 2010 0.72 0.71 0.68 0.63 2011 0.60 0.73 0.60 0.64 2012 0.65 0.75 0.72 0.66 2013 0.68 0.78 0.75 0.67 2014 0.75 0.80 0.81 0.69 2015 0.92 0.82 0.69 0.71 2016 1.01 0.85 0.82 0.72 2017 0.92 0.88 0.85 0.74 2018 0.84 0.90 0.87 0.76 2019 0.97 0.93 0.90 0.78 2020 1.00 0.95 0.92 0.79 Temp increase 0.33 0.28 0.25 0.12 MAE 0.07 0.06 0.11 Temperature Anomaly. Hold Out 2006 - 2020 1.20 1.00 0.80 0.60 0.40 0.20 0.00 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Actual CO2 model Model Trend2 When we attempt to forecast the recent period (2006 – 2020) using historical data (1880 – 2005), the Trend 2 model way underestimates the increase in temperature over the recent period ( + 0.12 vs. + 0.33 for actuals). The two CO2 based models do a lot better with respective temperature increase ranging from + 0.25 to + 0.28.

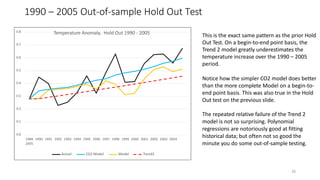

1990 – 2005 Out-of-sample Hold Out Test 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 Temperature Anomaly. Hold Out 1990 - 2005 Actual CO2 Model Model Trend2 This is the exact same pattern as the prior Hold Out Test. On a begin-to-end point basis, the Trend 2 model greatly underestimates the temperature increase over the 1990 – 2005 period. 28 Notice how the simpler CO2 model does better than the more complete Model on a begin-to- end point basis. This was also true in the Hold Out test on the previous slide. The repeated relative failure of the Trend 2 model is not so surprising. Polynomial regressions are notoriously good at fitting historical data; but often not so good the minute you do some out-of-sample testing.

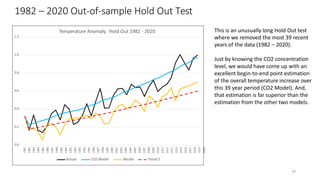

1982 – 2020 Out-of-sample Hold Out Test 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model Model Trend 2 This is an unusually long Hold Out test where we removed the most 39 recent years of the data (1982 – 2020). 29 Just by knowing the CO2 concentration level, we would have come up with an excellent begin-to-end point estimation of the overall temperature increase over this 39 year period (CO2 Model). And, that estimation is far superior than the estimation from the other two models.

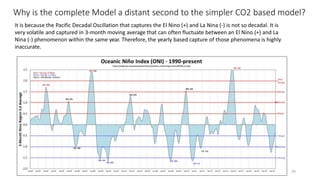

Why is the complete Model a distant second to the simpler CO2 based model? It is because the Pacific Decadal Oscillation that captures the El Nino (+) and La Nina (-) is not so decadal. It is very volatile and captured in 3-month moving average that can often fluctuate between an El Nino (+) and La Nina (-) phenomenon within the same year. Therefore, the yearly based capture of those phenomena is highly inaccurate. 30
Attempt to improve Hold Out with a Robust Quantile Regression regular CO2 model. To the contrary, the regular CO2 model generated a better set of predictions over this Hold Out period. This gives us some comfort that this CO2 model is pretty well specified, not overly influenced by outliers within its historical data, and able to make really pretty good predictions over a 39 year period. Prediction success over such a long period (just assuming we know the accurate value of CO2 concentration) is very rare for such time series models.31 Temperature Anomaly. Hold Out 1982 - 2020 1.2 1.0 0.8 0.6 0.4 0.2 0.0 1981 1983 1985 1987 1989 1991 1993 1995 1997 1999 2001 2003 2005 2007 2009 2011 2013 2015 2017 2019 Actual CO2 Model Robust Model Linear regressions such as our CO2 models can be affected by outliers of both the Y variable (temperature) due to variables not included in the model (El Nino/La Nina, influence of other greenhouse gases, etc.) or the X variable (non linear change or random jumps in the CO2 concentration variable). To remedy the above issue of a regression coefficients being influenced or distorted by outliers in the historical data, we use robust regressions that are more resistant to the influence of such outliers. A common robust regression method is Quantile Regression that regresses to the Median instead of the Mean. And, therefore much reduces the influence of outliers. However, as shown such a Robust Quantile Regression did not improve the Hold Out performance of our

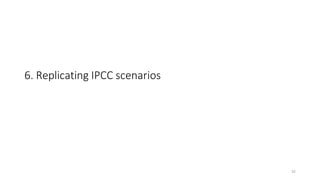

6. Replicating IPCC scenarios 32

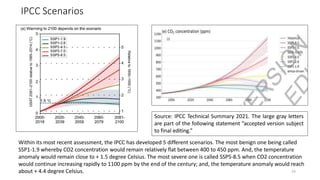

IPCC Scenarios 33 Within its most recent assessment, the IPCC has developed 5 different scenarios. The most benign one being called SSP1-1.9 whereby CO2 concentration would remain relatively flat between 400 to 450 ppm. And, the temperature anomaly would remain close to + 1.5 degree Celsius. The most severe one is called SSP5-8.5 when CO2 concentration would continue increasing rapidly to 1100 ppm by the end of the century; and, the temperature anomaly would reach about + 4.4 degree Celsius. Source: IPCC Technical Summary 2021. The large gray letters are part of the following statement ”accepted version subject to final editing.”

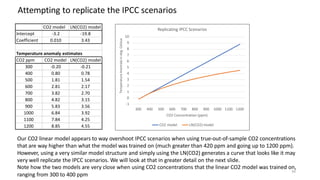

34 CO2 model LN(CO2) model Intercept -3.2 -19.8 Coefficient 0.010 3.43 Temperature anomaly estimates CO2 ppm CO2 model LN(CO2) model 300 -0.20 -0.21 400 0.80 0.78 500 1.81 1.54 600 2.81 2.17 700 3.82 2.70 800 4.82 3.15 900 5.83 3.56 1000 6.84 3.92 1100 7.84 4.25 1200 8.85 4.55 Temperature Anomaly in deg. Celsius Replicating IPCC Scenarios 10 9 8 7 6 5 4 3 2 1 0 -1 300 400 500 600 700 800 900 1000 1100 1200 CO2 Concentration (ppm) CO2 model LN(CO2) model Attempting to replicate the IPCC scenarios Our CO2 linear model appears to way overshoot IPCC scenarios when using true-out-of-sample CO2 concentrations that are way higher than what the model was trained on (much greater than 420 ppm and going up to 1200 ppm). However, using a very similar model structure and simply using the LN(CO2) generates a curve that looks like it may very well replicate the IPCC scenarios. We will look at that in greater detail on the next slide. Note how the two models are very close when using CO2 concentrations that the linear CO2 model was trained on, ranging from 300 to 400 ppm

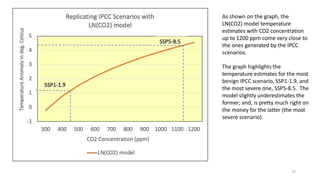

As shown on the graph, the LN(CO2) model temperature estimates with CO2 concentration up to 1200 ppm come very close to the ones generated by the IPCC scenarios. The graph highlights the temperature estimates for the most benign IPCC scenario, SSP1-1.9, and the most severe one, SSP5-8.5. The model slightly underestimates the former; and, is pretty much right on the money for the latter (the most severe scenario). 35

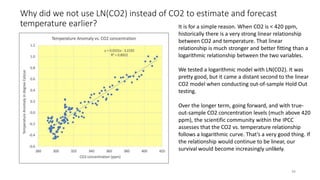

Why did we not use LN(CO2) instead of CO2 to estimate and forecast temperature earlier? It is for a simple reason. When CO2 is < 420 ppm, historically there is a very strong linear relationship between CO2 and temperature. That linear relationship is much stronger and better fitting than a logarithmic relationship between the two variables. 36 We tested a logarithmic model with LN(CO2). It was pretty good, but it came a distant second to the linear CO2 model when conducting out-of-sample Hold Out testing. Over the longer term, going forward, and with true- out-sample CO2 concentration levels (much above 420 ppm), the scientific community within the IPCC assesses that the CO2 vs. temperature relationship follows a logarithmic curve. That’s a very good thing. If the relationship would continue to be linear, our survival would become increasingly unlikely.

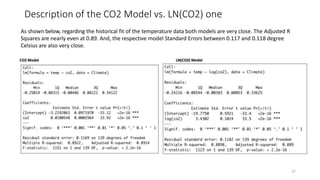

Description of the CO2 Model vs. LN(CO2) one As shown below, regarding the historical fit of the temperature data both models are very close. The Adjusted R Squares are nearly even at 0.89. And, the respective model Standard Errors between 0.117 and 0.118 degree Celsius are also very close. 37
1982 – 2020 Out-of-sample Hold Out Test. CO2 Model vs. LN(CO2) Model As shown on our long out-of-sample Hold Out test (1982 – 2020), the CO2 model performs much better than the LN(CO2) model. This is especially true if we look at it from a begin-to-endpoint perspective. The CO2 model just about meets the endpoint in 2020 when the temperature anomaly is + 1.00 degree Celsius. Meanwhile, the LN(CO2) model misses it by almost 0.2 degree Celsius. 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model LN(CO2) Model 38
39 7. Granger Causality, VAR, IRFs We will use the mentioned statistical methods to attempt to assess the causality of the CO2 concentration on temperature. Based on the disclosed work so far we already know there is a very strong association, or correlation, between the two. But, is this association truly causal? Demonstrating causality in any such models is most often extremely challenging. Often one can’t demonstrate true causality or even Granger causality (a less absolute definition of causality that merely entails that one variable is the chronological predecessor of another without necessarily causing the other.

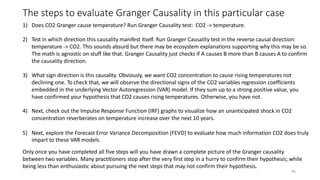

40 The steps to evaluate Granger Causality in this particular case 1) Does CO2 Granger cause temperature? Run Granger Causality test: CO2 -> temperature. 2) Test in which direction this causality manifest itself. Run Granger Causality test in the reverse causal direction: temperature -> CO2. This sounds absurd but there may be ecosystem explanations supporting why this may be so. The math is agnostic on stuff like that. Granger Causality just checks if A causes B more than B causes A to confirm the causality direction. 3) What sign direction is this causality. Obviously, we want CO2 concentration to cause rising temperatures not declining one. To check that, we will observe the directional signs of the CO2 variables regression coefficients embedded in the underlying Vector Autoregression (VAR) model. If they sum up to a strong positive value, you have confirmed your hypothesis that CO2 causes rising temperatures. Otherwise, you have not. 4) Next, check out the Impulse Response Function (IRF) graphs to visualize how an unanticipated shock in CO2 concentration reverberates on temperature increase over the next 10 years. 5) Next, explore the Forecast Error Variance Decomposition (FEVD) to evaluate how much information CO2 does truly impart to these VAR models. Only once you have completed all five steps will you have drawn a complete picture of the Granger causality between two variables. Many practitioners stop after the very first step in a hurry to confirm their hypothesis; while being less than enthusiastic about pursuing the next steps that may not confirm their hypothesis.

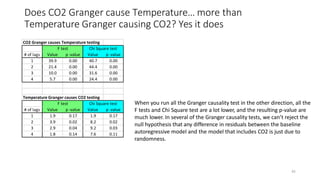

Does CO2 Granger cause Temperature? 41 Yes, it does We ran a set of Granger Causality tests. You start with a baseline autoregressive model that just includes 1 yearly lag of the temperature to estimate the temperature history. Next, you develop a second model by adding the 1 year lag of CO2 to also estimate the temperature history. Finally, you test with an F test and a Chi Square test whether the residuals of the second model including the CO2 lag are much lower than the residuals of the baseline autoregressive model. If they are indeed lower at a statistically significant level, you conclude that CO2 does Granger cause temperature. You repeat this procedure up to including 4 yearly lags (we did not contemplate using more lags. Beyond 4 yearly lags, we may likely start overfitting the model on the autoregressive properties of the respective time series). As shown above, both the series of F tests and Chi Square tests using models with up to 4 lags all confirm that CO2 clearly Granger cause temperature. Indeed, in all cases the resulting p-values are essentially Zero allowing us to reject the null hypothesis that there is no statistically significant difference between the two sets of residuals (baseline autoregressive model vs. model including the CO2 lags). CO2 Granger causes Temperature testing F test Value p -value Chi Square test Value p -value # of lags 1 39.9 0.00 40.7 0.00 2 21.4 0.00 44.4 0.00 3 10.0 0.00 31.6 0.00 4 5.7 0.00 24.4 0.00
Does CO2 Granger cause Temperature… more than Temperature Granger causing CO2? Yes it does 42 CO2 Granger causes Temperature testing F test Value p -value Chi Square test Value p -value # of lags 1 39.9 0.00 40.7 0.00 2 21.4 0.00 44.4 0.00 3 10.0 0.00 31.6 0.00 4 5.7 0.00 24.4 0.00 Temperature Granger causes CO2 testing F test Value p -value Chi Square test Value p -value # of lags 1 1.9 0.17 1.9 0.17 2 3.9 0.02 8.2 0.02 3 2.9 0.04 9.2 0.03 4 1.8 0.14 7.6 0.11 When you run all the Granger causality test in the other direction, all the F tests and Chi Square test are a lot lower, and the resulting p-value are much lower. In several of the Granger causality tests, we can’t reject the null hypothesis that any difference in residuals between the baseline autoregressive model and the model that includes CO2 is just due to randomness.

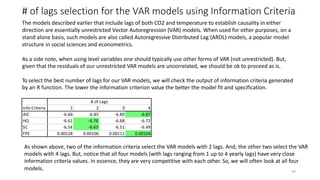

# of lags selection for the VAR models using Information Criteria The models described earlier that include lags of both CO2 and temperature to establish causality in either direction are essentially unrestricted Vector Autoregression (VAR) models. When used for other purposes, on a stand alone basis, such models are also called Autoregressive Distributed Lag (ARDL) models, a popular model structure in social sciences and econometrics. 43 As a side note, when using level variables one should typically use other forms of VAR (not unrestricted). But, given that the residuals of our unrestricted VAR models are uncorrelated, we should be ok to proceed as is. To select the best number of lags for our VAR models, we will check the output of information criteria generated by an R function. The lower the information criterion value the better the model fit and specification. # of Lags Info Criteria 1 2 3 4 AIC -6.66 -6.85 -6.80 -6.87 HQ -6.61 -6.76 -6.63 -6.68 -6.72 SC -6.54 -6.51 -6.49 FPE 0.00128 0.00106 0.00111 0.00104 As shown above, two of the information criteria select the VAR models with 2 lags. And, the other two select the VAR models with 4 lags. But, notice that all four models (with lags ranging from 1 up to 4 yearly lags) have very close information criteria values. In essence, they are very competitive with each other. So, we will often look at all four models.

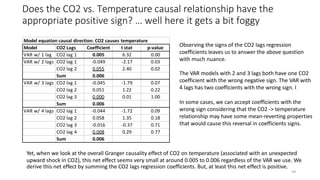

Does the CO2 vs. Temperature causal relationship have the appropriate positive sign? … well here it gets a bit foggy Yet, when we look at the overall Granger causality effect of CO2 on temperature (associated with an unexpected upward shock in CO2), this net effect seems very small at around 0.005 to 0.006 regardless of the VAR we use. We derive this net effect by summing the CO2 lags regression coefficients. But, at least this net effect is positive. 44 Model equation causal direction: CO2 causes temperature Model CO2 Lags Coefficient t stat p-value VAR w/ 1 lag CO2 lag 1 0.005 6.32 0.00 VAR w/ 2 lags CO2 lag 1 -0.049 -2.17 0.03 CO2 lag 2 0.055 2.40 0.02 Sum 0.006 VAR w/ 3 lags CO2 lag 1 -0.045 -1.79 0.07 CO2 lag 2 0.051 1.22 0.22 CO2 lag 3 0.000 0.01 1.00 Sum 0.006 VAR w/ 4 lags CO2 lag 1 -0.044 -1.72 0.09 CO2 lag 2 0.058 1.35 0.18 CO2 lag 3 -0.016 -0.37 0.71 CO2 lag 4 0.008 0.29 0.77 Sum 0.006 Observing the signs of the CO2 lags regression coefficients leaves us to answer the above question with much nuance. The VAR models with 2 and 3 lags both have one CO2 coefficient with the wrong negative sign. The VAR with 4 lags has two coefficients with the wrong sign. I In some cases, we can accept coefficients with the wrong sign considering that the CO2 -> temperature relationship may have some mean-reverting properties that would cause this reversal in coefficients signs.

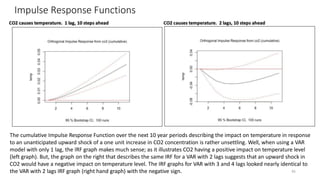

Impulse Response Functions 45 The cumulative Impulse Response Function over the next 10 year periods describing the impact on temperature in response to an unanticipated upward shock of a one unit increase in CO2 concentration is rather unsettling. Well, when using a VAR model with only 1 lag, the IRF graph makes much sense; as it illustrates CO2 having a positive impact on temperature level (left graph). But, the graph on the right that describes the same IRF for a VAR with 2 lags suggests that an upward shock in CO2 would have a negative impact on temperature level. The IRF graphs for VAR with 3 and 4 lags looked nearly identical to the VAR with 2 lags IRF graph (right hand graph) with the negative sign.
46 Forecast Error Variance Decomposition (FEVD) For the VAR with 1 lag model fitting temperature, the table indicates that the autoregressive lag of temperature provides the vast majority of the information to fit temperature as the Y dependent variable. And, that the exogenous CO2 lag 1 variable provides very little information to the model. The FEVD profile for all the other VAR models with up to 4 lags had the exact same FEVD profile with the lags of the temperature variable providing over 99% of the information to the model; and, the exogenous CO2 lags providing very little information to these VAR models. Forecast Error Variance Decomposition (FEVD) VAR with just 1 lag CO2 causes temperature Period temperature co2 1 1.000 0.000 2 1.000 0.000 3 0.999 0.001 4 0.998 0.002 5 0.997 0.003 6 0.996 0.004 7 0.995 0.005 8 0.994 0.006 9 0.992 0.008 10 0.991 0.009

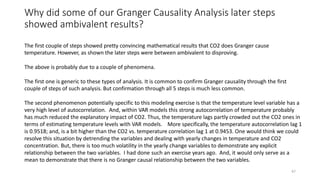

47 Why did some of our Granger Causality Analysis later steps showed ambivalent results? The first couple of steps showed pretty convincing mathematical results that CO2 does Granger cause temperature. However, as shown the later steps were between ambivalent to disproving. The above is probably due to a couple of phenomena. The first one is generic to these types of analysis. It is common to confirm Granger causality through the first couple of steps of such analysis. But confirmation through all 5 steps is much less common. The second phenomenon potentially specific to this modeling exercise is that the temperature level variable has a very high level of autocorrelation. And, within VAR models this strong autocorrelation of temperature probably has much reduced the explanatory impact of CO2. Thus, the temperature lags partly crowded out the CO2 ones in terms of estimating temperature levels with VAR models. More specifically, the temperature autocorrelation lag 1 is 0.9518; and, is a bit higher than the CO2 vs. temperature correlation lag 1 at 0.9453. One would think we could resolve this situation by detrending the variables and dealing with yearly changes in temperature and CO2 concentration. But, there is too much volatility in the yearly change variables to demonstrate any explicit relationship between the two variables. I had done such an exercise years ago. And, it would only serve as a mean to demonstrate that there is no Granger causal relationship between the two variables.
48 8. VAR Forecast Here we will revisit forecasting temperature anomaly over the 1982 – 2020 period using a model trained using 1880 – 1981 data. But, using VAR structures we will now attempt to conduct this forecast with no information whatsoever (no info regarding prospective CO2 concentration levels). This type of forecast testing is so challenging that it is bordering on the absurd. Imagine actually forecasting a time series variable (S&P 500, GDP, CPI, etc.) over the next 39 years without any exogenous information over those prospective years. That be probably close to impossible.

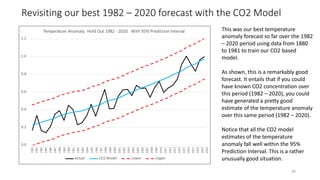

Revisiting our best 1982 – 2020 forecast with the CO2 Model This was our best temperature anomaly forecast so far over the 1982 – 2020 period using data from 1880 to 1981 to train our CO2 based model. As shown, this is a remarkably good forecast. It entails that if you could have known CO2 concentration over this period (1982 – 2020), you could have generated a pretty good estimate of the temperature anomaly over this same period (1982 – 2020). Notice that all the CO2 model estimates of the temperature anomaly fall well within the 95% Prediction Interval. This is a rather unusually good situation. 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020. With 95% Prediction Interval Actual CO2 Model Lower Upper 49

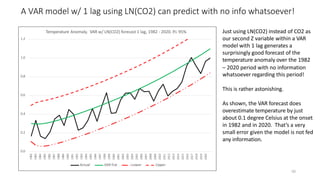

A VAR model w/ 1 lag using LN(CO2) can predict with no info whatsoever! 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. VAR w/ LN(CO2) forecast 1 lag, 1982 - 2020. P.I. 95% Actual VAR fcst Lower Upper Just using LN(CO2) instead of CO2 as our second Z variable within a VAR model with 1 lag generates a surprisingly good forecast of the temperature anomaly over the 1982 – 2020 period with no information whatsoever regarding this period! 50 This is rather astonishing. As shown, the VAR forecast does overestimate temperature by just about 0.1 degree Celsius at the onset in 1982 and in 2020. That’s a very small error given the model is not fed any information.

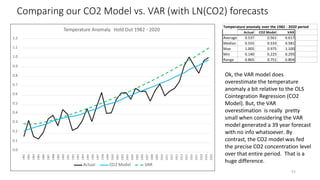

Comparing our CO2 Model vs. VAR (with LN(CO2) forecasts 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model VAR Temperature anomaly over the 1982 - 2020 period Actual CO2 Model VAR Average 0.537 0.561 0.617 Median 0.555 0.533 0.581 Max 1.005 0.975 1.100 Min 0.140 0.225 0.295 Range 0.865 0.751 0.804 51 Ok, the VAR model does overestimate the temperature anomaly a bit relative to the OLS Cointegration Regression (CO2 Model). But, the VAR overestimation is really pretty small when considering the VAR model generated a 39 year forecast with no info whatsoever. By contrast, the CO2 model was fed the precise CO2 concentration level over that entire period. That is a huge difference.

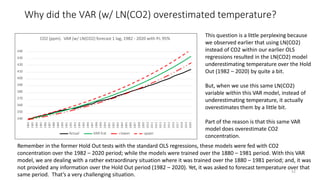

Why did the VAR (w/ LN(CO2) overestimated temperature? 52 440 430 420 410 400 390 380 370 360 350 340 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 CO2 (ppm). VAR (w/ LN(CO2) forecast 1 lag, 1982 - 2020 with P.I. 95% Actual VAR fcst lower upper This question is a little perplexing because we observed earlier that using LN(CO2) instead of CO2 within our earlier OLS regressions resulted in the LN(CO2) model underestimating temperature over the Hold Out (1982 – 2020) by quite a bit. But, when we use this same LN(CO2) variable within this VAR model, instead of underestimating temperature, it actually overestimates them by a little bit. Part of the reason is that this same VAR model does overestimate CO2 concentration. Remember in the former Hold Out tests with the standard OLS regressions, these models were fed with CO2 concentration over the 1982 – 2020 period; while the models were trained over the 1880 – 1981 period. With this VAR model, we are dealing with a rather extraordinary situation where it was trained over the 1880 – 1981 period; and, it was not provided any information over the Hold Out period (1982 – 2020). Yet, it was asked to forecast temperature over that same period. That’s a very challenging situation.

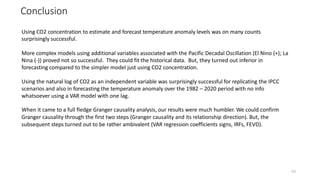

Conclusion 53 Using CO2 concentration to estimate and forecast temperature anomaly levels was on many counts surprisingly successful. More complex models using additional variables associated with the Pacific Decadal Oscillation (El Nino (+); La Nina (-)) proved not so successful. They could fit the historical data. But, they turned out inferior in forecasting compared to the simpler model just using CO2 concentration. Using the natural log of CO2 as an independent variable was surprisingly successful for replicating the IPCC scenarios and also in forecasting the temperature anomaly over the 1982 – 2020 period with no info whatsoever using a VAR model with one lag. When it came to a full fledge Granger causality analysis, our results were much humbler. We could confirm Granger causality through the first two steps (Granger causality and its relationship direction). But, the subsequent steps turned out to be rather ambivalent (VAR regression coefficients signs, IRFs, FEVD).

More Related Content

PPT
Global Warming
byGaetan Lion

PPT
Global Warming Update
byGaetan Lion

PPTX
Climate change model forecast global temperature out to 2100
byGaetan Lion

PPT
A Statistical Analysis of Global Warming
byGaetan Lion

PPT
Power Notes - Measurements and Dealing with Data
byjmori

PPTX
What to Expect from the Paris Climate Conference
byPCKnapp

PPT
Reaction Rate Graph Tutorial 2
bypaulbhill

PDF
ABSTRACT_MSc
byFahri AGLAR, Ph.D.

Global Warming
byGaetan Lion

Global Warming Update
byGaetan Lion

Climate change model forecast global temperature out to 2100
byGaetan Lion

A Statistical Analysis of Global Warming
byGaetan Lion

Power Notes - Measurements and Dealing with Data
byjmori

What to Expect from the Paris Climate Conference
byPCKnapp

Reaction Rate Graph Tutorial 2
bypaulbhill

ABSTRACT_MSc
byFahri AGLAR, Ph.D.


What's hot

PDF
Ijetr021254
byEngineering Research Publication

PDF
05 part1 combustion reactions
bygunabalan sellan

PDF
finalHTproj
byShawn Robinson

PDF
05 part1 combustion reactions
bygunabalan sellan

PPT
Reaction Rate Graph Tutorial 4
bypaulbhill

PDF
Thompson, Rona: Changes in Net Ecosystem Exchange over Europe During the 2018...
byIntegrated Carbon Observation System (ICOS)

PDF
Mine Risk Control
byJun Steed Huang

PPT
Reaction Rate Graph Tutorial 3
bypaulbhill

DOCX
EXP1 Dissociation of Propionic Acid Vapor
byRashid Alsuwaidi

PDF
Convert all volume_004
byHidayathullah Baig

PPTX
Chem 2 - Chemical Equilibrium VI: Heterogeneous Equilibria
byLumen Learning

DOC
Book of Calculator Programs 01e
bySteveBoylan2

PPTX
Le châtelier’s principle
bygbsliebs2002

PPTX
Chem 2 - Chemical Equilibrium V: ICE Tables and Equilibrium Calculations
byLumen Learning

PDF
Gas laws
byPSC Learning Chemistry

PPT
CONVERSION OF TEMPERATURE
byGregilyn Santos

PPTX
CHM023L - B06 Final Report Group 3 Experiment 3 (Chemical Equilibrium: Le Cha...
byChino Chino

PDF
Vernier exploring gas laws lab
byBrad Kremer

PDF
Chapter 4.4(charles' law)
byap080056

PDF
2005 Carbon Dioxide Forecast for Alarm, NT, Canada
byAdam Kuhn

Ijetr021254
byEngineering Research Publication

05 part1 combustion reactions
bygunabalan sellan

finalHTproj
byShawn Robinson

05 part1 combustion reactions
bygunabalan sellan

Reaction Rate Graph Tutorial 4
bypaulbhill

Thompson, Rona: Changes in Net Ecosystem Exchange over Europe During the 2018...
byIntegrated Carbon Observation System (ICOS)

Mine Risk Control
byJun Steed Huang

Reaction Rate Graph Tutorial 3
bypaulbhill

EXP1 Dissociation of Propionic Acid Vapor
byRashid Alsuwaidi

Convert all volume_004
byHidayathullah Baig

Chem 2 - Chemical Equilibrium VI: Heterogeneous Equilibria
byLumen Learning

Book of Calculator Programs 01e
bySteveBoylan2

Le châtelier’s principle
bygbsliebs2002

Chem 2 - Chemical Equilibrium V: ICE Tables and Equilibrium Calculations
byLumen Learning

Gas laws
byPSC Learning Chemistry

CONVERSION OF TEMPERATURE
byGregilyn Santos

CHM023L - B06 Final Report Group 3 Experiment 3 (Chemical Equilibrium: Le Cha...
byChino Chino

Vernier exploring gas laws lab
byBrad Kremer

Chapter 4.4(charles' law)
byap080056

2005 Carbon Dioxide Forecast for Alarm, NT, Canada
byAdam Kuhn


Similar to Climate Change Model

DOCX
Chapter 16 Inference for RegressionClimate ChangeThe .docx
byketurahhazelhurst

PDF
R language Project report
byTianyue Wang

PDF
Spatio-Temporal Trend Analysis of Projected Temperature over Rwanda
byiosrjce

PDF
Forbes co2 and temperature presentation for earth day at cua april 22 2015 ...
byKevin Forbes

PPTX
F-414-slide business forecasting finance
bytasfia2020214487

PDF
Slides lyon-3
byArthur Charpentier

PDF
CLIM Fall 2017 Course: Statistics for Climate Research, Statistics of Climate...
byThe Statistical and Applied Mathematical Sciences Institute

PDF
Journal of Atmospheric Science Research | Vol.5, Iss.3 July 2022
byBilingual Publishing Group

PDF
Fabrizio D'Aprile _ EGU2016
byFabrizio D'Aprile

PDF
thank you Letvon UIUAIUE aHo temytibiole This interactive g.pdf
byablooms

PDF
LONG YEARS COMPARATIVE CLIMATE CHANGE TREND ANALYSIS IN TERMS OF TEMPERATURE,...
bySurendra Bam

PDF
CLIM: Transition Workshop - Incorporating Spatial Dependence in Remote Sensin...
byThe Statistical and Applied Mathematical Sciences Institute

PDF
Concern over the weather associated with El Nino has increased intere.pdf
byarihanthtextiles

PPTX
CO2-Data-Preprocessing-Analysis Business Forecasting
bytasfia2020214487

PDF
Are the beliefs of the climate change deniers, skeptics, and trivializers sup...
byEconomic and Social Research Institute

DOCX
Questions1. How are CO2 concentration and temperature relat.docx
bymakdul

PPTX
Climate Change in 24 US Cities
byGaetan Lion

DOCX
Durbib- Watson D between 0-2 means there is a positive correlati
byAlyciaGold776

KEY
Prediction of runoff seasonality in ungauged basins
bypierluigi claps

PDF
Use of a Weather Generator for analysis of projections of future daily temper...
byEmanuele Cordano

Chapter 16 Inference for RegressionClimate ChangeThe .docx
byketurahhazelhurst

R language Project report
byTianyue Wang

Spatio-Temporal Trend Analysis of Projected Temperature over Rwanda
byiosrjce

Forbes co2 and temperature presentation for earth day at cua april 22 2015 ...
byKevin Forbes

F-414-slide business forecasting finance
bytasfia2020214487

Slides lyon-3
byArthur Charpentier

CLIM Fall 2017 Course: Statistics for Climate Research, Statistics of Climate...
byThe Statistical and Applied Mathematical Sciences Institute

Journal of Atmospheric Science Research | Vol.5, Iss.3 July 2022
byBilingual Publishing Group

Fabrizio D'Aprile _ EGU2016
byFabrizio D'Aprile

thank you Letvon UIUAIUE aHo temytibiole This interactive g.pdf
byablooms

LONG YEARS COMPARATIVE CLIMATE CHANGE TREND ANALYSIS IN TERMS OF TEMPERATURE,...
bySurendra Bam

CLIM: Transition Workshop - Incorporating Spatial Dependence in Remote Sensin...
byThe Statistical and Applied Mathematical Sciences Institute

Concern over the weather associated with El Nino has increased intere.pdf
byarihanthtextiles

CO2-Data-Preprocessing-Analysis Business Forecasting
bytasfia2020214487

Are the beliefs of the climate change deniers, skeptics, and trivializers sup...
byEconomic and Social Research Institute

Questions1. How are CO2 concentration and temperature relat.docx
bymakdul

Climate Change in 24 US Cities
byGaetan Lion

Durbib- Watson D between 0-2 means there is a positive correlati
byAlyciaGold776

Prediction of runoff seasonality in ungauged basins
bypierluigi claps

Use of a Weather Generator for analysis of projections of future daily temper...
byEmanuele Cordano


More from Gaetan Lion

PPTX
US inequality along numerous dimensions
byGaetan Lion

PPTX
The US Fiscal Crisis Explained: Aging, Tax cuts, or Overspending
byGaetan Lion

PPTX
DRU projections testing.pptx
byGaetan Lion

PPTX
Compact Letter Display (CLD). How it works
byGaetan Lion

PPTX
CalPERS pensions vs. Social Security
byGaetan Lion

PPTX
Recessions.pptx
byGaetan Lion

PPTX
Inequality in the United States
byGaetan Lion

PPTX
Housing Price Models
byGaetan Lion

PDF
Global Aging.pdf
byGaetan Lion

PPTX
Cryptocurrencies as an asset class
byGaetan Lion

PPTX
Can you Deep Learn the Stock Market?
byGaetan Lion

PPTX
Can Treasury Inflation Protected Securities predict Inflation?
byGaetan Lion

PPTX
How overvalued is the Stock Market?
byGaetan Lion

PPTX
The relationship between the Stock Market and Interest Rates
byGaetan Lion

PPTX
Life expectancy
byGaetan Lion

PPTX
Comparing R vs. Python for data visualization
byGaetan Lion

PPTX
Will Stock Markets survive in 200 years?
byGaetan Lion

PPTX
Standardization
byGaetan Lion

PPTX
Is Tom Brady the greatest quarterback?
byGaetan Lion

PPT
Regularization why you should avoid them
byGaetan Lion

US inequality along numerous dimensions
byGaetan Lion

The US Fiscal Crisis Explained: Aging, Tax cuts, or Overspending
byGaetan Lion

DRU projections testing.pptx
byGaetan Lion

Compact Letter Display (CLD). How it works
byGaetan Lion

CalPERS pensions vs. Social Security
byGaetan Lion

Recessions.pptx
byGaetan Lion

Inequality in the United States
byGaetan Lion

Housing Price Models
byGaetan Lion

Global Aging.pdf
byGaetan Lion

Cryptocurrencies as an asset class
byGaetan Lion

Can you Deep Learn the Stock Market?
byGaetan Lion

Can Treasury Inflation Protected Securities predict Inflation?
byGaetan Lion

How overvalued is the Stock Market?
byGaetan Lion

The relationship between the Stock Market and Interest Rates
byGaetan Lion

Life expectancy
byGaetan Lion

Comparing R vs. Python for data visualization
byGaetan Lion

Will Stock Markets survive in 200 years?
byGaetan Lion

Standardization
byGaetan Lion

Is Tom Brady the greatest quarterback?
byGaetan Lion

Regularization why you should avoid them
byGaetan Lion


Recently uploaded

PDF
Theory of Time 2025 (Universal Theory for Everything) Ramkumar K
byRAMKUMAR K

PDF
Primordial Black Holes as Seeds for Extremely Overmassive AGN Observed by JWST
bySérgio Sacani

PDF
Structure of Dna Presentation (1).pdf of class 1th
byAbhimanyuBisla

PPTX
Deep Learning in Intrusion Detection Systems.pptx
byrh503648

PPTX
NEUROBIOLOGY OF BEHAVIOUR: NEUROLOGICAL ASPECTS OF DRIVE, MOTIVATION, HUNGER,...
bySijo52

PPTX
Dengue infection by Krutika Gulvi.pptx microbiology department Maharashtra
byKrutika Gulvi

PDF
Two views of a rogue planet - saturn size rogue planet
bySérgio Sacani

PPT
Case presentation on the appendicitis disease
bytinkuluck4

PPTX
Agriculture_Green House _Cultivation of exotic vegetables_Presentation_Introd...
byYogesh Kulkarni

PDF
A gas-rich cosmic web revealed by the partitioning of the missing baryons
bySérgio Sacani

PDF
Blue Orange Scrapbook Collage Style Plant Behavior and Reproduction Group Wor...
bypriyadagar12

PPT
Fractures_of_upper_extremity.ppt589874417
bysefidsiyah2020

PPTX
Potts_Spine_With_Radiology_MRI_pptx.pptx
bysomyadixit7875

PDF
Introduction to Bayesian methods and Bayesian Neural Networks
byTomasz Kusmierczyk

PPTX
Case presentation on the macrocytic anaemia
bytinkuluck4

PDF
HubbleRevealsComplexMultiscaleStructureintheEdge-onProtoplanetaryDisk IRAS230...
bySérgio Sacani

PDF
JWST/NIRSpec Detects Warm CO Emission in the Terrestrial-Planet Zone of HD 13...
bySérgio Sacani

PPTX
BANCO DE PALABRAS 2 INGLES BASICO 2.pptx
byGeraldineVasquezarce

PDF
Minimal Ranks, Maximum Confidence: Parameter-efficient Uncertainty Quantifica...
byTomasz Kusmierczyk

PDF
Discovery and Multiwavelength Analysis of a New Dissociative Galaxy Cluster M...
bySérgio Sacani

Theory of Time 2025 (Universal Theory for Everything) Ramkumar K
byRAMKUMAR K

Primordial Black Holes as Seeds for Extremely Overmassive AGN Observed by JWST
bySérgio Sacani

Structure of Dna Presentation (1).pdf of class 1th
byAbhimanyuBisla

Deep Learning in Intrusion Detection Systems.pptx
byrh503648

NEUROBIOLOGY OF BEHAVIOUR: NEUROLOGICAL ASPECTS OF DRIVE, MOTIVATION, HUNGER,...
bySijo52

Dengue infection by Krutika Gulvi.pptx microbiology department Maharashtra
byKrutika Gulvi

Two views of a rogue planet - saturn size rogue planet
bySérgio Sacani

Case presentation on the appendicitis disease
bytinkuluck4

Agriculture_Green House _Cultivation of exotic vegetables_Presentation_Introd...
byYogesh Kulkarni

A gas-rich cosmic web revealed by the partitioning of the missing baryons
bySérgio Sacani

Blue Orange Scrapbook Collage Style Plant Behavior and Reproduction Group Wor...
bypriyadagar12

Fractures_of_upper_extremity.ppt589874417
bysefidsiyah2020

Potts_Spine_With_Radiology_MRI_pptx.pptx
bysomyadixit7875

Introduction to Bayesian methods and Bayesian Neural Networks
byTomasz Kusmierczyk

Case presentation on the macrocytic anaemia
bytinkuluck4

HubbleRevealsComplexMultiscaleStructureintheEdge-onProtoplanetaryDisk IRAS230...
bySérgio Sacani

JWST/NIRSpec Detects Warm CO Emission in the Terrestrial-Planet Zone of HD 13...
bySérgio Sacani

BANCO DE PALABRAS 2 INGLES BASICO 2.pptx
byGeraldineVasquezarce

Minimal Ranks, Maximum Confidence: Parameter-efficient Uncertainty Quantifica...
byTomasz Kusmierczyk

Discovery and Multiwavelength Analysis of a New Dissociative Galaxy Cluster M...
bySérgio Sacani


Climate Change Model

  • 1.
    Climate Change Models toEstimate and Forecast Temperature Gaetan Lion September 2021 1
  • 2.
    2 Content 1. Introduction 2. Data 3.Baseline trend models 4. CO2 models 5. Out-of-sample forecasts 6. Replicating IPCC scenarios 7. Granger Causality, VAR, IRFs 8. VAR Forecast
  • 3.
    3 1. Introduction This presentationdiscloses the modeling of global temperature* associated, or caused, by a rising concentration in CO2 in parts per million (ppm). Other variables will also be explored and tested to include within these Climate Change models. The above is: a) To assess the information imparted by CO2 concentration into this model estimating and predicting temperature; b) To test the accuracy of such models to fit the historical temperature data and to forecast temperature within out-of-sample testing framework; c) To replicate the most recent IPCC scenarios; d) To better understand the relationship between CO2 concentration and temperature and to attempt to demonstrate causality of CO2 -> temperature. * Measured as temperature anomaly over the 1850 – 1900 average global temperature.
  • 4.
  • 5.
    -0.6 -0.4 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 NOAA vs NASATemperature anomaly in degree Celsius NOAA NASA Temperature annual history going back to 1880 to 2020. The two overlapping series are from NASA and the NOAA. We will use the average of the two series. 5 Temperature records are captured as “temperature anomaly.” The latter represents the difference in temperature between a specific year and the average over the 1850 – 1900 period when the industrialization, level and CO2 concentration were much lower. Temperature anomaly is measured in degree Celsius (or Centigrade that are equivalent).
  • 6.
    Annual CO2 concentrationin parts per million from 1880 to 2020. Data from 1880 to 1958 is derived from a cooperative effort between three different scientific teams from Australia and France constructing the data derived from ice core analysis. Data from 1958 to 2020 is from the NOAA. 6
  • 7.
    We understand thatcomparing two levels variables, without detrending them, can lead to spurious correlations and regressions. However, when two level variables are cointegrated the above caveat is nullified. We will disclose later cointegration testing for these two variables. As observed this scatter plot shows a pretty strong correlation between the two variables. 7
  • 8.
    The relationship betweenCO2 and temperature can be split over two periods. The first one (1880 – 1970) with CO2 concentration ranging from 290 to 325 ppm is associated with a not so strong linear relationship between the two variables. The second one (1971 – 2020) with CO2 concentration ranging from 325 to close to 420 is associated with a very strong linear relationship. For the purpose of our modeling, we will not split the data as the related regression parameters are pretty stable (intercept and slope of the regression equations shown on the scatter plots). 8
  • 9.
    Checking the Autocorrelationof the Residuals of the Ordinary Least Square (OLS) Cointegration Regression: Temperature ~ CO2 9 Given that we are using level variables, the residuals autocorrelation levels as captured by the ACF and PACF graphs is reasonably low. And, at the onset suggests that these two variables (CO2 and temperature) may be indeed cointegrated. The PACF graph at the bottom is the one used to select the number of yearly lags we should select to conduct our unit root testing to confirm that these residuals are indeed stationary (do not have a unit root). Even though within the PACF graph, only lag 1 crosses the line of statistical significance ( > 0.2), we will use up to lag 4 to be more conservative.
  • 10.
    10 Testing the residualsof the OLS Cointegration Regression Temperature ~ CO2 for stationarity Test p-value Interpretation confirming residuals are stationary ADF test 0.01 Reject the null hypothesis that residuals are nonstationary Phillips Perron 0.01 Reject the null hypothesis that residuals are nonstationary KPSS > 0.1 Accept the null hypothesis that residuals are stationary We used 4 lags for each of the above unit root test. In each case, the respective unit root tests confirmed that the Cointegration Regression residuals were stationary. This confirmation allows us to proceed in modeling the relationship between CO2 and temperature using level variables knowing that these two variables are explicitly cointegrated. Further residual model testing often includes testing for autocorrelation, heteroskedasticity, and normal distribution. However, any related residual issues do not affect the regression coefficients biasness. They may affect the reliability of regression coefficients confidence intervals and their statistical significance. However, if such regression coefficients are associated with t-stats > 2.5 or 3.0, statistical significance is typically not an issue (even after adjusting with Robust Standard Errors). Additionally, in some cases as we’ll see we are not explicitly concerned with levels of statistical significance, as long as the variable make good sense in terms of explaining how the climate system works, and that the variable regression coefficient has the appropriate sign.
  • 11.
    11 3. Baseline trendmodels Within this section we will develop models that do not use CO2 as an exogenous variable but simply various trend variables (counting 1, 2, 3, 4,…). This is just to test whether just the passing of time is the driving trend and not so much CO2 as a causal factor. This is a pretty good test on whether your level-based original model is truly valid and not another example of a spurious regression using level variables.
  • 12.
    -0.4 -0.6 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. HistoricalFit of a simple Trend Model Actual Trend This model uses a single Trend variable (counting 1, 2, 3, etc.) to estimate the temperature over time. It does not use any exogenous information. 12 As shown, this Trend model is pretty terrible. Notice how it way underestimates temperatures at the onset from 1880 to 1900 and at the end from 2005 to 2020. In between from 1901 to 2004 it typically overestimates temperatures.
  • 13.
    13 The Trend Modelresiduals are pretty awful looking -0.40 -0.30 -0.20 -0.10 0.00 0.10 0.20 0.30 0.40 0.50 Residual 280 300 320 340 360 380 400 420 CO2 concentration (ppm) Trend Model residuals -0.40 -0.30 -0.20 -0.10 0.00 0.10 0.20 0.30 0.40 0.50 -0.60 -0.40 -0.20 0.40 0.60 Residual 0.00 0.20 Model Estimate Trend Model residuals A good model should have a residual curve (red dashed line) that is flat, straight, and sits at the 0.00 level. This would indicate residuals that are stationary and mean reverting around the 0.00 level. These residuals are far away from meeting that standard. They are clearly nonstationary.
  • 14.
    14 1.2 1.0 0.8 0.6 0.4 0.2 0.0 -0.2 -0.4 -0.6 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. Hist.Fit of a polynomial Trend Model Actual Trend 2 If we simply add a second Trend variable that represents the square of the Trend variable, we actually get a surprisingly good historical fit of the data in absence of any information from CO2. While the Trend variable starts with 1, 2, 3, etc.; the Trend square variable starts with 1, 4, 9, etc. The combination of those two variables make for a very good polynomial regression equation that fits the J shape curve of the data very well. We call this model Trend 2.
  • 15.
    The residual trendline (red) relative to Model Estimates on the x-axis within the right-hand graph is now perfectly flat, straight, and on the 0.00 line as it should. Even that same residual trend line when using CO2 concentration on the x-axis is actually reasonably flat. It looks like this model appear to capture a good deal of the information imparted by the CO2 variable. We have now a pretty competitive Baseline Trend model to assess the validity of our upcoming CO2 mode1ls5. The Trend 2 Model residuals are far better looking
  • 16.
    Description of theTrend 2 model The square of the trend (trend2) is a very large number, so the resulting regression coefficient is very small: 0.000085. 16 All the Goodness-of-fit measures are very high. And, the resulting model errors are pretty low. This is kind of amazing given that we have just used trend variables to fit the temperature history starting back in 1880.
  • 17.
    17 4. CO2 Models Wewill introduce two CO2 based models to estimate and forecast temperature. The first one will be our simple linear OLS Cointegration Regression just using CO2 as our stand alone exogenous variable. The second one will be a more complete model that will also include the influence on temperature from the Pacific Decadal Oscillation with warm years due to El Nino and cold years due to La Nina. This model will also include another intervention variable covering the years from 1940 to 1970 before sulfates aerosol were heavily regulated. Sulfates have a lowering effect on temperature that partly counters the rising effect of CO2.
  • 18.
    CO2 model description Noticethe extremely high t-stat of the CO2 coefficient, leaving no doubt as to the statistical significance of this variable. 18
  • 19.
    The CO2 modelhas very good looking residuals (flat red lines) 19
  • 20.
    The more completeCO2 based model The El Nino variable has a p-value of 0.155, not stat. significant at the Alpha < 0.10 level. However, within a sport betting market, this same p-value would correspond to one team being favored with odds close to 6-to-1 of winning. That be a pretty good bet. In view of the above, we are comfortable including the El Nino variable in our model. It also makes sense to include both years that have a positive impact on temperature (El Nino) with the ones that have a negative impact (La Nina). 20
  • 21.
    The complete Modelresiduals are still reasonably good looking (fairly flat red curves) 21
  • 22.
    22 Model Competition regardingthe fit of Temperature history CO2 model Model Trend 2 Adjusted R Square 0.891 0.917 0.888 Predicted R Square 0.890 0.913 0.885 RMSE 0.117 0.102 0.119 MAE 0.095 0.082 0.095 Whether looking at measure of variance explanation (Adjusted R Square), one-observation prediction (Predicted R Square) or model errors (RMSE and Mean Absolute Error), the three models are very close. The CO2 model and the Trend 2 model are just about dead even on all counts. The Model that includes the other variables such as El Nino and La Nina is fractionally more accurate. If we stopped our analysis now, one could prematurely conclude that the trend (including the trend square variable) just about explains everything regarding the progressive increase in temperature from 1880 and 2020. And, that the two CO2 based models really do not add much information if any above just capturing this trend. This could lead one to assessing our CO2 based models as “spurious.” Additional analysis will confirm otherwise supporting that including a CO2 variable far improves the prediction accuracy of such model. Fitting the historical data is one thing. Making reasonably accurate prediction is far more challenging and useful.
  • 23.
    1.2 1.0 0.8 0.6 0.4 0.2 0.0 -0.2 -0.4 -0.6 1880 1884 1888 1892 1896 1900 1904 1908 1912 1916 1920 1924 1928 1932 1936 1940 1944 1948 1952 1956 1960 1964 1968 1972 1976 1980 1984 1988 1992 1996 2000 2004 2008 2012 2016 2020 Temperature Anomaly. HistoricalFit Actual CO2 model Model Trend 2 When you visually compare the historical fit of the three models, they all fit the underlying J curve long term trend of temperature increase over the 1880 to 2020 period. 23 The more complete Model that includes the El Nino and La Nina variables does match some of the volatility or oscillations in the temperature annual data much better than the other two models. Otherwise, again really not much difference between the three models.
  • 24.

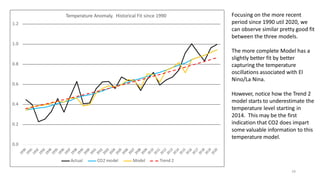

    0.0 0.2 0.4 0.6 0.8 1.0 1.2 Temperature Anomaly. HistoricalFit since 1990 Actual CO2 model Model Trend 2 Focusing on the more recent period since 1990 util 2020, we can observe similar pretty good fit between the three models. 24 The more complete Model has a slightly better fit by better capturing the temperature oscillations associated with El Nino/La Nina. However, notice how the Trend 2 model starts to underestimate the temperature level starting in 2014. This may be the first indication that CO2 does impart some valuable information to this temperature model.
  • 25.
    25 5. Out-of-sample forecasts Fittinghistorical data is one thing. And, one way or another it is often relatively easy even in the case of fitting historical temperature level from 1880 to 2020, as we have seen. Predicting observations using out-of-sample forecasts, also called Hold Out testing, is far more difficult and is a far more relevant test of a model predictive accuracy. With such models, you run often into a situation where a model fits the historical data really well, but predicts really poorly (in Hold Out testing). This is a classic situation of model overfitting. It happens all the time. Within this section we will test whether our models are overfit, or if instead they do provide predictive information.
  • 26.
    26 Cross Validation test MeanAbsolute Error History Cross-val. C.V./History CO2 model 0.095 0.099 1.05 Model 0.082 0.089 1.09 Trend 2 0.095 0.104 1.10 Cross validation is a rigorous form of out-of-sample forecast testing. In our case, we removed 14 observations from the data to create a 14-year prediction window. And, we did this exercise 10 times to cover the 141 yearly observations within our complete data set. So, the first prediction window went from 1880 to 1893. We used a model with history from 1894 to 2020 to attempt to predict the 1880 – 1893 years. The second prediction window was from 1894 to 1907. We used a model with history in all other years outside the prediction window. And, we continued this process until using the most recent 14 years as our prediction window. The table compares the Mean Absolute Error (MAE) of each of our three models when we first used the entire data set to fit the history. Next, it discloses the MAE that is the average MAE of the 10 cross validation prediction windows. And, next we look at the ratio or multiple of the cross validations MAE divided by the MAE during history. The cross validation MAE by definition should be much higher than the MAE during history. If that multiple is greater than 1.5, you may be dealing with a model that is overfit. As shown above, all our three models perform well on this count with very little deterioration during the cross validation test. Again the complete Model is a bit better than the other two. And, at the margin our CO2 model did a bit better than the Trend 2 model during cross validation.
  • 27.
    2006 – 2020Out-of-sample Hold Out Test 27 Temperature Anomaly estimate 2006 - 2020 Actual CO2 model Model Trend2 2005 0.68 0.68 0.68 0.68 2006 0.64 0.63 0.64 0.56 2007 0.65 0.65 0.62 0.58 2008 0.54 0.67 0.54 0.59 2009 0.65 0.68 0.69 0.61 2010 0.72 0.71 0.68 0.63 2011 0.60 0.73 0.60 0.64 2012 0.65 0.75 0.72 0.66 2013 0.68 0.78 0.75 0.67 2014 0.75 0.80 0.81 0.69 2015 0.92 0.82 0.69 0.71 2016 1.01 0.85 0.82 0.72 2017 0.92 0.88 0.85 0.74 2018 0.84 0.90 0.87 0.76 2019 0.97 0.93 0.90 0.78 2020 1.00 0.95 0.92 0.79 Temp increase 0.33 0.28 0.25 0.12 MAE 0.07 0.06 0.11 Temperature Anomaly. Hold Out 2006 - 2020 1.20 1.00 0.80 0.60 0.40 0.20 0.00 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Actual CO2 model Model Trend2 When we attempt to forecast the recent period (2006 – 2020) using historical data (1880 – 2005), the Trend 2 model way underestimates the increase in temperature over the recent period ( + 0.12 vs. + 0.33 for actuals). The two CO2 based models do a lot better with respective temperature increase ranging from + 0.25 to + 0.28.
  • 28.
    1990 – 2005Out-of-sample Hold Out Test 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 Temperature Anomaly. Hold Out 1990 - 2005 Actual CO2 Model Model Trend2 This is the exact same pattern as the prior Hold Out Test. On a begin-to-end point basis, the Trend 2 model greatly underestimates the temperature increase over the 1990 – 2005 period. 28 Notice how the simpler CO2 model does better than the more complete Model on a begin-to- end point basis. This was also true in the Hold Out test on the previous slide. The repeated relative failure of the Trend 2 model is not so surprising. Polynomial regressions are notoriously good at fitting historical data; but often not so good the minute you do some out-of-sample testing.
  • 29.
    1982 – 2020Out-of-sample Hold Out Test 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model Model Trend 2 This is an unusually long Hold Out test where we removed the most 39 recent years of the data (1982 – 2020). 29 Just by knowing the CO2 concentration level, we would have come up with an excellent begin-to-end point estimation of the overall temperature increase over this 39 year period (CO2 Model). And, that estimation is far superior than the estimation from the other two models.
  • 30.
    Why is thecomplete Model a distant second to the simpler CO2 based model? It is because the Pacific Decadal Oscillation that captures the El Nino (+) and La Nina (-) is not so decadal. It is very volatile and captured in 3-month moving average that can often fluctuate between an El Nino (+) and La Nina (-) phenomenon within the same year. Therefore, the yearly based capture of those phenomena is highly inaccurate. 30
  • 31.
    Attempt to improveHold Out with a Robust Quantile Regression regular CO2 model. To the contrary, the regular CO2 model generated a better set of predictions over this Hold Out period. This gives us some comfort that this CO2 model is pretty well specified, not overly influenced by outliers within its historical data, and able to make really pretty good predictions over a 39 year period. Prediction success over such a long period (just assuming we know the accurate value of CO2 concentration) is very rare for such time series models.31 Temperature Anomaly. Hold Out 1982 - 2020 1.2 1.0 0.8 0.6 0.4 0.2 0.0 1981 1983 1985 1987 1989 1991 1993 1995 1997 1999 2001 2003 2005 2007 2009 2011 2013 2015 2017 2019 Actual CO2 Model Robust Model Linear regressions such as our CO2 models can be affected by outliers of both the Y variable (temperature) due to variables not included in the model (El Nino/La Nina, influence of other greenhouse gases, etc.) or the X variable (non linear change or random jumps in the CO2 concentration variable). To remedy the above issue of a regression coefficients being influenced or distorted by outliers in the historical data, we use robust regressions that are more resistant to the influence of such outliers. A common robust regression method is Quantile Regression that regresses to the Median instead of the Mean. And, therefore much reduces the influence of outliers. However, as shown such a Robust Quantile Regression did not improve the Hold Out performance of our
  • 32.
    6. Replicating IPCCscenarios 32
  • 33.
    IPCC Scenarios 33 Within itsmost recent assessment, the IPCC has developed 5 different scenarios. The most benign one being called SSP1-1.9 whereby CO2 concentration would remain relatively flat between 400 to 450 ppm. And, the temperature anomaly would remain close to + 1.5 degree Celsius. The most severe one is called SSP5-8.5 when CO2 concentration would continue increasing rapidly to 1100 ppm by the end of the century; and, the temperature anomaly would reach about + 4.4 degree Celsius. Source: IPCC Technical Summary 2021. The large gray letters are part of the following statement ”accepted version subject to final editing.”
  • 34.
    34 CO2 model LN(CO2)model Intercept -3.2 -19.8 Coefficient 0.010 3.43 Temperature anomaly estimates CO2 ppm CO2 model LN(CO2) model 300 -0.20 -0.21 400 0.80 0.78 500 1.81 1.54 600 2.81 2.17 700 3.82 2.70 800 4.82 3.15 900 5.83 3.56 1000 6.84 3.92 1100 7.84 4.25 1200 8.85 4.55 Temperature Anomaly in deg. Celsius Replicating IPCC Scenarios 10 9 8 7 6 5 4 3 2 1 0 -1 300 400 500 600 700 800 900 1000 1100 1200 CO2 Concentration (ppm) CO2 model LN(CO2) model Attempting to replicate the IPCC scenarios Our CO2 linear model appears to way overshoot IPCC scenarios when using true-out-of-sample CO2 concentrations that are way higher than what the model was trained on (much greater than 420 ppm and going up to 1200 ppm). However, using a very similar model structure and simply using the LN(CO2) generates a curve that looks like it may very well replicate the IPCC scenarios. We will look at that in greater detail on the next slide. Note how the two models are very close when using CO2 concentrations that the linear CO2 model was trained on, ranging from 300 to 400 ppm
  • 35.
    As shown onthe graph, the LN(CO2) model temperature estimates with CO2 concentration up to 1200 ppm come very close to the ones generated by the IPCC scenarios. The graph highlights the temperature estimates for the most benign IPCC scenario, SSP1-1.9, and the most severe one, SSP5-8.5. The model slightly underestimates the former; and, is pretty much right on the money for the latter (the most severe scenario). 35
  • 36.
    Why did wenot use LN(CO2) instead of CO2 to estimate and forecast temperature earlier? It is for a simple reason. When CO2 is < 420 ppm, historically there is a very strong linear relationship between CO2 and temperature. That linear relationship is much stronger and better fitting than a logarithmic relationship between the two variables. 36 We tested a logarithmic model with LN(CO2). It was pretty good, but it came a distant second to the linear CO2 model when conducting out-of-sample Hold Out testing. Over the longer term, going forward, and with true- out-sample CO2 concentration levels (much above 420 ppm), the scientific community within the IPCC assesses that the CO2 vs. temperature relationship follows a logarithmic curve. That’s a very good thing. If the relationship would continue to be linear, our survival would become increasingly unlikely.
  • 37.
    Description of theCO2 Model vs. LN(CO2) one As shown below, regarding the historical fit of the temperature data both models are very close. The Adjusted R Squares are nearly even at 0.89. And, the respective model Standard Errors between 0.117 and 0.118 degree Celsius are also very close. 37
  • 38.
    1982 – 2020Out-of-sample Hold Out Test. CO2 Model vs. LN(CO2) Model As shown on our long out-of-sample Hold Out test (1982 – 2020), the CO2 model performs much better than the LN(CO2) model. This is especially true if we look at it from a begin-to-endpoint perspective. The CO2 model just about meets the endpoint in 2020 when the temperature anomaly is + 1.00 degree Celsius. Meanwhile, the LN(CO2) model misses it by almost 0.2 degree Celsius. 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model LN(CO2) Model 38
  • 39.
    39 7. Granger Causality,VAR, IRFs We will use the mentioned statistical methods to attempt to assess the causality of the CO2 concentration on temperature. Based on the disclosed work so far we already know there is a very strong association, or correlation, between the two. But, is this association truly causal? Demonstrating causality in any such models is most often extremely challenging. Often one can’t demonstrate true causality or even Granger causality (a less absolute definition of causality that merely entails that one variable is the chronological predecessor of another without necessarily causing the other.
  • 40.
    40 The steps toevaluate Granger Causality in this particular case 1) Does CO2 Granger cause temperature? Run Granger Causality test: CO2 -> temperature. 2) Test in which direction this causality manifest itself. Run Granger Causality test in the reverse causal direction: temperature -> CO2. This sounds absurd but there may be ecosystem explanations supporting why this may be so. The math is agnostic on stuff like that. Granger Causality just checks if A causes B more than B causes A to confirm the causality direction. 3) What sign direction is this causality. Obviously, we want CO2 concentration to cause rising temperatures not declining one. To check that, we will observe the directional signs of the CO2 variables regression coefficients embedded in the underlying Vector Autoregression (VAR) model. If they sum up to a strong positive value, you have confirmed your hypothesis that CO2 causes rising temperatures. Otherwise, you have not. 4) Next, check out the Impulse Response Function (IRF) graphs to visualize how an unanticipated shock in CO2 concentration reverberates on temperature increase over the next 10 years. 5) Next, explore the Forecast Error Variance Decomposition (FEVD) to evaluate how much information CO2 does truly impart to these VAR models. Only once you have completed all five steps will you have drawn a complete picture of the Granger causality between two variables. Many practitioners stop after the very first step in a hurry to confirm their hypothesis; while being less than enthusiastic about pursuing the next steps that may not confirm their hypothesis.
  • 41.
    Does CO2 Grangercause Temperature? 41 Yes, it does We ran a set of Granger Causality tests. You start with a baseline autoregressive model that just includes 1 yearly lag of the temperature to estimate the temperature history. Next, you develop a second model by adding the 1 year lag of CO2 to also estimate the temperature history. Finally, you test with an F test and a Chi Square test whether the residuals of the second model including the CO2 lag are much lower than the residuals of the baseline autoregressive model. If they are indeed lower at a statistically significant level, you conclude that CO2 does Granger cause temperature. You repeat this procedure up to including 4 yearly lags (we did not contemplate using more lags. Beyond 4 yearly lags, we may likely start overfitting the model on the autoregressive properties of the respective time series). As shown above, both the series of F tests and Chi Square tests using models with up to 4 lags all confirm that CO2 clearly Granger cause temperature. Indeed, in all cases the resulting p-values are essentially Zero allowing us to reject the null hypothesis that there is no statistically significant difference between the two sets of residuals (baseline autoregressive model vs. model including the CO2 lags). CO2 Granger causes Temperature testing F test Value p -value Chi Square test Value p -value # of lags 1 39.9 0.00 40.7 0.00 2 21.4 0.00 44.4 0.00 3 10.0 0.00 31.6 0.00 4 5.7 0.00 24.4 0.00
  • 42.
    Does CO2 Grangercause Temperature… more than Temperature Granger causing CO2? Yes it does 42 CO2 Granger causes Temperature testing F test Value p -value Chi Square test Value p -value # of lags 1 39.9 0.00 40.7 0.00 2 21.4 0.00 44.4 0.00 3 10.0 0.00 31.6 0.00 4 5.7 0.00 24.4 0.00 Temperature Granger causes CO2 testing F test Value p -value Chi Square test Value p -value # of lags 1 1.9 0.17 1.9 0.17 2 3.9 0.02 8.2 0.02 3 2.9 0.04 9.2 0.03 4 1.8 0.14 7.6 0.11 When you run all the Granger causality test in the other direction, all the F tests and Chi Square test are a lot lower, and the resulting p-value are much lower. In several of the Granger causality tests, we can’t reject the null hypothesis that any difference in residuals between the baseline autoregressive model and the model that includes CO2 is just due to randomness.
  • 43.
    # of lagsselection for the VAR models using Information Criteria The models described earlier that include lags of both CO2 and temperature to establish causality in either direction are essentially unrestricted Vector Autoregression (VAR) models. When used for other purposes, on a stand alone basis, such models are also called Autoregressive Distributed Lag (ARDL) models, a popular model structure in social sciences and econometrics. 43 As a side note, when using level variables one should typically use other forms of VAR (not unrestricted). But, given that the residuals of our unrestricted VAR models are uncorrelated, we should be ok to proceed as is. To select the best number of lags for our VAR models, we will check the output of information criteria generated by an R function. The lower the information criterion value the better the model fit and specification. # of Lags Info Criteria 1 2 3 4 AIC -6.66 -6.85 -6.80 -6.87 HQ -6.61 -6.76 -6.63 -6.68 -6.72 SC -6.54 -6.51 -6.49 FPE 0.00128 0.00106 0.00111 0.00104 As shown above, two of the information criteria select the VAR models with 2 lags. And, the other two select the VAR models with 4 lags. But, notice that all four models (with lags ranging from 1 up to 4 yearly lags) have very close information criteria values. In essence, they are very competitive with each other. So, we will often look at all four models.
  • 44.
    Does the CO2vs. Temperature causal relationship have the appropriate positive sign? … well here it gets a bit foggy Yet, when we look at the overall Granger causality effect of CO2 on temperature (associated with an unexpected upward shock in CO2), this net effect seems very small at around 0.005 to 0.006 regardless of the VAR we use. We derive this net effect by summing the CO2 lags regression coefficients. But, at least this net effect is positive. 44 Model equation causal direction: CO2 causes temperature Model CO2 Lags Coefficient t stat p-value VAR w/ 1 lag CO2 lag 1 0.005 6.32 0.00 VAR w/ 2 lags CO2 lag 1 -0.049 -2.17 0.03 CO2 lag 2 0.055 2.40 0.02 Sum 0.006 VAR w/ 3 lags CO2 lag 1 -0.045 -1.79 0.07 CO2 lag 2 0.051 1.22 0.22 CO2 lag 3 0.000 0.01 1.00 Sum 0.006 VAR w/ 4 lags CO2 lag 1 -0.044 -1.72 0.09 CO2 lag 2 0.058 1.35 0.18 CO2 lag 3 -0.016 -0.37 0.71 CO2 lag 4 0.008 0.29 0.77 Sum 0.006 Observing the signs of the CO2 lags regression coefficients leaves us to answer the above question with much nuance. The VAR models with 2 and 3 lags both have one CO2 coefficient with the wrong negative sign. The VAR with 4 lags has two coefficients with the wrong sign. I In some cases, we can accept coefficients with the wrong sign considering that the CO2 -> temperature relationship may have some mean-reverting properties that would cause this reversal in coefficients signs.
  • 45.
    Impulse Response Functions 45 Thecumulative Impulse Response Function over the next 10 year periods describing the impact on temperature in response to an unanticipated upward shock of a one unit increase in CO2 concentration is rather unsettling. Well, when using a VAR model with only 1 lag, the IRF graph makes much sense; as it illustrates CO2 having a positive impact on temperature level (left graph). But, the graph on the right that describes the same IRF for a VAR with 2 lags suggests that an upward shock in CO2 would have a negative impact on temperature level. The IRF graphs for VAR with 3 and 4 lags looked nearly identical to the VAR with 2 lags IRF graph (right hand graph) with the negative sign.
  • 46.
    46 Forecast Error VarianceDecomposition (FEVD) For the VAR with 1 lag model fitting temperature, the table indicates that the autoregressive lag of temperature provides the vast majority of the information to fit temperature as the Y dependent variable. And, that the exogenous CO2 lag 1 variable provides very little information to the model. The FEVD profile for all the other VAR models with up to 4 lags had the exact same FEVD profile with the lags of the temperature variable providing over 99% of the information to the model; and, the exogenous CO2 lags providing very little information to these VAR models. Forecast Error Variance Decomposition (FEVD) VAR with just 1 lag CO2 causes temperature Period temperature co2 1 1.000 0.000 2 1.000 0.000 3 0.999 0.001 4 0.998 0.002 5 0.997 0.003 6 0.996 0.004 7 0.995 0.005 8 0.994 0.006 9 0.992 0.008 10 0.991 0.009
  • 47.
    47 Why did someof our Granger Causality Analysis later steps showed ambivalent results? The first couple of steps showed pretty convincing mathematical results that CO2 does Granger cause temperature. However, as shown the later steps were between ambivalent to disproving. The above is probably due to a couple of phenomena. The first one is generic to these types of analysis. It is common to confirm Granger causality through the first couple of steps of such analysis. But confirmation through all 5 steps is much less common. The second phenomenon potentially specific to this modeling exercise is that the temperature level variable has a very high level of autocorrelation. And, within VAR models this strong autocorrelation of temperature probably has much reduced the explanatory impact of CO2. Thus, the temperature lags partly crowded out the CO2 ones in terms of estimating temperature levels with VAR models. More specifically, the temperature autocorrelation lag 1 is 0.9518; and, is a bit higher than the CO2 vs. temperature correlation lag 1 at 0.9453. One would think we could resolve this situation by detrending the variables and dealing with yearly changes in temperature and CO2 concentration. But, there is too much volatility in the yearly change variables to demonstrate any explicit relationship between the two variables. I had done such an exercise years ago. And, it would only serve as a mean to demonstrate that there is no Granger causal relationship between the two variables.
  • 48.
    48 8. VAR Forecast Herewe will revisit forecasting temperature anomaly over the 1982 – 2020 period using a model trained using 1880 – 1981 data. But, using VAR structures we will now attempt to conduct this forecast with no information whatsoever (no info regarding prospective CO2 concentration levels). This type of forecast testing is so challenging that it is bordering on the absurd. Imagine actually forecasting a time series variable (S&P 500, GDP, CPI, etc.) over the next 39 years without any exogenous information over those prospective years. That be probably close to impossible.
  • 49.
    Revisiting our best1982 – 2020 forecast with the CO2 Model This was our best temperature anomaly forecast so far over the 1982 – 2020 period using data from 1880 to 1981 to train our CO2 based model. As shown, this is a remarkably good forecast. It entails that if you could have known CO2 concentration over this period (1982 – 2020), you could have generated a pretty good estimate of the temperature anomaly over this same period (1982 – 2020). Notice that all the CO2 model estimates of the temperature anomaly fall well within the 95% Prediction Interval. This is a rather unusually good situation. 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020. With 95% Prediction Interval Actual CO2 Model Lower Upper 49
  • 50.
    A VAR modelw/ 1 lag using LN(CO2) can predict with no info whatsoever! 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. VAR w/ LN(CO2) forecast 1 lag, 1982 - 2020. P.I. 95% Actual VAR fcst Lower Upper Just using LN(CO2) instead of CO2 as our second Z variable within a VAR model with 1 lag generates a surprisingly good forecast of the temperature anomaly over the 1982 – 2020 period with no information whatsoever regarding this period! 50 This is rather astonishing. As shown, the VAR forecast does overestimate temperature by just about 0.1 degree Celsius at the onset in 1982 and in 2020. That’s a very small error given the model is not fed any information.
  • 51.
    Comparing our CO2Model vs. VAR (with LN(CO2) forecasts 1.2 1.1 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Temperature Anomaly. Hold Out 1982 - 2020 Actual CO2 Model VAR Temperature anomaly over the 1982 - 2020 period Actual CO2 Model VAR Average 0.537 0.561 0.617 Median 0.555 0.533 0.581 Max 1.005 0.975 1.100 Min 0.140 0.225 0.295 Range 0.865 0.751 0.804 51 Ok, the VAR model does overestimate the temperature anomaly a bit relative to the OLS Cointegration Regression (CO2 Model). But, the VAR overestimation is really pretty small when considering the VAR model generated a 39 year forecast with no info whatsoever. By contrast, the CO2 model was fed the precise CO2 concentration level over that entire period. That is a huge difference.
  • 52.
    Why did theVAR (w/ LN(CO2) overestimated temperature? 52 440 430 420 410 400 390 380 370 360 350 340 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 CO2 (ppm). VAR (w/ LN(CO2) forecast 1 lag, 1982 - 2020 with P.I. 95% Actual VAR fcst lower upper This question is a little perplexing because we observed earlier that using LN(CO2) instead of CO2 within our earlier OLS regressions resulted in the LN(CO2) model underestimating temperature over the Hold Out (1982 – 2020) by quite a bit. But, when we use this same LN(CO2) variable within this VAR model, instead of underestimating temperature, it actually overestimates them by a little bit. Part of the reason is that this same VAR model does overestimate CO2 concentration. Remember in the former Hold Out tests with the standard OLS regressions, these models were fed with CO2 concentration over the 1982 – 2020 period; while the models were trained over the 1880 – 1981 period. With this VAR model, we are dealing with a rather extraordinary situation where it was trained over the 1880 – 1981 period; and, it was not provided any information over the Hold Out period (1982 – 2020). Yet, it was asked to forecast temperature over that same period. That’s a very challenging situation.
  • 53.
    Conclusion 53 Using CO2 concentrationto estimate and forecast temperature anomaly levels was on many counts surprisingly successful. More complex models using additional variables associated with the Pacific Decadal Oscillation (El Nino (+); La Nina (-)) proved not so successful. They could fit the historical data. But, they turned out inferior in forecasting compared to the simpler model just using CO2 concentration. Using the natural log of CO2 as an independent variable was surprisingly successful for replicating the IPCC scenarios and also in forecasting the temperature anomaly over the 1982 – 2020 period with no info whatsoever using a VAR model with one lag. When it came to a full fledge Granger causality analysis, our results were much humbler. We could confirm Granger causality through the first two steps (Granger causality and its relationship direction). But, the subsequent steps turned out to be rather ambivalent (VAR regression coefficients signs, IRFs, FEVD).
