1. Object Oriented Programming
Objects and Classes

2. Object Oriented Approach

When we enters in OO approach, we
− Do not focus how problem divides into functions
− Do Focus how to divide into objects

This approach helps to model real world
− Everything in real world can be imagine to be divided
into objects

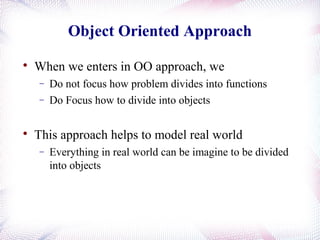

3. Object Oriented Approach

When we enters in OO approach, we
− Do not focus how problem divides into functions
− Do Focus how to divide into objects

This approach helps to model real world
− Everything in real world can be imagine to be divided
into objects

4. Objects

What kinds of things become objects in object-oriented
programs
− Depends on thinker’s imaginations
− Few Examples to take a start

Automobiles in a traffic-flow simulation

Countries in an economics model

Aircraft in an air traffic control system

Elements of the computer-user environment
− Menus
− Graphics objects (lines, rectangles, circles)
− The mouse, keyboard, disk drives, printer

Data-storage constructs
− Customized arrays
− Stacks
− Linked lists
− Binary trees

Human entities
− Employees
− Students
− Customers
− Salespeople

5. 
Collections of data
− An inventory
− A personnel file
− A dictionary

User-defined data types
− Time
− Angles
− Complex numbers
− Points on the plane

Components in computer games
− Cars in an auto race
− Positions in a board game (chess, checkers)
− Animals in an ecological simulation
− Opponents and friends in adventure games
Objects cont.

6. Classes

In OOP we say that objects are members of
classes

A class is thus a description of a number of
similar objects

Class serves as a plan

It specifies what data and what functions will be
included in objects of that class

Defining the class doesn’t create any objects

An object is often called an “instance” of a class.

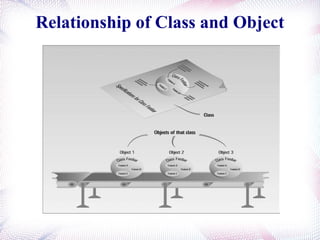

7. Relationship of Class and Object

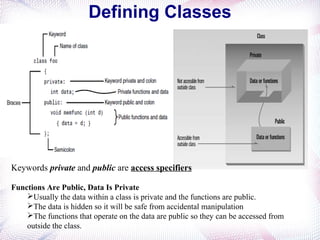

8. Defining Classes
Keywords private and public are access specifiers
Functions Are Public, Data Is Private
Usually the data within a class is private and the functions are public.
The data is hidden so it will be safe from accidental manipulation
The functions that operate on the data are public so they can be accessed from
outside the class.

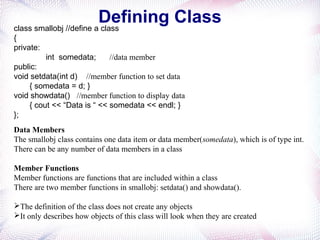

9. Defining Classclass smallobj //define a class
{
private:
int somedata; //data member
public:
void setdata(int d) //member function to set data
{ somedata = d; }
void showdata() //member function to display data
{ cout << “Data is “ << somedata << endl; }
};
Data Members
The smallobj class contains one data item or data member(somedata), which is of type int.
There can be any number of data members in a class
Member Functions
Member functions are functions that are included within a class
There are two member functions in smallobj: setdata() and showdata().
The definition of the class does not create any objects
It only describes how objects of this class will look when they are created

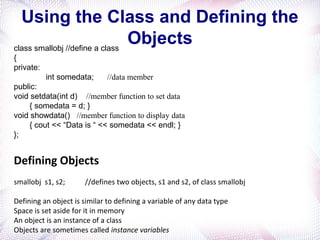

10. Using the Class and Defining the
Objectsclass smallobj //define a class
{
private:
int somedata; //data member
public:
void setdata(int d) //member function to set data
{ somedata = d; }
void showdata() //member function to display data
{ cout << “Data is “ << somedata << endl; }
};
Defining Objects
smallobj s1, s2; //defines two objects, s1 and s2, of class smallobj
Defining an object is similar to defining a variable of any data type
Space is set aside for it in memory
An object is an instance of a class
Objects are sometimes called instance variables

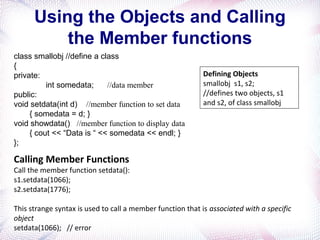

11. Using the Objects and Calling
the Member functions
class smallobj //define a class
{
private:
int somedata; //data member
public:
void setdata(int d) //member function to set data
{ somedata = d; }
void showdata() //member function to display data
{ cout << “Data is “ << somedata << endl; }
};
Calling Member Functions
Call the member function setdata():
s1.setdata(1066);
s2.setdata(1776);
This strange syntax is used to call a member function that is associated with a specific
object
setdata(1066); // error
Defining Objects
smallobj s1, s2;
//defines two objects, s1
and s2, of class smallobj

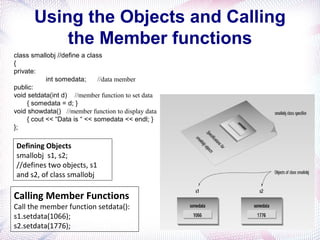

12. Using the Objects and Calling
the Member functions
class smallobj //define a class
{
private:
int somedata; //data member
public:
void setdata(int d) //member function to set data
{ somedata = d; }
void showdata() //member function to display data
{ cout << “Data is “ << somedata << endl; }
};
Calling Member Functions
Call the member function setdata():
s1.setdata(1066);
s2.setdata(1776);
Defining Objects
smallobj s1, s2;
//defines two objects, s1
and s2, of class smallobj

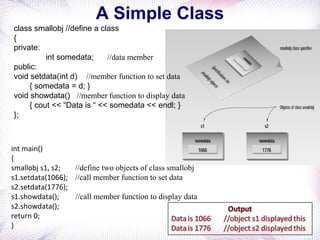

13. A Simple Class
int main()
{
smallobj s1, s2; //define two objects of class smallobj
s1.setdata(1066); //call member function to set data
s2.setdata(1776);
s1.showdata(); //call member function to display data
s2.showdata();
return 0;
}
class smallobj //define a class
{
private:
int somedata; //data member
public:
void setdata(int d) //member function to set data
{ somedata = d; }
void showdata() //member function to display data
{ cout << “Data is “ << somedata << endl; }
};

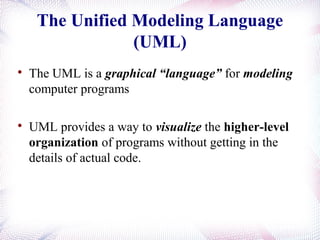

14. The Unified Modeling Language
(UML)

The UML is a graphical “language” for modeling
computer programs

UML provides a way to visualize the higher-level
organization of programs without getting in the
details of actual code.

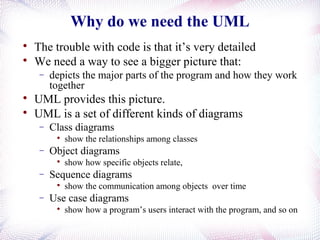

15. Why do we need the UML

The trouble with code is that it’s very detailed

We need a way to see a bigger picture that:
− depicts the major parts of the program and how they work
together

UML provides this picture.

UML is a set of different kinds of diagrams
− Class diagrams

show the relationships among classes
− Object diagrams

show how specific objects relate,
− Sequence diagrams

show the communication among objects over time
− Use case diagrams

show how a program’s users interact with the program, and so on
