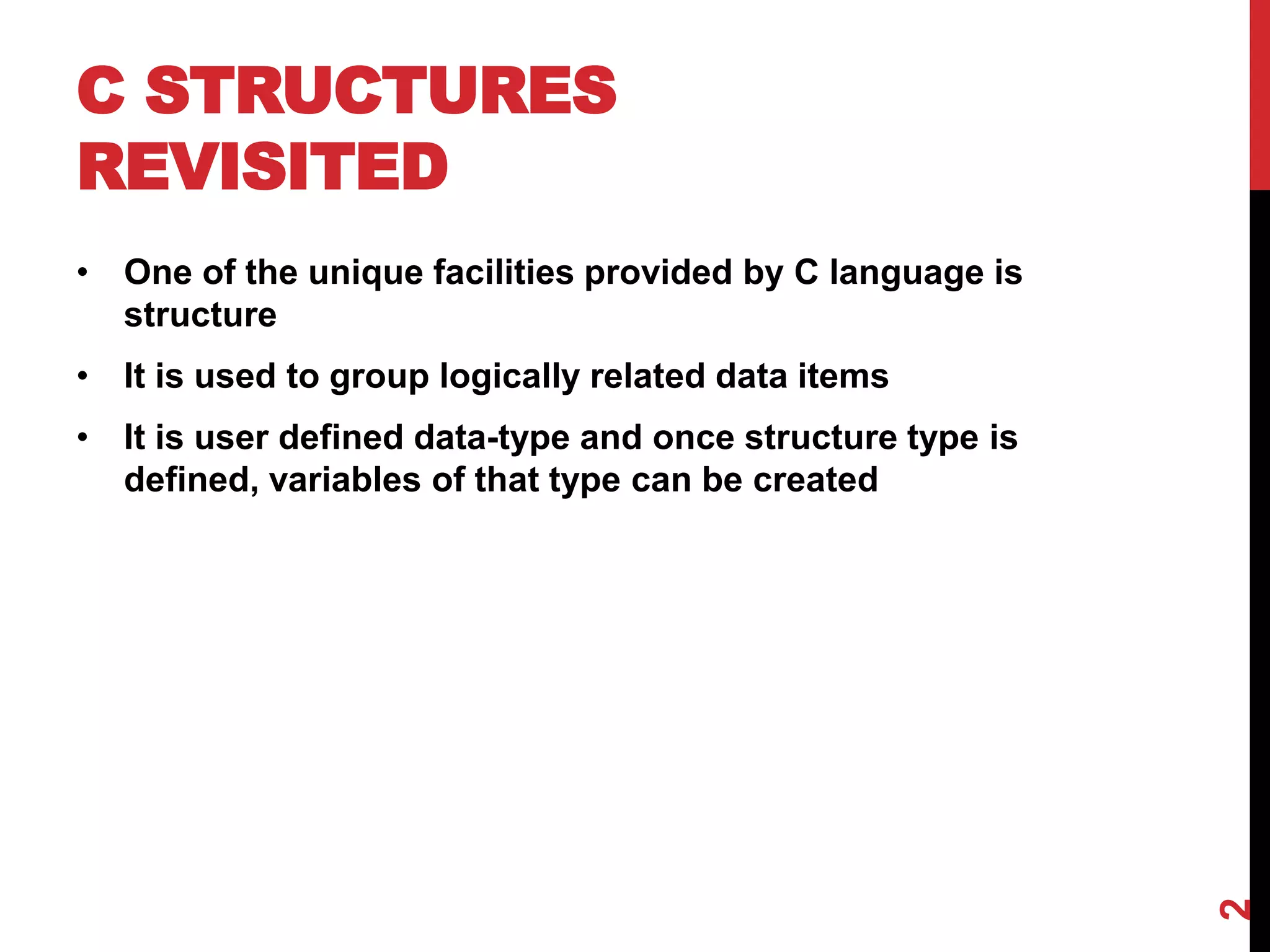

2. C STRUCTURES
REVISITED
• One of the unique facilities provided by C language is
structure
• It is used to group logically related data items
• It is user defined data-type and once structure type is
defined, variables of that type can be created
2

3. LIMITATIONS OF C
STRUCTURE
• They don’t allow data hiding
• Structure members can be accessed using structure
variable by any function any where in the scope
• C does not allow the structure data type to be treated like
built-in data type
3

4. AN INTRODUCTION TO CLASSES
• A class is a building block of OOP. It is the way to bind the data
and its logically related functions together.
• An abstract data type that can be treated like any other built in
data type.

5. CLASS DEFINITION
Class head class name_of_class.
Class body {
data members;
member functions;
};

6. SPECIFYING A CLASS
Specification of a class consists of two parts:
• Class declaration
• Function definition
Syntax:
class class_name
{
private:
variable declarations
function declarations
public:
variable declarations
function declarations
};
6

7. CONTD…
The key feature of OOP is data hiding.
Generally, data within a class is made private and the
functions are public.
So, the data will be safe from accidental manipulations, while
the functions can be accessed from outside the class
However, it is not necessary that the data must be private
and functions public
7

8. CREATING OBJECTS
Once a class has been declared, variables of that type can be
created by using the class name as data-type
Test t1; //memory for t1 is allocated
This statement creates a variable t1 of type test.
The class variables are known as objects
t1 is called object of class test.
More than one object of a class can be created
8

9. CONTD…
Objects are also called instances of class
Objects can be created as follows:
class employee
{
int id;
char name[20];
public:
void getname();
void putname();
}e1, e2, e3;
9

10. MEMBER FUNCTION
Member function’s name is visible outside the class.
It can be defined inside or outside the class.
It can have access to private, public and protected data
members of its class, but cannot access private data
members of another class.

11. ACCESSING CLASS
MEMBERS
The class members are accessed using dot operator
However it works only for the public members
The dot operator is called member access operator
The general format is:
class-object.class-member;
Eg: e1.getdata();
The private data and functions of a class can be accessed only
through the member functions of that class
11

12. DEFINING MEMBER
FUNCTIONS
Member function can be defined in two ways
Outside the class
Inside the class
The code for the function body would be identical in both the
cases i.e perform same task irrespective of the place of
definition
12

13. OUTSIDE THE CLASS
In this approach, the member functions are only declared
inside the class, whereas its definition is written outside the
class
General form:
Return-type class-name::function-name(argument-list)
{
--------------
-------------- // function body
--------------
}
13

14. CONTD…
Eg:
class A
{
int x, y;
public:
void getdata (); // function declaration inside the
class
}
void A :: getdata()
{
cin>>x>>y; // function body
}
14

15. INSIDE THE CLASS
Function body can be included in the class itself by replacing
function declaration by function definition
If it is done, the function is treated as an inline function
Hence, all the restrictions that apply to inline function, will
also apply here
15

16. Eg:
class A
{
int a, b;
public:
void getdata()
{
cin>>a>>b;
}
};
Here, getdata() is defined inside the class.
So, it will act like an inline function
A function defined outside the class can
also be made ‘inline’ by using the qualifier
‘inline’ in the header line of a function
definition
16

17. NESTED MEMBER
FUNCTIONS
An object of the class using dot operator, generally, calls a
member function of a class
However, a member function can be called by using its name
inside another member function of the same class.
This is known as “Nesting Of Member Functions”
17

18. PRIVATE MEMBER
FUNCTIONS
Member functions are in general made public
But in some cases, we may need to make a function a private
to hide them from outside world
Private member functions can only be called by another
function that is a member of its class
Objects of the class cannot invoke it using dot operator
18

19. Eg:
class A
{
int a, b;
void read(); //private member function
public:
void update();
void write();
};
void A :: update()
{
read(); // called from update() function.
no object used
}
If a1 is an object of A, then the following statement is
not valid
a1.read();
This is because, read is a private member function
which cannot be called using object and dot operator
19

20. STATIC MEMBER
FUNCTION
In a class, functions can also be declared as static
Properties of static functions are:
• They can access only other STATIC members(functions or
variables) declared in the same class
• They can be called using class name ( instead of its object)
• Eg: class_name::function_name
20

21. class A
{
int no;
static int count; //static member
public:
void set_no()
{
count++;
no=count;
}
void put_no()
{
cout<<“ No is:” <<no;
}
static void put_count() //static member function
accessing static member
{
cout<<endl<<“Count:”
<<count;
}
};
Int A::count;
main()
{
A a1, a2;
a1.set_no();
a2.set_no();
A::put_count();
a1.set_no();
a2.set_no();
A::put_count();
a1.put_no();
a2.put_no();
21

22. ARRAY OF OBJECTS
Array can be created of any datatype
Since a class is also a user defined data-type, array of
objects can be created
Eg: a class Employee is specified. If we have to keep records
of 20 employees in an organization having two departments,
then instead of creating 20 separate variables, we can create
array of objects as follows:
Employee dept1[10];
Employee dept2[10];
22

23. MEMORY ALLOCATION FOR
OBJECTS
Memory space for object is allocated when they are declared and
not when the class is specified
The member functions are created and placed in the memory only
once, when they are defined as a part of a class specification
All the objects belonging to the particular class will use same
member functions when objects are created
However, the data members will hold different values for different
object, so, space for data member is allocated separately for each
object
23

24. OBJECTS AS FUNCTION
ARGUMENTS
Like any other variable, objects can also be passed to the
function, as an argument
There are two ways of doing this
• Pass by value
• Pass by reference
In the pass by value, the copy of the object is passed to the
function
So, the changes made to the object inside the function do not
affect the actual object
24

25. Eg:
class height
{
int feet, inches;
public:
void get_height()
{
cout<<“Enter height in feet and
inches”;
cin>>feet>>inches;
}
void put_height()
{
cout<<“Feet:”<<feet;
cout<<and inches:”<<inches;
}
void sum(height, height);
};
void height:: sum(height h1, height h2)
{
inches= h1.inches+h2.inches;
feet=inches/12;
inches=inches%12;
feet=feet+h1.feet+h2.feet;
}
int main()
{
height h1, h2, h3;
h1.get_height();
h2.get_height();
h3.sum(h1, h2);
cout<<“Height 1: ” ; h1.put_height();
cout<<“Height 2: ” ; h2.put_height();
cout<<“Height 3: ” ; h3.put_height();
return(0);
}
25

26. FRIEND FUNCTIONS AND
FRIEND CLASSES
friend declarations
• To declare a friend function
• Type friend before the function prototype in the class
that is giving friendship
friend int myFunction( int x );
should appear in the class giving friendship
• To declare a friend class
• Type friend class Classname in the class that is
giving friendship
• if ClassOne is granting friendship to ClassTwo,
friend class ClassTwo;
• should appear in ClassOne's definition

27. 1 // Fig. 7.5: fig07_05.cpp
2 // Friends can access private members of a class.
3 #include <iostream>
4
5 using std::cout;
6 using std::endl;
7
8 // Modified Count class
9 class Count {
10 friend void setX( Count &, int ); // friend declaration
11 public:
12 Count() { x = 0; } // constructor
13 void print() const { cout << x << endl; } // output
14 private:
15 int x; // data member
16 };
17
18 // Can modify private data of Count because
19 // setX is declared as a friend function of Count
20 void setX( Count &c, int val )
21 {
22 c.x = val; // legal: setX is a friend of Count
23 }
24
25 int main()
26 {
27 Count counter;
28
29 cout << "counter.x after instantiation: ";
30 counter.print();
Changing private variables
allowed.

28. 31 cout << "counter.x after call to setX friend function: ";
32 setX( counter, 8 ); // set x with a friend
33 counter.print();
34 return 0;
35 }
counter.x after instantiation: 0
counter.x after call to setX friend function: 8
