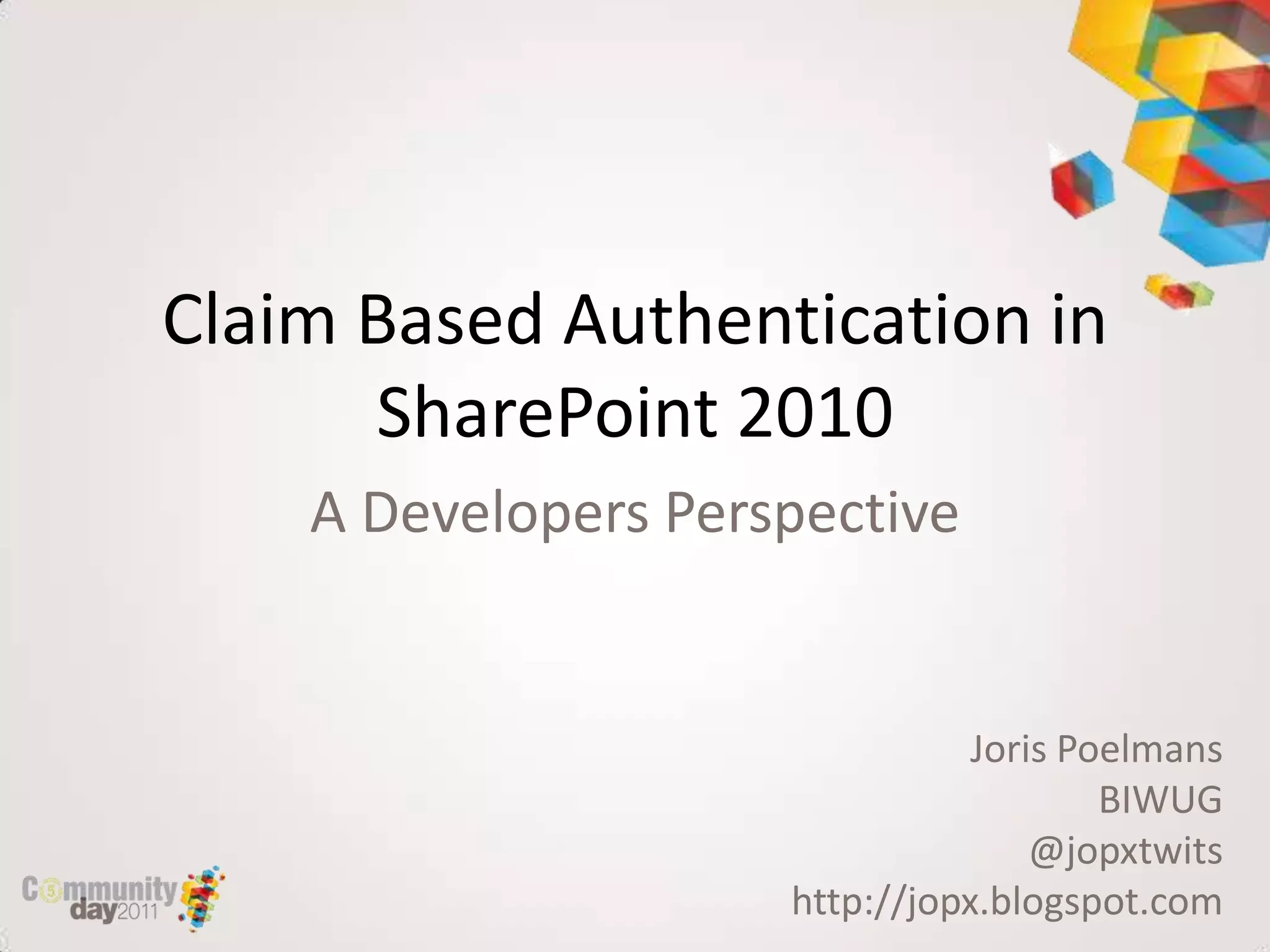

1. Claim Based Authentication in
SharePoint 2010
A Developers Perspective
Joris Poelmans
BIWUG
@jopxtwits
http://jopx.blogspot.com

2. About Me
• ECM Unit Manager @ RealDolmen
• SharePoint Server MVP
• Blog – http://jopx.blogspot.com
• Twitter – @jopxtwits
• Co-founder BIWUG – www.biwug.be
• Co-author
– Real World SharePoint 2010 (November 2010, Wrox)
– Real World SharePoint 2007 (August 2007, Wrox)
– SharePoint 2007, The definitive guide (September
2007, O’Reilly)

3. Register today and save $500 before
August 1st
Save the date: watch live stream, join
local events by MSDN Belux
Win a ticket today at Communiday Day!
• Take a picture wearing the BUILD t-shirt.
• Tweet or blog the picture, link to
www.buildwindows.com, use tag #bldwin
• Wear the t-shirt and be there for the closing prize draw
http://www.buildwindows.com/

4. Agenda
• Introduction to Claims
• Claims in SharePoint 2010
• Configuring Claims in SharePoint 2010
• Development tasks with Claims
• Trusted Identity Providers

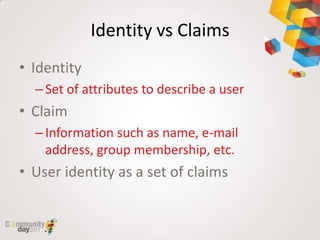

5. Identity vs Claims
• Identity
– Set of attributes to describe a user
• Claim
– Information such as name, e-mail
address, group membership, etc.
• User identity as a set of claims

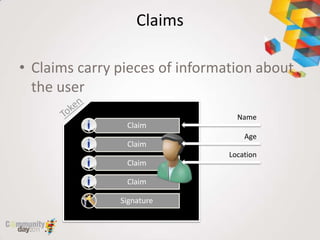

6. Claims
• Claims carry pieces of information about
the user
Name
Claim
Age
Claim
Location
Claim
Claim
Signature

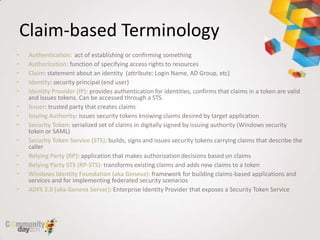

7. Claim-based Terminology
• Authentication: act of establishing or confirming something
• Authorization: function of specifying access rights to resources
• Claim: statement about an identity (attribute: Login Name, AD Group, etc)
• Identity: security principal (end user)
• Identity Provider (IP): provides authentication for identities, confirms that claims in a token are valid
and issues tokens. Can be accessed through a STS.
• Issuer: trusted party that creates claims
• Issuing Authority: issues security tokens knowing claims desired by target application
• Security Token: serialized set of claims in digitally signed by issuing authority (Windows security
token or SAML)
• Security Token Service (STS): builds, signs and issues security tokens carrying claims that describe the
caller
• Relying Party (RP): application that makes authorization decisions based on claims
• Relying Party STS (RP-STS): transforms existing claims and adds new claims to a token
• Windows Identity Foundation (aka Geneva): framework for building claims-based applications and
services and for implementing federated security scenarios
• ADFS 2.0 (aka Geneva Server): Enterprise Identity Provider that exposes a Security Token Service

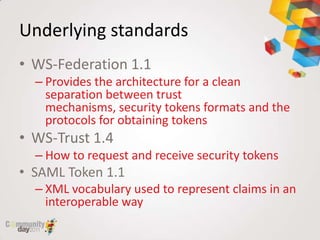

8. Underlying standards
• WS-Federation 1.1
– Provides the architecture for a clean
separation between trust
mechanisms, security tokens formats and the
protocols for obtaining tokens
• WS-Trust 1.4
– How to request and receive security tokens
• SAML Token 1.1
– XML vocabulary used to represent claims in an
interoperable way

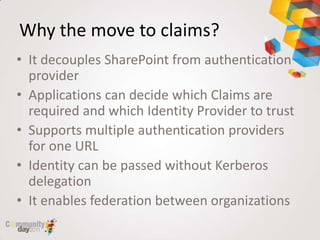

9. Why the move to claims?
• It decouples SharePoint from authentication
provider
• Applications can decide which Claims are
required and which Identity Provider to trust
• Supports multiple authentication providers
for one URL
• Identity can be passed without Kerberos
delegation
• It enables federation between organizations

10. Agenda
• Introduction to Claims
• Claims in SharePoint 2010
• Configuring Claims in SharePoint 2010
• Development tasks with claims
• Trusted Identity Providers

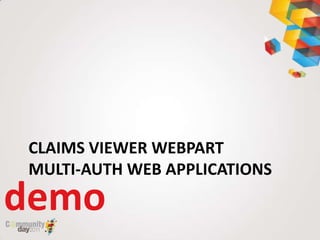

11. CLAIMS VIEWER WEBPART
MULTI-AUTH WEB APPLICATIONS
demo

12. Multi-auth web applications

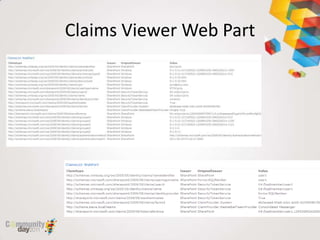

13. Claims Viewer Web Part

14. Claims Viewer WebPart
IClaimsPrincipal claimsPrincipal = Page.User as
IClaimsPrincipal;
IClaimsIdentity claimsIdentity =
(IClaimsIdentity)claimsPrincipal.Identity;
GridView1.DataSource = claimsIdentity.Claims;

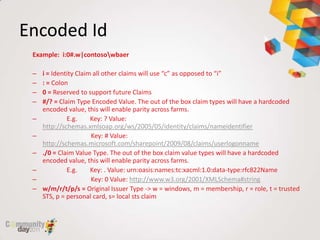

15. Encoded Id
Example: i:0#.w|contosowbaer
– i = Identity Claim all other claims will use “c” as opposed to “i”
– : = Colon
– 0 = Reserved to support future Claims
– #/? = Claim Type Encoded Value. The out of the box claim types will have a hardcoded
encoded value, this will enable parity across farms.
– E.g. Key: ? Value:
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier
– Key: # Value:
http://schemas.microsoft.com/sharepoint/2009/08/claims/userlogonname
– ./0 = Claim Value Type. The out of the box claim value types will have a hardcoded
encoded value, this will enable parity across farms.
– E.g. Key: . Value: urn:oasis:names:tc:xacml:1.0:data-type:rfc822Name
– Key: 0 Value: http://www.w3.org/2001/XMLSchema#string
– w/m/r/t/p/s = Original Issuer Type -> w = windows, m = membership, r = role, t = trusted
STS, p = personal card, s= local sts claim

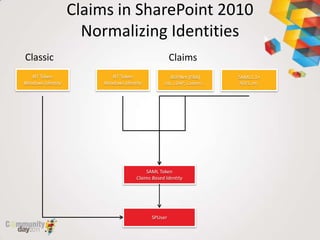

16. Claims in SharePoint 2010
Normalizing Identities
Classic Claims

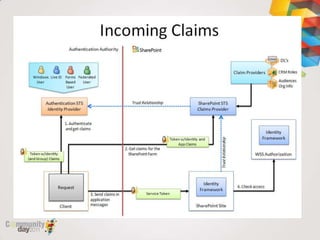

17. Claims in SharePoint 2010
• Two important scenarios
– Incoming claims
– Outgoing claims
• How do incoming claims work?
– Identity token created by external identity STS
– SharePoint STS creates claim-based identity
– SharePoint STS based on Claims Provider
– Incoming claim identity is mapped to SPUser
– Authorization of SPUser just like it is in SharePoint 2007

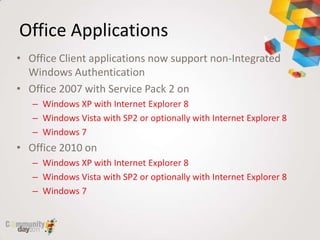

19. Office Applications
• Office Client applications now support non-Integrated
Windows Authentication
• Office 2007 with Service Pack 2 on
– Windows XP with Internet Explorer 8
– Windows Vista with SP2 or optionally with Internet Explorer 8
– Windows 7
• Office 2010 on
– Windows XP with Internet Explorer 8
– Windows Vista with SP2 or optionally with Internet Explorer 8
– Windows 7

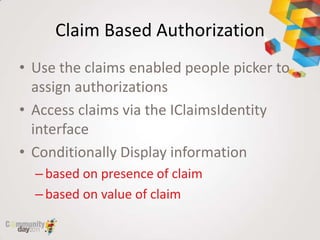

20. Claim Based Authorization
• Use the claims enabled people picker to
assign authorizations
• Access claims via the IClaimsIdentity
interface
• Conditionally Display information
– based on presence of claim
– based on value of claim

21. SELECT CLAIMS IN PEOPLE PICKER
CONDITIONALLY DISPLAY INFORMATION
demo

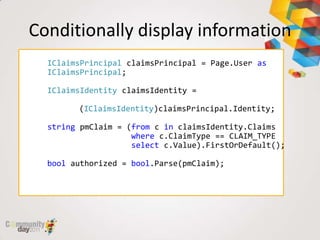

22. Conditionally display information
IClaimsPrincipal claimsPrincipal = Page.User as
IClaimsPrincipal;
IClaimsIdentity claimsIdentity =
(IClaimsIdentity)claimsPrincipal.Identity;
string pmClaim = (from c in claimsIdentity.Claims
where c.ClaimType == CLAIM_TYPE
select c.Value).FirstOrDefault();
bool authorized = bool.Parse(pmClaim);

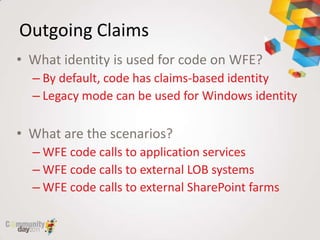

23. Outgoing Claims
• What identity is used for code on WFE?
– By default, code has claims-based identity
– Legacy mode can be used for Windows identity
• What are the scenarios?
– WFE code calls to application services
– WFE code calls to external LOB systems
– WFE code calls to external SharePoint farms

24. Outgoing Claims

25. Accessing non-Claims Aware Systems
• SQL Server 2008/2008 R2
– Denali is claims aware
• Claims to Windows Token Service
(C2WTS)
– Converts Claims back to a Windows
Identity
SharePoint LOB Application

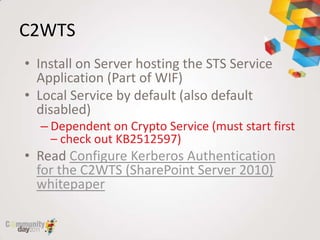

26. C2WTS
• Install on Server hosting the STS Service
Application (Part of WIF)
• Local Service by default (also default
disabled)
– Dependent on Crypto Service (must start first
– check out KB2512597)
• Read Configure Kerberos Authentication
for the C2WTS (SharePoint Server 2010)
whitepaper

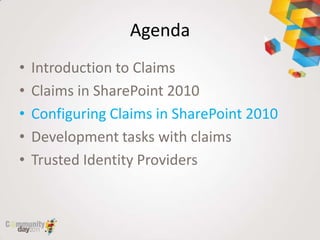

27. Agenda
• Introduction to Claims
• Claims in SharePoint 2010
• Configuring Claims in SharePoint 2010
• Development tasks with claims
• Trusted Identity Providers

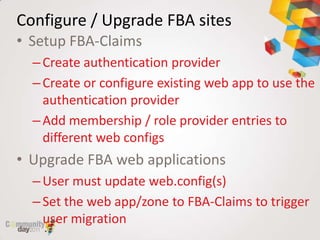

28. Configure / Upgrade FBA sites
• Setup FBA-Claims
– Create authentication provider
– Create or configure existing web app to use the
authentication provider
– Add membership / role provider entries to
different web configs
• Upgrade FBA web applications
– User must update web.config(s)
– Set the web app/zone to FBA-Claims to trigger
user migration

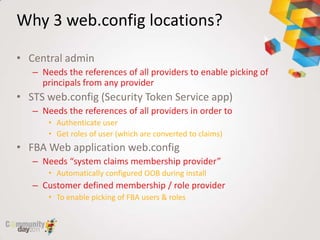

29. Why 3 web.config locations?
• Central admin
– Needs the references of all providers to enable picking of
principals from any provider
• STS web.config (Security Token Service app)
– Needs the references of all providers in order to
• Authenticate user
• Get roles of user (which are converted to claims)
• FBA Web application web.config
– Needs “system claims membership provider”
• Automatically configured OOB during install
– Customer defined membership / role provider
• To enable picking of FBA users & roles

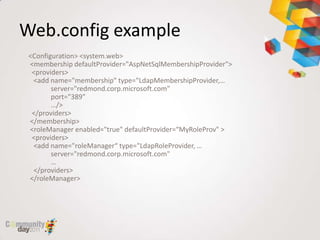

30. Web.config example
<Configuration> <system.web>
<membership defaultProvider="AspNetSqlMembershipProvider">
<providers>
<add name="membership" type="LdapMembershipProvider,…
server="redmond.corp.microsoft.com"
port="389"
…/>
</providers>
</membership>
<roleManager enabled="true" defaultProvider=“MyRoleProv" >
<providers>
<add name="roleManager“ type="LdapRoleProvider, …
server="redmond.corp.microsoft.com"
…
</providers>
</roleManager>

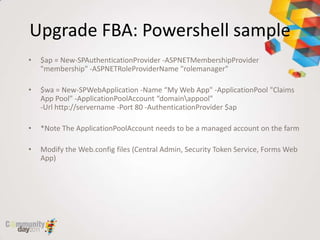

31. Upgrade FBA: Powershell sample
• $ap = New-SPAuthenticationProvider -ASPNETMembershipProvider
"membership" -ASPNETRoleProviderName "rolemanager"
• $wa = New-SPWebApplication -Name “My Web App" -ApplicationPool "Claims
App Pool" -ApplicationPoolAccount “domainappool"
-Url http://servername -Port 80 -AuthenticationProvider $ap
• *Note The ApplicationPoolAccount needs to be a managed account on the farm
• Modify the Web.config files (Central Admin, Security Token Service, Forms Web
App)

32. Agenda
• Introduction to Claims
• Claims in SharePoint 2010
• Configuring Claims in SharePoint 2010
• Development tasks with claims
• Trusted Identity Providers

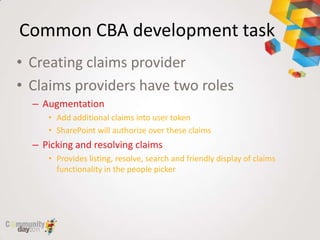

33. Common CBA development task
• Creating claims provider
• Claims providers have two roles
– Augmentation
• Add additional claims into user token
• SharePoint will authorize over these claims
– Picking and resolving claims
• Provides listing, resolve, search and friendly display of claims
functionality in the people picker

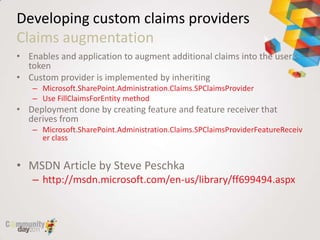

34. Developing custom claims providers
Claims augmentation
• Enables and application to augment additional claims into the user’s
token
• Custom provider is implemented by inheriting
– Microsoft.SharePoint.Administration.Claims.SPClaimsProvider
– Use FillClaimsForEntity method
• Deployment done by creating feature and feature receiver that
derives from
– Microsoft.SharePoint.Administration.Claims.SPClaimsProviderFeatureReceiv
er class
• MSDN Article by Steve Peschka
– http://msdn.microsoft.com/en-us/library/ff699494.aspx

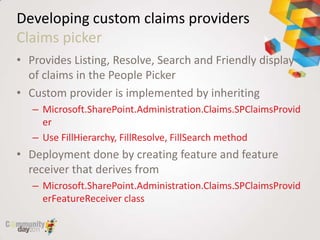

35. Developing custom claims providers
Claims picker
• Provides Listing, Resolve, Search and Friendly display
of claims in the People Picker
• Custom provider is implemented by inheriting
– Microsoft.SharePoint.Administration.Claims.SPClaimsProvid
er
– Use FillHierarchy, FillResolve, FillSearch method
• Deployment done by creating feature and feature
receiver that derives from
– Microsoft.SharePoint.Administration.Claims.SPClaimsProvid
erFeatureReceiver class

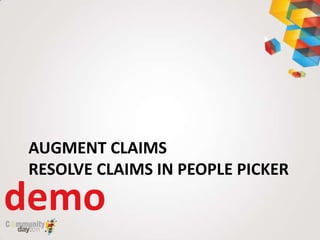

36. AUGMENT CLAIMS
RESOLVE CLAIMS IN PEOPLE PICKER
demo

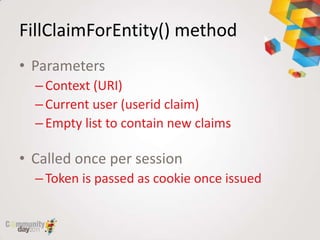

37. FillClaimForEntity() method
• Parameters
– Context (URI)
– Current user (userid claim)
– Empty list to contain new claims
• Called once per session
– Token is passed as cookie once issued

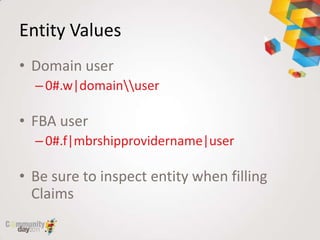

38. Entity Values
• Domain user
– 0#.w|domainuser
• FBA user
– 0#.f|mbrshipprovidername|user
• Be sure to inspect entity when filling
Claims

39. SPClaimProvider.CreateClaim()
• protected SPClaim CreateClaim(string claimType,string
value,string valueType)
– claimType Type: String
The type of claim. Examples of claim types include first name, role and
email address. The claim type provides context for the claim
value, and it is usually expressed as a Uniform Resource Identifier
(URI). For example, the e-mail address claim type is represented as
http://schemas.microsoft.com/ws/2008/06/identity/claims/email.
– value Type: String
The value of the claim. For example, if the claim type is role, a value
might be contributor, and if the claim type is first name, a value might
be Matt.
– valueType Type: String
The type of value in the claim. These are all URIs that refer to a string.

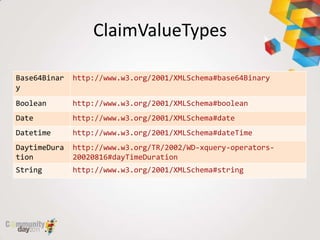

40. ClaimValueTypes
Base64Binar http://www.w3.org/2001/XMLSchema#base64Binary
y
Boolean http://www.w3.org/2001/XMLSchema#boolean
Date http://www.w3.org/2001/XMLSchema#date
Datetime http://www.w3.org/2001/XMLSchema#dateTime
DaytimeDura http://www.w3.org/TR/2002/WD-xquery-operators-
tion 20020816#dayTimeDuration
String http://www.w3.org/2001/XMLSchema#string

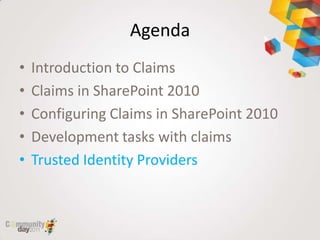

41. Agenda
• Introduction to Claims
• Claims in SharePoint 2010
• Configuring Claims in SharePoint 2010
• Development tasks with claims
• Trusted Identity Providers

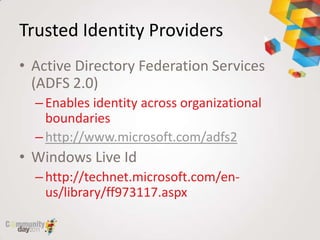

42. Trusted Identity Providers
• Active Directory Federation Services
(ADFS 2.0)
– Enables identity across organizational
boundaries
– http://www.microsoft.com/adfs2
• Windows Live Id
– http://technet.microsoft.com/en-
us/library/ff973117.aspx

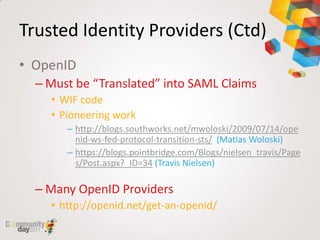

43. Trusted Identity Providers (Ctd)
• OpenID
– Must be “Translated” into SAML Claims
• WIF code
• Pioneering work
– http://blogs.southworks.net/mwoloski/2009/07/14/ope
nid-ws-fed-protocol-transition-sts/ (Matias Woloski)
– https://blogs.pointbridge.com/Blogs/nielsen_travis/Page
s/Post.aspx?_ID=34 (Travis Nielsen)
– Many OpenID Providers
• http://openid.net/get-an-openid/

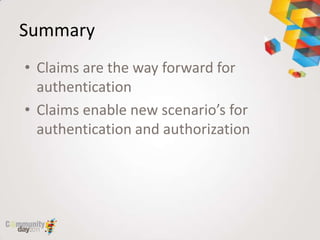

44. Summary
• Claims are the way forward for
authentication
• Claims enable new scenario’s for
authentication and authorization

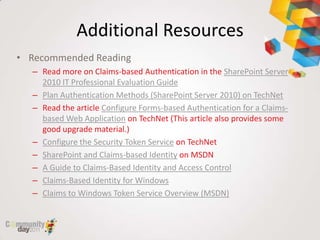

45. Additional Resources
• Recommended Reading
– Read more on Claims-based Authentication in the SharePoint Server
2010 IT Professional Evaluation Guide
– Plan Authentication Methods (SharePoint Server 2010) on TechNet
– Read the article Configure Forms-based Authentication for a Claims-
based Web Application on TechNet (This article also provides some
good upgrade material.)
– Configure the Security Token Service on TechNet
– SharePoint and Claims-based Identity on MSDN
– A Guide to Claims-Based Identity and Access Control
– Claims-Based Identity for Windows
– Claims to Windows Token Service Overview (MSDN)
