Citrix Synergy 2014 - Syn114 SAP's implementation of private clouds in vertical industries
SAP implemented private clouds using Citrix CloudPlatform and XenDesktop to provide developer desktops. CloudPlatform allows for easy provisioning of virtual desktop infrastructure and self-service portal access for users. It provides a good combination with XenDesktop that adds value. SAP saw business benefits like more efficient operations and ability to charge back costs while gaining user control over their desktops.
More Related Content
![[Event] Digital transformation : Enterprise cloud one os one click - PRESENTA...](https://cdn.slidesharecdn.com/ss_thumbnails/eventdigitaltransformation-enterprisecloudoneosoneclick-presentationnutanix-170922084203-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Citrix Synergy 2014 - Syn114 SAP's implementation of private clouds in vertical industries
Citrix Synergy 2014 - Syn114 SAP's implementation of private clouds in vertical industries
- 1. SAP’s Implementation ofPrivate Clouds in Vertical Industries Markus Heib, Sr. Technology Consultant, SAP Christian Ferber, Sr. Systems Engineer, Cloud Infrastructure, Citrix Priyadarshan Ketkar, Sr. Architect Worldwide Cloud Services, Citrix
- 2. © 2014 Citrix.Confidential.2 Tweet about this session with hashtag #SYN114 and #citrixsynergy
- 3. © 2014 Citrix.Confidential.3 Citrix Products discussed – Citrix CloudPlatform – Citrix CloudPortal Business Manager Key Takeaways – CloudPlatform and XenDesktop is a good combination that adds value – CloudPlatform is an out of the box solution which is easy to implement for enterprises – It makes sense introducing cloud solution for specific use case even if company wide another cloud solution is used – Powerful API of CloudPlatform can be leveraged by any portal solution Session Summary

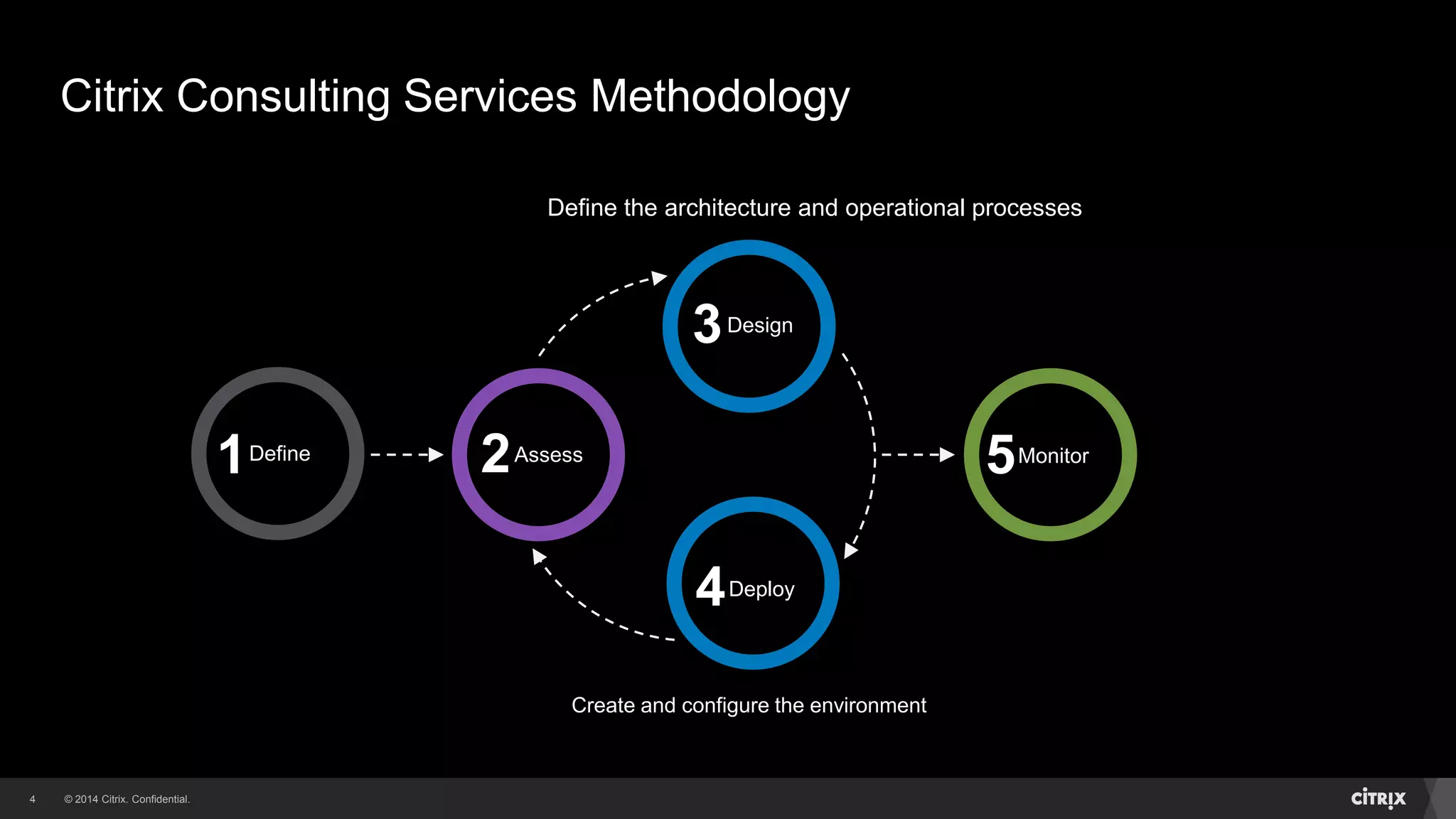

- 4. © 2014 Citrix.Confidential.4 Citrix Consulting Services Methodology 2Assess 4Deploy 3Design 5Monitor1Define Define the architecture and operational processes Create and configure the environment

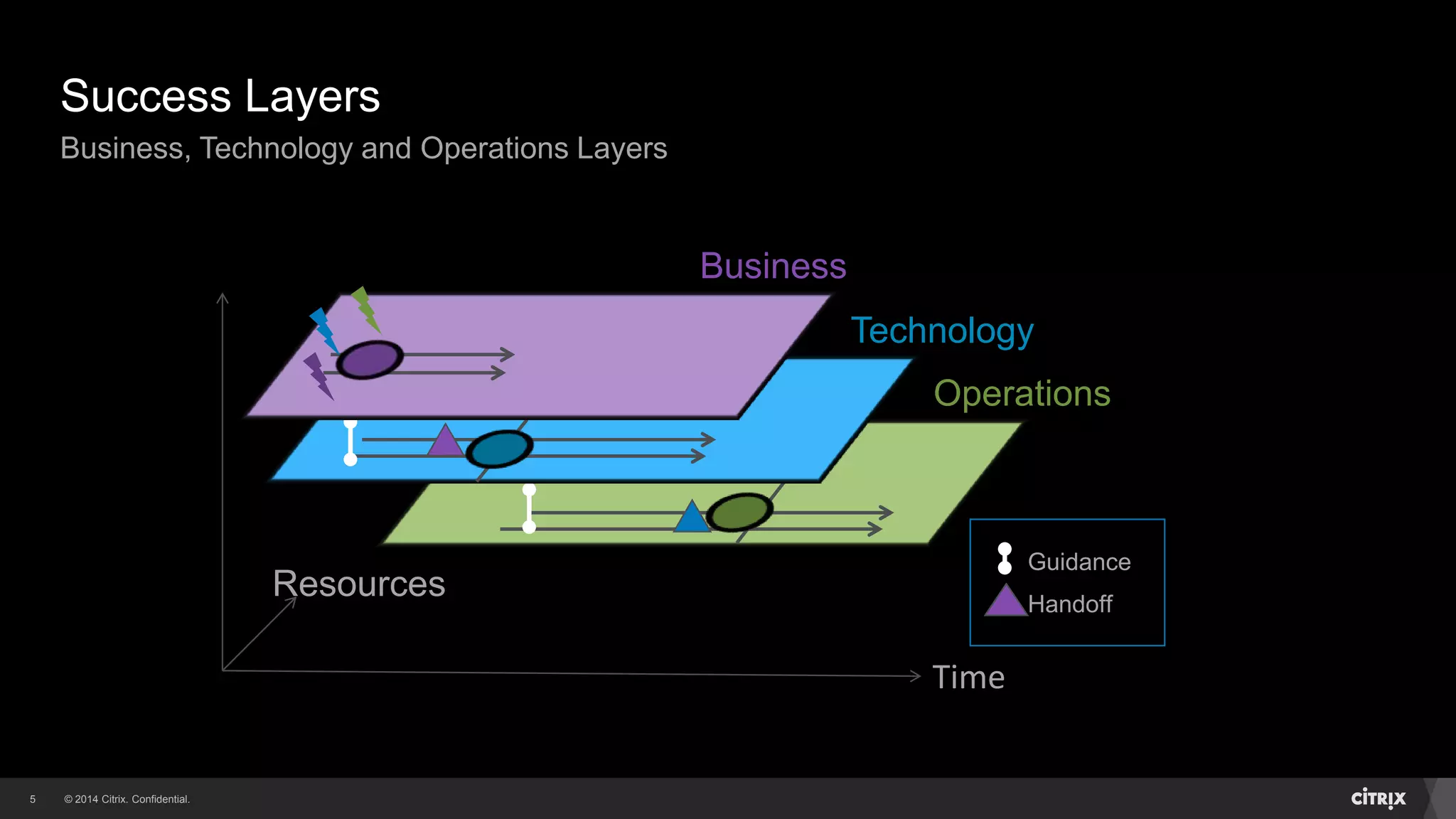

- 5. © 2014 Citrix.Confidential.5 Success Layers Business, Technology and Operations Layers Time Resources Guidance Handoff Operations Technology Business

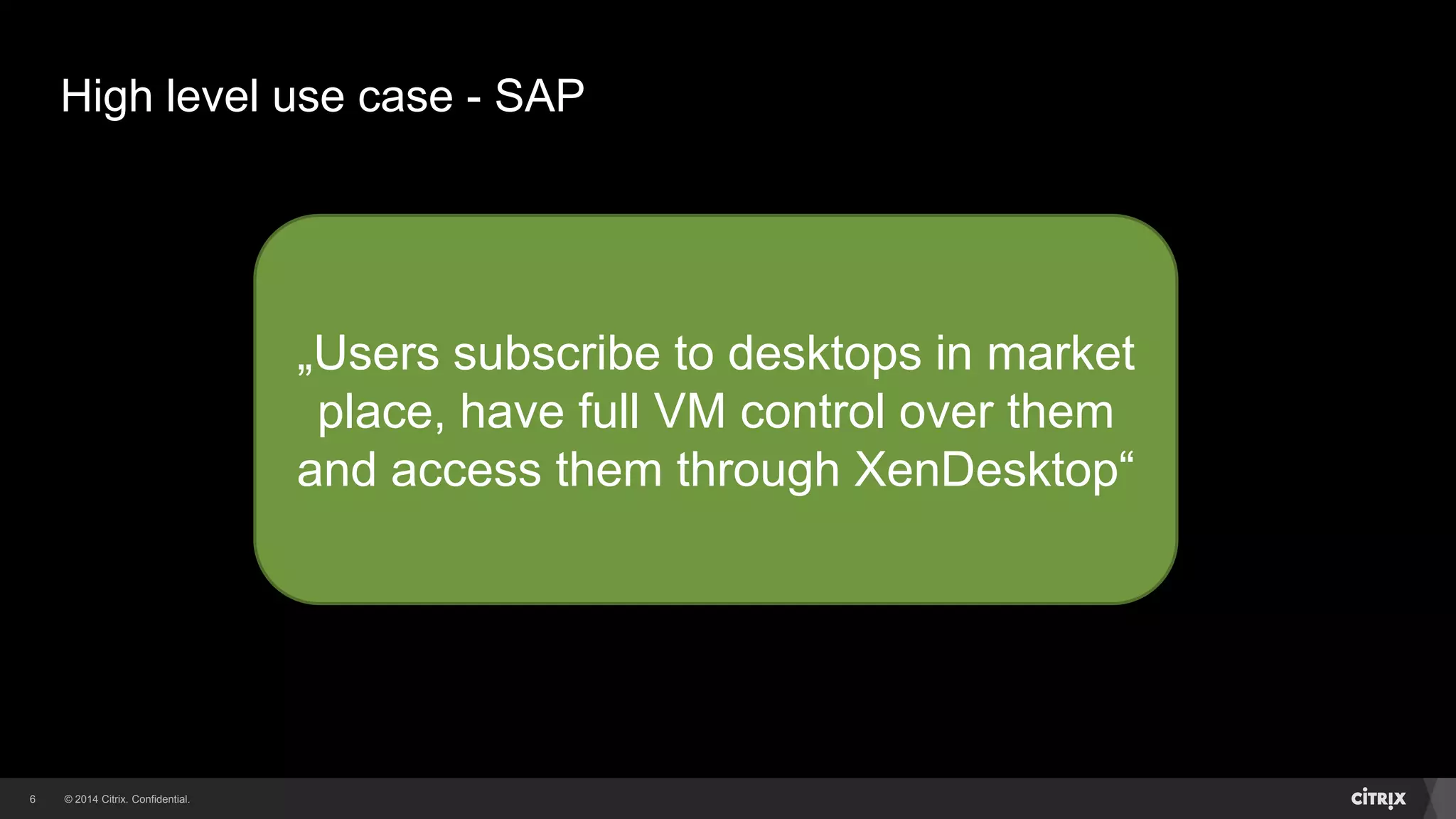

- 6. © 2014 Citrix.Confidential.6 High level use case - SAP „Users subscribe to desktops in market place, have full VM control over them and access them through XenDesktop“

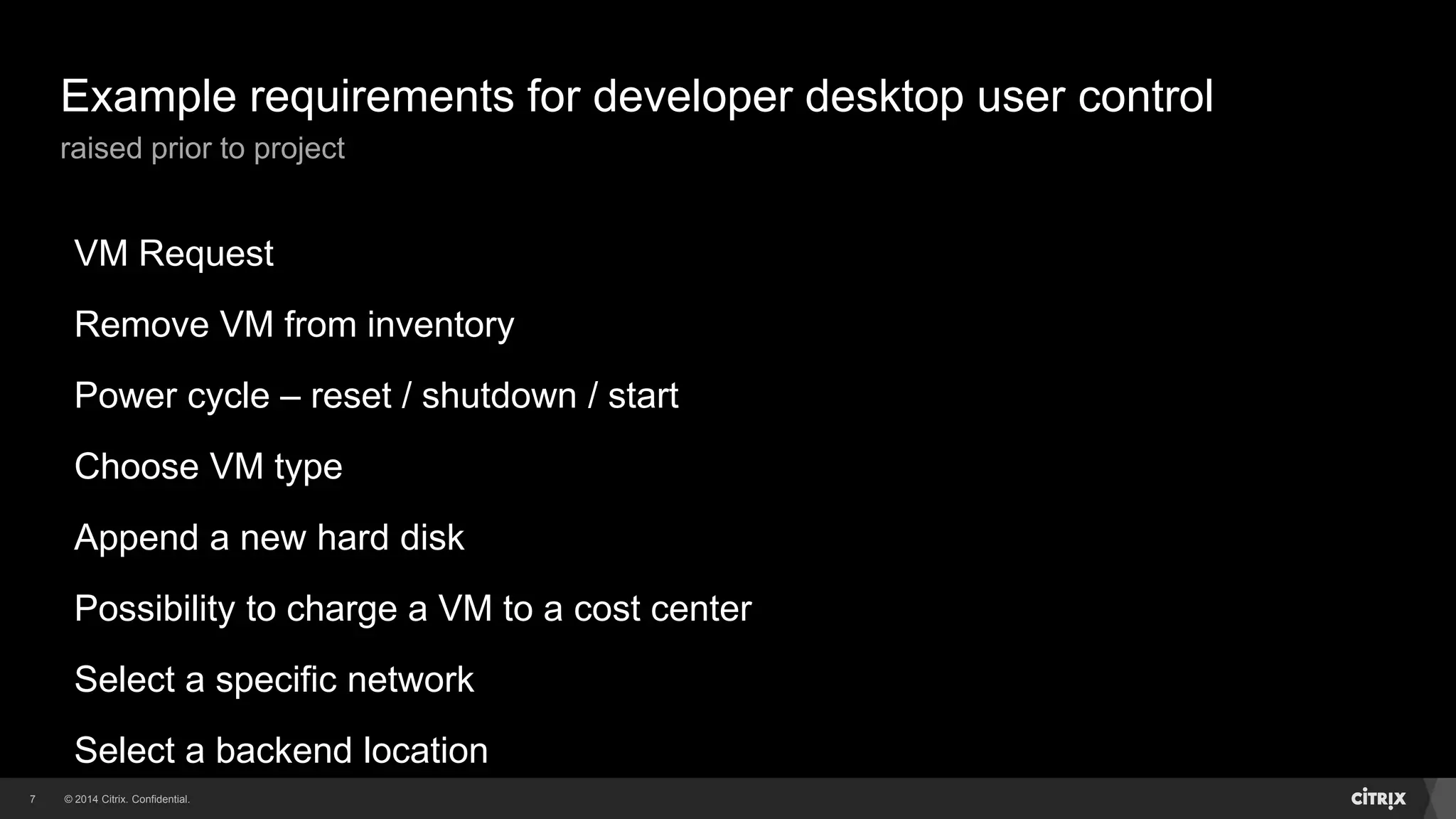

- 7. © 2014 Citrix.Confidential.7 Example requirements for developer desktop user control raised prior to project VM Request Remove VM from inventory Power cycle – reset / shutdown / start Choose VM type Append a new hard disk Possibility to charge a VM to a cost center Select a specific network Select a backend location

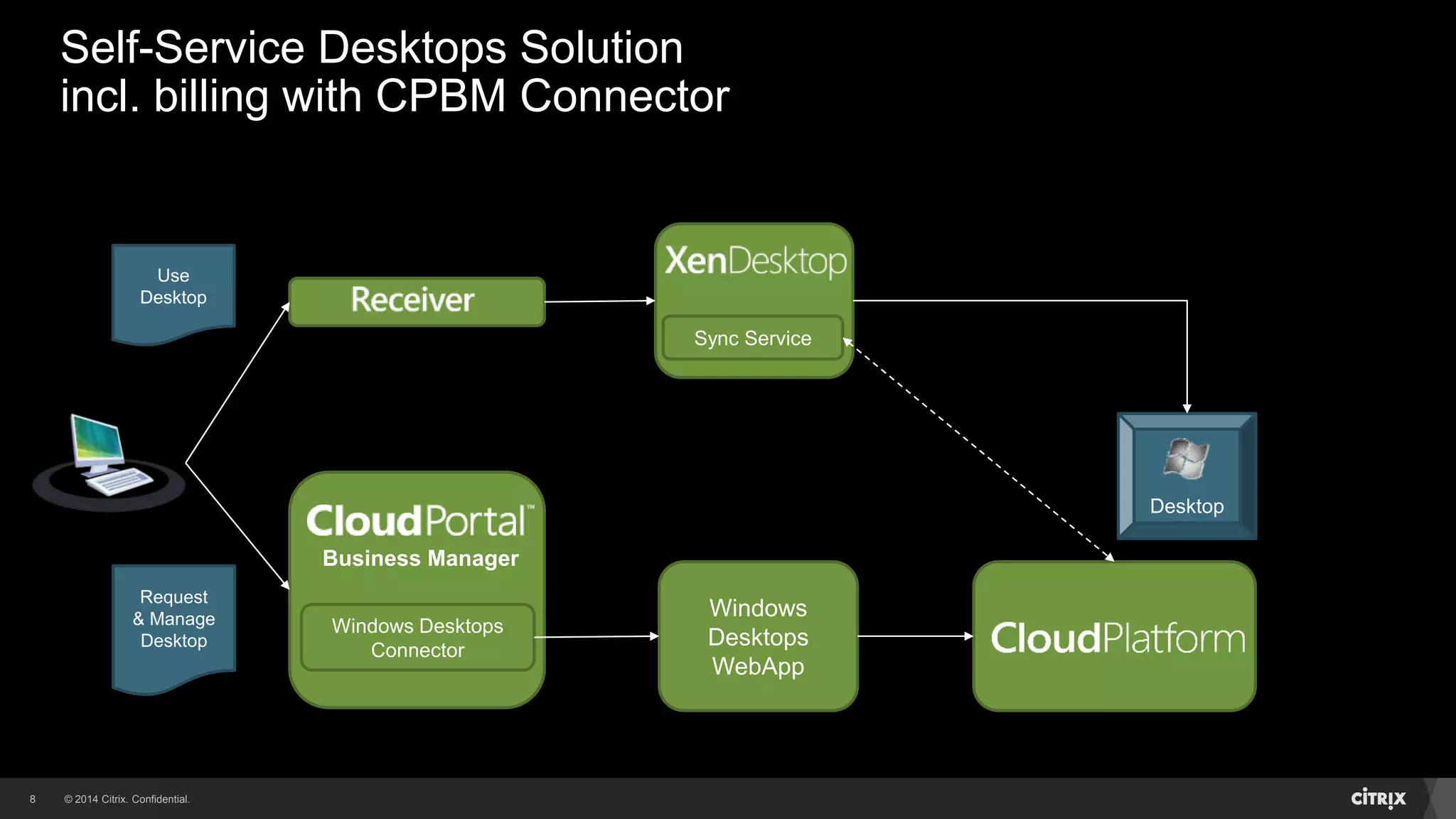

- 8. © 2014 Citrix.Confidential.8 Self-Service Desktops Solution incl. billing with CPBM Connector Request & Manage Desktop Use Desktop Business Manager Windows Desktops WebApp Windows Desktops Connector Sync Service Desktop

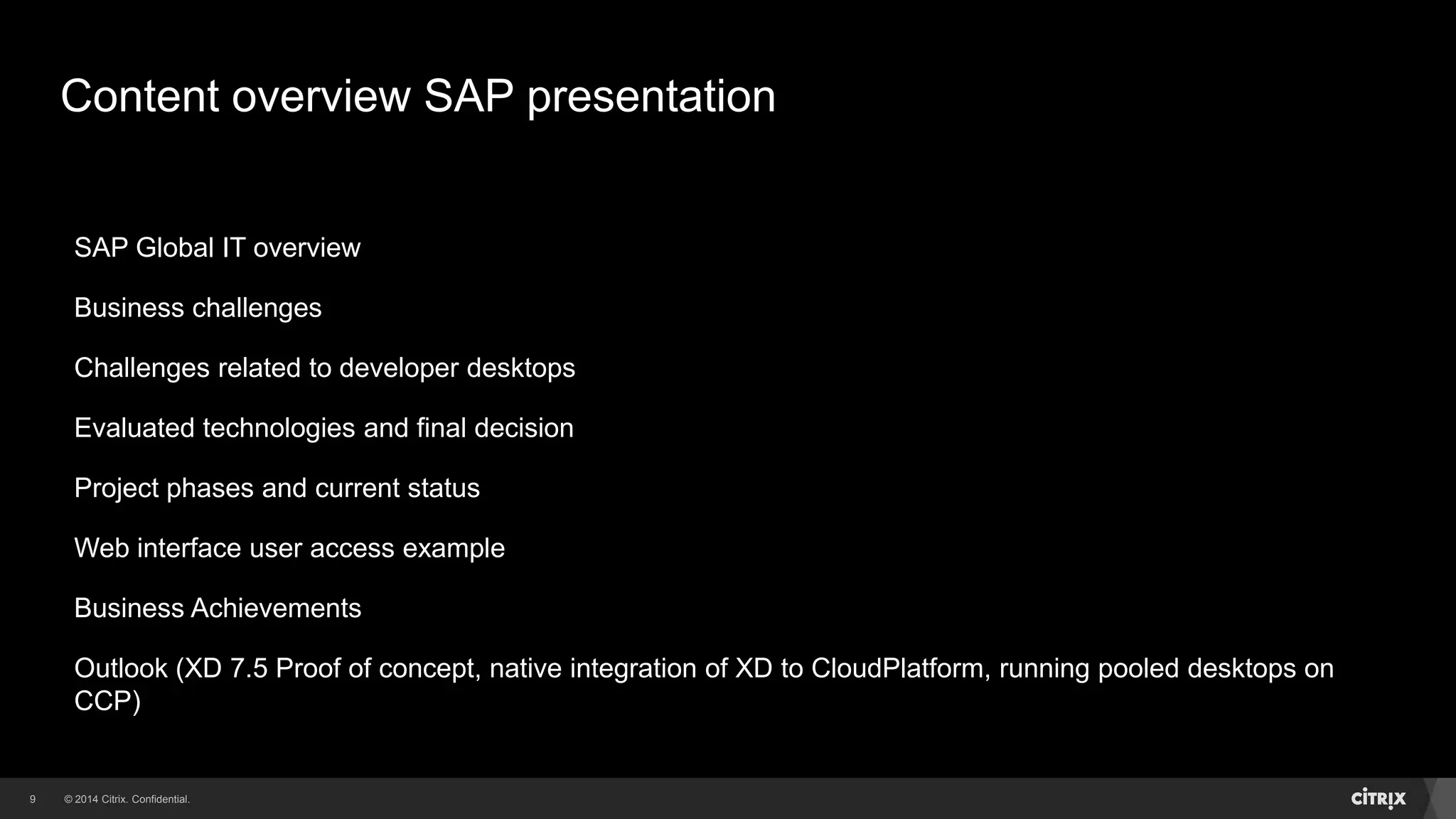

- 9. © 2014 Citrix.Confidential.9 Content overview SAP presentation SAP Global IT overview Business challenges Challenges related to developer desktops Evaluated technologies and final decision Project phases and current status Web interface user access example Business Achievements Outlook (XD 7.5 Proof of concept, native integration of XD to CloudPlatform, running pooled desktops on CCP)

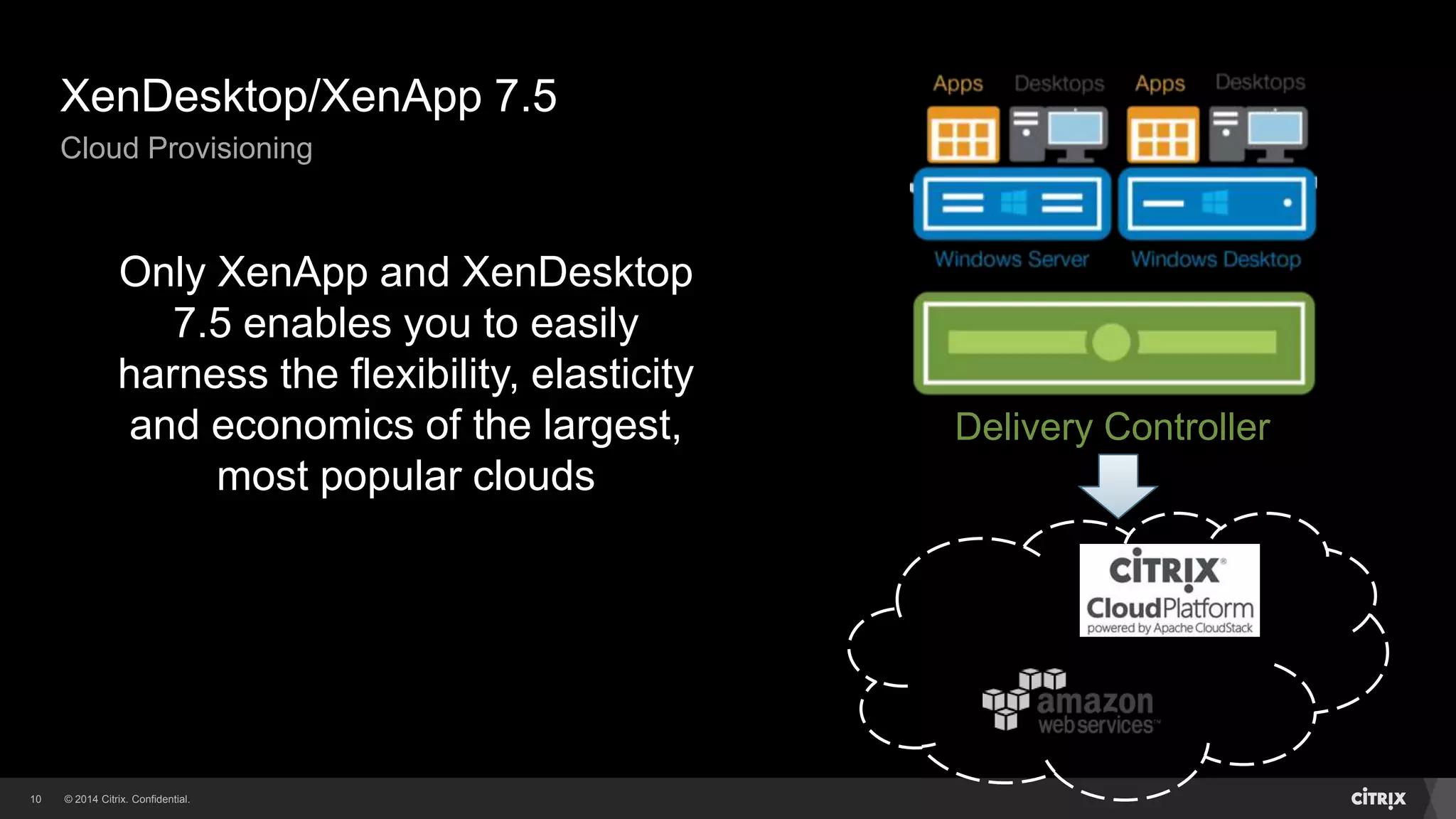

- 10. © 2014 Citrix.Confidential.10 Only XenApp and XenDesktop 7.5 enables you to easily harness the flexibility, elasticity and economics of the largest, most popular clouds XenDesktop/XenApp 7.5 Cloud Provisioning Delivery Controller

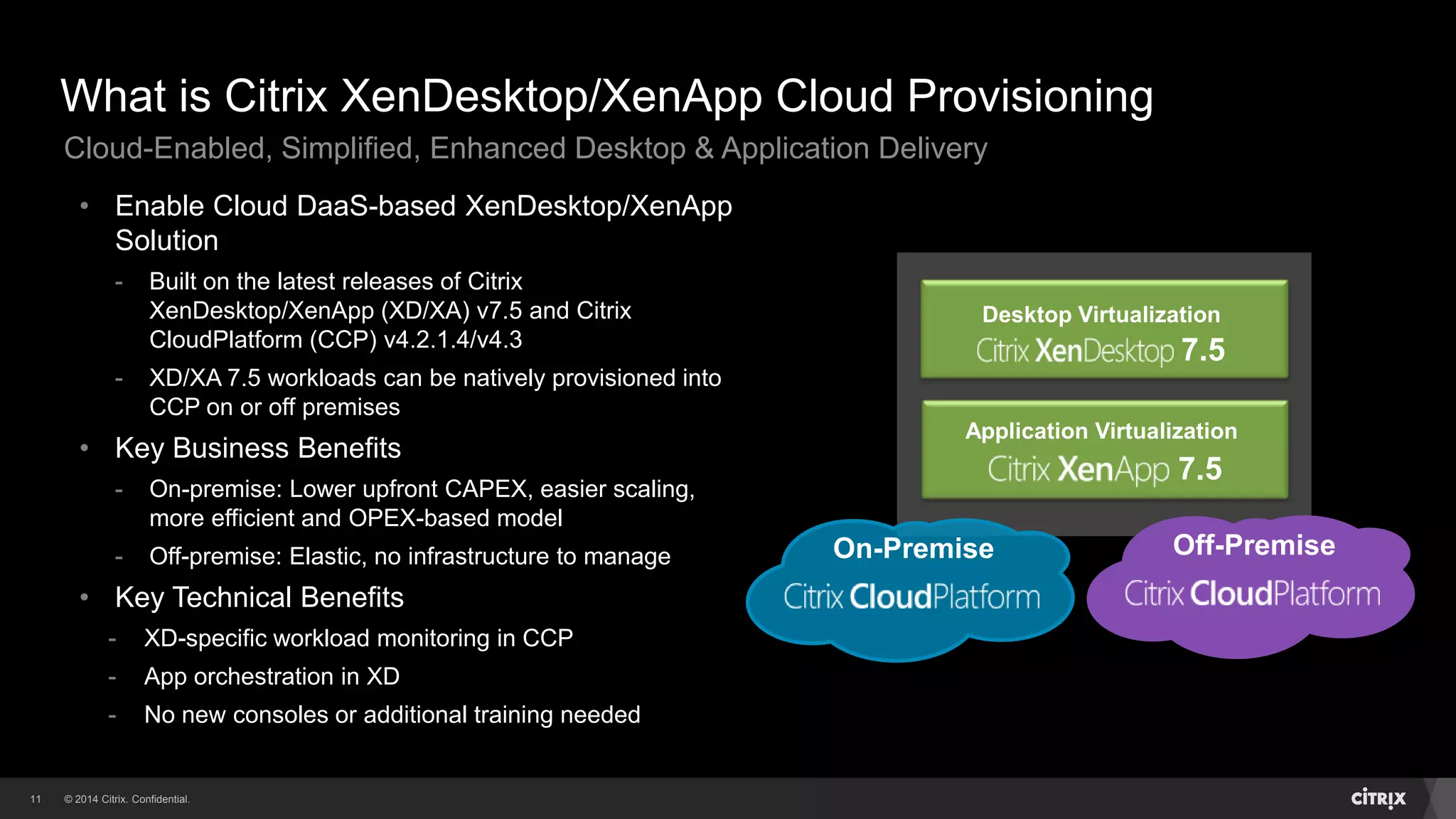

- 11. © 2014 Citrix.Confidential.11 What is Citrix XenDesktop/XenApp Cloud Provisioning Desktop Virtualization 7.5 Application Virtualization 7.5 Off-PremiseOn-Premise • Enable Cloud DaaS-based XenDesktop/XenApp Solution - Built on the latest releases of Citrix XenDesktop/XenApp (XD/XA) v7.5 and Citrix CloudPlatform (CCP) v4.2.1.4/v4.3 - XD/XA 7.5 workloads can be natively provisioned into CCP on or off premises • Key Business Benefits - On-premise: Lower upfront CAPEX, easier scaling, more efficient and OPEX-based model - Off-premise: Elastic, no infrastructure to manage • Key Technical Benefits - XD-specific workload monitoring in CCP - App orchestration in XD - No new consoles or additional training needed Cloud-Enabled, Simplified, Enhanced Desktop & Application Delivery

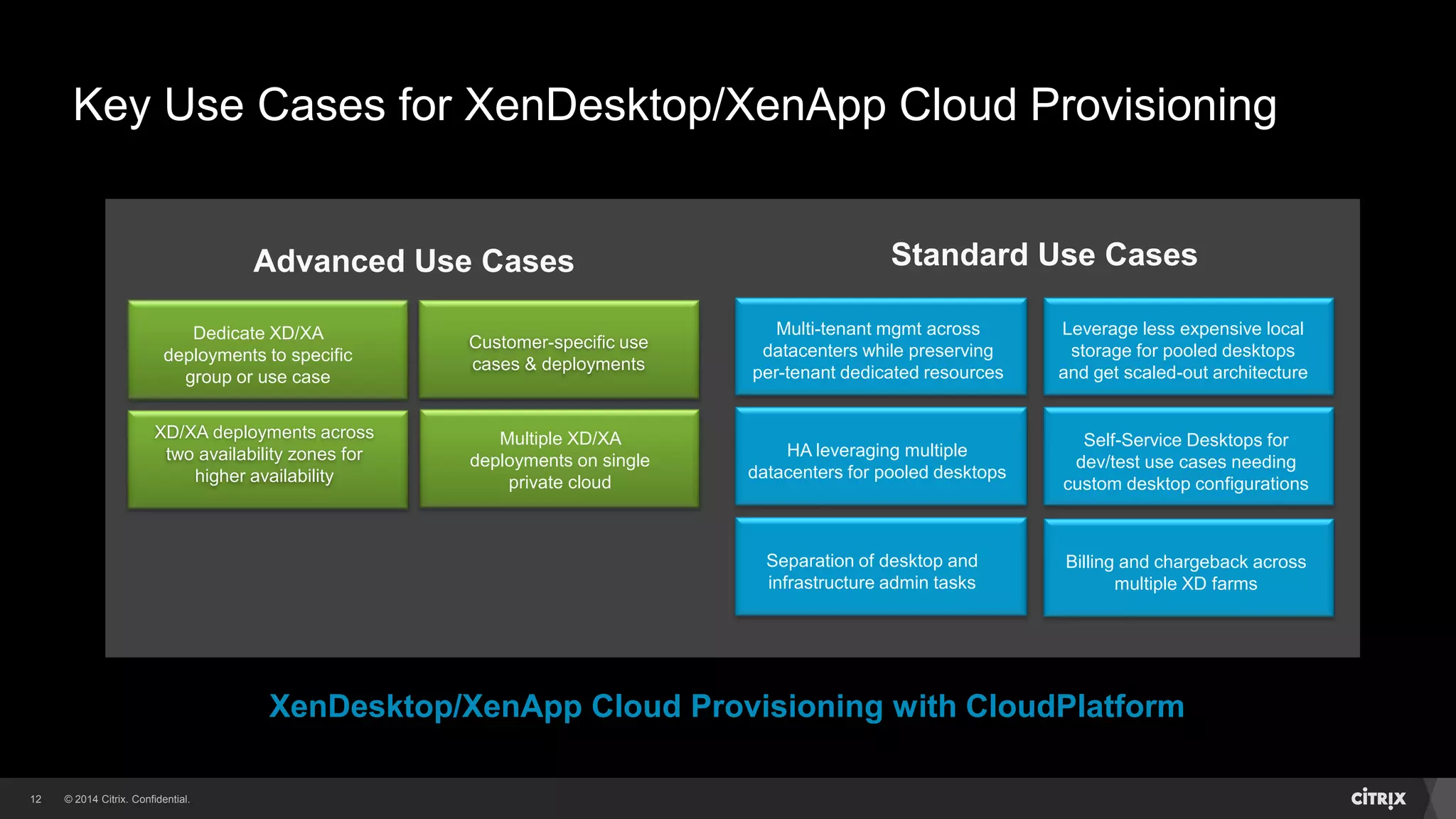

- 12. © 2014 Citrix.Confidential.12 Advanced Use Cases Standard Use Cases Dedicate XD/XA deployments to specific group or use case XD/XA deployments across two availability zones for higher availability Multiple XD/XA deployments on single private cloud Customer-specific use cases & deployments Key Use Cases for XenDesktop/XenApp Cloud Provisioning Multi-tenant mgmt across datacenters while preserving per-tenant dedicated resources HA leveraging multiple datacenters for pooled desktops Billing and chargeback across multiple XD farms Leverage less expensive local storage for pooled desktops and get scaled-out architecture Self-Service Desktops for dev/test use cases needing custom desktop configurations Separation of desktop and infrastructure admin tasks XenDesktop/XenApp Cloud Provisioning with CloudPlatform

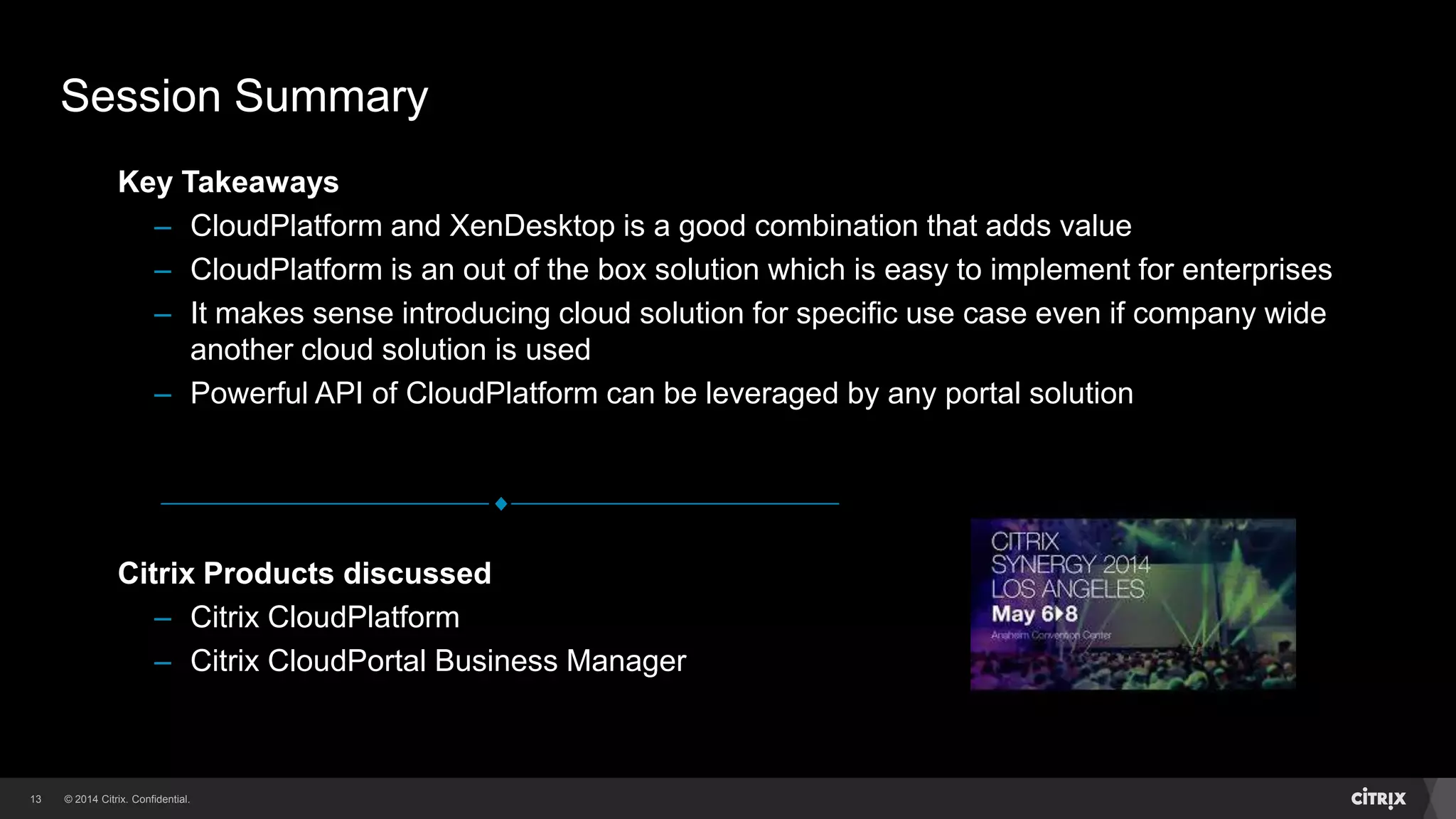

- 13. © 2014 Citrix.Confidential.13 Citrix Products discussed – Citrix CloudPlatform – Citrix CloudPortal Business Manager Key Takeaways – CloudPlatform and XenDesktop is a good combination that adds value – CloudPlatform is an out of the box solution which is easy to implement for enterprises – It makes sense introducing cloud solution for specific use case even if company wide another cloud solution is used – Powerful API of CloudPlatform can be leveraged by any portal solution Session Summary

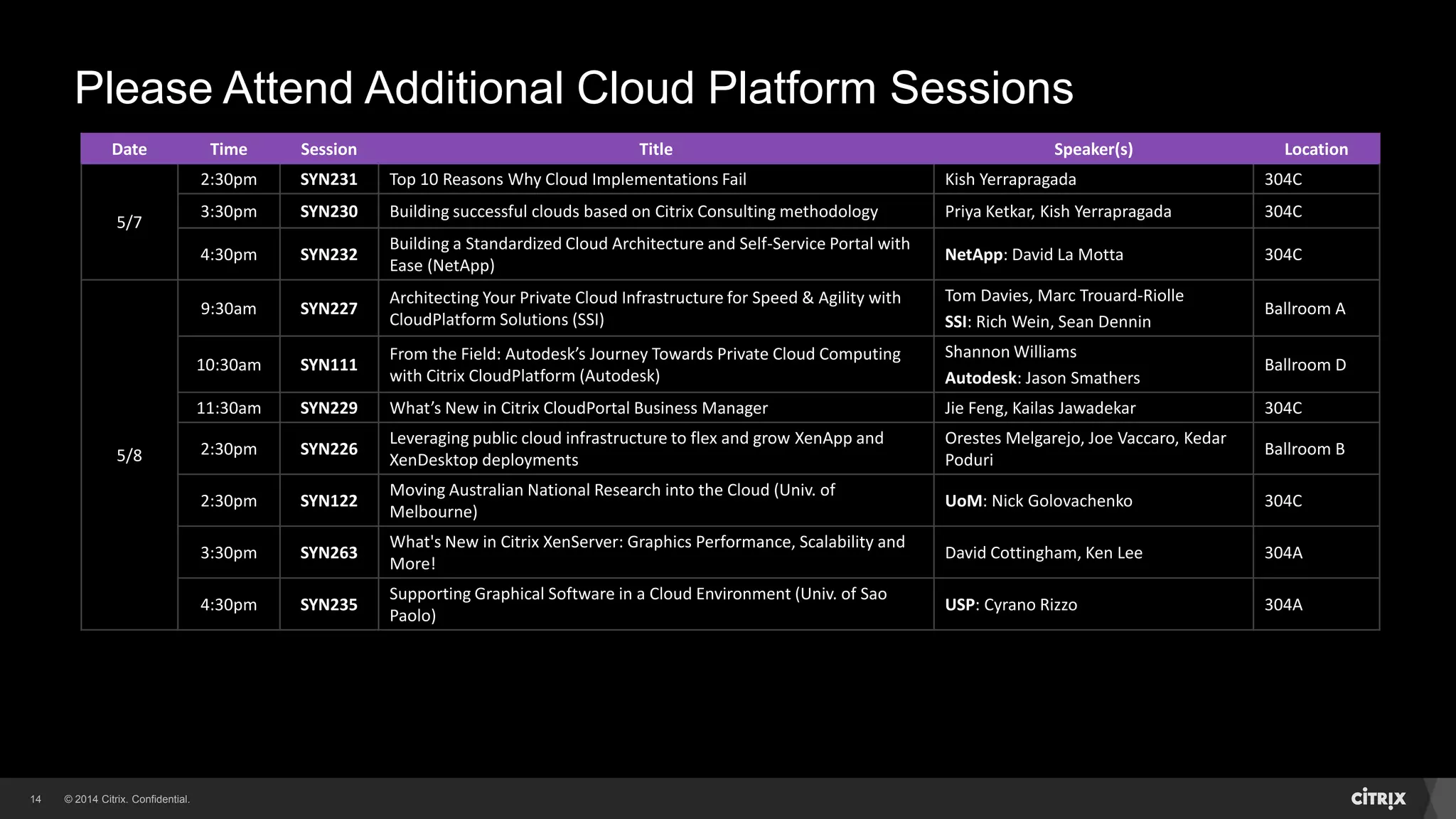

- 14. © 2014 Citrix.Confidential.14 Please Attend Additional Cloud Platform Sessions Date Time Session Title Speaker(s) Location 5/7 2:30pm SYN231 Top 10 Reasons Why Cloud Implementations Fail Kish Yerrapragada 304C 3:30pm SYN230 Building successful clouds based on Citrix Consulting methodology Priya Ketkar, Kish Yerrapragada 304C 4:30pm SYN232 Building a Standardized Cloud Architecture and Self-Service Portal with Ease (NetApp) NetApp: David La Motta 304C 5/8 9:30am SYN227 Architecting Your Private Cloud Infrastructure for Speed & Agility with CloudPlatform Solutions (SSI) Tom Davies, Marc Trouard-Riolle SSI: Rich Wein, Sean Dennin Ballroom A 10:30am SYN111 From the Field: Autodesk’s Journey Towards Private Cloud Computing with Citrix CloudPlatform (Autodesk) Shannon Williams Autodesk: Jason Smathers Ballroom D 11:30am SYN229 What’s New in Citrix CloudPortal Business Manager Jie Feng, Kailas Jawadekar 304C 2:30pm SYN226 Leveraging public cloud infrastructure to flex and grow XenApp and XenDesktop deployments Orestes Melgarejo, Joe Vaccaro, Kedar Poduri Ballroom B 2:30pm SYN122 Moving Australian National Research into the Cloud (Univ. of Melbourne) UoM: Nick Golovachenko 304C 3:30pm SYN263 What's New in Citrix XenServer: Graphics Performance, Scalability and More! David Cottingham, Ken Lee 304A 4:30pm SYN235 Supporting Graphical Software in a Cloud Environment (Univ. of Sao Paolo) USP: Cyrano Rizzo 304A

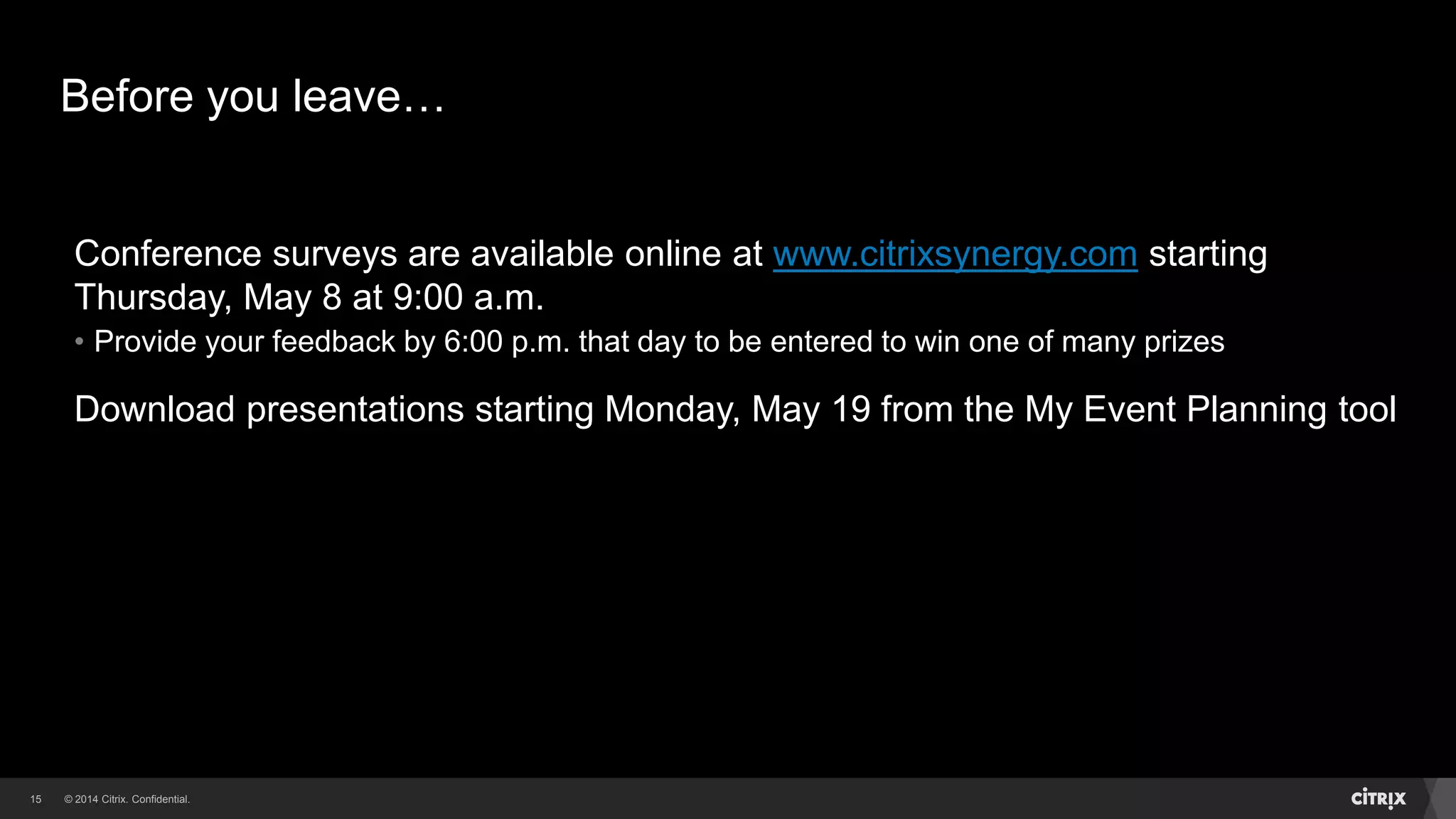

- 15. © 2014 Citrix.Confidential.15 Before you leave… Conference surveys are available online at www.citrixsynergy.com starting Thursday, May 8 at 9:00 a.m. • Provide your feedback by 6:00 p.m. that day to be entered to win one of many prizes Download presentations starting Monday, May 19 from the My Event Planning tool
- 16. Work better. Livebetter.
Editor's Notes
- #2 http://www.citrix.com/tv/#videos/8605
- #5 A key element in the success of Citrix Consulting is the proven methodology which takes each project through the critical steps from inception through operations. Our approach focuses on ensuring that projects are properly planned and designed before implementation begins, so that the end project minimizes your risk and delivers maximum business impact.Define: Citrix Consulting can assist in the definition of the strategy that will help your business take full advantage of virtualization and cloud technologies through:Solution developmentRoadmap initiatives and strategic planningHardware and storage estimationPrioritization.Asses: Think of the center of our diagram as the heart of your project. During the Assess phase, Citrix Consulting reviews your current environment, identifies use cases, and gathers detailed requirements for your project. This information allows us to elaborate on the project success criteria and set goals for your Citrix deployment, upgrade, or expansion.Design: The design phase defines the architecture and operational processes required to implement and maintain the production environment that will meet and hopefully exceed your success criteria. Topics such as environment scalability, redundancy and high availability are addressed. Citrix Consulting will apply best practices for performance tuning to help your environment perform at its best. That means that your environment is rigorously tested during this phase to make sure your deployment runs smoothly.Monitor: Citrix Consulting can be engaged to perform continued monitoring and administrative tasks in several different capacities for the long-term health of your Citrix environment. We have the experience to keep your environment stable and your users happy with onsite and remote delivery capabilities.
- #6 The three tracks Business, Operations, and Technology overlay and interact with each other during the life of the project. The oculus of the project moves from one layer to the next as the project matures over timeSuccessful cloud projects have well defined criteria in their respective layers>>Business Layer criteria applies to the provider organization (Enterprise or Service Provider) and covers subscriber interaction with the cloud offering. >>Technology Layer criteria cover all aspects of the Infrastructure/Software/services required to build and enable the cloud platform>>Operational Layer criteria cover all aspects of the ongoing health,autonomic management and operations interactions with the cloud technology and business processLightning bolts represent ideas or objectives Connectors represent guidance from one layer to anotherTriangles represent requirements handoff from one layer to anotherFor the purposes of this talk we will focus on the Enterprise
