The University of Sao Paulo developed a private cloud called Cloud USP to modernize its aging IT infrastructure. It won an innovation award in 2013. The university deployed NVIDIA Tesla K20X GPU cards to power scientific computing workloads and NVIDIA Grid K2 cards to enable virtualized graphics. It plans to expand cloud services to the broader university community and support new technologies like IPv6.

1. 1© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Supporting graphical
software in a cloud
environment – SYN235
Cyrano Rizzo
Director of Datacenter Vertical
University of Sao Paulo

2. 2© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Tweet about this session with follows hashtags
! #SYN235
! #CitrixSynergy
! #USP
! #CloudUSP
! #NuvemUSP

3. 3© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

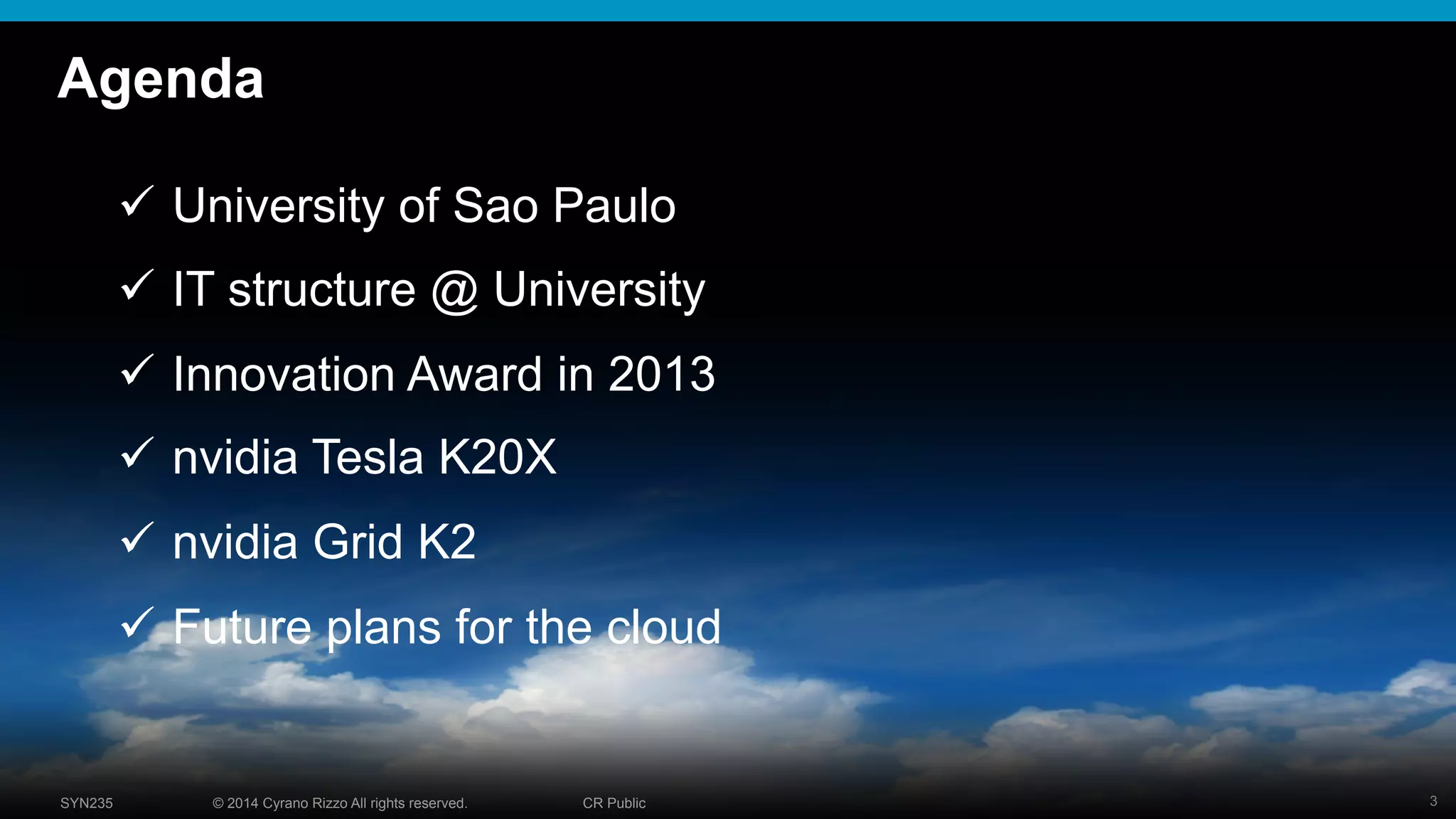

Agenda
! University of Sao Paulo
! IT structure @ University
! Innovation Award in 2013
! nvidia Tesla K20X
! nvidia Grid K2
! Future plans for the cloud

4. 4© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
University of Sao Paulo
! 11 campuses 30 sq mi
! 100,000 students
! 6,000 professors
! 17,000 employees
! Well known LATAM University
! 1st University in LATAM by rankings
! Largest Private Cloud in LATAM
! 30% over all Brazil research

5. 5© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

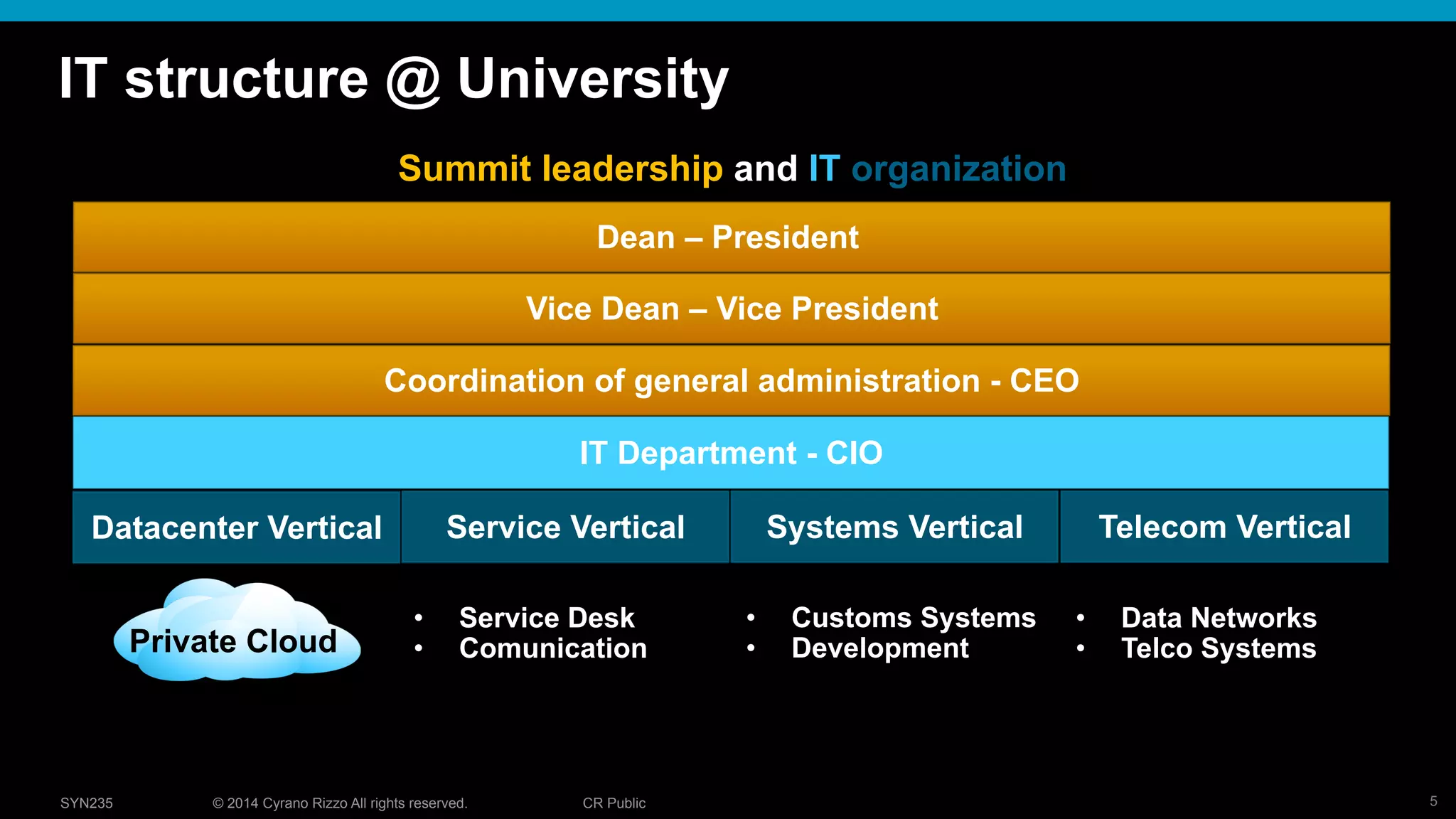

IT structure @ University
Private Cloud
• Customs Systems
• Development
IT Department - CIO
• Service Desk
• Comunication
Coordination of general administration - CEO
Summit leadership and IT organization
Service Vertical Systems Vertical Telecom VerticalDatacenter Vertical
Vice Dean – Vice President
Dean – President
• Data Networks
• Telco Systems

6. 6© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Innovation Award in 2013
Too much manifestations.
Too hard strikes.
Old servers.
Old datacenters.
New
approaches
were required.

7. 7© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

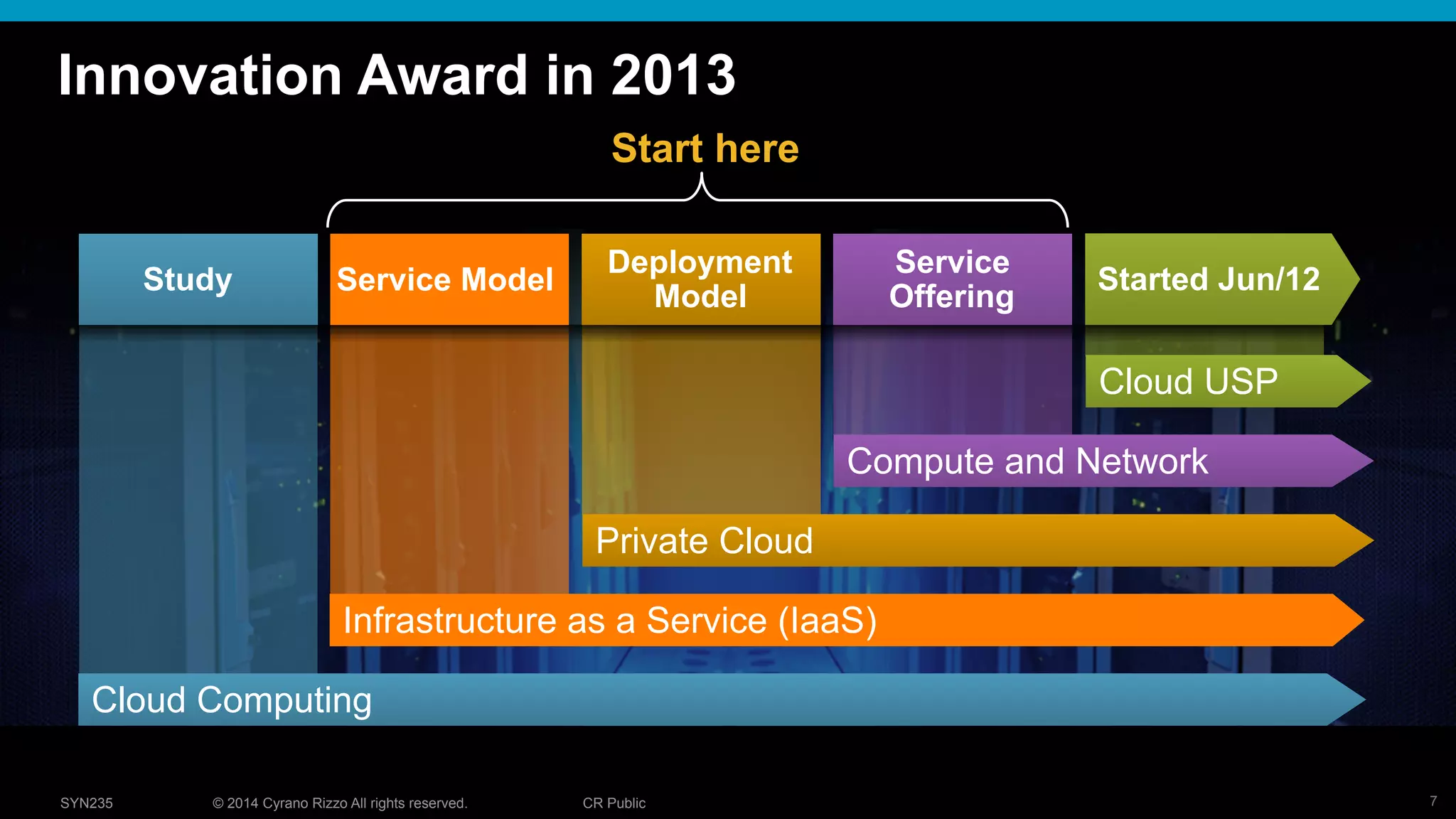

Cloud Computing
Infrastructure as a Service (IaaS)
Private Cloud
Cloud USP
Compute and Network
Study Service Model
Deployment
Model
Service
Offering
Started Jun/12
Start here
Innovation Award in 2013

8. 8© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Innovation Award in 2013
Essential Characteristics
Deployment Models
Service Models
Infrastructure Design
Catalog
Cluster
PODService Offering

9. 9© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Innovation Award in 2013
IT resources and services that are abstracted from the
underlying infrastructure and provided On-Demand and
At Scale in a multi-tenant environment
Jan 25th Born Cloud USP!
Won Citrix Innovations
Award 2013!

10. 10© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

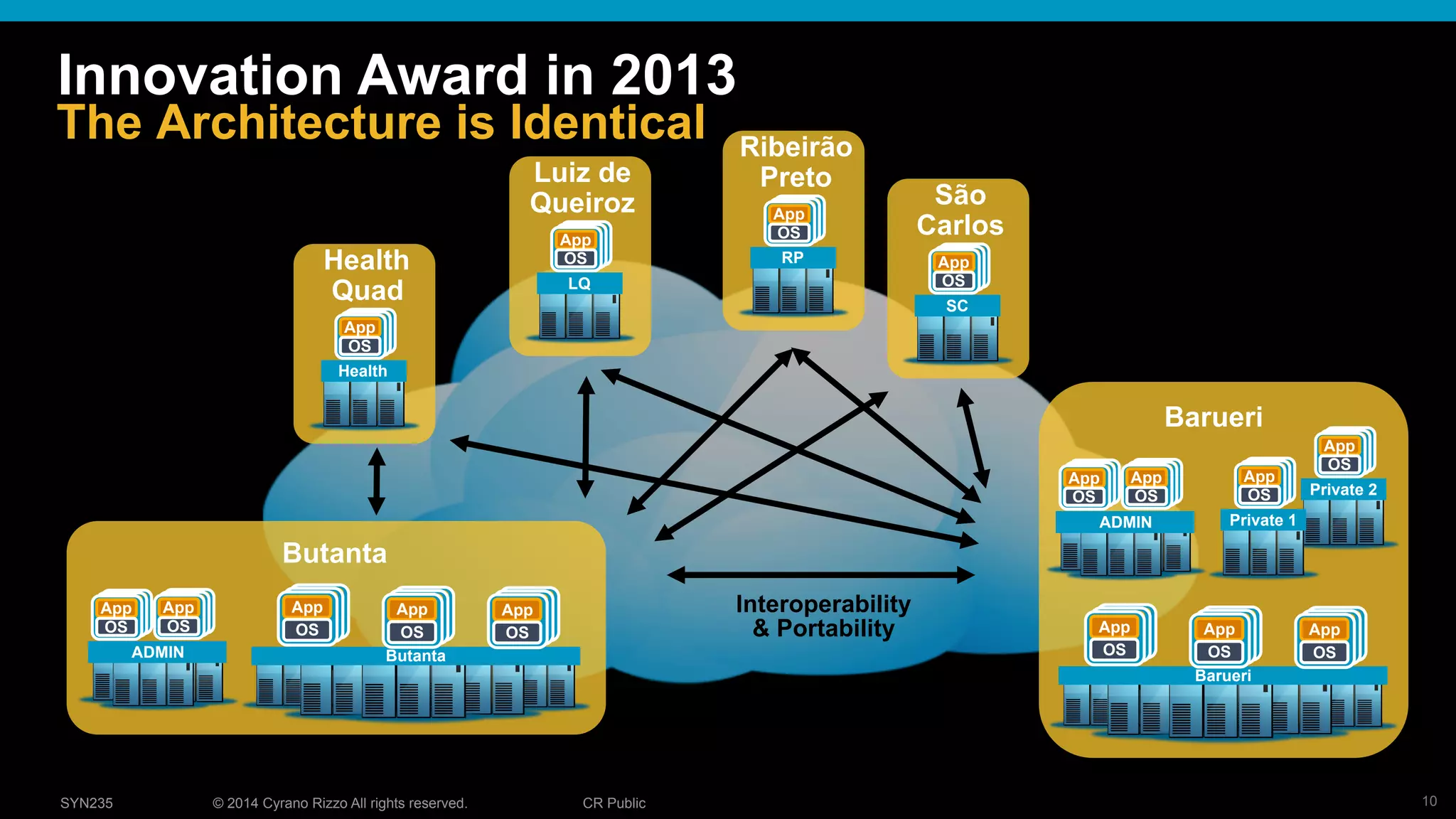

Interoperability
& Portability
The Architecture is Identical
Barueri
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
Barueri
ADMIN
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS Private 2
App
OS
App
OS
App
OS
Private 1
App
OS
App
OS
App
OS
Butanta
Butanta
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
ADMIN
App
OS
App
OS
App
OS
App
OS
App
OS
App
OS
Health
App
OS
App
OS
App
OS
Health
Quad LQ
App
OS
App
OS
App
OS
Luiz de
Queiroz
RP
App
OS
App
OS
App
OS
Ribeirão
Preto
SC
App
OS
App
OS
App
OS
São
Carlos
Innovation Award in 2013

11. 11© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

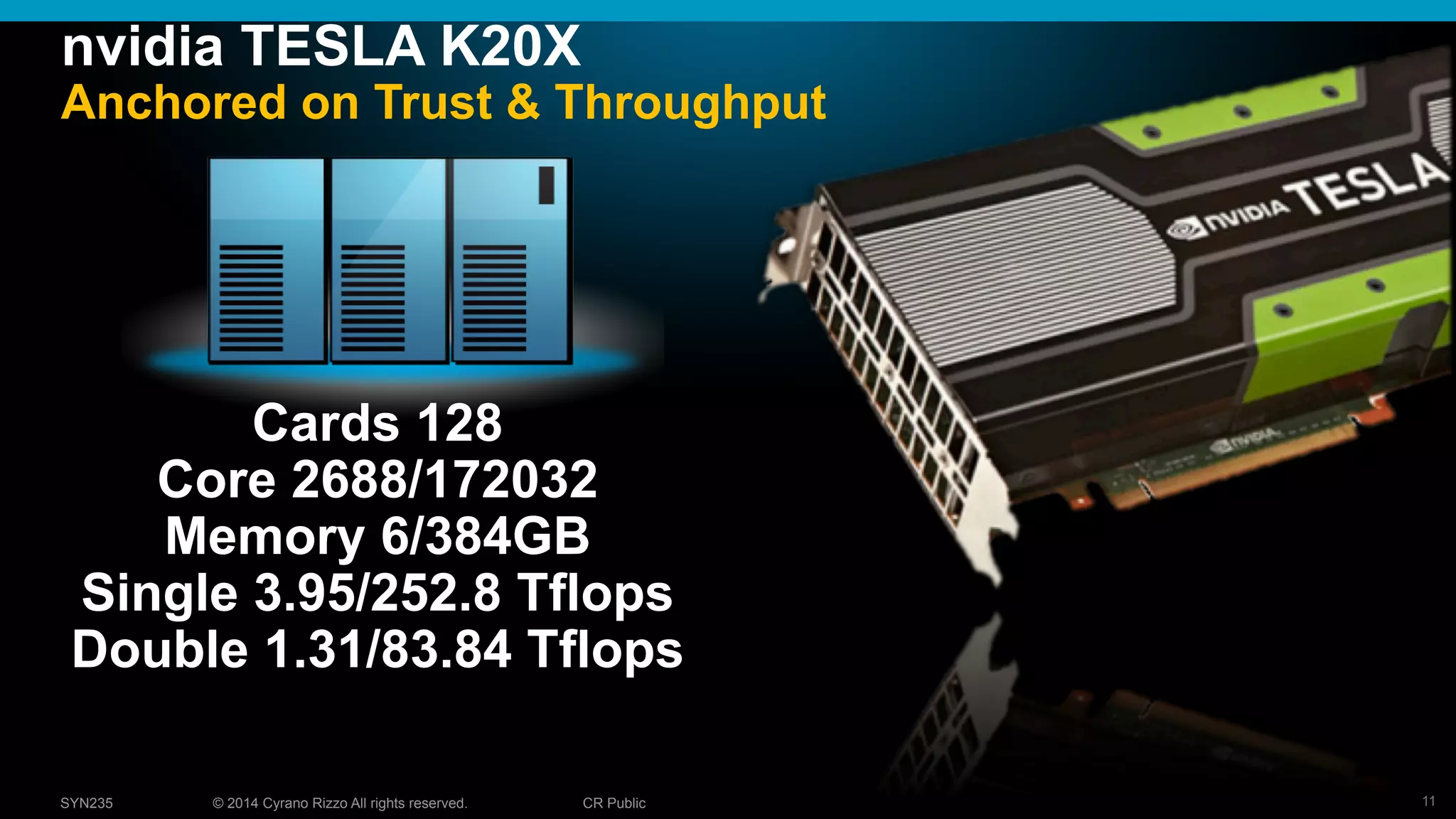

nvidia TESLA K20X
Anchored on Trust & Throughput
Cards 128
Core 2688/172032
Memory 6/384GB
Single 3.95/252.8 Tflops
Double 1.31/83.84 Tflops

12. 12© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

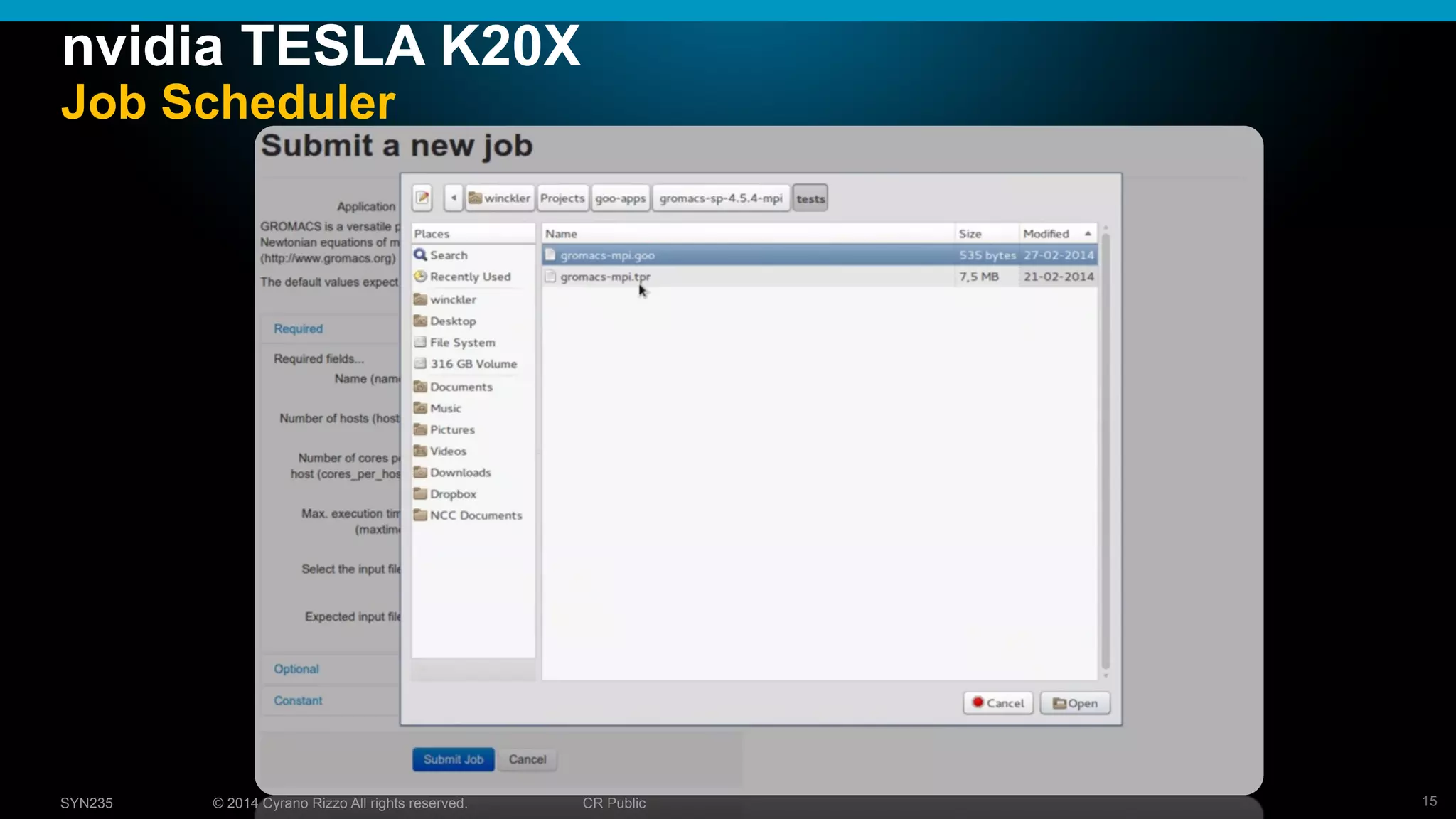

nvidia TESLA K20X

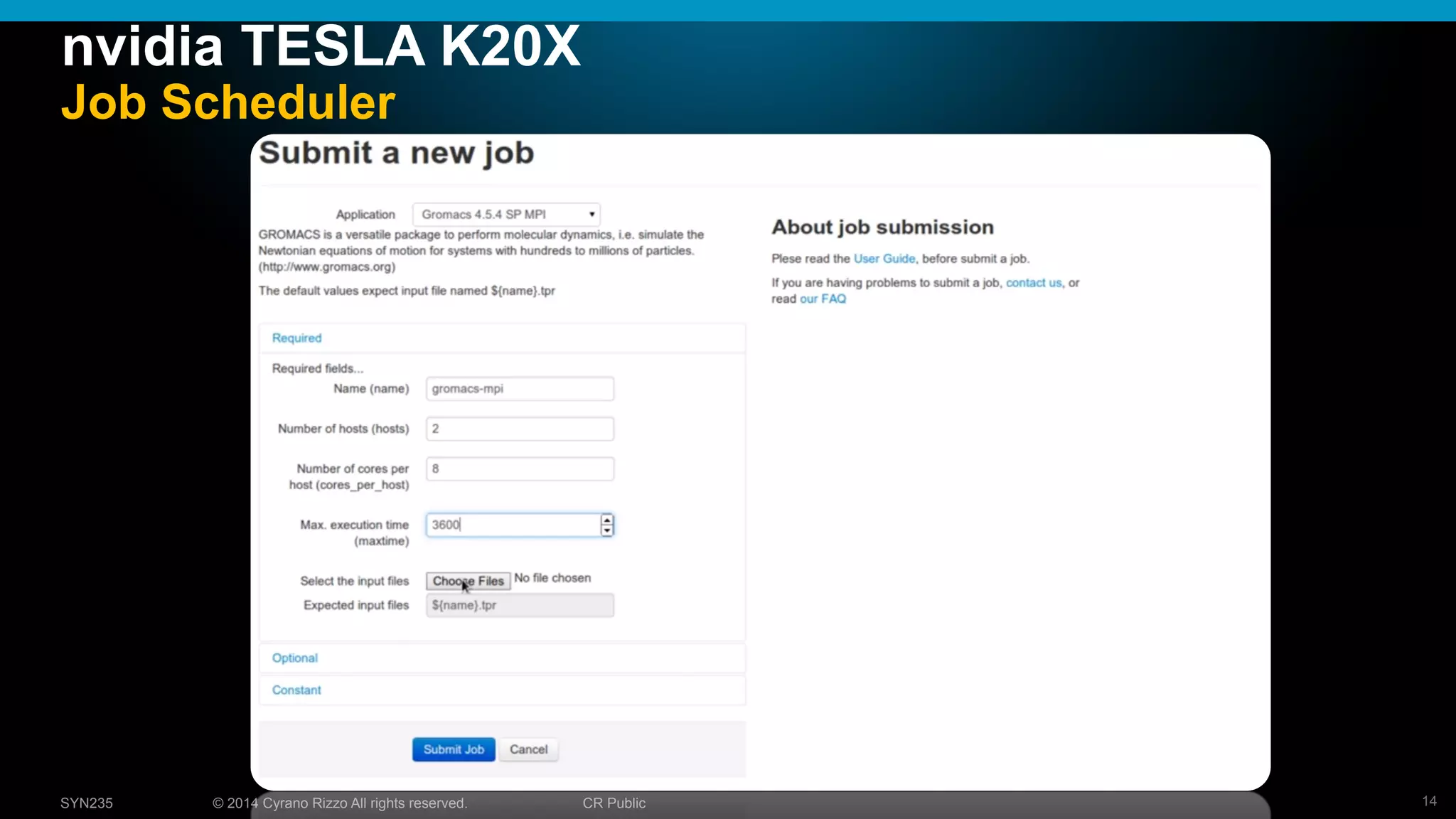

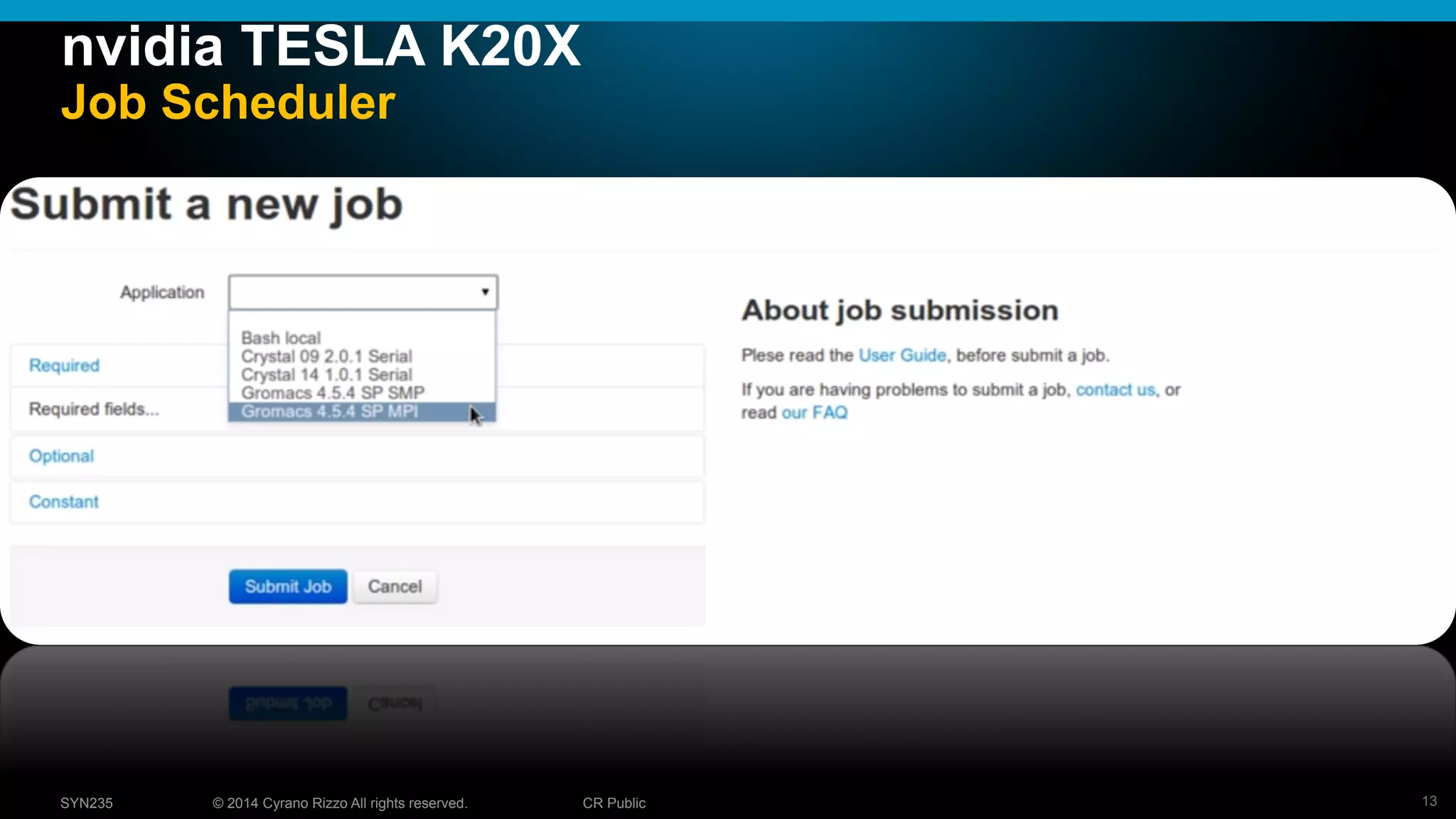

Job Scheduler

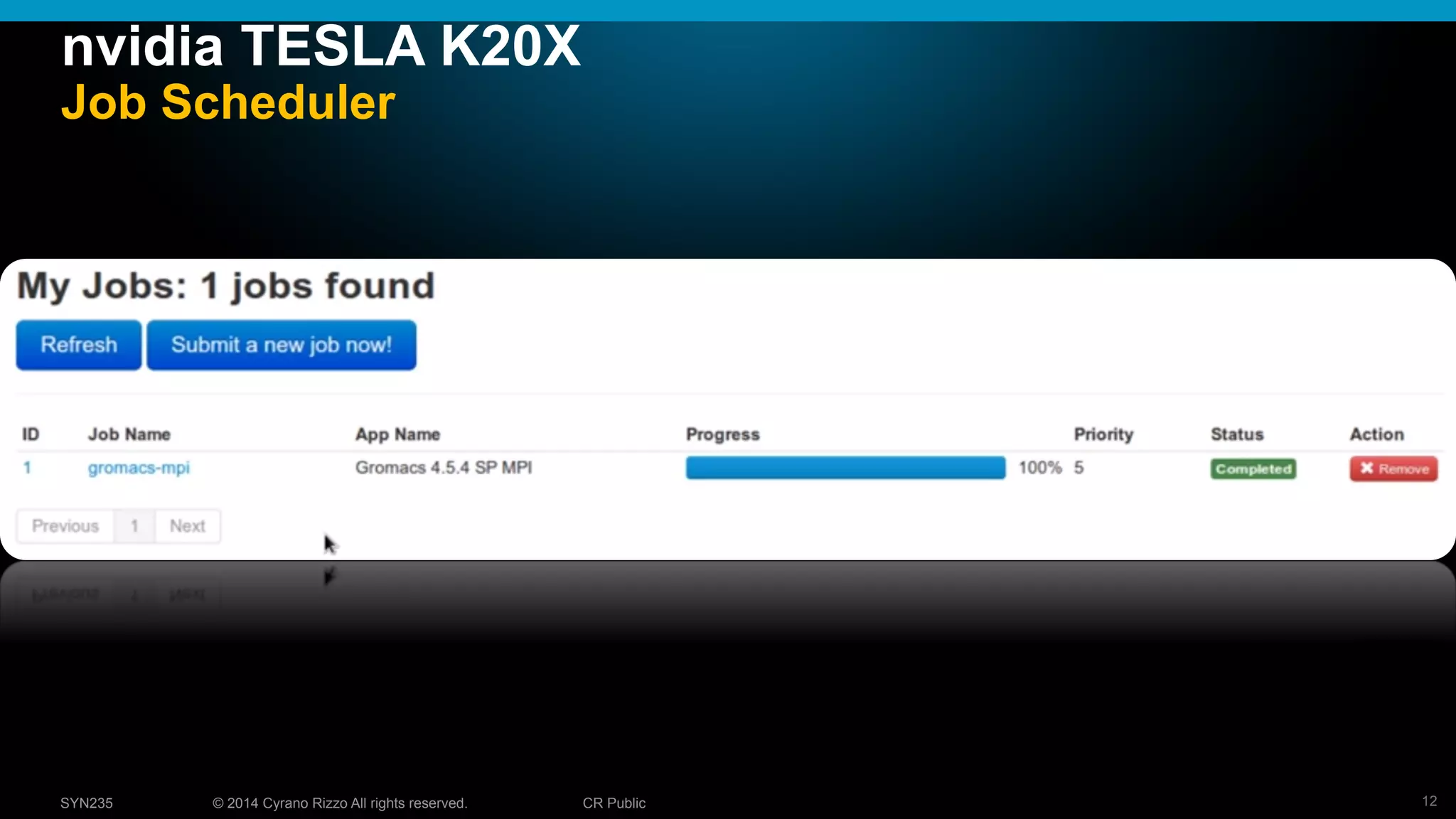

13. 13© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia TESLA K20X
Job Scheduler

14. 14© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia TESLA K20X
Job Scheduler

15. 15© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia TESLA K20X
Job Scheduler

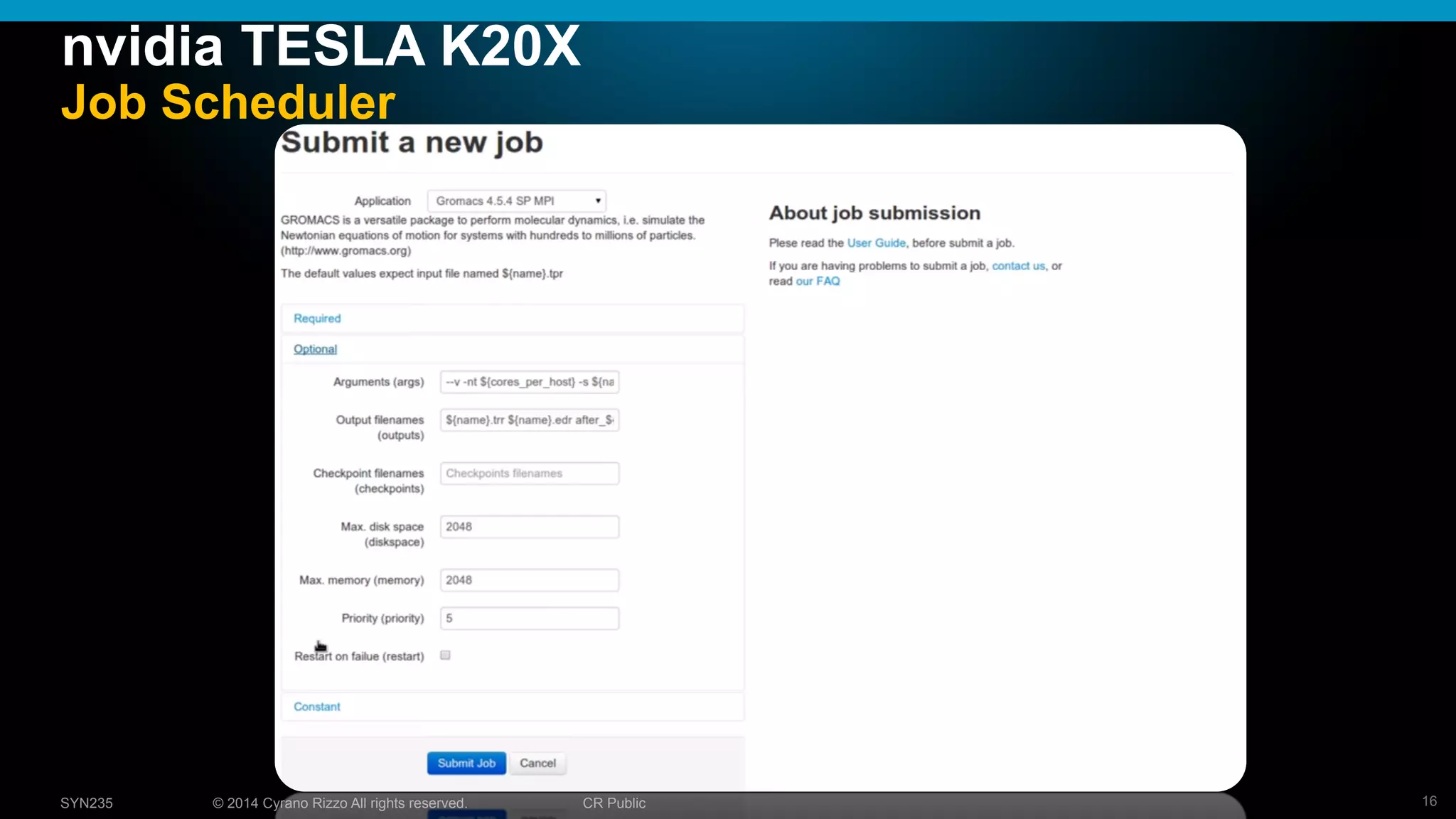

16. 16© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia TESLA K20X
Job Scheduler

17. 17© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

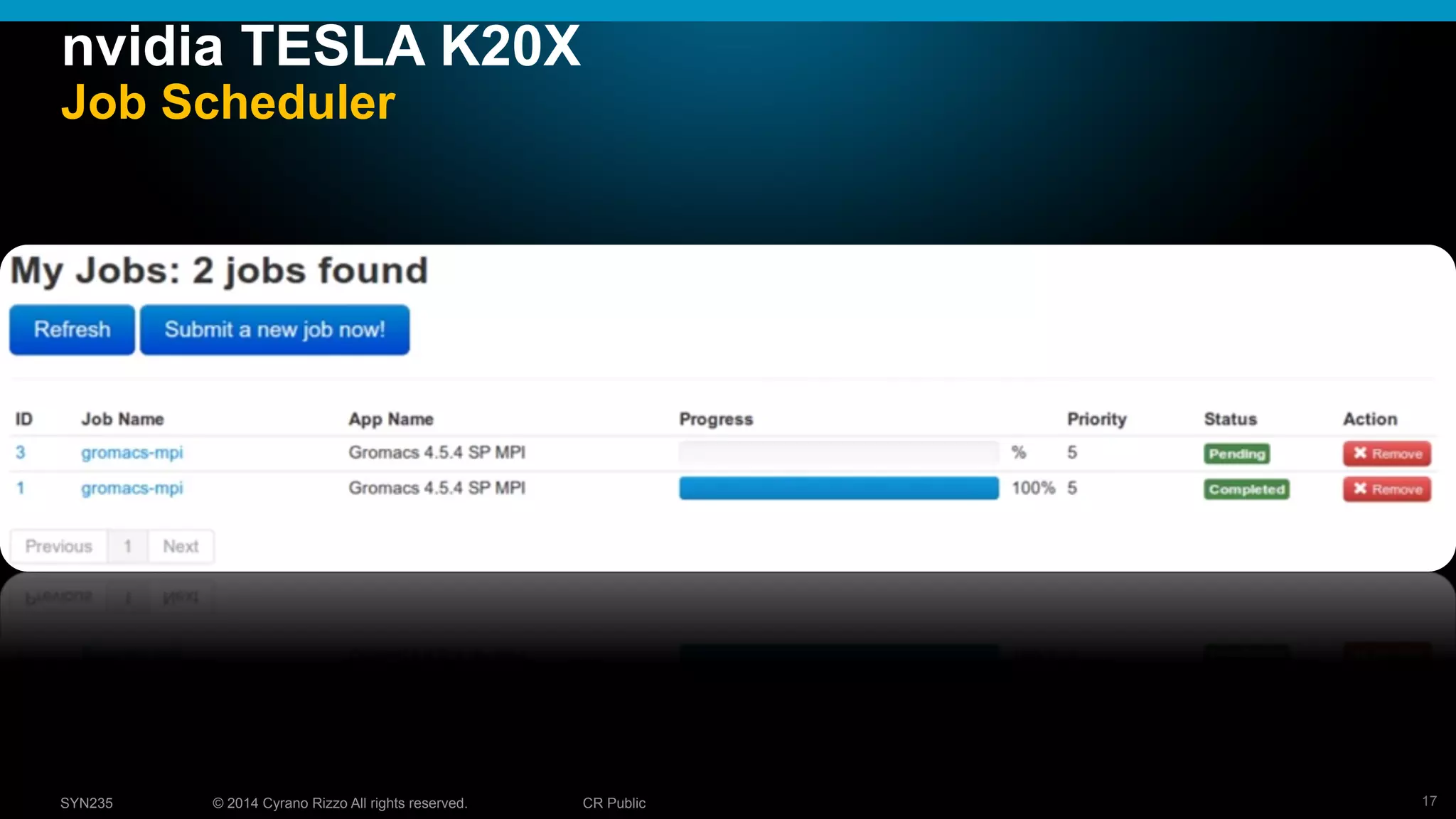

nvidia TESLA K20X
Job Scheduler

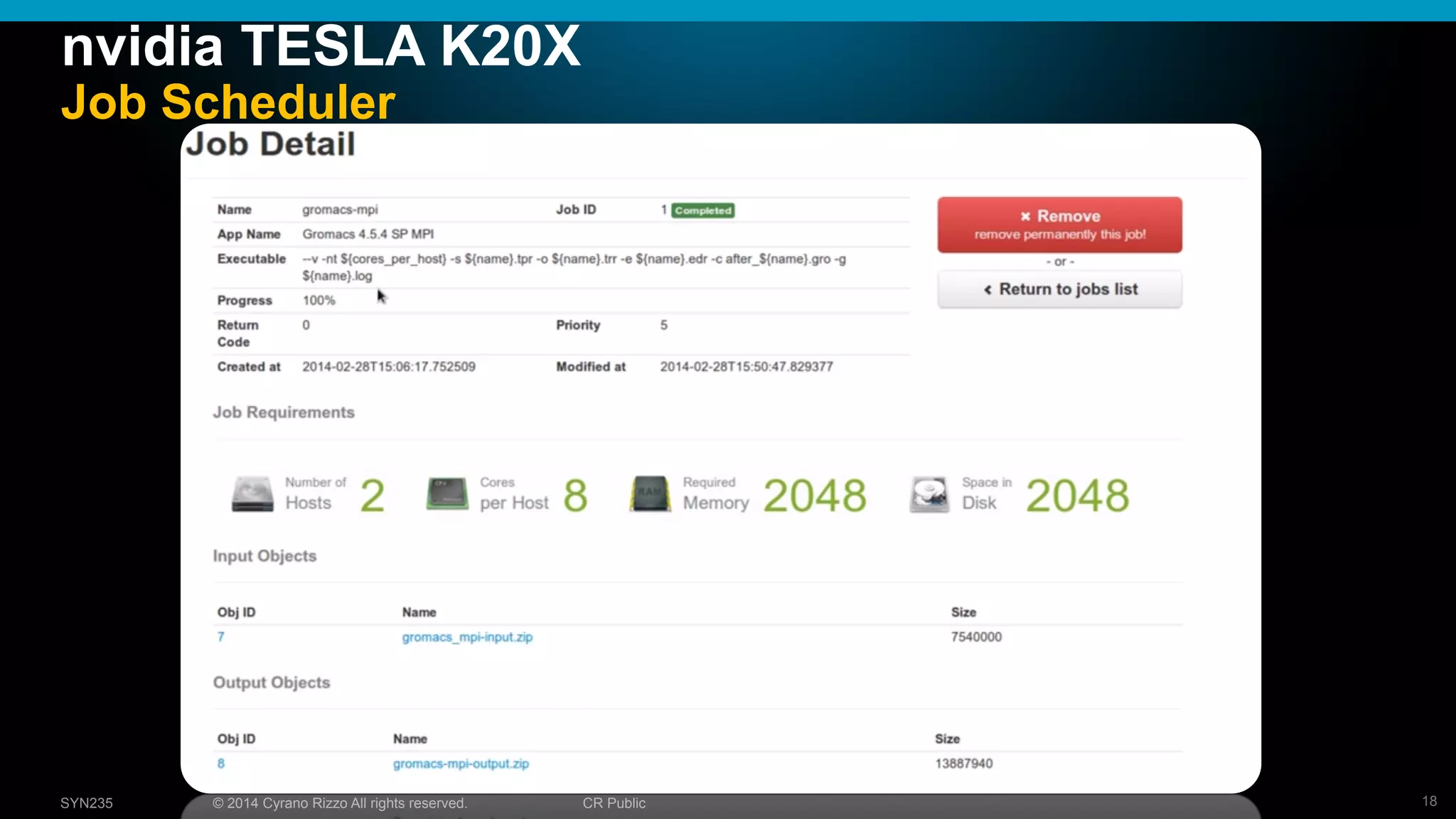

18. 18© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia TESLA K20X
Job Scheduler

19. 19© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

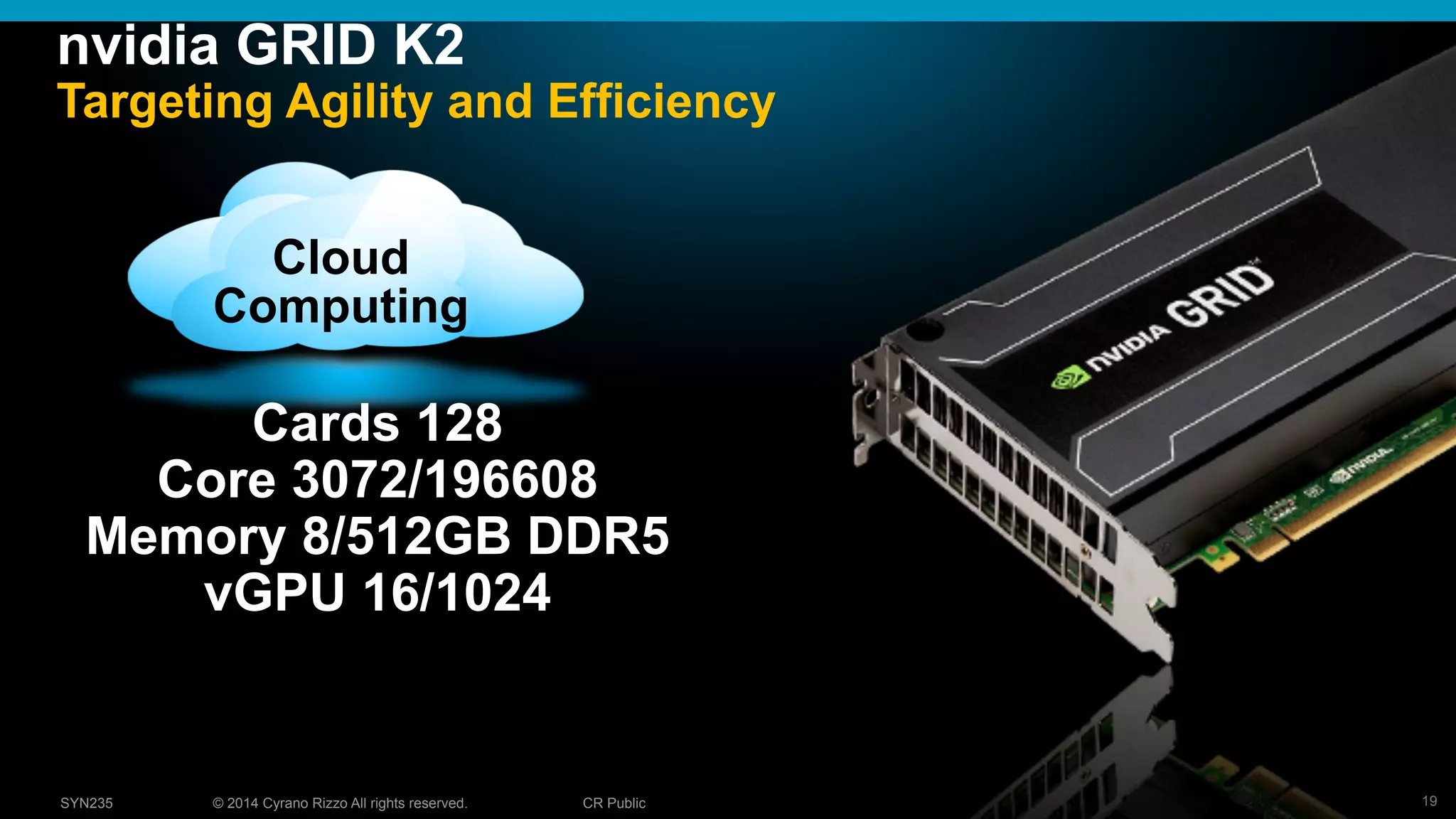

nvidia GRID K2
Targeting Agility and Efficiency
Cloud
Computing
Cards 128
Core 3072/196608
Memory 8/512GB DDR5
vGPU 16/1024

20. 20© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

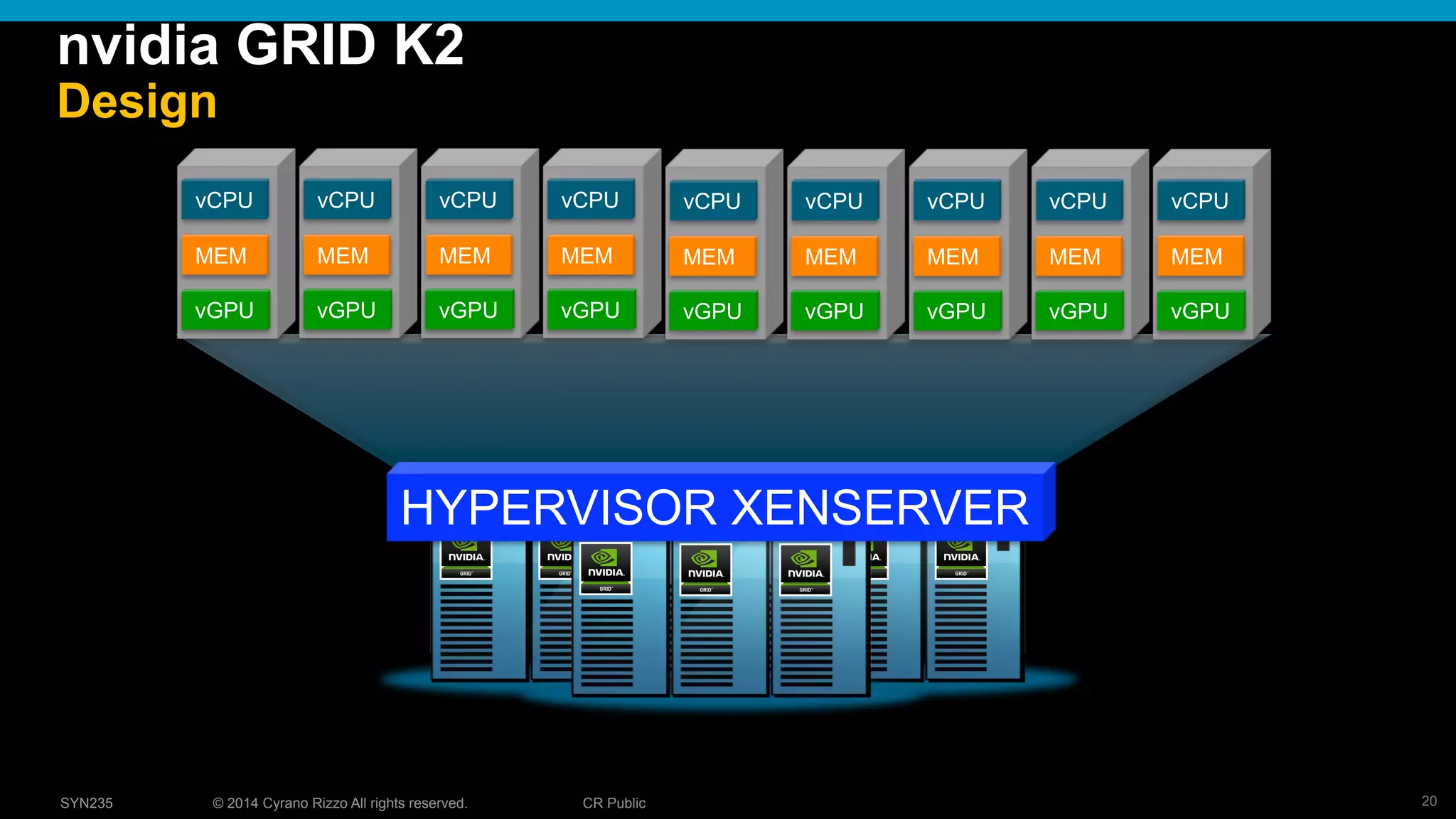

HYPERVISOR XENSERVER
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
VMvCPU
MEM
vGPU
nvidia GRID K2
Design

21. 21© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
nvidia GRID K2

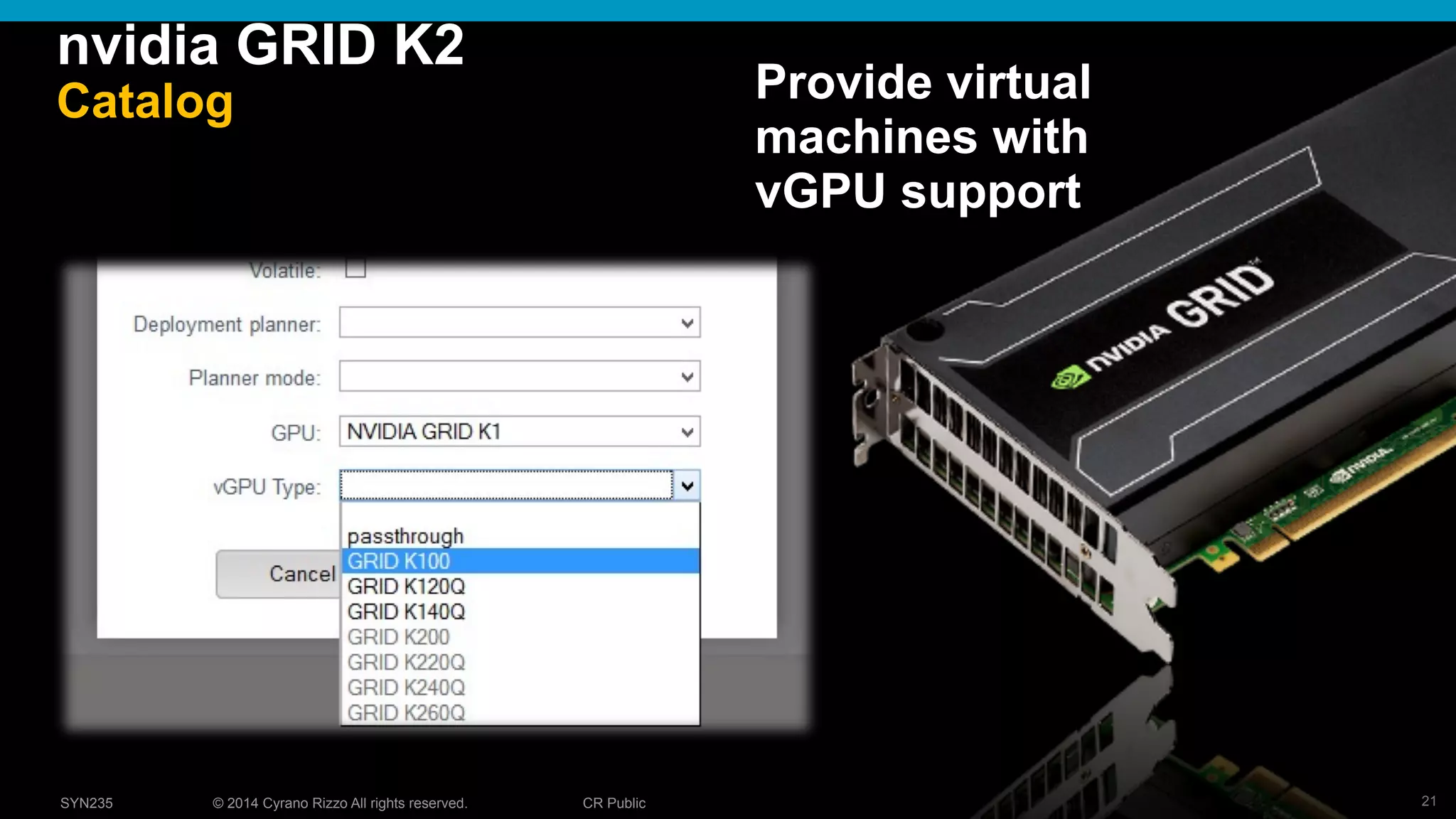

Catalog Provide virtual
machines with
vGPU support

22. 22© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

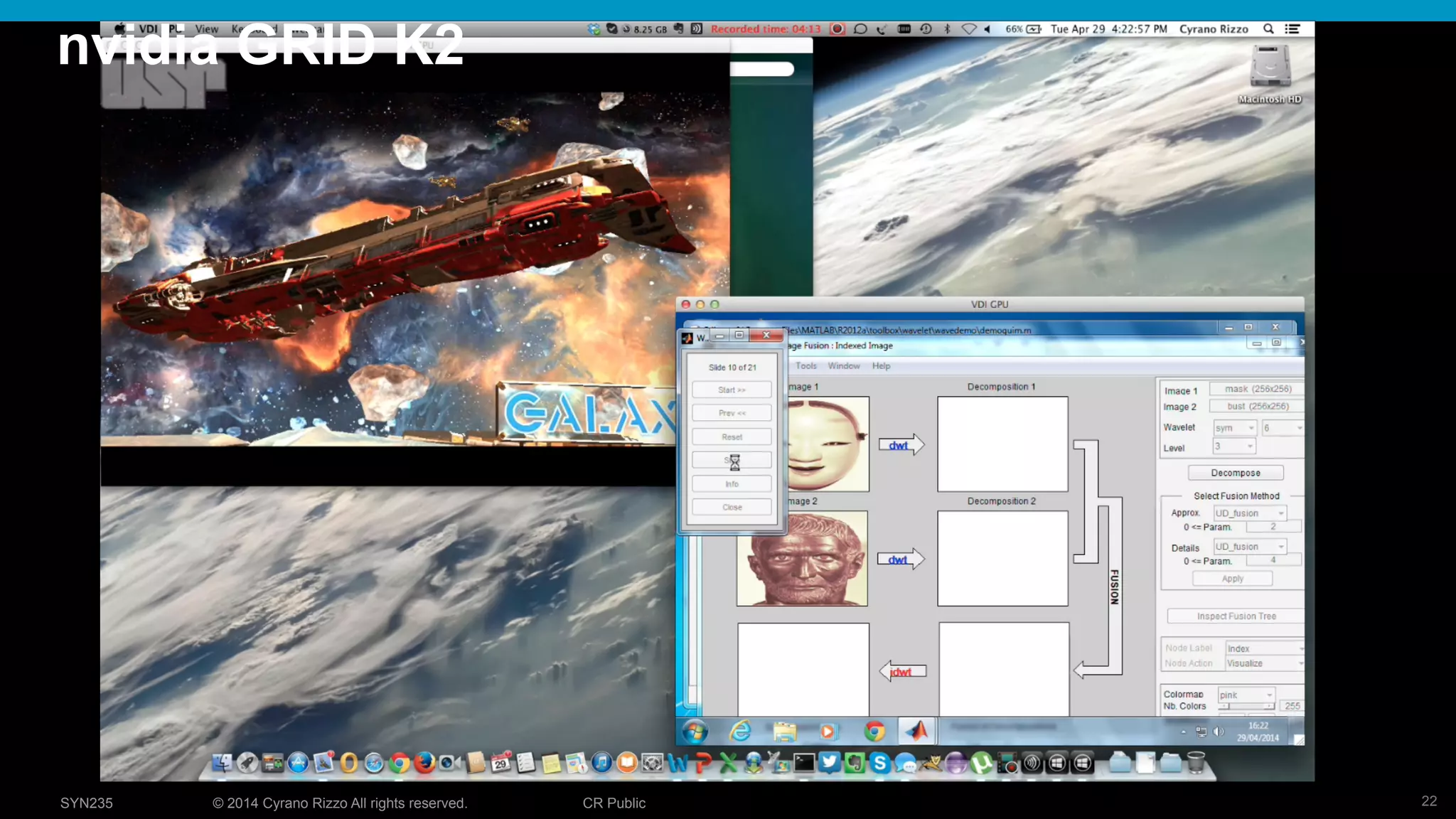

nvidia GRID K2

23. 23© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235

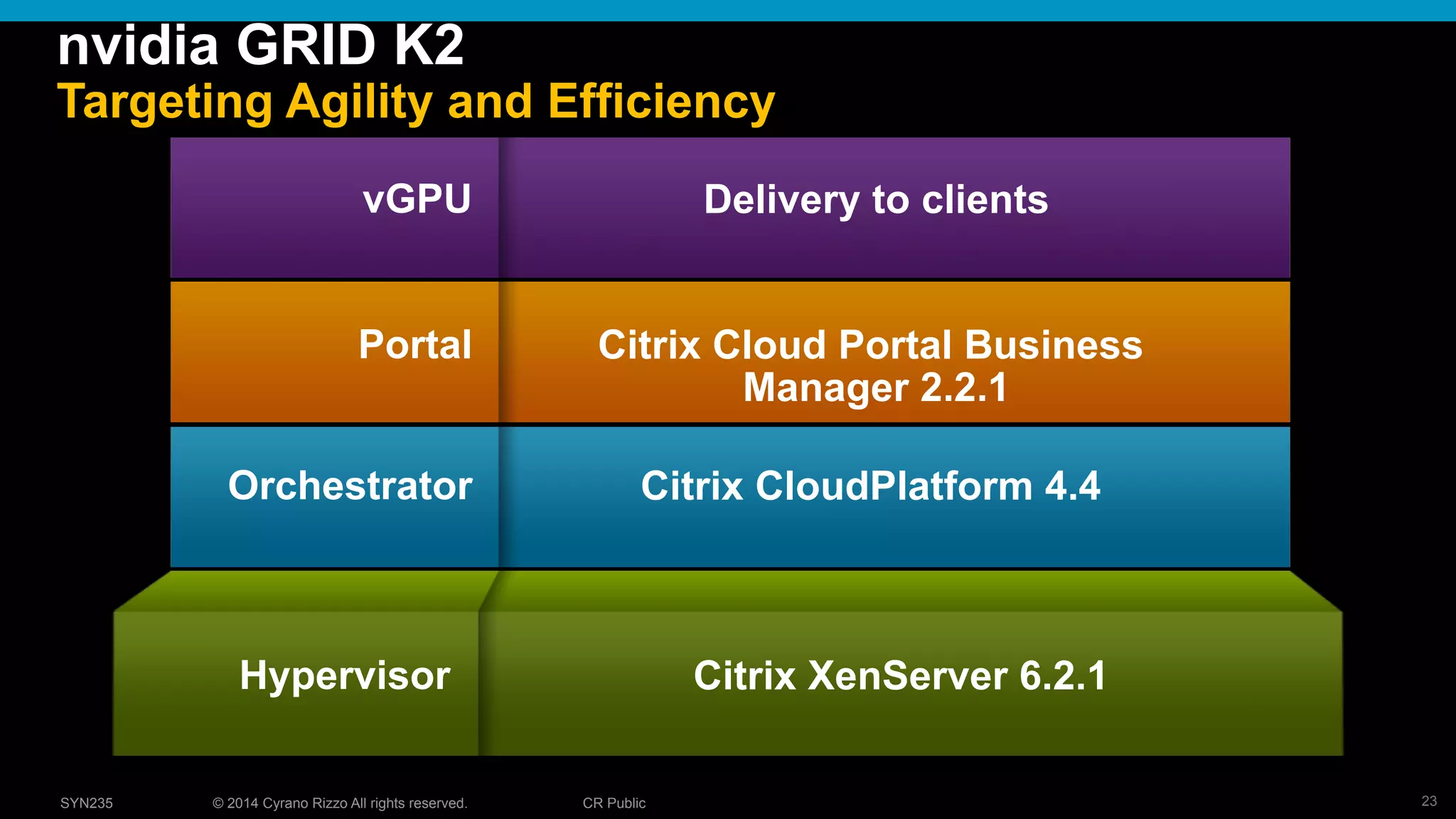

vGPU Delivery to clients
Portal Citrix Cloud Portal Business
Manager 2.2.1
Orchestrator Citrix CloudPlatform 4.4
Hypervisor Citrix XenServer 6.2.1
nvidia GRID K2
Targeting Agility and Efficiency

24. 24© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
vGPU
Support
Cloud
Sao Paulo
Community
Cloud
VPC
SupportBorn
Cloud USP
HPC
Support
PRESENT

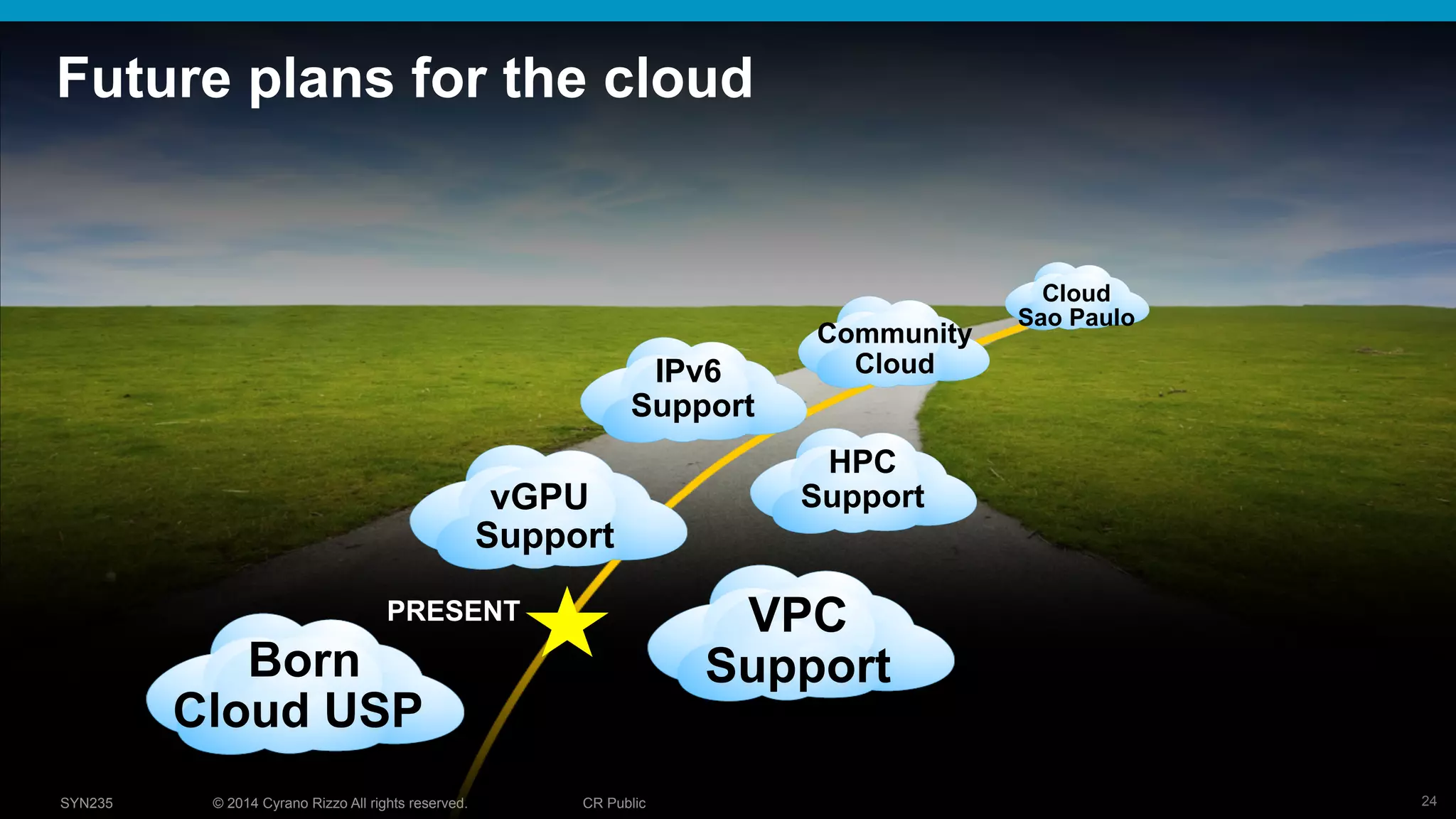

Future plans for the cloud
IPv6
Support

25. 25© 2014 Cyrano Rizzo All rights reserved. CR PublicSYN235
Last informations!
! Conference surveys are available online at
www.citrixsynergy.com started today, May 8 at 9:00 a.m.
! Provide your feedback by 6:00 p.m. that day to be entered to
win one of many prizes
! Download presentations starting Monday, May 19, from your My
Event Planning Tool
! Evolved with this project:
