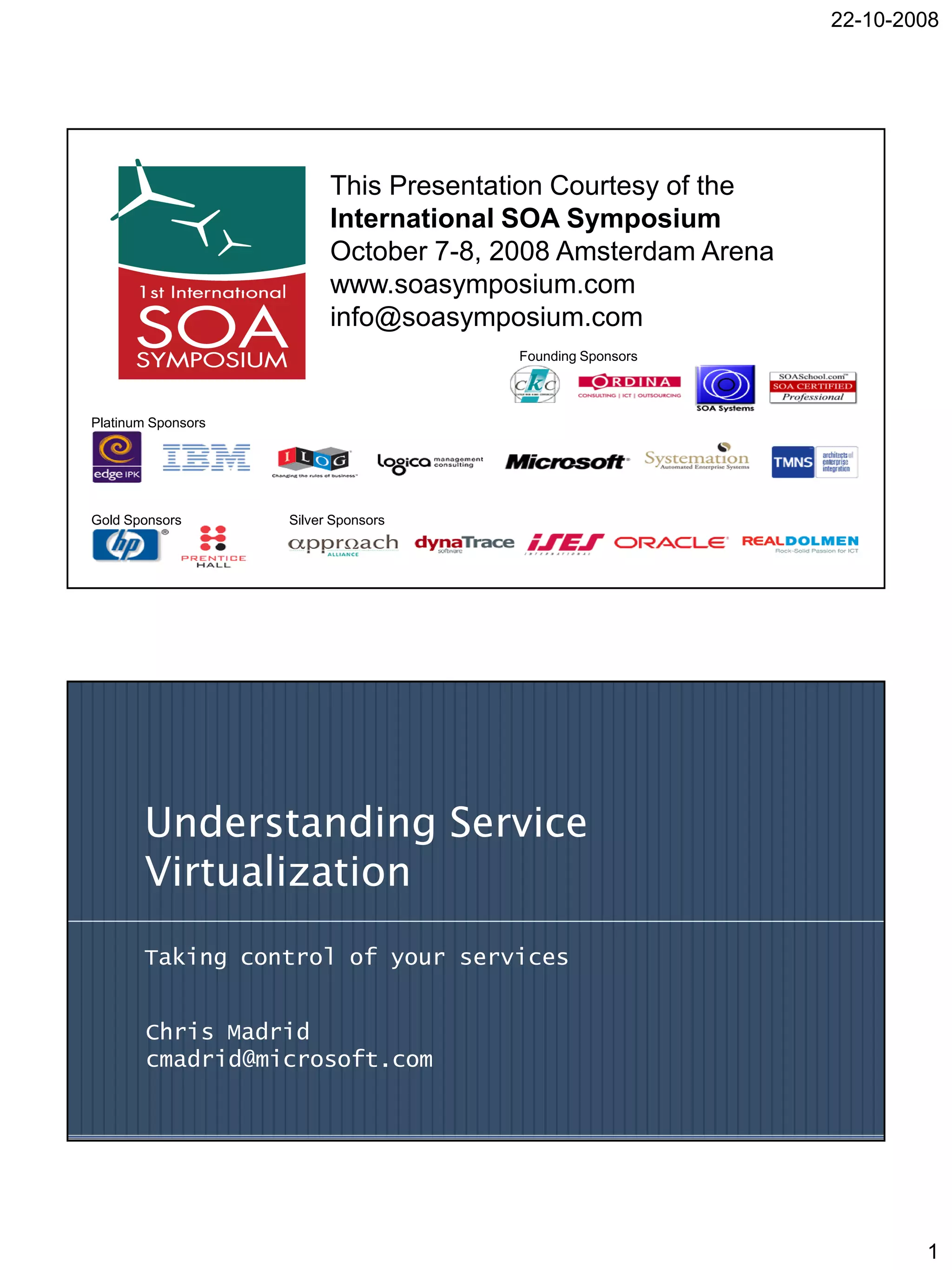

Understanding Service
Virtualization
Taking control of your services
Chris Madrid
cmadrid@microsoft.com
1

2. 22-10-2008

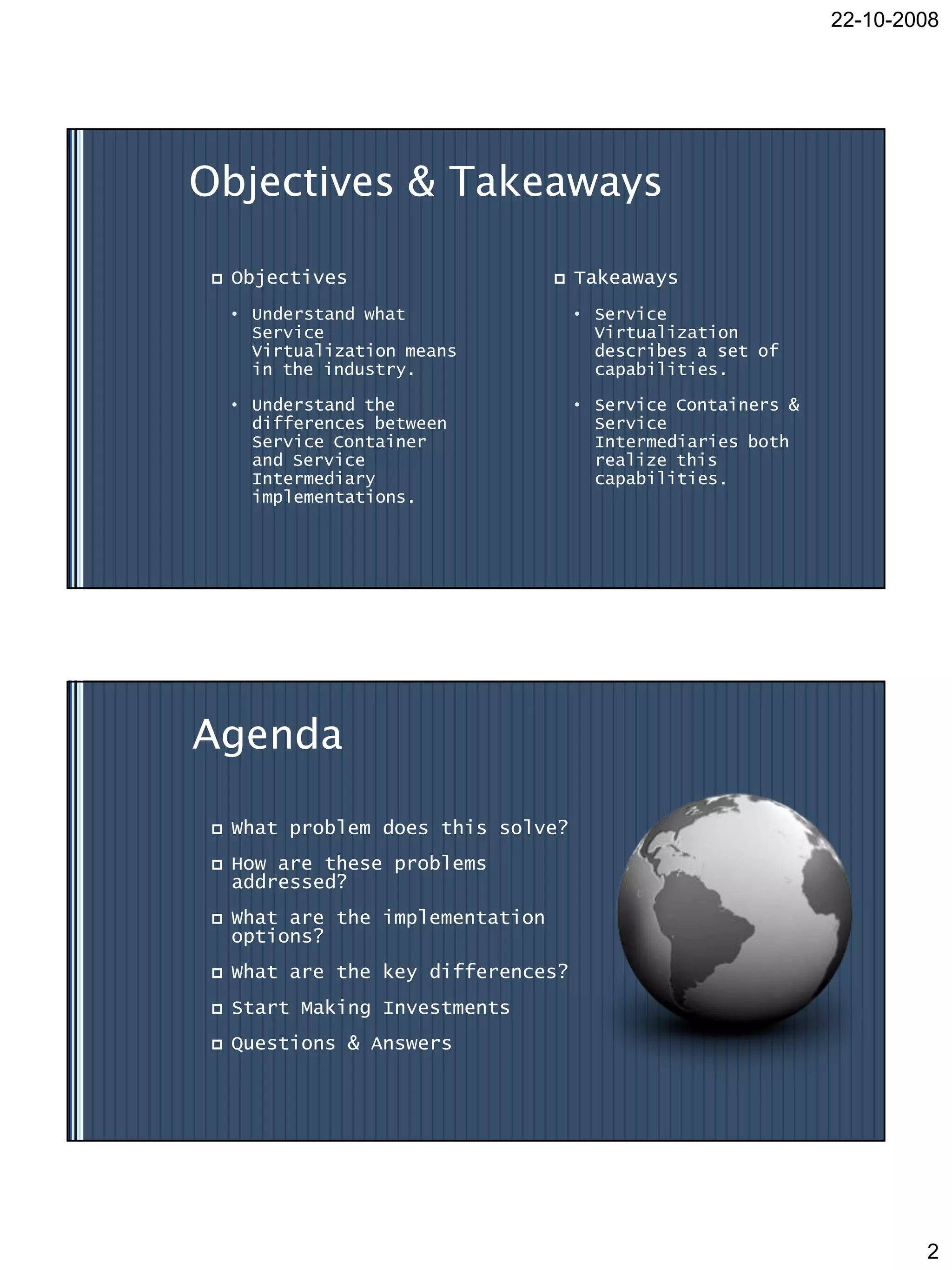

Objectives & Takeaways
 Objectives  Takeaways
• Understand what • Service
Service Virtualization
Virtualization means describes a set of
in the industry. capabilities.
• Understand the • Service Containers &
differences between Service
Service Container Intermediaries both
and Service realize this
Intermediary capabilities.
implementations.
Agenda
 What problem does this solve?
 How are these problems
addressed?
 What are the implementation
options?
 What are the key differences?
 Start Making Investments
 Questions & Answers
2

3. 22-10-2008

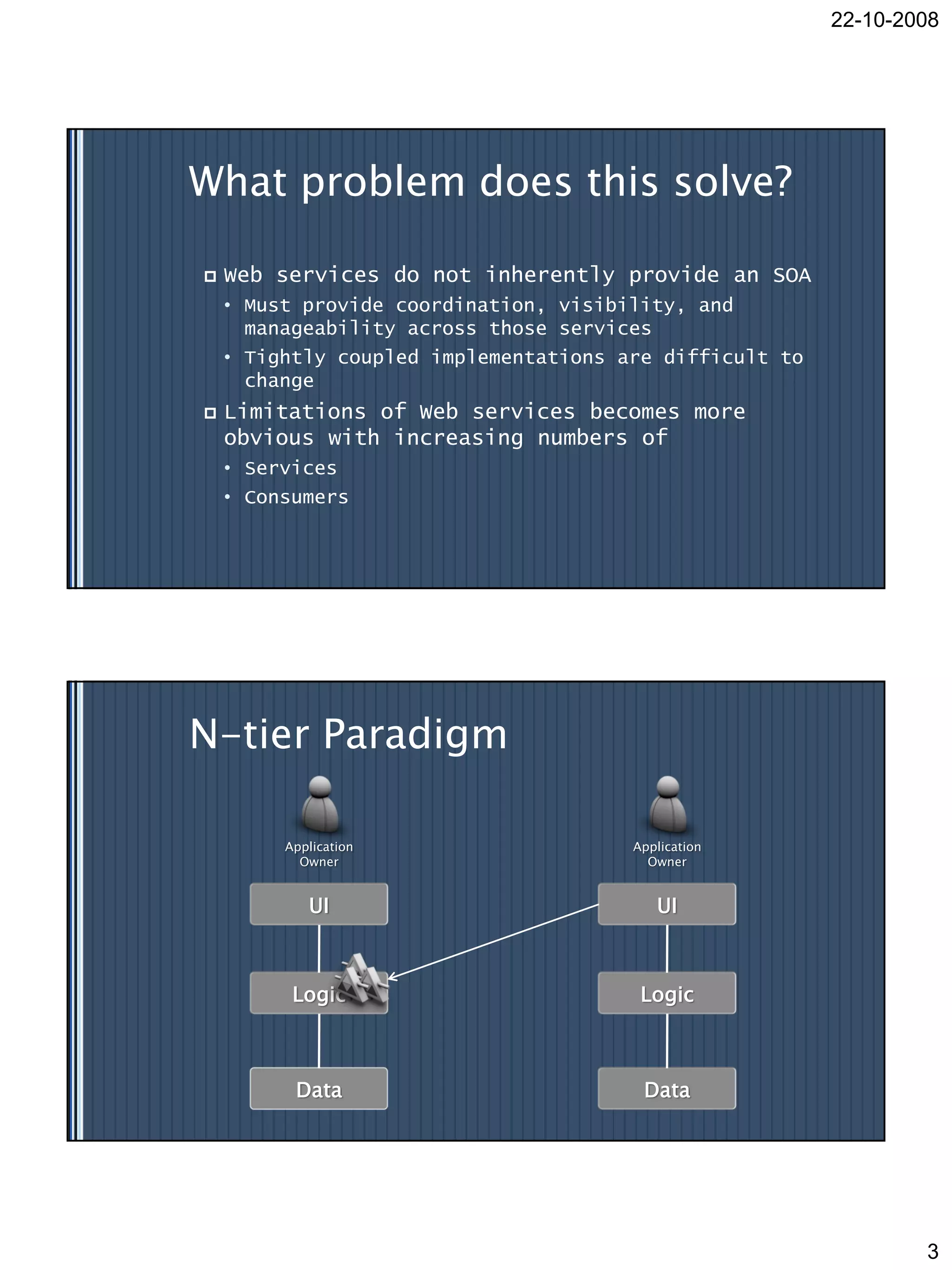

What problem does this solve?
 Web services do not inherently provide an SOA
• Must provide coordination, visibility, and
manageability across those services
• Tightly coupled implementations are difficult to
change
 Limitations of Web services becomes more
obvious with increasing numbers of
• Services
• Consumers
N-tier Paradigm
Application Application
Owner Owner
UI UI
Logic Logic
Data Data
3

4. 22-10-2008

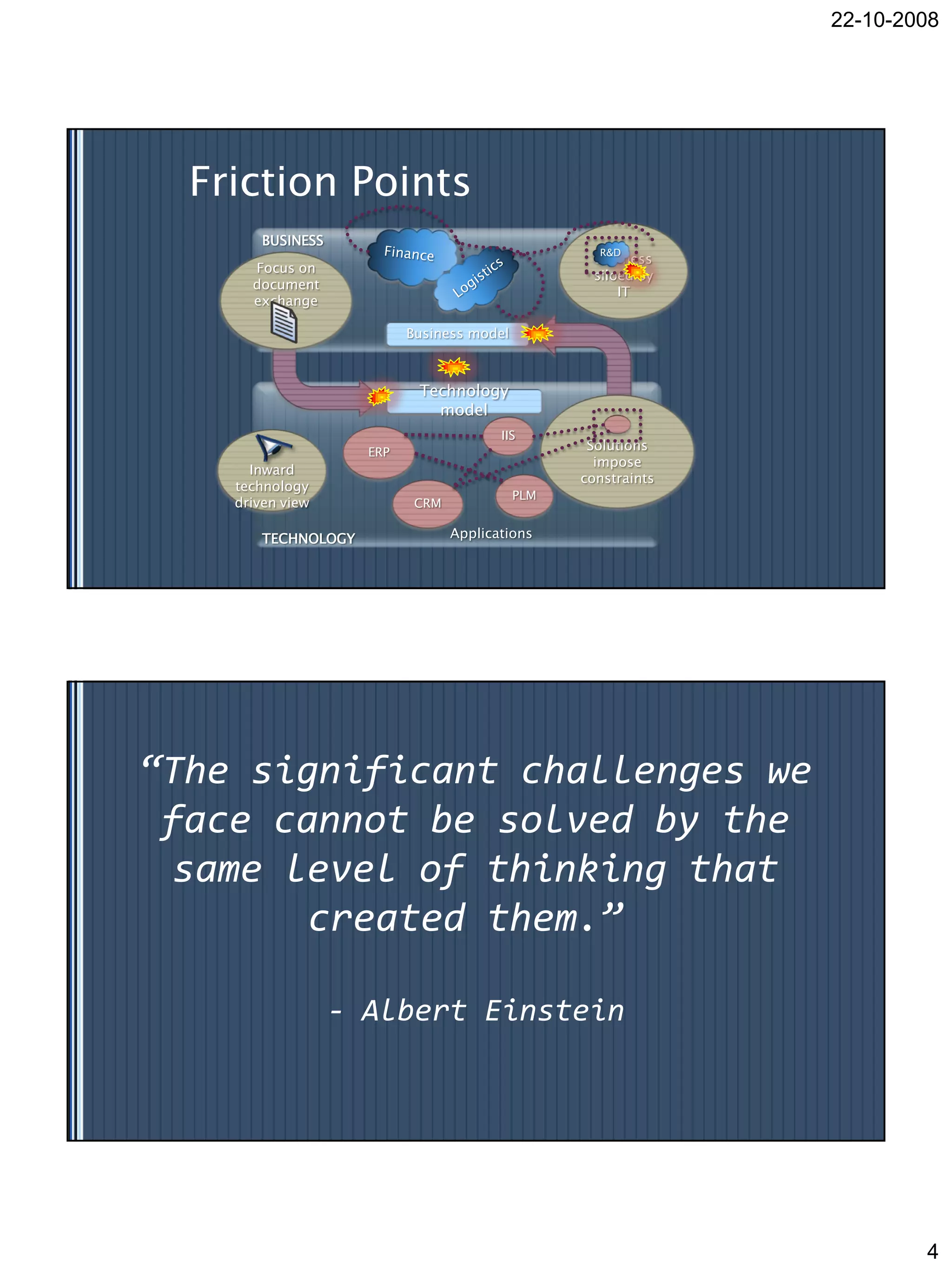

Friction Points
BUSINESS
R&D
Business
Focus on
siloed by
document
IT
exchange
Business model
Technology
model
IIS
ERP
Solutions
impose
Inward
constraints
technology
PLM
driven view CRM
TECHNOLOGY Applications
“The significant challenges we
face cannot be solved by the
same level of thinking that
created them.”
- Albert Einstein
4

5. 22-10-2008

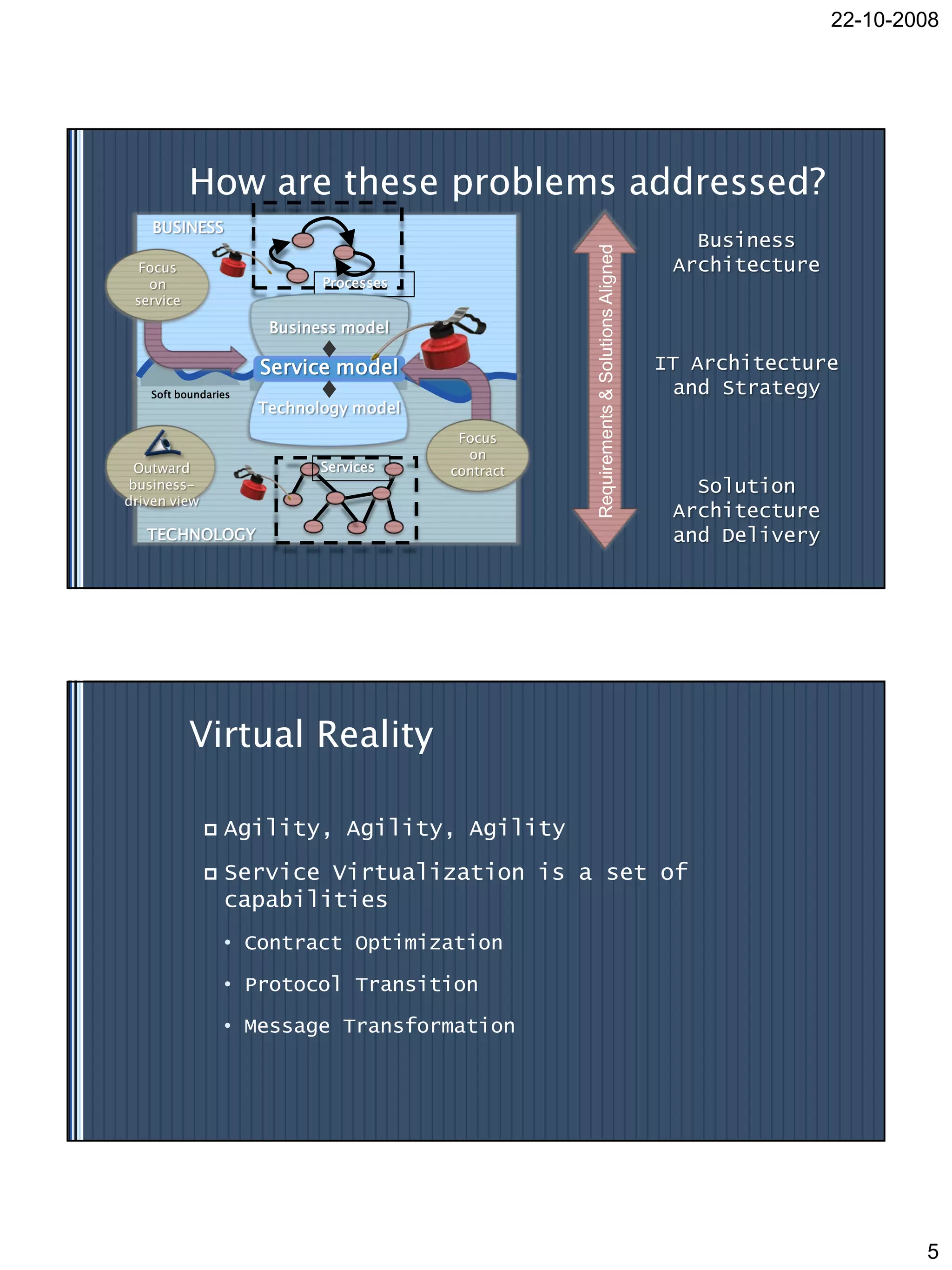

How are these problems addressed?
BUSINESS
Business
Requirements & Solutions Aligned
Focus Architecture
on Processes
service
Business model
Service model IT Architecture
Soft boundaries and Strategy
Technology model
Focus
on
Outward Services contract
business- Solution
driven view
Architecture
TECHNOLOGY and Delivery
Virtual Reality
 Agility, Agility, Agility
 Service Virtualization is a set of
capabilities
• Contract Optimization
• Protocol Transition
• Message Transformation
5

6. 22-10-2008

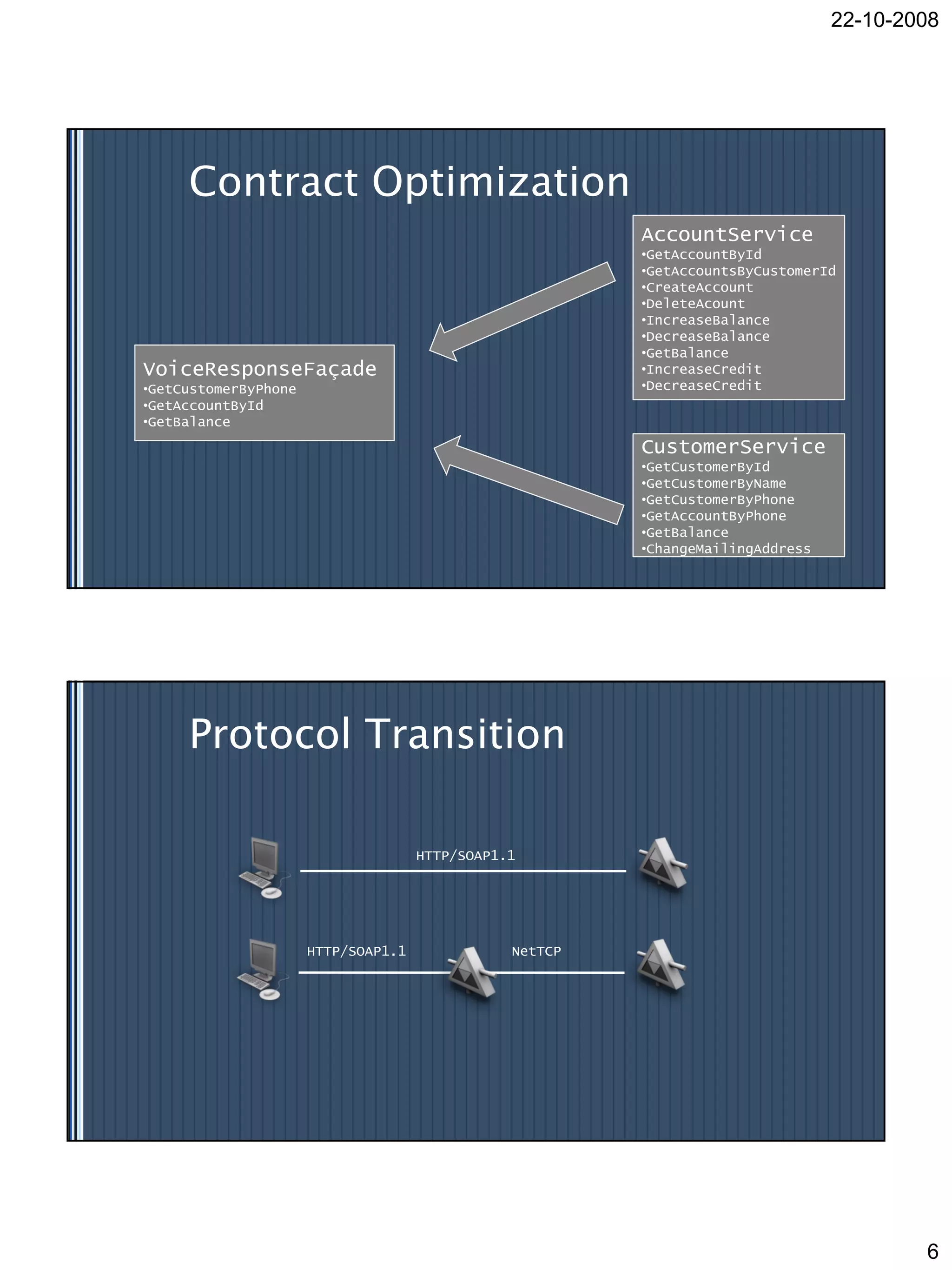

Contract Optimization
AccountService
•GetAccountById
•GetAccountsByCustomerId
•CreateAccount
•DeleteAcount
•IncreaseBalance
•DecreaseBalance
•GetBalance
VoiceResponseFaçade •IncreaseCredit
•GetCustomerByPhone •DecreaseCredit
•GetAccountById
•GetBalance
CustomerService
•GetCustomerById
•GetCustomerByName
•GetCustomerByPhone
•GetAccountByPhone
•GetBalance
•ChangeMailingAddress
Protocol Transition
HTTP/SOAP1.1
HTTP/SOAP1.1 NetTCP
6

7. 22-10-2008

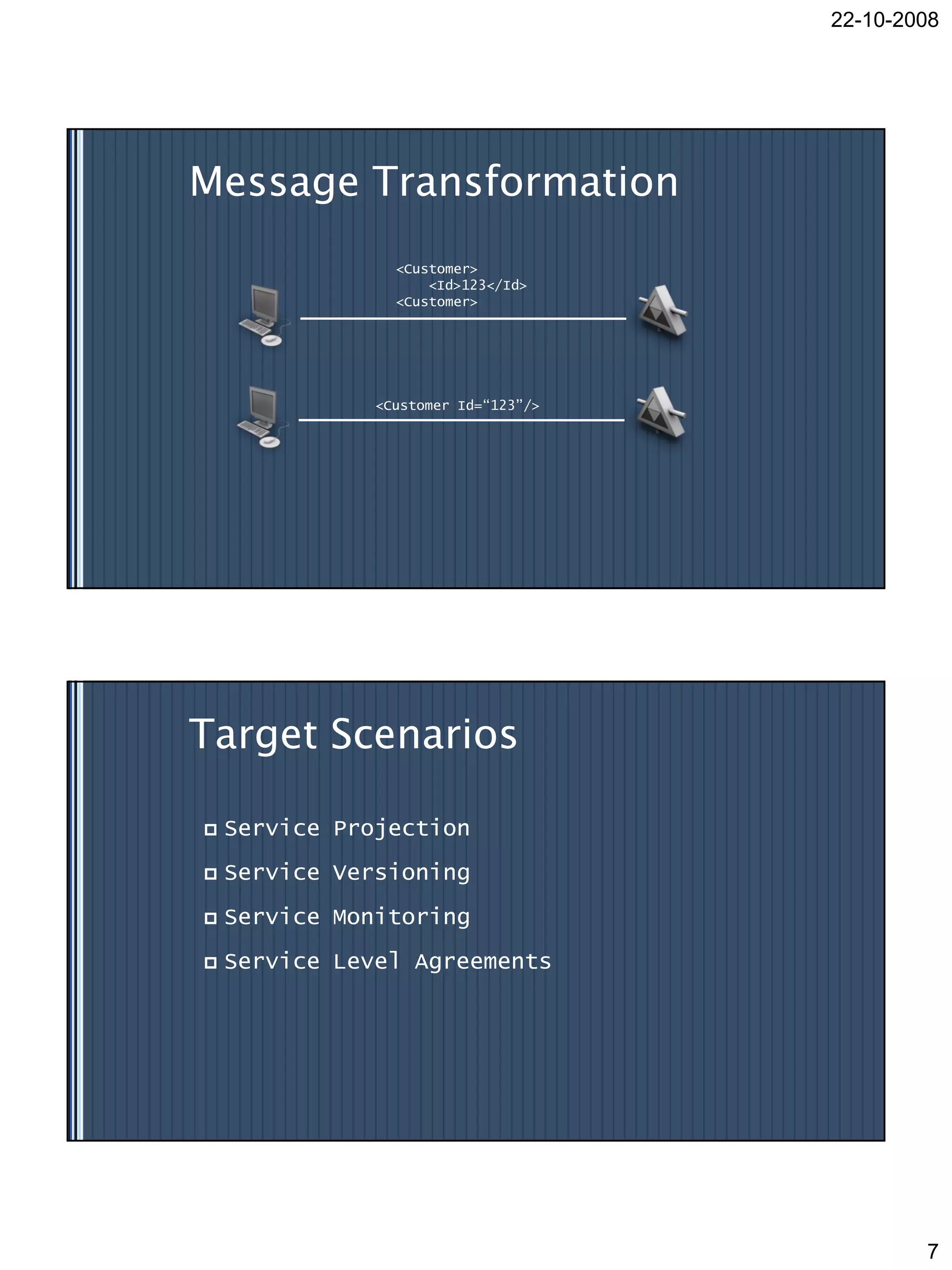

Message Transformation
<Customer>
<Id>123</Id>
<Customer>
<Customer Id=“123”/>
Target Scenarios
 Service Projection
 Service Versioning
 Service Monitoring
 Service Level Agreements
7

8. 22-10-2008

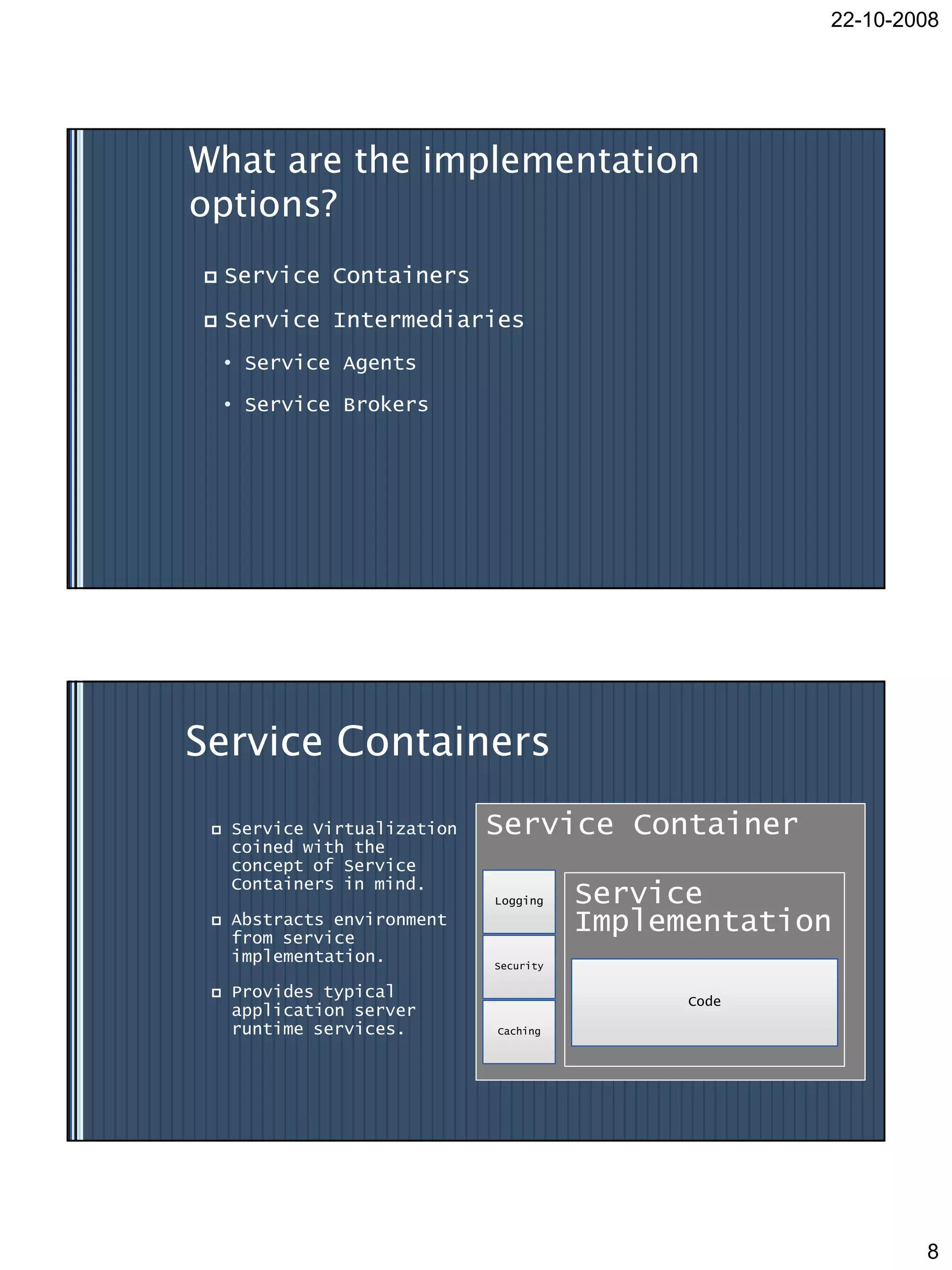

What are the implementation
options?
 Service Containers
 Service Intermediaries
• Service Agents
• Service Brokers
Service Containers
 Service Virtualization Service Container
coined with the
concept of Service
Containers in mind.
Logging Service
 Abstracts environment
from service
Implementation
implementation. Security
 Provides typical Code
application server
runtime services. Caching
8

9. 22-10-2008

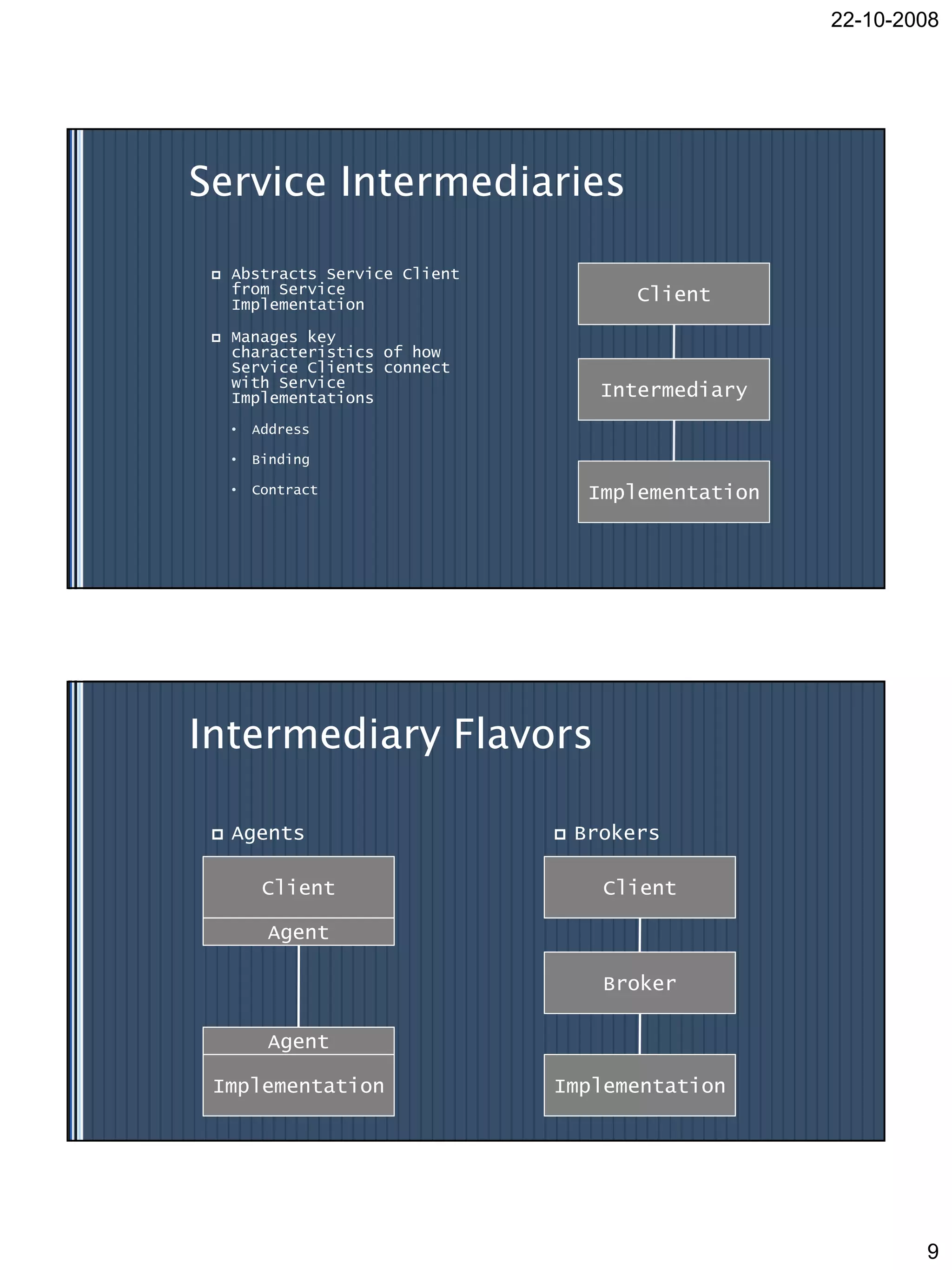

Service Intermediaries
 Abstracts Service Client
from Service Client
Implementation
 Manages key
characteristics of how
Service Clients connect
with Service
Implementations Intermediary
• Address
• Binding
• Contract Implementation
Intermediary Flavors
 Agents  Brokers
Client Client
Agent
Broker
Agent
Implementation Implementation
9

10. 22-10-2008

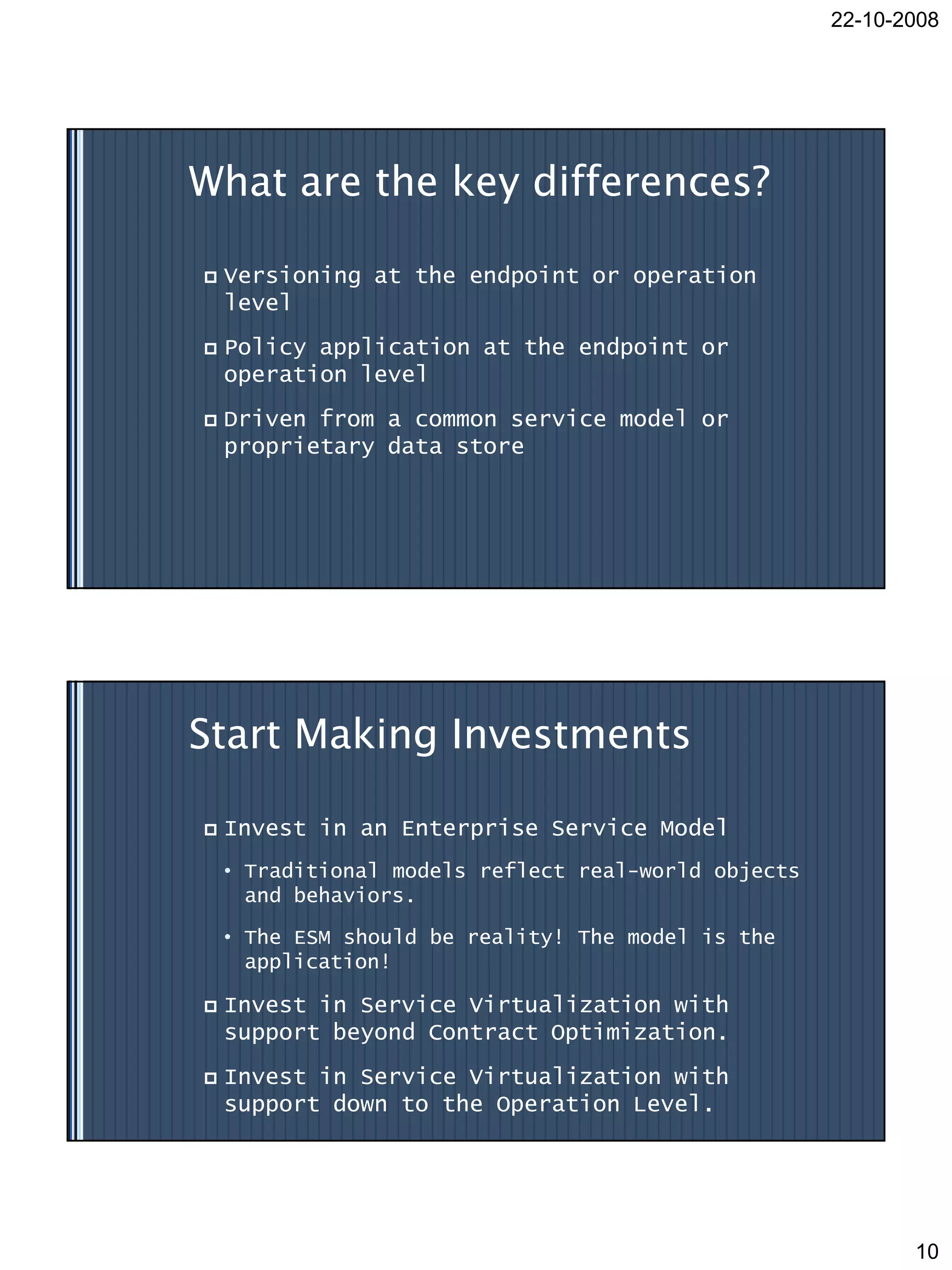

What are the key differences?
 Versioning at the endpoint or operation
level
 Policy application at the endpoint or
operation level
 Driven from a common service model or
proprietary data store
Start Making Investments
 Invest in an Enterprise Service Model
• Traditional models reflect real-world objects
and behaviors.
• The ESM should be reality! The model is the
application!
 Invest in Service Virtualization with
support beyond Contract Optimization.
 Invest in Service Virtualization with
support down to the Operation Level.
10

11. 22-10-2008

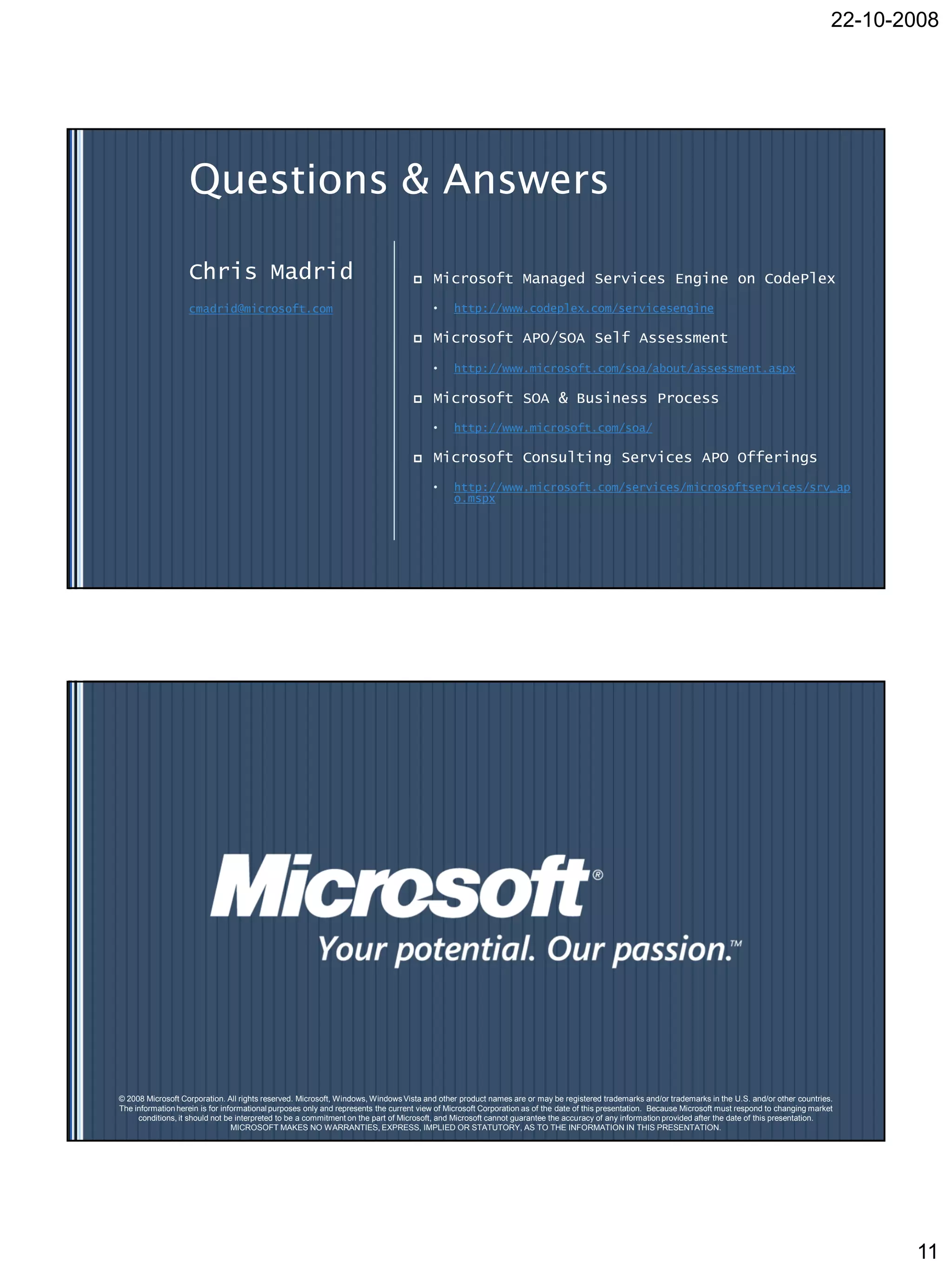

Questions & Answers
Chris Madrid  Microsoft Managed Services Engine on CodePlex
cmadrid@microsoft.com • http://www.codeplex.com/servicesengine
 Microsoft APO/SOA Self Assessment
• http://www.microsoft.com/soa/about/assessment.aspx
 Microsoft SOA & Business Process
• http://www.microsoft.com/soa/
 Microsoft Consulting Services APO Offerings
• http://www.microsoft.com/services/microsoftservices/srv_ap
o.mspx
