Credit: http://centerforactivedesign.org/data/
2005

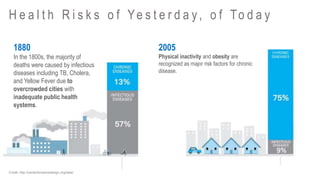

Physical inactivity and obesity are
recognized as major risk factors for chronic
disease.
H e a l t h R i s k s o f Ye s t e r d a y, o f To d a y
1880
In the 1800s, the majority of
deaths were caused by infectious
diseases including TB, Cholera,
and Yellow Fever due to
overcrowded cities with
inadequate public health
systems.

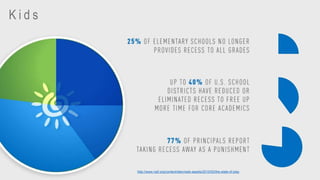

Limited Control 25% School HabitsKids are Different
How can We Create an Environment that
Supports Health and Wellbeing?
How can Design and Operational Changes
Improve Student and Staff Health and
Performance?
Julie Walleisa
AIA, LEED AP, CEFP
Architect Specializing in
Education Design
Mimi Burns
ASLA, LEED AP
Landscape Architect & Planner
Andrea Hanson
AIA
Interior Designer & Architect
Credit: WELL Building Standard,
www.wellcertified.com
Credit: WELL Building Standard,
www.wellcertified.com
WELL certified spaces are
intended to improve occupant:
Nutrition
Fitness
Mood
Sleep patterns
Performance
Credit: WELL Building Standard,
www.wellcertified.com

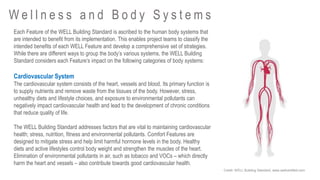

Each Feature of the WELL Building Standard is ascribed to the human body systems that
are intended to benefit from its implementation. This enables project teams to classify the
intended benefits of each WELL Feature and develop a comprehensive set of strategies.
While there are different ways to group the body’s various systems, the WELL Building
Standard considers each Feature’s impact on the following categories of body systems:
Cardiovascular System
The cardiovascular system consists of the heart, vessels and blood. Its primary function is
to supply nutrients and remove waste from the tissues of the body. However, stress,
unhealthy diets and lifestyle choices, and exposure to environmental pollutants can
negatively impact cardiovascular health and lead to the development of chronic conditions
that reduce quality of life.
The WELL Building Standard addresses factors that are vital to maintaining cardiovascular
health; stress, nutrition, fitness and environmental pollutants. Comfort Features are
designed to mitigate stress and help limit harmful hormone levels in the body. Healthy
diets and active lifestyles control body weight and strengthen the muscles of the heart.
Elimination of environmental pollutants in air, such as tobacco and VOCs – which directly
harm the heart and vessels – also contribute towards good cardiovascular health.
W e l l n e s s a n d B o d y S y s t e m s
Credit: WELL Building Standard, www.wellcertified.com
Credit: WELL Building Standard,
www.wellcertified.com
10 | Pesticide Management
54 | Circadian Lighting Design

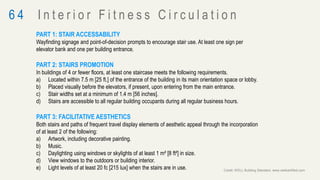

64 | Interior Fitness Circulation

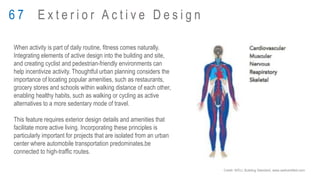

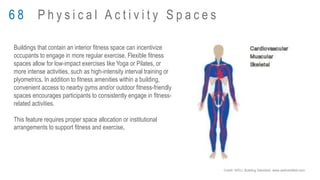

67 | Exterior Active Design / 68 Physical Activity Space /

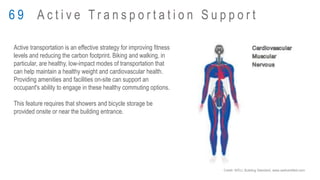

69 Active Transportation Support

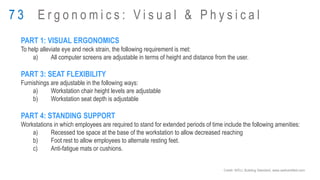

73 | Ergonomics: Visual and Physical
88 | Biophilia: Qualitative
Some pesticides and herbicides are known carcinogens, while
others have a role in endocrine disruption and affect the
nervous system. These chemicals contaminate rivers and
groundwater through rainwater runoff and eventually make their
way back up the food chain to people.
This feature requires the creation of pest management systems
that reduce pesticide and herbicide use and eliminate highly
toxic chemicals. Most pest management systems do not prohibit
the application of harmful chemicals, so this feature further
requires that only approved products be used.
1 0 P e s t i c i d e M a n a g e m e n t
Credit: WELL Building Standard, www.wellcertified.com
Reduce Use of Pesticides and Herbicides
Eliminate Use of Highly Toxic Chemicals
Create an Integrated Pest Management Plan

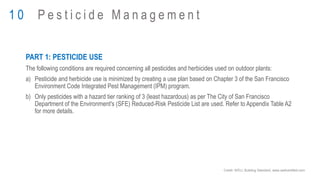

PART 1: PESTICIDE USE
The following conditions are required concerning all pesticides and herbicides used on outdoor plants:
a) Pesticide and herbicide use is minimized by creating a use plan based on Chapter 3 of the San Francisco
Environment Code Integrated Pest Management (IPM) program.
b) Only pesticides with a hazard tier ranking of 3 (least hazardous) as per The City of San Francisco
Department of the Environment's (SFE) Reduced-Risk Pesticide List are used. Refer to Appendix Table A2
for more details.
1 0 P e s t i c i d e M a n a g e m e n t
Credit: WELL Building Standard, www.wellcertified.com

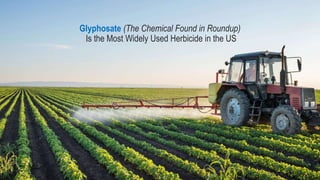

Glyphosate (The Chemical Found in Roundup)
Is the Most Widely Used Herbicide in the US
The World Health Organization just Raised the Carcinogenic Status of Glyphosate
Credit: http://www.nationofchange.org/2015/wp-content/uploads/RoundUpSafety.jpg

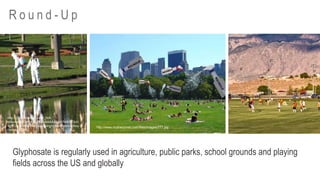

R o u n d - U p
Glyphosate is regularly used in agriculture, public parks, school grounds and playing
fields across the US and globally
http://2.bp.blogspot.com/_mA-
s9buno68/TAffNc9L7FI/AAAAAAAAA74/MYOcH
9gYCdc/s1600/Men+spraying+chemicals+withou
http://www.motherjones.com/files/images/777.jpg
Has a 60-day life…
Do you know when they last
sprayed your school?
https://d3n8a8pro7vhmx.cloudf
ront.net/yesmaam/pages/1053/
attachments/original/14211878
31/Spraying_on_streets.JPG?1
421187831
R o u n d - U p

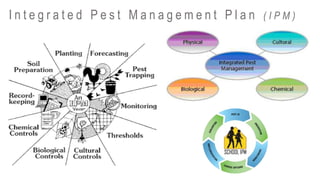

I n t e g r a t e d P e s t M a n a g e m e n t P l a n ( I P M )

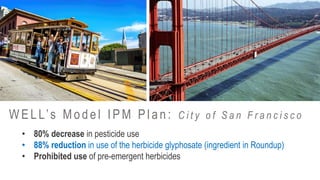

• 80% decrease in pesticide use
• 88% reduction in use of the herbicide glyphosate (ingredient in Roundup)
• Prohibited use of pre-emergent herbicides
W ELL’s Model IPM Plan: C i t y o f S a n F r a n c i s c o

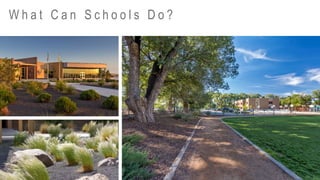

W h a t C a n S c h o o l s D o ?
In New Jersey, all public, private and charter
schools are required to adopt an IPM Policy
that includes a school-specific IPM Plan.

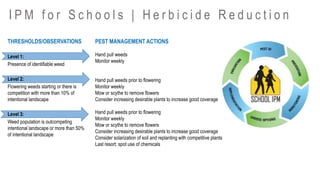

PEST MANAGEMENT ACTIONS
Hand pull weeds
Monitor weekly
Hand pull weeds prior to flowering
Monitor weekly
Mow or scythe to remove flowers
Consider increasing desirable plants to increase good coverage
Hand pull weeds prior to flowering
Monitor weekly
Mow or scythe to remove flowers
Consider increasing desirable plants to increase good coverage
Consider solarization of soil and replanting with competitive plants
Last resort: spot use of chemicals
THRESHOLDS/OBSERVATIONS
Level 1:
Presence of identifiable weed
Level 2:
Flowering weeds starting or there is
competition with more than 10% of
intentional landscape
Level 3:
Weed population is outcompeting
intentional landscape or more than 50%
of intentional landscape
I P M f o r S c h o o l s | H e r b i c i d e R e d u c t i o n

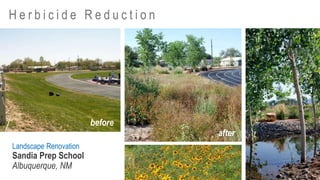

Landscape Renovation
Sandia Prep School
Albuquerque, NM
before
after
H e r b i c i d e R e d u c t i o n
HERBICIDE REDUCTION ACTIONS
• Replace turf grass with native grass and
wildflower blend
• Educate public about the change
• Hand pull weeds (intensively for 1 year, less for 2)
• Monitor weed growth weekly
• Mow or scythe to remove flowers
• Last resort: spot use of chemicals
A l b u q u e r q u e , N M
RESULTS
• Eliminated use of herbicide in landscape area
• Reduced water use by 50%
• Reduced labor after first year: periodic
weeding; mowing/clean up 1-2 times a year
• Landscape is an education area
C a s e S t u d y | S a n d i a P r e p a r a t o r y S c h o o l

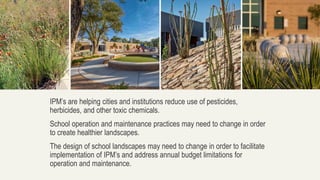

IPM’s are helping cities and institutions reduce use of pesticides,
herbicides, and other toxic chemicals.
School operation and maintenance practices may need to change in order
to create healthier landscapes.
The design of school landscapes may need to change in order to facilitate
implementation of IPM’s and address annual budget limitations for
operation and maintenance.

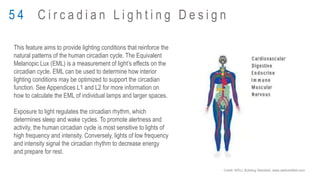

This feature aims to provide lighting conditions that reinforce the
natural patterns of the human circadian cycle. The Equivalent
Melanopic Lux (EML) is a measurement of light’s effects on the
circadian cycle. EML can be used to determine how interior
lighting conditions may be optimized to support the circadian
function. See Appendices L1 and L2 for more information on
how to calculate the EML of individual lamps and larger spaces.
Exposure to light regulates the circadian rhythm, which
determines sleep and wake cycles. To promote alertness and
activity, the human circadian cycle is most sensitive to lights of
high frequency and intensity. Conversely, lights of low frequency
and intensity signal the circadian rhythm to decrease energy
and prepare for rest.
5 4 C i r c a d i a n L i g h t i n g D e s i g n
Credit: WELL Building Standard, www.wellcertified.com
Introduce Artificial and Natural Lighting to More
Accurately Reflect the Way Light Occurs in Nature to
Reinforce our Circadian Rhythms
Improve Student Attention and Performance

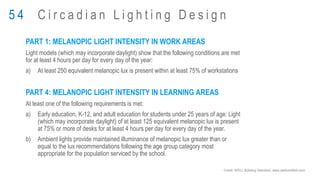

PART 1: MELANOPIC LIGHT INTENSITY IN WORK AREAS
Light models (which may incorporate daylight) show that the following conditions are met
for at least 4 hours per day for every day of the year:
a) At least 250 equivalent melanopic lux is present within at least 75% of workstations
PART 4: MELANOPIC LIGHT INTENSITY IN LEARNING AREAS
At least one of the following requirements is met:
a) Early education, K-12, and adult education for students under 25 years of age: Light
(which may incorporate daylight) of at least 125 equivalent melanopic lux is present
at 75% or more of desks for at least 4 hours per day for every day of the year.
b) Ambient lights provide maintained illuminance of melanopic lux greater than or
equal to the lux recommendations following the age group category most
appropriate for the population serviced by the school.
5 4 C i r c a d i a n L i g h t i n g D e s i g n
Credit: WELL Building Standard, www.wellcertified.com

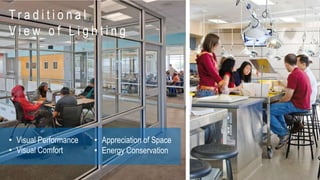

• Visual Performance
• Visual Comfort
T r a d i t i o n a l
V i e w o f L i g h t i n g
• Appreciation of Space
• Energy Conservation
W h a t D o e s C i r c a d i a n L i g h t i n g L o o k L i k e ?

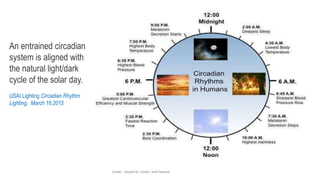

An entrained circadian
system is aligned with
the natural light/dark
cycle of the solar day.
USAI Lighting Circadian Rhythm
Lighting, March 16,2015
Credit: Joseph M. Cohen, Self Hacked
• Increase alertness
• Improve reaction time
• Reduce lapse of attention
L i g h t a s a R e g u l a t o r o f
P h y s i o l o g y & B e h a v i o r
Credit: Measuring and using light in the melanopsin age Trends in Neurosciences January 2014, Vol. 37, No. 1
Image Credit: Circadian Rhythm; Vanda Pharmaceuticals, Inc. “Non-24 A Circadian Rhythm Disorder” https://www.non-24pro.com/physiology-of-non-24.php

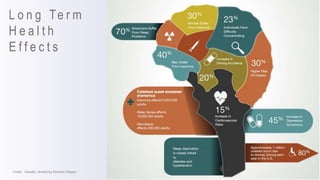

L o n g Te r m
H e a l t h
E f f e c t s
Credit: Visually, shared by Dominic Reigns

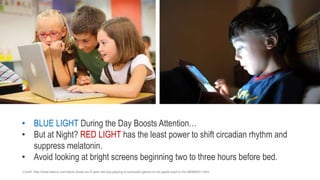

• BLUE LIGHT During the Day Boosts Attention…
• But at Night? RED LIGHT has the least power to shift circadian rhythm and
suppress melatonin.
• Avoid looking at bright screens beginning two to three hours before bed.
Credit: Lucelia Ribeiro, Flickr
:Credit http://www.alamy.com/stock-photo-an-8-year-old-boy-playing-a-computer-game-on-his-apple-ipad-in-his-56989051.html

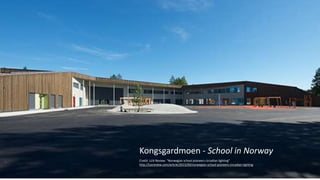

Kongsgardmoen - School in Norway
Credit: LUX Review. “Norwegian school pioneers circadian lighting”
http://luxreview.com/article/2015/09/norwegian-school-pioneers-circadian-lighting

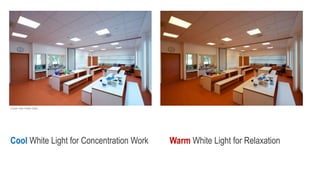

Cool White Light for Concentration Work Warm White Light for Relaxation
Credit: Nils Petter Dale
In many ways, light can be considered a drug,
having the potential for both beneficial and
deleterious effects
Measuring and Using Light in the Melanopsin Age Trends in Neurosciences January 2014, Vol. 37, No. 1
We simply are not ready yet to prescribe lighting
for human circadian benefit. Lacking protocols
for how much light, for how long, of what
spectrum, prior light history, temperature, and
other factors, installing lighting systems for any
human benefit related to the human circadian
system is an experiment right now.
Jim Benya, response to CIE Statement on Non-Visual Effects of Light; RECOMMENDING PROPER
LIGHT AT THE PROPER TIME", the Commission Internationale de l´Eclairage (CIE) states: "The
Manchester workshop (June 2015)
Credit: Corbis Images
Expose yourself to lots of bright light
during the day, which will boost your
ability to sleep at night, as well as your
mood and alertness during daylight.”
Harvard Health publications, Blue light has a dark side May 1 2012
B l u e L i g h t
In many climates, outdoor exercise is not a viable option for
much of the year. Interior pathways and stairs can provide a
convenient and healthy means of active transportation utilizable
year-round. To encourage greater use, these paths and stairs
should be aesthetically pleasing and be connected to high-traffic
routes.
This feature employs prominent designs and appealing
aesthetics to promote the use of stairs and walking paths and to
discourage reliance on elevators.
6 4 I n t e r i o r F i t n e s s C i r c u l a t i o n
Credit: WELL Building Standard, www.wellcertified.com
Discourage Reliance on Elevators
Promote Stairs and Walking Paths
Year-Round, Indoor Exercise
PART 1: STAIR ACCESSABILITY
Wayfinding signage and point-of-decision prompts to encourage stair use. At least one sign per
elevator bank and one per building entrance.
PART 2: STAIRS PROMOTION
In buildings of 4 or fewer floors, at least one staircase meets the following requirements.
a) Located within 7.5 m [25 ft.] of the entrance of the building in its main orientation space or lobby.
b) Placed visually before the elevators, if present, upon entering from the main entrance.
c) Stair widths set at a minimum of 1.4 m [56 inches].
d) Stairs are accessible to all regular building occupants during all regular business hours.
PART 3: FACILITATIVE AESTHETICS
Both stairs and paths of frequent travel display elements of aesthetic appeal through the incorporation
of at least 2 of the following:
a) Artwork, including decorative painting.
b) Music.
c) Daylighting using windows or skylights of at least 1 m² [8 ft²] in size.
d) View windows to the outdoors or building interior.
e) Light levels of at least 20 fc [215 lux] when the stairs are in use.
6 4 I n t e r i o r F i t n e s s C i r c u l a t i o n
Credit: WELL Building Standard, www.wellcertified.com

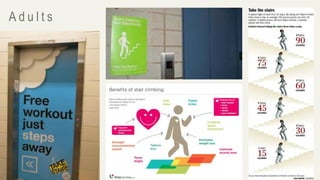

A d u l t s
A d u l t s
http://www.ncbi.nlm.nih.gov/pmc/articles/PMC3166269/ and https://www.wellspringcamps.com/teen-weight-loss-blog/weight-loss-tips/step-
into-summer-is-the-goal-of-10000-steps-recorded-on-a-pedometer-still-the-best-daily-activity-goal-for-young-weight-controllers

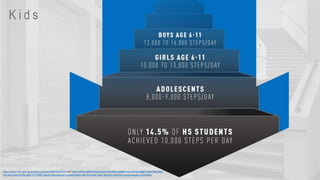

K i d s
http://www.rwjf.org/content/dam/web-assets/2010/02/the-state-of-play
K i d s

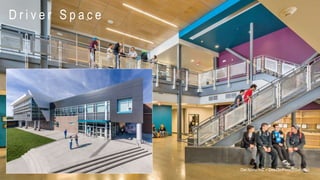

D r i v e r S p a c e

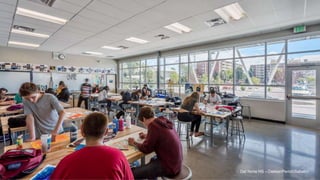

Del Norte HS – Dekker/Perich/Sabatini

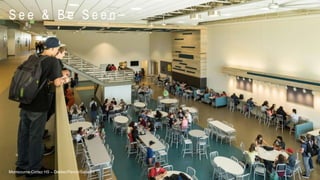

S e e & B e S e e n
Montezuma-Cortez HS – Dekker/Perich/Sabatini

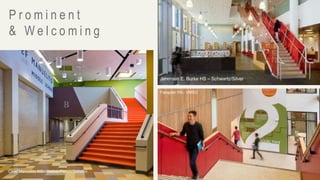

P r o m i n e n t
& W e l c o m i n g
Chief Manuelito MS– Dekker/Perich/Sabatini
Fauquier HS– VMDO
Jeremiah E. Burke HS – Schwartz/Silver

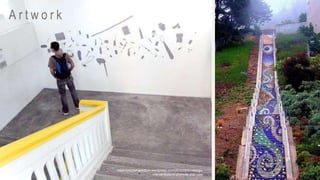

A r t w o r k
https://mindshapedbox.wordpress.com/2012/03/01/design-
interventions-to-promote-stair-use/

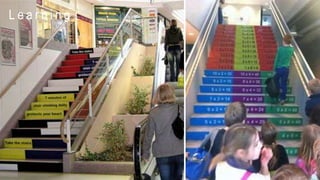

L e a r n i n g
I n t e r a c t i o n
http://www.enlightermagazine.com/projects

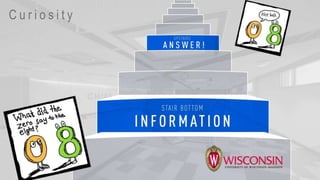

C u r i o s i t y

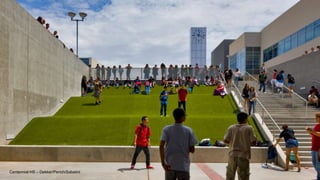

Centennial HS – Dekker/Perich/Sabatini
When activity is part of daily routine, fitness comes naturally.
Integrating elements of active design into the building and site,
and creating cyclist and pedestrian-friendly environments can
help incentivize activity. Thoughtful urban planning considers the
importance of locating popular amenities, such as restaurants,
grocery stores and schools within walking distance of each other,
enabling healthy habits, such as walking or cycling as active
alternatives to a more sedentary mode of travel.
This feature requires exterior design details and amenities that
facilitate more active living. Incorporating these principles is
particularly important for projects that are isolated from an urban
center where automobile transportation predominates.be
connected to high-traffic routes.
6 7 E x t e r i o r A c t i v e D e s i g n
Credit: WELL Building Standard, www.wellcertified.com
Buildings that contain an interior fitness space can incentivize
occupants to engage in more regular exercise. Flexible fitness
spaces allow for low-impact exercises like Yoga or Pilates, or
more intense activities, such as high-intensity interval training or
plyometrics. In addition to fitness amenities within a building,
convenient access to nearby gyms and/or outdoor fitness-friendly
spaces encourages participants to consistently engage in fitness-
related activities.
This feature requires proper space allocation or institutional
arrangements to support fitness and exercise.
6 8 P h y s i c a l A c t i v i t y S p a c e s
Credit: WELL Building Standard, www.wellcertified.com
Active transportation is an effective strategy for improving fitness
levels and reducing the carbon footprint. Biking and walking, in
particular, are healthy, low-impact modes of transportation that
can help maintain a healthy weight and cardiovascular health.
Providing amenities and facilities on-site can support an
occupant's ability to engage in these healthy commuting options.
This feature requires that showers and bicycle storage be
provided onsite or near the building entrance.
6 9 A c t i v e T r a n s p o r t a t i o n S u p p o r t
Credit: WELL Building Standard, www.wellcertified.com
Facilitate active living with a focus on outside activities
Provide support facilities and connections to existing
businesses and infrastructure that will encourage people
to be active

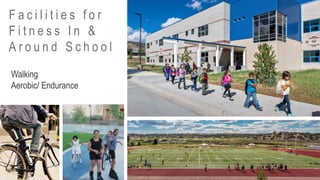

Walking
Aerobic/ Endurance
F a c i l i t i e s f o r
F i t n e s s I n &
A r o u n d S c h o o l
Balance
Flexibility
Strength
F a c i l i t i e s f o r F i t n e s s
I n & A r o u n d S c h o o l
http://images.slideplayer.com/11/32
31289/slides/slide_2.jpg
W h y D o e s t h i s M a t t e r ?
Most of us are overweight
(69% of all adults)
It is hard to create an active lifestyle
(more sedentary jobs, driving and
technology)
It will improve our quality of life
• Improves mental wellness
• Reduces risk factors
• Live longer (7+ years!)
- American Heart Association
W h y D o e s
t h i s M a t t e r ?
cdn.nimbu.io/s/yba55wt/channelentries/mk8o7yf/fil
es/levensverwachting.jpg

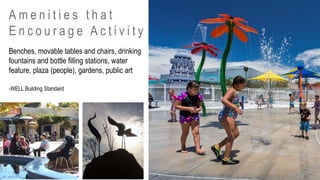

Benches, movable tables and chairs, drinking
fountains and bottle filling stations, water
feature, plaza (people), gardens, public art
A m e n i t i e s t h a t
E n c o u r a g e A c t i v i t y
-WELL Building Standard

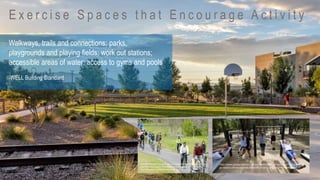

Walkways, trails and connections; parks,
playgrounds and playing fields; work out stations;
accessible areas of water; access to gyms and pools
-WELL Building Standard
http://bloximages.chicago2.vip.townnews.com/heraldbulletin.com/c
ontent/tncms/assets/v3/editorial/4/12/41280aca-637f-596d-8f6e-
753f2464b60e/53f5808983765.image.jpg?resize=760%2C473
http://www.canberratimes.com.au/content/dam/images/1/m/5/w/g/b/ima
ge.related.articleLeadwide.620x349.1m5d2w.png/1427095909495.jpg
E x e r c i s e S p a c e s t h a t E n c o u r a g e A c t i v i t y

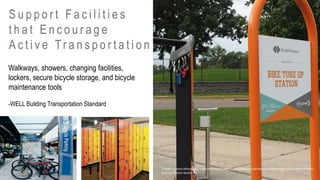

Walkways, showers, changing facilities,
lockers, secure bicycle storage, and bicycle
maintenance tools
-WELL Building Transportation Standard
S u p p o r t F a c i l i t i e s
t h a t E n c o u r a g e
A c t i v e Tr a n s p o r t a t i o n
Credits: Explore Minnesota, www.exploreminnesota.com/pedal-mn/articles/healthpartners-sponsored-pedalmn-
tune-up-station-locations/
Schools can facilitate student and staff activity with strategic decisions about
amenities, about connectivity to existing infrastructure, and about providing
facilities to support a more active lifestyle.
Broadmoor ES – Dekker/Perich/Sabatini
Overuse of the same muscles and ligaments over time can
cause discomfort and strain the body, especially in occupational
environments that require repetitive tasks. Under such
conditions, the effects of even slight visual or physical discomfort
are compounded.
This feature ensures that occupants are free to adopt a variety of
comfortable sitting and standing positions.
7 3 E r g o n o m i c s : V i s u a l & P h y s i c a l
Credit: WELL Building Standard, www.wellcertified.com
Reduce Eye Strain: Adjustability and Screen Time
Provide Adjustable Seating
Provide a Wide Variety of Postures Including Standing
Alternatives
PART 1: VISUAL ERGONOMICS
To help alleviate eye and neck strain, the following requirement is met:
a) All computer screens are adjustable in terms of height and distance from the user.
PART 3: SEAT FLEXIBILITY
Furnishings are adjustable in the following ways:
a) Workstation chair height levels are adjustable
b) Workstation seat depth is adjustable
PART 4: STANDING SUPPORT
Workstations in which employees are required to stand for extended periods of time include the following amenities:
a) Recessed toe space at the base of the workstation to allow decreased reaching
b) Foot rest to allow employees to alternate resting feet.
c) Anti-fatigue mats or cushions.
7 3 E r g o n o m i c s : V i s u a l & P h y s i c a l
Credit: WELL Building Standard, www.wellcertified.com
E r g o n o m i c s : V i s u a l
Credit: CHILDWISE Monitor 20th Anniversary Report, Connected Kids:
How the internet affects children’s lives now and into the future March 2015
Credit: Journal of the American Medical Association. (formerly Archives of
Optholmology) 2009 Dec; Increased prevalence of myopia in the United
States between 1971-1972 and 1999-2004
LIMIT THE AMOUNT OF TIME
a child spends at the computer
without a break. Encourage kids
to take 20-second breaks from
the computer every 20 minutes,
20 feet away to minimize the
development of eye focusing
problems and eye irritation.
P h y s i c a l E r g o n o m i c s : 2 0 - 2 0 - 2 0 R u l e
Credit: www.anthro.com
E r g o n o m i c s : V i s u a l
Credit: Investigative Ophthalmology & Visual Science April 2014, Vol.55, 1272. doi: INCREASED OUTDOOR TIME REDUCES INCIDENT
MYOPIA - THE GUANGZHOU OUTDOOR ACTIVITY LONGITUDINAL STUDY
Ian George Morgan; Fan Xiang; Yangfa Zeng; Jincheng Mai; Qianyun Chen; Jian Zhang; Kathryn Ailsa Rose; Mingguang He
1 0 k L u x , 3 H o u r s P e r D a y
Credit Short-sightedness is reaching epidemic proportions. Some scientists think they have found a reason why.
Elie Dolgin, Nature 18 March 2015
P h y s i c a l E r g o n o m i c s :
W o r k p l a c e S o l u t i o n s
Credit: Fast Company Credit: Salo LLC, image from npr.org

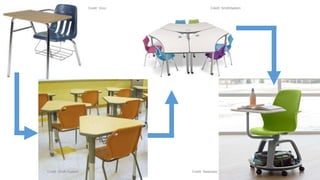

Credit: Steelcase
Credit: Virco
Credit: Smith System
Credit: SmithSystem
Standing all day
is no better than
sitting all day
P h y s i c a l
E r g o n o m i c s
Credit: Fast Company
Credit: Janet Hostetter, AP; nbcnews.com
Credit: dailymotion.com
International Journal of Environmental
Research and Public Health, come from a
group of 374 elementary school students in
College Station, Texas.
It’s not about either sitting or standing all the
time, but instead about keeping moving.
P h y s i c a l E r g o n o m i c s
Credit: Texas A&M Health Science Center
READING PROFICIENCY
UP 83%
Fastcoexist.com
C a s e S t u d y : R E A D a n d R I D E
Credit: Muck Girl

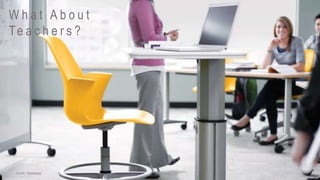

W h a t A b o u t
Te a c h e r s ?
Credit: Steelcase

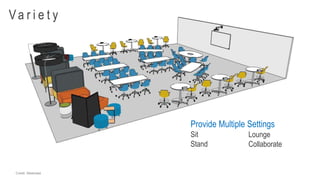

Provide Multiple Settings
Sit
Stand
Lounge
Collaborate
Credit: www.imgarcade.comCredit: Steelcase
Va r i e t y
Until relatively recently in human history, people had constant
interaction with living things and their natural surroundings.
Biophilia is an emerging field that recognizes our psychological
need to be around life and life-like processes. Interior environments
that are cold, sterile and devoid of life diminish our experience,
mood and happiness and can even inhibit recovery time.
This feature recognizes the importance of creating an interior
environment that nurtures the innate human-nature connection. As
modeled after the Living Building Challenge, the biophilia
requirements involve conducting historical, cultural, ecological and
climatic studies to inform biophilic elements and creating a biophilic
framework that tracks biophilia at each design phase of the project.
8 8 B i o p h i l i a I - Q u a l i t a t i v e

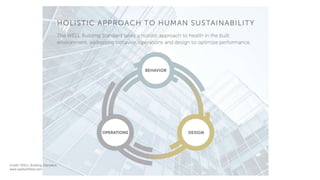

Credit: WELL Building Standard, www.wellcertified.com
Nurturing human-nature connections
Tracking biophilia at each stage of design
Incorporating natural elements, natural patterns,
and interaction with nature
PART 1: NATURE INCORPORATION
A biophilia plan is developed that includes a description of how the project
incorporates nature through the following:
a. Environmental elements.
b. Lighting.
c. Space layout.
PART 2: PATTERN INCORPORATION
A biophilia plan is developed that includes a description of how the project
incorporates the following:
a. Nature's patterns throughout the design.
PART 3: NATURE INTERACTION
A biophilia plan is developed that provides sufficient opportunities for human-
nature interactions:
a. Within the building.
b. Within the project boundary, external to the building.
8 8 B i o p h i l i a I - Q u a l i t a t i v e
Credit: WELL Building Standard, www.wellcertified.com
http://www3.epa.gov/air/basic.html
http://www.ncbi.nlm.nih.gov/pmc/articles/PMC2924288/ and http://www.terrapinbrightgreen.com/report/14-patterns/

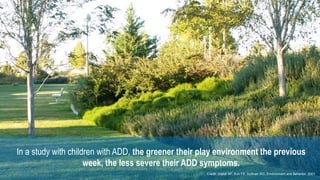

In a study with children with ADD, the greener their play environment the previous
week, the less severe their ADD symptoms.
Credit: Taylor AF, Kuo FE, Sullivan WC, Environment and Behavior, 2001
The more a person visits urban open green space, the less likely they are
to report a stress-related illness.
Credit: Diana Robinson, Flickr
https://cityeu.files.wordpress.com/201
0/04/c2a9daniel-casas-valle-013b.jpg
Credit: Grahn P, Stigsdotter UA, Social Science Medicine, 2003
Students with an all natural view scored better on 3 of 4 cognitive tests than
students with other views combined (mostly natural, mostly built, and all built).
Credit: Grahn P, Stigsdotter UA, Social Science Medicine, 2003
15% higher level of well-being
6% more productive
15% more creative overall
P a t t e r n I n c o r p o r a t i o n
Mercury – Dekker/Perich/Sabatini
Human Spaces – Global Research into Biophillic Design

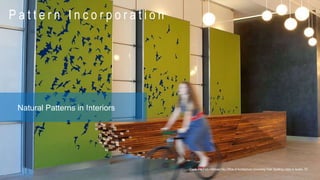

P a t t e r n I n c o r p o r a t i o n
Natural Patterns in Interiors
Credit: Filz Felt + Michael Hsu Office of Architecture (University Park: Building Lobby in Austin, TX

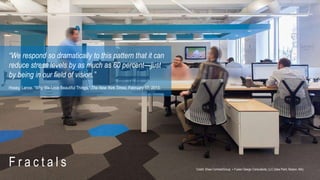

“We respond so dramatically to this pattern that it can
reduce stress levels by as much as 60 percent—just
by being in our field of vision.”
Hosey, Lance. “Why We Love Beautiful Things,” The New York Times, February 17, 2013.
F r a c t a l s Credit: Shaw ContractGroup + Fusion Design Consultants, LLC (Idea Paint, Boston, MA)
Stochastic Random Non-rhythmic
randomly determined; having a random
probability distribution or pattern that may be
analyzed statistically but may not be predicted
precisely

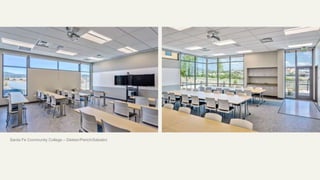

Santa Fe Community College – Dekker/Perich/Sabatini
Del Norte HS – Dekker/Perich/Sabatini

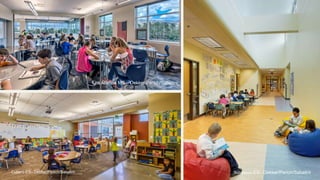

Sundance ES– Dekker/Perich/SabatiniCubero ES– Dekker/Perich/Sabatini
Los Alamos MS – Dekker/Perich/Sabatini
Tree-dappled Cloud-filtered Water-reflected
Momentary Distraction =
Restorative

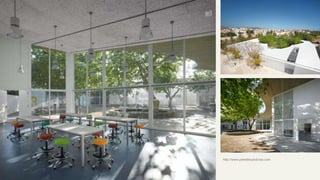

http://www.paredespedrosa.com

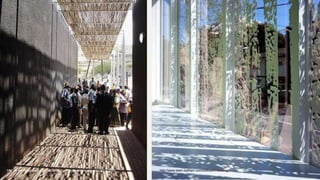

http://www.designboom.com/architecture/saota-mankgaile-primary-school/ http://www.klein-dytham.com/billboard-building

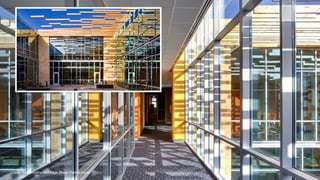

Credit: Page Southerland Page, Photo: Patrick Coulie

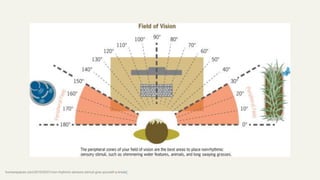

humanspaces.com/2015/05/21/non-rhythmic-sensory-stimuli-give-yourself-a-break/
Create opportunities for human-nature connections, including
seeing, hearing and physically experiencing wind, rain, sun
and shade, and the distractions of the natural world.
Credit: Rodney Campbell, Flickr
B i o p h i l i a
C o n s i d e r t h e l i n k a g e s
Promote wellness and health
Encourage indoor and outdoor
activity
Introduce circadian lighting
Reduce or eliminate pesticides
Support visual and physical
ergonomics
Restore connections to nature
www.dpsdesign.org/blog

More Related Content

What's hot

24 waste2
24 waste224 waste2
24 waste2
dompiazza

Chapter 20.1: People and Their Environments
Chapter 20.1: People and Their EnvironmentsChapter 20.1: People and Their Environments
Chapter 20.1: People and Their Environments
Korrnell Academy: L Class Grade 8 Science

Landscaping works - from decorative elements to sustain resilient Eco-balance...
Landscaping works - from decorative elements to sustain resilient Eco-balance...Landscaping works - from decorative elements to sustain resilient Eco-balance...
Landscaping works - from decorative elements to sustain resilient Eco-balance...
Prof. Dr.Abdelrahman Hbrc

Human and environment interactions
Human and environment interactionsHuman and environment interactions
Human and environment interactions
James Simpson

Man & natural environment
Man & natural environmentMan & natural environment
Man & natural environment
Mudråå Bhågåt

Man and Environment
Man and EnvironmentMan and Environment
Man and Environment
Sukkur IBA

Chapter 20.3: Impacts on Water
Chapter 20.3: Impacts on WaterChapter 20.3: Impacts on Water
Chapter 20.3: Impacts on Water
Korrnell Academy: L Class Grade 8 Science

Manual
ManualManual
Manual
JOHN BONALES

L02 ecosystem function and structure
L02 ecosystem function and structureL02 ecosystem function and structure
L02 ecosystem function and structure
YohansEjigu

EFFECT OF WASTE SITE ON PROPERTY VALUE final
EFFECT OF WASTE SITE ON PROPERTY VALUE finalEFFECT OF WASTE SITE ON PROPERTY VALUE final
EFFECT OF WASTE SITE ON PROPERTY VALUE final
ANIFAT SALAUDEEN

Environmental Movement
Environmental MovementEnvironmental Movement
Environmental Movement
barleyb13

Sustainability Merit Badge for Boy Scouts
Sustainability Merit Badge for Boy ScoutsSustainability Merit Badge for Boy Scouts
Sustainability Merit Badge for Boy Scouts
Joel Hebdon, PG, MBA, PMP

Man or Human environment interaction
Man or Human environment interactionMan or Human environment interaction
Man or Human environment interaction
Atif Nauman

Waste-Ecology
Waste-EcologyWaste-Ecology
Waste-Ecology
Fritz John Saloma

Environmental Literacy for Administrators and Educators - Environmental Issues
Environmental Literacy for Administrators and Educators - Environmental IssuesEnvironmental Literacy for Administrators and Educators - Environmental Issues
Environmental Literacy for Administrators and Educators - Environmental Issues
partha sharma

Parsons Deister AWWA - Sustainable Water Management Conference Presentation
Parsons Deister AWWA - Sustainable Water Management Conference PresentationParsons Deister AWWA - Sustainable Water Management Conference Presentation
Parsons Deister AWWA - Sustainable Water Management Conference Presentation
Ane Deister

Sustainable Cities: Solid Waste Management
Sustainable Cities: Solid Waste ManagementSustainable Cities: Solid Waste Management
Sustainable Cities: Solid Waste Management
Anuradha Mukherji


What's hot (17)

24 waste2
24 waste224 waste2
24 waste2

Chapter 20.1: People and Their Environments
Chapter 20.1: People and Their EnvironmentsChapter 20.1: People and Their Environments
Chapter 20.1: People and Their Environments

Landscaping works - from decorative elements to sustain resilient Eco-balance...
Landscaping works - from decorative elements to sustain resilient Eco-balance...Landscaping works - from decorative elements to sustain resilient Eco-balance...
Landscaping works - from decorative elements to sustain resilient Eco-balance...

Human and environment interactions
Human and environment interactionsHuman and environment interactions
Human and environment interactions

Man & natural environment
Man & natural environmentMan & natural environment
Man & natural environment

Man and Environment
Man and EnvironmentMan and Environment
Man and Environment

Chapter 20.3: Impacts on Water
Chapter 20.3: Impacts on WaterChapter 20.3: Impacts on Water
Chapter 20.3: Impacts on Water

Manual
ManualManual
Manual

L02 ecosystem function and structure
L02 ecosystem function and structureL02 ecosystem function and structure
L02 ecosystem function and structure

EFFECT OF WASTE SITE ON PROPERTY VALUE final
EFFECT OF WASTE SITE ON PROPERTY VALUE finalEFFECT OF WASTE SITE ON PROPERTY VALUE final
EFFECT OF WASTE SITE ON PROPERTY VALUE final

Environmental Movement
Environmental MovementEnvironmental Movement
Environmental Movement

Sustainability Merit Badge for Boy Scouts
Sustainability Merit Badge for Boy ScoutsSustainability Merit Badge for Boy Scouts
Sustainability Merit Badge for Boy Scouts

Man or Human environment interaction
Man or Human environment interactionMan or Human environment interaction
Man or Human environment interaction

Waste-Ecology
Waste-EcologyWaste-Ecology
Waste-Ecology

Environmental Literacy for Administrators and Educators - Environmental Issues
Environmental Literacy for Administrators and Educators - Environmental IssuesEnvironmental Literacy for Administrators and Educators - Environmental Issues
Environmental Literacy for Administrators and Educators - Environmental Issues

Parsons Deister AWWA - Sustainable Water Management Conference Presentation
Parsons Deister AWWA - Sustainable Water Management Conference PresentationParsons Deister AWWA - Sustainable Water Management Conference Presentation
Parsons Deister AWWA - Sustainable Water Management Conference Presentation

Sustainable Cities: Solid Waste Management
Sustainable Cities: Solid Waste ManagementSustainable Cities: Solid Waste Management
Sustainable Cities: Solid Waste Management


Viewers also liked

IllusionSolutions_PhysicalDemo
IllusionSolutions_PhysicalDemoIllusionSolutions_PhysicalDemo
IllusionSolutions_PhysicalDemo
Marc Antel

Lezione 10: Web Service in Java (2)
Lezione 10: Web Service in Java (2)Lezione 10: Web Service in Java (2)
Lezione 10: Web Service in Java (2)
Andrea Della Corte

Examen
ExamenExamen
State of HighEdWeb: President's Address 2016
State of HighEdWeb: President's Address 2016State of HighEdWeb: President's Address 2016
State of HighEdWeb: President's Address 2016
Colleen Brennan-Barry

Lezione 5: Socket SSL/ TLS
Lezione 5: Socket SSL/ TLSLezione 5: Socket SSL/ TLS
Lezione 5: Socket SSL/ TLS
Andrea Della Corte

Lezione 7: Design Pattern Comportamentali
Lezione 7: Design Pattern ComportamentaliLezione 7: Design Pattern Comportamentali
Lezione 7: Design Pattern Comportamentali
Andrea Della Corte

Lezione 5: Design Pattern Creazionali
Lezione 5: Design Pattern CreazionaliLezione 5: Design Pattern Creazionali
Lezione 5: Design Pattern Creazionali
Andrea Della Corte

Retos y amenazas de la seguridad nacional en el ciberespacio
Retos y amenazas de la seguridad nacional en el ciberespacioRetos y amenazas de la seguridad nacional en el ciberespacio
Retos y amenazas de la seguridad nacional en el ciberespacio
Pilar Santamaria

Planes de auditoria y buenas practicas para entornos cloud computing y bring ...
Planes de auditoria y buenas practicas para entornos cloud computing y bring ...Planes de auditoria y buenas practicas para entornos cloud computing y bring ...
Planes de auditoria y buenas practicas para entornos cloud computing y bring ...
Pilar Santamaria

Lezione 2: I thread
Lezione 2: I threadLezione 2: I thread
Lezione 2: I thread
Andrea Della Corte

Lezione 9: Web Service in Java
Lezione 9: Web Service in JavaLezione 9: Web Service in Java
Lezione 9: Web Service in Java
Andrea Della Corte

Lezione 6a: Design Pattern Strutturali
Lezione 6a: Design Pattern StrutturaliLezione 6a: Design Pattern Strutturali
Lezione 6a: Design Pattern Strutturali
Andrea Della Corte

Lezione 8: Introduzione ai Web Service
Lezione 8: Introduzione ai Web ServiceLezione 8: Introduzione ai Web Service
Lezione 8: Introduzione ai Web Service
Andrea Della Corte

Lezione 6: Remote Method Invocation
Lezione 6: Remote Method InvocationLezione 6: Remote Method Invocation
Lezione 6: Remote Method Invocation
Andrea Della Corte

Cruise chapter 6
Cruise chapter 6Cruise chapter 6
Cruise chapter 6
Mauikho09

Caracteristicas web
Caracteristicas webCaracteristicas web
Caracteristicas web
Elena Hernández Mora

8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES
8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES
8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES
Ravindragouda Patil

13-JIFA Vol 43 _ 11-25
13-JIFA Vol 43 _ 11-2513-JIFA Vol 43 _ 11-25
13-JIFA Vol 43 _ 11-25
Ravindragouda Patil

11-IJSN-VOL7(3) 541-549-September
11-IJSN-VOL7(3) 541-549-September11-IJSN-VOL7(3) 541-549-September
11-IJSN-VOL7(3) 541-549-September
Ravindragouda Patil


Viewers also liked (19)

IllusionSolutions_PhysicalDemo
IllusionSolutions_PhysicalDemoIllusionSolutions_PhysicalDemo
IllusionSolutions_PhysicalDemo

Lezione 10: Web Service in Java (2)
Lezione 10: Web Service in Java (2)Lezione 10: Web Service in Java (2)
Lezione 10: Web Service in Java (2)

Examen
ExamenExamen
Examen

State of HighEdWeb: President's Address 2016
State of HighEdWeb: President's Address 2016State of HighEdWeb: President's Address 2016
State of HighEdWeb: President's Address 2016

Lezione 5: Socket SSL/ TLS
Lezione 5: Socket SSL/ TLSLezione 5: Socket SSL/ TLS
Lezione 5: Socket SSL/ TLS

Lezione 7: Design Pattern Comportamentali
Lezione 7: Design Pattern ComportamentaliLezione 7: Design Pattern Comportamentali
Lezione 7: Design Pattern Comportamentali

Lezione 5: Design Pattern Creazionali
Lezione 5: Design Pattern CreazionaliLezione 5: Design Pattern Creazionali
Lezione 5: Design Pattern Creazionali

Retos y amenazas de la seguridad nacional en el ciberespacio
Retos y amenazas de la seguridad nacional en el ciberespacioRetos y amenazas de la seguridad nacional en el ciberespacio
Retos y amenazas de la seguridad nacional en el ciberespacio

Planes de auditoria y buenas practicas para entornos cloud computing y bring ...
Planes de auditoria y buenas practicas para entornos cloud computing y bring ...Planes de auditoria y buenas practicas para entornos cloud computing y bring ...
Planes de auditoria y buenas practicas para entornos cloud computing y bring ...

Lezione 2: I thread
Lezione 2: I threadLezione 2: I thread
Lezione 2: I thread

Lezione 9: Web Service in Java
Lezione 9: Web Service in JavaLezione 9: Web Service in Java
Lezione 9: Web Service in Java

Lezione 6a: Design Pattern Strutturali
Lezione 6a: Design Pattern StrutturaliLezione 6a: Design Pattern Strutturali
Lezione 6a: Design Pattern Strutturali

Lezione 8: Introduzione ai Web Service
Lezione 8: Introduzione ai Web ServiceLezione 8: Introduzione ai Web Service
Lezione 8: Introduzione ai Web Service

Lezione 6: Remote Method Invocation
Lezione 6: Remote Method InvocationLezione 6: Remote Method Invocation
Lezione 6: Remote Method Invocation

Cruise chapter 6
Cruise chapter 6Cruise chapter 6
Cruise chapter 6

Caracteristicas web
Caracteristicas webCaracteristicas web
Caracteristicas web

8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES
8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES
8- IJRANSS-ANTIMICROBIAL POTENTIAL OF MARINE ACTINOMYCETES

13-JIFA Vol 43 _ 11-25
13-JIFA Vol 43 _ 11-2513-JIFA Vol 43 _ 11-25
13-JIFA Vol 43 _ 11-25

11-IJSN-VOL7(3) 541-549-September
11-IJSN-VOL7(3) 541-549-September11-IJSN-VOL7(3) 541-549-September
11-IJSN-VOL7(3) 541-549-September


Similar to CEFPI_compiled_JW_final v2

Chapt25 lecture
Chapt25 lectureChapt25 lecture
Chapt25 lecture
lschmidt1170

Creative Solutions for Today's Educational Facilities' Needs - Kobet
Creative Solutions for Today's Educational Facilities' Needs - KobetCreative Solutions for Today's Educational Facilities' Needs - Kobet
Creative Solutions for Today's Educational Facilities' Needs - Kobet
Meg Thompson

Sustainability Merit Badge
Sustainability Merit BadgeSustainability Merit Badge
Sustainability Merit Badge
LeighBehrens

Energy savings, efficient use, and alternative technologies
Energy savings, efficient use, and alternative technologiesEnergy savings, efficient use, and alternative technologies
Energy savings, efficient use, and alternative technologies
Little Daisy

Eating Locally and Food Safety Assignment.pdf
Eating Locally and Food Safety Assignment.pdfEating Locally and Food Safety Assignment.pdf
Eating Locally and Food Safety Assignment.pdf
sdfghj21

Health 9 Week 1.pptx
Health 9 Week 1.pptxHealth 9 Week 1.pptx
Health 9 Week 1.pptx
RonalaineIrlandez

ACH 122 Lecture 02 (Sustainability Leed)
ACH 122 Lecture 02 (Sustainability Leed)ACH 122 Lecture 02 (Sustainability Leed)
ACH 122 Lecture 02 (Sustainability Leed)
Anne Arundel Community College

AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...
AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...
AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...
American Astronautical Society

Ensuring healthy enviroments
Ensuring healthy enviromentsEnsuring healthy enviroments
Ensuring healthy enviroments
Little Daisy

ENV 100TEXceptional Education/snaptutorial.COM
ENV 100TEXceptional Education/snaptutorial.COMENV 100TEXceptional Education/snaptutorial.COM
ENV 100TEXceptional Education/snaptutorial.COM
McdonaldRyan12

Teaching Sustainability and Social Justice: A Resource for High School Teache...
Teaching Sustainability and Social Justice: A Resource for High School Teache...Teaching Sustainability and Social Justice: A Resource for High School Teache...
Teaching Sustainability and Social Justice: A Resource for High School Teache...
John W. Eppensteiner III

Deb Rowe Presentation Inservice 08
Deb Rowe Presentation Inservice 08Deb Rowe Presentation Inservice 08
Deb Rowe Presentation Inservice 08
MVLibrary

SSC2011_Rebecca Morley PPT
SSC2011_Rebecca Morley PPTSSC2011_Rebecca Morley PPT
MR Organics EPAUpdate
MR Organics EPAUpdateMR Organics EPAUpdate
MR Organics EPAUpdate
massrecycle2012

ENV 100T Enhance teaching - snaptutorial.com
ENV 100T  Enhance teaching - snaptutorial.comENV 100T  Enhance teaching - snaptutorial.com
ENV 100T Enhance teaching - snaptutorial.com
DavisMurphyA74

Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...
Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...
Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...
University of Arizona Research, Discovery & Innovation

ENV 100 PAPER Education Begins--env100paper.com
ENV 100 PAPER Education Begins--env100paper.comENV 100 PAPER Education Begins--env100paper.com
ENV 100 PAPER Education Begins--env100paper.com
agathachristie239

ENV 100 PAPER Educational Specialist--env100paper.com
ENV 100 PAPER Educational Specialist--env100paper.comENV 100 PAPER Educational Specialist--env100paper.com
ENV 100 PAPER Educational Specialist--env100paper.com
agathachristie154

Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...
Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...
Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...
CCCS

ISCN 2016: Members Only Summit
ISCN 2016: Members Only SummitISCN 2016: Members Only Summit
ISCN 2016: Members Only Summit
ISCN_Secretariat


Similar to CEFPI_compiled_JW_final v2 (20)

Chapt25 lecture
Chapt25 lectureChapt25 lecture
Chapt25 lecture

Creative Solutions for Today's Educational Facilities' Needs - Kobet
Creative Solutions for Today's Educational Facilities' Needs - KobetCreative Solutions for Today's Educational Facilities' Needs - Kobet
Creative Solutions for Today's Educational Facilities' Needs - Kobet

Sustainability Merit Badge
Sustainability Merit BadgeSustainability Merit Badge
Sustainability Merit Badge

Energy savings, efficient use, and alternative technologies
Energy savings, efficient use, and alternative technologiesEnergy savings, efficient use, and alternative technologies
Energy savings, efficient use, and alternative technologies

Eating Locally and Food Safety Assignment.pdf
Eating Locally and Food Safety Assignment.pdfEating Locally and Food Safety Assignment.pdf
Eating Locally and Food Safety Assignment.pdf

Health 9 Week 1.pptx
Health 9 Week 1.pptxHealth 9 Week 1.pptx
Health 9 Week 1.pptx

ACH 122 Lecture 02 (Sustainability Leed)
ACH 122 Lecture 02 (Sustainability Leed)ACH 122 Lecture 02 (Sustainability Leed)
ACH 122 Lecture 02 (Sustainability Leed)

AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...
AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...
AAS Imagine '09: Sustainable Development Powered by Social Innovation and Spa...

Ensuring healthy enviroments
Ensuring healthy enviromentsEnsuring healthy enviroments
Ensuring healthy enviroments

ENV 100TEXceptional Education/snaptutorial.COM
ENV 100TEXceptional Education/snaptutorial.COMENV 100TEXceptional Education/snaptutorial.COM
ENV 100TEXceptional Education/snaptutorial.COM

Teaching Sustainability and Social Justice: A Resource for High School Teache...
Teaching Sustainability and Social Justice: A Resource for High School Teache...Teaching Sustainability and Social Justice: A Resource for High School Teache...
Teaching Sustainability and Social Justice: A Resource for High School Teache...

Deb Rowe Presentation Inservice 08
Deb Rowe Presentation Inservice 08Deb Rowe Presentation Inservice 08
Deb Rowe Presentation Inservice 08

SSC2011_Rebecca Morley PPT
SSC2011_Rebecca Morley PPTSSC2011_Rebecca Morley PPT
SSC2011_Rebecca Morley PPT

MR Organics EPAUpdate
MR Organics EPAUpdateMR Organics EPAUpdate
MR Organics EPAUpdate

ENV 100T Enhance teaching - snaptutorial.com
ENV 100T  Enhance teaching - snaptutorial.comENV 100T  Enhance teaching - snaptutorial.com
ENV 100T Enhance teaching - snaptutorial.com

Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...
Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...
Arizona, the living laboratory: How Food, Energy & Water converge in the Sout...

ENV 100 PAPER Education Begins--env100paper.com
ENV 100 PAPER Education Begins--env100paper.comENV 100 PAPER Education Begins--env100paper.com
ENV 100 PAPER Education Begins--env100paper.com

ENV 100 PAPER Educational Specialist--env100paper.com
ENV 100 PAPER Educational Specialist--env100paper.comENV 100 PAPER Educational Specialist--env100paper.com
ENV 100 PAPER Educational Specialist--env100paper.com

Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...
Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...
Kamyar Vaghar, ¨Construcción sostenible 2.0¨ Los nuevos indicadores de salud...

ISCN 2016: Members Only Summit
ISCN 2016: Members Only SummitISCN 2016: Members Only Summit
ISCN 2016: Members Only Summit


CEFPI_compiled_JW_final v2

  • 2. Credit: http://centerforactivedesign.org/data/ 2005 Physical inactivity and obesity are recognized as major risk factors for chronic disease. H e a l t h R i s k s o f Ye s t e r d a y, o f To d a y 1880 In the 1800s, the majority of deaths were caused by infectious diseases including TB, Cholera, and Yellow Fever due to overcrowded cities with inadequate public health systems.
  • 3. Limited Control 25% School HabitsKids are Different
  • 4.
  • 5. How can We Create an Environment that Supports Health and Wellbeing? How can Design and Operational Changes Improve Student and Staff Health and Performance?
  • 6. Julie Walleisa AIA, LEED AP, CEFP Architect Specializing in Education Design Mimi Burns ASLA, LEED AP Landscape Architect & Planner Andrea Hanson AIA Interior Designer & Architect
  • 7. Credit: WELL Building Standard, www.wellcertified.com
  • 8. Credit: WELL Building Standard, www.wellcertified.com
  • 9. WELL certified spaces are intended to improve occupant: Nutrition Fitness Mood Sleep patterns Performance Credit: WELL Building Standard, www.wellcertified.com
  • 10. Each Feature of the WELL Building Standard is ascribed to the human body systems that are intended to benefit from its implementation. This enables project teams to classify the intended benefits of each WELL Feature and develop a comprehensive set of strategies. While there are different ways to group the body’s various systems, the WELL Building Standard considers each Feature’s impact on the following categories of body systems: Cardiovascular System The cardiovascular system consists of the heart, vessels and blood. Its primary function is to supply nutrients and remove waste from the tissues of the body. However, stress, unhealthy diets and lifestyle choices, and exposure to environmental pollutants can negatively impact cardiovascular health and lead to the development of chronic conditions that reduce quality of life. The WELL Building Standard addresses factors that are vital to maintaining cardiovascular health; stress, nutrition, fitness and environmental pollutants. Comfort Features are designed to mitigate stress and help limit harmful hormone levels in the body. Healthy diets and active lifestyles control body weight and strengthen the muscles of the heart. Elimination of environmental pollutants in air, such as tobacco and VOCs – which directly harm the heart and vessels – also contribute towards good cardiovascular health. W e l l n e s s a n d B o d y S y s t e m s Credit: WELL Building Standard, www.wellcertified.com
  • 11. Credit: WELL Building Standard, www.wellcertified.com
  • 12. 10 | Pesticide Management 54 | Circadian Lighting Design 64 | Interior Fitness Circulation 67 | Exterior Active Design / 68 Physical Activity Space / 69 Active Transportation Support 73 | Ergonomics: Visual and Physical 88 | Biophilia: Qualitative
  • 13. Some pesticides and herbicides are known carcinogens, while others have a role in endocrine disruption and affect the nervous system. These chemicals contaminate rivers and groundwater through rainwater runoff and eventually make their way back up the food chain to people. This feature requires the creation of pest management systems that reduce pesticide and herbicide use and eliminate highly toxic chemicals. Most pest management systems do not prohibit the application of harmful chemicals, so this feature further requires that only approved products be used. 1 0 P e s t i c i d e M a n a g e m e n t Credit: WELL Building Standard, www.wellcertified.com
  • 14. Reduce Use of Pesticides and Herbicides Eliminate Use of Highly Toxic Chemicals Create an Integrated Pest Management Plan
  • 15. PART 1: PESTICIDE USE The following conditions are required concerning all pesticides and herbicides used on outdoor plants: a) Pesticide and herbicide use is minimized by creating a use plan based on Chapter 3 of the San Francisco Environment Code Integrated Pest Management (IPM) program. b) Only pesticides with a hazard tier ranking of 3 (least hazardous) as per The City of San Francisco Department of the Environment's (SFE) Reduced-Risk Pesticide List are used. Refer to Appendix Table A2 for more details. 1 0 P e s t i c i d e M a n a g e m e n t Credit: WELL Building Standard, www.wellcertified.com
  • 16. Glyphosate (The Chemical Found in Roundup) Is the Most Widely Used Herbicide in the US
  • 17. The World Health Organization just Raised the Carcinogenic Status of Glyphosate Credit: http://www.nationofchange.org/2015/wp-content/uploads/RoundUpSafety.jpg
  • 18. R o u n d - U p Glyphosate is regularly used in agriculture, public parks, school grounds and playing fields across the US and globally http://2.bp.blogspot.com/_mA- s9buno68/TAffNc9L7FI/AAAAAAAAA74/MYOcH 9gYCdc/s1600/Men+spraying+chemicals+withou t+masks.JPG http://www.motherjones.com/files/images/777.jpg
  • 19. Has a 60-day life… Do you know when they last sprayed your school? https://d3n8a8pro7vhmx.cloudf ront.net/yesmaam/pages/1053/ attachments/original/14211878 31/Spraying_on_streets.JPG?1 421187831 R o u n d - U p
  • 20. I n t e g r a t e d P e s t M a n a g e m e n t P l a n ( I P M )
  • 21. • 80% decrease in pesticide use • 88% reduction in use of the herbicide glyphosate (ingredient in Roundup) • Prohibited use of pre-emergent herbicides W ELL’s Model IPM Plan: C i t y o f S a n F r a n c i s c o
  • 22. W h a t C a n S c h o o l s D o ?
  • 23. In New Jersey, all public, private and charter schools are required to adopt an IPM Policy that includes a school-specific IPM Plan.
  • 24. PEST MANAGEMENT ACTIONS Hand pull weeds Monitor weekly Hand pull weeds prior to flowering Monitor weekly Mow or scythe to remove flowers Consider increasing desirable plants to increase good coverage Hand pull weeds prior to flowering Monitor weekly Mow or scythe to remove flowers Consider increasing desirable plants to increase good coverage Consider solarization of soil and replanting with competitive plants Last resort: spot use of chemicals THRESHOLDS/OBSERVATIONS Level 1: Presence of identifiable weed Level 2: Flowering weeds starting or there is competition with more than 10% of intentional landscape Level 3: Weed population is outcompeting intentional landscape or more than 50% of intentional landscape I P M f o r S c h o o l s | H e r b i c i d e R e d u c t i o n
  • 25. Landscape Renovation Sandia Prep School Albuquerque, NM before after H e r b i c i d e R e d u c t i o n
  • 26. HERBICIDE REDUCTION ACTIONS • Replace turf grass with native grass and wildflower blend • Educate public about the change • Hand pull weeds (intensively for 1 year, less for 2) • Monitor weed growth weekly • Mow or scythe to remove flowers • Last resort: spot use of chemicals A l b u q u e r q u e , N M RESULTS • Eliminated use of herbicide in landscape area • Reduced water use by 50% • Reduced labor after first year: periodic weeding; mowing/clean up 1-2 times a year • Landscape is an education area C a s e S t u d y | S a n d i a P r e p a r a t o r y S c h o o l
  • 27. IPM’s are helping cities and institutions reduce use of pesticides, herbicides, and other toxic chemicals. School operation and maintenance practices may need to change in order to create healthier landscapes. The design of school landscapes may need to change in order to facilitate implementation of IPM’s and address annual budget limitations for operation and maintenance.
  • 28. This feature aims to provide lighting conditions that reinforce the natural patterns of the human circadian cycle. The Equivalent Melanopic Lux (EML) is a measurement of light’s effects on the circadian cycle. EML can be used to determine how interior lighting conditions may be optimized to support the circadian function. See Appendices L1 and L2 for more information on how to calculate the EML of individual lamps and larger spaces. Exposure to light regulates the circadian rhythm, which determines sleep and wake cycles. To promote alertness and activity, the human circadian cycle is most sensitive to lights of high frequency and intensity. Conversely, lights of low frequency and intensity signal the circadian rhythm to decrease energy and prepare for rest. 5 4 C i r c a d i a n L i g h t i n g D e s i g n Credit: WELL Building Standard, www.wellcertified.com
  • 29. Introduce Artificial and Natural Lighting to More Accurately Reflect the Way Light Occurs in Nature to Reinforce our Circadian Rhythms Improve Student Attention and Performance
  • 30. PART 1: MELANOPIC LIGHT INTENSITY IN WORK AREAS Light models (which may incorporate daylight) show that the following conditions are met for at least 4 hours per day for every day of the year: a) At least 250 equivalent melanopic lux is present within at least 75% of workstations PART 4: MELANOPIC LIGHT INTENSITY IN LEARNING AREAS At least one of the following requirements is met: a) Early education, K-12, and adult education for students under 25 years of age: Light (which may incorporate daylight) of at least 125 equivalent melanopic lux is present at 75% or more of desks for at least 4 hours per day for every day of the year. b) Ambient lights provide maintained illuminance of melanopic lux greater than or equal to the lux recommendations following the age group category most appropriate for the population serviced by the school. 5 4 C i r c a d i a n L i g h t i n g D e s i g n Credit: WELL Building Standard, www.wellcertified.com
  • 31. • Visual Performance • Visual Comfort T r a d i t i o n a l V i e w o f L i g h t i n g • Appreciation of Space • Energy Conservation
  • 32. W h a t D o e s C i r c a d i a n L i g h t i n g L o o k L i k e ?
  • 33. An entrained circadian system is aligned with the natural light/dark cycle of the solar day. USAI Lighting Circadian Rhythm Lighting, March 16,2015 Credit: Joseph M. Cohen, Self Hacked
  • 34. • Increase alertness • Improve reaction time • Reduce lapse of attention L i g h t a s a R e g u l a t o r o f P h y s i o l o g y & B e h a v i o r Credit: Measuring and using light in the melanopsin age Trends in Neurosciences January 2014, Vol. 37, No. 1 Image Credit: Circadian Rhythm; Vanda Pharmaceuticals, Inc. “Non-24 A Circadian Rhythm Disorder” https://www.non-24pro.com/physiology-of-non-24.php
  • 35. L o n g Te r m H e a l t h E f f e c t s Credit: Visually, shared by Dominic Reigns
  • 36. • BLUE LIGHT During the Day Boosts Attention… • But at Night? RED LIGHT has the least power to shift circadian rhythm and suppress melatonin. • Avoid looking at bright screens beginning two to three hours before bed. Credit: Lucelia Ribeiro, Flickr :Credit http://www.alamy.com/stock-photo-an-8-year-old-boy-playing-a-computer-game-on-his-apple-ipad-in-his-56989051.html
  • 37. Kongsgardmoen - School in Norway Credit: LUX Review. “Norwegian school pioneers circadian lighting” http://luxreview.com/article/2015/09/norwegian-school-pioneers-circadian-lighting
  • 38. Cool White Light for Concentration Work Warm White Light for Relaxation Credit: Nils Petter Dale
  • 39. In many ways, light can be considered a drug, having the potential for both beneficial and deleterious effects Measuring and Using Light in the Melanopsin Age Trends in Neurosciences January 2014, Vol. 37, No. 1 We simply are not ready yet to prescribe lighting for human circadian benefit. Lacking protocols for how much light, for how long, of what spectrum, prior light history, temperature, and other factors, installing lighting systems for any human benefit related to the human circadian system is an experiment right now. Jim Benya, response to CIE Statement on Non-Visual Effects of Light; RECOMMENDING PROPER LIGHT AT THE PROPER TIME", the Commission Internationale de l´Eclairage (CIE) states: "The Manchester workshop (June 2015) Credit: Corbis Images
  • 40. Expose yourself to lots of bright light during the day, which will boost your ability to sleep at night, as well as your mood and alertness during daylight.” Harvard Health publications, Blue light has a dark side May 1 2012 B l u e L i g h t
  • 41. In many climates, outdoor exercise is not a viable option for much of the year. Interior pathways and stairs can provide a convenient and healthy means of active transportation utilizable year-round. To encourage greater use, these paths and stairs should be aesthetically pleasing and be connected to high-traffic routes. This feature employs prominent designs and appealing aesthetics to promote the use of stairs and walking paths and to discourage reliance on elevators. 6 4 I n t e r i o r F i t n e s s C i r c u l a t i o n Credit: WELL Building Standard, www.wellcertified.com
  • 42. Discourage Reliance on Elevators Promote Stairs and Walking Paths Year-Round, Indoor Exercise
  • 43. PART 1: STAIR ACCESSABILITY Wayfinding signage and point-of-decision prompts to encourage stair use. At least one sign per elevator bank and one per building entrance. PART 2: STAIRS PROMOTION In buildings of 4 or fewer floors, at least one staircase meets the following requirements. a) Located within 7.5 m [25 ft.] of the entrance of the building in its main orientation space or lobby. b) Placed visually before the elevators, if present, upon entering from the main entrance. c) Stair widths set at a minimum of 1.4 m [56 inches]. d) Stairs are accessible to all regular building occupants during all regular business hours. PART 3: FACILITATIVE AESTHETICS Both stairs and paths of frequent travel display elements of aesthetic appeal through the incorporation of at least 2 of the following: a) Artwork, including decorative painting. b) Music. c) Daylighting using windows or skylights of at least 1 m² [8 ft²] in size. d) View windows to the outdoors or building interior. e) Light levels of at least 20 fc [215 lux] when the stairs are in use. 6 4 I n t e r i o r F i t n e s s C i r c u l a t i o n Credit: WELL Building Standard, www.wellcertified.com
  • 44. A d u l t s
  • 45. A d u l t s
  • 48. D r i v e r S p a c e Del Norte HS – Dekker/Perich/Sabatini
  • 49. S e e & B e S e e n Montezuma-Cortez HS – Dekker/Perich/Sabatini
  • 50. P r o m i n e n t & W e l c o m i n g Chief Manuelito MS– Dekker/Perich/Sabatini Fauquier HS– VMDO Jeremiah E. Burke HS – Schwartz/Silver
  • 51. A r t w o r k https://mindshapedbox.wordpress.com/2012/03/01/design- interventions-to-promote-stair-use/
  • 52. L e a r n i n g
  • 53. I n t e r a c t i o n http://www.enlightermagazine.com/projects
  • 54. C u r i o s i t y
  • 55. Centennial HS – Dekker/Perich/Sabatini
  • 56. When activity is part of daily routine, fitness comes naturally. Integrating elements of active design into the building and site, and creating cyclist and pedestrian-friendly environments can help incentivize activity. Thoughtful urban planning considers the importance of locating popular amenities, such as restaurants, grocery stores and schools within walking distance of each other, enabling healthy habits, such as walking or cycling as active alternatives to a more sedentary mode of travel. This feature requires exterior design details and amenities that facilitate more active living. Incorporating these principles is particularly important for projects that are isolated from an urban center where automobile transportation predominates.be connected to high-traffic routes. 6 7 E x t e r i o r A c t i v e D e s i g n Credit: WELL Building Standard, www.wellcertified.com
  • 57. Buildings that contain an interior fitness space can incentivize occupants to engage in more regular exercise. Flexible fitness spaces allow for low-impact exercises like Yoga or Pilates, or more intense activities, such as high-intensity interval training or plyometrics. In addition to fitness amenities within a building, convenient access to nearby gyms and/or outdoor fitness-friendly spaces encourages participants to consistently engage in fitness- related activities. This feature requires proper space allocation or institutional arrangements to support fitness and exercise. 6 8 P h y s i c a l A c t i v i t y S p a c e s Credit: WELL Building Standard, www.wellcertified.com
  • 58. Active transportation is an effective strategy for improving fitness levels and reducing the carbon footprint. Biking and walking, in particular, are healthy, low-impact modes of transportation that can help maintain a healthy weight and cardiovascular health. Providing amenities and facilities on-site can support an occupant's ability to engage in these healthy commuting options. This feature requires that showers and bicycle storage be provided onsite or near the building entrance. 6 9 A c t i v e T r a n s p o r t a t i o n S u p p o r t Credit: WELL Building Standard, www.wellcertified.com
  • 59. Facilitate active living with a focus on outside activities Provide support facilities and connections to existing businesses and infrastructure that will encourage people to be active
  • 60. Walking Aerobic/ Endurance F a c i l i t i e s f o r F i t n e s s I n & A r o u n d S c h o o l
  • 61. Balance Flexibility Strength F a c i l i t i e s f o r F i t n e s s I n & A r o u n d S c h o o l
  • 63. Most of us are overweight (69% of all adults) It is hard to create an active lifestyle (more sedentary jobs, driving and technology) It will improve our quality of life • Improves mental wellness • Reduces risk factors • Live longer (7+ years!) - American Heart Association W h y D o e s t h i s M a t t e r ? cdn.nimbu.io/s/yba55wt/channelentries/mk8o7yf/fil es/levensverwachting.jpg
  • 64. Benches, movable tables and chairs, drinking fountains and bottle filling stations, water feature, plaza (people), gardens, public art A m e n i t i e s t h a t E n c o u r a g e A c t i v i t y -WELL Building Standard
  • 65. Walkways, trails and connections; parks, playgrounds and playing fields; work out stations; accessible areas of water; access to gyms and pools -WELL Building Standard http://bloximages.chicago2.vip.townnews.com/heraldbulletin.com/c ontent/tncms/assets/v3/editorial/4/12/41280aca-637f-596d-8f6e- 753f2464b60e/53f5808983765.image.jpg?resize=760%2C473 http://www.canberratimes.com.au/content/dam/images/1/m/5/w/g/b/ima ge.related.articleLeadwide.620x349.1m5d2w.png/1427095909495.jpg E x e r c i s e S p a c e s t h a t E n c o u r a g e A c t i v i t y
  • 66. Walkways, showers, changing facilities, lockers, secure bicycle storage, and bicycle maintenance tools -WELL Building Transportation Standard S u p p o r t F a c i l i t i e s t h a t E n c o u r a g e A c t i v e Tr a n s p o r t a t i o n Credits: Explore Minnesota, www.exploreminnesota.com/pedal-mn/articles/healthpartners-sponsored-pedalmn- tune-up-station-locations/
  • 67. Schools can facilitate student and staff activity with strategic decisions about amenities, about connectivity to existing infrastructure, and about providing facilities to support a more active lifestyle. Broadmoor ES – Dekker/Perich/Sabatini
  • 68. Overuse of the same muscles and ligaments over time can cause discomfort and strain the body, especially in occupational environments that require repetitive tasks. Under such conditions, the effects of even slight visual or physical discomfort are compounded. This feature ensures that occupants are free to adopt a variety of comfortable sitting and standing positions. 7 3 E r g o n o m i c s : V i s u a l & P h y s i c a l Credit: WELL Building Standard, www.wellcertified.com
  • 69. Reduce Eye Strain: Adjustability and Screen Time Provide Adjustable Seating Provide a Wide Variety of Postures Including Standing Alternatives
  • 70. PART 1: VISUAL ERGONOMICS To help alleviate eye and neck strain, the following requirement is met: a) All computer screens are adjustable in terms of height and distance from the user. PART 3: SEAT FLEXIBILITY Furnishings are adjustable in the following ways: a) Workstation chair height levels are adjustable b) Workstation seat depth is adjustable PART 4: STANDING SUPPORT Workstations in which employees are required to stand for extended periods of time include the following amenities: a) Recessed toe space at the base of the workstation to allow decreased reaching b) Foot rest to allow employees to alternate resting feet. c) Anti-fatigue mats or cushions. 7 3 E r g o n o m i c s : V i s u a l & P h y s i c a l Credit: WELL Building Standard, www.wellcertified.com
  • 71. E r g o n o m i c s : V i s u a l Credit: CHILDWISE Monitor 20th Anniversary Report, Connected Kids: How the internet affects children’s lives now and into the future March 2015 Credit: Journal of the American Medical Association. (formerly Archives of Optholmology) 2009 Dec; Increased prevalence of myopia in the United States between 1971-1972 and 1999-2004
  • 72. LIMIT THE AMOUNT OF TIME a child spends at the computer without a break. Encourage kids to take 20-second breaks from the computer every 20 minutes, 20 feet away to minimize the development of eye focusing problems and eye irritation. P h y s i c a l E r g o n o m i c s : 2 0 - 2 0 - 2 0 R u l e Credit: www.anthro.com
  • 73. E r g o n o m i c s : V i s u a l Credit: Investigative Ophthalmology & Visual Science April 2014, Vol.55, 1272. doi: INCREASED OUTDOOR TIME REDUCES INCIDENT MYOPIA - THE GUANGZHOU OUTDOOR ACTIVITY LONGITUDINAL STUDY Ian George Morgan; Fan Xiang; Yangfa Zeng; Jincheng Mai; Qianyun Chen; Jian Zhang; Kathryn Ailsa Rose; Mingguang He
  • 74. 1 0 k L u x , 3 H o u r s P e r D a y Credit Short-sightedness is reaching epidemic proportions. Some scientists think they have found a reason why. Elie Dolgin, Nature 18 March 2015
  • 75. P h y s i c a l E r g o n o m i c s : W o r k p l a c e S o l u t i o n s Credit: Fast Company Credit: Salo LLC, image from npr.org
  • 76. Credit: Steelcase Credit: Virco Credit: Smith System Credit: SmithSystem
  • 77. Standing all day is no better than sitting all day P h y s i c a l E r g o n o m i c s Credit: Fast Company Credit: Janet Hostetter, AP; nbcnews.com Credit: dailymotion.com
  • 78. International Journal of Environmental Research and Public Health, come from a group of 374 elementary school students in College Station, Texas. It’s not about either sitting or standing all the time, but instead about keeping moving. P h y s i c a l E r g o n o m i c s Credit: Texas A&M Health Science Center
  • 79. READING PROFICIENCY UP 83% Fastcoexist.com C a s e S t u d y : R E A D a n d R I D E Credit: Muck Girl
  • 80. W h a t A b o u t Te a c h e r s ? Credit: Steelcase
  • 81. Provide Multiple Settings Sit Stand Lounge Collaborate Credit: www.imgarcade.comCredit: Steelcase Va r i e t y
  • 82. Until relatively recently in human history, people had constant interaction with living things and their natural surroundings. Biophilia is an emerging field that recognizes our psychological need to be around life and life-like processes. Interior environments that are cold, sterile and devoid of life diminish our experience, mood and happiness and can even inhibit recovery time. This feature recognizes the importance of creating an interior environment that nurtures the innate human-nature connection. As modeled after the Living Building Challenge, the biophilia requirements involve conducting historical, cultural, ecological and climatic studies to inform biophilic elements and creating a biophilic framework that tracks biophilia at each design phase of the project. 8 8 B i o p h i l i a I - Q u a l i t a t i v e Credit: WELL Building Standard, www.wellcertified.com
  • 83. Nurturing human-nature connections Tracking biophilia at each stage of design Incorporating natural elements, natural patterns, and interaction with nature
  • 84. PART 1: NATURE INCORPORATION A biophilia plan is developed that includes a description of how the project incorporates nature through the following: a. Environmental elements. b. Lighting. c. Space layout. PART 2: PATTERN INCORPORATION A biophilia plan is developed that includes a description of how the project incorporates the following: a. Nature's patterns throughout the design. PART 3: NATURE INTERACTION A biophilia plan is developed that provides sufficient opportunities for human- nature interactions: a. Within the building. b. Within the project boundary, external to the building. 8 8 B i o p h i l i a I - Q u a l i t a t i v e Credit: WELL Building Standard, www.wellcertified.com
  • 87. In a study with children with ADD, the greener their play environment the previous week, the less severe their ADD symptoms. Credit: Taylor AF, Kuo FE, Sullivan WC, Environment and Behavior, 2001
  • 88. The more a person visits urban open green space, the less likely they are to report a stress-related illness. Credit: Diana Robinson, Flickr https://cityeu.files.wordpress.com/201 0/04/c2a9daniel-casas-valle-013b.jpg Credit: Grahn P, Stigsdotter UA, Social Science Medicine, 2003
  • 89. Students with an all natural view scored better on 3 of 4 cognitive tests than students with other views combined (mostly natural, mostly built, and all built). Credit: Grahn P, Stigsdotter UA, Social Science Medicine, 2003
  • 90. 15% higher level of well-being 6% more productive 15% more creative overall P a t t e r n I n c o r p o r a t i o n Mercury – Dekker/Perich/Sabatini Human Spaces – Global Research into Biophillic Design
  • 91. P a t t e r n I n c o r p o r a t i o n Natural Patterns in Interiors Credit: Filz Felt + Michael Hsu Office of Architecture (University Park: Building Lobby in Austin, TX
  • 92. “We respond so dramatically to this pattern that it can reduce stress levels by as much as 60 percent—just by being in our field of vision.” Hosey, Lance. “Why We Love Beautiful Things,” The New York Times, February 17, 2013. F r a c t a l s Credit: Shaw ContractGroup + Fusion Design Consultants, LLC (Idea Paint, Boston, MA)
  • 93. Stochastic Random Non-rhythmic randomly determined; having a random probability distribution or pattern that may be analyzed statistically but may not be predicted precisely
  • 94.
  • 95. Santa Fe Community College – Dekker/Perich/Sabatini
  • 96. Del Norte HS – Dekker/Perich/Sabatini
  • 97. Sundance ES– Dekker/Perich/SabatiniCubero ES– Dekker/Perich/Sabatini Los Alamos MS – Dekker/Perich/Sabatini
  • 101. Credit: Page Southerland Page, Photo: Patrick Coulie
  • 103. Create opportunities for human-nature connections, including seeing, hearing and physically experiencing wind, rain, sun and shade, and the distractions of the natural world. Credit: Rodney Campbell, Flickr B i o p h i l i a
  • 104. C o n s i d e r t h e l i n k a g e s
  • 105. Promote wellness and health Encourage indoor and outdoor activity Introduce circadian lighting Reduce or eliminate pesticides Support visual and physical ergonomics Restore connections to nature
